WARNING

CAUTION

Some parts may contain sharp edges – especially as

noted in the manual! Wear protective gloves if necessary.

Failure to follow all manufacturer’s instructions could

result in fire or explosion which could cause property

damage, personal injury or death.

Grill2Go-VA-E / 36-6047-050-200 (04-02-03)

Read and follow all safety

statements, assembly

instructions, and use and

care directions before

attempting to assemble

and cook.

Installer/assembler:

Leave these instructions

with consumer.

Consumer: Keep this

manual for future

reference.

Model Numbers 465611003 and 465621303

Owner’s Manual

Assembly, Operation,

Use and Care

2• Grill2Go

DANGER

WARNING

CAUTION

FOR YOUR SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

2. An LP tank not connected for use shall not be stored in the vicinity of this or any other

appliance.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, immediately call your gas supplier or your fire department.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

WARNING

WARNING: Be alert to the possibility of serious bodily injury if the instructions are not

followed. Be sure to read and carefully follow all of the messages.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

Safety Symbols

The symbols and boxes shown below explain what each heading means. Read and follow all

of the messages found throughout the manual.

Grill2Go • 3

LP (Liquefied Petroleum Gas)

• For Your Safety

• LP gas is highly flammable and may ignite unexpectedly when mixed with air.

Is nontoxic, odorless and colorless when produced. , LP gas has been

given an odor (similar to rotten cabbage) so that it can be smelled.

CAUTION

For residential use only. Do not use for commercial cooking.

Call Grill Service Center for Help and Parts

• 1-800-241-7548 1-800-387-6057

Installation Safety Precautions

•

• National Fuel Gas

Code, NFPA 54 / ANSI Z223.1 CAN/CGA-B149.2 Propane Installation Code

NFPA/ANSI 58.

This product is subject to patents pending in the U.S. and other countries.

If you need help or warranty parts call U.S., CAN, or send a

FAX to 1-706-576-6355. Business hours: Open 24 hours - Seven days a week.

• To order non-warranty replacement parts or accessories

call 1-800-993-2677, visit www.grilllovers.com, or send a FAX to 1-706-565-2121.

This grill is designed for use with LP (propane) gas. The regulator/valve supplied must be

used. Replacement parts must be those specified by the manufacturer.

Grill installation must conform with local codes, or in their absence with

or . Handling

and storage of LP cylinders must conform to LP Gas Code Grill is not to be

installed in or on recreational vehicles and/or boats. Keep any electrical cords and/or fuel

supply hoses away from any hot surfaces.

• This grill is safety certified for use in the United States and Canada only. Do not modify for

use in any other location. Modification will result in a safety hazard.

(grill cover, 4’ adapter hose, carrying

case)

IMPORTANT: Fill out the warranty information below.

Model Number

Serial Number (on grill)

Date Purchased

4• Grill2Go

Warranty

THERMOS GRILLS

Consumer Warranty / P.O. Box 1240

Columbus, GA 31902-1240

Thermos warrants to the original consumer-purchaser that this product shall be free from

defects in workmanship and materials under normal and reasonable use and correct

assembly (If assembled by consumer-purchaser) as follows:

(1) The aluminized top and bottom for a period of three (3) years from date of purchase;

excluding the paint finish;

(2) The burner/venturi assembly for a period of three (3) years from date of purchase;

(3) All other parts, for a period of one (1) year from date of purchase.

Thermos will, at its option, refinish or replace any product or part found to be defective

during the warranty period. Thermos will require you to return the part(s) claimed to be

defective, for its inspection, freight or postage prepaid. If you wish to obtain performance of

any obligation under this limited warranty, you should write to:

Thermos may require reasonable proof of purchase and we suggest you keep your receipt.

In the state of California only, if refinishing or replacement of the product is not commercially

practicable, the retailer selling this product or Thermos will refund the purchase price paid for

the product, less the amount directly attributable to use by the original consumer-purchaser

prior to discovery of the nonconformity. In addition, in the state of California only, you may take

the product to the retail establishment from which it was purchased or to any retail

establishment selling this product in order to obtain performance under this warranty. This

warranty does not include the cost on any inconvenience or property damage due to failure of

the product and does not cover damage due to misuse, abuse, accident, damage arising out of

transportation of the product, or damage incurred through commercial use of the product. ALL

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE

EXPRESS WARRANTY PERIODS SPECIFIED ABOVE FOR THE PARTS DESCRIBED

THEREIN. Some states do not allow limitations on how long an implied warranty lasts, so the

above limitation may not apply to you. Neither dealers nor the retail establishment selling this

product has any authority to make any warranties or to promise remedies in addition to or

inconsistent with those stated above. Thermos' maximum liability, in any event, shall not

exceed the purchase price of the product paid by the original consumer-purchaser. Some

states do not allow the exclusion or limitation of incidental or consequential damages, so the

above l imitations or exclusions may not apply to you. The warranty gives you specific legal

rights and may also have other rights which vary from state to state.

Grill2Go • 5

For Your Safety.............................................................2

Safety Symbols

LP (Liquefied Petroleum Gas) .................................................3

Grill Service Center

Installation Safety Precautions

Warranty Information

Warranty ..................................................................4

Table of Contents ...........................................................5

Parts Lists and Diagrams .................................................6–8

Assembly..............................................................9–13

Use & Care ...........................................................14–28

1 lb. Disposable Propane Cylinder ..........................................14

20 lb. Refillable Propane Cylinder ......................................15–18

Safe Use of Your Grill ....................................................19

Safety Tips .............................................................20

Lighting Instructions .................................................21–22

Cleaning and Storing .................................................23–24

Food Safety.............................................................25

Troubleshooting ...........................................................26

Table of Contents

6• Grill2Go

Parts List and Diagram – Grill Lid

Key Qty. Description Part No.

Included in Model 465621303

Qty. Description Part No.

A 1 Lid 65-6047-063-204

B 2 Upper Hinge 65-6047-093-200

C 1 Handle Assembly 69-6047-057-200

D 1 Upper Latch 65-6047-096-200

E 1 Heat Shield 21-6047-082-200

F 1 Torsion Bar 65-6047-110-200

1 4’ Adapter Hose 4187018

1 Thermos Can Holder 5991877

Key Qty. Description Part No.

1 1 Coach Bolt 41-9000-570-000

2 2 Coach Bolt 41-9000-589-000

3 1 Washer 42-9000-390-000

4 3 Spring Washer 42-9000-381-000

5 3 Nut 43-9000-034-000

6 4 Spring Washer 42-9000-380-000

7 2 Side Spacer 13-6047-397-200

8 1 Center Spacer 13-6047-399-200

9 2 Self-Tap Screw 41-9000-278-000

10 2 Self-Tap Screw 41-9000-334-000

11 4 Self-Tap Screw 41-9000-355-000

12 2 Washer 42-9000-349-000

13 2 Machine Screw 41-9000-585-000

14 2 Nut 43-9000-005-000

15 2 Spring Washer 42-9000-307-000

16 4 Side Spacer Pin 13-6047-398-200

15 16

Grill2Go • 7

Parts List and Diagram – Grill Bottom and Burner System

Key Qty. Description Part No.

G 1 Ignitor Wire 69-6047-332-200

H 1 Regulator Lock 69-6047-340-200

I 1 Grate 65-6047-339-200

J 1 Collector Box 21-6047-338-200

K 1 Burner 69-6047-029-200

L 1 Lower Heat Shield 21-6047-023-201

M 2 Lower Hinge 69-6047-048-200

N 1 Grill Bottom 65-6047-064-204

O 1 Grease Bottle 11-6047-020-200

P 1 Grease Bottle Rib 11-6047-085-200

Q 1 Grease Bottle Lid 13-6047-059-200

R 1 Lower Latch 65-6047-094-200

S 1 Heat Indicator 69-6047-013-200

T 1 Sight Glass 69-6047-017-200

U 1 Ignitor 69-6047-014-200

Key Qty. Description Part No.

17 2 Self-Locking Ring 42-9000-368-000

18 4 Self-Tap Screw 41-9000-355-000

19 2 Hinge Pin 41-6047-025-200

20 1 Machine Screw 41-9000-088-000

21 1 Nut 43-9000-005-000

22 2 Self-Tap Screw 41-9000-334-000

23 1 Washer 42-9000-307-000

RSTUV

Key Qty. Description Part No.

V 1 Regulator/Valve 69-6047-031-200

W 1 Side Shelf - Left 69-6047-008-200

X 1 Side Shelf - Right 69-6047-009-200

Y 1 Latch Clasp 11-6047-012-200

Z 1 Venturi Guard 21-6047-024-200

AA 1 Ignitor Shield 21-6047-400-200

8• Grill2Go

Parts List and Diagram – Plinth and Legs

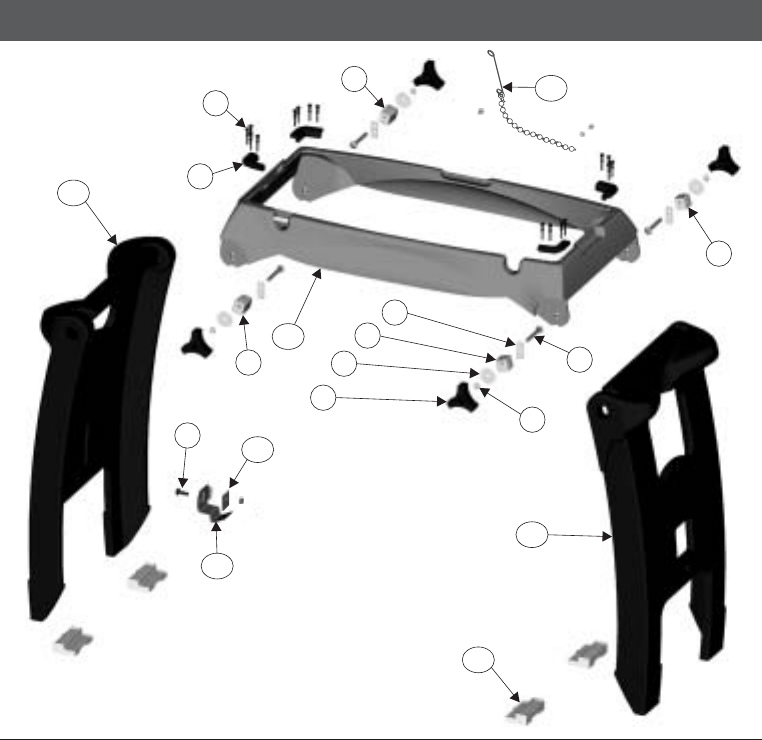

Key Qty. Description Part No.

BB 1 Plinth 64-6047-359-203

CC 1 Leg - Left 11-6047-036-201

DD 1 Leg - Right 11-6047-037-201

EE 1 Leg Latch 21-6047-394-200

GG 4 Leveling Blocks 11-6047-065-200

HH 1 Match-Light Stick 63-6047-369-200

I I 1 Square Washer 21-6047-419-200

Key Qty. Description Part No.

24 4 Leg Fasteners 11-6047-033-200

25 4 Stand Offs 13-6047-026-200

26 4 Coach Bolt Bracket 21-6047-021-000

27 1 Stopper/Left Rear 22-6047-102-200

28 1 Stopper/Left Front 22-6047-103-200

29 1 Stopper/Right Rear 22-6047-104-200

30 1 Stopper/Right Front 22-6047-105-200

31 4 Washer 42-9000-391-000

32 4 Coach Bolt 41-9000-588-000

33 1 Coach Bolt 41-9000-570-000

34 5 Nut 43-9000-034-000

35 16 Stand Off Pin 13-6047-088-200

31 32

33 34

35 HH

Grill2Go • 9

Assembly

Your grill will require minimal assembly. The Grill2Go™ is packaged in three major

components. Additional parts are stored beneath grill lid. Remove all protective

packaging and product information cards before assembly.

NOTE: The rubber spacers on the

grill lid help to protect the non-stick

cooking surface and should not be

removed.

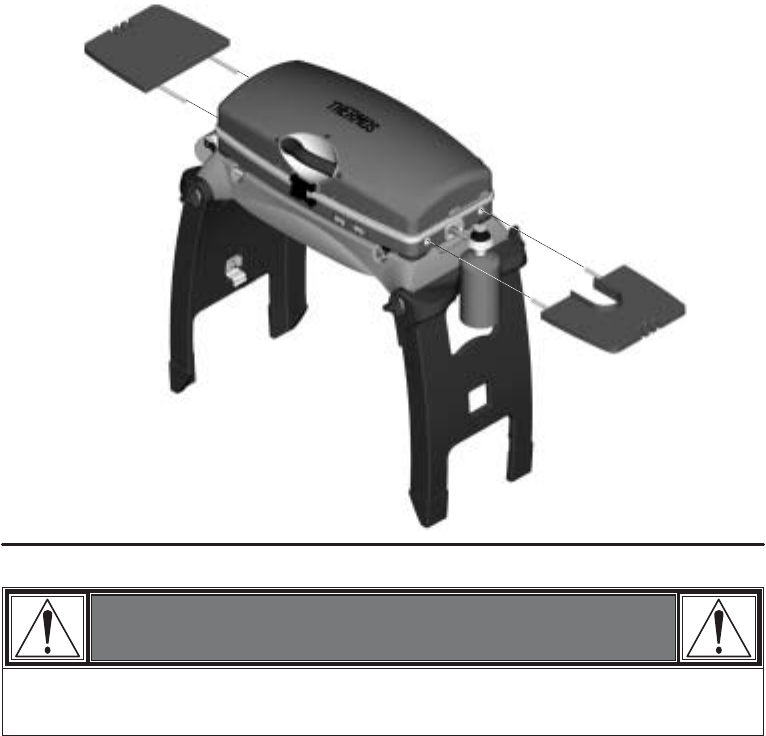

Plinth

Legs

Grill

Spacer

Graphics

in front

Larger leg opening to right

side during assembly.

Plinth is designed to fit into

slots at each corner of legs.

Plinth will only fit into legs

correctly and easily when

assembled as shown.

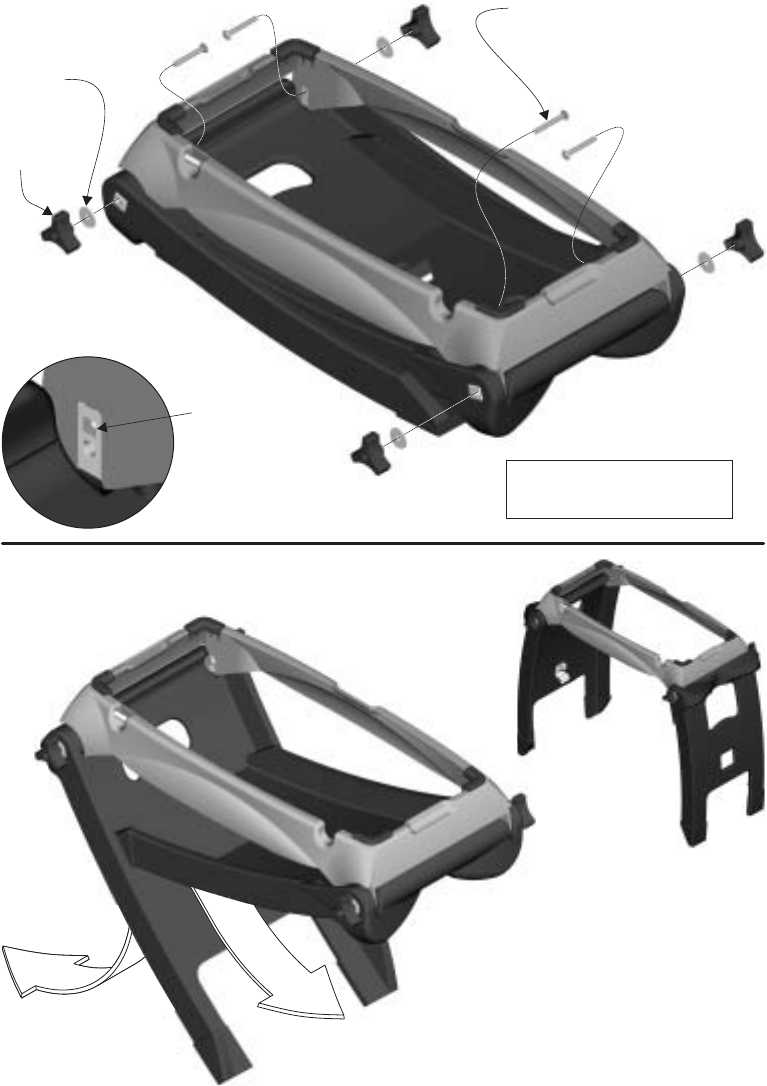

10 •Grill2Go

Coach bolts pass completely

through holes in plinth and legs.

NOTE: Use square

hole, not round

hole, when

assembling plinth

to legs.

Plastic

Fastener

Washer

NOTE: Do not fully tighten

fasteners at this time.

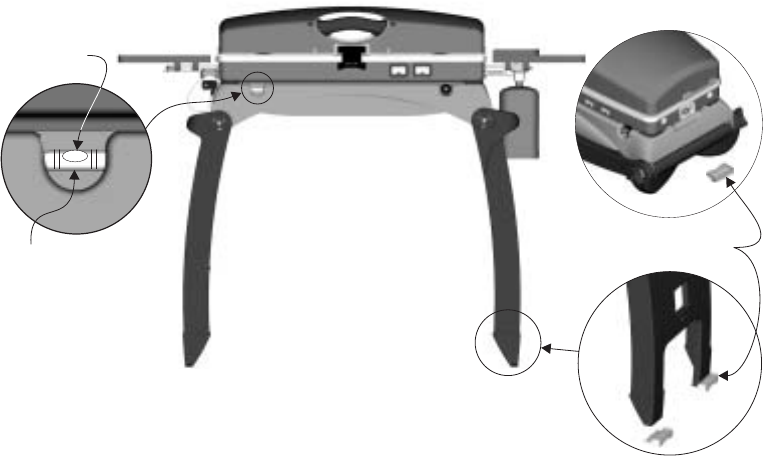

Fully unfold legs to position

shown above and hand-tighten

the four plastic fasteners.

Grill2Go • 11

Grease container slides

onto slot on left side of

plinth. Cap should be

open when installing.

Tab on grill bottom

snaps under front

lip of plinth.

Grill fits firmly

onto plinth.

Ignitor on grill bottom

fits into slot in plinth.

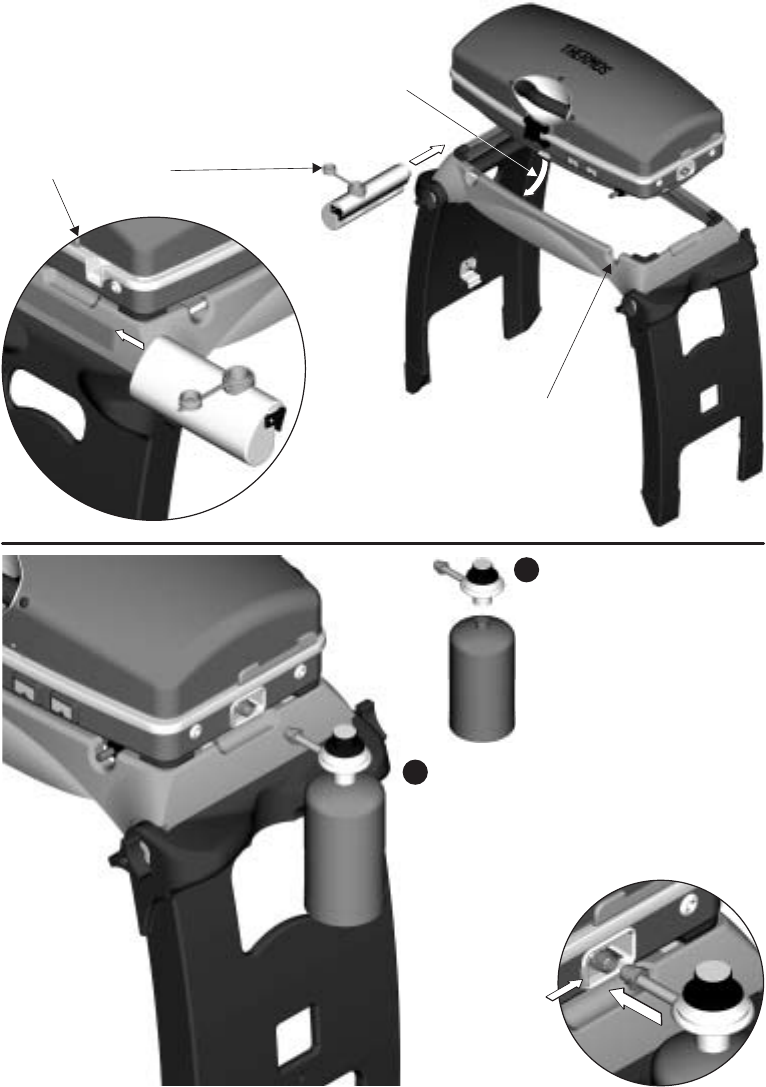

AAttach 1 lb. LP cylinder

to regulator by twisting

clockwise.

NOTE: 1 lb. LP cylinder

sold separately.

BConnect regulator to burner on right side

of grill. Slide regulator lock to right to

insert regulator. Regulator should rest

firmly against burner.

Regulator lock

should spring

back to original

position to lock

regulator in

place.

12 • Grill2Go

Insert shelf rods into holes in

sides of grill bottom.

Shelf with valve cutout attaches

to right side of grill.

WARNING

Combustion by-products produced when using this product contain chemicals known

to the State of California to cause cancer, birth defects, and other reproductive harm.

Grill2Go • 13

Your Grill2Go™ can be used with the legs fully extended or folded beneath the grill.

To use grill on a table-top, fully loosen plastic fasteners (A), fold legs inward until

they latch together (B), then hand-tighten the fasteners to secure legs in the closed

position (C).

Turn

Counterclockwise

Turn

Clockwise

Fold right

leg first

Fold

Second

14 • Grill2Go

Use and Care

Propane Cylinder Use (1 lb. Disposable)

•

Use only cylinder marked “Propane Fuel”.

Size should be 4” diameter, 8” height, or 3” diameter, 10” height.

Save cylinder cap and reinstall when not in use.

Cylinder supply system must be arranged for vapor withdrawal. Gas cylinder must be upright

in use.

WARNING

Use only 1 lb. propane bottles as specified above. Use of other gas bottles could

cause gas leak or fire.

Leak Testing (1 lb. Disposable)

•

Do not use household cleaning agents.

1. control knob

2. connection (A)

• During leak test, keep grill away from open flames or sparks and do not smoke. Grill must be

leak tested outdoors in a well ventilated area.

Leak test must be repeated each time gas cylinder is replaced or after storage.

Materials needed include clean paint brush and 50/50 soap and water solution. Use mild soap

and water. Damage to components can result.

Be sure on regulator is in "OFF" position.

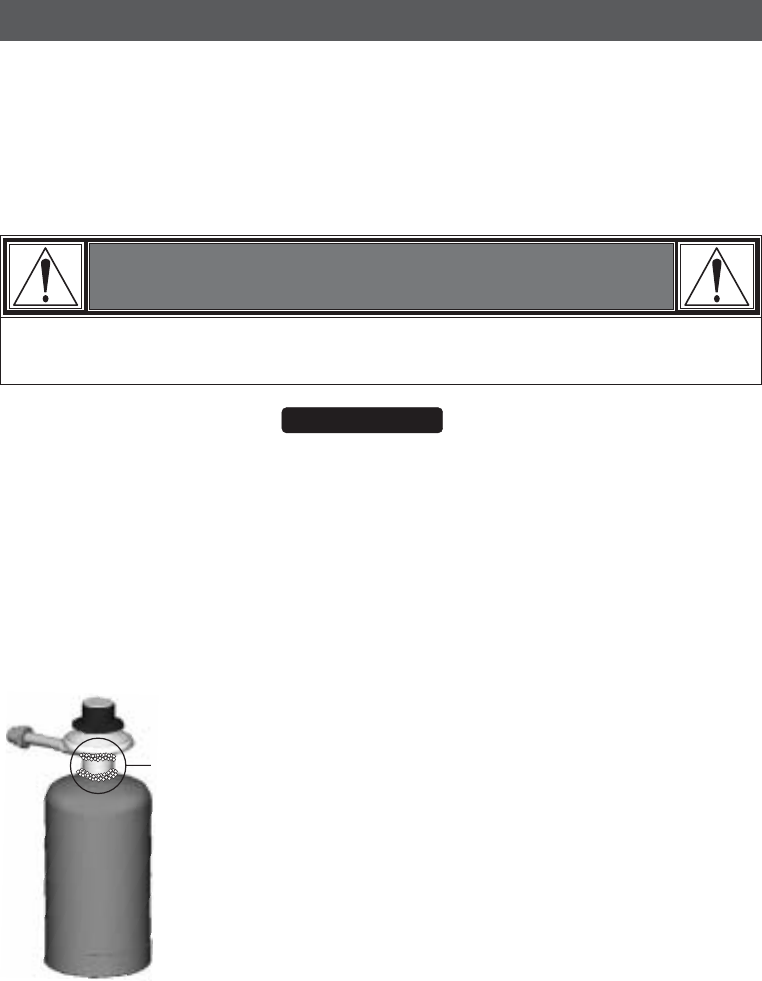

Brush soapy solution onto between gas cylinder and regulator at .

IMPORTANT!

sIf growing bubbles appear, there is a leak. Retighten connection

and repeat steps 1 and 2

If you cannot stop a leak, remove gas cylinder from regulator and

check for damaged threads, dirt and debris on regulator and gas

cylinder. Also check to see if anything is obstructing flow of gas at

regulator and gas cylinder openings. Remove any obstruction that

may be found and repeat leak test.

Order new parts by

giving the serial, model number and name of items needed to the

Grill Service Center at 1-800-241-7548 U.S. or 1-800-387-6057 CAN.

If threads are damaged on

either regulator or gas cylinder, replace.

Grill2Go • 15

Propane Cylinder Use (20 lb. Refillable)

The 20 lb. LP tank used with your grill must meet the following requirements:

•

Use only

tanks equipped with this type of valve.

Tank must be upright in use.

LP Tank Filling

•

• must be purged

• NEVER

•

LP Tank Exchange

Exchange for OPD safety feature equipped tank as described in

LP Tank.

•

Leak test LP tank BEFORE connecting to grill.

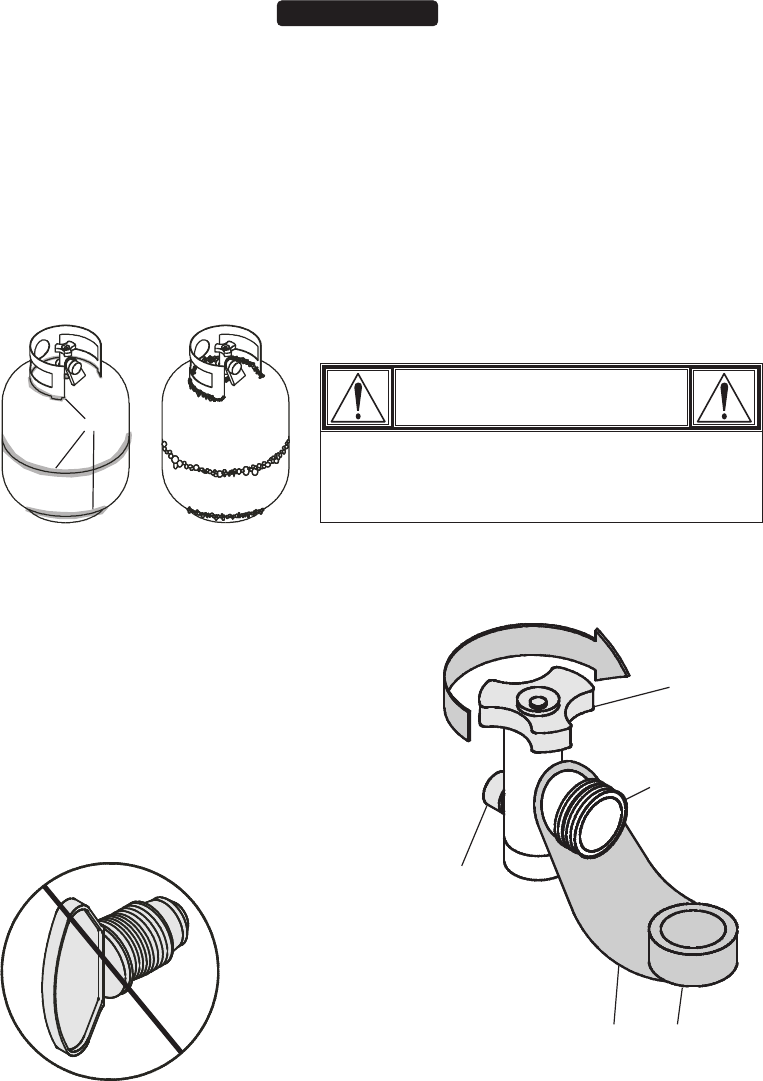

Purchase LP tanks only with these required measurements:12" (30.5cm) (diameter) x 18"

(45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum.

Tank must be constructed and marked in accordance with specifications for LP tank of the

U.S. Department of Transportation (DOT) or for Canada, CAN/CSA B-339, cylinders,

spheres, and tubes for transportation of dangerous goods, Transport Canada (TC). See LP

tank collar for marking.

LP tank valve must have:

• Type 1 outlet compatible with adapter hose.

• Safety relief valve.

• UL listed Overfill Protection Device (OPD).

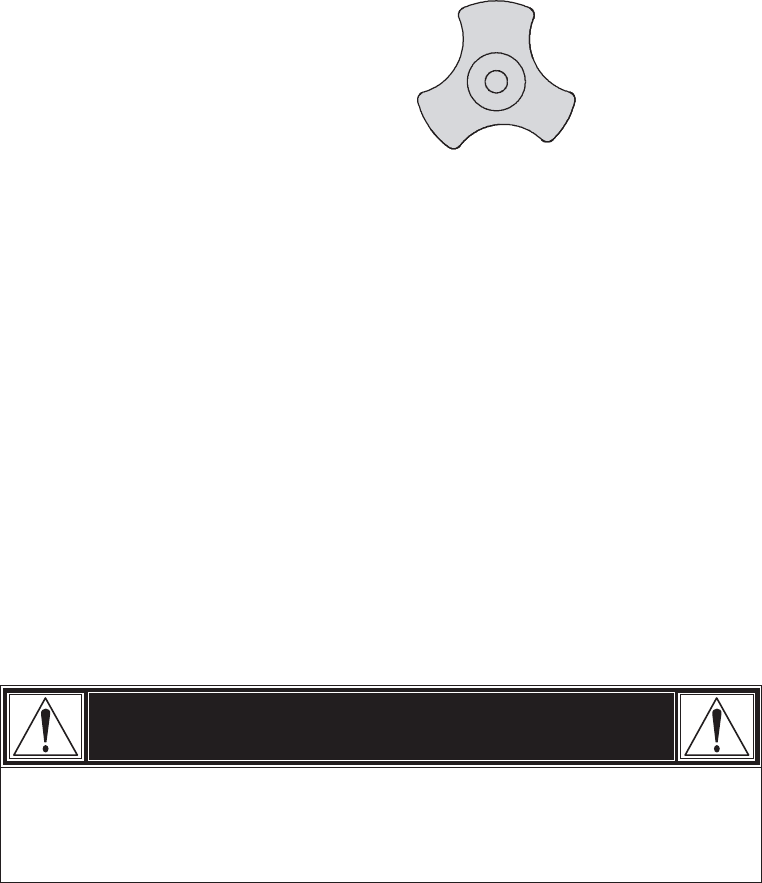

This OPD safety feature is identified by a

unique triangular hand wheel.

• Supply system must be arranged for vapor withdrawal and include collar to protect LP tank

valve.

Use only licensed and experienced dealers.

LP tank before filling.

Dealer should fill LP tank more than 80% of LP tank volume.

A frosty regulator indicates gas overfill. Immediately close LP tank valve and call local LP

gas dealer for assistance.

• Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice.

• To remove gas from LP tank, contact an LP dealer or call a local fire department for

assistance. Check the telephone directory under “Gas companies” for nearest certified LP

dealers.

• : You may choose to replace your empty LP tank through an exchange

service. Use only those reputable exchange companies that inspect, precision fill, test and

certify their cylinders.

Always keep LP tank in upright position during use, transit or storage.

•

(20 lb. Refillable)

OPD Hand Wheel

• Do not store a spare LP gas cylinder under or near this appliance.

• Never fill the cylinder beyond 80 percent full.

• If the instructions above are not followed exactly, a fire causing death or serious

injury may occur.

DANGER

16 • Grill2Go

Leak Testing (20 lb. Refillable) IMPORTANT!

For your safety

•

Use mild soap and water.

Do not use household cleaning agents.

(A)

Leak test must be repeated each time LP tank is exchanged or refilled.

Do not smoke during leak test.

Do not use an open flame to check for gas leaks.

Grill must be leak checked outdoors in well-ventilated area, away from ignition sources

such as gas fired or electrical appliances. During leak test, keep grill away from open flames

or sparks.

Use a clean paint brush and 50/50 soap and water solution.

Damage to gas train components can result.

Brush soapy solution onto the shaded areas shown below .

If “growing” bubbles appear do not use or move

the LP tank. Contact an LP gas supplier or your

fire department.

CAUTION

Connecting The Adapter Hose To The LP Tank

full stop

(sold separately)

1. Use only adapter hose approved by safety testing

organizations (CSA, UL, etc).

2. Turn all control knobs to the OFF position.

3. Turn LP tank OFF by turning hand-wheel

clockwise to a .

4. Remove the protective cap from LP tank valve.

Always use cap and strap supplied with valve.

(This section continued on next page.)

Use of this POL transport plug

(plastic part with external threads)

will defeat safety feature of valve.

Off Clockwise OPD Hand

Wheel

Type 1 outlet

with thread

on outside.

Safety relief valve

Strap and cap

Grill2Go • 17

Connecting The Adapter Hose To The LP Tank (continued)

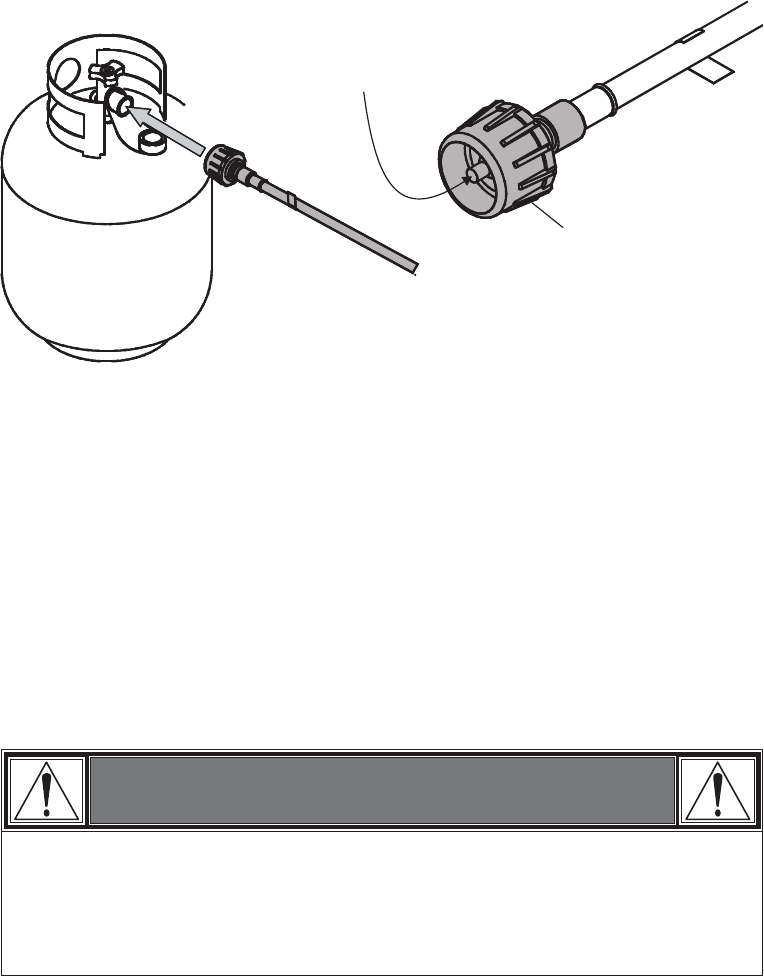

5. Hold hose end, insert nipple (A) into LP tank valve. Hand tighten coupling nut,

(B) so as not to cross thread

the connection.

holding connector in a straight line with LP tank valve

Position coupling nut

and hose-end as shown

for proper connection to

LP tank valve.

Nipple must be centered

into the LP tank valve.

Coupling nut

Straight

6. Turn the coupling nut clockwise to tighten to a full solid stop. The hose-end will seal on

the back-check feature in the LP tank valve, resulting in some resistance.

If you cannot complete connection, disconnect hose-end and repeat steps 5 and 6. If

you are still unable to complete the connection,

Before each use, check to see if hose is cut or worn. Replace damaged hose before using grill.

Use only hose specified by manufacturer.

An additional

one-half to three quarters turn is required to complete connection. Tighten by hand

only - do not use tools.

NOTE:

do not use this connector!

Hose Check

WARNING

• Do not insert any foreign objects into the valve outlet. You may damage the valve

and cause a leak. Leaking propane may result in explosion, fire, severe personal

injury, or death.

• Never attempt to attach this grill to the self-contained LP gas system of a camper

trailer or motor home.

18 • Grill2Go

WARNING

• Do not use grill until leak checked.

• If leak is detected at any time, STOP and call the Fire Department.

• If you cannot stop a gas leak, close LP tank valve and call LP gas

supplier or your fire department!

immediately

Leak Testing Valves, Hoses and Regulator

Turn grill control knob to off.

Correct

before proceeding

2. Be sure connector is tightly connected to LP tank.

3. Completely open LP tank valve by turning hand wheel counter clockwise. If you hear a

, turn gas off immediately. There is a major leak at the connection.

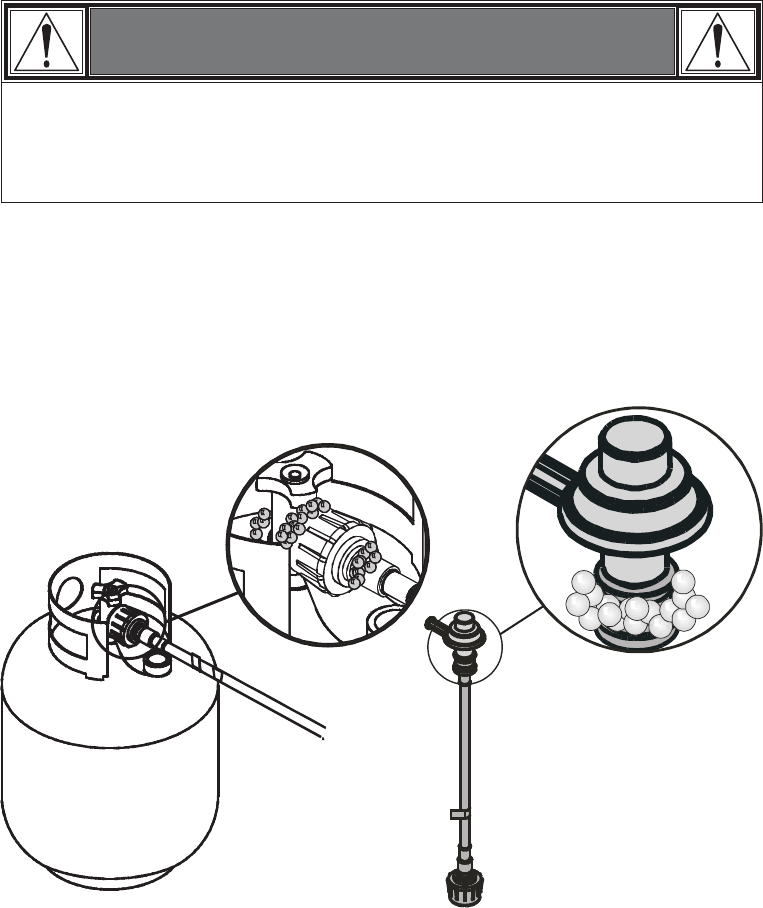

4. Brush soapy solution onto following connections:

rushing sound

5. bubbles appear, there is a leak. Close LP tank valve immediately and

retighten connections. all for

replacement parts. Order new parts by giving the serial, model number and name of items

needed to the Grill Service Center at 1-800-241-7548 U.S. or 1-800-387-6057 CAN.

6. Always close LP tank valve after performing leak test by turning hand wheel clockwise.

"If growing"

If leaks cannot be stopped "do not try to repair". C

Regulator connection

LP tank valve

connection

Grill2Go • 19

For Safe Use Of Your Grill:

•

• Operate grill with 1 lb. cylinder in

correct position as shown in .

• Always remove 1 lb. cylinder

from grill when transporting.

• Operate grill with 20 lb. cylinder

in correct position as show in .

• Always remove 20 lb. cylinder

from grill when transporting.

Do not leave the appliance

unattended. Keep children and pets

away from the appliance at all

times.

When cooking, the appliance must

be on a level surface in an area

clear of combustible material.

Do not block holes in bottom or

back of grill.

Check burner flames regularly.

Use grill only in well-ventilated

space. NEVER use in enclosed

space such as carport, garage,

porch, covered patio, or under a

surface that can catch fire.

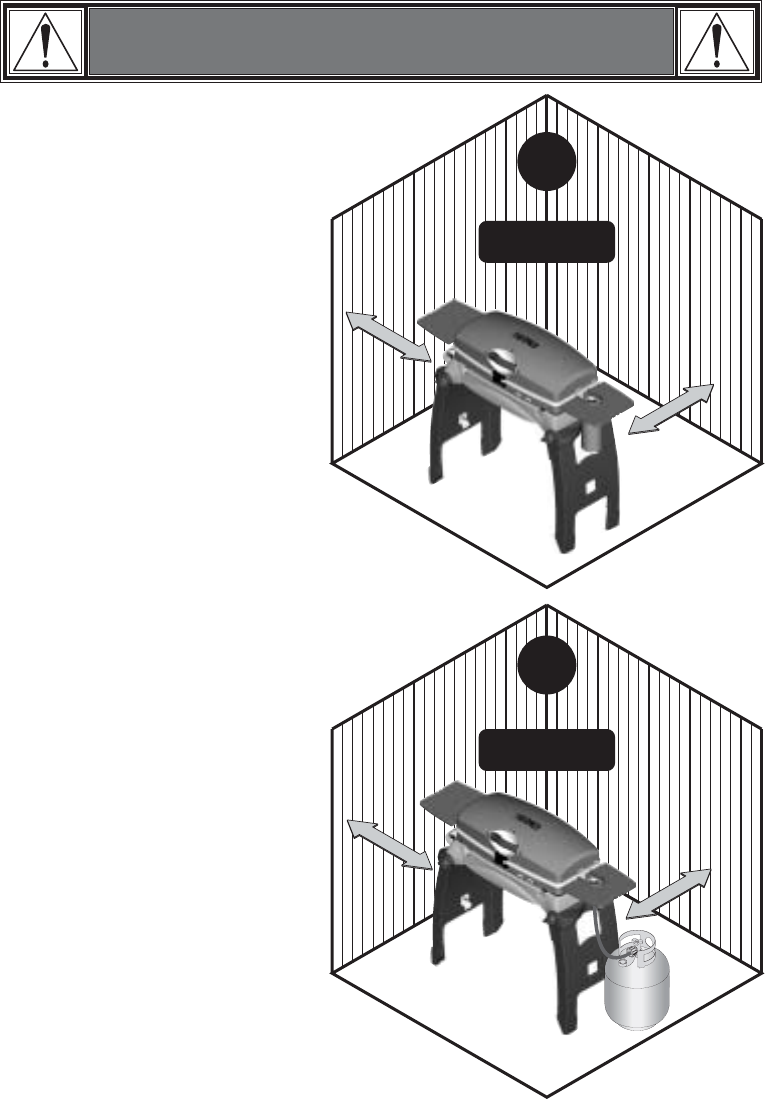

Use grill at least 3 ft. from any wall

or surface. Maintain 10 ft. clearance

to objects that can catch fire or

sources of ignition such as pilot

lights on water heaters, live

electrical appliances, etc.

• Do not use charcoal in a gas grill.

• This appliance is not intended for

and should never be used as a

heater.

•Never use regulator from this grill

with any other LP appliance.

WARNING

3 ft. (1m) minimum

10 ft. recommended

3 ft. (1m) minimum

10 ft. recommended

20 • Grill2Go

Safety Tips

The use of alcohol, prescription or nonprescription drugs may impair the consumer’s ability

to properly assemble or safely operate the appliance.

When grill is not in use, disconnect 1 lb. cylinder or turn off 20 lb. cylinder.

Never move grill while in operation or still hot. Allow the appliance to cool before moving or

storing.

Use only tools supplied or plastic tools.

Maximum load for side shelf is 10 lbs.

The regulator may make a humming or whistling noise during operation. This will not affect

safety or use of grill.

If you have a grill problem see the Troubleshooting Section.

Light burners (see lighting instructions on following page). Check to make sure they are lit,

close the lid and warm up grill on high for 10 minutes. Curing of paint and parts will

produce an odor only on first lighting.

Grill2Go • 21

Ignitor Check

Regulator/Valve must be in “Off” position.

Ignitor Lighting

Remove cooking grid. Press ignitor button

rapidly. “Click” should be heard and spark seen each time between burner and electrode.

Replace cooking grid. See Troubleshooting if no click or spark.

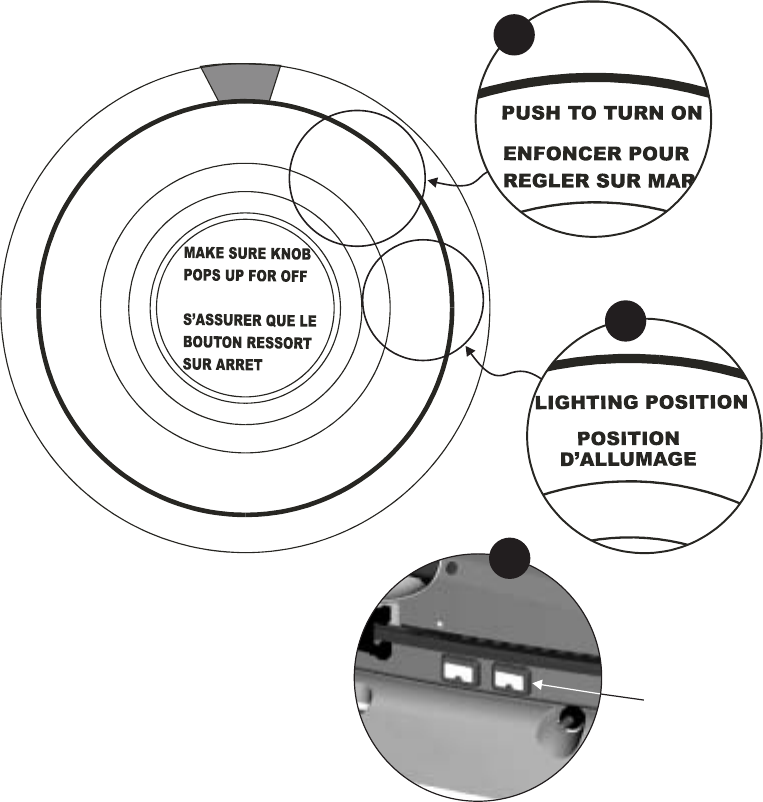

1. Push regulator/valve counterclockwise to “PUSH TO TURN ON” (A), push in, then turn

to “LIGHTING POSITION” (B).

2. Push ignitor button rapidly to light. Use viewing glass (C) to be sure burner lights

and stays lit.

3. If ignitor does not work, follow match lighting instructions.

OFF

ARRET

PUSHTOTURNON

ENFONCERPOUR

REGLERSURMARCHE

LIGHTINGPOSITION

D’ALLUMAGE

POSITION

HAUT

MED

MOYEN

LOW

BAS

Viewing

glass

Regulator/Valve A

22 • Grill2Go

Match Lighting

1. Push Regulator/Valve in and turn

counterclockwise to LIGHTING

POSITION.

2. Attach match to match lighting stick,

light match.

3. Insert match lighting stick into vent

hole at rear of grill.

WARNING

If burner does not light within 5 seconds, turn knob to OFF, wait 5 minutes, try again.

Burner Flame Check

Before Your First Cookout.

Leak test your grill.

Turning Grill Off

Light burner. Look through viewing glass on front of grill and make

sure burner stays lit while rotating the regulator knob from HIGH to

LOW. Always check flame prior to each use.

Light burners, check to make sure they are lit, close the lid and warm up

grill on HIGH for 10 minutes. Curing of paint and parts will produce an odor only on first lighting.

• Turn knob to OFF position. Make sure regulator/valve pops up. If it does not, discontinue

use and order new part.

• Disconnect 1 lb. cylinder or turn off valve on 20 lb. cylinder.

Vent hole

Heat Indicator

Indication of warming

up or cooling down.

Too hot. Will damage

non-stick surface.

Cooking Zone

Grill2Go • 23

General Grill Cleaning

Do not apply a caustic grill/oven cleaner to

painted surfaces.

Plastic Side Shelves:

• Non-Stick Cooking Surface:

• Grease Bottle:

• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas

grills are not painted at the factory (and should never be painted). Apply a strong solution of

detergent and water or use a grill cleaner with scrub brush on insides of grill lid and bottom.

Rinse and allow to completely air dry.

• Wash with warm soapy water and wipe dry. Do not use citrisol,

abrasive cleaners, degreasers or a concentrated grill cleaner on plastic side shelves.

Damage to and failure of shelves can result.

Turn grill off before cleaning. While still warm, pour a cup of

water over cooking surface to loosen grease and food particles and to speed cool-down.

Use supplied cleaning comb to scrape off excess grease and food particles. Wipe cooking

surface with a paper towel or sponge. Once completely cool, cooking surface can be

removed and washed with warm soapy water or placed in dishwasher.

After each use, remove bottle and rinse with hot soapy water.

Leveling Grill for Grease Drainage

• For proper grease drainage, the grill should be level left to right and angled slightly to the

front. The bubble level on the plinth will indicate whether or not grill is level.

• If ground is uneven, use leveling blocks provided and place as needed under feet to level the

grill. In soft ground, such as beach sand, press the angled feet into ground to level the grill.

• When using grill with legs folded, place leveling blocks upside-down under each rear leg.

Leveling Blocks

Air Bubble

Bubble Level

Indicator

24 • Grill2Go

CAUTION

Clean burner prior to use after storing, at the beginning of grilling season or after a period of

one month not being used. Spiders and insects like to build nests in burner tubes (especially

during colder months). These nests can cause fires in burner tubes or under grill.

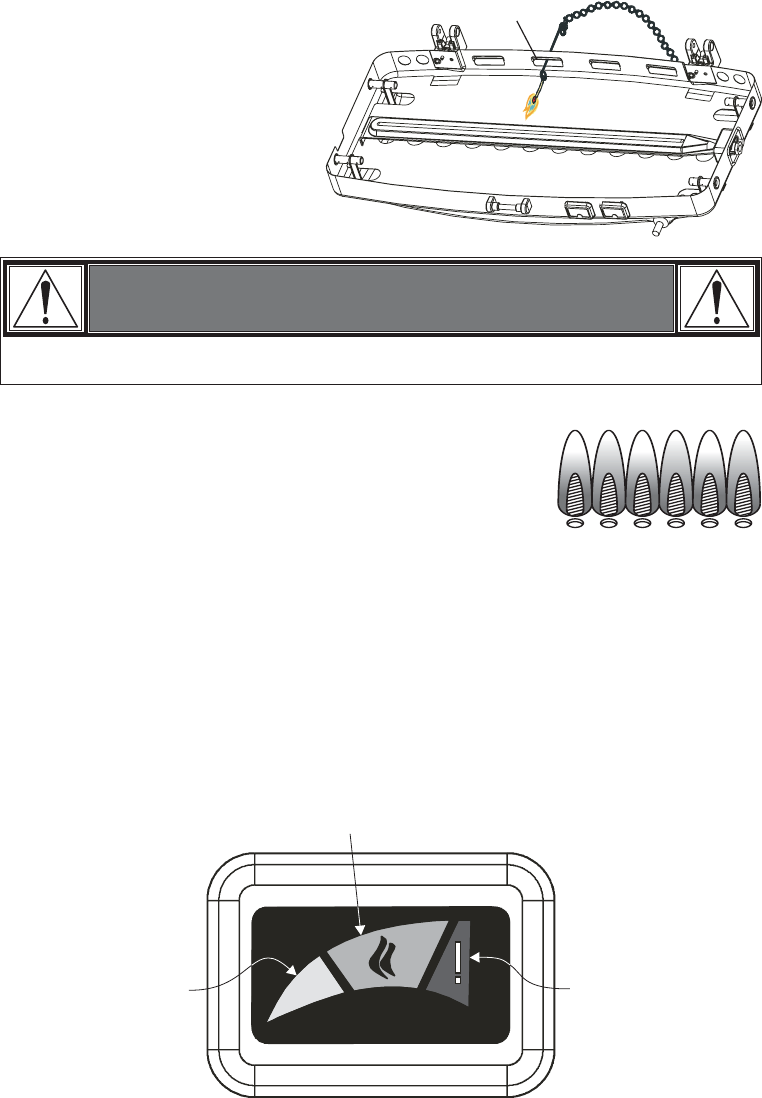

Typical spider webs inside burner.

Cleaning the Burner Assembly.

Turn gas off at control knob and LP tank.

VERY IMPORTANT: Before cooking again on grill, follow and

warnings on pages 2 and 19.

2. Remove cooking surface.

3. Remove regulator/valve from grill.

4. Clean outside of burner with soap and water. Open clogged holes with a thin wire.

Examine holes. Due to normal wear and corrosion some holes may become enlarged. If any

large cracks or holes are found, replace burner. Burner can be cleaned either installed or

removed.

5. If grill is to be stored, coat burner lightly with cooking oil. Wrap in protective cover to keep

insects out.

6. Replace cooking surface.

Burner Flame Check

Non-Stick Cooking Surface Use and Care.

• Use only plastic tools.

• Do not cut food on surface.

• Do not put pots or pans on surface.

• Do not leave lid down for more than 10 minutes without food on the grill.

Non-stick surface may be damaged.

Storing Your Grill

• Clean cooking surface and grease container.

• When LP tank is connected to grill, store outdoors in well-ventilated space and out of reach

of children.

• Cover grill if stored outdoors.

• Store grill indoors ONLY if LP tank is turned off and disconnected, removed from grill and

stored outdoors in well-ventilated space and out of reach of children.

• Leak test the grill after removing from storage and follow Cleaning Burner Assembly

instructions before starting grill.

Grill2Go • 25

Food Safety

Clean:

Separate:

Cook:

Chill:

How to Tell if Meat is Grilled Thoroughly

•

Food safety is an important part of enjoying the outdoor cooking experience. To keep food safe

from harmful bacteria, follow these four basic steps:

Wash hands, utensils, and surfaces with hot soapy water before and after handling raw

meat and poultry.

Separate raw meats from ready-to-eat foods to avoid cross contamination. Use a

clean platter and utensils when removing cooked foods.

Cook meat and poultry thoroughly to kill bacteria. Use a thermometer to ensure proper

internal food temperatures.

Refrigerate prepared foods and leftovers promptly.

Meat and poultry cooked on a grill often browns very fast on the outside. Use a meat

thermometer to be sure food has reached a safe internal temperature and cut into food to

check for visual signs of doneness. NOTE: Do not cut into food while it is on the grill’s

cooking surface. This may damage the cooking surface. Move food to a plate to check,

then return it to the cooking surface if necessary.

Poultry should reach 180° F; breasts, 170° F. Juices should run clear and flesh should not

be pink.

Hamburgers made of any ground meat or poultry should reach 160° F, and be brown in the

middle with no pink juices. Beef, veal, lamb, steaks, roasts and chops can be cooked to

145° F. All cuts of pork should reach 160° F.

NEVER partially grill meat or poultry and finish cooking later. Cook food completely to

destroy harmful bacteria.

When reheating takeout foods or fully cooked meats like hot dogs, grill to 165° F, or until

steaming hot.

26 • Grill2Go

Troubleshooting

Problem

Burner will not

light using

ignitor.

Burner will not

match light.

Flames blow out.

Flashback (fire in

burner tube)

Possible Cause

Electrode and burner are wet.

Electrode cracked or broken,

"sparks at crack".

Wire is loose or disconnected.

Wire is shorting (sparking)

between ignitor and electrode.

Bad ignitor.

No gas flow.

Obstruction of gas flow.

Does valve cap stay down.

Disengagement of burner to

valve.

High or gusting winds.

Burner is blocked.

Prevention/Cure

Wipe dry with cloth.

Replace electrode.

Reconnect or replace ignitor wire.

Replace ignitor.

Check gas source.

Clear burner.

Replace with Thermos parts.

Check steps in assembly

instructions.

Turn front of grill to face wind or

increase flame height.

Clean burner.

Grill2Go • 27

Recreational Vehicles

THERMOS GRILLS has approved use of the Grill2Go™ with specific recreational vehicles

subject to the following provisions:

• The is to be directly connected to an additional 20 lb. or 30 lb. DOT/TC LP tank

mounted on the RV. The cannot be attached to any part of the gas system of the

RV except directly to the tank itself.

• The additional 20 lb. or 30 lb. tank is available from your RV dealer and must be mounted on

the RV complying with approved RV standards.

• The connection from the tank to the grill must be with a minimum 15’ approved hose

available from your RV dealer.

• The must always be operated at least 10’ from the body of the RV.

• Never use the in an enclosed space or under a surface such as an awning or a

screen room or fire could result.

Grill2Go™

A Division of W.C. Bradley Company

P.O. Box 1240

Columbus, GA 31902–1240

Certified Grill Parts And Accessories®, Char-Broil and Design®, Char-Broil (Gas Grill Briquettes)®, Char-Diamonds®, Cooking

Zone and Design®, Diamond Flame®, Executive Chef®, Faststart®, Flare Fighter®, FlavorMaster®, Gas Grill Silouette and

Design®, H2O Smoker®, Lava Flame®, MasterFlame®, MasterFlame Precision Cooking System®, PowerSpark®, Quantum®,

VIP®, PrecisionFlame and Design®, Sierra®, and TruFlame® are registered Trademarks of the W.C. Bradley Company.

Thermos® is a registered trademark of the Thermos Company and its affiliates.

Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™,

Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™, Outdoor Cooking Collection and Design™, Patio

Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The

Edge™, The Tuscan Collection™, and The Urban Grill™ are Trademarks of the W.C. Bradley Company. Universal Grill Parts and

Design™ is a trademark of the Thermos Company and its affiliates.

Protected under one or more of the following U.S. Patents: 4,598,692; 4,624,240; 4,747,391; 4,747,391; 4,817,583; 4,924,846;

4,989,579; 5,003,960; 5,076,256; 5,076,257; 5,090,398; 5,109,834; 5,224,676; 5,277,106; 5,421,319; 5,441,226; 5,452,707;

5,458,309; 5,566,606; 5,566,606; 5,579,755; 5,582,094; 5,613,486; 5,649,475; 5,706,797; 5,711,663; 5,765,543; 5,931,149;

5,996,573; 6,095,132; 6,135,104; 6,173,644B1; 6,279,566; 6,397,731; 6,418,923; 6,439,222; 6,523,461; D282,619; D339,714;

D341,292; D343,337; D358,059; D361,466; D364,535; D372,637; D373,701; D377,735; D383,035; D397,910; D405,643;

D405,643; D406,005; D406,009; D413,043; D413,229; D413,229; D414,982; D415,388; D416,164; D416,441; D416,441;

D417,587; D422,516; D423,274; D423,876; D428,303; D435,396; D436,004; D438,059; D438,060; D438,427; D439,110;

D442,505; D443,179; D443,354; D447,384; D447,385; D447,909; D448,610; D448,614; D448,615; D448,616; D448,975;

D449,492; D451,759; D456,202S; D460,313 and D461,359. Canada: 87743; 87744; 92607; 92608 and 1,316,424.

Other Patents Pending.

Thermos 465611003 Users Manual Grill2Go VA English ...

465611003 8623

465611003 to the manual 56146557-bf1d-4099-9fa4-685c60997d0f

Navigation menu

Versions of this User Manual:

Views

Navigation
