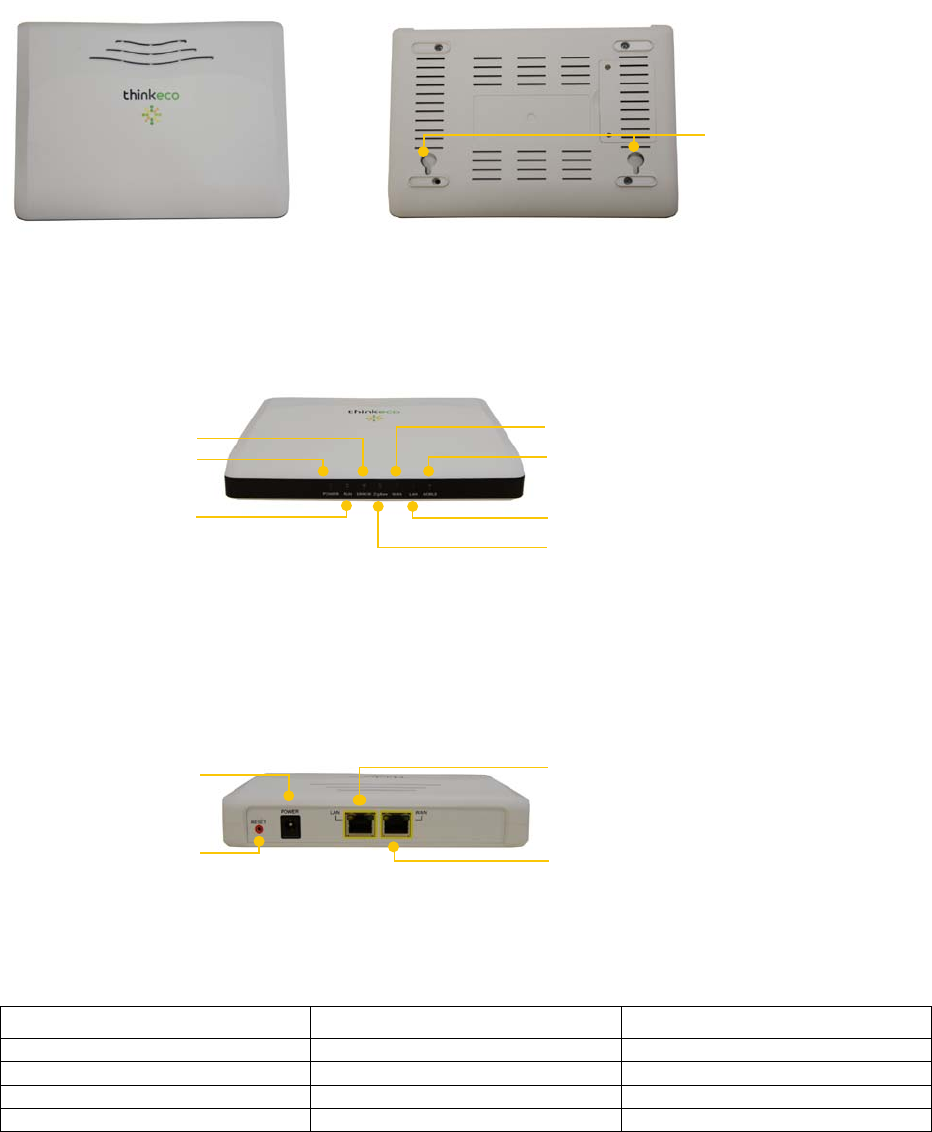

Back Vie w
Hardware
To p Vi e w Bottom View
Wa ll m o un ts
Fro nt Vie w
WAN inte r fa ce LE D
3G LED (only on 3G
model)
ZigBee interface
LED
Power LED
Error LED
Run LED
AC / D C p o w e r
supply
LAN c o nne cto r
Reset
button WAN c o nne c to r
LAN inte r fac e LED
LED light overview
LED Status Identification
Power On (Green) Power On
RUN On (Green) POST is successful
ERROR On (Red) POST fails
ZigBee Off ZigBee is disabled
![](/img.php?id=1996302&img=bg3.png)
On (Blue) ZigBee module is enabled
Off No device is connected
On (Orange) A 10/100 Mbps device is connected
to the port
Flashing (Orange) A 10/100 Mbps device is
transmitting or receiving to the port
On (Green) A 1000 Mbps device is connected to
the port
Ethernet WAN Port Link/ACT
Flashing (Green) A 1000 Mbps device is transmitting
or receiving to the port
Off No device is connected
On (Orange) A 10/100 Mbps device is connected
to the port
Flashing (Orange) A 10/100 Mbps device is
transmitting or receiving to the port
On (Green) A 1000 Mbps device is connected to
the port
Ethernet LAN Port Link/ACT
Flashing (Green) A 1000 Mbps device is transmitting
or receiving to the port
Installation
What you need to get started
1 power cord (included)
1 Ethernet cord (included)
INSTRUCTIONS
1. Determine your gateway’s Ethernet Mac address
Look on the bottom of your gateway for the Ethernet MAC address and write it down.
2. Plug in modlet gateway
Plug in the modlet gateway into an electrical outlet using the power cord provided. The green power
LED light should turn on.
Then plug the gateway into your home or office router using the Ethernet cord provided. The WAN
interface LED will be flashing and then become solid when connected.
3. Register a modlet account
Go to https://mymodlet.com and select the link that says “New User? Create an Account”.
Follow all on screen instructions to register an account.
On the last screen, click the “I have a Gateway” button.
Enter the Ethernet MAC ID for your Gateway (From step 1)
If prompted enter “admin” for the username and “admin” for the password
4. Set up your modlet(s)
Follow all on screen instructions to set up your modlet(s).
Troubleshooting
If you are connected to the internet and logged into your account, but you’re not seeing the latest data, try these tips.
1. Check gateway
Make sure your gateway is correctly connected
AC/DC adapter plugged in (POWER led ON)
LAN cable plugged in (WAN led flashing)
ZigBee module in operative mode (ZigBee led ON)
Next restart gateway
Restart gateway from Web GUI
If not successful please:
o press reset button and wait system restart
If still not successful please:
o unplug and replug AC/DC power supply
Check the status of your gateway by clicking on the Modlet Network link in the top right of your screen
and then clicking on USB Receiver.
2. Be patient
When you first set up your network, or if your computer has been off for a while, the data may take a few minutes to
load onto the interface. Check back in 15 minutes.
3. Refresh
Try hitting the refresh button on the Energy Usage tab or your browser.
4. Verify parameters
Check the variables you selected for the graph: does the start and end date match when you plugged in your
modlet?
Do you have at least one device selected? Click on the name of the devices you want to graph or select all
to see total energy consumption.
5. Check devices
Check the status of your devices on the energy usage tab. A green light next to your device means it has
reported data to your computer in the last 24 hours.
If the light is red, first restart you gateway. Next, verify your devices are labeled correctly and assigned to
the correct outlet by clicking Modlet Network and then Modlets.
For more troubleshooting information, call the modlet tech support center at 1-800-682-0152.
Modlet® gateway PACKING LIST
1 modlet gateway TE1211E
1 Cable Ethernet, 6FT min
1 AC/DC Power supply, 110V/240V Input, 12V/1A output
ThinkEco modlet® gateway
Thank you for purchasing your new modlet® gateway!
For more information and to learn about your modlet® gateway please visit www.themodlet.com. Please read all
user guides/manuals provided to you (in both paper and electronic form) including in the software downloaded in
connection with the usage of this device and all operating and safety instructions. If you fail to do so this product
may not function properly and may lead to damage to the product and to other danger.
modlet® gateway Specifications
ZigBee (IEEE 802.15.4) wireless communication
Power source: 12V DC
Important Safety Information:
Use indoors in a dry location.
Contains non-user serviceable parts; do not open.
This product is not a toy. Do not allow children to operate it.
Regulatory Information:
Installation and use of this device must be in strict accordance with the instructions included in the user
documentation provided with the product or at www.thinkeco.com. Any changes or modifications made to this
device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
ThinkEco will assume no liability for any damage or violation of government regulations arising from failing to
comply with these guidelines.
RF Exposure Warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 7.9 inches (20cm) between the radiator and
your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Note: USA-FCC (Federal Communications Commission) statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of this device.
Note: FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with
the instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try and correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
LIMITED ONE (1) YEAR WARRANTY
Warranty: ThinkEco warrants that the modlet, USB gateway, gateway, smartAC thermostat (collectively “TE
Products”) will be free from defects in material and workmanship and perform to ThinkEco’s applicable published
specifications for a period of one (1) year from date of delivery to you. The liability of ThinkEco hereunder shall be
limited to replacing or repairing, at its option, any defective TE Products which are returned F.O.B. ThinkEco’s
corporate address (or, at ThinkEco’s option, refunding the purchase price of such TE Products). In no case are TE
Products to be returned without first obtaining permission and a return order number from ThinkEco. You are
responsible for the cost of shipment of the defective TE Products to ThinkEco, and ThinkEco is responsible for the
cost of shipment of a replacement TE Products to you. In the event you send TE Products back to ThinkEco, and the
TE Product is not defective, ThinkEco reserves the right to charge you a fee associated with postage and handling of
such TE Product.
Replacement TE Products: Replacement TE Products are warranted by ThinkEco pursuant to the warranty set forth
above for the longer of (i) thirty (30) days; or (ii) the remaining warranty period for the original Modlet. The
replacement TE Product may be refurbished and/or contain refurbished parts.
The following are not covered by this warranty: (i) TE Products which have been subject to abuse, misuse, accident,
alteration, neglect, unauthorized repair, inspection or installation, Acts of God, power surge, wear and tear,
mishandling, misapplication, or other causes unrelated to defective materials or workmanship; and (ii) any damages
and/or viruses caused by use of a third party device in conjunction with the TE Products. You are responsible for
determining if a third party device used in conjunction with any TE Product is suitable for such use and ThinkEco is
not liable, and this warranty does not cover, any damages caused by, or to, any third party device. ThinkEco will
make the final determination as to the existence and cause of any alleged defect. No warranty is made with respect
to any custom equipment or goods produced to your specifications except as specifically stated in writing by
ThinkEco in the contract for such custom goods.
Disclaimer & Limitation of Liability: EXCEPT AS EXPRESSLY PROVIDED ABOVE, THINKECO MAKES NO,
AND HEREBY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS, STATUTORY, OR IMPLIED,
INCLUDING ANY WARRANTY OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. THINKECO MAKES NO REPRESENTATION, WARRANTY OR GUARANTY AS
TO THE RELIABILITY, TIMELINESS, QUALITY, SUITABILITY, TRUTH, AVAILABILITY, ACCURACY
OR COMPLETENESS OF THE TE PRODUCTS AND DOES NOT REPRESENT OR WARRANT THAT (A)
THE USE OF TE PRODUCTS WILL BE SECURE, TIMELY, UNINTERRUPTED OR ERROR-FREE OR
OPERATE IN COMBINATION WITH ANY OTHER HARDWARE, SOFTWARE, SYSTEM OR DATA, (B) TE
PRODUCTS WILL MEET CUSTOMER’S REQUIREMENTS OR EXPECTATIONS, (C) ANY STORED DATA
WILL BE ACCURATE OR RELIABLE, (D), TE PRODUCTS ARE FREE OF VIRUSES OR OTHER HARMFUL
COMPONENTS. IN NO EVENT WILL THINKECO BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY
LOST PROFITS, USE OF USER INFORMATION, LOSS OF DATA, BUSINESS INTERRUPTION, OR OTHER
INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OF ANY NATURE ARISING
FROM OR RELATING TO YOUR USE OF TE PRODUCTS, EVEN IF THINKECO HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL THINKECO’S TOTAL CUMULATIVE
LIABILITY TO YOU, FOR ANY AND ALL CLAIMS UNDER ANY THEORY OF LAW, EXCEED THE
ORIGINAL PURCHASE PRICE OF THE TE PRODUCTS IN QUESTION.
To contact ThinkEco regarding this Limited Warranty, please call ThinkEco at 1-800-682-0152. For additional
information please visit www.thinkeco.com/warranty
