User Guide
Why use a modlet?
Homes and offices now have more plugged-in devices
than ever before, and the number is growing. These
plugged-in devices make up 50% of home electricity
bills and more than 20% of commercial energy bills! And
much of this energy consumption occurs when devices
are unused or off.
A cable box uses almost as much energy when it’s
off as when it’s on. So what’s the point of the “off”
button then?
The modlet helps you take control of your plug load
energy consumption by allowing you to see how much
energy each device consumes and then automatically
schedule when devices are on or off. Implementing
schedules with the modlet system is easy and your
savings are clearly displayed via ThinkEco’s Web app –
which is accessible through your computer or
mobile device.
Start saving now!
For more information on how the modlet saves you energy, visit our
website: www.themodlet.com

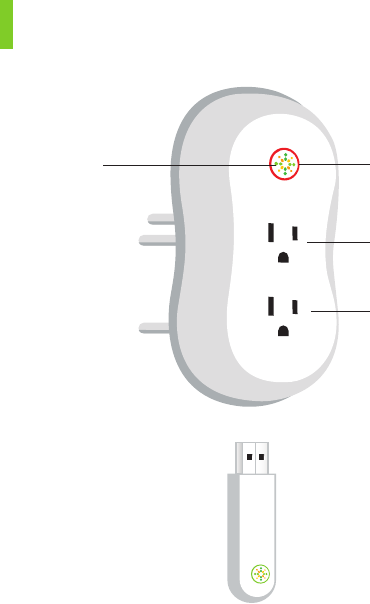

Hardware
The modlet plugs directly into any dual socket 3-pin outlet. The modlet’s
integrated intelligence tracks energy consumption and wirelessly transmits
the data to your computer through the USB receiver.
modlet
USB receiver
Red LED
indicator light
Outlet 1
Outlet 2
Modlet Button
Quick setup

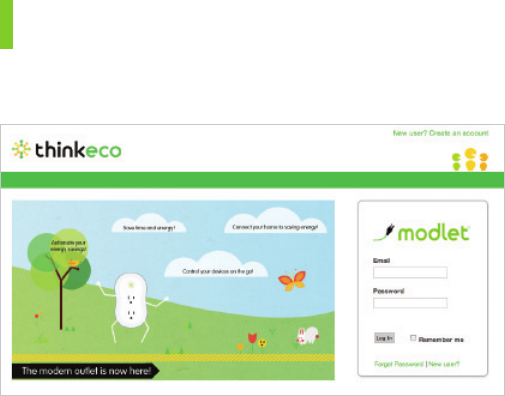

Go to www.mymodlet.com to create an account and begin the
installation. Enter the registration key found on the inside cover of the
modlet box. Create a user profile and then download and save the
installer to your desktop. Double click on the installer icon to begin
the wizard and follow the onscreen instructions. If required to reboot
during the process, click back on the ThinkEco Installer to continue
the installation.
1. Software
2. Hardware

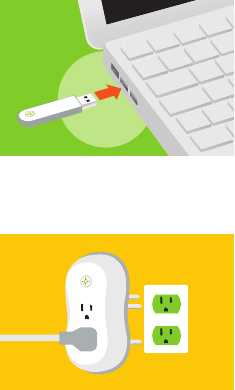

Plug your USB receiver into your
computer when prompted by
the Installer. Depending on your
computer, you may see some
‘found new hardware’ or ‘install new
hardware’ prompts. If so, be sure
to accept all of them. If the USB
receiver is not found on your first
try, reinsert into the USB slot and
push it in all the way.
Turn off and unplug the electronic
device closest to your computer
that you want to monitor. Click
‘Search’ on the Installer first, then
plug the modlet into the outlet. The
spinning LED light will stop when
your modlet joins the network. Plug
your electronic device back into the
modlet and complete the set up on
the Installer.
4. Optional - Add more modlets
More modlets can be added at any
time. To do so, right click on the
ThinkEco Icon in your computer tray
and select Open Modlet Manager.
Then click the Add Modlet button
first, and then plug your next modlet
into an outlet so it can join the
network. To build robust wireless
networks, it’s best to work your way
outward from your PC.
Finish setting up your account and
then start viewing your energy
consumption through the Energy
Usage tab. Keep in mind that it
may take a few minutes after setting
up your modlet to begin seeing
data. To set a schedule, visit the
Savings Plan tab to control when
your devices are on and off. Please
note, during the initial baseline
period scheduling is not available.

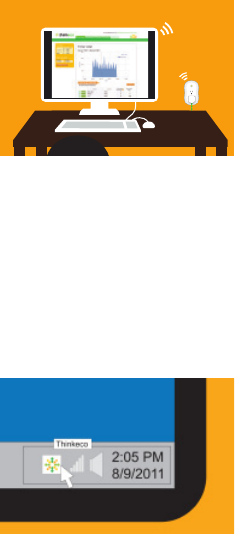

To view your account from
any computer simply visit
www.mymodlet.com or download
the ThinkEco App for Android or
iPhone.
3. Monitor & Control
Troubleshooting
If you are connected to the internet and logged into your
account, but you’re not seeing the latest data, try these tips.
1. Check USB
• Make sure your USB receiver is plugged in all the way.
• Next unplug it and then plug it back into your computer.
• Check the status of your USB by clicking on the Modlet Network link
in the top right of your screen and then clicking on USB Receiver.
2. Be patient
• When you first set up your network, or if your computer has been off
for a while, the data may take a few minutes to load onto the interface.
Check back in 15 minutes.
3. Refresh
• Try hitting the refresh button on the Energy Usage tab or your browser.
4. Verify parameters
• Check the variables you selected for the graph: does the start and end
date match when you plugged in your modlet?
• Do you have at least one device selected? Click on the name of the
devices you want to graph or select all to see total energy consumption.
5. Check devices
• Check the status of your devices on the energy usage tab. A green
light next to your device means it has reported data to your computer
in the last 24 hours.
• If the light is red, first unplug and re-plug in your USB receiver. Next,
verify your devices are labeled correctly and assigned to the correct
outlet by clicking Modlet Network and then Modlets.
For more troubleshooting information, call the modlet tech support center at 1-800-682-0152.
Software tips
Displays total power consumption for all devices as well as individual
power traces for up to 5 devices at a time.

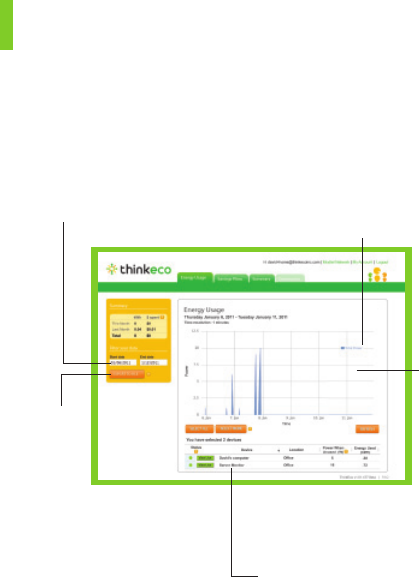

1. Energy Usage
Customize the time period
displayed on the graph
View up to 5 individual power traces as
separate lines or the total power
consumption for more than 5 devices
Click and
drag your
mouse across
a section of
the graph to
zoom in
Click on the names of one or
more devices to display their
consumption on the graph
Export current
data displayed
to a file for
more analysis
Allows you to set up schedules for turning devices on and off. Choose
from a template plan or create your own custom plan. This feature is
available after the initial two-week baseline period.*

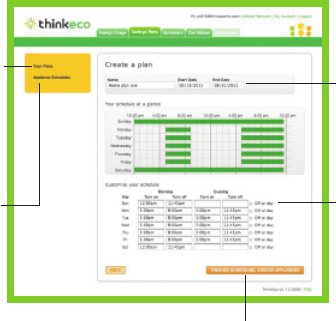

2. Savings Plans
*The default setting for the baseline period is the first two weeks after you set up your modlets.
The baseline period monitors the typical energy consumption of your devices. This information
helps you create plans and calculate savings.
You can create
more than one
plan – such as
one for week-
days and one
for weekends
View an
overview of
the schedules
planned for
today
Create a plan
for as little as
one day or for
many years
Select days
and times for
your device
to turn on
Select which devices the plan
applies to. You can create a
separate plan for each device

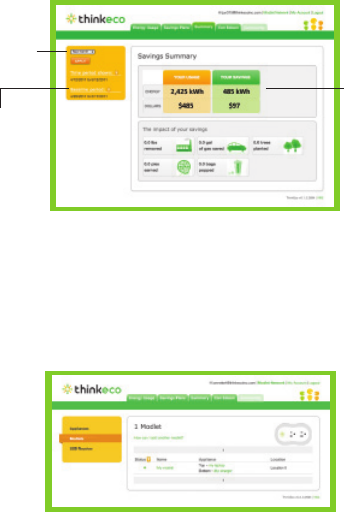

View total energy consumed and saved for all the devices in your
Modlet Network.
Check the status of your Modlet Network (modlets, USB receiver and
devices) and add new devices to your network.
3. Summary
4. Modlet Network
View savings by
week, month,
or year
Baseline is the
two-week period
after you first set
up your modlet.
It monitors
normal energy
consumption
before schedules
are implemented
Savings calculated
based on difference
between energy
consumed before
and after baseline
period since the
modlets have been
plugged in
ThinkEco modlet
Thank you for purchasing your new modlet!
For more information and to learn about your modlet™ please visit www.thinkeco.com. Please read all user guides/manuals provided
to you (in both paper and electronic form) including in the software downloaded in connection with the usage of this device and all
operating and safety instructions. If you fail to do so this product may not function properly and may lead to damage to the product
and to other danger.
Specifications
• Electrical Rating: 125V,15A/60Hz/1875W
• Operation Power Consumption: 0.3W
Important Safety Information:
Use indoors in a dry location.
Do not use this product in connection with critical care equipment (i.e. life-support systems).
Contains non-user serviceable parts; do not open.
This is a live AC outlet, even when the Modlet is in an “off scheduled mode”.
This product is not a toy. Do not allow children to operate it.
Not intended for use with loads rated above 15 Amps
Do not “daisy-chain” the Modlet. Only plug the Modlet into a duplex outlet or a grounded extension cord rated 15 Amps or higher.
In an over current condition or if the Modlet is plugged into an old and/or damaged socket the Modlet and socket temperature may
increase substantially. Unplug the Modlet and appliances immediately and discontinue use. You should contact a qualified electrician to
inspect and/or replace the outlet. Connecting a Modlet to an improperly grounded outlet will void all warranties.
UL 916/4989/94 listed
Regulatory Information: Installation and use of this device must be in strict accordance with the instructions included in the user docu-
mentation provided with the product or at www.thinkeco.com. Any changes or modifications made to this device that are not expressly
approved by the manufacturer may void the user’s authority to operate the equipment. ThinkEco will assume no liability for any damage
or violation of government regulations arising from failing to comply with these guidelines.
Note: USA-FCC (Federal Communications Commission) statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of this device.
Note: FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
LIMITED ONE (1) YEAR WARRANTY
Warranty: ThinkEco warrants that the Modlet(s) will be free from defects in material and workmanship and perform to ThinkEco’s ap-
plicable published specifications for a period of one (1) year from date of delivery to you. The liability of ThinkEco hereunder shall be
limited to replacing or repairing, at its option, any defective Modlet(s) which are returned F.O.B. ThinkEco’s address set forth below (or,
at ThinkEco’s option, refunding the purchase price of such Modlet(s)). In no case are Modlets to be returned without first obtaining
permission and a return order number from ThinkEco. You are responsible for the cost of shipment of the defective Modlet to ThinkEco,
and ThinkEco is responsible for the cost of shipment of a replacement Modlet to you. In the event you send a Modlet back to ThinkEco,
and the Modlet is not defective, ThinkEco reserves the right to charge you a fee associated with postage and handling of such Modlet.
Replacement Modlets: Replacement Modlets are warranted by ThinkEco pursuant to the warranty set forth above for the longer of (i)
thirty (30) days; or (ii) the remaining warranty period for the original Modlet. The replacement Modlet may be refurbished and/or contain
refurbished parts.
The following are not covered by this warranty: (i) Modlets which have been subject to abuse, misuse, accident, alteration, neglect, unau-
thorized repair or installation, Acts of God, power surge, wear and tear, mishandling, misapplication, or other causes unrelated to defec-
tive materials or workmanship; and (ii) any damages and/or viruses caused by use of a third party device in conjunction with the Modlets.
You are responsible for determining if a third party device used in conjunction with the Modlet is suitable for such use and ThinkEco is not
liable, and this warranty does not cover, any damages caused by, or to, any third party device. ThinkEco will make the final determination
as to the existence and cause of any alleged defect. No warranty is made with respect to any custom equipment or goods produced to
your specifications except as specifically stated in writing by ThinkEco in the contract for such custom goods.
Disclaimer & Limitation of Liability: EXCEPT AS EXPRESSLY PROVIDED ABOVE, THINKECO MAKES NO, AND HEREBY DISCLAIMS
ALL OTHER, WARRANTIES, EXPRESS, STATUTORY, OR IMPLIED, INCLUDING ANY WARRANTY OF NON-INFRINGEMENT, MERCHANT-
ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL THINKECO BE LIABLE TO YOU OR ANY THIRD PARTY FOR
ANY LOST PROFITS, USE OF USER INFORMATION, LOSS OF DATA, BUSINESS INTERRUPTION, OR OTHER INDIRECT, CONSEQUEN-
TIAL, SPECIAL, OR INCIDENTAL DAMAGES OF ANY NATURE ARISING FROM OR RELATING TO YOUR USE OF THE MODLET, EVEN IF
THINKECO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL THINKECO’S TOTAL CUMULATIVE
LIABILITY TO YOU, FOR ANY AND ALL CLAIMS UNDER ANY THEORY OF LAW, EXCEED THE ORIGINAL PURCHASE PRICE OF HE
MODLET IN QUESTION.
To contact ThinkEco regarding this Limited Warranty, please call ThinkEco at 1-800-682-0152.
Features

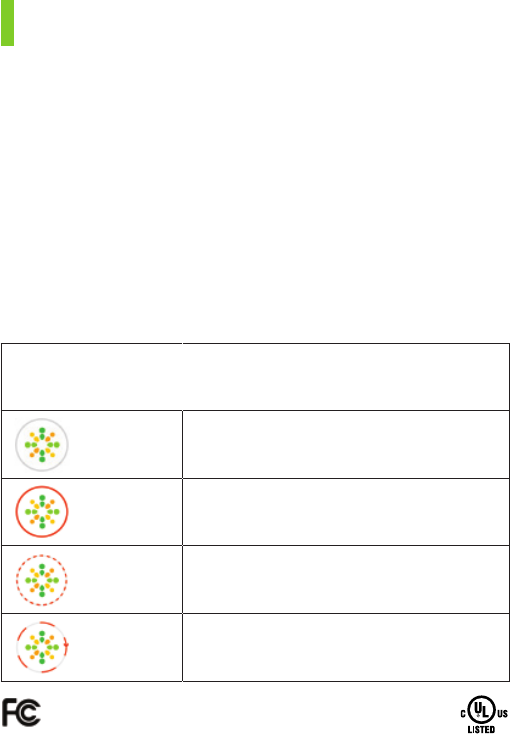

modlet LED light
The LED light indicates the current state of the modlet. Use this quick reference to get to
know your modlet.
Light off Normal operation. Nothing abornomal to report!
Solid Red
Safety Feature - circuit is overloaded. The devices are
drawing more than 15 amps or 1850 watts. Unplug one
or more devices first, then give the modlet button a short
push to put it back into operation
Blinks 1x/
second
The modlet’s schedules are temporarily turned off. They
will automatically restart after 12 hours or give the modlet
button a short push to resume schedules immediately.
Spinning
The modlet is looking for a network to join. This is normal
when you first plug in your modlet. If it happens at any
other time, it means its been accidentally reset.
Assembled in the USA
• Two intelligent outlets (120V,15A)
• Built-in surge protection
• Plugs into standard 3-prong outlets
• Wirelessly communicates directly
to your computer
• Networks 10+ modlets
• See power use at each outlet
• Schedule times for outlets to
provide power
• Track savings in $, kWh and CO2
• Receive alerts based on user
preference
• Access on the go via smart
phone apps
modlet
Wireless USB receiver
Smart control features

Navigation menu
