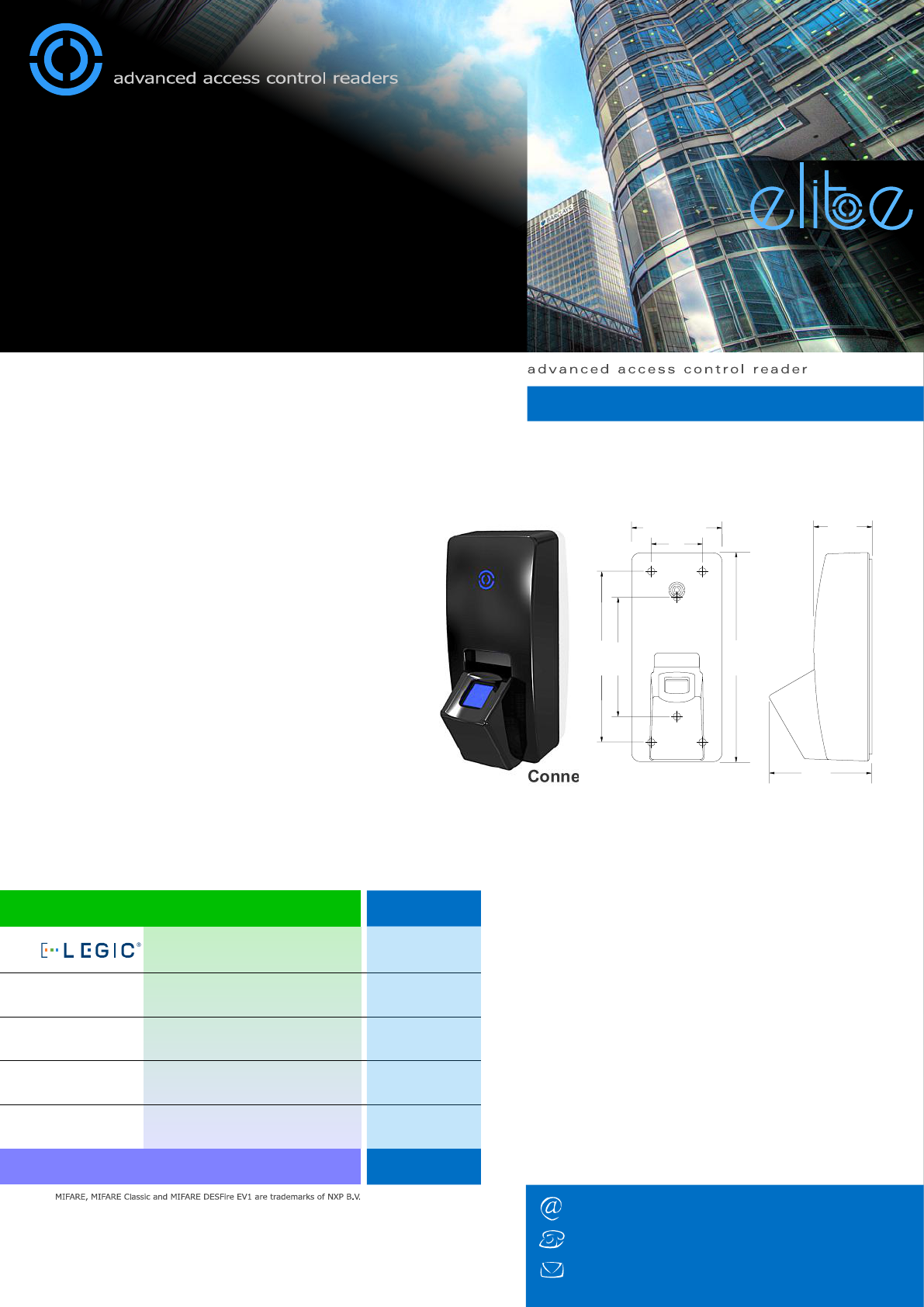

Third Millennium Systems PRX6FP Fingerprint Reader RX660 User Manual
Third Millennium Systems Ltd. Fingerprint Reader RX660 Users Manual
Users Manual
Third Millennium Systems Ltd
18 / 19 Torfaen Business Centre
Panteg Way, New Inn
PONTYPOOL NP4 0LS
United Kingdom
Product Features
The ELITE series RX6 advanced biometric fingerprint reader delivers the
latest multispectral imaging technology in an uncompromisingly stylish
package. The reader is ideal for surface mounting directly to most plain wall
finishes.
This powerfully secure and innovative reader has a beautifully clean
aesthetic and features an RGB LED that can be applied to many
applications, e.g. colour coded access levels, migration status or mood
lighting.
The unit is moulded using tough polycarbonate/ABS plastic and includes a
shadow line backplate, a subtle feature that makes the reader appear to float
on the wall.
100-02111-G
Standard Part
Numbers
technologies available with this reader
available in gloss BLACK only
RX660
Advant
Specification
© 2014 Third Millennium Systems Ltd
registered in England & Wales No. 3199053
www.tm-readers.com
+44 (0) 1495 751 992
info@tm-readers.com
third millennium
•UK design and manufacture
•High gloss finish in BLACK only
•Slim profile
•RGB LED
•Compression sealed electronics
•Wide range of output formats
•1 year limited warranty
•Read range up to 10cm (4 inches)
Connection (screw terminal)
1 - +Vdc Supply voltage (+5Vdc to +16Vdc)
2 - DATA1 / CLK Wiegand or Clock/Data output
3 - DATA0 / DAT Wiegand or Clock/Data output
4 - GREEN Green LED control input
5 - RED Red LED control input
6 - BUZZER Buzzer control input
7 - TMPR / CP Tamper or Card Present output
8 - 0V Supply voltage ground
9 - TTL TX TTL transmit line
10 - TTL RX TTL receive line
Mechanical
Dimensions: 149mm x 63mm x 70mm (5.9 x 2.2 x 2.8 inches)
Housing: Moulded polycarbonate/ABS with Compression Sealed
electronics
Mounting: Wall surface
Environmental
Operating Temperature: -20°C to +60°C
Humidity: 0 - 100% RHNC (outdoor)
0 - 95% RHNC (indoor)
Ingress Protection: IP65
Electrical
Voltage: +5Vdc to +16Vdc
Current: 450mA typical
Data Voltage: Rest >4Vdc / Active <1Vdc
Data Output: Wiegand, Clock & Data, Custom Outputs
Indication: 1 RGB LED
Sounder: Integral speaker
Interfacing
The reader supports a wide variety of output formats allowing it
to be used in most access control and related applications, e.g.
time and attendance, cashless vending etc.
The combination of an integral speaker, an RGB LED, three
control inputs and a variety of LED/buzzer/external control
options provide a flexible platform to give the right user interface
configuration for your project.
Quality Design
Third Millennium has nearly 20 years of award-winning
experience in the design and manufacture of RFID technology
and the delivery of world class, state-of-the-art access control
projects with our many global partners.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired opearation.
RX6
36mm
1.4 inches
63mm (2.2 inches) 39mm
1.5 inches
70mm
2.8 inches
83.3mm
3.3 inches
120.3mm
4.7 inches
149mm
5.9 inches
