Experience In Motion

USER INSTRUCTIONS

Installation

Operation

Maintenance

Limitorque MX DeviceNet Field Unit

FCD LMENIM2328-00 – 11/05

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Limitorque MX DeviceNet Field Unit Installation and

Operation Manual

Disclaimer

This document is meant for use with the Limitorque MX Installation and Operation Manual for MX-05

through MX-40. Information in this document is also applicable to MX-85 and MX-140. No part of

this book shall be reproduced, stored in a retrieval system, or transmitted by any means, electronic,

mechanical, photocopying, recording, or otherwise without the written permission of Limitorque. While

every precaution has been taken in the preparation of this book, the publisher assumes no responsibility

for errors or omissions. Neither is any liability assumed for damages resulting from the use of the

information contained herein.

This document is the proprietary information of Flowserve, furnished for customer use ONLY. No other

uses are authorized without written permission from Limitorque.

Limitorque reserves the right to make changes, without notice, to this document and the products it

describes. Limitorque shall not be liable for technical or editorial errors or omissions made herein;

nor for incidental or consequential damages resulting from the furnishing, performance or use of this

document.

The choice of system components is the responsibility of the buyer, and how they are used cannot be

the liability of Limitorque. However, Flowserve Limitorque’s sales team and application engineers are

always available to assist you in making your decision.

This manual contains information that is correct to the best of Flowserve’s knowledge. It is intended

to be a guide and should not be considered as a sole source of technical instruction, replacing good

technical judgment, since all possible situations cannot be anticipated. If there is any doubt as to exact

installation, conﬁguration, and/or use, call Flowserve Limitorque at (434) 528-4400. The latest revisions

to this document are available online at http://www.limitorque.com

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

Contents

Declaration of DeviceNet Conformance – ODVA Certiﬁcation 5

Abbreviations 6

1 Introduction 7

1.1 Purpose 7

1.2 How to Use this Manual 7

1.3 User Safety 7

1.4 User Knowledge 8

1.5 DeviceNet System Capabilities and Features 8

1.5.1 General Speciﬁcations 8

2 System Components 10

2.1 Introduction 10

2.2 Hardware 10

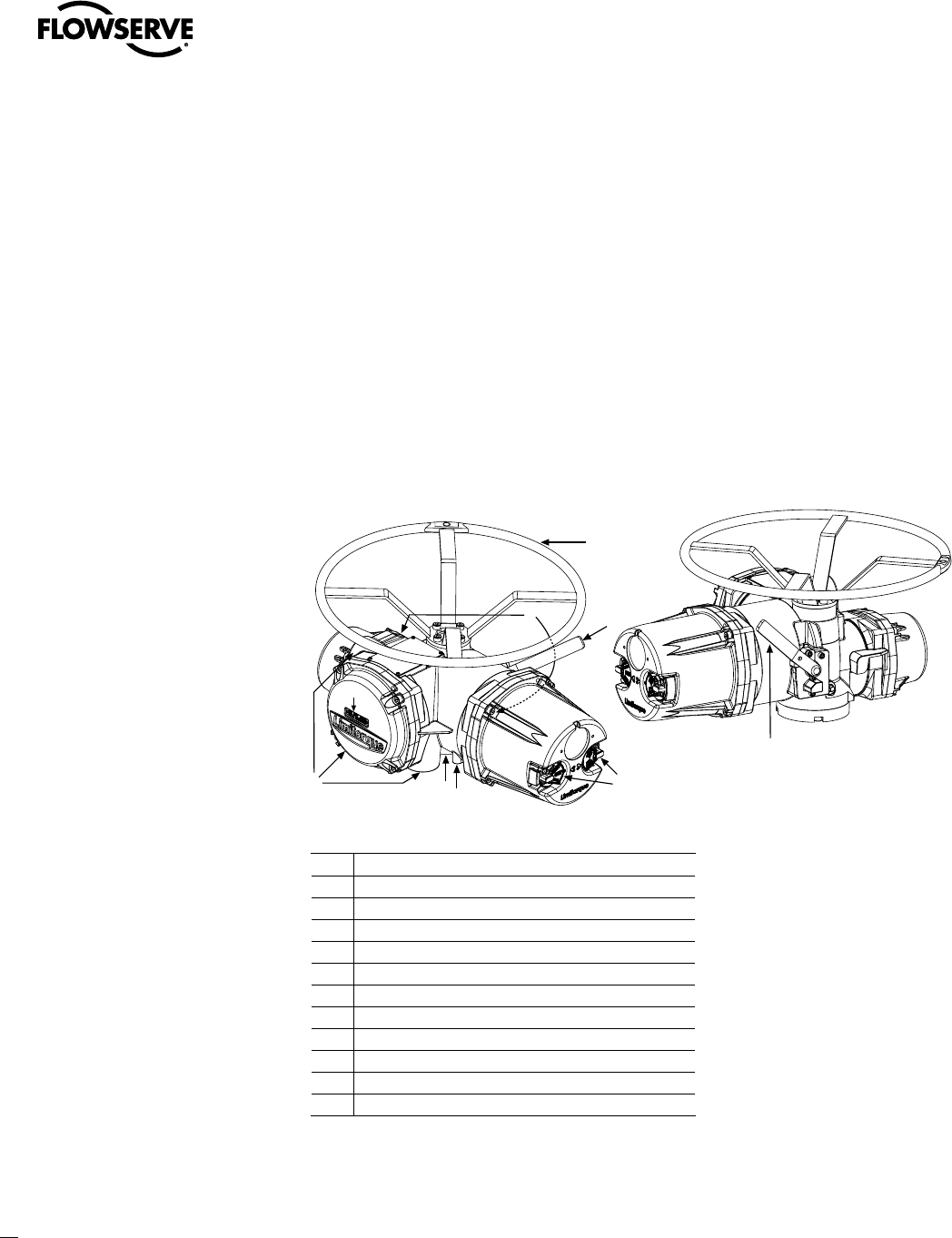

2.2.1 Limitorque MX 10

2.2.2 DeviceNet Field Unit 11

2.2.3 Hardware interface 12

2.2.4 Network Cable 12

3 Installation and Conﬁguration 13

3.1 Site and Network Cable Preparation 13

3.1.1 Site Preparation 13

3.1.2 Network Cable Preparation 13

3.2 Installation Veriﬁcation 16

3.2.1 Network Cabling Installation Veriﬁcation 16

3.2.2 DNFU Installation Veriﬁcation 17

4 Object Model Diagram 17

4.1 Assembly Objects 18

4.2 Output Assembly Instances 18

4.2.1 DI_Position_and_Bus_Mode_Chan 22

4.2.2 DI_Position_Chan 22

4.2.3 DI_Actuator_Faults_1_Chan 22

4.2.4 DI_Actuator_Faults_2_Chan 23

4.2.5 DI_Actuator_Alarms_Chan 23

4.2.6 DI_Disc_User_Input_Chan 24

4.2.7 DI_Read_Disc_Output_Chan 24

4.2.8 DO_Position_Chan 24

4.2.9 DO_ESD_Chan (Read Only) 24

4.2.10 DO_Relay_Chan 25

4.2.11 DO_Actuator_Faults_3_Chan 25

4.2.12 Ctrl_Status_Chan 25

4.2.13 DI_Alarms_2_Chan 25

4.2.14 DI_Actuator_Faults_3_Chan 25

4.3 Channel Interface 26

4.4 Transducer Block Object 28

4.4.1 MAC ID 30

4.4.2 Baud Rate 31

4.5 Network Management 31

4.5.1 Ofﬂine Connection Set 31

4.5.2 Device Heartbeat Message 31

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

4.5.1 Device Shutdown Message 32

4.6 Conﬁguration Conﬁrmation 32

4.6.1 Checking Connections 32

4.6.2 View Settings 32

5 View DeviceNet Status 33

5.1 Checking the Normal Display 34

5.2 EDS File 35

6 Associated Documents 35

7 Troubleshooting 35

7.1 Workmanship 36

8 How to Order Parts 37

9 Regulatory Information 37

10 Wiring Diagram 38

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

Declaration of DeviceNet Conformance –

ODVA Certiﬁcation

Declaration of Conformity

to the DeviceNet™ Specification

DeviceNet and the DeviceNet CONFORMANCE TESTED logo mark and word marks are trademarks of ODVA.

ODVA hereby issues this Declaration of Conformity to the DeviceNet™ Specification for the product(s) described below. The Vendor

listed below (the "Vendor") has holds a valid the Terms of Usage Agreement for the DeviceNet Technology from ODVA, which is

incorporated herein by reference, thereby agreeing that it is the Vendor’s ultimate responsibility to assure that its DeviceNet

Compliant Products conform to the DeviceNet Specifications and that the DeviceNet Specifications are provided by ODVA to the

vendor on an AS IS basis without warranty. NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE BEING PROVIDED BY ODVA.

In recognition of the below DeviceNet Compliant Product(s) having been DeviceNet Conformance Tested at ODVA-authorized Test

Service Provider and having received a passing result from ODVA at the Composite Test Revision Level specified below, this

Declaration of Conformity authorizes the Vendor to use the DeviceNet Certification Marks in conjunction with the specific DeviceNet

Compliant Product(s) described below, for so long as the Vendor's Terms of Usage Agreement for the DeviceNet Technology remains

valid.

DeviceNet CONFORMANCE TESTED ™

Certification Logo Mark Certification Word Mark

This Declaration of Conformity is issued on 27 February 2006 on behalf of ODVA by:

Katherine Voss

Executive Director

Vendor Information

Vendor Name Flowserve Corporation

Vendor Address 5114 Woodall Road

Lynchburg, VA 24506

USA

Test Information

Test Date 16-17 February 2006

Composite Test Revision 18

ODVA File Number 10331

Product Information

Identity Object Instance 1

Device(s) Under Test Value

Vendor ID (Identity Object Attribute 1) 966

Network Category Node

Device Type (Identity Object Attribute 2) 0

Device Profile Name Generic Device

Product Revision (Identity Object Attribute 4) 1.002

Products Covered Under This Declaration of Conformity

No. Product Code (Identity Object Attribute 3) Product Name (Identity Object Attribute 7) SOC File Name

119800 Flowserve MX DLI.stc

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Abbreviations

CIP Common Industrial Protocol

CAN Controller Area Network

COS Change of State

ODVA Open DeviceNet Vendor Association

UCMM Unconnected Message Manager

NV-RO Non-Volatile Read Only. Data is stored in non-volatile memory and can only be read. Data is

stored during Power-Off. For DeviceNet Limitorque Interface this storage area is FLASH

NV-RW Non-Volatile Read Write. Data is stored in non-volatile memory and can be read and write.

Data is stored during Power-Off. For DeviceNet Limitorque Interface this storage area is EEPROM

V-RO Volatile Read Only. Data is stored in volatile memory and can only be read (e.g. Status). Data is

lost during Power-Off. For DeviceNet Limitorque Interface this storage area is RAM

V-RW Volatile Read Write. Data is stored in volatile memory and can be read and write data is lost

during Power-Off, for DeviceNet Limitorque Interface this storage area is RAM.

DNFU DeviceNet Field Unit (PCB w/in actuator control compartment)

SPI Synchronous Peripheral Interface

PCB Printed Circuit Board

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

1 Introduction

1.1 Purpose

This manual explains how to install and operate the Limitorque MX™/DeviceNet ﬁeld unit (DNFU) and is

to be used as an addendum to Bulletin LMENIM2306, Limitorque MX Installation and Operation Manual.

Up to 63 actuators, each containing a DeviceNet ﬁeld unit, may be connected by a single 5 strand,

twisted-pair cable to form a DeviceNet network, two wires for connection to the data highway and two

wires for connection to the DC power lines of the network highway, plus a screen connection. A suitable

power supply and termination resistors on the highway are required in order for the FU to function

correctly. This network permits the actuators to be operated by various control room devices such as a

distributed control system (DCS), a programmable logic controller (PLC), or a personal computer (PC).

The DeviceNet system communicates status and alarm data from each MX actuator.

1.2 How to Use this Manual

Each section provides the MX user with information on installing and operating the MX DNFU.

Section 1, Introduction: Details user safety and knowledge requirements, system capabilities, and

features.

Section 2, System Components: Focuses on the description of the DeviceNet system hardware and

software components.

Section 3, Installation and Conﬁguration: Provides details for installing and conﬁguring a DNFU.

Section 4, Object Model Diagram: Provides a list of inputs and outputs supported through the Assembly

Object system information.

Section 5, View DeviceNet Status

Section 6, Associated Documents

Section 7, Troubleshooting

Section 8, How to Order Parts

Section 9, Regulatory Information

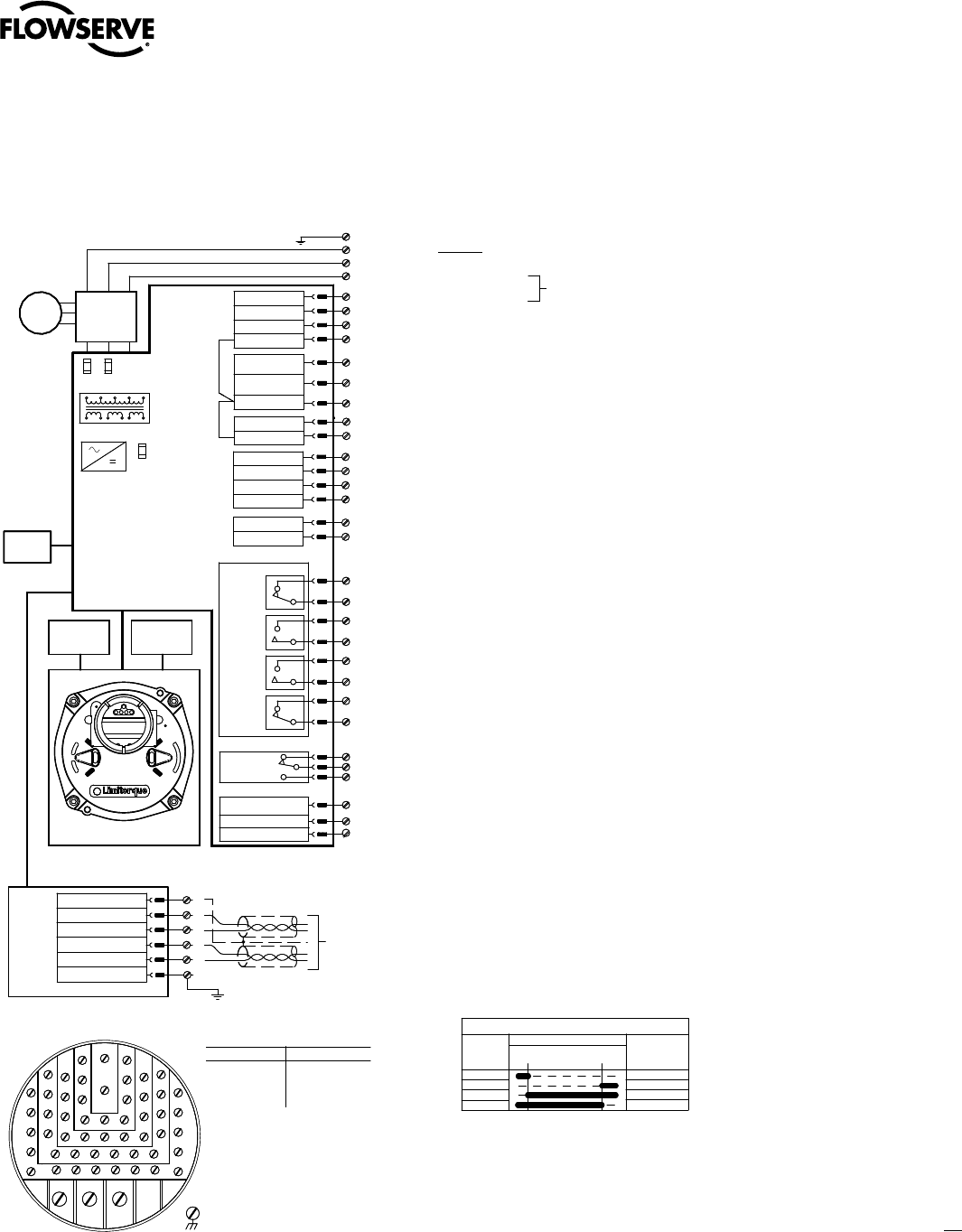

Section 10, Wiring Diagram

1.3 User Safety

Safety notices in this manual detail precautions the user must take to reduce the risk of personal injury

and damage to the equipment. The user must read and be familiar with these instructions before

attempting installation, operation, or maintenance. Failure to observe these precautions could result

in serious bodily injury, damage to the equipment, warranty void, or operational difﬁculty. User must

follow local and state safety regulations.

Safety notices are presented in this manual in three forms:

WARNING: Refers to personal safety. Alerts the user to potential danger. Failure to follow

warning notices could result in personal injury or death.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

CAUTION: Directs the user’s attention to general precautions that, if not followed, could result in

personal injury and/or equipment damage.

NOTE: Highlights information critical to the user’s understanding of the actuator’s installation and

operation.

1.4 User Knowledge

It is recommended that the user read this manual in its entirety before the DeviceNet equipped actuator

is installed and operated.

The user needs to have a fundamental knowledge of electronics and microprocessor concepts. An

understanding of valve actuators and digital control systems is also of beneﬁt to the DNFU user.

1.5 DeviceNet System Capabilities and Features

DeviceNet is a low cost communications protocol which permits up to 64 nodes (devices) to be

installed over a single network and is based upon CAN (Controller Area Network), a broadcast protocol

developed for the automotive industry. DeviceNet™ protocol is deﬁned as an open network standard and

Limitorque’s device is certiﬁed for use by the ODVA, Open Device Standard Association. DeviceNet is

usually PLC input controlled and the Limitorque MX electronic actuator is well suited for this communi-

cation system. A typical network is seen in Figure 1.1.

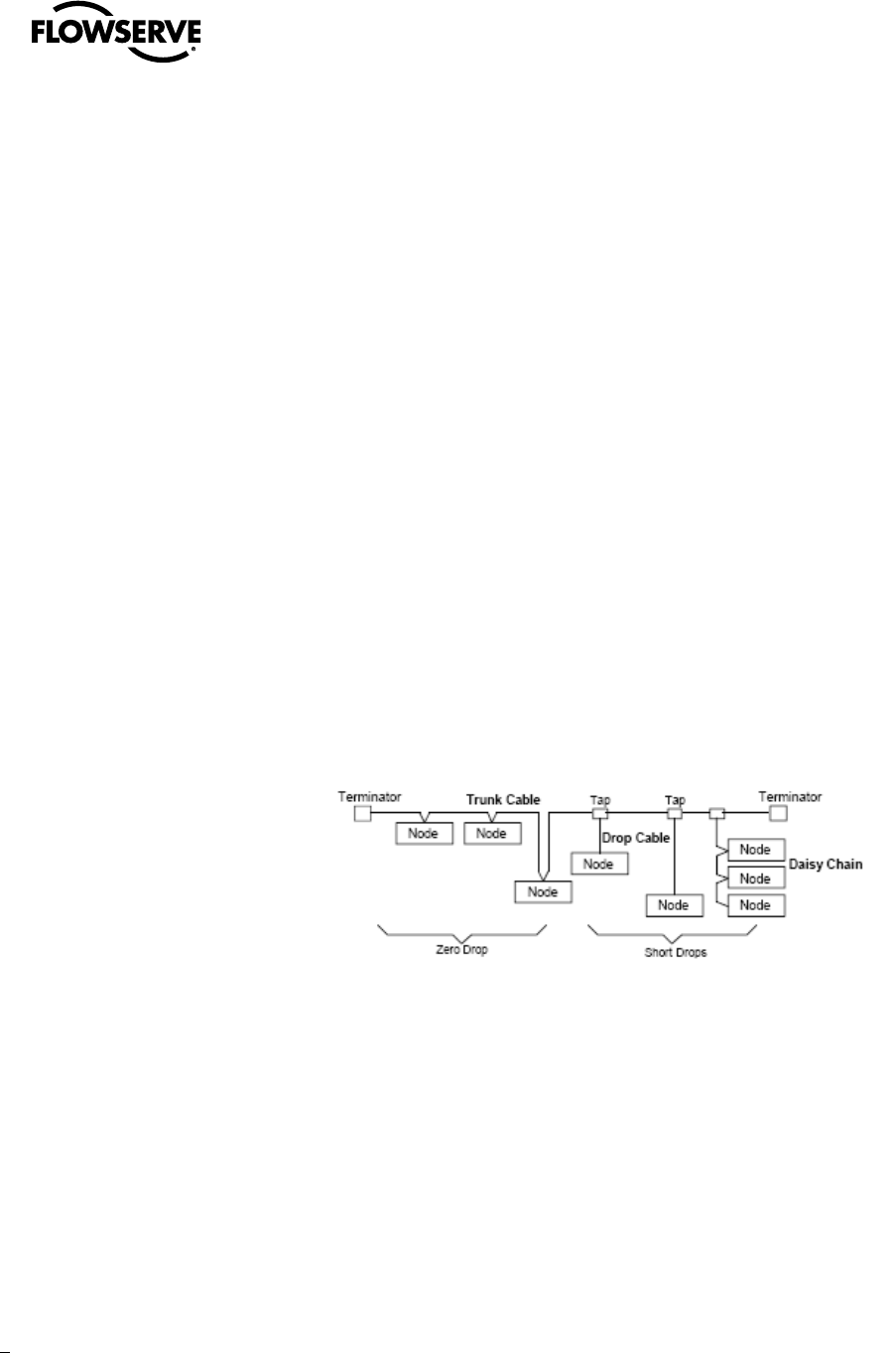

Figure 1.1 – Typical Network

1.5.1 General Speciﬁcations

1.5.1.1 Network Speciﬁcations

DeviceNet is a digital, trunk/drop network that connects and serves as a communication network

between industrial controllers and I/O devices.

DeviceNet follows the Open Systems Interconnection (OSI) model, an ISO standard for network

communications that is hierarchical in nature. Networks that follow this model deﬁne all necessary func-

tions from the physical implementation up to the protocol and methodology to communicate control

and information data within and across networks.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

Table 1.1 – Network speciﬁcations

Network Size Up to 63 Nodes

Network Length Selectable end-to-end network distance varies with speed

125 Kbps 500 m (1,640 ft)

250 Kbps 250 m (820 ft)

500 Kbps 100 m (328 ft)

Bus Topology Linear (trunkline/dropline); power and signal on the same network cable

Bus Addressing Multi-Master and Master/Slave special case; polled of change-of-state

(exception-based)

System Features Selectable end-to-end network distance varies with speed

Termination resistor (121 ohms) must be used at each end of the network

1.5.1.2 MX Field Unit Speciﬁcations

CIP Generic Device Proﬁle (Device Type = 00hex) extended to DNFU requirements

Group 2 Server

UCMM capable device

Predeﬁned Master/Slave Connection Set supporting

Explicit Connection

Polled I/O Connection

Bit-Strobed I/O Connection

Change of State / Cyclic I/O Connection

Full support of fragmentation protocol

Device Heartbeat Message

Device Shutdown Message

Ofﬂine Connection Set

Galvanical Isolation: The isolation voltage for the DNFU is up to 1,500 VRMS for 1 minute (1,800

VRMS for 1 second

Power Supply: The DNFU Interface will be powered from the DeviceNet bus. A switching regulator is

used to generate the internal supply voltage: VCC nominal 5.0 V ± 5 %

Surge Suppression: The DNFU Interface is equipped with surge suppression for the DeviceNet

network data and power lines. Surge suppression is compliant with IEC 61000-6-2:2001.

Environmental conditions

The DNFU environmental parameters are within the same environmental constraints as the actuator.

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

2 System Components

2.1 Introduction

This section gives an overview of the components used in the DeviceNet system. The ﬁeld unit is

installed in each MX actuator. The network cable connects the ﬁeld unit to the network via the actuator

terminal block. The network cable is connected to a host controller, typically a PLC.

2.2 Hardware

NOTE: Recommended storage procedures are detailed in Bulletin LMAIM1314 Limitorque MX

Maintenance and Spare Parts Manual. Failure to comply with recommended procedures will void the

warranty. For longer-term storage, contact Limitorque for procedures and recommendations.

Figure 2.1 – MX-05 Actuator

Table 2.1 – MX-05 Actuator

1 Handwheel

2 Declutch Lever

3 Oil Fills (dotted arrow depicts ﬁll on declutch side)

4 Controls Compartment (ﬁeld unit location)

5 LCD Display

6 Control Knobs

7 Ground Lug

8 Thrust/Torque Base

9 Conduit Entries

10 Terminal Compartment

11 Motor

12 Nameplate

2.2.1 Limitorque MX

The MX is a multi-turn valve actuator designed for operation of ON-OFF and modulating valve applica-

tions. This actuator controls the opening and closing of valves. See Figure 2.1.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

The MX features include:

Non-intrusive setup

Separately sealed terminal chamber

Patented absolute encoder for valve position sensing (no battery required)

32-character LCD for indication and calibration with conﬁguration permitted in six languages.

Sophisticated electronic control, monitoring, and diagnostic capabilities with patented LimiGard™

technology

2.2.2 DeviceNet Field Unit

The DeviceNet ﬁeld unit is installed in the MX controls compartment. This unit permits the actuator to

be controlled by a host controller, typically a PLC, via the DeviceNet network. The DNFU includes two

high-level, surge-protected, and isolated network communication channels, conﬁgurable digital I/O, and

conﬁguration via LCD screen. The following commands and information may be transmitted over the

DeviceNet network:

“OPEN,” “STOP,” and “CLOSE” commands

“ESD” and “MOVE–TO” position commands

Actuator status and alarm messages

Six digital inputs and two analog inputs for user

A surge-protected and isolated communication channels

MX control panel conﬁguration

Torque output (for reference only) and position feedback

Four digital outputs (standard)

Figure 2.2 – DeviceNet Field Unit

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

2.2.3 Hardware interface

The DeviceNet Limitorque Interface is comprised of a minimum of one PCB with two interfaces - One

for the DeviceNet Terminal Block connector and one for the SMT Main Board.

Figure 2.3 gives an overview about the hardware. The microcontroller on the DeviceNet Limitorque

Interface handles the DeviceNet protocol, stores the DeviceNet parameters in an EEPROM, and commu-

nicates with the SMT Main Board via SPI.

Figure 2.3 – DeviceNet Limitorque Interface

2.2.4 Network Cable

DeviceNet is a CAN - based protocol that uses 5 wires including a shield. Two of the conductors are

used for 24V DC power & up to 8 amps (4 amps for NEC Class 2) may be passed along the hi-way from

a suitable power source. Two conductors are used for the CAN bus signals, CAN_H and CAN_L, which

are usually smaller in diameter. Limitorque recommends Belden cable for connecting to a DeviceNet

network. The speciﬁcations for thick and thin cable (per site requirements) are as follows:

Table 2.2 – Belden Cable Speciﬁcations

Belden

Part No.

AWG

(Stranding)

dia. Inches

Nom. DCR

Insulation

material

(color code)

Nominal

O.D.

Nom

Impedance

(ohms)

Nominal

Capacitance

Test

Frequency

(MHz)

Maximum

Attenuation

dB/100ft

3082A

2 – 15 AWG

(19 x 28)

3.6 ohm/1000 ft

11.8 ohm/km

Power pair

(Black/Red)

12.2 mm 120 12.0 pF/ft

0.125

0.5

0.13

0.25

1.36

2 – 18 AWG

(19 x 30)

6.9 ohm/1000 ft

22.7 ohm/km

Data pair

(Blue/White)

3084A

2 – 22 AWG

(19 x 34)

17.5 ohm/1000 ft

57.4 ohm/km

Power pair

(Black/Red)

7.2 mm 120 12.0 pF/ft

0.125

0.5

0.29

0.50

1.70

2 – 18 AWG

(19 x 36)

28.0 ohm/1000 ft

91.9 ohm/km

Data pair

(Blue/White)

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

Table 2.3 – Total cable length between repeaters or nodes:

Network Size 125 KBPS 250 KBPS 500 KBPS

Thick Trunk Length 500 m (1,640 ft) 250 m (1,640 ft) 100 m (1,640 ft)

Thin Trunk Length 100 m (328 ft) 100 m (328 ft) 100 m (328 ft)

Flat Trunk Length 380 m (1,250 ft) 200 m (656 ft) 75 m (246 ft)

Maximum Drop Length 6 m (20 ft) 6 m (20 ft) 6 m (20 ft)

Cumulative Drop Length 156 m (512 ft) 78 m (256 ft) 39 m (128 ft)

Note: Each actuator includes 0.60 meters of internal drop length.

3 Installation and Conﬁguration

3.1 Site and Network Cable Preparation

3.1.1 Site Preparation

Prepare the site and associated equipment for operation of the DeviceNet controlled MX actuators as

follows:

1. Prepare a detailed site plan consisting of the following:

Actuator locations, tag numbers, DeviceNet addresses

Junction boxes, terminal strip locations, and tag numbers

2. Provide free access to the MX control panel and terminal block for setup, conﬁguration, and

troubleshooting.

3. Prepare cable and label all wires. See Section 3.1.2, Network Cable Preparation.

4. Install power and control wires in separate conduits. Shielding is not sufﬁcient to prevent induction

of stray voltages onto signal leads from the power lines.

5. Install and verify earth grounds.

NOTE: Limitorque deﬁnes an effective local earth ground as a low impedance (less than 5 ohms) path

to:

A ground electrode placed in close vicinity of the actuator that is free of ground loop currents. OR

A safety ground that is free of ground loop currents running from the actuator back to the system

ground electrode. If the signal wiring is run on aerial cable where it may be exposed to high-

energy electrostatic discharge (such as lightning), a low impedance path to ground that is capable

of high current must be provided a short distance from the actuator as described above. OR

A power distribution grid identifying the impact of power isolation to a particular actuator or

group of actuators should be provided.

3.1.2 Network Cable Preparation

3.1.2.1 Network Cable Connection to the Field Unit

The DeviceNet ﬁeld unit is connected to the network via the MX terminal block. The network cable is

connected to the terminal block as shown in Figure 3.1.

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

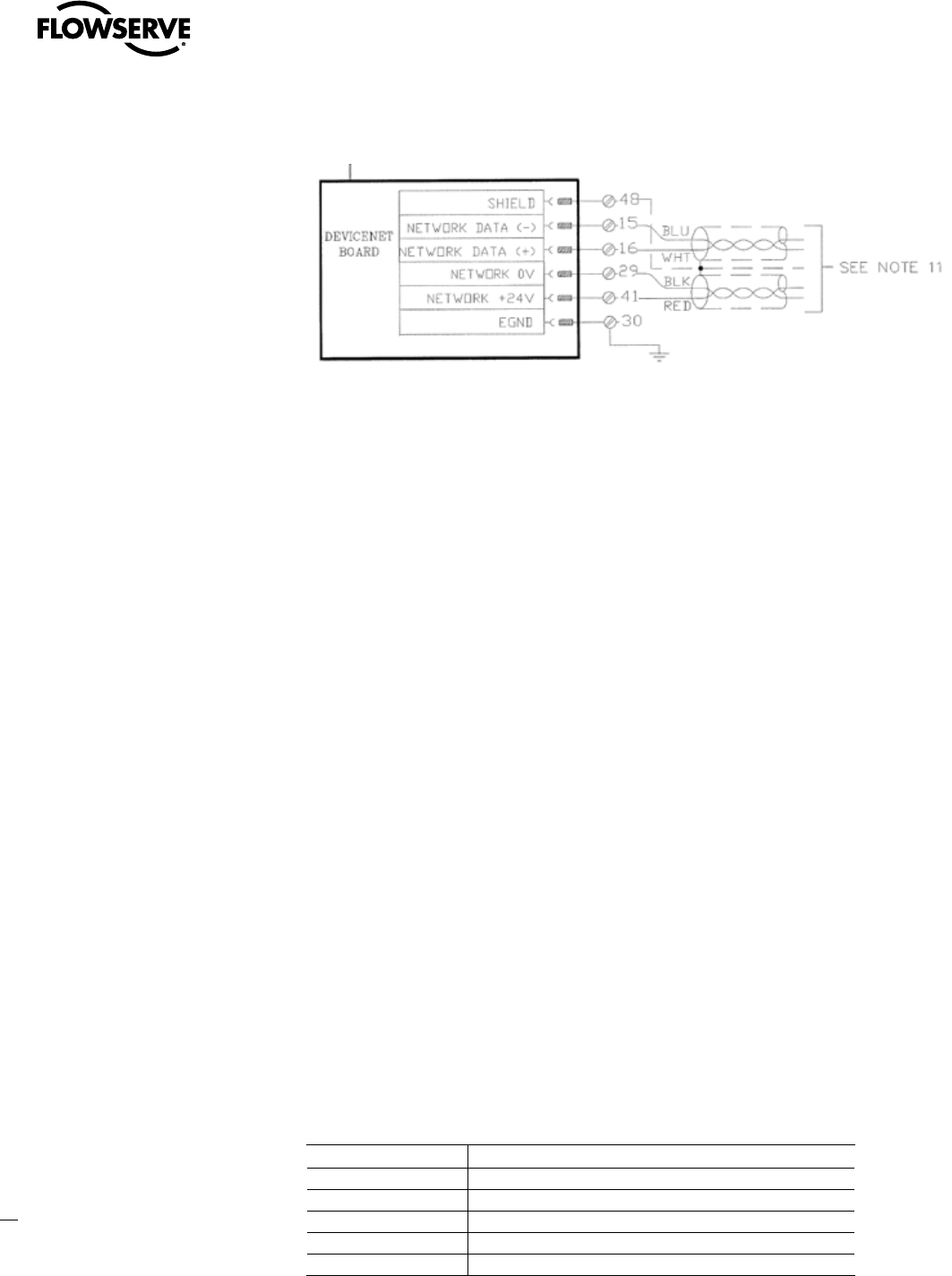

Figure 3.1 – Network cable connection to terminal block

NOTE: Recommended DeviceNet cable is Belden 3084A or equal. 121 ohm, ¼ W +/-1% termination

resistors must be connected at each segment end. Customer is required to connect wire between

terminal 30 and chassis ground for surge protection. Preferred network wiring is to connect shield to

terminal 48 for only one unit on each segment. Connect remaining individual network cable shields

together to ensure proper shielding of entire network. Consult wiring diagram for exact terminal

connection points as they may change.

Prepare the network cable for connection to the MX terminal block as follows.

CAUTION: Strip stranded conductors carefully; do not damage the strands. This will weaken the

conductor. Do not nick conductors or conductor insulation when stripping away the insulation.

Nicking stresses the conductor and can cause the conductor to break. This type of damage may

not be apparent and failure can occur later without warning.

NOTE: Excess cable should be cut, not coiled or looped, to prevent noise induction into the network and

to reduce signal loss through unnecessarily long cable runs.

Cable Preparation

1. Remove two to three inches (5 to 8 cm) of the outer plastic jacket.

2. Separate the cable parts. Unbraid the shield and peel back the foil shield to the same point where

the outer jacket was removed. Cut away the braided shield and the foil shield. Strip the insulation

from the conductors approximately 0.4 inch (1 cm).

3. Apply heat shrink tubing to insulate the drain wire and to provide stress relief to the cable.

CAUTION: Do not melt the insulation. NOTE: Ungrounded drain wires should be cut even with

the cable sheath. The brand foil and drain wire should have heat shrink tubing applied.

4. Install ring tongue connectors. Flowserve recommends the use of Thomas & Betts #RZ22-6 for

optimum results.

5. Connect the network cables to the MX terminal block as shown in Wiring Diagram #18-499-0038-3.

Table 3.1

48 Shield

15 (Blue) DATA (-)

16 (White) DATA (+)

29 (Black) Network 0 V

41 (Red) Network 24V

30 Earth ground for surge protection circuit

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

NOTE: Ground each segment of the cabling at only one point to prevent ground loops, which can affect system

performance. Verify the actuator is properly grounded.

6. Install jumper cable from terminal block pin 30 to earth ground or ground lug.

3.2 Installation Veriﬁcation

3.2.1 Network Cabling Installation Veriﬁcation

After installation is complete and prior to operation, inspect the network cable and its connection to

each ﬁeld unit for the following:

NOTE: Units should be disconnected from power. Network should be disconnected from host.

1. There should be:

No nicks in the insulation—this can cause a short between conductors or to the grounded shield.

No cut strands in a stranded conductor—this can cause a poor connection and eventually an

open circuit.

2. Verify that there is data wiring on each actuator per wiring diagram.

3. Cable armor should not be shorted to the cable shield/drain wire. Cable armor may not be at ground

potential and could be subject to lightning surges.

The shield/drain wire should only be grounded at one end of each cable segment (the section between

adjacent actuators between the host system and an actuator) to avoid ground loop problems.

The ground/earth connection should be at true ground potential and effective at all times. See Section

3.1.1, Site Preparation.

3.2.2 DNFU Installation Veriﬁcation

NOTE: Connect to either 24 V DC power or mains and activate power.

Verify the ﬁeld unit is installed as follows:

1. Enter the “SETUP” mode as detailed in Bulletin LMAIM1306/2306, MX Installation and Operation

Manual.

2. In the “SETUP” mode, use the black control knob to select “YES” to the main menu selection “VIEW

DIAGNOSTICS?”

3. Select “YES” to the display “VIEW HARDWARE STATUS?”

4. Select “YES” to scroll through the menu selections. The LCD will read “DeviceNet (OK) – NEXT?” if

installed.

NOTE: If the “DeviceNet (OK) – NEXT?” does not appear, contact Flowserve for assistance.

19. To return to the normal display, use the red knob to select either “LOCAL” or “REMOTE.”

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

4 Object Model Diagram

Figure 4.1 – Object Model of DeviceNet Limitorque Interface

4.1 Assembly Objects

The Assembly Object binds attributes of multiple objects, which allows data to or from each object to

be sent or received over a single connection. Assembly Objects can be used to bind input data or output

data. The terms input and output are deﬁned from the networks point of view. An input will produce data

on the network and an output will consume data from the network

The terms input and output are deﬁned from the networks point of view.

An input is a signal produced at the actuator and sent to the PLC via the network. •

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

An output is a signal produced at the PLC and sent to the actuator via the

network.

The user may select one output and one input instance.

The default assembly objects are as follows: Polled input - 105, Polled output - 100, Bitstrobe - 107,

COS - 109.

Table 4.1

Instance ID Type Data Component Name Size

100 Output Output 1 (All Control Channels) 9

101 Output Output 2 (Analog Control and ESD only) 5

102 Output Output 3 (Discrete Control and ESD only) 4

103 Output Output 4 (Analog Control only) 3

104 Output Output 5 (Discrete Control only) 3

105 Input Input 1 (All Status Information) 16

106 Input Input 2 (Position and Faults only) 6

107 Input Input 3 (Position and Faults only) 8

108 Input Input 4 (Position, User and Faults only) 11

109 Input Input 5 (Faults and Alarms only) 6

4.2 Output Assembly Instances

Table 4.2 – Output Assembly Instance 100

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

100 Output 1 100 Channel

Interface

1 20 Ctrl_Status_Chan BYTE

100 Channel

Interface

1 1 AO_Ctrl_Valve_ Flow_Chan INT

100 Channel

Interface

1 9 DO_Position_Chan BYTE

100 Channel

Interface

1 21 DO_ESD_Poll_Cnxn BOOL

100 Channel

Interface

1 11 DO_Relay_Chan BYTE

100 Channel

Interface

1 18 DO_Move_Test_Chan BOOL

100 Channel

Interface

1 19 AO_Analog_Output_Chan UNIT

Table 4.3 – Output Assembly Instance 101

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

101 Output 2 100 Channel

Interface

1 20 Ctrl_Status_Chan BYTE

100 Channel

Interface

1 1 AO_Ctrl_Valve_ Flow_Chan INT

100 Channel

Interface

1 21 DO_ESD_Poll_Cnxn BOOL

100 Channel

Interface

1 10 DO_Move_Test_Chan BOOL

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Table 4.4 – Output Assembly Instance 102

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

102 Output 3 100 Channel

Interface

1 20 Ctrl_Status_Chan BYTE

100 Channel

Interface

1 9 DO_Position_Chan BYTE

100 Channel

Interface

1 21 DO_ESD_Poll_Cnxn BOOL

100 Channel

Interface

1 18 DO_Move_ Test_Chan BOOL

Table 4.5 – Output Assembly Instance 103

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

103 Output 4 100 Channel

Interface

1 20 Ctrl_Status_Chan BYTE

100 Channel

Interface

1 1 AO_Ctrl_Valve_ Flow_Chan INT

Table 4.6

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

104 Output 5 100 Channel

Interface

1 20 Ctrl_Status_Chan BYTE

100 Channel

Interface

1 9 DO_Position_Chan BYTE

100 Channel

Interface

1 21 DO_ESD_Poll_Cnxn BOOL

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

Table 4.7 – Input Assembly Instance 105

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

105 Input 1 100 Channel

Interface

1 17 DI_Actuator_

Faults_3_Chan

BYTE

100 Channel

Interface

1 4 DI_Actuator_

Faults_1_Chan

BYTE

100 Channel

Interface

1 6 DI_Actuator_ Alarms_Chan BYTE

100 Channel

Interface

1 2 DI_Pos_And_

Bus_Mode_Chan

BYTE

100 Channel

Interface

1 5 DI_Actuator_

Faults_2_Chan

BYTE

100 Channel

Interface

1 12 AI_Position_Chan INT

100 Channel

Interface

1 7 DI_Disc_User_ Input_Chan BYTE

100 Channel

Interface

1 8 DI_Read_Disc_

Output_Chan

BYTE

100 Channel

Interface

1 13 AI_Analog_ Input_2_Chan INT

100 Channel

Interface

1 14 AI_Analog_ Input_2_Chan INT

100 Channel

Interface

1 16 DI_Alarms_2_

Chan

BYTE

100 Channel

Interface

1 15 AI_Torque_Chan INT

Table 4.8

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

106 Input 2 100 Channel

Interface

1 17 DI_Actuator_

Faults_3_Chan

BYTE

100 Channel

Interface

1 4 DI_Actuator_

Faults_1_Chan

BYTE

100 Channel

Interface

1 6 DI_Actuator_ Alarms_Chan BYTE

100 Channel

Interface

1 2 DI_Pos_And_

Bus_Mode_Chan

BYTE

100 Channel

Interface

1 12 AI_Position_Chan INT

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Table 4.9 – Input Assembly Instance 107

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

107 Input 3 100 Channel

Interface

1 17 DI_Actuator_

Faults_3_Chan

BYTE

100 Channel

Interface

1 4 DI_Actuator_

Faults_1_Chan

BYTE

100 Channel

Interface

1 6 DI_Actuator_ Alarms_Chan BYTE

100 Channel

Interface

1 2 DI_Pos_And_

Bus_Mode_Chan

BYTE

100 Channel

Interface

1 12 AI_Position_Chan INT

100 Channel

Interface

1 15 AI_Torque_Chan INT

Table 4.10 Input Assembly Instance 108

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

108 Input 4 100 Channel

Interface

1 17 DI_Actuator_

Faults_3_Chan

BYTE

100 Channel

Interface

1 4 DI_Actuator_

Faults_1_Chan

BYTE

100 Channel

Interface

1 6 DI_Actuator_ Alarms_Chan BYTE

100 Channel

Interface

1 2 DI_Pos_And_

Bus_Mode_Chan

BYTE

100 Channel

Interface

1 12 AI_Position_Chan INT

100 Channel

Interface

1 7 DI_Disc_User_ Input_Chan BYTE

100 Channel

Interface

1 13 AI_Analog_ Input_2_Chan INT

100 Channel

Interface

1 15 AI_Torque_Chan INT

Table 4.11 Input Assembly Instance 109

Assembly

Object

Instance ID

Data

Component

Name

Class Instance

Attribute

ID Name ID Name Data

Type

109 Input 5 100 Channel

Interface

1 17 DI_Actuator_

Faults_3_Chan

BYTE

100 Channel

Interface

1 4 DI_Actuator_

Faults_1_Chan

BYTE

100 Channel

Interface

1 6 DI_Actuator_ Alarms_Chan BYTE

100 Channel

Interface

1 2 DI_Pos_And_

Bus_Mode_Chan

BYTE

100 Channel

Interface

1 5 DI_Actuator_

Faults_2_Chan

BYTE

100 Channel

Interface

1 16 DI_Alarms_2_

Chan

BYTE

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

4.2.1 DI_Position_and_Bus_Mode_Chan

Table 4.12

Value Deﬁnition

0x21 Remote + Opened

0x22 Remote + Closed

0x24 Remote + Opening

0x28 Remote + Closing

0x30 Remote + Stop

0x41 Local + Opened

0x42 Local + Closed

0x44 Local + Opening

0x48 Local + Closing

0x50 Local + Stop

0x81 Stop + Opened

0x82 Stop + Closed

0x84 Stop + Opening

0x88 Stop + Closing

0x90 Stop + Stop

4.2.2 DI_Position_Chan

Table 4.13

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Reserved Reserved Stop Closing Opening Closed Opened

Table 4.14 – Possible values of DI_Position_Chan

Value Deﬁnition

0x01 Opened

0x02 Closed

0x04 Opening

0x08 Closing

0x10 Stop

4.2.3 DI_Actuator_Faults_1_Chan

Table 4.15

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Reserved Motor Over

Temp

Phase Error Over Torque Manual

Moved

Valve

Jammed

Monitor

Relay

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Table 4.16 – Possible values of DI_Actuator_Faults_1_Chan

Value Deﬁnition

0x01 Monitor Relay

0x02 Valve Jammed

0x04 Manual Moved

0x08 Over Torque

0x10 Phase Error

0x20 Motor Over Temperature

0x03 Monitor Relay + Valve Jammed

0x05 Monitor Relay + Manual Moved

0x09 Monitor Relay + Over Torque

0x11 Monitor Relay + Phase Error

0x21 Monitor Relay + Motor Over

Temperature

0x07 Monitor Relay + Valve Jammed +

Manual Moved

0x13 Monitor Relay + Valve Jammed +

Phase Error

0x23 Monitor Relay + Valve Jammed

Motor Over Temperature

4.2.4 DI_Actuator_Faults_2_Chan

Table 4.17

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Reserved Close

Torque

Switch Fault

Open Torque

Switch Fault

Manual

Moved

Valve

Jammed

Phase Error Thermal

Overload

Table 4.18 – Possible values of DI_Actuator_Faults_2_Chan

Value Deﬁnition

0x01 Thermal Overload

0x02 Phase Error

0x04 Valve Jammed

0x08 Manual Moved

0x10 Open Torque Switch Fault

0x20 Close Torque Switch Fault

0x03 Thermal Overload + Phase Error

0x05 Thermal Overload + Valve Jammed

0x09 Thermal Overload + Manual Moved

0x18 Manual Moved + Open Torque Switch Fault

0x28 Manual Moved + Close Torque Switch Fault

4.2.5 DI_Actuator_Alarms_Chan

Table 4.19

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Reserved Move Test

Active*

Not in

Remote

Close Inhibit

Active

Open Inhibit

Active

Remote ESD

Active

Local ESD

Active

* Available with Revision 1 to DeviceNet board.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

Table 4.20 – Possible values of DI_Actuator_Alarms_Chan

Value Deﬁnition

0x01 Local ESD Active

0x02 Remote ESD Active

0x04 Open Inhibit Active

0x08 Close Inhibit Active

0x05 Local ESD Active + Open Inhibit Active

0x09 Local ESD Active + Close Inhibit Active

0x06 Remote ESD Active + Open Inhibit Active

0x0A Remote ESD Active + Open Inhibit Active

0x0C Open Inhibit Active + Close Inhibit Active

4.2.6 DI_Disc_User_Input_Chan

Table 4.21

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Discrete

Input #8

Discrete

Input #7

Discrete

Input #6

Discrete

Input #5

Discrete

Input #4

Discrete

Input #3

Discrete

Input #2

Discrete

Input #1

4.2.7 DI_Read_Disc_Output_Chan

Table 4.22

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Relay

Discrete

Output #7

Relay

Discrete

Output6 #

Relay

Discrete

Output #5

Relay

Discrete

Output #4

Relay

Discrete

Output #3

Relay

Discrete

Output #2

Relay

Discrete

Output #1

4.2.8 DO_Position_Chan

Table 4.23

Value Deﬁnition

0x00 Stop

0x01 Open

0x02 Close

0x03

– 0xFF

Reserved

4.2.9 DO_ESD_Chan (Read Only)

Table 4.24

Value Deﬁnition

0x00 Disable Network ESD

0x01 Enable Network ESD

DO_ESD_Chan can’t be written directly via the DeviceNet network, it is Read-Only. The attribute

Enable_Broadcast_ESD_Ctrl deﬁnes if a device is part of the broadcast ESD control scheme from Bit-

Strobe Connection or not. The resulting DO_ESD_Chan is deﬁned in the following table.

The MX allows the standard I/O connection to assert ESD, or the broadcast bit strobe connection to

assert ESD.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Table 4.25

DO_ESD_ Poll_Cnxn

Attribute 21

Ctrl_Status_Chan

Attribute 20

Bit 2

DO_ESD_

Bit_Strobe_Cnxn

Attribute 22

Enable_Broadcast_

ESD_Ctrl

Attribute 23

DO_ESD_ Chan

X 0 X 0 0

0 1 X 0 0

1 1 X 0 1

X0010

X0111

1 1 1 1 1

01010

01111

1 1 0 1 1

4.2.10 DO_Relay_Chan

Table 4.26 Available with Revision 1 to DeviceNet board

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved User Output

AR-3

User Output

AR-2

User Output

AR-1

User Output

AS-4

User Output

AS-3

User Output

AS-2

User Output

AS-1

4.2.11 DI_Actuator_Faults_3_Chan

Available with Revision 1 to DeviceNet board.

Table 4.27

Bit 7 – Bit 4 Bit 6 Bit 5 Bit 4 Bit 3

Reserved Reserved Interboard Power

failure

Interboard

Communications

Failure

Reserved

4.2.12 Ctrl_Status_Chan

Outputs are not used by the device unless the corresponding bit from the table below is enabled.

Table 4.28

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Reserved Reserved Reserved DO_ Relay_

Chan

DO_

ESD_Poll_

Cnxn

DO_

Position_

Chan

AO_ Ctrl_

Valve_

Flow_ Chan

4.2.13 DI_Alarms_2_Chan

Table 4.29

Bit 7 – Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Battery not installed

(only until ﬁrst

time installed)

Flat battery indication Low battery

indication

Indication of

24VDC UPS

power available

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

4.2.14 DI_Actuator_Faults_3_Chan

Table 4.30

Bit 7 – Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Reserved Low Battery

Indication

Interboard

Power Fault

Interboard

Communication Fault

Limiguard Fault

4.3 Channel Interface Object

Table 4.31

Attribute ID Access Rule Name Data

Type

Description of

Attribute Semantics of Value

1 RW AO_Crtl_Valve_ Flow_Chan INT Desired valve

position

Range 0 - 1000

2 RO DI_Position_And_

Bus_Mode_Chan

BYTE Valve Status and

Control Mode

Section 4.2.1

3 RO DI_Position_ Chan BYTE Valve Status Section 4.2.2

4 RO DI_actuator_ Faults_1_Chan BYTE Mechanical and

electrical faults 1

Section 4.2.3

5 RO DI_actuator_ Faults_2_Chan BYTE Mechanical and

electrical faults 2

Section 4.2.4

6 RO DI_Actuator_ Alarms_Chan BYTE Emergency shut-

down and inhibit

information

Section 4.2.5

7 RO DI_Disc_ User_Input_Chan BYTE Discrete input from

user

Section 4.2.6

8 RO DI_Read_Disc_ Output_Chan BYTE Monitor state of

relay Discrete

outputs

Section 4.2.7

9 RW DO_Position_ Chan BYTE Command

Stop/Open/Close

Section 4.2.8

10 RO DO_ESD_ Chan BOOL Command

Emergency

ShutDown

Section 4.2.9

11 RW DO_Relay_ Chan BYTE Command Energize

relays

Section 4.2.10

12 RO AI_Position_ Chan INT Current valve

position

Range 0 - 1000

13 RO AI_Analog_ Input_1_Chan INT Value of generic

Analog input 1

Range 0 – 100%

14 RO AI_Analog_ Input_2_Chan INT Value of generic

Analog input 2

Range 0 – 100%

15 Get

(V-RO)

AI_Torque_Chan INT Current torque

output

Range 0-120%

16 Get

(V-RO)

DI_Alarms_2_Chan BYTE Battery & power

supply information

Section 4.2.13

17 RO DI_actuator_ Faults_3_Chan BYTE Mechanical and

electrical faults 3

Section 4.2.14

18 Get/Set

(V-RW)

DO_Move_Test_Chan BOOL Move test request 0-no request

1-request move test

19 Get/Set

(V-RW)

AO_Analog_Output_Chan UINT Control of generic

analog output

Range 0-1000%

20 RW CTRL_Status_ Chan BYTE Set the status

associated with

the various control

values

Section 4.2.12

Continued on next page

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Table 4.31 – Continued

Attribute ID Access Rule Name Data

Type

Description of

Attribute Semantics of Value

21 Get/Set

(V-RW)

DO_ESD_

Poll_Cnxn

BOOL Command emer-

gency shutdown

from

Poll Connection

Section 4.2.9

22 Get/Set

(V-RW)

DO_ESD_

Bit_Strobe_Cnxn

BOOL Command emer-

gency shutdown

from

Bit-Strobe

Connection

Section 4.2.9

23 Get/Set

(NV-RW)

Enable_

Broadcast_

ESD_Ctrl

BOOL Enable device to

be a part of the

broadcast

ESD control scheme

from Bit-Strobe

Connection

Section 4.2.9

0 = Disable (Default)

1 = Enable

4.4 Transducer Block Object

Table 4.32

Attribute ID Access Rule Name Data Type Description Semantics of Value

1 RW Setp_Cutoff_Dec UINT When the servo

setpoint goes below

the deﬁned percent

of span, the position

goes to the limit

position CLOSE

Range 0 – 1000

Default = 0

2 RW Setp_Cutoff_Inc UINT When the servo

setpoint goes above

the deﬁned percent

of span, the position

goes to the limit

position OPEN

Range 0 – 1000

Default = 0

3 RO Scaled_values_0 WORD APT/ATT scaling

information

See Table 4.33

4 RO Scaled_values_1 WORD APT (Modbus

Engineering Use

5 RO Scaled_values_2 WORD ATT (Modbus

Engineering Use

6 RO TP_Status_0 UINT Reserved Engineering Use

7 RO TP_Status_1 UINT Start_Position Engineering Use

8 RO TP_Status_2 UINT Stop_Position Engineering Use

9 RO TP_Status_3 UINT Num_Samples Engineering Use

10 RO TP_Status_4 UINT Max_Torque_Mid Engineering Use

11 RO TP_Status_5 UINT Max_Torque

Postion

Engineering Use

12 RO TP_Status_6 UINT Avg_Torque Engineering Use

13 RO TP_Status_7 UINT Stop_Torque Engineering Use

14 RO TP_Status_8 UINT Max_Torque_BOT Engineering Use

15 RO TP_Status_9 UINT Maz_Torque_EOR Engineering Use

16 RO TQ_Status_0 UINT Reserved Engineering Use

17 RO TQ_Status_1 UINT MB_TQ_Close_

Avg_Last

Engineering Use

18 RO TQ_Status_2 UINT MB_TQ_Open_Avg_

Last

Engineering Use

19 RO TQ_Status_3 UINT MB_TQ_Open_

Peak_Last

Engineering Use

Continued on next page

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

Table 4.32 – Continued

Attribute ID Access Rule Name Data Type Description Semantics of Value

20 RO TQ_Status_4 UINT MB_TQ_Open_

Breakout_Last

Engineering Use

21 RO TQ_Status_5 UINT MB_TQ_Close_

Breakout_Last

Engineering Use

22 RO TQ_Status_6 UINT MB_TQ_Open_

Ending_Last

Engineering Use

23 RO TQ_Status_7 UINT MB_TQ_Close_

Ending_Last

Engineering Use

24 RO TQ_Status_8 UINT MB_TQ_Close_

Peak_Last

Engineering Use

25 RO TQ_Status_9 UINT MB_TQ_Open_

Peak_Last

Engineering Use

26 RO TQ_Status_10 UINT MB_TQ_Open_

Breakout_Ref

Engineering Use

27 RO TQ_Status_11 UINT MB_TQ_Close_

Breakout_Ref

Engineering Use

28 RO TQ_Status_12 UINT MB_TQ_Open_

Ending_Ref

Engineering Use

29 RO TQ_Status_13 UINT MB_TQ_Close_

Ending_Ref

Engineering Use

30 RO TQ_Status_14 UINT MB_TQ_Close_

Peak_Ref

Engineering Use

31 RW Travel_Limit_Low UINT Lower limit of the

valve position in

percent of travel

span

Range 0 – 1000

Default = 0

32 RW Travel_Limit_Up UINT Upper limit of the

valve position in

percent of travel

span

Range 0 – 1000

Default = 0

33 RW Valve_Maint_ Date SHORT-

STRING

Date of last valve

maintenance

String length is limited

to 16 char. Default = 0

(empty)

34 RW Valve_Serial_Num SHORT-

STRING

Serial number of

the valve belonging

to the positioner of

electronic device

String length is limited

to 16 char. Default = 0

(empty)

35 RO Valve_status_0 WORD Requested relay

channel value

Default = 0

36 RO Valve_status_1 WORD Status Register

– Modbus Register

Default = 0

37 RO Valve_status_2 WORD Fault Register

– Modbus Register

Default = 0

38 RO Valve_status_3 WORD Digital Output

Default = 0

39 RO Valve_status_4 WORD Digital Input #1

Default = 0

40 RW Valve_status_5 WORD Digital Input #2

Default = 0

Continued on next page

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Table 4.32 – Continued

Attribute ID Access Rule Name Data Type Description Semantics of Value

41 RW Valve_Type USINT Type of valve 0 = linear moving

valve, sliding valve

(Default) 1 = rotary

moving valve, part-

turn 2 = rotary moving

valve, multi-turn

42 RO Actuator_Type USINT Type of actuator 0 = electropneumatic

1 = electric (default)

2 = electrohydraulic 3

= others

43 RO Diagnostic_ Values_0 UINT Reserved Engineering Use

44 RO Diagnostic_ Values_1 UINT Main Voltage Engineering Use

45 RO Diagnostic_ Values_2 UINT Actuator Position Engineering Use

46 Diagnostic_ Values_3 UINT Analog input #1 Engineering Use

47 Diagnostic_ Values_4 UINT Analog Input #2 Engineering Use

48 RW Tag_Name SHORT-

STRING

Tag name for

generic use

String length is limited

to 32 char. Default = 0

(empty)

49 Get/Set

(NV-RW)

Comm_Loss_

Action

USINT Actuator action

upon detection of

communication loss

0 = No Action

(Default)

1 = Open

2 = Close

3 = Stop

4 = Preset Position

50 Get/Set

(NV-RW)

Comm_Loss_

Position

UINT Position to take

upon a communica-

tion loss

Range = 0 – 1000

Default = 0

51 Get/Set

(NV-RW)

Comm_Loss_

Timeout

UINT Time to wait

after detection of

communication loss

until actuator action

is taken

Range = 0 – 4095

Default = 255

52 Get/Set

(NV-RW)

Deadband UINT Deadband

percentage to use

when positioning

Range = 0 – 1000

Default = 2

53 Get/Set

(NV-RW)

Proportional_

Band

UINT Proportional band

percentage to use

when positioning

Range = 0 – 1000

Default = 8

54 Get/Set

(NV-RW)

TQ_Switch_

Adjust

USINT Percentage of full

torque to limit

operation to

Range = 0 – 100 %

Default = 0 (Disabled)

55 RW Actuator_Control_

Mode

USINT Conﬁgure actuator

for open/close

or positioning

operation

1 = Analog

(Positioning Mode)

2 = Digital (Open/

Close Mode)

Default = 2

NOTE: Attributes 49-55 are reserved for Revision 1 to DeviceNet.

Table 4.33 – Transducer Attribute – Scaled values attribute 3

Bit 7 - 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Unused DDC Offset

0 = 0 mA 1

= 4 mA

ATT Polarity

0 = high

value 4 mA

1 = high

value 20 mA

Analog

Torque

Transmitter

(ATT) 0

= ATT

Disabled 1 =

ATT Enabled

APT Polarity

0 = high

value 4 mA

1 = high

value 20 mA

Analog

Position

Transmitter

(APT) 0

= APT

Disabled 1 =

APT Enabled

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

Table 4.34

Bit 15 - 11 Bit 10 - 9 Bit 3

Unused Scaling 0 =

0 – 100 1 =

0 – 255 2 =

0 -4095 3 =

Reserved

Unused

4.4.1 Identity Object Instance Attributes

Table 4.35 – Identity Object Instance Attributes

Attribute

ID Access Rule Name Data Type Description of

Attribute Semantics of Value

1 Get

(NV-RO)

Vendor ID UINT Identiﬁcation of

each vendor by

number

966 (3C6hex)

(Note 1)

2 Get

(NV-RO)

Device Type UINT Indication of general

type of product

00hex

(Generic Device)

3 Get

(NV-RO)

Product Code UINT Identiﬁcation of a

particular product

of an individual

vendor

19800 (4D58hex)

(Note 2)

4 Get

(NV-RO)

Revision STRUCT

Revison of the item

the Identity Object

represents

1.1

(Note 3)

Major Revision USINT Major Revision of

DeviceNet

Limitorque Interface

Minor Revision USINT Minor Revision of

DeviceNet

Limitorque Interface

5 Get

(V-RO)

Status WORD Summary status of

device

(Note 4)

6 Get

(NV-RW)

Serial Number UDINT Serial number of

device

(Note 5)

7 Get

(NV-RW)

Product Name SHORT_

STRING

Human readable

identiﬁcation

”Flowserve MX”

(Note 6)

8 Get

(V-RO)

State USINT Present state

of the device as

represented by

the state transition

diagram

10 Get/Set

(NV-RW)

Heartbeat Interval USINT The nominal interval

between heartbeat

messages in

seconds

The default value

is 0. Zero disables

transmission of the

heartbeat message.

100 Get

(V-RO)

EEPROM Failure BOOL Result of EEPROM

checksum

veriﬁcation

0 = EEPROM contents

is o.k.

1 = EEPROM contents

may be defective due

to checksum error

The further optional attributes

Conﬁguration Consistency Value (Attribute ID 9)

Active Language (Attribute ID 11)

Supported Language List (Attribute ID 12)

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

International Product Name (Attribute ID 13)

Semaphore (Attribute ID 14)

are not supported by DeviceNet Limitorque Interface.

Some of the instance attributes do not have any external interfaces, these values are managed directly in

the DeviceNet Slave Software.

NOTE 1: The Vendor ID is managed by the ODVA. Flowserve has already obtained a valid Vendor ID.

The Vendor ID will be assigned during compile time as a constant of the DeviceNet Slave Software and

stored in Flash-Memory of the DeviceNet Limitorque Interface. Thus it cannot be altered during runtime.

NOTE 2: The Product Code of the DeviceNet Limitorque Interface has already been assigned by

Flowserve. It typically maps to a catalog or model number. The Product Code will be assigned during

compile time as a constant of the DeviceNet Slave Software and stored in Flash-Memory of the

DeviceNet Limitorque Interface. Thus it cannot be altered during runtime.

NOTE 3: The Revision of the DeviceNet Limitorque Interface. Has already been assigned by Flowserve.

It typically links to the revision control system of a company. The format of the revision is Major.Minor,

starting with 1.1, because 0 is not allowed in CIP. The default value for this attribute is therefore 0x0101.

The revision must match the entry of the EDS-File delivered with the DeviceNet Limitorque Interface.

The Revision will be assigned during compile time as a constant of the DeviceNet Slave Software and

stored in Flash-Memory of the DeviceNet Limitorque Interface. Thus it cannot be altered during runtime.

NOTE 4: The Status represents the current status of the device. Important here are the bits 8 to 11

which make faults visible to the user.

NOTE 5: The Serial Number is used in conjunction with the Vendor ID to form a unique identiﬁer for

each device. Flowserve is responsible for guaranteeing the uniqueness of the serial number across all of

its devices. The SMT Main Board will initialize the DeviceNet Limitorque Interface with data every time a

loss of communication condition between the DeviceNet Limitorque Interface and the SMT Main Board

had occurred. A part of this initialization data will be a unique board ID coming from the SMT Main

Board. Upon reception of this unique board ID from the SMT Main Board, the DeviceNet Limitorque

Interface will construct a Serial Number value. The transducer/spi software will then get the currently

stored serial number value from the DeviceNet stack, compare it to the one just constructed based on

the data from the main board, and if different, set the new value in the Identity Object / EEPROM. Also,

if the values were different, the transducer / spi software will then request that the DeviceNet board

reset to it’s “factory default” non-volatile condition (exception: the serial number in EEPROM is not

overwritten again).

NOTE 6: The Product Name should represent a short description of the product/product family

represented by the product in attribute 3. It is limited to 32 characters. The product name should default

to “Limitorque”. However, at “spi initialization time”, the product name attribute can be updated by some

kind of API function call by the transducer / spi driver.

4.4.2 Behavior

Table 4.36 – Behavior

Event Source Description

Power Applied DeviceNet Limitorque Interface Connect DeviceNet bus power

Passed Tests DeviceNet Limitorque Interface No errors detected during internal selftest

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

FailedTests DeviceNet Limitorque Interface One or more of the following errors have been

detected during self-test of the DeviceNet

Limitorque Interface e.g.

- FLASH Checksum Error

- RAM Memory Test Error

Activated SMT Main Board Is_Active-Flag is TRUE

Deactivated SMT Main Board Is_Active-Flag is FALSE OR

EEPROM Checksum Error

Minor Fault SMT Main Board Conditions that can cause this event are e.g.

valve jam, overtemp, overtorque and phase loss.

This event is triggered if Attribute DI_Actuator_

Faults_1_Chan in Channel Object Class is ≠

0x00

Major Recoverable Fault SMT Main Board Conditions that can cause this event are e.g.

communication fault, power fault or Limiguard

fault of the SMT Main Board.

This event is triggered if Attribute DI_Actuator_

Faults_3_Chan in Channel Object Class is ≠

0x00

Major Unrecoverable Fault DeviceNet Limitorque Interface Internal Diagnostic Fault detected e.g.

- Receive Queue Overrun

- Transmit Queue Overrun

- CAN Controller Overrun

4.4.3 DeviceNet Object Instance Attributes

Table 4.37 – DeviceNet Object Instance Attributes

Attribute

ID Access Rule Name Data

Type

Description of

Attribute Semantics of Value

1 Get/Set

(NV-RW)

MAC ID USINT Node Address Range 0 – 63

see also

Chapter 5.2.1

2 Get/Set

(NV-RW)

Baud Rate USINT Baud Rate Range 0 – 2

3 Get/Set

(V-RW)

BOI BOOL Bus-Off Interrupt

4 Get/Set

(V-RW)

Bus-Off Counter USINT Number of times

CAN went to the

bus-off state

5 Get

(V-RO)

Allocation Information STRUCT

Allocation Choice Byte BYTE See [2] Chapter 3-5

Master’s MAC ID USINT MAC ID of Master

(from allocate)

6 Get

(V-RO)

MAC ID Switch Changed BOOL The Node Address

Switch(es) have

changed since last

power-up/reset

0 = No Change

1 = Change since

last power-up

or reset

7 Get

(V-RO)

Baud Rate Switch Changed BOOL The Baud Rate

Switch(es) have

changed since last

power-up/reset

0 = No Change

1 = Change since

last power-up

or reset

8 Get

(NV-RW)

MAC ID Switch Value USINT Actual Value of

Node Address

Switch(es)

Range 0 – 99

9 Get

(NV-RW)

Baud Rate Switch Value USINT Actual Value of

Baud Rate

Switch(es)

Range 0 – 9

100 Get/Set

(NV/RW)

Autobaud BOOL Enable/Disable

Autobaud Detection

0 = Disable

1 = Enable (default)

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

NOTE 1: At boot time of the DeviceNet Limitorque Interface the values stored in non-volatile memory

are used. The SMT Main Board could at any time send new values via SPI.

The other instance attributes do not have any external interfaces, these values are managed in the

protocol stack of the DeviceNet Slave Software.

The further optional attribute Quick Connect (Attribute ID 10) is not supported by DeviceNet Limitorque

Interface.

4.4.4 Discrete Input Point Object – Class ID 8 (08hex)

The Discrete Input Point Object is used to provide an interface to a subset of the discrete inputs of the

MX.The Discrete Input Point Object is implemented with 15 instances described in Table 3.1-25, so that

each of the selected discrete inputs of the MX is connected to one instance.

The purpose of this object is to have a SINGLE-BIT access to the discrete inputs from user and to

monitor the state of relay discrete outputs of the MX via the DeviceNet network for test and diagnostic

purposes.

The Discrete Input Point Object is just another representation of the selected discrete input data in the

Channel Interface Object Instance Attribute 7 (DI_Disc_User_Input_Chan) and Attribute 8 (DI_Read_

Disc_Output_Chan) see Chapter 3.2.1.2.

Table 4.38 – Discrete Input Point Object

Instance ID Channel Interface Object Source

1 Instance Attribute 7, Bit 0 DI_Disc_User_Input_Chan

Discrete Input #1

2 Instance Attribute 7, Bit 1 DI_Disc_User_Input_Chan

Discrete Input #2

3 Instance Attribute 7, Bit 2 DI_Disc_User_Input_Chan

Discrete Input #3

4 Instance Attribute 7, Bit 3 DI_Disc_User_Input_Chan

Discrete Input #4

5 Instance Attribute 7, Bit 4 DI_Disc_User_Input_Chan

Discrete Input #5

6 Instance Attribute 7, Bit 5 DI_Disc_User_Input_Chan

Discrete Input #6

7 Instance Attribute 7, Bit 6 DI_Disc_User_Input_Chan

Discrete Input #7

8 Instance Attribute 7, Bit 7 DI_Disc_User_Input_Chan

Discrete Input #8

9 Instance Attribute 8, Bit 0 DI_Read_Disc_Output_Chan

Relay Discrete Output #1

10 Instance Attribute 8, Bit 1 DI_Read_Disc_Output_Chan

Relay Discrete Output #2

11 Instance Attribute 8, Bit 2 DI_Read_Disc_Output_Chan

Relay Discrete Output #3

12 Instance Attribute 8, Bit 3 DI_Read_Disc_Output_Chan

Relay Discrete Output #4

13 Instance Attribute 8, Bit 4 DI_Read_Disc_Output_Chan

Relay Discrete Output #5

14 Instance Attribute 8, Bit 5 DI_Read_Disc_Output_Chan

Relay Discrete Output #6

15 Instance Attribute 8, Bit 6 DI_Read_Disc_Output_Chan

Relay Discrete Output #7

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

4.4.5 Discrete Output Point Object – Class ID 9 (09hex)

The Discrete Output Point Object is used to provide an interface to a subset of the discrete outputs of

the MX. The implementation of this object follows the guidelines of [1] Chapter 5-10.

The Discrete Output Point Object is implemented with 7 instances described in Table 3.1-29, so that

each of the selected discrete outputs of the MX is connected to one instance.

The purpose of this object is to have a SINGLE-BIT access to the relays of the MX via the DeviceNet

network for test and diagnostic purposes.

The Discrete Output Point Object is just another representation of the selected discrete output data in

the Channel Interface Object Instance Attribute 11 (DO_Relay_Chan) see Chapter 3.2.1.2.

Table 4.39 – Discrete Output Point Object

Instance ID Channel Interface Object Source

1 Instance Attribute 11, Bit 0 DO_Relay_Chan User Output AS-1

2 Instance Attribute 11, Bit 1 DO_Relay_Chan User Output AS-2

3 Instance Attribute 11, Bit 2 DO_Relay_Chan User Output AS-3

4 Instance Attribute 11, Bit 3 DO_Relay_Chan User Output AS-4

5 Instance Attribute 11, Bit 4 DO_Relay_Chan User Output AR-1

6 Instance Attribute 11, Bit 5 DO_Relay_Chan User Output AR-2

7 Instance Attribute 11, Bit 6 DO_Relay_Chan User Output AR-3

4.4.6 Analog Input Point Object – Class ID 10 (0Ahex)

The Analog Input Point Object is used to provide an interface to a subset of the analog inputs of the MX.

The implementation of this object follows the guidelines of [1] Chapter 5-11.

The Analog Input Point Object is implemented with 2 instances described in Table 3.1-33, so that each

of the selected analog inputs of the MX is connected to one instance.

The purpose of this object is to have a SINGLE access to the generic analog inputs of the MX via the

DeviceNet network for test and diagnostic purposes.

The Analog Input Point Object is just another representation of the selected analog input data in

the Channel Interface Object Instance Attribute 13 (AI_Analog_Input_1_Chan ) and Attribute 14

(AI_Analog_Input_1_Chan) see Chapter 3.2.1.2.

Table 4.40 – Analog Input Point Object

Instance ID Channel Interface Object Source

1 Instance Attribute 13 AI_ANALOG_INPUT_1_CHAN

2 Instance Attribute 14 AI_ANALOG_INPUT_2_CHAN

4.4.7 Analog Output Point Object – Class ID 11 (0Bhex)

The Analog Output Point Object is used to provide an interface to a subset of the analog outputs of the

MX. The implementation of this object follows the guidelines of [1] Chapter 5-12.

The Analog Output Point Object is implemented with 1 instance described in Table 3.1-37, so that each

of the selected analog outputs of the MX is connected to one instance.

The purpose of this object is to have a SINGLE access to the generic analog outputs of the MX via the

DeviceNet network for test and diagnostic purposes.

The Analog Output Point Object is just another representation of the selected analog output data in the

Channel Interface Object Instance Attribute 19 (AO_Analog_Output_Chan) see Chapter 3.2.1.2.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Table 4.41 – Analog Output Point Object

Instance ID Channel Interface Object Source

1 Instance Attribute 19 AO_Analog_Output_CHAN

4.4.8 MAC ID

The MX-DeviceNet unit may have the MAC ID set by one of two different methods. The ﬁrst is the MX

LCD display. The other is via the DeviceNet bus.

4.4.9 Baud Rate

The MX-DeviceNet unit may have the Baud Rate set by one of two different methods. The ﬁrst is the MX

LCS display. The other is via the DeviceNet bus.

4.5 Network Management

4.5.1 Ofﬂine Connection Set

NOTE: The DeviceNet Limitorque Interface supports Ofﬂine Connection Set. The Ofﬂine Connection Set

is used to bring back a node to the DeviceNet bus which is in the Communication Fault State. This state

will be entered in the case of a duplicate MAC ID error is detected.

4.5.2 Device Heartbeat Message

The DeviceNet Limitorque Interface supports Device Heartbeat message. This message broadcasts the

current state of the DeviceNet Limitorque Interface. Table 4.42 shows the format of the data ﬁeld of the

Device Heartbeat Message.

Table 4.42 – Format of the Device Heartbeat Message

Byte Set 7 6 5 4 3 2 1 0

0 DeviceNet Protocol Speciﬁc

2 Identity Object Instance ID = 1

4 Device Stats = 3

5 Reserved

(0)

SF UF

(0)

6 (0) because the Conﬁguration Consistency Value (Attribute 8 of the Identity Object Instance) is not

supported by the DeviceNet Limitorque

EV Event Flag, zero (0)

SF System Fault, a fault in the device caused by DeviceNet bus interaction (e.g. connection timeout).

This ﬂag is set, when a system fault is present. This DeviceNet Limitorque Interface ﬂag is set when a

connection times out.

UF User Fault, a fault in the device caused by user interaction. This ﬂag is set when a user fault is

present. The conditions under which is set are vendor speciﬁc. This DeviceNet Limitorque Interface ﬂag

is not used and is zero (0).

DF Device Fault, an internal fault in the device not caused by user or bus interaction (e.g. hardware

fault). This ﬂag is set when a device fault is present. This DeviceNet Limitorque Interface ﬂag is set

under the following conditions:

(DI_Actuator_Faults_1_Chan ≠ 0) OR (DI_Actuator_Faults_3_Chan ≠ 0)•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

The Device Heartbeat Message is triggered by the Identity Object Instance Attribute Heartbeat Interval

(Attribute ID 10). For this, the Heartbeat Interval has to be set to the time interval of the Device

Heartbeat Message in seconds.

4.5.1 Device Shutdown Message

The DeviceNet Limitorque Interface supports the Device Shutdown Message. The DeviceNet Limitorque

Interface produces this message when it transitions to the ofﬂine state. Table 4.43 shows the format of

the data ﬁeld of the Device Shutdown in Message.

Table 4.43 – Format of the Device Shutdown Message

Byte

Offset 76543210

0 DeviceNet Protocol Speciﬁc

2 Class ID

4 Instance ID

6 Shutdown Code

Range 200hex – 2FFhex

For the DeviceNet Limitorque Interface, the Class ID and the Instance ID of this message depends on the

originator of the Device Shutdown Message, e.g. after Reset-Service performed on the Identity Object,

Class ID 1 and Instance 1, a Device Shutdown Message is sent.

For application purposes 2 Bytes of the Device Shutdown Message are reserved for the Shutdown

Code. Then vendor speciﬁc range of this code is 200 – 2FF. Table 4.44 lists all Shutdown Codes of the

DeviceNet Limitorque Interface.

Table 4.44 – Device Shutdown Codes

Class ID Instance ID Shutdown

Code Causes of Shutdown

1 1 4 Remote Reset: Reset service of the identity Object

3 1 4 Remote reset: Setting of the MAC ID via Attribute 1 of the DeviceNet

Object

0 0 5 Internal diagnostic fault: An internal diagnostic fault has caused the

service to shut down. Reason for this can be an overrun of the CAN

transmit queue, CAN receive queue or CAN Controller receive buffer

0 0 4 DeviceNet Limitorque Interface will be reset because SMT Main Board

signal RESET is active.

102 1 0x201 DeviceNet Limitorque Interface will be reset because SMT Main Board

has changed MAC ID via LCD

102 1 0x202 DeviceNet Limitorque Interface will be reset because SMT Main Board

has changed Baud rate via LCD

4.6 Conﬁguration Conﬁrmation

DNFU operation cannot be veriﬁed until the complete DeviceNet system is operational. However, routine

checks can be performed to verify many functions.

4.6.1 Checking Connections

Verify that all connections, including data wires, shield ground, are in accordance with MX wiring

diagrams and DNFU diagrams in Section 3.1.2, Network Cable Preparation.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

4.6.2 View Settings

Refer to Bulletin LMAIM1306/2306, MX Installation and Operation Manual to access the “VIEW

SETTINGS” menu. Verify the settings as follows:

5 View DeviceNet Status

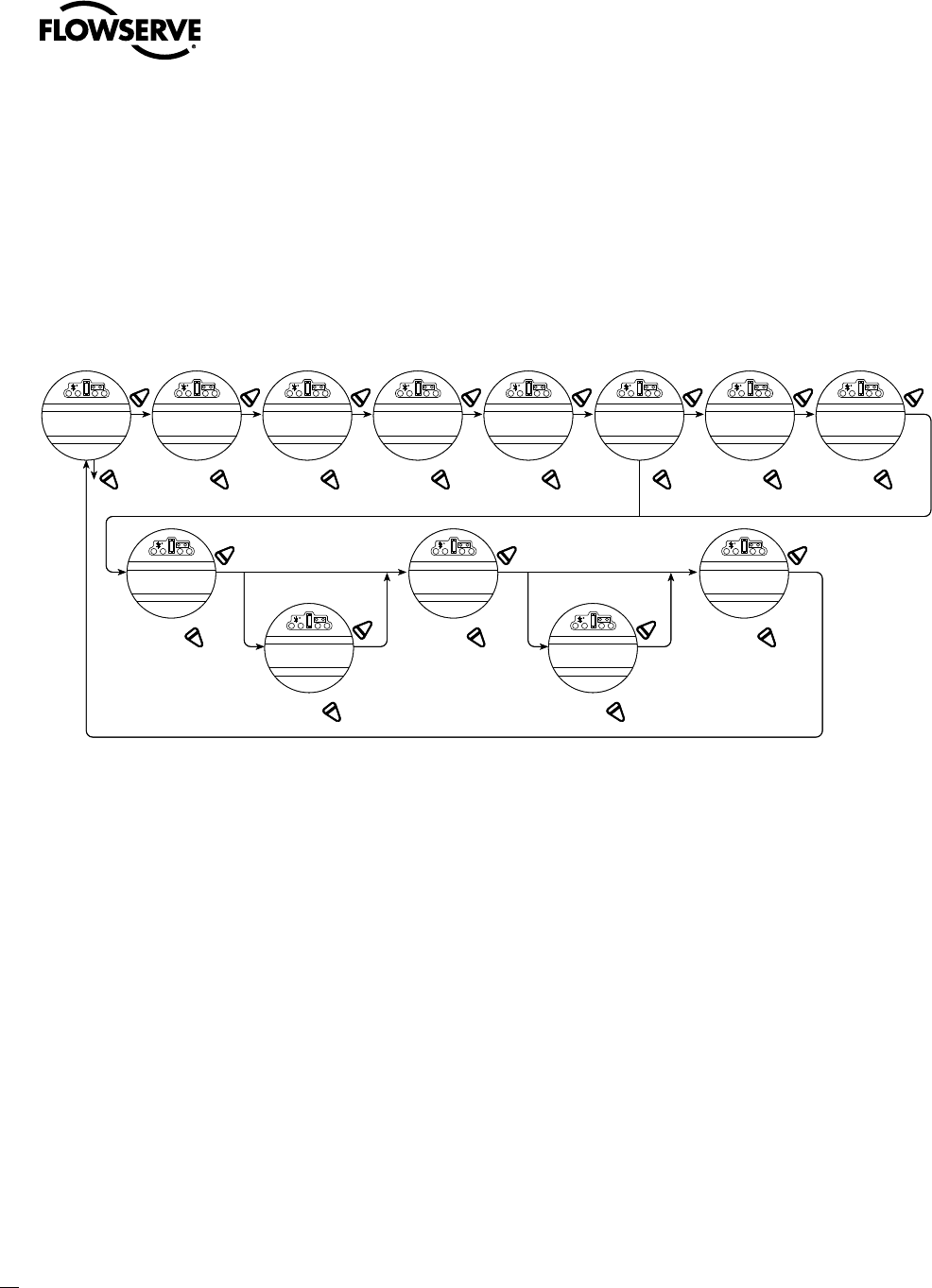

Figure 5.1 – DeviceNet Screens

VIEW DNET STATUS?

This selection permits the User to view pertinent information which summarizes the status of the

DeviceNet option board.

VIEW MODULE STATUS?

Answer "YES" to determine status of individual DN board within the actuator.

Conﬁguration choices are:

"OFF" = board installed but turned off

“OPERATIONAL” – The device is operating in a normal condition.

"STANDBY" = The device needs commissioning due to conﬁguration missing, incomplete or incorrect.

"RECOVERABLE FAULT" = Conditions that can cause this event are e.g. communication fault, power

fault or Limigard fault of the SMT Main Board. Device may need resetting.

"UNRECOVERABLE FAULT" = Internal Diagnostic Fault detected e.g.

Receive Queue Overrun

Transmit Queue Overrun

CAN Controller Overrun

Device may need replacing.

"SELF TESTING" = The device is in self-test mode.

VIEW NETWORK STATUS?

Answer “YES” to determine status of DN network.

"NOT ON LINE" = Device is not on-line.

•

YES

CHANGE

DEVICENET?

(ON)

YES

STATUS

(OFF)-OK?

(CLOSE)

(OPEN)

(STOP)

(POSITION)

YES

ESD ACTION

(IGNORE)-OK?

(CLOSE)

(OPEN)

(STOP)

(POSITION)

YES

COMM LOSS ACTION

(NONE)-OK?

(0-4095)

YES

COMM LOSS DELAY

(60 SEC)-OK?

(0-100%)

** YES

MOVE TO

XXX% OPEN

(0-100%)

YES

MOVE TO

XXX% OPEN

(125K)

(250K)

(500K)

(NET CTRL)

YES

BAUD RATE

AUTO-OK?

(0-63)

YES

DNET ADDRESS

NET CTRL-OK?

(0-255)

(0-4095)

YES

ANALOG SCALE

(0-100)-OK

YES

CHANGE PROP

DEAD BAND?

(1-100%)

YES

PROP BAND

(8%)-OK?

(1-?%)

YES

DEADBAND

(2%)

* If POSITION is chosen, as action,

this menu will appear.

YES

CHANGE

DEVICENET?

(ON)

YES

STATUS

(OFF)-OK?

(CLOSE)

(OPEN)

(STOP)

(POSITION)

YES

ESD ACTION

(IGNORE)-OK?

(CLOSE)

(OPEN)

(STOP)

(POSITION)

YES

COMM LOSS ACTION

(NONE)-OK?

(0-4095)

YES

COMM LOSS DELAY

(60 SEC)-OK?

(0-100%)

** YES

MOVE TO

XXX% OPEN

(0-100%)

YES

MOVE TO

XXX% OPEN

(125K)

(250K)

(500K)

(NET CTRL)

YES

BAUD RATE

AUTO-OK?

(0-63)

YES

DNET ADDRESS

NET CTRL-OK?

(0-255)

(0-4095)

YES

ANALOG SCALE

(0-100)-OK

YES

CHANGE PROP

DEAD BAND?

(1-100%)

YES

PROP BAND

(8%)-OK?

(1-?%)

YES

DEADBAND

(2%)

* If POSITION is chosen, as action,

this menu will appear.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

The device has not completed the self test yet.

The device may not be powered, look at Module Status Display.

"ONLINE" = Device is on-line but has no connections in the established state.

The device has passed the SELF test, is on-line, bus has no established connections to other

nodes.

For a Group 2 Only device it means that this device is not allocated to a master.

For a UCMM capable device it means that the device has no established connections.

"CONNECTED" = The device is on-line and has connections in the established state.

For a Group 2 Only device it means that the device is allocated to a Master.

For a UCMM capable device it means that the device has one or more established connections.

"CONN TIMEOUT" = One or more I/O Connections are in the Timed-Out state.

"COMM FAULT" = Failed communication device. The device has detected an error that has rendered it

incapable of communicating on the network (Duplicate MAC ID, or Bus-off).

"ID COM FLT REQ" = A speciﬁc Communication Faulted device. The device has detected a Network

Access error and is in the Communication Faulted state. The device has subsequently received and

accepted an Identify Communication Faulted Request Long Protocol message.

5.1 Checking the Normal Display

Place the selector switch in “LOCAL” or “REMOTE” position. The valve position will be indicated at the

top of the LCD. “STATUS OK” or “DNET COMM LOSS” should be indicated at the bottom of the LCD

display.

If “STATUS OK” is displayed, the DNFU is communicating with the DeviceNet network.

If “DNET COMM LOSS” is displayed, no communication is occurring. This could be due to a number of

factors, including problems with the host DeviceNet system and/or network. Check all local connections

and conﬁgurations. Conﬁrm that the host is connected, conﬁgured for baud rate, protocol to match

DeviceNet, and operational. See also Section 7, Troubleshooting.

Figure 5.2

100% OPEN

STATUS OK

Remote

Local

or 100% OPEN

DNET COMM LOSS

Remote

Local

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

5.2 EDS File

The DeviceNet Limitorque Interface can be conﬁgured using Rockwell Automation RSNetWorx for

DeviceNet and an EDS-File. Table 5.1 shows a list of all supported parameters.

Table 5.1 Parameter List

Parameter

No. Access Path to Object

1-23 Read/Write resp. Read Only Channel Interface Object, Instance Attributes 1-23

24-78 Read/Write resp. Read Only Transducer Block Object, Instance Attributes 1-55

79 Read/Write DeviceNet Object, Instance Attribute ‘MAC ID’

80 Read/Write DeviceNet Object, Instance Attribute ‘Baud Rate’

81 Read DeviceNet Object, Instance Attribute ‘MAC ID

Switch Changed’

83 Read DeviceNet Object, Instance Attribute ‘MAC ID

Switch Value’

85 Read/Write DeviceNet Object, Instance Attribute ‘Autobaud’

86 Read/Write Connection Object, Poll Instance Attribute ‘Polled

I/O Input’

87 Read/Write Connection Object, Poll Instance Attribute ‘Polled

I/O Output’

88 Read/Write Connection Object, Bit-Strobe Instance Attribute

‘Bit-Strobe I/O Input’

89 Read/Write Connection Object, COS/Cyclic Instance Attribute

‘COS/Cyclic I/O Input’

6 Associated Documents

Quick Start-Up Instructions (Limitorque MX Actuators): Limitorque Bulletin LMAIM1310/2310

MX Installation and Operation Manual: Limitorque Bulletin LMAIM1306/2306

Protection, Control and Monitoring Features of MX Electric Actuators: Limitorque Bulletin

LMABR1300/2300

MX Maintenance and Spare Parts Manual: Limitorque Bulletin LMAIM1314/2314

ODVA Planning and Installation Manual available from ODVA.

7 Troubleshooting

Refer to Section 10, Wiring Diagram.

1. With power off and network disconnected, verify continuity between A1, A2 and A1*, A2*.

2. With power applied and network disconnected, verify 0.2 to 0.45 VDC between A1, A1* and A2,

A2*.

3. Conﬁrm that a jumper cable is installed between the grounding lug and terminal 30.

Verify proper setup for MX DeviceNet.

4. MPC (modulating position control) must be OFF.

5. ESD must be conﬁgured for desired function and properly wired.

6. OPEN INHIBIT must be conﬁgured for desired function and properly wired.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

7. CLOSE INHIBIT must be conﬁgured for desired function and properly wired.

8. Remote control is not selected if not in use. Properly wired if selected.

9. Conﬁrm there are no duplicate DeviceNet addresses.

10. Conﬁrm that ground is at one end only per network cable segment.

11. Conﬁrm protocol, baud rate

Main power supply must be within +/- 10% of nominal unit power rating at all times. Refer to nameplate

for voltage.

UPS of 24 V DC must be within +/- 10% at all times.

7.1 Workmanship

The Limitorque MX is non-intrusive which facilitates ease of conﬁguration without removal of the

controls cover. Removal of the controls cover without permission from Flowserve can void the warranty.

Practice all plant and safety codes and standards. Failure to follow instructions can result in personal

injury and/or property damage.

Do NOT remove covers of Division 1 units with power applied to prevent the possible ignition of

hazardous atmospheres.

Qualiﬁed technicians should perform all service. Dangerous voltages may be present on the circuit

boards and terminations.

Use extreme caution when working around power input cables. These cables have potentially lethal

voltages on them.

Replace fuses only with speciﬁed parts for continued safe operation.

Have qualiﬁed personnel verify all wiring and connections against vendor drawings prior to energizing

the equipment. Incorrect wiring and/or connections can result in equipment damage.

CAUTION: There is potential to cause electrostatic damage to electronic components. Before

handling electronic components, ensure that you are discharged of static electricity by brieﬂy

touching a grounded metal object.

The circuit boards in the MX DeviceNet contain components that are subject to damage from electro-

static discharge (static electricity). The following precautions and procedures are recommended when

handling circuit boards and components. Failure to observe these practices when handling and shipping

circuit board products may void your warranty.

Keep plastics and other materials prone to the buildup of electrostatic charges (static electricity) away

from boards, components, and work area.

Avoid synthetic or wool clothing; wear cotton or cotton blend materials. Keep components and circuit

boards away from clothing and hair.

Discharge static electricity on your body by touching and momentarily holding a grounded metal

object before handling electronic components. This is especially important after walking across

carpeted areas.

Handle components in the ﬁeld as little as necessary.

Handle components only by the edges, and avoid contact with leads, circuits, or connectors.

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

Do not touch the surface of the printed circuit board, the connectors, or the components with conduc-

tive devices or with your hands.

Always place the component or board into an anti-static protective bag for transportation or storage.

Transport all static-sensitive components only in static-shielding carriers or packages. Place static

awareness labels on all components to prevent removal from static-shielding container during transit.

Handle all static-sensitive components at a static-safe work area including ﬂoor mat, wrist strap, air

ionizer, ground cord, and conductive table mat.

Do not subject components to sliding movements over any surface, at any time.

8 How to Order Parts

To order parts or obtain further information about your Limitorque DeviceNet ﬁeld unit, contact your

local Limitorque distributor sales ofﬁce, or:

Flowserve Corporation Flow Control Division

Limitorque Actuation Systems

5114 Woodall Road

P.O. Box 11318 Lynchburg, VA 24506-1318

Phone (434) 528-4400

Fax (434) 845-9736

To ﬁnd the Limitorque distributor or sales ofﬁce near you, go to http://www.limitorque.com

All inquiries or orders must be accompanied by the following information supplied on the actuator

nameplate:

Unit size

Order number

Serial number

9 Regulatory Information

The Flowserve Limitorque DeviceNet board has been tested in accordance with the listed speciﬁcations

and complies with European Directive 89/336 EEC, EMC Directive and 73/23 EEC, Low Voltage Directive;

EN 55011:1998 + A2:2001

EN 61000-6-2:2001

•

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

10 Wiring Diagram

Figure 10.1 – Typical MX DeviceNet wiring diagram (18-499-0038-3)

DEVICENET

BOARD

REVERSING

CONTACTOR

STOP

OPEN

DIG COM #1-Ve

0V AC

110V AC

24V DC +Ve

0V DC

24V DC +Ve

0V DC

FS1

FS2

FS3

LIMIGARD

POSITION

SENSOR

AS1

AS2

AS3

AS4

"CLOSE"

POSITION

"OPEN"

POSITION

"CLOSE"

POSITION

"OPEN"

POSITION

SHOWN

WITH POWER

SUPPLY OFF

CONTROL PANEL

MOTOR

3 PHASE

SUPPLY

TORQUE

SENSOR

MONITOR RELAY

REMOTE

LOCAL

(YES)

OPEN

(NO)

CONTROL

SUPPLY

CIRCUIT SHOWN WITH VALVE IN FULLY CLOSED POSITION AND WITH POWER OFF

STATUS FEEDBACK

OUTPUT SWITCHES

VIEW OF

TERMINAL

BLOCK

REMOTE

LOCAL

(YES)

OPEN

(NO)

ANALOG INPUT

8.EXACT END POSITION INDICATION

1.FUSES

FSI (PRIMARY)

FS2 (PRIMARY)

3.MAXIMUM EXTERNAL LOAD

TERMINALS 13 AND 14 (24V DC) - 10W MAX. EXT. LOAD

TERMINALS 11 AND 12 (110V AC) - 0V MAX EXT. LOAD

SUITABLE FOR DIGITAL INPUTS

ONLY, PROTECTED BY FS3.

5.CONTROL SIGNAL DURATION

REQUIRED CONTROL SIGNAL

DURATION = 250 - 350ms.

6.STATUS FEEDBACK OUTPUT SWITCHES

CLOSING

MID-TRAVEL

OPENING

OPEN

STOPPED

9.DEFAULT SETTING

ACTUATORS ARE NORMALLY SHIPPED WITH DEFAULT

SETTINGS AS SHOWN ON THIS DIAGRAM. THE "AS"

CONTACTS ARE SHOWN WITH VALVE IN FULLY CLOSED

POSITION. SEE CONTACT DEVELOPMENT BELOW.

7.CONTACT RATINGS

VALVE MOVING

VALVE JAMMED

MOTOR OVERTEMP

OVERTORQUE

CLOSE TORQUE SW

OPEN TORQUE SW

CLOSE INHIBIT

OPEN INHIBIT

ESD SIGNAL

NO ANALOG SIGNAL

LOST PHASE

LIMIGARD ACTIVE

HARDWARE FAILURE

LOCAL SELECTED

LOCAL STOP/OFF

MANUAL OVERRIDE

REMOTE SELECTED

OUTPUT SWITCH CONTACT DEVELOPMENT

VALVE POSITION

FULL

OPEN

FUNCTION

CLOSE LIMIT

AS4

OPEN LIMIT

AS3

CLOSE LIMIT

OPEN LIMIT

AS1

AS2

OUTPUT

SWITCH

ON TORQUE-SEATED VALVES THE LCD AND "AS"

CONTACTS, CONFIGURED AS END OF TRAVEL LIMITS,

AUTOMATICALLY PROVIDE EXACT END OF POSITION

INDICATION.

600V AC, 1A, 200kA Int RATING,

FAST ACTING 10.3 x 38.1mm TUBE.

FS3 (SECONDARY) - 0.1A, 250V, TIME DELAY,

5 x 20mm, GLASS TUBE

AS1,2,3 AND 4 - 5.0 AMPS AT 125V AC, 30V DC (250V AC-CENELEC)

MONITOR RELAY - 5.0 AMPS AT 250V AC, 30V DC

NOTES

TRANSFORMER TAPPING OPTIONS

TYPE

TAPPING

220V

380V

415V

460V

TYPE

TAPPING

115V

220V

525V

575V

TYPE

TAPPING

220V

380V

415V

460V

TYPE

TAPPING

115V

220V

525V

575V

TRANSFORMER TAPPING OPTIONS

DEFAULT SETTING

SEE NOTE 6 AND 9

2.AUXILIARY INPUT

AUXILIARY INPUT

SEE NOTE 2

DIG COM #2-Ve

DIG COM #3-Ve

2 mA / 24V DC

MAX LOAD - 10 mA / 110V AC

MAXIMUM "OFF" 5.0V AC/DC

SIGNAL THRESHOLD - MINIMUM "ON" 19.2V AC/DC

4.REMOTE INPUTS

REMOTE

INPUTS

SEE NOTE 4

INPUT 2

INPUT 1

INPUT 0

120 OHM, 1/4W TERMINATION RESISTORS MUST BE CONNECTED

AT EACH SEGMENT END.

SHIELDS TOGETHER TO ENSURE PROPER SHIELDING OF ENTIRE NETWORK.

ON EACH SEGMENT. CONNECT REMAINING INDIVIDUAL NETWORK CABLE

WIRING IS TO CONNECT SHIELD TO TERMINAL 48 FOR ONLY ONE UNIT

AND CHASSIS GROUND FOR SURGE PROTECTION. PREFERRED NETWORK

CUSTOMER IS REQUIRED TO CONNECT WIRE BETWEEN TERMINAL 30

SEE NOTE 11

RECOMMENDED DEVICENET CABLE IS BELDEN 3084A OR EQUAL.

SHIELD

NETWORK DATA (+)

NETWORK DATA (-)

0% OPEN

STATUS OK

2 3 4 5

6 7

L2 L3

GROUNDING

LUG

0% OPEN

STATUS OK

NETWORK +24V

NETWORK 0V

-ve ANALOG COMMON

+ve ANALOG INPUT-1

+ve ANALOG INPUT-2

(MODUTRONIC)

STANDARD SIGNAL 4-20 mA

INPUT IMPEDANCE = 250 OHMS

INPUT CAPACITACNE = 0.1uf±30%

99% ACCURACY

CONFIGURABLE SCALING

10.ANALOG INPUT

BACK-UP 24v DC UPS POWER MAY BE CONNECTED

TO TERMINAL'S 37 AND 38. MAXIMUM CURRENT

DRAW IS 1 AMP. THIS POWERS ALL CONTROLS FOR

LOCAL INDICATION AND CONFIGURATION. ANALOG OUTPUT AND ALARM

RELAYS SUPPLIED WILL BE POWERED FOR UNITS MANUFACTURED

SUBSEQUENT TO Q1/2003. REVERSING CONTACTOR WILL NOT

BE POWERED. CUSTOMER SHOULD SUPPLY EXTERNAL FUSE AS

REQUIRED BY LOCAL ELECTRICAL CODES.

THE ACTUATOR STATUS CONTACTS (AS) AND ALARM RELAYS (AR)

MAY BE INDIVIDUALLY CONFIGURED AS NORMALLY OPEN OR NORMALLY

CLOSED LATCHED CONTACTS OR AS BLINKER CONTACTS TO INDICATE

ONE OF THE FUNCTIONS LISTED BELOW:

BLU

BLK

WHT

RED

11.DEVICENET

EGND

INPUTS 0,1,2 ARE FIELD CONFIGURABLE (FIRMWARE VERSION 04\08.00 OR LATER)

FOR CLOSE INHIBIT, OPEN INHIBIT, CLOSE/OPEN INHIBIT, USER INPUT, OR ESD. IN

ADDITION, INPUT 2 MAY BE CONFIGURED FOR CSE REMOTE SELECTED INDICATION.

DEFAULT INPUT CONFIGURATION: INPUT 0 - ESD, INPUT 1 - OPEN INHIBIT, INPUT 2 -

CLOSE INHIBIT

SEE INSTALLATION AND OPERATION MANUAL FOR CONFIGURATION PROCEDURES.

DEVICENET

BOARD

REVERSING

CONTACTOR

STOP

OPEN

DIG COM #1-Ve

0V AC

110V AC

24V DC +Ve

0V DC

24V DC +Ve

0V DC

FS1

FS2

FS3

LIMIGARD

POSITION

SENSOR

AS1

AS2

AS3

AS4

"CLOSE"

POSITION

"OPEN"

POSITION

"CLOSE"

POSITION

"OPEN"

POSITION

SHOWN

WITH POWER

SUPPLY OFF

CONTROL PANEL

MOTOR

3 PHASE

SUPPLY

TORQUE

SENSOR

MONITOR RELAY

REMOTE

LOCAL

(YES)

OPEN

(NO)

CONTROL

SUPPLY

CIRCUIT SHOWN WITH VALVE IN FULLY CLOSED POSITION AND WITH POWER OFF

STATUS FEEDBACK

OUTPUT SWITCHES

VIEW OF

TERMINAL

BLOCK

REMOTE

LOCAL

(YES)

OPEN

(NO)

ANALOG INPUT

8.EXACT END POSITION INDICATION

1.FUSES

FSI (PRIMARY)

FS2 (PRIMARY)

3.MAXIMUM EXTERNAL LOAD

TERMINALS 13 AND 14 (24V DC) - 10W MAX. EXT. LOAD

TERMINALS 11 AND 12 (110V AC) - 0V MAX EXT. LOAD

SUITABLE FOR DIGITAL INPUTS

ONLY, PROTECTED BY FS3.

5.CONTROL SIGNAL DURATION

REQUIRED CONTROL SIGNAL

DURATION = 250 - 350ms.

6.STATUS FEEDBACK OUTPUT SWITCHES

CLOSING

MID-TRAVEL

OPENING

OPEN

STOPPED

9.DEFAULT SETTING

ACTUATORS ARE NORMALLY SHIPPED WITH DEFAULT

SETTINGS AS SHOWN ON THIS DIAGRAM. THE "AS"

CONTACTS ARE SHOWN WITH VALVE IN FULLY CLOSED

POSITION. SEE CONTACT DEVELOPMENT BELOW.

7.CONTACT RATINGS

VALVE MOVING

VALVE JAMMED

MOTOR OVERTEMP

OVERTORQUE

CLOSE TORQUE SW

OPEN TORQUE SW

CLOSE INHIBIT

OPEN INHIBIT

ESD SIGNAL

NO ANALOG SIGNAL

LOST PHASE

LIMIGARD ACTIVE

HARDWARE FAILURE

LOCAL SELECTED

LOCAL STOP/OFF

MANUAL OVERRIDE

REMOTE SELECTED

OUTPUT SWITCH CONTACT DEVELOPMENT

VALVE POSITION

FULL

OPEN

FUNCTION

CLOSE LIMIT

AS4

OPEN LIMIT

AS3

CLOSE LIMIT

OPEN LIMIT

AS1

AS2

OUTPUT

SWITCH

ON TORQUE-SEATED VALVES THE LCD AND "AS"

CONTACTS, CONFIGURED AS END OF TRAVEL LIMITS,

AUTOMATICALLY PROVIDE EXACT END OF POSITION

INDICATION.

600V AC, 1A, 200kA Int RATING,

FAST ACTING 10.3 x 38.1mm TUBE.

FS3 (SECONDARY) - 0.1A, 250V, TIME DELAY,

5 x 20mm, GLASS TUBE

AS1,2,3 AND 4 - 5.0 AMPS AT 125V AC, 30V DC (250V AC-CENELEC)

MONITOR RELAY - 5.0 AMPS AT 250V AC, 30V DC

NOTES

TRANSFORMER TAPPING OPTIONS

TYPE

TAPPING

220V

380V

415V

460V

TYPE

TAPPING

115V

220V

525V

575V

TYPE

TAPPING

220V

380V

415V

460V

TYPE

TAPPING

115V

220V

525V

575V

TRANSFORMER TAPPING OPTIONS

DEFAULT SETTING

SEE NOTE 6 AND 9

2.AUXILIARY INPUT

AUXILIARY INPUT

SEE NOTE 2

DIG COM #2-Ve

DIG COM #3-Ve

2 mA / 24V DC

MAX LOAD - 10 mA / 110V AC

MAXIMUM "OFF" 5.0V AC/DC

SIGNAL THRESHOLD - MINIMUM "ON" 19.2V AC/DC

4.REMOTE INPUTS

REMOTE

INPUTS

SEE NOTE 4

INPUT 2

INPUT 1

INPUT 0

120 OHM, 1/4W TERMINATION RESISTORS MUST BE CONNECTED

AT EACH SEGMENT END.

SHIELDS TOGETHER TO ENSURE PROPER SHIELDING OF ENTIRE NETWORK.

ON EACH SEGMENT. CONNECT REMAINING INDIVIDUAL NETWORK CABLE

WIRING IS TO CONNECT SHIELD TO TERMINAL 48 FOR ONLY ONE UNIT

AND CHASSIS GROUND FOR SURGE PROTECTION. PREFERRED NETWORK

CUSTOMER IS REQUIRED TO CONNECT WIRE BETWEEN TERMINAL 30

SEE NOTE 11

RECOMMENDED DEVICENET CABLE IS BELDEN 3084A OR EQUAL.

SHIELD

NETWORK DATA (+)

NETWORK DATA (-)

0% OPEN

STATUS OK

2 3 4 5

6 7

L2 L3

GROUNDING

LUG

0% OPEN

STATUS OK

NETWORK +24V

NETWORK 0V

-ve ANALOG COMMON

+ve ANALOG INPUT-1

+ve ANALOG INPUT-2

(MODUTRONIC)

STANDARD SIGNAL 4-20 mA

INPUT IMPEDANCE = 250 OHMS

INPUT CAPACITACNE = 0.1uf±30%

99% ACCURACY

CONFIGURABLE SCALING

10.ANALOG INPUT

BACK-UP 24v DC UPS POWER MAY BE CONNECTED

TO TERMINAL'S 37 AND 38. MAXIMUM CURRENT

DRAW IS 1 AMP. THIS POWERS ALL CONTROLS FOR

LOCAL INDICATION AND CONFIGURATION. ANALOG OUTPUT AND ALARM

RELAYS SUPPLIED WILL BE POWERED FOR UNITS MANUFACTURED

SUBSEQUENT TO Q1/2003. REVERSING CONTACTOR WILL NOT

BE POWERED. CUSTOMER SHOULD SUPPLY EXTERNAL FUSE AS

REQUIRED BY LOCAL ELECTRICAL CODES.

THE ACTUATOR STATUS CONTACTS (AS) AND ALARM RELAYS (AR)

MAY BE INDIVIDUALLY CONFIGURED AS NORMALLY OPEN OR NORMALLY

CLOSED LATCHED CONTACTS OR AS BLINKER CONTACTS TO INDICATE

ONE OF THE FUNCTIONS LISTED BELOW:

BLU

BLK

WHT

RED

11.DEVICENET

EGND

INPUTS 0,1,2 ARE FIELD CONFIGURABLE (FIRMWARE VERSION 04\08.00 OR LATER)

FOR CLOSE INHIBIT, OPEN INHIBIT, CLOSE/OPEN INHIBIT, USER INPUT, OR ESD. IN

ADDITION, INPUT 2 MAY BE CONFIGURED FOR CSE REMOTE SELECTED INDICATION.

DEFAULT INPUT CONFIGURATION: INPUT 0 - ESD, INPUT 1 - OPEN INHIBIT, INPUT 2 -

CLOSE INHIBIT

SEE INSTALLATION AND OPERATION MANUAL FOR CONFIGURATION PROCEDURES.

Limitorque MX DeviceNet Field Unit FCD LMENIM2328-00 – 11/05

ﬂowserve.com

To find your local Flowserve representative:

For more information about Flowserve Corporation, visit

www.flowserve.com or call USA 1 800 225 6989

Flowserve Corporation has established industry leadership in the design and manufacture of its products. When properly selected, this Flowserve product is designed to perform its intended

function safely during its useful life. However, the purchaser or user of Flowserve products should be aware that Flowserve products might be used in numerous applications under a wide

variety of industrial service conditions. Although Flowserve can (and often does) provide general guidelines, it cannot provide speciﬁc data and warnings for all possible applications. The

purchaser/user must therefore assume the ultimate responsibility for the proper sizing and selection, installation, operation, and maintenance of Flowserve products. The purchaser/user

should read and understand the Installation Operation Maintenance (IOM) instructions included with the product, and train its employees and contractors in the safe use of Flowserve

products in connection with the speciﬁc application.

While the information and speciﬁcations contained in this literature are believed to be accurate, they are supplied for informative purposes only and should not be considered certiﬁed or as

a guarantee of satisfactory results by reliance thereon. Nothing contained herein is to be construed as a warranty or guarantee, express or implied, regarding any matter with respect to this

product. Because Flowserve is continually improving and upgrading its product design, the speciﬁcations, dimensions and information contained herein are subject to change without notice.

Should any question arise concerning these provisions, the purchaser/user should contact Flowserve Corporation at any one of its worldwide operations or ofﬁces.

FCD LMENIM2328-00 Printed in USA.

United States

Flowserve Corporation

Flow Control

Limitorque Actuation Systems

5114 Woodall Road

P.O. Box 11318

Lynchburg, VA 24506-1318

Telephone: 1 434 528 4400

Telefax: 1 434 845 9736

Thomas And Betts Limitorque Mx Device Net Field Unit Users Manual

Limitorque MX Device Net Field Unit to the manual 066abcdd-a6a4-4418-9838-c0d05b6e5f0a

Navigation menu

Versions of this User Manual:

Views

Navigation
