Thomson 2-5912AH 5.8GHz CORDLESS SYSTEM-- HANDSET User Manual USERS MANUAL
Thomson Inc. 5.8GHz CORDLESS SYSTEM-- HANDSET USERS MANUAL
Thomson >
USERS MANUAL
Model 25912
5.8 GHz Cordless
Handset User’s Guide
Equipment Approval Information
Your telephone equipment is approved for connection to the Public Switched Telephone Network
and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical
Requirements for Telephone Terminal Equipment published by ACTA.
1 Notification to the Local Telephone Company
On the bottom of this equipment is a label indicating, among other information, the US
number and Ringer Equivalence Number (REN) for the equipment. You must, upon request,
provide this information to your telephone company.
The REN is useful in determining the number of devices you may connect to your telephone
line and still have all of these devices ring when your telephone number is called. In most (but
not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To
be certain of the number of devices you may connect to your line as determined by the REN,
you should contact your local telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68 rules and requirements adopted
by the ACTA. A compliant telephone cord and modular plug is provided with this product.
It is designed to be connected to a compatible modular jack that is also compliant. See
installation instructions for details.
Notes
• This equipment may not be used on coin service provided by the telephone company.
• Party lines are subject to state tariffs, and therefore, you may not be able to use your own
telephone equipment if you are on a party line. Check with your local telephone company.
• Notice must be given to the telephone company upon permanent disconnection of your
telephone from your line.
• If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this product does not disable your alarm equipment. If you have
questions about what will disable alarm equipment, consult your telephone company or a
qualified installer.
US Number is located on the cabinet bottom.
REN Number is located on the cabinet bottom.
Installing the Phone
Installing the Handset Battery
NOTE: You must connect the handset battery before use.
CAUTION: To reduce the risk of fire or personal injury, use only
the Thomson Inc. approved Nickel-Cadmium (Ni-Cd) battery
model 5-2729, which is compatible with this unit.
1. Locate battery and battery door which are packaged together inside a plastic bag
and are separate from the handset.
2. Locate the battery compartment on the back of the handset.
3. Plug the battery pack cord into the jack inside the compartment.
NOTE: To ensure proper battery installation, the connector is keyed
and can be inserted only one way.
6. Allow the phone to charge for 16 hours prior to first use. If you don’t properly
charge the phone, battery performance is compromised.
CAUTION: Use only the Thomson
Inc.
5-2739 power adaptor
that came with this unit. Using other power adaptors may
damage the unit.
Wall Mounting
1. Turn the base over.
2. Attach the wall mounting pedestal by first inserting the tabs on the open edge of
the pedestal into the slots on the lower portion of the bottom of the base. Then
push down and snap the pedestal into place.
3. Slip the mounting holes (on the back of the base) over the wall plate posts, and
slide the unit down into place. (Wall plate not included.)
NOTE : If desired, gather the extra telephone line and power
adaptor cord and store inside the wall mounting pedestal.
Cordless Phone Basics
Charge/In Use Indicator
The phone is ON when the TALK/END indicator on the handset and the charge/in use
indicator on the base is lit. The handset and base indicators flash when you receive a call.
Charge/In Use Indicator
The phone is ON the charge/in use indicator on the base is lit. The handset visual ringer
and base indicator flash when you receive a call.
Answering a Call
1. When the phone rings, pick up the handset and press the TALK/END button.
2. When finished, press the TALK/END button again or place the handset on the base
cradle to hang up.
Making a Call
1. Pick up the handset and press the TALK/END button. Wait for the dial tone. The call
timer starts counting minutes and seconds in the display.
2. Dial a telephone number.
3. When finished, press the TALK/END button again or place the handset on the base
cradle to hang up.
NOTE: In case of power failure, the handset may emit an error tone
when the TALK/END button is pressed. You must then place the
handset on the main base for 20 seconds to reset the unit.
Redial
While the phone is ON, press the redial button to redial the last number you dialed (up
to 32 digits).
Flash
Use the flash button to activate custom calling services such as call waiting, which
are available through your local phone company.
TIP: Do not use the TALK/END button to activate custom calling
services such as call waiting or you’ll hang up the phone.
Channel Button
While talking on the phone, it may be necessary for you to manually change the
channel to improve reception and reduce noise or static on the line. Press and release
the chan button to move to the next clear channel.
Page
This feature assists in locating a misplaced handset.
Press the page button on the base. The handset beeps continuously for about 2
minutes until you press the TALK/END button on the handset or the page button on
the base.
NOTE: You may still page the handset when the ringer is off.
Ring Tone
Make sure the phone is OFF (not in talk mode).
1. Press the r-tone button.
2. Use the touch-tone pad 1, 2, or 3 to select ringer tone 1, 2, or 3. You will hear the
selected ring tone.
3. Press ther-tone button to save your selection. You will hear a confirmation tone.
Ringer ON/OFF
The ringer on/off switch is located on the side of the handset.
Volume
When the phone is ON press the
VOLUME (5or6)
button to adjust the listening level.
Choose from five volume settings.
NOTE: The phone will automatically reset from the the highest
volume to next lower level, after you hang up.
Mute
Use mute during a phone conversation to speak privately and off-line with a third
party.
1. Press the mute button. MUTE shows in the display. The party on the telephone will
not hear you.
2. Press the mute button when finished.
Memory
Each handset can store up to ten 20-digit numbers in memory for quick dialing.
Storing a Name and Number in Memory
1. Make sure the phone is OFF (not in TALK mode).
2. Press the mem button.
3. Press the desired memory location (0 through 9).
4. Press the mem button again.
5. Use the touch-tone pad to enter the telephone number you want to store (up to
20 digits).
NOTE: The system treats PAUSES as delays or spaces in the dialing
sequence.
6. Press mem again to store the number. You will hear a confirmation tone.
Storing the Last Number Dialed
1. Repeat steps 1 through 4 in Storing a Name and Number in Memory.
2. Press the redial button.
3. Press the mem button to store the number. You will hear a confirmation tone.
Inserting a Pause in the Dialing Sequence of a
Stored Number
If a pause is needed to wait for a dial or access tone, press the #PAUSE button to
insert a delay in dialing sequence of a stored number (for example, after you dial 9 for
an outside line, or to wait for a computer access tone.) pause shows in the display as
a P, and each pause counts as one digit in the dialing sequence.
Changing a Stored Number
Use the same procedure to change a stored number as you do to store a number, just
replace the old phone number with the new one.
Deleting Stored Numbers
1. Make sure the phone is OFF (not in TALK mode).
2. Press the mem button.
3. Press the desired memory location (0 through 9).
4. Press the mem button twice.
Dialing a Stored Number
1. Make sure the phone is ON by pressing the TALK/END button.
2. Press the mem button.
3. Press the memory location (0-9). The number dials automatically.
Chain Dialing from Memory
Use this feature to make calls which require a sequence of numbers, such as calling
card calls to a frequently called long distance number. Each part of the sequence is
dialed from memory. The following example shows you how to use chain dialing to
make a call through a long distance service:
The Number For Memory Location
Long distance access number 7
Authorization code 8
Frequently called long distance number 9
1. Make sure the phone is ON.
2. Press the mem button and then press 7.
3. When you hear the access tone, press the mem button and then press 8.
4. At the next access tone, press the mem button and then 9.
TIP: Wait for the access tones before pressing the next mem
button, or your call may not go through.
Changing the Battery
Make sure the telephone is OFF (not in TALK mode) before you replace battery.
CAUTION: To reduce the risk of fire or personal injury, use only
the Thomson Inc. approved Nickel-Cadmium (Ni-Cd) battery
model 5-2729, which is compatible with this unit.
1. Remove the battery compartment door.
2. Disconnect the battery plug from the jack inside the battery compartment and
remove the battery pack from the handset.
3. Insert the new battery pack and connect the cord to the jack inside the battery
compartment.
4. Put the battery compartment door back on.
5. Place handset in the base to charge. Allow the handset battery to properly
charge (for 16 hours) prior to first use or when you install a new battery
pack. If you do not properly charge the phone, battery performance will be
compromised.
Battery Safety Precautions
• Do not burn, disassemble, mutilate, or puncture. Like other batteries of this type,
toxic materials could be released which can cause injury.
• To reduce the risk of fire or personal injury, use only the
Nickel-Cadmium
battery listed in the User’s Guide.
• Keep batteries out of the reach of children.
• Remove batteries if storing over 30 days.
Thomson Inc.
10330 North Meridian Street
Indianapolis, IN 46290
© 2006 Thomson Inc.
Trademark(s) ® Registered
Marca(s) Registrada(s)
Model 25912
0001XXXX (Rev. 0 Dom E)
06-50
Printed in China
Telephone Jack Requirements
To use this phone, you need an RJ11C type modular telephone
jack, which might look like the one pictured here, installed in
your home. If you don’t have a modular jack, call your local
phone company to find out how to get one installed.
Installation
Digital Security System
Your cordless phone uses a digital security system to protect against false ringing,
unauthorized access, and charges to your phone line.
INSTALLATION NOTE: Some cordless telephones operate at
frequencies that may cause or receive interference with nearby
TVs, microwave ovens, and VCRs. To minimize or prevent such
interference, the base of the cordless telephone should not be
placed near or on top of a TV, microwave ovens, or VCR. If such
interference continues, move the cordless telephone farther away
from these appliances.
Certain other communications devices may also use the 5.8 GHz
frequency for communication, and, if not properly set, these
devices may interfere with each other and/or your new telephone.
If you are concerned with interference, please refer to the owner’s
manual for these devices on how to properly set channels to avoid
interference. Typical devices that may use the 5.8 GHz frequency
for communication include wireless audio/video senders, wireless
computer networks, multi-handset cordless telephone systems,
and some long-range cordless telephone systems.
Important Installation Guidelines
• Avoid sources of noise and heat, such as motors, fluorescent lighting, microwave
ovens, heating appliances and direct sunlight.
• Avoid areas of excessive dust, moisture and low temperature.
• Avoid other cordless telephones or personal computers.
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
• Never touch non-insulated telephone wires or terminals, unless the telephone
line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.
Base Layout
Modular
telephone
line jack
Wall plate
SEE MARKING ON BOTTOM / BACK OF PRODUCT
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO
PREVENT FIRE OR
ELECTRICAL SHOCK
HAZARD, DO NOT
EXPOSE THIS
PRODUCT TO RAIN
OR MOISTURE.
THE LIGHTNING
FLASH AND ARROW
HEAD WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
“DANGEROUS
VOLTAGE” INSIDE
THE PRODUCT.
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR
BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
CAUTION:
• See solutions for “No dial tone.”
You experience static, noise, or fading in and out
• Change channels
• The handset may be out of range. Move closer to the base.
• Relocate the base.
• Charge the battery.
• Make sure base is not plugged into an electrical outlet with another
household appliance.
Unit beeps
• Place handset in base cradle for 20 seconds to reset the security code. If that
doesn’t work, charge the battery for 16 hours.
• See solutions for “No dial tone.”
• Replace the battery.
Memory dialing
• Make sure you correctly program the memory location keys.
• Make sure you follow the proper dialing sequence.
• You may need to reprogram numbers into memory after a power outage or
battery replacement.
Out of range
• Move closer to the base.
• Reset the battery. Unplug the battery and plug it in again after five seconds.
• Reset the power supply. Unplug the supply and plug it in again after five
seconds.
Causes of Poor Reception
• Aluminum siding.
• Foil backing on insulation.
• Heating ducts and other metal construction can shield radio signals.
• You’re too close to appliances such as microwaves, stoves, computers, etc.
• Atmospheric conditions, such as strong storms.
• Base is installed in the basement or lower floor of the house.
• Base is plugged into an AC outlet with other electronic devices.
• Baby monitor is using the same frequency.
• Handset battery is low.
• You’re out of range of the base.
General Product Care
To keep your telephone working and looking good, follow these guidelines:
• Avoid putting the phone near heating appliances and devices that generate
electrical noise (for example, motors or fluorescent lamps).
• DO NOT expose to direct sunlight or moisture.
• Avoid dropping and other rough treatment to the phone.
• Clean with a soft cloth and never use a strong cleaning agent or abrasive
powder because this will damage the finish.
• Retain the original packaging in case you need to ship the phone at a later date.
Service
If trouble is experienced with this equipment, for repair or warranty information, please contact
customer service at 1-800-448-0329. If the equipment is causing harm to the telephone
network, the telephone company may request that you disconnect the equipment until the
problem is resolved.
This product may be serviced only by the manufacturer or its authorized service agents.
Changes or modifications not expressly approved by Thomson Inc. could void the user’s
authority to operate this product. For instructions on how to obtain service, refer to the warranty
included in this guide or call customer service at 1-800-448-0329.
Or refer inquiries to:
Thomson Inc.
Manager, Consumer Relations
P O Box 1976
Indianapolis, IN 46206
Attach your sales receipt to the booklet for future reference or jot down the date this product
was purchased or received as a gift. This information will be valuable if service should be
required during the warranty period.
Purchase date ________________________________________________
Name of store ________________________________________________
2 Rights of the Telephone Company
Should your equipment cause trouble on y our line which may harm the telephone network,
the telephone company shall, where practicable, notify you that temporary discontinuance of
service may be required. Where prior notice is not practicable and the circumstances warrant
such action, the telephone company may temporarily discontinue service immediately. In
case of such temporary discontinuance, the telephone company must: (1) promptly notify you
of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and
(3) inform you of your right to bring a complaint to the Commission pursuant to procedures
set forth in Subpart E of Part 68, FCC Rules and Regulations.
The telephone company may make changes in its communications facilities, equipment,
operations or procedures where such action is required in the operation of its business and
not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the
use or performance of your telephone equipment, the telephone company must give you
adequate notice, in writing, to allow you to maintain uninterrupted service.
Interference Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference; and (2) This device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
Privacy of Communications may not be ensured when using this product.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is
“receiving” the interference).
• Reorient or relocate and increase the separation between the telecommunications equipment
and receiving antenna.
• Connect the telecommunications equipment into an outlet on a circuit different from that to
which the receiving antenna is connected.
If these measures do not eliminate the interference, please consult your dealer or an experienced
radio/television technician for additional suggestions. Also, the Federal Communications
Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference
Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C.
20402. Please specify stock number 004-000-00345-4 when ordering copies.
Notice: The changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
.
Hearing Aid Compatibility (HAC)
This telephone system meets FCC standards for Hearing Aid Compatibility.
Licensing
Licensed under US Patent 6,427,009.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body. This transmitter must not be co-located or
operated in conjunction with any other antenna or transmitter.”
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines
when used with the belt clip supplied with this product. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.

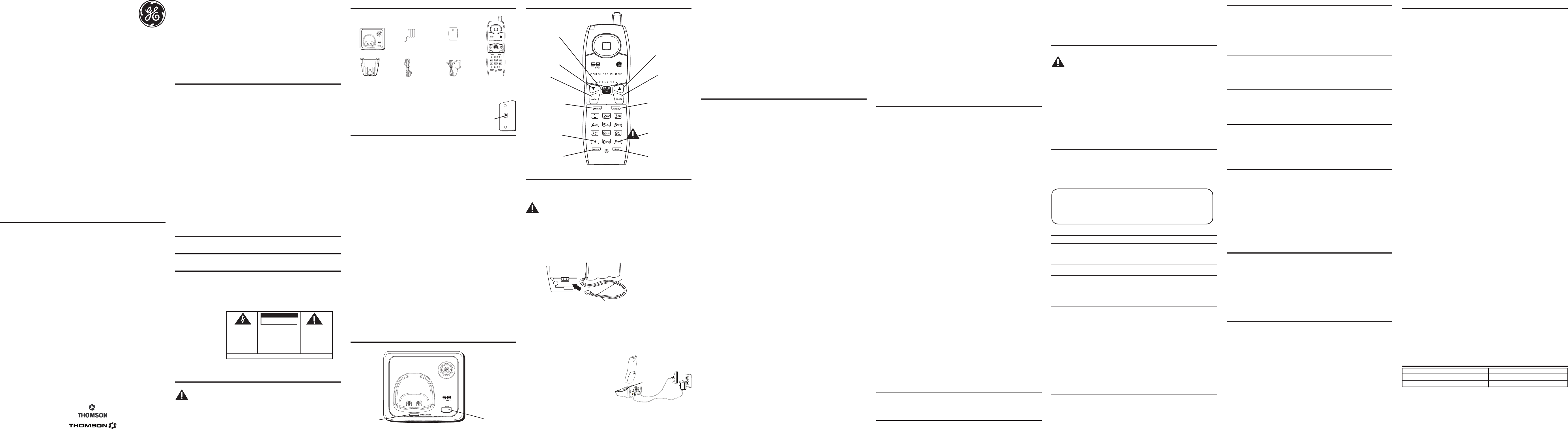

Handset Layout
4. Insert the battery pack.
5. Close the battery compartment by pushing the door up until it snaps into place.
Base Station
1. Choose an area near an electrical outlet and a telephone wall jack (RJ11C), and
place your cordless telephone on a level surface, such as a desktop or tabletop, or
you may mount it on the wall.
2. Plug one end of the telephone line cord into
the TEL LINE jack on the back of the base
and the other end into a modular jack.
3. Plug the AC power converter into the
electrical outlet and the DC connector into
the jack on the bottom of the base.
4. Set the ringer switch (on the handset) to
ON.
5. Place the handset in the base cradle. The charge/in use indicator turns on, verifying
the battery is charging.
The unit will take 20 seconds to register and verify its
security code.
page
(button)
Base
Handset
Telephone
line cord
AC power
adaptor
Handset
battery pack
Battery
compartment
cover
Wall mount
bracket
Before You Begin
Parts Checklist
)
Make sure your package includes the items shown here.
TALK/END
(button)
VOLUME (6)
(button)
VOLUME (5)
(button)
chan
(channel button)
redial
(button)
*
(button)
#PAUSE (button)
flash
(button)
r-tone (button)
mem
(memory
button)
mute
(button)
charge/in use
(indicator)
black wire
red wire
battery
pack
PRESS DOWN
FIRMLY
Limited Warranty
What your warranty covers:
• Defects in materials or workmanship.
For how long after your purchase:
• One year, from date of purchase.
(The warranty period for rental units begins with the first rental or 45 days from date of
shipment to the rental firm, whichever comes first.)
What we will do:
• Provide you with a new or, at our option, a refurbished unit. The exchange unit is under
warranty for the remainder of the original product’s warranty period.
How you get service:
• Properly pack your unit. Include any cables, etc., which were originally provided with the
product. We recommend using the original carton and packing materials.
• ”Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the
product is within the warranty period, must be presented to obtain warranty service.” For
rental firms, proof of first rental is also required. Also print your name and address and a
description of the defect. Send via standard UPS or its equivalent to:
Thomson Inc.
11721 B Alameda Ave.
Socorro, Texas 79927
• Pay any charges billed to you by the Exchange Center for service not covered by the
warranty.
• Insure your shipment for loss or damage. Thomson Inc accepts no liability in case of
damage or loss.
• A new or refurbished unit will be shipped to you freight prepaid.
What your warranty does not cover:
• Customer instruction. (Your Owner’s Manual provides information regarding operating
instructions and user controls. Any additional information, should be obtained from your
dealer.)
• Installation and setup service adjustments.
• Batteries.
• Damage from misuse or neglect.
• Products which have been modified or incorporated into other products.
• Products purchased or serviced outside the USA.
• Acts of nature, such as but not limited to lightning damage.
Product Registration:
• Please complete and mail the Product Registration Card packed with your unit. It will make
it easier to contact you should it ever be necessary. The return of the card is not required for
warranty coverage.
Limitation of Warranty:
• The warranty stated above is the only warranty applicable to this product. All other
warranties, express or implied (including all implied warranties of merchantability or fitness
for a particular purpose) are hereby disclaimed. No verbal or written information given by
Thomson Inc., its agents, or employees shall create a guaranty or in any way increase the
scope of this warranty.
• Repair or replacement as provided under this warranty is the exclusive remedy of the
consumer. Thomson Inc. shall not be liable for incidental or consequential damages
resulting from the use of this product or arising out of any breach of any express or implied
warranty on this product. This disclaimer of warranties and limited warranty are governed
by the laws of the state of Indiana. Except to the extent prohibited by applicable law, any
implied warranty of merchantability or fitness for a particular purpose on this product is
limited to the applicable warranty period set forth above.
How state law relates to this warranty:
• Some states do not allow the exclusion nor limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts so the above limitations or
exclusions may not apply to you.
• This warranty gives you specific legal rights, and you also may have other rights that vary
from state to state.
If you purchased your product outside the USA:
• This warranty does not apply. Contact your dealer for warranty information.
Accessory Information
To place order, have your Visa, MasterCard, or Discover Card ready and call toll-free
1-800-338-0376. A shipping and handling fee will be charged upon ordering. We are
required by law to collect appropriate sales tax for each individual state, country, and
locality to which the merchandise is being sent. Items are subject to availability.
DESCRIPTION MODEL NO.
Handset Replacement Battery 5-2729
Power adapter 5-2616
NOTE: The RBRC seal on the battery used in your Thomson Inc. product
indicates that we are participating in a program to collect and recycle the
rechargeable battery (or batteries).
For more information go to the RBRC web site at www.rbrc.org
or call 1-800-8-BATTERY or contact a local recycling center.
Handset Sound Signals
Signal Meaning
A long warbling tone (with ringer on) Signals an incoming call
Three short beeps (several times) Page signal
One beep every 7 seconds Low battery warning
Troubleshooting Tips
Telephone Solutions
Handset can not link.
• If any handsets become inoperable, place it on the main base cradle for 20
seconds to re-register.
No dial tone
• Check or repeat installation steps
• Make sure the base power cord is connected to a working electrical outlet.
• Make sure the telephone line cord is connected to the base unit and the modular
phone jack?
• Disconnect the base from the wall phone jack and connect another phone to the
same jack. If there is no dial tone on the second phone, the problem might be
your wiring or local service.
• The handset might be out of range of the base. Move closer to the base.
• Make sure the battery is properly charged (for 16 hours).
• Ensure the battery pack is installed correctly.
• Did the handset beep when you pressed the TALK/END button? Did the in use
indicator come on? The battery may need to be charged.
Handset does not ring
• Make sure the ringer is set to ON, this can be done through the handset setup
menu Ringer Volume.
• You may have too many extension phones on your line. Try unplugging
some phones.
Introduction
CAUTION: When using telephone equipment, there are basic
safety instructions that should always be followed. Refer to the
IMPORTANT SAFETY INSTRUCTIONS provided with this product
and save them for future reference.
IMPORTANT: Because cordless phones operate on electricity, you
should have at least one phone in your home that isn’t cordless, in
case the power in your home goes out.
