user manual part 3
![](/img.php?id=891442&img=bg1.png)
Technical specifications
36

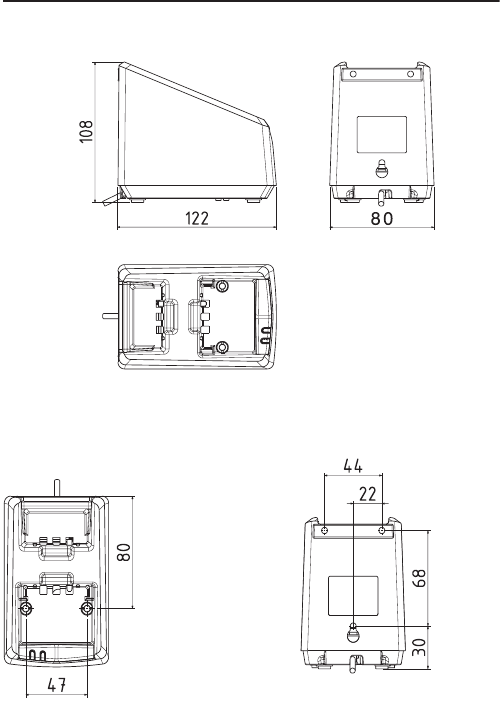

Dimensional drawing, chargers
Declarat ion of Conformity
0740
Mounting Possibillities
Desktop mounting, top view Wall mounting, rear view
![](/img.php?id=891442&img=bg2.png)
Technical specifications
37
R&TTE
Doc. no TT99-125716-C
Thrane & Thrane A/S
Declaration of Conformity with R&TTE Directive
The undersigned of this letter declares that the following equipment complies with the
specifications of EC directive 1999/5/EC concerning Radio & Telecommunications Terminal
Equipment.
Equipment included in this declaration
SAILOR SP3550 Portable UHF radiotelephone PN = 623550A
SAILOR B3502 Rechargeable Li-Ion Battery PN = 403502A
SAILOR CH3507 Battery Charger PN = 403507A
SAILOR CH3508 Dual Battery Charger PN = 403508A
AC/DC Adapter PN = 88-125538
Equipment Applicability
SAILOR SP3550 is a simplex/semi-duplex handheld UHF radiotelephone designed for
maritime & landmobile communication within the frequency range 440 MHz to 470 MHz.
Declaration
The requirement with respect to the LVD directive 73/23/EC is met by conforming to the
harmonized EU standard EN 60950. The protection requirement with respect to the EMC
directive 89/336/EC is met by conforming to the harmonized EU standard EN 60945. Effective
use of frequency spectrum is met by conforming to the harmonizied EU standard ETSI
EN 300 720 and EN 300 086.
Manufacturer
Thrane & Thrane A/S Lundtoftegårdsvej 93D, DK-2800 Kgs. Lyngby, Denmark
Porsvej 2, DK-9200 Aalborg SV, Denmark
Place and Date
Aalborg, 8. January 2008
Chief Financial Officer
Svend Åge Lundgaard Jensen
Page 1 of 1
Thrane & Thrane A/S · Lundtoftegårdsvej 93D · DK-2800 Kgs. Lyngby · Denmark
T +45 39 55 88 00 · F +45 39 55 88 88 · info@thrane.com · www.thrane.com
Bank: Danske Bank · Comp. reg.: 65 72 46 18 · VAT: DK-20 64 64 46
0740
![](/img.php?id=891442&img=bg3.png)
Technical specifications
38 0730
![](/img.php?id=891442&img=bg4.png)
Appendix B
39

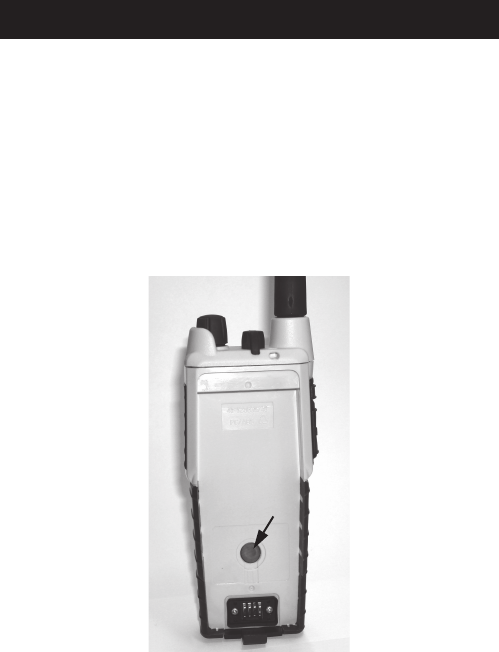

Attention
Goretex Membran
To keep the UHF watertight, is it very important that the goretex
membran behind the label under no circumstances must be damaged or
removed.
0740
![](/img.php?id=891442&img=bg5.png)
Attention
40 0740
![](/img.php?id=891442&img=bg9.png)
TT-98-124308-B Issue: B/0740
