Thunder Tiger TT-FHM2P4G-A14 Remote Controller User Manual P00 cover
Thunder Tiger Corp. Remote Controller P00 cover
Users Manual
The contents are subject to change without prior notice due to product improvements and specification changes.
Please read all instructions thoroughly before operating this device.
Thunder Tiger Corporation guarantees this model kit to be free from defects in both material and workmanship. The total
monetary value under warranty will in no case exceed the cost of the original kit purchased. This warranty does not cover
any components damaged by use or modification. Part or parts missing from this kit must be reported within 60 days of
purchase. No part or parts will be sent under warranty without proof of purchase. To receive part or parts under warranty,
the service center must receive a proof of purchase and/or the defective part or parts. Should you find a defective or missing
part, contact the authorized Thunder Tiger Service/Distributor nearest you. Under no circumstances can a dealer or distributor
accept return of a kit if assembly has started.
2.4GHz Digital Radio System
No.8227
No.8308
2.4GHz Digital Radio System
No.8310
1
FSPC-Failsafe programmable individual
channel
In extremely rare circumstances where signal loss is
encountered, the system features a failsafe program
allowing individual channel to restore back to initial
settings.
SIBL-Security ID binding link
A binding feature is included in the ACE RC 2.4 GHz
spread spectrum system to ensure the transmitter
and receiver only bind to each other and prevent
interferences from other controllers.
iFHss/iFHss+ data mode
Improved data format and protocol, Courgar P2 / P3
provides a faster and less power consumtion data
transmission. Such technology also reveals an
extremely data reliability while data is on the air.
FHSS -Frequency hopping spread
spectrum
Advanced frequency-hopping program on the spread
spectrum base for added safety, reliability and virtually
interference-free communication.
INTRODUCTION 1
ADVANCED TECHNICAL FEATURES 1
FEATURES 2
SYSTEM CONTENTS 2
SPECIFICATIONS 2
TRANSMITTER CONTROLS 5
INSTALLATION 6
BINDING PROCESS 8
FAIL SAFE (F/S) FUNCTION SETTING 9
FUNCTIONS (for PS3i) 11
FUNCTIONS (for P2 / P3) 16
FCC INTERFERENCE STATEMENT 18
ACCESSORIES 18
SERVICE 23
TROUBLE SHOOTING 23
Congratulations on your purchase of the ACE RC Cougar 2.4GHz digital radio system. The Cougar radio system
was specially designed with the latest wireless and advanced-programming technology to meet driver’s
requirements. With spread spectrum and smart frequency-hopping system, the Cougar radio system delivers
precision and smoothness of operation at the same time without any interference risks. Cougar pistol radios are
configured for operating surface R/C models.
With proper use and care, ACE RC Cougar will make the control advanced and simple, and provide you with
many years of enjoyment. Before operating your new radio system or installing into your model, please take a few
minutes to familiarize with the various features of the system by reading this owner’s manual thoroughly.
TABLE OF CONTENTS
INTRODUCTION
ADVANCED TECHNICAL FEATURES
2.4GHz Digital Radio System
Pistol Grip
13bit
LED
None
2
Receiver
Item No
Frequency(MHz)
Channel
BEC
Modulation
Type
Battery Power
TRS402ss
AQ6367
2.4GHz
4CH
No
PPM
Single Antenna W / Gain
4.8~7.4V
Receiver
Item No
Frequency(MHz)
Channel
BEC
Modulation
Type
Battery Power
TRS401ss
AQ2280
2.4GHz
4CH
No
PPM
Single Antenna
4.8~7.4V
COUGAR P2
8227
COUGAR PS3i
8308
LCD
10
Transmitter
Item No.
Configuration
Encoder
Display
Mode Memory
9.6V/8 cell AA Battery
3Ch
130mA@9.6V
CH1~CH3
2Ch
CH1~CH2
3Ch
CH1~CH3
TRANSMITTER (for Cougar P2 / P3)
● Advanced 2.4GHz frequency-hopping spread
spectrum technology
● Steering/Throttle trims
● Steering/Throttle servo reversing
● Throttle/Brake ATV–Adjustable Travel Volume
● Steering dual-rate adjustment
● LED battery voltage indicator
● Adjustable steering wheel tension
● Low battery alarm
● Folding antenna
● Advanced iFHss/iFHss+ data mode
TRANSMITTER (for Cougar PS3i)
● Easy-to-read LCD Display Screen
● 10-model memory
● Changeable plug-in 2.4GHz RX module for ease of
maintenance
● Electronic digital trim levers for throttle and steering
● Steering/Throttle/Aux EPA
● Steering/Throttle/Brake ARC adjustment
● Steering dual-rate adjustment
● Battery voltage indicator
● Adjustable steering wheel tension
● Low battery alarm
*for iFHss+ data mode
*for iFHss data mode
RECEIVER
● The TRS402ss is the 2.4GHz 4CH receiver paired with the COUGAR P2 / P3 / PS3i transmitter. Its compact
and small size allows you to install it almost anywhere on your model.
● Cougar P2 / P3 also can pair with TRS401ss receiver by using iFHss mode.
FEATURES
SYSTEM CONTENTS
SPECIFICATIONS
Item
Item No
Transmitter
Receiver
Servos
Accessory
N/A
Switch hardness x 1, Receiver Battery holder x 1
COUGAR P2
8227
COUGAR P2
COUGAR P3
8310
COUGAR P3
COUGAR PS3i
8308
COUGAR PS3i
TRS401ss
1/4λDipole Sleeve
2dBi Typical
2.4GHz
GFSK(PPM)
2402~2479MHz
Frequency(MHz)
Modulation
Frequency Band Width
ID No.
Antenna Type
Antenna Peak Gain
Current Drain
Transmission System
Servo Reverse
Power Requirement
TRS402ss
7.2V/6 cell AA Battery
FHSS
COUGAR P3
8310
40mA@7.2V
Transmitter Antenna
Power Indicator
Edit Buttons
LCD Display
Digital Steering Trim lever
1
2
3
4
5
Digital Throttle Trim lever
Digital Steering D/R(Dual Rate) lever
AUX Ch Button
External Charging Jack
2.4GHz binding SW
6
7
8
9
10
Steering Wheel
Power Switch
Throttle Trigger
Steering tension adjustment
Battery Cover
11
12
13
14
15
3
2.4GHz Digital Radio System

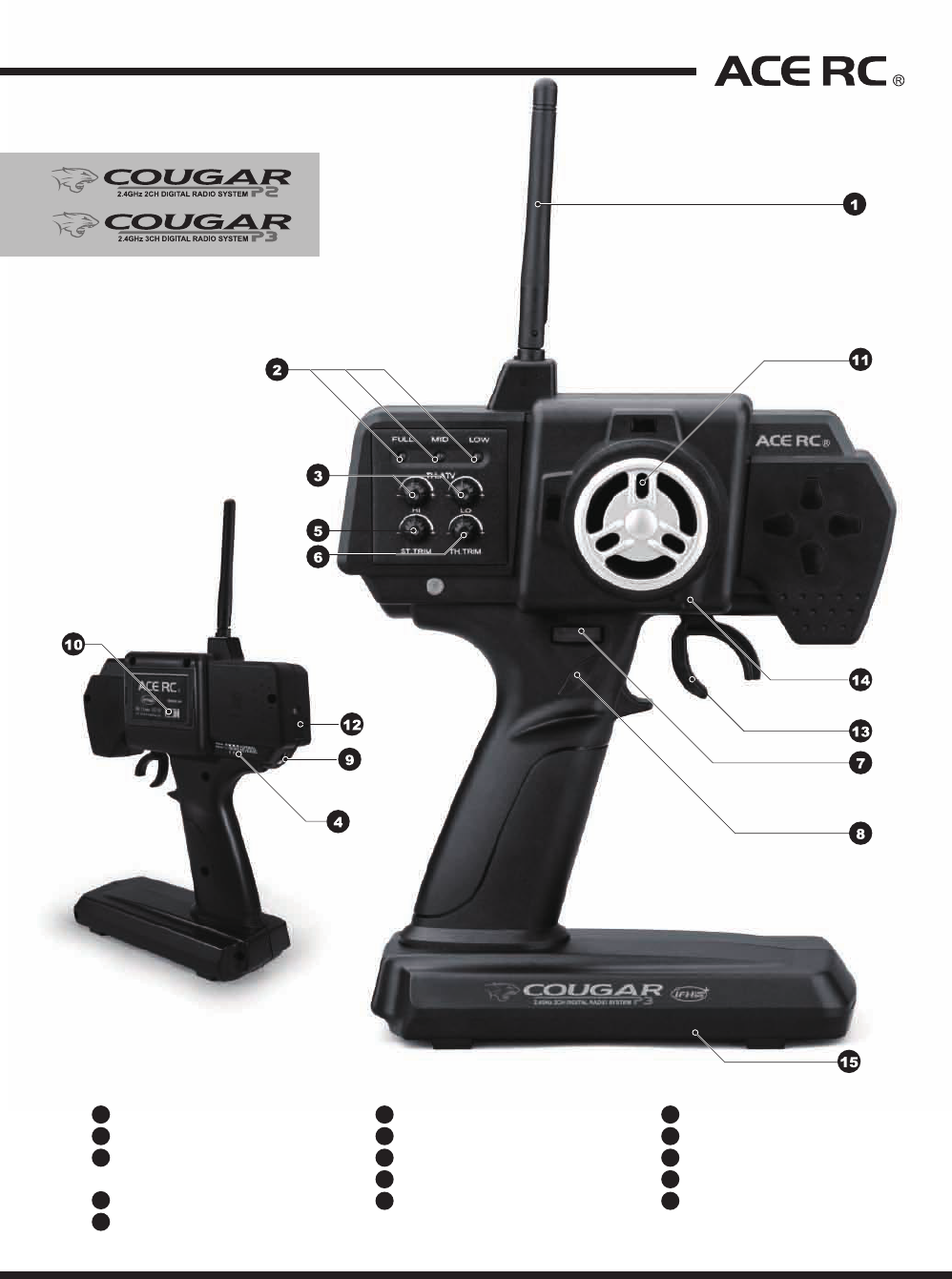

Transmitter Antenna
Battery Level Indicator
HI/LO Throttle ATV
(Adjustable Travel Volume)
Servo reversing switches
Steering Trim
1
2
3
4
5
Throttle Trim
Steering D/R (Dual Rates)
AUX Ch Button (for P3 only)
External Charging Jack
2.4GHz binding SW
6
7
8
9
10
Steering Wheel
Power Switch
Throttle Trigger
Steering Tension Adjustment
Battery Cover
11
12
13
14
15
4
5
TRANSMITTER CONTROLS ( for PS3i )

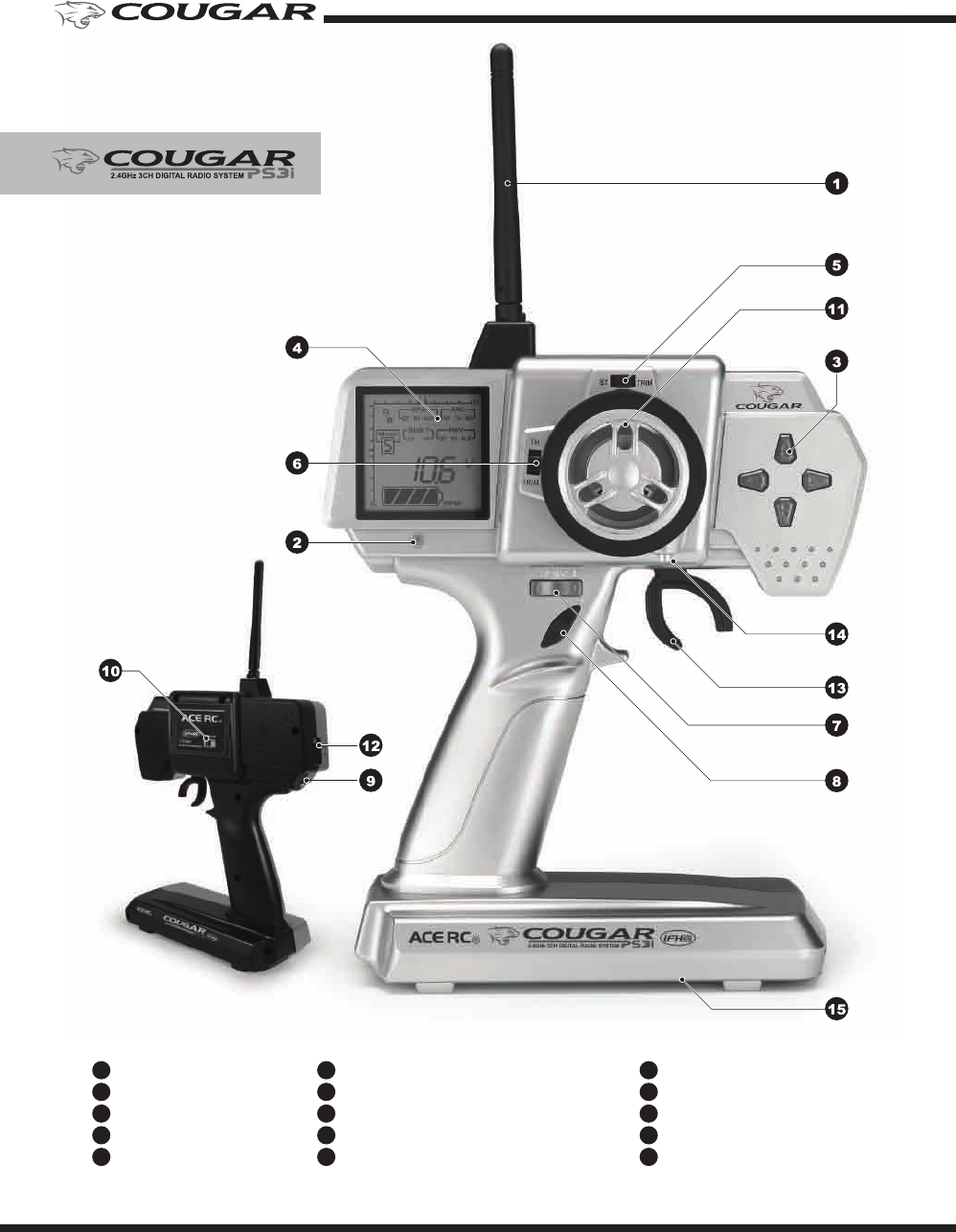

1. Transmitter Antenna: Straighten up the antenna before operating the model.
2. Power Indicator: The LED light indicates power is "on" or "off".
3. Edit Buttons: The left and right buttons are the "functions" selecting keys. The up(+) and down(-) buttons are the value
adjusting keys. For additional details on specific operation, please refer to the "function" setting procedure (Page 8).
4. LCD Display: The Cougar transmitter features an "Easy-to-Read” screen. Use the "Edit Buttons" to select the function
(left and right key) and change settings (with the "up" & "down" keys). For additional details on specific operation,
please refer to the "Function" setting procedure (Page 8).
5. Digital Steering Trim lever: Push this lever left or right to adjust the center point of the steering servo. The cursor will
move on the top ruler line of the LCD screen to display the current position.
6. Digital Throttle Trim lever: Push this lever up or down to adjust the center point of the throttle/brake servo. The cursor
will move on the left ruler line of the LCD screen to display the current position. This adjustment sets the braking
amount of "Drag Brake" and "Coast Brake".
NOTE: The Digital Throttle Trim function adjusts neutral point without affecting maximum throttle servo travel and
full-throttle position.
The Digital Steering Trim function adjusts maximum steering servo travel for both left and right steering. If adjustments
are incorrect, steering linkage binding or damages to the steering servo may occur.
7. Digital Steering D/R(Dual Rate) lever: Push this lever left or right to adjust the amount of the steering dual rate. Right
to increase dual rate amount and left to decrease the amount.
8. AUX Ch Button: Provides an extra function for the control of the model.
9. External Charging Jack: For rechargeable NiCd/NiHM battery pack on the transmitter only.
10. 24GHz binding SW: The Binding SW button is located on the back of the 2.4GHz transmitter unit. For additional
details, please refer to the "Binding" setting procedure (Page 7).
11. Steering Wheel: Controls the steering of the model.
12. Power Switch: Slide to turn the transmitter on or off.
13. Throttle Trigger: Pull or push to control throttle on the model.
14. Steering Tension Adjustment: Use a Phillip type screw driver to tighten or loosen the tension on the steering wheel.
15. Battery Cover: Slide for removing the cover and install / remove the batteries.
1. Transmitter Antenna: Straighten up the antenna before operating the model.
2. Battery Level Indicator: Three LEDs indicate the battery voltage level. If the Red LED flashes, please replace the
batteries.
3. HI/LO Throttle ATV (Adjustable Travel Volume): Provide the function to let you independently preset the maximum
travel of the throttle servo either side (high / low) of neutral.
4. Servo reversing switches: To reverse the servo's rotation direction at the flip of the switch. The reversing switches
are recessed into the transmitter to prevent accidental operation.
iFHss/iFHss+ switch:iFHss+ provides faster and more reliable data transmission, and has less power consumption.
Note you should use TRS402ss receiver in compliance with iFHss+ mode.
5. Steering Trim: Adjusts the steering in small increments or decrements to run the model straight.
6. Throttle Trim: Adjusts the throttle in small increments or decrements to shift the neutral position.
7. Steering D/R (Dual Rates): Push this lever left or right to adjust the amount of the steering dual rate. Right to
increase dual rate amount and left to decrease the amount.
8. AUX Ch Button: Provides an extra function for the control of the model. (for Cougar P3 only)
9. External Charging Jack: For rechargeable NiCd/NiHM battery pack on the transmitter only.
10. 2.4GHz binding SW: The Binding SW button is located on the back of the 2.4GHz transmitter. For additional details,
please refer to the “Binding” setting procedure (Page 7).
11. Steering Wheel: Control the steering of the model.
12. Power Switch: Slide to turn the transmitter on or off.
13. Throttle Trigger: Pull or push to control the movement of the model.
14. Steering Tension Adjustment: Use a Phillip type screwdriver to tighten or loosen the tension of the steering wheel.
15. Battery Cover: Slide cover to install or remove batteries.
TRANSMITTER CONTROLS ( for P2/P3)
2.4GHz Digital Radio System
While pressing
this part
Battery cell (x8) for Cougar PS3i
Battery cell (x6) for Cougar P2 / P3
9.6V Battery pack for Cougar PS3i
7.2V Battery pack for Cougar P2 / P3

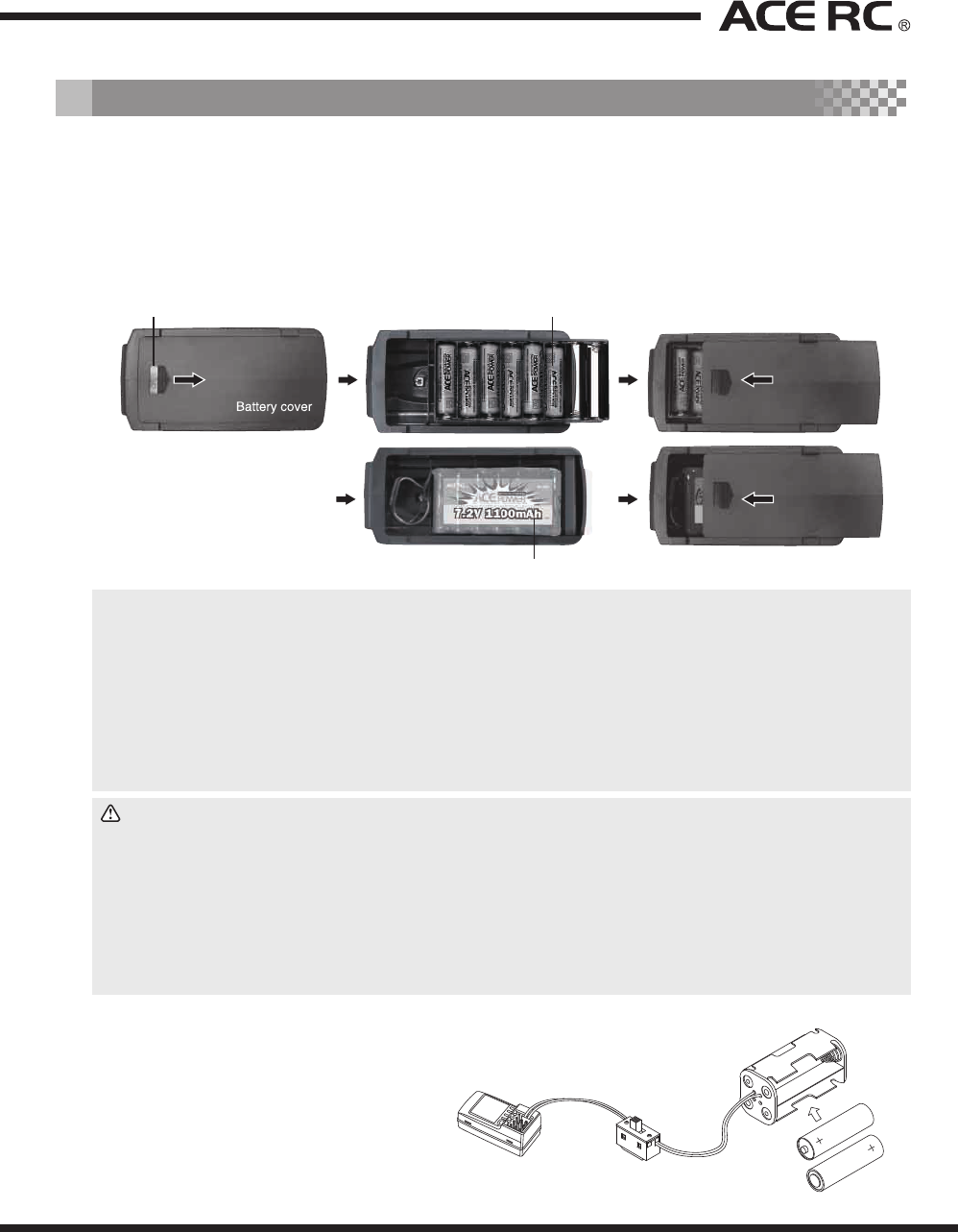

Transmitter batteries replacement/installation
1) Slide the battery cover in the direction as shown to remove the cover.
2) Install 6pcs alkaline or rechargeable “AA” size cells into the battery holder connected to the transmitter.
3) Slide on the battery cover and make sure it is closed securely.
4) Turn the power on to check. If the Power Indicator LED fails to light, check the batteries for insufficient contact
or incorrect battery polarity.
CHECK:
a) Use only fresh, alkaline cells, all of the same brand.
b) Make certain that the contacts in the battery holder stay clean by using a pencil eraser to gently remove any
corrosion or dirt that may accumulate on them. It is recommended to do this each time you install fresh cells
into your transmitter.
c) If using the rechargeable battery pack, simply remove the battery holder by pulling out the connector from the
transmitter. Then plug-in the battery pack connector to the transmitter.
d) When the rechargeable battery is installed in the transmitter, it can be charged through the external charging
jack located on the transmitter.
CAUTION:
a) Do not attempt to charge alkaline batteries, they may explode!!
b) When charging the rechargeable battery, set the power switch on “OFF” position before charging. The charger
plug must be correct type (“+” inside and “-“outside, type TAMIYA N-3U or equivalent). The wrong type may
burst causing personal injury and damage.
c) Always be sure the batteries are loaded in the correct polarity order. If the batteries are loaded incorrectly, the
transmitter may be damaged.
d) When the transmitter is not used for any short or long period of time, always remove the batteries from the
transmitter.
Receiver battery replacement/installation
Insert 4 fresh AA cells into the receiver
battery holder. Make sure the batteries are
located in the correct polarity order. Maintain
the battery contacts in the same way as
described in previous section.
Insert the switch harness plug into the
receiver socket marked “BATT”.
INSTALLATION
6

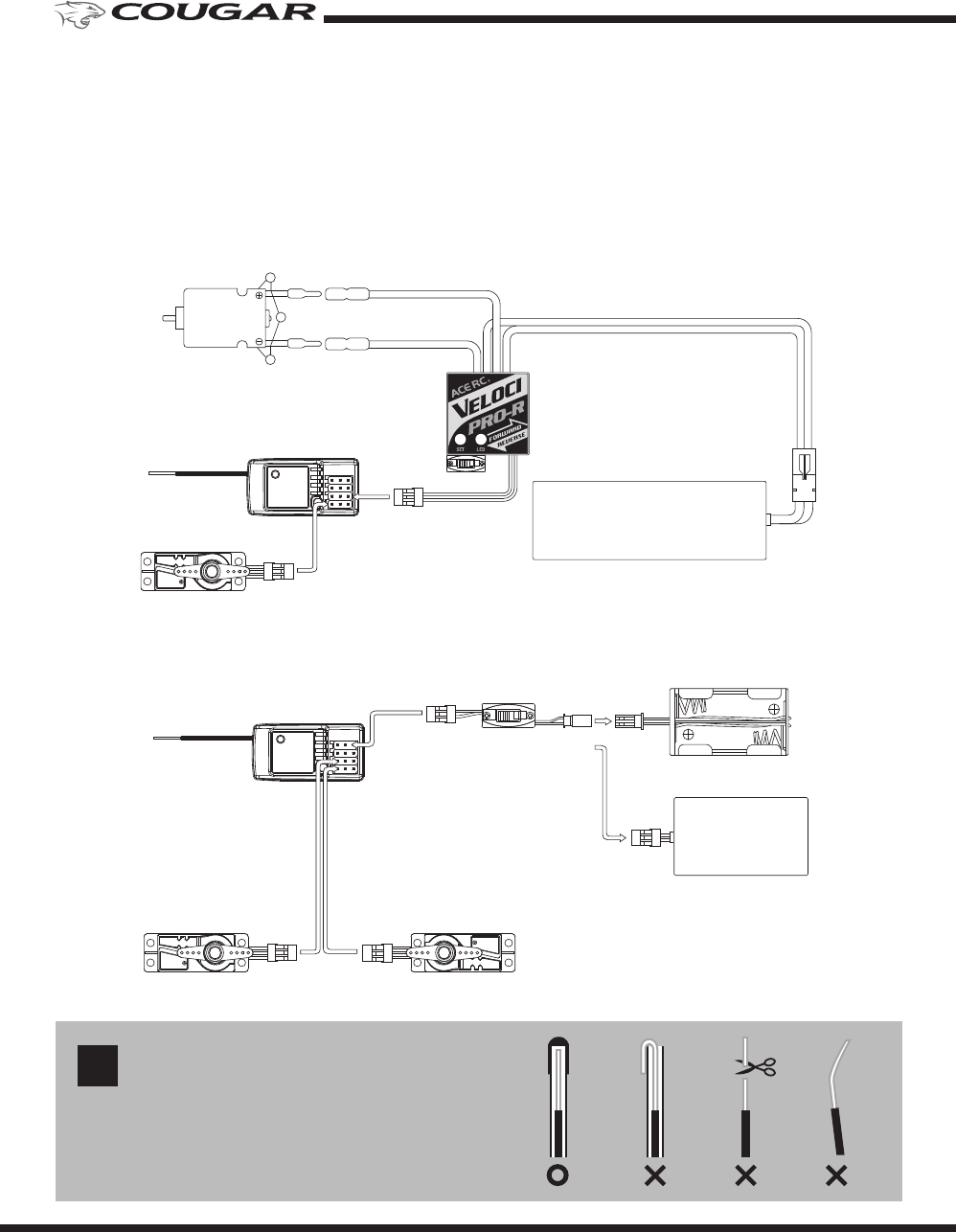

Gas Power Model Installation
BATTERY HOLDER
4.8V RX
BATTERY PACK
CH1CH2
BATT
STEERING SERVOTHROTTLE SERVO
RECEIVER
Electric Power Model Installation
MOTOR
7.2V POWER BATTERY PACK
CH2
CH1
ESC
RECEIVER
Radio installation
1) Connect the receiver, servos, and switch hardness/battery pack as shown.
2) If you are not familiar with all the control systems. Do the “bench test” before to install all the devices on the model.
3) Always follow the “transmitter on first, off last” procedure.
4) Always install the receiver as far as possible from the motor, ESC, power battery, motor wires.. or other noise sources.
Especially, do not route the motor wires next to the receiver, crystal or receiver antenna.
7
To prevent loss of radio range do not kink or cut
the gray wire, do not bend or cut the metal tip, and
do not bend or cut the white wire at the end of the
metal tip.
!
2.4GHz Digital Radio System
8

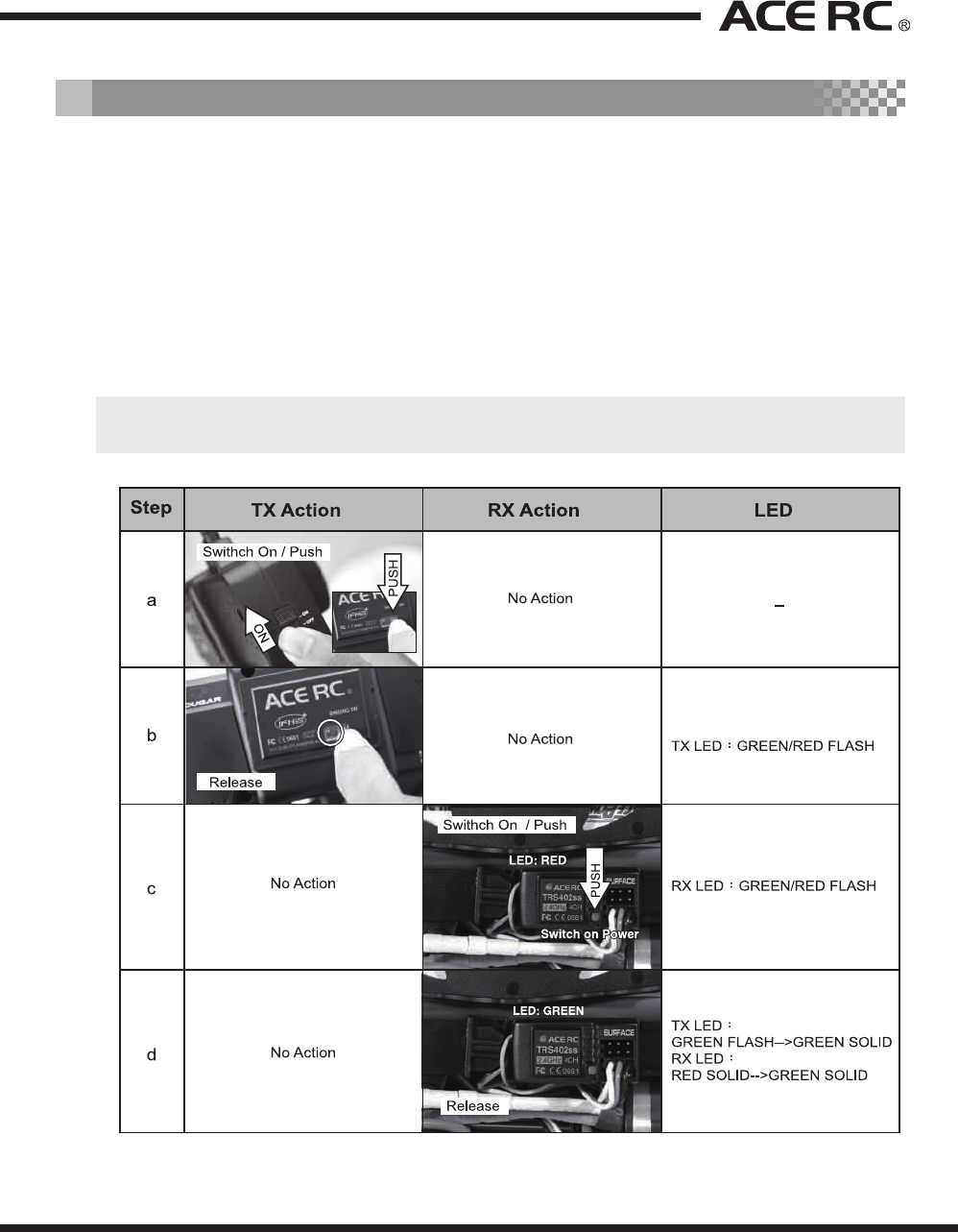

A binding feature is included in the ACE RC Cougar 2.4GHz spread spectrum system to ensure the transmitter
and receiver bind properly and prevent interference from other controllers.
To manually bind Tx/Rx, please proceed as per the following steps:
a. Press and hold the “Binding SW” button on the back side of the transmitter while turning on the transmitter.
b. Release the “Binding SW” button after the green / red LED flashes indicating the transmitter is binding.
c. Press and hold the bind button on the receiver while turning on the receiver. Binding process will then start
automatically.The LED will turn green/red flash on the receiver.
d. Release the “Binding SW” button. Successful binding is confirmed by the binding LED changing from a quick
blinking and then remain solid on the transmitter. The LED will turn green on the receiver. Once binding is
complete, the system will automatically connect.
e. Binding frequency: 2400 / 2401 / 2481 / 2482 four frequencies, so it allows four people to do binding at the
same time. ( for Cougar P2 / P3 only )
Note: Binding process may take 2~4 seconds to execute. If binding fails, the LED on the receiver will
turn red. Please turn off the power and repeat the steps from a) ~d).
BINDING PROCESS
(for Cougar PS3i)
TX LED : GREEN FLAH
(for Cougar P2/P3)
9
FAIL SAFE (F/S) FUNCTION SETTING
ACE RC COUGAR 2.4GHz R/C system features a built-in Failsafe function to
automatically set a servo command if the receiver loses the signal from transmitter due
to interference. For safety, we strongly recommend to active the FAILSAFE function on
your Cougar R/C system.
After binding the transmitter and receiver, you can continually set up the F/S function. Turn on the transmitter
power and then receiver power.
Press and hold the “Binding SW” button on the receiver for 2~4 seconds. The LED will start flashing GREEN
on the receiver.
Move and hold the throttle trigger to the position you want the control to be in if a failsafe condition should
occur. First, keep steering wheel at neutral position (steering servo at neutral position). To set up F/S function
with the throttle servo position at "Brake", first push the trigger to the brake position and hold. To set up F/S
function with servo position at "Neutral", keep the trigger at neutral position.
After the Step C, release the “Binding SW” button on the receiver first and then the throttle trigger. The LED
turns to solid “RED” and then back to solid “GREEN” indicating the F/S function has now been activated.
Test by turning off your transmitter and watching the servo failsafe position activate.
F/S at "Neutral": To check the fail safe is working properly, by moving the throttle trigger to the full forward
(full brake), hold this position and then turn off the transmitter. The F/S function should move the throttle servo
to “Neutral” position and the steering servo to “Neutral” position.
F/S at "Brake": To check the fail safe is working properly, by keeping the throttle trigger at neutral and then
turn off the transmitter. The F/S function should move the throttle servo to “Brake” position and the steering
servo to “Neutral” position.
If the F/S function fails or need to change the F/S hold position, repeat the steps a) ~e). After the F/S is
completed, you can start normal operation.
a.
b.
c.
d.
e.
f.

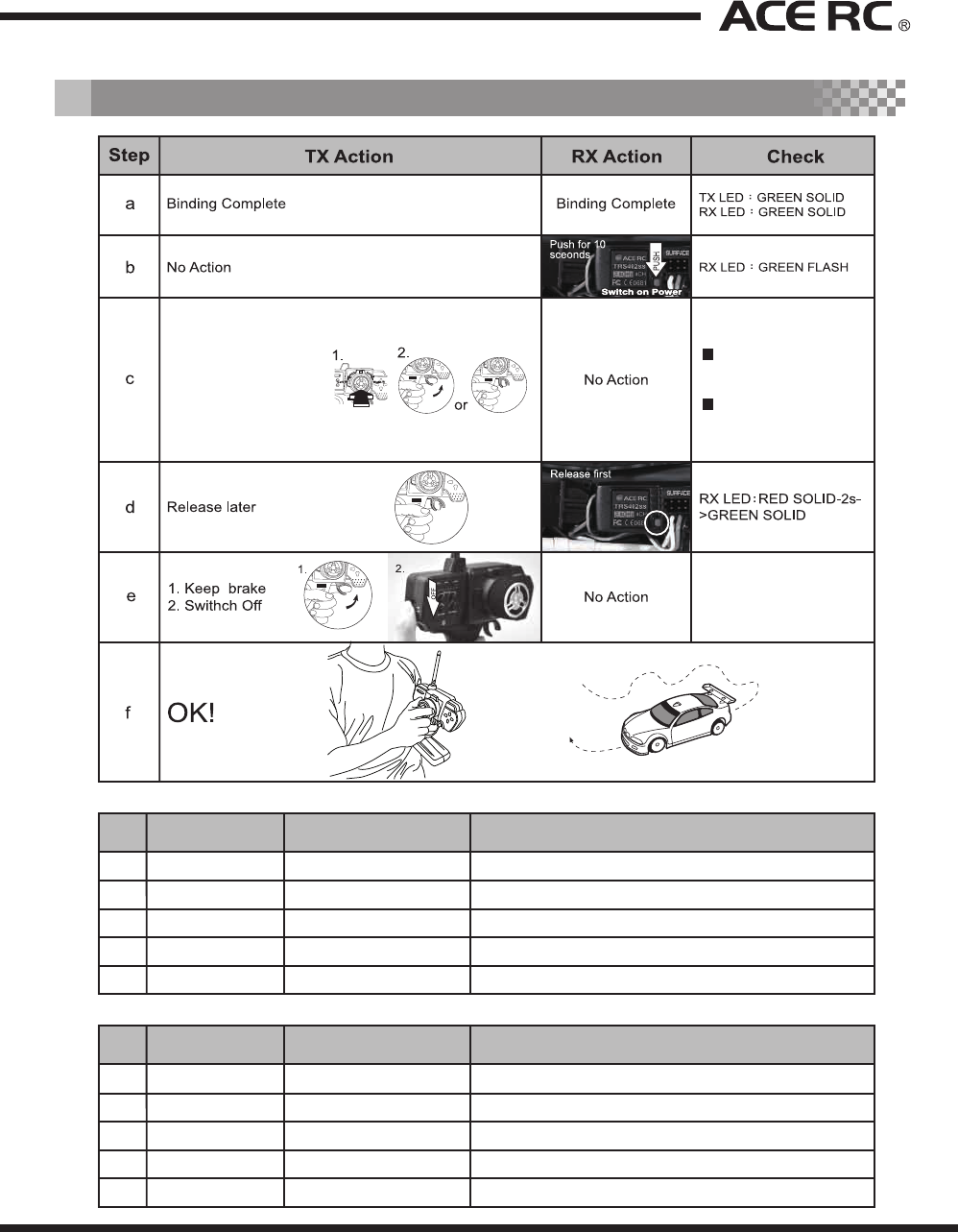

Setting up the Failsafe (F/S) Function:
CAUTION: Do not release the “Binding SW” button on the receiver until STEP C is completed.
CAUTION:
FAILSAFE function will be reset after binding your transmitter & receiver.
NOTE:
Always set the throttle trigger to neutral or full brake position and steering servo to neutral position in
case of any unexpected control error!
Factory pre-settings for RC car F/S function are :
Electric Car- Steering servo at neutral, throttle at neutral.
Nitro Car- Steering servo at neutral, throttle at idle.
2.4GHz Digital Radio System
FAIL SAFE (F/S) FUNCTION SETTING
1. Steering:Neutral
2. Keep brake or keep
trigger at neutral
Pre-settings for F/S
function:
EP Car :
Steering at Neutral /
ESC at Neutral
GP Car :
Steering at Neutral /
Carb. at Iddle
F/S function activates
10
1
2
3
4
5
Status
Boot-up
Green LED flashing
Green LED flashing
Binding OK -
Green LED flashing rapidly
Bind Bee
Bee
PWM abnormal -
Range check -
Tone of buzzer LED (close to Binding SW)
BUZZER LED ( for Cougar PS3i )
1
2
3
4
5
Status
Boot-up
Green LED flashing
Green LED flashing
Binding OK Bee-Bee-Bee
Red / Green LED flashing interactively
Bind Bee
Bee-Bee-Bee
Red LED flashing
PWM abnormal Beep
Range check Beep
Tone of buzzer LED (close to Binding SW)
BUZZER LED ( for Cougar P2 / P3 )
Menu
Value Display
Status Display
Trim position ruler
FUNCTIONS ( for PS3i )
11

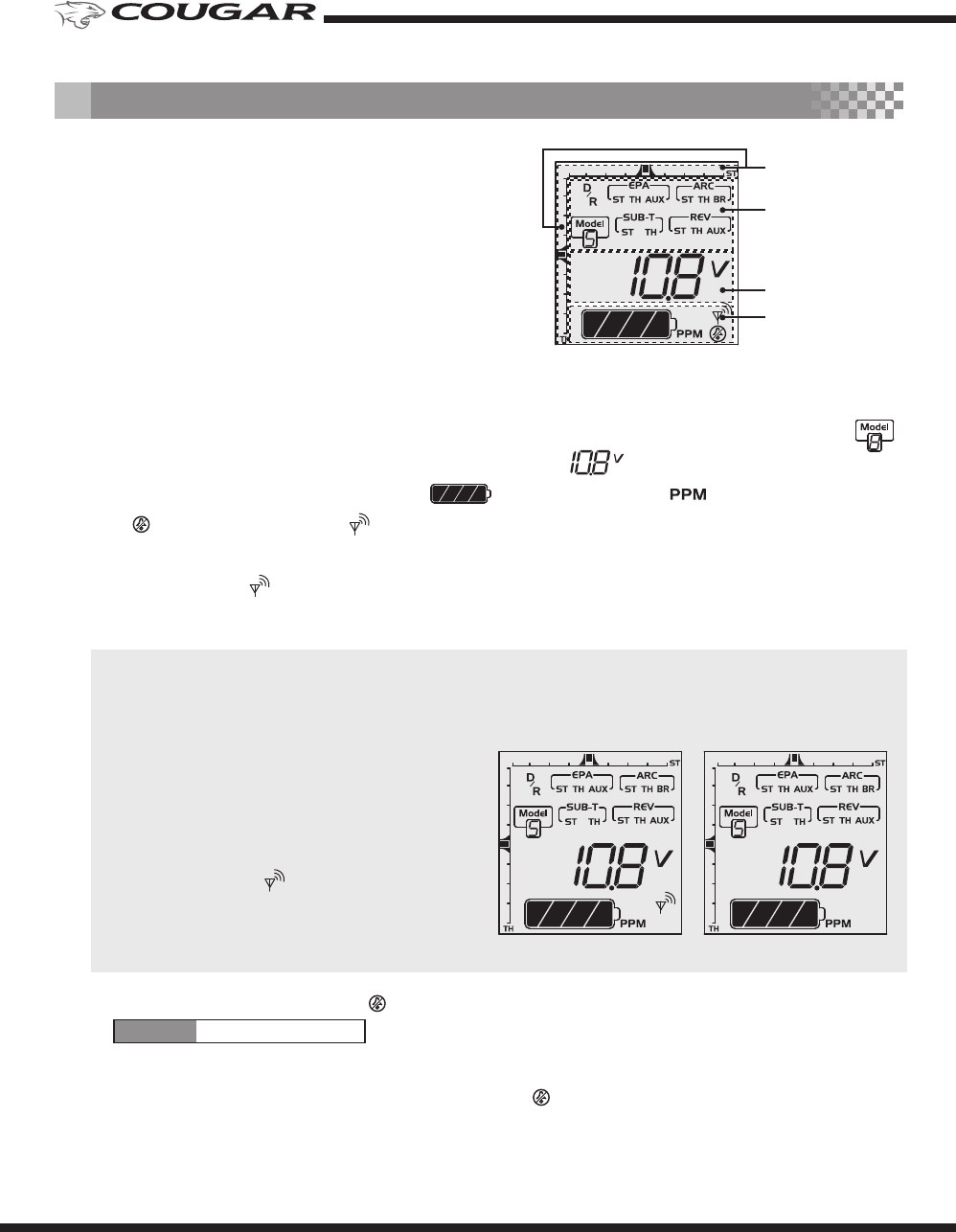

There are 4 distinct areas on the screen: “Menu”, “Value
Display”, “Status Display”, and “Trim position ruler”.
Using the left and right “Edit Buttons”, the cursor will
jump to the function you would like to edit. When you
enter the menu function, you can press the up and
down “Edit Buttons” to edit the value. Upon completing
settings, simply press the right and left buttons to move
the cursor to other functions, the previous value is now
saved.
1. Power On
Slide up the “Power Switch” to turn on the radio. You will hear a short “Beep” tone. The “model number”( )
will be displayed on the “Menu” area, the battery voltage value”( ) will be displayed on “Value Display”
area, and “battery voltage status diagram”( ) / transmitter system ( “ ” ) and audio on/off setting
( “ ” ) RF Transmitting on/off ( ) will be shown on “Status Display” area.
The current neutral position of the steering and throttle servos are displayed on “Trim position rulers”.
If all the radio system and RF module are correct, and the switch is set on the “ON” position, then the RF
Transmitting sign ( ) will be shown on the “Status Display” to make you use the current model No setting to
play your model. Or use the “Edit Buttons” to start the programming procedure. The following are the set-up
procedure and detail description for each function.
NOTE:
1) Battery status is easily read on the voltage value or battery status diagram. Charge or change the battery
when the voltage is lower than 8.8V.
2) For the radio RF system, the Cougar P3i feaatures PPM system, so the PPM is shown on the display.
3) If you plan to study all the function setting
procedure, or to adjust many functions data, we
strongly suggest to cancel the RF transmitting
function before executing the setting procedure.
You can remove the RF module or put the power
switch on the “Display” position. Note that the RF
Transmitting sign ( ) will not be shown on the
display.
2. Audio on/off beep setting “ ”
Default “Audio On” mode
The audio default setting is “On” eventhough no icon is displayed on the screen. Under the “Audio on” mode, a
"Beep" is emitted whenever the edit button or digital trim lever is operated. The radio can be switched to
“silent” mode easily. When switched to “Silent” mode, the “ ” icon is displayed on the right lower "Status
Display" .
Tramsmitting on Tramsmitting off
2.4GHz Digital Radio System
Audio on Mode Audio off Mode
EPA position
Default 100%
Adjusting Range 0%~150%
12
1) Turn off the radio.
2) Press the “up”(+) and “right”( ) buttons and hold
them.
3) Turn on the radio, a short “Beep” is emitted (power
on) , followed by a long “Bi” tone (finish tone mode
switching). Release the “up”(+) and "right" ( ) button.
NOTE:
Repeat the above 1)~3) steps to switch back to “audio
on” mode.

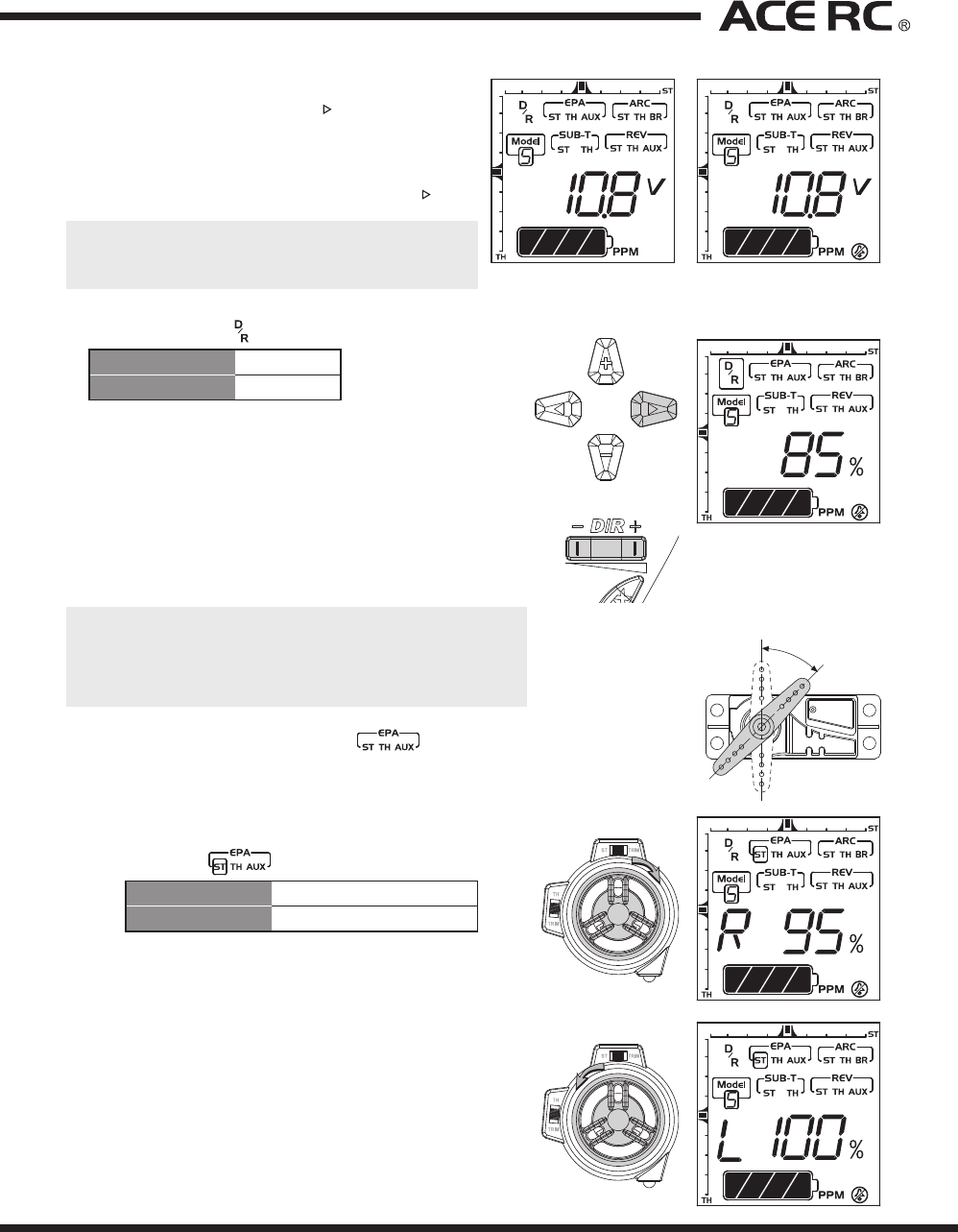

3. D/R (Dual Rate)
Press the right edit button, then move the cursor to “D/R” and
the steering servo dual rate setting function. On the “Value
Display”, the current D/R value will be shown. Use the up and
down edit buttons to adjust the value.
Th2 D/R function adjusts the overall travel of the steering
servo. Under the D/R setting, the steering servo left and right
steering angles will be adjusted simultaneously.
More travel (Higher D/R %) means more sensitivity for the
steering wheel.
TIP:
You also can use the “Digital Steering D/R(Dual Rate) lever”
to adjust the D/R value all the time even the function selecting
cursor is not under the D/R mode.
4. EPA (End Point Adjustment)
The EPA (End Point Adjustment) function sets the maximum travel end points
for each servo. On both travels, the individual EPA can be set with different
values. Move the cursor to the channel you select to start the setting procedure.
4.1) EPA / ST
This function adjusts the right(R) and left(L) maximum
steering angle. Under this mode, the right steering angle
EPA setting is selected first. “R” and current EPA value
are displayed there. Use the up/down buttons to adjust
the right EPA. Turn the steering wheel to the left, the “R”
on the display switches to “L” allowing you to adjust Left
EPA.
Default 100%
Adjusting Range R 0%~120%, L 0%~120%
13
NOTE:
If a servo’s maximum travel interferes with mechanical parts, it may cause linkage binding or even damage
to the servo. It’s advised to first turn the steering wheel to the fullest and then adjust the EPA to the suitable
value and visually confirm no biding is occurring.

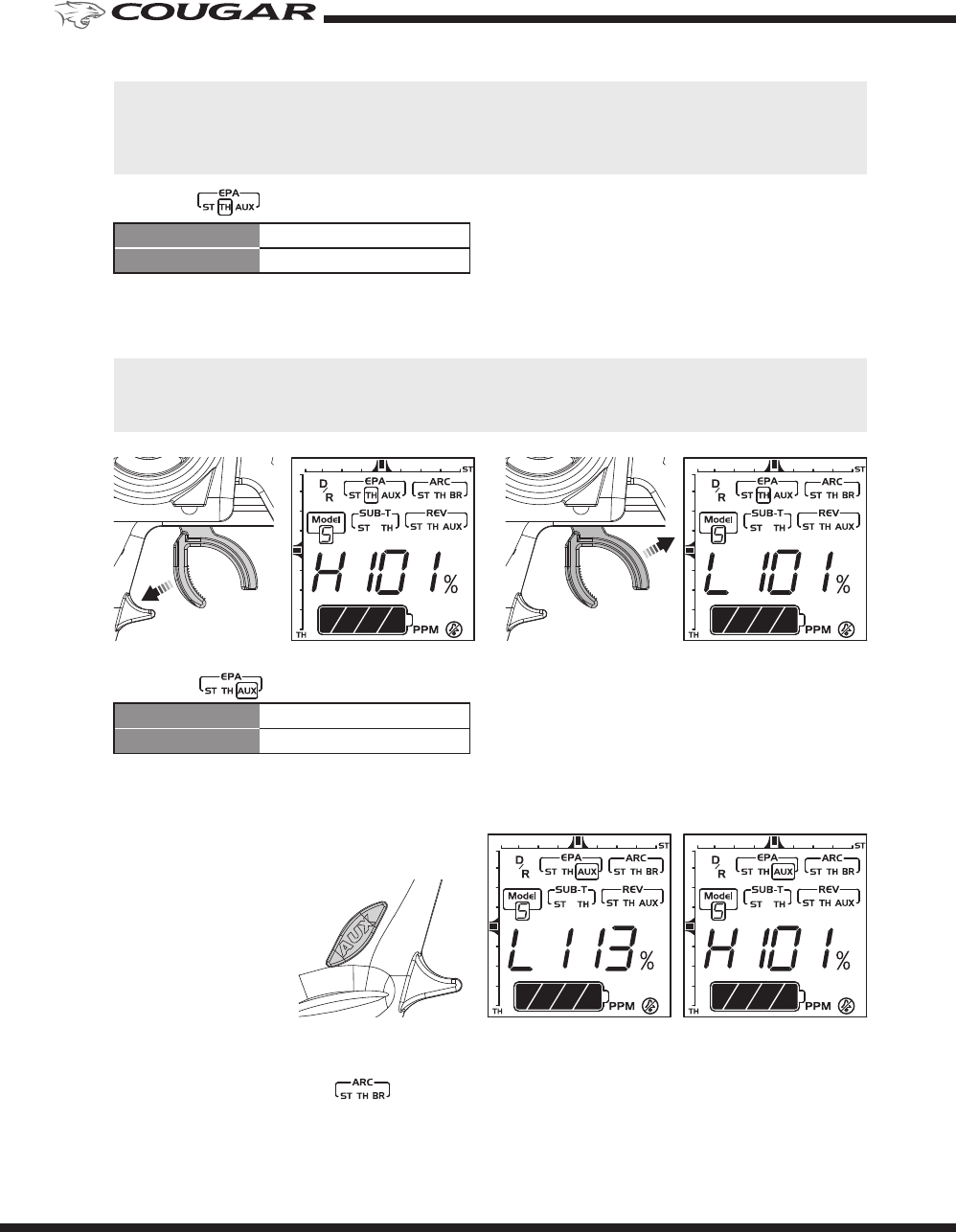

4.2) EPA/TH
The EPA/TH function adjusts full throttle (H) and low/brake (L) amount. Enter the EPA/TH setting mode,
pull the trigger back, “H” is displayed on left side of the “Value Display” with the current EPA value. Use
the up/down buttons to set full throttle EPA value.
NOTE:
When using an ESC on a electric- powered model, set the value to “H 100%”. Push the trigger
forward, “H” switches to “L”, use the up(+)/down(-) buttons to adjust the brake EPA value.
4.3) EPA/AUX
The EPA/AUX function adjusts the auxiliary 3rd channel EPA. Enter the EPA/AUX setting mode as previously
done for the steering and throttle EPA settings, press the AUX Ch Button to select the servo traveling side.
“H” and “L” are displayed to represent the different sides.
5. ARC (Adjust Rate Control)
The ARC function changes the movement curve on the servo steering wheel and throttle trigger. When ARC is
set to 0%, the movement curve is linear. Default ARC value is 0%. Detailed settings and adjustments are described
below.
Default H 100%, L100%
Adjusting Range H 0%~140%, L 0%~160%
Default 100%
Adjusting Range H 0%~150%, L 0%~150%
2.4GHz Digital Radio System
14
5.1) ARC/ST
The ARC/ST function adjusts the
sensitivity of the steering servo
responsiveness near the neutral position.
This setting affects both left and right
steering servo movements at the same
time and by the same percentage.
Negative steering ARC setting provides
lower sensitivity around the neutral point
area and higher responsiveness out of the
neutral point area. Positive steering ARC
provides the opposite effect.
5.2) ARC/TH
The ARC/TH adjusts the throttle responsiveness by setting a curve from neutral point to full throttle
position. Positive ARC/TH increases the response while negative ARC/TH broadens the power band.
5.3) ARC/BR
The ARC/BR adjusts the brake responsiveness by setting a curve from neutral point to throttle full close
position. Positive ARC/BR for sharper braking-power and negative for milder braking-power.
Default 0%
Adjusting Range -100%~100%
Default 0%
Adjusting Range -100%~100%
Default 0%
Adjusting Range -100%~100%
Default NOR
Adjusting Range NOR/REV
Default H 0
Adjusting Range L125~H125
Default R 0
Adjusting Range L125~R125
15
6. Model Number
10 models can be saved in the radio memory code (Model 0~9). The Model No.
flashes on the display. Use up(+)/down(-) buttons to call the model you want to
select. When turning the transmitter on, the last model will be re-called on the
model icon. Any amendments done on a particular model No. are automatically
saved.

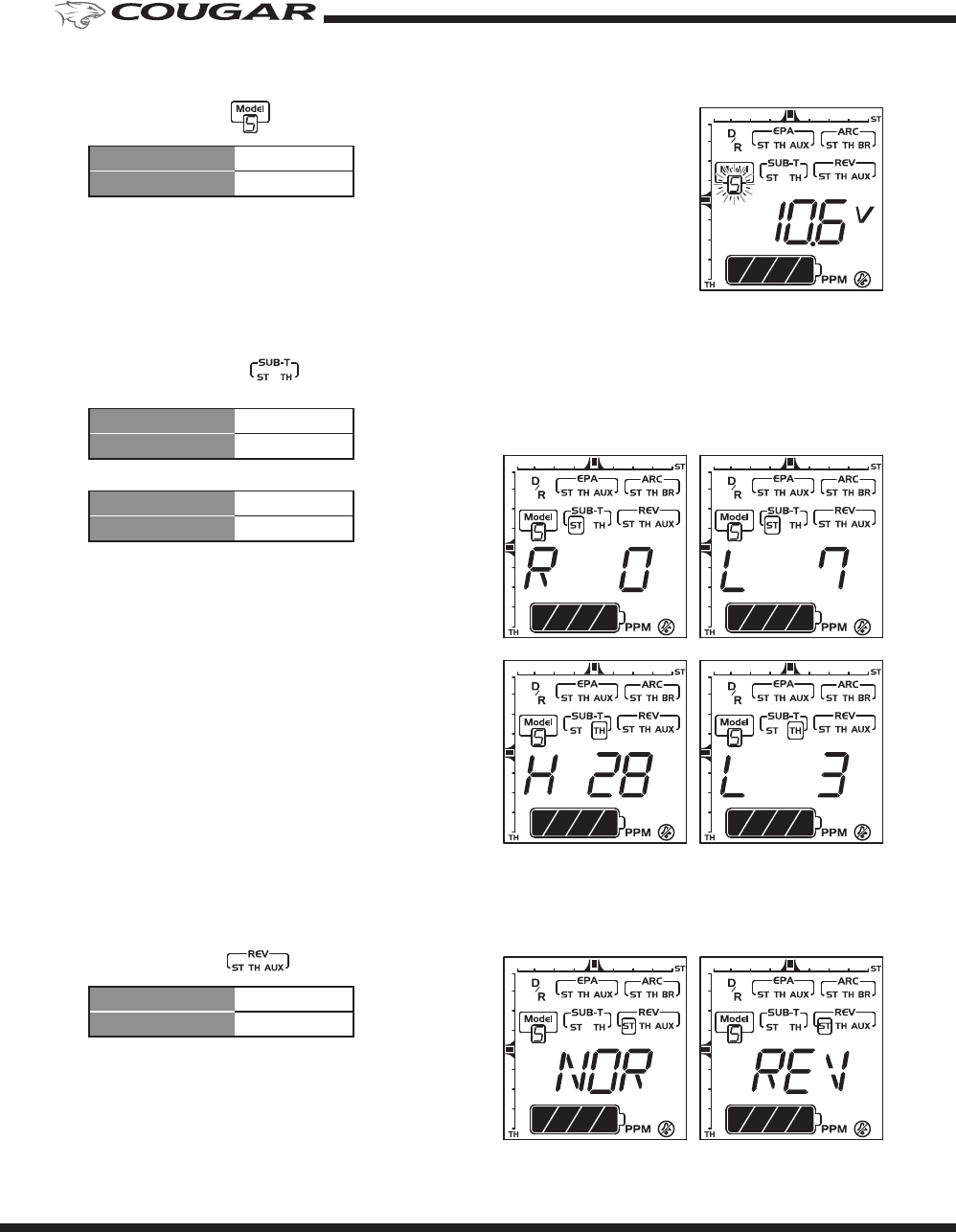

7. SUB-T (Sub trim)
ST (Steering)
TH (Throttle)
The SUB-T(sub trim) function allows the minor
adjustments of the neutral point on the steering and
throttle servos. Use the “up”(+) and “down”(-) buttons
to adjust. Under the SUB-T/ST mode, use the “up”(+)
button to increase the movement of the steering
servo neutral point toward right side and use the
“down”(-) button to adjust toward left side. Default
value is “R0” on the display. If the adjusting is to the
left side and over the default neutral point, then the
“R” will be changed to “L”.
SUB-T/TH mode adjusts the throttle servo. Proceed
as the SUB-T/TH, note that R/L (right/left) have now
changed to H/L (high/low).
8. REV (reverse)
The REV (reverse) function reverses the direction of
the servos relative to transmitter input. Enter this mode,
the “NOR”(normal) or “REV”(reverse) are displayed on
the display and can be switched by pressing the “up”(+)
or “down”(-) buttons to change direction. For each
individual servo (steering, throttle & AUX) direction can
be changed.
Default Model 0
Adjusting Range Model 0~9
2.4GHz Digital Radio System
16
NOTE
Be sure the steering trim on the transmitter is at the neutral position before you are trying to make an
adjustment.
HELPFUL HINT
When you install a servo, always check to be sure the servo is at its neutral position.
● Servo travel
Changing the trim can affect the overall settings. When adjustments are made with this trim, it is
recommended to re-check your installation for maximum servo travel.
HELPFUL HINT
If it takes most of your trim movement to get a servo to the neutral position, re-position the servo horn or
servo saver on the servo and inspect your linkage installation.
3. Steering Trim
● Neutral position trim
By turning the Steering Trim knob clockwise or counter-clockwise,
the steering neutral can be adjusted as needed.
1. Servo Reversing
It is sometimes necessary or convenient to reverse the output
direction of the servo. The direction of the rotation for each
individual servo can be changed by simply flipping the reversing
switch that corresponds to the channel number on the receiver
where the servo is plugged in. Under normal circumstances,
Ch1 is steering, Ch2 is throttle. Using the reversing switches as
needed.
2. iFHss/iFHss+ Data mode
iFHss : To back-ward compatible to our TRS401ss reciever.
iFHss+: You can switch to fast data mode and get a fast and reliable
control to your R/C model, we recommand to use this mode
if your TRS402ss reciever also supports this mode.
FUNCTIONS ( for P2 / P3 )
No Function
*for Cougar P2
*for Cougar P3
17
6. Steering D/R
Steering D/R allows you to change the steering travel while
running by turning the dual rate dial as shown to correct
over-steering and under-steering problems by increasing or
decreasing steering sensitivity. You can adjust sensitivity of
your model to your own preferences with this function.

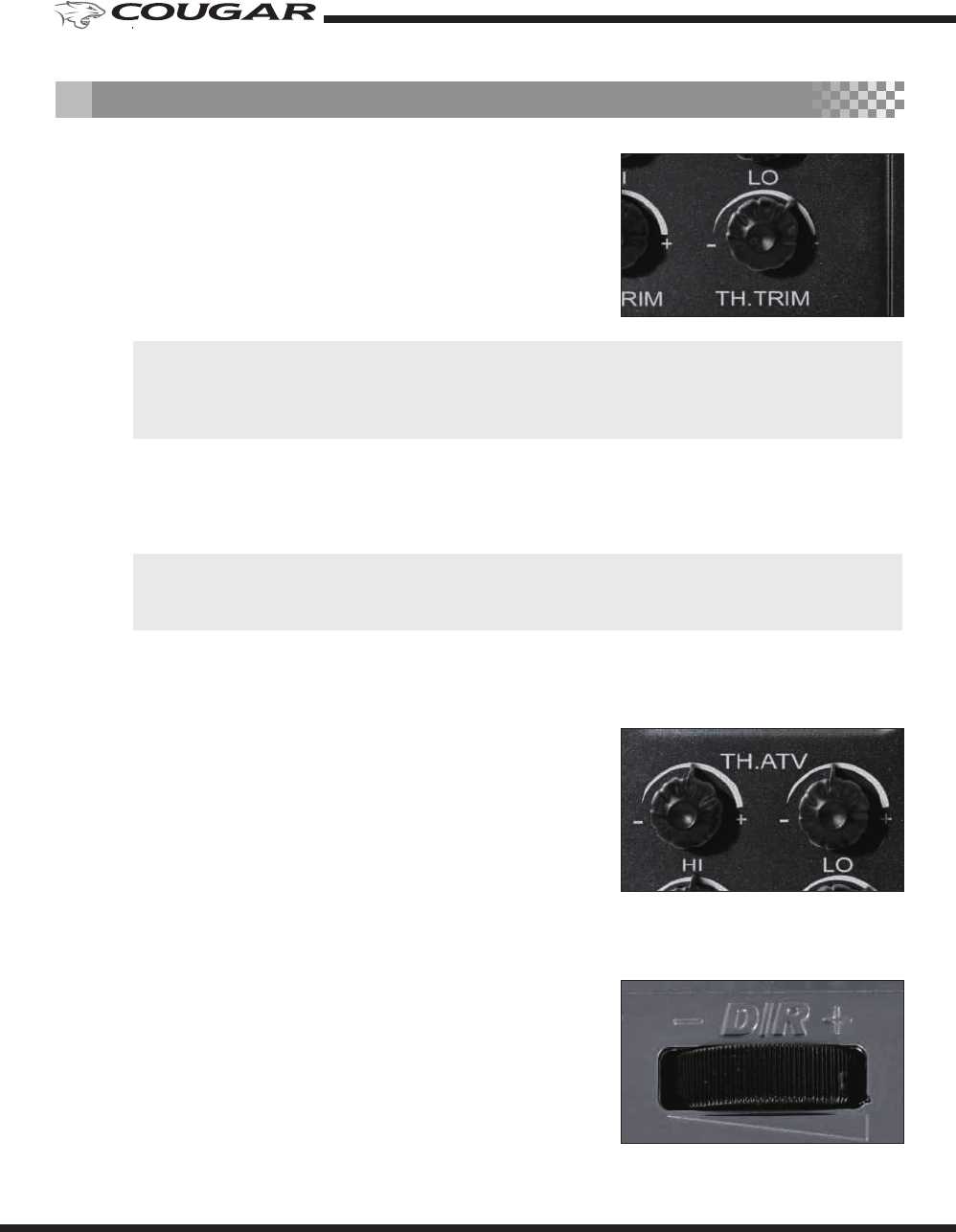

5. Throttle ATV
Throttle Adjustable Travel Volume/ATV provides the function to
preset independently throttle travel of the servo either side of
neutral. It offers easier adjustments to set the throttle operation
at idle and maximum power.
4. Throttle Trim
● Neutral position trim
Once the neutral position of the throttle trigger is set, by turning
the Throttle Trim knob clockwise or counter-clockwise, the
throttle neutral can be adjusted as needed.
FUNCTIONS ( for P2 / P3 )
HELPFUL HINT
When using an ESC, set the throttle trim to neutral and make adjustments to the speed control.
On a gas powered model, set the trim to neutral and adjust the throttle linkage to the point where the
carburetor is fully closed in accordance with your engine instruction manual.
● Servo travel
Trim adjustments will affect the overall servo travel; check the brake side (backward) movement when
changes are made.
HELPFUL HINT
If you have used most of the trim movement to get the servo to the neutral position, re-center the servo
horn closer to the neutral position and inspect your throttle linkage.
2.4GHz Digital Radio System
USING CAUTION AT THE RACING TRACK
18
No.8227
COUGAR P2 2.4GHz 2CH
Radio System
AQ6367
2.4GHz 4CH RX, TRS402ss

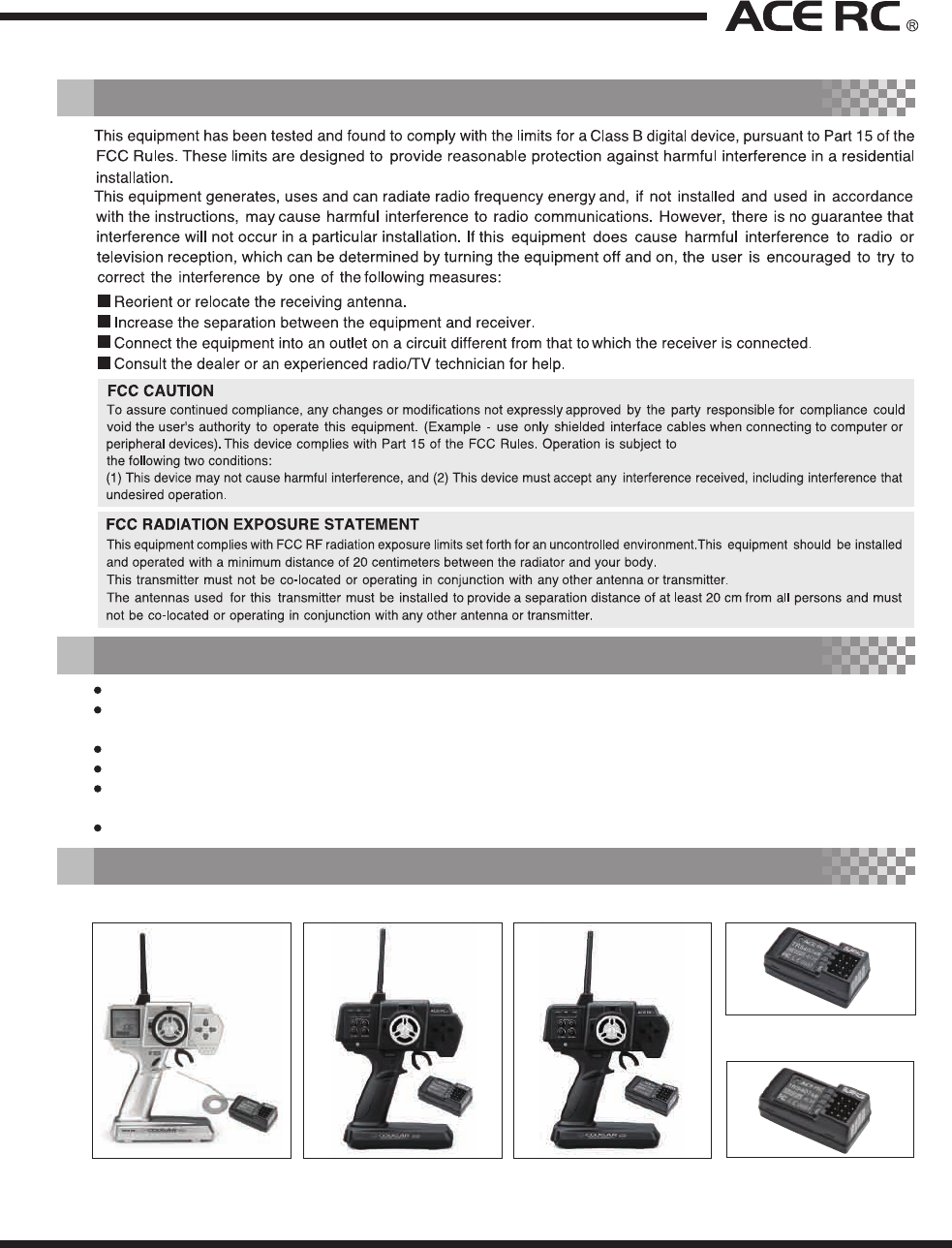

■ TX & RX
ACCESSORIES
FCC INTERFERENCE STATEMENT
Do not operate the model or use the radio in rain, lightning, or at night.
Do not operate the model or use the radio if you have been drinking alcohol or under the influence of any other
substance that will affect your skills.
Always check battery power before you operate.
Keep out of reach of children.
Do not store the radio in temperatures below -10 ˚C(14˚F) or above 40˚'5fC (104˚F) or in a humid, dusty, or high
vibration environment. Keep the radio away from direct sunlight.
To prevent corrosion, take out the batteries if you are going to store the radio for a long period.
No.8310
COUGAR P3 2.4GHz 3CH
Radio System
No.8308
COUGAR PS3i 2.4GHz
3CH Digital Radio System
AQ2280
2.4GHz 4CH RX, TRS401ss
AG2078
Y Switch Harness, Futaba
19
AG2051
Switch Harness, Futaba &
JR
2927
Ni-MH Battery 2/3A,
4.8V/1.2Ah (4) for RX
2932
Ni-MH Battery 2/3A,
6V/1.2Ah (2+3) for RX
2938
Ni-MH Battery 2/3A,
6V/1.2Ah (4+1) for RX
2939
Ni-MH Battery 2/3A,
4.8V/1.2Ah (2+2) for RX
2988
Ni-MH Battery AA,
7.2V/1.1Ah(6) for TX
2969-J/S
Ni-MH Battery AA,
4.8V/1.1AH (4) for RX
AT6169 120V2P/110mA
AT6169-J 100V2P/110mA
AT6169-E 230V2P/110mA
AT6169-U 230V3P/110mA
2989 Ni-MH Conversion
Kit,120V2P (AA x 10)
2989-J Ni-MH Conversion
Kit,100V2P (AA x 10)
2989-E Ni-MH Conversion
Kit,230V2P (AA x 10)
2989-U Ni-MH Conversion Kit,
230V3P (AA x 10)

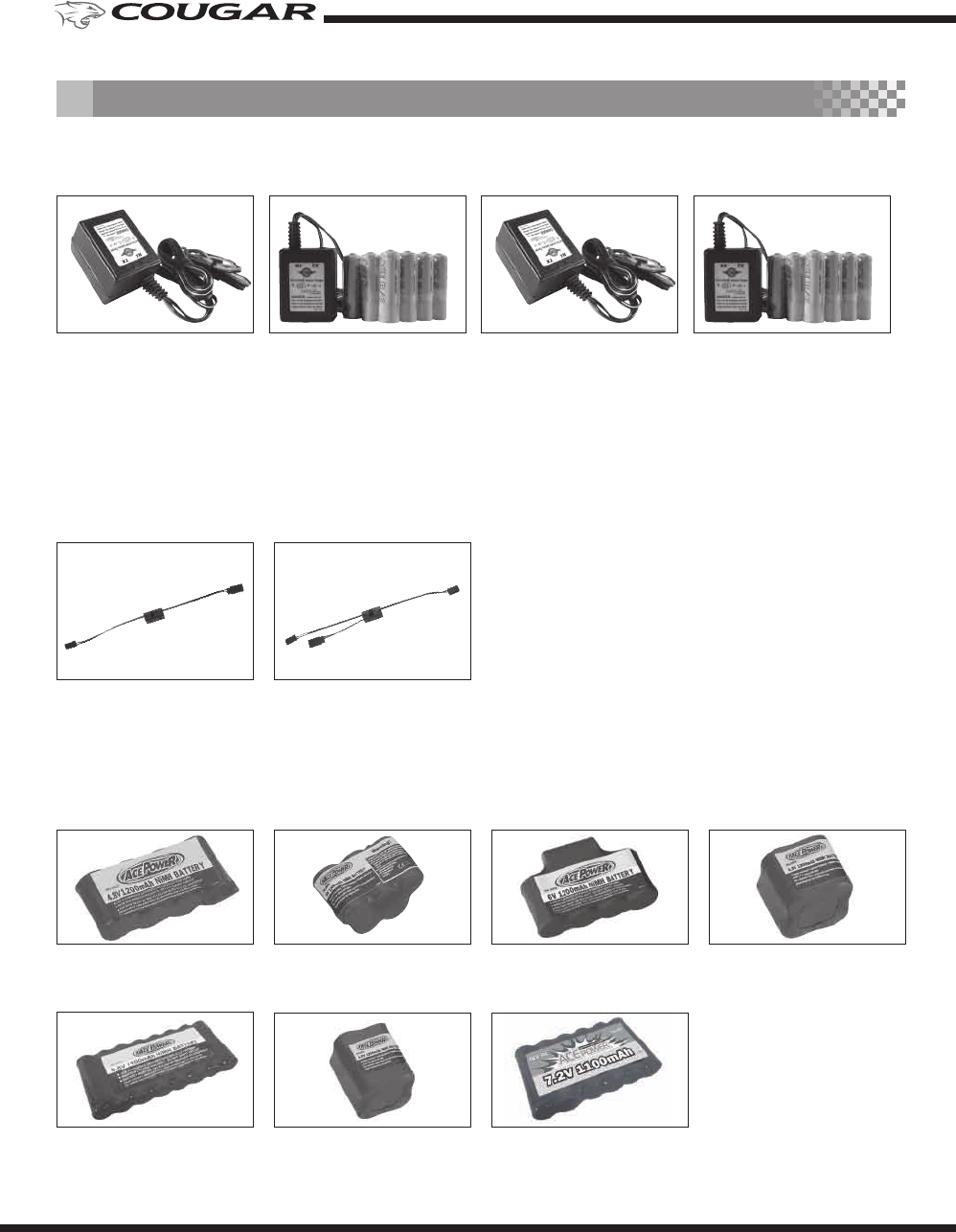

■ TX/RX Charger & Ni-MH Battery
(for Cougar P2/P3)
■ TX/RX Charger & Ni-MH Battery
(for Cougar PS3i)
■ Switch Harness
■ Ni-MH Battery
ACCESSORIES
AT2139 110V2P/110mA
AT2139-J 100V2P/110mA
AT2140 230V2P/110mA
AT2141 230V3P/110mA
2970 Ni-MH Conversion
Kit,120V2P (AA x 12)
2970-J Ni-MH Conversion
Kit,100V2P (AA x 12)
2971 Ni-MH Conversion
Kit,230V2P (AA x 12)
2972 Ni-MH Conversion Kit,
230V3P (AA x 12)
2946
Ni-MH Battery AA,
9.6V/1.1Ah(8) for TX
2.4GHz Digital Radio System
20
8126
Digital Speed Servos
12.5Kg/6V,DS1213
8127
Digital Torque Servos
14.5Kg/6V,DS1015
8128
Digital Speed Servos
12.5Kg/6V,DS1313
8151
7.4V High Voltage Servo
3.9Kg/7.4V,SHV1504MG
ACCESSORIES

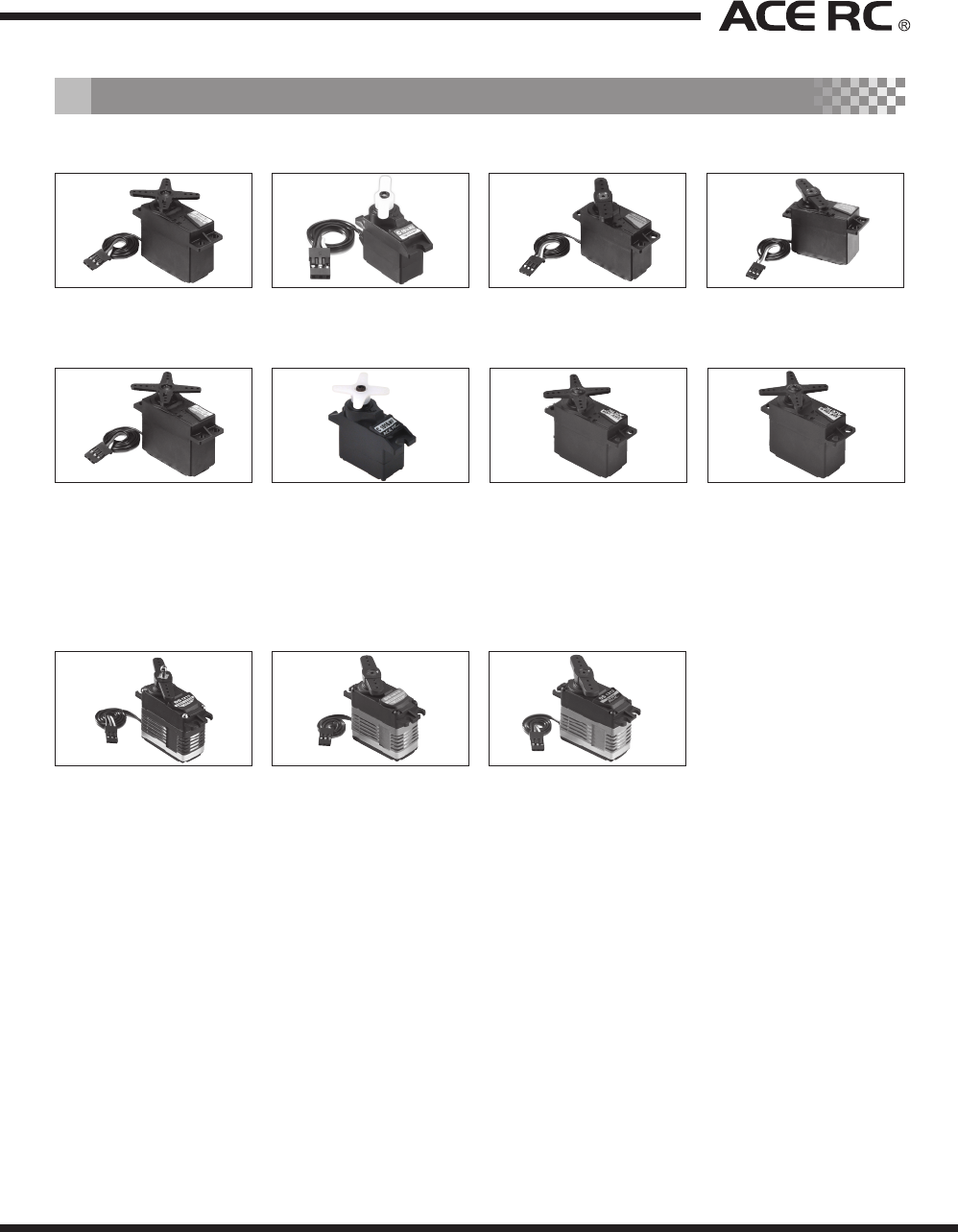

■ Analog Servos
■ Digital Servos
8114
Standard Servo
3.8Kg/6V,S1903
8117
Micro Servo
2.0Kg/6V,C1016
8118
Metal Gear High Torque
Servo
9.8Kg/6V,S2008MG
8120
Metal Gear High Torque
Servo
8.6Kg/6V,S1807MG
8121
Metal Gear Standard Servo
3.8Kg/6V,S1903MG
8139
Metal Gear Micro Servo
2.0Kg/6V,C1016MG
8150
7.4V High Voltage Servo
3.9Kg/7.4V,SHV1504
21
2.4GHz Digital Radio System
22
Do not try to operate your model if you find your radio is not working properly. Check out the radio as following steps.
If you can not solve the problems then contact with the Thunder Tiger authorized distributor for service.
TROUBLE SHOOTING
Thank you for purchasing of the ACE RC COUGAR Radio. Thunder Tiger strives to bring you the highest level of
quality and service we can provide. We race and test our products around the world to bring you state-of-the-art
items. Thunder Tiger guarantees that you should enjoy many hours of trouble free use from our R/C products.
Thunder Tiger products have been sold worldwide through the authorized distributors that are supported directly and
rapidly from Thunder Tiger. You may find that Thunder Tiger is always pursuing to explore new items creatively with
highest quality. To update the latest product information and to get the best technical support, please feel free to
contact your local hobby shops or Thunder Tiger authorized distributor.
SERVICE
Situation
No Voltage
Servo Works Improperly
Short Distance
No Actions
Battery
Dead battery-Change the batteries. Recharge the batteries.
Batteries inserted incorrectly-Reload the batteries in accordance with the polarity markings
Bad contact-Check to see if the contacts are bent and not making good contact
Dirty contacts-Clean the contacts and check for corrosion.
Monitor LED
Check the LED on the rear of the transmitter-Refer to the " Binding Process "
Battery
Dead battery-Replace or recharge
Wrong polarity-Check connections
Antenna
Near other wiring-Move away from wiring
Was antenna cut-Request repair
Is the antenna installed correctly-Refer to the receiver installation.
Monitor LED
Check the LED of the receiver-Refer to the " Binding Process "
Connector connections
Wiring incorrect-Insert all connectors firmly
Loose connections-Push the connector in firmly
Motor (Electric powered)
Noise problems-Install capacitors on motor
Transmitter
Solution
JC6267
FCC ID:VEJTT-FHM2P4G-A14
2.4GHz Digital Radio System
