Thundersoft TurboX® D820
SOM Datasheet
REVISION PAGES
0.1 1 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
1
Version Date Description
V0.1 2018-7-12 Initial Version
REVISION PAGES
0.1 2 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
2
Contents
1 Overview ............................................................................................................................................................. 5
1.1 Abstract ................................................................................................................................................ 5
1.2 Reference Documents .......................................................................................................................... 5
1.3 Terms and Acronyms ........................................................................................................................... 5
2 Introduction ........................................................................................................................................................ 8
2.1 Key features ......................................................................................................................................... 8
2.2 Major Components Location ............................................................................................................. 13
2.3 Connectors Function and Part Number .............................................................................................. 13
3 Interfaces Description ..................................................................................................................................... 15
3.1 Interfaces Parameter Definitions........................................................................................................ 15
3.2 Interfaces Detail Description ............................................................................................................. 16
3.2.1 Power Supply Interface .............................................................................................................. 16
3.2.2 Touch screen Interface ............................................................................................................... 17
3.2.3 Display Interface ........................................................................................................................ 17
3.2.4 Camera Interfaces ...................................................................................................................... 18
3.2.5 Audio Interface .......................................................................................................................... 20
3.2.6 USB Interface ............................................................................................................................ 21
3.2.7 HDMI Interface.......................................................................................................................... 22
3.2.8 PCIe Interface ............................................................................................................................ 22
3.2.9 SSC Interface ............................................................................................................................. 23
3.2.10 SDIO Interface ........................................................................................................................... 24
3.2.11 BLSP Interface ........................................................................................................................... 24
3.2.12 Power on Interface ..................................................................................................................... 26
3.2.13 Reset Interface ........................................................................................................................... 27
3.2.14 Keys Interface ............................................................................................................................ 28
REVISION PAGES
0.1 3 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
3
3.2.15 Sensor Interrupt Interface .......................................................................................................... 28
3.2.16 Debug UART Interface .............................................................................................................. 29
3.2.17 Battery Interface ........................................................................................................................ 29
3.2.18 JTAG debug ............................................................................................................................... 29
3.2.19 MPPs Interface ........................................................................................................................... 30
3.2.20 PWMs ........................................................................................................................................ 31
3.2.21 Antenna Interface ....................................................................................................................... 31
3.2.22 GPIO .......................................................................................................................................... 32
4 Electrical Characteristics ................................................................................................................................ 35
4.1 Absolute Maximum Ratings .............................................................................................................. 35
4.2 Operating Conditions ......................................................................................................................... 36
4.3 Output Power ..................................................................................................................................... 36
4.4 Digital-logic characteristics ............................................................................................................... 36
4.4.1 Digital GPIO characteristics ................................................................................................... 37
4.4.2 SD card digital I/O characteristics ............................................................................................. 37
4.5 MIPI ................................................................................................................................................... 38
4.6 USB ................................................................................................................................................... 38
4.7 PCIe ................................................................................................................................................... 38
4.8 HDMI ................................................................................................................................................. 39
4.9 SLIMbus ............................................................................................................................................ 39
4.10 SDIO .................................................................................................................................................. 39
4.11 I2S ........................................................................................................................... ........................... 39
4.12 I2C ..................................................................................................................................................... 41
4.13 SPI ..................................................................................................................................................... 42
4.14 Mpps .................................................................................................................................................. 42
4.15 Power Consumption ........................................................................................................................... 43
REVISION PAGES
0.1 4 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
4
4.16 Thermal(TBD) ................................................................................................................................... 43
4.17 RF Performance ................................................................................................................................. 43
4.17.1 GPS Performance ....................................................................................................................... 44
5 PIN Summary .................................................................................................................................................... 45
5.1 J5218 BTB Connector ....................................................................................................................... 45
5.2 J5221 BTB Connector ....................................................................................................................... 46
5.3 J5219 ZIF Connector ......................................................................................................................... 48
5.4 J5220 ZIF Connector ......................................................................................................................... 49
5.5 J101 JTAG Connector ........................................................................................................................ 51
REVISION PAGES
0.1 5 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
5
1 Overview
1.1 Abstract
Thundersoft TurboX®D820 is high level performance intelligent module, integrating Android or Linux system,
based on Qualcomm APQ8096 processor. It used the advanced 14 nm Fin FET process, customized 64-bit
ARMv8-campliant quad-core applications processor, 2.15GHz CPU process performance, integrated a new
Adreno 530 graphics processing unit (GPU).
Thundersoft TurboX® D820 support short-range wireless communication through Wi-Fi 802.11 a/b/g/n/ac
and BT4.2, and integrates GPS/GLONASS satellite positioning system. Thundersoft TurboX® D820 support
3840*2400@60fps display, it can connect 3 x camera modules, 1080P video smoothly output, and integrating
multiple audio and video input/output interfaces. Thundersoft TurboX® D820 provides a variety of GPIO, I2C,
UART and SPI standard interfaces. In addition, it supports two MIPI-DSI, three MIPI-CSI and SOM common
standard protocol interfaces such as USB3.0, USB2.0, SPI, PCIE2.1, I2S, SLIMBUS and HDMI.
Thundersoft TurboX® D820 provide convenient and stable system software solution for IOT field, it can be
embedded into the device on VR/AR, Drone, Robot, Smart Camera, Routers, and any other connecting fields.
The size of Thundersoft TurboX® D820 module is 36mm x 51mm x 6.45mm, weight 16g,with 302PINs.
1.2 Reference Documents
Document
80-NT204-1 MSM8996-APQ8096 DEVICE SPECIFICATION
80-NT204-41 MSM8996 BASEBAND REFERENCE SCHEMATIC
80-NJ118-1 PMI8994-PMI8996 POWER MANAGEMENT IC DEVICE SPECIFICATION
1.3 Terms and Acronyms
Acronym/Terminology Description
ADC Analog-to-digital converter
BER Bit error rate
REVISION PAGES
0.1 6 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
6
BLSP BAM-based low-speed peripheral
eMMC Embedded Multimedia Card
GPIO General Purpose Input/output
GLONASS GLONASS Global orbiting navigation satellite system
GNSS Global navigation satellite system
HDMI High-Definition Multimedia Interface
LPDDR Low Power Double Data Rate
LPG Light Pulse Generators
LCD Liquid crystal display
MIPI-CSI Mobile Industry Processor Interface Camera Serial Interface
MIPI-DSI Mobile Industry Processor Interface Display Serial Interface
MBHC Multiple button headset control
MOSI Master output/Slaver input
MISO Master input/Slaver output
MPP Multipurpose pin
NFC Near field communicator
PMIC Power Management Integrated Circuit
OSC Oscillator
PA Power amplifier
PCB Printed circuit board
PCIe Peripheral component interconnect express
PCM Pulse-coded modulation
PM Power management
PWM Pulse width modulation
PoP Package-on-package
REVISION PAGES
0.1 7 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
7
SDC Secure digital controller
SDRAM Synchronous dynamic random access memory
SLIMbus Serial Low-power Inter-chip Media Bus
SPI Serial peripheral interface
SPMI Serial power management interface
SSC Snapdragon™ sensor core
TCXO Temperature-compensated crystal oscillator
SoC System on Chip
XTAL Crystal
SDIO Secure Digital Input / Output
UART Universal Asynchronous Receiver Transmitter
USB Universal serial bus
I2S Inter-IC Sound
I2C Inter-integrated circuit
WCN Wireless connectivity network
WLAN Wireless local area network
SMPS Switched-mode power supply
SOM System On Module
ZIF Zero Insert Force
REVISION PAGES
0.1 8 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
8
2 Introduction
2.1 Key features
The following table shows the detailed features and performance on Thundersoft TurboX® D820.
Processors
Applications
Processor
Customized 64-bit ARMv8-compliant quad-core applications processor (Kryo)
Two high-performance Kryo cores – gold cluster (2.15 GHz)
Two low-power Kryo cores – silver cluster (1.593 GHz)
Digital signal
processing Hexagon DSP with dual-Hexagon vector processor (HVX-512)(target 825 MHz)
Sensor core Snapdragon™ sensor core (dedicated Q6 low-power island with 512 KB)
Operating System Android OS 7(TBD)
Memory
64GB UFS+ LPDDR4 4GB
Dual-channel PoP high-speed memory – LPDDR4 SDRAM designed for 1866 MHz
clock.
Multimedia
Display support
2 x 4-lane DSI DPHY 1.2 and HDMI 2.0 (4K60) or 4K30 Miracast
HDMI up to 3840 x 2160 at 60fps
Maximum concurrency configurations
3840x2400 or 4096x2160 at 60Hz primary + 3840x2160 or 4096x2160 at 60Hz HDMI
REVISION PAGES
0.1 9 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
9
2560x1600 at 60 fps primary + 2560x1600 at 60fps secondary + 3840x2160 at 60fps
HDMI
Camera support
Support 3 x 4-lane MIPI_CSI
Dual 14-bit ISP
28 MP + 13 MP, 600 MHz each
32MP 30ZSL with dual-ISP
16 MP30 ZSL with single ISP
ABF3 with radius noise reduction, Demosaic4, TNR, ASF2.2, Dual AF, LTM, CAC2, GIC,
Pedestal correction, stats upgrades
Video
Encode
H.264 BP/MP/HP, MPEG-4 SP/ASP, H.263 P0, VP8, HEVC Main
Maximum performance
3840x2160 at 30 fps
4096x2160 at 24 fps
Decode
H.264 BP/MP/HP, MPEG-4 SP/ASP, H.263 P0, VC1 SP/MP/AP, MPEG-2 MP, DivX
3.11/4/5/6, VP8, VP9, HEVC Main, HEVCMain10*
Maximum performance
3840x2160 at 60 fps
4096x2160at 60 fps
Graphics
Adreno 530 3D graphics accelerator 624 MHz
Support by A530 for all important GPU APIs
DirectX 12 _FL12 (future-proof DX)
REVISION PAGES
0.1 10 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
10
OpenGL ES 3.1*+AEP1 and Vulkan
OpenCL 2.0*(full), RenderScript
Support for 64-bit virtual addresses, allowing for SVM with 64-bit CPUs
Supports GPU virtualization
Audio(build in Thundersoft TurboX® D820 Carrier Board with WCD9335 codec)
Codec
Seven DACs, seven outputs
Six differential analog inputs with dedicated ADCs
Six digital microphones
Snapdragon™ voice activation (SVA) subsystem for ultra low voice wake-up
MBHC, ANC
130 dB dynamic range, 24-bit DAC
44.1 kHz native playback
SLIMbus to I2S bridge
Low-power audio Low-power, low-complexity; 7.1 surround sound
Voice codec
support
QCELP, EVRC, EVRC-B, EVRC-WB,EVS,
GSM-FR, -EFR, -HR; AMR-NB, -WB
Audio Encoders QCELP, EVRC, AMR-WB, AMR-NB, AAC ELD, AAC and AAC+
Audio Decoders
PCM playback, AAC/AAC+/eAAC+, MP3, WMA (v9 and v10), WMALossless,
WMAPro10, AMR-NB, AMR-WB, AMR-WB+, FLAC, ALAC, Vorbis*, AIFF, APE, AC3,
eAC3, M8
Enhanced audio Surround sound: DTS-HD; DTS express 7.1
Fluence noise cancellation; enhanced speaker protection
REVISION PAGES
0.1 11 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
11
QAudioFX/Qconcert/QEnsemble
Wireless connectivity
WLAN
2.4G/5G, support 802.11 a/b/g/n/ac, 2 X 2 MIMO
Support AP mode
Bluetooth
Support Bluetooth 4.2 + HS
BLE,
Backwards compatible with Bluetooth 1.2, 2.X + enhanced data rate.
GNSS Support GPS/GLONASS
Connectivity
USB Two – one USB 2.0 high-speed and one USB 3.0 super-speed/USB 2.0 high-speed
Compliant
HDMI
Integrated HDMI Tx core and HDMI PHY Rev 2.0
1080p at 60 Hz refresh; 24-bit RGB color
4k 60 fps HDMI
2-channel Linear Pulse-Code Modulation (LPCM)
8-channel LPCM 24 bit/192 kHz
PCIe 2x PCIe, PCIe v2.1 PHY and 2.1 controller
SDIO
1 x 4-bit, SD 3.0
SD/MMC card, eMMC NAND, eSD/eMMC boot
BLSP 7 BLSPs ,can be configured as SPI or I2C or UART
REVISION PAGES
0.1 12 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
12
UART up to 4 MHz
I2C Sensors etc
SPI Sensors etc
SLIMbus One, highly multiplexed, high-speed, baseline WCD9335
MI2S
3 ports;
Full duplex stereo or up to quad channel Tx/Rx MI2S (x1);
Up to 2 channel for multi-channel audio applications (x2);
PCM Short and long sync PCM support
GPIO 6+ GPIO ports
Others
ADC Interface
Support ADC interfaces
used for input voltage sense, battery temperature detection and general purpose
ADC
Touch screen
support Capacitive panels via ext IC (I2C, SPI, and interrupts)
Physical size
Size: 36mm x 51mm x 6.45mm
Weight: approx.16g
Interface: Connector
Operating
temperature -10C ~55C
REVISION PAGES
0.1 13 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
13
RoHS All hardware components are fully compliant with EU RoHS directive
Table 2.1-1Detailed features and performance
2.2 Major Components Location
Thundersoft TurboX® D820 SOM’s major components are as below.
There are another 2 pieces shielding covers which will be covered at the top and bottom shielding frame.
2.3 Connectors Function and Part Number
We have SOM major parts connectors on Thundersoft TurboX® D820. Below map can easy to show the Pin
start & end location on connector.

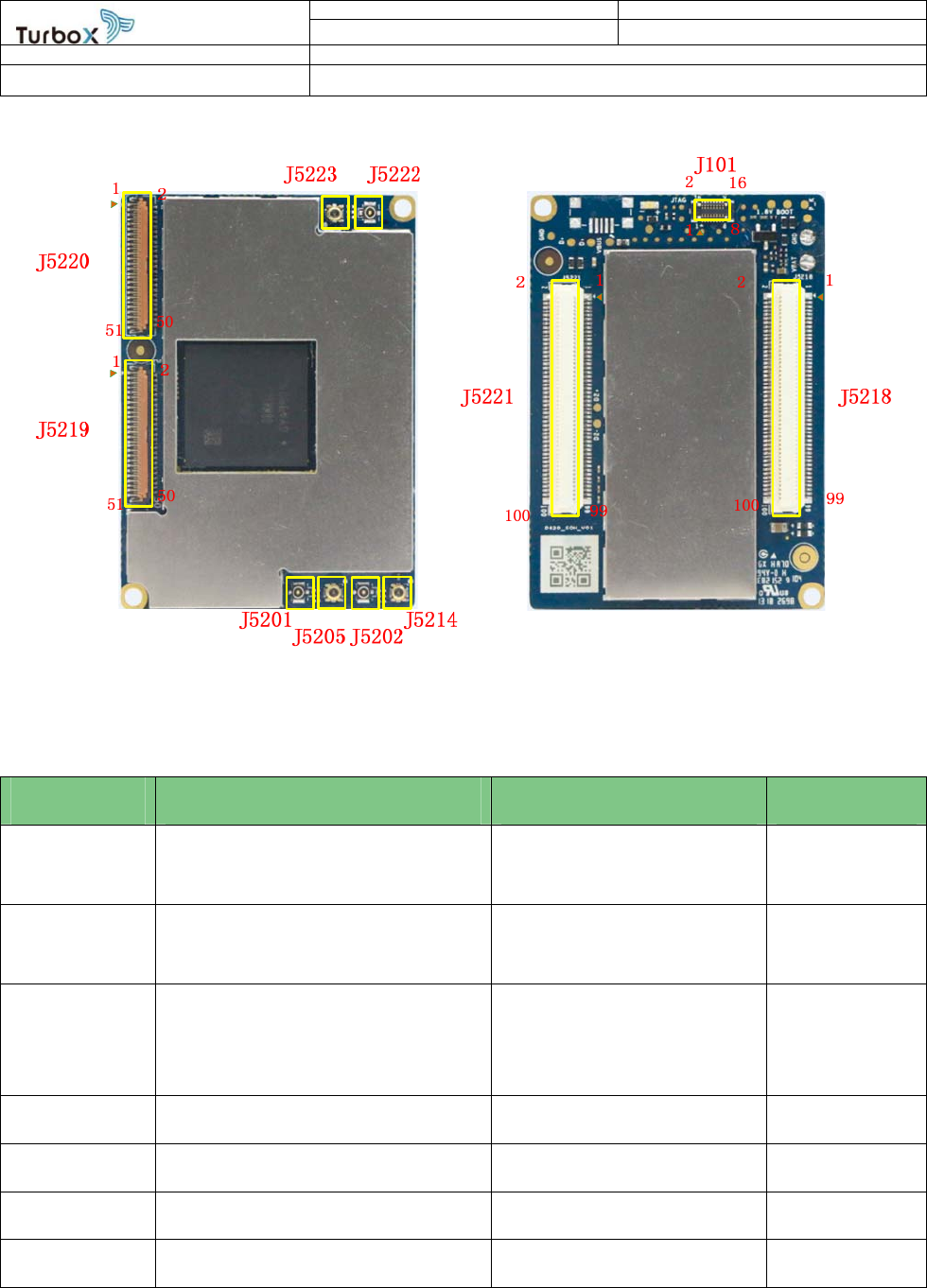

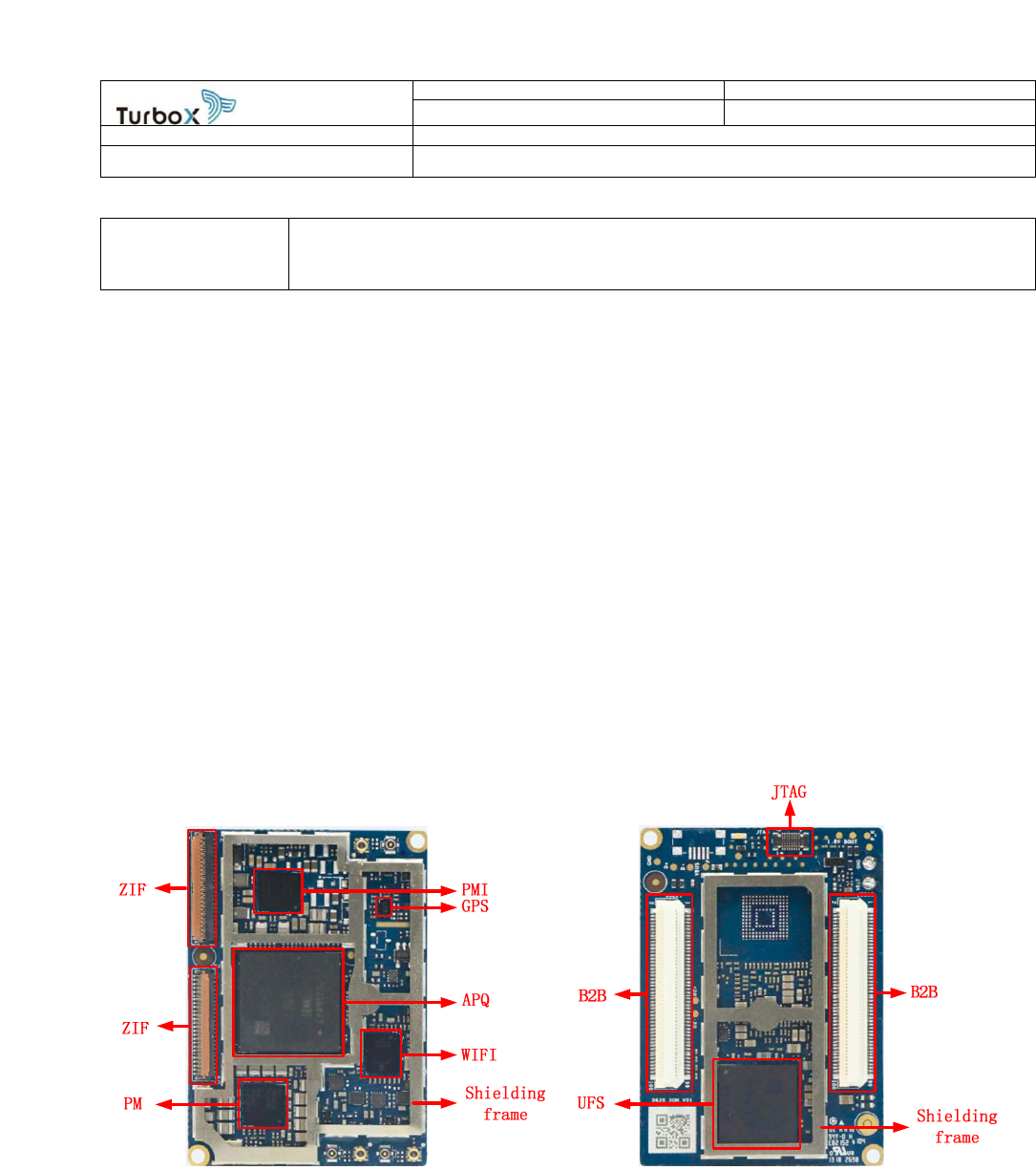

Figure 2.2-1ThundersoftTurboX® D820 SoM Key component Location
REVISION PAGES
0.1 14 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
14
Figure 2.3-1ThundersoftTurboX® D820 SOM Connector PIN Location
Thundersoft TurboX® D820 SOM Below table indicates connectors detail information.
Part Reference Description Manufacturer Part Number Manufacturer
J5218,J5221 BTB connectors, used for connecting
to Carrier Board. AXK6S00437YG PANASONIC
J5219,J5220 ZIF connectors, used for extended
CSI/DSI/SENSOR/GPIOs FH26W-51S-0.3SHW(05) HIROSE
J5201,J5202
J5201 is an antenna connector for
Wi-Fi/BT; J5202 is an antenna
connector for Wi-Fi.
818000157 ECT
J5222 An antenna connector for GPS; 818000157 ECT
J5205,J5214 Wifi/bt calibration and test socket MM8030-2610RK0 MURATA
J5223 GPS test socket MM8030-2610RK0 MURATA
J101 JTAG connector AXG7160J7 PANASONIC
Table 2.3-1Connector part number and information
REVISION PAGES
0.1 15 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
15
3 Interfaces Description
This chapter introduces all the interfaces definition, purpose to guide developer easy to design and
verification on Thundersoft TurboX® D820 SOM.
3.1 Interfaces Parameter Definitions
Symbol Description
AI Analog input
AO Analog output
B Bidirectional digital with CMOS input
CSI Supply voltage for MIPI_CSI circuits and I/O; (1.8 V only)
DI Digital input(CMOS)
DSI Supply voltage for MIPI_DSI I/O; (1.8 V only)
DO Digital output(CMOS)
H High-voltage tolerant
nppdpukp
Programmable pull resistor. The default pull direction is indicated using capital letters
and is a prefix to other programmable options:
NP: pdpukp = default no-pull with programmable options following the colon (:)
PD: nppukp = default pull-down with programmable options following the colon (:)
PU: nppdkp = default pull-up with programmable options following the colon (:)
KP: nppdpu = default keeper with programmable options following the colon (:)
KP Contains an internal weak keeper device (keepers cannot drive external buses)
MIPI Mobile industry processor interface
NP Contains no internal pull
OD Open drain
PD Contains an internal pull-down device
REVISION PAGES
0.1 16 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
16
PI Power input
PO Power output
PD Contains an internal pull-down device
PU Contains an internal pull-up device
P3 Power group 3,it is 1.8V.
P2 SDC Power group 3,it is 1.8V or 2.95V.
P12 SSC Power group 12,it is 1.8V.
Table 3.1-1Interfaces parameter definitions
3.2 Interfaces Detail Description
3.2.1 Power Supply Interface
Below table describes all interfaces of SOM Power Supply. For the detail parameter request, please refer the
chapter on Electrical specifications.
Power Supply
PIN Name Location PIN Type Description Notes
VBATT J5218 1,3,5,7,9,11 PI
Power supply in for SOM all
operations.
VBUS_USB_IN J5218 2,4 PI,PO
USB input power sources or
output during USB-OTG
operation.
VREG_S4A_1P8 J5218 8 PO Used for 1.8V IO pull up voltage;
VREG_L21A_2P95 J5218 18 PO Power output for SD card
VCOIN J5218 46 AI,AO Coin cell battery or backup
battery;
GND
J5218
10,16,22,28,2
7,29,31,33,34
,40,43,47,
GND
J5221
1,2,5,8,9,13,1
4,20,25,26,31
,32,37,38,43,
44,49,50,55,5
GND
REVISION PAGES
0.1 17 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
17
6,61,62,67,68
,73,74,79,85,
88,91,97
J5219 6,12,14,16 GND
J5220
1,4,7,10,13,1
6,18,25,36,39
,42,45,48,51
GND
Table 3.2-1 Power Supply Definition
3.2.2 Touch screen Interface
Touch screen panels are supported using I2C buses and GPIOs configured as discrete digital inputs.
Touch screen
PIN Name Location PIN Voltage Type Description Notes
BLSP12_GPIO_87 J5218 60 P3 OD BLSP12 I2C signals sda
BLSP12_GPIO_88 J5218 58 P3 OD BLSP12 I2C signals scl
BLSP12_GPIO_85 J5218 64 P3 DO BLSP12 UART signals tx TP-RST
BLSP12_GPIO_86 J5218 62 P3 DI BLSP12 UART signals rx TP-INT
Table 3.2-2Touchscreen interfaces definition
3.2.3 Display Interface
The SOM supports dual 4-lane MIPI_DSI interfaces.
Display
PIN Name Location PIN Voltage Type Description Notes
MIPI_DSI0_CLK_P_CON J5218 12 DSI AO
MIPI0 signals for
MIPI LCM.
Compliant with
MIPI Alliance
Specification for
Display Serial
Interface
MIPI_DSI0_CLK_N_CON J5218 14 DSI AO
MIPI_DSI0_LANE3_P_CON J5218 18 DSI AO
MIPI_DSI0_LANE3_N_CON J5218 20 DSI AO
MIPI_DSI0_LANE2_P_CON J5218 24 DSI AO
MIPI_DSI0_LANE2_N_CON J5218 26 DSI AO
MIPI_DSI0_LANE0_P_CON J5218 30 DSI AO
MIPI_DSI0_LANE0_N_CON J5218 32 DSI AO
MIPI_DSI0_LANE1_P_CON J5218 36 DSI AO
MIPI_DSI0_LANE1_N_CON J5218 38 DSI AO
REVISION PAGES
0.1 18 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
18
MIPI_DSI1_LANE3_N_CON J5220 37 DSI AO
MIPI1 Signals for
MIPI LCM
Compliant with
MIPI Alliance
Specification for
Display Serial
Interface
MIPI_DSI1_LANE3_P_CON J5220 38 DSI AO
MIPI_DSI1_LANE0_N_CON J5220 40 DSI AO
MIPI_DSI1_LANE0_P_CON J5220 41 DSI AO
MIPI_DSI1_LANE2_N_CON J5220 43 DSI AO
MIPI_DSI1_LANE2_P_CON J5220 44 DSI AO
MIPI_DSI1_CLK_N_CON J5220 46 DSI AO
MIPI_DSI1_CLK_P_CON J5220 47 DSI AO
MIPI_DSI1_LANE1_N_CON J5220 49 DSI AO
MIPI_DSI1_LANE1_P_CON J5220 50 DSI AO
Table 3.2-3Display interfaces definition
3.2.4 Camera Interfaces
The SOM supports 3x 4-lane camera interfaces.CSI0 and CSI1 connection are from B2B connector J5221, CSI2
is from zif connector J5220. There are only 2 I2C interfaces for three CSI, so it needs pay attention to the
camera module I2C address.
Camera1 Interface
PIN Name Location PIN Voltage Type Description Notes
CAM_MCLK0 J5221 3 P3 DO
Camera0 main clock
output
MIPI_CSI0_CLK_N J5221 28 CSI AI
MIPI Signals of
Camera0
Compliant with MIPI
Alliance Standard
Specification
MIPI_CSI0_CLK_P J5221 30 CSI AI
MIPI_CSI0_LANE0_N J5221 34 CSI AI
MIPI_CSI0_LANE0_P J5221 36 CSI AI
MIPI_CSI0_LANE1_N J5221 40 CSI AI
MIPI_CSI0_LANE1_P J5221 42 CSI AI
MIPI_CSI0_LANE2_N J5221 46 CSI AI
MIPI_CSI0_LANE2_P J5221 48 CSI AI
MIPI_CSI0_LANE3_N J5221 52 CSI AI
MIPI_CSI0_LANE3_P J5221 54 CSI AI
Camera2 Interface
PIN Name Location PIN Voltage Type Description Notes
CAM_MCLK1 J5221 7 P3 DO
Camera1 main clock
output
MIPI_CSI1_CLK_N J5221 27 CSI AI MIPI Signals of
REVISION PAGES
0.1 19 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
19
MIPI_CSI1_CLK_P J5221 29 CSI AI Camera1
Compliant with MIPI
Alliance Standard
Specification
MIPI_CSI1_LANE0_N J5221 33 CSI AI
MIPI_CSI1_LANE0_P J5221 35 CSI AI
MIPI_CSI1_LANE1_N J5221 39 CSI AI
MIPI_CSI1_LANE1_P J5221 41 CSI AI
MIPI_CSI1_LANE2_N J5221 45 CSI AI
MIPI_CSI1_LANE2_P J5221 47 CSI AI
MIPI_CSI1_LANE3_N J5221 51 CSI AI
MIPI_CSI1_LANE3_P J5221 53 CSI AI
Camera3 Interface
PIN Name Location PIN Voltage Type Description Notes
CAM_MCLK2 J5221 11
P3 DO Camera2 main clock
output
MIPI_CSI2_LANE3_P J5220 2 CSI AI
MIPI Signals of
Camera2
Compliant with MIPI
Alliance Standard
Specification
MIPI_CSI2_LANE3_N J5220 3 CSI AI
MIPI_CSI2_LANE2_P J5220 5 CSI AI
MIPI_CSI2_LANE2_N J5220 6 CSI AI
MIPI_CSI2_LANE0_P J5220 8 CSI AI
MIPI_CSI2_LANE0_N J5220 9 CSI AI
MIPI_CSI2_LANE1_P J5220 11 CSI AI
MIPI_CSI2_LANE1_N J5220 12 CSI AI
MIPI_CSI2_CLK_P J5220 14 CSI AI
MIPI_CSI2_CLK_N J5220 15 CSI AI
Camera I2C Interface
CCI_I2C_SDA0 J5221 15
P3
OD
CCI0 Date signal,
already pull up on SOM
with 2.2k resistor
CCI_I2C_SCL0 J5221 17
P3
OD
CCI0 Clock signal,
already pull up on SOM
with 2.2k resistor
CCI_I2C_SDA1 J5221 19
P3
OD
CCI1 Date signal,
already pull up on SOM
with 2.2k resistor
CCI_I2C_SCL1 J5221 21
P3
OD
CCI1 Clock signal,
already pull up on SOM
with 2.2k resistor
Table 3.2-4Camera interface definition
REVISION PAGES
0.1 20 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
20
3.2.5 Audio Interface
The SOM provide SLIMBUS, I2S interfaces and PCM interface for audio. SLIMBUS interface is dedicate for
external codec IC(wcd9335), which can build system’s audio functions. I2S and PCM share the same
interfaces which can connect audio devices.
SlimBus Interface
PIN Name Location PIN Voltage Type Description Notes
PM_GPIO_15 J5218 45
1.8V DO External codec clk
GPIO_71 J5218 37 P3 IO SLIMBUS_DATA0
Slimbus, connect
to COEDC,
Compliant with
MIPI Alliance
Specification for
Serial Low-power
Interchip Media
Bus Version
1.01.01
GPIO_72 J5218 35 P3 IO SLIMBUS_DATA1
GPIO_70 J5218 39 P3 DO SLIMBUS_CLK
GPIO_64 J5218 49 P3 DO CODEC reset output
BLSP7_GPIO_54 J5218 63 P3 DI CODEC interrupt 1input
BLSP7_GPIO_53 J5218 65 P3 DI CODEC interrupt 2input
I2S2(PCM2) Interface
GPIO_79 J5218 90 P3 DO I2S_2_MCLK
GPIO_80 J5218 88 P3 DO I2S_2_SCK/PCM2_CLK
BLSP5_GPIO_81 J5218 86 P3 DO I2S_2_WS/PCM2_SYNC
BLSP5_GPIO_82 J5218 84 P3 DI/DO I2S_2_D0/PCM2_DIN
BLSP5_GPIO_83 J5218 82 P3 DI/DO I2S_2_D1/PCM2_DOUT
I2S3(PCM3) Interface
GPIO_74 J5218 100 P3 DO I2S_3_MCLK
GPIO_75 J5218 98 P3 DO I2S_3_SCK/PCM3_CLK
GPIO_76 J5218 96 P3 DO I2S_3_WS/PCM3_SYNC
GPIO_77 J5218 94 P3 DI/DO I2S_3_D0/PCM3_DIN
GPIO_78 J5218 92 P3 DI/DO I2S_3_D1/PCM3_DOUT
I2S4(PCM4) Interface
GPIO_57_FORCE_
USB_BOOT J5218 78 P3 DO I2S_4_MCLK
The default
setting is for usb
boot gpio
REVISION PAGES
0.1 21 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
21
BLSP11_GPIO_58 J5218 76 P3 DO I2S_4_SCK/PCM4_CLK
BLSP11_GPIO_59 J5218 74 P3 DO I2S_4_WS/PCM4_SYNC
BLSP11_GPIO_60 J5218 72 P3 DI/DO I2S_4_D0/PCM4_DIN
BLSP11_GPIO_61 J5218 70 P3 DI/DO I2S_4_D1/PCM4_DOUT
GPIO_62 J5218 68 P3 DI/DO I2S_4_D2
GPIO_63 J5218 66 P3 DI/DO I2S_4_D3
Table 3.2-5Audio interface definition
3.2.6 USB Interface
The SOM support USB host and slave. Dual USB port support, one is USB 2.0 high-speed for host, the other is
USB 3.0 super-speed/USB 2.0 high-speed compliant
SS/HS USB (3.0/2.0) Interface
PIN Name Location PIN Voltage Type Description Notes
USB3_SS_RX0_P J5221 58 AI USB 3.0 Signals
Compliant with USB 3.0
standard specification
Require
differential
impedance of
90Ω.
USB3_SS_RX0_M J5221 60 AI
USB3_SS_TX0_P J5221 64 AO
USB3_SS_TX0_M J5221 66 AO
USB3_HS_D_P J5221 70 AI,AO USB 2.0 Signals
Compliant with USB 2.0
standard specification
Require
differential
impedance of
90Ω.
USB3_HS_D_M J5221 72 AI,AO
VBUS_USB_IN J5218 2,4 PI USB VBUS input
USB3_HS_USB_ID J5218 6 AI USB 2.0 for ID input
BLSP3_GPIO_47 J5220 24
P3
DO Type C USB SS switch
GPIO
Could be
changed based
on software
configure
HS USB (2.0) Interface
PIN Name Location PIN Voltage Type Description Notes
USB2_HS_D_P J5221 57 AI,AO USB 2.0 Signals
Compliant with USB 2.0
standard specification
Require
differential
impedance of
90Ω.
USB2_HS_D_M J5221 59
AI,AO
VBUS_USB_IN J5218 2,4 PI USB VBUS input
Table 3.2-6USB interface definition
REVISION PAGES
0.1 22 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
22
3.2.7 HDMI Interface
The SOM supports one HDMI2.0 output interface. Complete 4K 60fps entertainment system, also supports
the audio portion of HDMI using internal CPU audio setting.
HDMI Interface
PIN Name Location PIN Voltage Type Description Notes
GPIO_31 J5218 54 P3 IO HDMI_CEC
GPIO_32 J5218 52 P3 OD HDMI_DDC_CLK
GPIO_33 J5218 50 P3 OD HDMI_DDC_DATA
GPIO_34 J5218 48 P3 DI HDMI_HPD_CON
MSM_HDMI_TX0_P J5221 4 AO HDMI_TX0_P
MSM_HDMI_TX0_M J5221 6 AO HDMI_TX0_M
MSM_HDMI_TCLK_P J5221 10 AO HDMI_TCLK_P
MSM_HDMI_TCLK_M J5221 12 AO HDMI_TCLK_M
MSM_HDMI_TX2_P J5221 16 AO HDMI_TX2_P
MSM_HDMI_TX2_M J5221 18 AO HDMI_TX2_M
MSM_HDMI_TX1_P J5221 22 AO HDMI_TX1_P
MSM_HDMI_TX1_M J5221 24 AO HDMI_TX1_M
Table 3.2-7HDMI interface definition
3.2.8 PCIe Interface
The SOM supports two Peripheral Component Interconnect Express (PCIe) interfaces, which can be used for
general-purpose peripherals.
PCIE1 Interface
PIN Name Location PIN Voltage Type Description Notes
PCIE1_REFCLK_N J5221 63 AO
PCIe Signals
Compliant with PCI
Express Specification
Revision 2.1
PCIE1_REFCLK_P J5221 65 AO
PCIE1_MSM_RX_N J5221 69 AI
PCIE1_MSM_RX_P J5221 71 AI
PCIE1_MSM_TX_N J5221 75 AO
PCIE1_MSM_TX_P J5221 77 AO
GPIO_130 J5221 29 P3 DO PCIe reset signal PCIE1_RST_N
GPIO_131 J5221 35 P3 DI
PCIe clock require signal,
need to reserve pull up PCIE1_CLKREQ_N
REVISION PAGES
0.1 23 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
23
3.2.9 SSC Interface
The SOM has an integrated sensor subsystem called Snapdragon™ sensor core (SSC), which is dedicated to
support low-power, always-on use cases.
The sensor subsystem can be left powered on even when the rest of the device is in sleep mode. The SSC has
a dedicated 512 kB L2 cache.
The SSC core has dedicated I/O to communicate with the sensors. The I/O scan support I2C and SPI
interfaces.
SSC Interface
PIN Name Location PIN Voltage Type Description Notes
SPI_CS_N_MAG J5219 38 P12 DO SSC SPI1 chip select 2
SSC_PWR_EN J5219 39 P12 DO SSC power enable output
SSC_I2C_3_SDA J5219 40 P12 OD/OI SSC I2C3 serial data
SSC_I2C_3_SCL J5219 41 P12 OD SSC I2C3 serial clock
SSC_I2C_2_SDA J5219 42 P12 OD/OI SSC I2C2 serial data
SSC_I2C_2_SCL J5219 43 P12 OD SSC I2C2 serial clock
SSC_SPI_1_CS_N J5219 44 P12 DO SSC SPI1 chip select 1
SSC_SPI_1_CLK J5219 45 P12 DO SSC SPI1 serial clock
SSC_SPI_1_MOSI J5219 46 P12 DO SSC SPI1 data master out
/slaver in
SSC_SPI_1_MISO J5219 47 P12 DI SSC SPI1 data master in
/slaver out
resistor
GPIO_132 J5221 37 P3 DI PCIe wake up signal PCIE1_WAKEUP
PCIE2 Interface
PCIE2_REFCLK_N J5221 81 AO
PCIe Signals
Compliant with PCI
Express Specification
Revision 2.1
PCIE2_REFCLK_P J5221 83 AO
PCIE2_MSM_RX_N J5221 87 AI
PCIE2_MSM_RX_P J5221 89 AI
PCIE2_MSM_TX_N J5221 93 AO
PCIE2_MSM_TX_P J5221 95 AO
GPIO_114 J5221 82 P3 DO PCIe reset signal PCIE2_RST_N
GPIO_115 J5221 84 P3 DI
PCIe clock require signal,
need to reserve pull up
resistor
PCIE2_CLKREQ_N
GPIO_116 J5221 86 P3 DI PCIe wake up signal PCIE2_WAKEUP
Table 3.2-8PCIe interface definition
REVISION PAGES
0.1 24 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
24
SSC_SPI_3_CLK J5219 48 P12 DO SSC SPI3 chip select 1
SSC_SPI_3_CS_N J5219 49 P12 DO SSC SPI3 serial clock
SSC_SPI_3_MOSI J5219 50 P12 DO SSC SPI3 data master out
/slaver in
SSC_SPI_3_MISO J5219 51 P12 DI SSC SPI3 data master in
/slaver out
Table 3.2-9SSC interface definition
3.2.10 SDIO Interface
The SOM supports 4-laneSDIO for SD-card.
The SDIO is high-speed signal group. It should protect other sensitive signals/circuits from SD corruption, and
protect SD signals from noisy signals (clock, RF and so on).
The clock can be up to 200 Mhz.
The signals routing should be 50ohm±10% impedance control.
CLK to DATA/CMD length matching less than 1mm.
The spacing to all other signals should 2X line width
Maximum bus capacitance less than 1.0pF.
Each trace needs to be next to a ground plane.
SDIO (SDC2) Interface
PIN Name Location PIN Voltage Type Description Notes
SDC2_SDCARD_D3 J5221 90
P2 IO
SDC2_SDCARD_CMD J5221 92 P2 DO
SDC2_SDCARD_CLK J5221 94 P2 DO
SDC2_SDCARD_D0 J5221 96
P2 IO
SDC2_SDCARD_D1 J5221 98
P2 IO
SDC2_SDCARD_D2 J5221 100
P2 IO
GPIO_79 J5218 90
P3 DI SD_CARD_DET_N Could be changed to
other interrupt GPIO
Table 3.2-4SDIO interface definition
3.2.11 BLSP Interface
These GPIOs are available as BAM-based low-speed peripheral (BLSP) interface ports that can be configured
for UART, SPI, or I2C operation.
The UART is based on cpu direction.
REVISION PAGES
0.1 25 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
25
I2C is a two-wire bus that can be routed to multiple devices; there are no pull-up resistors on SOM board for
I2C bus; so if it is configured as I2C interface by software, it needs to pull up to IO voltage with resistors on IO
board.
BLSP1 Interface
PIN Name Location PIN Voltage Type Description Notes
BLSP1_GPIO_0 J5219 22 P3 DO spi_mosi/uart_tx
BLSP1_GPIO_1 J5219 23 P3 DI spi_miso/uart_rx
BLSP1_GPIO_2 J5219 24 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP1_GPIO_3 J5219 25 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
GPIO_23 J5218 91
P3 DO spi_cs3
GPIO_24 J5218 89
P3 DO spi_cs2
GPIO_90 J5220 32
P3 DO spi_cs1
BLSP3 Interface
BLSP3_GPIO_47 J5220 24 P3 ODOI i2c_sda
BLSP3_GPIO_48 J5220 23 P3 OD i2c_scl
BLSP5 Interface
BLSP5_GPIO_81 J5218 86 P3 DO spi_mosi/uart_tx
BLSP5_GPIO_82 J5218 84 P3 DI spi_miso/uart_rx
BLSP5_GPIO_83 J5218 82 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP5_GPIO_84 J5218 80 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
BLSP6 Interface
BLSP6_GPIO_25 J5218 99 P3 DO spi_mosi/uart_tx
BLSP6_GPIO_26 J5218 97 P3 DI spi_miso/uart_rx
BLSP6_GPIO_27 J5218 95 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP6_GPIO_28 J5218 93 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
BLSP7 Interface
BLSP7_GPIO_53 J5218 65 P3 DO spi_mosi/uart_tx
BLSP7_GPIO_54 J5218 63 P3 DI spi_miso/uart_rx
BLSP7_GPIO_55 J5218 61 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP7_GPIO_56 J5218 59 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
BLSP8 Interface
REVISION PAGES
0.1 26 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
26
MSM_UART_TX J5218 57 P3 DO spi_mosi/uart_tx gpio4;default
uart log
MSM_UART_RX J5218 55 P3 DI spi_miso/uart_rx gpio5;default
uart log
BLSP8_GPIO_6 J5218 53 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP8_GPIO_7 J5218 51 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
BLSP9 Interface
BLSP9_GPIO_49 J5218 73 P3 DO spi_mosi/uart_tx
BLSP9_GPIO_50 J5218 71 P3 DI spi_miso/uart_rx
BLSP9_GPIO_51 J5218 69 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP9_GPIO_52 J5218 67 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
BLSP10 Interface
BLSP10_GPIO_8 J5218 81 P3 DO spi_mosi/uart_tx
BLSP10_GPIO_9 J5218 79 P3 DI spi_miso/uart_rx
BLSP10_GPIO_10 J5218 77 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP10_GPIO_11 J5218 75 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
BLSP11 Interface
BLSP11_GPIO_58 J5218 76 P3 DO spi_mosi/uart_tx
BLSP11_GPIO_59 J5218 74 P3 DI spi_miso/uart_rx
BLSP11_GPIO_60 J5218 72 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP11_GPIO_61 J5218 70 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
BLSP12 Interface
BLSP12_GPIO_85 J5218 64 P3 DO spi_mosi/uart_tx
BLSP12_GPIO_86 J5218 62 P3 DI spi_miso/uart_rx
BLSP12_GPIO_87 J5218 60 P3 DODI/ODOI spi_cs/uart_cts/i2c_sda
BLSP12_GPIO_88 J5218 58 P3 DO/ODOI spi_clk/uart_rfr/i2c_scl
Table 3.2-5BLSP interface definition
3.2.12 Power on Interface
Dedicated PMIC circuits continuously monitor events that might trigger a power-on sequence. If an event
occurs, these circuits power on the IC, determine the device’s available power sources, enable the correct
source. It is longer than 1s with pressing power-on key, for power on event. And it is suggested for 3s
REVISION PAGES
0.1 27 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
27
powering on system. Power on/off key signal can be connected to ground through J5218.83; the other power
on method is: when using CBL_PWR_N pin connect to ground, insert battery or power supply, SOM will
power on automatically.

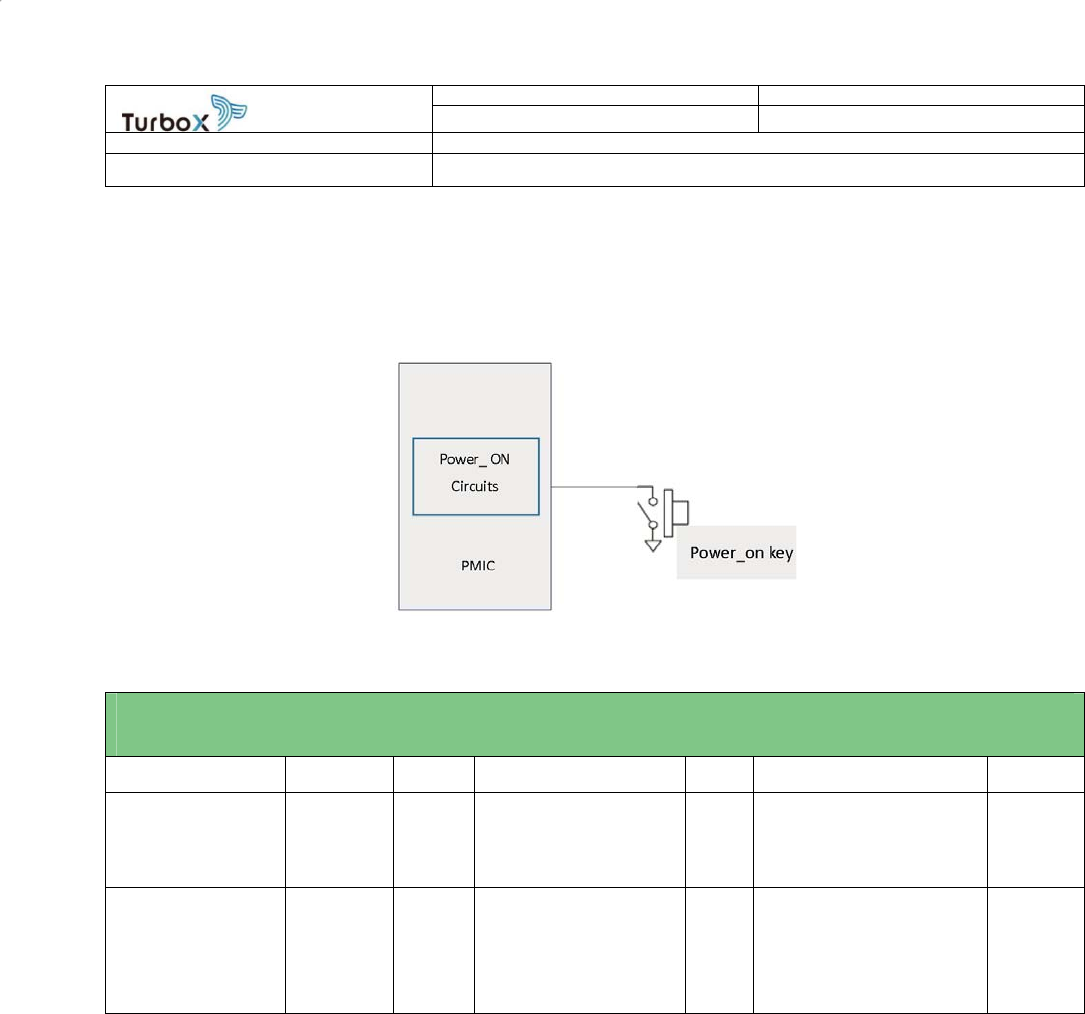

Figure 3.2-2 Power on signal
Power on Interface
PIN Name Location PIN Voltage Type Description Notes
KYPD_PWR_N1 J5218 83
pulled up internally
through a 200K
resistor to 1.8V
DI Power on/off key
signal,
Low
level
active
CBL_PWR_N J5218 44
pulled up internally
through a 200K
resistor to 1.8V DI
Signal use for auto
power on when you
plug in a battery, active
low, internal pull up
Table 3.2-12Power on interface definition
3.2.13 Reset Interface
Extended press of volume key will initiate a shutdown or reset (software selectable)
Stage 1 reset – software-configurable bark
PMIC generates interrupt, giving the soc device the opportunity to fix the problem or gracefully reset the
system. Example events that can cause a bark: Over temperature indicates system is getting too hot. PMIC
watchdog indicates that it has not kicked.
Stage 2 –software-configurable bite
If reset is ignored, PMIC will force a reset event (selectable by software).
Stage 3 –hardware mandatory bite
The user can generate a mandatory reset by a long key press of PM_RESIN_N, or KYPD_PWR_N1, or
REVISION PAGES
0.1 28 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
28
PM_RESIN_N + KYPD_PWR_N1.
The standalone or combination of reset triggers can also be selected as SBL by directly writing to the
appropriate registers
Reset Pin
PIN Name Location PIN Voltage Type Description Notes
PM_RESIN_N J5218 85
pulled up
internally
to 1.8V
DI Volume down/Reset
key signal, Low active
Table 3.2-6Reset interface definition
3.2.14 Keys Interface
KEY_GPIO can be configure to key functions as your request.
KEYs PINs
PIN Name Location PIN Voltage Type Description Notes
KEY_VOL_UP_N J5218 87 P3 DI
Volume up key signal,
Low active
PM_RESIN_N J5218 85 P3 DI
Volume down key signal,
Low active
KYPD_PWR_N1 J5218 83 P3 DI
Power on/off key signal,
Low active
PM_GPIO_01 J5219 27 P3 DI
Back key signal, Low
active
PM_GPIO_02 J5219 28 P3 DI
Home key signal, Low
active
Table 3.2-7Keys interface definition
3.2.15 Sensor Interrupt Interface
All these interfaces dedicate to below sensors.
Sensor Interrupt PINs
PIN Name Location PIN Voltage Type Description Notes
GPIO_117 J5219 29 P3 DI
Accelerometer sensor interrupt
signal
REVISION PAGES
0.1 29 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
29
GPIO_118 J5219 30 P3 DI GYRO Sensor interrupt
GPIO_119 J5219 31 P3 DI
Magnetometer sensor interrupt
signal
GPIO_120 J5219 32 P3 DI Ambient light sensor interrupt signal
GPIO_121 J5219 33 P3 DI
GPIO_122 J5219 34 P3 DI
GPIO_123 J5219 35 P3 DI
GPIO_124 J5219 36 P3 DI Hall sensor interrupt
GPIO_125 J5219 37 P3 DI
Table 3.2-8Sensor interrupt definition
3.2.16 Debug UART Interface
This is interface dedicate for uart debug.
Debug UART PINs
PIN Name Location PIN Voltage Type Description Notes
MSM_UART_TX J5218 57 P3 DO BLSP8 UART signals, can
use for debug
MSM_UART_RX J5218 55 P3 DI
Table 3.2-9Debug UART interface definition
3.2.17 Battery Interface
There is a NTC pin which is for internal battery package NTC resistor connection.
The SOM can't be monitoring battery status and charging.
Battery PINs
PIN Name Location PIN Voltage Type Description Notes
BAT_THERM J5218 17 2.7V AI
Battery temperature
sense input signal
10K NTC resistor to
gnd;
if without NTC, a 10K
resistor is necessary
for replaced.
Table 3.2-17 NTC interface
3.2.18 JTAG debug
REVISION PAGES
0.1 30 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
30
The SOM supports one jtag interface for advanced debugging.
JTAG interfaces
PIN Name Location PIN Voltage Type Description Notes
JTAG_TMS J101 1 P3
JTAG_TCK J101 2 P3
JTAG_TDO J101 3 P3
JTAG_TDI J101 4 P3
JTAG_TRST_N J101 5 P3
KYPD_PWR_N1 J101 6 P3
PM_RESIN_N J101 7 P3
GND J101 8 P3
JTAG_RESOUT_N J101 9 P3
MSM_UART_TX J101 10 P3
MSM_UART_RX J101 11 P3
VREG_S4A_1P8 J101 12 P3
MSM_PS_HOLD J101 13 P3
GPIO57_FORCE_USB_
BOOT J101 14 P3
WDOG_DISABLE J101 15 P3
MSM_RESOUT_N J101 16 P3
Table 3.2-18JTAG
3.2.19 MPPs Interface
The MPPs can be programmed to digital input/digital output/analog input/analog output/bidirectional
IO/programmable current sink.
The pmi8994 device does not support the bidirectional I/O configuration; and only even-numbered MPPs
can be current sinks while only odd-numbered MPPs can be analog outputs.
The PM8996 device only odd MPPs(MPP5) can be configured as analog output; only even
MPPs(MPP2,MPP4,MPP6) have current sink capability.
The ADC input cannot reliably go below 0.05V or above (P3 ‒ 0.05 V); do not exceed this range.
MPPs PINs
PIN Name Location PIN Voltage Type Description Notes
REVISION PAGES
0.1 31 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
31
PMI_MPP1 J5219 7 Cannot be used
as current sink
PMI_MPP2 J5219 8 Cannot be used
as analog output
PM_MPP2 J5219 9
PM_MPP5 J5219 10 Can be used as
analog output
PM_MPP6 J5219 11
PM_MPP4 J5218 42
Table 3.2-19MPPs interface definition
3.2.20 PWMs
The SOM support PWM output, all PWM output by Light Pulse Generators.
Independently programmable duty cycle and period via LPGs (6-or 9-bit resolution) for digital dimming.
PWMs PINs
PIN Name Location PIN Voltage Type Description Notes
PM_GPIO_04 J5219 17 P3 LDP_DRV1
PM LPG
PM_GPIO_05 J5219 18 P3 LDP_DRV2
PM_GPIO_07 J5219 20 P3 LDP_DRV3
PM_GPIO_10 J5219 21 P3 LDP_DRV6
PMI_MPP1 J5219 7 P3 PMI LPG
PMI_MPP2 J5219 8 P3
Table 3.2-10PWMs and LED Current Driver interface definition
3.2.21 Antenna Interface
The SOM provides the fully-integrated WLAN, Bluetooth and GPS function.
The WLAN, Bluetooth and GPS share the antenna port with 50ohm impedance.
WLAN supports2 × 2 multiple input, multiple output (MIMO) with two spatial streams IEEE802.11
a/b/g/n/ac WLAN standards.
Supports Bluetooth 4.2 + HS enabling seamless integration of WLAN/Bluetooth and low energy
technology.
Supports GPS, GLONASS, and COMPASS operation.
REVISION PAGES
0.1 32 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
32
Antenna interface
PIN Name Location PIN Voltage Type Description Notes
Antenna 1 J5201 IO Antenna 1 supports WIFI
2.4G/5G &BT Chain0
Antenna 2 J5202 IO Antenna 2 supports WIFI
2.4G/5G Chain1
Antenna 3 J5222 IO Antenna GPS
Table 3.2-21Antenna interface definition
3.2.22 GPIO
The SOM supports the GPIOs which are multi function with others, such as blsp, i2s and others. It can be
configured by different software setting. Some GPIOs can be used as APQ power management interrupt
which can wake the system up.
GPIO
PIN Name Location PIN Voltage Type Interrupt Description Notes
GPIO_73 J5218 19 P3 DI/DO YES
GPIO_21 J5218 21 P3 DI/DO
GPIO_12 J5218 23 P3 DI/DO
GPIO_38 J5218 25 P3 DI/DO YES
GPIO_72 J5218 35 P3 DI/DO
GPIO_71 J5218 37 P3 DI/DO YES
GPIO_70 J5218 39 P3 DI/DO
GPIO_69 J5218 41 P3 DI/DO
GPIO_64 J5218 49 P3 DI/DO YES
BLSP8_GPIO_7 J5218 51 P3 DI/DO
BLSP8_GPIO_6 J5218 53 P3 DI/DO
BLSP7_GPIO_56 J5218 59 P3 DI/DO YES
BLSP7_GPIO_55 J5218 61 P3 DI/DO
BLSP7_GPIO_54 J5218 63 P3 DI/DO YES
BLSP7_GPIO_53 J5218 65 P3 DI/DO YES
BLSP9_GPIO_52 J5218 67 P3 DI/DO
BLSP9_GPIO_51 J5218 69 P3 DI/DO
BLSP9_GPIO_50 J5218 71 P3 DI/DO YES
REVISION PAGES
0.1 33 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
33
BLSP9_GPIO_49 J5218 73 P3 DI/DO
BLSP10_GPIO_11 J5218 75 P3 DI/DO YES
BLSP10_GPIO_10 J5218 77 P3 DI/DO
BLSP10_GPIO_9 J5218 79 P3 DI/DO YES
BLSP10_GPIO_8 J5218 81 P3 DI/DO
GPIO_24 J5218 89 P3 DI/DO YES
GPIO_23 J5218 91 P3 DI/DO
BLSP6_GPIO_28 J5218 93 P3 DI/DO
BLSP6_GPIO_27 J5218 95 P3 DI/DO
BLSP6_GPIO_26 J5218 97 P3 DI/DO YES
BLSP6_GPIO_25 J5218 99 P3 DI/DO
GPIO_34 J5218 48 P3 DI/DO YES
GPIO_33 J5218 50 P3 DI/DO
GPIO_32 J5218 52 P3 DI/DO
GPIO_31 J5218 54 P3 DI/DO
GPIO_30 J5218 56 P3 DI/DO
BLSP12_GPIO_88 J5218 58 P3 DI/DO
BLSP12_GPIO_87 J5218 60 P3 DI/DO
BLSP12_GPIO_86 J5218 62 P3 DI/DO YES
BLSP12_GPIO_85 J5218 64 P3 DI/DO
GPIO_63 J5218 66 P3 DI/DO YES
GPIO_62 J5218 68 P3 DI/DO YES
BLSP11_GPIO_61 J5218 70 P3 DI/DO YES
BLSP11_GPIO_60 J5218 72 P3 DI/DO YES
BLSP11_GPIO_59 J5218 74 P3 DI/DO YES
BLSP11_GPIO_58 J5218 76 P3 DI/DO YES
BLSP5_GPIO_84 J5218 80 P3 DI/DO
BLSP5_GPIO_83 J5218 82 P3 DI/DO
BLSP5_GPIO_82 J5218 84 P3 DI/DO YES
BLSP5_GPIO_81 J5218 86 P3 DI/DO
GPIO_80 J5218 88 P3 DI/DO YES
GPIO_79 J5218 90 P3 DI/DO YES
GPIO_78 J5218 92 P3 DI/DO YES
GPIO_77 J5218 94 P3 DI/DO YES
GPIO_76 J5218 96 P3 DI/DO
REVISION PAGES
0.1 34 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
34
GPIO_75 J5218 98 P3 DI/DO
GPIO_74 J5218 100 P3 DI/DO
GPIO_130 J5221 76 P3 DI/DO
GPIO_131 J5221 78 P3 DI/DO YES
GPIO_132 J5221 80 P3 DI/DO YES
GPIO_114 J5221 82 P3 DI/DO
GPIO_115 J5221 84 P3 DI/DO YES
GPIO_116 J5221 86 P3 DI/DO YES
GPIO_29 J5221 23 P3 DI/DO
GPIO_22 J5221 99 P3 DI/DO YES
PMI_GPIO2 J5219 1 1.8V DI/DO
From
PMI8994
PMI_GPIO5 J5219 2 1.8V DI/DO
PMI_GPIO6 J5219 3 1.8V DI/DO
PMI_GPIO9 J5219 4 1.8V DI/DO
PMI_GPIO10 J5219 5 1.8V DI/DO
PM_GPIO_04 J5219 17 1.8V DI/DO
From
PM8996
PM_GPIO_05 J5219 18 1.8V DI/DO
PM_GPIO_06 J5219 19 1.8V DI/DO
PM_GPIO_07 J5219 20 1.8V DI/DO
PM_GPIO_10 J5219 21 1.8V DI/DO
BLSP1_GPIO_0 J5219 22 P3 DI/DO
BLSP1_GPIO_1 J5219 23 P3 DI/DO YES
BLSP1_GPIO_2 J5219 24 P3 DI/DO
BLSP1_GPIO_3 J5219 25 P3 DI/DO
GPIO_107 J5219 26 P3 DI/DO
PM_GPIO_01 J5219 27 1.8V DI/DO From
PM8996
PM_GPIO_02 J5219 28 1.8V DI/DO
GPIO_117 J5219 29 P3 DI/DO YES
GPIO_118 J5219 30 P3 DI/DO YES
GPIO_119 J5219 31 P3 DI/DO YES
GPIO_120 J5219 32 P3 DI/DO YES
GPIO_121 J5219 33 P3 DI/DO YES
GPIO_122 J5219 34 P3 DI/DO YES
GPIO_123 J5219 35 P3 DI/DO YES
GPIO_124 J5219 36 P3 DI/DO YES
REVISION PAGES
0.1 35 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
35
GPIO_125 J5219 37 P3 DI/DO YES
PM_GPIO_14 J5220 19 1.8V DI/DO From
PM8996
PM_GPIO_22 J5220 20 1.8V DI/DO
GPIO_126 J5220 21 P3 DI/DO YES
PMI_GPIO3 J5220 22 P3 DI/DO
BLSP3_GPIO_48 J5220 23 P3 DI/DO
BLSP3_GPIO_47 J5220 24 P3 DI/DO
GPIO_96 J5220 26 P3 DI/DO
GPIO_95 J5220 27 P3 DI/DO YES
GPIO_94 J5220 28 P3 DI/DO
GPIO_93 J5220 29 P3 DI/DO
GPIO_92 J5220 30 P3 DI/DO YES
GPIO_91 J5220 31 P3 DI/DO YES
GPIO_90 J5220 32 P3 DI/DO
GPIO_40 J5220 33 P3 DI/DO YES
GPIO_39 J5220 34 P3 DI/DO
GPIO_89 J5220 35 P3 DI/DO
Table 3.2-22GPIOs
4 Electrical Characteristics
4.1 Absolute Maximum Ratings
The SOM needs to be desinged in the operatin conditons which is shown as below table.
Parameter Min Typical Max Units
Input Power voltage
VBAT 3.8 4.0 4.2 V
ESD
ESD-HBM model rating ±2k KV
ESD-CDM model rating ±4k KV
Table 4.1-1Absolute rating condition
Notes: for the ESD, it will be valid and available only when the module is fully tested and approved in the Initial
REVISION PAGES
0.1 36 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
36
Production stage.
4.2 Operating Conditions
The SOM needs to be desinged in the operatin conditons which is shown as below table.
Parameters Min Typical Max Units
Input Power voltage
VBAT +3.8 4.0 +4.2 V
VBAT 0.1 1.0 3 A
Thermal conditions
Operating temperature -10 25 55 °C
Storage temperature -10 25 55 °C
Table 4.2-1Operating condition
Note: For the thermal conditons, operatin and storage min and max temperature is only when the module is fully
tested and approved in the Initial Production stage.
4.3 Output Power
The SOM provide power supply for external device, such as SD card, IO voltage,Below map show the details.
Function Default
voltage(V)
Programble
range(V)
Rated
current(mA) Default ON Expected use
VREG_S4A_1P8 +1.8 NA 300 Y
power output for external
io voltage and 1.8V IO pull
up voltage;
VREG_L21A_2P95 +2.95 +1.62--+3.6 300 Y Power output for SD card
Table 4.3-1Output power
4.4 Digital-logic characteristics
The digital I/O's performance depeds on its pad type, usage, and power supply voltage.The SOM IO voltage
level is the same with P3 except the SD card and analog input/output. The I2C, USB,MIPI and UART comply
with the satndards.
REVISION PAGES
0.1 37 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
37
4.4.1 Digital GPIO characteristics
The followint table shows the digital GPIO characteristics:
Parameter Description Min Max Units
VIH High-level input voltage,
CMOS/Schmitt, 0.7* P3 P3+0.3 V
VIL Low-level input voltage,
CMOS/Schmitt, -0.3 0.3* P3 V
VSHYS Schmitt hysteresis voltage 300 - mV
VOH High-level output voltage, CMOS VREG_S4A_1P8-0.45 VREG_S4A_1P8 V
VOL Low-level output voltage, CMOS 0.0 0.45 V
RPULL-UP Pull-up resistance 20 K 60 K Ω
RPULL-DOWN Pull-down resistance 60 K 20 K Ω
Table 4.4-1 Digital IO voltage performance
4.4.2 SD card digital I/O characteristics
The SD card is powered by P2 supply; the power is 1.8V and 2.95V.the following table shows the SD card
digital I/O characteristics:
Parameter Description Min Typical Max Units
VIH High-level input voltage 1.27/2.065 - 2.1/3.25 V
VIL Low-level input voltage -0.3/-0.3 - 0.45/0.74 V
VHYS Schmitt hysteresis voltage 100 - - mV
RPULL-UP Pull-up resistance 10 K - 100K Ω
RPULL-DOWN Pull-down resistance 10 K - 100K Ω
RKEEPER-UP Keeper-up resistance 10 K - 100K Ω
RKEEPER-DOWN Keeper-down resistance 10 K - 100K Ω
VOH High-level output voltage 1.4/2.21 - 1.8/2.95 V
REVISION PAGES
0.1 38 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
38
VOL Low-level output voltage 0/0 - 0.225/1.091 V
Table 4.4-2SD digital IO voltage performance (1.8V/2.95V)
4.5 MIPI
The SOM supports the MIPI interface and comply with MIPI standards.
Applicable standard Feature exceptions
MIPI Alliance Specification for Display Serial Interface None
MIPI Alliance Specification for DPHY v1.2 None
Table 4.5-1 MIPI_DSI
Applicable standard Feature exceptions
MIPI Alliance Specification for CSI-2 v1.3 RAW7 not supported
DPCM predictor 2 not supported
MIPI Alliance Specification for DPHY v1.2 None
MIPI Alliance Specification for CPHY v1.0 None
Table 4.5-1 MIPI_CSI
4.6 USB
The SOM supports USB standards and exceptions.
Applicable standard Feature exceptions APQ variation
Universal Serial Bus Specification, Revision 3.1
(August 11, 2014 or later)
SS Gen 2 Operating voltages, system
clock, and VBUS
UTMI + Low Pin Interface (ULPI) Specification
(October 20, 2004 Revision 1.1 or later)
None None
On-The-Go and Embedded Host Supplement to
theUSB 3.0 Specification (May 10, 2012, Revision
1.1 orlater)
None None
Table 4.6-1USB
4.7 PCIe
REVISION PAGES
0.1 39 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
39
The SOM supports PCIe standards and exceptions
Applicable standard Feature exceptions APQ variation
PCI Express Specification, Revision 2.1
(March 4, 2009 or later)
None None
Table 4.7-1PCIe
4.8 HDMI
The SOM supports HDMI standards and exceptions
Applicable standard Feature exceptions APQ variation
HDMI Specification Version 2.0 None None
Table 4.8-1HDMI
4.9 SLIMbus
The SOM supports SLIMbus HDMI standards and exceptions
Applicable standard Feature exceptions APQ variation
MIPI Alliance Specification for Serial Low-power
Interchip Media Bus Version 1.01.01
None None
Table 4.9-1SLIMbus
4.10 SDIO
The SOM Supports SD standards and exceptions
Applicable standard Feature exceptions
Embedded Multimedia Card (eMMC) Specification version 5.1 None
Secure Digital: Physical Layer Specification version 3.0 None
SDIO Card Specification version 3.0 None
Table 4.10-1 SDIO
4.11 I2S
REVISION PAGES
0.1 40 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
40
The SOMI2S standards and exceptions:
Legacy I2S interfaces for primary and secondary microphones and speakers.
The multiple I2S (MI2S) interface for microphone and speaker functions, including 7.1 audio for HDMI.
It is supports both master and slave mode.
Supports 16, 24, or 32-bit resolution audio samples
Supports 8,16,32,48,96 and192 kHz sampling rate in Master mode, and all standard sample rates in Slave
mode. Supports16-bit and 24-bit data formats in standard I2S mode, and 24-bit left-justified (24-bit data in
32-bit frame left-justified, LSBs are padded with 0s).
Maximum clock frequency supported 12.288 MHz.
An additional pin can be used for a master clock, supplied by the MSM device, the master clock is often used
in the external devices to drive their oversampling logic. The LPASS clock controller can provide master
clocks from independent clock dividers to the I2S bit-clock dividers.
Applicable standard Feature exceptions MSM variations
Philips I2S Bus Specifications revised
June 5, 1996
None When an external SCK clock is used, a duty
cycle between45% to 55% is required.
Table 4.11-1 I2S

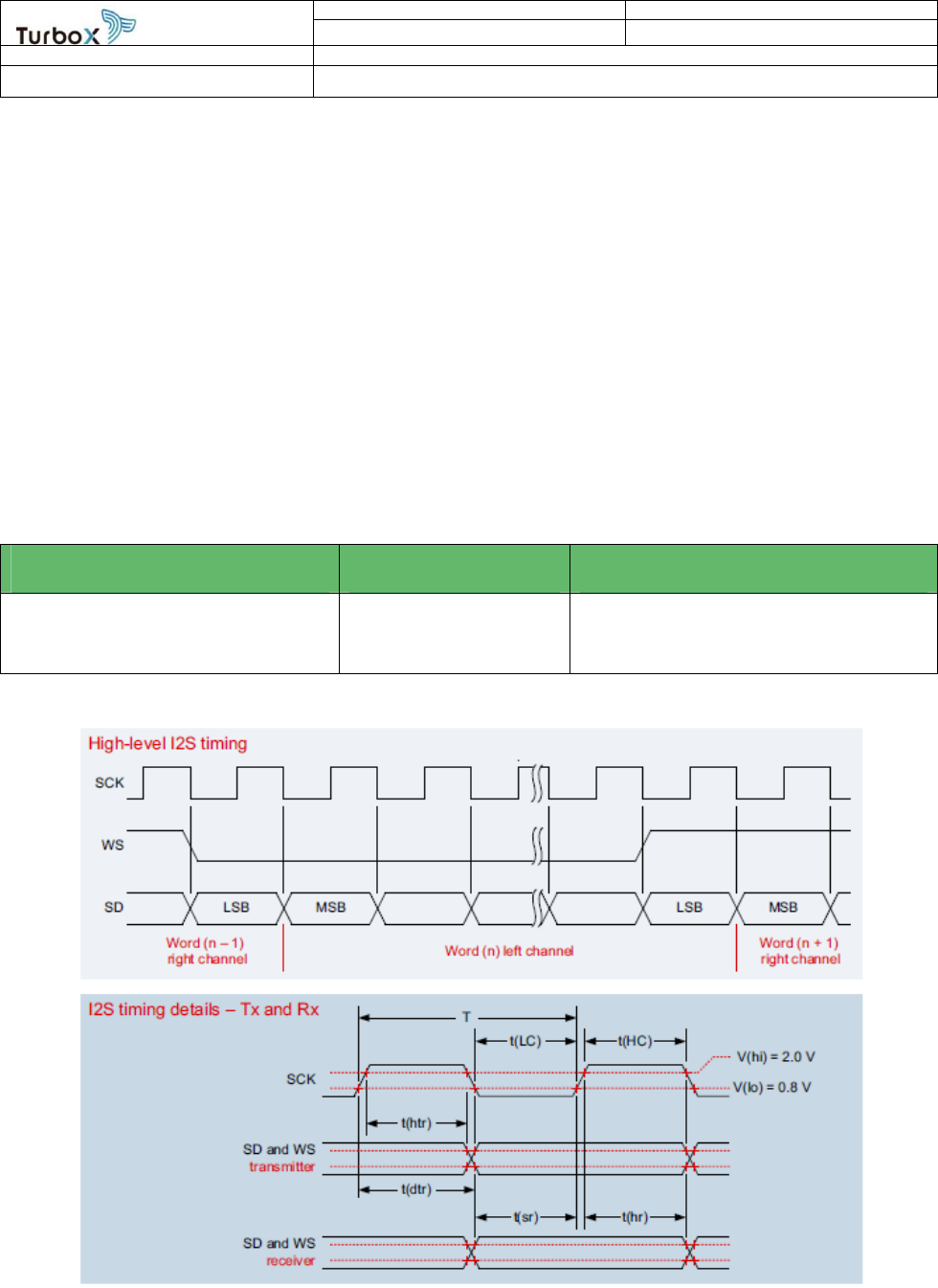

Figure 4.11-1I2S timing diagram
REVISION PAGES
0.1 41 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
41
The word-select signal is a 50% duty cycle signal. Data is delayed 1 bit-clock, relative to the word select.
Data outputs are launched on the falling edge of the clock, and inputs data are captured on the rising edge
of the clock by the receiver.
I2S samples are 2’s complement values, and the MSB is transmitted first allowing the transmitter and
receiver to support different number of bits per sample.
The left channel is transmitted when the word select is low, and the right channel is transmitted when the
word select is high
Parameter Comments Min Typ Max Unit
Using internal SCK
Frequency –
– – 12.288 MHz
T Clock period – 81.380 – – ns
t(HC) Clock high – 0.45 × T – 0.55 × T ns
t(LC) Clock low – 0.45 × T – 0.55 × T ns
t(sr) SD and WS input setup time – 16.276 – – ns
t(hr) SD and WS input hold time – 0 – – ns
t(dtr) SD and WS output delay – – – 65.100 ns
t(htr) SD and WS output hold time – 0 – – ns
Using external SCK
Frequency – – – 12.288 MHz
T Clock period – 81.380 – – ns
t(HC) Clock high – 0.45 × T – 0.55 × T ns
t(LC) Clock low – 0.45 × T – 0.55 × T ns
t(sr) SD and WS input setup time – 16.276 – – ns
t(hr) SD and WS input hold time – 0 – – ns
t(dtr) SD and WS output delay – – – 65.100 ns
t(htr) SD and WS output hold time – 0 – – ns
Table 4.11-2 I2S Timing
4.12 I2C
The SOMI2C standards and exceptions:
Applicable standard Feature exceptions
I2C Specification, version 3.0 None
Table 4.12-1 I2C
REVISION PAGES
0.1 42 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
42
4.13 SPI
The SOM supports SPI standards and exceptions: IT IS supports SPI as a master only.
4.14 Mpps
MPPs can be configured any of the functions specified within Table 4.14-1
Function Min Typ Max Units Expected use
MPP configured as digital input
Logic high-input 0.65 · VM¹ - - V
Logic low-input - - 0.35 ·VM¹ V
MPP configured as digital output
Logic high-output VM¹ – 0.45 - VM¹ V
Logic low-output 0 - 0.45 V
Drive strength
Logic high (V_M > 2.5 V)
Logic high (V_M < 2.5 V)
Logic low
5.1
3.3
5.9
7.3
4.9
11.3
15.2
9.9
36.0
mA
MPP configured as analog input
Input current - - 100 mA
MPPs configured as current sinks
Output current 0 - 40 mA
Table 4.14-1Mpps
Notes:
VM1 = 1.8V
REVISION PAGES
0.1 43 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
43
4.15 Power Consumption
Power Consumption
S/N Test Items and Test Condition
UNIT DUT
average value data range
1
Normal Operation Current (Play Movie )
-Wi-Fi off, BT off
- Vol Max, no LCD, no Camera
4K
mA
382 245--634
1080P 305 270--545
2
Normal Operation Current (Idle mode)
- Restart the device
- At Home Page
- No LCD. No Camera
WIFI ON mA 104 64.7--416
WIFi OFF mA 71 63.1--99
3
Normal Operation Current (Sleep Mode)
- No LCD. No camera
WIFI ON mA 24 12.4--239
WIFi OFF mA 6 5.3--6.1
4
Normal Operation Current
(online Play Movie 1080P Movie )
- No LCD. No camera
WIFI On mA 485 222---989
5 Run in CPU Max Loading(1.5G+2.1G) WIFI On mA 2389 1506--3287
6
Camera Record
no LCD
WIFI Off mA NA NA
7 Leakage current - uA 178 <200uA
Table 4.15-1Power Consumption (Without LCD/Camera)
4.16 Thermal(TBD)
4.17 RF Performance
REVISION PAGES
0.1 44 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
44
4.17.1 GPS Performance
GPS RF Performance
Conditions : VBAT=4.0V ; signal source=-130dBm/Hz,Temp:25°C
C/N0 40dB
Table 4.17-4 GPS Performance
REVISION PAGES
0.1 45 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
45
5 PIN Summary
5.1 J5218 BTB Connector
Pin Signal Name Pin Signal Name
1 VBATT 2 VBUS_USB_IN
3 VBATT 4 VBUS_USB_IN
5 VBATT 6 USB3_HS_USB_ID
7 VBATT 8 VREG_S4A_1P8
9 VBATT 10 GND
11 VBATT 12 MIPI_DSI0_CLK_P_CON
13 VREG_L21A_2P95 14 MIPI_DSI0_CLK_N_CON
15 VREG_L21A_2P95 16 GND
17 BAT_THERM 18 MIPI_DSI0_LAN3_P_CON
19 GPIO_73 20 MIPI_DSI0_LAN3_N_CON
21 GPIO_21 22 GND
23 GPIO_12 24 MIPI_DSI0_LAN2_P_CON
25 GPIO_38 26 MIPI_DSI0_LAN2_N_CON
27 GND 28 GND
29 GND 30 MIPI_DSI0_LAN0_P_CON
31 GND 32 MIPI_DSI0_LAN0_N_CON
33 GND 34 GND
35 GPIO_72 36 MIPI_DSI0_LAN1_P_CON
37 GPIO_71 38 MIPI_DSI0_LAN1_N_CON
39 GPIO_70 40 GND
41 GPIO_69 42 PM_MPP4
43 GND 44 CBL_PWR_N
45 PM_GPIO_15 46 VCOIN
REVISION PAGES
0.1 46 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
46
47 GND 48 GPIO_34
49 GPIO_64 50 GPIO_33
51 BLSP8_GPIO_7 52 GPIO_32
53 BLSP8_GPIO_6 54 GPIO_31
55 MSM_UART_RX 56 GPIO_30
57 MSM_UART_TX 58 BLSP12_GPIO_88
59 BLSP7_GPIO_56 60 BLSP12_GPIO_87
61 BLSP7_GPIO_55 62 BLSP12_GPIO_86
63 BLSP7_GPIO_54 64 BLSP12_GPIO_85
65 BLSP7_GPIO_53 66 GPIO_63
67 BLSP9_GPIO_52 68 GPIO_62
69 BLSP9_GPIO_51 70 BLSP11_GPIO_61
71 BLSP9_GPIO_50 72 BLSP11_GPIO_60
73 BLSP9_GPIO_49 74 BLSP11_GPIO_59
75 BLSP10_GPIO_11 76 BLSP11_GPIO_58
77 BLSP10_GPIO_10 78 GPIO57_FORCE_USB_BOOT
79 BLSP10_GPIO_9 80 BLSP5_GPIO_84
81 BLSP10_GPIO_8 82 BLSP5_GPIO_83
83 KYPD_PWR_N1 84 BLSP5_GPIO_82
85 PM_RESIN_N 86 BLSP5_GPIO_81
87 PM_GPIO_03 88 GPIO_80
89 GPIO_24 90 GPIO_79
91 GPIO_23 92 GPIO_78
93 BLSP6_GPIO_28 94 GPIO_77
95 BLSP6_GPIO_27 96 GPIO_76
97 BLSP6_GPIO_26 98 GPIO_75
99 BLSP6_GPIO_25 100 GPIO_74
5.2 J5221 BTB Connector
REVISION PAGES
0.1 47 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
47
Pin Signal Name Pin Signal Name
1 GND 2 GND
3 CAM_MCLK0 4 MSM_HDMI_TX0_P
5 GND 6 MSM_HDMI_TX0_M
7 CAM_MCLK1 8 GND
9 GND 10 MSM_HDMI_TCLK_P
11 CAM_MCLK2 12 MSM_HDMI_TCLK_M
13 GND 14 GND
15 CCI_I2C_SDA0 16 MSM_HDMI_TX2_P
17 CCI_I2C_SCL0 18 MSM_HDMI_TX2_M
19 CCI_I2C_SDA1 20 GND
21 CCI_I2C_SCL1 22 MSM_HDMI_TX1_P
23 GPIO_29 24 MSM_HDMI_TX1_M
25 GND 26 GND
27 MIPI_CSI1_CLK_N 28 MIPI_CSI0_CLK_N
29 MIPI_CSI1_CLK_P 30 MIPI_CSI0_CLK_P
31 GND 32 GND
33 MIPI_CSI1_LANE0_N 34 MIPI_CSI0_LANE0_N
35 MIPI_CSI1_LANE0_P 36 MIPI_CSI0_LANE0_P
37 GND 38 GND
39 MIPI_CSI1_LANE1_N 40 MIPI_CSI0_LANE1_N
41 MIPI_CSI1_LANE1_P 42 MIPI_CSI0_LANE1_P
43 GND 44 GND
45 MIPI_CSI1_LANE2_N 46 MIPI_CSI0_LANE2_N
47 MIPI_CSI1_LANE2_P 48 MIPI_CSI0_LANE2_P
49 GND 50 GND
51 MIPI_CSI1_LANE3_N 52 MIPI_CSI0_LANE3_N
53 MIPI_CSI1_LANE3_P 54 MIPI_CSI0_LANE3_P
REVISION PAGES
0.1 48 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
48
55 GND 56 GND
57 USB2_HS_D_P 58 USB3_SS_RX0_P
59 USB2_HS_D_M 60 USB3_SS_RX0_M
61 GND 62 GND
63 PCIE1_REFCLK_N 64 USB3_SS_TX0_P
65 PCIE1_REFCLK_P 66 USB3_SS_TX0_M
67 GND 68 GND
69 PCIE1_MSM_RX_N 70 USB3_HS_D_P
71 PCIE1_MSM_RX_P 72 USB3_HS_D_M
73 GND 74 GND
75 PCIE1_MSM_TX_N 76 GPIO_130
77 PCIE1_MSM_TX_P 78 GPIO_131
79 GND 80 GPIO_132
81 PCIE2_REFCLK_N 82 GPIO_114
83 PCIE2_REFCLK_P 84 GPIO_115
85 GND 86 GPIO_116
87 PCIE2_MSM_RX_N 88 GND
89 PCIE2_MSM_RX_P 90 SDC2_SDCARD_D3
91 GND 92 SDC2_SDCARD_CMD
93 PCIE2_MSM_TX_N 94 SDC2_SDCARD_CLK
95 PCIE2_MSM_TX_P 96 SDC2_SDCARD_D0
97 GND 98 SDC2_SDCARD_D1
99 GPIO_22 100 SDC2_SDCARD_D2
5.3 J5219 ZIF Connector
Pin Signal Name Pin Signal Name
1 PMI_GPIO2 26 GPIO_107
REVISION PAGES
0.1 49 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
49
2 PMI_GPIO5 27 PM_GPIO_01
3 PMI_GPIO6 28 PM_GPIO_02
4 PMI_GPIO9 29 GPIO_117
5 PMI_GPIO10 30 GPIO_118
6 GND 31 GPIO_119
7 PMI_MPP1 32 GPIO_120
8 PMI_MPP2 33 GPIO_121
9 PM_MPP2 34 GPIO_122
10 PM_MPP5 35 GPIO_123
11 PM_MPP6 36 GPIO_124
12 GND 37 GPIO_125
13 PM_GPIO_17 38 SPI_CS_N_MAG
14 GND 39 SSC_PWR_EN
15 BBCLK2 40 SSC_I2C_3_SDA
16 GND 41 SSC_I2C_3_SCL
17 PM_GPIO_04 42 SSC_I2C_2_SDA
18 PM_GPIO_05 43 SSC_I2C_2_SCL
19 PM_GPIO_06 44 SSC_SPI_1_CS_N
20 PM_GPIO_07 45 SSC_SPI_1_CLK
21 PM_GPIO_10 46 SSC_SPI_1_MOSI
22 BLSP1_GPIO_0 47 SSC_SPI_1_MISO
23 BLSP1_GPIO_1 48 SSC_SPI_3_CLK
24 BLSP1_GPIO_2 49 SSC_SPI_3_CS_N
25 BLSP1_GPIO_3 50 SSC_SPI_3_MOSI
51 SSC_SPI_3_MISO
5.4 J5220 ZIF Connector
REVISION PAGES
0.1 50 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
50
Pin Signal Name Pin Signal Name
1 GND 26 GPIO_96
2 MIPI_CSI2_LAN3_P 27 GPIO_95
3 MIPI_CSI2_LAN3_N 28 GPIO_94
4 GND 29 GPIO_93
5 MIPI_CSI2_LAN2_P 30 GPIO_92
6 MIPI_CSI2_LAN2_N 31 GPIO_91
7 GND 32 GPIO_90
8 MIPI_CSI2_LAN0_P 33 GPIO_40
9 MIPI_CSI2_LAN0_N 34 GPIO_39
10 GND 35 GPIO_89
11 MIPI_CSI2_LAN1_P 36 GND
12 MIPI_CSI2_LAN1_N 37 MIPI_DSI1_LANE3_N_CON
13 GND 38 MIPI_DSI1_LANE3_P_CON
14 MIPI_CSI2_CLK_P 39 GND
15 MIPI_CSI2_CLK_N 40 MIPI_DSI1_LANE0_N_CON
16 GND 41 MIPI_DSI1_LANE0_P_CON
17 CAM_MCLK3 42 GND
18 GND 43 MIPI_DSI1_LANE2_N_CON
19 PM_GPIO_14 44 MIPI_DSI1_LANE2_P_CON
20 PM_GPIO_22 45 GND
21 GPIO_126 46 MIPI_DSI1_CLK_N_CON
22 PMI_GPIO3 47 MIPI_DSI1_CLK_P_CON
23 BLSP3_GPIO_48 48 GND
24 BLSP3_GPIO_47 49 MIPI_DSI1_LANE1_N_CON
25 GND 50 MIPI_DSI1_LANE1_P_CON
51 GND
REVISION PAGES
0.1 51 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
51
5.5 J101 JTAG Connector
Pin Signal Name Pin Signal Name
1 JTAG_TMS 9 JTAG_RESOUT_N
2 JTAG_TCK 10 MSM_UART_TX
3 JTAG_TDO 11 MSM_UART_RX
4 JTAG_TDI 12 VREG_S4A_1P8
5 JTAG_TRST_N 13 MSM_PS_HOLD
6 KYPD_PWR_N1 14 GPIO_57_FORCE_USB_BOOT
7 PM_RESIN_N 15 WDOG_DISABLE
8 GND 16 MSM_RESOUT_N
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
REVISION PAGES
0.1 52 of 52
STATE TITLE
Released Thundersoft TurboX® D820 SOM Datasheet
52
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
When the module is installed in the host device, the FCC ID label must be visible through a window on the final device
or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be placed on the
outside of the final device that contains the following text: ―Contains FCC ID: 2AOHHTURBOXSOMD820.
ISEDC Warning:
This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF
exposure and compliance.The minimum distance from body to use the device is 20cm.
Le présent appareil est conforme
Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF,
les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir
les informations correspondantes. La distance minimale du corps à utiliser le dispositif est de 20cm.
Per RSS GEN section 3.21 requirement, The module must be labeled with its own certification number, and, if the
certification number is not visible when the module is installed inside a host device, then the host device into which the
module is installed must also display a label referring to the enclosed module. For details as follows:
Contains transmitter module IC: 23465-TURBOX820
where 23465-TURBOX820 is the module’s certification number
