Thundercomm Technology TURBOXSOMS626 Thundersoft TurboX S626 SOM User Manual S625 EVB Quick Start Guide

Thundercomm Technology Co., Ltd Thundersoft TurboX S626 SOM S625 EVB Quick Start Guide

Contents

User Manual

Snapdragon™ 625 Processor-based Tiny System on Module
Quick Start Guide
ThunderSoft
®S625 EVB

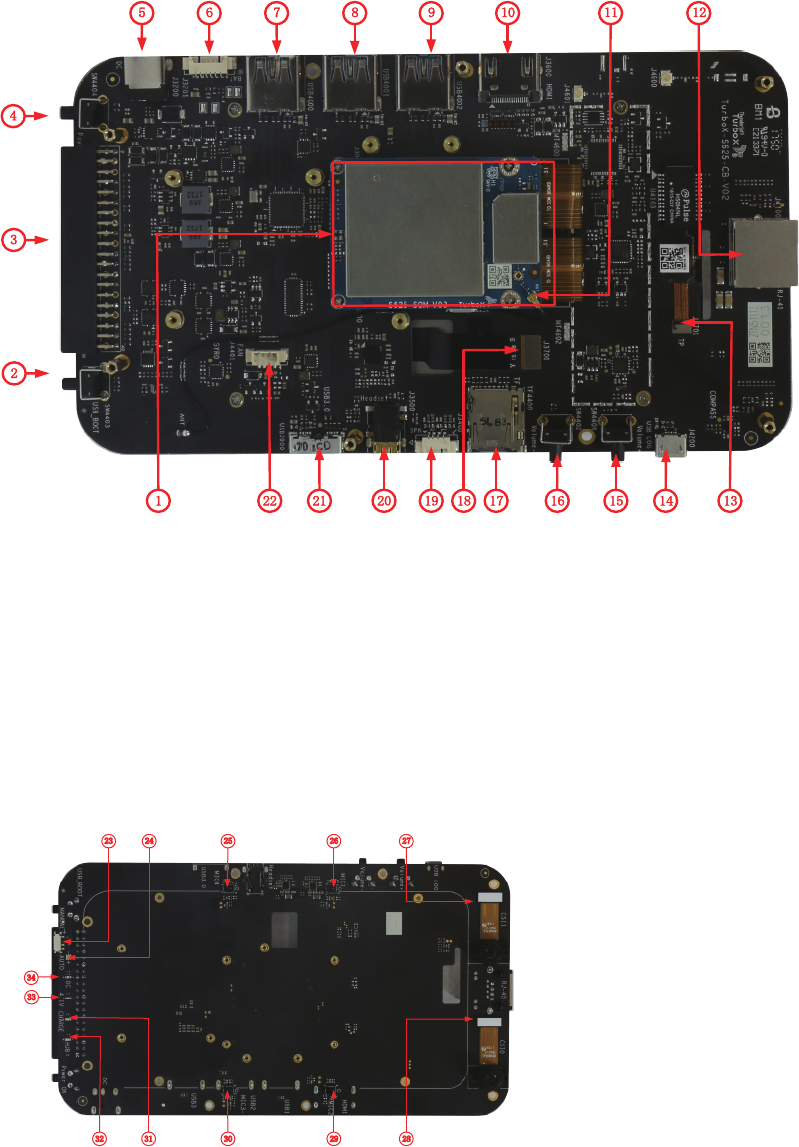

Top View of Thundersoft TurboX® S625
1. Thundersoft TurboX® S625 SOM
2. Force USB Boot Key
3. General Purpose Header
4. POWER ON Key
5. 12V DC Jack
6. Battery
7. USB 3.0 Type A 1
8. USB 3.0 Type A 2
23. Switch for Power on mode
24. Status LDE
25. DMIC 1
26. DMIC 2
27. Camera CSI 1
28. Camera CSI 0
29. DMIC 3
30. DMIC 4
31. Charge LED
32. USB HUB LED
33. 4.1V LED
34. 12V LED
Bottom View of Thundersoft TurboX® S625
9. USB 3.0 Type A 3
10. HDMI OUT Type A
11. WLAN ext. ant.
12. 10Base/100Base Ethernet
13. Touch Panel
14. Debug UART
15. Volume Up Key
16. Volume Down or Reset Key
17. TF Card
18. LCD
19. Speakers
20. 3.5mm CTIA Header Audio Jack
21. MicroB USB3.0
22. Fan

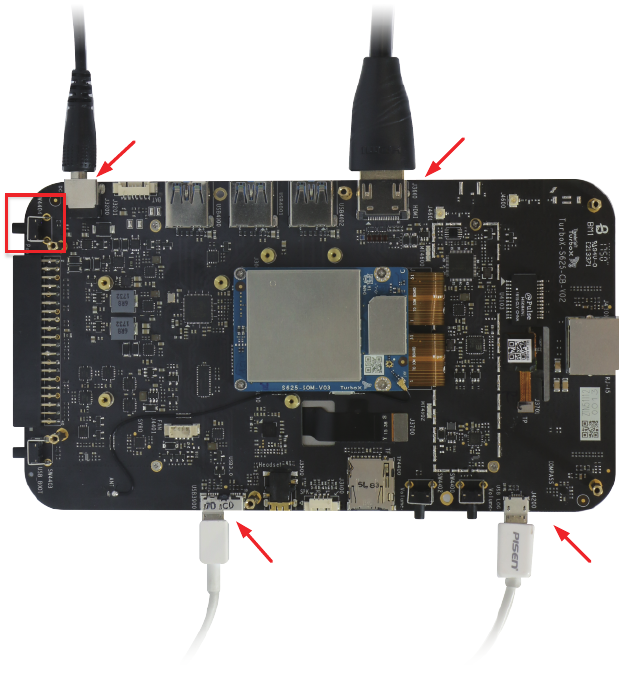

Thundersoft TurboX® S625 EVB Setup
Step1: Remove Thundersoft TurboX® S625 EVB board carefully from the anti-static bag
Step2: Assemble IMX214 Camera to the corresponding as show Picture.
Step3: Connect Thundersoft TurboX® S625 EVB to Display with HDMI.
Step4: Connect 12V, 2.0A Power Adapter to the Thundersoft TurboX® S625 EVB.
Step5: Press power button for 4 seconds, the board will begin to boot-up automatically.
Step6: Connect USB or UART to debug if needed.
Power Adapter HDMI
USB UART
Power On
Key
Thundersoft TurboX® S625 EVB Support
How to download documentation and software
To access the documentation (schematics, user guides, datasheets, programming guides, tech
notes�), platform BSP software and more, please registry on:
www.thundercomm.com.
If you require more information or assistance, you can contact us at:
https://www.thundercomm.com/contact-support
Thundercomm also provides technical information on Snapdragon processors at:
https://www.thundercomm.com/resources
If you require additional technical support for your Thundersoft TurboX® S625 EVB you can easily
purchase a block of technical support hours from the thundercomm store:
http://store.thundercomm.com/collections/technical-support-packages
Thank you for purchasing the Thundersoft TurboX® S625 EVB.
Any questions, you can send email to contact us.
Email: service@thundercomm.com
The Thundercomm Support Team
The device has been evaluated to meet general RF exposure requirement. TurboX S626 is a
moudule without antenna,It is recommended to use type of antenna :pcb antenna
gain:4dbi Antenna manufacturer: shenzhen bats wireless technology co., LTD
FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to
thefollowing two conditions: (1) this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that
maycause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference causedby
unauthorized modifications or changes to this equipment. Such modifications or
changes could void theuser’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for aClass
B digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned to
provide reasonable protection against harmful interference in aresidential
installation. This equipment generates uses and can radiate radiofrequency energy
and, if not installed and used in accordance with the instructions,may cause harmful
interference to radio communications. However, there is noguarantee that
interference will not occur in a particular installation. If thisequipment does cause
harmful interference to radio or television reception, whichcan be determined by
turning the equipment off and on, the user is encouraged totry to correct the
interference by one or more of the following measures:
‐ Reorient or relocate the receiving antenna.
‐ Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to which
thereceiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help.
A certified modular has the option to use a permanently affixed label, or an electronic label.
For a permanently affixed label, the module must be labelled with an FCC ID:
2AOHHTURBOXSOMS626. The OEM manual must provide clear instructions
explaining to the OEM the labelling requirements, options and OEM user manual
instructions that are required
For a host using a this FCC certified modular with a standard fixed label, if (1) the module’s
FCC ID is notvisible when installed in the host, or (2) if the host is marketed so that end users
do not have straightforward commonly used methods for access to remove the module so that
the FCC ID of the module is visible; then an additional permanent label referring to the
enclosed module:
“Contains Transmitter Module FCC ID: 2AOHHTURBOXSOMS626 or “FCC ID:
2AOHHTURBOXSOMS626 ” must be used. The host OEM user manual must also contain
clear instructions on how end users can find and/or access the module and the FCC ID.
Host product is required to comply with all applicable FCC equipment authorizations
regulations, requirements and equipment functions not associated with the transmitter
module portion. compliance must be demonstrated to regulations for other transmitter
components within the host product; to requirements for unintentional radiators (Part 15B).
To ensure compliance with all non-transmitter functions the host manufacturer is responsible
for ensuring compliance with the module(s) installed and fully operational. If a host was
previously authorized as an unintentional radiator under the Declaration of Conformity
procedure without a transmitter certified module and a module is added, the host
manufacturer is responsible for ensuring that the after the module is installed and operational
the host continues to be compliant with the Part 15B unintentional radiator requirements.
Since this may depend on the details of how the module is integrated with
the host,
we suggest the host device to recertify part 15B to ensure complete compliance with FCC
requirement: Part 2 Subpart J Equipment Authorization Procedures , KDB784748 D01 v07,
and KDB 997198 about importation of radio frequency devices into the United States. Please
use PCB antenna with 4 dBi when the modular used the in the end product.If the end userdidn't
use the required antenna, it may need to have FCC change.
CE statements:
Do not use the moudule in the environment at too high or too low temperature,
never expose the moudule under strong sunshine or too wet environment.
The suitable temperature for the product and accessories is ‐20℃‐80℃.
RF exposure information: The Maximum Permissible Exposure (MPE) level has been
calculated based on a distance of d=20 cm between the device and the human body.
To maintain compliance with RF exposure requirement, use product that maintain a
20cm distance between the device and human body.
Receiver category:1
BT Maximum output power: 9dBm; BT Frequency band: 2402~2480 MHz;
Wi‐Fi Max Output Power: 19 .9dBm (2.4G); 12 dBm (5G);
Wi‐Fi Frequency Band: 2412~2472 MHz (2.4G); 5150~5250 MHz, 5725~5850 MHz
(5G).
5150~5250 MHz can be used indoor only.
EU Regulatory Conformance
Hereby, Thundercomm Technology Co., Ltd declares that this device is in compliance
with the essential requirements and other relevant provisions of Directive
2014/53/EU.
For the declaration of conformity, visit the Web
sitewww.thundercomm.com./certification.
