TiMOTION Technology TH3-4 WIRELESS REMOTE CONTROL User Manual TH3 User Manual

TiMOTION Technology Co.,Ltd WIRELESS REMOTE CONTROL TH3 User Manual

User Manual

(User Manual-TH3)
1/3 2009.02.13
Contact Information:
TiMOTION Technology Co., Ltd.
Shiyong Minying Industrial Zone, Hengli Town, DongGuan City GuangDong Province 523465, China
Symbol Descriptions
The following symbols may appear in this manual, on the label, or on its accessories. Some of the symbols
represent standards and compliances associated with the TH3 and its use.
Caution: Consult accompanying documents
CE Mark: conform with the essential health and safety requirements set out in European
Directives.
The product can be used indoors only.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste
separately for special treatment is necessary.
Direct current
Environmental Requirements
Operation conditions
Ambient temperature: 10 ~ 40
Relative humidity range: 10% ~ 93%
Atmospheric pressure: 86KPa~ 106Kpa
Storage and shipping conditions
Ambient temperature: -10 ~ 50
Relative humidity range: 10% ~ 93%
Atmospheric pressure: 86KPa~ 106KPa
(User Manual-TH3)
2/3 2009.02.13
Specifications:
Model No. :
Battery :
Dimensions :
Transmit frequency
Data Transmit mode ASK Transmit
Applications :
Chairs and beds Remote controls.
Other electric furniture controls.
FCC ID:W6JTH3-4
This device complies with part 15 of the FCC Rules.Operation is subject to the following two
conditions:(1)This device may not cause harmful interference ,and (2) this device must accept
any interference received ,including interference that may cause undesired operation.
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR
MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
NOTE:This equipment has been tested and found to comply with the limits for a Class B digital
device ,pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference in a residential installation .This equipment
generates,uses and can radiate radio frequency energy and,if not installed and used in
accordance with the instructions ,may cause harmful interference to radio
communications .However,there is not guarantee that interference will not occur in a particular
installation.If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on,the user is encouraged
to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna .
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
TH3
12V SizeA 23*1
115.7*56.7*20mm
433.92MHz
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure
condition without restriction.
(User Manual-TH3)
3/3 2009.02.13
Use:
Button function, see the attached diagram
Electrical performance:
1. A23 12V use alkaline battery-powered, Operating Current18mA
2.Wireless remote control distance of 6 meters
3.Standby operating current 10uA

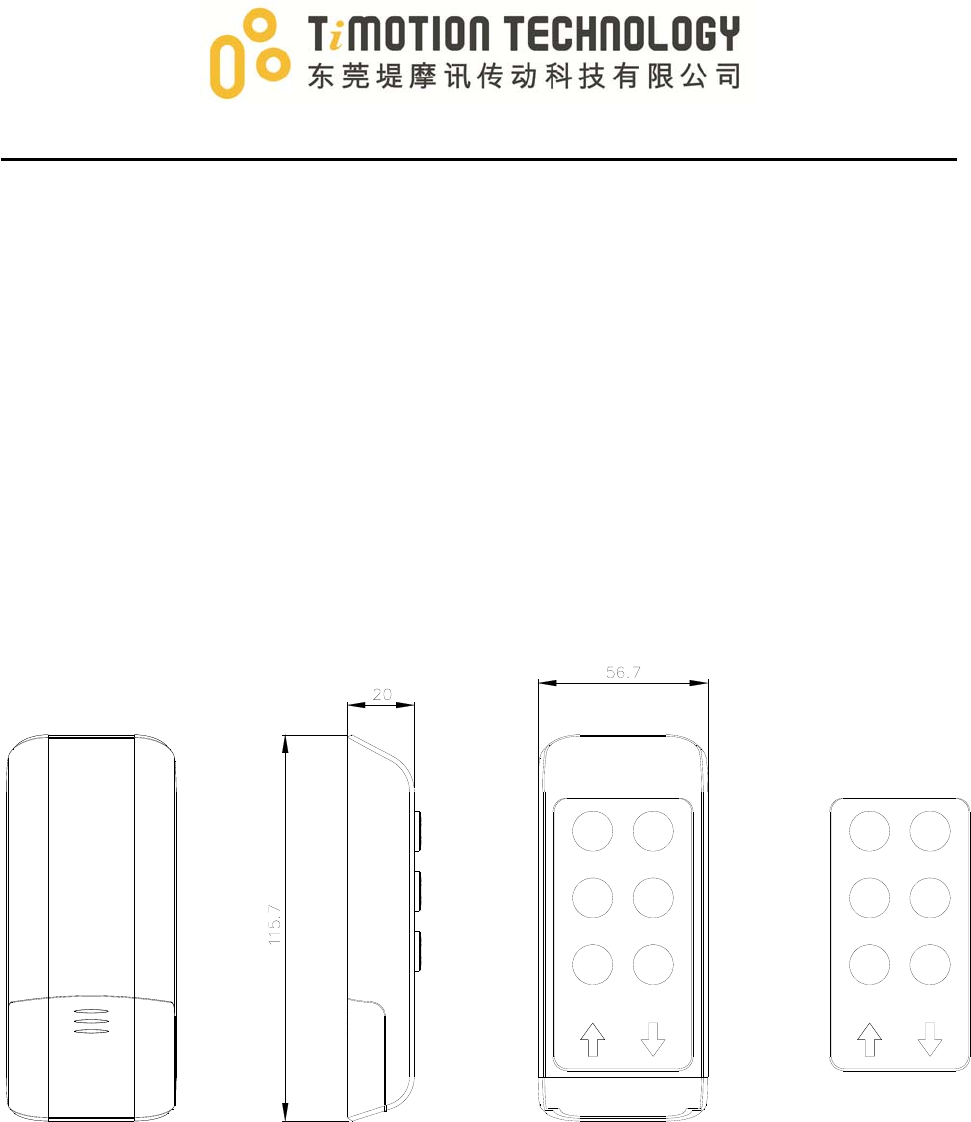

Size and Funtion Diagram :
M1UP M1DOWN
M2UP M2DOWN
M3UP M3DOWN
FRONT FUNTIONSIDEBACK
