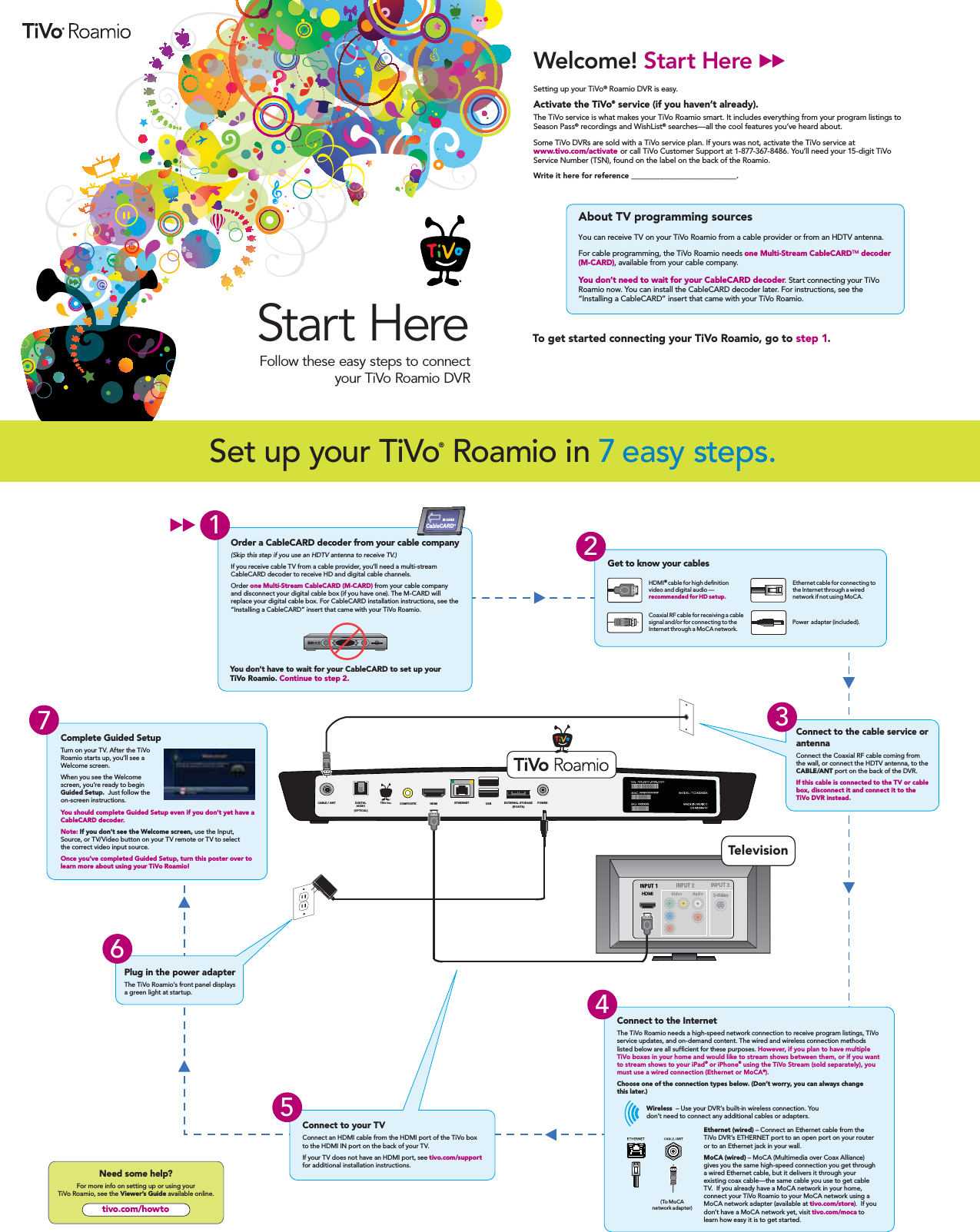

Need some help?For more info on setting up or using yourTiVo Roamio, see the Viewer’s Guide available online.tivo.com/howtoCABLE / ANT DIGITAL AUDIO(OPTICAL)EXTERNAL STORAGE(E-SATA)COMPOSITE HDMI USB POWERTiVo Inc. ETHERNETComplete Guided SetupTurn on your TV. After the TiVo Roamio starts up, you’ll see a Welcome screen. When you see the Welcome screen, you’re ready to begin Guided Setup. Just follow the on-screen instructions.You should complete Guided Setup even if you don’t yet have a CableCARD decoder. Note: If you don’t see the Welcome screen, use the Input,Source, or TV/Video button on your TV remote or TV to selectthe correct video input source.Once you’ve completed Guided Setup, turn this poster over to learn more about using your TiVo Roamio!7Plug in the power adapterThe TiVo Roamio’s front panel displays a green light at startup.6Connect to your TVConnect an HDMI cable from the HDMI port of the TiVo box to the HDMI IN port on the back of your TV. If your TV does not have an HDMI port, see tivo.com/support for additional installation instructions.TelevisionS-VideoINPUT 3HDMI5Connect to the cable service or antennaConnect the Coaxial RF cable coming from the wall, or connect the HDTV antenna, to the CABLE/ANT port on the back of the DVR. If this cable is connected to the TV or cable box, disconnect it and connect it to the TiVo DVR instead.3Ethernet (wired) – Connect an Ethernet cable from the TiVo DVR’s ETHERNET port to an open port on your router or to an Ethernet jack in your wall.MoCA (wired) – MoCA (Multimedia over Coax Alliance) gives you the same high-speed connection you get through a wired Ethernet cable, but it delivers it through your existing coax cable—the same cable you use to get cable TV. If you already have a MoCA network in your home, connect your TiVo Roamio to your MoCA network using a MoCA network adapter (available at tivo.com/store). If you don’t have a MoCA network yet, visit tivo.com/moca to learn how easy it is to get started.Connect to the InternetThe TiVo Roamio needs a high-speed network connection to receive program listings, TiVo service updates, and on-demand content. The wired and wireless connection methods listed below are all sufcient for these purposes. However, if you plan to have multiple TiVo boxes in your home and would like to stream shows between them, or if you want to stream shows to your iPad® or iPhone® using the TiVo Stream (sold separately), you must use a wired connection (Ethernet or MoCA®).Choose one of the connection types below. (Don’t worry, you can always changethis later.)Wireless – Use your DVR’s built-in wireless connection. You don’t need to connect any additional cables or adapters.4(To MoCAnetwork adapter)Coaxial RF cable for receiving a cable signal and/or for connecting to the Internet through a MoCA network.Get to know your cablesHDMI® cable for high denition video and digital audio — recommended for HD setup.Power adapter (included).Ethernet cable for connecting to the Internet through a wired network if not using MoCA.Order a CableCARD decoder from your cable company(Skip this step if you use an HDTV antenna to receive TV.)If you receive cable TV from a cable provider, you’ll need a multi-stream CableCARD decoder to receive HD and digital cable channels. Order one Multi-Stream CableCARD (M-CARD) from your cable company and disconnect your digital cable box (if you have one). The M-CARD will replace your digital cable box. For CableCARD installation instructions, see the “Installing a CableCARD” insert that came with your TiVo Roamio.You don’t have to wait for your CableCARD to set up yourTiVo Roamio. Continue to step 2. 12CableCARDTMM-CARDSet up your TiVo® Roamio in 7 easy steps.Welcome! Start HereSetting up your TiVo® Roamio DVR is easy. Activate the TiVo® service (if you haven’t already). The TiVo service is what makes your TiVo Roamio smart. It includes everything from your program listings to Season Pass® recordings and WishList® searches—all the cool features you’ve heard about. Some TiVo DVRs are sold with a TiVo service plan. If yours was not, activate the TiVo service at www.tivo.com/activate or call TiVo Customer Support at 1-877-367-8486. You’ll need your 15-digit TiVo Service Number (TSN), found on the label on the back of the Roamio. Write it here for reference ___________________________.About TV programming sourcesYou can receive TV on your TiVo Roamio from a cable provider or from an HDTV antenna. For cable programming, the TiVo Roamio needs one Multi-Stream CableCARDTM decoder (M-CARD), available from your cable company.You don’t need to wait for your CableCARD decoder. Start connecting your TiVo Roamio now. You can install the CableCARD decoder later. For instructions, see the “Installing a CableCARD” insert that came with your TiVo Roamio.To get started connecting your TiVo Roamio, go to step 1.Start HereFollow these easy steps to connect your TiVo Roamio DVR

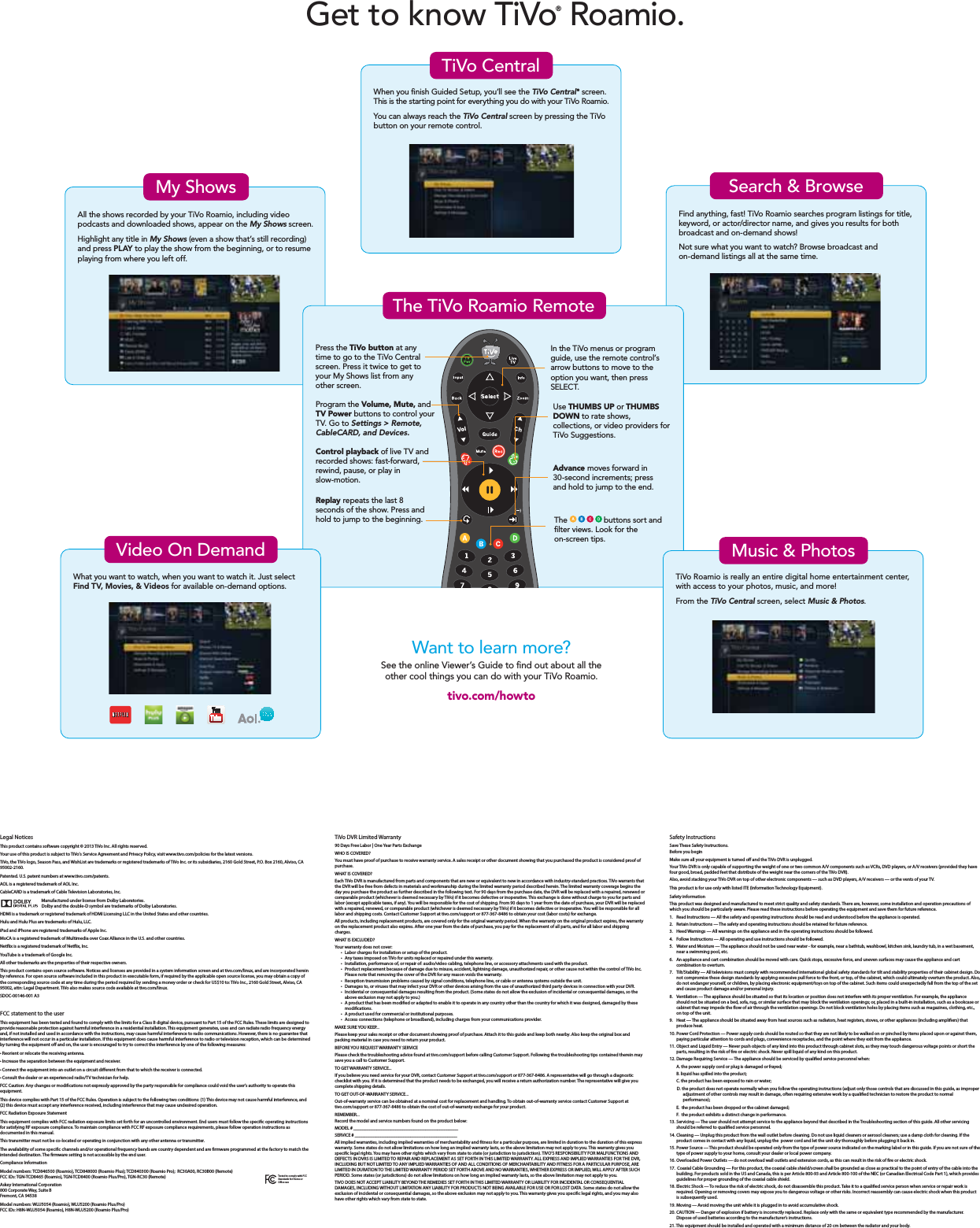

Safety InstructionsSave These Safety Instructions.Before you beginMake sure all your equipment is turned o and the TiVo DVR is unplugged.Your TiVo DVR is only capable of supporting the weight of one or two common A/V components such as VCRs, DVD players, or A/V receivers (provided they have four good, broad, padded feet that distribute of the weight near the corners of the TiVo DVR). Also, avoid stacking your TiVo DVR on top of other electronic components — such as DVD players, A/V receivers — or the vents of your TV.This product is for use only with listed ITE (Information Technology Equipment). Safety informationThis product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions of which you should be particularly aware. Please read these instructions before operating the equipment and save them for future reference.1. Read Instructions — All the safety and operating instructions should be read and understood before the appliance is operated.2. Retain Instructions — The safety and operating instructions should be retained for future reference.3. Heed Warnings — All warnings on the appliance and in the operating instructions should be followed.4. Follow Instructions — All operating and use instructions should be followed.5. Water and Moisture — The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, etc.6. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.7. Tilt/Stability — All televisions must comply with recommended international global safety standards for tilt and stability properties of their cabinet design. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet, which could ultimately overturn the product. Also, do not endanger yourself, or children, by placing electronic equipment/toys on top of the cabinet. Such items could unexpectedly fall from the top of the set and cause product damage and/or personal injury.8. Ventilation — The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the ow of air through the ventilation openings. Do not block ventilation holes by placing items such as magazines, clothing, etc., on top of the unit.9. Heat — The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including ampliers) that produce heat.10. Power Cord Protection — Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.11. Object and Liquid Entry — Never push objects of any kind into this product through cabinet slots, as they may touch dangerous voltage points or short the parts, resulting in the risk of re or electric shock. Never spill liquid of any kind on this product.12. Damage Requiring Service — The appliance should be serviced by qualied service personnel when:A. the power supply cord or plug is damaged or frayed;B. liquid has spilled into the product;C. the product has been exposed to rain or water;D. the product does not operate normally when you follow the operating instructions (adjust only those controls that are discussed in this guide, as improper adjustment of other controls may result in damage, often requiring extensive work by a qualied technician to restore the product to normal performance);E. the product has been dropped or the cabinet damaged;F. the product exhibits a distinct change in performance.13. Servicing — The user should not attempt service to the appliance beyond that described in the Troubleshooting section of this guide. All other servicing should be referred to qualied service personnel.14. Cleaning — Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners; use a damp cloth for cleaning. If the product comes in contact with any liquid, unplug the power cord and let the unit dry thoroughly before plugging it back in.15. Power Source — This product should be operated only from the type of power source indicated on the marking label or in this guide. If you are not sure of the type of power supply to your home, consult your dealer or local power company.16. Overloaded Power Outlets — do not overload wall outlets and extension cords, as this can result in the risk of re or electric shock.17. Coaxial Cable Grounding — For this product, the coaxial cable shield/screen shall be grounded as close as practical to the point of entry of the cable into the building. For products sold in the US and Canada, this is per Article 800-93 and Article 800-100 of the NEC (or Canadian Electrical Code Part 1), which provides guidelines for proper grounding of the coaxial cable shield.18. Electric Shock — To reduce the risk of electric shock, do not disassemble this product. Take it to a qualied service person when service or repair work is required. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when this product is subsequently used.19. Moving — Avoid moving the unit while it is plugged in to avoid accumulative shock.20. CAUTION — Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.21. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.Legal NoticesThis product contains software copyright © 2013 TiVo Inc. All rights reserved.Your use of this product is subject to TiVo's Service Agreement and Privacy Policy, visit www.tivo.com/policies for the latest versions.TiVo, the TiVo logo, Season Pass, and WishList are trademarks or registered trademarks of TiVo Inc. or its subsidiaries, 2160 Gold Street, P.O. Box 2160, Alviso, CA 95002-2160.Patented. U.S. patent numbers at www.tivo.com/patents.AOL is a registered trademark of AOL Inc.CableCARD is a trademark of Cable Television Laboratories, Inc.Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. HDMI is a trademark or registered trademark of HDMI Licensing LLC in the United States and other countries. Hulu and Hulu Plus are trademarks of Hulu, LLC.iPad and iPhone are registered trademarks of Apple Inc.MoCA is a registered trademark of Multimedia over Coax Alliance in the U.S. and other countries.Netix is a registered trademark of Netix, Inc.YouTube is a trademark of Google Inc.All other trademarks are the properties of their respective owners.This product contains open source software. Notices and licenses are provided in a system information screen and at tivo.com/linux, and are incorporated herein by reference. For open source software included in this product in executable form, if required by the applicable open source license, you may obtain a copy of the corresponding source code at any time during the period required by sending a money order or check for US$10 to: TiVo Inc., 2160 Gold Street, Alviso, CA 95002, attn: Legal Department. TiVo also makes source code available at tivo.com/linux.SDOC-00146-001 A3FCC statement to the userThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:t3FPSJFOUPSSFMPDBUFUIFSFDFJWJOHBOUFOOBt*ODSFBTFUIFTFQBSBUJPOCFUXFFOUIFFRVJQNFOUBOESFDFJWFSt$POOFDUUIFFRVJQNFOUJOUPBOPVUMFUPOBDJSDVJUEJòFSFOUGSPNUIBUUPXIJDIUIFSFDFJWFSJTDPOOFDUFEt$POTVMUUIFEFBMFSPSBOFYQFSJFODFESBEJP57UFDIOJDJBOGPSIFMQFCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specic operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions as documented in this manual.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at the factory to match the intended destination. The rmware setting is not accessible by the end user.Compliance InformationModel numbers: TCD846500 (Roamio), TCD848000 (Roamio Plus); TCD840300 (Roamio Pro); RC30A00, RC30B00 (Remote)FCC IDs: TGN-TCD8465 (Roamio), TGN-TCD8400 (Roamio Plus/Pro), TGN-RC30 (Remote)Askey International Corporation800 Corporate Way, Suite BFremont, CA 94538Model numbers: WLU5054 (Roamio), WLU5200 (Roamio Plus/Pro)FCC IDs: H8N-WLU5054 (Roamio), H8N-WLU5200 (Roamio Plus/Pro)TiVo DVR Limited Warranty90 Days Free Labor | One Year Parts ExchangeWHO IS COVERED?You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase. WHAT IS COVERED?Each TiVo DVR is manufactured from parts and components that are new or equivalent to new in accordance with industry-standard practices. TiVo warrants that the DVR will be free from defects in materials and workmanship during the limited warranty period described herein. The limited warranty coverage begins the day you purchase the product as further described in the following text. For 90 days from the purchase date, the DVR will be replaced with a repaired, renewed or comparable product (whichever is deemed necessary by TiVo) if it becomes defective or inoperative. This exchange is done without charge to you for parts and labor (except applicable taxes, if any). You will be responsible for the cost of shipping. From 90 days to 1 year from the date of purchase, your DVR will be replaced with a repaired, renewed, or comparable product (whichever is deemed necessary by TiVo) if it becomes defective or inoperative. You will be responsible for all labor and shipping costs. Contact Customer Support at tivo.com/support or 877-367-8486 to obtain your cost (labor costs) for exchange.All products, including replacement products, are covered only for the original warranty period. When the warranty on the original product expires, the warranty on the replacement product also expires. After one year from the date of purchase, you pay for the replacement of all parts, and for all labor and shipping charges.WHAT IS EXCLUDED?Your warranty does not cover:t Labor charges for installation or setup of the product.t "OZUBYFTJNQPTFEPO5J7PGPSVOJUTSFQMBDFEPSSFQBJSFEVOEFSUIJTXBSSBOUZt *OTUBMMBUJPOQFSGPSNBODFPGPSSFQBJSPGBVEJPWJEFPDBCMJOHUFMFQIPOFMJOFPSBDDFTTPSZBUUBDINFOUTVTFEXJUIUIFQSPEVDUt Product replacement because of damage due to misuse, accident, lightning damage, unauthorized repair, or other cause not within the control of TiVo Inc. Please note that removing the cover of the DVR for any reason voids the warranty. t 3FDFQUJPOUSBOTNJTTJPOQSPCMFNTDBVTFECZTJHOBMDPOEJUJPOTUFMFQIPOFMJOFPSDBCMFPSBOUFOOBTZTUFNTPVUTJEFUIFVOJUt %BNBHFTUPPSWJSVTFTUIBUNBZJOGFDUZPVS%73PSPUIFSEFWJDFTBSJTJOHGSPNUIFVTFPGVOBVUIPSJ[FEUIJSEQBSUZEFWJDFTJODPOOFDUJPOXJUIZPVS%73t Incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.)t A product that has been modied or adapted to enable it to operate in any country other than the country for which it was designed, damaged by these modications. t A product used for commercial or institutional purposes. t Access connections (telephone or broadband), including charges from your communications provider.MAKE SURE YOU KEEP...Please keep your sales receipt or other document showing proof of purchase. Attach it to this guide and keep both nearby. Also keep the original box and packing material in case you need to return your product.BEFORE YOU REQUEST WARRANTY SERVICEPlease check the troubleshooting advice found at tivo.com/support before calling Customer Support. Following the troubleshooting tips contained therein may save you a call to Customer Support.TO GET WARRANTY SERVICE...If you believe you need service for your DVR, contact Customer Support at tivo.com/support or 877-367-8486. A representative will go through a diagnostic checklist with you. If it is determined that the product needs to be exchanged, you will receive a return authorization number. The representative will give you complete shipping details.TO GET OUT-OF-WARRANTY SERVICE...Out-of-warranty service can be obtained at a nominal cost for replacement and handling. To obtain out-of-warranty service contact Customer Support at tivo.com/support or 877-367-8486 to obtain the cost of out-of-warranty exchange for your product.REMEMBER...Record the model and service numbers found on the product below:MODEL # _____________________________________________SERVICE # ____________________________________________All implied warranties, including implied warranties of merchantability and tness for a particular purpose, are limited in duration to the duration of this express warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specic legal rights. You may have other rights which vary from state to state (or jurisdiction to jurisdiction). TIVO’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN DVRS IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH IN THIS LIMITED WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE DVR, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND ALL CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER SUCH PERIOD. Some states (or jurisdictions) do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.TIVO DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY OR LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR PRODUCTS NOT BEING AVAILABLE FOR USE OR FOR LOST DATA. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.Tested to comply with FCC Standards for Home or Oce useWant to learn more?See the online Viewer’s Guide to nd out about all theother cool things you can do with your TiVo Roamio. tivo.com/howto When you nish Guided Setup, you’ll see the TiVo Central ® screen.This is the starting point for everything you do with your TiVo Roamio. You can always reach the TiVo Central screen by pressing the TiVo button on your remote control.TiVo CentralAll the shows recorded by your TiVo Roamio, including video podcasts and downloaded shows, appear on the My Shows screen.Highlight any title in My Shows (even a show that’s still recording) and press PLAY to play the show from the beginning, or to resume playing from where you left off.My ShowsFind anything, fast! TiVo Roamio searches program listings for title, keyword, or actor/director name, and gives you results for both broadcast and on-demand shows! Not sure what you want to watch? Browse broadcast and on-demand listings all at the same time. Search & BrowseThe TiVo Roamio RemoteIn the TiVo menus or program guide, use the remote control’s arrow buttons to move to the option you want, then press SELECT.Press the TiVo button at any time to go to the TiVo Central screen. Press it twice to get to your My Shows list from any other screen. Control playback of live TV and recorded shows: fast-forward, rewind, pause, or play in slow-motion.Use THUMBS UP or THUMBS DOWN to rate shows, collections, or video providers for TiVo Suggestions. Replay repeats the last 8 seconds of the show. Press and hold to jump to the beginning.Advance moves forward in 30-second increments; press and hold to jump to the end.Program the Volume, Mute, and TV Power buttons to control your TV. Go to Settings > Remote, CableCARD, and Devices.The buttons sort and lter views. Look for the on-screen tips.TiVo Roamio is really an entire digital home entertainment center, with access to your photos, music, and more! From the TiVo Central screen, select Music & Photos.Music & PhotosGet to know TiVo® Roamio.What you want to watch, when you want to watch it. Just select Find TV, Movies, & Videos for available on-demand options.Video On Demand
