TimeLink Technology TS32M 32 inch Touch Monitor User Manual x001

TimeLink Technology Co.Ltd 32 inch Touch Monitor x001

User Manual

Copyright © 2011 Shenzhen TimeLink Technology Co., Ltd. All rights reserved.
All or part of contents of this document cannot be distributed, reproduced,
disclosed or duplicated without the prior written permit of TimeLink
Technology Co., Ltd. (hereinafter referred to as “TimeLink”). The information
specified in this document is possessed by TimeLink and protected by
Intellectual Property in the People's Republic of China and international
convention.
This document and the relevant computer software program (hereinafter
referred to as “Document”) are used to provide end users with information,
which can be modified or recalled by TimeLink at any time.
Date of release: July 26th, 2013
Scope of application: “Instruction Book of 32” Touch Monitor”
Please contact TimeLink through below if you have any questions or
suggestions.
Address: 2nd Floor, B building, Digital Silicon Valley Industrial Zone,
No.89, Hengping Road, Henggang Street, Longgang District, Shenzhen.
Postal code: 518115
Tel: +86 (755) 82838577 Fax: +86 (755) 82838515
E-mail: support@timelink.cn
Copyright Notice
Information update
Feedback
According to scope permitted by the applicable laws, TimeLink provides the
script of this document without undertaking any forms of warranty, including
but not limited to any implied marketability, applicability with special purpose
or non-invasiveness. TimeLink assumes no responsibilities for any direct or
indirect losses arising from use of this document by the end users or any third
party, even if we acknowledged them clearly, which includes (but not limited to)
profits losses, business failure and reputation or data lost.
The uses of all products quoted in this document and the document are subject
to the applicable Concession Agreement of end users.
For more information, please visit www.timelink.cn.
Exemption Clause
Contents
1. Introduction .............................................................................................. 1
2. Appearance ........................................................................................... 4
MIC+AUDIO ............................................................................................ 5
1
1. Introduction
1.1 Brief Introduction
Function description
The main functions of this product includes: 1080P high-definition
multi-touch display function, TV function
Installation location
This product is suitable for education , home, conference places. It can be
installed in two modes: desktop and wall mount.
Temperature range
Storage temperature： - 40℃～+80℃
Working temperature：-0℃～+50℃
Voltage range
Nominal voltage： 110-240V AC
The default test conditions
Conditions and the default test conditions are as follows:
Ambient temperature：(15～50)℃
Relevant humidity：45%～85%
Atmospheric pressure：86.7kPa～106.7kPa
2
1.2 Specifications
1.2.1 Monitor Specification
Monitor Specification
TS32M
TFT-LED
698.4 (H) x 392.85(V)MM
727.4(H ) x 429(V) MM
1920*1080 RGB
350 cd/m2
3000:1
6.5ms
10 bit(FPC),1.07 Billion
Standby power consumption ≤1 W
Machine power consumption ≤60W
Anti-crash
tempered glass
glass
Normal tempered
glass
optional
Frosted tempered
glass(anti-glare)
optional
Normal tempered
glass+anti-glare
film
optional
Child lock
with
Modular design
Built-in TV
optional
Shutdown state
memory
Default power standby
optional
Press
with
3
1.2.2 Touch screen specification
energy-saving
Smart USB
interface
computer
communications
Default without
optional
Forward speaker
Sound coming out forward without blocking,
better sound effect
Touch screen specification
Touch
specification.
Touch screen size
32 inch
Touch technology
Multi-touch surface light wave
Touch pressure
Zero-pressure
Surface hardness
Screen surface is riot optical glass, hardness of
Mohs 7 degree
Transmittance
>92%（100% without glass）
Humidity
working\storage humidity：90%RH No
condensation at 40 ℃
Temperature range
Working temperature：-25℃～50℃
Storage temperature：-40℃～85℃
Interference condition
No drift phenomenon, anti-light
Physical touch
resolution
826 x 462
Report resolution
32767 x 32767
Power system
Single USB powered
Operating Voltage
4.75V-5.25V
Average current
<400mA
4
2. Appearance
Power consumption
<2.0W
Life
60000 hours
Touch
function
features
Touch mode
Finger, pen （Non-capacitors, electromagnetic
pen）
Multi-touch
2, 4, 6, 10, 32, maximum 48points
Response time
10ms
Scanning frame rate
100 frames
Minimum identification
point size
3mm*3mm
Minimum detection
contacts motion
1mm
Shape recognition
support
Fault tolerance
10% discontinuous damaged sensor can still
touch
Supported O/S
Windows 8,Windows 7 ,Windows Vista ,
Windows XP
Software interface
protocol
TUIO Protocol (UDP mode), TUIO Adobe
Flash Mode (TCP mode), Windows 7
Multitouch HID protocol
Input port
USB*1
accessories
CD-ROM drive
with
User manual, qualified
certificate, warranty
card
with
5

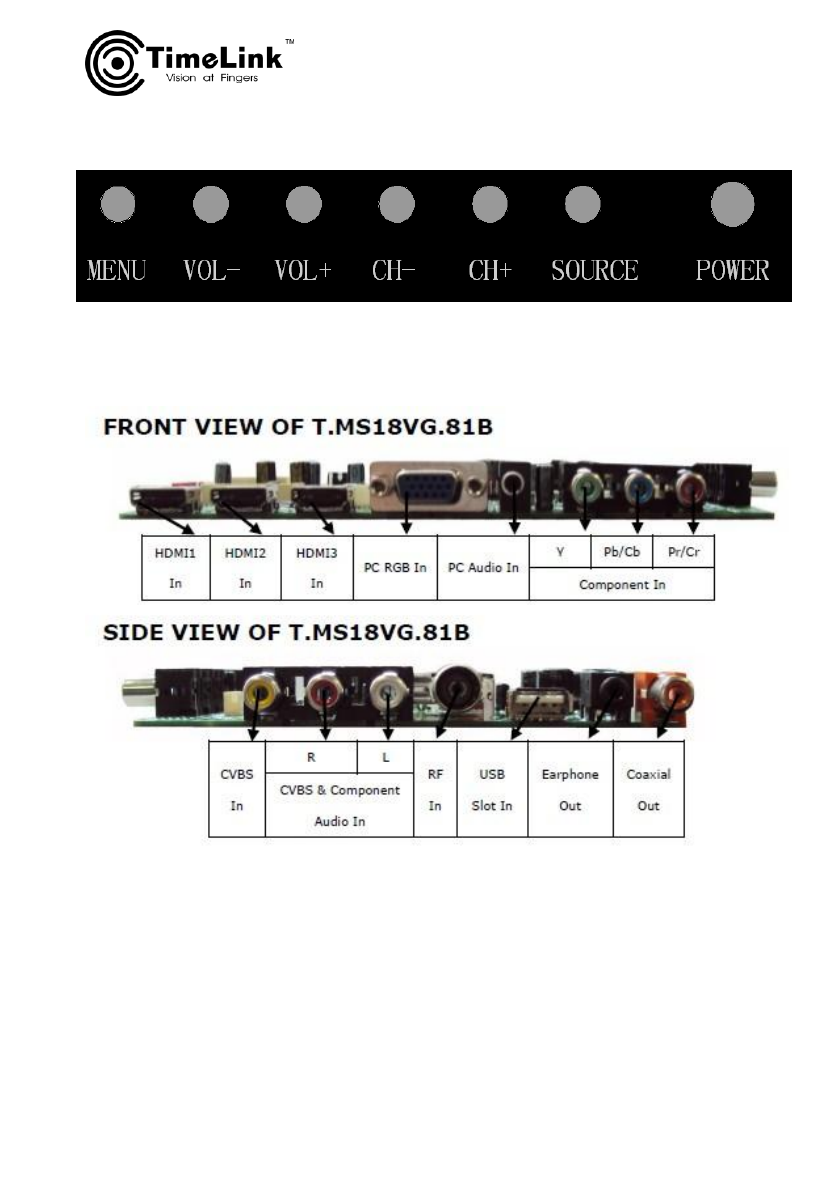

1. Buttons and expansion interface description
2. TV Interface Description

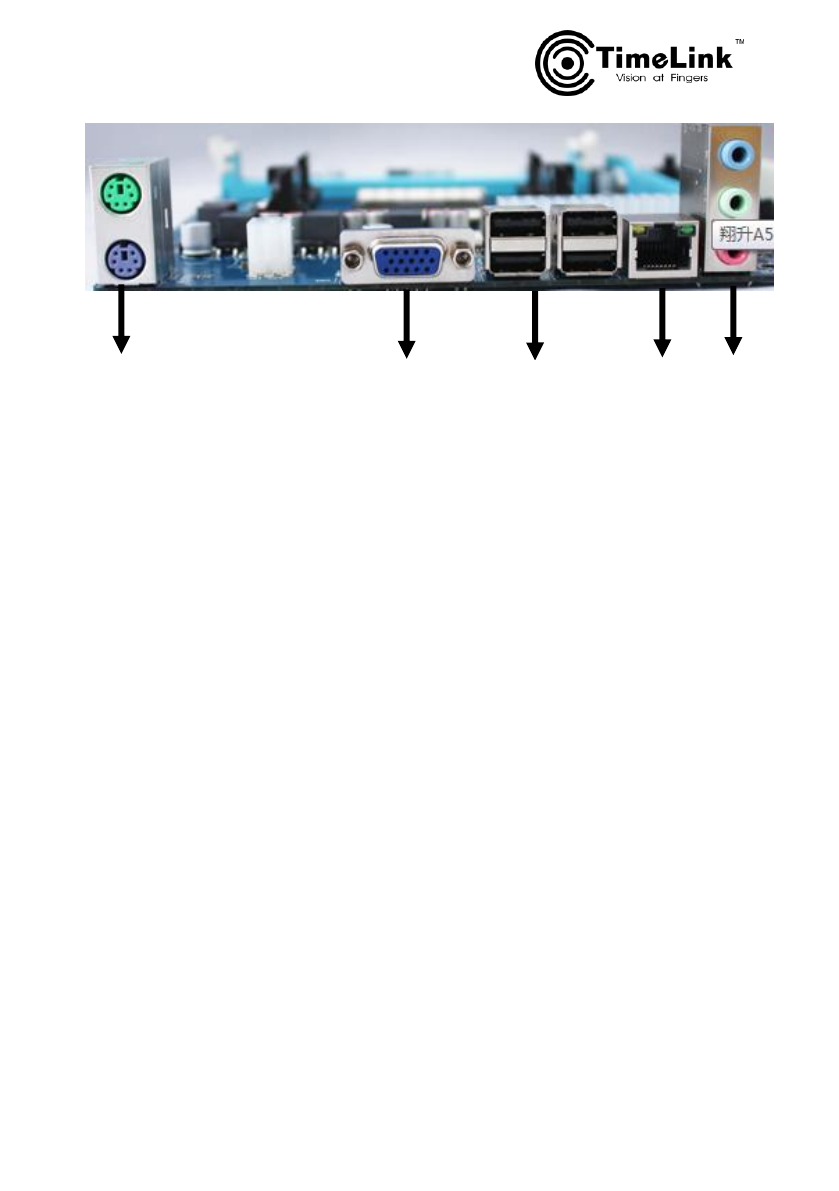

3. External Computer Interface Description
6
On power
Place the TV on the right place, plug one end of the power adapter into the
wall AC power (input voltage :110-240VAC; Frequency: 47/63Hz) socket and
the other end into the power socket on the TV, turn on the power switch, and
you will see power indicator turns red when the TV is in standby mode, if you
press the remote ON / OFF button or press the front-panel key switch, power
indicator will turn green, wait a few seconds and pictures can be seen on the
TV screen.
Off Power
Press the ON / OFF button to keep the TV being in standby mode, turn off the I
/ O switch, then pull the power plug out from the power outlet on the wall.
Notice:
● If not using the machine for long time, you need to turn the unit's power off,
and pull the power plug out from the power outlet on the wall.
● Please be careful when connecting other devices.
● When connecting an external device, please read the operating instructions
of the external device.
PS/2
VG
A
USB*2
LA
N
MIC+AUD
IO
7
● Disconnect the power Connect the external device before you to ensure that
the input and output terminals are connected properly.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
§ 15.21 Changes or modification warning
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
8
Technical and service support
Any technical and service support needed, please visit us Timelink
website at www.timelink.cn
Contact Information
Address: 2nd Floor, B building, Digital Silicon Valley Industrial Zone,
No.89, Hengping Road, Henggang Street, Longgang District, Shenzhen.
E-mail: support@timelink.cn
Tel: +86（755）82838577
Fax: +86（755）82838515
National Service Hotline: 400-711-6260
