USER’S MANUAL TITAN Fitness module TBSD01A Powered by COVE July, 2017
Revision Sheet Release No. Date Revision Description Rev. 0 25/07/2017 Created Rev. 1 8/11/2017 Functional description
TABLE OF CONTENTS 1.0 Introduction:............................................................................ 1 2.0 Dashboard ............................................................................... 2 3.0 Profile ...................................................................................... 3 4.0 Fitness Screen ........................................................................ 4 5.0 Notifications & Profile ............................................................ 5 6.0 Fitness Covers ........................................................................ 6 7.0 Fitness Covers List ................................................................. 7 8.0 Other Information ................................................................... 8 8.0.1 Produce & Owned ........................................................... 8 8.0.2 Caution in Battery Usage ............................................. 8

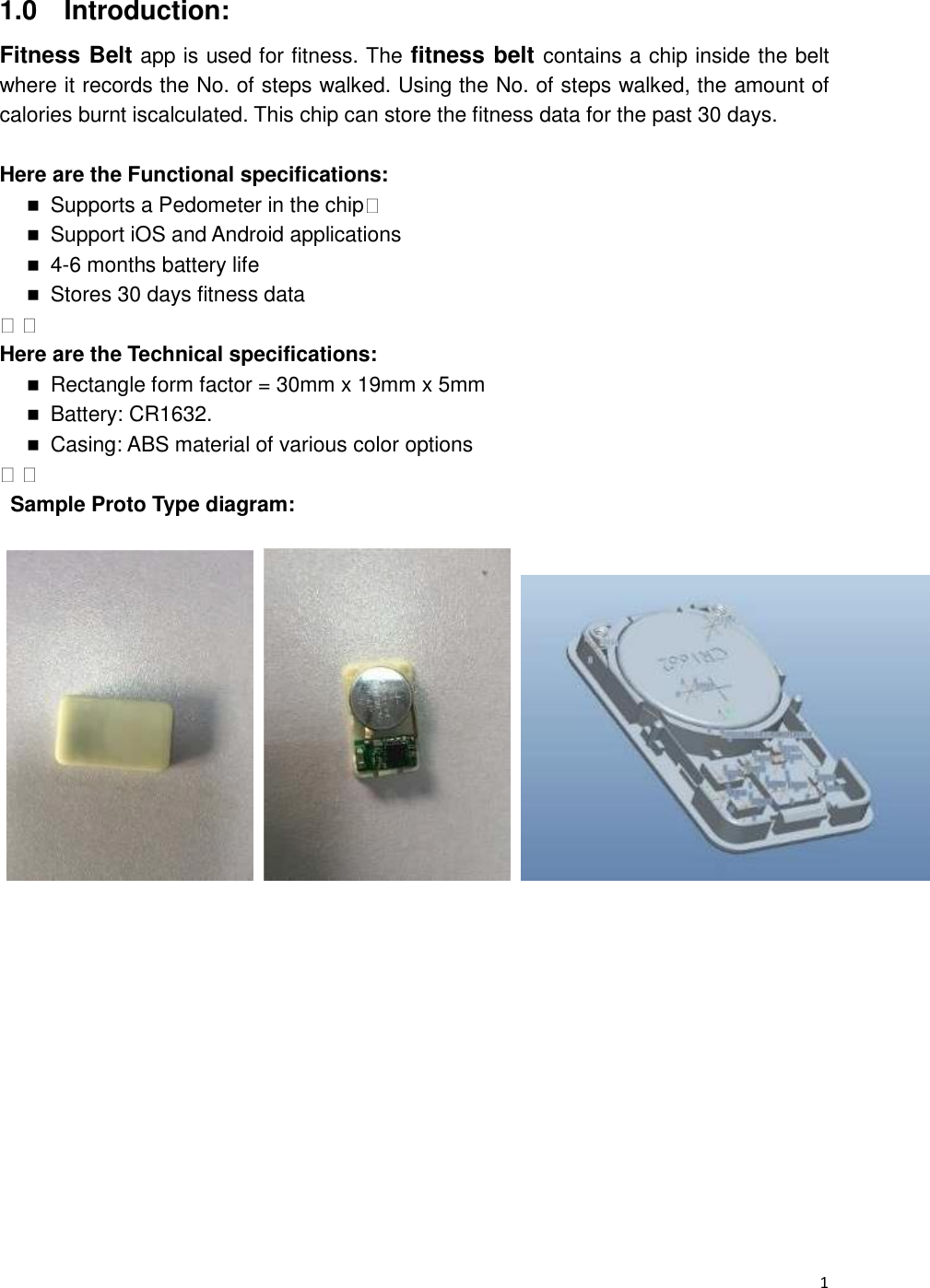

1 1.0 Introduction: Fitness Belt app is used for fitness. The fitness belt contains a chip inside the belt where it records the No. of steps walked. Using the No. of steps walked, the amount of calories burnt iscalculated. This chip can store the fitness data for the past 30 days. Here are the Functional specifications:  Supports a Pedometer in the chip  Support iOS and Android applications  4-6 months battery life  Stores 30 days fitness data Here are the Technical specifications:  Rectangle form factor = 30mm x 19mm x 5mm  Battery: CR1632.  Casing: ABS material of various color options Sample Proto Type diagram:

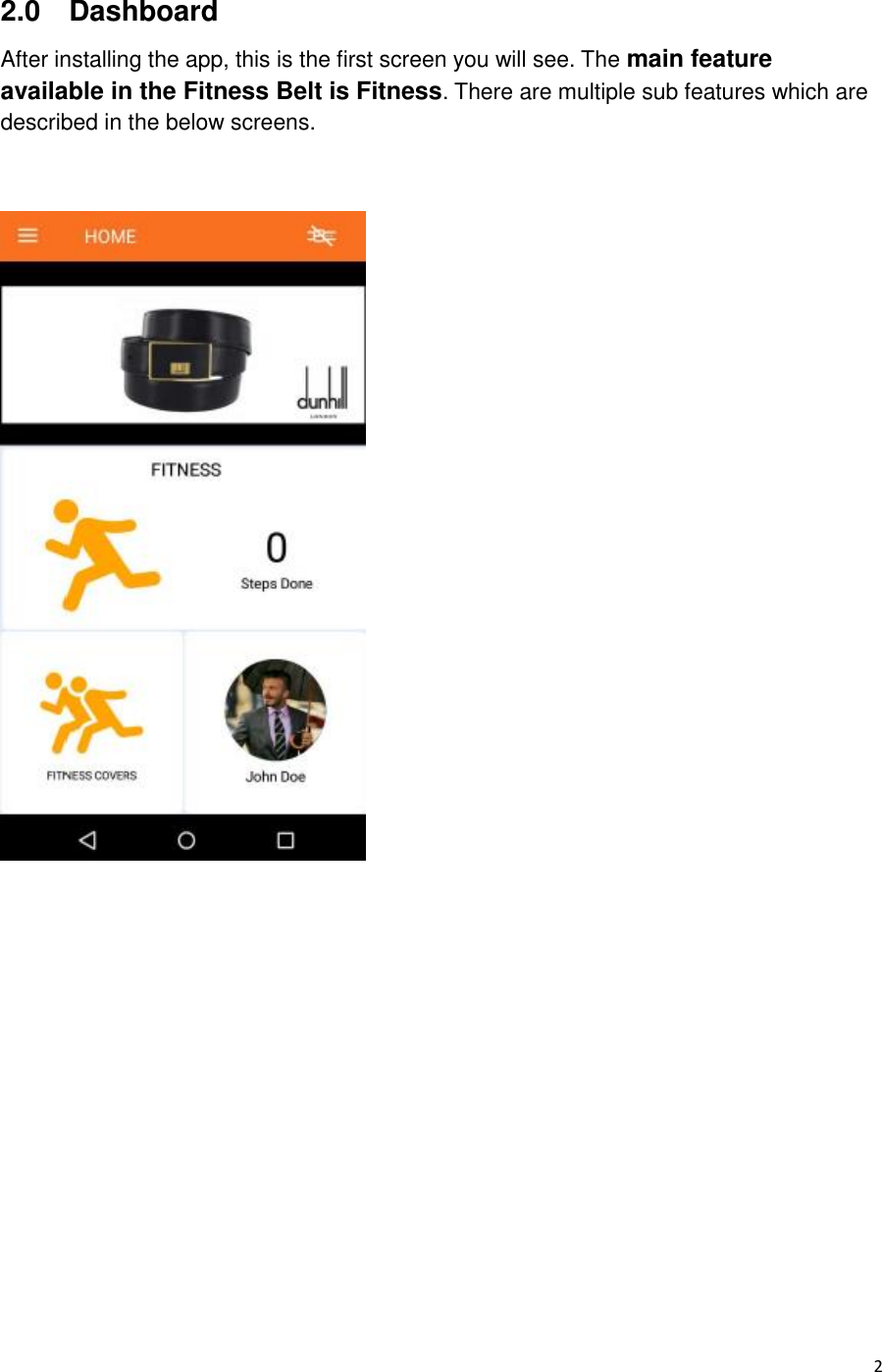

2 2.0 Dashboard After installing the app, this is the first screen you will see. The main feature available in the Fitness Belt is Fitness. There are multiple sub features which are described in the below screens.

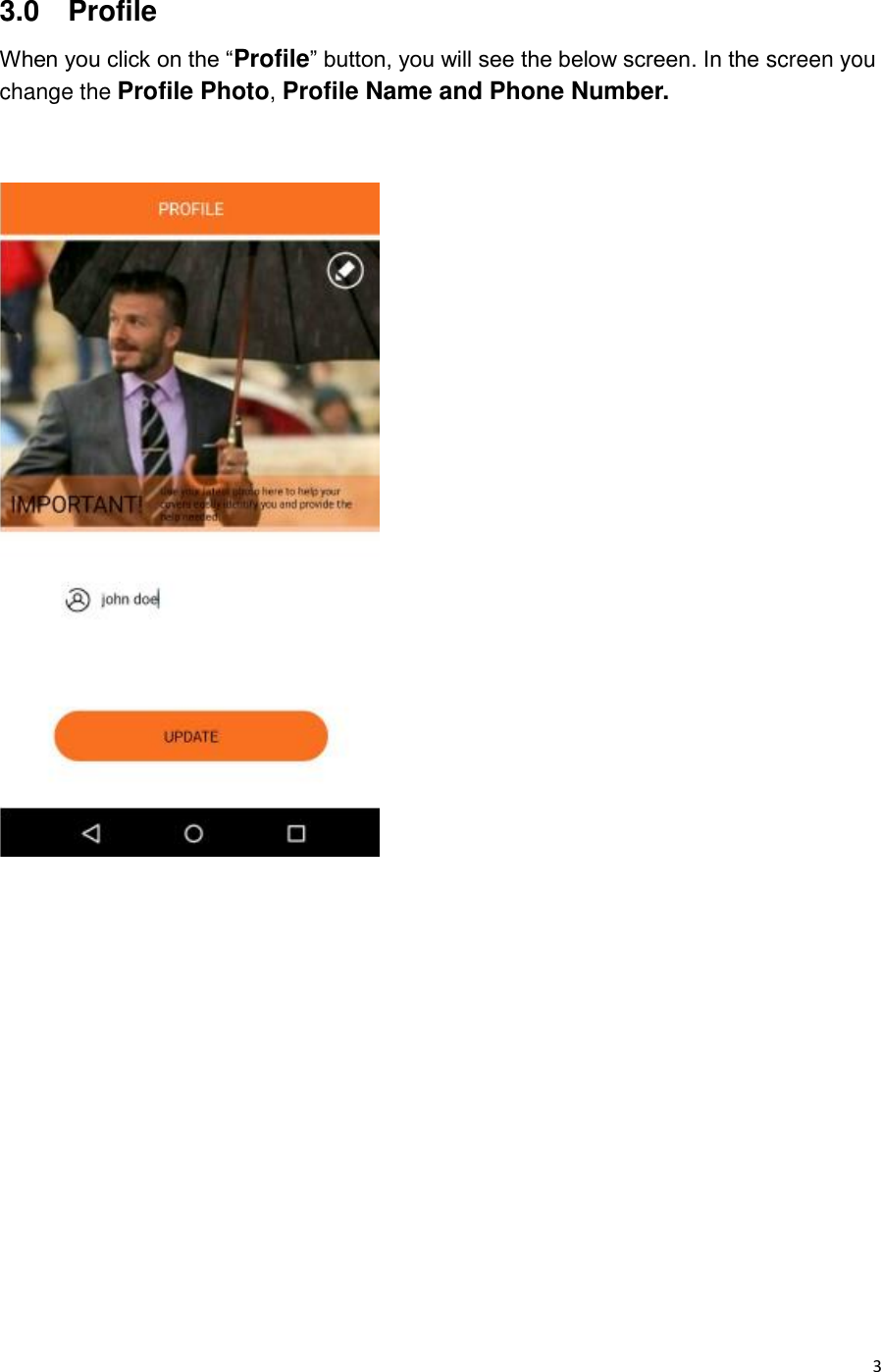

3 3.0 Profile When you click on the “Profile” button, you will see the below screen. In the screen you change the Profile Photo, Profile Name and Phone Number.

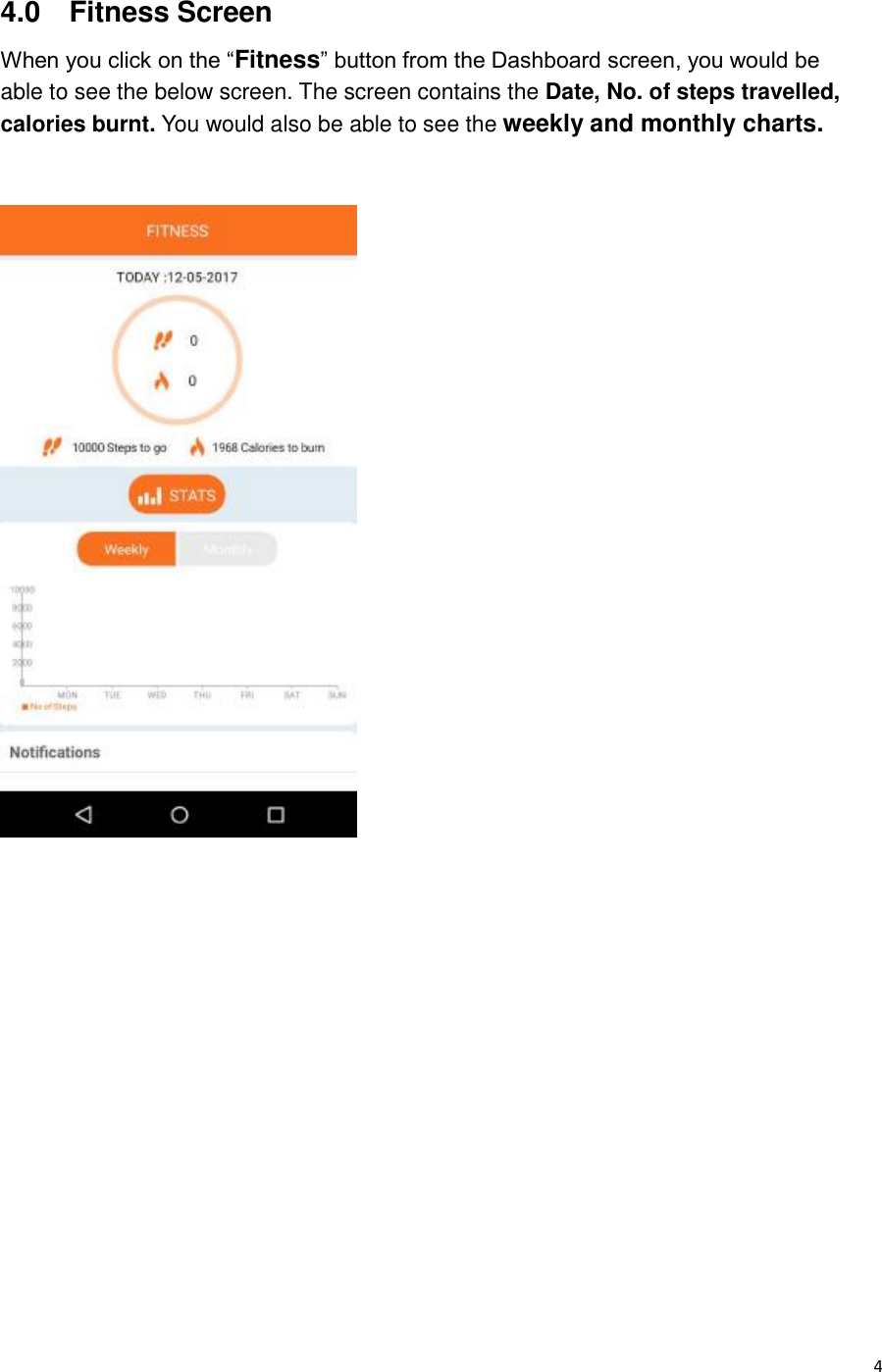

4 4.0 Fitness Screen When you click on the “Fitness” button from the Dashboard screen, you would be able to see the below screen. The screen contains the Date, No. of steps travelled, calories burnt. You would also be able to see the weekly and monthly charts.

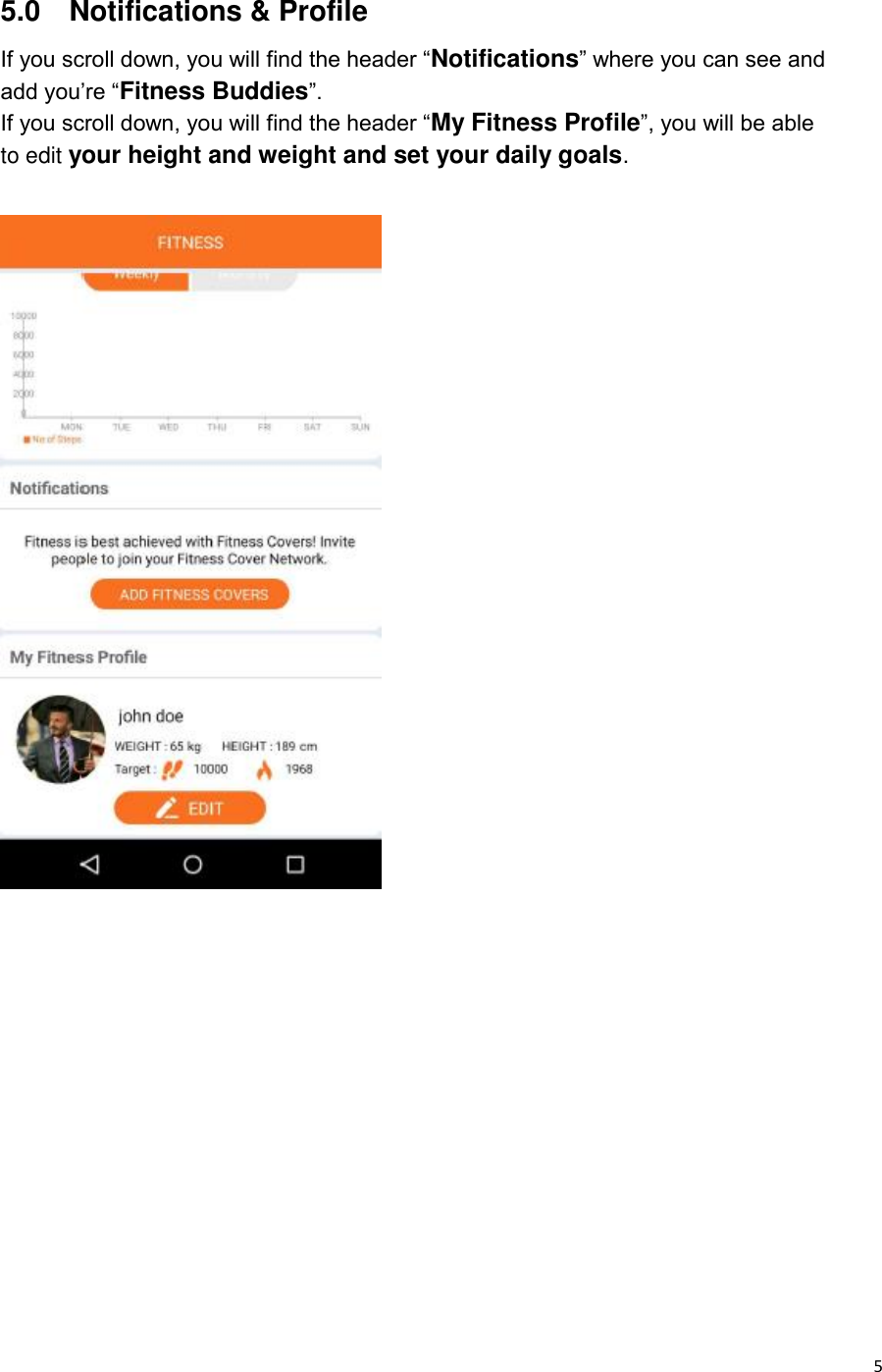

5 5.0 Notifications & Profile If you scroll down, you will find the header “Notifications” where you can see and add you’re “Fitness Buddies”. If you scroll down, you will find the header “My Fitness Profile”, you will be able to edit your height and weight and set your daily goals.

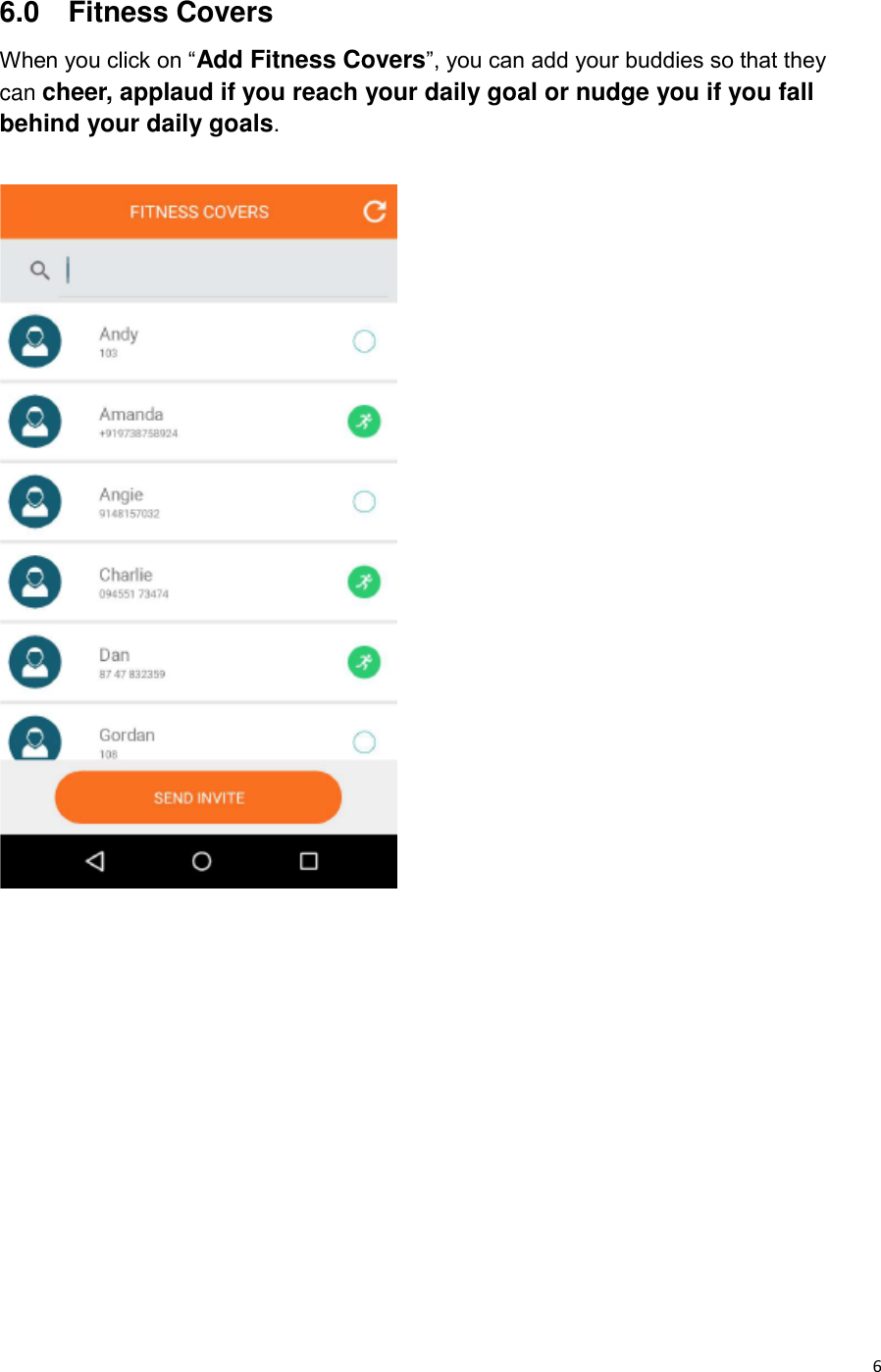

6 6.0 Fitness Covers When you click on “Add Fitness Covers”, you can add your buddies so that they can cheer, applaud if you reach your daily goal or nudge you if you fall behind your daily goals.

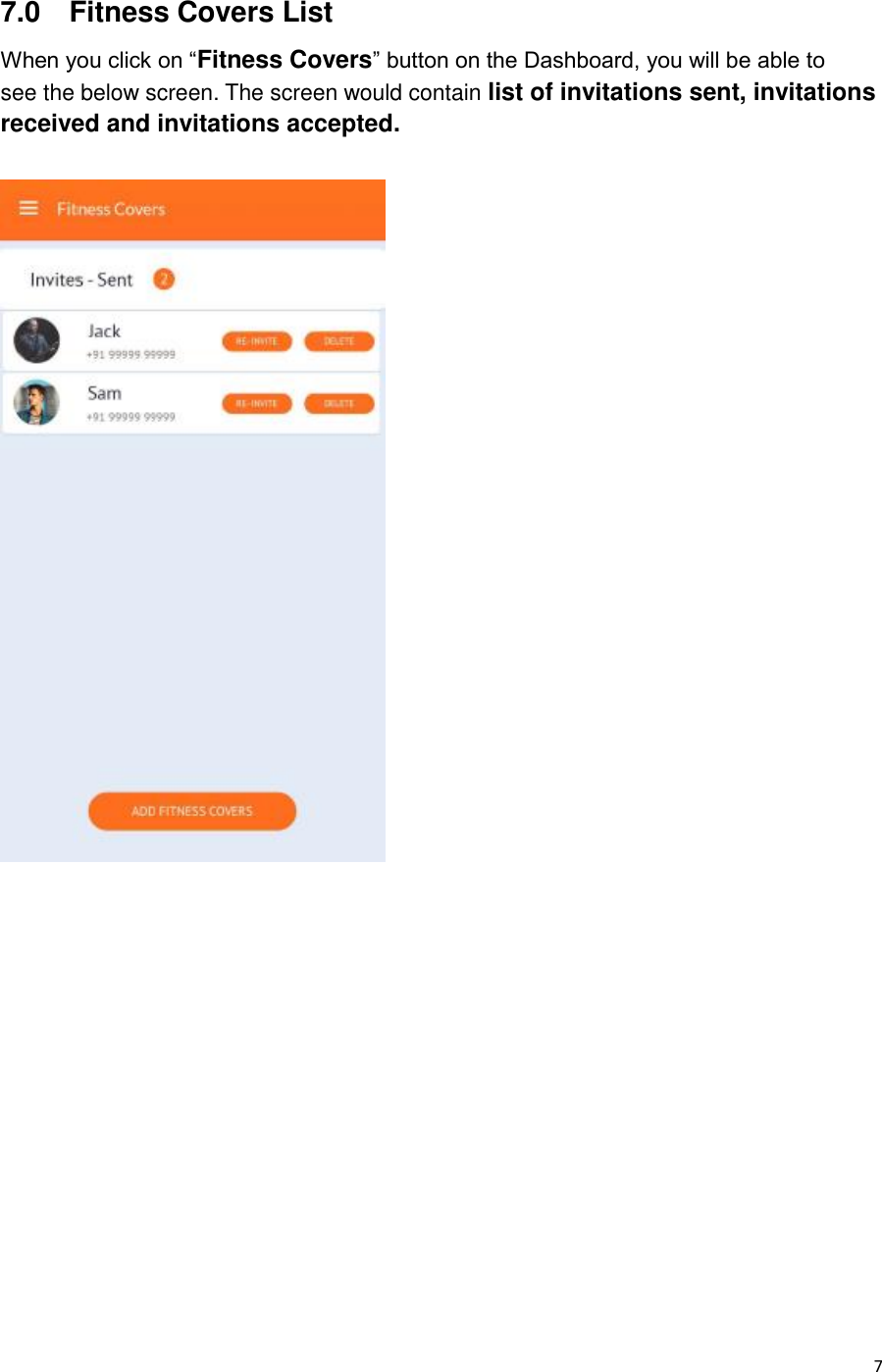

7 7.0 Fitness Covers List When you click on “Fitness Covers” button on the Dashboard, you will be able to see the below screen. The screen would contain list of invitations sent, invitations received and invitations accepted.

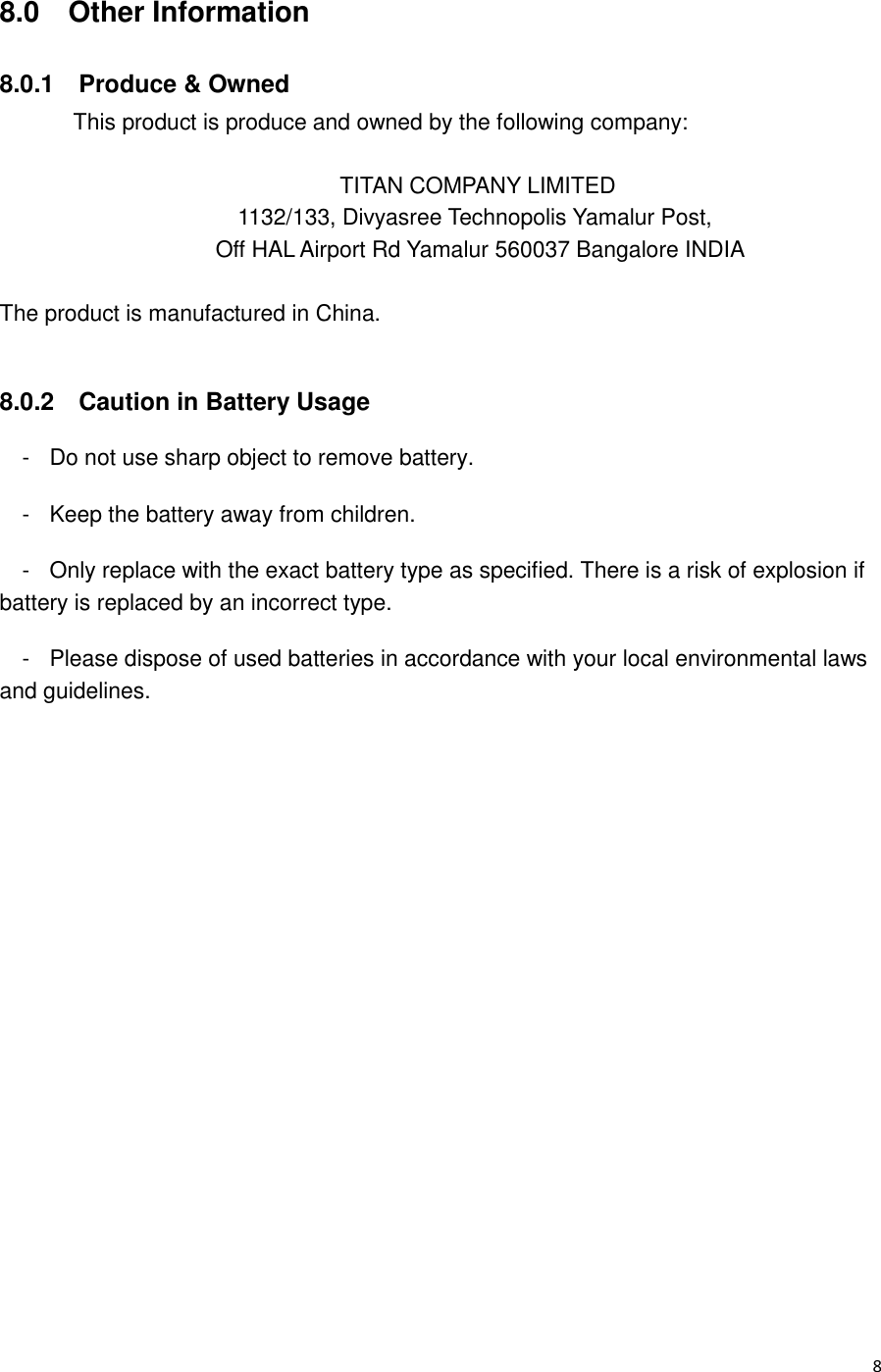

8 8.0 Other Information 8.0.1 Produce & Owned This product is produce and owned by the following company: TITAN COMPANY LIMITED 1132/133, Divyasree Technopolis Yamalur Post, Off HAL Airport Rd Yamalur 560037 Bangalore INDIA The product is manufactured in China. 8.0.2 Caution in Battery Usage - Do not use sharp object to remove battery. - Keep the battery away from children. - Only replace with the exact battery type as specified. There is a risk of explosion if battery is replaced by an incorrect type. - Please dispose of used batteries in accordance with your local environmental laws and guidelines.
