Telephone: 1-906-863-4401 www.toastmastercorp.com

Model # Page

Ordering 1

Information

Warranty 2

Pop-up Toasters 4

TP209 TP224 5

TP409 TP4C09 5

TP424 TP430 5

BTW09 BTW24 6

HT409 HT4C09 6

HT424 6

Conveyor Toasters 7

TC13A3674 TC13A3663 8

TC13A3666 8

TC17D3674 TC17D3663 9

TC17D3666 TC17D3666UK 9

TC21D3666 TC21D3663 10

TC21D3663UK 10

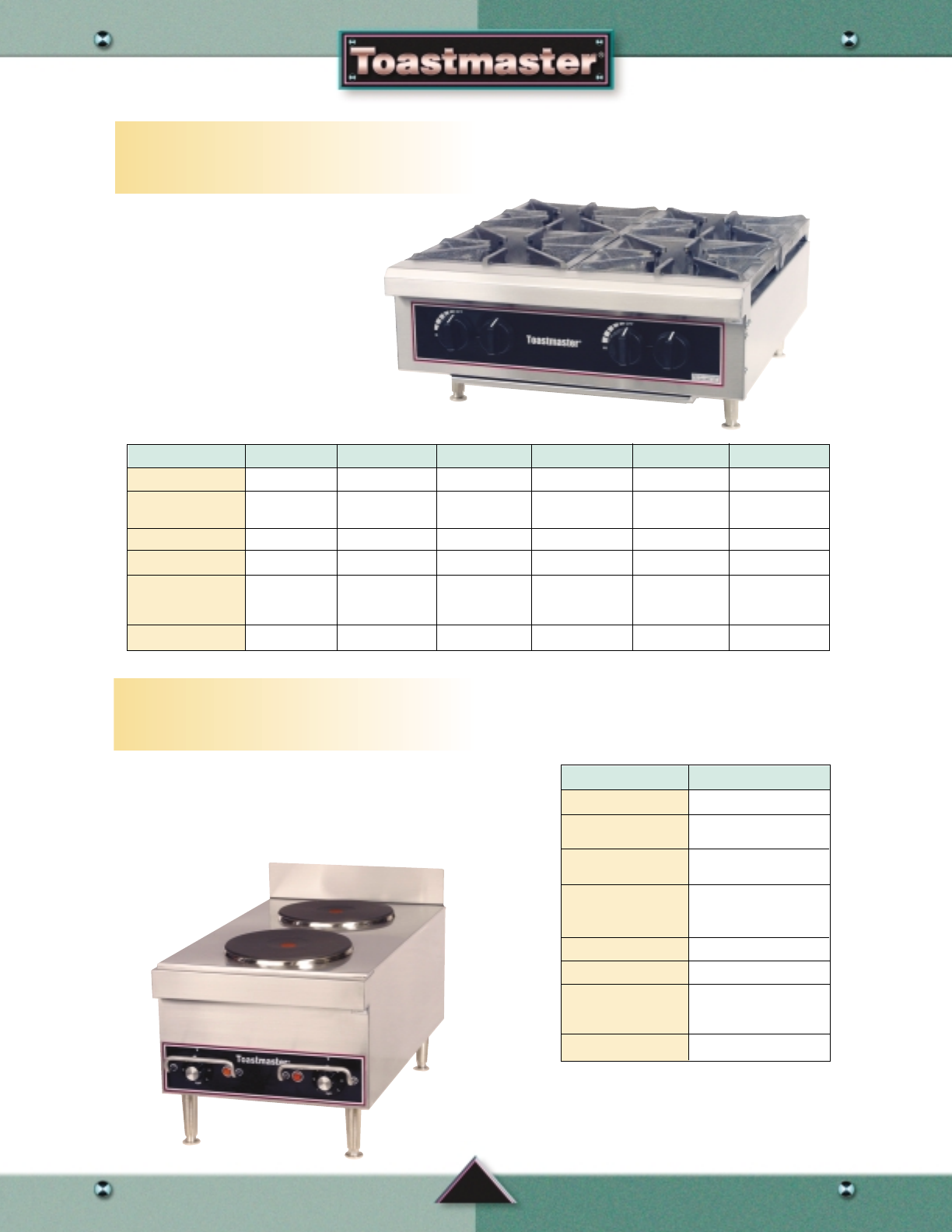

Countertop Hotplate 11

Gas TMDO1200 TMDO1200P 12

TMDO2400 TMDO2400P 12

TMDO3600 TMDO3600P 12

Electric TECHP113272 12

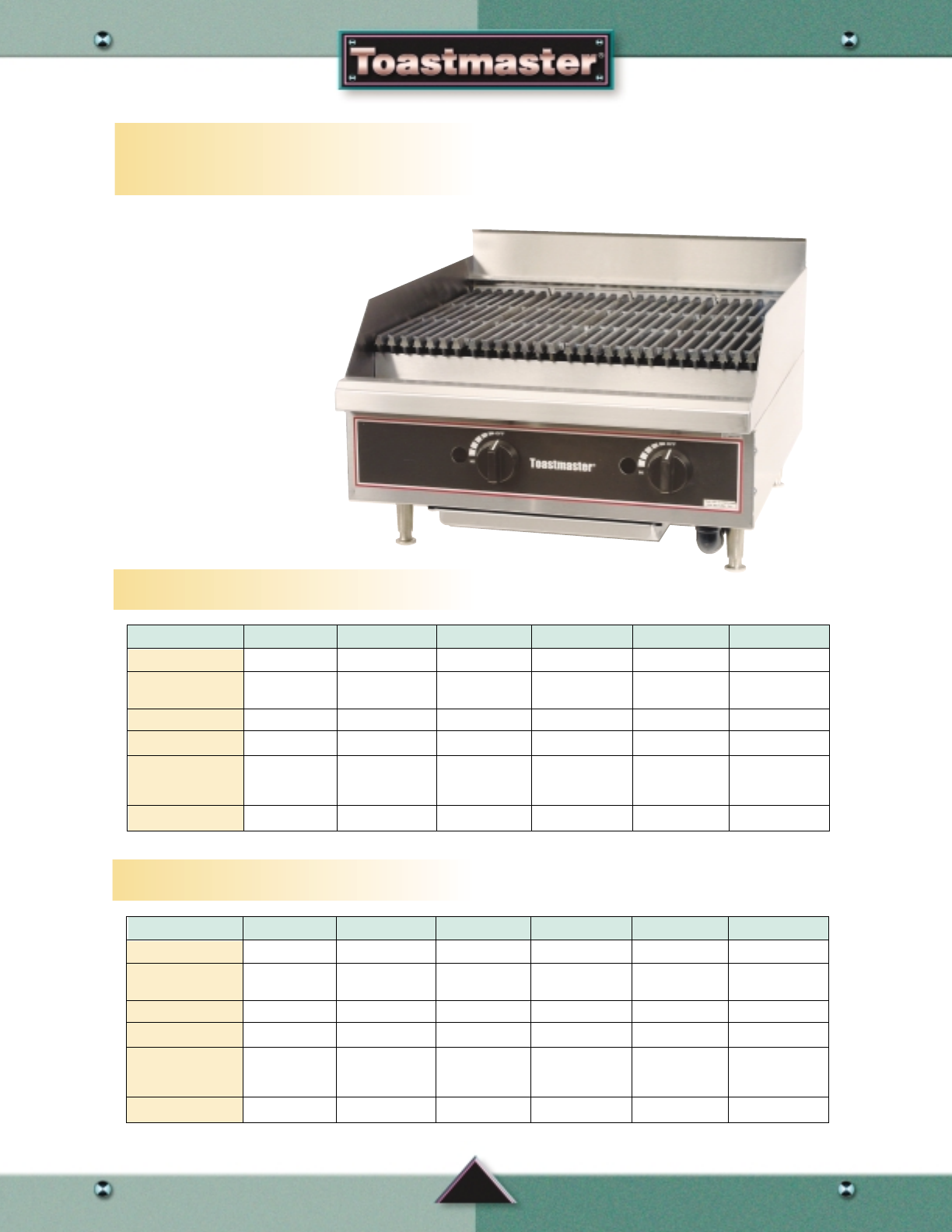

Countertop Charbroiler 13

TMDC2400 TMDC2400P 14

TMDC3600 TMDC3600P 14

TMDC4800 TMCD4800P 14

TMDCL2400 TMDCL2400P 14

TMDCL3600 TMDCL3600P 14

TMDCL4800 TMDCL4800P 14

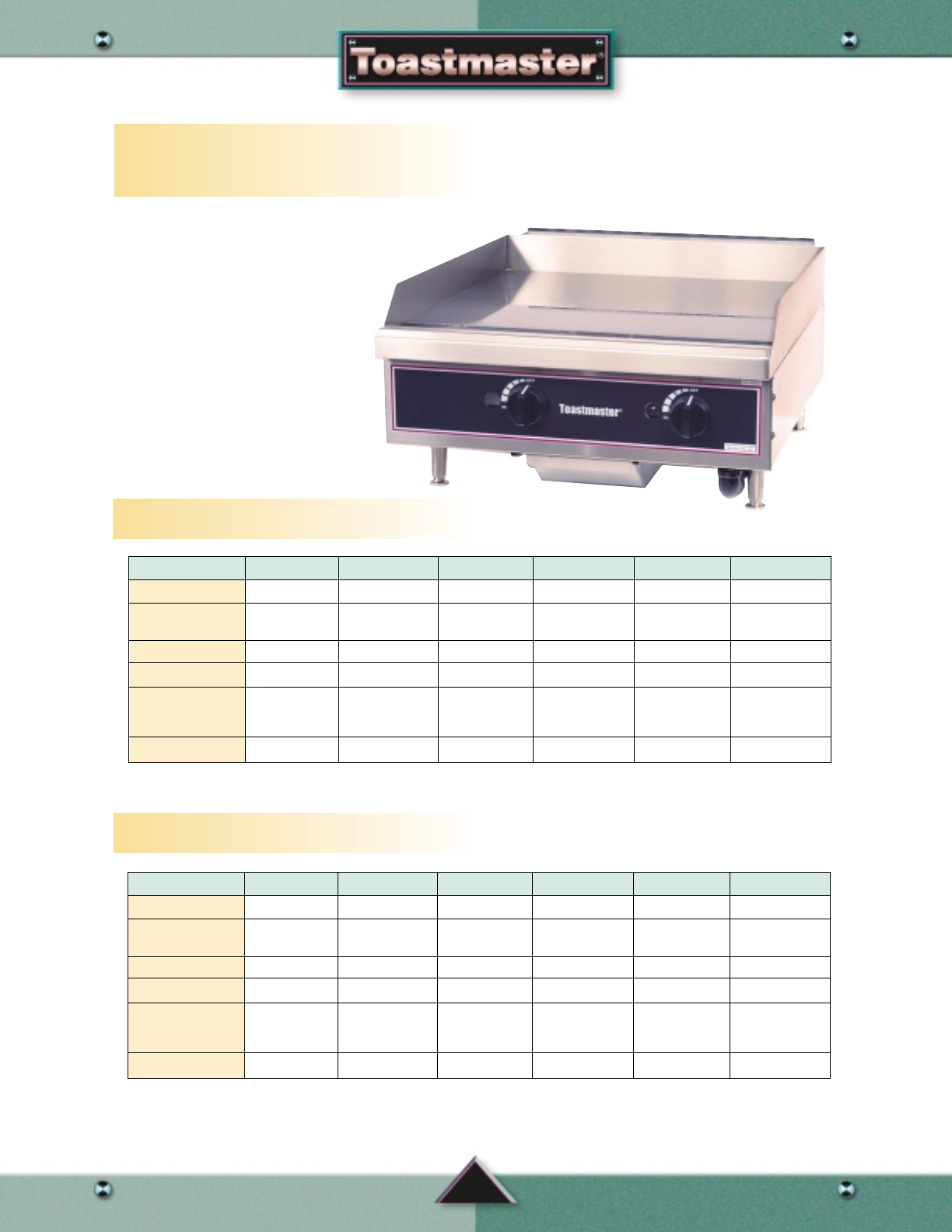

Countertop Griddle 15

Gas TMDG2400T TMDG2400TP 16

TMDG3600T TMDG3600TP 16

TMDG2400 TMDG2400P 16

TMDG3600 TMDG3600P 16

TMDG4800 TMDG4800P 16

Electric TECG732467 TECG732470 17

TECG733667 TECG733670 17

TECG734867 TECG734870 17

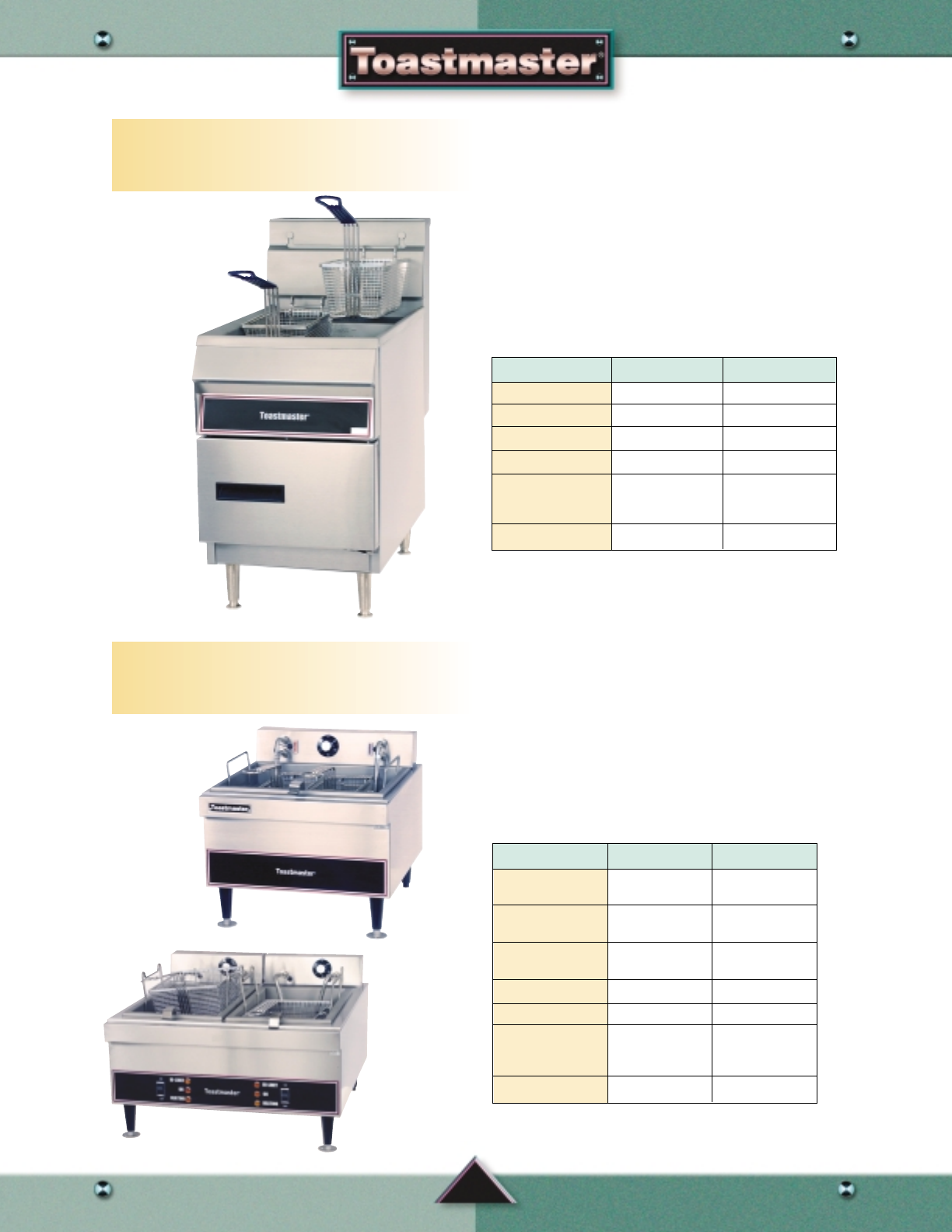

Fryers 18

TCGF1200 TCGF1200P 19

TECF143970 TECF142772 19

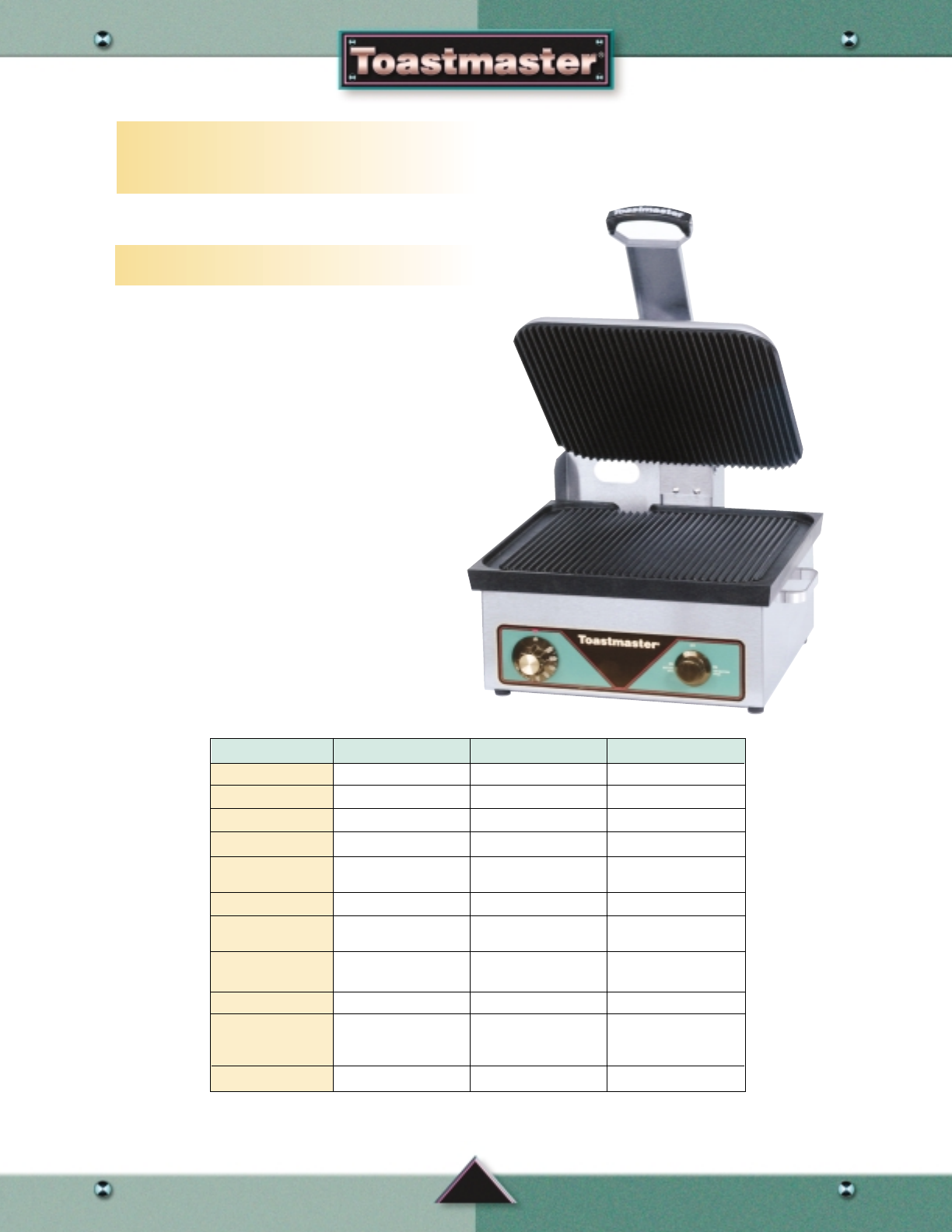

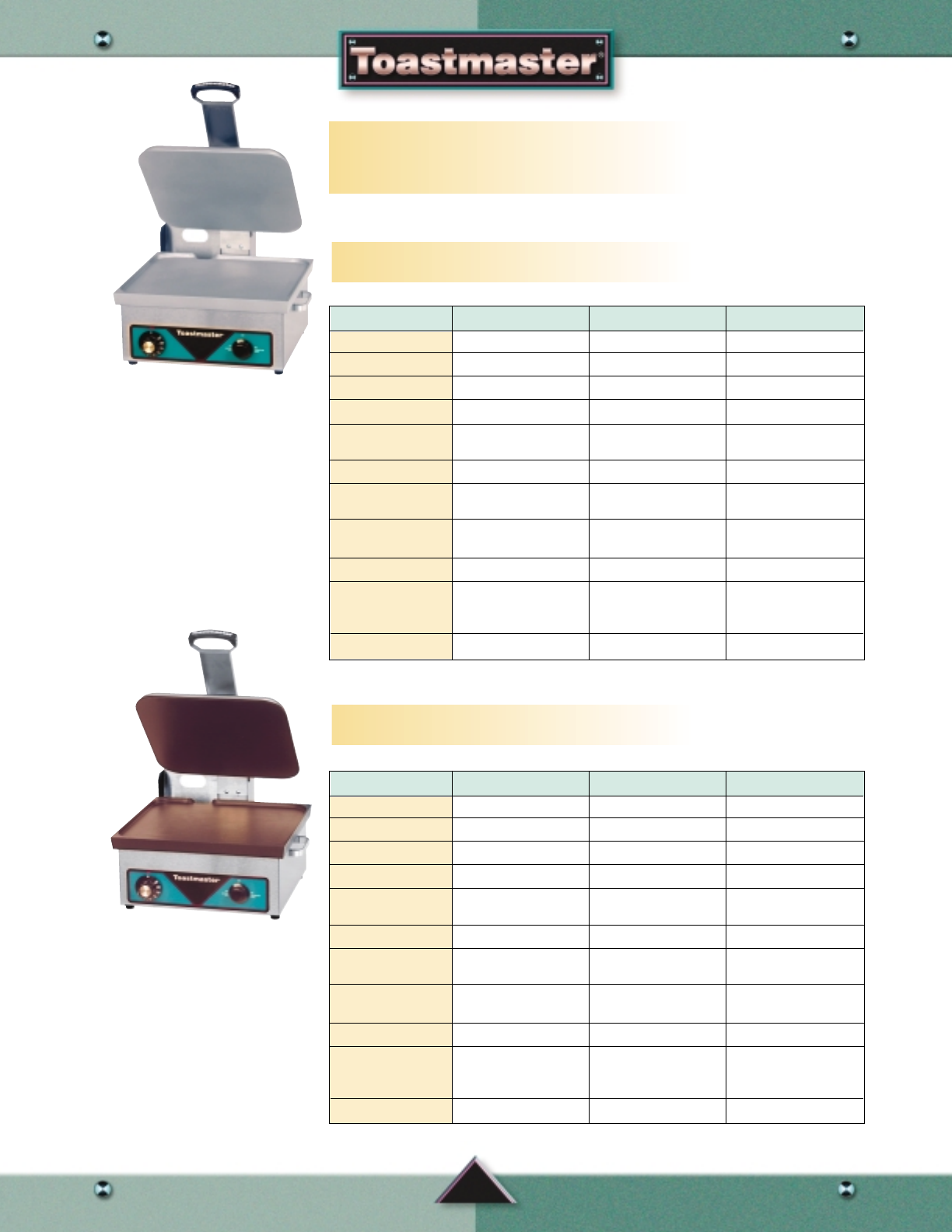

Sandwich Grills 20

A710674 A710663 21

A710666 A710SA674 21

A710SA663 A710SA666 21

A710PA674 A710PA663 22

A710PA666 22

Model # Page

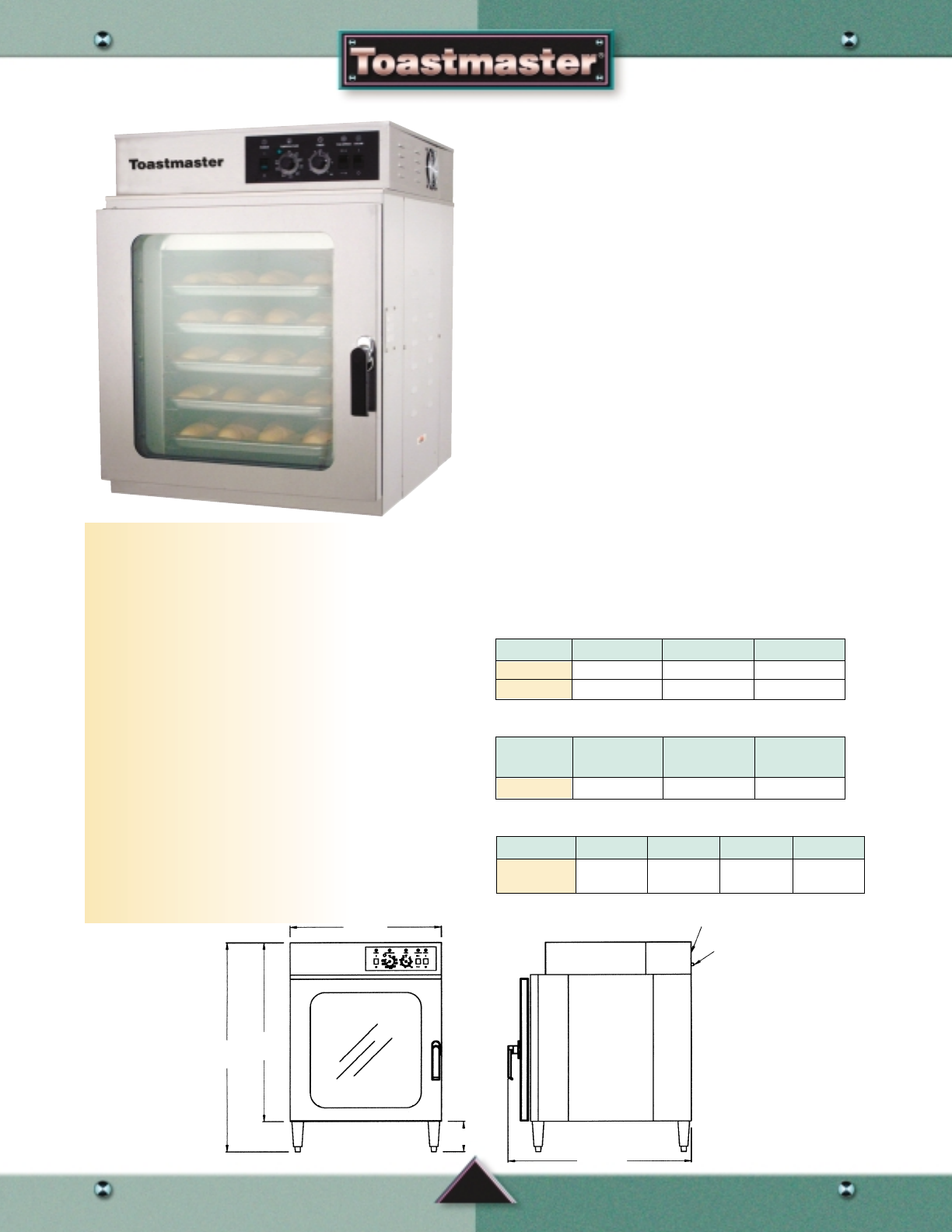

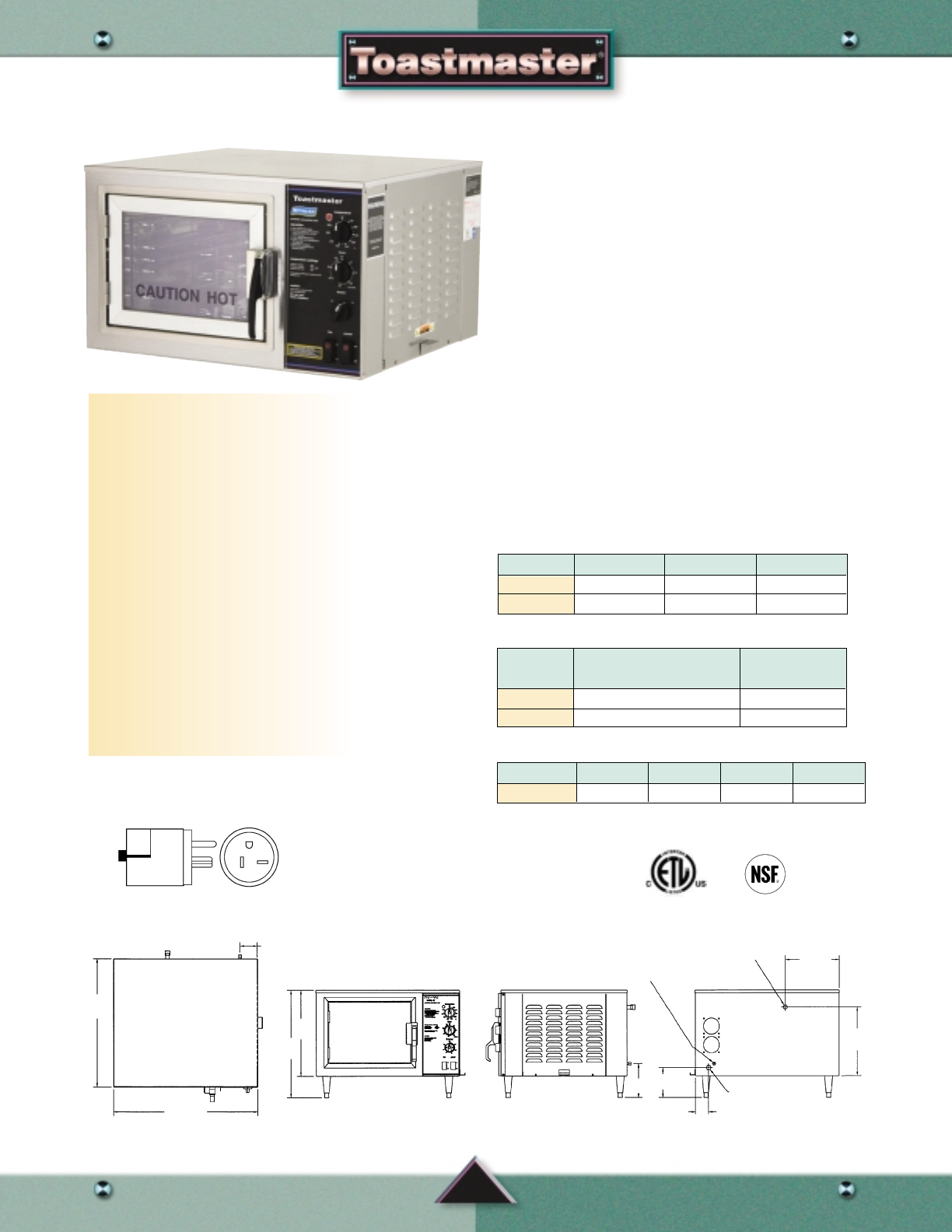

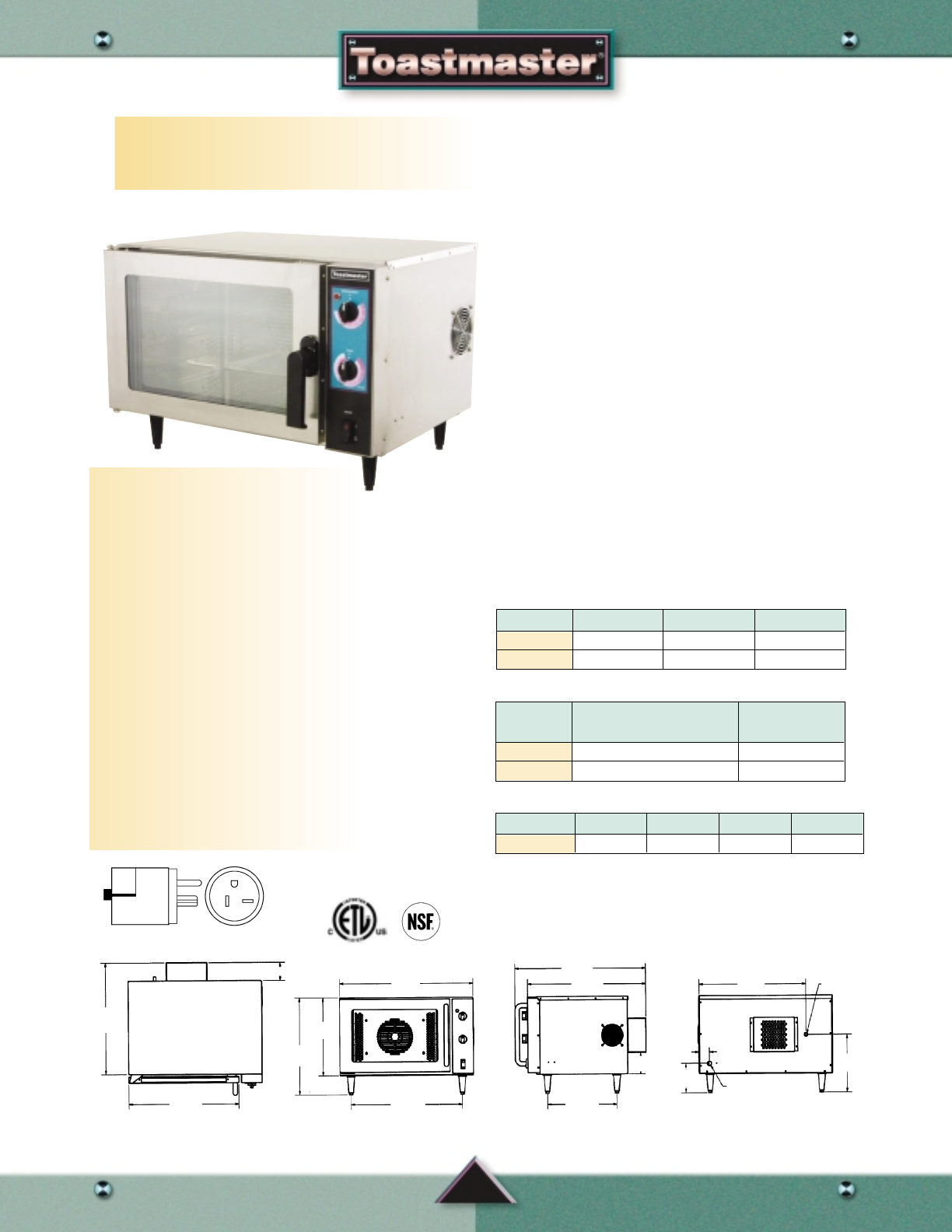

Convection Ovens 23

XO-1N 24

RM-5T 25

RA-5T 26

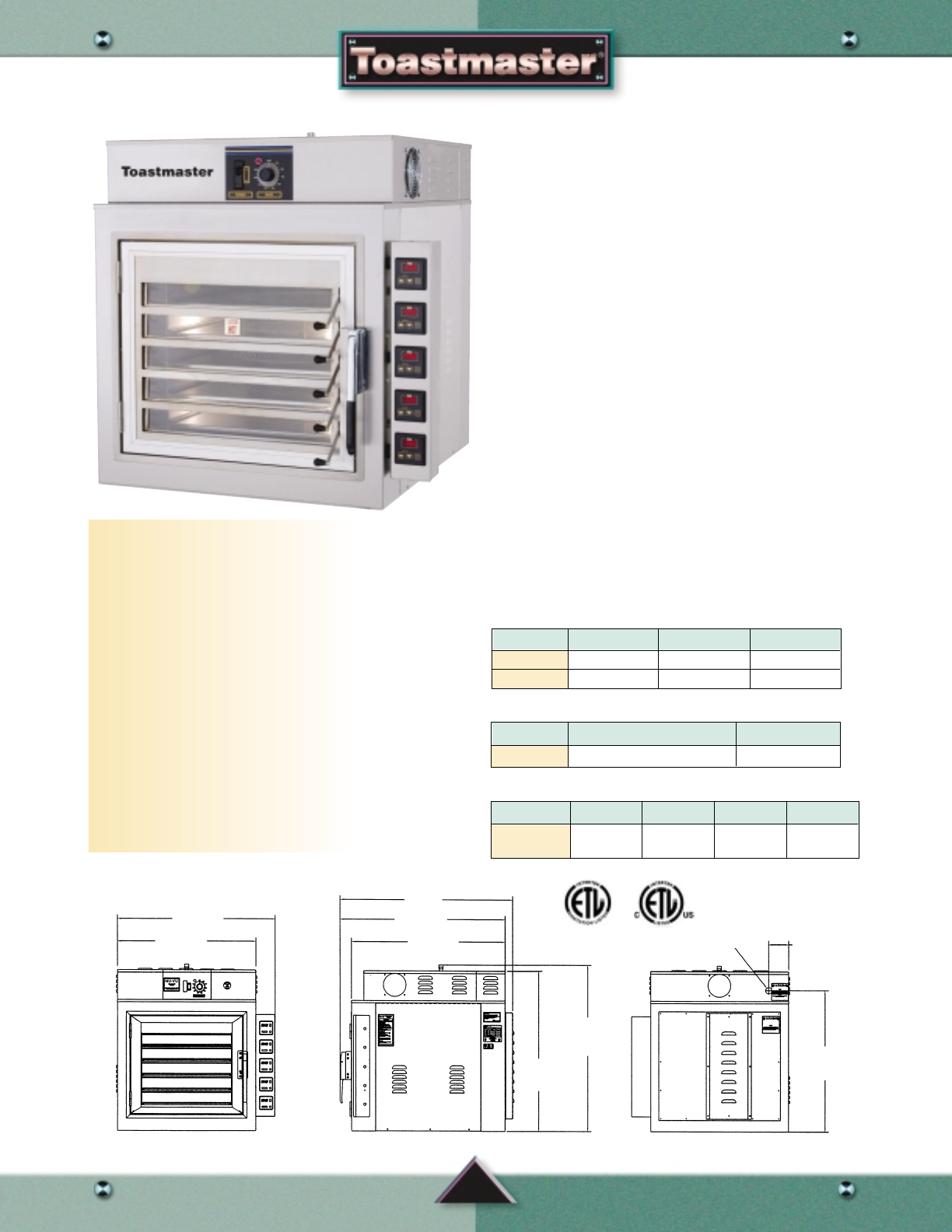

Pizza Ovens 27

PMA-5/18 28

Smokers 29

ES-6 30

ES-13 31

Slo-Cook’n Hold 32

SC-7 33

SC-14 34

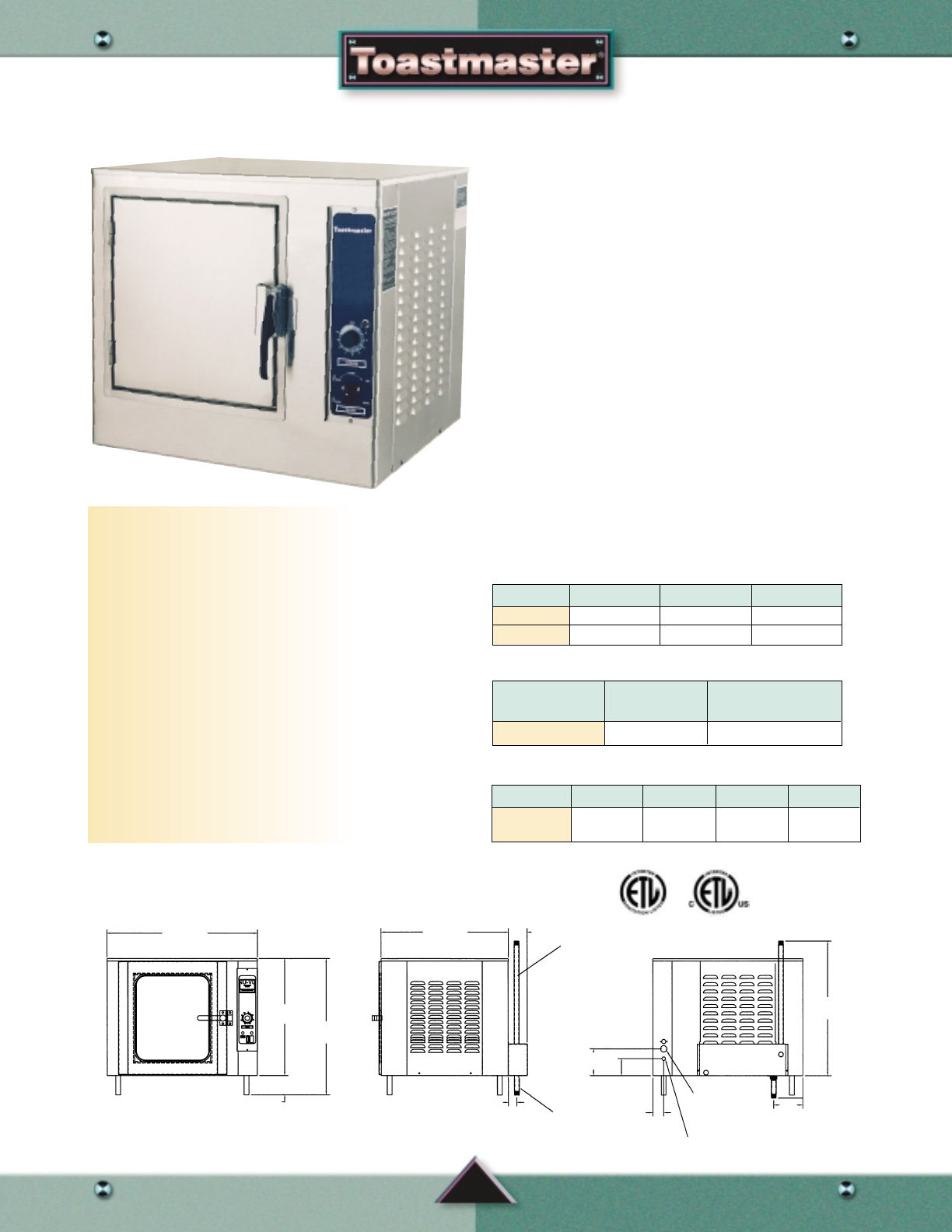

Steam Equipment 35

XO-1STM 36

XO-1MSS 37

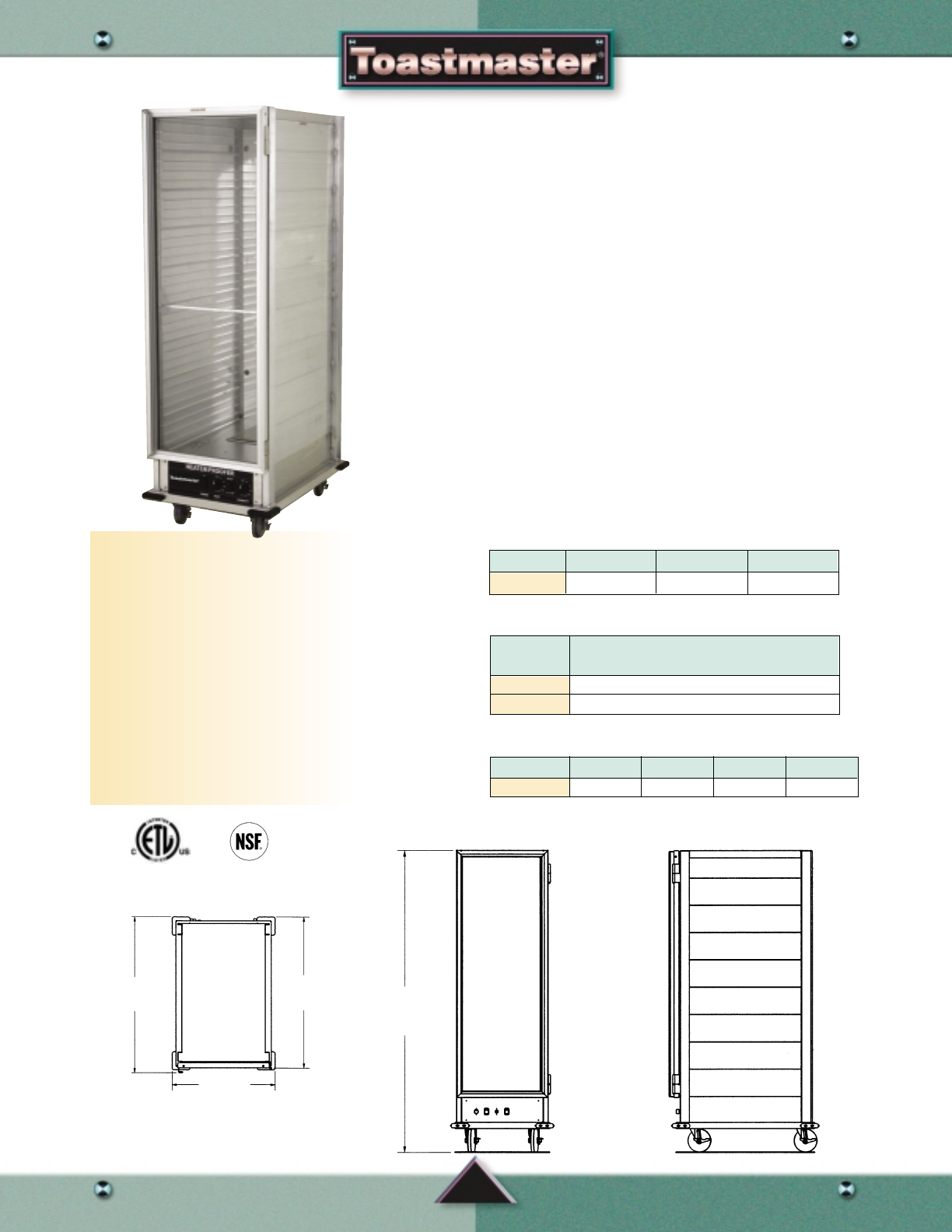

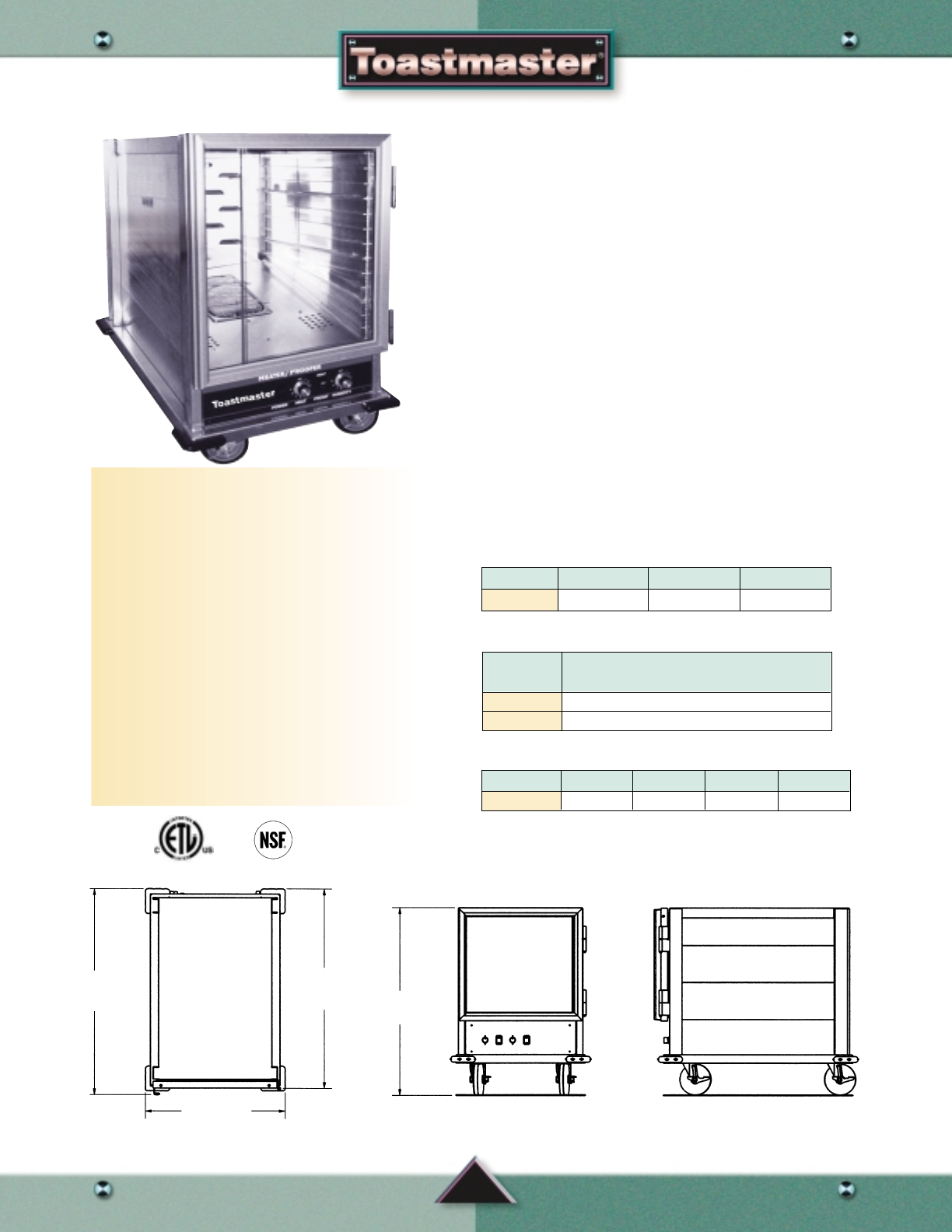

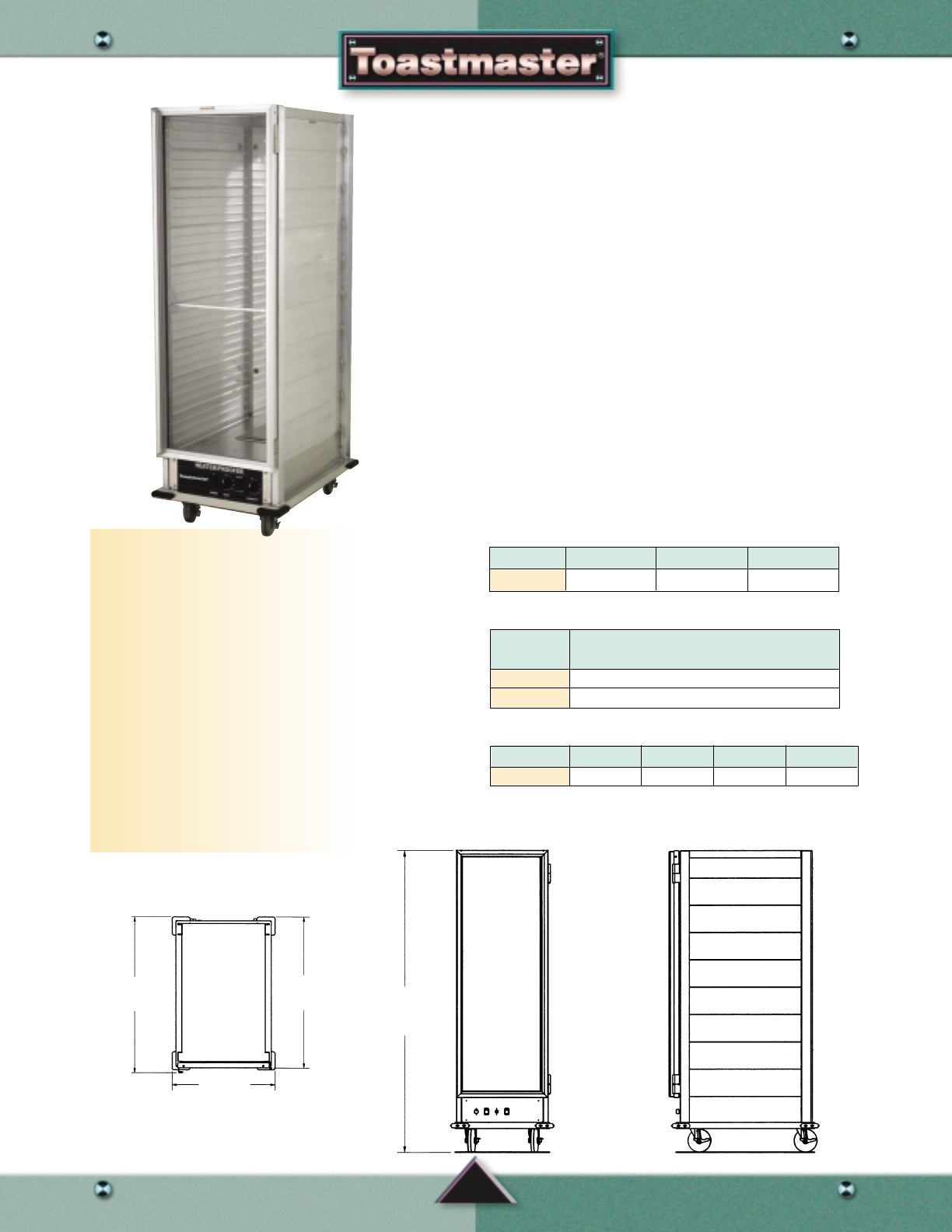

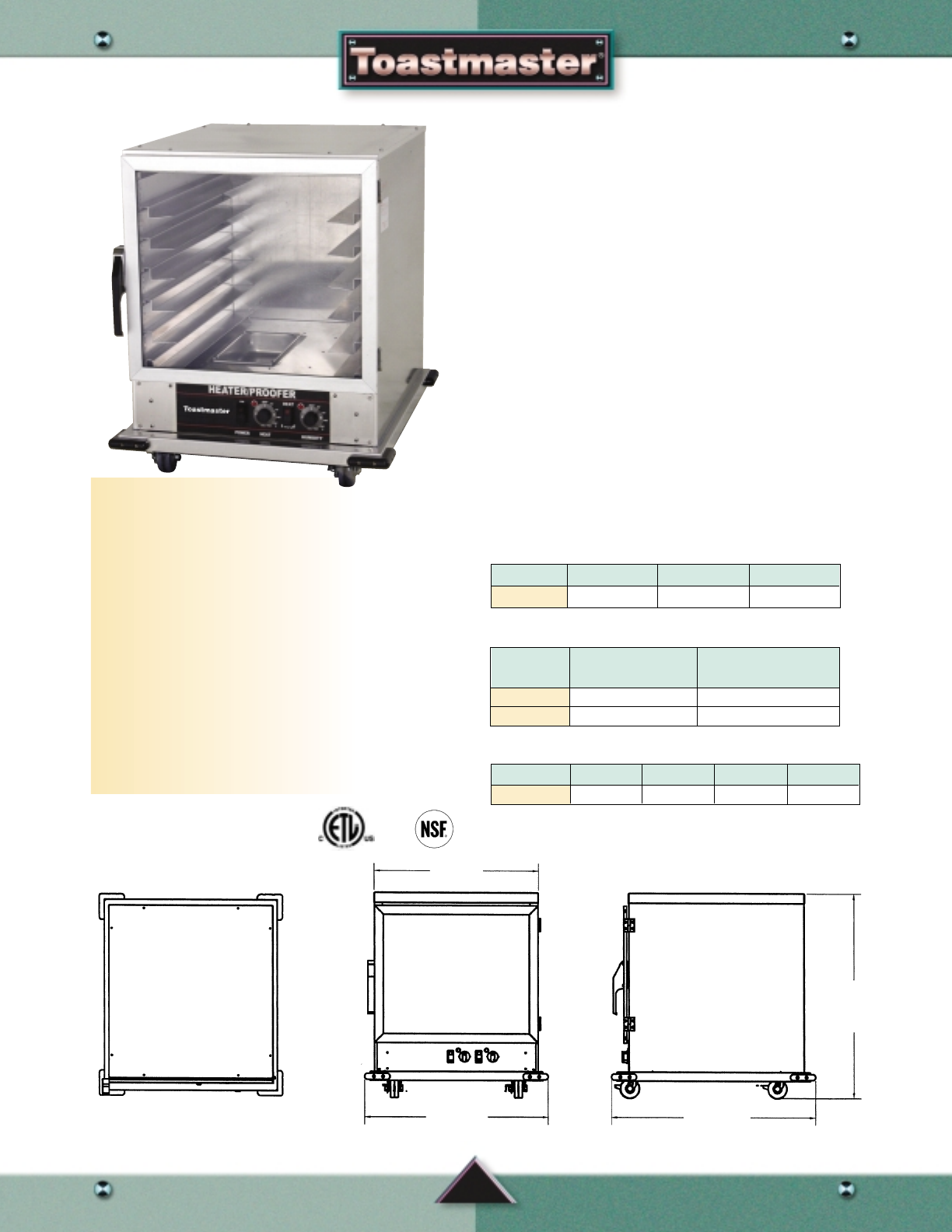

Heater/Proofers 38

9451-HP34CDNF 39

9451-HP12CDNF 40

E17UAC-INS-20 41

E6UAC-INS-20 42

E9451-HP34CDNF 43

E9451-HP12CDNF 44

E17UAC-20 45

E6UAC-20 46

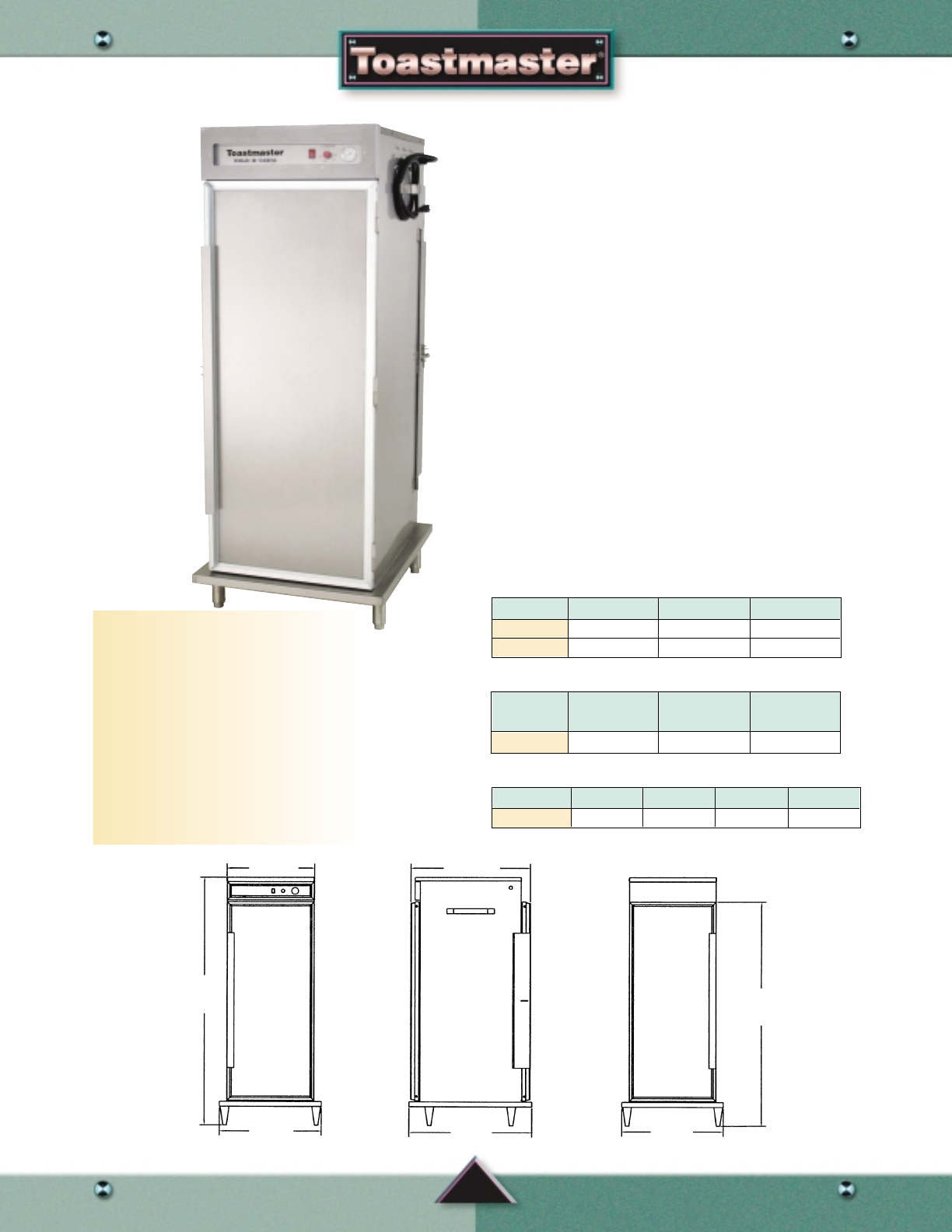

Heated Holding 47

7500-H-UA13T 48

7500-H-UA13TP 49

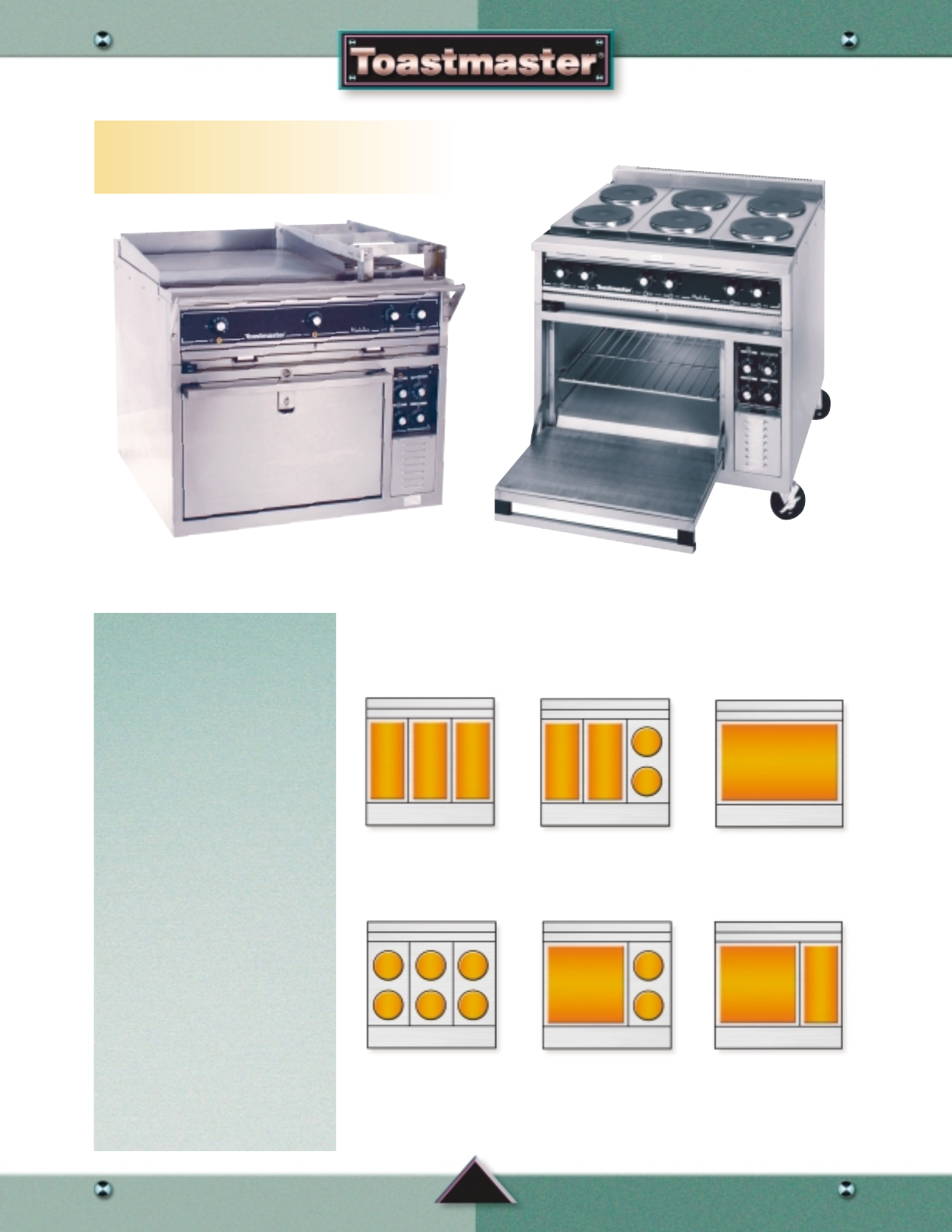

Ranges RH36C1 RH36C2 50-51

RH36C3 RH36C4 50-51

RH36C5 RH36C6 50-51

RHD36D1 RH36D1 50-51

RH36D2 RH36D3 50-51

RH36D4 RH36D5 50-51

RH36D6 50-51

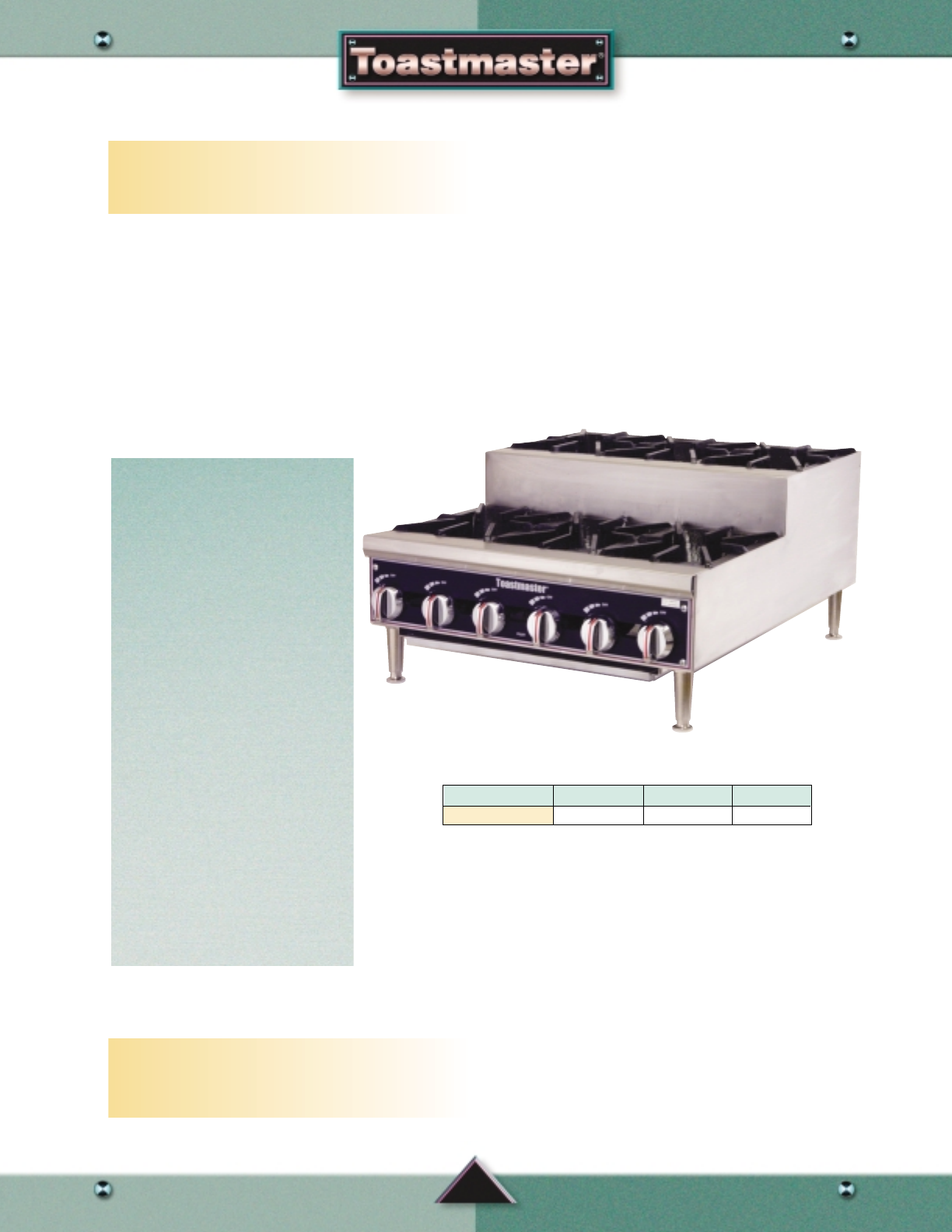

Step-up TMSO 624 TMSO 416 52-53

Open Top TMSO 208 52-53

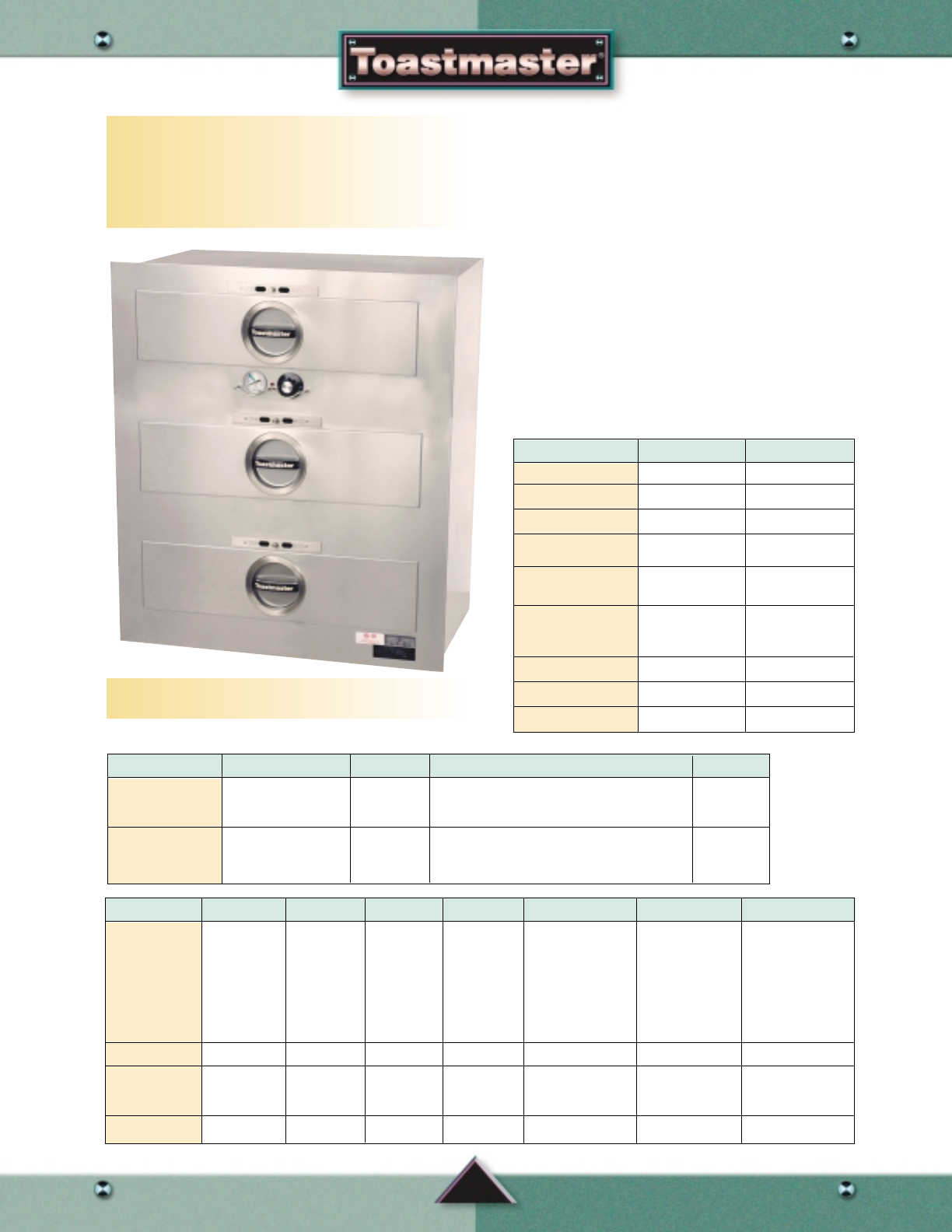

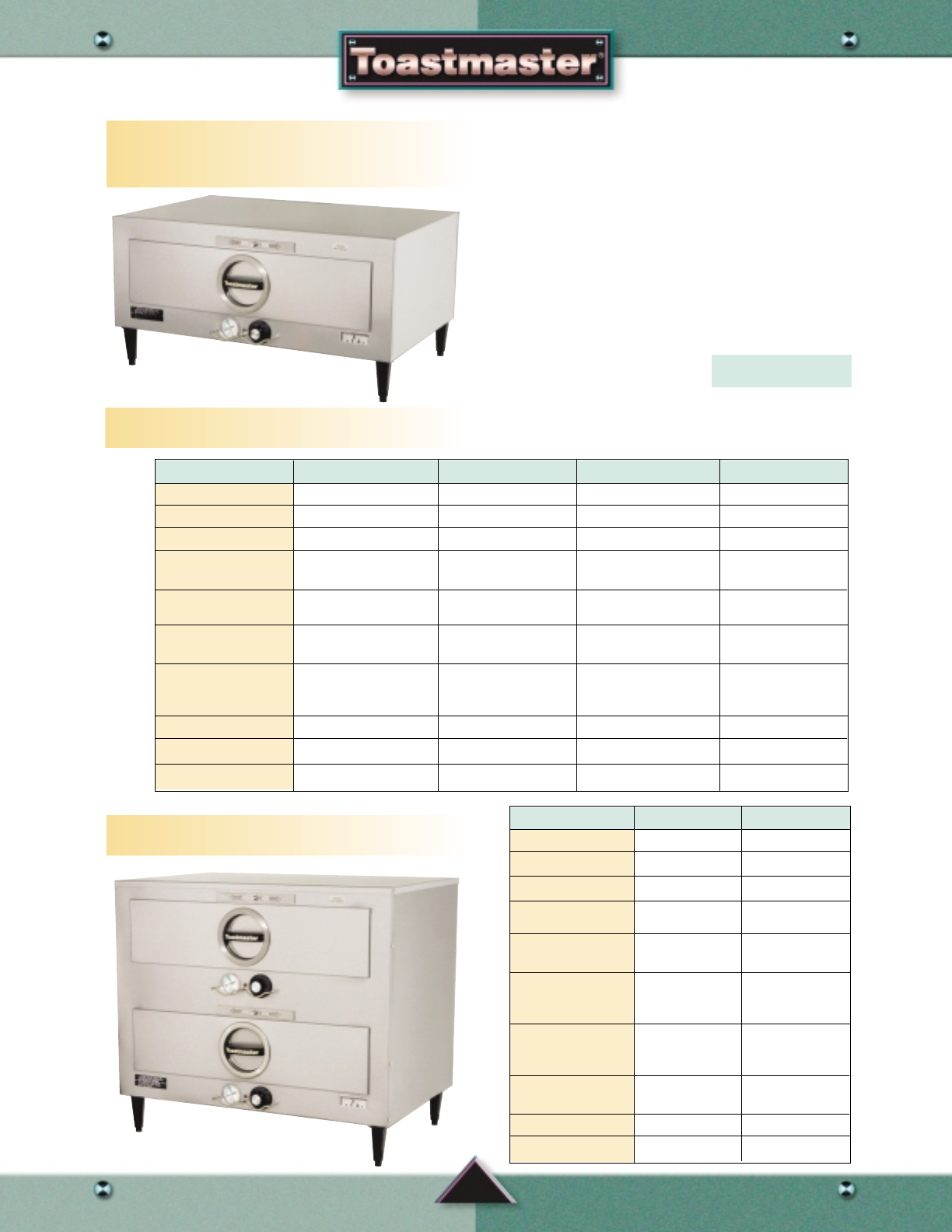

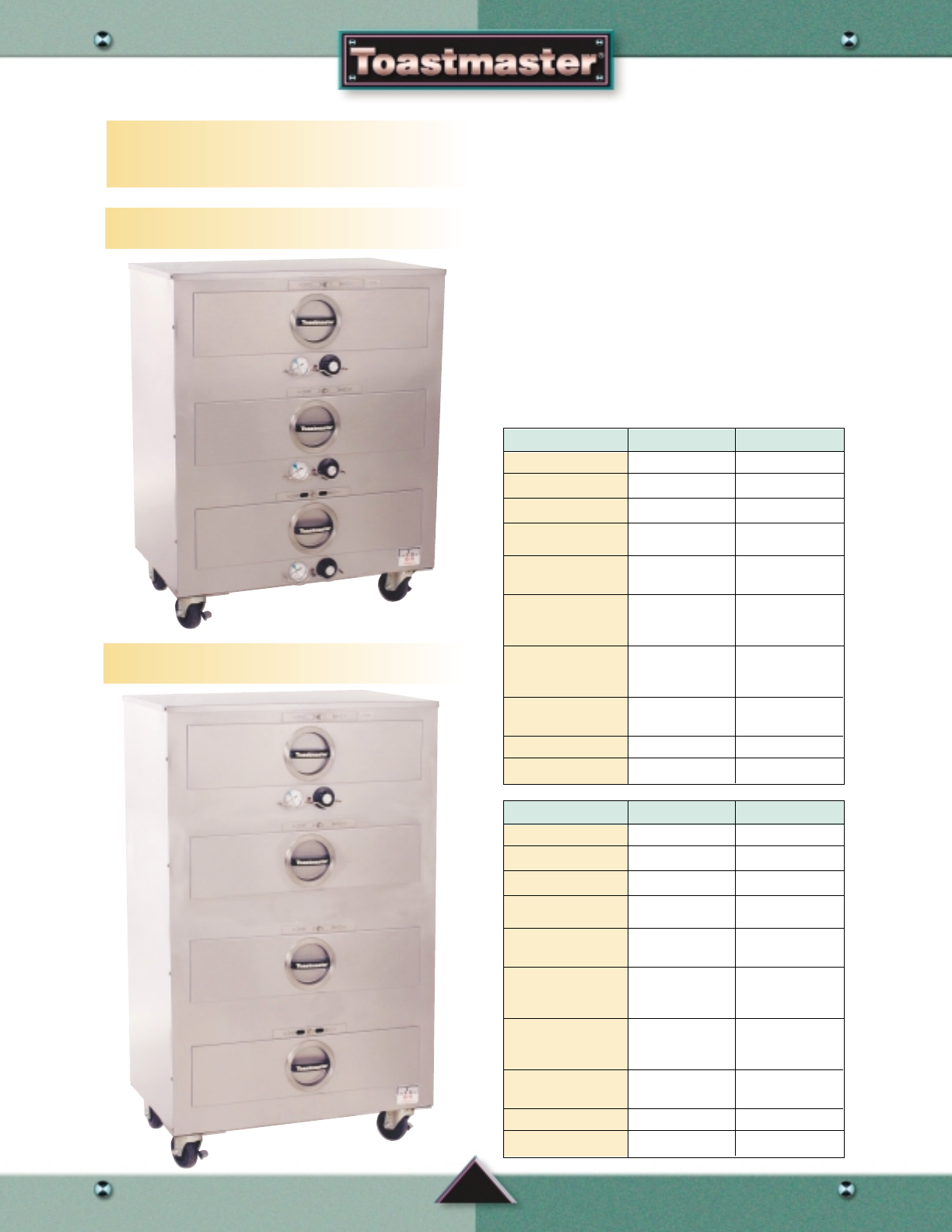

Hot Food Drawers 54

Built-in 3A80A000T09 3A80A000T72 55

3B20A000T09 3B20A000T72 55

3B80A000T09 3B80A000T72 55

3B84A000T09 3B84A000T72 55

3C80A000T09 3C80A000T72 56

Freestanding HFS09 HFS72 57

3A81D000T09 3A81D000T72 57

3B84D000T09 3B84D000T72 57

3C84D000T09 3C84D000T72 58

3D8XD000T09 3D8XD000T72 58

Policies, Notes and Units Ordered 59-60

Table of Contents Table of Contents

Telephone: 1-906-863-4401 www.toastmastercorp.com

1

Ordering Ordering

Ordering Information

All orders should specify quantity, model numbers, voltage, hinging (if applicable), shipping

dates and ship-to address. Orders are to be placed with:

Toastmaster

5600 13th Street

Menominee, MI 49858

Phone (906)863-4401

Fax (906)863-5889 - Sales

(906)863-6322 - Service

Freight Terms

F.O.B. Menominee, MI with freight pre-paid and added to invoice. Free freight (within the 48

contiguous United States) is allowed on all orders that total $8,000.00 net price, if shipped

at same time to same location. Weight may vary due to packing material.

Shortage and damage claims must be filed by consignee with the delivering carrier. The

carrier must be notified of concealed damage by consignee immediately upon delivery. All

discrepancies, shortages, overage, damage or damaged cartons should be indicated on

carriers’ freight bills. Please save all cartons, crates and interior packaging until inspection

has been made by delivering carrier.

Return Goods Policy

Prior authorization must be obtained to return equipment. Authorized returns for credit

must be in the original case, undamaged and shipped pre-paid. Credit will be based upon

invoice price less 35% restocking charge. Equipment returned without prior written

authorization will be refused. Refurbishing, if necessary, will be an additional charge and

will be deducted from any credit that may be allowed.

Telephone: 1-906-863-4401 www.toastmastercorp.com

2

Warranty Warranty

Warranty

This warranty is effective on all Toastmaster equipment sold on or after July 1, 2003, and

supersedes all previous warranties.

Toastmaster warrants equipment that it manufactures to be free from defects in material

and workmanship. Toastmaster’s obligation is limited to repairing or replacing, at

Toastmaster’s option, without cost to the customer, any part found to be defective, as well

as any labor or material expense required to replace the part.

Length of Warranty

This warranty is effective for a period of 18 months from the date of shipment from

Toastmaster, or 12 months from the date of purchase by the end user, whichever is earlier.

Exceptions

•This warranty is valid only for the original end user owner/operator of the equipment.

•This warranty does not apply to normal maintenance functions, including (but not

limited to) improper operation, installation or the use of an improper utility supply.

•This warranty is valid only if the equipment is used in a commercial setting.

The equipment is designed and constructed for commercial use by trained professionals

only. Any use of the equipment in private or domestic applications immediately voids

this warranty.

•This warranty does not apply to any parts, labor and material expenses for service

that is not pre-approved and performed by a Toastmaster authorized service agent.

Any such service immediately voids this warranty.

•This warranty does not apply to any parts, labor and material expenses associated

with the installation of parts that are not factory-approved for use in the equipment.

Any use of such parts immediately voids this warranty.

•This warranty is not valid if terms of payment have not been met.

•For warranty service on Pop-up toasters and light countertop equipment, an

exchange program would supersede a service call. Please find Warranty Exchange

Program’ authorization to follow.

Toastmaster reserves the right to change the design and specifications of this equipment or

any related documentation at any time. The end user is not entitled to upgrades resulting

from these changes.

This warranty is exclusive and supercedes all other warranties for the equipment, both

expressed and implied. There are no implied warranties of merchantability or of fitness for

a particular purpose.

The foregoing is Toastmaster’s sole and exclusive obligation and the end user sole and

exclusive remedy for any action including breach of contract or negligence. In no event

shall Toastmaster be liable for a sum in excess of the purchase price of the equipment, or

for any prospective or lost profits of the end user.

Telephone: 1-906-863-4401 www.toastmastercorp.com

3

Exchange Program Exchange Program

Warranty Exchange Program

Contact Name:

Contact Phone Number: Store #:

Store Address:

Model #: Voltage:

Serial #: Date of Purchase:

Ship To:

Billing Address:

A reconditioned toaster will be shipped as a replacement. If a reconditioned unit is not available at

the time of the request, Toastmaster will ship a new toaster.

I authorize my credit card to be charged for a replacement toaster if the original unit is not returned

within 30 days.

Name as it appears on Credit Card:

Account #: Expiration:

Visa: MasterCard: American Express:

Signature: Date:

NOTE: DO NOT DESTROY CARTON OF REPLACEMENT TOASTER

Place the defective unit in this carton. Contact Toastmaster Customer Service

at 906-863-4401 or 800-338-9886, to schedule UPS pick-up.

4

Pop-up Toasters

Toastmaster’s commercial electronic pop-up food toasters are designed to toast bread,

frozen waffles and many other foods consistently.

General Information: The bread and Texas Toast Toasters have either two or four toasting

slots in the top. Each slot is 1-1/8” wide x 5-1/4” long. Each toasting chamber is equipped

with oven guide wires and lowering rack.

The bagel and bun toasters have four extra wide slots in the top. Each slot is 1-3/4” wide x

5-1/4” long. Each chamber of the bagel and bun toasters provides one sided toasting only.

The combo toasters for bread and bagels contain 2 slots for bread or Texas toast, and 2

slots for one sided bagel and bun toasting.

Construction: All of the Toastmaster pop-up toasters are constructed of formed and

welded sheet steel. Finish is brushed stainless steel with a mirrored finish on the front

panel. A front pullout crumb tray is provided for easy cleaning.

Electrical: Each pop-up toaster is furnished with a 36” cord and NEMA plug, and operate on

1 phase only. (Please refer to corresponding unit chart for exact NEMA plug and electrical

requirements.)

Heating: Insulated ceramic etched foil heaters are installed on one or both sides of each

toasting chamber, depending upon the individual model.

Controls: Each two slot section is controlled by a lever operated mechanism. It is

equipped with color selector knob coupled with solid state controls having temperature

and voltage compensators. When operating lever is depressed, bread racks are lowered

and elements are energized. At the end of the toasting cycle, elements are de-energized and

bread racks are automatically raised.

Telephone: 1-906-863-4401 www.toastmastercorp.com

Toasters Toasters

Telephone: 1-906-863-4401 www.toastmastercorp.com

5

Toasters Toasters

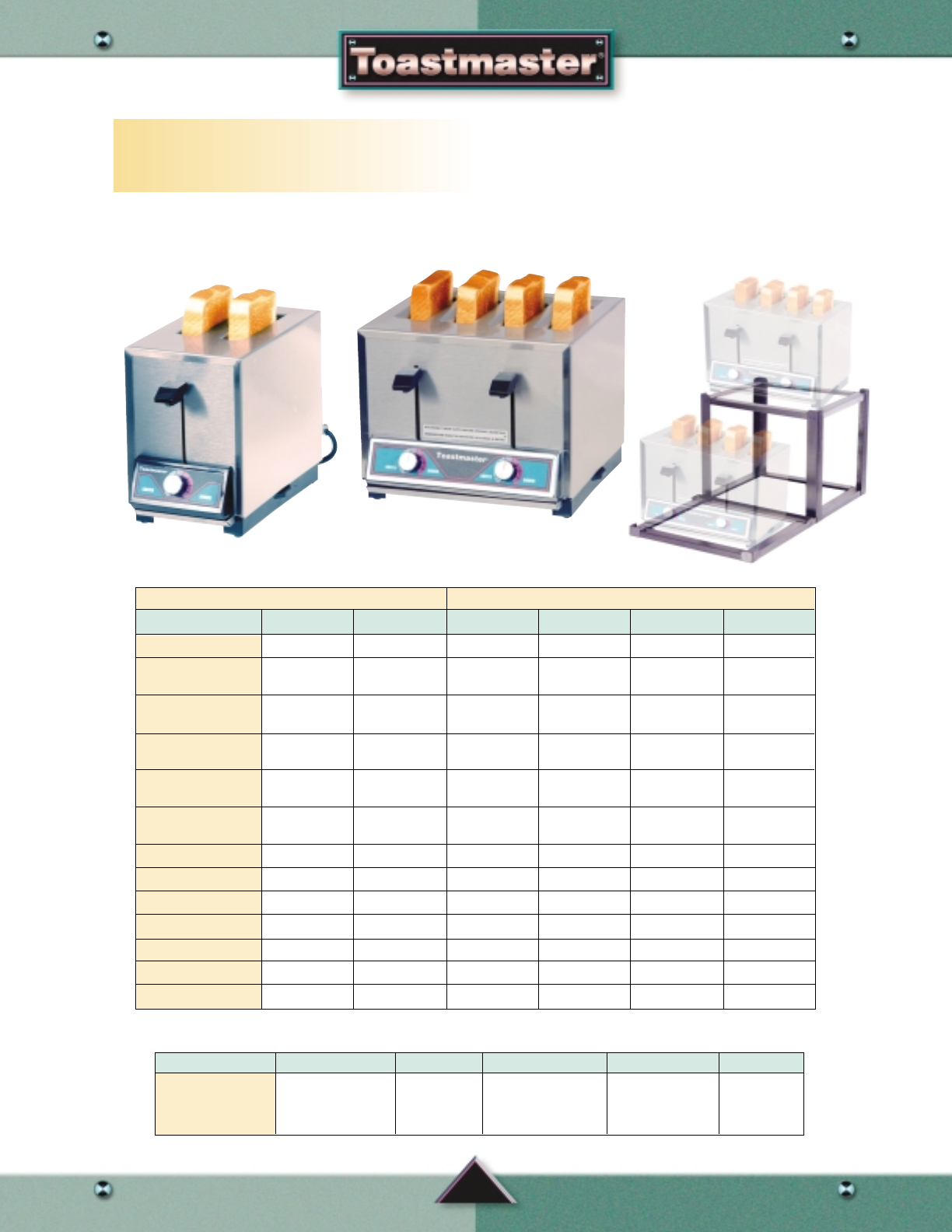

Bread and Texas Toast Toasters

ACCESSORIES

Model Number Description Weight Use With Dimensions Price

Stainless stand All 4 slot bread 11-7/8” W x

- Holds 2 or bun toaster 9-7/16” H x

ID3CS Toasters 5 lbs. models 20-3/4” L $250.00

Models shown may ship UPS

TP209/224 ID3CS

TWO SLOT FOUR SLOT

Model Number TP209 TP224 TP409 TP4C09 TP424 TP430

Slots 224444

Slices per

Hour 150 150 250 250 250/300 250/300

Supply

(1 phase) 120 V 208/240 V 120 V 120 V 208/240 V 208/240 V

Current

Draw 9.0 A 4.8/5.4 A 18.3 A 18.3 A 9.6/10.8 A 12.5 A

Rated Heat

Input 1.1 KW 1.0/1.3 KW 2.2 KW 2.2 KW 2.0/2.6 KW 2.6 KW

Factory Installed (Canada)

Cord & Plug NEMA 5-15P NEMA 6-15P NEMA 5-20P NEMA 5-30P NEMA 6-15P NEMA 6-20P

Slot Width 1-1/8” 1-1/8” 1-1/8” 1-1/8” 1-1/8” 1-1/8”

Slot Depth 5-1/4” 5-1/4” 5-1/4” 5-1/4” 5-1/4” 5-1/4”

Width 6-5/8” 6-5/8” 11-7/16” 11-7/16” 11-7/16” 11-7/16”

Depth 13-3/8” 13-3/8” 13-3/8” 13-3/8 13-3/8 13-3/8

Height 9-3/16” 9-3/16” 9-3/16” 9-3/16” 9-3/16” 9-3/16”

Ship Weight 12.3 lbs. 12.3 lbs. 21 lbs. 21 lbs. 21 lbs. 21 lbs.

Unit Price $839.00 $839.00 $1,131.00 $1,131.00 $1,131.00 $1,13100

For two-sided toasting of breads, frozen waffles, Texas toast

and English muffins

TP409/424/430

Telephone: 1-906-863-4401 www.toastmastercorp.com

6

Toasters Toasters

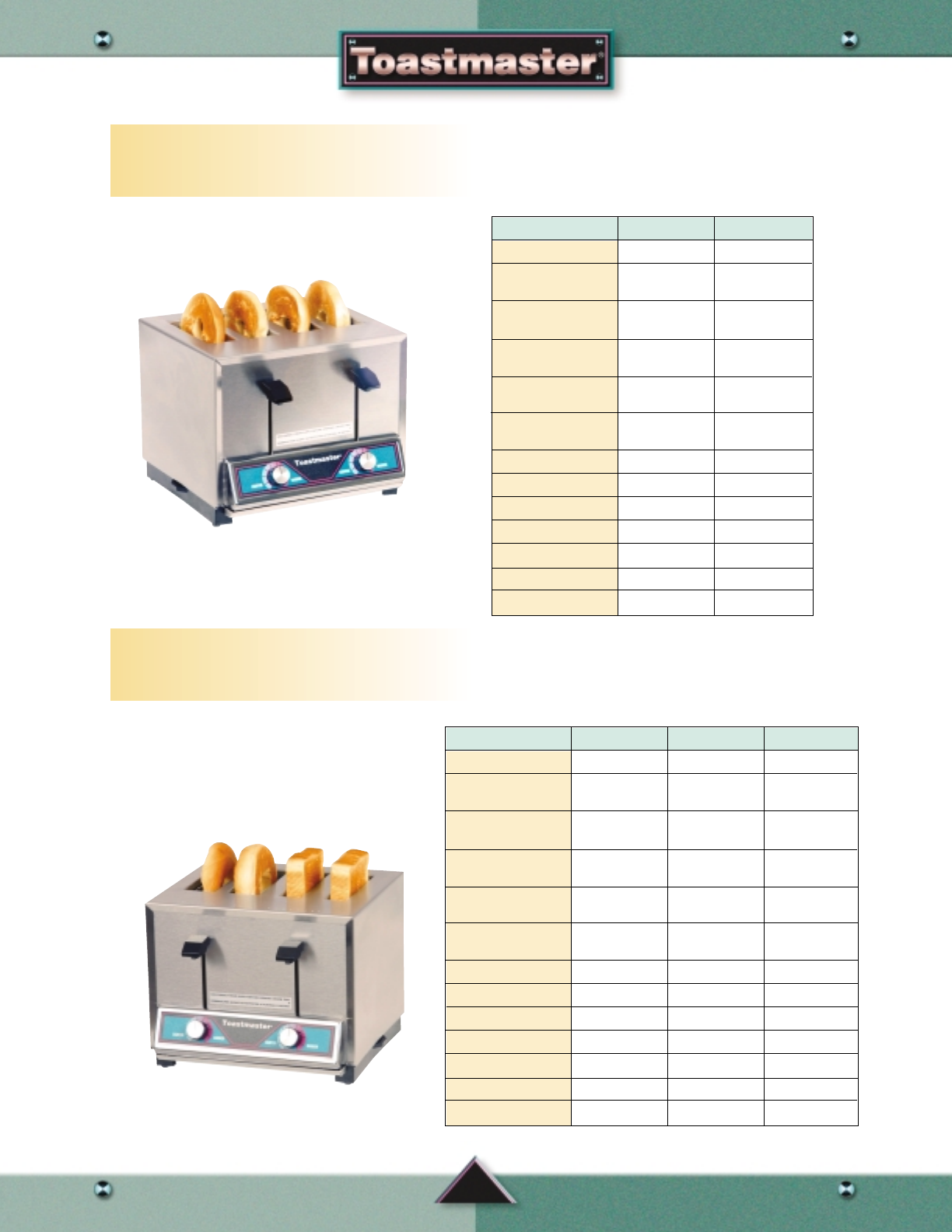

Bagel and Bun Toasters

Combo Toasters for Bread & Bagels

For fast one-sided toasting

with extra wide slots

Two bread slots with two-

sided toasting PLUS two

bagel/bun slots with one

sided toasting

Model Number BTW09 BTW24

Slots 44

Slices per

Hour 250 250

Supply

(1 phase) 120 V 208/240 V

Current

Draw 15.0 A 7.7/7.5 A

Rated Heat

Input 1.8 KW 1.6/1.8 KW

Factory Installed

Cord & Plug NEMA 5-20P NEMA 6-15P

Slot Width 1-5/8” 1-5/8”

Slot Depth 5-1/4” 5-1/4”

Width 11-7/16” 11-7/16”

Depth 13-3/8” 13-3/8”

Height 9-3/16” 9-3/16”

Ship Weight 21 lbs. 21 lbs.

Unit Price $1,131.00 $1,131.00

Models shown may ship UPS

Models shown may ship UPS

HT409

BTW09

Model Number HT409 HTC409 HT424

Slots 444

Slices per

Hour 150/150 150/150 150/190

Supply

(1 phase) 120 V 120 V 208/240 V

Current

Draw 16.6 A 16.6 A 8.0/9.2 A

Rated Heat

Input 2.0 KW 2.0 KW 1.7/2.2 KW

Factory Installed

Cord & Plug NEMA 5-20P NEMA 5-30P NEMA 6-15P

Slot Width 1-1/8”/1-5/8” 1-1/8”/1-5/8” 1-1/8”/1-5/8”

Slot Depth 5-1/4” 5-1/4” 5-1/4”

Width 11-7/16” 11-7/16” 11-7/16”

Depth 13-3/8” 13-3/8” 13-3/8”

Height 9-3/16” 9-3/16” 9-3/16”

Ship Weight 21 lbs. 21 lbs. 21 lbs.

Unit Price $1,131.00 $1,131.00 $1,131.00

Telephone: 1-906-863-4401 www.toastmastercorp.com

7

Toasters Toasters

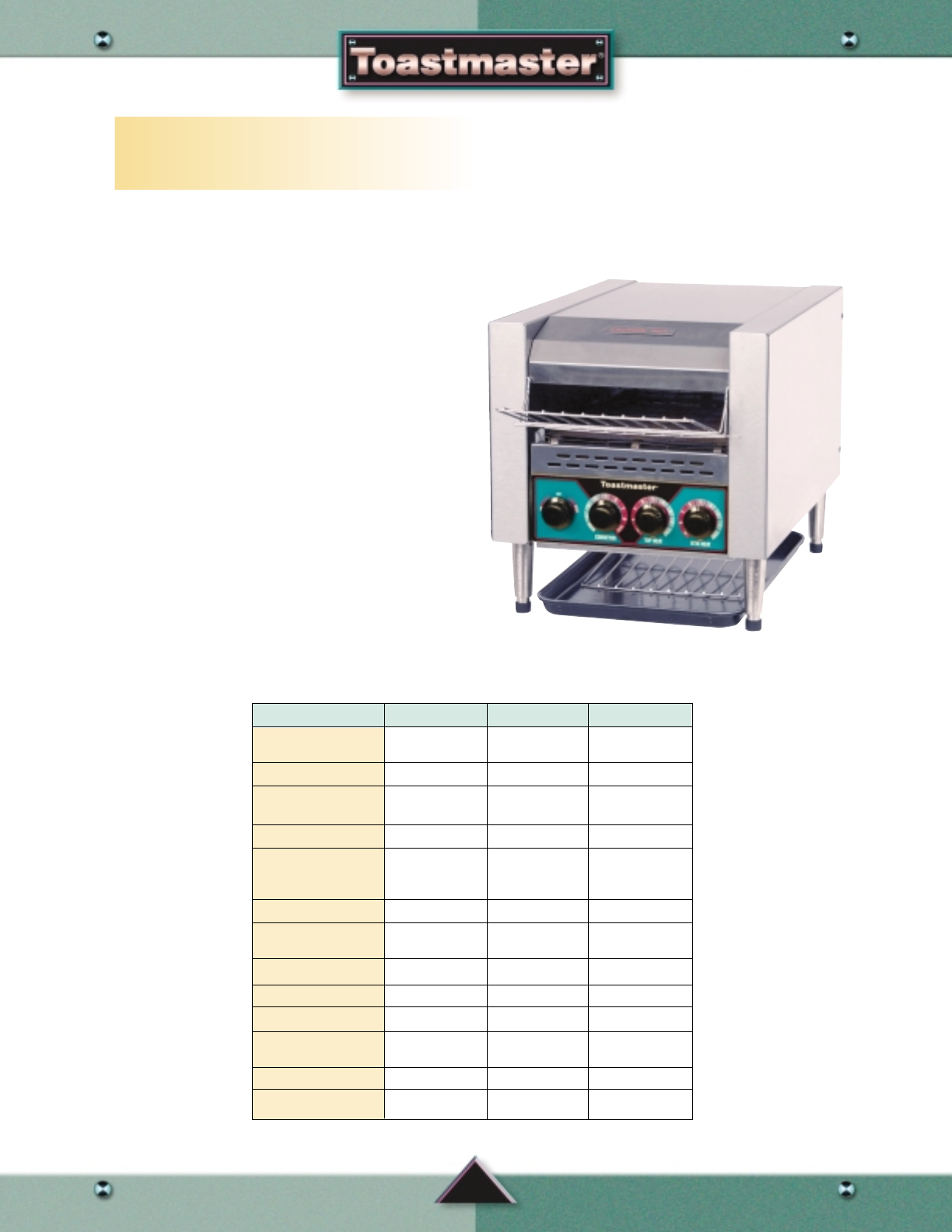

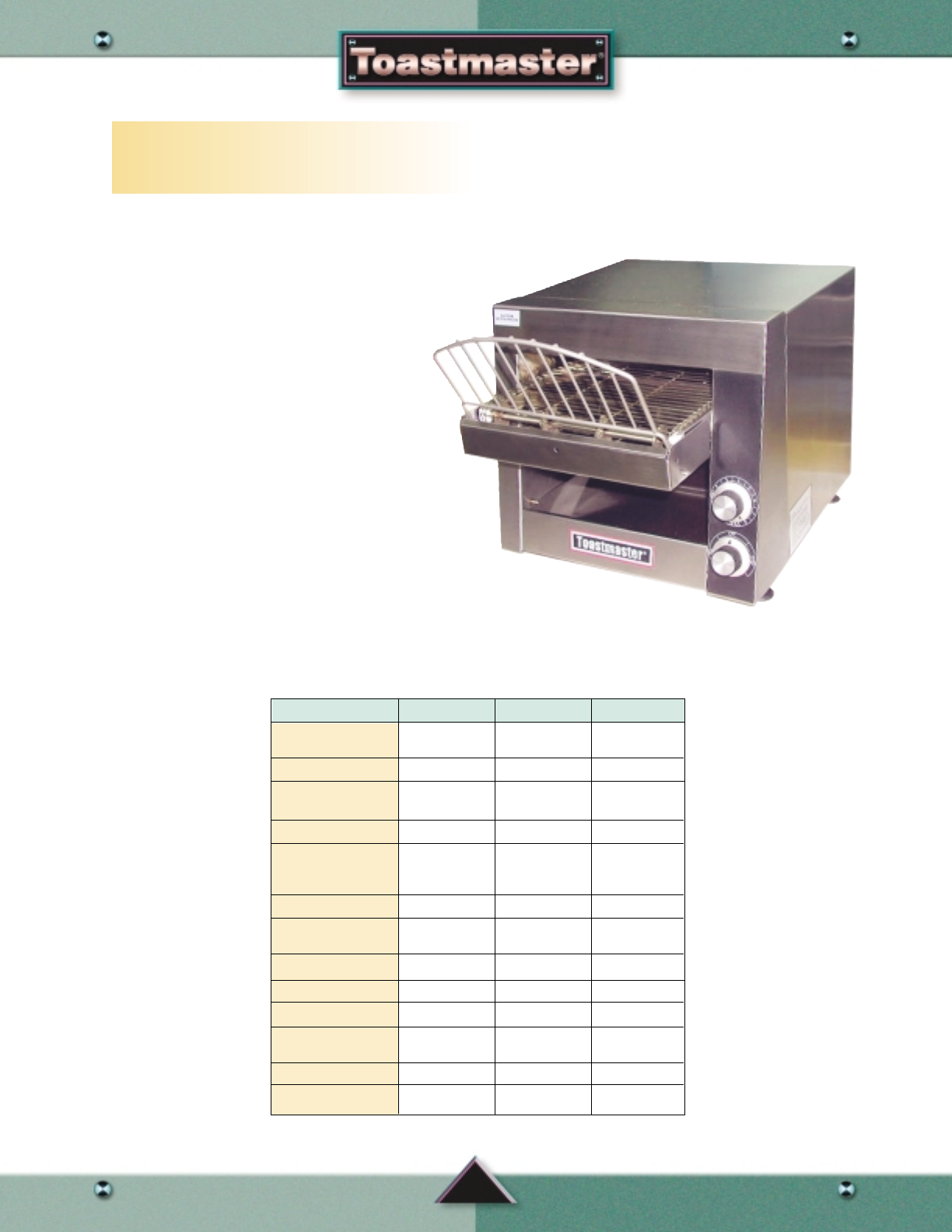

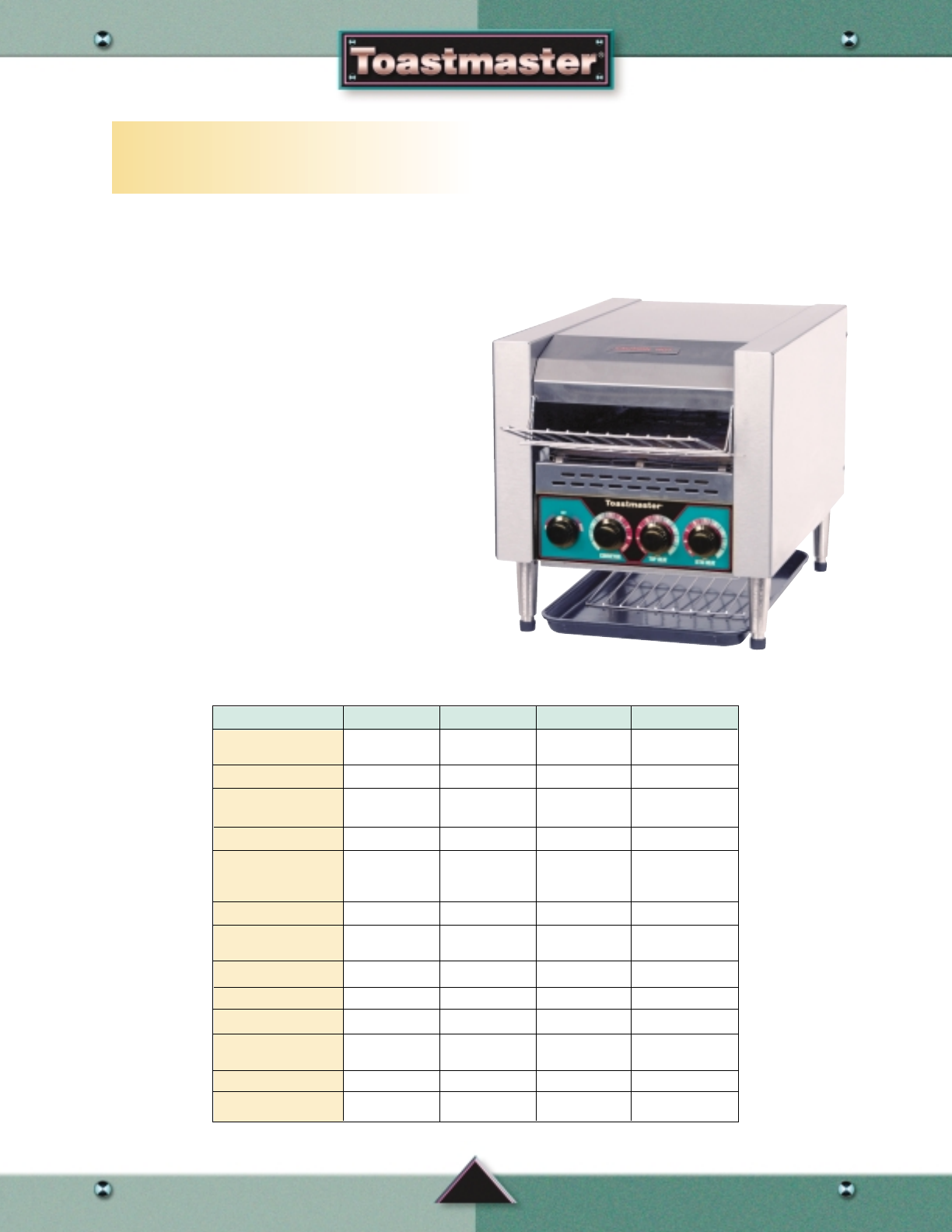

Conveyor Toasters

Toastmaster’s commercial electronic conveyor toasters are designed to toast foods in

large quantities consistently, using continuous feed methods.

General Information: The TC13 conveyors are designed specifically for breads and Texas

Toast, with a chamber opening of 1-3/8” high, while the TC17 and TC21 units have a

chamber opening height of 3”, providing the additional capability of toasting a broader

variety of product including buns, bagels and muffins.

All Toastmaster conveyor toasters come equipped with a loading rack that is angled to

feed the product into the toaster continuously. The unique air flow design keeps case, top

and sides cool. Units are equipped with an auto cool-down feature which allows the fan to

cool the outer skin when the unit is turned off.

Construction: Steel construction with a stainless steel finish is used for durability.

Includes a stainless steel, slide out crumb tray for easy cleaning. Both the TC17 and TC21

models include a fiberglass return tray, while the TC13 models have this feature built in.

Electrical: The TC13 and TC17 models are available in 120V, 208V or 240V single phase,

while the TC21 models are available in 208V or 240V single phase only. A factory installed

6 foot cord and plug is included. (Please refer to individual unit chart for exact NEMA

plug and electrical requirements.)

Heating: When control is set to “ON”, top and bottom quartz infrared elements (TC13) or

tubular elements (TC17 and TC21) will turn on to toast both sides of the bread. Lightness

and darkness of product is achieved by adjusting the top and bottom heat controls (TC17

and TC21) or by adjusting the conveyor belt speed (TC13). Standby position allows for

energy savings during non-peak periods.

Controls: Rotary 3 position dial selects ON/OFF/STANDBY positions. Heat dials control

the upper and lower heating elements (TC17 and TC21) and a conveyor speed dial

controls the conveyor speed.

Telephone: 1-906-863-4401 www.toastmastercorp.com

8

Toasters Toasters

Mini Conveyor Toasters

For toasting a variety of

breads, buns, rolls

and bagels.

Model Shown:

May ship UPS

Optional

Stacking Kit

Available

Standard Features:

•10” wide conveyor belt

•Automatic cool-down feature

•Energy-saving standby mode

•Stainless steel exterior construction

•Air-cooled case construction

•Single-piece stainless steel crumb tray

•Damage resistant calrod heating elements

•All models toast bread, buns and bagels

•Convection air dries product faster

•Large, easy-to-operate dial controls

•Separate upper and lower heat

settings and conveyor belt speed

•High volume (250 slices per hour)

•Factory installed NEMA cord and plug TC13A3674

Model Number TC13A3674 TC13A3663 TC13A3666

Product

Delivery Front return Front return Front return

Width 14-7/32” 14-7/32” 14-7/32”

Depth (w/cord

clearance) 18-3/32” 18-3/32” 18-3/32”

Height w/4” Legs 13-3/8” 13-3/8” 13-3/8”

Toasting 10-1/4” W x 10-1/4” W x 10-1/4” W x

Chamber 1-1/2” H x 1-1/2” H x 1-1/2” H x

Dimensions 12-3/4” L 12-3/4” L 12-3/4” L

Loading Height 1-3/8” 1-3/8” 1-3/8”

Capacity 250 250 250

(slices per hour)

Supply (1 phase) 120 V 208 V 240 V

Current draw 13.4 A 5.5 A 6.4 A

Rated heat input 1.6 KW 1.1 KW 1.5 KW

Factory Installed

Cord & Plug NEMA 5-20P NEMA 6-20P NEMA 6-20P

Shipping Weight 57 lbs. 57 lbs. 57 lbs.

Unit Price $1,243.00 $1,243.00 $1,243.00

Telephone: 1-906-863-4401 www.toastmastercorp.com

9

Toasters Toasters

Conveyor Toasters

Featuring a 3” loading height to accommodate a variety of

product thicknesses

Model Shown:

May ship UPS

Standard Features:

•10” wide conveyor belt

•Automatic cool-down feature

•Energy-saving standby mode

•Stainless steel exterior construction

•Air-cooled case construction

•Single-piece stainless steel crumb tray

•Damage resistant calrod heating elements

•All models toast bread, buns and bagels

•Convection air dries product faster

•Large, easy-to-operate dial controls

•Separate upper and lower heat

•Settings and conveyor belt speed

•High volume (400 slices per hour)

•Factory installed NEMA cord and plug

TC17D3674

Model Number TC17D3674 TC17D3663 TC17D3666 TC17D3666UK

Product Front or Front or Front or Front or

Delivery rear exit rear exit rear exit rear exit

Width 14-5/8” 14-5/8” 14-5/8” 14-5/8”

Depth (w/cord

clearance) 24” 24” 24” 24”

Height w/4” Legs 15-3/4” 15-3/4” 15-3/4” 15-3/4”

Toasting 10-1/2” W x 10-1/2” W x 10-1/2” W x 10-1/2” W x

Chamber 3” H x 3” H x 3” H x 3” H x

Dimensions 17” L 17” L 17” L 17” L

Loading Height 3” 3” 3” 3”

Capacity

(slices per hour) 400+ 400+ 400+ 400+

Supply (1 phase) 120 V 208 V 240 V 240 V

Current draw 16.4 A 12.6 A 11.0 A 11.0 A

Rated heat input 1.97 KW 2.62 KW 2.62 KW 2.41 KW

Factory Installed

Cord & Plug NEMA 5-20P NEMA 6-20P NEMA 6-20P TYPE E

Shipping Weight 57 lbs. 57 lbs. 57 lbs. 57 lbs.

Unit Price $1,637.00 $1,881.00 $1,881.00 $1,898.00

Telephone: 1-906-863-4401 www.toastmastercorp.com

10

Toasters Toasters

Conveyor Toasters

Featuring a 3” loading height to accommodate a variety of

product thicknesses

Model Shown:

May ship UPS

Standard Features:

•10” wide conveyor belt

•Automatic cool-down feature

•Energy-saving standby mode

•Stainless steel exterior construction

•Air-cooled case construction

•Single-piece stainless steel crumb tray

•Damage resistant calrod heating elements

•All models toast bread, buns and bagels

•Convection air dries product faster

•Large, easy-to-operate dial controls

•Separate upper and lower heat

•Settings and conveyor belt speed

•High volume (900 slices per hour)

•Factory installed NEMA cord and plug

TC21D3666

Model Number TC21D3666 TC21D3663 TC21D3663UK

Product front or front or front or

Delivery rear exit rear exit rear exit

Width 14-5/8” 14-5/8” 14-5/8”

Depth (w/cord

clearance) 27” 27” 27”

Height w/4” Legs 14-15/16” 14-15/16” 14-15/16”

Toasting 10-1/2” W x 10-1/2” W x 10-1/2” W x

Chamber 3” H x 3” H x 3” H x

Dimensions 21” L 21” L 21” L

Loading Height 3” 3” 3”

Capacity 900 900 900

(slices per hour)

Supply (1 phase) 240 V 208 V 208 V

Current draw 13.9 / 12.1 A 11.7 A 13.9 A

Rated heat input 2.9 KW 2.9 KW 2.9 KW

Factory Installed 6-20 P 6-20 P TYPE E

Cord & Plug NEMA NEMA NEMA

Shipping Weight 52 lbs. 52 lbs. 52 lbs.

Unit Price $1,924.00 $1,924.00 $1,924.00

Telephone: 1-906-863-4401 www.toastmastercorp.com

11

Hot Plates Hot Plates

Hot Plates & Gas and Electric

Toastmaster’s countertop gas and electric hot plates are the most economical and flexible

countertop hot plates in the food service industry. They offer unsurpassed performance,

combining a proven control system with Toastmaster quality and durability.

General Information: The electric model is available with (2) 9” cooking plates, while the

gas model is available in 3 different sizes - 12”, 24” and 36”.

Construction: Stainless steel front including top rail, with aluminized steel rear and sides.

Gas units include full crumb tray for easy cleaning.

Electrical: The TECHP1132 is wired with combination voltage of 208/240 Volts, single

phase. There is no electrical requirement on the gas units.

Gas: The TMDO gas units contain 2 burners per 12”. The TMDO12’s have a total of 2

burners, the TMDO24’s have a total of 4 burners, and the TMDO36’s have a total of 6

burners.

Heating: On the electric models, heating is accomplished with 9” solid round hotplate

with element embedded in ceramic and permanently bonded to the plate.

In the gas units, each burner is controlled by independent control of flame. One standing

pilot services each burner. A 3/4” rear connection is standard. Each burner is rated for

26,000 BTU/hr for natural gas and 22,000 BTU/hr for propane gas.

Controls: One front panel mounted control knob per burner or plate, to allow adjustable

flame height or heat control.

Telephone: 1-906-863-4401 www.toastmastercorp.com

12

Hot Plates Hot Plates

Countertop Gas Hot Plates

Model Shown:

May ship UPS

Standard Features:

•(2) 9” solid state plates

•Infinite thermostat with six position settings

•208/240 Volts

Countertop Electric Hot Plates

Model Number TMDO1200 TMDO1200P TMDO2400 TMDO2400P TMDO3600 TMDO3600P

Gas Type Natural LP Natural LP Natural LP

Cook Zone

Size 12” 12” 24” 24” 36” 36”

BTU/hr 40,000 40,000 80,000 80,000 120,000 120,000

Weight 105 lbs. 105 lbs. 160 lbs. 160 lbs. 245 lbs. 245 lbs.

Dimensions 12-1/4” W x 12-1/4” W x 24-3/8” W x 24-3/8” W x 36-1/2” W x 36-1/2” W x

12” H x 12” H x 12” H x 12” H x 12” H x 12” H x

27” L 27” L 27” L 27” L 27” L 27” L

Unit Price $783.00 $783.00 $1,276.00 $1,276.00 $1,834.00 $1,834.00

TMDO2400

Model Number TECHP113272

Supply 208/240 V 1 Phase

Current 208/1 - 21.7

Draw (Amps) 240/1 - 18.8

Total KW 208 V - 3.9

240 V - 5.2

Incoming

Supply AWG

(min) 1AW NAC

Cook Zone Size (2) 9” Plates

Weight 40 lbs.

Dimensions 15” W x

16-5/8” H x

25” L

Unit Price $890.00

Standard Features:

•2 adjustable burners per

12” cooking zone

•Removable heavy duty cast

iron grates

•Natural gas or LP

TECHP113272

Telephone: 1-906-863-4401 www.toastmastercorp.com

13

Charbroilers Charbroilers

Charbroilers

Toastmaster’s countertop gas charbroilers are the most economical and flexible

countertop charbroiler in the food service industry. They offer unsurpassed

performance, combining a proven control system with Toastmaster quality and

durability. Available in 3 different sizes - 24”, 36” and 48”.

General Information: Both standard radiant units and lava rock units are available in

natural or LP gas configurations. Lava rock units include 1 bag of lava rock per 12”

section.

Construction: Stainless steel front including top rail, with aluminized steel rear and

sides. Full crumb tray for easy cleaning. Narrow grates have drain channels.

Electrical: None required.

Heating: U shaped burner is controlled by independent control of flame. One standing

pilot services each burner. A 3/4” rear connection is standard. Area over burners is

covered by stainless steel radiant. Each burner is rated for 35,000 BTU/hr for natural gas

and 30,000 BTU/hr for propane gas. The TMDC units have one U shaped burner per 12”

of charbroiler - The TMDC24’s have a total of 2 burners, the TMDC36’s have a total of 3

burners and the TMDC 48’s have a total of 4 burners. Dual branding cast iron grates are

reversible, allowing for a 1/4” or 1/8” brand.

Controls: One front panel mounted control knob per burner, to allow adjustable flame

height. One burner per 12” of charbroiler.

Telephone: 1-906-863-4401 www.toastmastercorp.com

14

Charbroilers Charbroilers

Countertop Gas Charbroilers

Standard Features:

•Adjustable flame

per 12” cooking zone

•Reversible double

branding grates

•Natural gas or LP

Radiant Charbroilers

Lava Rock Charbroilers

TMDC2400

Model Number TMDC2400 TMDC2400P TMDC3600 TMDC3600P TMDC4800 TMDC4800P

Gas Type Natural LP Natural LP Natural LP

Cook Zone

Size 24” 24” 36” 36” 48” 48”

BTU/hr 60,000 60,000 90,000 90,000 120,000 120,000

Weight 215 lbs. 215 lbs. 255 lbs. 255 lbs. 310 lbs. 310 lbs.

Dimensions 24” W x 24” W x 36” W x 36” W x 48” W x 48” W x

16” H x 16” H x 16” H x 16” H x 16” H x 16” H x

27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L

Unit Price $1,754.00 $1,754.00 $2,376.00 $2,376.00 $3,266.00 $3,266.00

Model Number TMDCL2400 TMDCL2400P TMDCL3600 TMDCL3600P TMDCL4800 TMDCL4800P

Gas Type Natural LP Natural LP Natural LP

Cook Zone

Size 24” 24” 36” 36” 48” 48”

BTU/hr 60,000 60,000 90,000 90,000 120,000 120,000

Weight 235 lbs. 235 lbs. 285 lbs. 285 lbs. 340 lbs. 340 lbs.

Dimensions 24” W x 24” W x 36” W x 36” W x 48” W x 48” W x

14” H x 14” H x 14” H x 14” H x 14” H x 14” H x

27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L

Unit Price $1,320.00 $1,320.00 $1,888.00 $1,888.00 $2,642.00 $2,642.00

Telephone: 1-906-863-4401 www.toastmastercorp.com

15

Griddles Griddles

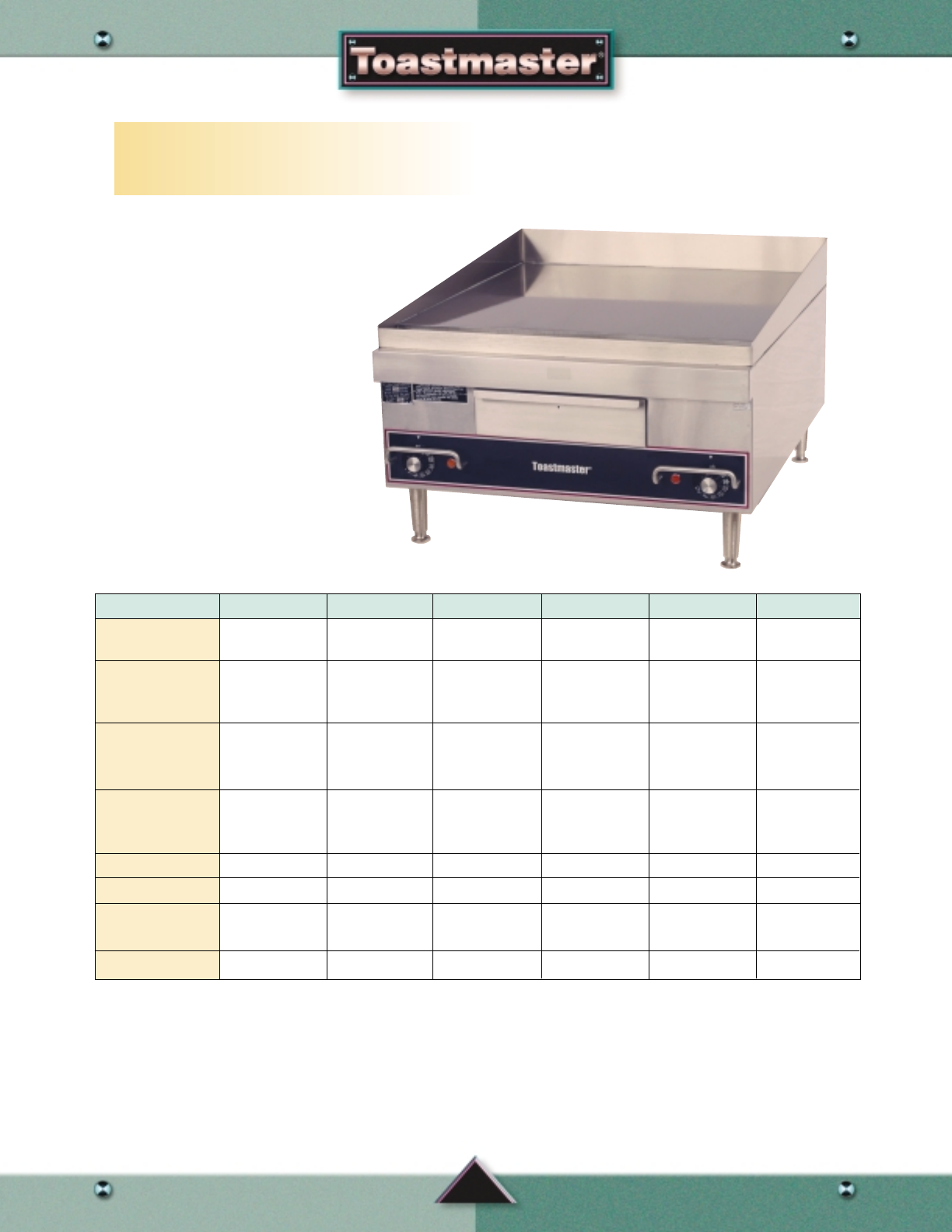

Griddles - Gas and Electric

Toastmaster’s countertop gas and electric griddles are the most economical and flexible

countertop griddles in the food service industry. They offer unsurpassed performance,

combining a proven control system with Toastmaster quality and durability.

General Information: The Toastmaster gas and electric countertop griddles are available

in 3 different widths - 24”, 36” and 48”.

Construction: Stainless steel front including top rail, with aluminized steel rear and sides,

with 4” high rear and side splash guards and full width stainless steel grease trough and

easy to access grease drawer. Gas units have 3/4” polished rolled steel plate, while the

electric units have 1/2” thick polished rolled steel plate.

Electrical: The electric griddles are available in 208/240 Volts, single phase or 480 Volt

3 phase. There is no electrical requirement on the gas units.

Gas: The gas units have one U shaped burner per 12” of griddle. The TMDG24’s have a

total of 2 burners, TMDG36’s have a total of 3 burners, and the TMDG48’s have a total of

4 burners.

Heating: The electric models contain tubular heating elements that are pressure clamped

to the underside of the griddle surface. The heaters are designed to provide perimeter

heat to assure even heating.

The U shaped burners in the gas units are controlled by independent control of flame.

One standing pilot services each burner. A 3/4” rear connection is standard. Each burner

is rated for 35,000 BTU/hr for natural gas and 30,000 BTU/hr for propane gas.

Controls: On gas units, one front panel mounted control knob per burner to allow

adjustable flame height. On electric units, temperature is controlled by thermostat

adjustable from 150 to 450OF.

Telephone: 1-906-863-4401 www.toastmastercorp.com

16

Griddles-Gas Griddles-Gas

Countertop Gas Griddles

Model Number TMDG2400 TMDG2400P TMDG3600 TMDG3600P TMDG4800 TMDG4800P

Gas Type Natural LP Natural LP Natural LP

Cook Zone

Size 24” 24” 36” 36” 48” 48”

BTU/hr 40,000 40,000 60,000 60,000 80,000 80,000

Weight 215 lbs. 215 lbs. 290 lbs. 290 lbs. 365 lbs. 365 lbs.

Dimensions 24” W x 24” W x 36” W x 36” W x 48” W x 48” W x

14” H x 14” H x 14” H x 14” H x 14” H x 14” H x

27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L

Unit Price $1,283.00 $1,283.00 $1,835.00 $1,835.00 $2,569.00 $2,569.00

Standard Features:

•3/4” griddle plate

•Adjustable flame

per 12” cooking zone

•Natural gas or LP

Thermostatic

Manual

TMDG2400

Model Number TMDG2400T TMDG2400TP TMDG3600T TMDG3600TP TMDG4800T TMDG4800TP

Gas Type Natural LP Natural LP Natural LP

Cook Zone

Size 24” 24” 36” 36” 48” 48”

BTU/hr 40,000 40,000 60,000 60,000 80,000 80,000

Weight 215 lbs. 215 lbs. 290 lbs. 290 lbs. 365 lbs. 365 lbs.

Dimensions 24” W x 24” W x 36” W x 36” W x 48” W x 48” W x

14” H x 14” H x 14” H x 14” H x 14” H x 14” H x

27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L 27-9/16” L

Unit Price $2,209.00 $2,209.00 $3,109.00 $3,109.00 $3,194.00 $3,194.00

Telephone: 1-906-863-4401 www.toastmastercorp.com

17

Griddles-Electric Griddles-Electric

Countertop Electric Griddles

Standard Features:

•1/2” griddle plate

•Adjustable temperature control

from 100-450OF

•Thermostat with positive

“OFF” position

Model Number TECG732467 TECG732470 TECG733667 TECG733670 TECG734867 TECG734870

Supply 480 V 208/240 V 480 V 208/240 V 480 V 208/240 V

3 Phase 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase

Current 480/3 - 31.01 208/3 - 32.6 480/3 - 22.4 208/3 - 39 480/3 - 31.01 208/3 - 54.1

Draw (Amps) 480/1 - 21.7 240/3 - 37.5 480/1 - 34.2 240/3 - 44.9 480/1 - 44.8 240/3 - 62.2

208/1 - 37.6 208/1 - 59.2 208/1 - 77.9

240/1 - 43.3 240/1 - 68.5 240/1 - 89.7

Total KW 10.4 208/3 - 7.8 16.4 208/3 - 12.3 21.5 208/3 - 16.2

240/3 - 10.4 240/3 - 16.4 240/3 - 21.5

208/1 - 7.8 208/1 - 12.3 208/1 - 16.2

208/1 - 10.4 208/1 - 16.4 208/1 - 21.5

Incoming 480/3 - 12 208 V - 8 480/3 - 10 208/3 - 8 480/3 - 8 208/3 - 8

Supply AWG 480/1 - 10 240 V - 8 480/1 - 8 240/3 - 6 480/1 - 8 240/3 - 8

(min) 208/1 - 4 208/1 - 6

240/1 - 4 240/1 - 6

Cook Zone Size 24” 24” 36” 36” 48” 48”

Weight 162 lbs. 162 lbs. 230 lbs. 230 lbs. 340 lbs. 340 lbs.

Dimensions 24” W x 24” W x 36” W x 36” W x 48” W x 48” W x

16-5/8” H x 16-5/8” H x 16-5/8” H x 16-5/8” H x 16-5/8” H x 16-5/8” H x

28-1/8” L 28-1/8” L 28-1/8” L 28-1/8” L 28-1/8” L 28-1/8” L

Unit Price $1,764.00 $1,764.00 $2,125.00 $2,125.00 $2,940.00 $2,940.00

TECG732467

Telephone: 1-906-863-4401 www.toastmastercorp.com

18

Fryers Fryers

Fryers - Gas and Electric

Toastmaster’s countertop gas and electric fryers are the most economical and flexible

countertop fryers in the food service industry. They offer unsurpassed performance,

combining a proven control system with Toastmaster quality and durability.

General Information: The Toastmaster gas and electric countertop fryers come complete

with twin plated wire mesh baskets with coated heat resistant handles. Large cold zone is

provided to capture food particles, which reduces flavor transfer and extends oil life.

Construction: Stainless steel. Baskets can be used on left or right hand side.

Electrical: The electric fryers are available in 208/240 Volts, single phase or 480 Volt 3

phase. There is no electrical requirement on the gas units.

Gas: Available in natural or LP gas. Each unit contains three burners with a total of

50,000 BTU/hr.

Heating: The electric fryers contain immersion type stainless steel tubular heating

elements which swing up using the handle provided and burn clean pyrolytically in the

raised position. The elements surround the sides, front, back and bottom of the

shortening container.

The cast iron burners in the gas units are rated 16,660 BTU/hr.

Controls: Both gas and electric units contain high limit controls to automatically shut

down if an overheated condition exists.

On gas units, controls include manual shut off, 100% safety shut off pilot gas valve, pilot

adjustment and 175 - 375OF adjustable thermostat.

On electric units, shortening temperature is controlled by a thermostat from 250 - 400OF

with positive OFF position.

Telephone: 1-906-863-4401 www.toastmastercorp.com

19

Fryers Fryers

Countertop Gas Fryers

Model Shown: May ship UPS, except TECF143970

Countertop Electric Fryers

Model Number TCGF1200 TCGF1200P

Gas Type Natural LP

BTU’S 50,000 50,000

Capacity (1) 25 lb tank (1) 25 lb tank

Weight 117 lbs. 117 lbs.

Dimensions 14-1/8” W x 14-1/8” W x

31-1/4” H x 31-1/4” H x

25-3/4” L 25-3/4” L

Unit Price $1,634.00 $1,634.00

Model Number TECF143970 TECF142772

Supply 208/240 V 208/240 V

3 Phase 1 Phase

Current 208/3 - 47.5 208/1 - 21.6

Draw (Amps) 240/3 - 41.2 240/1 - 25

Total KW 208 V - 8.5 208 V - 4.5

240 V - 8.5 240 V - 6

Capacity (2) 15 lb tanks (1) 15 lb tanks

Weight 84 lbs. 50 lbs.

Dimensions 24-3/4” W x 18” W x

16-7/8” H x 17” H x

25” L 19” L

Unit Price $2,202.00 $1,286.00

TCGF1200

TECF143970

TECF142772

Standard Features:

•15 pound stainless steel shortening tank

•2 chrome plated baskets

•T-Stat controlled from 250-450OF

•High limit thermostat

•208 / 240 Volts

Standard Features:

•25 pound stainless steel shortening tank

•2 chrome plated baskets

•T-Stat controlled from 250-450OF

•High limit thermostat

•Available in natural gas or LP

Telephone: 1-906-863-4401 www.toastmastercorp.com

20

Grills Grills

Electric Sandwich and Panini Grills

Toastmaster’s line of electric sandwich and panini grills are designed to uniformly grill

both sides of a sandwich at the same time. To add to the grills’ versatility, the bottom

grill can be heated alone.

General Information: The Toastmaster electric light duty grills are available with 3

different grill surfaces; a natural aluminum finish, non-stick coated or grooved.

Construction: Construction is of formed and welded sheet steel. Grill plates are of cast

aluminum. An 8 oz. capacity grease receptacle at the rear of the unit is easily removable

for emptying and cleaning.

Electrical: The electric sandwich and panini grills are available in 120, 208, or 240 Volts,

single phase. A factory installed 6 foot cord and plug is included. (Please refer to

corresponding unit chart for exact NEMA plug and electrical requirements.)

Heating: A preformed tubular heating element is clamped beneath the grill on each of the

top and bottom grill plates.

Controls: Controlled by an adjustable thermostat with range of 150 to 450OF with an

“OFF” position. A three position switch is provided to turn the unit off, operate the

bottom grill only, or operate both top and bottom grills. The top grill can be adjusted

from paper-thin to thick sandwich heights and locked into place to provide consistent

results.

Telephone: 1-906-863-4401 www.toastmastercorp.com

21

Grills Grills

Sandwich & Panini Grills

Standard Features:

•Adjustable from paper

thin to 2” thickness

•Top locks at desired

thickness

•Use top & bottom or

bottom heat only

•Grease receptacle

•Handles for portability

•Bottom cook surface

12-7/8” D x 14-1/16” W

•Top cook surface

12” D x 13-1/16” W

Standard Features:

•Adjustable from paper

thin to 2” thickness

•Top locks at desired

thickness

•Use top & bottom or

bottom heat only

•Grease receptacle

•Handles for portability

•Bottom cook surface

12-7/8” D x 14-1/16” W

•Top cook surface

12” D x 13-1/16” W

Non-Stick Coated Surface

Natural Aluminum Surface

Model Number A710674 A710663 A710666

Griddle Type Smooth Smooth Smooth

Surface Natural Aluminum Natural Aluminum Natural Aluminum

Width 15-1/2” 15-1/2” 15-1/2”

Depth 18-1/2” 18-1/2” 18-1/2”

Height 11-3/4” Closed 11-3/4” Closed 11-3/4” Closed

23” Open 23” Open 23” Open

Shipping Weight 39 lbs. 39 lbs. 39 lbs.

Supply 120 V 208 V 240 V

(1 Phase)

Current 120 V - 13.8 208 V - 7.9 240 V - 6.9

Draw (Amps)

Heat Input 1.65 KW 1.65 KW 1.65 KW

Factory

120V- 208V- 240V-

Installed

NEMA 5-20P

NEMA 6-15P NEMA 6-15P

Cord & Plug

Unit Price $1,517.00 $1,517.00 $1,517.00

Model Number A710SA674 A710SA663 A710SA666

Griddle Type Smooth Smooth Smooth

Surface Non-Stick Coating Non-Stick Coating Non-Stick Coating

Width 15-1/2” 15-1/2” 15-1/2”

Depth 18-1/2” 18-1/2” 18-1/2”

Height 11-3/4” Closed 11-3/4” Closed 11-3/4” Closed

23” Open 23” Open 23” Open

Shipping Weight 39 lbs. 39 lbs. 39 lbs.

Supply 120 V 208 V 240 V

(1 Phase)

Current 120 V - 13.8 208 V - 7.9 240 V - 6.9

Draw (Amps)

Heat Input 1.65 KW 1.65 KW 1.65 KW

Factory

120V- 208V- 240V-

Installed

NEMA 5-20P

NEMA 6-15P NEMA 6-15P

Cord & Plug

Unit Price $1,632.00 $1,632.00 $1,632.00

A710674

A710SA674

Model Shown: May ship UPS

Model Shown: May ship UPS

Telephone: 1-906-863-4401 www.toastmastercorp.com

22

Grills Grills

Sandwich and Panini Grills

Grooved Surface

Model Number A710PA674 A710PA663 A710PA666

Griddle Type Grooved Grooved Grooved

Surface Non-Stick Coating Non-Stick Coating Non-Stick Coating

Width 15-1/2” 15-1/2” 15-1/2”

Depth 18-1/2” 18-1/2” 18-1/2”

Height 11-3/4” Closed 11-3/4” Closed 11-3/4” Closed

23” Open 23” Open 23” Open

Shipping Weight 39 lbs. 39 lbs. 39 lbs.

Supply 120 V 208 V 240 V

(1 Phase)

Current 120 V - 13.8 208 V - 7.9 240 V - 6.9

Draw (Amps)

Heat Input 1.65 KW 1.65 KW 1.65 KW

Factory

120V- 208V- 240V-

Installed 36”

NEMA 5-20P

NEMA 6-15P NEMA 6-15P

Cord & Plug

Unit Price $1,632.00 $1,632.00 $1,632.00

Standard Features:

•Adjustable from paper thin to 2” thickness

•Top locks at desired thickness

•Use top & bottom or bottom heat only

•Grease receptacle

•Handles for portability

•Bottom cook surface 12-7/8” D x 14-1/16” W

•Top cook surface 12” D x 13-1/16” W

A710PA674

Model Shown: May ship UPS

Telephone: 1-906-863-4401 www.toastmastercorp.com

23

Convection Oven Convection Oven

Convection Ovens:

Do you need a convection oven that bakes evenly?

Do you need a fast convection oven?

Do you need a door that you can slam close?

Do you need a door that stays cool while cooking, even as you cook at 400OF?

Do you need easy to use controls?

Do you want a versatile piece of equipment you’ll use for a variety of food products?

Then the Convection Oven from Toastmaster is the answer!

There are two ovens to consider:

•An oven with manual controls

•An oven with programmable controls

•Coming soon - Gas oven with manual or programmable controls.

When cooking, the Toastmaster Convection Oven offers you precise baking for 5 full sheet

pans with generous 4 inch spacing. If you produce taller product, you can specify 4 shelves

at 5 inch spacing.

The RM-5T and RA-5T are both constructed of stainless steel and incorporate exclusive air

flow technology to ensure a perfect bake. The slam cam handle and cool to touch dual

pane door provide safe and easy usage. A pass-thru option is available and it allows back of

the house loading, with front of the house unloading. With a small footprint, just 30” wide,

and the ability to be stacked, it is the perfect convection oven to add where space may be

limited.

Telephone: 1-906-863-4401 www.toastmastercorp.com

24

Convection Oven Convection Oven

Convection Oven Omni XO-1N

231/8”

273/8”

223/8”

43/8”

243/4”

23/16”

61/16”

161/16

”

233/8”233/8”

117/8”

28”

23”

20”

33/4”STEAM

VENT

CORD 6 FOOT

120V, 20A, NEMA 5-20P

TOP FRONT SIDE BACK

Omni Tabletop Oven

STANDARD FEATURES:

•Stainless steel construction

•4” legs

•Silicone rubber gasket

•Dual pane tempered glass door

•Electromechanical controls

•Slam cam handle

•Cool to touch door

BASIC UNIT LIST PRICE: . . . . . . .$2,552.00

OPTIONS:

•Wire Shelf Racks each (98-1227A) . . . . . . . . . . .$32.00

•Cart with Panslides (98-9413) . . . . . . . . . . . . . .$1,139.00

•Cart without Panslides (98-9415) . . . . . . . . . . .$1,024.00

•Stand with Panslides (98-9816) . . . . . . . . . . . . .$1,139.00

•Stand without Panslides (98-9817) . . . . . . . . . .$1,024.00

•Stacking Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$107.00

Note: Units cannot be stacked when using

cart or stand.

CONSTRUCTION:

•Stainless steel and fully insulated

•Control panel accessible through front and side of unit

•Heating elements accessible inside of cabinet and

through side

CONTROLS:

•Electromechanical controls

•Indicator light for thermostat

DOOR SWING: •Oven: 24”

CLEARANCE:

•Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•Unit is shipped from factory with a cord and plug.

•120 Volt single phase is standard.

SHIPPING WEIGHT:

•140 Pounds, FOB Menominee, MI 49858

DIMENSIONS:

Height Width Depth

Exterior 20” 28” 27-3/8”

Interior 11-5/8” 18-1/8” 13-1/4”

CAPACITY:

13”x18”

Half Size Sheet Pans Spacing

Oven 3 3-3/4”

42”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 16 n/a n/a n/a

ELECTRICAL:

120 Volt, 20 Amp

(NEMA 5-20 P)

Telephone: 1-906-863-4401 www.toastmastercorp.com

25

CONSTRUCTION:

•Welded stainless steel

•Fully insulated

•Control panel accessible through front and side of unit

•Heating elements accessible inside of cabinet and

through side

CONTROLS:

•Solid state controls •Indicator light for thermostat

•Microswitch fan motor cut-off

DOOR SWING: •Oven: 30-1/2”

CLEARANCE:

•Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•Unit is shipped from factory to be hard wired on site.

Single phase uses three wire system.

Three phase uses four wire system.

•208 or 240 Volt single or three phase is standard.

Please specify at time of order.

•If the internal steam option is selected, the waterline

should be 1/4”. A water softening and filtration system

should be used to minimize mineral build-up.

SHIPPING WEIGHT:

•450 Pounds, FOB Menominee, MI 49858

RM-5T Convection Oven

STANDARD FEATURES:

•V-Air® technology

•Stainless steel construction

•Stainless steel legs (6”)

•Cool to touch, dual pane, full view tempered glass door

•Silicone rubber gasket on door

•Slam Cam handle

•Steam vent

•Tool-less cleaning of door glass

BASIC UNIT LIST PRICE: . . . . . . .$6,405.00

OPTIONS:

•Internal Steam . . . . . . . . . . . . . . . . . . . . . . . . . . .$903.00

•Pass Thru . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$2,121.00

•Two Speed Fan . . . . . . . . . . . . . . . . . . . . . . . . . . .$268.00

•Cart with Panslides (98-0350-PS) . . . . . . . . . . . .$1,355.00

•Cart without Panslides (98-0350-NP) . . . . . . . .$1,193.00

•Stand with Panslides (98-0351-PS) . . . . . . . . . .$1,355.00

•Stand without Panslides (98-0351-NP) . . . . . . .$1,193.00

•Stacking Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$1,008.00

Convection Oven Convection Oven

413/4”

30”

353/4”

6”

ELECTRICAL CONNECTION

WATER INLET

1/4 NPT

SIDE

FRONT

36”

DIMENSIONS:

Height Width Depth

Exterior 41-3/4” 30” 36”

Interior 22” 18-3/4” 29-3/4”

CAPACITY:

18”x26” 13”x18”

Sheet Pans Sheet Pans Spacing

Oven 5104”

208/1 208/3 240/1 240/3

Amp

Draw 37 30 32 26

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

26

Convection Oven Convection Oven

30”

30”

36”

353/4”

413/4”

6”

ELECTRICAL

CONNECTION

WATER INLET

1/4 NPT

SIDE

FRONT

41”

Shown with optional

pass-thru

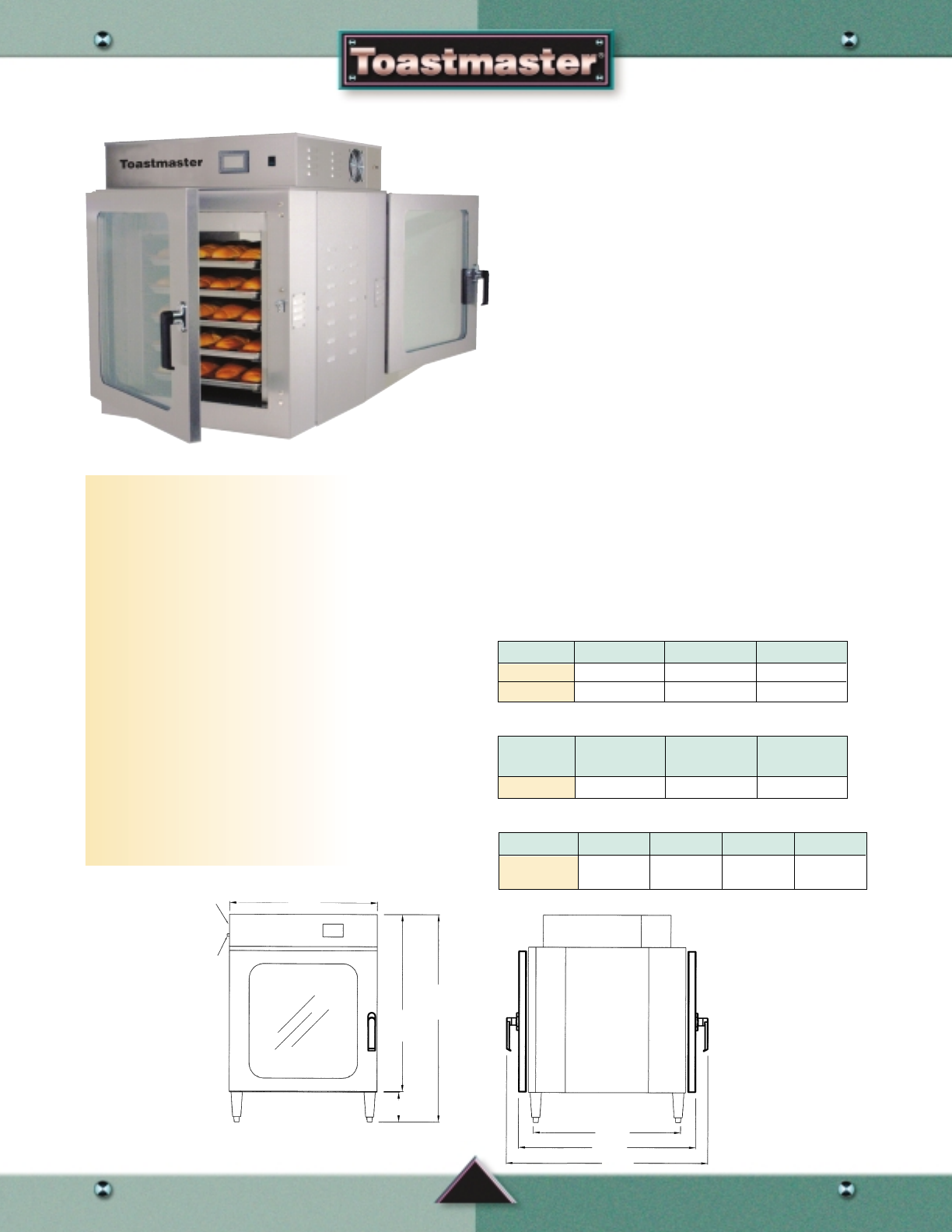

RA-5T Convection Oven

STANDARD FEATURES:

•V-Air® technology

•Stainless steel construction

•Stainless steel legs (6”)

•Cool to touch, dual pane, full view tempered glass door

•Silicone rubber gasket on door

•Slam Cam handle

•Steam vent

•Tool-less cleaning of door glass

BASIC UNIT LIST PRICE: . . . . . . .$9,429.00

OPTIONS:

•Internal Steam . . . . . . . . . . . . . . . . . . . . . . . . . . .$903.00

•Pass Thru . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$2,121.00

•Cart with Panslides (98-0350-PS) . . . . . . . . . . . .$1,355.00

•Cart without Panslides (98-0350-NP) . . . . . . . .$1,193.00

•Stand with Panslides (98-0351-PS) . . . . . . . . . .$1,355.00

•Stand without Panslides (98-0351-NP) . . . . . . .$1,193.00

•Stacking Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$1,008.00

CONSTRUCTION:

•Welded stainless steel

•Fully insulated

•Control panel accessible through front and side of unit

•Heating elements accessible inside of cabinet and

through side

CONTROLS:

•Programmable controls

•3 speed fan

•Microswitch fan motor cut-off

DOOR SWING: •Oven: 30-1/2”

CLEARANCE:

•Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•Unit is shipped from factory to be hard wired on site.

Single phase uses three wire system.

Three phase uses four wire system.

•208 or 240 Volt single or three phase is standard.

Please specify at time of order.

•If the internal steam option is selected, the waterline

should be 1/4”. A water softening and filtration system

should be used to minimize mineral build-up.

SHIPPING WEIGHT:

•450 Pounds, FOB Menominee, MI 49858

DIMENSIONS:

Height Width Depth

Exterior 41-3/4” 30” 37-13/16”

Interior 22” 18-3/4” 29-3/4”

CAPACITY:

18”x26” 13”x18”

Sheet Pans Sheet Pans Spacing

Oven 5104”

208/1 208/3 240/1 240/3

Amp

Draw 37 30 32 26

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

27

Pizza Equipment Pizza Equipment

Pizza Equipment

Toastmaster line of pizza equipment is manufactured with the customer in mind.

Stainless steel construction and solid-state controls are standard throughout to provide

you with pizza equipment that is durable and reliable.

The PMA-5/18 pizza oven can produce five pizzas at a time in a stacked configuration.

This will provide a high volume output with a minimal footprint. The PMA-5/18, has a

capacity of five 18” pizzas. This unit utilizes digital count down timers and includes one

timer for each shelf. Each timer can be set individually so you can produce different

types of pizza at the same time and track them by simply setting the bake time on each

timer.

The unique air flow design drives faster cook times and a perfect heat distribution top to

bottom, side-to-side and front to back. The individual aluminum decks are heated inside

the oven and provide your pizza with the crust quality of a hearth stone deck oven.

The use of the individual flip down door sections minimizes heat loss and conserves heat.

The full door can be opened utilizing the magnetic door latch.

While the PMA-5/18 is ideal for pizza, it is also well suited for other products such as

garlic bread, finger foods and appetizers.

Telephone: 1-906-863-4401 www.toastmastercorp.com

28

Pizza Equipment Pizza Equipment

325/8”

36”

341/2”

321/8”

343/8”

291/4”

41/8”

331/8”

287/8”

FRONT SIDE BACK

POWER INLET

PMA-5/18 V-Air®Tabletop Pizza Oven

STANDARD FEATURES:

•V-Air® technology

•Stainless steel construction

•Stainless steel hinges

•Flush mount lift off, no sag door

•Tempered glass door

•Silicone rubber gasket on door

•Flip down doors for each deck

•Set of 6” legs

BASIC UNIT LIST PRICE: . . . . . . .$10,910.00

OPTIONS:

•Cart with Panslides (151-9899-PS) . . . . . . . . . . .$2,121.00

•Cart without Panslides (151-9899-NP) . . . . . . .$1,428.00

•Stand with Panslides (151-9898-PS) . . . . . . . . .$2,121.00

•Stand without Panslides (151-9898-NP) . . . . . .$1,428.00

CONSTRUCTION:

•Welded stainless steel

•Fully insulated

•Control panel accessible through top of unit

•Timer panel accessible through front

•Heating elements accessible inside of cabinet and

through top

CONTROLS:

•Solid state controls

•Indicator light for thermostat

•Microswitch fan motor cut-off

•Individual count down timer for each deck

DOOR SWING: •Oven: 24-1/2”

CLEARANCE:

•Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•Unit is shipped from factory to be hard wired on site.

Single phase uses three wire system.

Three phase uses four wire system.

•208 or 240 Volt single or three phase is standard.

Please specify at time of order.

SHIPPING WEIGHT:

•350 Pounds, FOB Menominee, MI 49858

DIMENSIONS:

Height Width Depth

Exterior 34-3/8” 32-7/8” 36-1/8”

Interior 18” 18-1/2” 28”

CAPACITY:

18” Pizza Pans Spacing

Oven 53”

208/1 208/3 240/1 240/3

Amp

Draw 50 42 43 36

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

29

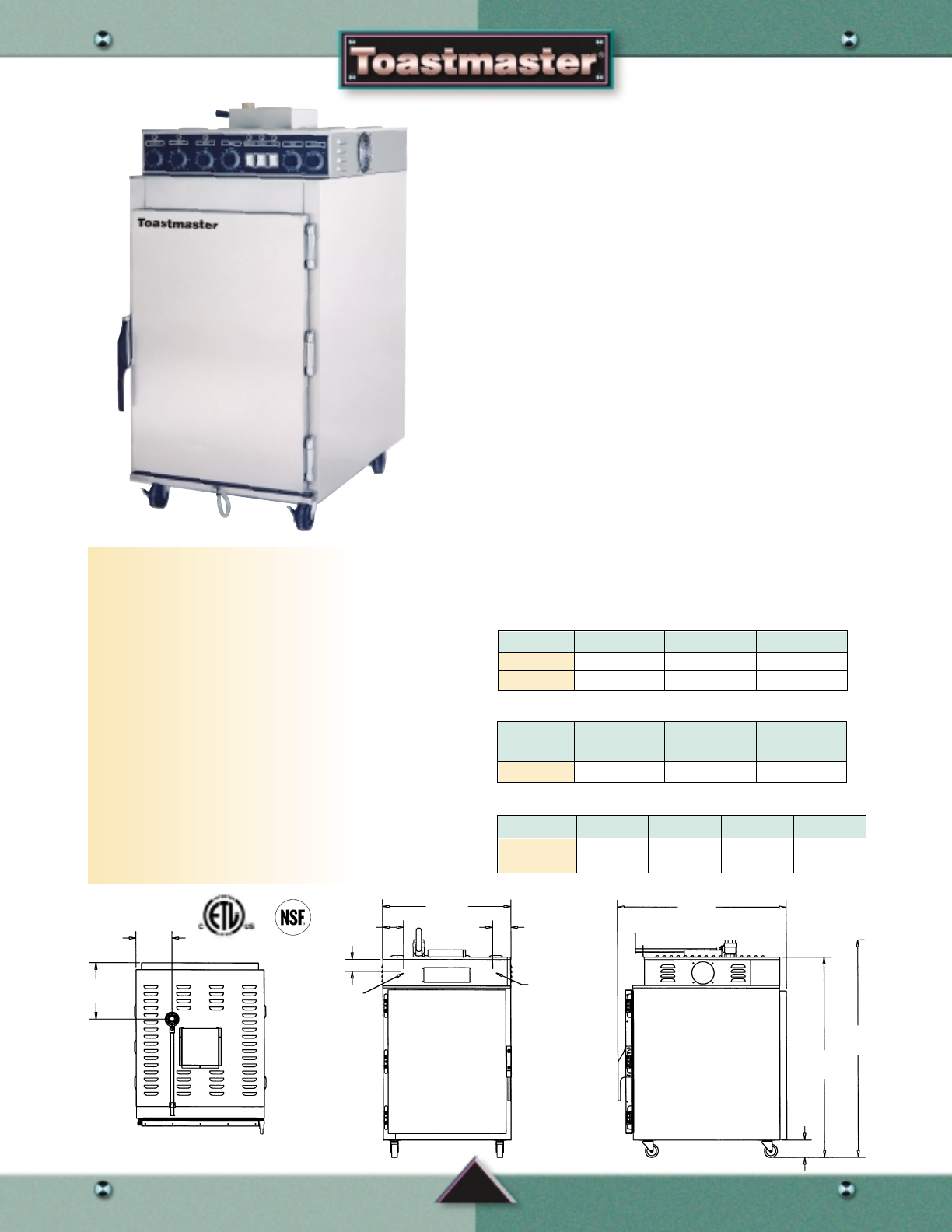

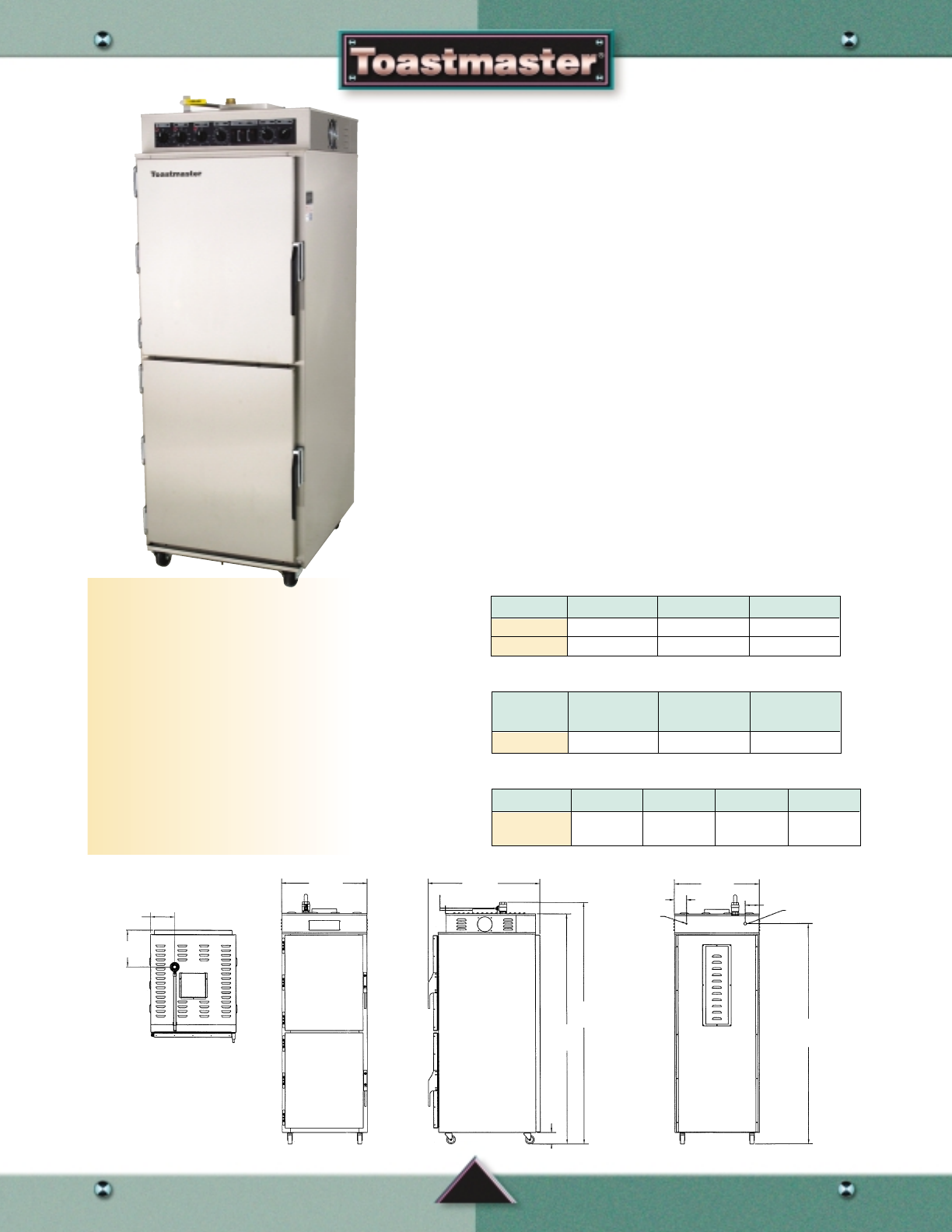

Smokers Smokers

Smokers

Toastmaster Smokers can deliver great results with ease of use and dependable

quality that you can count on. These units provide a method of cooking foods

that are flavorful and appealing. Nothing like the aroma of real wood smoked foods

to increase sales. The taste is outstanding and the flavor is genuine.

The benefits of the features incorporated into the Toastmaster Smokers are:

•Stainless steel construction provides a heavy duty, long life unit.

•Controlled air movement provides even cooking and smoke distribution.

•Heavy duty locking casters provide easy moving for cleaning, and

easy locking to keep unit in place.

•Cook’n Hold allows you to time your cook then switch automatically

to the hold mode at the pre-set temperatures.

•Insulated solid door with silicone rubber gasket to eliminate heat loss,

providing energy savings.

•Removable chrome racks and bottom drip pan for ease of cleaning.

•Moisturized compartment provides less shrinkage and drying of food product.

•Unit can be used with or without smoke for versatility of product.

Telephone: 1-906-863-4401 www.toastmastercorp.com

30

Smokers Smokers

CONSTRUCTION:

•Welded stainless steel •Fully insulated

•Control panel accessible through front and top of unit

•Heating elements accessible inside of cabinet and through top

CONTROLS:

•Solid state controls

•Indicator light for thermostat

•Separate heat and humidity controls •Fan on/off switch

•Smoke on/off switch

•Cook’n Hold feature ulitizes cook thermostat, hold thermostat

and 24 hour timer

DOOR SWING: •Smoker: 27-5/8”

CLEARANCE: •Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•ES-6 is shipped from factory to be hard wired on site.

Single phase uses three wire system.

Three phase uses four wire system.

•208 or 240 Volt single or three phase is standard.

Please specify at time of order.

•A 1/4” waterline is required. A water softening and filtration

system should be used to minimize mineral build-up.

SHIPPING WEIGHT:

•400 Pounds, FOB Menominee, MI 49858

ES-6 Countertop Oven /Smoker

With Humidity

STANDARD FEATURES:

•Stainless steel construction •6” legs

•Top ball valve for steam and smoke release

•AutoMist humidity system

•Stainless steel door •5 chrome racks

BASIC UNIT LIST PRICE: . . . . . . .$9,696.00

OPTIONS:

•Additional Chrome Racks each (101-0025-C) . .$75.00

•Casters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$239.00

•External Smoke Box . . . . . . . . . . . . . . . . . . . . . .$586.00

•Cart with Panslides (101-9006-PS) . . . . . . . . . . .$1,355.00

•Cart without Panslides (101-9006-NP) . . . . . . .$1,193.00

•Stand with Panslides (101-6100-PS) . . . . . . . . .$1,355.00

•Stand without Panslides (101-6100-NP) . . . . . .$1,193.00

CAPACITY:

73/4”

12”

273/8”

423/8”

37/8”

41/2”

21/2”

461/8”

33/4”

36”

FRONT SIDE

TOP

ELECTRICAL INLET

IN REAR OF UNIT

1/4” NPT

WATER INLET

IN REAR OF

UNIT

Shown with Optional Casters

DIMENSIONS:

Height Width Depth

Exterior 26” 27-3/8” 29”

Interior 26-3/8” 18-3/4” 28-7/8”

18”x26” 13”x18”

Sheet Pans Sheet Pans Spacing

Smoker 5 10 3-1/2”

208/1 208/3 240/1 240/3

Amp

Draw 13.5 10 12 8.5

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

31

Smokers Smokers

CONSTRUCTION:

•Welded stainless steel •Fully insulated

•Control panel accessible through front and top of unit

•Heating elements accessible inside of cabinet and through top

CONTROLS:

•Solid state controls •Indicator light for thermostat

•Separate heat and humidity controls

•Fan on/off switch •Smoke on/off switch

•Cook’n Hold feature ulitizes cook thermostat, hold thermostat

and 24 hour timer

DOOR SWING: •Smoker: 27-5/8”

CLEARANCE: •Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•ES-13 is shipped from factory to be hard wired on site.

Single phase uses three wire system.

Three phase uses four wire system.

•208 or 240 Volt single or three phase is standard.

Please specify at time of order.

•A 1/4” waterline is required. A water softening and filtration

system should be used to minimize mineral build-up.

SHIPPING WEIGHT: •600 Pounds, FOB Menominee, MI 49858

ES-13 Floor Model Oven /Smoker

With Humidity

STANDARD FEATURES:

•Stainless steel construction •Heavy duty casters

•Top ball valve for steam and smoke release

•AutoMist humidity system

•Stainless steel doors •8 chrome racks

BASIC UNIT LIST PRICE: . . . . . . .$14,336.00

OPTIONS:

•Additional Chrome Racks each (101-0025-C) . .$75.00

•Set of 6” Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . .$239.00

•External Smoke Box . . . . . . . . . . . . . . . . . . . . . .$586.00

73/4”

117/8”

273/8”

771/4”

273/8”

37/8”41/2”

701/2”

731/2”

33/4”

36”

FRONT BACK

SIDE

TOP

ELECTRICAL

INLET

1/4” NPT

WATER

INLET

DIMENSIONS:

Height Width Depth

Exterior 77-1/4” 27-3/8” 36”

Interior 60” 18-3/4” 29”

CAPACITY:

18”x26” 13”x18”

Sheet Pans Sheet Pans Spacing

Smoker 13 26 3-1/2”

208/1 208/3 240/1 240/3

Amp

Draw 23 19.5 20.5 17

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

32

Slo-Cook’n Hold Slo-Cook’n Hold

Slo-Cook’n Hold Equipment

The Toastmaster Slo-Cook’n Hold units feature an even heating system which surrounds the

product with a gentle heat for thorough cooking with minimum shrinkage associated with

moisture loss. This produces an excellent product and increased profits. Your unit can be

customized by adding a product probe or internal steam. These units are well suited for

meat, fish, fowl, vegetables and hot dishes just to name a few.

The standard units include a tabletop SC-7 with Cook’n Hold, a two compartment floor

model SC-14 with cook ín hold in both compartments.

The benefits of the features incorporated into the Toastmaster Slo-Cook’n Hold

units are:

•Stainless steel construction which provides a heavy duty, long life unit.

•Heavy duty locking casters provide easy moving for cleaning, and easy locking

to keep unit in place.

•Cook’n Hold allows you to time your cook then switch automatically to the

hold mode at the pre-set temperatures.

•Insulated solid door with silicone rubber gasket to eliminate heat loss,

providing energy savings.

•Removable chrome racks and bottom drip pan for easy cleaning.

Telephone: 1-906-863-4401 www.toastmastercorp.com

33

Slo-Cook’n Hold Slo-Cook’n Hold

CONSTRUCTION:

•Welded stainless steel •Fully insulated

•Control panel accessible through front and top of unit

•Heating elements accessible inside of cabinet and

through top

CONTROLS:

•Solid state controls

•Indicator light for thermostat

•Cook’n Hold feature ulitizes cook thermostat,

hold thermostat and 24 hour timer

DOOR SWING: •Oven: 27-5/8”

CLEARANCE:

•Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•SC-7 is shipped from factory to be hard wired on site.

Single phase uses three wire system.

Three phase uses four wire system.

•208 or 240 Volt single or three phase is standard.

Please specify at time of order.

SHIPPING WEIGHT:

•400 Pounds, FOB Menominee, MI 49858

8”

443/4”

351/8”

365/8”

273/8”36”

6”

273/8”

41/2”

21/2”

FRONT SIDE BACK

TOP

ELECTRICAL

INLET

VENT

PIPE

VENT

PIPE

Shown with Optional Casters

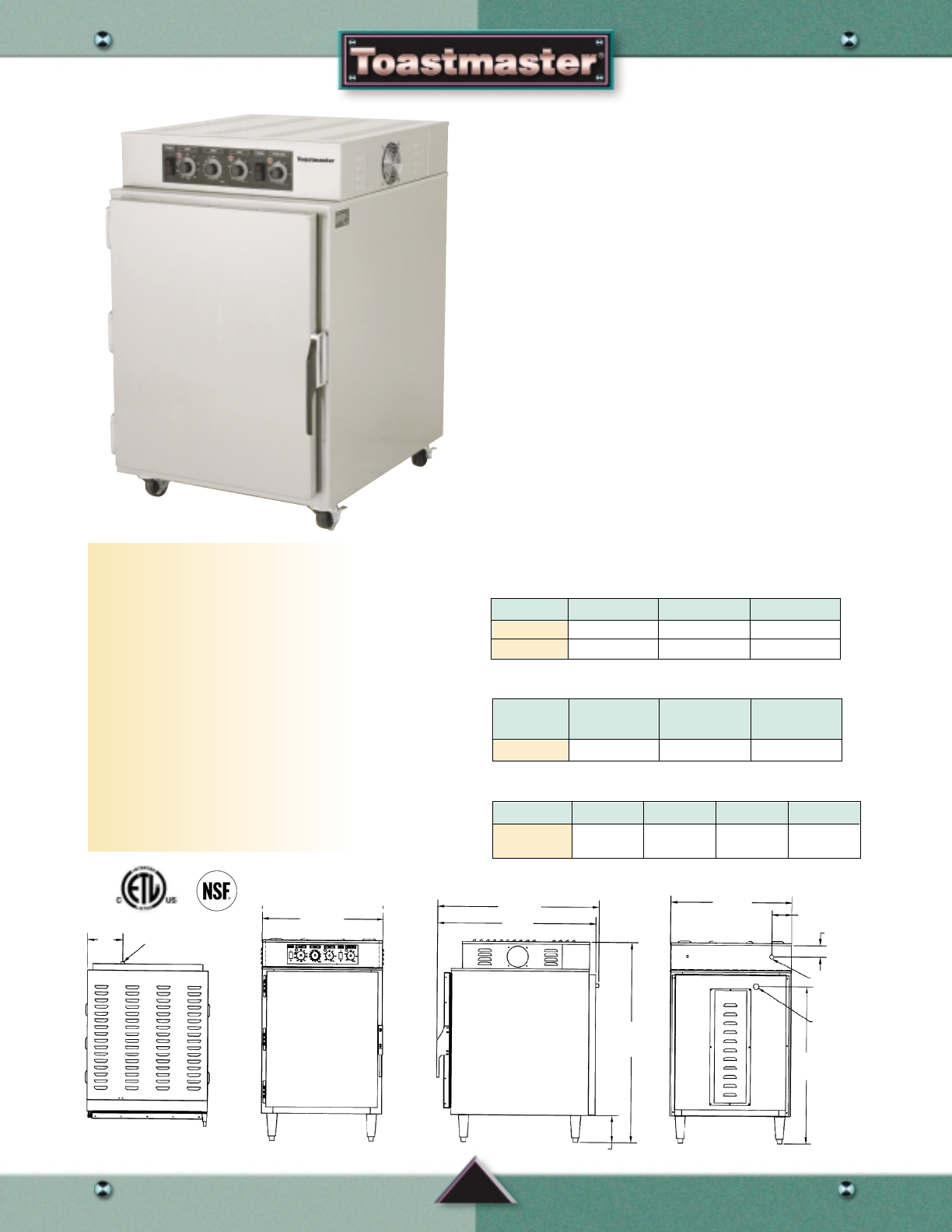

SC-7 Countertop Slo Cook’n Hold Oven

STANDARD FEATURES:

•Stainless steel construction

•6” legs

•Stainless steel door

•4 chrome racks

BASIC UNIT LIST PRICE: . . . . . . .$8,201.00

OPTIONS:

•Additional Chrome Racks each (101-0025-C) . .$75.00

•Casters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$239.00

•Cart with Panslides (101-9006-PS) . . . . . . . . . . .$1,355.00

•Cart without Panslides (101-9006-NP) . . . . . . .$1,193.00

•Stand with Panslides (101-6100-PS) . . . . . . . . .$1,355.00

•Stand without Panslides (101-6100-NP) . . . . . .$1,193.00

DIMENSIONS:

Height Width Depth

Exterior 44-3/4” 27-3/8” 36-5/8”

Interior 29” 18-3/4” 28-7/8”

CAPACITY:

18”x26” 13”x18”

Sheet Pans Sheet Pans Spacing

Smoker 7 14 3-1/2”

208/1 208/3 240/1 240/3

Amp

Draw 15 10 13 9

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

34

Slo-Cook’n Hold Slo-Cook’n Hold

CONSTRUCTION:

•Welded stainless steel

•Fully insulated

•Control panel accessible through front and top of unit

•Heating elements accessible inside of cabinet and through top

CONTROLS:

•Solid state controls

•Indicator lights for thermostat

•Cook’n Hold feature ulitizes cook thermostat, hold thermostat

and 24 hour timer

DOOR SWING: •Smoker: 27-5/8”

CLEARANCE:

•Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•SC-14 is shipped from factory to be hard wired on site.

Single phase uses three wire system.

Three phase uses four wire system.

•208 or 240 Volt single or three phase is standard.

Please specify at time of order.

SHIPPING WEIGHT: •600 Pounds, FOB Menominee, MI 49858

273/8”

731/2”

637/8”

323/4”

33/4”

365/8”

36”

8”

701/2”

273/8”

41/2”

FRONT SIDE BACK

TOP

ELECTRICAL

INLET

VENT

PIPE

VENT

PIPE

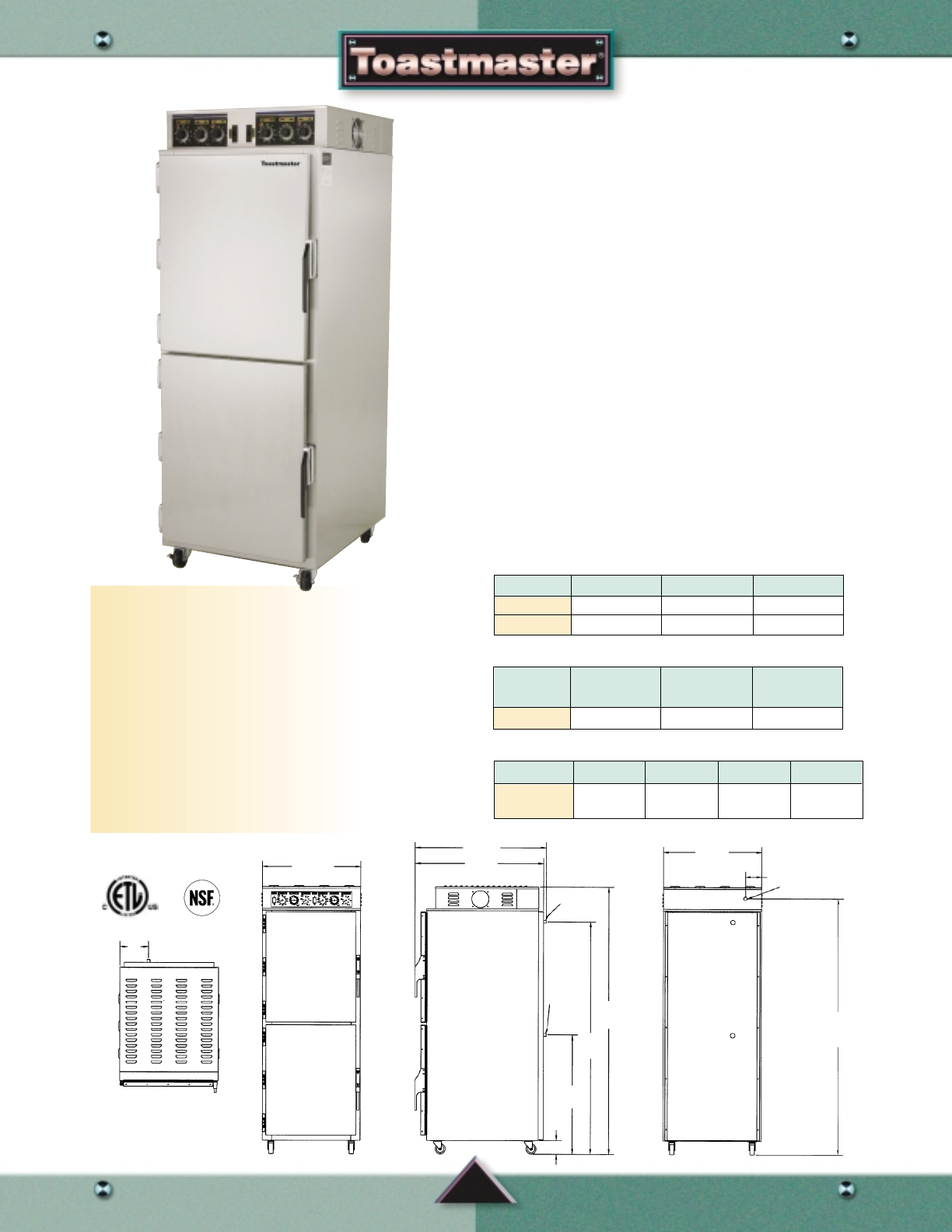

SC-14 Floor Model Slo-Cook’n Hold

STANDARD FEATURES:

•Stainless steel construction

•Heavy duty casters

•Stainless steel door

•8 chrome racks

BASIC UNIT LIST PRICE: . . . . . . .$13,398.00

OPTIONS:

•Additional Chrome Racks each (101-0025-C) . .$75.00

•Set of 6” Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . .$239.00

DIMENSIONS:

Height Width Depth

Exterior 73-1/2” 27-3/8” 36-5/8”

Interior 29” 18-3/4” 28-7/8”

CAPACITY:

18”x26” 13”x18”

Sheet Pans Sheet Pans Spacing

Oven 14 28 3-1/2”

208/1 208/3 240/1 240/3

Amp

Draw 30 20 26 17

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

35

Steam Equipment Steam Equipment

Steam Equipment

Toastmaster offers a line of cost effective steam equipment.

The XO-1MSS Steam Retherming Oven could be just what you need to replace expensive

combi ovens.

While maintaining a small footprint, this unit is able to provide you with a large capacity

up to 10 bags of product. The availability of the stacking option could double your

capacity while utilizing the same amount of floor space.

Toastmaster has made the XO-1MSS easy to clean. Convenient placement of the water

reservoir facilitates easy cleaning and minimizes build up of deposits. There are no tools,

and no service call required. Simply open the seal-less reservoir cover for de-scaling and

cleaning.

The XO-1MSS preheats and recovers quickly while in use, and has proven to be quicker

than a traditional steamer. This is the ideal unit for soups, pasta, veggies & more!

The XO-1STM offers the capability to steam, dry bake or bake with steam. Steam is

generated internally by using the same elements that generate the heat. This eliminates

the need for a boiler or reservoir. Maintenance is at a minimum since there is no need to

de-lime as usually required in other steam units.

When producing product in the cook mode, simply set controls to the desired

temperature. If steam is desired, simply set the steam timer to the desired setting.

These countertop units are constructed of long life, heavy duty stainless steel. Our

unique moving air system ensures that your product will be heated evenly, producing

consistent quality results. These units feature solid state controls which are both durable

and user friendly.

Telephone: 1-906-863-4401 www.toastmastercorp.com

36

Steam Equipment Steam Equipment

XO-1STM Tabletop Steam Oven

STANDARD FEATURES:

•Stainless steel construction

•Internally generated steam

•4” legs

•Tempered glass door

•Silicone rubber gasket on door

•Solid state controls

BASIC UNIT LIST PRICE: . . . . . . .$4,525.00

OPTIONS:

•Solid Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$206.00

•Stacking Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$107.00

•Wire Racks each (98-0125-B) . . . . . . . . . . . . . . .$56.00

•Cart with Panslides (98-9890-PS) . . . . . . . . . . . .$1,158.00

•Cart without Panslides (98-9890-NP) . . . . . . . .$998.00

•Stand with Panslides (98-9970-PS) . . . . . . . . . .$1,158.00

•Stand without Panslides (98-9970-NP) . . . . . . .$998.00

CONSTRUCTION:

•Welded stainless steel

•Fully insulated

•Control panel accessible through front and side of unit

•Heating elements accessible inside of cabinet and

through side

CONTROLS:

•Solid state controls

•Indicator light for thermostat

•Two speed fan switch

DOOR SWING: •Oven: 17”

CLEARANCE:

•Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•Unit is shipped from factory with a cord and plug.

•120 Volt single phase is standard.

SHIPPING WEIGHT:

•140 Pounds, FOB Menominee, MI 49858

101/8”

123/4”

31/4”

20”

16”

271/8”

237/8”

STEAM

VENT

WATER

INLET

1/4”

COMPRESSION

FRONT

TOP SIDE BACK

POWER CORD

INLET

61/4”51/2”

21/2”

120 Volt, 20 Amp

(NEMA 5-20 P)

DIMENSIONS:

Height Width Depth

Exterior 20” 27-1/8” 28-1/8”

Interior 11-3/4” 15-3/4” 21-1/2”

CAPACITY:

13”x18”

Half Size Sheet Pans Spacing

Oven 3 3-3/4”

42”

Amp Draw 120/1 208/1 240/1 240/3

L1 16.5 14.5 13 n/a

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

37

Steam Equipment Steam Equipment

CONSTRUCTION:

•Welded stainless steel

•Fully insulated

•Control panel accessible through front and side of unit

•Heating elements accessible inside of cabinet and

control side

CONTROLS:

•Solid state controls

DOOR SWING: •Oven: 22-3/4”

CLEARANCE:

• Allow four inches on each side and back of unit.

SERVICE CONNECTIONS:

•Unit is shipped from factory to be hard wired on site.

Three phase uses four wire system.

•208 Volt three phase is standard.

•The waterline should

be 1/4”. A water softening system and filtration should

be used to minimize mineral build-up.

SHIPPING WEIGHT:

•180 Pounds, FOB Menominee, MI 49858

XO-1MSS Steam Retherm Oven

STANDARD FEATURES:

•Stainless steel construction

•4” legs

•Stainless steel door

•Silicone rubber gasket on door

•Squirrel cage fan

BASIC UNIT LIST PRICE: . . . . . . .$13,807.00

OPTIONS:

•Stacking Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$107.00

•Wire Racks each (98-0125-B) . . . . . . . . . . . . . . .$56.00

•Cart with Panslides (98-9890-PS) . . . . . . . . . . . .$1,158.00

•Cart without Panslides (98-9890-NP) . . . . . . . .$998.00

•Stand with Panslides (98-0370-PS) . . . . . . . . . .$1,158.00

•Stand without Panslides (98-0370-NP) . . . . . . .$998.00

311/4”

241/8”

281/8”

265/8”

51/2”

31/2”

21/4”6”

275/8”

35/8”

13/4”

4”

FRONT SIDE BACK

3/4 NPT X 26”

VENT

3/4 NPT

DRAIN

ELECTRICAL

OUTLET REAR

OF UNIT

(POINT OF

CORD ORIGIN)

WATER INLET 1/4

COMPRESSION

DIMENSIONS:

Height Width Depth

Exterior 37” 31-3/8” 33”

Interior 23” 23” 15”

CAPACITY:

13”x18” 12”x20”x2”

Sheet Pans Food Sheet Pans

3” Spacing 55

208/1 208/3 240/1 240/3

Amp

Draw n/a 23 n/a 20

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

38

Heater/Proofers Heater/Proofers

Heater/Proofers

Toastmaster’s line of insulated and non-insulated aluminum heater/proofer cabinets

serves a dual purpose:

• As a proofer, the controlled heat (up to 110 degrees F) and controlled humidity

create the perfect atmosphere for proofing of yeast raised products.

• As a hold-and-serve heated cabinet, it assures the operator proper holding

temperatures from preparation to serving.

In locations where cabinets will be used primarily for holding with infrequent serving

applications (gauged by door openings) or in situations with limited start-up budgets, the

non-insulated cabinet would satisfy most requirements. In higher volume operations with

more frequent serving applications the insulated cabinet would be the better choice as it

delivers a faster recovery and greater consistency of temperature.

The insulated cabinets are, of course, more energy efficient and although more costly

initially, they are a better value over time. Whichever style cabinet you select, you can be

confident that your food will be held at proper serving temperatures.

The benefits of the features incorporated into the Toastmaster Heater/Proofers are:

•Heavy duty extruded anodized aluminum door frames which are abuse resistant

and non-warping.

•A full perimeter magnetic door gasket assures positive seal and easy opening.

•A full length door handle which provides convenient handle height for everyone.

•Enclosed blowers and side to side airflow assure even heat and humidity distribution.

As the door has been eliminated as a factor in the air flow, you will experience

improved consistency and shorter recovery times.

•Removable heating consoles and lift out slides make Toastmaster units easy to clean.

•Standard 5” diameter x 1” tread plate casters (provided on non-insulated cabinets)

are acid resistant and easy to roll.

•Heavy duty 5” diameter x 1-1/4” polyurethane tread plate casters with brakes

(provided on insulated cabinets) are acid resistant and easy to roll, and come

with standard brakes.

•.190” thick base and reinforced corner design assures durability and years of operation.

Compare it to the competitors!

Telephone: 1-906-863-4401 www.toastmastercorp.com

39

Heater/Proofers Heater/Proofers

CONSTRUCTION:

•Welded aluminum construction

•Removable heating console

•Insulated

CONTROLS:

•Mechanical controls

DOOR SWING:

•Door swings 270 degrees to the recessed side of the cabinet

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle switch,

running lights to indicate heater (holding) or proofing mode,

stainless steel water reservoir.

•Element controlled by 180 degree F thermostat.

1500 Watts in heating mode. 1500 Watts in proofing mode.

SHIPPING WEIGHT:

•140 Pounds, FOB Menominee, MI 49858

335/16”

669/16”

3211/16”

2213/16”

SIDE

FRONTTOP

9451-HP34CDNF Heater/Proofer

Aluminum Insulated Full Size

STANDARD FEATURES:

•Air baffle and circulation air blower provide

even heat distribution

•Aluminum construction •Insulated

•Set of 5” swivel casters w/brakes

•Polycarbonate door •Magnetic door gaskets

•Lift-off door •Full length door handle

BASIC UNIT LIST PRICE: . . . . . . .$3,631.00

OPTIONS:

•Solid Door (Order as model 9451-HP34SDNF) $242.00

DIMENSIONS:

Height Width Depth

Exterior 67-9/16” 23-5/16” 33-7/8”

CAPACITY:

18”x26” Full

Size Sheet Pans

Proofer 34

Spacing 1-1/2”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 14 n/a n/a n/a

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

40

Heater/Proofers Heater/Proofers

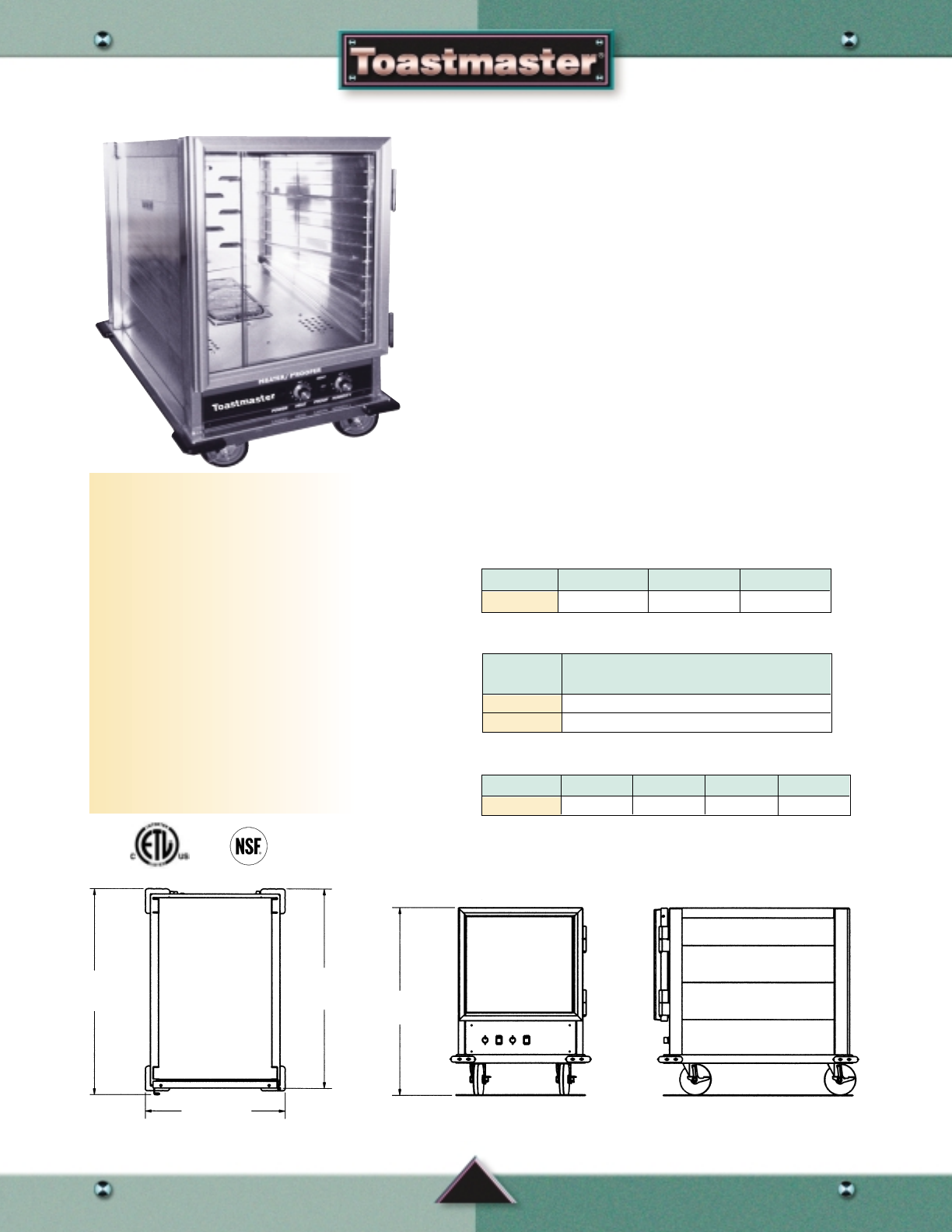

9451-HP12CDNF Heater/Proofer

Aluminum Insulated Half Size

Economy Model

STANDARD FEATURES:

•Air baffle and circulation air blower provide

even heat distribution

•Aluminum construction

•Insulated

•Set of 5” swivel casters w/brakes

•Polycarbonate door

•Magnetic door gaskets

•Lift-off door

•Full length door handle

BASIC UNIT LIST PRICE: . . . . . . .$3,309.00

OPTIONS:

•Solid Door (Order as 9451-HP12SNDF) . . . . . . .$242.00

CONSTRUCTION:

•Welded aluminum construction

•Removable heating console

•Insulated

CONTROLS:

•Mechanical controls

DOOR SWING:

•Door swings 270 degrees to the recessed side of the cabinet

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle switch,

running lights to indicate heater (holding) or proofing mode,

stainless steel water reservoir.

•Element controlled by 180 degree F thermostat.

1500 Watts in heating mode. 1500 Watts in proofing mode.

SHIPPING WEIGHT:

•100 Pounds, FOB Menominee, MI 49858

335/16”

2213/16”

325/16”

307/16”

SIDE

FRONT

TOP

DIMENSIONS:

Height Width Depth

Exterior 31” 23-5/16” 33-7/8”

CAPACITY:

18”x26” Full

Size Sheet Pans

Proofer 11

Spacing 1-1/2”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 14 n/a n/a n/a

ELECTRICAL:

Cord and plug - NEMA 5-20P

Telephone: 1-906-863-4401 www.toastmastercorp.com

41

Heater/Proofers Heater/Proofers

CONSTRUCTION:

•Welded aluminum construction

•Removable heating console

•Insulated

•Removable universal pan slides

CONTROLS:

•Mechanical controls

DOOR SWING:

•Door swings 270 degrees to the recessed side of the cabinet

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle switch,

running lights to indicate heater (holding) or proofing mode,

stainless steel water reservoir.

•Element controlled by 180 degree F thermostat.

1500 Watts in heating mode. 1500 Watts in proofing mode.

SHIPPING WEIGHT:

•140 Pounds, FOB Menominee, MI 49858

261/8”287/8”

671/2”

295/32”3221/32”

ø5”

SIDE BACK

FRONT

TOP

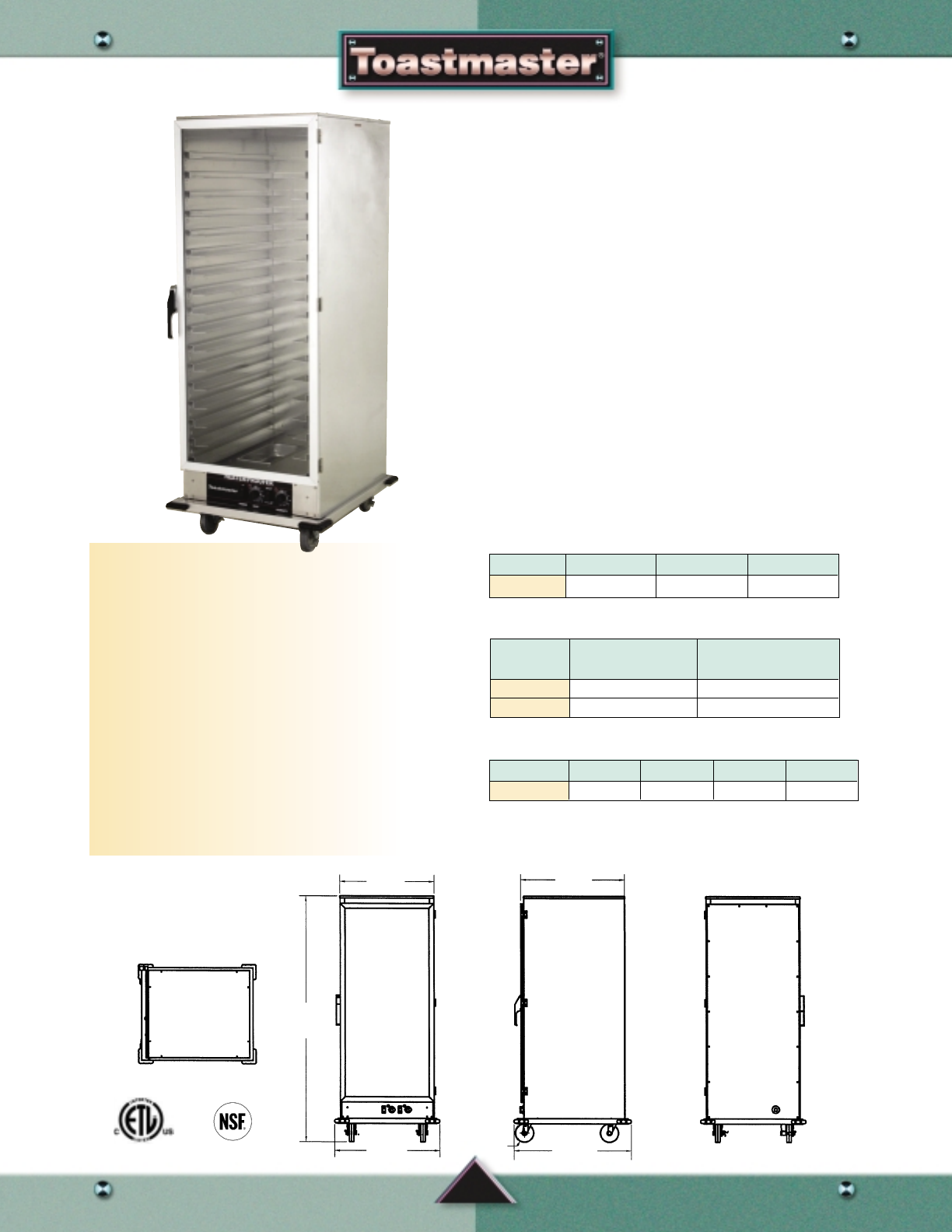

E17UAC-INS-20 Heater/Proofer

Aluminum Insulated Full Size

STANDARD FEATURES:

•Air baffle and circulation air blower provide

even heat distribution

•Aluminum construction •Insulated

•Set of 5” swivel casters w/brakes

•Polycarbonate door •Lift-off door

•Magnetic door gaskets

•Full length door handle

BASIC UNIT LIST PRICE: . . . . . . .$3,865.00

OPTIONS:

•Push Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $150.00

•Solid Door (Order as E17UAC-INS-SD-20) . . . . . $242.00

DIMENSIONS:

Height Width Depth

Exterior 67-1/2” 27-5/8” 31-5/8”

CAPACITY:

18”x26” Full 12”x20”x2-1/2”

Size Sheet Pans Food Service Pans

Proofer 17 34

Spacing 3” 3”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 14 n/a n/a n/a

ELECTRICAL:

•Also available in 15 amps.

Model # E17UAC-INS-15

12.5 amps - NEMA 5-15P

Cord and plug - NEMA 5-20P

Telephone: 1-906-863-4401 www.toastmastercorp.com

42

Heater/Proofers Heater/Proofers

CONSTRUCTION:

•Welded aluminum construction

•Removable heating console

•Insulated

•Removable universal pan slides

CONTROLS:

•Mechanical controls

DOOR SWING:

•Door swings 180 degrees to the recessed side of the cabinet

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle

switch, running lights to indicate heater (holding) or

proofing mode, stainless steel water reservoir.

•Element controlled by 180 degree F thermostat.

1500 Watts in heating mode. 1500 Watts in proofing mode.

SHIPPING WEIGHT:

•100 Pounds, FOB Menominee, MI 49858

295/32”3221/32”

321/8”

261/8”

SIDE

FRONT

TOP

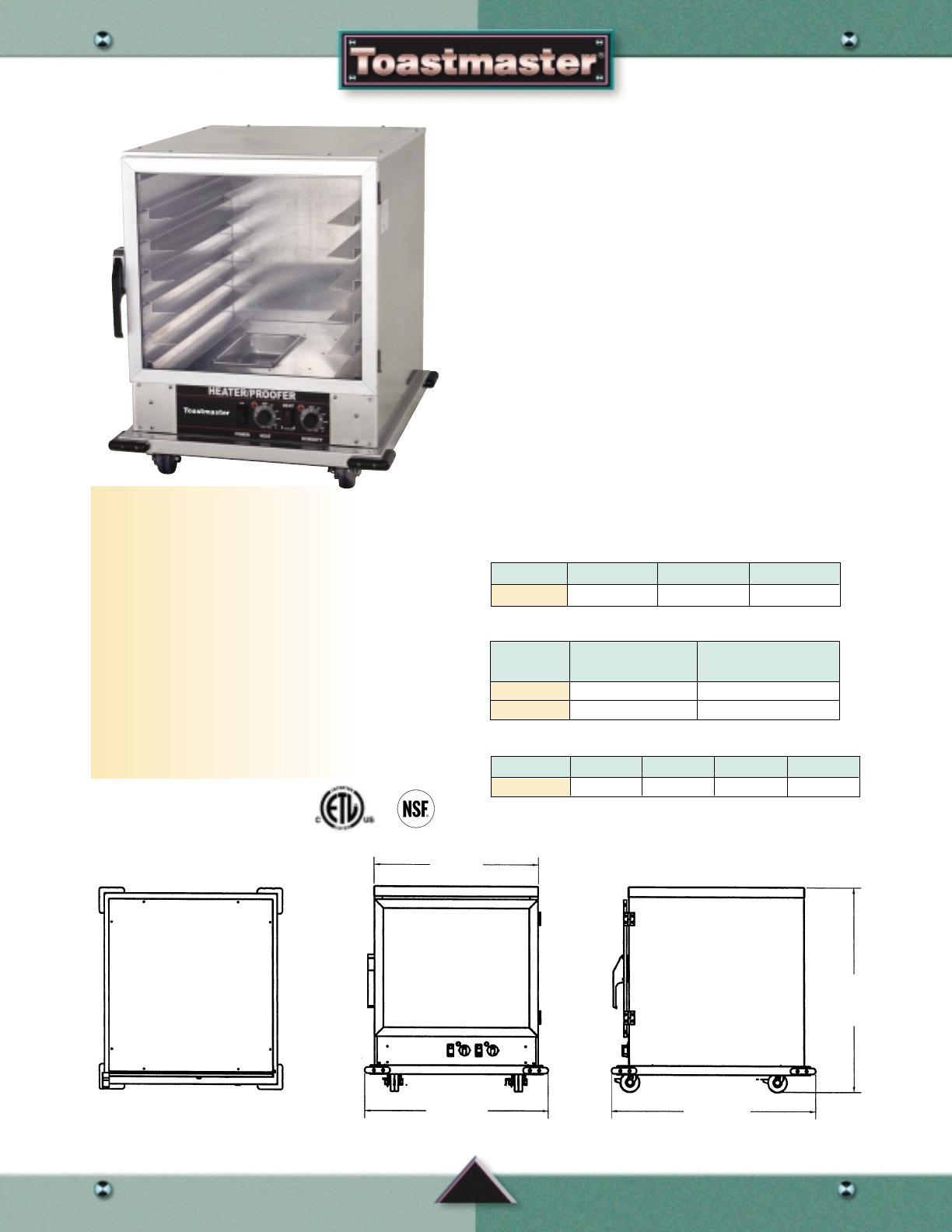

E6UAC-INS-20 Heater/Proofer

Aluminum Insulated Half Size

STANDARD FEATURES:

•Air baffle and circulation air blower provide

even heat distribution

•Aluminum construction •Insulated

•Set of 5” swivel casters w/brakes

•Polycarbonate door

•Magnetic door gaskets •Lift-off door

•Full length door handle

BASIC UNIT LIST PRICE: . . . . . . .$3,424.00

OPTIONS:

•Push Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$150.00

•Solid Door (Order as E6UAC-INS-SD-20) . . . . . .$242.00

DIMENSIONS:

Height Width Depth

Exterior 32-1/8” 27-5/8” 31-5/8”

CAPACITY:

18”x26” Full 12”x20”x2-1/2”

Size Sheet Pans Food Service Pans

Proofer 612

Spacing 3” 3”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 14 n/a n/a n/a

ELECTRICAL:

•Also available in 15 amps.

Model # E6UAC-INS-15

12.5 amps - NEMA 5-15P

Cord and plug - NEMA 5-20P

Telephone: 1-906-863-4401 www.toastmastercorp.com

43

Heater/Proofers Heater/Proofers

CONSTRUCTION:

•Welded aluminum construction

•Removable heating console

CONTROLS:

•Mechanical controls

DOOR SWING:

•Door swings 270 degrees to the recessed side of the cabinet

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle switch,

running lights to indicate heater (holding) or proofing mode,

stainless steel water reservoir.

•Element controlled by 180 degree F thermostat.

1500 Watts in heating mode. 1500 Watts in proofing mode.

SHIPPING WEIGHT:

•140 Pounds, FOB Menominee, MI 49858

335/16”

669/16”

3211/16”

2213/16”

SIDE

FRONTTOP

E9451-HP34CDNF Heater/Proofer

Aluminum Non-Insulated Full Size

STANDARD FEATURES:

•Air baffle and circulation air blower provide

even heat distribution

•Aluminum construction

•Set of 5” swivel casters w/brakes

•Lexan door •Magnetic door gaskets

•Lift-off door •Full length door handle

BASIC UNIT LIST PRICE: . . . . . . .$2,725.00

OPTIONS:

•Push Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $150.00

•Transport Latch . . . . . . . . . . . . . . . . . . . . . . . . . . $118.00

•Solid Door (Order as model E9451-HP34SDNF) $242.00

•6” Indoor/Outdoor Casters (set of 4) . . . . . . . . $139.00

DIMENSIONS:

Height Width Depth

Exterior 66-9/16” 22-13/16” 33-5/16”

CAPACITY:

18”x26” Full

Size Sheet Pans

Proofer 34

Spacing 1-1/2”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 15 n/a n/a n/a

ELECTRICAL:

Cord and plug - NEMA 5-20P

Telephone: 1-906-863-4401 www.toastmastercorp.com

44

Heater/Proofers Heater/Proofers

E9451-HP12CDNF Heater/Proofer

Aluminum Non-Insulated Half Size

Economy Model

STANDARD FEATURES:

•Air baffle and circulation air blower provide

even heat distribution

•Aluminum construction

•Set of 5” swivel casters w/brakes

•Polycarbonate door

•Magnetic door gaskets

•Lift-off door

•Full length door handle

BASIC UNIT LIST PRICE: . . . . . . .$2,457.00

OPTIONS:

•Solid Door (Order as E9451-HP12SDNF) . . . . . .$242.00

CONSTRUCTION:

•Welded aluminum construction

•Removable heating console

CONTROLS:

•Mechanical controls

•External solar powered digital thermometer

DOOR SWING:

•Door swings 270 degrees to the recessed side of the cabinet

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle switch,

running lights to indicate heater (holding) or proofing mode,

stainless steel water reservoir.

•Element controlled by 180 degree F thermostat.

1500 Watts in heating mode. 1500 Watts in proofing mode.

SHIPPING WEIGHT:

•100 Pounds, FOB Menominee, MI 49858

335/16”

2213/16”

325/16”

307/16”

SIDE

FRONT

TOP

DIMENSIONS:

Height Width Depth

Exterior 30-5/16” 22-13/16” 33-5/16”

CAPACITY:

18”x26” Full

Size Sheet Pans

Proofer 11

Spacing 1-1/2”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 15 n/a n/a n/a

ELECTRICAL:

Cord and plug - NEMA 5-20P

Telephone: 1-906-863-4401 www.toastmastercorp.com

45

Heater/Proofers Heater/Proofers

CONSTRUCTION:

•Welded aluminum construction

•Removable heating console

•Removable universal pan slides

CONTROLS:

•Mechanical controls

DOOR SWING:

•Door swings 270 degrees to the recessed side of the cabinet

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle switch,

running lights to indicate heater (holding) or proofing mode,

stainless steel water reservoir.

•Element controlled by 180 degree F thermostat.

1500 Watts in heating mode. 1500 Watts in proofing mode.

SHIPPING WEIGHT:

•140 Pounds, FOB Menominee, MI 49858

261/8”287/8”

671/2”

295/32”3221/32”

ø5”

SIDE BACK

FRONT

TOP

E17UAC-20 Heater/Proofer

Aluminum Non-Insulated Full Size

STANDARD FEATURES:

•Air baffle and circulation air blower provide

even heat distribution

•Aluminum construction

•Set of 5” swivel casters w/brakes

•Polycarbonate door •Lift-off door

•Magnetic door gaskets

•Full length door handle

BASIC UNIT LIST PRICE: . . . . . . .$2,930.00

OPTIONS:

•Push Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $150.00

•Solid Door (Order as E17UAC-20-SD) . . . . . . . . $242.00

DIMENSIONS:

Height Width Depth

Exterior 66-1/2” 27-5/8” 31-5/8”

CAPACITY:

18”x26” Full 12”x20”x2-1/2”

Size Sheet Pans Food Service Pans

Proofer 17 34

Spacing 3” 3”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 14 n/a n/a n/a

ELECTRICAL:

•Also available in 15 amps.

Model # E17UAC-15

12.5 amps - NEMA 5-15P

Cord and plug - NEMA 5-20P

Telephone: 1-906-863-4401 www.toastmastercorp.com

46

Heater/Proofers Heater/Proofers

CONSTRUCTION:

•Welded aluminum construction

•Removable heating console

•Removable universal pan slides

CONTROLS:

•Mechanical controls

DOOR SWING:

•Door swings 180 degrees to the recessed side of the cabinet

SERVICE CONNECTIONS:

•Unit provided with 6 foot detachable cord and plug

•Removable console consisting of blower, two-way toggle

switch, running lights to indicate heater (holding) or

proofing mode, stainless steel water reservoir.

•Element controlled by 180 degree F thermostat.

1500 Watts in heating mode. 1500 Watts in proofing mode.

SHIPPING WEIGHT:

•100 Pounds, FOB Menominee, MI 49858

295/32”3221/32”

321/8”

261/8”

SIDE

FRONT

TOP

E6UAC-20 Heater/Proofer

Aluminum Non-Insulated Half Size

STANDARD FEATURES:

•Air baffle and circulation air blower provide

even heat distribution

•Aluminum construction

•Set of 5” swivel casters w/brakes

•Polycarbonate door •Magnetic door gaskets

•Lift-off door •Full length door handle

BASIC UNIT LIST PRICE: . . . . . . .$2,667.00

OPTIONS:

•Push Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . .$150.00

•Solid Door (Order as E6UAC-20-SD) . . . . . . . . .$242.00

DIMENSIONS:

Height Width Depth

Exterior 31-1/8” 27-5/8” 31-5/8”

CAPACITY:

18”x26” Full 12”x20”x2-1/2”

Size Sheet Pans Food Service Pans

Proofer 612

Spacing 3” 3”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 14 n/a n/a n/a

ELECTRICAL:

•Also available in 15 amps.

Model # E6UAC-15

12.5 amps - NEMA 5-15P

Cord and plug - NEMA 5-20P

Telephone: 1-906-863-4401 www.toastmastercorp.com

47

Heated Holding Heated Holding

Heated Holding Cabinets

The Toastmaster Top Mount Heated Cabinets are designed to hold food products in a lightly

moisturized environment. A water pan is provided to permit natural evaporation, if desired.

Convection heating system and back to front airflow ensures that the cabinet will hold

proper temperatures prior to, and during, busy serving periods. The Toastmaster Heated

Holding Cabinets are the premier choice for correctional facilities.

The benefits of the features incorporated into the Wilder Heated Holding Cabinets

are:

•Stainless steel construction provides a heavy duty, long life unit.

•Full length door handle provides convenient handle height for everyone.

•Removable heating consoles and lift out slides make Wilder units easy to clean.

•Adjustable 6” legs to accommodate all floor surfaces.

•Universal pan slides to enable the use of standard sheet pans or food service pans.

•Insulated solid door with silicone rubber gasket to eliminate heat loss, providing

energy savings

•Door will self close when open within 90 degrees, and hold open when open beyond

90 degrees for hands free use.

•Prison package provides tamper proof screws, locking door and control panel

cover make these units ideal for use in correctional facilities.

Telephone: 1-906-863-4401 www.toastmastercorp.com

48

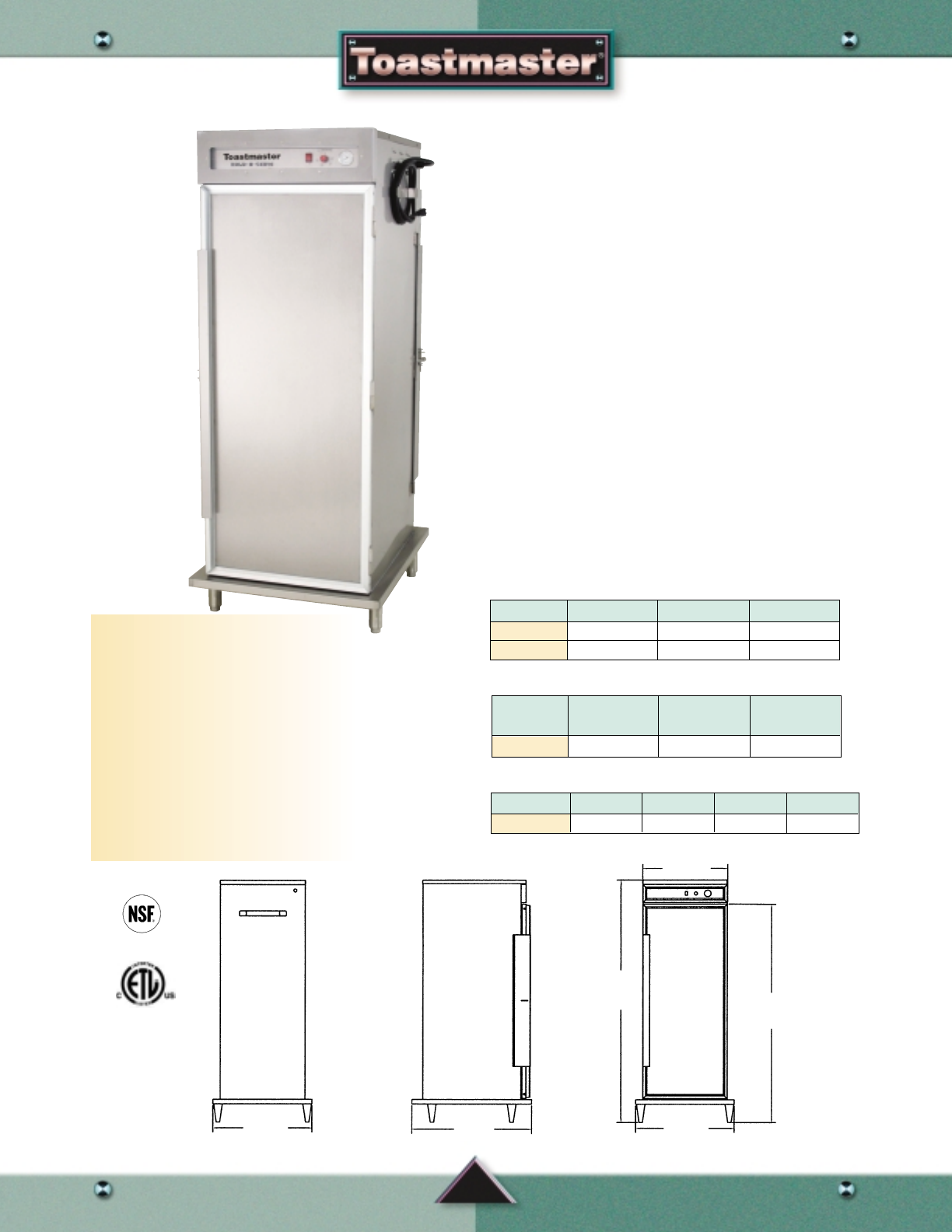

Heated Holding Heated Holding

CONSTRUCTION:

•Welded stainless steel

•Fully insulated

•Control panel accessible through front of unit

•Heating elements accessible inside of cabinet

CONTROLS:

•Mechanical controls

•Indicator light for thermostat

•Separate heat and humidity controls

DOOR SWING:

•Cabinet: 27-1/4”

•Hold open beyond 90 degrees

•Self closing within 90 degrees

CLEARANCE:

•Allow four inches on each side and back of unit

SERVICE CONNECTIONS:

•7500-H-UA13T is equipped with a 20 Amp,

nine foot, power cord

•120 Volt single phase is standard.

SHIPPING WEIGHT:

•525 Pounds, FOB Menominee, MI 49858

SIDE BACK

FRONT

7500-H-UA13T

Stainless Steel Insulated

Full Size, Universal

STANDARD FEATURES:

•Stainless steel construction

•Insulated solid door

•Casters

•Silicone rubber gasket on door

BASIC UNIT LIST PRICE: . . . . . . .$8,280.00

OPTIONS:

•Prison Package (Order as 7500-H-UA13TFL). . . $799.00

293/4”

731/2”

661/4”

293/4”

255/8”

36”

Shown with

Optional

Prison

Package

DIMENSIONS:

Height Width Depth

Exterior 71-1/8” 29-3/4” 34”

Interior 57-1/2” 21” 29-1/2”

CAPACITY:

18”x26” 13”x18”

Sheet Pans Sheet Pans Spacing

Proofer 13 26 3”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 16 n/a n/a n/a

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

49

Heated Holding Heated Holding

CONSTRUCTION:

•Welded stainless steel

•Fully insulated

•Control panel accessible through front of unit

•Heating elements accessible inside of cabinet

CONTROLS:

•Electromechanical controls

•Indicator light for thermostat

•Separate heat and humidity controls

DOOR SWING:

•Cabinet: 27-1/4”

•Hold open beyond 90 degrees

•Self closing within 90 degrees

CLEARANCE:

•Allow four inches on each side and back of unit

SERVICE CONNECTIONS:

•7500-H-UA13TP is equipped with a 20 Amp,

nine foot, power cord

•120 Volt single phase is standard.

SHIPPING WEIGHT:

•525 Pounds, FOB Menominee, MI 49858

SIDE BACK

FRONT

293/4”

731/2”661/4”

293/4”

255/8”3415/16”

36”

7500-H-UA13TP

Stainless Steel Insulated

Full Size, Universal

STANDARD FEATURES:

•Stainless steel construction

•Insulated solid door •Pass thru

•Casters •Silicone rubber gasket on door

BASIC UNIT LIST PRICE: . . . . . . .$8,944.00

OPTIONS:

•Prison Package (Order as 7500-H-UA13TFLP)... $799.00

Shown with

Optional

Prison

Package

DIMENSIONS:

Height Width Depth

Exterior 73-1/2” 29-3/4” 36”

Interior 57-1/2” 21” 29-1/2”

CAPACITY:

18”x26” 13”x18”

Sheet Pans Sheet Pans Spacing

Proofer 13 26 3”

Amp Draw 120/1 120/208/3 120/240/1 120/240/3

L1 16 n/a n/a n/a

ELECTRICAL:

Telephone: 1-906-863-4401 www.toastmastercorp.com

50

Ranges Ranges

Ranges

Features:

•Stainless Steel front,

sides and top

•Hatchable to pass through

26” opening

•Includes 6” NSF-listed legs

•Front-serviceable

•36” Cooking Height

Additional features of models

with convection oven:

•Included three oven racks

•Stainless steel oven and

door liners

•Vented, air-cooled motor

Additional features of

models with deck oven:

•Includes one oven rack

•Aluminized steel oven liner

•Stainless steel door liners

Note: “C” in model denotes Convection Oven base.

“D” denotes Deck Oven base.

RH36D4

with deck oven base

and optional casters

RH36C1/D1

•Three 12” x 24”

hotplates

RH36C2/D2

•Two 12” x 24” hotplates

•Two round hotplates

RH36C3/D3

•One 36” x 24”

griddle plate

RH36C4/D4

•Six round

hotplates

RH36C6/D6

•One 12” x 24”

griddle plate

•Two round hotplates

RH36C7/D7

•One 36” x 24”

griddle plate

•One 12” x 24” hotplate

RH36D4

with deck oven base

and optional casters

Telephone: 1-906-863-4401 www.toastmastercorp.com

51

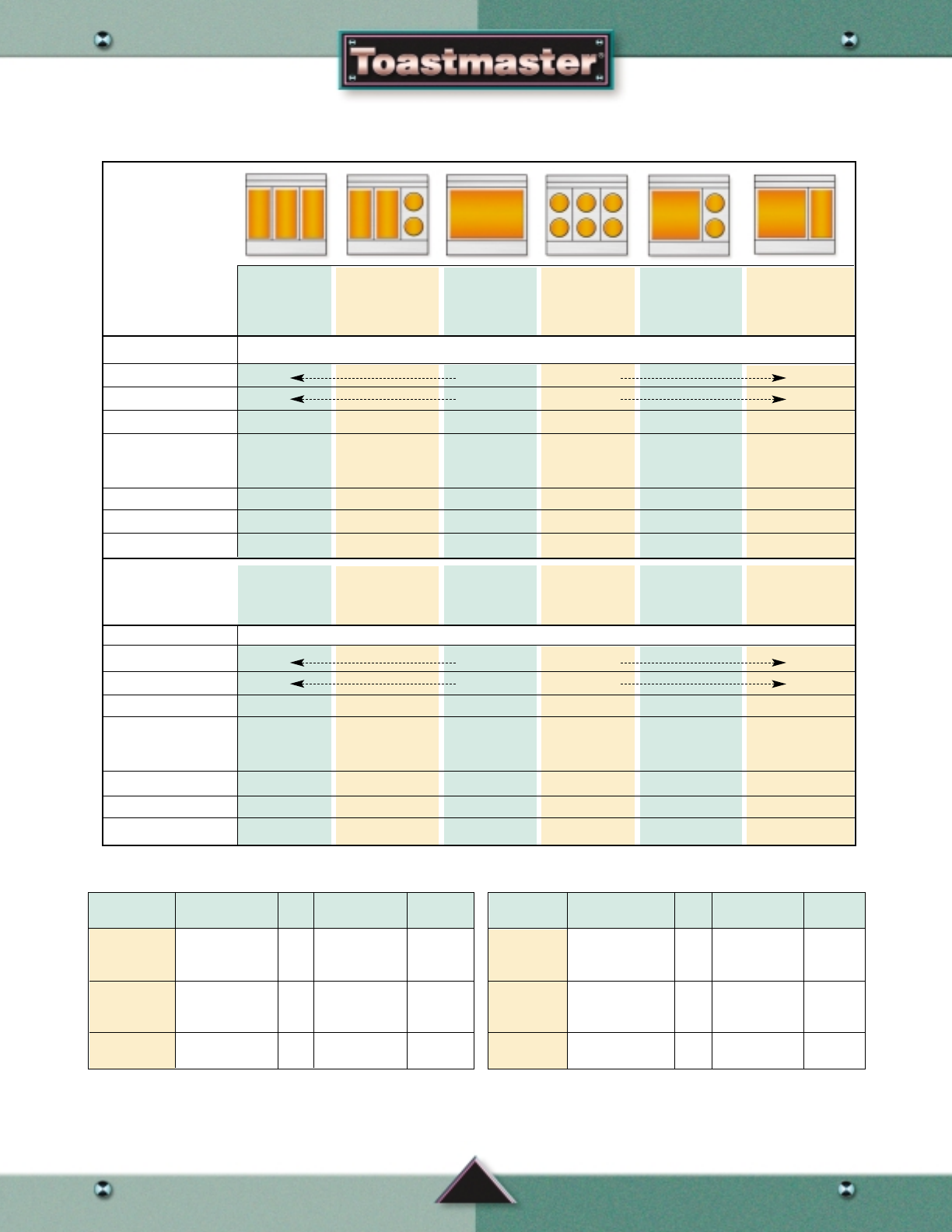

Ranges Ranges

Model Number RH36C1 RH36C2 RH36C3 RH36C4 RH36C5 RH36C6

Type of oven base Convection Oven

Supply (3 Phase) 208V, 240V or 480V

Rated heat input 22.5 KW 22.4 KW 23.1 KW 22.2 KW 22.4 KW 22.5 KW

Width 36” W 36” W 36” W 36” W 36” W 36” W

Height 38-1/4” H 38-1/4” H 38-1/4” H 38-1/4” H 38-1/4” H 38-1/4” H

Depth 38-1/2” D 38-1/2” D 38-1/2” D 38-1/2” D 38-1/2” D 38-1/2” D

Ship Weight 610 lbs. 570 lbs. 610 lbs. 485 lbs. 570 lbs. 570 lbs.

Unit Price $13,885.00 $13,885.00 $15,721.00 $14,577.00 $14,855.00 $14,855.00

Add for 480 V $1,076.00 $1,076.00 $1,076.00 $1,076.00 $1,076.00 $1,076.00

Model Number RH36D1 RH36D2 RH36D3 RH36D4 RH36D5 RH36D6

Type of oven base Deck Oven

Supply (3 Phase) 208V, 240V or 480V

Rated heat input 21.9 KW 21.8 KW 22.5 KW 21.6 KW 21.8 KW 21.9 KW

Width 36” W 36” W 36” W 36” W 36” W 36” W

Height 38-1/4” H 38-1/4” H 38-1/4” H 38-1/4” H 38-1/4” H 38-1/4” H

Depth 38-1/2” D 38-1/2” D 38-1/2” D 38-1/2” D 38-1/2” D 38-1/2” D

Ship Weight 634 lbs. 580 lbs. 652 lbs. 562 lbs. 580 lbs. 580 lbs.

Unit Price $11,080.00 $10,803.00 $11,358.00 $11,080.00 $11,173.00 $11,265.00

Add for 480 V $1,185.00 $1,185.00 $1,185.00 $1,185.00 $1,185.00 $1,185.00

Specifications

“C”

Convection

Ovens

“D”

Deck Ovens

Marine kits are designed to provide shipboard stability to RH models. Includes bolt-down legs, door

latch, grab rails sea racks (kits A and B only), grease trays with latches and stainless steel backs.

Field assembly required.

Type of

Range Top

Model Description Wt. Available Price

Number

for Use With

ACCS06K Casters, set of 18 All RH $508.00

four, 2 swivel lbs. models

(with locks)

ACRK36K Deck oven 21 RH36D $113.00

rack lbs. models

slide-out

ACBK36H Outer back 5 All RH $298.00

stainless steel lbs. models

Accessories

Model Description Wt. Available Price

Number

for Use With

MH36KITA Marine Kit, 20 RH36C1/C2/ $1,113.00

tops 1, 2, lbs. C4/

and 4 D1/D2/D4

MH36KITB Marine Kit, 20 RH36C6/ $1,113.00

tops 6, lbs. C7/

and 7 D6/D7

MH36KITC Marine Kit, 20 RH36C3/ $1,070.00

top 3 lbs. D3

Marine Kits

Three

12” x 24”

Hotplates

Two 12” x 24”

Hotplates

& Two

Round Hotplates

One

36” x 24”

Griddle

Six

Round

Hotplates

One 24” x 24”

Griddle

& Two Round

Hotplates

One 24” x 24”

Griddle

& One 12” x 24”

Hotplate

Three

12” x 24”

Hotplates

Two 12” x 24”

Hotplates

& Two

Round Hotplates

One

36” x 24”

Griddle

Six

Round

Hotplates

One 24” x 24”

Griddle

& Two Round

Hotplates

One 24” x 24”

Griddle

& One 12” x 24”

Hotplate

Telephone: 1-906-863-4401 www.toastmastercorp.com

52

Step-Up Open Top Step-Up Open Top

Step-up Open Top Range

All units are shipped with LP configuration. A universal

pressure regulator are shipped loose with the unit including

Natural Gas orifice for field conversation.

Features:

•Front, back and sides

including top rail are all

stainless steel.

•Easy to use rotating knobs

to control the gas and heat.

•Each burner is controlled

by a independent control

valve.

•One standing pilot

services each burner.

A 3/4” rear gas connection

is standard.

•Elevated rear with cast iron

top grates and open

burners.

•Aluminized drip tray.

•Rest on 4” adjustable legs

Toastmaster Step-up Open Top is the most economical and

flexible in the food service industry. It offers unsurpassed

performance, combining proven control system with Toastmaster

quality and durability.

Models: TMSO 624 •TMSO 416 •TMSO 208

Model Number TMSO 208 TMSO 416 TMSO624

Price $1,269.00 $1,875.00 $2,629.00

Step-up Open Top Range

Telephone: 1-906-863-4401 www.toastmastercorp.com

53

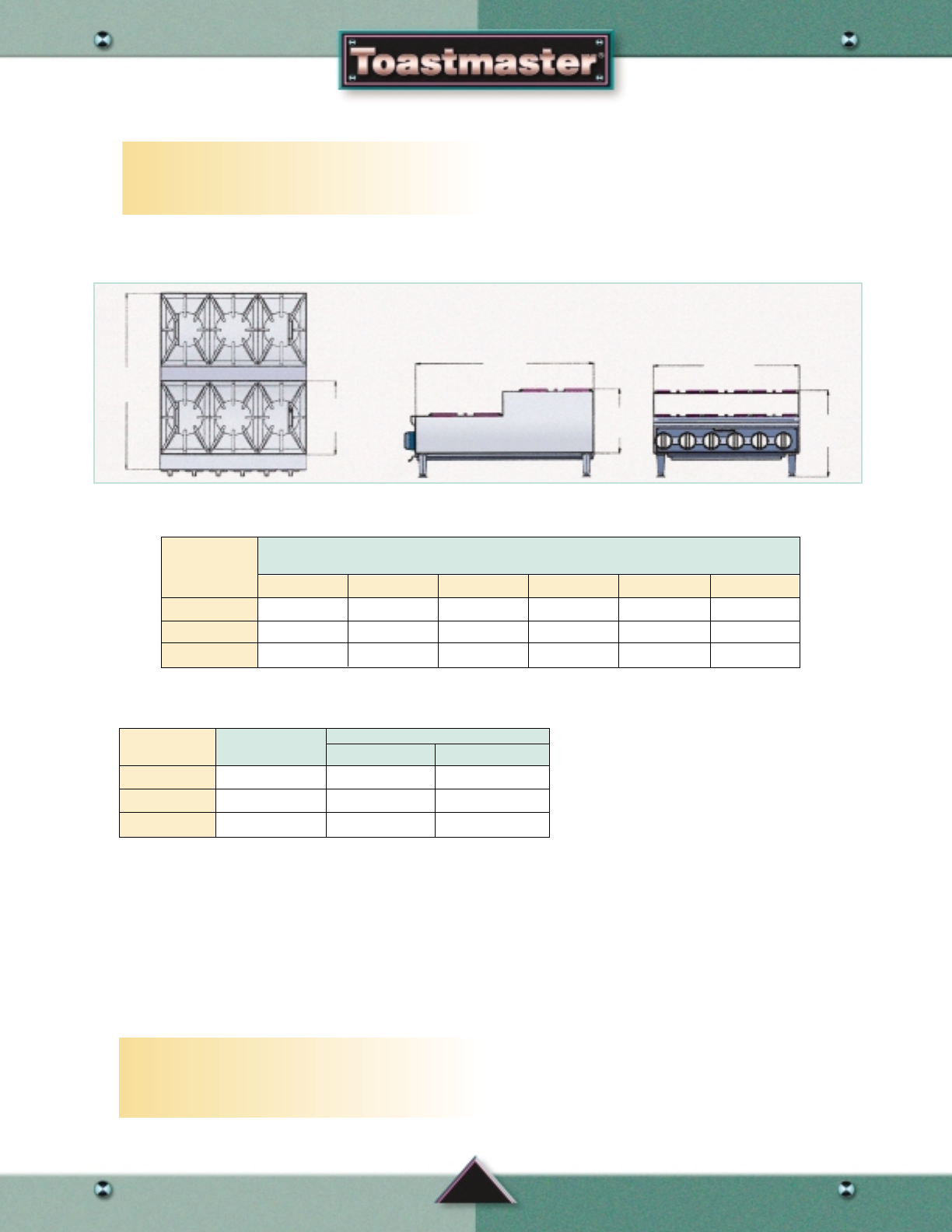

Step-Up Open Top Step-Up Open Top

ABCDEF

TMSO 624 29.76” 12.24” 24” 14.45” 29” 10.51”

TMSO 416 29.76” 12.24” 16” 14.45” 29” 10.51”

TMSO 208 29.76” 12.24” 8” 14.45” 29” 10.51”

Step-Up Open Top Range

Model

Number

DIMENSIONS

Units inches - see drawing

Model Number of

Number Burners LP N

TMSO 624 6 120,000 120,000

TMSO 416 4 80,000 80,000

TMSO 208 2 40,000 40,000

Top View Side View

E

F

AB

C

D

Front View

BTU RATING Gas Heat Control System:

Each burner is controlled by

independent control valve. One standing

pilot services each burner. A 3/4” rear

connection is standard.

BTU Rating: Refer to the Gas Rating

Installation Requirements:

Recommended to install under vented

hood.

TMSO:

Each burner rated 20,000 BTU per hour

for natural gas and 20,000 for propane

gas.

• All Models: Require operating pressure are 3.5-5” for natural

gas and 11.-14” for propane. 3/4” NPT rear gas with pressure

regulator is standard.

• Flex Hose: Use only a commercial flex hose. The I.D. should not

be smaller than the I.D. of the pipe from the pipe to which it is

connected.

Intended for commercial use only.

Not intended for household use.

Check local codes for fire and sanitary regulations.

Telephone: 1-906-863-4401 www.toastmastercorp.com

54

Hot Food Servers Hot Food Servers

Electric Hot Food Servers

Toastmaster’s electric hot food servers are designed to hold cooked foods at a safe,

thermometer verified serving temperature and at proper moisture content. Hot food can be

placed into the drawer(s) either directly or in separate open pans or containers. Holding

temperature and moisture content can be set for the type of food being held.

General Information: Built-in or free-standing drawer type hot food servers come in one,

two, three drawer configurations, and the free-standing drawer type has the additional

availability of a four drawer configuration. Each drawer is furnished with a removable, deep

drawn stainless steel pan.

Construction: The frame is of welded and reinforced sheet steel. The exterior cabinet and

drawer fronts are of stainless steel with aluminized steel inner lining. Drawers are equipped

with a handle operated latching mechanism and positive stop. Drawers glide on third

member suspension system rail, with 20 bearings per drawer for smooth operation. Fully

insulated on all sides, including drawer fronts.

Electrical: Built in units are provided with a 48” flexible metal conduit for electrical

connection. Free-standing units come with factory installed cord & plug. (Please refer to

corresponding unit chart for exact NEMA plug and electrical requirements.)

Heating: Heating is accomplished with preformed tubular heating elements.

Controls: Temperature is regulated by hydraulic thermostat adjustable from 100 to 200OF

with “OFF” position. Thermostat control is mounted on front below the drawer(s) and

equipped with adjacent signal light. Thermostat knob(s) protected by knob guard.

Telephone: 1-906-863-4401 www.toastmastercorp.com

55

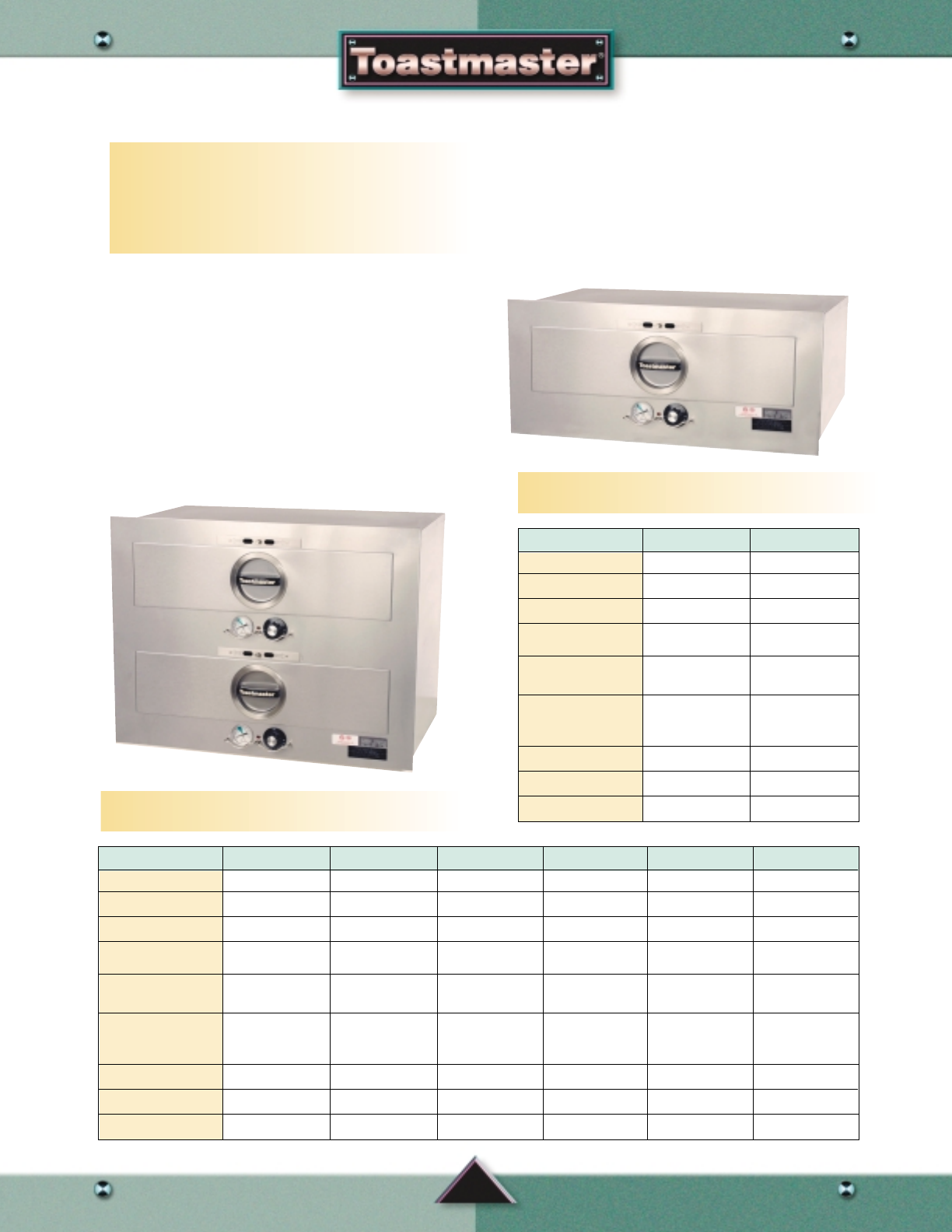

Hot Food Servers Hot Food Servers

Built-in Hot Food

Servers

One Drawer - Electric

Two Drawer - Electric

Hot Food Servers Drawers

Standard Features:

•20 bearings per drawer

•Positive-action spring-loaded drawer latch

•Rugged third-member drawer rail

•Individual drawer moist/crisp control

•Single and multiple-theromstat with

“safety zone” green

•Fully insulated on all six sides

Additional features of built-in models:

•No adapter kit required

•May be installed in wood fixtures

•Intergrated trim

3B84A000T09

3A80A000T09

Model Number 3A80A000T09 3A80A000T72

Drawers 11

Thermostats 11

Supply 120V 208V / 240V

Current 208V - 1.97 A

Draw 3.91 A 240V - 1.96 A

Heat 208V - .4 KW

Input .45 KW 240V - .54 KW

Dimensions 29-3/16” W x 29-3/16” W x

10-7/8” H x 10-7/8” H x

19-17/32” L 19-17/32” L

Pan Size 12”x20”x5-1/4” 12”x20”x5-1/4”

Shipping Weight 84 lbs. 84 lbs.

Unit Price $1,924.00 $1,924.00

Model Number 3B20A000T09 3B20A000T72 3B80A000T09 3B80A000T72 3B84A000T09 3B84A000T72

Drawers 222222

Thermostats 111122

Supply 120V 208V / 240V 120V 208V / 240V 120V 208V / 240V

Current 208V - 4.33 A 208V - 4.33 A 208V - 4.09 A

Draw 8.33 A 240V - 4.58 A 8.7 A 240V - 4.33 A 7.83 A 240V - 4.08 A

Heat 208V - .9 KW 208V - .9 KW 208V - .85 KW

Input 1.0 KW 240V - 1.2 KW 1.0 KW 240V - 1.2 KW .9 KW 240V - .98 KW

Dimensions 23.3/16” W x 23.3/16” W x 29.3/16” W x 29.3/16” W x 29.3/16” W x 29.3/16” W x

22-3/4” H x 22-3/4” H x 21-3/4” H x 21-3/4” H x 21-11/32” H x 21-11/32” H x

23” L 23” L 19-17/32” L 19-17/32” L 19-17/32” L 19-17/32” L

Pan Size 16”x16”x5-1/2” 16”x16”x5-1/2” 12”x20”x5-1/4” 12”x20”x5-1/4” 12”x20”x5-1/4” 12”x20”x5-1/4”

Shipping Weight 138 lbs. 138 lbs. 144 lbs. 144 lbs. 144 lbs. 144 lbs.

Unit Price $3,043.00 $3,043.00 $3,080.00 $3,080.00 $3,128.00 $3,128.00

Telephone: 1-906-863-4401 www.toastmastercorp.com

56

Hot Food Servers Hot Food Servers

Hot Food Servers Drawers

Standard Features:

•20 bearings per drawer

•Positive-action spring-loaded drawer latch

•Rugged third-member drawer rail

•Individual drawer moist/crisp control

•Single and multiple-theromstat with

“safety zone” green

•Fully insulated on all six sides

Additional features of built-in models:

•No adapter kit required

•May be installed in wood fixtures

•Intergrated trim

Built-in Hot Food

Servers

Three Drawer - Electric

Accessories

3C84A000T09

Model Number 3C80A000T09 3C80A000T72

Drawers 33

Thermostats 11

Supply 120V 208V / 240V

Current 208V - 5.87 A

Draw 11.74 A 240V - 5.88 A

Heat 208V - 1.22 KW

Input 1.35 KW 240V - 1.6 KW

Dimensions 29.3/16” W x 29-3/16” W x

29-3/16” H x 29-3/16” H x

19-17/32” L 19-17/32” L

Pan Size 12”x20”x5-1/4” 12”x20”x5-1/4”

Shipping Weight 186 lbs. 186 lbs.

Unit Price $4,092.00 $4,092.00

Model Number Description Weight For Use With Price

ACCPAN3B20 16-7/16” W x 7 lbs. 3A20A, $156.00

5-1/2” H x 3B22D,

16-1/32” L 3B20A

ACCPANALL 22-9/16” W x 7 lbs. 3A80A, 3B80A, 3B84A, 3C84A, 3A81D, $118.00

5-1/4” H x 3C80A, 3B84D,

13-7/16” L x 3C84D, 3D8XD

Model No. 3L6 3L9 3L12 3L15 3M338STSB 3M3 3M4

Description Leg set - Leg set - Leg set - Leg set - Caster set - (4) Caster set - (4) Caster set - (4)

(4) 6” (4) 9” (4) 12” (4) 15” 2” swivel 2” swivel 3-1/2” swivel

stainless stainless stainless stainless casters casters casters

steel steel steel steel 2 w/brakes) Adds 3” (2 fixed &

legs legs legs legs Adds 3” to height 2 swivel

with 1” to height w/brakes)

adjustable Adds 4-3/4”

feet to height

Weight 7 lbs. 9 lbs. 11 lbs. 11 lbs. 8 lbs. 9 lbs 25 lbs.

Use With 3D8XD 3D8XD 3D8XD 3D8XD 3A81D 3C84D 3C84D

3C84D 3C84D 3C84D 3C84D 3B84D 3B84D 3B84D

3D8XD 3D8XD

Unit Price $299.00 $338.00 $456.00 $469.00 $226.00 $285.00 $493.00

Telephone: 1-906-863-4401 www.toastmastercorp.com

57

Hot Food Servers Hot Food Servers

Model Number HFS09 HFS72 3A81D000T09 3A81D000T72

Drawers 1111

Thermostats 1111

Supply 120V 208 / 240V 120V 208V / 240V

Current 4.2A 1.9A 3.91 A 208V - 1.97 A

Draw 2.3A 240V - 1.97 A

Heat .5 KW .4 KW .45 KW 208V - .45 KW

Input .55 KW 240V - .54 KW

Factory Installed NEMA 5-15P NEMA 6-15P NEMA 5-15P NEMA 6-15

36” cord & plug

Dimensions 29-3/4” W x 29-3/4” W x 29-3/16” W x 29-3/16” W x

Height includes 15” H x 15” H x 15” H x 15” H x

supplied 4” legs 27-1/4” L 27-1/4” L 19-7/16” L 19-7/16” L

Pan Size 12”x20”x6” 12”x20”x6” 12”x20”x5-1/4” 12”x20”x5-1/4”

Shipping Weight 121 lbs. 121 lbs. 94 lbs. 94 lbs.

Unit Price $1,554.00 $1,554.00 $1,924.00 $1,924.00

Free-Standing Hot Food Servers

One Drawer - Electric

Two Drawer - Electric Model Number 3B84D000T09 3B84D000T072

Drawers 22

Thermostats 22

Supply 120V 208V / 240V

Current 208V - 4.09 A

Draw 7.83 A 240V - 4.08 A

Heat 208V - .85 KW

Input .9 KW 240V - .98 KW

Factory NEMA 5-15P NEMA 6-15

Installed 36”

cord & plug

Dimensions 29-3/16” W x 29-3/16” W x

Height includes 25-9/16” H x 25-9/16” H x

supplied 4” legs 19-7/16” L 19-7/16” L

Pan Size 12”x20”x5-1/4” 12”x20”x5-1/4”

Shipping Weight 140 lbs. 140 lbs.

Unit Price $3,128.00 $3,128.00

Hot Food Servers Drawers

Standard Features:

•20 bearings per drawer (excluding HFS models)

•Positive-action spring-loaded drawer latch

(excluding HFS models)

•Rugged third-member drawer rail

•Individual drawer moist/crisp control

•Single and multiple-thermostat with

“safety zone” green

•Fully insulated on all 6 sides

Additional features of free-standing models:

•1 and 2-drawer models include 4” NSF-listed legs

•All models include factory-installed cord and plug

3A81D000T09

3B84D000T09

HFS models insulated

on three sides

Telephone: 1-906-863-4401 www.toastmastercorp.com

58

Hot Food Servers Hot Food Servers

Free-Standing Hot Food Servers

Three Drawer - Electric

Four Drawer - Electric

Model Number 3C84D000T09 3C84D000T072

Drawers 33

Thermostats 33

Supply 120V 208V / 240V

Current 208V - 6.15 A

Draw 11.74 Amps 240V - 6.13 A

Heat 208V - 1.28 KW

Input 1.35 KW 240V - 1.47 KW

Factory NEMA 5-15P 208 V / 240 V

Installed 36” NEMA 6-15

cord & plug

Dimensions 29-3/16” W x 29-3/16” W x

32-7/16” H x 32-7/16” H x

19-7/16” L 19-7/16” L

Pan Size 12”x20”x5-1/4” 12”x20”x5-1/4”

Shipping Weight 223 lbs. 223 lbs.

Unit Price $4,212.00 $4,212.00

Model Number 3D8XD000T09 3D8XD000T072

Drawers 44

Thermostats 11

Supply 120V 208V / 240V

Current 208V - 5.88 A

Draw 11.74 Amps 240V - 5.88 A

Heat 208V - 1.22 KW

Input 1.35 KW 240V - 1.6 KW

Factory NEMA 5-15P 208 V / 240 V

Installed 36” NEMA 6-15

cord & plug

Dimensions 29-3/16” W x 29-3/16” W x

36-11/16” H x 36-11/16” H x

19-7/16” L 19-7/16” L

Pan Size 12”x20”x5-1/4” 12”x20”x5-1/4”

Shipping Weight 252 lbs. 252 lbs.

Unit Price $5,295.00 $5,295.00

Hot Food Servers Drawers

Standard Features:

•20 bearings per drawer

•Positive-action spring-loaded drawer latch

•Rugged third-member drawer rail

•Individual drawer moist/crisp control

•Single & multiple-thermostat with“safety zone” green

•Fully insulated on all six sides

Additional features of free-standing models:

•3 and 4-drawer models include 4” NSF-listed legs

•All models include factory-installed cord and plug

3D8XD000T09

3C84D000T09

59

Telephone: 1-906-863-4401 www.toastmastercorp.com

Policies & Notes Policies & Notes

General Policies

Toastmaster has a policy of continuous product research and development. We reserve

the right to change specifications and product design without notice. Such revisions do

not entitle the buyer to corresponding changes, improvments, additions or replacements

for previously purchased equipment.

•Inquire from factory for special or custom requirements.

•Intended for commercial use only, not for household use.

•Check local codes for electrical, fire and sanitary regulations.

•Prices may change without notice

Notes

Telephone: 1-906-863-4401 www.toastmastercorp.com

60

Ordered Units Ordered Units

Ordered Units

Dealer Company Name:

Contact Person:

Phone Number: Cell:

Model # Ordered: Type of Unit:

Options Ordered: Total Cost:

Date of Purchase: Date of Arrival:

Ship To:

Tracking Number: Method of Shipping:

Dealer Company Name:

Contact Person:

Phone Number: Cell:

Model # Ordered: Type of Unit:

Options Ordered: Total Cost:

Date of Purchase: Date of Arrival:

Ship To:

Tracking Number: Method of Shipping:

Telephone: 1-906-863-4401 www.toastmastercorp.com

Model # Page

Ordering 1

Information

Warranty 2

Pop-up Toasters 4

TP209 TP224 5

TP409 TP4C09 5

TP424 TP430 5

BTW09 BTW24 6

HT409 HT4C09 6

HT424 6

Conveyor Toasters 7

TC13A3674 TC13A3663 8

TC13A3666 8

TC17D3674 TC17D3663 9

TC17D3666 TC17D3666UK 9

TC21D3666 TC21D3663 10

TC21D3663UK 10

Countertop Hotplate 11

Gas TMDO1200 TMDO1200P 12

TMDO2400 TMDO2400P 12

TMDO3600 TMDO3600P 12

Electric TECHP113272 12

Countertop Charbroiler 13

TMDC2400 TMDC2400P 14

TMDC3600 TMDC3600P 14

TMDC4800 TMCD4800P 14

TMDCL2400 TMDCL2400P 14

TMDCL3600 TMDCL3600P 14

TMDCL4800 TMDCL4800P 14

Countertop Griddle 15

Gas TMDG2400T TMDG2400TP 16

TMDG3600T TMDG3600TP 16

TMDG2400 TMDG2400P 16

TMDG3600 TMDG3600P 16

TMDG4800 TMDG4800P 16

Electric TECG732467 TECG732470 17

TECG733667 TECG733670 17

TECG734867 TECG734870 17

Fryers 18

TCGF1200 TCGF1200P 19

TECF143970 TECF142772 19

Sandwich Grills 20

A710674 A710663 21

A710666 A710SA674 21

A710SA663 A710SA666 21

A710PA674 A710PA663 22

A710PA666 22

Model # Page

Convection Ovens 23

XO-1N 24

RM-5T 25

RA-5T 26

Pizza Ovens 27

PMA-5/18 28

Smokers 29

ES-6 30

ES-13 31

Slo-Cook’n Hold 32

SC-7 33

SC-14 34

Steam Equipment 35

XO-1STM 36

XO-1MSS 37

Heater/Proofers 38

9451-HP34CDNF 39

9451-HP12CDNF 40

E17UAC-INS-20 41

E6UAC-INS-20 42

E9451-HP34CDNF 43

E9451-HP12CDNF 44

E17UAC-20 45

E6UAC-20 46

Heated Holding 47

7500-H-UA13T 48

7500-H-UA13TP 49

Ranges RH36C1 RH36C2 50-51

RH36C3 RH36C4 50-51

RH36C5 RH36C6 50-51

RHD36D1 RH36D1 50-51

RH36D2 RH36D3 50-51

RH36D4 RH36D5 50-51

RH36D6 50-51

Step-up TMSO 624 TMSO 416 52-53

Open Top TMSO 208 52-53

Hot Food Drawers 54

Built-in 3A80A000T09 3A80A000T72 55

3B20A000T09 3B20A000T72 55

3B80A000T09 3B80A000T72 55

3B84A000T09 3B84A000T72 55

3C80A000T09 3C80A000T72 56

Freestanding HFS09 HFS72 57

3A81D000T09 3A81D000T72 57

3B84D000T09 3B84D000T72 57

3C84D000T09 3C84D000T72 58

3D8XD000T09 3D8XD000T72 58

Policies, Notes and Units Ordered 59-60

Table of Contents Table of Contents

Toastmaster ®

A Middleby Company,

5600 13th Street

Menominee,MI 49858

Telephone: 1-906-863-4401

Toll Free:1-800-338-9886

Fax:1-906-863-5889

Countertop

•Pop Up Toasters

•Conveyor Toasters

•Griddles

•Charbroilers

•Fryers

•Hotplates

•Sandwich Grills

Cooking

•Convection Ovens

•Smokers

•Steamers

•Ranges

•Cook’n Hold

•Pizza Baking

Equipment

Holding

•Hot Food

Servers

•Cabinets

•Heater/Proofers
