Tobii TDI12A Tobii Dynavox I-12+ User Manual
Tobii Technology AB Tobii Dynavox I-12+ Users Manual
Tobii >
Users Manual
Tobii Dynavox I-Series+
User’s Manual
I–12+
I–15+
User’s manual Tobii Dynavox I-Series+
Version 1.0
04/2015
All rights reserved.
Copyright © Tobii AB (publ)
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form, by any means
(electronic, photocopying, recording, or otherwise) without
the prior written permission of the publisher.
Copyright protection claimed includes all forms and matters
of copyrightable material and information allowed by statutory
or judicial law or hereafter granted, including without
limitation, material generated from the software programs
which are displayed on the screen such as screen displays,
menus, etc.
The information contained in this document is proprietary to
Tobii Dynavox. Any reproduction in part or whole without
prior written authorization by Tobii Dynavox is prohibited.
Products that are referred to in this document may be either
trademarks and/or registered trademarks of the respective
owners. The publisher and the author make no claim to these
trademarks.
While every precaution has been taken in the preparation of
this document, the publisher and the author assume no
responsibility for errors or omissions, or for damages
resulting from the use of information contained in this
document or from the use of programs and source code that
may accompany it. In no event shall the publisher and the
author be liable for any loss of profit or any other commercial
damage caused or alleged to have been caused directly or
indirectly by this document.
Content subject to change without notice.
Please check Tobii Dynavox web site www.TobiiDynavox.
com for updated versions of this document.
The following products are protected by U.S. Patent 7,572,008:
•I–12+ ETR
•I–15+ ETR
You can locate the Type of Tobii Dynavox I-Series+ device on the label on the back side.
Table of Contents
1 Introduction.................................................................................................................................... 7
1.1 Explanation of Admonitions......................................................................................................7
1.2 Symbols and Markings............................................................................................................7

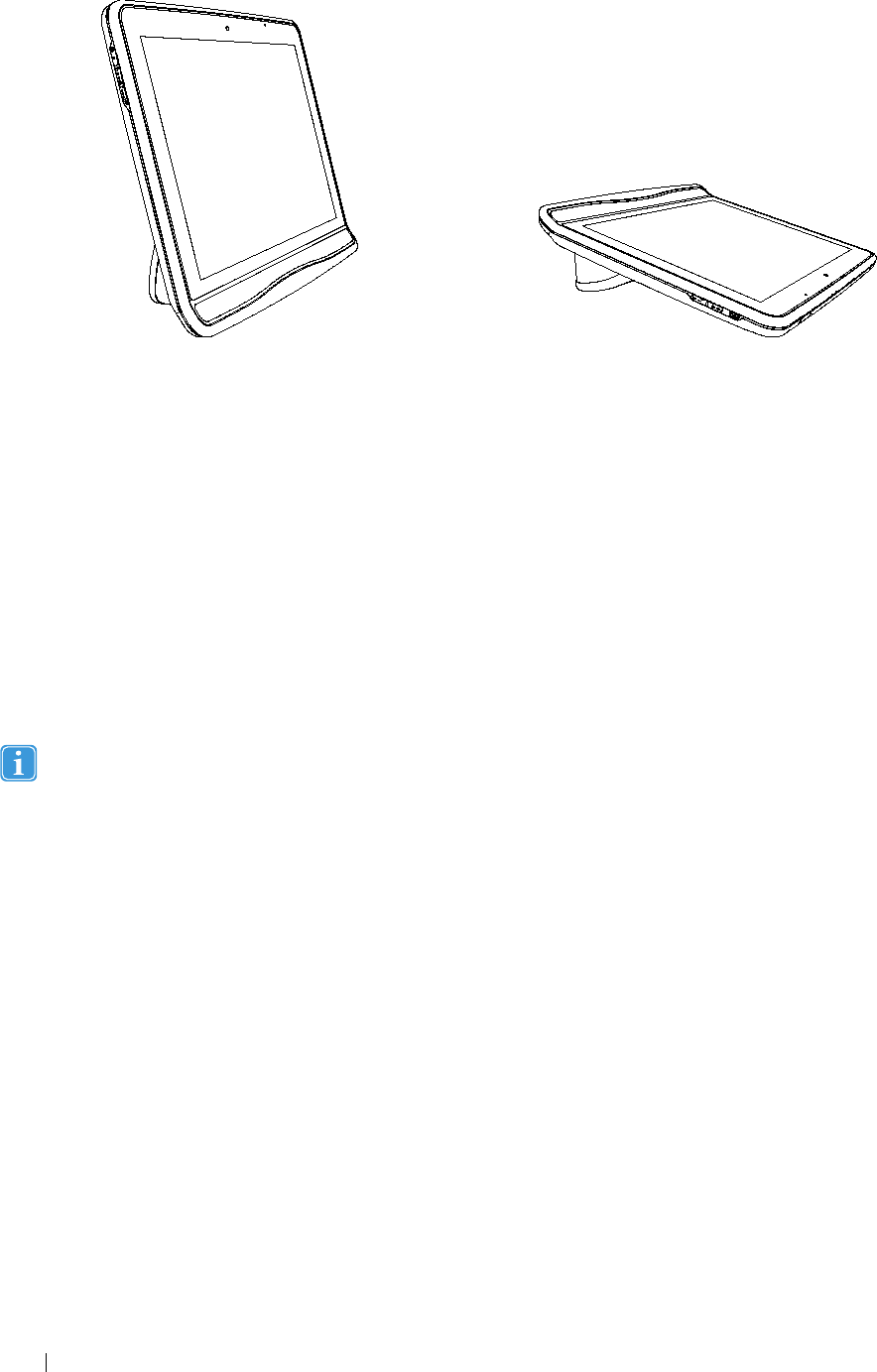

1.3 Intended Use ........................................................................................................................9
1.3.1 Portable Use ..........................................................................................................9
1.3.2 Mounted Use........................................................................................................10
1.4 Package Contents................................................................................................................10
1.4.1 Tobii Dynavox I-Series+ with Tobii Dynavox Communicator ........................................10
1.4.2 Tobii Dynavox I-Series+ with DynaVox Compass.......................................................10
2 Safety .......................................................................................................................................... 12
2.1 Avoiding Hearing Damage.....................................................................................................12
2.2 Temperature........................................................................................................................12
2.3 Power Supply and Batteries...................................................................................................13
2.4 Mounting.............................................................................................................................13
2.5 Emergency..........................................................................................................................14
2.6 Infrared ...............................................................................................................................14
2.7 Epilepsy..............................................................................................................................14
2.8 Electricity ............................................................................................................................14
2.9 Child Safety.........................................................................................................................14
2.10 Environmental Control...........................................................................................................14
2.11 Gaze Interaction...................................................................................................................14
3 Overview of the Tobii Dynavox I–12+ and I–15+.......................................................................... 15
3.1 Key Features........................................................................................................................15

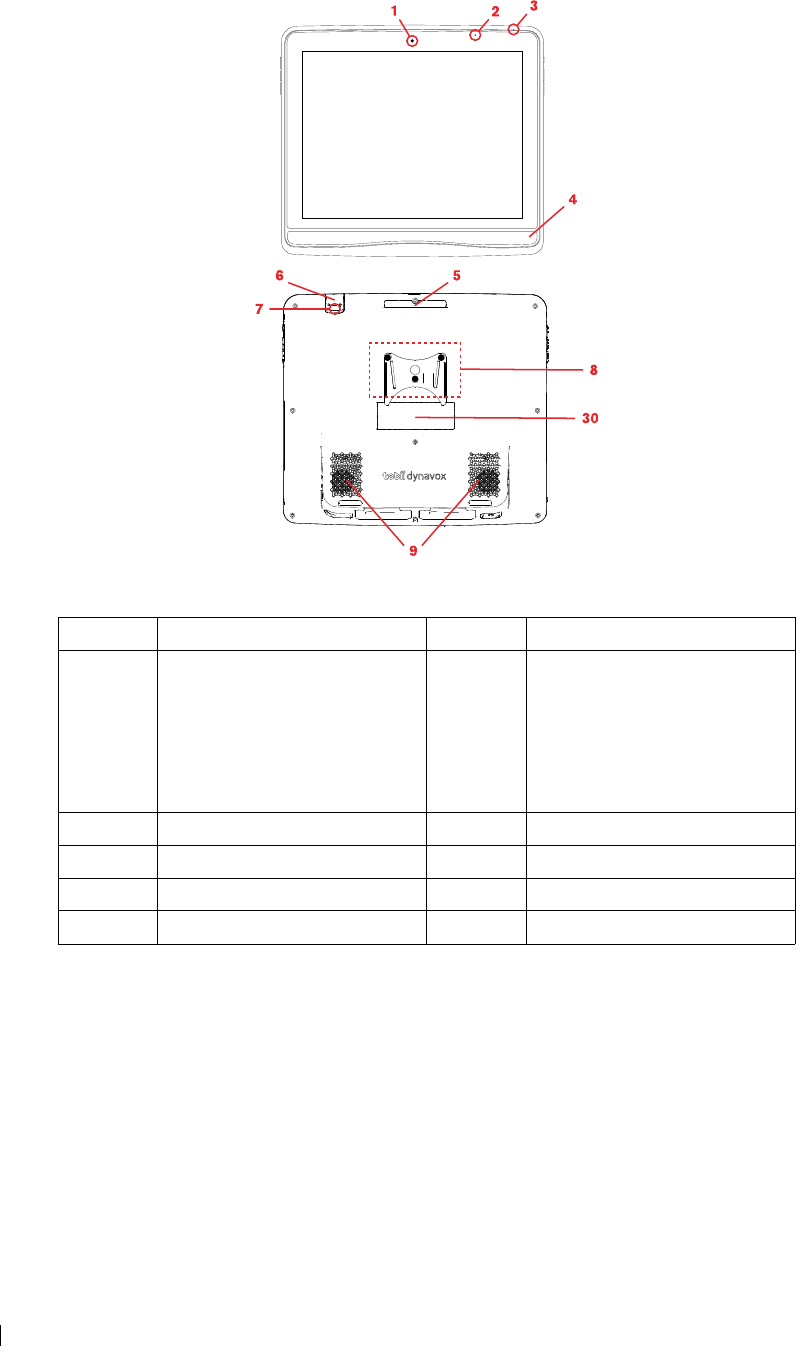

3.2 Product Layout.....................................................................................................................15

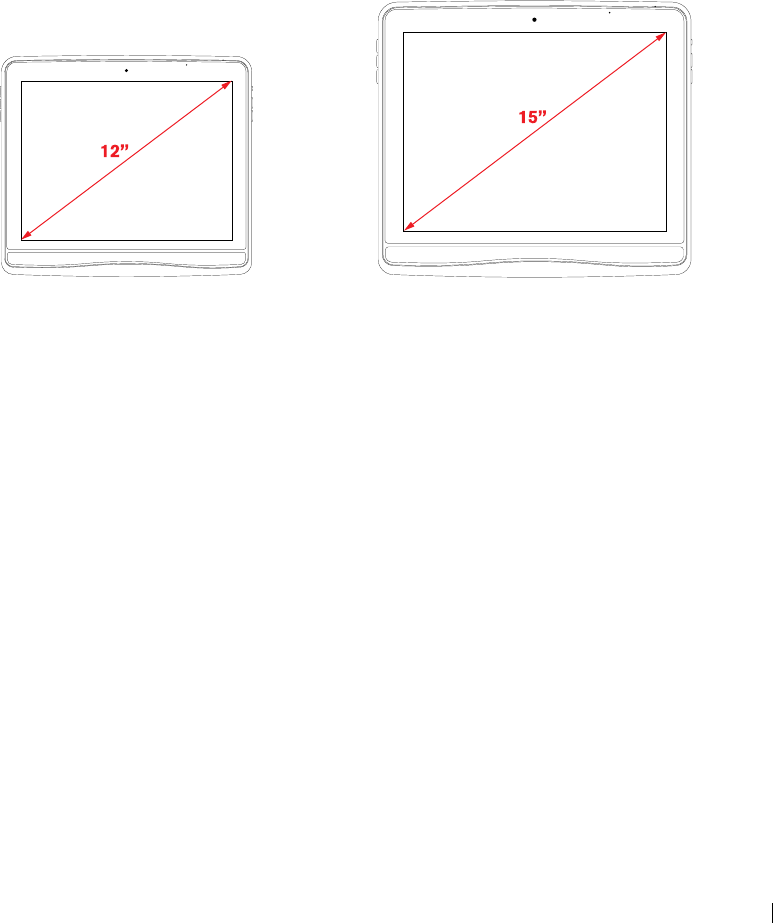

3.2.1 The Tobii Dynavox I–12+ and Tobii Dynavox I–15+....................................................15

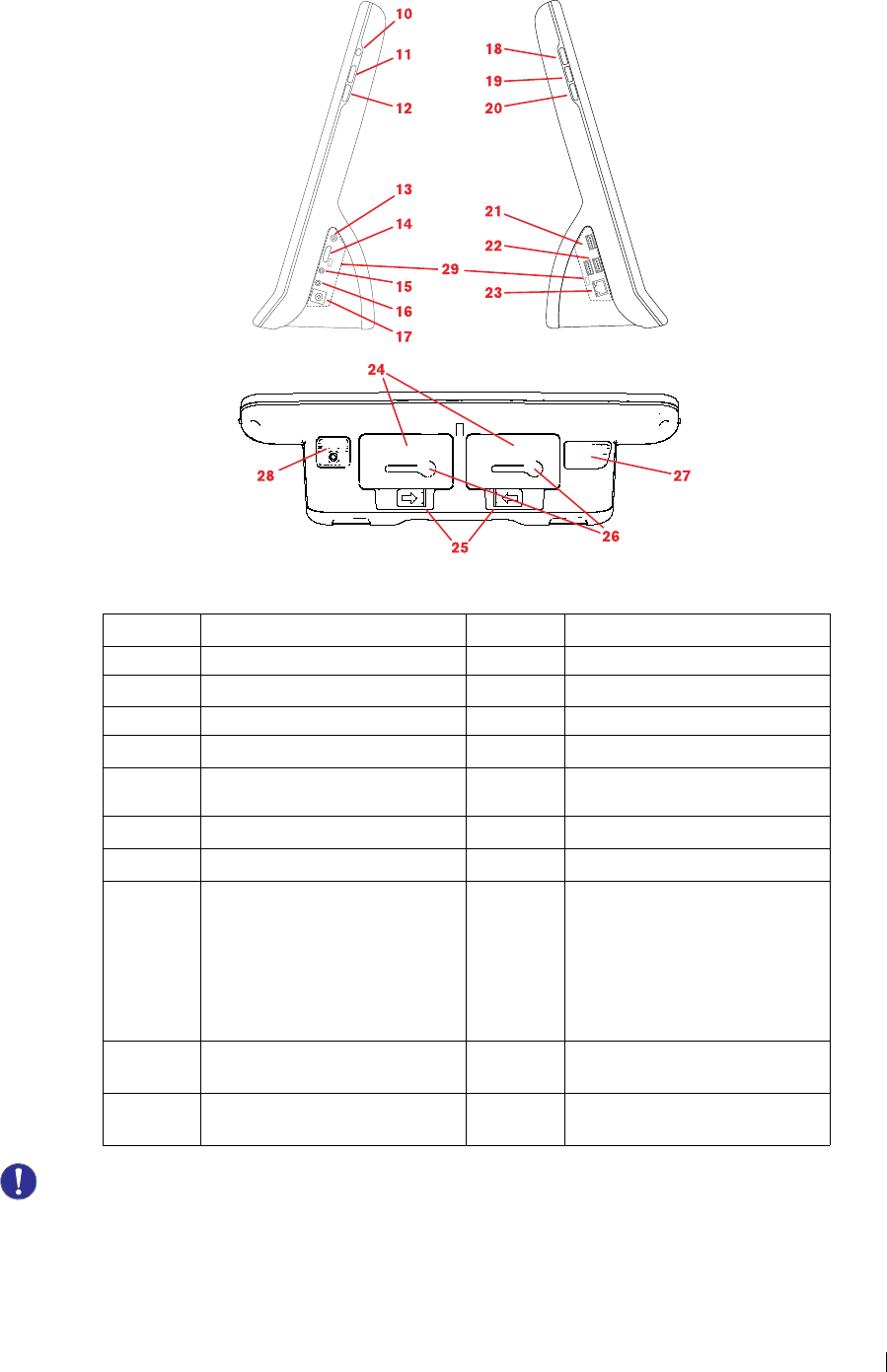

3.2.2 Ports, Sensors and Device Buttons .........................................................................16
3.3 Preinstalled Software............................................................................................................18
3.4 Configuring the Device..........................................................................................................18
3.5 Accessing the microSD-Card ...............................................................................................19
3.5.1 Removing the microSD-card...................................................................................19
3.5.2 Inserting the microSD-Card....................................................................................20

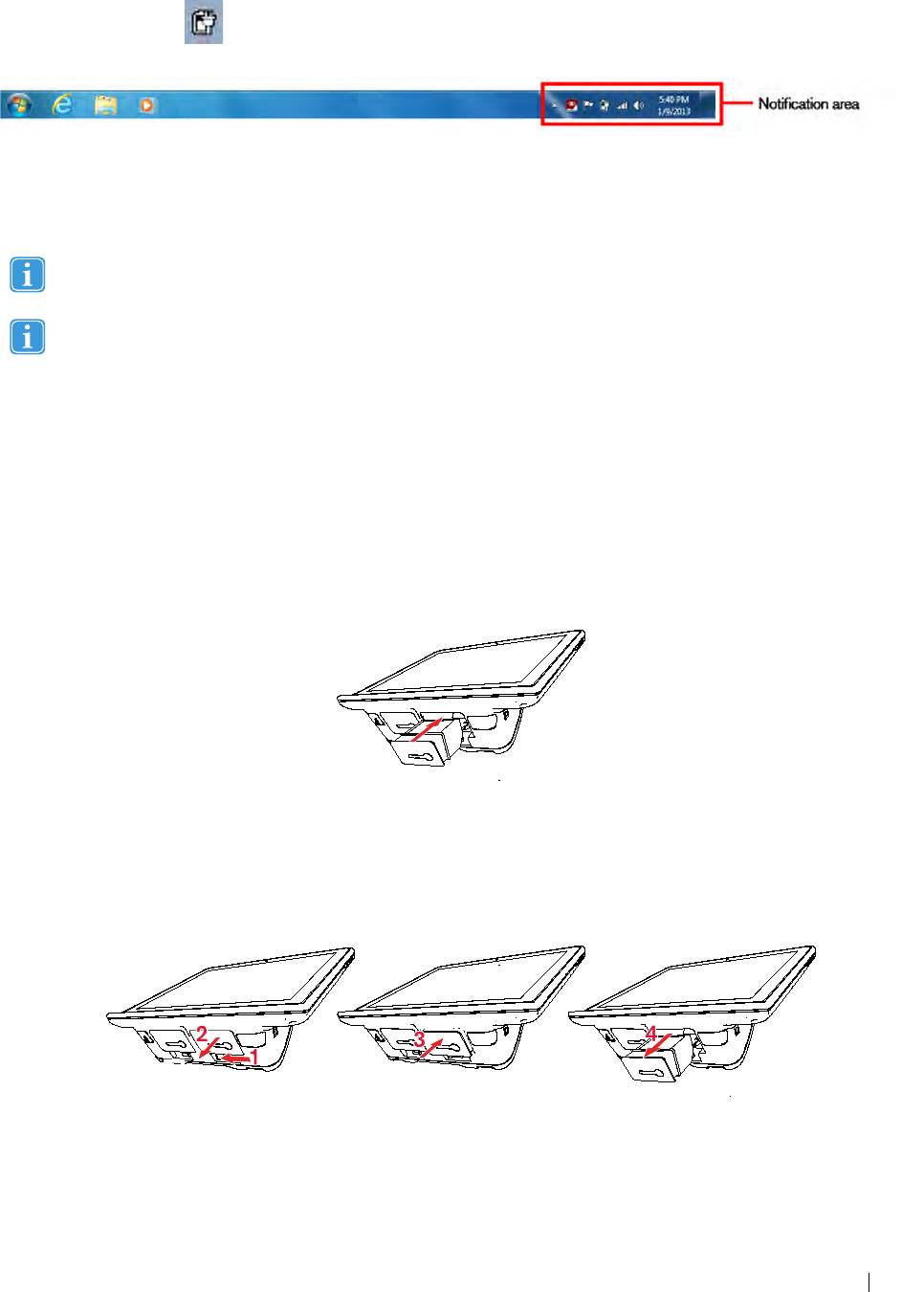

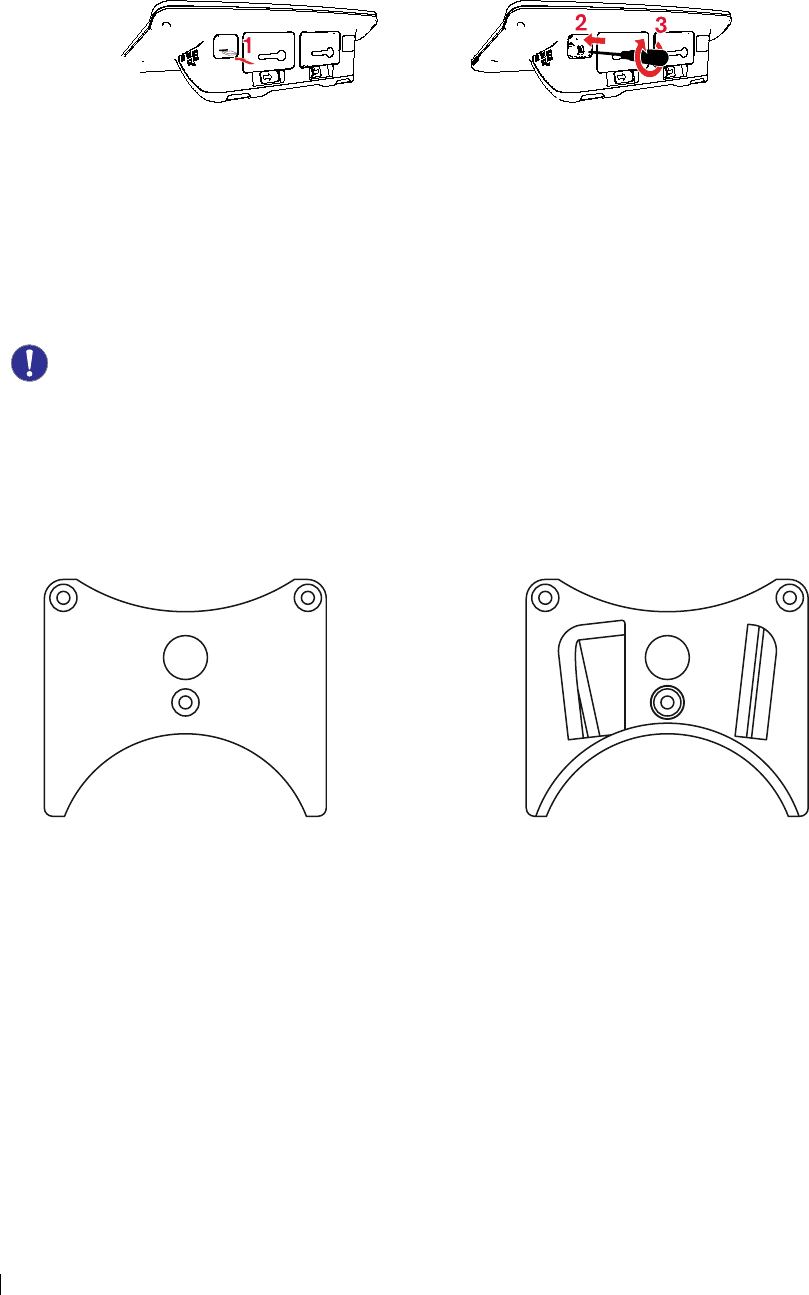

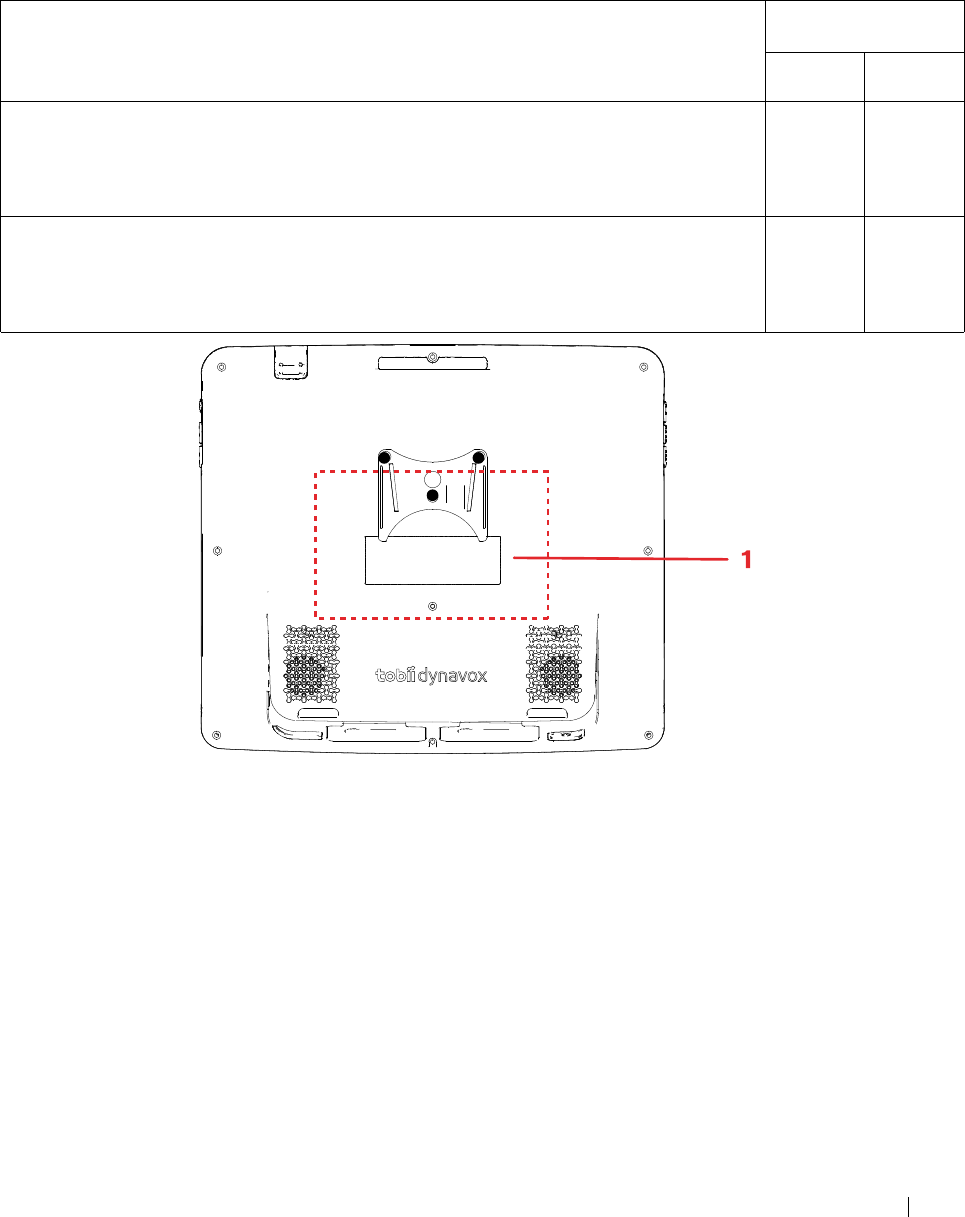

3.6 Tobii Dynavox Quick Release Adapter Plate .............................................................................20

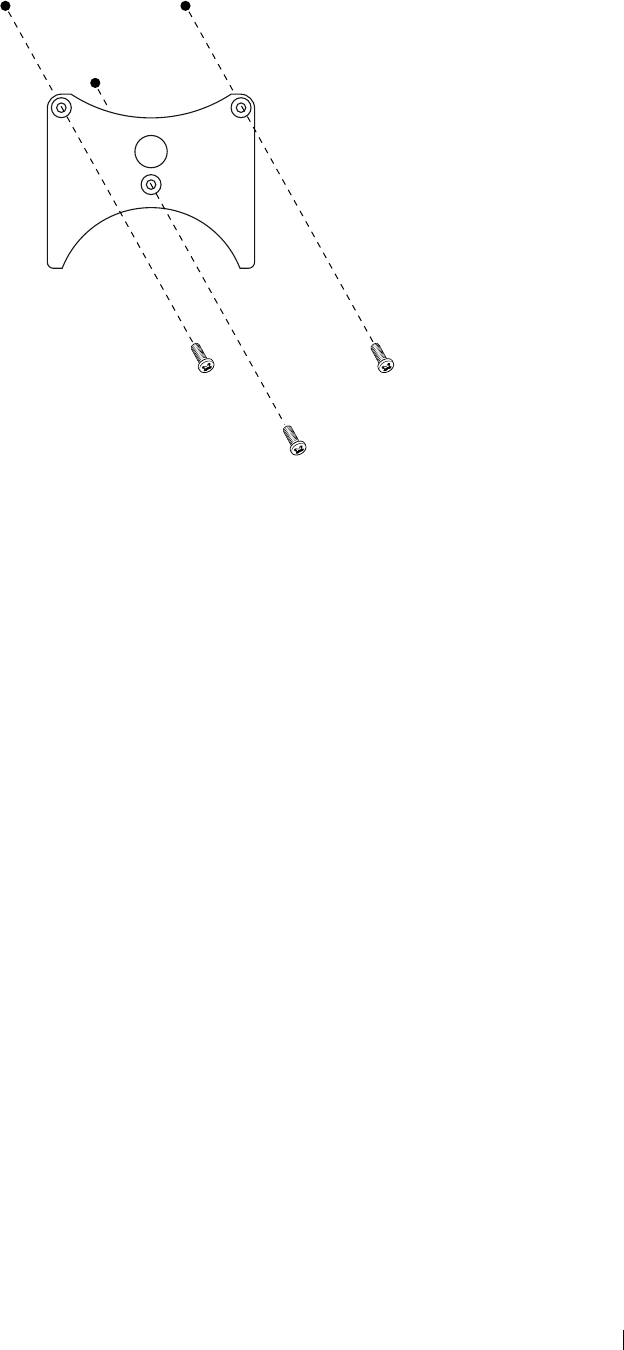

3.6.1 Mounting the Tobii Dynavox QR Adapter Plate ..........................................................21
3.6.2 Removing the Tobii Dynavox QR Adapter Plate .........................................................21
4 Batteries in the Tobii Dynavox I-Series+....................................................................................... 22
4.1 Batteries .............................................................................................................................22
4.1.1 Hot Swappable.....................................................................................................22
4.2 Charging.............................................................................................................................22

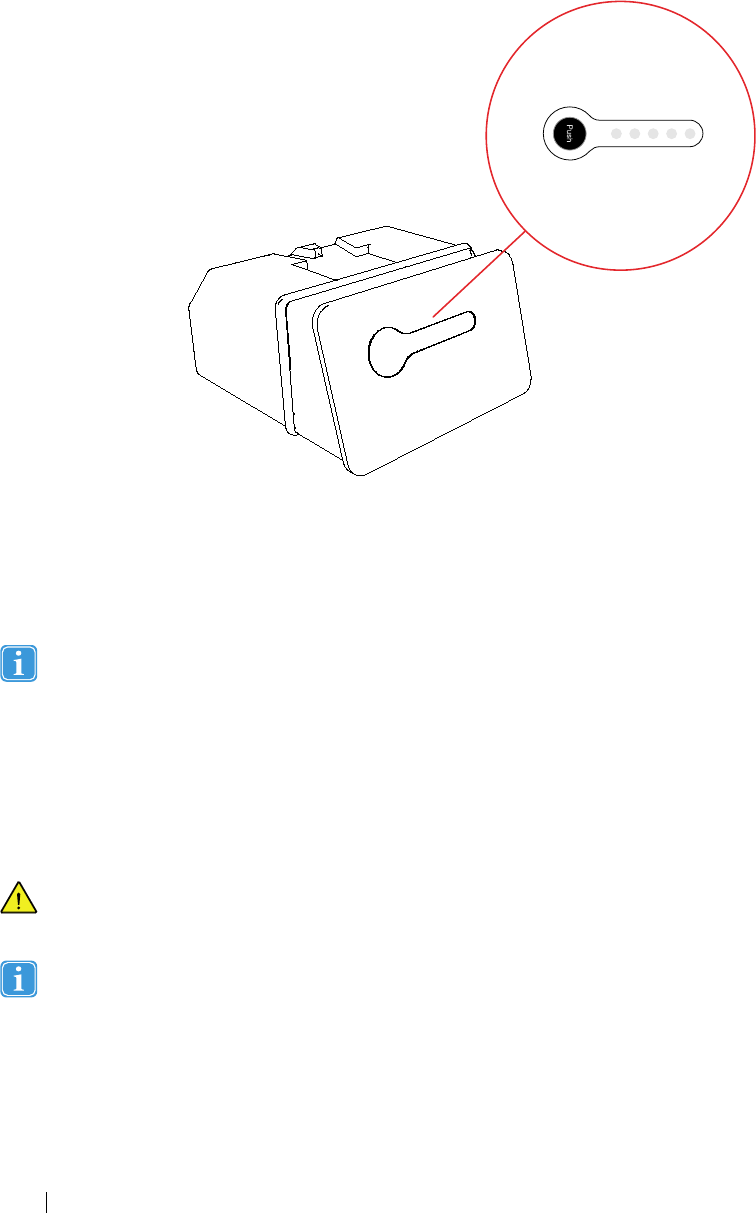

4.2.1 Checking Charge Level .........................................................................................23
4.3 Inserting and Releasing the Batteries ......................................................................................23
4.3.1 Inserting the Batteries............................................................................................23
4.3.2 Releasing the Batteries..........................................................................................23
5 Using the Tobii Dynavox I-Series+ ............................................................................................... 25
5.1 Starting the Device...............................................................................................................25
5.1.1 Password Information ............................................................................................25
5.1.2 Tobii Dynavox I-Series+ Welcome Guide .................................................................25
5.2 Shutting Down the Device.....................................................................................................25
5.3 Using Gaze Interaction..........................................................................................................26

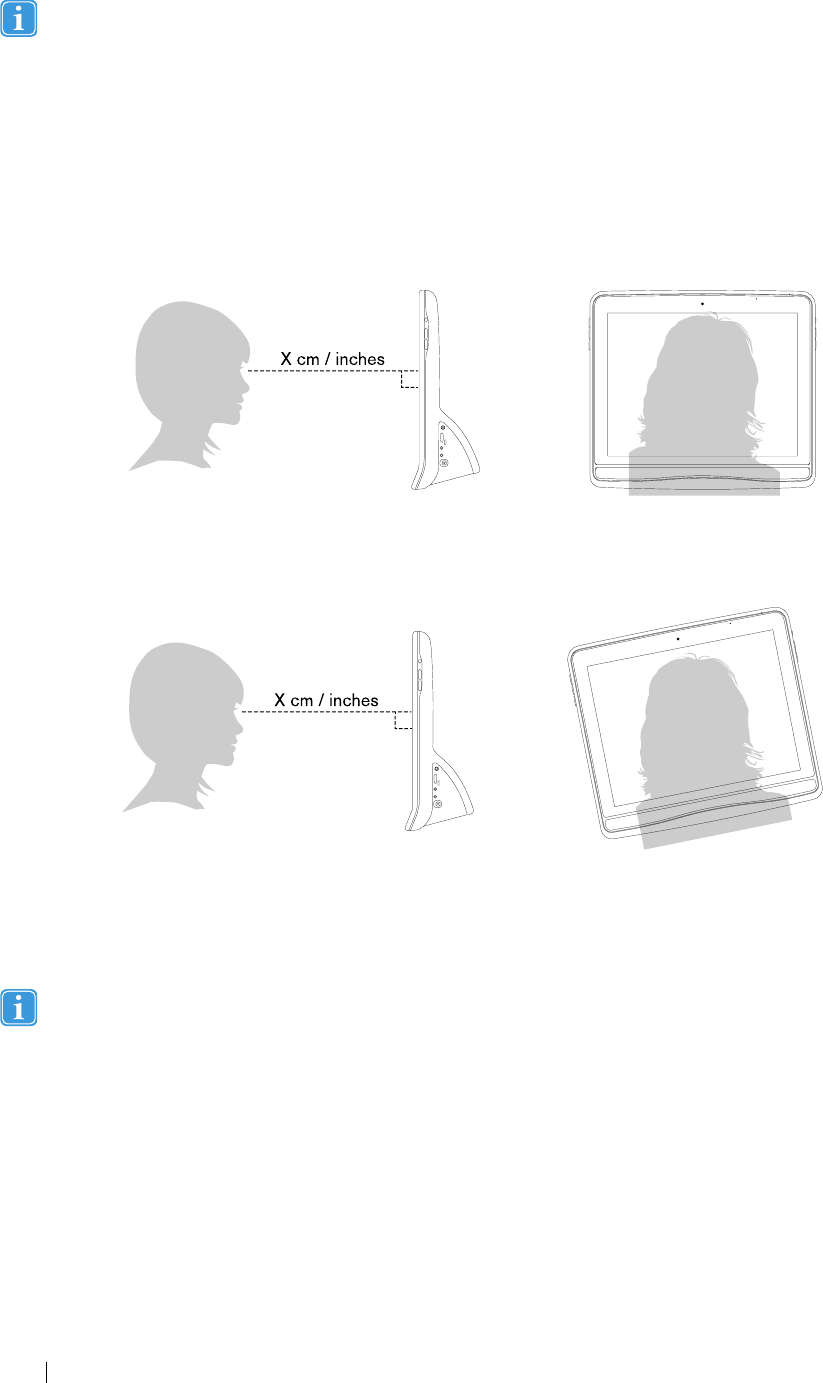

5.3.1 Positioning...........................................................................................................26
5.3.2 Track Box.............................................................................................................26

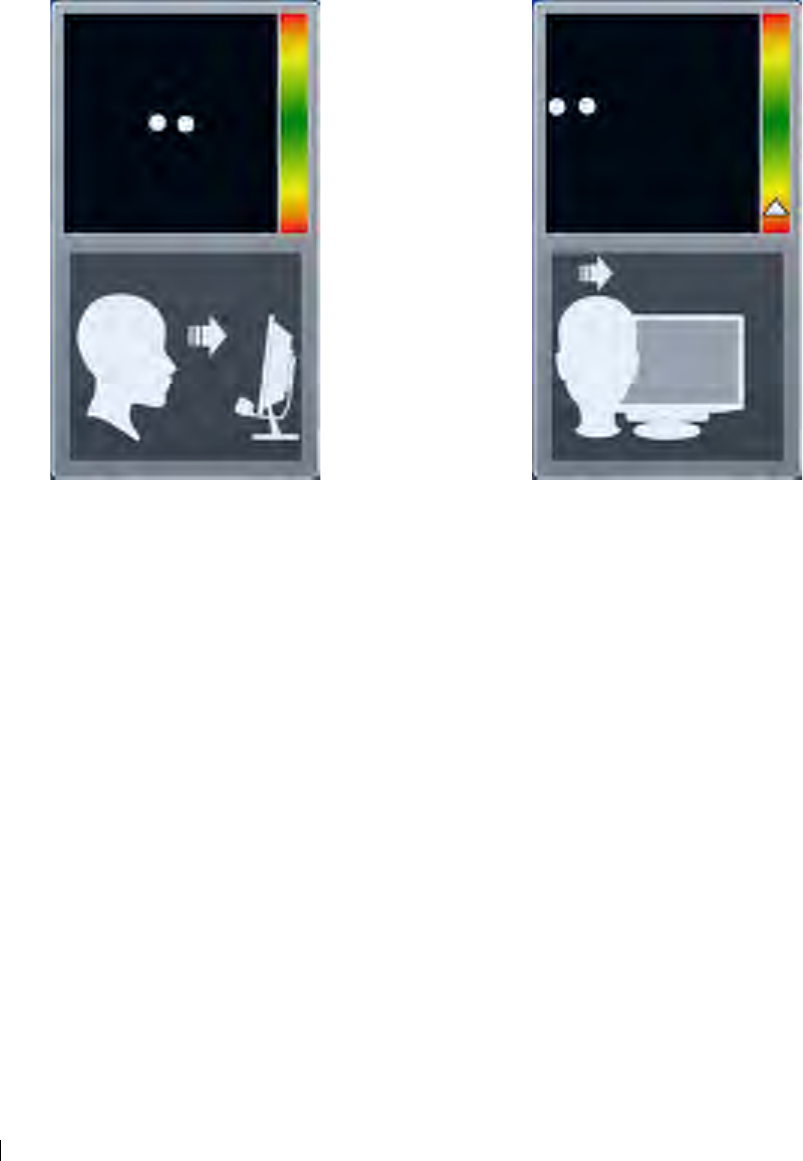

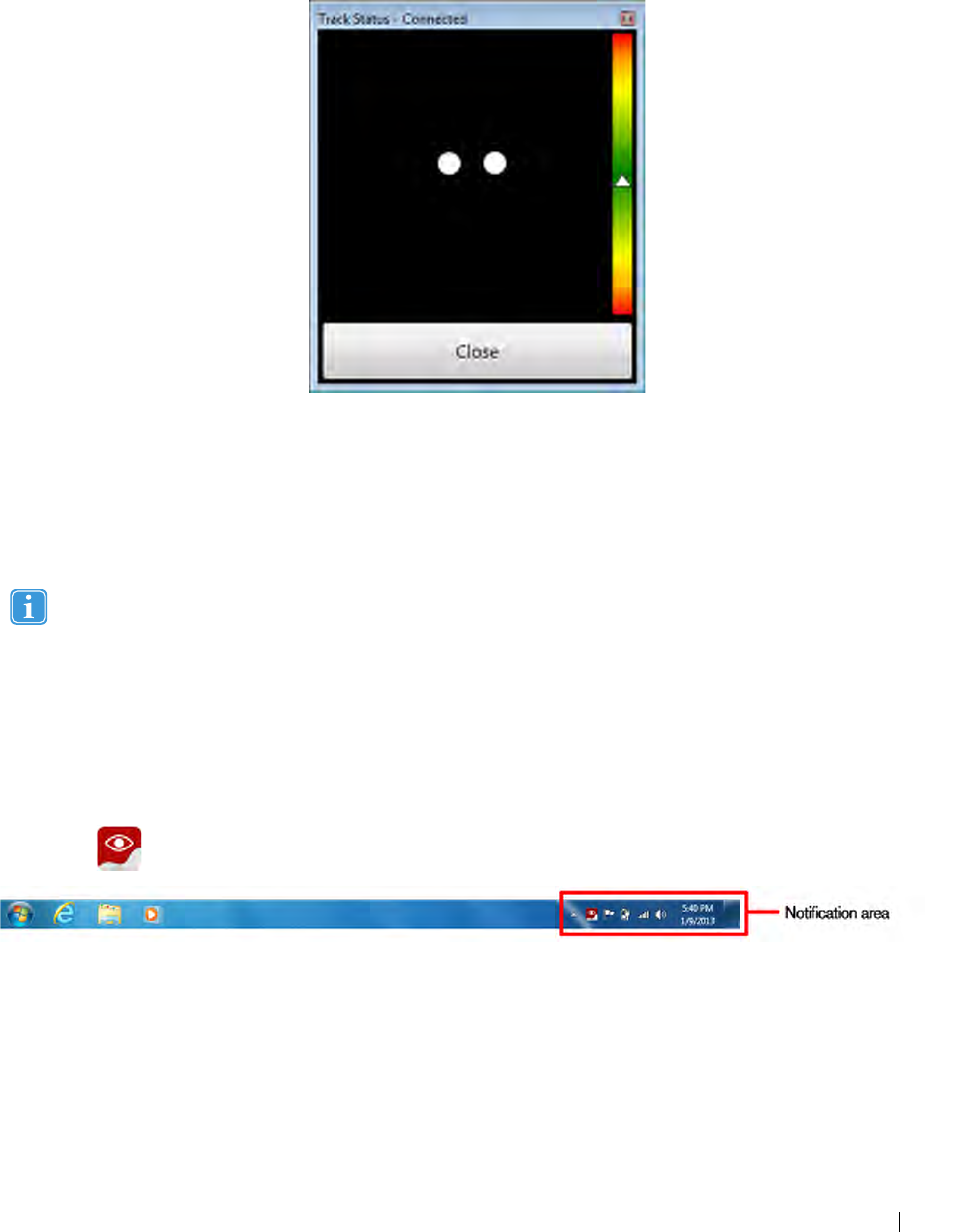

5.3.3 Track Status Viewer...............................................................................................27
5.3.3.1 Showing Track Status ......................................................................27

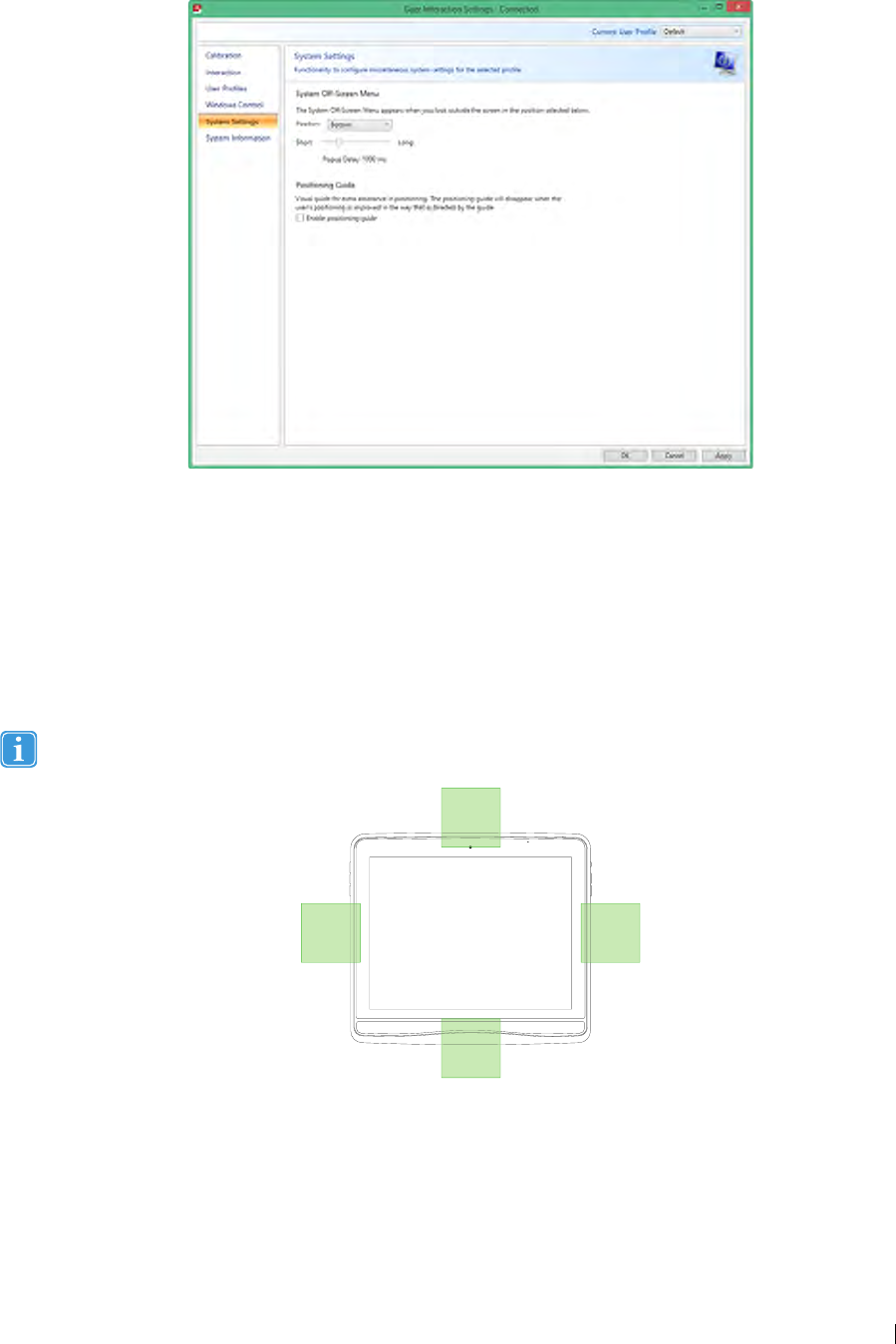

5.3.4 Positioning Guide..................................................................................................27
5.4 Using Windows Control .......................................................................................................28

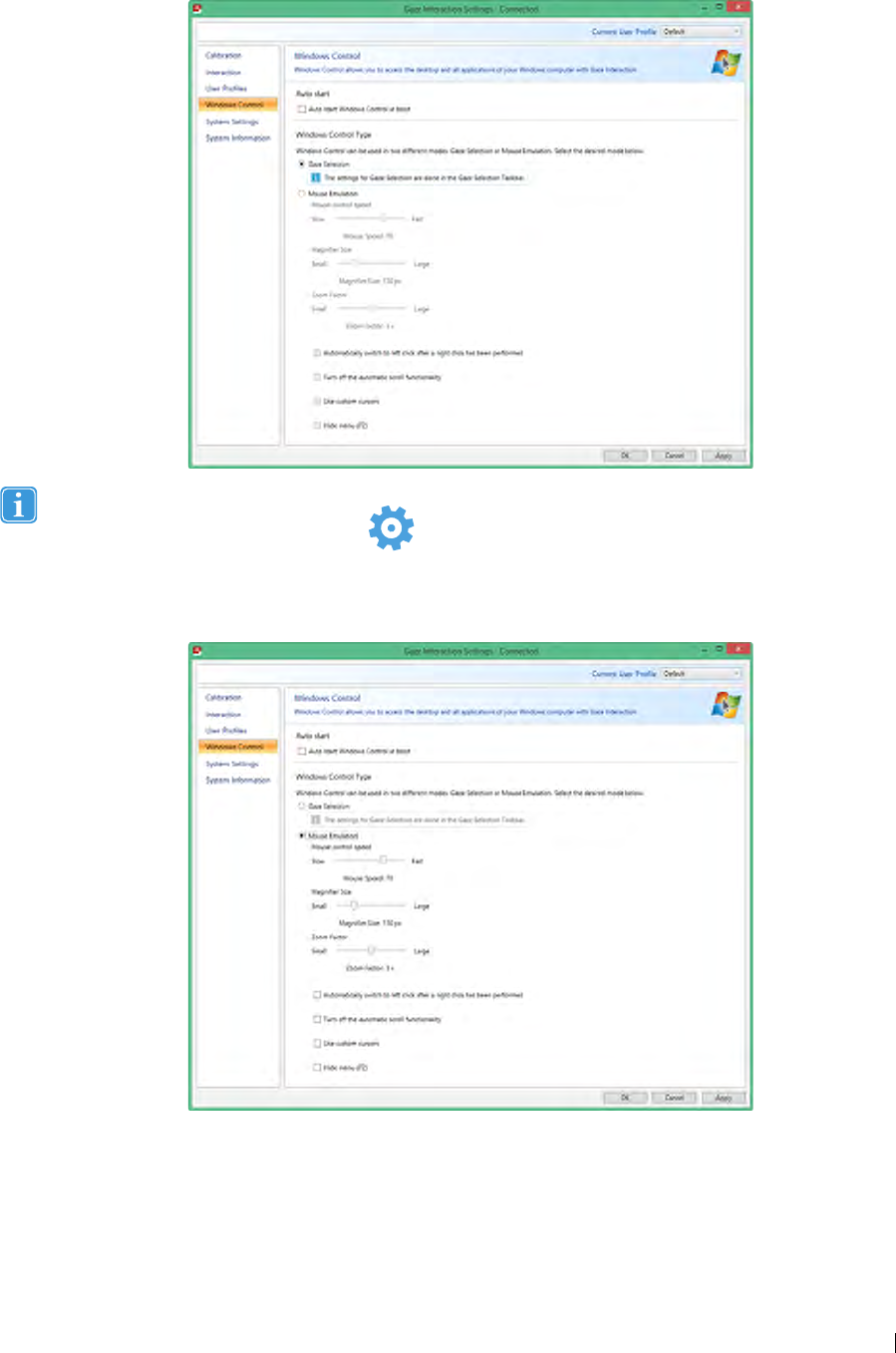

5.4.1 Windows Control Type..........................................................................................28
5.4.2 Starting and Disabling Windows Control..................................................................29
5.4.3 Using Gaze Selection............................................................................................29

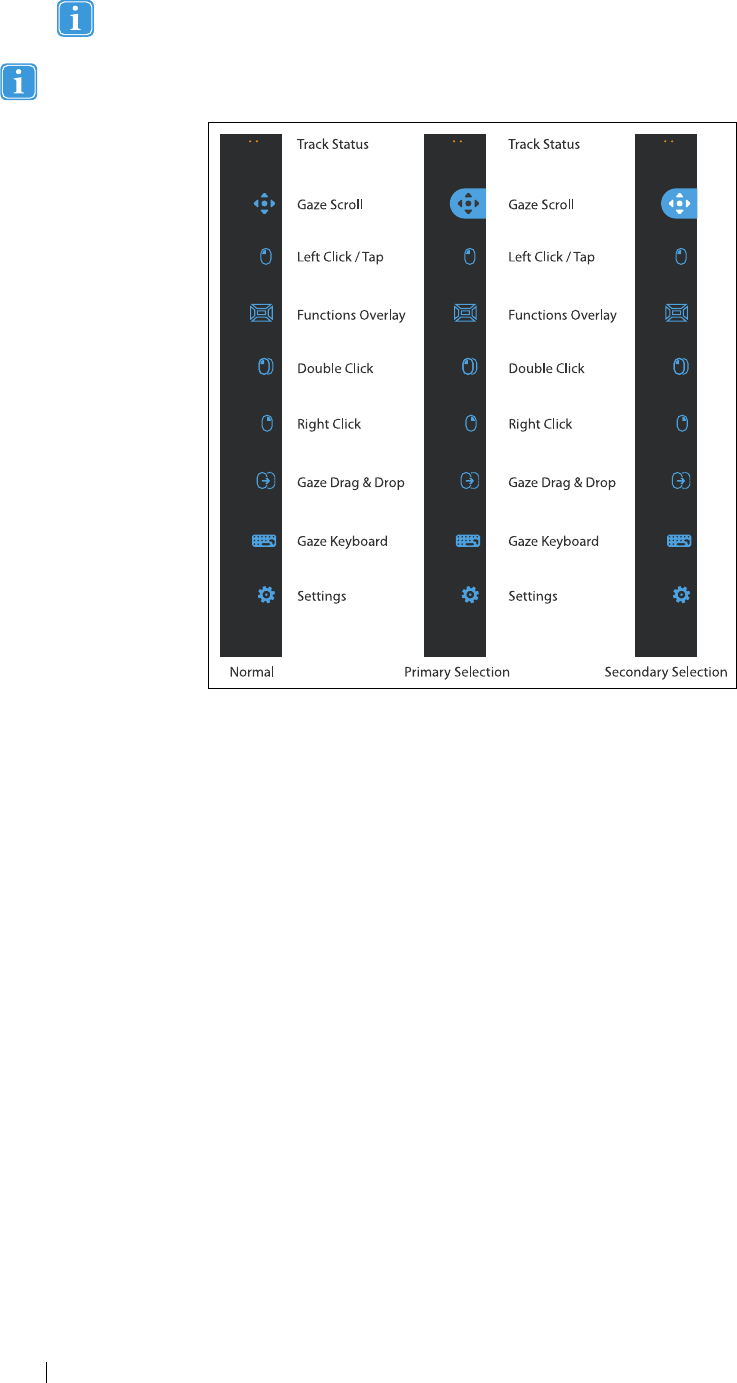

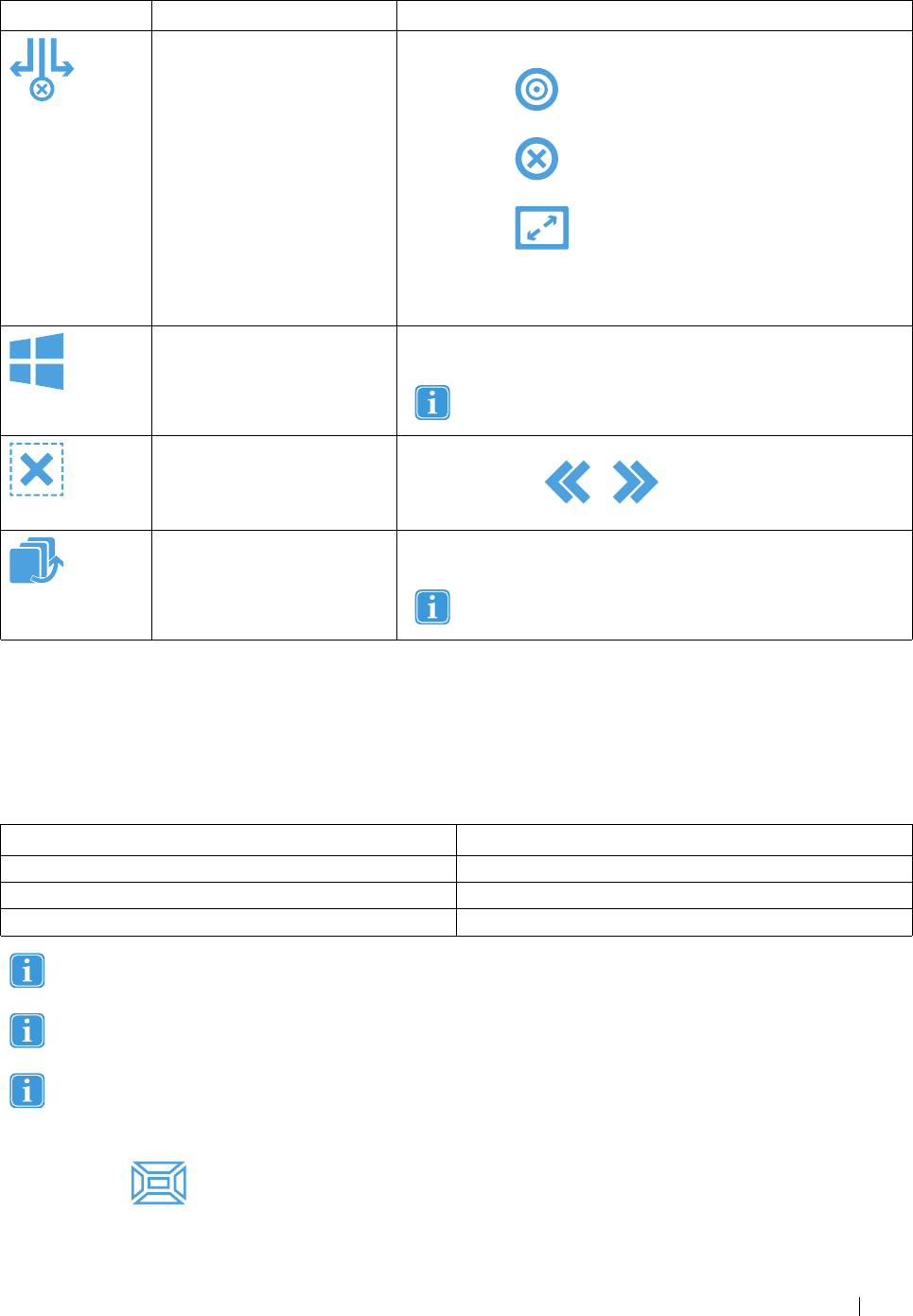

5.4.3.1 Gaze Selection Taskbar ....................................................................29
5.4.3.2 Task Buttons ...................................................................................31

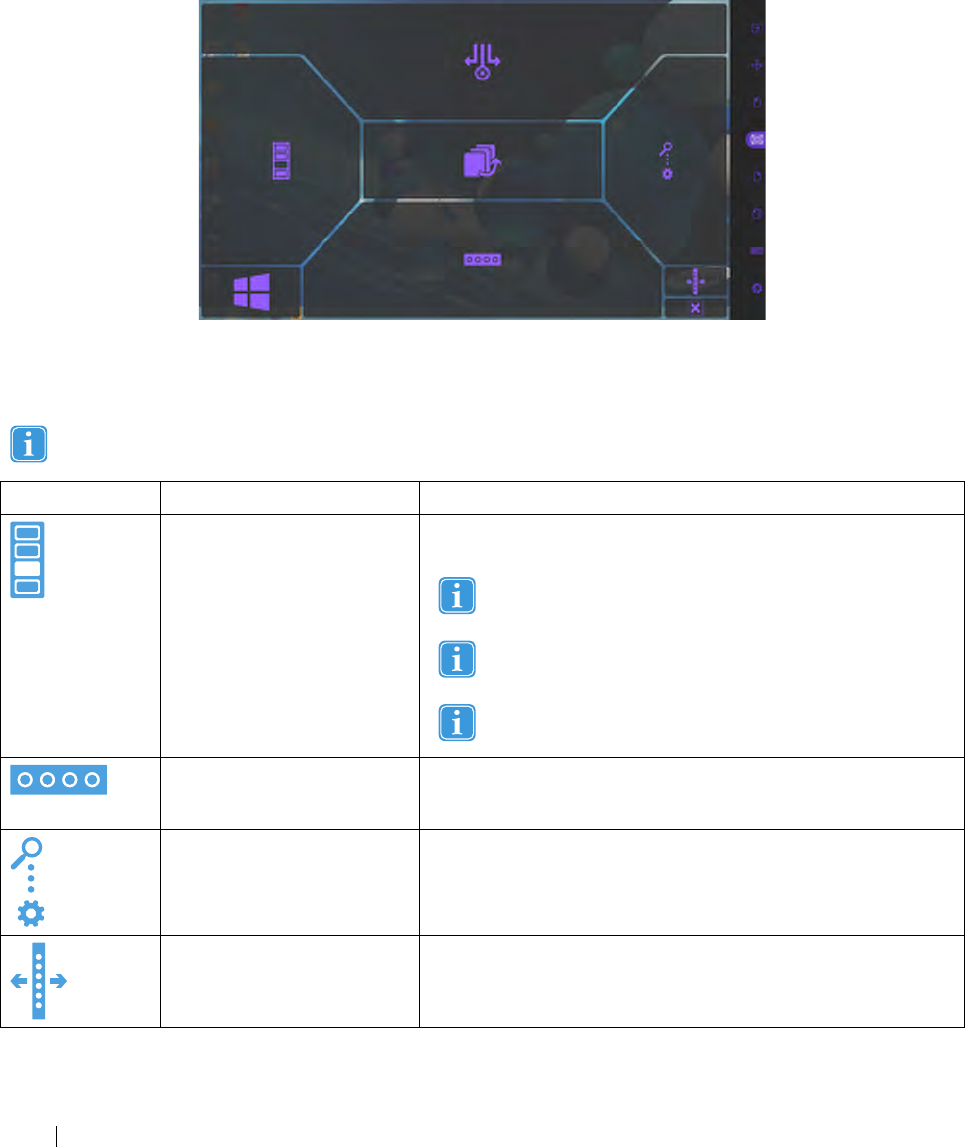

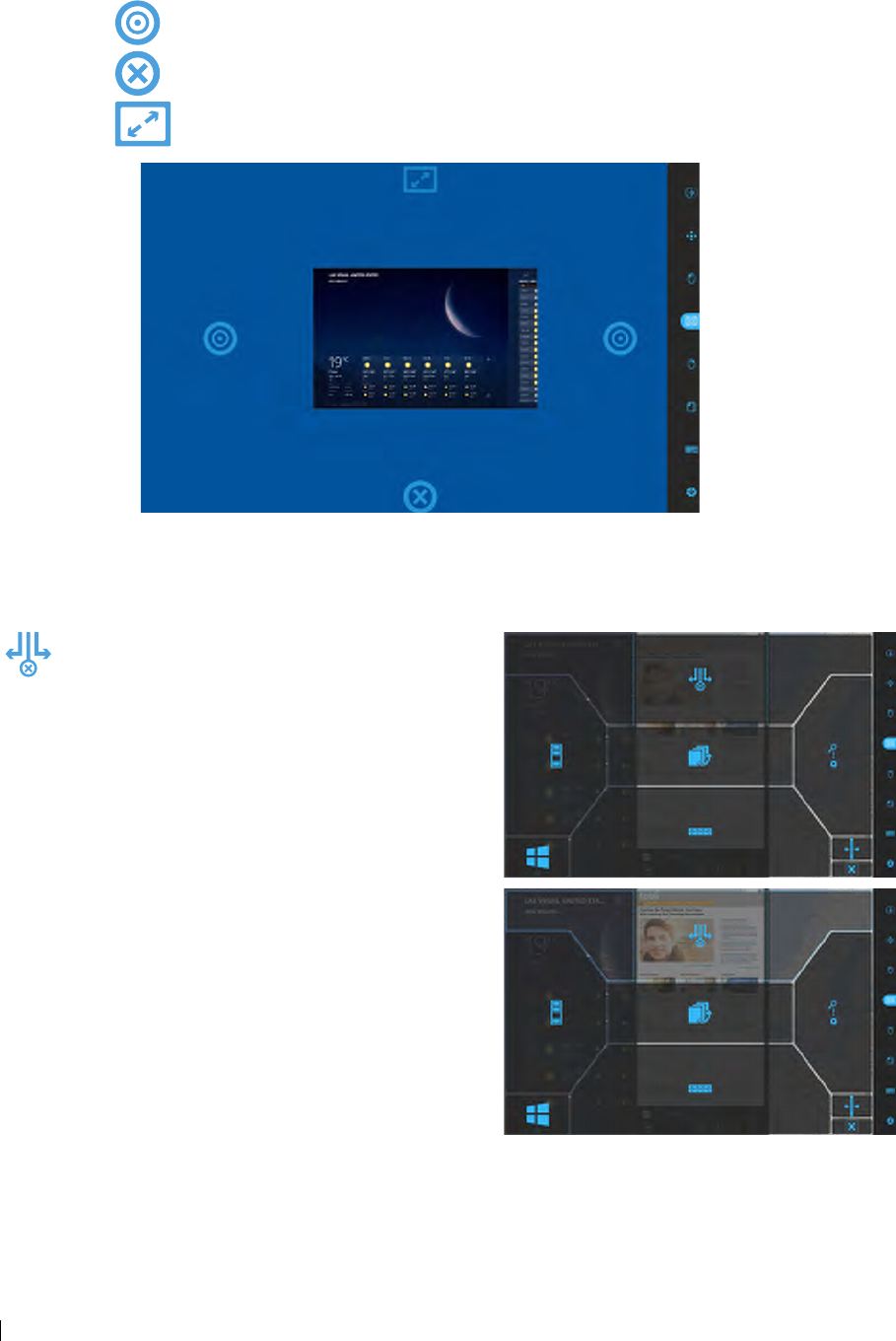

5.4.3.3 Functions Overlay in Windows 8 ........................................................31

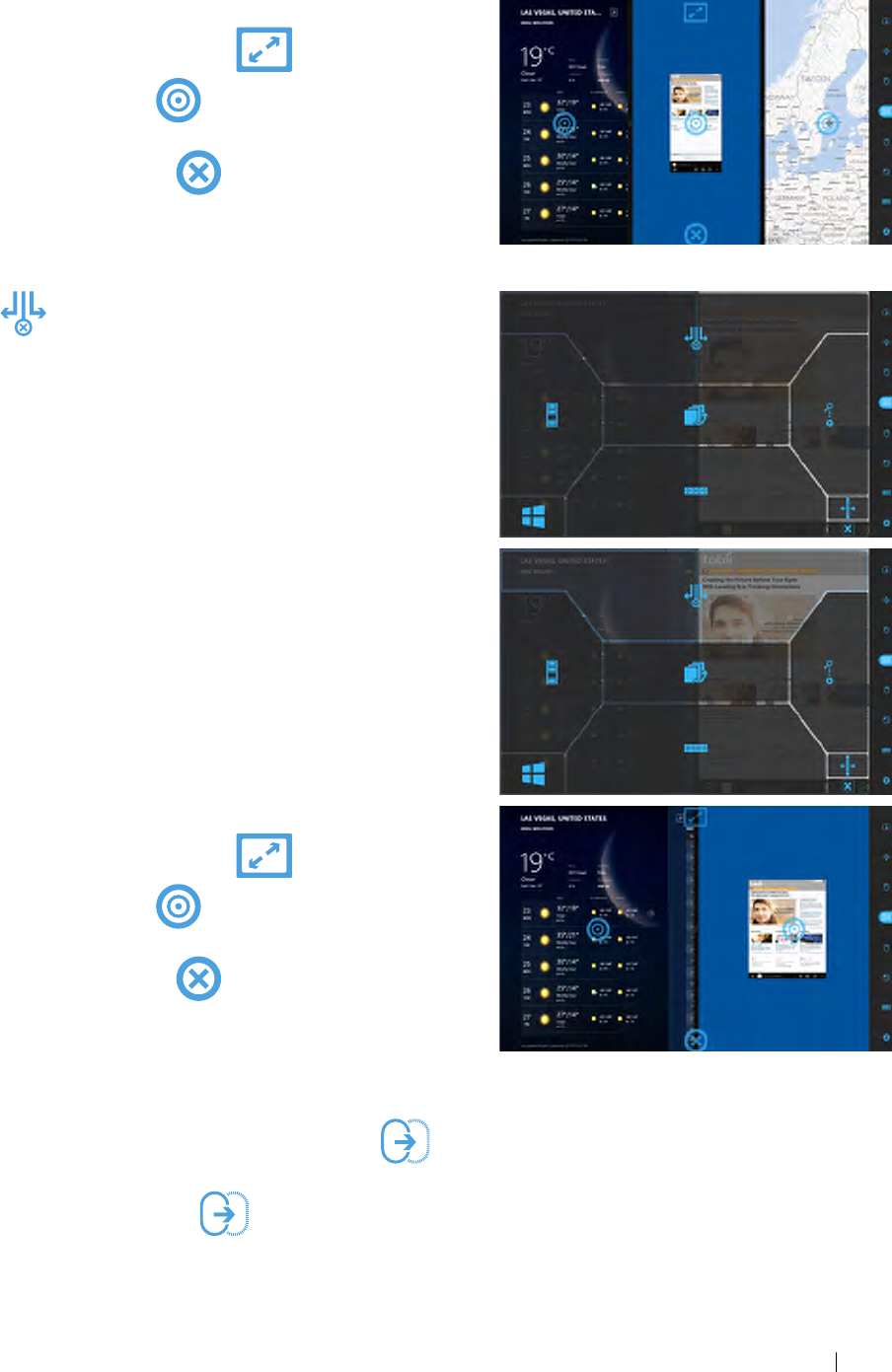

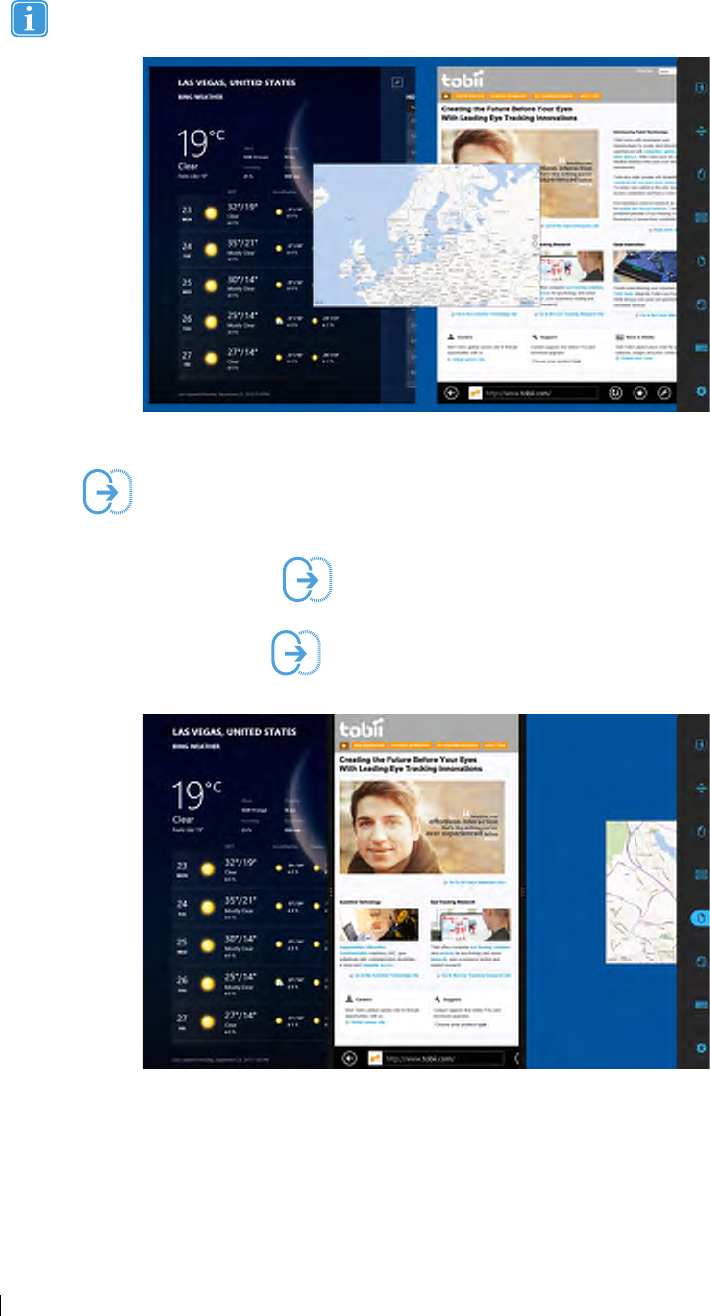

5.4.3.3.1 Snap Window/Close App...........................................33
5.4.3.3.2 To Snap More Apps ..................................................35
5.4.3.4 Selection Methods —Gaze and Switch ..............................................37
5.4.3.4.1 Sticky Tasks & Default Left Click / Tap for
Switch .....................................................................37
5.4.3.4.2 Activating a Task with a Keyboard button instead of a
Switch .....................................................................38

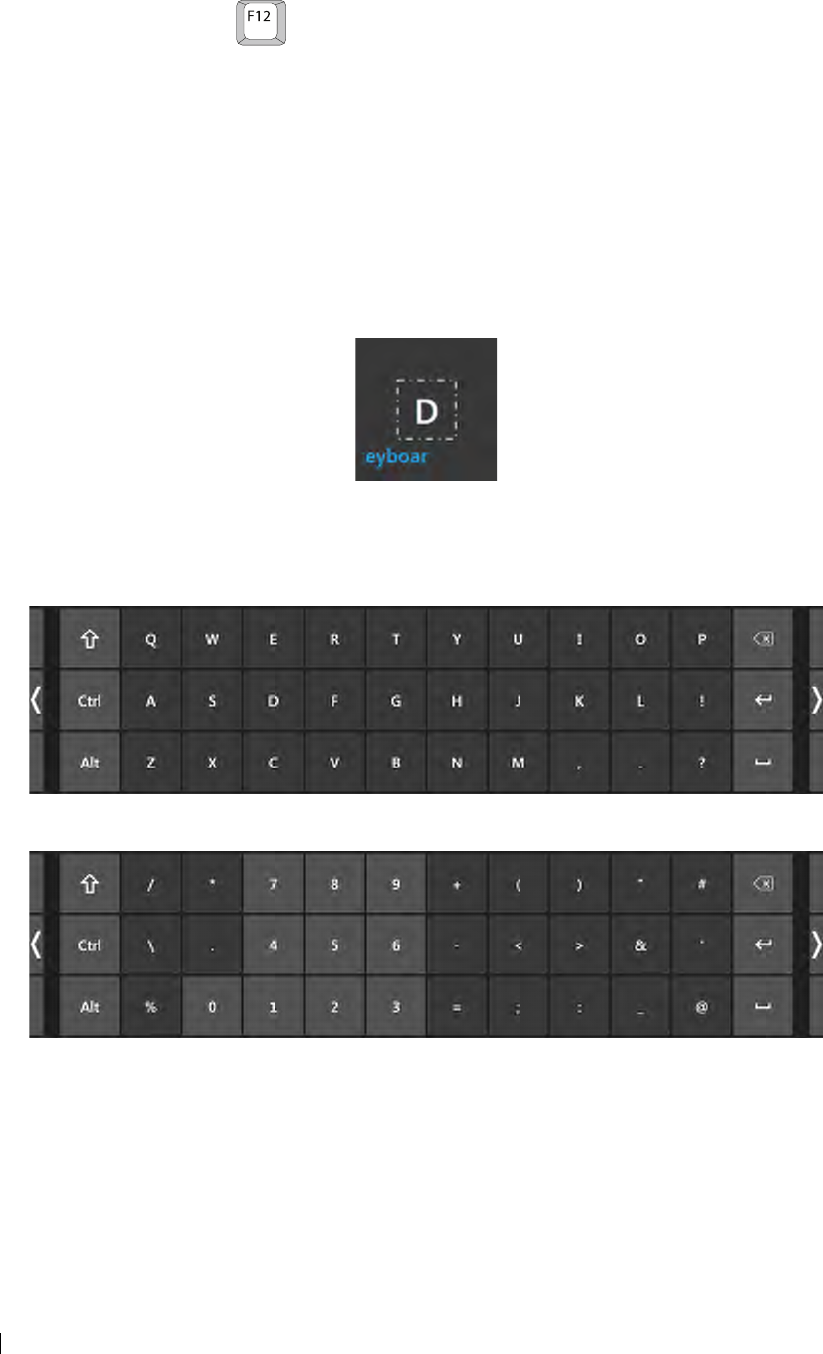

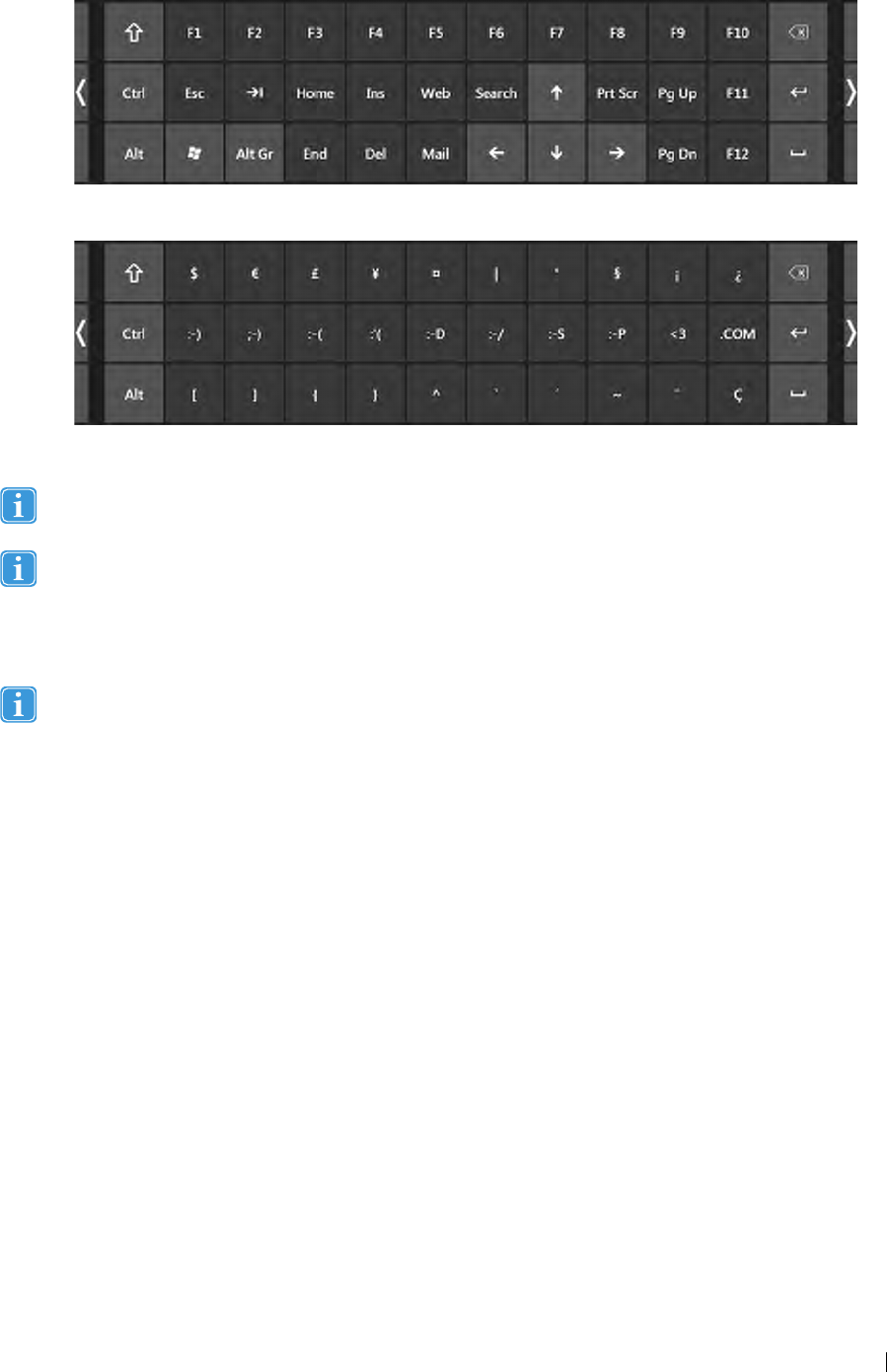

5.4.3.5 Gaze Keyboard................................................................................38
5.4.3.6 Gaze Selection in Combination with Region Based Keyboards...............39

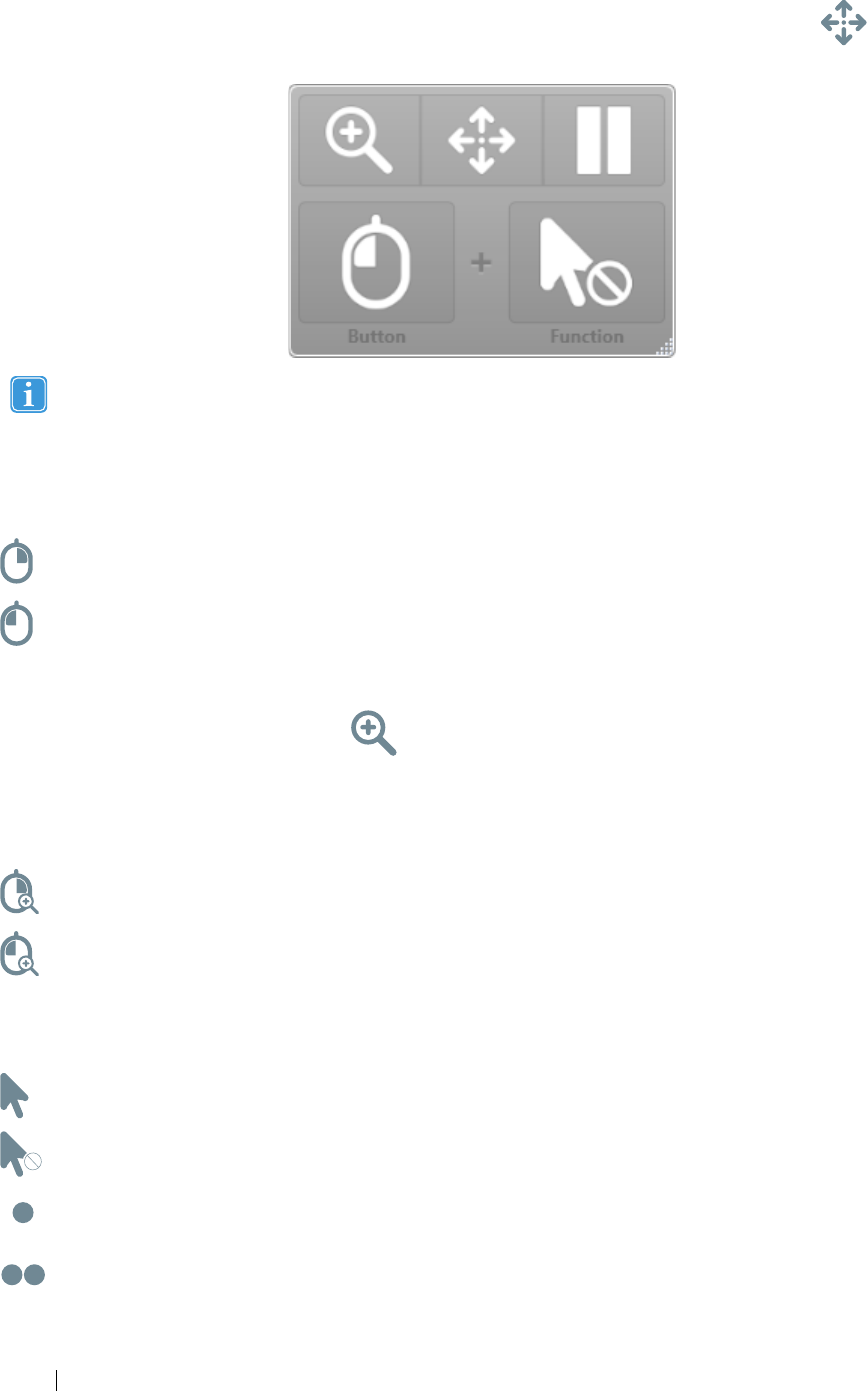

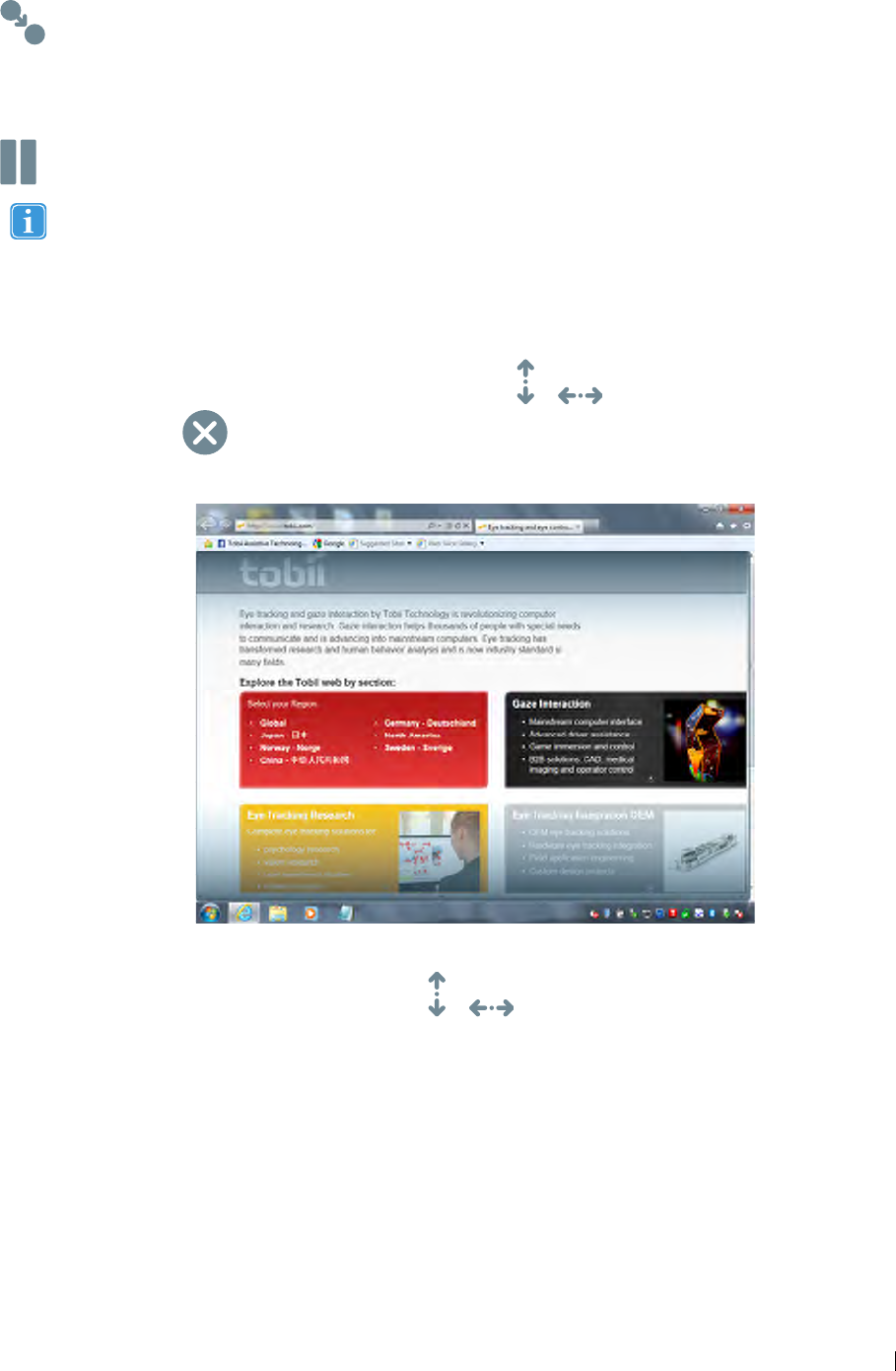

5.4.4 Using Mouse Emulation .........................................................................................39
5.4.4.1 Placing the Mouse Emulation Menu ....................................................39
5.4.4.2 Clicking with Windows Control in Mouse Emulation Mode.....................40
5.4.4.3 Magnifying with Windows Control in Mouse Emulation Mode.................40
5.4.4.4 Selecting Mouse Emulation Functions.................................................40
5.4.4.5 Pausing Windows Control in Mouse Emulation Mode ...........................41
5.4.4.6 Scrolling with Windows Control in Mouse Emulation Mode....................41
5.5 Wake the Tobii Dynavox I-Series+ from Sleep with Gaze Interaction...........................................41
5.6 Pause/Resume Gaze Interaction and Put the Tobii Dynavox I-Series+ to Sleep with
Gaze Interaction...................................................................................................................42
5.7 Using the Cameras...............................................................................................................43
5.8 Using the GEWA Programmable IR Remote Control.................................................................43
5.8.1 Handling I-Series Product Key ................................................................................43
5.9 Adjusting the Volume............................................................................................................44
5.10 Adjusting the Sound .............................................................................................................44
5.11 Performing a Factory Recovery...............................................................................................44
5.12 Calibrating the Touch Screen.................................................................................................45
6 Configuring the Tobii Dynavox I-Series+ with the I-Series Control Center ................................... 46

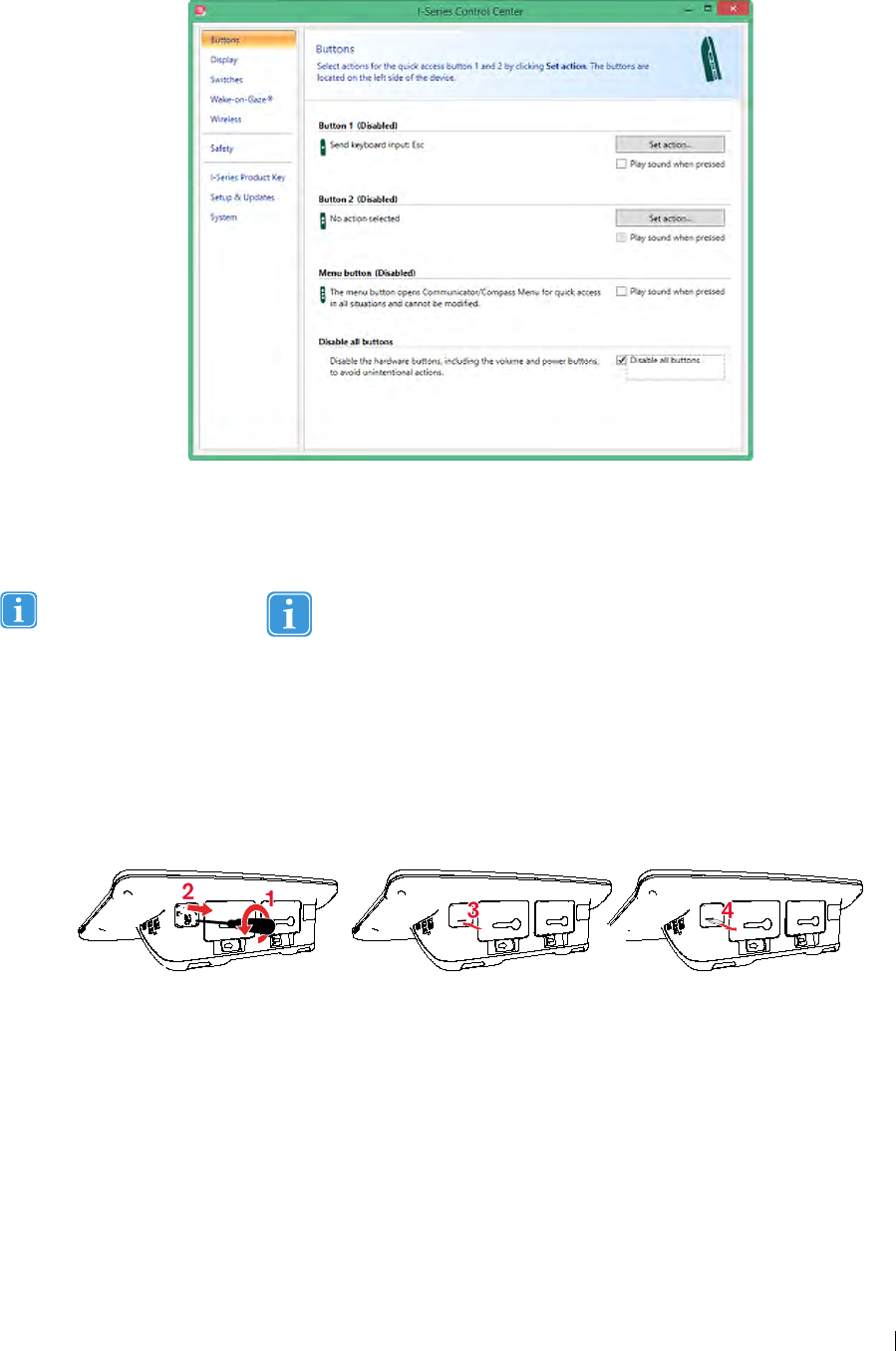

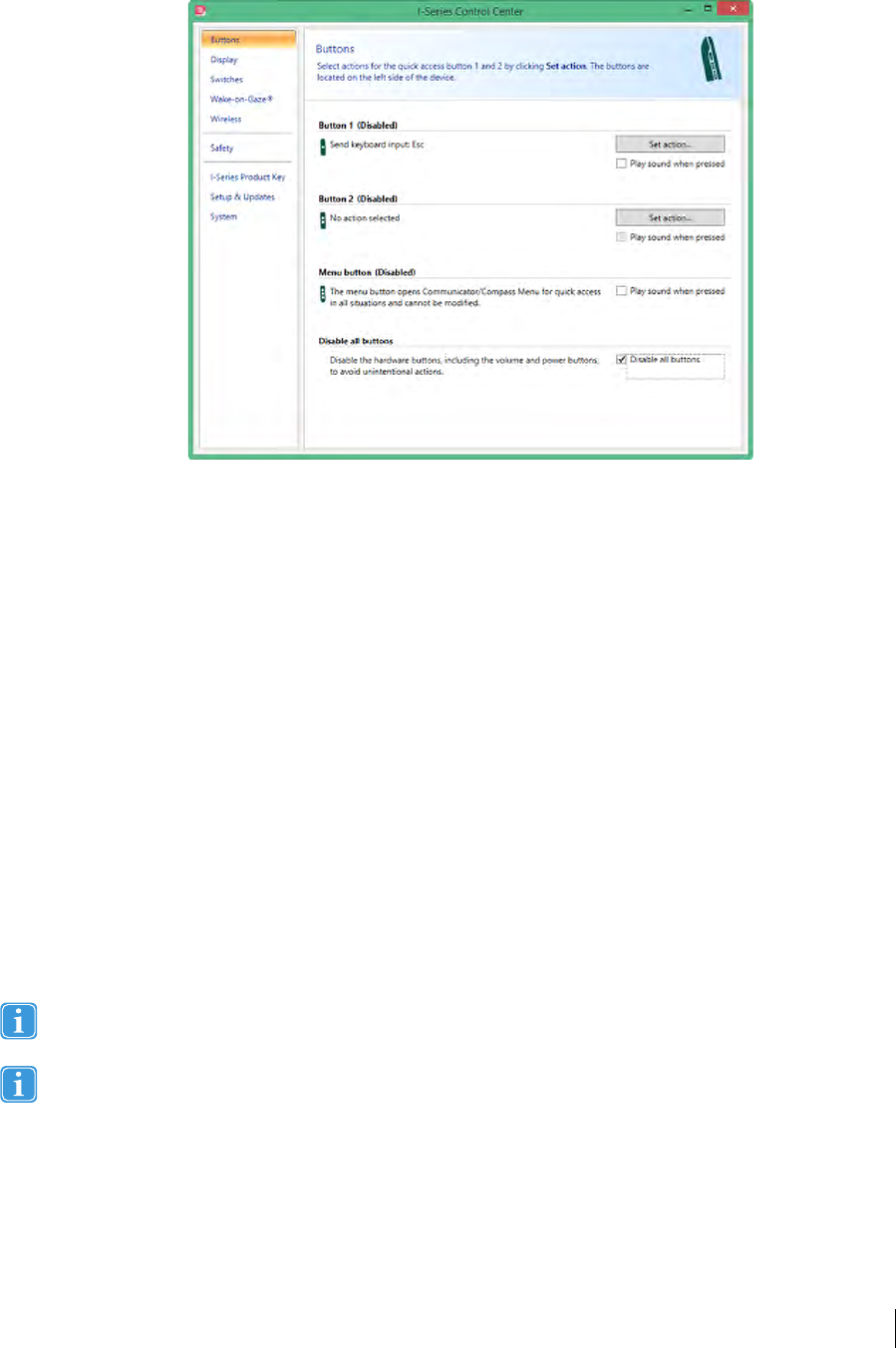

6.1 Buttons...............................................................................................................................47
6.1.1 Play Sound when Pressed......................................................................................47
6.1.2 Disable All Buttons................................................................................................47

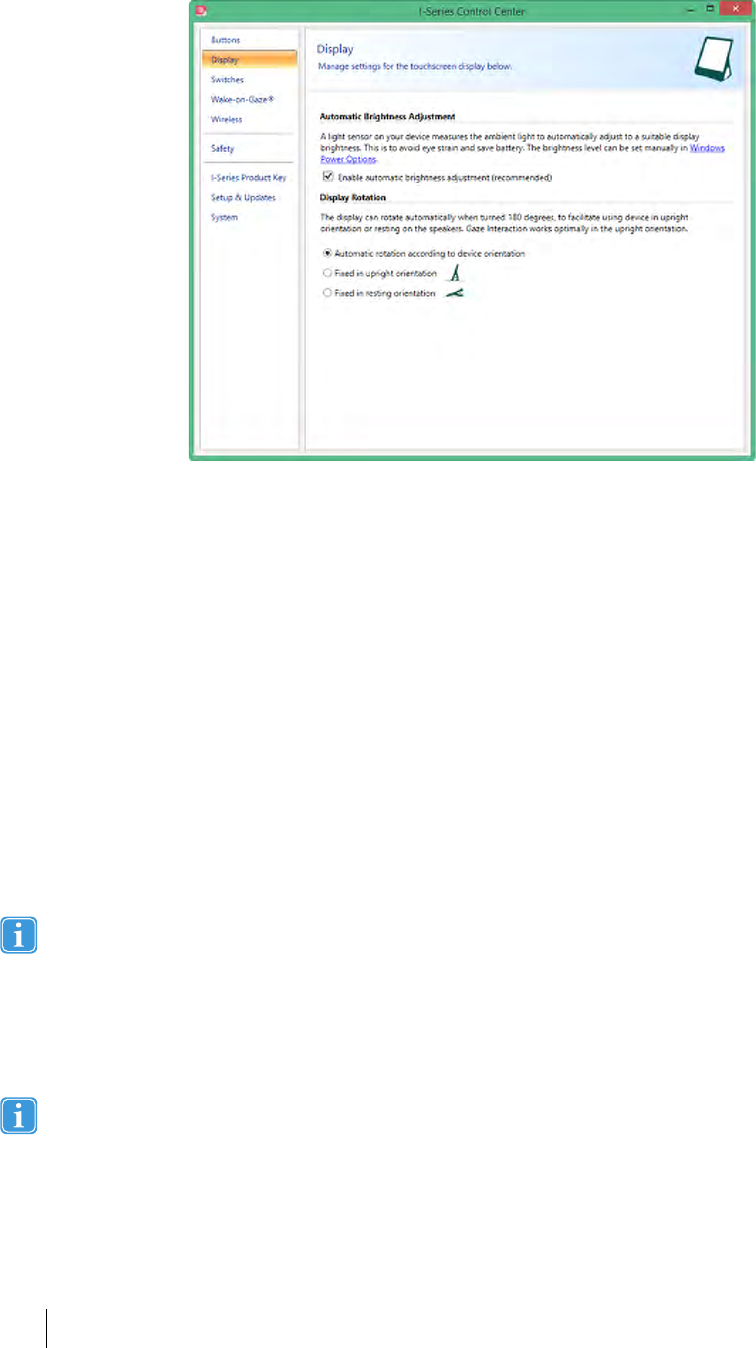

6.2 Display................................................................................................................................48
6.2.1 Brightness Adjustment...........................................................................................48
6.2.2 Display Rotation....................................................................................................48

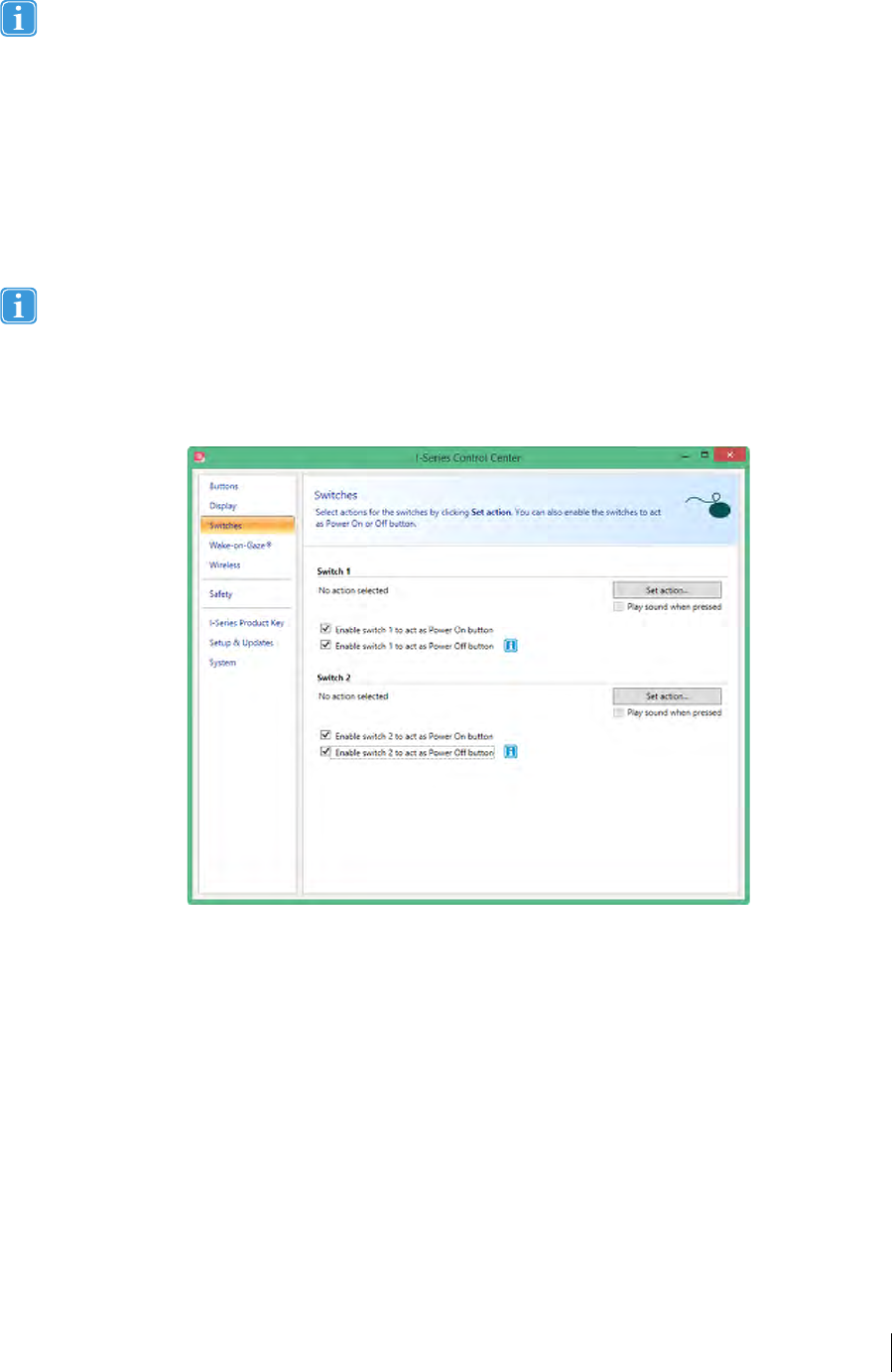

6.3 Switches.............................................................................................................................49
6.3.1 Play Sound when Pressed......................................................................................49
6.3.2 Configuring a Switch to Power On ..........................................................................50
6.3.3 Configuring a Switch to Power Off ..........................................................................50

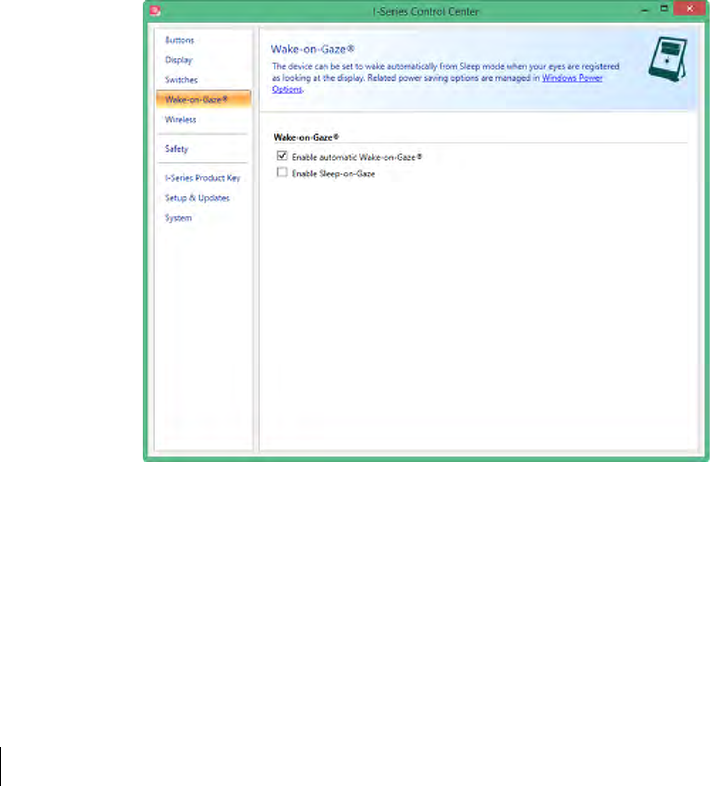

6.4 Wake-on-Gaze® .................................................................................................................50

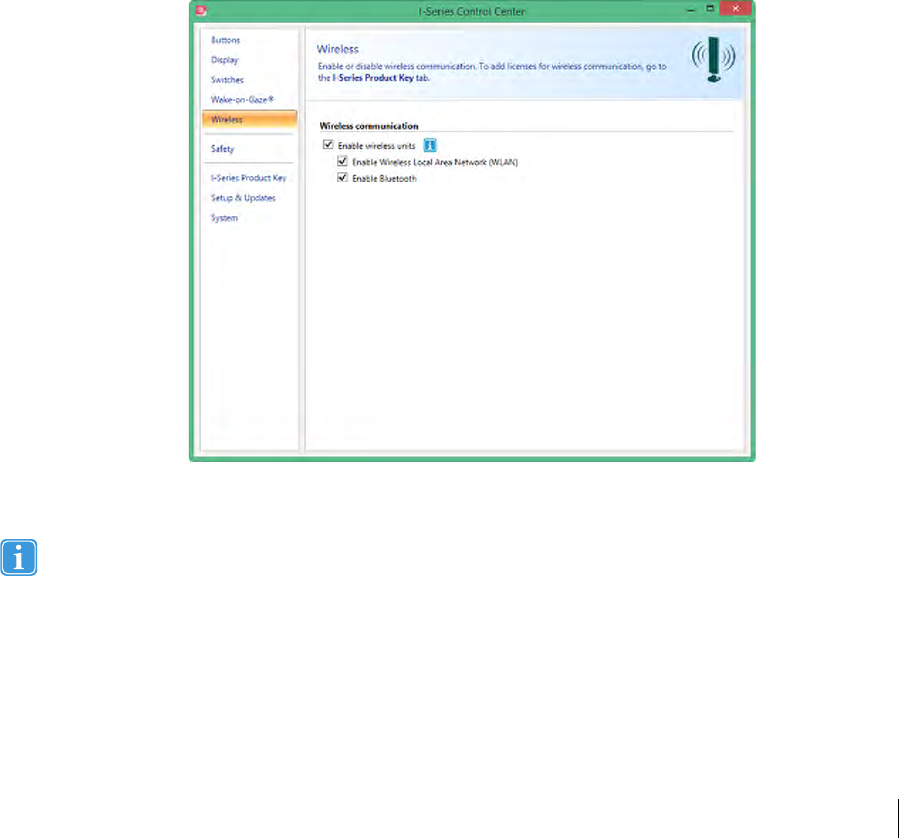

6.5 Wireless .............................................................................................................................51
6.5.1 WLAN .................................................................................................................51
6.5.1.1 Handling Tobii Dynavox Product Key...................................................51
6.5.1.2 Enabling and Disabling the WLAN Communication...............................52
6.5.1.3 Connecting to a WLAN.....................................................................52
6.5.2 Bluetooth® for Mobile Phone Communication ..........................................................52
6.5.2.1 Handling I-Series Product Key ...........................................................52
6.5.2.2 Enabling and Disabling Bluetooth® Communication .............................52
6.5.2.3 Connecting to a Bluetooth® Device ...................................................53

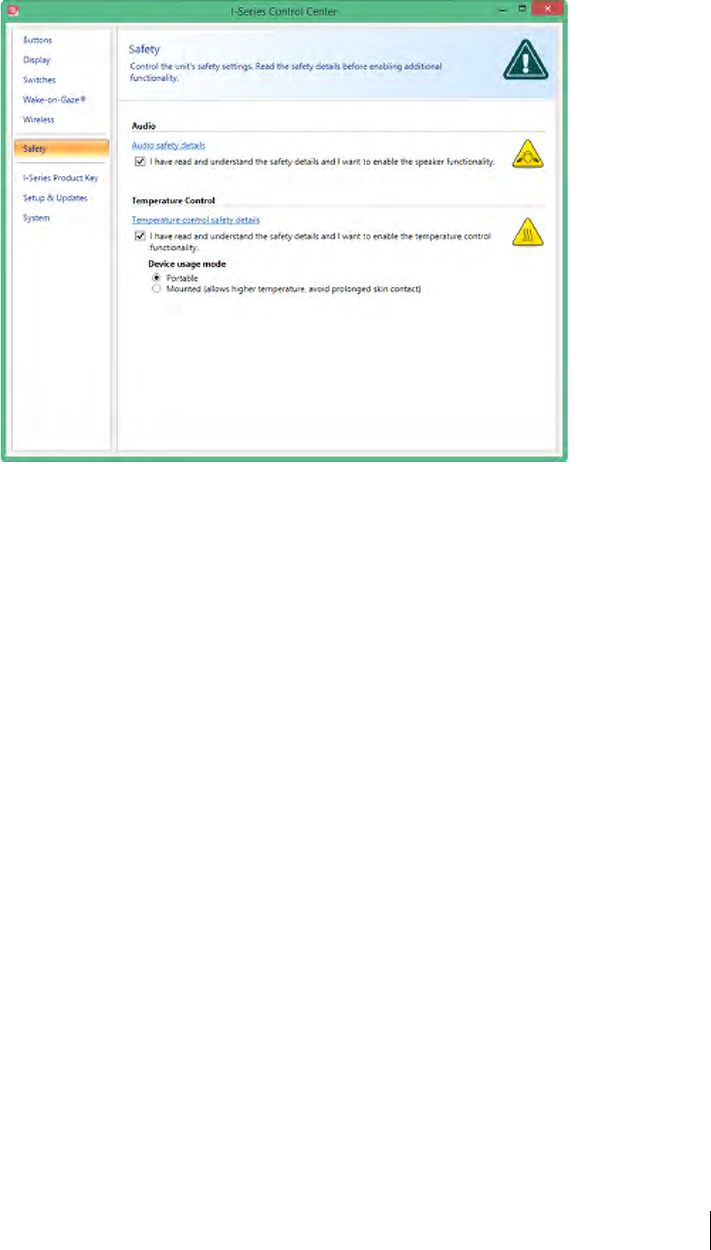

6.6 Safety.................................................................................................................................53
6.6.1 Audio...................................................................................................................53
6.6.2 Temperature Control .............................................................................................53
6.6.2.1 Device Usage ..................................................................................54

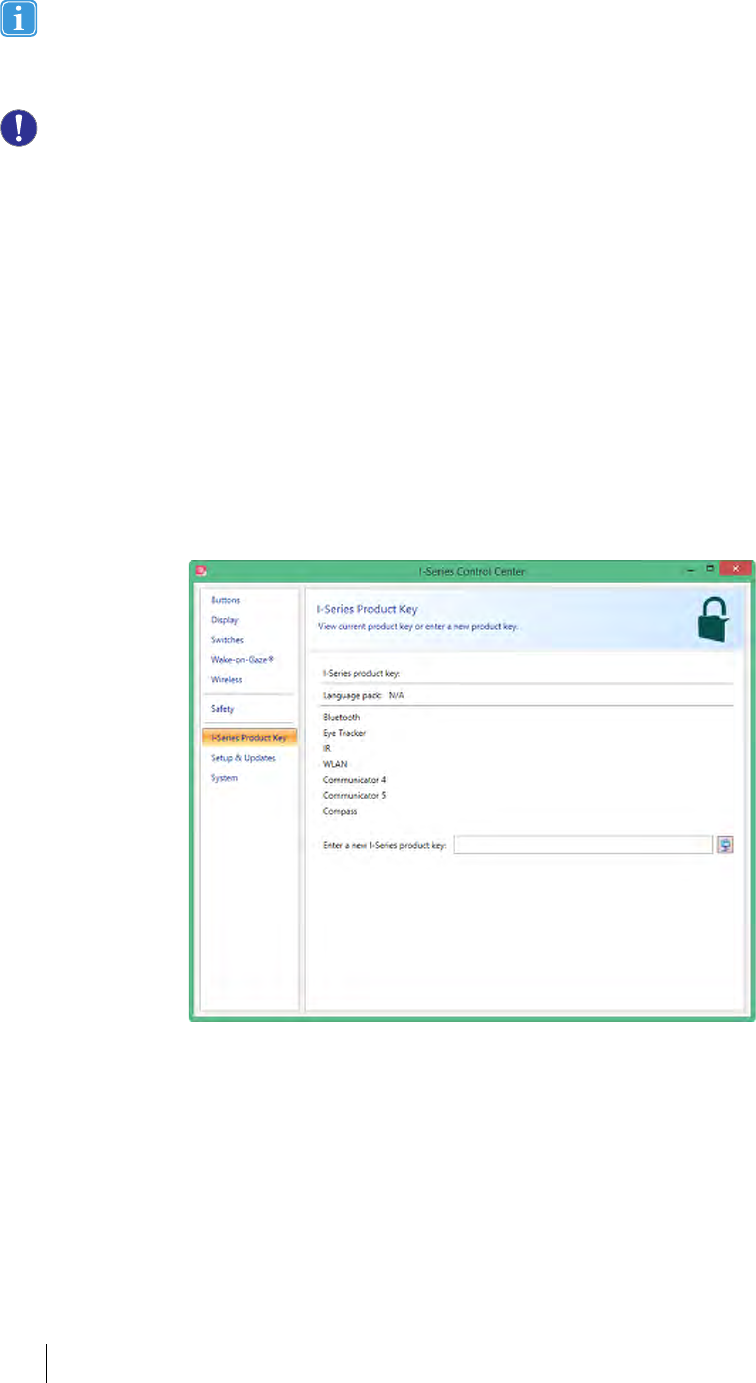

6.7 I-Series Product Key.............................................................................................................54

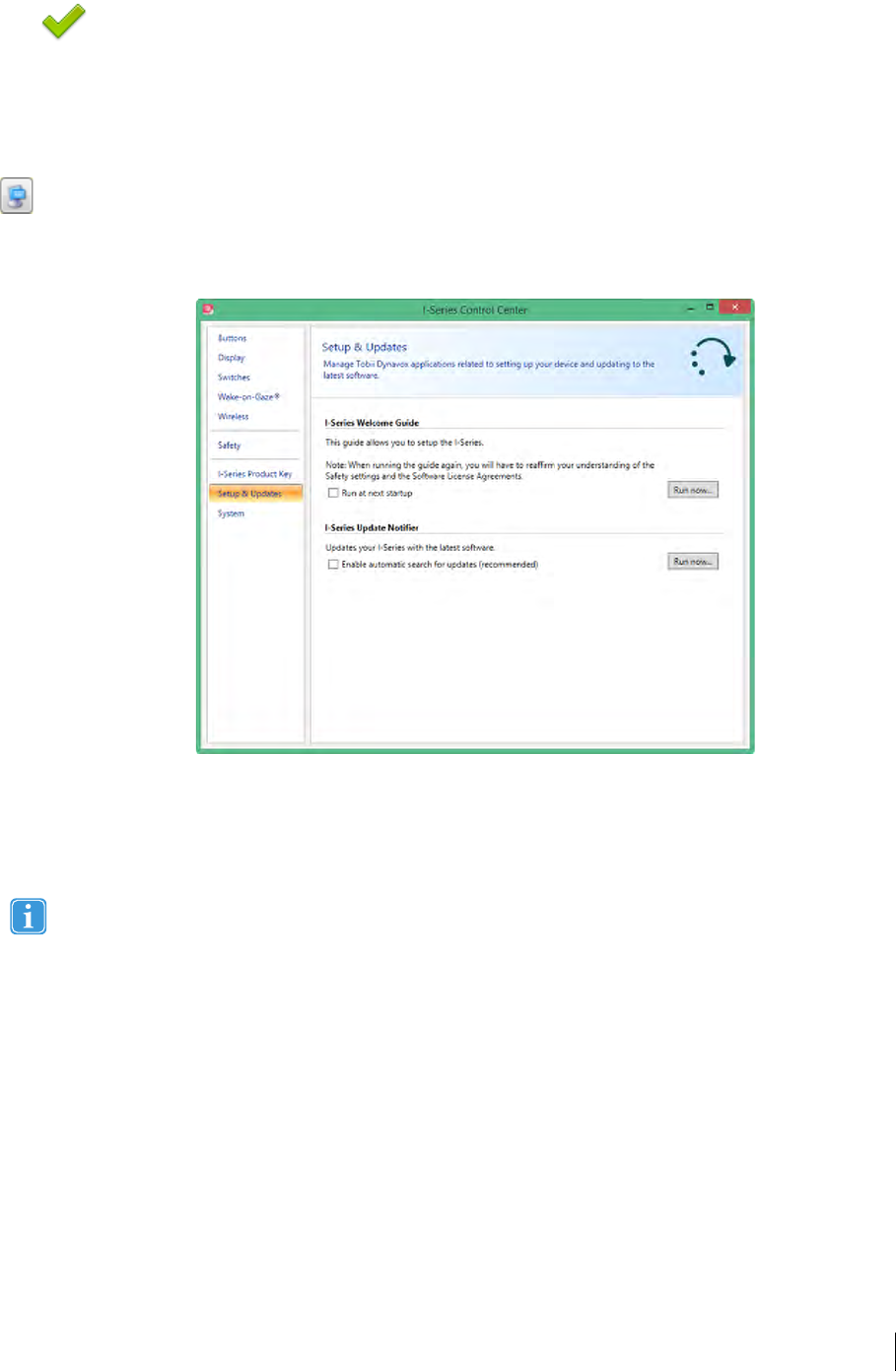

6.8 Setup & Updates..................................................................................................................55
6.8.1 I-Series Welcome Guide........................................................................................55
6.8.2 I-Series Update Notifier..........................................................................................55
6.9 System ...............................................................................................................................57

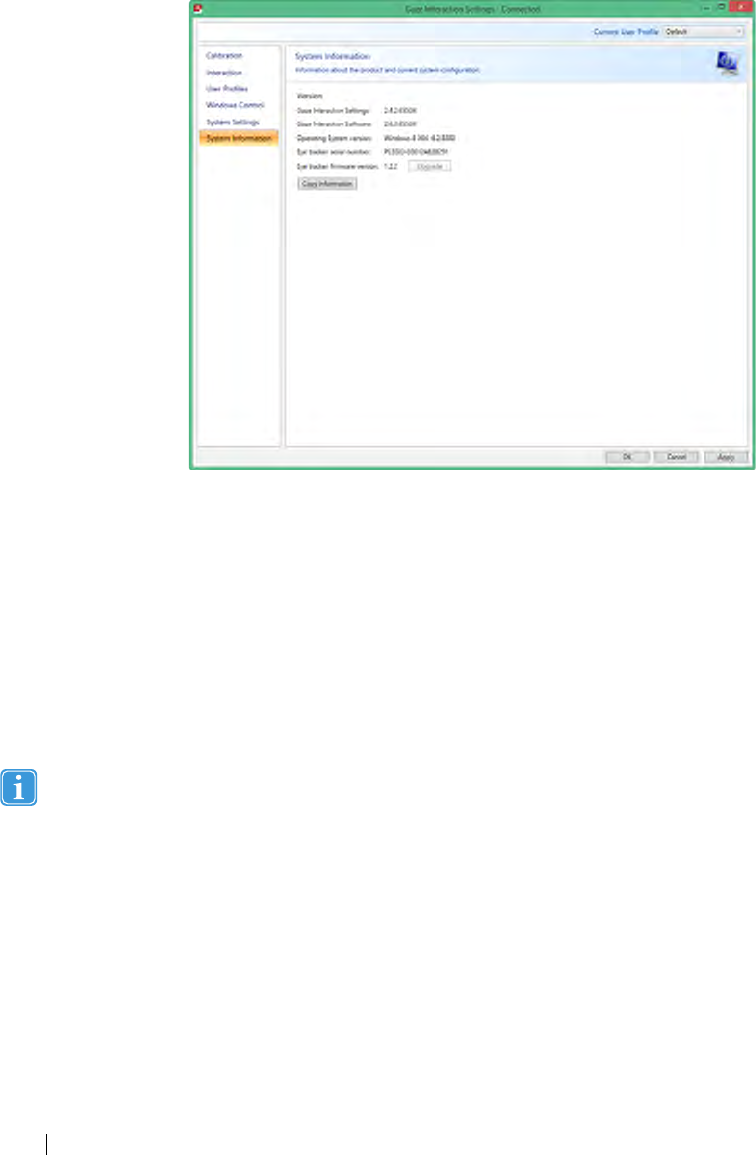

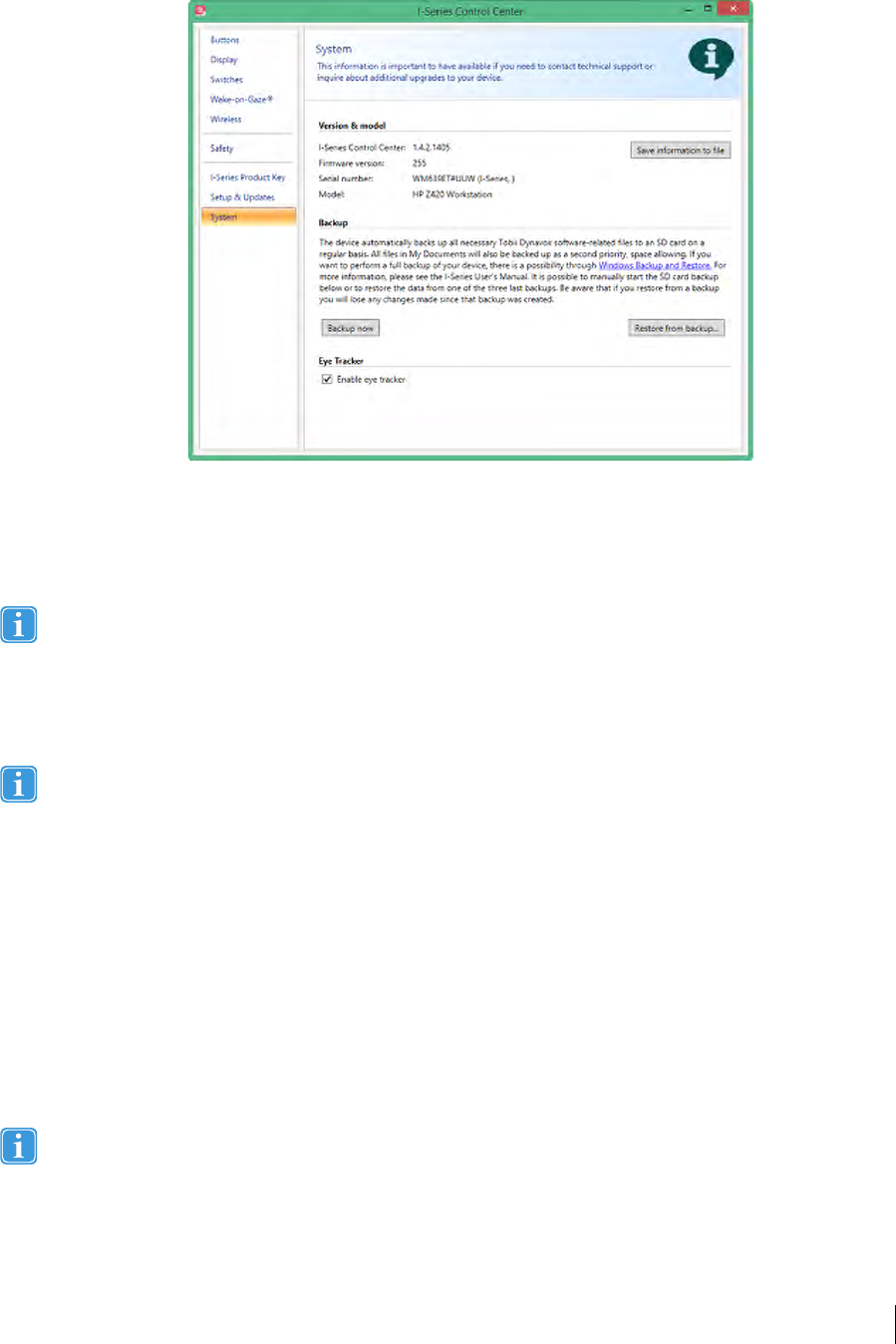

6.9.1 Version & Model....................................................................................................57
6.9.2 Backup................................................................................................................57
6.9.2.1 User Profile Card..............................................................................58
6.9.2.2 Backup Manually by the User .............................................................58
6.9.2.3 Restoring Backup Files by the User ....................................................58
6.9.2.4 Backup Failed..................................................................................58
6.9.3 Eye Tracker ..........................................................................................................58

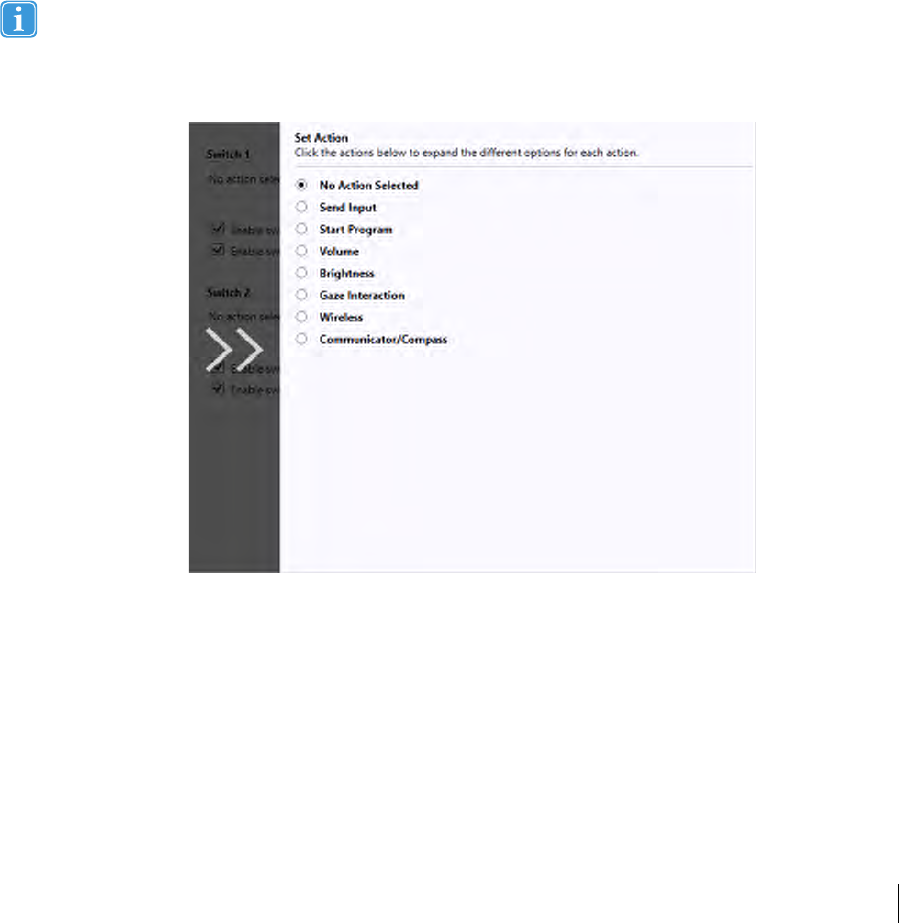

6.10 Creating Shortcuts to Actions................................................................................................58
6.10.1 Available Actions...................................................................................................59
6.10.2 Selecting Actions..................................................................................................59
7 Gaze Interaction Settings............................................................................................................ 61
7.1 Accessing the Gaze Interaction Settings .................................................................................61

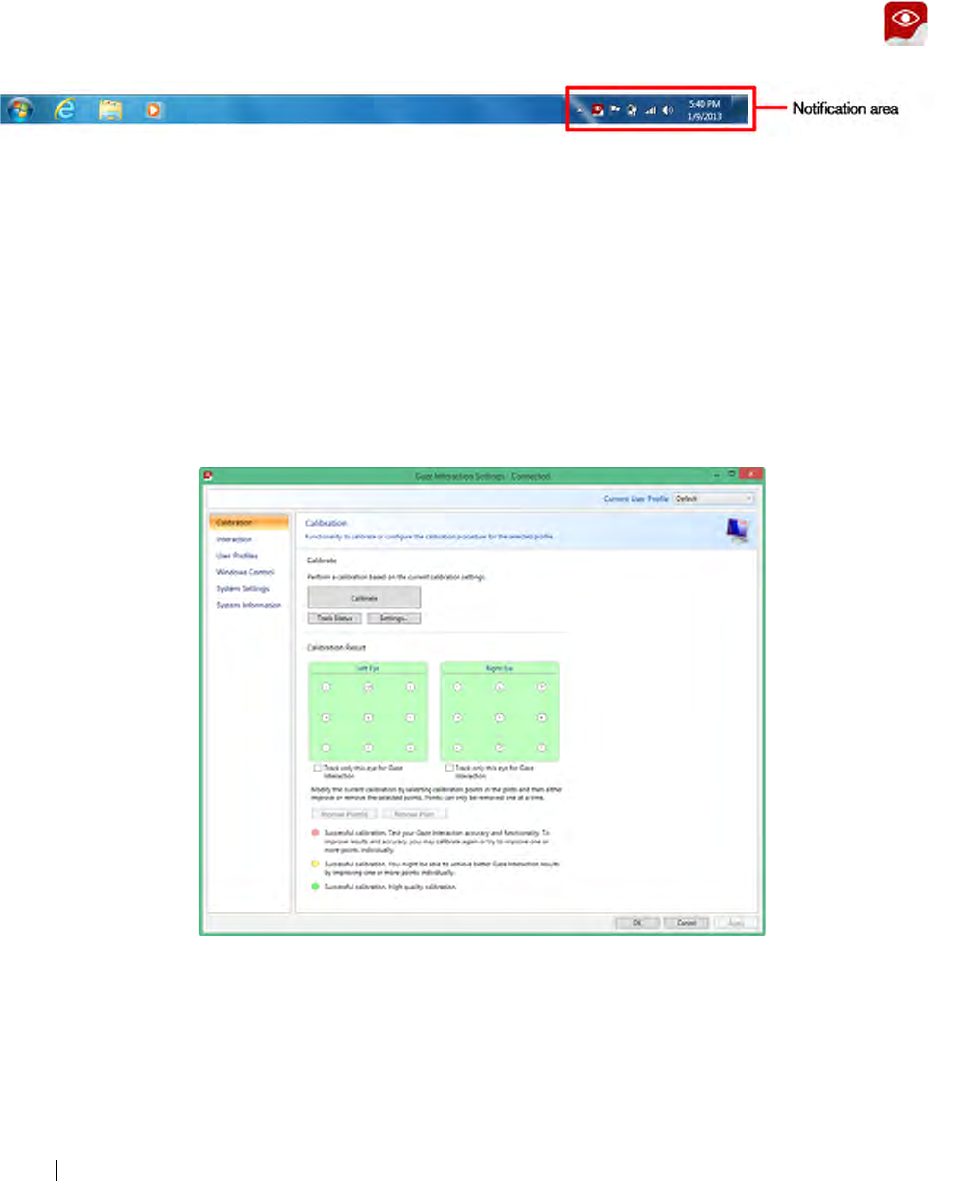

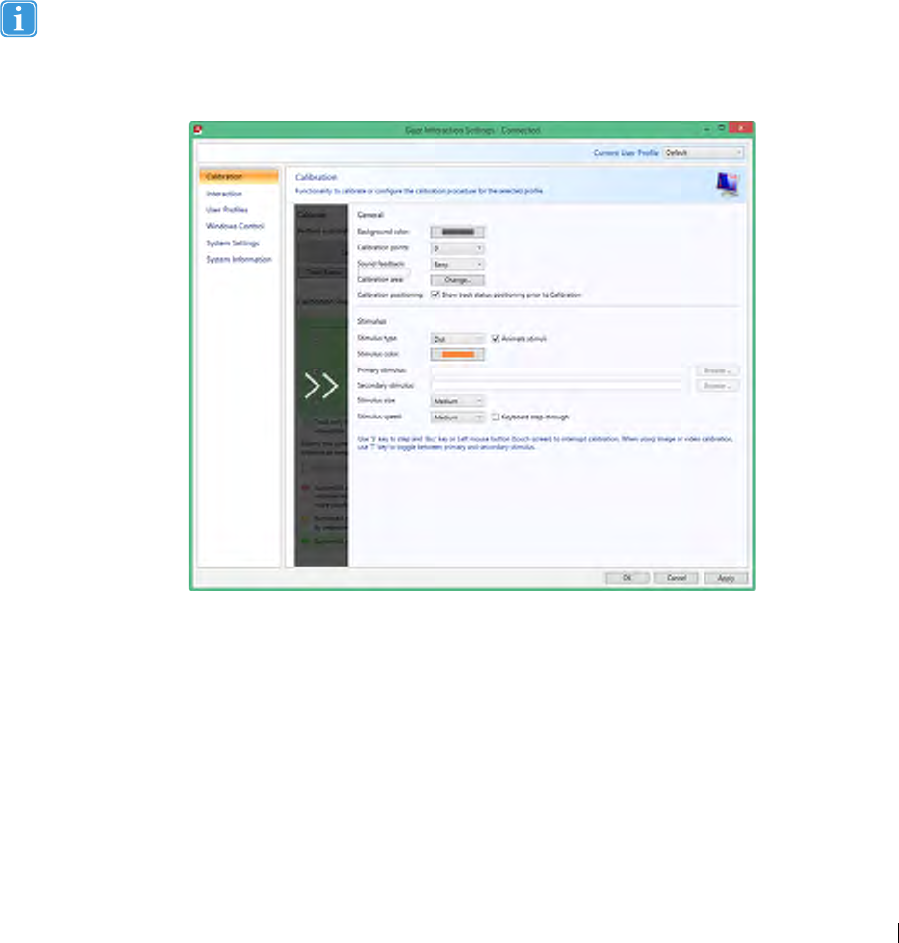

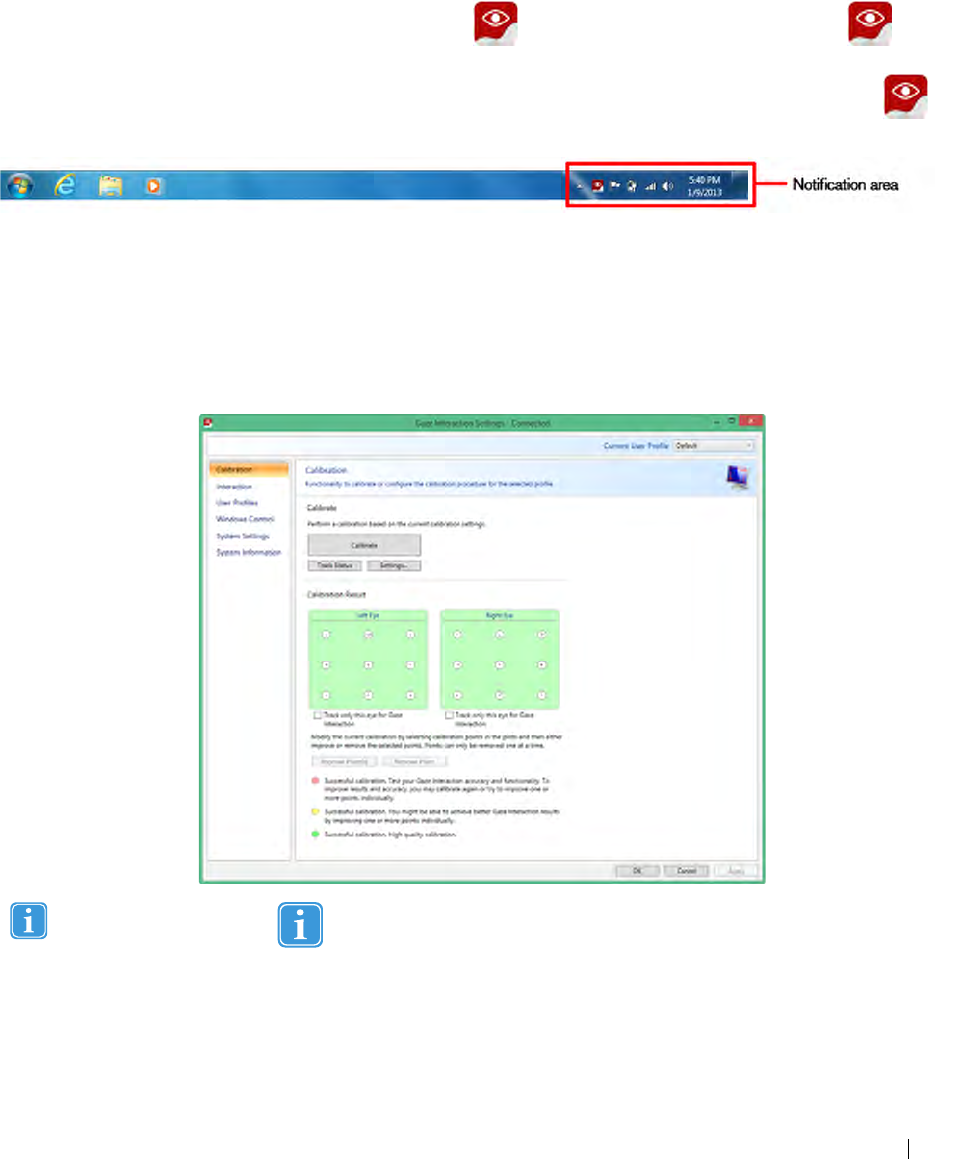

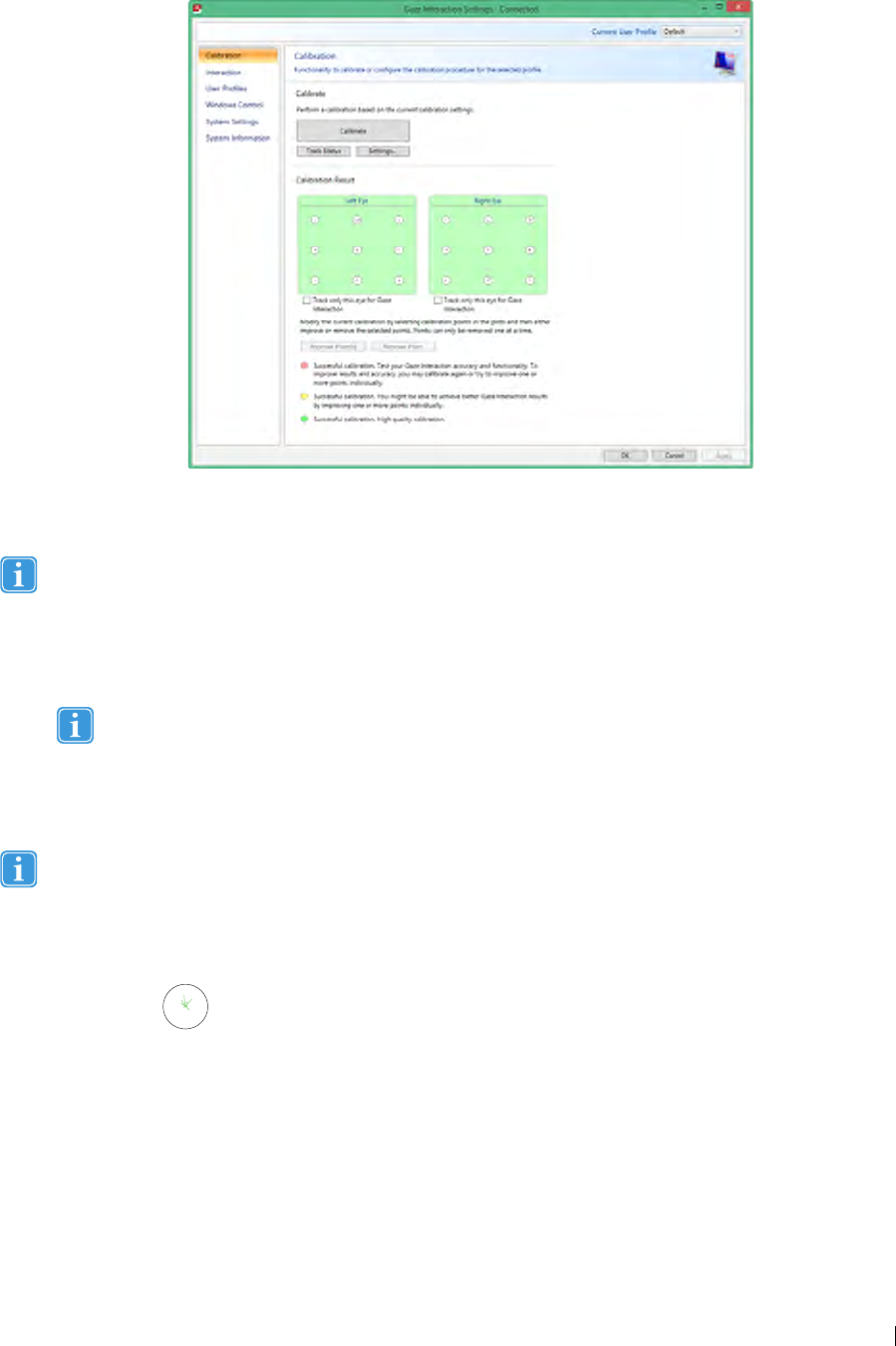

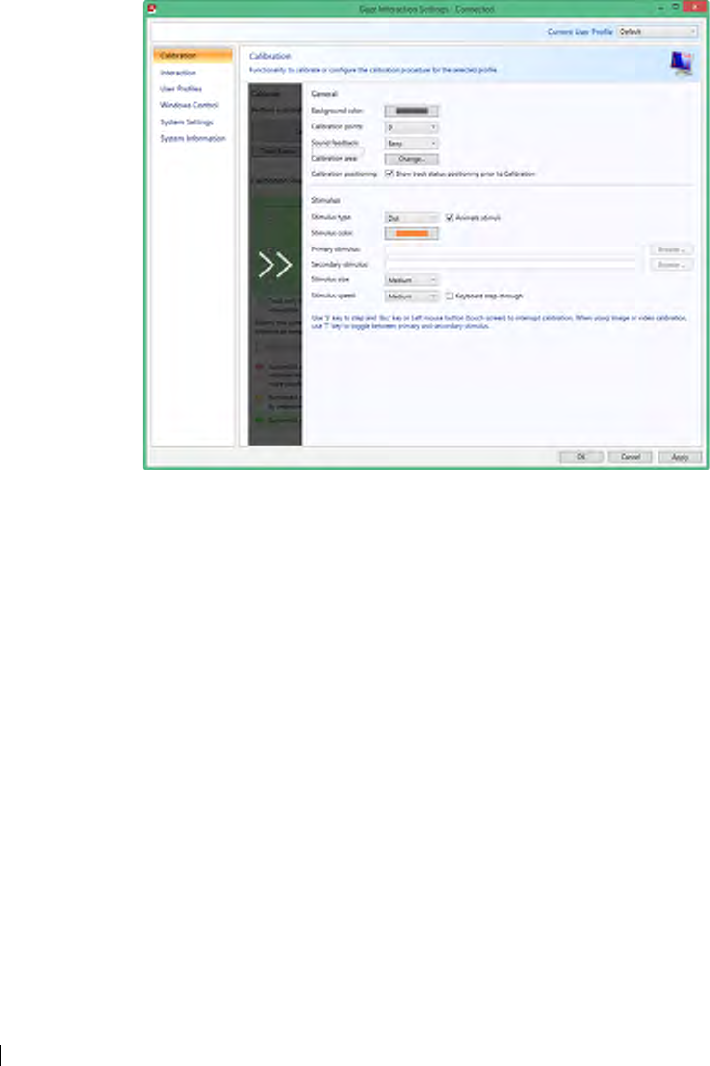

7.2 Calibration...........................................................................................................................62
7.2.1 Starting Calibration ...............................................................................................62
7.2.2 Interrupting Calibration ..........................................................................................62
7.2.3 Customizing Active Eye..........................................................................................62
7.2.4 Improving Calibration Point(s) .................................................................................63
7.2.5 Removing Calibration Point(s).................................................................................64
7.2.6 Customizing the Calibration....................................................................................64
7.2.7 Customizing the Calibration Area ............................................................................65

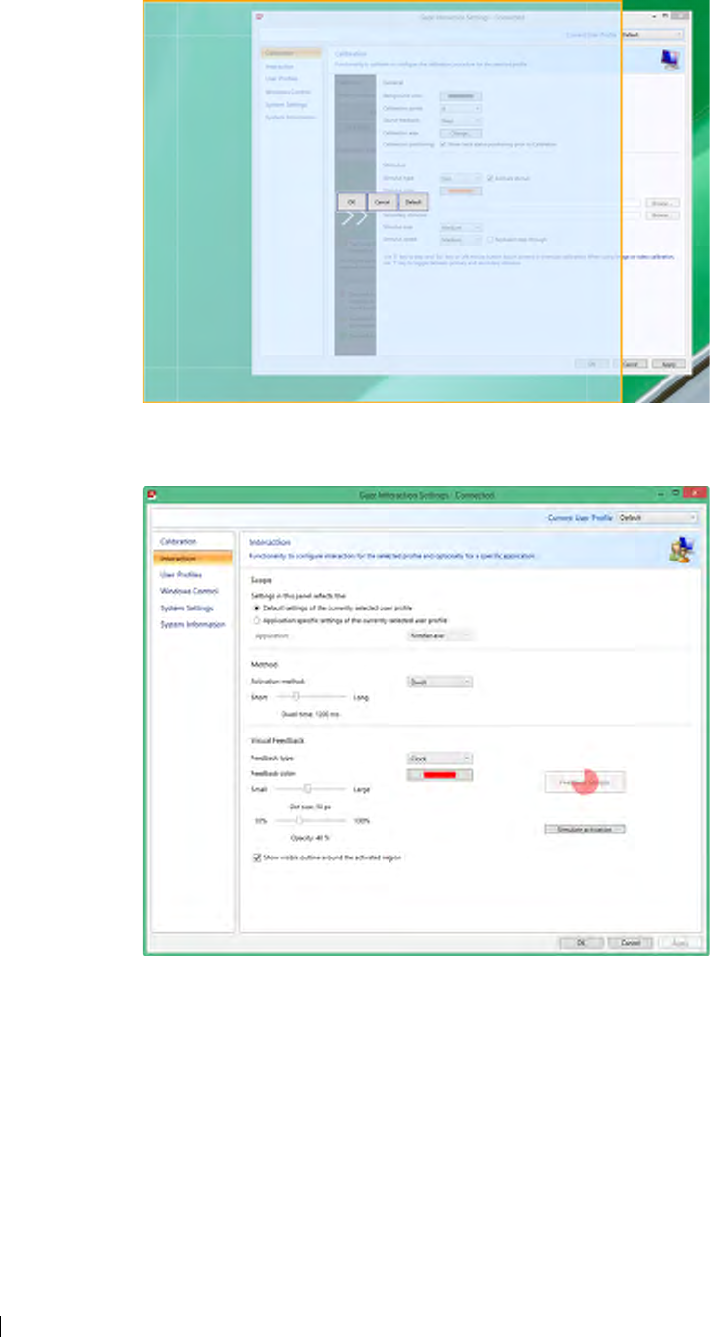

7.3 Interaction...........................................................................................................................66

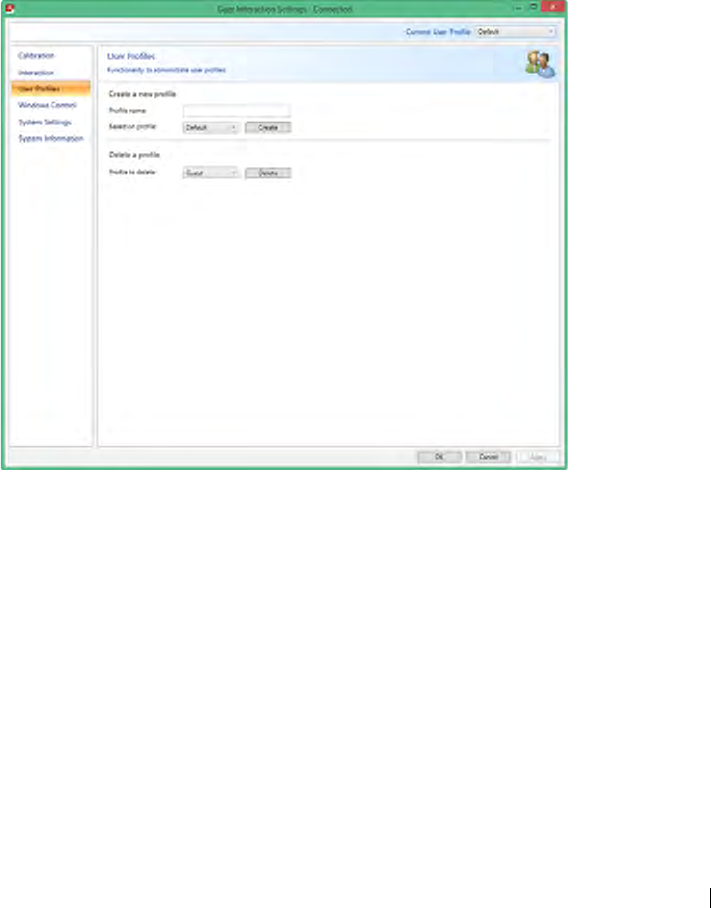

7.4 User Profile..........................................................................................................................67
7.4.1 Creating a New Profile...........................................................................................67
7.4.2 Selecting Current User Profile ................................................................................68
7.4.3 Deleting a Profile...................................................................................................68
7.5 Windows Control.................................................................................................................68
7.5.1 Auto Start ............................................................................................................68
7.5.2 Windows Control Type..........................................................................................68
7.5.2.1 Gaze Selection ................................................................................69
7.5.2.2 Mouse Emulation..............................................................................69
7.5.2.2.1 Mouse Control Speed................................................69
7.5.2.2.2 Magnifier Size and Zoom ............................................70
7.5.2.2.3 Auto Switch from Right to Left Click.............................70
7.5.2.2.4 Turn off Scroll Functionality.........................................70
7.5.2.2.5 Custom Cursors........................................................70
7.5.2.2.6 Hide Menu................................................................70
7.6 System Settings...................................................................................................................71
7.6.1 System Off-Screen Menu.......................................................................................71
7.6.2 Positioning Guide..................................................................................................71
7.7 System Information...............................................................................................................72
7.7.1 Upgrade Eye Tracker Firmware ...............................................................................72
8 Gaze Selection Settings............................................................................................................... 73

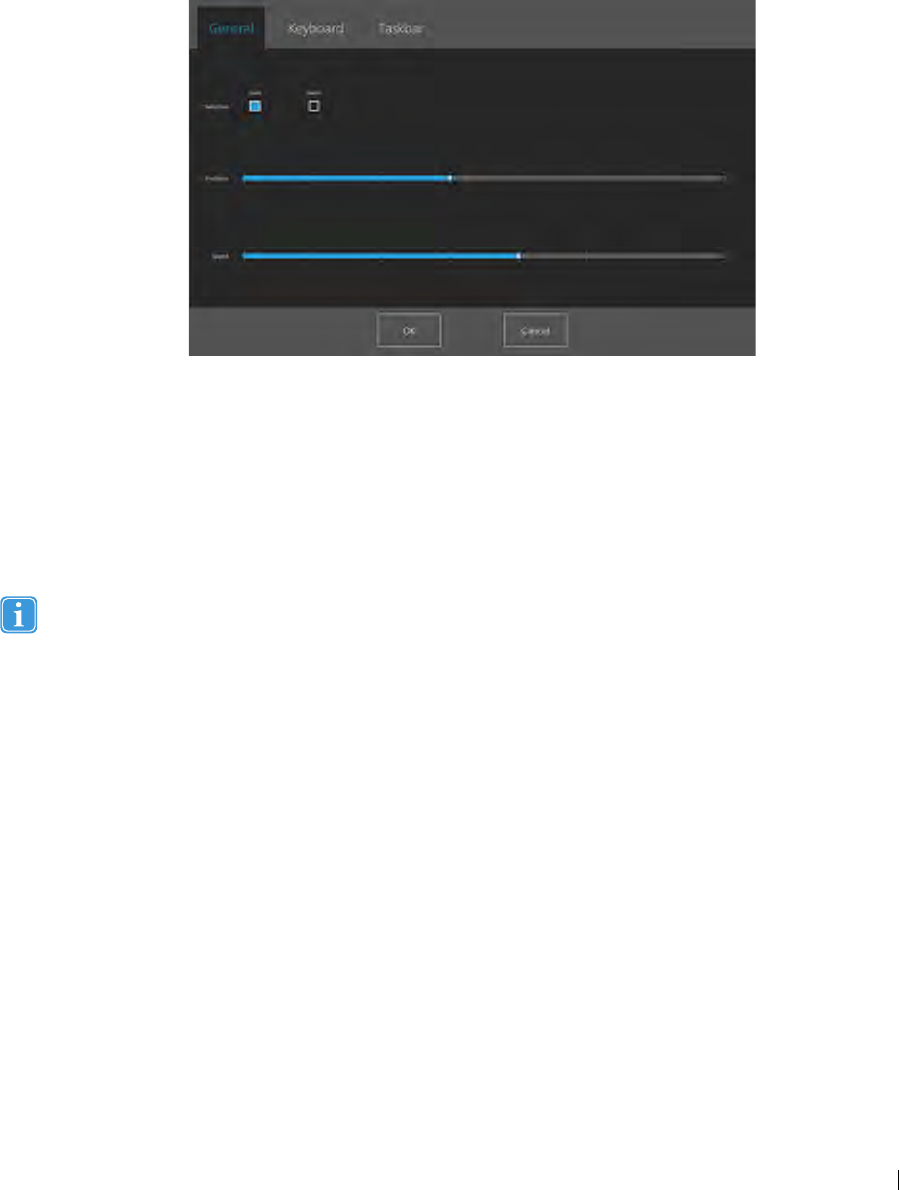

8.1 The General Settings Tab......................................................................................................73
8.2 The Keyboard Settings Tab....................................................................................................74
8.3 The Taskbar Settings Tab......................................................................................................74
8.3.1 Maximize Left Click/Tap .........................................................................................75
9 Product Care ............................................................................................................................... 76
9.1 Temperature & Humidity........................................................................................................76
9.1.1 General Use.........................................................................................................76
9.1.2 Transportation and Storage....................................................................................76
9.2 Cleaning .............................................................................................................................76
9.2.1 Cleaning of the Speakers.......................................................................................76
9.3 Placement...........................................................................................................................76
9.4 Transporting the Tobii Dynavox I-Series+ Device......................................................................76
9.5 Disposing of the Batteries .....................................................................................................77
9.6 Disposing of the Tobii Dynavox I-Series+ Device......................................................................77
Appendix A Support, Warranty, Training Resources ......................................................................... 78
Appendix B Compliance Information................................................................................................. 79
B1.1 For P15B Equipment.............................................................................................79
B1.2 For Portable Devices .............................................................................................79
Appendix C Computer Device States of Operation........................................................................... 85
Appendix D Maximum Allowed Temperature ..................................................................................... 87
Appendix E Technical Specifications ................................................................................................ 88
Appendix F Approved Accessories................................................................................................... 91
1 Introduction

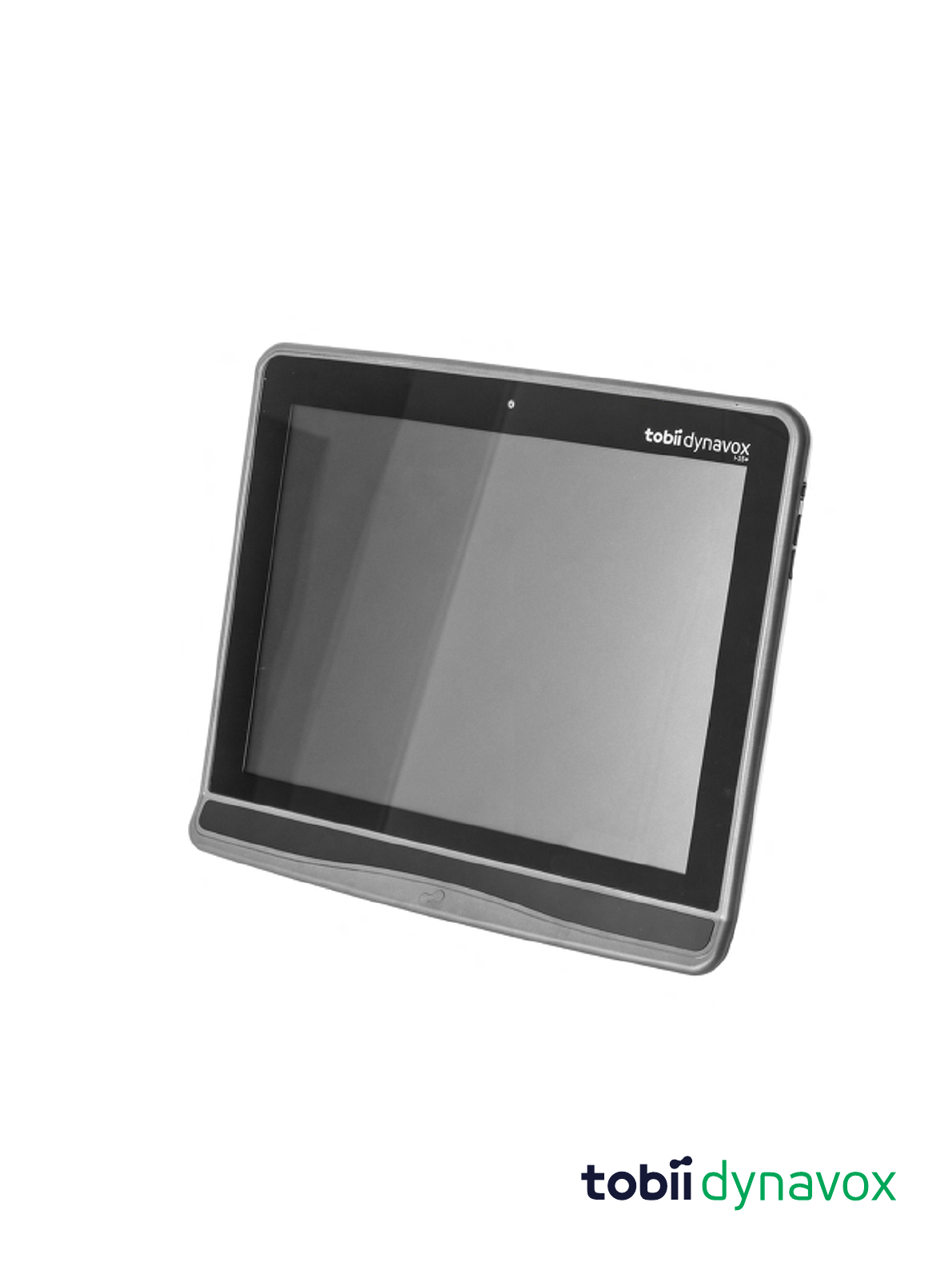

Thank you for purchasing a Tobii Dynavox I-Series+ device from Tobii Dynavox!
To ensure the optimal performance of this product, please take the time to read this manual carefully.
The Tobii Dynavox I-Series+ device is available in two different sizes: the Tobii Dynavox I–12+ with a 12.1" screen and the
Tobii Dynavox I–15+ with a 15.0" screen. The Tobii Dynavox I-Series+ is a Gaze Interaction device but can be ordered without
the Gaze Interaction function.
This User’s Manual covers:
•The Tobii Dynavox I-Series+ device, models Tobii Dynavox I–12+ and Tobii Dynavox I–15+.
•The I-Series Control Center (for controlling the device and the I-Series Product Key).
•The Gaze Interaction functions

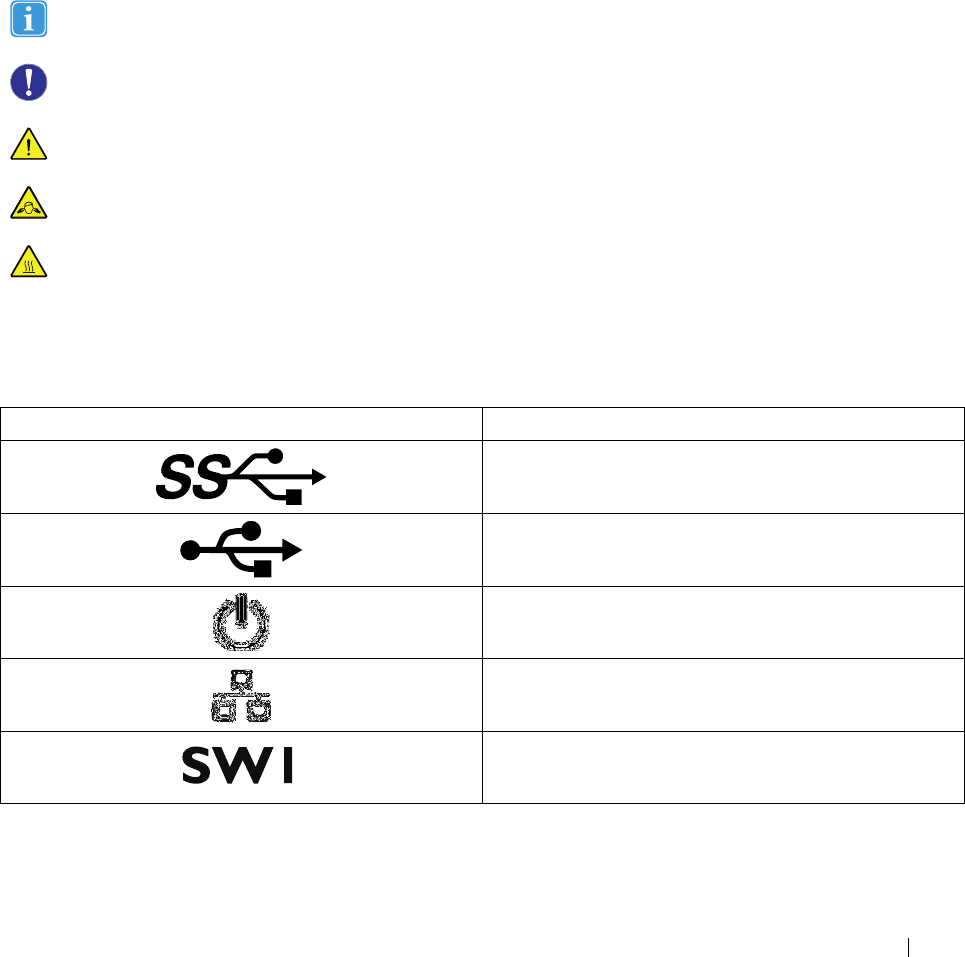

1.1 Explanation of Admonitions
In this manual we use five (5) levels of admonitions as follows:
Is used for notifying the user of something important or of something that needs special attention.
Is used to inform of something that could cause harm to, or malfunction of, the equipment.
Is used to inform of something in which there is a conceivable risk of harm to the user if the Warning is ignored.
Is used to inform of something that can cause damage to hearing.
Is used to inform of something that cause permanent bodily harm with prolonged skin contact if the Warning is
ignored.
1.2 Symbols and Markings
This section provides information about the symbols that are used on the Tobii Dynavox I-Series+, its accessories or packaging.
Symbol or Markings Description
USB 3.0 Port
USB 2.0 Ports
Power On
RJ 45 Ethernet Port
3.5 mm Switch port 1
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 1 Introduction 7

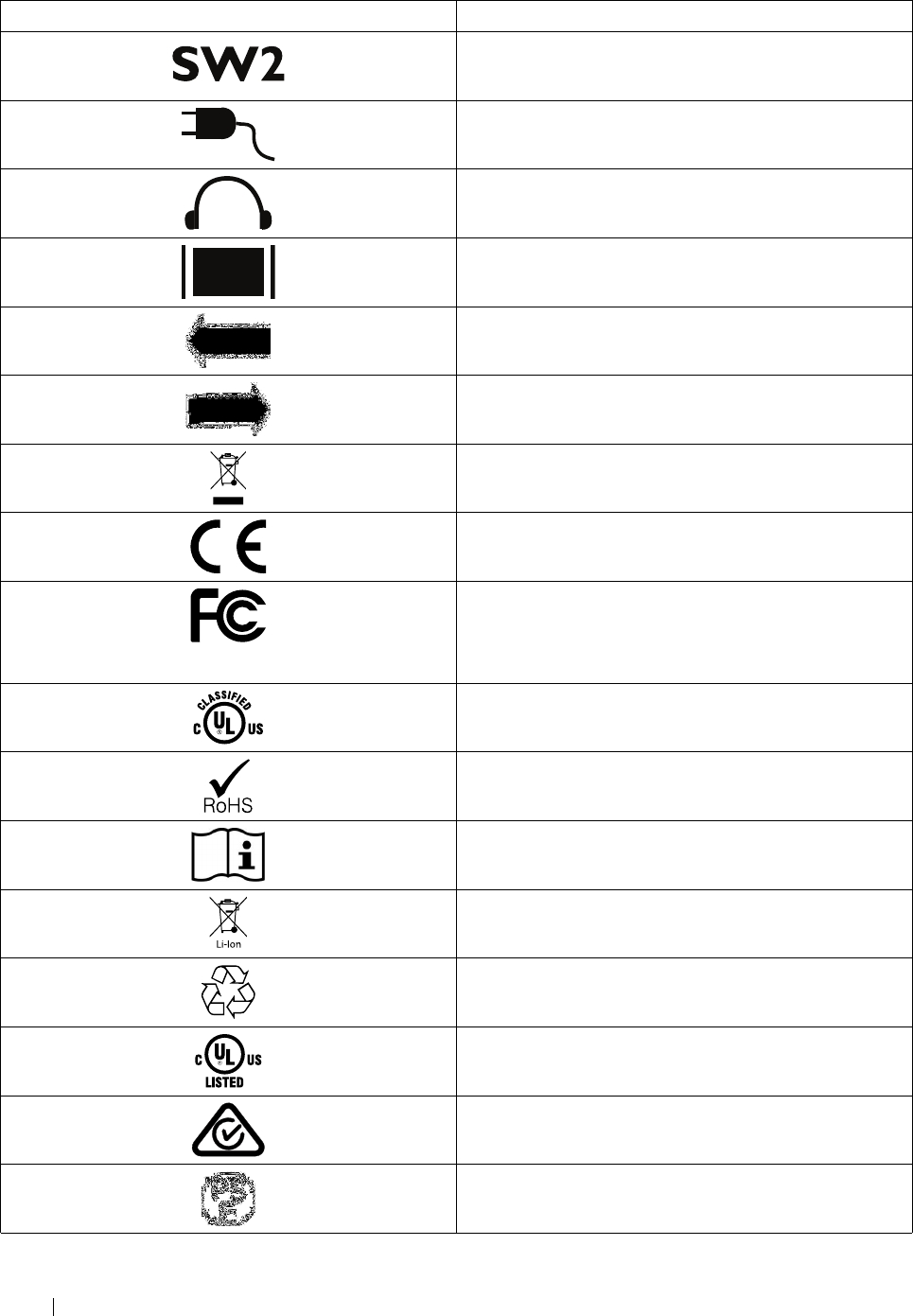

Symbol or Markings Description
3.5 mm Switch port 2
Power Connector
Head phone jack 3,5 mm
Connector for an HDMI 1.3 cable
To release the right battery
To release the left battery
Dispose of in accordance with your country's requirements.
CE is the abbreviation of the European Communities and this
mark tells customs officials in the European Union that the
product complies with one or more of the EC Directives
This mark is a certification mark employed on electronic
products manufactured or sold in the United States which
certifies that the electromagnetic interference from the de-
vice is under limits approved by the Federal Communications
Commission.
UL Classification Marks for Canada and the United States
RoHS Compliant
Consult User´s Manual
Li-Ion rechargeable battery. Must be recycled or disposed
properly
Recyclable material
Type L and Type R Listing Marks for Canada and the United
States
Conforms to relevant Australian EMC requirements
Japanese certification for electrical/electronic appliances and
components
81 Introduction Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US

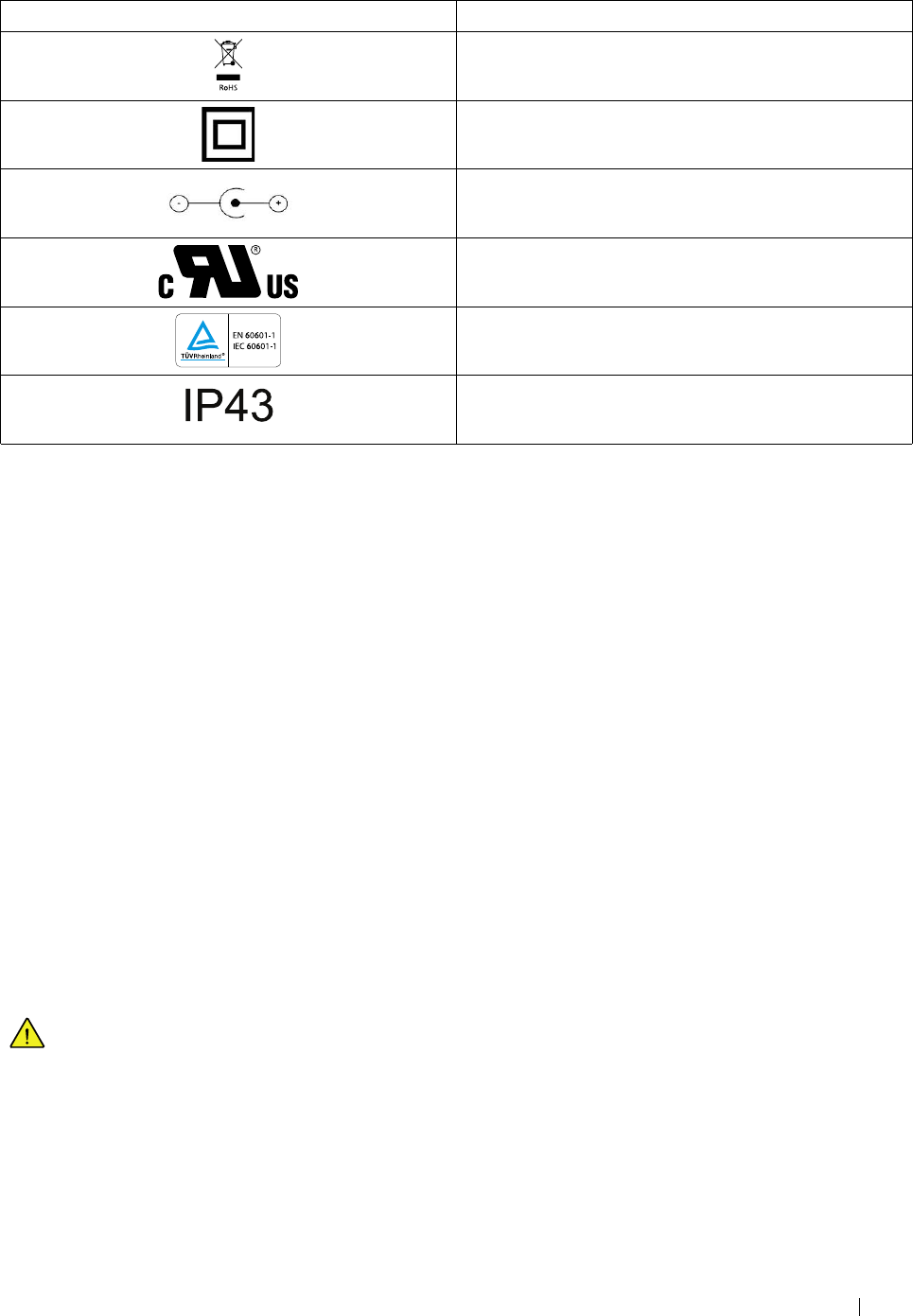

Symbol or Markings Description
Dispose of in accordance with your country's requirements.
Safety Class II equipment (reinforced insulation)
This mark show the pin out polarity on the AC/DC Power
Adapter.
Recognized component mark for Canada and the United
States
The most recognized International Safety mark. This safety
listing signifies that the product was tested to IEC 60601–1
Enclosure ingress protection code per IEC 60529
1.3 Intended Use
The Tobii Dynavox I-Series+ is an Augmentative and Alternative Communication (AAC) product, a purpose built Speech Gener-
ating Device (SGD) designed to provide to its users increased communication ability and greater independence.
The Tobii Dynavox I-Series+ is intended primarily to provide, and act as, a compliment to everyday communication for people
that have challenges in their ability to speak due to injury, disability or illness. This intended use is reflected in design features
such as long lasting batteries, superior sound quality, high durability, built in environmental control and connectivity features.
The Tobii Dynavox I-Series+ is a Gaze Interaction device with a built-in Tobii Eye Tracker (optional) and a capacitive touch
screen for touch access. The device is intended to be used in two orientations: one, upright and mounted (or standing upright,
vertically, on an appropriate surface) for Gaze Interaction use, and two, lying flat (resting in a horizontal orientation) for touch ac-
cess optimization. Gaze Interaction and touch can be used in combination with switches, keyboard and/or scanning as addition-
al input methods.
The Tobii Dynavox I-Series+ is designed primarily for face-to-face communication and secondarily for long distance communi-
cation, computer access and on-line social interaction. The Tobii Dynavox I-Series+ allows the user to communicate via text or
symbols to generate synthesized (computer voice) or digitized (recorded voice) speech for face-to-face communication. The va-
riety of communication methods allows Tobii Dynavox I-Series+ users the ability to realize their full potential.
The Tobii Dynavox I-Series+ allows its user many options of communication through text message, chat and voice calls via Blue-
tooth® to cell phone, WiFi to Skype®, Internet to E-mail and other third party applications such as Facebook®.
With the Tobii Dynavox I-Series+, users have the freedom and flexibility provided via the Microsoft® Windows environment, as
well as the option to control TV’s and other household appliances via the GEWA Programmable IR Remote Control.
The Tobii Dynavox I-Series+ meets the definition for durable medical equipment; and is registered as a Class 1 medical device.
The Tobii Dynavox I-Series+ is available in two (2) sizes; and is available as a dedicated (locked) Speech Generating Device.
The Tobii Dynavox I-Series+ device does not sustain or support life.
In case of failure of the Tobii Dynavox I-Series+ device, the user cannot communicate using it.
1.3.1 Portable Use
A portable Tobii Dynavox I-Series+ can be used in two (2) different positions.
•Upright orientation
•Resting orientation
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 1 Introduction 9
Upright Orientation Resting Orientation
The Upright orientation is optimized for Gaze Interaction users and the Resting orientation is optimized for Touch or Scan
users.
1.3.2 Mounted Use
The Tobii Dynavox I-Series+ can be mounted on to several mounting systems. Mount the Tobii Dynavox Quick Release (QR)
adapter plate on to the device. The Tobii Dynavox QR adapter plate can be attached to the following support systems:
•Daessy
•REHAdapt
For more information, see 3.6 Tobii Dynavox Quick Release Adapter Plate, page 20 and Appendix F Approved Accessories,
page 91.
1.4 Package Contents
Keep the original packaging materials for the Tobii Dynavox I-Series+.
In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the
original packaging (or equal equivalent) is used for shipping.
1.4.1 Tobii Dynavox I-Series+ with Tobii Dynavox Communicator
The items below are included with your Tobii Dynavox I-Series+ package:
•1 Device (12ʺor 15ʺ)
•1 Eye tracker (built in)
•1 Tobii Dynavox QR adapter plate
•2 Batteries
•1 Power Supply
•1 Windows 8.1Home Premium license
•1 Tobii Dynavox Communicator (pre-installed)
•1 Tobii Dynavox Sono Suite (pre-installed)
•1 Tobii Dynavox I-Series+ User’s Manual (on the device as a PDF document)
•1 Quick Start Manual (printed)
•Safety and Compliance documents
•Warranty Document
1.4.2 Tobii Dynavox I-Series+ with DynaVox Compass
The items below are included with your Tobii Dynavox I-Series+ package:
10 1 Introduction Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
•1 Device (12ʺor 15ʺ)
•1 Eye tracker (built in)
•1 Tobii Dynavox QR adapter plate
•2 Batteries
•1 Power Supply
•1 Windows 8.1 Home Premium license
•1 Tobii Dynavox Compass (pre-installed)
•1 Tobii Dynavox I-Series+ User’s Manual (on the device as a PDF document)
•1 Quick Start Manual (printed)
•Safety and Compliance documents
•Warranty Document
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 1 Introduction 11
2 Safety
The Tobii Dynavox I-Series+ device has been tested and approved as compliant to all the Specifications and Standards listed
in Appendix B Compliance Information, page 79 of this manual and in the Appendix E Technical Specifications, page 88 -- in-
cluding, but not limited to, the Medical Device Standard (Class 1/Type B). Nevertheless, in order to ensure safe operation of
your Tobii Dynavox I-Series+ device, there are a few safety warnings to bear in mind:
No modification of this equipment is allowed
The Tobii Dynavox I-Series+ is not to be used as a life supporting Device, and it shall not be relied on in case of loss
of function due to power loss or other causes.
There could be a choking hazard risk if small parts detach from the Tobii Dynavox I-Series+ device.
The Tobii Dynavox I-Series+ device shall not be exposed to or used in heavy rain or weather conditions outside the
Technical Specification of the Tobii Dynavox I-Series+ device.
The Tobii Dynavox I-Series+ device shall only be used with Tobii Dynavox I-Series+ specific Accessories that have a
mounting instruction included with the accessory.
Young children or people with cognitive disabilities should not have access to, or the use of, the
Tobii Dynavox I-Series+ device without parental or guardian supervision.
Do no attach any decorations, post it notes or similar on the screen side of the Tobii Dynavox I-Series+ device, that
may interfere with the Gaze Interaction or touch screen performance.
2.1 Avoiding Hearing Damage
Permanent hearing loss may occur if earphones, headphones or speakers are used at high volume. To prevent this,
the volume should be set to a safe level. You can become desensitized over time to high sound levels which may then
sound acceptable yet still could be damaging your hearing. If you experience symptoms such as ringing in your ears,
please lower the volume or stop using the earphones/headphones. The louder the volume, the less time is required
before your hearing could be affected.
Hearing experts suggest the following measures to protect your hearing:
•Limit the amount of time you use earphones or headphones at high volume.
•Avoid turning up the volume to block out noisy surroundings.
•Turn the volume down if you cannot hear people speaking near you.
To establish a safe volume level:
•Set your volume control at a low setting.
•Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
2.2 Temperature
This device can be made to operate in two different modes, Portable and Mounted. When the device is in Mounted
mode it is allowed to run at a higher temperature; it sets the maximum allowable environmental temperature to its high-
est level. The risk with running the device in this mode is that it can reach temperatures in which prolonged use with
direct skin contact may cause permanent bodily harm. Portable mode sets the maximum device temperature shut
down limit to a lower temperature, reducing the risk for permanent bodily harm caused by prolonged exposure to the
skin. Only choose Mounted mode when the device is mounted on a wheelchair, table, etc, with a proper mounting
system.
12 2 Safety Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Due to use in direct sunshine or in any other hot environment the Tobii Dynavox I-Series+ device may have hot surfa-
ces. There is a built in temperature sensor that monitors the temperature. If the sensor detects temperatures above
the temperature specified in Table D.1 Maximum Allowed Temperature, page 87 for portable mode and mounted
mode the device will automatically trigger a Windows Shut Down or Hibernate (depending on Windows Power But-
ton configuration) to not cause the User any risk of harm. It may take a while before Tobii Dynavox I-Series+ device
can be restarted as the unit may first need time to cool down.
2.3 Power Supply and Batteries
The Tobii Dynavox I-Series+ device uses Lithium Ion batteries. These batteries have a storage temperature range of
between -20 ℃/-4 ℉and 40 ℃/104 ℉within 6 months.
If you are in a hot environment, be aware that it can affect the ability to charge the batteries. The internal temperature
has to be between 0 ℃/32 ℉and 45 ℃/113 ℉for the batteries to charge. If the internal battery temperature raises
above 45 ℃/113 ℉the batteries will not charge at all.
Move the Tobii Dynavox I-Series+ device and the batteries to a cooler environment to let the batteries charge
properly.
Avoid exposing the batteries to fire or to temperatures above 50 ℃/122 ℉. These conditions may cause a battery to
malfunction, generate heat, ignite or explode. Be aware that it is possible, in a worst case scenario, for temperatures
to reach greater than those stated above in, for example, the trunk of a car on a hot day. So, storing the device, with
batteries installed, in a hot car trunk could conceivably lead to a malfunction.
Do not disassemble or harm the battery. Pay attention to the environmental laws and regulations which apply in your
area when disposing of batteries.
For safe operation of the Tobii Dynavox I-Series+ device, use only charger, batteries and accessories approved by
Tobii Technology.
Do not open, or modify, the metal casing of the Tobii Dynavox I-Series+ device or of the power supply, since you may
be exposed to potentially hazardous electrical voltage. The device contains no serviceable parts. If the
Tobii Dynavox I-Series+ device or it’s accessories are mechanically damaged, do not to use them.
If the batteries are not charged or the Tobii Dynavox I-Series+ is not powered up by the power supply, the
Tobii Dynavox I-Series+ device will shut down.
If the Power Supply Cord is damaged, replaceable by Service Personnel only
Do not connect any devices with a non-medical grade power supply to any connector on the Tobii Dynavox I-Series+
device.
The appliance coupler of the power supply or separable plug is used as the Mains Disconnection Device, please do
not to position the Tobii Dynavox I-Series+ device so that it is difficult to operate the disconnection device.
Special regulations apply to shipping Lithium-ion batteries. If dropped, crushed, or short-circuited, these batteries
can release dangerous amounts of heat and may ignite, and are dangerous in fires.
Please reference IATA regulations when shipping lithium metal or lithium ion batteries or cells: http://www.iata.org/
whatwedo/cargo/dangerous_goods/Pages/lithium_batteries.aspx
2.4 Mounting
The Tobii Dynavox I-Series+ should be mounted according to MANUFACTURER instructions of approved mounts.
Tobii Dynavox or its agents are not liable for damage or injuries to a person or its property due to a
Tobii Dynavox I-Series+ falling from a mounted configuration. The mounting of a Tobii Dynavox I-Series+ is done en-
tirely at the user’s own risk.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 2 Safety 13
2.5 Emergency
Do not rely on the device for emergency calls or banking transactions. We recommend having multiple ways to com-
municate in emergency situations. Banking transactions should only be carried out with a system recommended by,
and approved according to the standards of, your bank.
2.6 Infrared
The Tobii Dynavox I-Series+ emits pulsed infrared (IR) light both from the eye tracker and from the Environmental
Control Unit. Other devices controlled by IR or susceptible to disturbance by IR light might be affected by the IR light
emitted from the Tobii Dynavox I-Series+. Do not use the Tobii Dynavox I-Series+ in the vicinity of such devices if
their functionality is of critical importance.
2.7 Epilepsy
Some people with Photosensitive Epilepsy are susceptible to epileptic seizures or loss of consciousness when ex-
posed to certain flashing lights or light patterns in everyday life. This may happen even if the person has no medical
history of epilepsy or has never had any epileptic seizures.
A person with Photosensitive Epilepsy would also be likely to have problems with TV screens, some arcade games,
and flickering fluorescent bulbs. Such people may have a seizure while watching certain images or patterns on a mon-
itor, or even when exposed to the light sources of an eye tracker. It is estimated that about 3-5% of people with epi-
lepsy have this type of Photosensitive Epilepsy. Many people with Photosensitive Epilepsy experience an "aura" or
feel odd sensations before the seizure occurs. If you feel odd during use, move your eyes away from the eye tracker.
2.8 Electricity
Do not open the casing of the Tobii Dynavox I-Series+ device, since you may be exposed to potentially hazardous
electrical voltage. The device contains no serviceable parts.
2.9 Child Safety
The Tobii Dynavox I-Series+ are advanced computer systems and electronic devices. As such they are composed of
numerous separate, assembled parts. In the hands of a child certain of these parts have the possibility of being sepa-
rated from the device, possibly constituting a choking hazard or another danger to the child.
Young children should not have access to, or the use of, the device without parental or guardian supervision.
2.10 Environmental Control
The GEWA Programmable IR Remote Control —Environmental Control Unit (ECU) is not to be relied on as the only
method of interaction with IR controlled devices.
2.11 Gaze Interaction
Some people may experience a certain amount of fatigue (due to intentional eye focusing and hard concentration) or
even a dryness of the eyes (due to less frequent blinking) when first getting used to Gaze Interaction. If you are experi-
encing fatigue or dry eyes start off slowly and limit the length of your Gaze Interaction sessions to your comfort level.
Remoisturizing eye drops can be helpful to combat dryness.
14 2 Safety Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
3 Overview of the Tobii Dynavox I–12+
and I–15+
3.1 Key Features
The Tobii Dynavox I-Series+ has several built-in features. Some of these come standard and some can be ordered as additional
features.
Standard features: 2 × Camera, 1 × microphone, 2 × speakers, 1 × ECU (Environmental Control Unit), 1 × Bluetooth® (for
mobile phones etc) and 1 × WLAN (Wireless Local Area Network)
3.2 Product Layout
A Tobii Dynavox I-Series+ device has a color Capacitive touch, LED Backlight screen. The Tobii Dynavox I–12+ has a 12.1ʺ
screen with a 1024 × 768 pixel resolution. The Tobii Dynavox I–15+ has a 15.0ʺscreen with a 1024 × 768 pixel resolution.
3.2.1 The Tobii Dynavox I–12+ and Tobii Dynavox I–15+
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 3 Overview of the Tobii Dynavox I–12+ and I–15+ 15
3.2.2 Ports, Sensors and Device Buttons
Figure 3.1 Front and Back
Position Description Position Description
1Webcam 2 MP Fixed Focus (FF) 6GEWA Programmable IR Re-
mote Control (Transmitter)
This port is just for Transmitting
IR Signals. To program the de-
vice, use port in Position 27 in
Figure 3.2 Bottom, Left and
Right Side, page 17
2Light sensor 7Camera 5 MP Auto Focus (AF)
3Microphone 8Mounting
4Eye Tracker 9Speakers
5Carrying grip 30 Label
16 3 Overview of the Tobii Dynavox I–12+ and I–15+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Figure 3.2 Bottom, Left and Right Side
Position Description Position Description
10 Power button 20 Menu button
11 Volume Up button 21 USB 3.0 connector
12 Volume Down button 22 2× USB 2.0 connector
13 Head phone jack 3,5 mm 23 RJ45 Network connector
14 Connector for an HDMI 1.3
cable
24 Battery
15 Switch Port 1 25 Slide lock for battery
16 Switch Port 2 26 Battery indicator
17 Power Connector 27 GEWA Programmable IR Re-
mote Control (Transmitter and
Receiver)
Use this port when programming
the GEWA from within
Tobii Dynavox Communicator
/Tobii DynaVox Compass.
18 Quick Access Button 1
(Configurable)
28 microSD-card (under lid)
19 Quick Access Button 2
(Configurable)
29 I/O covers (for fulfilling IP43)
Never force a connector into a port. If the connector and port do not join with reasonable ease, they probably do not
match. Make sure that the connector matches the port and that you have positioned the connector correctly in relation
to the port.
Be extra careful with the USB connectors.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 3 Overview of the Tobii Dynavox I–12+ and I–15+ 17
3.3 Preinstalled Software
The Tobii Dynavox I-Series+ device is delivered with all preordered and required software installed and ready to use. Should a
reinstallation become necessary at any stage perform a Factory Recovery. For more information, see 5.11 Performing a Factory
Recovery, page 44.
The product number for Windows® can be found on the back of the Tobii Dynavox I-Series+ device.
3.4 Configuring the Device
Use the preinstalled I-Series Control Center to configure the hardware functions on the device. You can access I-Series
Control Center in one of the following ways:
•Double-click on the I-Series Control Center shortcut on the desktop, .
or

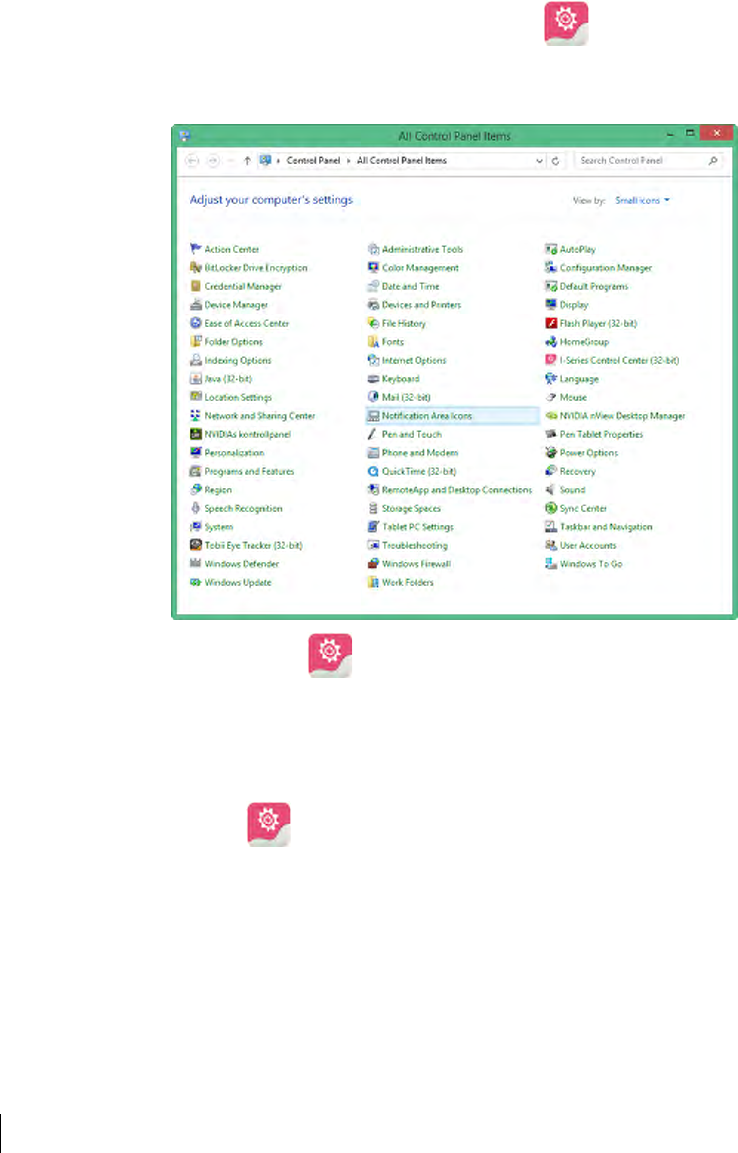

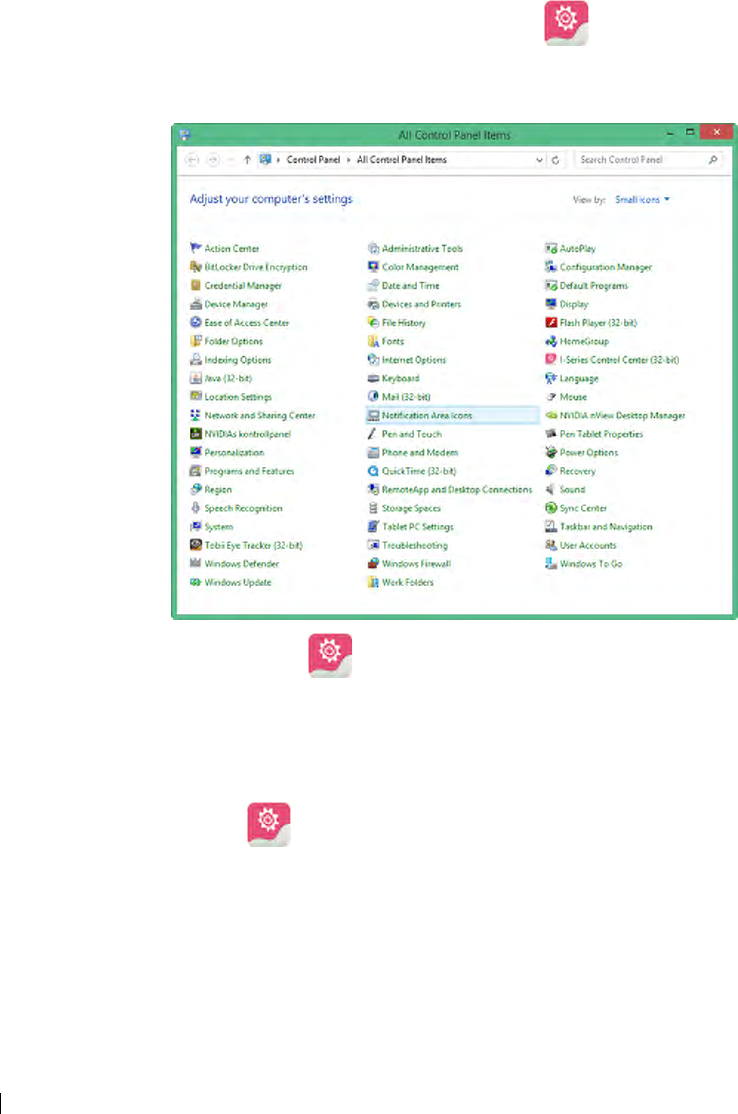

1. Go to Start menu >Control Panel.
2. Double-click I-Series Control Center, , if the Control Panel is in Classic View.
If the Control Panel is in Category view, select View by: > Small icons or Large icons, and Double-click
Tobii Dynavox I-Series+ Control Center
or
1. Go to Start menu > Tobii Dynavox >.
2. Click I-Series Control Center, .
or
18 3 Overview of the Tobii Dynavox I–12+ and I–15+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
•Through the communication software installed on the device.
In the list to the left, select which hardware configuration you want to change. In the area to the right, the different settings will
be revealed. The changes are instantly executed.
For more information about configuring the Tobii Dynavox I-Series+ with the I-Series Control Center, see 6 Configuring the
Tobii Dynavox I-Series+ with the I-Series Control Center , page 46.
Anywhere you see this icon, , an information box is displayed when you briefly rest the mouse pointer on the
icon or by touching the icon on the screen.
3.5 Accessing the microSD-Card
The microSD-Card (position 28 in Figure 3.2 Bottom, Left and Right Side, page 17) is installed in the Tobii Dynavox I-Series+
device by default.
3.5.1 Removing the microSD-card
To remove the microSD-card:
1. Place the Tobii Dynavox I-Series+ device face down on a flat surface.
2. Use a Phillips screwdriver to remove the screw that fastens the lid in place.
3. Remove the lid.
4. Press to release the microSD-card.
5. Pull the card out of the socket.
6. Replace the lid.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 3 Overview of the Tobii Dynavox I–12+ and I–15+ 19
7. Tighten the screw with a Phillips screwdriver to fasten the lid in place.
3.5.2 Inserting the microSD-Card
To install the microSD-card:
1. Place the Tobii Dynavox I-Series+ device face down on a flat surface.
2. Use a Phillips screwdriver to remove the screw that fastens the lid in place.
3. Remove the lid.
4. Carefully push the microSD-card into the socket.
Do not use force when pushing in the microSD-card. If the microSD-card and socket do not join with reason-
able ease, they probably do not line up.
5. Replace the lid.
6. Tighten the screw with a Phillips screwdriver to fasten the lid in place.
3.6 Tobii Dynavox Quick Release Adapter Plate
Tobii Dynavox QR adapter plate has two sides:
Daessy REHAdapt
Make sure the required side of the Tobii Dynavox QR adapter plate is face away from the Tobii Dynavox I-Series+ for the mount-
ing system to use.
20 3 Overview of the Tobii Dynavox I–12+ and I–15+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
3.6.1 Mounting the Tobii Dynavox QR Adapter Plate
To mount the Tobii Dynavox QR adapter plate:
1. Place the Tobii Dynavox I-Series+ device face down on a flat surface.
2. Select the required side of the plate, see 1.3.2 Mounted Use, page 10.
3. Place the plate onto the device with the required side facing away from the unit.
4. Tighten the three (3) screws using a Torx T20 screwdriver to that fasten the plate to the unit.
3.6.2 Removing the Tobii Dynavox QR Adapter Plate
To remove the Tobii Dynavox QR adapter plate:
1. Place the Tobii Dynavox I-Series+ device face down on a flat surface.
2. Use a Torx T20 screwdriver to remove the three (3) screws that fasten the plate to the unit.
3. Remove the plate.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 3 Overview of the Tobii Dynavox I–12+ and I–15+ 21
4 Batteries in the Tobii Dynavox I-Series+
4.1 Batteries
The Tobii Dynavox I-Series+ device has two battery compartments. The batteries are of the same size and capacity for both the
Tobii Dynavox I–12+ and I–15+, see Appendix E Technical Specifications, page 88.
Figure 4.1 Battery with Indicator for Remaining Capacity
4.1.1 Hot Swappable
You can remove/replace one battery without switching off the Tobii Dynavox I-Series+ device, providing that the remaining bat-
tery is sufficiently charged. The remaining battery requires being at least ~10% charged to maintain device operation.
Please allow the Tobii Dynavox I-Series+ device a few seconds to detect the newly inserted battery before removing
the other battery.
4.2 Charging
The batteries shall only be charged using the included adapter, or by using theI-Series Table Charger (not included, separate
purchase required). When the Tobii Dynavox I-Series+ device is shut down and the adapter is plugged in, the charging of com-
pletely discharged batteries may take up to 5 hours. The device can be used while the batteries are being charged, though this
may affect the time a battery takes to reach full capacity.
To be sure that charging takes place in both the Tobii Dynavox I-Series+ device and when using the I-Series Table
Charger, be sure to plug the adaptor into both the wall socket and the device or Charger BEFORE you insert the
batteries.
The batteries will only charge when its capacity is 95% or lower.
The expected battery lifetime is 500 charge/discharge cycles. After that, the capacity of the battery will decrease by about 20%
in usage time.
For battery storage and charging temperatures, see 2 Safety, page 12 .
22 4 Batteries in the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
4.2.1 Checking Charge Level

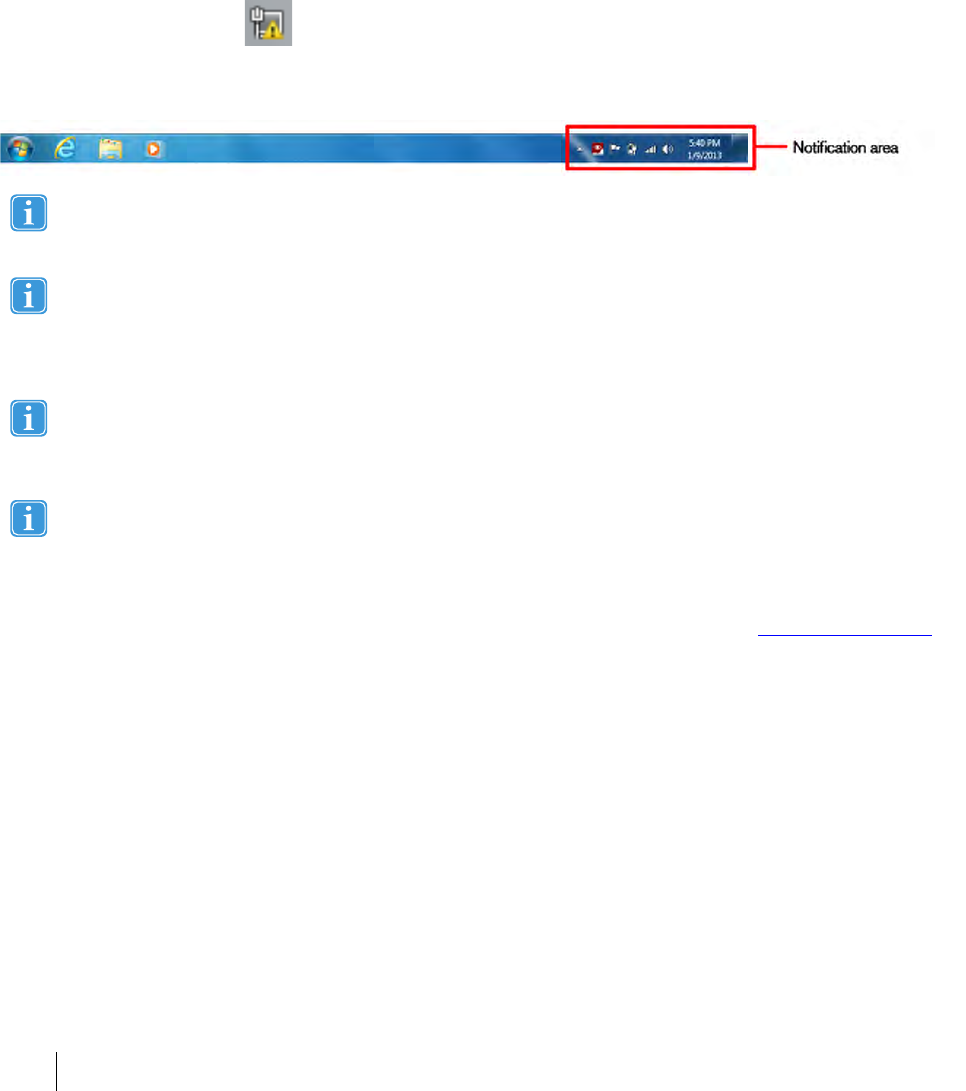

Click on the battery icon, , in the Notification area to see the remaining charge of the battery, which is installed in the
device.
You may also, at any time, check the status of a battery by pressing the indicator button on the face of the battery. Five LEDs
(light-emitting diodes) will indicate the remaining charge level. For example, three lit LEDs indicate a 60% remaining charge,
see Figure 4.1 Battery with Indicator for Remaining Capacity, page 22.
When charging, the highest capacity LED indicator will be blinking.
The lowest capacity LED indicator (the "20" LED), will also blink when the indicator button is pressed if the battery’s
capacity has dropped below 10%. So don’t rely upon the blinking of the 20% indicator as a guarantee for charging.
If the batteries have been deeply discharged (this can happen by leaving an empty battery inserted in the
Tobii Dynavox I-Series+ device without the power adapter connected) you may not see any indication of charging
when you reconnect the adapter properly to the Tobii Dynavox I-Series+ device or the Table Charger. It may take
some time (even up to 20 minutes) before you see an LED indication that any charging is taking place. The battery IS
being charged during this duration though it is a recovery charge raising the level enough to begin normal charging.
4.3 Inserting and Releasing the Batteries
For safety reasons, the Tobii Dynavox I-Series+ device is delivered without the batteries inserted. The batteries are delivered
only partially charged. The Tobii Dynavox I-Series+ device can be used right away. It is nevertheless recommended that the bat-
teries are charged for at least two hours before using the device.
4.3.1 Inserting the Batteries
To insert the batteries:
1. Insert a battery in the battery compartment.
2. Press the battery until it locks in place. You should hear a click that confirms that the battery is in a locked place.
4.3.2 Releasing the Batteries
If the Tobii Dynavox I-Series+ is in Upright orientation:
1. Press the battery slide lock to the side.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 4 Batteries in the Tobii Dynavox I-Series+ 23
2. Pull the battery out (the battery will stop after ~1 cm / 0.4ʺ).
3. Push the battery up a little bit (Do not push the battery all the way in again).
4. Pull the battery out of the battery compartment..
If the Tobii Dynavox I-Series+ is in Resting orientation:
1. Place the Tobii Dynavox I-Series+ device face down on a flat surface.
2. Press the battery slide lock to the side.
3. Pull the battery out of the battery compartment.
24 4 Batteries in the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
5 Using the Tobii Dynavox I-Series+
No skill other then reading is necessary for setting up the Tobii Dynavox I-Series+ device. Follow this User´s Manual and the
Quick Start Manual.
5.1 Starting the Device
Start the device in one of the following ways:
•Press the power button on the right side of the device. (Position 9 in Figure 3.2 Bottom, Left and Right Side, page 17)
•Activate a configured Switch (see 6.3 Switches).
When you have started the device, the Power LED will shine blue or green depending on if the device is connected to AC or on
batteries. For more information about the LED Behavior, see Appendix C Computer Device States of Operation, page 85.
5.1.1 Password Information
The Tobii Dynavox I-Series+ device is configured to start up, using the operating system present, without a password. Though
unusual, there are situations in which the password window could plausibly pop up; for example, when creating a new user in
the operating system, when returning from the operating system’s sleep mode or when downloading software updates from the
internet.
Creating a new windows user and downloading updates from the internet could possibly compromise the system and
software settings of the operating system that have been set and installed at Tobii Technology.
Should the password window pop up, requiring a password, the default password on all Tobii Dynavox I-Series+ devices is, "
Tobii Dynavox" (case sensitive). In order to type in the password use the Windows On-Screen Keyboard or an external USB
keyboard (not included).
If you decide to change the password, be sure to write it down in a safe place for later use.
Suggested place to keep new password: ________________________
Without the operating system’s access password, Tobii Dynavox Support may be unable to assist you with any future
difficulties.
5.1.2 Tobii Dynavox I-Series+ Welcome Guide
When you start your Tobii Dynavox I-Series+ Device for the first time you will be greeted by the Tobii Dynavox I-Series+ Wel-
come Guide. The guide is a setup wizard that will walk you through some steps that will help you make the most of your device.
Follow the instructions and select on Next to get to the next page of the Guide.
5.2 Shutting Down the Device
The device should be shut down using one of the following ways:
•Use the start menu in Windows (recommended when possible).
•Press a configured Switch for two to seven seconds.
Pressing the Switch for more than 7 seconds will shut down the device immediately, disregarding any unsaved
changes.
•Through the communication software installed on the device
Should you be unable to shut the device down using either of the above, you can hold the power button on the right side of the
device down for seven seconds. The device will consequently shut down immediately, without waiting for open applications to
close.
This will not work if the side buttons have been disabled in the Tobii Dynavox I-Series+ Control Center. For more in-
formation, see 6.1.2 Disable All Buttons, page 47.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 25
This is not considered a "clean" Windows shut down and is thus not recommended unless completely necessary.
5.3 Using Gaze Interaction
The Tobii Dynavox I-Series+ operate with precision regardless of glasses, contact lenses, eye color or light conditions.
Gaze Interaction enables you to control the computer with your eyes using either Gaze Enabled applications (like
Tobii Dynavox Communicator /Tobii DynaVox Compass) or through the two types of Windows Control. See 5.4.1 Windows
Control Type, page 28.
5.3.1 Positioning
Figure 5.1 Positioning
The Tobii Dynavox I-Series+ is designed to work optimally when it is parallel to the user’s eyes at a distance of about 60 cm
(23.5 inches), see Figure 5.1 Positioning, page 26.
Figure 5.2 Positioning when Users Leaning Sideways or Those Lying Down
This means that for those users leaning sideways or those lying down the Tobii Dynavox I-Series+ also needs to be tilted in or-
der to keep the users eyes parallel to the screen and at the optimal distance, see Figure 5.2 Positioning when Users Leaning
Sideways or Those Lying Down, page 26.
Make sure the user is placed comfortably in relation to the optimal positioning of, and distance from, the unit. Be
aware also that the user’s comfort, as well as the Gaze Interaction performance, will be enhanced if the sun is not
shining directly on the screen or into the user’s eyes.
The user should be positioned at the optimal distance to allow for the best possible Gaze Interaction.
5.3.2 Track Box
The Tobii Dynavox I-Series+ allows for extensive Freedom of Head Movement. Once the Tobii Dynavox I-Series+ is properly
calibrated and placed in front of the user, no further adjustments are required.
The Tobii Dynavox I-Series+ produces an industry leading sized track box with the approximate dimensions of 30 cm × 20 cm
× 20 cm / 11.8 in × 7.9 in × 7.9 in (Width × Height × Depth). The Track Box is an invisible box positioned approximately 60
cm (23.5 in) straight out from a point just above the middle of the screen.
26 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
At 70 cm (27.5 in) the Tobii Dynavox I-Series+ allows for lateral Freedom of Head Movement in an area of about 50 × 36 cm
(20 × 14 in).
In order to function properly for Gaze Interaction the user needs at least one eye in the track box at all times.
5.3.3 Track Status Viewer
Use the Track Status viewer (see 5.3.3.1 Showing Track Status , page 27 for more information on how to open the Track Status
viewer) to help determine the optimal height and horizontal positioning for Gaze Interaction with the Tobii Dynavox I-Series+.
•Ideally, the two dots that represent the user’s eyes should be in the middle of the Track Status viewer.
•Use the distance meter on the right hand side of the Track Status viewer to determine the optimal distance the user
should be from the Tobii Dynavox I-Series+.
•The white triangle in the distance meter should hover near the center, within the green, when the optimal distance from
the Tobii Dynavox I-Series+ is reached.
For information about calibration of the Tobii Dynavox I-Series+ see 7.2 Calibration, page 62. Also check the lighting
conditions, related to what is mentioned above, when calibrating.
5.3.3.1 Showing Track Status
The track status viewer is a window/dialog where you can verify that the Gaze Interaction recognizes your eyes and that you are
well positioned in front of the device.
Open the track status viewer in one of the following ways:
•Open Tobii Dynavox Gaze Interaction Settings > Calibration and select the Track status button.
•Right-click (long-hold finger on icon for touch screen right clicking) on the Tobii Dynavox Gaze Interaction Settings
icon, , in the Notification area and select Show track status.
5.3.4 Positioning Guide
For extra assistance in positioning, there is a Positioning guide that will show itself automatically in the bottom-right corner of
your monitor.
The Positioning guide is a visual guide that combines the function of the Track Status viewer with six different image based
instructions to help the user with correct positioning.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 27
The 6 instructions direct the user to:
1. Move head down.
2. Move head up.
3. Move head to the right.
4. Move head to the left.
5. Move head closer to the monitor.
6. Move head farther away from the monitor
Move head closer to the monitor. Move head to the right.
The Positioning guide will automatically disappear when the user’s positioning is improved in the way that is directed by the
guide.
Some users may not want the Positioning guide to pop up every time their eyes leave optimal positioning.
To turn On or Off the automatic Positioning guide, see 7.6 System Settings, page 71
5.4 Using Windows Control
Windows Control allows you to access the desktop and all applications of your Windows computer with Gaze Interaction.
5.4.1 Windows Control Type
Windows Control can be used in two different modes
•Gaze Selection
•Mouse Emulation
To select which type of Windows Control you wish to use and to customize Windows Control:
•Open Tobii Dynavox Gaze Interaction Settings > Windows Control, see 7.5 Windows Control, page 68
•Select your preferred type of Windows Control under Windows Control Type
28 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
5.4.2 Starting and Disabling Windows Control

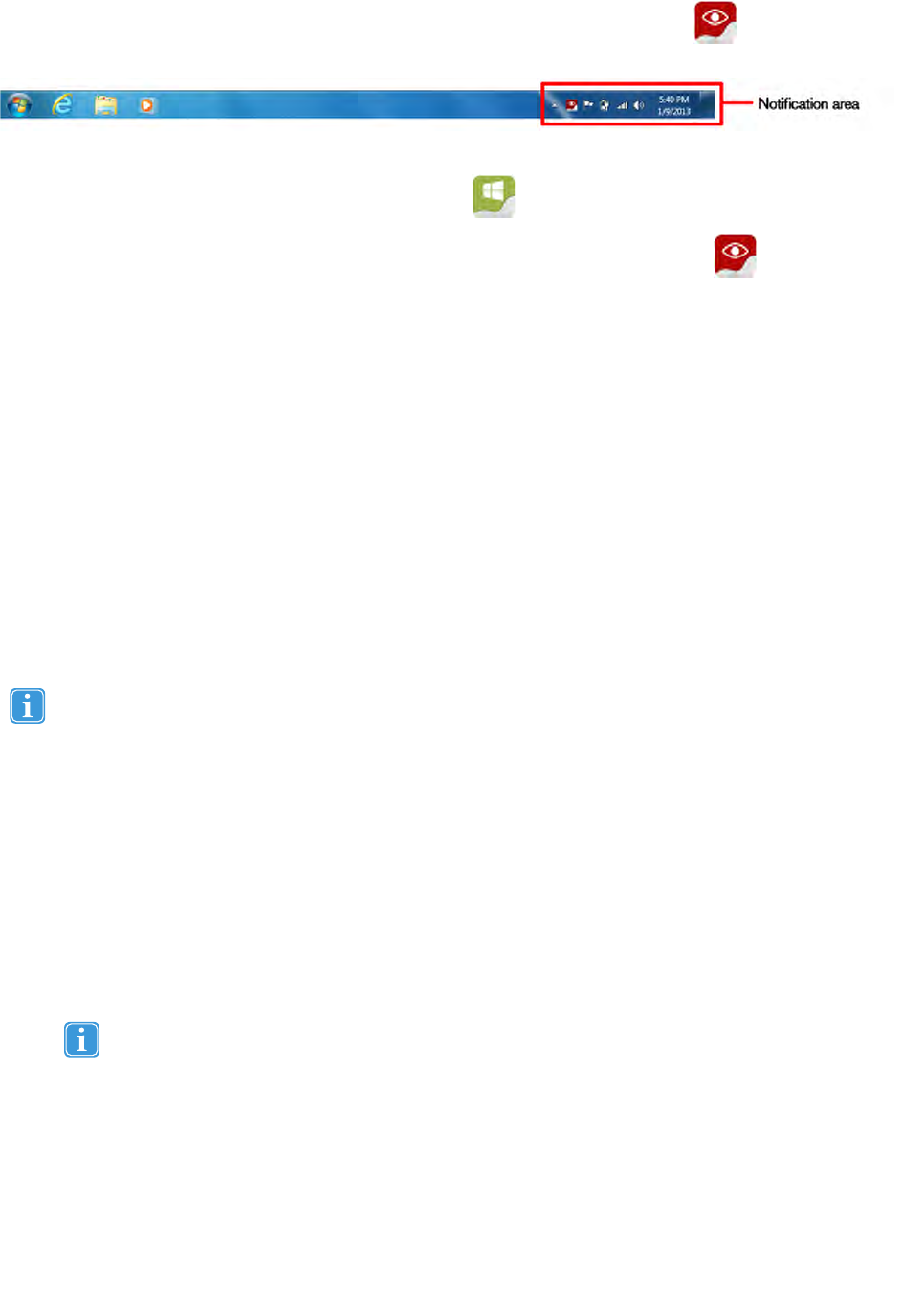

To start Windows Control, right-click on the Tobii Dynavox Gaze Interaction Settings icon, , in the Notification area
and select Enable Windows Control.
Or
Double-click on the Windows Control shortcut on the desktop, , This will immediately start Windows Control.
To disable Windows Control, right-click on the Tobii Dynavox Gaze Interaction Settings icon, , in the Notification
area and select Disable Windows Control.
You can also start Windows Control from Tobii Dynavox Communicator /Tobii DynaVox Compass or alternative communication
software, which has implemented the functions provided by the Tobii Dynavox Eye Control SDK 2
Auto start
•Open Tobii Dynavox Gaze Interaction Settings > Windows Control.
•Check the Auto start windows control at boot check box if you want Windows Control to auto start when the
Tobii Dynavox Gaze Interaction Software starts.
5.4.3 Using Gaze Selection
The Gaze Selection mode of Windows Control makes it possible for the user to control a standard Windows desktop operating
system with a two step selection method which reduces the risks of unwanted clicks. It also prevents the following of the mouse
cursor with your gaze as opposed to the controlling of it (there is no floating mouse cursor in Gaze Selection).
1. The first step is to select the desired Task from the docked Taskbar by looking at it.
2. The second step is to look at the desired portion of the screen (or icon on the screen) where you want to execute the
Task. An automatic zoom function is enabled, ending in the selection of the icon or execution of the task.
All functions in Gaze Selection are Touch and Mouse enabled which makes it easier for a Caregiver or Assistant to
help the user if needed. The Caregiver or Assistant can select a Function/Task or change the settings for the user
much easier.

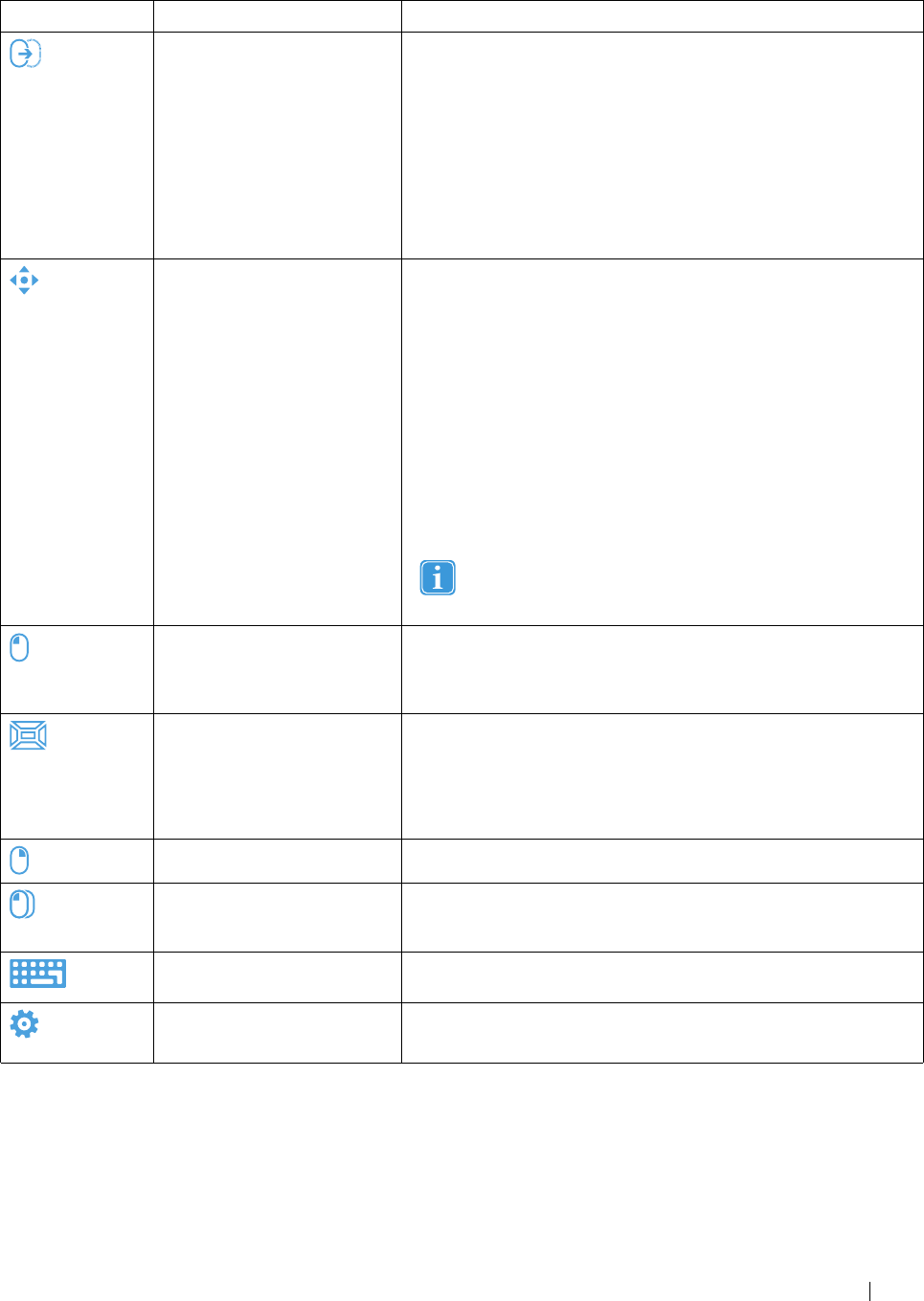

5.4.3.1 Gaze Selection Taskbar
At the top of the Gaze Selection Taskbar there is a Track Status viewer. It allows you to verify that the eye tracker recognizes
your eyes and that you are well positioned in front of the device.
The Task Buttons in the Gaze Selection Taskbar can be in three different modes as shown in Figure 5.3 The Modes for the
Gaze Selection Taskbar, page 30.
•Normal (Unselected) - No Task Button for Gaze Selection is chosen.
•Primary Selection (Blue/black) - The marked Task Button is selected and the Task will be executed after the auto-
matic zoom when the user looks at the desired position on the screen or icon on it. If the selection method is set to
Switch in the Gaze Selection Settings Dialog, the chosen Task Button will still remain active after executing the Task.
The Functions Overlay Task will not perform any zooming. When selecting Functions Overlay with Primary Se-
lection, the Functions Areas/Commands will be active but not visible.
•Secondary Selection(Blue/white) - Same as Primary Selection but with a higher precision. Primary Selection
means that the zoom will progress deeper before the final execution of the Task, making the desired portion of the
screen bigger and easier to select within. Activate this mode by resting your gaze on the Task Button until the color
changes according to the image below.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 29
The Functions Overlay Task will not perform any zooming. When selecting Functions Overlay with Secondary
Selection, the Functions will be active and the areas of each Function will be visible to the user.
The Functions Overlay will not perform any zoom, some other tasks won't either in some situations (scroll, settings,
keyboard).
Figure 5.3 The Modes for the Gaze Selection Taskbar
30 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
5.4.3.2 Task Buttons
Task Button Action Description
Gaze Drag & Drop Task that performs two "clicks", where the first one represents the
starting position for the drag and the second the drop position (to
move objects or select areas).
•Select the Task
•Look at the object you want to move or the starting point for the
area selection
•Execute the Gaze Selection (first "click") by Switch or Gaze
•Look immediately at the drop position for the object or end point
for the area selection.
•Execute the second "click" by Switch or Gaze
Gaze Scroll Task that, if performed on a scrollable window, enables a gaze-con-
trolled way to scroll the page
•Select the Task
•Look at any scrollable area and hold your gaze, the Gaze Scroll
icon will appear where you looked
•Look above the icon to scroll up
•Look below the icon to scroll down
•Look to the left of the icon to scroll left
•Look to the right of the icon to scroll right
•While scrolling, look back at the icon (on the screen, not the
Taskbar icon) to toggle between up/down or left/right
•Look back at the Gaze Selection Taskbar (or outside of the
screen) to end scrolling
Use the Gaze Scroll Task to scroll vertically and horizontally
in Modern UI apps and the Modern UI Windows Start
Screen.
Left Click / Tap Task that performs a single left-click, or for touch based devices, the
equivalent of a single finger Tap. When in Switch mode Left CLick /
Tap is Default on and Sticky" (see 5.4.3.4.1 Sticky Tasks & Default
Left Click / Tap for Switch, page 37)
Functions Overlay Task that activates the Functions Overlay. Primary Selection activates
the Functions Overlay. Secondary Selection activates the Functions
Overlay and makes it (and its individual Functions and areas) visible
over the top of anything else on the screen to assist in selecting them.
The individual Functions available on the Functions Overlay are differ-
ent for Windows 7 (see ).
Right Click Task that performs a single right-click
Double Click Task that performs a double left-click. When in Switch mode Double
Click is a "sticky Task" (see 5.4.3.4.1 Sticky Tasks & Default Left
Click / Tap for Switch, page 37)
Gaze Keyboard Task that opens an on-screen Gaze enabled keyboard for Gaze
typing
Settings Task that opens the Gaze Selection Settings Dialog
For more information, see 8 Gaze Selection Settings, page 73
5.4.3.3 Functions Overlay in Windows 8
Windows 8 Gaze Selection is a revolutionary new method of Gaze Interaction. It is expressly created for the modern and intui-
tive touch enabled environment of tablets, as well for maximizing and enhancing the complete Gaze Interaction experience of ul-
trabooks, laptops, and desktop PCs.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 31
It is created as a wholistic, full OS control, Gaze Interaction solution; enabling fully hands-free control of your Windows 8 OS.
From emulated touch gestures, click types, taps and side swipes, to Charms and split screen Snapping. From real "Gaze-on/
Hands-off" multitasking to true access and control of all available legacy or current Desktop applications and settings.
Windows 8 Gaze Selection opens the tens of thousands of the current, social, professional, entertaining and educational Win-
dows 8 Modern Apps to Eye Controlled use.
Built around making use of the intuitive power of Microsoft's new touch-centric interface for Windows 8 touch screen devices,
the new Gaze Selection brings hands free use into the modern consumer computer environment.
While it is centrally built around fully hands-free use cases, Gaze Selection is also made for even faster access with Switches,
as well as being completely touch (and mouse) enabled for multimodal input and third party assistance.
When selecting the Functions Overlay with Primary Selection, the Functions Areas/Commands will be active but not visible.
When selecting the Functions Overlay with Secondary Selection, the Functions will be active and the areas of each Function
will be visible to the user.
The Functions Overlay will not perform any zoom.
Functions Action Description
App Switcher Function that opens the App Switcher bar where all running Modern
User Interface (UI) Apps are visible including the Desktop.
All software running in the Desktop, will not be visible here.
They are only visible from the Desktop.
The App Switcher will not show if there is only one or less
Apps open.
The App Switcher will not be accessible if the App Switch-
er is turned Off in the PC Settings.
Show App Bar Function that makes the App Bar for active App visible. The App Bar
is context based for the active App and therefore will consist of differ-
ent actions for each App.
Charms Menu Function that opens the Charms Menu.
Move Taskbar Function that moves the Taskbar from right/left.
32 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Functions Action Description
Snap Window/Close App Function that performs three (3) different actions.
•Select the to move and dock the active App to the se-
lected Target area.
•Select the to move the active App to the bottom of the
screen and to Close the active App.
•Select the to move and dock the active App into Full-
screen view.
For more information, see 5.4.3.3.1 Snap Window/Close App, page
33.
Windows Button Function that toggles between the Modern Windows UI and the pre-
vious Modern UI App or Desktop.
All software running in the Desktop, will not be visible here.
They are only visible from the Desktop.
Hide Taskbar Function that hides the Taskbar for Full Screen view. To Bring back
the Taskbar, select or depending on which side the
Taskbar is located.
Flip Previous App Function that swipes through all running Modern UI Apps and the
Desktop.
All software running in the Desktop, will not be visible here.
They are only visible from the Desktop.
5.4.3.3.1 Snap Window/Close App
The Snap Window feature in Window 8 makes it possible to split and divide the screen to be able to run two to four Modern
Apps at the same time. This feature is limited to the resolution of screen of the device, see Table 5.1 Number of Apps on Screen
Windows 8.1, page 33 for information on how many Apps are possible to run on which screen resolution in Windows 8.1. The
lowest resolution needed to be able to Snap Windows is 1024×768 (Windows 8.1) and 1366×768 (Windows 8.0).
Table 5.1 Number of Apps on Screen Windows 8.1
Number of Apps Screen Resolution (Pixels)
2 <1499
3 1500 —1999
4 >=2000
Windows 8.0 can only run two Apps at the same time.
The Snap Window/Close App can only control visible Apps on the screen.
This will look different depending on how many Apps are Snapped at the same time.
To Snap the Apps:
1. Select the (Functions Overlay) Task from the Taskbar.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 33
2. Select one of the following actions:
•Select the to move and dock the active App to the selected Target area.
•Select the to move the active App to the bottom of the screen and to Close the active App.
•Select the to move and dock the active App in Full-screen view.

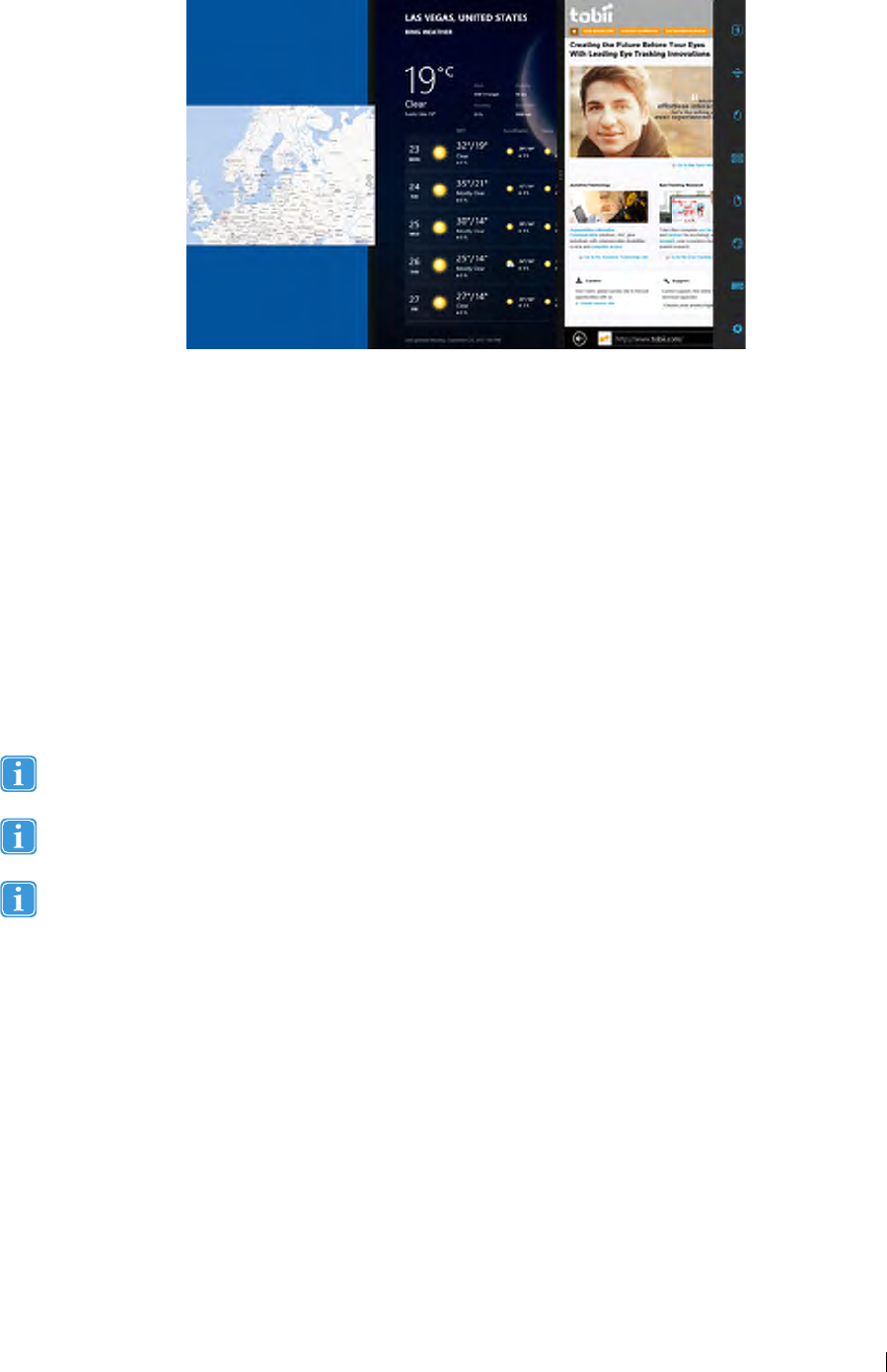

Figure 5.4 Overview
To Move and Close the Apps:
For example: If an App is Snapped in the middle, Select:
1. The function
2. Select the middle area.
34 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
3. Select:
•Select to move the App into (Full-screen) view
•Select one of the (Target) to move the App to the
new Target area.
•Drag the App to the (Close) icon in the bottom mid-
dle of the screen to close the App.
For example: If an App is Snapped to the left or right, select:
1. The function
2. Select the left or right area.
3. Select:
•Select to move the App into (Full-screen) view
•Select one of the (Target) to move the App to the
new Target area.
•Drag the App to the (Close) icon in the bottom mid-
dle of the screen to close the App.
5.4.3.3.2 To Snap More Apps
To be able to Snap more than two Apps on the screen, the (Drag and Drop) Task from the Taskbar must be used, see
Table 5.1 Number of Apps on Screen Windows 8.1, page 33 for more information about how many Apps can be visible at the
same time on the screen. With the (Drag & Drop) it is possible to customize the width of each Snap area also.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 35
1. Start an App from the Modern UI Start Screen or from Recent Apps/App Switcher. It will place itself in the center, see
Figure 5.5 Selected Third App, page 36.
You can always Right Click an App in the App Swittcher and choose the Target area from the Drop Down list.
Figure 5.5 Selected Third App
2. Select the (Drag & Drop) Task from the Taskbar.
3. Drag and then Drop the App where you want it to be
•Right —Select the App with the (Drag 6 Drop) Task from the Taskbar. Drop it to the right side of the screen
to place it in the right-hand target, see Figure 5.6 Snap Right, page 36
•Left —Select the App with the (Drag 6 Drop) Task from the Taskbar. Drop it to the left side of the screen to
place it in the left-hand target, see Figure 5.7 Snap Left, page 37
Figure 5.6 Snap Right
36 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Figure 5.7 Snap Left
5.4.3.4 Selection Methods —Gaze and Switch
There are two methods to execute the chosen Task. The method of choice is set from within the Gaze Selection Settings Dialog,
see 8 Gaze Selection Settings, page 73.
Before executing a selection you select a Task from the Taskbar to execute. Gaze at your chosen task until it is highlighted as
“Primary”or “Secondary Selection”.
•Gaze - To execute the chosen Task, rest your gaze at the desired portion of the screen (or icon on the screen) where
you want to execute the Task. An automatic zoom function is enabled, ending in the selection of the icon or execution of
the task.
•Switch - Two different execution modes.
–Single activation of the Switch - the zoom function will execute in the same way as with the Gaze method and
according to the settings made in the Gaze Selection Settings Dialog, see 8 Gaze Selection Settings, page 73.
–Activate and hold the Switch - the zoom function will zoom continuously and end only upon the release / deacti-
vation of the switch.
The Functions Overlay will not perform any zoom.
When using the Gaze method, you have to look back to the Taskbar to select a new Task after the execution of the
Task, even if it is the same as you have just used.
When precision is set to zero in Gaze Selection Settings - no zoom is performed. For more information, see 8 Gaze
Selection Settings, page 73.
5.4.3.4.1 Sticky Tasks & Default Left Click / Tap for Switch
When using the Switch method, a feature is made use of called "sticky tasks". If a Task becomes "sticky" it means that you do
not have to look back at the Taskbar if you want to repeat the execution of the selected Task, only if you want to change the Task
to another.
When using the Switch method, the Left Click / Tap Task is "sticky" by default. This means that Left Click / Tap is always on
and will always be activated by the activation of the switch, if nothing else is selected. If another Task is selected it will be active
only once (for one selection) and then Gaze Selection will automatically default back to Left Click / Tap for the subsequent
selections.
The exception to this is the Double Click Task; when it is selected when using Switch mode it will also become sticky, meaning
that it will stay selected until another Task is selected (after which it will again default back to Left Click / Tap).
This allows for excellent use cases such as quick/continual surfing of the internet by activating the Switch and thus the Left
Click / Tap Task once and then repeatedly selecting anything desired, without having to choose the Left Click /Tap Task again
multiple times.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 37
5.4.3.4.2 Activating a Task with a Keyboard button instead of a Switch
Selecting the “F12 Keyboard Button”,, on an attached keyboard will activate a Task selection. It can be used in exactly
the same way as a connected switch. For more information on Switches, see 5.4.3.4 Selection Methods —Gaze and Switch,
page 37.
5.4.3.5 Gaze Keyboard
By selecting the Gaze Keyboard button on the Taskbar, the Gaze Keyboard will launch as an on-screen keyboard. The Gaze
Keyboard will be positioned either at the top or at the bottom of the screen depending on where the user has placed the last
mouse click (or last cursor position) before launching the Gaze Keyboard. The keyboard will place itself on the opposite side
from where the mouse/cursor is.
The Gaze Keyboard consists of four keyboard pages in a rotating loop. The user can easily switch between the different key-
board pages by selecting the next page buttons located to the far left and right on all pages of the Gaze Keyboard.
The key on the keyboard where the user is looking will be indicated by a light frame around the character/function on the key.
While the user is typing, the last 5-10 characters will be displayed in blue on the indicated/highlighted key. This feature assists
the user in easily spotting misspellings and reduces the need for looking at the actual spot where the text is inserted, thus in-
creasing typing speed.
The four keyboard pages are:
Figure 5.8 Default Startup Page
Figure 5.9 First Page to the Right
38 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Figure 5.10 Second Page to the Right or Left
Figure 5.11 First Page to the Left
The Shift, Ctrl, Alt, Win and Alt Gr keys will become "sticky" once selected. This means that they will stay selected un-
til the user selects a new key from the keyboard. They will stay sticky if the next selected key is another sticky key.
To write a letter with an accent:
1. Select the accent
2. Select the character
3. The character will appear with the chosen accent.
To delete a full word at a time instead of one character at a time:
1. Select the Ctrl key
2. Select the Backspace key
5.4.3.6 Gaze Selection in Combination with Region Based Keyboards
Gaze Selection can be used in combination with other eye controlled applications. "Gaze Enabled" regions in other applications
are active as long as there is no active Task in the Gaze Selection Toolbar. If you are using Gaze Selection with switch the Task
Buttons will be "sticky", if you need to deselect a Task just look back at the selected Task for a short moment.
5.4.4 Using Mouse Emulation
The Mouse Emulation mode makes it possible for the user to emulate and control a standard PC mouse pointer on the screen.
To configure the Mouse Emulation, go to Tobii Dynavox Gaze Interaction Settings. For more information, see 7.5.2.2 Mouse Em-
ulation, page 69
5.4.4.1 Placing the Mouse Emulation Menu
The menu can be placed anywhere on the desktop or docked along the edge of the screen. You dock the Mouse Emulation
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 39
Menu by dragging it to the edge of the screen. You can also do this by pressing and dragging the Move icon . When the
menu is docked you have to look outside the screen to bring up the Mouse Emulation Menu items.
If the Mouse Emulation Menu is docked at the same side as the System Off-Screen Menu (For more information, see
5.6 Pause/Resume Gaze Interaction and Put the Tobii Dynavox I-Series+ to Sleep with Gaze Interaction, page 42),
the Mouse Emulation Menu might not function at all.
5.4.4.2 Clicking with Windows Control in Mouse Emulation Mode
Select what type of mouse click you want to perform from the Button drop down list in the Mouse Emulation Menu.
Right-click simulates a right mouse click.
Left-click simulates a left mouse click.
5.4.4.3 Magnifying with Windows Control in Mouse Emulation Mode
To use the magnifier, select the magnifier icon, , in the Mouse Emulation Menu.
If you want to perform a click with the magnifier:
1. Select the magnifier.
2. Select the other options as usual. The options will now have changed to reflect the magnification state.
Right Click Zoom
Left Click Zoom
5.4.4.4 Selecting Mouse Emulation Functions
You can set different functions for clicking:
Mouse cursor
No cursor movement on screen
Single-click
Double-click
40 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Drag and drop
5.4.4.5 Pausing Windows Control in Mouse Emulation Mode
To pause Windows Control select the Pause icon in the Windows Control Menu.
Pause
Pausing Gaze Interaction can also be accomplished by looking at (about) the Tobii logo at the bottom of the
Tobii Dynavox I-Series+, then selecting, using Gaze Interaction, the pause icon that pops up.
For more information, see 7.6.1 System Off-Screen Menu, page 71
5.4.4.6 Scrolling with Windows Control in Mouse Emulation Mode
The scroll buttons appear automatically in the upper right corner in any object which can be scrolled. The buttons will only ap-
pear on the window which has focus. To activate the scroll select the or icon. If the icons show up when they are not
desired you can use the icon to hide them.
When scroll mode is activated you will see a shaded gradient over the window which will be scrolled.
To scroll, look in the direction you want to scroll.
To toggle between left/right or up/down scroll, select the or icon for the desired direction.
Scroll functionality can be turned off in
Tobii Dynavox Gaze Interaction Settings > Windows Control > Turn off scroll functionality.
5.5 Wake the Tobii Dynavox I-Series+ from Sleep with Gaze Interaction
It is possible to wake the Tobii Dynavox I-Series+ from sleep with Gaze Interaction. This makes it possible for the user to be
more independent and secure while alone or without a caregiver; during the night for example. If the user wants attention from
the caregiver when the user wakes at night, the user could wake the Tobii Dynavox I-Series+ with Gaze Interaction and use the
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 41
Tobii Dynavox I-Series+ to communicate quickly to alert the caregiver. Waking the device from sleep in this way is called:
Wake-on-Gaze®

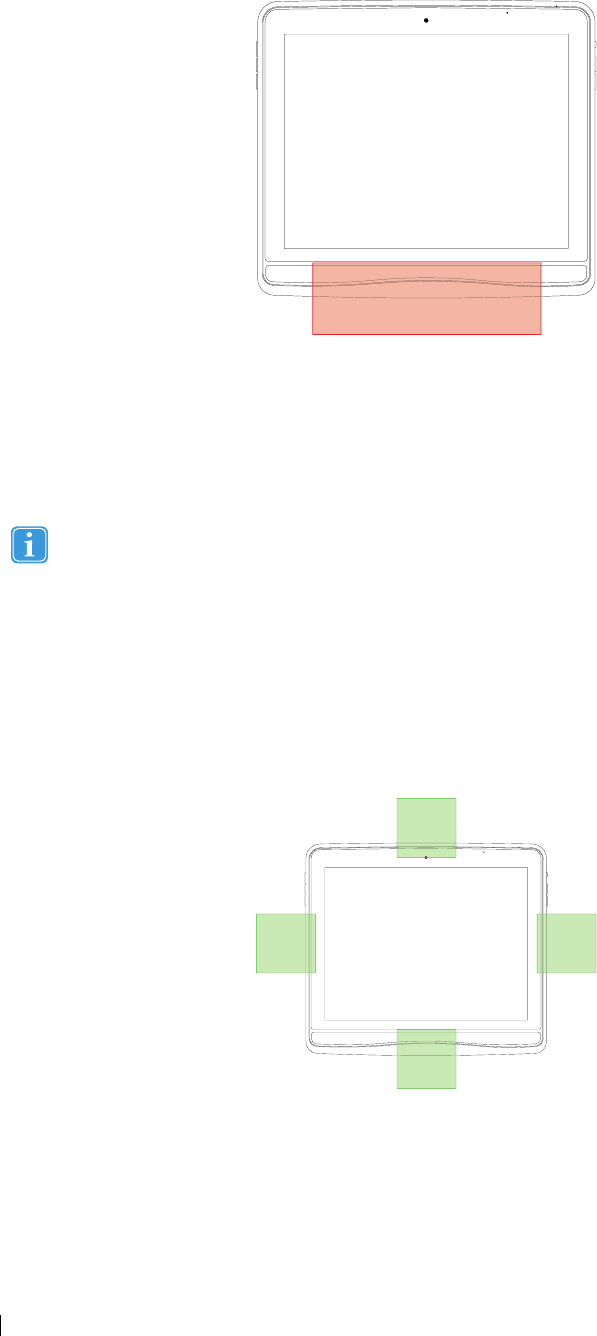

Figure 5.12 Wake-on-Gaze® Area
To Wake-on-Gaze®:
1. Make sure the Wake-on-Gaze® is activated, see 6.4 Wake-on-Gaze®, page 50.
2. Look at the area in between the two illuminators of the Eye Tracker at the bottom of the Tobii Dynavox I-Series+, see
Figure 5.12 Wake-on-Gaze® Area, page 42.
The Eye Tracker will search for the users eyes every 3 seconds.
The Tobii Dynavox I-Series+ will wake up from Sleep and will be ready to use.
5.6 Pause/Resume Gaze Interaction and Put the Tobii Dynavox I-Series+
to Sleep with Gaze Interaction
While using Gaze Interaction it is possible to both Pause/Resume Gaze Interaction (if the user wants to rest their eyes for a
while) and to put the Tobii Dynavox I-Series+ to Sleep (to reduce battery consumption, or in situations where the device is not
needed). Putting the device to sleep in this way is called Sleep-on-Gaze.
Figure 5.13 System Off-Screen Area
To Pause Gaze Interaction:
1. Make sure the Pause/Resume System Off-Screen menu is activated, see 7.6.1 System Off-Screen Menu, page 71
42 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
2. Look at the area where the System Off-Screen menu has been configured for your Tobii Dynavox I-Series+, see Figure
5.13 System Off-Screen Area, page 42
For more information and for how to configure the System Off-Screen menu, see 7.6.1 System Off-Screen Menu, page
71.
3. Selecting, using Gaze Interaction, the (Pause) icon that pops up.
To Sleep-on-Gaze:
1. Make sure the Sleep-on-Gaze function is activated, see 6.4 Wake-on-Gaze®, page 50
2. Look at the area where the System Off-Screen menu has been configured for your Tobii Dynavox I-Series+, see Figure
5.13 System Off-Screen Area, page 42
For more information and for how to configure the System Off-Screen menu, see 7.6.1 System Off-Screen Menu, page
71.
3. Selecting, using Gaze Interaction, the (Sleep-on-Gaze) icon that pops up.
4. Select Yes for Sleep or No for Cancel
5.7 Using the Cameras
The two built-in cameras allows you to take snapshots of items in front of the Tobii Dynavox I-Series+ device and also from the
display side.
Use Tobii Dynavox Communicator /Tobii DynaVox Compass or other relevant software to operate the cameras.
5.8 Using the GEWA Programmable IR Remote Control
The Tobii Dynavox I-Series+ device includes a GEWA Programmable IR Remote Control —Environmental Control Unit (ECU)
with two (2) filter windows:
•1 Transmitter filter window —Position 6 in Figure 3.1 Front and Back, page 16
•1 Transmitter and Receiver filter window —Position 27 in Figure 3.2 Bottom, Left and Right Side, page 17
Use the Transmitter and Receiver filter window (position 27 in Figure 3.2 Bottom, Left and Right Side, page 17) when
programming the GEWA Programmable IR Remote Control in
Tobii Dynavox Communicator /Tobii DynaVox Compass.
The GEWA Programmable IR Remote Control is a programmable Infrared device that can be used to control equipment with an
IR Remote Control such as TV-sets or DVDs.
For more information about how to use and program the GEWA Programmable IR Remote Control, see the Tobii Dynavox
Communicator 5 Getting Started or the Compass User Guide.
If the device you are trying to control is not responding, try tilting the Tobii Dynavox I-Series+ device up or down
slightly to change the angle at which the IR signal is being sent.
The ECU is not to be relied on as the only method of interaction with IR controlled devices.
5.8.1 Handling I-Series Product Key
To use the GEWA Programmable IR Remote Control, a I-Series Product Key is required. To view or enter a I-Series Product
Key, go to the I-Series Product Key section in the I-Series Control Center. See 6.7 I-Series Product Key, page 54
When the I-Series Product Key is in place, the GEWA IR Programmable Remote Control is ready to use.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 43
5.9 Adjusting the Volume
To adjust the volume use the Volume Up button (Position 11) and volume down button (Position 12) on right hand side of the
Tobii Dynavox I-Series+ device. For position references, see Figure 3.2 Bottom, Left and Right Side, page 17
Volume adjustments can also be done in Tobii Dynavox Communicator /Tobii DynaVox Compass.
5.10 Adjusting the Sound
You can configure the built-in speakers using the Windows 8.1Control Panel > Sound.
We refer to Microsoft’s information on how to configure the sound in the Windows 8.1Control Panel.
Sound adjustments can also be done in Tobii Dynavox Communicator /Tobii DynaVox Compass.
5.11 Performing a Factory Recovery
Every Tobii Dynavox I-Series+ device has a factory image stored on the disk. If you need to restore the device back to its original
state, this can be done by using our OEM Factory Recovery Application.
This will delete any personal data or software installed after the device was delivered.
Factory Recovery means that the device will be reset to the factory mode, without anything installed. In this mode you have to
re-enter your Tobii Dynavox Product Key and licenses to perform the SW installation you have ordered.
Make sure you’ve connected the Power Supply before you start the process - do not run the device on batteries, as it
might run out of power during the Factory Recovery. In such a scenario, you might have to send the unit back to
Tobii Dynavox for repair.
To perform a Factory Recovery for your Tobii Dynavox I-Series+ device, follow this procedure:
1. Backup your personal data such as documents and Tobii Dynavox Communicator /Tobii DynaVox Compass settings
etc.
2. Make sure you have the Tobii Dynavox I-Series+ Product Key available
3. Shut down the device
4. Connect a keyboard
5. Start up device again
6. Hold down the (Arrow Down) keyboard button continually during startup until you get into “Windows Boot
Manager”
7. Select "Factory Reset”and press the (Enter) keyboard button.
8. The Tobii Dynavox I-Series+ Software Installation dialogue will be loaded
9. Follow the instructions on the screen. These steps are identical to the initial setup you did when you first received the
device.
or
To perform a Factory Recovery for your Tobii Dynavox I-Series+ device, follow this procedure:
1. Backup your personal data such as documents and Tobii Dynavox Communicator /Tobii DynaVox Compass settings
etc.
44 5 Using the Tobii Dynavox I-Series+ Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
2. Make sure you have the Tobii Dynavox I-Series+ Product Key available
3. Shut down the device
4. Connect a keyboard
5. Start up device again
6. Hold down the (F8) keyboard button continually during startup until you get into “Advanced Boot Options”
7. Press the (Esc) keyboard button to get to the “Windows Boot Manager”
8. Select "Factory Reset”and press the (Enter) keyboard button.
9. The Tobii Dynavox I-Series+ Software Installation dialogue will be loaded
10. Follow the instructions on the screen. These steps are identical to the initial setup you did when you first received the
device.
The Factory Recovery process will now start. This will take about 40 minutes. After the restore process is finished, the device
will be reset to its original image as it was when you first received it from Tobii Dynavox. If you have installed any additional Soft-
ware or Tobii Dynavox Product Keys after you ordered the device, these will have to be manually installed again
5.12 Calibrating the Touch Screen
There are two ways of calibrating the Touch Screen depending on if the Windows Control Panel is in Category view or Classic
view with Small/Large icon.
To calibrate the Touch screen from Category View in Windows Control Panel, follow this procedure:
1. Select Start > Control Panel
2. Select Hardware and Sound
3. Select Tablet PC Settings
4. Select the Calibrate... button under Display options
5. Follow the on-screen instructions
To calibrate the Touch screen from Classic View with small/Large icons in Windows Control Panel, follow this procedure:
1. Select Start > Control Panel
2. Select Tablet PC Settings
3. Select the Calibrate... button under Display options
4. Follow the on-screen instructions
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 5 Using the Tobii Dynavox I-Series+ 45
6 Configuring the Tobii Dynavox I-Series+
with the I-Series Control Center
The I-Series Control Center is the program on your Tobii Dynavox I-Series+ Device where you can access and change the set-
tings that you have chosen during your first setup with the I-Series Welcome Guide. You can also run the Welcome Guide
again at any time of your choosing.
To open the I-Series Control Center:
•Double-click on the I-Series Control Center shortcut on the desktop, .
or
1. Go to Start menu >Control Panel.
2. Double-click I-Series Control Center, , if the Control Panel is in Classic View.
If the Control Panel is in Category view, select View by: > Small icons or Large icons, and Double-click
I-Series Control Center
or
1. Go to Start menu > Tobii Dynavox.
2. Click I-Series Control Center, .
or
•Through the communication software installed on the device
46 6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6.1 Buttons
You can create shortcuts to tasks, called actions, by programming the Quick Access buttons. The Quick Access buttons are lo-
cated on the left side of the Tobii Dynavox I-Series+ device, named 1,2and Menu.
For more information about how to program an action for a button, see 6.10 Creating Shortcuts to Actions, page 58
6.1.1 Play Sound when Pressed
To enable Play sound when pressed:
1. Open the I-Series Control Center > Button.
2. Select the Play sound when pressed check box to allow Audio feedback when the button is activated.
To disable Play sound when pressed:
1. Open the I-Series Control Center > Button.
2. Select to clear the Play sound when pressed check box.
6.1.2 Disable All Buttons
To avoid unintentional actions, all buttons on the Tobii Dynavox I-Series+ device can be disabled.
To Disable all buttons:
1. Open the I-Series Control Center > Button.
2. Select the Disable All Buttons check box.
The Power button will work for starting the device even if all buttons are disabled.
Pressing the Power button for more than 7 seconds will shut down the device immediately, disregarding any unsaved
changes, even if all buttons are disabled.
To Enable all buttons:
1. Open the I-Series Control Center >Button.
2. Select to clear the Disable All Buttons check box to allow all buttons again.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center 47
6.2 Display
6.2.1 Brightness Adjustment
There is a sensor on the device which will automatically adjust the screen brightness according to the surrounding light, relative
to the selected level from Windows®.
To disable Automatic Brightness Adjustment:
1. Open the I-Series Control Center > Display.
2. Select to clear the Enable automatic brightness adjustment (recommended) check box.
To enable Automatic Brightness Adjustment:
1. Open the I-Series Control Center > Display.
2. Select the Enable automatic brightness adjustment (recommended) check box.
To manually adjust Brightness:
1. Open the I-Series Control Center > Display.
2. Select the Windows Power Options link.
3. Make the Brightness adjustments
Using a darker setting can improve battery runtime.
6.2.2 Display Rotation
The display can rotate automatically when turned 180 degrees, to facilitate using device in Upright orientation or Resting on the
speakers.
With the Automatic display rotation activated, it could take a couple of seconds (the screen could also turn black) be-
fore the display is rotated.
To enable Automatic rotation according to device position:
1. Open the I-Series Control Center > Display.
2. Select the Automatic rotation according to device orientation radio button.
48 6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
The external display will rotate when the Tobii Dynavox I-Series+ is rotated if the Tobii Dynavox I-Series+ is set up like
this:
•External display connected via HDMI
•The Tobii Dynavox I-Series+ is set to Automatic rotation in I-Series Control Center
•Dual screens is set to Clone/Duplicate mode in Windows
To be able to rotate the Tobii Dynavox I-Series+ without rotating the external display, set the Dual screen to Extended
mode in Windows. In Extended mode the rotation function is independent on each display.
To set Fixed device position:
1. Open the I-Series Control Center > Display.
2. Select the Fixed in upright orientation or the Fixed in resting orientation radio button.
Gaze Interaction is optimized to work properly in the Upright orientation.
For more information about Upright orientation and Resting orientation, see 1.3.1 Portable Use, page 9.
6.3 Switches
You can enable the switches to act as power ON (see 6.3.2 Configuring a Switch to Power On, page 50) or OFF (see 6.3.3
Configuring a Switch to Power Off, page 50) button.
Select the Play sound when pressed checkbox to allow Audio feedback when the switch is activated.
Select actions for the switches by selecting Set action.
For more information about how to program an action for a Switch, see 6.10 Creating Shortcuts to Actions, page 58
6.3.1 Play Sound when Pressed
To enable Play sound when pressed:
1. Open the I-Series Control Center >Button.
2. Select the Play sound when pressed check box to allow Audio feedback when the button is activated.
To disable Play sound when pressed:
1. Open the I-Series Control Center > Button.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center 49
2. Select to clear the Play sound when pressed check box.
6.3.2 Configuring a Switch to Power On
To enable a connected Switch to power on the device:
1. Open the I-Series Control Center > Switches.
2. Select the Enable switch “1 or 2”to act as Power On Button check box.
To disable a connected Switch to power on the device:
1. Open the I-Series Control Center > Switches.
2. Select to clear the Enable switch “1 or 2”to act as Power On Button check box.
6.3.3 Configuring a Switch to Power Off
To enable a connected Switch to power off the device:
1. Open the I-Series Control Center > Switches.
2. Select the Enable switch “1 or 2”to act as Power Off Button check box.
To disable a connected Switch to power off the device:
1. Open the I-Series Control Center > Switches.
2. Select to clear the Enable switch “1 or 2”to act as Power Off Button check box.
6.4 Wake-on-Gaze®
The Tobii Dynavox I-Series+ device can be set to wake automatically from Sleep mode when your eyes are registered as looking
at the display.
To enable Wake-on-Gaze for the device:
1. Open the I-Series Control Center > Wake-on-Gaze.
2. Select the Enable automatic Wake-on-Gaze check box.
3. Select Windows Power Options link to adjust the Power Options (if needed)
50 6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
To disable Wake-on-Gaze for the device:
1. Open the I-Series Control Center > Wake-on-Gaze.
2. Select to clear the Enable automatic Wake-on-Gaze check box.
For information about how to use Wake-on-Gaze®, see 5.5 Wake the Tobii Dynavox I-Series+ from Sleep with
Gaze Interaction, page 41.
The Tobii Dynavox I-Series+ device can also be set to go to sleep using your gaze (to reduce battery consumption, or in situa-
tions where the device is not needed).
To enable Sleep-on-Gaze for the device:
1. Open the I-Series Control Center > Wake-on-Gaze.
2. Make sure Wake-on-Gaze is activated
3. Select the Enable Sleep-on-Gaze check box.
To disable Wake-on-Gaze for the device:
1. Open the I-Series Control Center > Wake-on-Gaze.
2. Select to clear the Enable Sleep-om-Gaze check box.
For information about how to use Sleep-on-Gaze®, see 5.5 Wake the Tobii Dynavox I-Series+ from Sleep with
Gaze Interaction, page 41.
6.5 Wireless
6.5.1 WLAN
The built-in WLAN (Wireless Local Area Network) support enables connection to wireless networks (such as Wi-Fi™networks
and access points) in compliance with the standard 802.11 b/g/n for both the I–12+ and the I–15+.
6.5.1.1 Handling Tobii Dynavox Product Key
To be able to use WLAN communication, a I-Series Product Key is required. To view or enter a I-Series Product Key, go to the
I-Series Product Key section in the I-Series Control Center. See 6.7 I-Series Product Key, page 54
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center 51
6.5.1.2 Enabling and Disabling the WLAN Communication
To enable WLAN communication:
1. Open the I-Series Control Center > Wireless.
2. Select the Enable Wireless Local Area Network (WLAN) check box.
To disable WLAN communication:
1. Open the I-Series Control Center > Wireless.
2. Clear the Enable Wireless Local Area Network (WLAN) check box or select the Disable all wireless units check
box for disabling all wireless units.
6.5.1.3 Connecting to a WLAN
1. Click on the WLAN icon, , in the Notification area on the Desktop.
2. Select Connect to a network.
3. Select a network to connect to.
A wireless access point which supports antenna diversity is recommended when setting up a wireless network to use
with a Tobii Dynavox I-Series+ device, for reliable performance. Such access points are generally recognized by hav-
ing two antennas on the router device.
Using an antivirus program is strongly recommended.
6.5.2 Bluetooth® for Mobile Phone Communication
The built-in Bluetooth® enables connection to a mobile phone which complies with mobile Bluetooth® standards.
Only for use with Tobii Dynavox Communicator for mobile phone communication.
For more information about how to use and program an Mobile phone to work with Bluetooth® on the Tobii Dynavox I-Series+
device, see Tobii Dynavox Getting Started Communicator 5.
For information about the Mobile phones that complies with the Tobii Dynavox I-Series+ device, see www.tobiidynavox.com
6.5.2.1 Handling I-Series Product Key
To use Bluetooth® communication in the device, a I-Series Product Key is required. To view or enter a I-Series Product Key, go
to the I-Series Product Key section in the I-Series Control Center. See 6.7 I-Series Product Key, page 54
6.5.2.2 Enabling and Disabling Bluetooth® Communication
To enable Bluetooth® communication:
1. Open the I-Series Control Center > Wireless.
2. Select the Enable Bluetooth check box.
To disable Bluetooth® communication:
1. Open the I-Series Control Center > Wireless.
2. Clear the Enable Bluetooth check box or select the Disable all wireless units check box for disabling all wireless
units.
52 6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6.5.2.3 Connecting to a Bluetooth® Device
For more information see Getting Started with Essentials for Communicator 4.
6.6 Safety
Upon starting the device for the first time, the safety settings in the I-Series Control Center will be a part of the I-Series Wel-
come Guide. To be able to run through the guide these safety settings must be confirmed. The safety settings exist for the safety
of the customer. Be sure to read the safety details before accepting any changes.
6.6.1 Audio
Before you can use the speaker functionality and adjust speaker output settings you need to confirm the Audio safety details (if
not already done during first start up).
To confirm:
1. Open the I-Series Control Center > Safety
2. Click on the Audio safety details text. A new dialog box opens and displays the safety text. Please read this
thoroughly.
3. Select the I have read and understand the safety details and I want to enable the speaker functionality
check box to confirm that you have read and understood the safety text.
6.6.2 Temperature Control
Before you can set the device usage in I-Series Control Center > Temperature Control you need to confirm the Tempera-
ture control safety details (if not done during first start up).
To confirm:
1. Open the I-Series Control Center > Safety
2. Click on the Temperature Control safety details text. A new dialog opens and displays the safety text. Please read
this thoroughly.
3. Select the I have read and understand the safety details and I want to enable the temperature control func-
tionality check box to confirm that you have read and understood the safety text.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center 53
You can use the device in a portable or mounted mode. Your choice will affect the maximum allowed device tempera-
ture. While having the device mounted, it is allowed to run at a higher temperature.
Both the I–12+ and the I–15+ can be used both as a portable and mounted device and can be operated in both port-
able and mounted mode.
If the device is gets overheated the device will shut down. It may take a while before it can be restarted as the unit
may first need time to cool down. If the device is still too hot, the power button will flash purple for a couple of sec-
onds when trying to restart the Tobii Dynavox I-Series+ device. For more information, see Appendix C Computer De-
vice States of Operation, page 85 and Table D.1 Maximum Allowed Temperature, page 87.
6.6.2.1 Device Usage
Specifying device usage mode takes place outside of the Safety settings but within I-Series Control Center.
To specify device usage:
1. Open the I-Series Control Center > Safety.
2. Click on preferred option for Device usage.
•Portable —Portable mode sets the maximum device temperature shut down limit to a lower temperature, reducing
the risk for permanent bodily harm cased by prolonged exposure to the skin
•Mounted —Mounted mode sets the maximum device temperature to a higher temperature shut down limit
For more information, see Table D.1 Maximum Allowed Temperature, page 87
6.7 I-Series Product Key
The following features on the Tobii Dynavox I-Series+ needs a licence for use:
•Eye tracker
•Bluetooth®
•WLAN
•IR
•Tobii Dynavox Communicator
•Tobii Dynavox Compass
To view existing I-Series Product Key:
•Open the I-Series Control Center > I-Series Product Key.
54 6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
If the symbol is visible after a feature, the I-Series Product Key(s) on the device are valid for that feature.
To add a I-Series Product Key:
1. Open the I-Series Control Center > I-Series Product Key.
2. In the Enter a I-Series product key box, type the new I-Series Product Key.
To type the I-Series Product Key use either a connected keyboard or enable the on-screen keyboard by selecting this button
.
6.8 Setup & Updates
Manage Tobii Dynavox applications related to setting up your device and updating to the latest software.
6.8.1 I-Series Welcome Guide
The I-Series Welcome Guide guides the user through the setup procedure, such as License Agreement and Safety Setting etc.
If the I-Series Welcome Guide is not finished, it will automatically start up next time the Tobii Dynavox I-Series+ is
powered up.
To run the I-Series Welcome Guide at next start up, follow these step:
1. Open the I-Series Control Center > Setup & Updates.
2. Select the Run at next startup check box.
To run the I-Series Welcome Guide at once, follow these steps:
1. Open the I-Series Control Center > Setup & Updates.
2. Select the Run now button.
6.8.2 I-Series Update Notifier
The I-Series Update Notifier is a program that notifies you when the latest software updates for your Tobii Dynavox Software are
available (either automatically, on a regular basis, or manually, at a time of your choosing) and assists you in installing the
updates.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center 55
If you have chosen to "Enable automatic updates" in either the I-Series Welcome Guide or, later, in the I-Series Control Center,
the I-Series Update Notifier will actively search Tobii Dynavox’s sites for version Updates of your software.
To keep your Tobii Dynavox I-Series+ device running properly it is highly recommended that you update your
Tobii Dynavox Software on a regular basis and it is therefore highly recommended that you enable automatic updates.
To Enable automatic search for updates:
1. Open the I-Series Control Center > Setup & Updates.
2. Select the Enable automatic search for updates (recommended) check box.
If an update is found the following I-Series Update Notifier window will pop up:
The update or updates available will show themselves in the Step One window of I-Series Update Notifier as large button with a
green check mark on the right side. You will also be able to see the version number of the software that you currently have and
the version number of the update.
If you choose not to download one or more of the available updates you can click on the button of the update you do not want
and the check mark will turn into a red "X" mark.
Proceed in the following way:
•Click the Download button to download the updates to your Device and continue to Step Two.
•In Step Two, Click the Install button to install the chosen updates on your device and proceed to Step Three.
•Step Three informs you that your system has been updated, select the Done button to close the I-Series Update
Notifier.
If you choose not to "Enable automatic updates" you can still check for updates for your Tobii Dynavox software and update
them manually using the I-Series Update Notifier.
To open and activate the I-Series Update Notifier manually (this opens the Step One window shown above and starts the same
automatic update process):
•Navigate in Windows from your desktop to Start Menu Tobii Dynavox and select the I-Series Update Notifier icon,
.
or
1. Open the I-Series Control Center > Setup & Updates.
2. Select the Run now button.
56 6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6.9 System
6.9.1 Version & Model
To view the version and model of the device:
•Open the I-Series Control Center > System.
Please have this information available if you have problems with the device and need to contact Customer Support.
To save the version and model of the device to a file:
1. Open the I-Series Control Center > System.
2. Select the Save information to file button.
You can attach the file containing all the information into a an e-mail.
6.9.2 Backup
This is a system backup specific to your Tobii Dynavox software-related files. The device automatically and regularly, once a
week, backs up the data that is associated with your Tobii Dynavox communications applications (
Tobii Dynavox Communicator /Tobii DynaVox Compass Page Sets, files, settings, etc.), your Gaze Interaction files (profiles, cali-
bration settings, interaction settings, etc.) and your device specific settings from the I-Series Control Center. You can manually
start the backup below and/or restore the data from one of the three latest backups. Be aware that the changes made since the
latest backup will be reverted if you choose to restore from a previous backup. All files in the My Documents folder will be
backed up as well, if space is available on the microSD-card, as a second priority after the Tobii Dynavox software-related files.
To back up all files on your device please use Microsoft’s own Windows Backup and Restore application.
The backup process executes once a week (every Sunday at 15.00) and the three latest backups are saved on the microSD-
card.
If your Tobii Dynavox I-Series+ device is not up and running at this time the backup will be performed at next start up.
The process backs up files for all users. If the backup drive does not have enough space some files will not be backed
up. Image files have the lowest priority (backed up last). The largest file size for the backup of individual files is 100
MB, files larger than this will be excluded.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center 57
The backup files are placed in the directory Q:\Backup\<date> (On the microSD-card).
Tobii Dynavox will not take responsibility for any other data than the “Tobii Dynavox applications data”
6.9.2.1 User Profile Card
The Tobii Dynavox I-Series+ device comes with a 32 GB microSD-card installed. The purpose of this card is to backup person-
al settings and data. In the case of fatal damage to the Tobii Dynavox I-Series+ device. The microSD-card can be removed and
inserted into a new device for quick and easy retrieval and restoration of personal data and settings.
6.9.2.2 Backup Manually by the User
To perform a manual backup of the system:
1. Open the I-Series Control Center > System.
2. Select the Backup now button.
When the backup is finished, the following will show up on the screen: Backup finished.
6.9.2.3 Restoring Backup Files by the User
To restore one of the three last backup of the system:
1. Open the I-Series Control Center > System.
2. Select the Restore from backup button.
3. Select the one of the last backups by selecting the Restore from this backup button next to the date of the stored
backup.
When the restore is finished, the following text will show up on the screen: Restore finished and the symbol will
show up next to the date that was selected to restore from.
Copies of these backup files can be saved anywhere you wish, to an external hard drive, for example, or to a USB stick. Copy
the folders in the directory Q:\Backup\<date> to any external directory or drive of your choosing.
6.9.2.4 Backup Failed
One likely reason that the backup failed is that there are too many files in the My Documents folder. Try moving the files that are
not backup- critical to another location (such as pictures, music files, etc).
6.9.3 Eye Tracker
To enable the Eye tracker:
1. Open the I-Series Control Center > System.
2. Select the Enable Eye Tracker check box.
To disable the Eye tracker:
1. Open the I-Series Control Center > System.
2. Clear the Enable Eye Tracker check box.
6.10 Creating Shortcuts to Actions
You can create shortcuts, called actions, by programming the Quick Access buttons and connected Switches. The Quick Ac-
cess buttons are located on the left side of the Tobii Dynavox I-Series+ device, named 1,2and Menu.
Switches are connected to the Switch connectors.
58 6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6.10.1 Available Actions
This is a short description of each action available to set:
•Send input –Allows the user to send input to an alternative program (keystroke, mouse click or text).
•Start Program –Allows the user to start a program.
•Volume –Allows the user to adjust the volume up or down or to set mute on or off.
•Backlight –Allows the user increase or decrease the backlight of the screen.
•Gaze Interaction –Allows the user to show and hide the track status window, calibrate or pause the Gaze Interaction
ON or OFF.
•Wireless –Allows the user to either set all radio connections on or off, or a specific wireless connection.
•Tobii Dynavox Communicator /Tobii DynaVox Compass —Actions are set and customized in
Tobii Dynavox Communicator /Tobii DynaVox Compass.
The available actions are the same for the Quick Access buttons and Switches.
To create a shortcut to an action:
1. Open the I-Series Control Center.
2. Select Buttons or Switches, depending on which one you want to customize.
3. Click Set action to view the dialog box where you can select the action you would like the button to perform. By select-
ing one of the actions, the options for this action will be revealed below the chosen action.
If you would like the Quick Access button to make a sound when pressed, select the Play sound check box after
having set an action.
6.10.2 Selecting Actions
•No Action Selected —Default —choose to delete a previous set task
•Send Input –choose either to send a keyboard input, a mouse click or specified text by selecting the option you want
the device button or Switch to perform.
–Send keyboard input —In the Send keyboard input list, select the keystroke you want to send to an alternative
program.
–Send mouse click —In the Send mouse click list, select the desired mouse click: left, middle or right mouse
click.
–Send text –In the Send text box, type the text you want to send to an alternative program.
•Start Program —Click Browse the first time you are using this option to find and select a program.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center 59
The next time you select the Start Program option a list of previously selected programs will be displayed. You can
then directly select a program from the list or select Browse if you want to start a program not in the list.
For the selected program it is possible to add program arguments. However, this is normally not required. If the program
should require program arguments and you do not know what to enter, please contact the company you purchased the
software from.
•Volume —choose to increase, decrease or mute the volume by selecting the preferred option.
•Backlight —choose to either increase or decrease the screen backlight by selecting the preferred option.
•Gaze Interaction –choose to toggle track status window, calibrate Gaze Interaction, Pause the Gaze Interaction or
toggle Windows Control ON/OFF.
To enable this option the Tobii Dynavox I-Series+ device must have an Eye Tracker and the
Tobii Dynavox Gaze Interaction Software installed.
•Wireless —you can either set all radio connections on/off or each individual wireless unit on/off one by one, by select-
ing the options.
•Communicator /Compass —Actions are set and customized in
Tobii Dynavox Communicator /Tobii DynaVox Compass
If actions for a Switch are customized both in the I-Series Control Center and in
Tobii Dynavox Communicator /Tobii DynaVox Compass or in alternative communication software all actions
will be performed simultaneously. Ensure that the specified action for a Switch does not conflict with an action set for
the same Switch in Tobii Dynavox Communicator /Tobii DynaVox Compass or in alternative communication
software.
To get back from slide in menus, just select the arrows in the greyed out areas.
60 6 Configuring the Tobii Dynavox I-Series+ with the I-Series
Control Center Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
7 Gaze Interaction Settings
7.1 Accessing the Gaze Interaction Settings
Gaze Interaction Settings is a program for quick and easy access to control functions such as Track Status, Calibration and
common settings.
Start Gaze Interaction Settings for Windows 8.1 in one of the following ways:
•Go to Start menu > Tobii Dynavox.
•Double-click on the Gaze Interaction Settings icon, , in the Notification area, or on the shortcut, , on the
Desktop (if one has been made).
•Right-click (long-hold finger on icon for touch screen right clicking) on the Gaze Interaction Settings icon, , in
the Notification area and then select Settings.
•Through the communication software installed on the device.
In the list to the left in Gaze Interaction Settings, select which option you want to change. In the list to the right, the available
options will be revealed.
Click OK to save changes. This will also close Gaze Interaction Settings.
Click Cancel to cancel the changes. This will also close Gaze Interaction Settings.
Click Apply to save changes. Gaze Interaction Settings will remain open.
Anywhere you see this icon, , there is an information box with additional information for the feature.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 7 Gaze Interaction Settings 61
7.2 Calibration
This section will describe how to calibrate an individual, enabling optimal Gaze Interaction with the Tobii Dynavox I-Series+
device.
7.2.1 Starting Calibration
The calibration can be started in one of the following ways:
•Open Gaze Interaction Settings > Gaze Interaction and then select the Start Calibration... button.
•Right-click (long-hold finger on icon for touch screen right clicking) on the Gaze Interaction Settings icon, , in
the Notification area and select Start Calibration.
•Through the communication software installed on the device.
7.2.2 Interrupting Calibration
Interrupt the calibration in one of the following ways:
•Press Esc.
•Left-click on the screen using a mouse.
•Touch the screen (on a touch screen device).
7.2.3 Customizing Active Eye
Based on certain conditions, or disabilities, you may only have one eye that functions well with Gaze Interaction. In this case,
and if you know which eye is most functional, you can select which eye to track for Gaze Interaction.
To select the eye you want to be tracked by the eye tracker, follow these steps:
1. Open Gaze Interaction Settings > Calibration.
2. Select the Track only this eye for Gaze Interaction check box under Left or Right Eye Calibration Result box.
62 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
7.2.4 Improving Calibration Point(s)
After calibration, you may want to improve one or more points.
There is a color scheme used that will help you to understand the quality of your calibration.
All three color statuses are the result of a successful calibration.
•If the background color of the Calibration Result is light red, you have achieved a successful, but relatively low quality
calibration. You can improve one or more points individually, or recalibrate completely, to achieve better
Gaze Interaction results.
Improving even one (or more) of the calibrations points can significantly improve the calibration.
•If the background color of the Calibration Result is light yellow, you have achieved successful and good quality calibra-
tion. You might be able achieve better Gaze Interaction results by improving one or more points individually.
•If the background color of the Calibration Result is green, you have achieved a successful and high quality calibration.
Be aware that no matter what quality of calibration you have achieved you will be able to select OK or Apply and be-
gin using Gaze Interaction. It is the accuracy and functionality of the Gaze Interaction that is affected by the quality of
the calibration results. Try for the best calibration possible.
Remember! In the end it is the personal experience that counts!
The closer the lines within the calibration point are to a dot in the center of the circle of the calibration point, the better the cali-
bration is of that point, .You can choose the points to be improved and calibrate only those points again.
To improve one or more calibration points, follow these steps :
1. Open Gaze Interaction Settings > Calibration.
2. Select the point(s) you want to improve under Calibration Result.
3. Select the Improve Point(s) button and a calibration for the selected point(s) will start.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 7 Gaze Interaction Settings 63
7.2.5 Removing Calibration Point(s)
If there is a calibration point that is consistently bad after calibration (the green lines are scattered all around and outside the
circle of the calibration point) you can remove that point completely from the calibration, this may improve the calibration of the
other points. Be aware that if you remove a point, that area of the screen will be uncalibrated and Gaze Interaction will not func-
tion properly there.
To remove one or more calibration points, follow these steps:
1. Open Gaze Interaction Settings > Calibration.
2. Select the point(s) you want to remove under Calibration Result.
3. Select the Remove Point(s) button.
7.2.6 Customizing the Calibration
To customize the calibration, follow these steps:
1. Open Gaze Interaction Settings > Calibration.
2. Select the Settings... button
General
3. Select calibration background by selecting the background color button and select the desired color.
4. Specify the number of points you want to calibrate with (two, five or nine) from the Calibration points drop down list.
The higher number of points, the more accurate the calibration.
5. Select if you want to have sound feedback or not from the Sound feedback drop down list.
Stimulus
6. Select the stimulus type from the Stimulus type drop down list. There are three types available, each with different cus-
tomizing options:
•Dot:
–Select color of the dot by selecting the Stimulus color button.
–Select size of the dot by selecting from the Stimulus size drop down list.
–Select speed of the dot by selecting from the Stimulus speed drop down list.
•Image:
64 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
–Select primary stimulus by selecting Browse and selecting an image.
–Select secondary stimulus by selecting Browse and selecting an image.
–Select size of the image by selecting from the Stimulus size drop down list.
–Select speed of the image by selecting from the Stimulus speed drop down list.
•Video:
–Select primary stimulus by selecting Browse and selecting a video.
–Select secondary stimulus by selecting Browse and selecting a video.
–Select size of the video by selecting from the Stimulus size drop down list.
–Select speed of the video by selecting from the Stimulus speed drop down list.
7. Check the Animate stimuli check box if you want the stimuli to be animated (as opposed to static).
8. If you want to control the calibration, i.e. decide when to move the calibration stimuli, with a keyboard, check the Key-
board step-through check box.
•For Keyboard step-through, use the ‘S’key to step (to move the calibration stimuli) and the ‘Esc’key, the Left
mouse button or touching the touch screen to interrupt calibration. When using Image or Video calibration, use the
‘T’key to toggle between primary and secondary stimulus images.
To get back from slide in menus, just select the arrows in the greyed out areas.
7.2.7 Customizing the Calibration Area
Customizing the calibration area can be useful if you have discovered that the user cannot access certain areas of the screen
using Gaze Interaction. By sizing the calibration area to exclude the areas that the user cannot access it can improve the overall
calibration.
To customize the calibration area, follow these steps:
1. Open Tobii Dynavox Gaze Interaction Settings > Calibration.
2. Select the Setting…button.
3. Select the Calibration area: Change... button.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 7 Gaze Interaction Settings 65
4. A blue semi-transparent area is displayed on the desktop. You can move and resize the blue area to make it fit your pre-
ferred calibration area.
7.3 Interaction
To adapt the interaction method and visual feedback for Gaze Interaction, follow these steps:
1. Open Gaze Interaction Settings > Interaction.
Scope
If different settings are needed for different Gaze Interaction applications, make the adaptations here.
2. Select how the interactions settings should be reflected:
•Select Default settings of the currently selected user profile if you want to apply the new settings to the
whole user profile and not only to a particular application.
•Select Application specific settings of the currently selected user profile if you want to apply the new set-
tings to a specific application of a user profile. Then select the available application in the Application drop down
list.
66 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Method
3. Select the activation method from the Activation method drop down list. There are three methods available, each with
different activation times:
•Dwell. Adjust the dwell time by moving the Dwell time slider.
•Switch. Adjust the minimum time for a click duration and the minimum time between clicks by moving the respective
slider.
•Blink. Adjust the minimum and maximum duration for a blink by moving the respective slider.
Visual Feedback
4. Select the symbol for visual feedback from the Dwell feedback type drop down list.
5. Select the color of the feedback symbol in the Feedback color drop down list.
6. Specify the dot size and opacity of the feedback symbol by moving the respective slider.
7. Select the Show visible outline around the activated region check box to see a dashed line around the activated
area in all instances of Gaze Interaction selection
8. Select Simulate activation if you want to see how the activation method will appear on the screen. The example is
shown above the Simulate activation button.
7.4 User Profile
7.4.1 Creating a New Profile
Use of different profiles allows you to store multiple people’s calibrations and feedback preferences on one device. Alternatively,
one person might want to store multiple profiles for him/herself if that person wears glasses occasionally or uses multiple means
of accessing the device.
To create a new profile:
1. Open Gaze Interaction Settings, select User Profiles.
2. Enter a new name in the Profile name field.
3. Select an existing profile in the Based on profile drop down list. The new profile will inherit all settings from the se-
lected profile. Note that if no profiles have been created previously, the only one to select is the default profile.
4. Click Create to save the new profile. The new profile is saved directly upon selecting Create.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 7 Gaze Interaction Settings 67
7.4.2 Selecting Current User Profile
To select current user profile:
1. Open Gaze Interaction Settings.
2. Select a user profile in the Current User Profile drop down list.
3. Select Apply
7.4.3 Deleting a Profile
To delete a profile:
1. Open Gaze Interaction Settings >User Profiles.
2. Select a profile in the Profile to delete drop down list.
3. Click Delete to delete the selected profile. The profile is deleted directly upon selecting Delete. Note that the default
profile cannot be deleted.
7.5 Windows Control
Windows Control allows you to access the desktop and all applications of your Windows computer with Gaze Interaction.
7.5.1 Auto Start
To enable Windows Control automatically when the your device starts up:
•Select the Auto start Windows Control at boot check box.
To disable Windows Control automatically when the your device starts up:
•Select to clear the Auto start Windows Control at boot check box.
7.5.2 Windows Control Type
Select which type of Windows Control you wish to use:
•Gaze Selection —Select the Gaze Selection radio button. For more information about using Gaze Selection, see 5.4.3
Using Gaze Selection, page 29
•Mouse Emulation —Select the Mouse Emulation radio button. For more information about using Mouse Emulation, see
5.4.4 Using Mouse Emulation, page 39
68 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
7.5.2.1 Gaze Selection
The settings for Gaze Selection are found in the Gaze Selection Taskbar, docked to the screen when Gaze Selection
Windows Control is running. Gaze at the settings icon to select it and the Gaze Selection Settings will open.
For information about the Gaze Selection Settings, see 8 Gaze Selection Settings, page 73
7.5.2.2 Mouse Emulation
7.5.2.2.1 Mouse Control Speed
Customize the mouse control speed by moving the Mouse control speed slider. Move the slider to the right to increase the
speed and to the left to decrease it.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 7 Gaze Interaction Settings 69
7.5.2.2.2 Magnifier Size and Zoom
Customize the size of the magnifier by moving the Magnifier Size slider. Move the slider to the right to increase the size and
to the left to decrease it.
Customize the zoom factor by moving the Zoom Factor slider. Move the slider to the right to increase the zoom factor and to
the left to decrease it.
7.5.2.2.3 Auto Switch from Right to Left Click
Check this check box if you want Windows Control Mouse Emulation mode to automatically switch the desired mouse click se-
lection back to a left click, , after a right click, , has been chosen and performed.
7.5.2.2.4 Turn off Scroll Functionality
Check the Turn off scroll functionality check box if you do not want Gaze Interactionscrolling to be active.
7.5.2.2.5 Custom Cursors
Custom cursors is a feature that turns the regular mouse cursor into a number of different cursors when using Windows Control
in Mouse Emulation mode.
The different cursors visually represent the type of "mouse click" for Gaze Interaction that you have chosen from the Mouse Em-
ulation Menu (for the definitions of the Mouse Emulation Menu symbols see 5.4.4.2 Clicking with Windows Control in Mouse
Emulation Mode, page 40,5.4.4.3 Magnifying with Windows Control in Mouse Emulation Mode, page 40 and 5.4.4.4 Select-
ing Mouse Emulation Functions, page 40).
or + = cursor type (move cursor, no clicking)
+ = cursor type (single left click)
+ = cursor type (single right click)
+ = cursor type (double left click)
+ = cursor type (double right click)
or + = cursor types (drag) and (drop)
or + = cursor type (no movement)
Check the Custom cursors check box to activate custom cursors for Windows Control in Mouse Emulation mode.
7.5.2.2.6 Hide Menu
Check the Hide Menu check box if you want the Mouse Emulation menu to be hidden during use. The (F2) key on the
keyboard can also be used to toggle On and Off (hide/show) the Mouse Emulation Menu instantly during use.
70 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
7.6 System Settings
7.6.1 System Off-Screen Menu
Select the Position Drop down menu to make changes to where the System Off-Screen menu appear on the screen.
The System Off-Screen menu can be set to appear:
•Bottom (Default)
•Top
•Left
•Right
•None
Set the System Off-Screen menu to None to disable the System Off-Screen menu.
Figure 7.1 System Off-Screen Menu Areas
7.6.2 Positioning Guide
To turn On the Positioning Guide:
1. Open Gaze Interaction Settings > System Settings.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 7 Gaze Interaction Settings 71
2. Select the Enable positioning guide check box.
To turn Off the Positioning Guide:
1. Open Gaze Interaction Settings > System Settings.
2. Select to clear the Enable positioning guide check box.
For more information about the Positioning Guide, see 5.3.4 Positioning Guide
7.7 System Information
To view the version and model of the device:
Open the Gaze Interaction Settings > System Information.
Please have this information available if you have problems with the device and need to contact Customer Support.
By clicking Copy all information you can paste the information into a document (such as Notepad or WordPad) or directly in-
to an e-mail.
7.7.1 Upgrade Eye Tracker Firmware
If there is a new Firmware for the Eye Tracker module, the Upgrade button will be selectable.
Select the Upgrade button to start upgrading the Firmware for the Eye Tracker.
A Pop up notification will be shown when starting the Tobii Dynavox Gaze Interaction Settings if there is a Upgrade
for the Eye Tracker Firmware.
72 7 Gaze Interaction Settings Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
8 Gaze Selection Settings
The Gaze Selection Settings Dialog is controlled by Gaze Interaction and the user can make all changes without using a key-
board and/or a mouse.
8.1 The General Settings Tab
Selection
•Gaze - Choose Gaze to use your gaze position to activate the zooming function that ends with the execution of the de-
sired Task.
•Switch - Choose Switch to use a switch to activate the zooming function that ends with the execution of the desired
Task.
Precision
The zoom precision can be set to 8 different levels, just look at the desired position to change the setting. Changing the Preci-
sion will adjust how deep the zoom will go before executing the Task. The further to the right on the scale the deeper the zoom.
If the Precision is set to zero, no zooming will happen. It will be an instant click with Primary Selection. With Secon-
dary Selection it will still be a zoom.
Speed
The zoom speed can be set to 8 different levels, just look at the desired position to change the setting. Changing the Speed will
affect how fast the zoom is before the execution of the Task. The further to the right on the scale the faster the zoom.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 8 Gaze Selection Settings 73
8.2 The Keyboard Settings Tab
Keyboard layout
The selected language keyboard layout is shown. Select the Change button to change the keyboard layout to another language.
There are a number of different language keyboard layouts available.
Gaze typing speed
The Gaze typing speed can be set to 8 different levels, just look at the desired position to change the setting. Changing the
Gaze typing speed will adjust how long the user must fix their gaze on a button before the Task is executed. The scale presents
lower Gaze typing speeds to the left and higher to the right.
Sound feedback
•On - Choose On to activate sound feedback when selecting a button on the Gaze keyboard.
•Off - Choose Off to deactivate sound feedback when selecting a button on the Gaze keyboard.
To finish, select OK to save or Cancel to abort you changes.
8.3 The Taskbar Settings Tab
Select which tasks to use on the Taskbar. For more information about the tasks, see 5.4.3.2 Task Buttons, page 31.
Be aware that the more Tasks used on the Taskbar the more difficult they might become to select on smaller screens.
Toggle the On/Off check box to On for each Task to enable it for use on the Taskbar.
74 8 Gaze Selection Settings Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Toggle the On/Off check box to Off for each Task to disable its use and visibility on the Taskbar.
8.3.1 Maximize Left Click/Tap
Use the Maximize Left Click/Tap feature to expand and emphasize the Left Click/Tap Task on the Taskbar. If it is toggled to
Off, all selected Tasks will be spaced evenly along the Taskbar. If it is toggled to On, all Tasks other than Left Click/Tap will re-
tain their original/smaller sizes and the Left Click/Tap Task will fill the remaining space on the Taskbar. Activating this feature
can greatly expand the active region of the Left Click/Tap Task making it much easier to select.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 8 Gaze Selection Settings 75
9 Product Care
9.1 Temperature & Humidity
9.1.1 General Use
The Tobii Dynavox I-Series+ is best kept in dry conditions at room temperature. The recommended range for temperature and
the humidity value for the device is as follows:
Portable mode:
•Ambient temperature: 0℃to 30℃(32℉to 86℉)
•Humidity: Max 70% (no condensation on the device)
Mounted mode:
•Ambient temperature: 0℃to 37℃(32℉to 99℉)
•Humidity: Max 70% (no condensation on the device)
9.1.2 Transportation and Storage
For transportation and storage excluding batteries the recommended range for temperature and the humidity value for the de-
vice is as follows:
•Temperature: -40℃to 70℃(-40℉to 158℉)
•Humidity: 20% to 70% (no condensation on the device)
The Tobii Dynavox I-Series+ is not waterproof or fully water resistant. The device should not be kept in excessively humid, damp
or otherwise wet conditions. Do not submerge the device in water or in any other liquid. Be careful not to allow liquids to be
spilled upon the device especially in the connector areas without the I/O covers in place(Position 29 in Figure 3.2 Bottom, Left
and Right Side, page 17). The device is registered as IP Class 43 (with I/O covers in place).
9.2 Cleaning
Before cleaning the Tobii Dynavox I-Series+ device shut it down, unplug all cables, attach the I/O covers (Position 29 in Figure
3.2 Bottom, Left and Right Side, page 17) and remove the batteries. Use a soft, slightly damp, lint-free cloth or Alcohol Cleaning
Wipes (i.e. damp cloth with 96% alcohol). Avoid getting moisture in openings on the device. Don’t use window cleaners, house-
hold cleaners, aerosol sprays, solvents, alcohol, ammonia, or abrasives to clean the device.
9.2.1 Cleaning of the Speakers
If the openings for the speakers are clogged carefully use cotton sticks and/or a toothbrush to avoid damaging the IP-protection
for Tobii Dynavox I-Series+ speakers.
9.3 Placement
Only use the recommended mounts specified by the your local reseller or sales represent and make sure that they are mounted
and fastened correctly according to the instructions. Do not place the device on unstable and uneven surfaces.
9.4 Transporting the Tobii Dynavox I-Series+ Device
Disconnect all the cables and use the handle on the back side of the device to hold the device while carrying it.
When you transport the device for repair, shipment or traveling, use the original casing and packaging materials.
Keep the original packaging materials for the Tobii Dynavox I-Series+.
In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the
original packaging (or equal equivalent) is used for shipping.
76 9 Product Care Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
9.5 Disposing of the Batteries
Do not dispose of the batteries in general household or office waste. Follow your local regulations for the disposal of batteries.
9.6 Disposing of the Tobii Dynavox I-Series+ Device
Do not dispose of the Tobii Dynavox I-Series+ Device in general household or office waste. Follow your local regulations for the
disposal of electrical and electronic equipment.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US 9 Product Care 77
Appendix A Support, Warranty, Training
Resources
A1 Customer Support
For support, please contact your local representative or Support at Tobii Dynavox. In order to receive assistance as quickly as
possible, make sure you have access to your Tobii Dynavox I-Series+ device and, if possible, an Internet connection. You
should also be able to supply the serial number of the device, which you find on the back of the device, in the I-Series Control
Center or Gaze Interaction Settings, see 6.9 System, page 57 and 7.7 System Information, page 72.
For further product information and other support resources, please visit the Tobii Dynavox website www.tobiidynavox.com.
A2 Warranty
Please read the Manufacturer’s Warranty paper included in the package.
Please read this User’s Manual carefully before using the device. The warranty is only valid if the device is used according to the
User’s Manual. Disassembling the Tobii Dynavox I-Series+ device will void the warranty.
Keep the original packaging materials for the Tobii Dynavox I-Series+.
In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the
original packaging (or equal equivalent) is used for shipping.
A3 Training Resources
Tobii Dynavox offers a range of training resources for the Tobii Dynavox I-Series+ products and related communication
products. You can find them on the Tobii Dynavox website, www.tobiidynavox.com, including Getting Started Guides, webinars
and Quick guides. The Tobii Dynavox I-Series+ Quick Start Manual is delivered with, and stored on, the
Tobii Dynavox I-Series+ device.
78 Appendix A Support, Warranty, Training Resources Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Appendix B Compliance Information
B1 FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Modifications not expressly approved by Tobii Dynavox could void the user’s authority to operate the equipment
under FCC rules.
B1.1 For P15B Equipment
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
B1.2 For Portable Devices
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device
was tested for typical hand held operations with the device contacted directly to the human body to the sides of the
device. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the
transmitting antenna during transmitting.
B2 Radio Wave Exposure and Specific Absorption Rate (SAR) Information
The Tobii Dynavox I-Series+ device has been tested as a Class 1 Medical Device. Medical electrical equipment such as this
requires special caution regarding Electro-magnetic Compatibility (EMC) and thus needs to be installed and placed into service
according to the information provided in this manual.
Using other cables and accessories other than those provided or that are integrated in the device may affect EMC
performance.
The SAR (Specific Absorbtion Rate) limit as dictated by the FCC (in the USA) is 1.6W/kg averaged over 1 gram of tissue. In
Europe/EU (CE regulations) it is 2.0 W/kg averaged over 10 grams of tissue. The Devices, Tobii Dynavox I–12+ (FCC ID:
W5MTDI12A) and Tobii Dynavox I–15+ (FCC ID: W5MTDI15) have been tested against these SAR limits to maintain
compliance with FCC/CE RF exposure requirements.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
The highest SAR value for the I–12+ device is 0.8 W/kg. The highest SAR value for the I–15+ device is 0.8 W/kg.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US Appendix B Compliance Information 79
Guidance and manufacturer’s declaration –electromagnetic emissions
The Tobii Dynavox I-Series+ is intended for use in the electromagnetic environment specified below. The customer or the
user of the Tobii Dynavox I-Series+ device should assure that it is used in such an environment.
Emissions Test Compliance Electromagnetic environment –
guidance
RF (Radio Frequency
emissions CISPR 11
Group 1 The Tobii Dynavox I-Series+ must emit
electromagnetic energy in order to
perform its intended function. Nearby
electronic equipment may be affected
RF emissions CISPR 11 Class B
Harmonic emissions
IEC 61000-3-2
Not Applicable The product has an active power of
P≤75 W at rated load conditions.
Therefore no limits are applicable.
Voltage Fluctuations/flicker
emissions IEC 61000-3-3
Not Applicable The product has an active power of
P≤75 W at rated load conditions.
Therefore it is not likely to produce
voltage fluctuations or flicker above the
limit values.
The Tobii Dynavox I-Series+ device should not be used adjacent to or stacked with other equipment.
Guidance and manufacturer’s declaration –electromagnetic immunity
The Tobii Dynavox I-Series+ device is intended for use in the electromagnetic environment specified below. The customer or
the user of the Tobii Dynavox I-Series+ device should assure that it is used in such an environment.
IMMUNITY test IEC 60601 test level Compliance level Electromagnetic environment
–guidance
Electrostatic discharge
(ESD)
IEC 61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood,
concrete or ceramic tile. If
floors are covered with
synthetic material, the
relative humidity should be at
least 30 %.
Electrical fast transient/burst
IEC 61000-4-4
± 2 kV for power supply
lines
± 1 kV for input/output lines
± 2 kV for power supply
lines
± 1 kV for input/output lines
Mains power quality should
be that of a typical
commercial or hospital
environment.
Surge
IEC 61000-4-5
± 1 kV line to line ± 1 kV line to line Mains power quality should
be that of a typical
commercial or hospital
environment.
80 Appendix B Compliance Information Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Guidance and manufacturer’s declaration –electromagnetic immunity
The Tobii Dynavox I-Series+ device is intended for use in the electromagnetic environment specified below. The customer or
the user of the Tobii Dynavox I-Series+ device should assure that it is used in such an environment.
IMMUNITY test IEC 60601 test level Compliance level Electromagnetic environment
–guidance
Voltage dips, short
interruptions and voltage
variations on power supply
input lines.
IEC 61000-4-11
< 5 % UT (>95 % dip in UT)
for 0.5 cycles.
40 % UT (60 % dip in UT)
for 5 cycles.
70 % UT (30 % dip in UT)
for 25 cycles.
< 5 % UT (>95 % dip in UT)
for 5 s
< 5 % UT (>95 % dip in UT)
for 0.5 cycles.
40 % UT (60 % dip in UT)
for 5 cycles.
70 % UT (30 % dip in UT)
for 25 cycles.
< 5 % UT (>95 % dip in UT)
for 5 s
Mains power quality should
be that of a typical
commercial or hospital
environment. If the user of
the Tobii Dynavox I-Series+
device requires continued
operation during mains
interruptions, it is
recommended that the
Tobii Dynavox I-Series+
device batteries are in place
or that the device be
powered from an
uninterruptable power supply
(UPS).
UT is at 100 VAC 60 Hz or
230 VAC 50 Hz.
Power frequency (50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m 3 A/m Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.

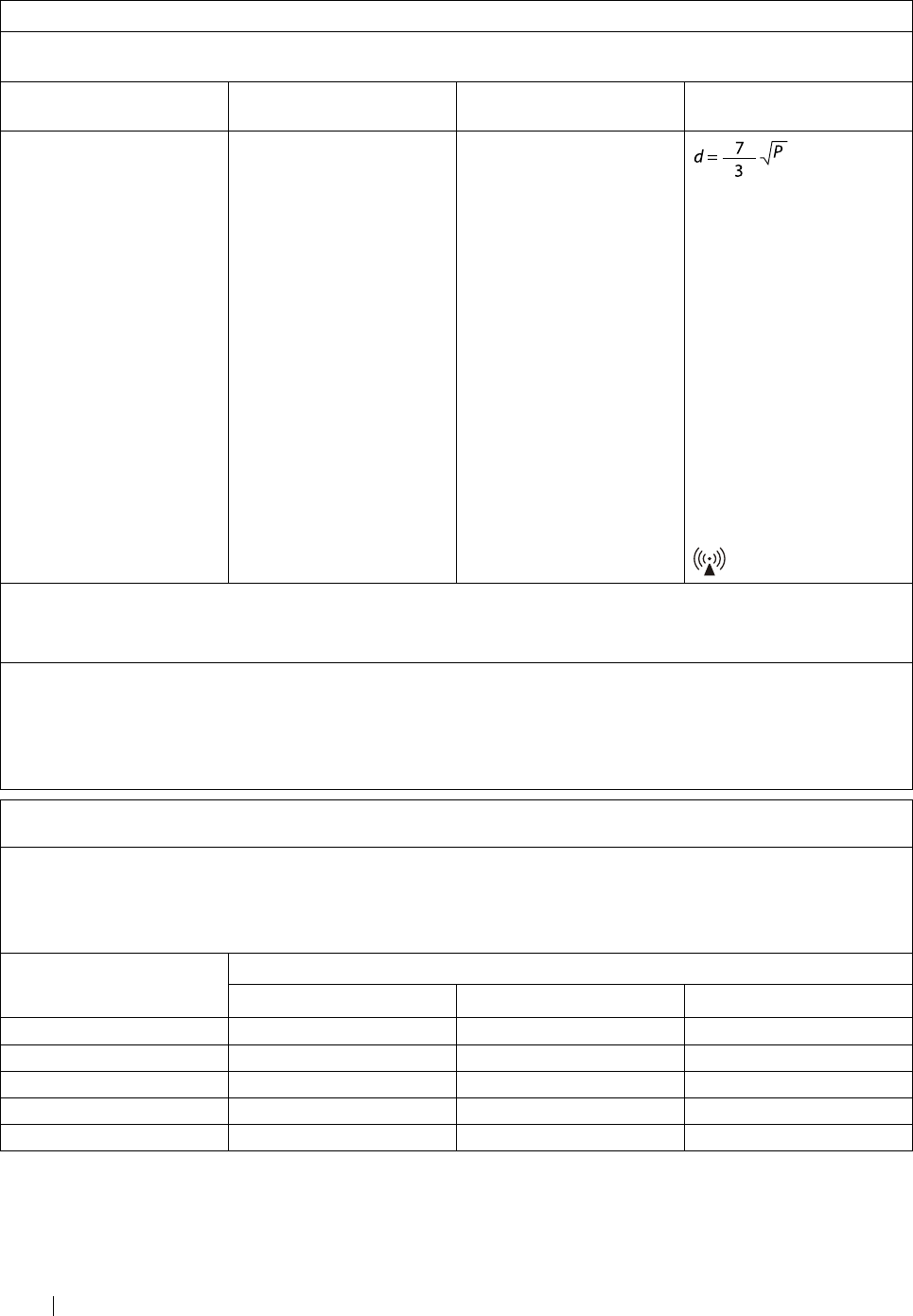

Guidance and manufacturer’s declaration –electromagnetic immunity
The Tobii Dynavox I-Series+ device is intended for use in the electromagnetic environment specified below. The customer of
the user of the Tobii Dynavox I-Series+ device should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment
- guidance
Portable and mobile RF
communications equipment
should be used no closer to
any part of the
Tobii Dynavox I-Series+
device, including cables,
than the recommended
separation distance
calculated from the equation
applicable to the frequency
of the transmitter.
Recommended separation
distance
Conducted RF
IEC 61000-4-6
3 Vrms 150 kHz to 80 MHz 3 V
for 150 kHz to
80 MHz
Radiated RF
IEC 61000-4-3
3 V/m 80 MHz to 2.5 GHz 3 V/m
for 80 MHz to
800 MHz
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US Appendix B Compliance Information 81
Guidance and manufacturer’s declaration –electromagnetic immunity
The Tobii Dynavox I-Series+ device is intended for use in the electromagnetic environment specified below. The customer of
the user of the Tobii Dynavox I-Series+ device should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment
- guidance
for 800 MHz to
2.5 GHz
where "P" is the maximum
output power rating of the
transmitter in watts (W)
according to the transmitter
manufacturer and "d" is the
recommended separation
distance in meters (m).
Field strengths from fixed RF
transmitters, as determined
by an electromagnetic site
survey,Ishould be less than
the compliance level in each
frequency range.ii
Interference may occur in the
vicinity of equipment marked
with the following symbol.
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflected from structures, objects and people.
i. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and
FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Tobii Dynavox I-Series+
device is used exceeds the applicable RF compliance level above, the Tobii Dynavox I-Series+ device should be observed to verify normal operation. If
abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Tobii Dynavox I-Series+ device.
ii. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distances between portable and mobile RF (Radio Frequency) communications equipment and
the Tobii Dynavox I-Series+ device.
The Tobii Dynavox I-Series+ device is intended for use in the electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the Tobii Dynavox I-Series+ device can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF communication equipment
(transmitters) and the Tobii Dynavox I-Series+ device as recommended below, according to the maximum output power of
the communications equipment.
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5 GHz
0.01 0.12 m 0.12 m 0.24 m
0.1 0.37 m 0.37 m 0.74 m
1 1.2 m 1.2 m 2.4 m
10 3.7 m 3.7 m 7.4 m
100 11.7 m 11.7 m 23.4 m

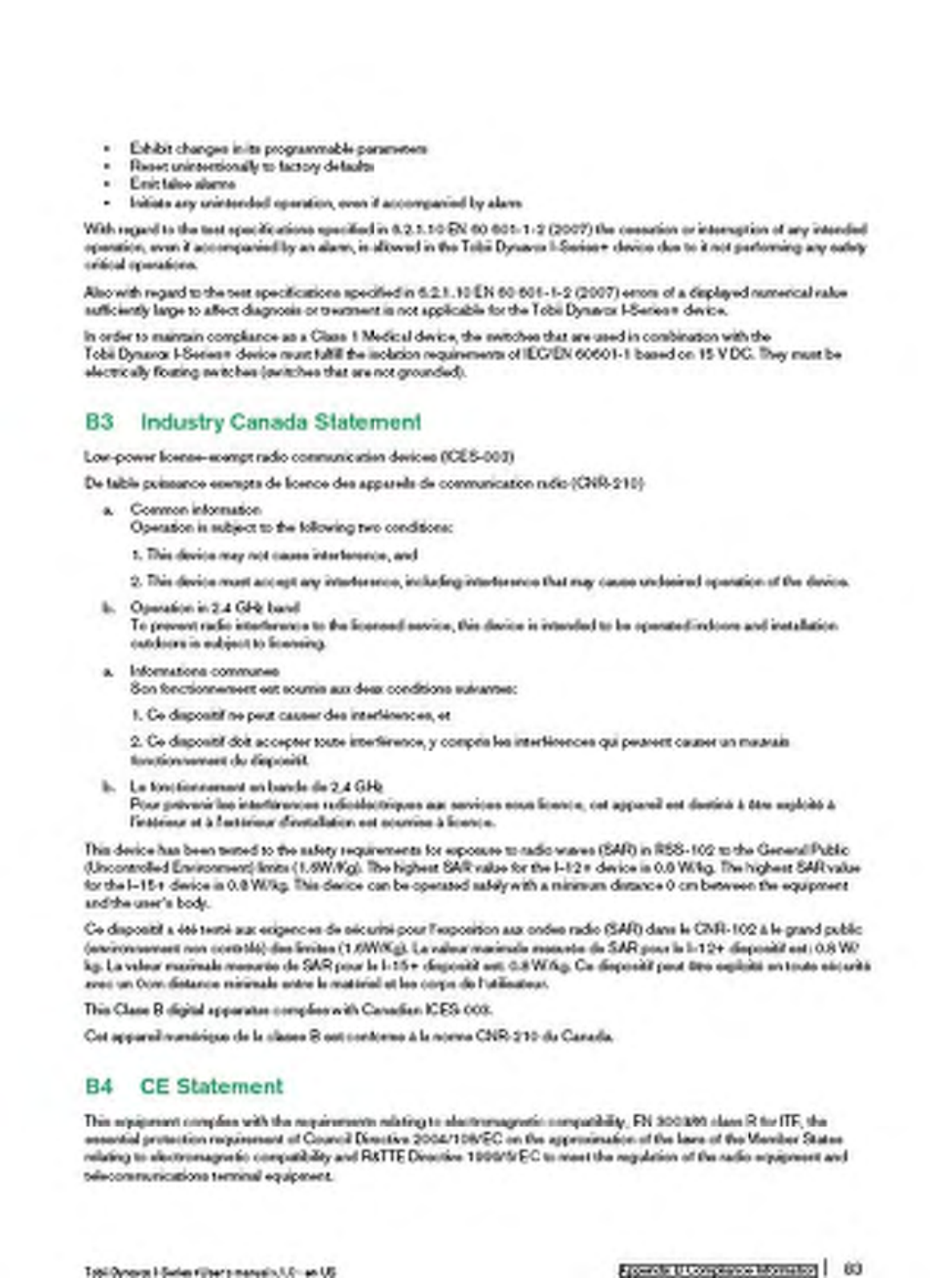

Under test specifications specified in 6.2.1.10 EN 60 601-1-2 (2007) the Tobii Dynavox I-Series+ device shall not:
•Exhibit component failure
82 Appendix B Compliance Information Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US

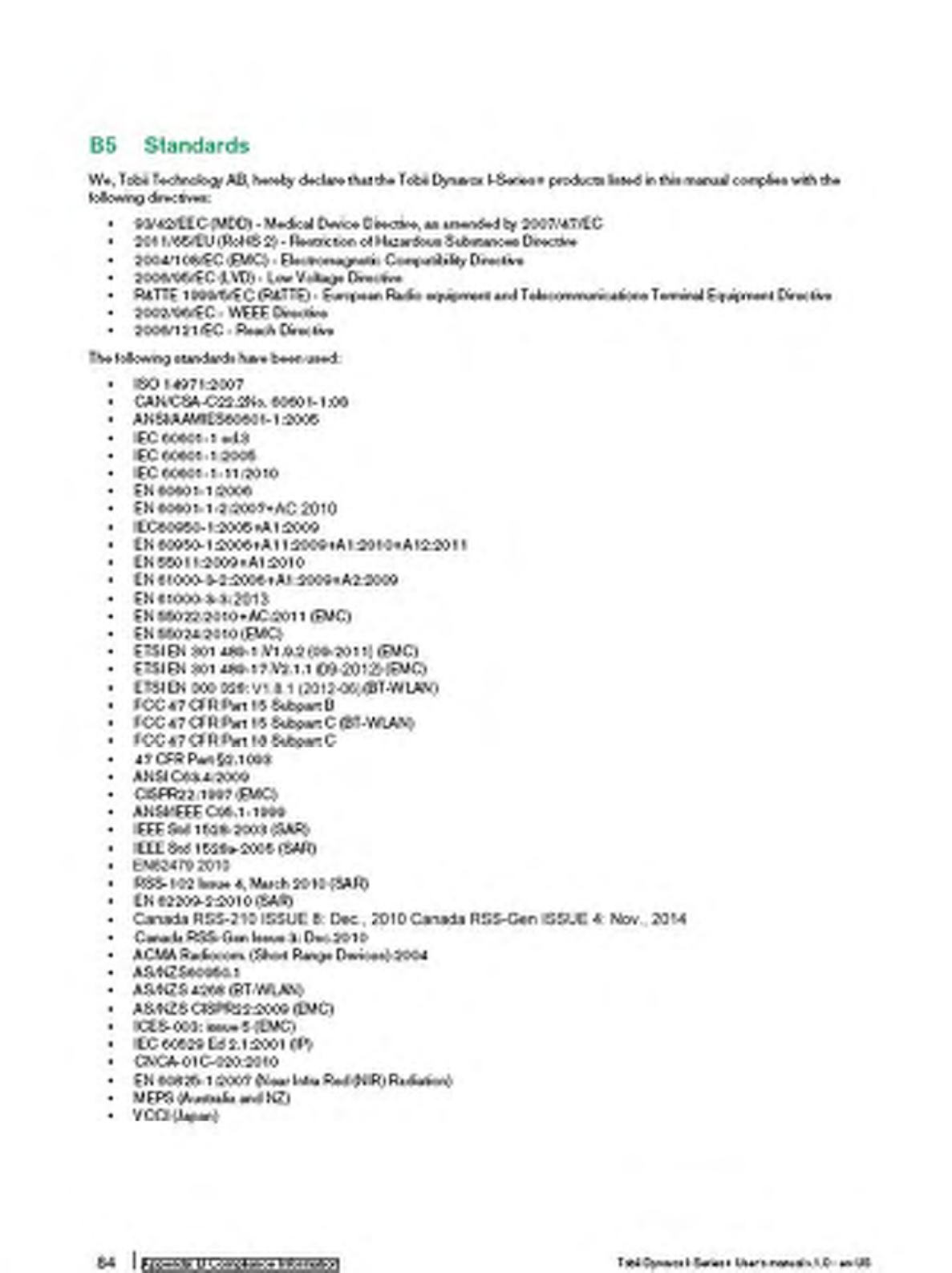

Appendix C Computer Device States of
Operation
Table C.1 Computer Device States of Operation
Advanced Configuration and
Power Interface (ACPI)
State
Description
S0 (Working) Normal operating state - Windows session is running
Display will dim and turn off after a time of idle. The 1, 2, Menu and Volume Up and Down
buttons are however always illuminated in state S0.
S3 (Sleep) The device is sleeping. The Windows session is suspended to RAM, allowing a quick
resume to state S0 by:
1. Pressing the power button
2. Pressing a button connected to a switch port configured to have power on functionality
3. Wake on Gaze (if enabled)
The device is consuming a small amount of power in state S3. Fully charged batteries (no AC
adapter attached) will last a minimum of 24 h in state S3.
Windows Critical battery level is monitored in state S3 to prevent the batteries from being
fully drained. The device will enter state S4 (Hibernate) if the critical value is reached.
S4 (Hibernate) The device is in hibernation. The Windows session is suspended to the SSD (hard drive) and
the device is powered off. The session can be resumed to state S0 by:
1. Pressing the power button
2. Pressing a button connected to a switch port configured to have power on functionality
S5 (Soft Off) Windows is shut down. The device is powered off. Batteries (not drained) and/or AC adapter
attached.
G3 (Mechanical Off) All power sources removed (no batteries and no AC adapter attached).
Table C.2 Power Button Normal Operation, LED Behavior
ACPI State
Power Button Illumination Button 1, 2, Menu, Volume
Up and Volume Down
Buttons
White Illumination
No Battery Charging Battery Charging
S0 (Working) Green Light Blue Light ON
S3 (Sleep) Green Blinking Light Blue Blinking Light OFF
S4 (Hibernate) OFF Blue Light OFF
S5 (Soft off) OFF Blue Light OFF
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US Appendix C Computer Device States of Operation 85
Table C.3 Power Button Error or Warning, LED Behavior
Error or Warning ACPI State and condition Power Button llumination Comment
Chassis near overheating In state ACPI S0
(Working), when the
chassis temperature is ≤1
degree Celsius from the
Maximum Threshold
according to the Safety
Settings specified in Table
D.1 Maximum Allowed
Temperature, page 87.
Purple Light Purple light as a warning to
the user when the Device is
close to the overheat
threshold.
Chassis overheats In state ACPI S0
(Working), when the
chassis temperature is > the
Maximum Threshold
according to the Safety
Settings specified in Table
D.1 Maximum Allowed
Temperature, page 87.
Purple Quick Blinking Light The Device will blink the LED
during the hibernate or
shutdown process.
Chassis overheated In state ACPI S4
(Hibernate) and ACPI S5
(Soft Off), when the power
buttonIis pressed.
Purple Quick Blinking Light
for 5 seconds.
The Device will blink the LED
and remain in the state ACPI
S4 (Hibernate) or ACPI S5
(Soft Off).
The Device will
start up and be
operational for up
to 9 minutes if the
temperature does
not drop below the
Maximum
Threshold
according to the
Safety Settings
specified in Table
D.1 Maximum
Allowed
Temperature, page
87 within the 9
minutes.
Low Battery Level for
Battery Packs
In state ACPI S4
(Hibernate) and S5 (Soft
off), when the power buttonI
is pressed and:
1. No DC plug inserted,
and
2. Battery level is at or
below the critical level
Blue Quick Blinking Light for
5 seconds.
i. Or a switch port configured to have power button functionality.
86 Appendix C Computer Device States of Operation Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Appendix D Maximum Allowed
Temperature
Table D.1 Maximum Allowed Temperature
Allowable maximum temperature for the Tobii Dynavox I-Series+ metal external surfaces which are
likely to be touched
Maximum Temperature
℃/℉
Portable
Mode
Mounted
Mode
Mounted Mode temperature threshold:
External surfaces temperature allowed 55/131
External surfaces temperature allowed in an area unlikely to be touched, see position 1 in Figure
D.1 Temperature Threshold Area, page 87 for the position of this area. 60/140
Portable Mode temperature threshold:
External surfaces temperature allowed 43/109
External surfaces temperature allowed in an area unlikely to be touched, see position 1 in Figure
D.1 Temperature Threshold Area, page 87 for the position of this area.
46/115
Figure D.1 Temperature Threshold Area
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US Appendix D Maximum Allowed Temperature 87
Appendix E Technical Specifications
E1 Standard Tobii Dynavox I-Series+
Standard Tobii Dynavox I–12+ Tobii Dynavox I–15+
Type/Model I–12+ ETR I–15+ ETR
Screen 12.1ʺ, Aspect ratio: 4:3, LED Backlight
Unit,
White Luminance 500 cd/m2
15.0ʺ, Aspect ratio: 4:3, LED Backlight
Unit
White Luminance 400 cd/m2
Screen Resolution 1024 × 768 pixels (XGA)
Touch Panel Projected Capacitive Touch with Gorilla® Glass, 10 point multi touch
Dimensions (WxHxD) 30,7 × 27,4 × 10,5 cm
12.1 × 10.8 × 4.1 inches
36,9 × 32,6 × 11,2 cm
14.5 × 12.8 × 4.4 inches
Weight 2,8 kg
6.2 lbs
3,8 kg
8.4 lbs
Speakers 2 × 3 W Closed Box Speakers
Microphone 1 × Analog Microphone
Processor Intel® Celeron Quad Core Processor J1900 (2M Cache, 2 Ghz)
RAM 4 GB DDR3
Operating system Microsoft Windows 8.1
Hard disk drive 2.5ʺSSD 120 GB minimum
SD-Card MicroSD-Card 32 GB
Connectors
1 × Connector for an HDMI 1.3 Connector Type A cable
2 × USB 2.0 (Current limit = 1000 mA)
1 × USB 3.0 (Current limit 1500 mA)
1 × RJ45 100/1000 Mbit/s (Ethernet)
2 × 3.5 mm Switch connector interface, (Pin out for mono plug: Sleeve =
Common ground, Tip = Signal)
1 × 3.5 mm”Headphone jack (stereo) with jack detection
1 × 24 VDC in 2.5/5.5 mm (Power connector)
Buttons 1 × Power On
1 × Volume Up
1 × Volume Down
1 × Menu
2 × Programmable
WLAN (optional) IEEE 802.11 b/g/n Dual antenna diversity system
Bluetooth® (optional) Bluetooth® 3.0+HS
Dedicated for Mobile Phone Communication
IR Remote Control (Environmental
Control Unit)
GEWA Programmable IR Remote Control (Environmental Control Unit),
19 –455 kHz, 940 nm, compatible with a wide range of remote controls
Resting Orientation: 1 × IR filter window with 1 × IR Receive Sensor, 3 × IR
Transmit Diodes and 1 × Red Status LED
Upright Orientation: 1 × IR filter window with 4 × IR Transmit Diodes
88 Appendix E Technical Specifications Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Standard Tobii Dynavox I–12+ Tobii Dynavox I–15+
Type/Model I–12+ ETR I–15+ ETR
Camera User Camera (back) 5 MP AF (Auto Focus)
Web Camera (front) 2 MP FF (Fixed Focus)
Eye Tracker Tobii IS20 Module
Battery Run TimeI~9 h ~9.5/8ii h
Battery Charge Time Maximum 5.4 h (0-100%)
Battery Storage Time Maximum 6 months @ charge ≥40%
Deskstand Integrated
Mounting Systems Supported Tobii Dynavox QR adapter plate for Daessy and REHAdapt
Power Supply Adapter Technology Co. Ltd, ATM065-A240
Input: Universal 100 ~ 240 VAC / 50 ~ 60 Hz
Output: +24VDC / 0~2.71A
IP class IP 43 (with I/O covers in place)
i. Indoor with continuous communication and with Gaze Interaction if applicable. ~24 hours with a Power optimized scenario.
ii. 9.5 hours without the Eye tracker activated, 8 hours with the Eye tracker activated
E2 Battery pack
Item Specification Remark
Battery Technology Li-Ion rechargeable battery pack with
gas gauge (SMBus v1.1 interface)
Cell 6× Panasonic NCR18650 (3S2P)
Battery Pack Capacity 62.64 Wh Initial capacity, new battery pack
Nominal Voltage 10.8 V
Charge Time Maximum 5.4 h Charge from 0 to 100%
Cycle Life 500 cycles Minimum 75% of initial capacity
remaining
Allowable Operating Temperature 0–45 ℃, 45-85%RH Charge condition
-20 –60 ℃, 45-85%RH Discharge condition
Storage Temperature -20 –35 ℃, 45-85%RH 1 year
-20 –40 ℃, 45-85%RH 6 months
-20 –45 ℃, 45-85%RH 1 month
-20 –50 ℃, 45-85%RH 1 week
Storage TimeIMaximum 6 months @ charge ≥40%
Do not long time store
battery packs with less than
40% charge level
i. Batteries shall not be stored in the device
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US Appendix E Technical Specifications 89
E3 Eye Tracker
Technical Specifications Tobii IS20 Module
Working Distance 40 - 90 cm
18 - 35 inches
Freedom of Head Movementi
@ 70 cm / 27.5 inches
(Width x Height)
50 × 36 cm
20 × 14 in
Head Movement Speed (optimal) 11.8 in/s
30 cm/s
Gaze Data Rate 30 Hz
Gaze Accuracyii
Under ideal conditions 0.4° (Std dev 0.1°)
Across 30 × 20 × 20 cm head box 0.5° (Std dev 0.2°)
Screen Size <22ʺ
Distance (from screen) 45 —85 cm
17.7 —33.5 in
Track box size (Width × Height) 27 × 23 —52 × 44 cm
10.6 × 9.1 —20.5 × 17.3 in
Track box depth 40 cm
15.7 in
Gaze Precision (=sample to sample noise)iii
Under ideal conditions, without filter, on artificial eyes Pending
Across head box, without filter, on human eyes 0.4° (Std dev 0.1°)
Mounting Built in
Power Supply Built in
i. Freedom of head movement describes the volume in front of the tracker in which the user must have at least one of the eyes. The numbers are
specified parallell/orthogonal to screen surface, assuming eye tracker is at 20 degree angle to screen.
ii. Gaze accuracy describes the angular average distance from the actual gaze point to the one measured by the eye tracker.
Accuracy under ideal conditions is measured with users placed in the center of the eye tracker track box with the head resting on a chin rest, and the
room and screen illumination constant at 300 lux.
Accuracy across head box is measured with users after calibration systematically positioned at varying positions ranging from center of the head box
up to +/- 15 cm horizontal, +/- 10 cm vertical and +/- 10 cm distance.
Accuracy across varying background illumination is measured with users’head resting on a chin rest, and after calibration modifying background
illumination from 1 to 1000 lux.
iii. Gaze Precision describes the point-to-point variation between individual gaze samples (here specified with binocular data, ie both eyes, and
measured on artificial eyes). Gaze Precision with Stampe filter is with Stampe stage 2 noise-reduction algorithm applied to raw data (Stampe ,
Behavior Research Methods, Instruments & Computers 1993, 25 (2), 137-142).
Precision without filter is based on raw data, without any de-noising filter applied, either inside or outside the eye tracker.
Precision under ideal conditions is measured with users placed in the center of the eye tracker track box with the head resting on a chin rest, and the
room and screen illumination constant at 300 lux.
Precision across head box is measured with users after calibration systematically positioned at varying positions ranging from center of the head box
up to +/- 15 cm horizontal, +/- 10 cm vertical and +/- 10 cm distance.
90 Appendix E Technical Specifications Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US
Appendix F Approved Accessories
Description Model Tobii Dynavox Part No.
Tobii Dynavox I-Series+ AC Adapter
(Power Supply)
AdapterTech ATM065–A240 12002664
Battery pack TISB1 12004072
For information about the latest approved Tobii Dynavox Accessories, please visit the www.tobiidynavox.com website or contact
your local Tobii Dynavox reseller.
Tobii Dynavox I-Series+ User’s manual v.1.0 - en-US Appendix F Approved Accessories 91
