Tobii TOBIIC12 A Laptop Computer with Bluetooth, W-iFi and GSM Modules User Manual Tobii C12

Tobii Technology AB A Laptop Computer with Bluetooth, W-iFi and GSM Modules Tobii C12

Users Manual

Tobii C12 user manual R090119
1
Tobii C12 User Manual
Tobii Technology
Tobii C12 user manual R090119
2
Important Safety information about C-Series devices .......................................................4
Introduction................................................................................................................................5
About C-Series devices ........................................................................................................5
Support....................................................................................................................................5
Warranty..................................................................................................................................5
Package contents.................................................................................................................5
Cleaning the C-Series device .............................................................................................6
C-Series........................................................................................................................................6
C-Series overview ..................................................................................................................6
Batteries and charging.........................................................................................................9
Install batteries .......................................................................................................................9
How to start and shut down ..............................................................................................10
Display and touch screen..................................................................................................10
Ports........................................................................................................................................10
Built in functionality..............................................................................................................10
WLAN..................................................................................................................................11
Bluetooth...........................................................................................................................11
Camera .............................................................................................................................11
Infrared environmental control unit..............................................................................11
Microphones.....................................................................................................................11
Speakers and headphones ...........................................................................................11
Mobile phone...................................................................................................................11
Device buttons.....................................................................................................................11
User profile card...................................................................................................................12
C-Series program.....................................................................................................................12
Software Overview..............................................................................................................12
Installation.............................................................................................................................12
C-Series Hardware Options program...............................................................................12
Audio settings...................................................................................................................12
Backlight............................................................................................................................13
Buttons ...............................................................................................................................13
Switches.............................................................................................................................14
Touch Screen....................................................................................................................14
Tobii C12 user manual R090119
3
System Information..........................................................................................................14
Technical specifications.........................................................................................................14
Warining ...................................................................................................................................15
Contact information...............................................................................................................17
Tobii C12 user manual R090119
4
ImportantSafetyinformationaboutC‐Seriesdevices
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generate, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment under FCC rules.
To ensure safe operation of your C-Series device, please note the following:
Caution: C-Series devices contains Lithium Ion batteries. Do not expose batteries to fire
or temperatures above 45°C (113°F). These conditions may cause battery to generate
heat, ignite or explode.
Caution: Do not disassemble or harm the battery. Follow local law when disposal of
battery is needed.
Caution: For safe operation of C-Series devices, use only charger, batteries and
accessories approved by Tobii Technology.
Caution: Do not open the metal casing of C-Series devices, as it is a hazard risk. The unit
contains no serviceable parts.
Avoiding hearing damage
Permanent hearing loss may occur if ear buds or headphones are used at high volume.
Set the volume to a safe level. You can adapt over time to a higher volume of sound
that may sound normal but can be damaging to your hearing. If you experience
ringing in your ears, please lower the volume or stop using the earphones. The louder
the volume, the less time is required before your hearing could be affected. Hearing
experts suggest that to protect your hearing:
• Limit the amount of time you use ear buds or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
To establish a safe volume level:
• Set your volume control at a low setting.
Tobii C12 user manual R090119
5
• Slowly increase the sound until you can hear it comfortably and clearly, without
distortion.
Introduction
The Tobii C12 is a portable communication device with a 12.1” color TFT display with a
resistive touch panel. It is one of the products in the C-series which also consist of the
C12.
C-Series devices are designed to be portable, easy to use, and efficient for
communication. The C-Series devices are adaptable and able to meet the needs of a
wide variety of users, by supporting multiple access methods and a variety of screen
sizes , to mention just a few of the many flexible features!
This User manual covers:
• Hardware functions of the C-Series devices
• C-Series Hardware options application
AboutC‐Seriesdevices
The C-Series speech generating devices are easy to use, easy to carry, and efficient for
communication. They are intended to be used as Augmentative/Alternative
Communication (AAC) devices for daily communication needs. They provide highly
intelligible speech output for independent communication in a variety of environments.
Support
For support please contact your local representative. In order to receive support as
quickly as possible, please make sure you have both your C-Series device and an
internet connection with you when you contact support.
Warranty
Please read the user manual carefully before using the unit. The warranty is only valid if
the unit is used according to the user manual and the warranty seal is not broken.
Packagecontents
The items below are included with your C-Series package.
- A Tobii C12
- Two rechargeable LiIon battery packs
- A DC power adapter/charger including 4 different plugs for different regions.
Tobii C12 user manual R090119
6
- A carrying strap
- A user manual with CD
- A quick start guide
- 3 pairs of side covers
CleaningtheC‐Seriesdevice
To clean the C-Series device, unplug all cables and turn it off. Use a soft, slightly damp,
lint-free cloth. Avoid getting moisture in openings. Don’t use window cleaners,
household cleaners, aerosol sprays, olvents, alcohol, ammonia, or abrasives to clean
the device.
TobiiC‐Series
C‐Seriesoverview
A variety of communication methods allow Tobii C12 users the ability to achieve their
full potential. A user can communicate via text or symbols to generate synthesized or
digitized speech for face-to-face interaction or connect through email, text messages
or chat. With the Tobii C12, users also have the freedom and flexibility to write and edit
documents, surf the Internet, play music and games, control a TV, DVD and other
household appliances (additional equipment required) and even plan and manage
their time – making independence easy.
Hardwareoverview
The C-Series device has a color TFT display with a touch screen. Other features are
pointed out on next page. A more detailed description of the features can be found on
the following pages.
Tobii C12 user manual R090119
7

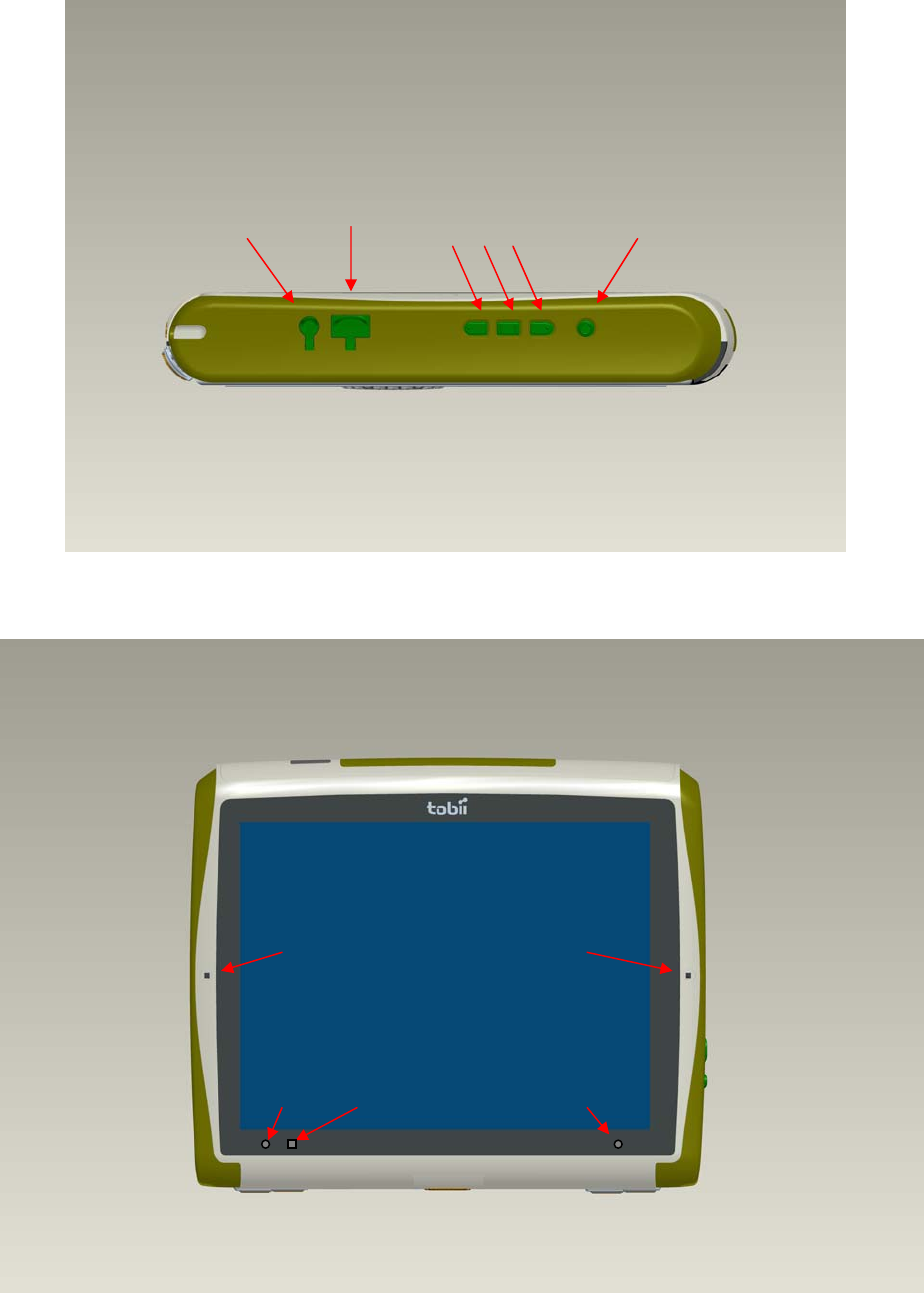

FRONT VIEW
FRONT SPK REMOTE CONTRL

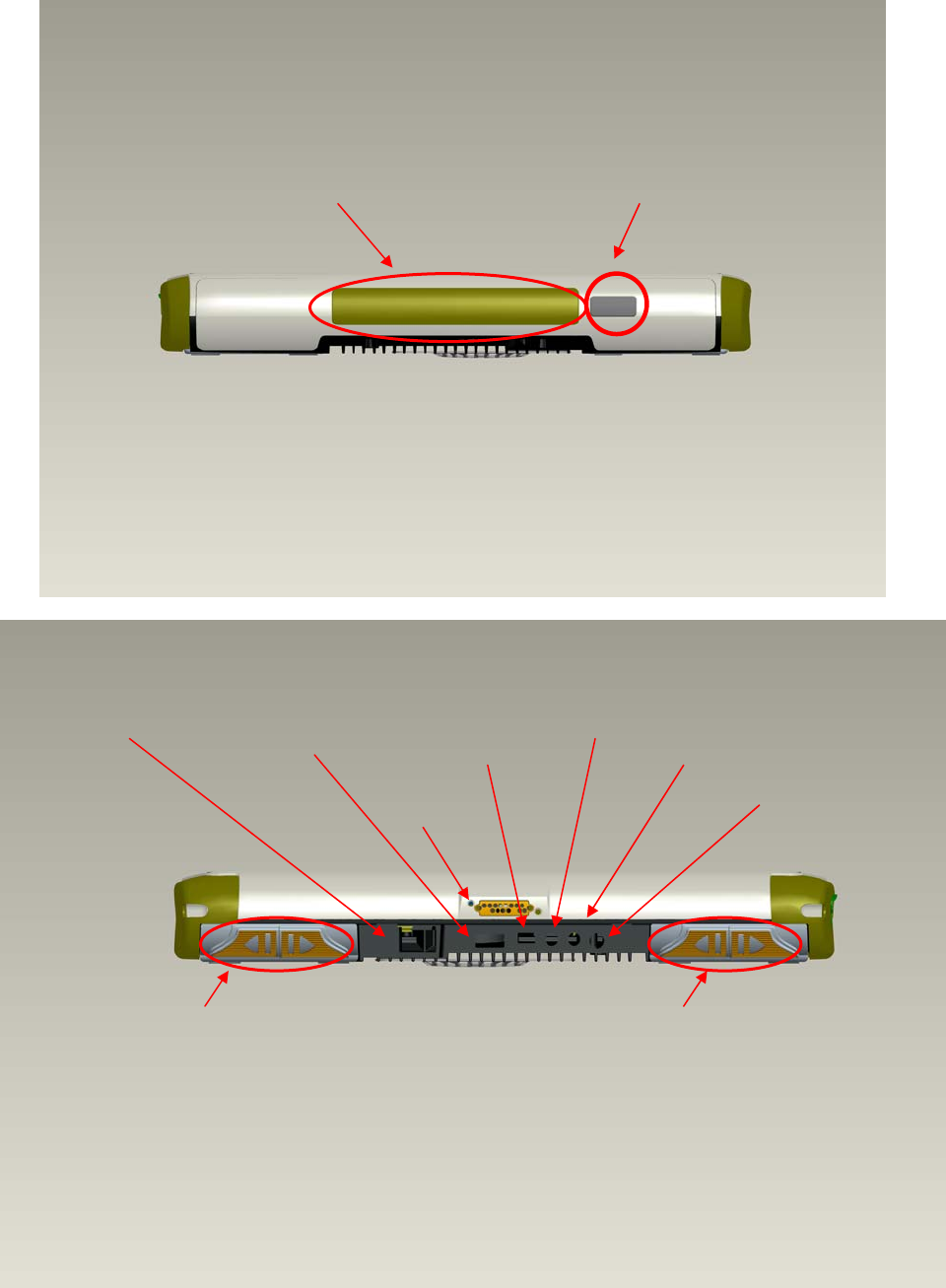

REAR VIEW
SWITCH 2
SWITCH 1
MINI USB USB
LAN SECTION
IA MODULE CHARGE
BATTERY LOCK BATTERY LOCK
Tobii C12 user manual R090119
8
RGB LED RGB
Left Mic.
Light
sensor
Right Mic.
Touch screen
Headphone USB Function keys Power on/off
Side view
Top view
Strap holders
Tobii C12 user manual R090119
9
Batteriesandcharging
A C-Series device has two fully interchangeable batteries. One battery can be
replaced without switching off the unit, AS LONG AS the (existing) battery is sufficiently
charged. To check the status of a battery not currently in the C-Series device, press the
Indicator button on the side of the battery. 5 LEDs (light-emitting diodes) will indicate
the remaining charge, i.e. 2 lit LEDs indicate 40% charge.
The batteries should only be charged using the supplied adapter. Charging of fully
discharged batteries takes up to 12 hours. The device can be used while charging.
Installbatteries
When a C-Series device is delivered the batteries are not installed. Batteries are
delivered half charged (2 or 3 of the 5 LEDs are lit when the indicator button on the side
of the battery is pushed).
To install batteries:
Place the C-Series device face down, insert a battery in its position and push it down
until it locks in place. Make sure that the locking function clicks in closed position.
You can use the C-Series device right away, but it is recommended that the batteries
are charged for at least 2 hours by connecting the power delivered with the C-Series
device.

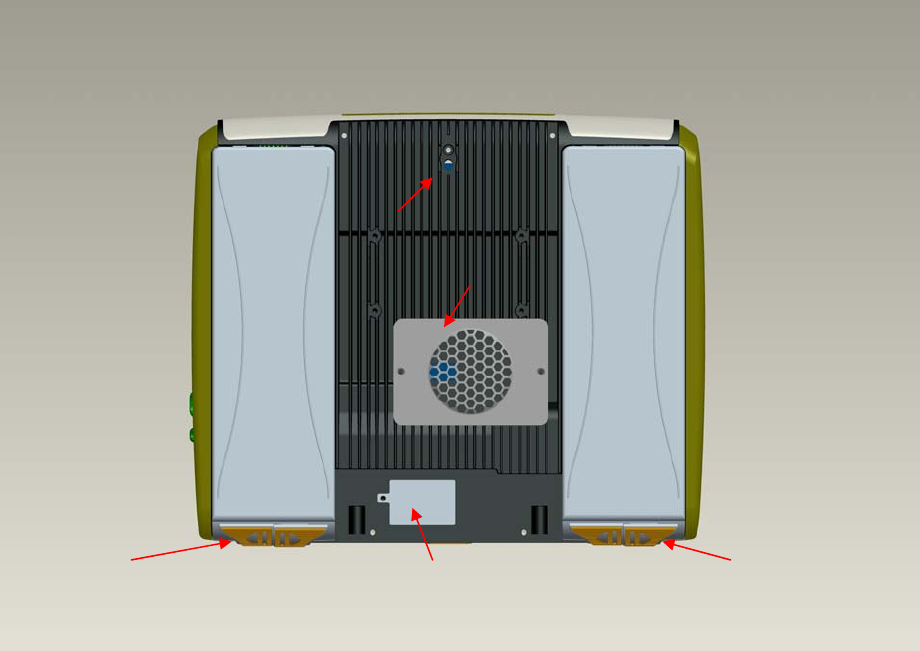

Left
Battery Right
Battery
SIM card cover
Fan
WEBCAMERA
Battery lock Battery lock
Bottom view
Tobii C12 user manual R090119
10
Howtostartandshutdown
The C-Series device is started by pressing the power button on the right side of the unit.
When Power On is pushed, the LEDs on both sides of the display turns green until the
display starts.
Shutting down the C-Series device should always be done from the start menu in
Windows when possible. If this is not accessible, the power button at the right of the
device can be held down for five seconds to shut it down.
Displayandtouchscreen
The C-Series is available in two sizes, the Tobii C8 and the Tobii C12. Both devices have a
color display with a touch screen.
C8 has a resolution of 800 by 600 pixels and an 8.4” screen.
C12 has a resolution of 1024 by768 pixels and a 12.1” screen.
The backlight intensity can be adjusted manually or automatically using the light sensor
below the screen. For setup of this feature see chapter Backlight.
The touch screen interprets the user’s touch and moves the cursor wherever the user
moves his or her finger. The touch screen can be “calibrated” for the user’s individual
touch in the separate touch screen software or in C-Series Hardware option, see
chapter Touch Screen
Use your finger or a stylus on the touch screen; do not use sharp objects that can
scratch or puncture it.
Ports
The right side of the unit has two ports, one USB port and one port for connecting
headphones.
The back of the device has the following ports:
- A standard RJ 45 connector to connect to a 100/10 Mbps LAN
- A USB port
- A mini USB port
- Two ports for switches
- A DC power connector
Builtinfunctionality
The C-Series has several built in functions, some of which come as standard and others
that can be ordered as additional functions.
Tobii C12 user manual R090119
11
Standard functions: WLAN, Bluetooth, camera, ECU (environmental control unit),
microphones, speakers and headphones
Additional functions: Mobile phone
Each function is described below.
WLAN
The built in WLAN enables connection to a wireless network following the standard
802.11b/g. To check that the built in WLAN is activated, check the Wireless section of
the C-Series Hardware Options.
Bluetooth
The built in Bluetooth enables connection to wireless devices following the Bluetooth
standard. To check that the built in Bluetooth is activated, check the Wireless section of
the C-Series Hardware Options.
Camera
The built in camera allows you to take snapshots of items in front of the C-Series device
Infraredenvironmentalcontrolunit
The C-Series device contains a built in infrared environmental control unit (Infrared
ECU). This can be used to control TIRA/GEWA units, X10 units or other equipment with IR
remote controls like TV-sets or DVDs etc.
Microphones
The C-Series units have two built in microphones placed below the screen.
Speakersandheadphones
The speakers and the headphone can be configured in C-Series Hardware Options
and/or Vista Control Panel.
Mobilephone
To use the built in Mobile phone (optional accessory) a valid SIM card from a network
operator is needed. The SIM card should be installed beneath the SIM card cover on
the back of the C-Series device.
The Mobile phone can be used to:
- Send and receive SMS and MMS messages
- Make telephone calls
- Answer telephone calls
Devicebuttons
On the side of the C-Series device there are four buttons. One is the power on/off
button. The functions of the other three buttons are customizable. For more information
please read under Button in chapter C-Series program.
Tobii C12 user manual R090119
12
Userprofilecard
The C-Series device comes with a 1GB user profile card installed. The purpose of this
card is to store personal settings and data. . In case of damage to the C-Series device,
the profile card can be inserted into a new device for quick and easy retrieval and
restoration of personal data and settings.
TobiiC‐Seriesprogram
SoftwareOverview
This Software chapter describes the software made by Tobii Technology that comes
with the C-Series devices. This software is referred to as the C-Series Hardware Options
and interfaces with the C-Series device features described previously in this manual.
Installation
The C-Series devices are delivered with all ordered software installed and ready to use.
If a reinstallation becomes necessary at any stage, a setup file and a compact disc is
also included.
C‐SeriesHardwareOptionsprogram
To view C-Series Hardware Options; on the Start menu, click Control Panel, and then
click C-Series Hardware Options, if the Control Panel is in Classic View. If it is in Control
Panel Home it will be found by clicking Additional Options.
Select in the list to the left which option you want to change and the different option to
be set will be shown to the right.
Click OK, down in the right corner, and your changes will be saved and C-Series
Hardware Options program will be closed.
Changing the settings here will affect the C-Series programs and hardware. However,
some individual settings for other software programs (such as your communication
software) need to be changed within that program’s settings menu.
Audiosettings
The speakers can be configured to output either one of the left or right channel or both
channels (stereo) or none (mute). This is done by clicking one of the options below
Speaker output.
For enabling usage of headphones, select the Enable headphones check box. To
disable, click to clear the Enable headphones check box.
Tobii C12 user manual R090119
13
Backlight
The screen brightness level can be adjusted manually by moving the slider, to the right
to increase the brightness and to the left to decrease it. The backlight needs a short
moment to adjust when changing the brightness.
Note that using a darker setting can make your battery last longer.
Buttons
On the side of the device there are three buttons: A, B and C. The functionality of these
buttons can be customized.
Click Set action to view the dialog box where you can select the action you would like
the button to perform. By clicking one of the actions the options for this action will be
shown below.
Description of the different actions:
Send Input – choose either to send a keyboard input, a mouse click or a specified text
by clicking the option you want the button to perform.
Send keyboard input – In the Send keyboard input list click the keyboard stroke
you want to be executed.
Send mouse click – In the Send mouse click list click the wanted mouse click; left
middle or right.
Send text – In the Send text box type the text you want to send.
Start Application – select the application you want to start, either from the list of
application or browse it by clicking the browse button. More information here…
Volume – choose to increase, decrease or mute the volume by clicking the preferred
option.
Backlight – choose to either increase or decrease the screen backlight by clicking the
preferred option.
Eye Tracking – to enable this option you have to install Tobii eye tracking program, see
chapter Eye tracking for installation instructions.
The eye tracking options available to set are:
Use for eye tracking activation
Show track status
Calibrate eye tracking
Pause eye tracking on/off
Wireless – you can either set all radio connections on/off or each wireless unit on/off
one by one.
Tobii C12 user manual R090119
14
Switches
The C-Series devices has two ports for external switches, see picture X in C-Series
chapter.
The actions of these switches can be customized by clicking Set action, and then
choosing from the list of available actions. These actions are the same as for the
hardware buttons.
TouchScreen
Press the calibrate button to start a calibration of the touch screen. More info on how
to calibrate… Use your finger or a stylus on the touch screen; do not use sharp objects
that can scratch or puncture it.
SystemInformation
System information shows the version and model of the device and the licenses
activated. Please have this information available if you have problems with the device
and need to contact support.
Under Licenses the different license number are displayed.
By clicking Copy all information you can paste the information into a document (such
as Notepad or WordPad) or into an email.
Technical specifications
Microphones 2 x Integrated
Processor Intel Core Duo U2500
Operating System Microsoft Vista
Hard disk drive 60 GB
SD Card 1 GB
USB Connection 3 connections
LAN connection Yes
WLAN Yes
Headphone connections Yes
Switch connection 2 connectors
Power charge connection Yes
Bluetooth Yes
GSM Yes, optional
Battery time
- batteries are hot swappable Approximately 4 hours
Tobii C12 user manual R090119
15
Integrated camera Yes
Deskstand Integrated
Mounting VESA as standard. REHAdapt and
DEassy optional
Technicalsafety
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) The device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment .FCC
Radio Frequency Exposure statement, This product has been evaluated under
FCC Bulletin OET 65C and found compliant to the requirement asset as set forth
in CFR 47 section 2.1093 and 15.247(i) addressing RF Exposure from radio
frequency device, The redialed output power of this product is far below the
FCC radio frequency exposure limits.
WARNING：
Modifications not authorized by the manufacturer may void users authority
operate this device.
SAR Information
The SAR limit of USA (FCC) is 1.6W/Kg and in Europe (CE) is 2.0 W/Kg averaged
over one (FCC)、ten (CE) gram of tissue. Device types Tobii C12 (FCC ID:
W5MTOBIIC12) has also been tested against this SAR limit. The Highest SAR
Values reported under these standard during product certification for use when
properly put on the lap is 1.59 W/Kg(FCC). To maintain compliance with FCC
RF exposure requirements.
Specific Absorption Rate Data
This laptop PC meets the government’s requirements for exposure to radio
waves.
Your laptop PC is a radio transmitter and receiver. It is designed and
manufactured to exceed limits for exposure to radio frequency (RF) energy set
by the Federal Communication Commission (FCC) of the U.S Government and
Commission(CE) of European Union. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation
of scientific studies. The standards include a substantial safety margin designed
to assure the safety of all persons regardless of age or health.
Tobii C12 user manual R090119
16
The exposure standard for laptop PC employs a unit of measurement known as
the Specific Absorption Rate, or SAR, The SAR limit set by the FCC is 1.6 W/Kg
and (CE) is 2.0 W/Kg. Tests for SAR are conducted using standard operating
positions accepted by the FCC and CE with the laptop PC transmitting at its
highest certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the
laptop PC while operating can be well below the maximum value. This is
because the laptop PC is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer you are
to a wireless base station, the lower the power output.
Before a laptop PC model is available for sale to the public in the U.S and EU, it
must be tested and certified to the FCC and CE that it does not exceed the limit
establish for safe exposure. The tests are performed in positions and locations
reported to the FCC and CE.
While there may be differences between the SAR levels of various laptop PC s
and at various positions, they all meet the governmental requirements for safe
exposure. Please note that improvements to this product model could cause
differences in the SAR value for later products, in all cases, products are
designed to be within the guidelines.
In the United States and Canada, the SAR limit for laptop PC used by the public
is 1.6 W/Kg averaged over one gram of tissue. In the EU, the SAR limit for laptop
PC used by the public is 2.0 W/Kg averaged over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in measurements.
Software Copyright Notice
The software products described in this manual may include copyrighted and
third-party software stored in semiconductor memories or other media. Laws in
the United States and other countries preserve for manufacturer and third party
software providers certain exclusive rights for copyrighted software, such as the
exclusive rights to distribute or reproduce the copyrighted software.
Accordingly, any copyrighted software contained in the product may not be
modified, reverse engineered, distributed, or reproduced in any manner to the
extent allowed by law. Furthermore, the purchase of the product shall not be
deemed to grant either directly or by implication estoppels, or otherwise, any
license under the copyrights, patents or patent applications or any third-party
software provider, except for the normal, non-exclusive royalty-free license to
use that arises by operation of law in the sale of a product.
Safety and General information
This section contains important information on safe and efficient operation of
your laptop PC. Read this information before using your laptop PC.
Tobii C12 user manual R090119
17
Exposure To Radio Frequency (RF) Energy
Your laptop PC contains a transmitter as receiver. When it is ON, it receives and
transmits RF energy. When you communicate with your laptop PC, the system
handling your call controls the power level at which your laptop PC transmits.
Your laptop PC is designed to comply with local regulatory requirements in your
country concerning exposure of human beings to RF energy.
Operational Precautions
For optimal laptop PC performance and to be sure that human exposure to RF
energy does not exceed the guidelines set forth in the relevant standard, always
follow these instructions and precautions.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference from external
sources if inadequately shielded, designed, or otherwise configured for RF
energy compatibility. In some circumstances your laptop PC may cause
interference with other devices.
Contactinformation
Tobii Technology AB
Karlsrovägen 2D
182 56 Danderyd
Sweden
support@tobii.com
+46-8-663 6990

Navigation menu
