TomTom 4FIC00 TomTom BRIDGE Hub User Manual TomTom BRIDGE Hub
TomTom International BV TomTom BRIDGE Hub TomTom BRIDGE Hub
TomTom >
User Manual
TomTom BRIDGE Hub
User Manual
2
Contents
Welcome to the TomTom BRIDGE Hub 5
The TomTom BRIDGE Hub 6
Starting the TomTom BRIDGE Hub .............................................................................. 6
Apps on the TomTom BRIDGE Hub .............................................................................. 8
Connecting the TomTom BRIDGE Hub .......................................................................... 9
About connecting TomTom BRIDGE Hub ................................................................... 9
Connect using Bluetooth ...................................................................................... 9
Connect using Portable Wi-Fi Hotspot ................................................................... 10
Reconnecting your smartphone ........................................................................... 10
Unable to get a connection ................................................................................ 11
Features on the TomTom BRIDGE Hub ....................................................................... 11
Sleep settings ................................................................................................. 11
Memory card slot ............................................................................................. 11
Transferring files to your device .......................................................................... 12
System bar .................................................................................................... 12
Updating the software ...................................................................................... 13
Moving and resizing apps and widgets ................................................................... 13
Sending information to TomTom .......................................................................... 15
Clearing personal data ...................................................................................... 15
Taking a screenshot ......................................................................................... 16
Screen locking ................................................................................................ 16
Language .......................................................................................................... 16
Installing in your vehicle ....................................................................................... 17
Online Reference Guide ........................................................................................ 17
Getting help ...................................................................................................... 17
TomTom Navigation App 18
Welcome to navigation with TomTom ....................................................................... 19
About TomTom services ........................................................................................ 19
GPS reception .................................................................................................... 19
What's on the TomTom Navigation app screen ............................................................. 20
The map view ................................................................................................. 20
The guidance view ........................................................................................... 21
The route bar ................................................................................................. 23
The quick menu .............................................................................................. 24
Navigation buttons ........................................................................................... 24
Other buttons ................................................................................................. 26
Volume control ............................................................................................... 27
Running in the background ................................................................................. 27
Changing the text and button size ........................................................................ 28
Traffic.............................................................................................................. 29
About TomTom Traffic ...................................................................................... 29
The route bar ................................................................................................. 29
Looking at traffic on the map ............................................................................. 30
Looking at traffic on your route ........................................................................... 31
Traffic incidents ............................................................................................. 32
Approaching a traffic jam warning ....................................................................... 33
Avoiding a traffic jam on your route ..................................................................... 33
Advanced Lane Guidance ................................................................................... 34
Time-dependent speed limits.............................................................................. 34
Using quick search ............................................................................................... 36
3
About search .................................................................................................. 36
Planning a route to a POI ................................................................................... 36
Planning a route to a POI using online search .......................................................... 38
Entering search terms ....................................................................................... 40
Working with search results ................................................................................ 41
About postcodes ............................................................................................. 43
About mapcodes ............................................................................................. 43
List of POI type icons ........................................................................................ 43
Planning a route using quick search .......................................................................... 48
Planning a route to an address ............................................................................ 48
Planning a route to a city centre ......................................................................... 50
Planning a route to a POI ................................................................................... 51
Planning a route to a POI using online search .......................................................... 53

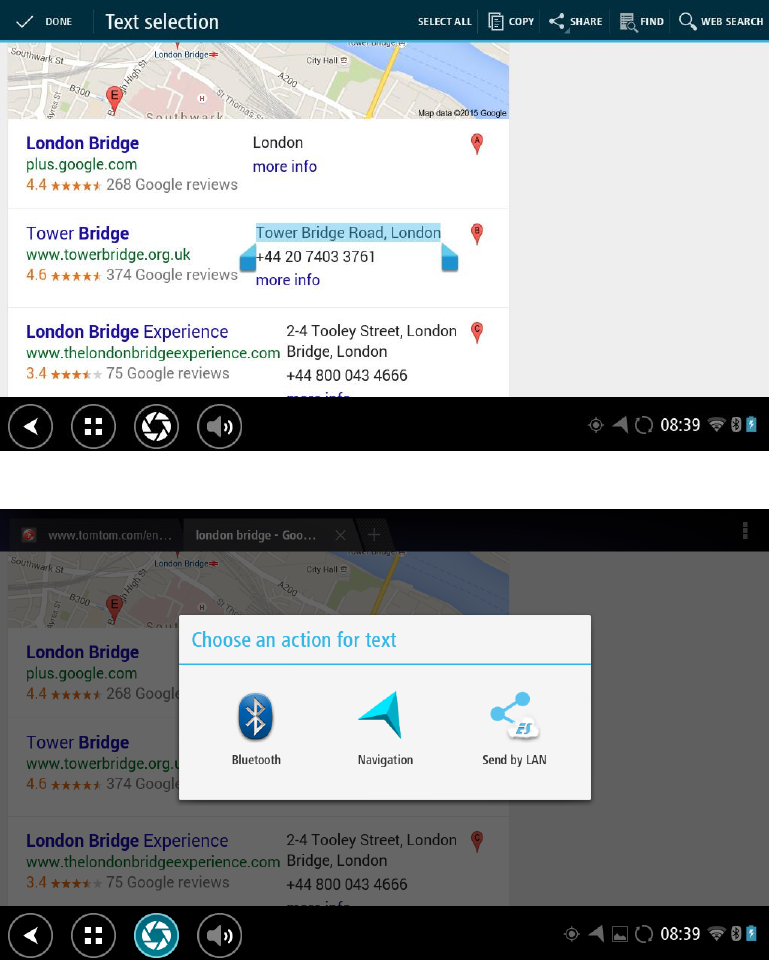

Planning a route using the Internet browser ............................................................ 55
Planning a route using the map ........................................................................... 58
Planning a route using My Places.......................................................................... 59
Planning a route using coordinates ....................................................................... 60
Planning a route using a mapcode ........................................................................ 61
Finding an alternative route ............................................................................... 62
Planning a route in advance ............................................................................... 63
Finding a car park ............................................................................................ 65

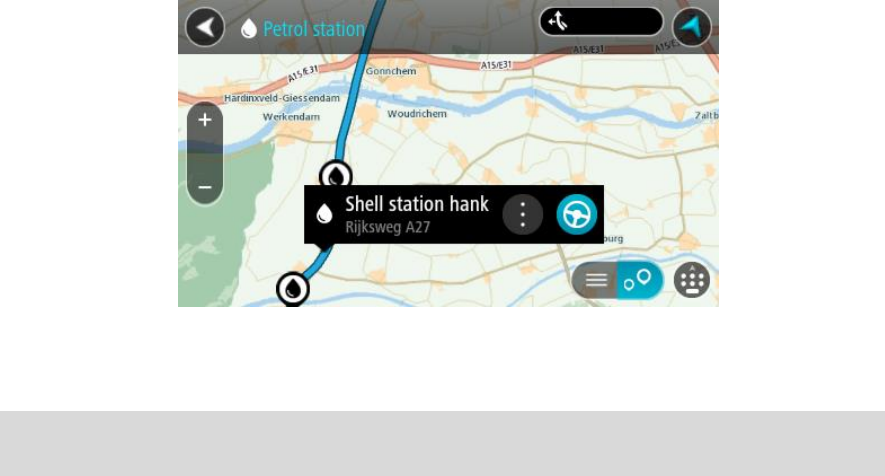

Finding a petrol station ..................................................................................... 66
Changing your route ............................................................................................. 69
The Current Route menu ................................................................................... 69
Avoiding a blocked road .................................................................................... 71
Avoiding part of a route .................................................................................... 71
Types of route ................................................................................................ 72
Route features................................................................................................ 72
Avoiding an incident or route feature using the route bar ........................................... 72
Adding a stop to your route from the current route menu ........................................... 73
Adding a stop to your route using the map .............................................................. 73
Deleting a stop from your route ........................................................................... 73
Skipping the next stop on your route .................................................................... 73
Reordering stops on a route................................................................................ 73
My Routes ......................................................................................................... 75
About My Routes ............................................................................................. 75
Saving a route ................................................................................................ 75
Navigating using a saved route ............................................................................ 76
Navigating to a stop on a saved route .................................................................... 77
Adding a stop to a saved route using the map .......................................................... 79
Deleting a route or a track from My Routes ............................................................. 79
Recording and sharing routes .............................................................................. 80
Voice control (Speak&Go) ...................................................................................... 82
About voice control .......................................................................................... 82
Starting voice control ....................................................................................... 82
Making your own wake-up phrase ......................................................................... 82
The voice control screen ................................................................................... 83
Some tips for using voice control ......................................................................... 84
What you can use voice control for ....................................................................... 84
Saying commands in different ways ...................................................................... 85
Entering an address using voice control ................................................................. 85
Going to home using voice control........................................................................ 86
Going to a POI using voice control ........................................................................ 86
Changing a setting using voice control ................................................................... 86
Speed Cameras ................................................................................................... 88
About speed cameras ....................................................................................... 88
Speed camera warnings ..................................................................................... 88
Changing the way you are warned ........................................................................ 89
Reporting a new speed camera ............................................................................ 90
4
Confirm or remove a mobile speed camera ............................................................. 90
Updating locations for cameras and hazards ........................................................... 91
My Places .......................................................................................................... 92
About My Places .............................................................................................. 92
Setting your home or work location ...................................................................... 92
Changing your home location .............................................................................. 93
Adding a location from My Places ......................................................................... 94
Add a location to My Places from the map .............................................................. 94
Adding a location to My Places using search ............................................................ 94
Adding a location to My Places by marking ............................................................. 95
Deleting a recent destination from My Places .......................................................... 95
Deleting a location from My Places ....................................................................... 95
Importing a POI list .......................................................................................... 95
Settings ............................................................................................................ 97
Appearance ................................................................................................... 97
Voices ......................................................................................................... 100
Voice Control ................................................................................................ 100
Maps ........................................................................................................... 101
Route Planning .............................................................................................. 101
Sounds and Warnings ....................................................................................... 102
Units ........................................................................................................... 103
Language ..................................................................................................... 104
Getting Help ..................................................................................................... 105
Help ........................................................................................................... 105
External Camera App 106
Using the External Camera app .............................................................................. 107
Camera settings ................................................................................................. 108
Using the vehicle width guide lines ......................................................................... 108
TomTom Music App 111
Using the TomTom Music app ................................................................................. 112
Addendum and Copyright 113
Addendum ........................................................................................................ 114
Copyright notices ............................................................................................... 120
5
This User Manual explains how to use the TomTom BRIDGE Hub and the installed TomTom apps. The
User Manual has the following sections:
The TomTom BRIDGE Hub
The TomTom Navigation app
The TomTom Camera app
The TomTom Music app
Important: For other settings and operation instructions for the TomTom BRIDGE Hub, and for
instructions about other apps installed on the TomTom BRIDGE Hub, please refer to the applicable
User Documentation.
Welcome to the TomTom BRIDGE Hub
6
Starting the TomTom BRIDGE Hub
The TomTom Bridge Hub starts automatically when the device is connected to power. Installing the
TomTom Bridge Hub requires professional installation.

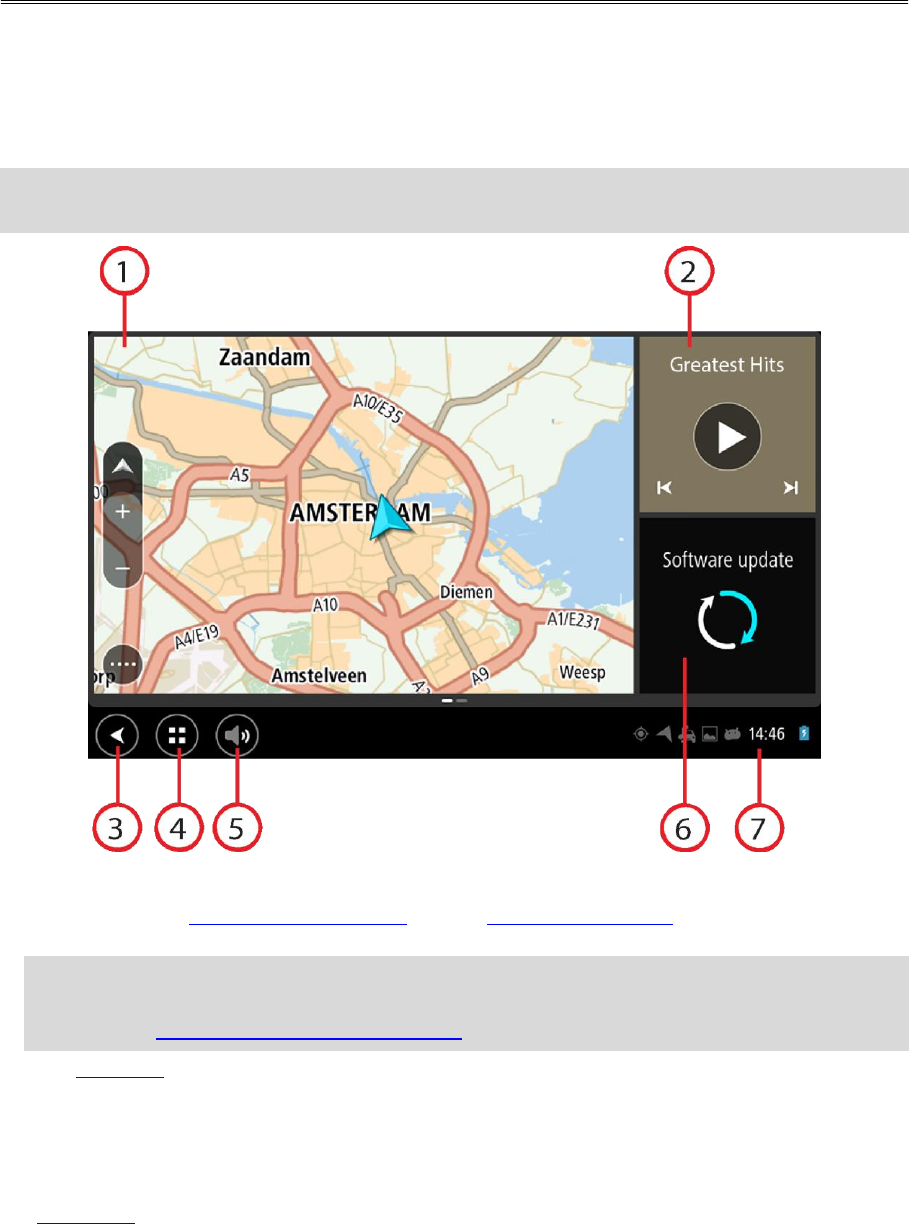

The TomTom BRIDGE Hub home screen is shown.
Note: The TomTom navigation app home screen shown below is an example. The home screen on
the TomTom navigation app might look different and have different apps installed.
1. An app running as a widget.
For example the TomTom Navigation app and the External camera app can run in a widget on
the home screen. Select the widget to open the app.
Note: A widget is an app that runs in its own panel. You can select a widget to open the full
app.
Tip: You can move and resize apps and widgets.
2. The Music app running as a widget.
3. Back button.
Select this button to return to the previous screen that was open.
4. Home button.
Select this button to return to the device home screen.
5. System bar.
The TomTom BRIDGE Hub
7
You can add shortcuts for your favourite apps to this bar.
6. Software update button.
Shortcut button to open the Software update app. This app lets you update the TomTom naviga-
tion app to the latest software version.
7. Status bar.
Touch this area to show app notifications and the device status.
8
Apps on the TomTom BRIDGE Hub
The TomTom BRIDGE Hub is an Android based device that has different apps installed on it. Some of
the apps will be standard Android apps, for example a browser, a clock and a photo-gallery.
Specialised apps could be added by the device owner, and TomTom has also added apps.
Note: The TomTom BRIDGE Hub might be secured to prevent you making changes.
You can find other apps on the device by scrolling to the right. To see all the apps on the device,
select All apps.
You can also add up to two app quick-launch buttons to the device's System bar for apps you want
to use often.
Privacy notices for apps
Each installed app has its own privacy notice. Open the Android Settings app then select About your
TomTom device. Select Legal information, then select Your information. Select an app from the
list to read about the function of the app, how the app uses your information, and how your
personal data is managed.
9
Connecting the TomTom BRIDGE Hub
About connecting TomTom BRIDGE Hub
TomTom BRIDGE Hub connects to the Internet using your smartphone so you can use the installed
apps and access TomTom services. Using your smartphone to connect means that data is sent and
received by your smartphone using your mobile services provider.
Your smartphone needs to be compatible with TomTom BRIDGE Hub, and you must have a data plan
from a mobile services provider. Go to tomtom.com/connect for more information.
Important: You might have additional costs when you use your smartphone to connect TomTom
BRIDGE Hub, especially if you are outside the area covered by your data plan. Check with your
mobile services provider for more information.
TomTom BRIDGE Hub can be connected in one of the following ways:
Connection using Bluetooth tethering or Bluetooth hotspot.
Connection using Portable Wi-Fi hotspot.
Note: To update the TomTom BRIDGE Hub software, use a normal Wi-Fi connection.
Depending on your phone's Operating System, these connection methods may be called one of the
following names:
Personal Hotspot
Tethering and portable hotspot
The hotspot functions are probably already in your phone's Operating System, or you can download
an app to create one. Please check the user guide for your phone if you are having trouble finding
the settings.
Note: Some mobile service providers don't allow their users to use a hotspot or Personal Area
Network (PAN). If your phone doesn't have the PAN function, you should contact your service
provider for more information.
For more help, go to tomtom.com/connect.
Connect using Bluetooth
To connect your TomTom BRIDGE Hub to your smartphone using Bluetooth, do the following:
1. Switch on Bluetooth tethering or personal hotspot on your phone, and make sure your phone is
discoverable.
2. Press the Home button on your TomTom BRIDGE Hub.
3. Select the Settings app.
4. Switch on Bluetooth.
5. Select Bluetooth, then select SEARCH FOR DEVICES.
The TomTom BRIDGE Hub searches for your phone and shows it as an available device.
Tip: If your TomTom BRIDGE Hub cannot find your phone, make sure your phone is still 'discov-
erable' or 'visible' for other Bluetooth devices.
6. Select your phone from the list of available devices.
10
7. After you have connected your TomTom BRIDGE Hub to your smartphone, you need to check the
box in the Bluetooth profile on the TomTom BRIDGE Hub to enable internet access as shown
below.
Your TomTom BRIDGE Hub connects to TomTom services using your phone's internet connection.
TomTom services are now active.
The Bluetooth symbol in the Android Status Bar shows that Bluetooth is switched on.
Connect using Portable Wi-Fi Hotspot
Important: You might have additional costs when you use your smartphone to connect TomTom
BRIDGE Hub, especially if you are outside the area covered by your data plan. Check with your
mobile services provider for more information.
Note: To update the TomTom BRIDGE Hub software, use a normal Wi-Fi connection.
To connect TomTom BRIDGE Hub to your smartphone using a Portable Wi-Fi Hotspot, do the
following:
1. Switch on Portable Wi-Fi Hotspot on your phone. Make a note of the password for the Wi-Fi
connection.
2. Press the Home button on TomTom BRIDGE Hub.
3. Select All apps.
4. Select the Settings app.
5. Switch on Wi-Fi.
6. Select Wi-Fi, then select your phone from the list of Wi-Fi sources.
7. Enter the password for the Wi-Fi connection, then select Connect.
TomTom BRIDGE Hub connects to TomTom services using your phone's internet connection.
Note: Using a Portable Wi-Fi connection can drain your phone's battery quicker.
TomTom services are now active.
Reconnecting your smartphone
You do not need to do anything to reconnect your TomTom BRIDGE Hub to your phone.
11
Your TomTom BRIDGE Hub will remember your phone and will find it automatically when you have
Bluetooth tethering or Portable Wi-Fi hotspot switched on and you are in range of your device. If
you have a valid TomTom services subscription, the service starts automatically.
On the TomTom BRIDGE Hub Status bar, check that the TomTom BRIDGE Hub is connected to the
internet.
If you want to connect using another phone, you must connect using Bluetooth or connect using
Portable Wi-Fi hotspot for that phone.
Tip: If reconnecting automatically to your smartphone using Bluetooth doesn't work, you can
manually reconnect as described in Connect using Bluetooth.
Unable to get a connection
If your TomTom BRIDGE Hub cannot connect to your phone, or you have no internet connection,
check the following:
Your phone is shown on your TomTom BRIDGE Hub.
Your phone's Bluetooth tethering or Portable Wi-Fi hotspot is switched on.
Your data plan with your mobile services provider is active, and you can access the internet on
your phone.
Features on the TomTom BRIDGE Hub
The TomTom BRIDGE Hub uses the Android operating system. TomTom and the device owner have
changed the operating system in the following ways:
Certain Android features have been disabled, either by TomTom or by the device owner. This
makes the device safer and easier to use while driving.
Some new features and apps have been added, both by TomTom and by the device owner.
These additions customise the device so it is relevant for the functions it will be used for.
The features added by TomTom are as follows:
Important: For other settings and operation instructions for the TomTom BRIDGE Hub, and for
instructions about other apps installed on the TomTom BRIDGE Hub, please refer to the applicable
User Documentation.
Sleep settings
You can choose when your TomTom BRIDGE Hub goes to sleep if no apps are running or when it is
removed from its dock.
Open Display in the Android Settings app to see the following settings:
Sleep
Sets the delay time before your TomTom navigation app goes to sleep if no apps are running.
Stay awake when docked
Keeps your TomTom navigation app awake while it is docked and there is power.
Sleep automatically when disconnecting from power
Puts your TomTom navigation app to sleep when power is removed either from the dock or
directly from the TomTom navigation app.
Memory card slot
The TomTom BRIDGE Hub has a memory card slot that is located on the front of the device. You can
use a memory card to access your personal files, for example photos or music files.
12
Transferring files to your device
You can transfer personal files, for example POI lists, photos or music files, to the TomTom BRIDGE
Hub internal memory. This allows you to use apps on the device to view POIs, photos or play music.
You can also transfer files from the TomTom navigation app internal memory to your computer.
Note: Not all file types can be opened by the device.
Note: You can transfer files from a computer running one of the following operating systems:
- Windows 7 or higher
- Apple OS X 10.5 or higher
- Some Linux distributions of version 14.04 or higher.
To transfer files, do the following steps:
1. Connect the TomTom navigation app to your computer using the USB cable supplied with your
TomTom navigation app, then switch your TomTom navigation app on.
Note: Use ONLY the USB cable supplied with your device. Other USB cables may not work.
Note: You cannot use the mount to connect your device to your computer.
Note: You should plug the USB cable directly into a USB port on your computer and not into a
USB hub or USB port on a keyboard or monitor.
2. On your computer, open a file manager program.
Your TomTom navigation app appears in your computer's files system as TomTom Bridge.
3. Open the TomTom navigation app Internal Storage folder.
4. Copy files from your computer to a folder on your TomTom navigation app, or from your
TomTom navigation app to your computer.
Tip: To keep the device organised, copy the files to a folder with a relevant name. For exam-
ple, copy your music files to the Music folder.
5. Disconnect the TomTom navigation app from your computer.
Tip: You can remove all the files you copied to the TomTom navigation app by clearing your
personal data.
System bar
The System bar is at the bottom of the screen and it contains quick-launch buttons, for example the
Back and Home buttons. You can add up to two extra buttons to this bar to quickly start apps that
you often use.
Tip: Some apps have a full screen setting that hides the system bar when the app is open.
To add a quick-launch button for an app, do the following:
1. Select the Home button.
2. Select the Settings app.
3. In Settings, select System bar.
4. Under Quick Launch Buttons, select Assign app.
5. Select an app from the list to assign to a quick-launch button.
6. Select the Home button.
Your new quick-launch button is added to the System bar.
To remove a quick-launch button, do the following:
1. Select the Home button.
2. Select the Settings app.
13
3. In Settings, select System bar.
4. Under Quick Launch Buttons, select and hold the button you want to remove.
5. In the pop-up box that appears, select OK to remove the quick-launch button.
6. Select the Home button.
The quick-launch button is removed from the System bar.
Updating the software
The TomTom BRIDGE Hub owner will periodically release new software updates.
Tip: When a software update is available, a notification appears in the Notification bar. Select
the bottom right corner of the device screen to open the Notification area.
When you have access to a Wi-Fi connection, you can update the software using the Software
update app. Large updates are downloaded in the background when the TomTom navigation app is
connected to Wi-Fi. When the Wi-Fi connection is lost, downloading will pause. When the download
is complete you will be prompted to install the update.
Note: Software updates can only be downloaded using a Wi-Fi connection.
To update the software on the device, do the following:
1. Select the Home button.
2. Select the Settings app.
3. In Wireless and networks, select Wi-Fi.
Select and connect to a Wi-Fi network.
4. Select the Home button.
5. Select the Software update app.
Your device automatically downloads and installs the software update.
Note: You may have to restart the device to install the software update.
Moving and resizing apps and widgets
You can move apps and widgets to different places on the display. For example, if you often use the
External Camera app, you can move it to the home screen. You can change the size of an app
button or a widget to make it easier to use or see.
Note: The TomTom BRIDGE Hub might be secured to prevent you making changes.
Moving apps and widgets
To move an app or widget, do the following:
1. Select and hold the app or widget that you want to move.
The app or widget changes colour.
14
Tip: If you want to move an app or widget to the home screen, you might first have to move an
app or widget from the home screen to make space for it.
2. Drag the app or widget to the edge of the screen.
A white line appears on the edge of the screen to indicate that the adjacent screen will open.
3. Drag the app or widget further and drop it in the empty space.
An available space is highlighted a different colour when the app or widget is dragged over it.
Tip: You can only move an app or widget to an empty space.
Resizing apps and widgets
To resize an app or widget, do the following:
Note: Some widgets and apps have a size limit in one or more directions.
1. Select and hold the app or widget that you want to resize for 2 seconds, then release.
15
The app or widget changes colour and you see a waste bin icon and four resize spots.
2. Select and drag a resize spot to make the app or widget larger or smaller.
Tip: The shape you choose for the app or widget depends on the information you want to see.
For example, you might choose to make the External Camera widget the size of half the
display to make the camera image easier to see.
Deleting an app or widget
To delete an app or widget from the home or apps screen, do the following:
1. Select and hold the app or widget that you want to delete for 2 seconds, then release.
The app or widget changes colour and you see a waste bin icon and four resize spots..
2. Select the waste bin icon.
The app or widget is removed from the home or app screen and placed in the All apps location.
Tip: If you deleted the app or widget by mistake, open All apps and move it back again.
Sending information to TomTom
When you first start the TomTom BRIDGE Hub or you have reset the TomTom BRIDGE Hub, you are
informed about how TomTom uses your information. This information includes your location, how
you use the services and information you enter. We learn how you use the device so we can
continually improve.
Go to the Your information app in the All apps menu to read about how TomTom uses your
information.
If you think that your information is not being used for the purpose for which you have provided it
to TomTom, contact us at tomtom.com/support.
You can find current and more detailed information at tomtom.com/privacy.
Clearing personal data
The TomTom BRIDGE Hub stores your personal data as you use the apps installed on the device. All
photos and music you have transferred to the device is also personal data.
16
If you have finished using the device it is a good idea to clear your personal data before you pass
the device back to the owner.
To clear your personal data, do the following steps:
Note: Software updates can only be downloaded using a Wi-Fi connection.
1. If you are using a personal memory card, remove the memory card from its slot.
2. Select the Settings app.
3. Select Backup & reset.
4. Select Clear personal data.
5. Select Clear, then select Clear again.
Your device automatically switches off and clears your personal data.
Taking a screenshot
If you need to make a picture of the screen of the TomTom BRIDGE Hub, for example to show the
owner an error that has occurred, do the following:
1. Press and hold the On/Off button until the pop-up menu is shown.
2. Select Take a screenshot from the pop-up menu.
A screenshot is taken of the screen behind the pop-up menu.
Tip: Open the Gallery app on your TomTom navigation app to view the screenshots you have
made.
3. Connect your TomTom navigation app to your computer and transfer the screenshots.
The screenshots are in the pictures folder in the TomTom navigation app Internal Storage.
Screen locking
When using your TomTom BRIDGE Hub, certain apps or features may be locked. The features that
are locked and the reasons for doing so are at the discretion of the device owner. Some typical
reasons for a device owner to use screen locking are as follows:
To prevent a customer from speeding.
To increase safety by minimising driver distraction.
To prevent device theft.
When you select a locked item in the home screen, you see a message. The message may say
Screen locked for safety or something else because it can be customised by the device owner.
Even when an item is locked, you can still do the following:
Use home, back and volume buttons.
Select the screen lock message to make it disappear.
Respond to, for example, a low battery message.
Language
The language used on the TomTom BRIDGE Hub is also used on the apps installed on the device.
To change the device language, do the following:
1. Select the Home button.
2. Select the Settings app.
3. Select Language & input, then select Language.
4. Select the language you want, then select OK.
Your device language changes.
17
Installing in your vehicle
Installing the TomTom Bridge Hub requires professional installation. Mount the BRIDGE Hub on a flat
surface in the vehicle using one of the following methods:
1) Use screws
2) Use adhesive strips
3) Use cable-ties
Online Reference Guide
When you have access to a Wi-Fi connection, you can open the Reference Guide for your TomTom
BRIDGE Hub on the device. The language of the Reference Guide is the same as the language you
selected in your device settings.
The Online Reference Guide button is on the Home screen or the All apps screen.
If a Reference Guide is not available in your device language, the English-language Reference Guide
is opened.
You can change the device language in Language & input in the TomTom BRIDGE Hub Settings app.
You can also download the Reference Guide in all available languages from tomtom.com/support.
Getting help
You can get further help by going to tomtom.com/support.
For warranty and privacy information, go to tomtom.com/legal.
18
TomTom Navigation App
19
Welcome to navigation with TomTom
This Section explains how you use the TomTom Navigation app.
Important: For other TomTom BRIDGE Hub settings and operation instructions, and for instructions
about other apps installed on TomTom BRIDGE Hub, please refer to the applicable User Documenta-
tion.
The navigation app is installed on the device, either as an app that you have to open, or as a
software widget on the Home screen. The widget has some limited functionality, for example you
can see your route and route instructions on the widget, but you can't plan a route.
Select the widget to open the full navigation app to use all the navigation features.
The Get going chapter is a great place to start. You'll learn all about starting up and setting up the
device, and using the navigation app to plan your first route. You'll see a quick introduction to
TomTom services, which includes Traffic and Speed Cameras. To help you avoid traffic delays and
get to your destination quicker, you can use TomTom services even on the routes you drive every
day.
For information about what you see in the navigation app, go to:
TomTom Services
What's on the screen
Using gestures
Main menu
About TomTom services
TomTom services give you real-time information about traffic and speed cameras on your route. To
help you avoid traffic delays and get to your destination quicker, you can use TomTom services even
on the routes you drive every day.
To get TomTom Services on TomTom BRIDGE Hub, connect TomTom BRIDGE Hub to a network.
Note: TomTom services are not available in all countries or regions, and not all services are
available in all countries or regions. For more information on available services in each region, go
to tomtom.com/services.
GPS reception
When you first start the navigation app, it may need a few minutes to find your GPS position and
show your current location on the map. Make sure you have GPS activated on your device.
Tip: The GPS settings are in the device's Settings app.
In areas where GPS reception is not possible, such as tunnels, your location may not be accurate.
Important: The navigation app cannot give you route instructions until it has received location data.
20
What's on the TomTom Navigation app screen
The map view
The map view is shown when you have no planned route. Your actual location is shown as soon as
your device has found your GPS location.
You can use map view in the same way as you might look at a traditional paper map. You can move
around the map using gestures, and zoom using the zoom buttons.
Important: Everything on the map is interactive including the route and the map symbols - try
selecting something and see what it does!
Tip: To open a pop-up menu for an item on the map, for example a route or a POI, select the
item to open the menu. To select a location on the map, select and hold the location until the
pop-up menu opens.
The map shows your current location and many other locations such as your My Places locations.
If you have not planned a route the map is zoomed out to show the area around your location.
If you have planned a route, your complete route is shown on the map. You can add stops to your
route directly from the map. When you start to drive, the guidance view is shown.
1. Back button. This button returns the map to an overview of your whole route or, if no route is
planned, moves the map to put your current location at the centre.
2. Switch view button. Select the switch view button to change between the map view and the
guidance view.
21
When in map view, if you are driving, the small arrow rotates to show you your current driving
direction, with north being up.
3. Zoom buttons. Select the zoom buttons to zoom in and out.
4. Current location. This symbol shows your current location. Select it to add it to My Places or
search near your current location.
Note: If your TomTom navigation app cannot find your location the symbol appears grey.
Note: You cannot change the current location symbol.
5. Selected location. Press and hold to select a location on the map. Select the pop-up menu
button to show options for the location, or select the drive button to plan a route to the loca-
tion.
6. Main Menu button. Select the button to open the Main Menu.
7. Map symbols. Symbols are used on the map to show your destination and your saved places:
Your destination.
Your home location. You can set your home location in My Places.
A stop on your route.
A location saved in My Places.
Select a map symbol to open the pop-up menu, then select the menu button to see a list of
actions you can take.
8. Traffic information. Select the traffic incident to display information about the traffic delay.
9. Your route, if you have planned a route. Select the route to clear it, change the route type, add
a stop or save changes to your route.
10. Speed cameras on your route. Select a speed camera to display information about that camera.
11. Route bar. The route bar is shown when you have planned a route.
The guidance view
The guidance view is used to guide you along the route to your destination. The guidance view is
shown when you start driving. You see your current location and details along your route, including
3D buildings in some cities.
The guidance view is normally in 3D. To show a 2D map with the map moving in your direction of
travel, change the 2D and 3D default settings.
Tip: When you have planned a route and the 3D guidance view is shown, select the switch view
button to change to the map view and use the interactive features.
22
When your navigation device starts after sleeping and you have a route planned, you are shown the
guidance view with your current location.
1. Switch view button. Select the switch view button to change between the map view and the
guidance view.
2. Zoom buttons. Select the zoom buttons to zoom in and out.
Tip: On some devices you can also pinch to zoom in and out.
3. Instruction panel. This panel shows the following information:
The direction of your next turn.
The distance to your next turn.
The name of the next road on your route.
Lane guidance at some junctions.
4. Route symbols. Symbols are used on your route to show your starting location, your stops, and
your destination.
5. Main Menu button. Select the button to show the Main Menu.
6. Speed panel. This panel shows the following information:
The speed limit at your location.
Your current speed. If you drive more than 5 km/h or 3 mph over the speed limit the speed
panel turns red. If you drive less than 5 km/h or 3 mph over the speed limit the speed panel
turns orange.
The name of the street you are driving on.
7. Current location. This symbol shows your current location. Select the symbol or the speed panel
to open the quick menu.
Note: If your TomTom navigation app cannot find your location the symbol appears grey.
23
Note: You cannot change the current location symbol.
8. Route bar. The route bar is shown when you have planned a route.
Important: To see a wider route bar showing additional route information, change the setting
for Route Information.
The route bar
The route bar is shown when you have planned a route. It has an arrival information panel at the
top, and a bar with symbols underneath.
Tip: You can also choose to see a wider route bar showing additional route information (not
available on all devices or apps).
Note: The distance ahead shown by the route bar depends on the overall length of your route.
The arrival information panel shows the following information:
Tip: If your destination is in a different time zone, you see a plus (+)
or a minus (-) sign and the time difference in hours and half hours in
the arrival information panel. The estimated time of arrival is the
local time at your destination.
The estimated time that you will arrive at your destination.
The length of time to drive to the destination from your current
location.
A parking button is shown near the destination flag when parking is
available near your destination.
If you have stops on your route, select this panel to change between
information about the next stop and your final destination.
You can choose the information you see on the arrival information panel.
Traffic status - if your TomTom navigation app isn't receiving any traffic
information, a symbol showing traffic with a cross appears underneath
the arrival information panel.
The bar uses symbols to show the following information:
A faster route, if there is traffic on your route.
The stops on your route.
Tip: To quickly remove a stop, select it in the route bar and use the
pop-up menu.
Petrol stations that are directly on your route.
TomTom Traffic incidents.
TomTom Speed Cameras and Danger Zones.
Rest stops directly on your route.
You can choose the information you see on your route.
The symbols are in the order that they occur on your route. For traffic
incidents, the symbol for each incident alternates between showing the
type of incident and the delay in minutes. Select a symbol to see more
information about a stop, an incident or a speed camera. If a symbol is
shown on top of another symbol, selecting the symbols zooms in on the
route bar to show each symbol separately. You can then select a symbol.
The total time delay due to traffic jams, weather, and other incidents on
your route, including information provided from historical road usage, is
shown above the symbols.
For a complete list of incident types, see Traffic incidents.
24
The bottom of the route bar represents your current location and shows
the distance to the next incident on your route. In addition, you can
choose to see the current time if you switch the setting on.
Note: To make the route bar more readable some incidents may not be shown. These incidents
will always be of minor importance and only cause short delays.
The route bar also shows status messages, for example Finding fastest route or Playing route
preview.
Distances and the route bar
The distance ahead shown on the route bar depends on the length of your route, or the distance
remaining on your route.
For remaining distances longer than 50 km (31 miles), only the next 50 km (31 miles) is shown.
The destination icon is not shown.
Tip: You can scroll the route bar to see your whole route (not available on iOS).
For remaining distances between 10 km (6 miles) and 50 km (31 miles), the complete distance is
shown. The destination icon is shown fixed at the top of the route bar.
For remaining distances of less than 10 km (6 miles) the complete distance is shown. The
destination icon moves down towards the chevron symbol as you get nearer to your destination.
The top half of the route bar shows twice the distance of the bottom half, as shown in the following
examples:
A remaining distance of 50 km on the route bar is split into 34 km (21 miles) at the top and 16
km (9 miles) at the bottom.
A remaining distance of 10 km on the route bar is split into 6.6 km (4 miles) at the top and 3.3
km (2 miles) at the bottom.
The route bar is constantly updated as you drive.
The quick menu
To open the quick menu, select the current location symbol or the speed panel in the guidance
view.
You can then do any of the following:
Mark Location. Your current location is saved in My Places, in the Marked locations list.
Report Speed Camera, or Report Risk Zone (only applicable for France).
Change a speed limit
Avoid Blocked Road
See your current location or your latitude/longitude if not on a named road.
Navigation buttons
On the map view or guidance view, select the Main Menu button to open the Main Menu.
The following navigation buttons are available in the Main Menu:
Search
Select this button to search for an address, a place or a Point of Interest,
then plan a route to that location.
25
Drive Home
Select this button to drive to your home location. If this button is not
included in your main menu, go to My Places to set up your home location.
Drive to Work
Select this button to drive to your work location. If this button is not
included in your main menu, go to My Places to set up your work location.
Recent Destination
Select this button to open the list of your recent destinations. Select a
recent destination to plan a route to that destination.
Current route
Select this button to clear or change your planned route.
My Places
Select this button to show your saved places.
My Routes
Select this button to show your saved routes.
Voice Control
Select this button to start voice control.
Tip: You can also say the wake-up phrase to start voice control.
26
Parking
Select this button to find car parks.
Petrol Station
Select this button to find petrol stations.
Report Speed
Camera
Select this button to report a speed camera.
Start Recording
Select this button to start or stop recording a track.
Other buttons
On the map or guidance view, select the Main Menu button to open the Main Menu.
The following buttons are available in the Main Menu screen, in addition to the navigation buttons:
Select this button to open the Settings Menu.
Select this button to open the Help Menu. The Help Menu contains a
guided tour and information about the navigation app.
Select this button to reorder the buttons in the Main Menu.
Select this button to return to the previous screen.
27
Select this button to return to the map view or guidance view.
This symbol shows that your device is connected to TomTom services.
This symbol shows that your device is not connected to TomTom services.
This button shows that you will hear voice instructions. Select the button
to switch off voice instructions. You will no longer hear spoken route
instructions but you will still hear information such as traffic information
and warning sounds.
Tip: You can select the types of instructions you want to hear. Select
Voices in the Settings Menu and select the instructions you want to
hear.
This button shows that you will not hear voice instructions. Select this
button to switch on voice instructions.
This button shows that the display is using day colours. Select the button
to reduce the brightness of the screen and display the map in darker
colours.
When driving at night or when driving through a dark tunnel, it is easier to
view the screen and less distracting for the driver if the brightness of the
screen is dimmed.
Tip: Your device automatically switches between day and night colours
depending on the time of day. To switch off this feature, select
Appearance in the Settings menu and switch off Switch to night colours
when dark.
This button shows that the display is using night colours. Select the button
to increase the brightness of the screen and display the map in brighter
colours.
Volume control
On the map or guidance view, select the Main Menu button to open the Main Menu.
Select and slide the volume control to change the volume of voice instructions and warnings. If the
voice instructions are switched off, the volume control will still change the volume of the warnings.
Running in the background
The navigation app continues to run when it is in the background, for example when you are using
another app on the TomTom BRIDGE Hub.
28
If the navigation app is running in the background and you are driving on a planned route, you will
continue to hear driving instructions.
Changing the text and button size
You can change the size of the text and the buttons you see on the screen, for example to make the
text easier to read and the buttons easier to use.
Note: This feature is only available on devices with a 6 inch / 15 cm or larger screen.
To change the size of the text and the buttons, select the Settings button in the Main Menu, then
select Appearance, then select Size of text and buttons. Your device must restart to apply the
change.
29
Traffic
About TomTom Traffic
TomTom Traffic is a unique TomTom service providing real-time traffic information. For more
information about TomTom services, go to tomtom.com/services.
In combination with IQ Routes, TomTom Traffic helps you plan the optimum route to your
destination taking into account the current local traffic conditions and the weather.
Your navigation app regularly receives information about the changing traffic conditions. If traffic
jams, heavy rain, snow or other incidents are found on your current route, your navigation app will
offer to replan your route to try and avoid any delays.
The TomTom BRIDGE Hub uses either a permanent connection or a smartphone connection to
connect to TomTom services.
Important: If use your smartphone to connect to TomTom Services and you are outside of the area
covered by your mobile data plan, you may be liable for extra roaming charges while using TomTom
Services.
Note: TomTom services are not available in all countries or regions, and not all services are
available in all countries or regions. For more information on available services in each region, go
to tomtom.com/services.
The route bar
The route bar is shown when you have planned a route. It has an arrival information panel at the
top, and a bar with symbols underneath.
Tip: You can also choose to see a wider route bar showing additional route information (not
available on all devices or apps).
Note: The distance ahead shown by the route bar depends on the overall length of your route.
The arrival information panel shows the following information:
Tip: If your destination is in a different time zone, you see a plus (+)
or a minus (-) sign and the time difference in hours and half hours in
the arrival information panel. The estimated time of arrival is the
local time at your destination.
The estimated time that you will arrive at your destination.
The length of time to drive to the destination from your current
location.
A parking button is shown near the destination flag when parking is
available near your destination.
If you have stops on your route, select this panel to change between
information about the next stop and your final destination.
You can choose the information you see on the arrival information panel.
Traffic status - if your TomTom navigation app isn't receiving any traffic
information, a symbol showing traffic with a cross appears underneath
the arrival information panel.
The bar uses symbols to show the following information:
A faster route, if there is traffic on your route.
The stops on your route.
Tip: To quickly remove a stop, select it in the route bar and use the
pop-up menu.
30
Petrol stations that are directly on your route.
TomTom Traffic incidents.
TomTom Speed Cameras and Danger Zones.
Rest stops directly on your route.
You can choose the information you see on your route.
The symbols are in the order that they occur on your route. For traffic
incidents, the symbol for each incident alternates between showing the
type of incident and the delay in minutes. Select a symbol to see more
information about a stop, an incident or a speed camera. If a symbol is
shown on top of another symbol, selecting the symbols zooms in on the
route bar to show each symbol separately. You can then select a symbol.
The total time delay due to traffic jams, weather, and other incidents on
your route, including information provided from historical road usage, is
shown above the symbols.
For a complete list of incident types, see Traffic incidents.
The bottom of the route bar represents your current location and shows
the distance to the next incident on your route. In addition, you can
choose to see the current time if you switch the setting on.
Note: To make the route bar more readable some incidents may not be shown. These incidents
will always be of minor importance and only cause short delays.
The route bar also shows status messages, for example Finding fastest route or Playing route
preview.
Looking at traffic on the map
Traffic incidents are shown on the map. If several traffic incidents overlap the highest priority
incident is shown - for example, a road closure is higher priority than road works or a closed lane.
31
Tip: Select an incident on the map to see more detailed information.
1. Traffic incident that affects your route in your direction of travel.
A symbol or number at the start of the incident shows the type of incident or the delay in
minutes, for example 5 minutes.
The colour of the incident indicates the speed of traffic relative to the maximum allowed speed
at that location, with red being the slowest. The stripes on the traffic jam are also animated to
show the speed of the traffic, where appropriate.
For a complete list of incident types, see Traffic incidents.
2. Traffic incident on your route but in the opposite direction of travel.
3. Traffic incidents on roads that are not visible at your current zoom level.
Looking at traffic on your route
Information about traffic incidents on your route is shown in the route bar on the right-hand side of
the map and guidance views.
The route bar tells you about traffic delays while you are driving, using symbols to show you where
each traffic incident is located on your route. When using the map view, you can also select symbols
on the map itself.
Note: If your TomTom navigation app isn't receiving any traffic information, a symbol showing
traffic with a cross appears underneath the arrival information panel.
Note: To make the route bar more readable some incidents may not be shown. These incidents
will always be of minor importance and only cause short delays.
32
To get more information about an incident, select an incident in the route bar. The map opens
zoomed in on the incident and an information panel opens showing detailed information about the
traffic incident.
The information shown includes:
The cause of the traffic incident - for example accident, road works, lane closure, or weather.
The severity of the incident - slow traffic, queuing traffic or stationary traffic.
The delay time.
The length of the incident.
For a complete list of incident types, see Traffic incidents.
Select the back button to go back to the guidance view.
Traffic incidents
The following traffic incident symbols are used in the map view and in the route bar to show the
cause of a traffic jam:
Traffic
Accident
Dangerous conditions
Roadworks
Lane closure
Road closure
Rain
Fog
Ice or snow
Wind
The symbol or number at the start of the incident shows the type of incident or the delay in
minutes, for example 4 minutes.
33
The colour of the incident indicates the speed of traffic relative to the maximum allowed speed at
that location, with red being the slowest. The stripes on the traffic jam are also animated to show
the speed of the traffic, where appropriate.
Traffic speed is 0% to 20% of the allowed speed
Traffic speed is 20% to 40% of the allowed speed
Traffic speed is 40% to 100% of the allowed speed
Traffic speed is normal.
Road closed, no traffic.
Approaching a traffic jam warning
A warning is given as you approach a traffic jam. You are warned in several ways:
A warning symbol is shown in the route bar.
The route bar zooms in to the start of the traffic jam.
Your distance to the start of the traffic jam is shown in the route bar.
The colour of the road on the route bar changes to orange or red,
depending on the severity of the traffic jam.
The background colour of the route bar background changes to red if
you are driving too fast towards the traffic jam.
You hear a warning sound.
To change the way you are warned, select Sounds & Warnings in the Settings menu.
Avoiding a traffic jam on your route
You can avoid a traffic jam that is on your route.
Note: Sometimes the quickest route is still the route that has the traffic jam.
Note: It may not be possible to find an alternative route around the traffic jam if none exists.
Avoiding a traffic jam using the route bar
1. In the route bar, select the symbol for the traffic jam you want to avoid.
The traffic jam is shown on the map.
2. Select the pop-up menu button.
34
3. Select Avoid in the pop-up menu.
A new route is found that avoids the traffic jam.
Avoiding a traffic jam using the map
1. On the map view, zoom in and select the traffic jam that is on your route.
The traffic jam with an information panel is shown on the map.
2. Select the pop-up menu button.
3. Select Avoid.
A new route is found that avoids the traffic jam.
Advanced Lane Guidance
Note: Lane guidance is not available for all junctions or in all countries.
Advanced Lane Guidance helps you prepare for motorway exits and junctions by showing the correct
driving lane for your planned route.
As you approach an exit or junction, the lane you need is shown on the screen and in the instruction
panel.
Tip: To close the lane image, select anywhere on the screen.
To turn lane images off, select the Settings button in the Main Menu, then select Appearance.
Switch off the Show previews of motorway exits setting.
Time-dependent speed limits
Some speed limits change depending on the time of day. For example, you may see the speed limit
near schools decrease to 40 km/h or 25 mph in the morning between 08.00 - 09.00 and in the
afternoon between 15.00 - 16.00. Where possible, the speed limit shown in the speed panel changes
to show these variable speed limits.
Some speed limits change depending on driving conditions. For example, the speed limit will
decrease if there is heavy traffic, or the weather conditions are bad. These variable speed limits are
not shown in the speed panel. The speed shown in the speed panel is the maximum speed limit
allowed in good driving conditions.
35
Important: The speed limit shown in the speed panel is only an indication. You must always obey
the actual speed limit for the road you are on and the conditions you are driving in.
36
Using quick search
About search
QUICK SEARCH ONLY
You use search to find a wide range of places and then navigate to them. You can search for the
following:
A specific address, for example, 335 madison avenue, new york.
A partial address, for example, madison av NY.
A type of place, for example, petrol station or restaurant.
A place by name, for example, Starbucks.
A postcode, for example, 36925 York for York, Alabama.
A city to navigate to a city centre, for example, Kingston, NY.
A POI (Point of Interest) near your current location, for example, restaurant near me.
Latitude and longitude coordinates, for example,
N 40°45′28″ W 73°59′09″.
Planning a route to a POI
QUICK SEARCH ONLY
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To plan a route to a POI type or a specific POI (Point of Interest) using search, do the following:
1. Select the Main Menu button to open the Main Menu.
2. Select Search.
The search screen opens with the keyboard showing.
3. Use the keyboard to enter the name of the place you want to plan a route to.
37
Tip: If you press and hold a letter key on the keyboard, you get access to extra characters if
they are available. For example, press and hold the letter "e" to access characters 3 e è é ê ë
and more.
You can search for a POI (Point of Interest) type, such as a restaurant or tourist attraction.
Alternatively, you can search for a specific POI, for example "Rosie's Pizzeria".
Note: When searching, the whole map is searched. If you want to change how the search is
done, select the search type button and then select a search option.
4. As you type, suggestions based on what you have entered are shown in columns. You can
continue typing or select a suggestion.
Tip: To see more results, hide the keyboard or scroll down the results list.
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
5. Select a POI type or an individual POI. If you selected a POI type, select a POI.
The location is shown on the map.
38
6. To see more information about the POI, select the POI on the map and then select the pop-up
menu button. Select More Information on the pop-up menu.
You see more information about the POI such as the phone number, full address and email.
7. To plan a route to this destination, select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Planning a route to a POI using online search
QUICK SEARCH ONLY
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
Note: Searching online is only available on connected devices. To search online on your TomTom
navigation app, you must be connected to TomTom services.
If you did a POI search but could not find the POI you were looking for, you can search TomTom
Places online. To find POIs by searching online, do the following:
1. Search for a POI using Search in the Main Menu.
The search results are shown in two columns.
39
2. Select Search Places Online.
3. Use the keyboard to enter the name of the POI you want to find, then press the Search button
on the keyboard.
Tip: If you press and hold a letter key on the keyboard, you get access to extra characters if
they are available. For example, press and hold the letter "e" to access characters 3 e è é ê ë
and more.
You can search for a POI (Point of Interest) type, such as a restaurant or tourist attraction.
Alternatively, you can search for a specific POI, for example "Rosie's Pizzeria".
Note: When searching, you can search near your current location, in a town or city, or near
your destination. If you want to change how the search is done, select the button to the right
of the search box.
The search results are shown in a column.
Tip: To see more results, hide the keyboard or scroll down the results list.
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
4. Select an individual POI from the list.
The location is shown on the map.
5. To see more information about the POI, select the POI on the map and then select the pop-up
menu button. Select More Information on the pop-up menu.
You see more information about the POI such as the phone number, full address and email.
40
6. To plan a route to this destination, select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Entering search terms
Select Search in the Main Menu to start searching for addresses and POIs. The search screen opens
showing the device keyboard and the following buttons:
Tip: Hide the device keyboard to show the whole search screen.
1. Back button
Select this button to go back to the previous screen.
2. Search input box
Enter your search term here. As you type, matching addresses and POIs are shown.
Tip: If you press and hold a letter key on the keyboard, you get access to extra characters if
they are available. For example, press and hold the letter "e" to access characters 3 e è é ê ë
and more.
Tip: To edit, select a word you have already typed to place the cursor. You can then insert or
delete characters.
3. Type of search.
By default, the whole of the current map is searched. Once you have used search, the last
search type you selected is used. Select this button to change the type of search to any of the
following:
Whole map
Select this option to search the whole of your current map with no
limit to the search radius. Your current location is the centre of the
search. The results are ranked by exact match.
41
Near me
Select this option to search with your current GPS location as the
search centre. The results are ranked by distance.
In town or city
Select this option to use a town or city as the centre for your search.
You need to enter the town or city name using the keyboard. When
you have selected the town or city from the results list, you can
search for an address or POI in that city.
Along route
When a route has been planned, you can select this option to search
along your route for a specific type of location, for example, petrol
stations. When prompted, enter the type of location and then select it
in the right-hand column to carry out the search.
Near destination
When a route has been planned, you can select this option to use your
destination as the centre for your search.
Latitude Longitude
Select this option to enter a pair of latitude longitude coordinates.
4. View button
Select this button to return to the map view or guidance view.
5. List/map button
Select this button to switch between showing the results in a list or showing the results on the
map.
6. Show/hide keyboard button
Select this button to show the keyboard. Hide the keyboard using the device's back function.
Tip: To cancel a search, select the map/guidance view button in the top right-hand corner of the
screen.
Working with search results
QUICK SEARCH ONLY
Your search results are shown in two columns.
Address and city matches are shown in the left-hand column, and POIs, types of POIs and Places are
shown in the right-hand column. Recent destinations and saved places are also shown in your search
results.
Tip: To see more results, hide the keyboard or scroll down the results list.
42
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
When you select an address from the list of search results, you can choose to show it on the map,
add a crossroad or plan a route to that chosen location. To get an exact address you can add the
house number.
If you show the result on the map, you can use the pop-up menu to add the location to My Places. If
a route is already planned, you can add the location to your current route.
Note: The best search results are shown on the map. When you zoom in, the lower ranked search
results are gradually shown.
43
About postcodes
You can search using a postcode to get closer to the area in which you want to find an address or
POI.
When you search using a postcode, your results include all the streets in a city district, the whole
town, or the towns and villages within that postcode zone.
Note: If you search using a postcode you will not get a specific address in your results.
You do not have to use the state or province postal abbreviation or first change the state or
province because this is included in the postcode.
For example, a search for York in the whole map returns a long list of possible results. Adding a
space followed by the postcode narrows the results down to the York that you are looking for.
About mapcodes
QUICK SEARCH ONLY
In countries where roads and houses have no names or addresses, you can use a mapcode instead. A
mapcode represents a location.
Every location on Earth, including those in the sea like islands and oil rigs, can be represented by a
mapcode. Mapcodes are short, and easy to recognise, remember and communicate. They are
precise to a few metres, which is good enough for every-day use.
Go to mapcode.com for instructions on how to find the mapcode for a location.
Mapcodes are more precise and more flexible than the address on a business card. You can choose a
location that you want to associate with your address, for example, the main entrance or the
entrance to a car park.
List of POI type icons
Legal and financial services
Court house
Cash dispenser
Legal - Solicitors
Financial institution
Legal - other services
Food services
Convenience store
Fast food restaurant
Restaurant
Chinese restaurant
Accommodation
44
Hotel or motel
Luxury hotel
Camping ground
Economy chain hotel
Emergency services
Hospital or polyclinic
Dentist
Police station
Veterinarian
Doctor
Fire station
Car-related services
Outside parking
Petrol station
Parking garage
Car wash
Car dealer
Vehicle inspection centre
Rental car facility
Electrical car charging
point(s)
Rental car parking
Car repair facility
Other services
Embassy
Pet services
Government office
Telecommunication
Company
Community service
45
Post office
Pharmacy
Shopping centre
Beauty services
Tourist information office
Shop
Education
College or university
School
Library
Convention centre
Leisure
Casino
Winery
Theatre
Tourist attraction
Cinema
Zoo
Concert hall
Amusement park
Museum
Exhibition centre
Opera
Cultural centre
Nightlife
Leisure centre
Children's Farm
Sport
46
Playing field
Swimming pool
Mountain peak
Water sports
Beach
Tennis court
Park or recreation area
Ice skating rink
Yacht basin or marina
Sports centre
Stadium
Golf course
Religion
Church
Place of worship
Travel
Railway station
Mountain pass
Airport
Scenic or panoramic view
Ferry terminal
Postcode
Note: Not used in all
countries.
Border crossing
Residential area
Bus station
City centre
Toll gate
Electrical car charging
stations
47
Rest area
Truck stop
48
Planning a route using quick search
Planning a route to an address
QUICK SEARCH ONLY
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To plan a route to an address using search, do the following:
1. Select the Main Menu button to open the Main Menu.
2. Select Search.
The search screen opens with the keyboard showing.
3. Use the keyboard to enter the name of the place you want to plan a route to.
Tip: If you press and hold a letter key on the keyboard, you get access to extra characters if
they are available. For example, press and hold the letter "e" to access characters 3 e è é ê ë
and more.
You can search for an address, town, city, postcode or mapcode.
Tip: To search for a specific city you can use the city's state code or postcode. For example,
searching for York will return many results. If you search for York AL or York 36925 then that
city will be at the top of the results. You can then search in the city.
Note: When searching, the whole map is searched. If you want to change how the search is
done, select the button to the right of the search box. You can then change where the search
is done, for example, to being along the route or in a city.
4. As you type the address, suggestions based on what you have entered are shown in columns. You
can continue typing or select a suggestion.
Tip: To see more results, hide the keyboard or scroll down the results list.
49
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
5. Select an address suggestion.
6. Enter the house number if you have one and haven't entered it already.
Tip: If you enter a house number that is not found, then the number appears red. The nearest
house number that is found is shown in the Drive button. You can enter a new house number,
or you can select Drive/Ride to drive to the nearest house number.
7. Select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
50
Planning a route to a city centre
QUICK SEARCH ONLY
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To plan a route to a city centre using search, do the following:
1. Select the Main Menu button to open the Main Menu.
2. Select Search.
The search screen opens with the keyboard showing.
3. Use the keyboard to enter the name of the city or town you want to plan a route to.
You can search for a town, city, or postcode.
Tip: To search for a specific city you can use the city's state code or postcode. For example,
searching for York will return many results. If you search for York AL or York 36925 then that
city will be at the top of the results. You can then search in the city.
Tip: When searching, the whole map is searched. If you want to change how the search is
done, select the search type button, then select a search option.
4. As you type, suggestions based on what you have entered are shown in columns. You can
continue typing or select a suggestion.
Tip: To see more results, hide the keyboard or scroll down the results list.
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
5. Select the city in the left-hand column.
51
The city name is shown in the right side of the search input box, and the city centre POI is
shown below in the right-hand column.
6. Select the city centre POI.
The city centre location is shown on the map.
7. Select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Planning a route to a POI
QUICK SEARCH ONLY
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To plan a route to a POI type or a specific POI (Point of Interest) using search, do the following:
1. Select the Main Menu button to open the Main Menu.
52
2. Select Search.
The search screen opens with the keyboard showing.
3. Use the keyboard to enter the name of the place you want to plan a route to.
Tip: If you press and hold a letter key on the keyboard, you get access to extra characters if
they are available. For example, press and hold the letter "e" to access characters 3 e è é ê ë
and more.
You can search for a POI (Point of Interest) type, such as a restaurant or tourist attraction.
Alternatively, you can search for a specific POI, for example "Rosie's Pizzeria".
Note: When searching, the whole map is searched. If you want to change how the search is
done, select the search type button and then select a search option.
4. As you type, suggestions based on what you have entered are shown in columns. You can
continue typing or select a suggestion.
Tip: To see more results, hide the keyboard or scroll down the results list.
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
5. Select a POI type or an individual POI. If you selected a POI type, select a POI.
53
The location is shown on the map.
6. To see more information about the POI, select the POI on the map and then select the pop-up
menu button. Select More Information on the pop-up menu.
You see more information about the POI such as the phone number, full address and email.
7. To plan a route to this destination, select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Planning a route to a POI using online search
QUICK SEARCH ONLY
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
Note: Searching online is only available on connected devices. To search online on your TomTom
navigation app, you must be connected to TomTom services.
If you did a POI search but could not find the POI you were looking for, you can search TomTom
Places online. To find POIs by searching online, do the following:
1. Search for a POI using Search in the Main Menu.
54
The search results are shown in two columns.
2. Select Search Places Online.
3. Use the keyboard to enter the name of the POI you want to find, then press the Search button
on the keyboard.
Tip: If you press and hold a letter key on the keyboard, you get access to extra characters if
they are available. For example, press and hold the letter "e" to access characters 3 e è é ê ë
and more.
You can search for a POI (Point of Interest) type, such as a restaurant or tourist attraction.
Alternatively, you can search for a specific POI, for example "Rosie's Pizzeria".
Note: When searching, you can search near your current location, in a town or city, or near
your destination. If you want to change how the search is done, select the button to the right
of the search box.
The search results are shown in a column.
Tip: To see more results, hide the keyboard or scroll down the results list.
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
4. Select an individual POI from the list.
The location is shown on the map.
55
5. To see more information about the POI, select the POI on the map and then select the pop-up
menu button. Select More Information on the pop-up menu.
You see more information about the POI such as the phone number, full address and email.
6. To plan a route to this destination, select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Planning a route using the Internet browser
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
Note: This feature is not available on all devices.
You can search the Internet using the TomTom navigation app Internet browser, then select text
from the search results to share with the TomTom Navigation app. To plan a route using the
Internet browser, do the following:
1. Open the TomTom navigation app Internet browser and search for a place or POI.
56
2. Select the POI address or name.
3. Select the SHARE button to show the share options.
4. Select Navigation.
57
The Navigation app starts and the search screen opens with the keyboard showing. The selected
text appears at the top of the screen and the search suggestions based on the selected text are
shown in columns.
Tip: To see more results, hide the keyboard or scroll down the results list.
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
5. Select an address suggestion and enter the house number if you have one and haven't entered it
already.
Tip: If you enter a house number that is not found, then the number appears red. The nearest
house number that is found is shown in the Drive button. You can enter a new house number,
or you can select Drive to drive to the nearest house number.
58
6. Select Drive.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Planning a route using the map
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To plan a route using the map, do the following:
1. Move the map and zoom in until you can see the destination that you want to navigate to.
Tip: You can also select a map symbol to open the pop-up menu, then select the Drive/Ride
button to plan a route to that location.
2. When you have found your destination on the map, select it by pressing and holding the screen
for about one second.
A pop-up menu shows the nearest address.
3. To plan a route to this destination, select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
59
Tip: You can use the location you selected in other ways, such as adding it to My Places, by
selecting the pop-up menu button.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Planning a route using My Places
To navigate to one of My Places from your current location, do the following:
1. Select the Main Menu button to open the Main Menu.
2. Select My Places.
A list of all your Places opens.
3. Select the Place you want to navigate to, for example Home.
60
Your chosen Place is shown on the map with a pop-up menu.
4. To plan a route to this destination, select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Planning a route using coordinates
QUICK SEARCH ONLY
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To plan a route using a pair of coordinates, do the following:
1. Select the Main Menu button to open the Main Menu.
2. Select Search.
The search screen opens with the keyboard showing.
3. Select the type of search button to the right of the search box.
4. Select Latitude Longitude.
Tip: The example coordinates shown on the screen are your current latitude and longitude.
5. Type in your pair of coordinates. You can enter any of these coordinate types:
Decimal values, for example:
61
N 40.75773 W 73.985708
40.75773, -73.985708
Tip: For decimal values you don't have to use a letter to indicate the latitude and longi-
tude. For locations west of the 0 meridian and locations south of the equator, use a minus
sign (-) before the coordinate.
Degrees, minutes and seconds, for example:
N 40°45′28″ W 73°59′09″
GPS standard coordinates, for example:
N 40 45.46 W 73 59.15
Note: The bar below the coordinates goes red if you enter coordinates that are not recognised
by your TomTom navigation app.
6. As you type in the coordinates, suggestions are shown based on what you have entered. You can
continue typing or select a suggestion.
Towns and roads are shown on the left, POIs are shown on the right.
Tip: To see more results, hide the keyboard or scroll down the results list.
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
7. Select a suggestion for your destination.
The location is shown on the map.
8. To plan a route to this destination, select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Planning a route using a mapcode
QUICK SEARCH ONLY
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To plan a route using a mapcode, do the following:
1. Select the Main Menu button to open the Main Menu.
62
2. Select Drive to.
The search screen opens with the keyboard showing.
3. Type in your mapcode. You can enter any of these mapcode types:
International, for example, S8VXZ.PJZ2.
Country-specific, for example, USA WW6G.S9GT.
Alternative country-specific, for example, DC LQ.FR or DC JJ.1B2.
Tip: All the mapcodes in this example are for the same location - the US Capitol building in
Washington DC, USA. See About mapcodes for information on how to get a mapcode for a
location.
4. When the full map code has been entered, the location is shown in the Addresses column.
Towns and roads are shown on the left, POIs are shown on the right.
Tip: To see more results, hide the keyboard or scroll down the results list.
Tip: You can switch between seeing the results on the map or in a list by selecting the
list/map button:
5. Select a suggestion for your destination.
6. To plan a route to this destination, select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: If your destination is in a different time zone, you see a plus (+) or a minus (-) sign and
the time difference in hours and half hours in the arrival information panel. The estimated
time of arrival is the local time at your destination.
Tip: You can add a stop to a route that you have already planned.
Tip: You can save a route using My Routes.
Finding an alternative route
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To find an alternative route, do the following:
1. Plan a route as usual.
2. On the map view, select the route itself.
3. Select the pop-up menu button to open the menu.
4. Select Alternative Route and then select Find alternative.
Up to three alternative routes are shown on the map view. Each alternative route shows the
difference in travel time in a balloon. You can also select the km/mi button to show the differ-
ence as a distance.
63
Tip: Information from the TomTom Traffic is used when calculating alternative routes. Any
route that is 50% longer in time than the original route is not shown.
5. Select your chosen route by tapping on the time balloon.
Guidance to your destination begins. As soon as you start driving, the guidance view is shown
automatically.
Note: There are two other ways of finding alternative routes:
1. Select Current Route in the Main Menu, followed by Find Alternative.
2. If your device has voice control, say "Find alternative".
Planning a route in advance
You can plan a route in advance before you drive it. You can save the route as part of your My
Routes list.
To plan a route in advance, do the following:
1. Search for the location you want to use as a starting point.
2. Select Show on Map.
3. Select the pop-up menu button.
A pop-up menu shows a list of options.
4. Select Use as Starting Point.
5. Search for the location you want to use as your destination.
6. Select Show on Map.
7. Select Drive/Ride in the pop-up menu.
Your route is planned using your chosen starting point and destination. The estimated journey
time is shown at the top of the route bar.
64
Tip: Stops, POIs and Places can all be selected as starting points using their pop-up menus.
Tip: You can save the route in My Routes.
8. To drive to the starting point, select Drive/Ride at the top of the screen.
The starting point of the route is converted to your first stop and then the route is planned.
Guidance to your destination begins from your current location. As soon as you start driving, the
guidance view is shown automatically.
Changing the starting point to be your current location
1. Select the starting point of the route in the map view.
2. Select the pop-up menu button.
A pop-up menu shows a list of options.
3. Select Remove Starting Point.
Your route is replanned with your current location as the starting point. The original starting
point is removed from your route.
Changing the starting point into a stop
1. Select the starting point on the route in the map view.
2. Select the pop-up menu button.
A pop-up menu shows a list of options.
3. Select Change to a Stop.
Your route is replanned with the starting point changed into a stop.
65
Finding a car park
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To find a car park, do the following:
1. Select the Main Menu button to open the Main Menu.
2. Select Parking.
The map opens showing the locations of car parks.
If a route is planned, the map shows car parks near your destination. If a route isn't planned,
the map shows car parks near your current location.
You can change the screen to show a list of car parks by pressing this button:
You can select a car park from the list to locate it on the map.
Tip: You can scroll down the list of results using the scroll bar on the right side of the screen.
66
If you want to change how the search is done, select the button to the right of the search box.
You can then change where the search is carried out, for example, to search near you or the
whole map.
3. Select a car park from the map or the list.
A pop-up menu opens on the map showing the name of the car park.
4. Select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: You can add a car park as a stop on your route by using the pop-up menu.
Finding a petrol station
Important: In the interest of safety and to avoid distractions while you are driving, you should
always plan a route before you start driving.
To find a petrol station, do the following:
1. Select the Main Menu button to open the Main Menu.
2. Select Petrol Station.
67
The map opens showing the locations of petrol stations.
If a route is planned, the map shows petrol stations along your route. If a route isn't planned,
the map shows petrol stations near your current location.
You can change the screen to show a list of petrol stations by pressing this button:
You can select a petrol station from the list to locate it on the map.
Tip: You can scroll down the list of results using the scroll bar on the right side of the screen.
If you want to change how the search is done, select the button to the right of the search box.
You can then change where the search is carried out, for example, to search near you or the
whole map.
3. Select a petrol station from the map or the list.
68
A pop-up menu opens on the map showing the name of the petrol station.
4. Select Drive/Ride depending on which device you are using.
A route is planned and then guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: You can add a petrol station as a stop on your route by using the pop-up menu. A petrol
station that is a stop on your route has a blue icon.
69
Changing your route
The Current Route menu
When you have planned a route or track, select the Current Route or Current Track button in the
Main Menu to open the Current Route or Current Track Menu.
The following buttons are available in the menu:
Clear Route / Clear
Track
Select this button to clear the currently planned route or track.
The Current Route Menu closes and you return to the map view.
Skip Next Stop
Select this button to skip the next stop on your route.
Find Alternative
You see this button when you have planned a route. Select this button to
show up to three alternative routes on the map view.
Avoid Blocked Road
Select this button to avoid an unexpected obstacle that is blocking the
road on your route.
Avoid Part of Route
Select this button to avoid part of a route.
Avoid Toll Roads
and More
Select this button to avoid some types of route features that are on your
currently planned route. These include ferries, toll roads and unpaved
roads.
You can also avoid route features using the route bar.
Show Instructions
Select this button to see a list of turn-by-turn text instructions for your
planned route.
The instructions include the following:
Your current location.
Street names.
Up to two road numbers shown in road shields whenever available.
70
An instruction arrow.
An instruction description.
The distance between two consecutive instructions.
Exit number.
The full addresses of stops on your route.
Tip: Select an instruction to see a preview of that section of the route
in the map view.
You can also select the instruction panel in the guidance view to see
turn-by-turn text instructions.
Add Stop to Route
Select this button to add a stop to your currently planned route. You can
also add a stop to your route directly from the map.
Add to My Routes
If you plan a new route that has not already been saved, you see this
button. Select this button to save this route as part of your My Routes list.
Save Changes to
Route
If you make a change to a My Route, you see this button. Select this
button to save the changes.
Change Route Type
Select this button to change the type of route used to plan your route.
Your route will be recalculated using the new route type.
Reorder Stops
Select this button to see the lists of stops for your current route. You can
then change the order of the stops on your route.
Drive to Route or
Track
Select Drive to Route to plan a route from your current location to the
starting point of a My Route. The starting point is converted to a stop.
Drive to Track plans a route to the nearest point of the track from your
current position.
71
Drive to Starting
Point
On the Current Track menu, select this button to plan a route to the
starting point of the track. The starting point is converted to a stop. For
more information, see Navigating using a track.
Share Track
On the Current Track menu, select this button to export the current track
as a GPX file and save it on a memory card for sharing with other users.
Play Route or
Track Preview
Select this button to watch a preview of your planned route or track.
Stop Route or
Track Preview
Select this button to stop the preview of your planned route or track.
Avoiding a blocked road
If there is a blocked road on your route you can change your route to avoid it.
1. In the guidance view, select the current location symbol or the speed panel.
Tip: The speed panel is only shown when you have started driving on your route.
2. Select Avoid Blocked Road.
A new route is found that avoids the blocked road. You may get shown up to two alternatives
depending on the road network between you and your destination.
The new route is shown on the map view with the difference in travel time in a balloon.
Note: It may not be possible to find an alternative route around the blocked road if none
exists.
3. Select the new route by selecting the time balloon.
Guidance to your destination resumes avoiding the blocked road. As soon as you start driving,
the guidance view is shown automatically.
Avoiding part of a route
If part of a road is blocked or you wish to avoid part of a route, you can select a specific section of
a route to avoid.
1. Select the Main Menu button to open the Main Menu.
2. Select Current Route.
72
3. Select Avoid Part of Route.
A screen opens showing a list of the sections that comprise your current route.
4. Select the section of the route that you want to avoid.
A preview shows you the section you have chosen on the map.
5. Select Avoid.
A new route is found that avoids your chosen route section. The new route is shown on the map
view.
Note: It may not be possible to find an alternative route around the route section if none
exists.
Guidance to your destination resumes avoiding your chosen route section. As soon as you start
driving, the guidance view is shown automatically.
Types of route
Select Change Route Type to change the type of route planned to your current destination. Your
route is recalculated using the new route type.
You can select the following types of route:
Fastest route - the fastest route to your destination. Your route is constantly checked taking
into account the traffic conditions.
Shortest route - the shortest route to your destination. This may take much longer than the
fastest route.
Most eco-friendly route - the most fuel-efficient route.
Avoid Motorways - this type of route avoids all motorways.
Walking Route - this type of route is optimised for walking.
Bicycle Route - this type of route is optimised for bicycles.
You can set the default route type in the Settings Menu.
Route features
You can choose to avoid some features that are on your currently planned route. You can avoid the
following route features:
Toll Roads
Ferries and car shuttle trains
Carpool Lanes
Unpaved Roads
Note: Carpool lanes are sometimes known as High Occupancy Vehicle Lanes (HOV lanes) and are
not present in every country. To travel on these lanes, you may need to have more than one
person in the car, for example, or the car may need to use environmentally-friendly fuel.
If you choose to avoid a route feature, a new route is planned.
In Route Planning in the Settings Menu, you can set how each route feature is handled when a new
route is planned.
Avoiding an incident or route feature using the route bar
You can avoid an incident or route feature that is on your route.
73
Note: It may not be possible to find an alternative route around the incident or route feature if
none exists.
1. In the route bar, select the symbol for the route feature you want to avoid.
2. The route feature is shown on the map together with the pop-up menu.
3. Select Avoid in the pop-up menu.
A new route is found that avoids the route feature.
Adding a stop to your route from the current route menu
1. In the Main Menu, select Current Route.
2. Select Add Stop to Route.
The map view is shown.
3. To select a stop, do one of the following steps:
Zoom in on the map, then press and hold to select a location. In the pop-up menu, select
Add.
Select Search and search for a location. When you have found a location, select Add.
Your route is recalculated to include your stop.
Adding a stop to your route using the map
1. Press the switch view button to show the map.
Your complete route is shown on the map.
2. Zoom in on the map, then press and hold to select a location.
3. Select the pop-up menu button.
4. Select Use in Route.
5. Select Add to Current Route.
Your route is recalculated to include your stop.
Deleting a stop from your route
1. In the route bar, press the stop you want to delete.
The map zooms in to the stop and shows a pop-up menu.
Tip: If you select the wrong stop press the back button to return to the map.
2. Select Delete This Stop.
The stop is deleted and your route is recalculated.
Skipping the next stop on your route
1. In the Main Menu, select Current Route.
2. Select Skip Next Stop.
The map view is shown. The next stop on your route is deleted and your route is recalculated.
Reordering stops on a route
1. In the Main Menu, select Current Route.
74
2. Select Reorder Stops.
The map view is shown with the route cleared. The starting point, destination and all the stops
are shown.
3. Select the stops one by one in the order you wish to drive them.
The symbols change to a flag as you select each stop. The last stop you select becomes your
destination.
Your route is recalculated with the stops in the changed order.
75
My Routes
About My Routes
My Routes provides an easy way to save and retrieve routes and tracks.
You may want to use My Routes in one or more of the following situations:
While working - Your job involves driving several routes with multiple stops on a daily basis.
Your routes can change and you need to be flexible and be able to change the order of your
stops or change the planned route.
While on holiday - You are going on holiday and want to plan and save a route. Your route
includes scenic roads, stops at various hotels, and other places like tourist attractions.
While touring - You want to follow a tour you have downloaded from the Internet, or drive a
route another user has shared with you.
While commuting to work - You want to add one or two regular stops between home and work.
Your route back home in the evening is the reverse of your route to work in the morning.
Routes can be created and saved on your TomTom navigation app or in MyDrive. You can also use a
tool such as Tyre Pro to create and edit routes and tracks.
About routes and tracks
The term "route" includes two types of route from one place to another:
Routes have a starting point and a destination, and perhaps some stops. Your device calculates
your preferred type of route between all these points, for example, the fastest or most eco-
nomical, and uses Traffic. You can edit a route by, for example, adding stops or moving the
starting point. Routes can be imported but cannot be exported from your device.
Tracks also have a starting point and a destination, but have no stops. Your route follows the
track as closely as possible, ignoring your preferred type of route and traffic conditions, and any
traffic on the route. You can only edit tracks using tools such as Tyre Pro. Tracks can be im-
ported and exported from your device.
Tip: Tracks have a dotted arrow!
Important: Routes and tracks cannot be stored on the same memory card as maps because different
memory card formatting is used.
Saving a route
1. Plan a route using the steps described in Planning a route.
Tip: If you cannot see your planned route on the map view, select the back button to show
your route.
2. Select the route.
76
3. Select the pop-up menu button to open the menu.
4. Select Manage Route, then Add to My Routes.
The name of the route is shown in the edit screen.
5. Edit the name of the route so that you can easily recognise it.
6. Save your route in the My Routes list.
Tip: You can also save a route using the Add to My Routes button in the Current Route menu.
Navigating using a saved route
To navigate using a previously saved route, do the following:
1. In the Main Menu, select My Routes.
2. Select a route from your list.
The route is shown on the map view.
3. To navigate to the start of the saved route, select Drive/Ride depending on which device you
are using.
77
The starting point of the saved route is converted to your first stop and then the route is
planned. Guidance to your destination begins from your current location. As soon as you start
driving, the guidance view is shown automatically.
Tip: There are two other ways to navigate using a saved route:
Select the starting point of the route. When the pop-up menu opens, select Change to a Stop.
Alternatively, select Drive to Route or Ride to Route in the Current Route menu.
Navigating to a stop on a saved route
You can navigate from your current location to a stop on your saved route instead of to the start of
the saved route. The stop is changed to the start of your route. Your new starting point might be
one closer to your current location, or you might just want to make your route shorter.
Note: The route from the original starting point up to the new starting point is removed from the
route.
Note: Your original route in My Routes is not changed. If you want to see the whole route, select
the route again in My Routes.
1. In the Main Menu, select My Routes.
2. Select a route from your list.
The route is shown on the map view.
78
3. Select the stop that you want to use as your starting point, then select the pop-up menu button
to open the menu.
4. Select Start Route From Here.
Your route is calculated from the new starting point.
5. Select Drive/Ride.
The starting point of your route is converted to your first stop and then the route is planned
from your current location. Guidance to your destination begins. As soon as you start driving,
the guidance view is shown automatically.
Tip: There are two other ways to navigate using a saved route:
Select the starting point of the route. When the pop-up menu opens, select Change to a Stop.
Alternatively, select Drive to Route or Ride to Route in the Current Route menu.
79
Adding a stop to a saved route using the map
Note: You can also press and hold a location on the map and select Add to Current Route from
the pop-up menu.
1. Press the switch view button to show the map.
Your complete route is shown on the map.
2. Select the route.
3. Select the pop-menu button to open the menu.
4. Select Manage Stops.
5. Select Add Stop to Route.
6. Select your new stop on the map.
Tip: If you know the name of your new stop, you can use Search to select your stop instead of
using the map.
7. Select the Add Stop button to add this location as a stop.
Your route is recalculated to include your stop.
Tip: To update the saved route in your My Routes list with the changes, select the route om
the map then select Save Changes to Route in the pop-up menu.
Deleting a route or a track from My Routes
1. In the Main Menu, select My Routes.
2. Select Edit List.
3. Select the routes you want to delete.
4. Select Delete.
80
Recording and sharing routes
About GPX and ITN files
GPX files (GPS exchange format)
GPX files contain a very detailed recording of where you have been on your track, including any
off-road locations. GPX files become tracks after import.
Using GPX files
There are several things you can do with your GPX file:
Use a tool such as Tyre Pro to view your track file.
Export to a memory card or directly to your computer, then use your computer to view the file
using software such as Google Earth.
Note: While viewing your recording, you may notice that the recorded GPS locations do not
always correspond with the roads. This can happen for several reasons. Firstly, your device
tries to keep the files small and this can cause a slight loss of data precision. Secondly, your
device records the actual data from the GPS chip for an accurate representation of where
you’ve been, rather than what you see on your screen. Thirdly, the software with which you
view the recording may have the maps misaligned.
Share the file with friends by exporting it.
Note: Tracks can be imported and exported.
ITN files (TomTom's own Itinerary file format)
An ITN file contains less detail than a GPX file. An ITN file can contain a maximum of 255 locations
which is enough to recreate a route accurately. ITN files become routes after import.
Using ITN files
There are several things you can do with your ITN file:
You can import an ITN file onto your TomTom BRIDGE Hub so you can travel that same route
again and get navigation instructions.
Use tools such as Tyre Pro to view your route.
Note: Routes can be imported but cannot exported.
Importing routes and tracks
Important: You can only transfer route and track files if a file explorer app is installed on your
TomTom BRIDGE Hub.
You can import the following file types:
GPX files - these become tracks after import.
ITN files - these become routes after import.
Tip: ITN files are TomTom itinerary files.
You can find GPX and ITN files on the Internet then transfer these files to My Places by transferring
the files to your device.
To import a route or track, do the following:
1. Using a file explorer app, select the file you want to import.
81
2. Use the file explorer app's send or share function to select the TomTom Navigation app.
3. The TomTom Navigation app imports the route or track.
4. When the route or track is successfully imported, select OK.
You can find you route or track in My Routes.
Recording a track
You can record a track while you drive, with or without a route planned. After recording, you can
then export your track so that you can share it with others or view it using tools such as Tyre Pro.
To record a track, do the following:
1. In the Main Menu, select Start Recording.
A red dot appears in the lower right-hand corner of the screen and initially flashes 3 times to
show that you are now recording. The dot remains on the screen until you stop recording.
2. To stop recording, select Stop Recording in the Main Menu.
3. Enter a name for your track or you can leave it at the suggested date-time combination.
4. Select Add or Finished, depending on the device you are using.
5. Your track is saved in My Routes.
Note: You can export tracks as GPX files and save them on a memory card for sharing with
others.
Exporting tracks from the TomTom Navigation app
You can export tracks as GPX files and save them on the TomTom navigation app. Using a file
explorer app or your computer, you can then share the files with others.
Important: Not every TomTom BRIDGE Hub has a file explorer app.
Note: Currently, you can export only tracks from your TomTom navigation app.
To export one or more tracks, do the following:
1. In the Main Menu, select My Routes.
2. Select Share Tracks.
Tip: Alternatively, when in map view, select a track and select Share Track from the pop-up
menu.
3. Select one or more tracks from your list for export.
Tip: To select or deselect all tracks for export, select the pop-up menu button.
4. Select Share.
You see the messages Exporting routes then Routes saved successfully.
Open the file explorer app or connect your device to a computer. You can find the track files in
the TomTom navigation app internal storage in the Routes folder.
Tip: You can share the track files using Bluetooth, a computer, or a memory card.
82
Voice control (Speak&Go)
About voice control
Note: Voice control is only available when your TomTom BRIDGE Hub is in the dock, the dock has
power, and the microphone is connected.
Instead of selecting items on the screen to control your TomTom BRIDGE Hub, you can use your
voice to control your TomTom navigation app.
You can use voice control to control many of the navigation features on your TomTom navigation
app, or to change settings. For example, you can change the screen to day colours, avoid a blocked
road or decrease the volume just by using your voice.
Voice control is active in the map view, the guidance view, and the voice control screen.
Important: Voice control requires a voice that speaks street names. When there is no voice that
speaks street names installed and selected on your TomTom BRIDGE Hub, this feature is not
available.
To select a voice that reads aloud street names, select Voices in the Settings menu, then select
Choose a voice and select a Computer voice that reads aloud street names.
Starting voice control
In map view or guidance view, say the wake-up phrase to start voice control. The default wake-up
phrase is "Hello TomTom", but you can make your own wake-up phrase.
Tip: Voice control and the wake-up phrase are ON by default. You can switch the wake-up phrase
on or off in the Settings menu.
Alternatively, you can select Voice Control in the Main Menu:
When voice control is ready to use, you see the voice control screen and your TomTom navigation
app says "I'm listening". Speak when you hear the beep.
Note: If the volume control is set to 20% or lower, the volume automatically changes to 50% when
you start voice control.
Making your own wake-up phrase
You can make your own wake-up phrase to start Voice Control. You can choose any words you like
to make your wake-up phrase fun or easy to say.
To make your own wake-up phrase, do the following:
1. Select Voice Control in the Settings menu.
2. Select Change the wake-up phrase.
3. Enter your wake-up phrase using the keyboard.
Your phrase should have at least three syllables. Don't use a phrase that you often say or hear.
The indicator shows how good your phrase is:
Red means your phrase won't work.
Orange means your phrase might work.
Green means your phrase is good.
83
4. Select Hear it to listen to your wake-up phrase.
5. Select Done then Yes to save your wake-up phrase.
Your new wake-up phrase is ready to use. Start Voice Control and try it.
The voice control screen
1. Examples of what you can say.
Tip: Say "All commands" to see a list of commands you can say. Alternatively, select Help in
the Main menu, then select Voice control and then select Which commands can I say?.
2. The status of voice control on your device. You can speak when your device says "I'm listening"
and you see the microphone symbol in the left corner.
The status message tells you if voice control cannot understand what you said, and gives you
instructions about using voice control. At the same time, voice control reads aloud the message.
3. The microphone symbol shows you when you can speak:
This symbol shows you that voice control is ready to listen. Speak when you hear the
beep.
This symbol shows you that voice control is busy.
4. The microphone monitor. While you are speaking the microphone monitor shows how well voice
control can hear your voice:
A light blue bar means voice control can hear your voice.
A red bar means your voice is too loud for voice control to recognise individual words.
A dark blue bar means your voice is too quiet for voice control to recognise individual words.
84
Some tips for using voice control
You can help your TomTom navigation app understand what you are saying by following these tips:
Mount your TomTom navigation app about an arm's length in front of you, away from speakers
or air vents.
Reduce background noise such as voices or the radio. If there is excessive road noise, you may
need to speak in the direction of the microphone.
Speak fluently and naturally as though speaking to a friend.
When saying an address, try not to pause between parts of the address or add extra words.
Say "number one" or "number two" and not "one " or "two" when selecting an item from a list
such as a house number.
Try not to correct mistakes, for example "Number four, oh I mean number five".
Important: Voice control on your TomTom navigation app is specifically for native speakers of the
selected language who have a neutral accent. If you have a strong local or foreign accent, voice
control may not understand everything that you say.
What you can use voice control for
To view the complete list of available commands, select Help in the Main Menu, then Voice control
and then Which commands can I say?.
When voice control is on, you can also say "All commands" to view the list of available commands.
Here are some examples of the commands you can say when voice control is active:
Global commands
"Help", "Back", and "Cancel"
Navigation and route
"Activate phone"
"Go home" and "Travel via home"
"Go to a car park" and "Go to a petrol station"
"Go via a car park" and "Go via a petrol station"
"Display My Places" and "Recent destinations"
"Travel via a recent destination", and "Travel via a saved place"
"Report speed camera"
"When will I get there?"
"Mark the current location"
"Add current location to My Places"
"Clear route"
"What's the next instruction?"
Device settings
"Volume 70%", "Volume up", and "Volume down"
"Mute", and "Sound on"
"Instructions on", and "Instructions off"
"Day colours", and "Night colours"
"2D view", and "3D view"
"Zoom in", and "Zoom out"
85
Saying commands in different ways
Your TomTom navigation app recognises many more words than just the ones you see in the list of
commands, so try some of your own words. You can say other words that have the same meaning,
for example you can say the following words:
"OK", "Correct" or "Right" instead of "Yes" when you want to confirm what you said.
"Navigate to", "Look for" or "Nearest" instead of "Drive to" when you want to drive to a petrol
station.
"Cancel" or "Delete" instead of "Clear" when you want to clear your current route.
Entering an address using voice control
Note: If spoken address entry is not supported in your current country, voice control is stopped
and the address entry screen is shown. You can enter the address in the normal way using the
keyboard.
The following example shows how to use voice control to plan a journey to an address or a location:
1. In the map view, say the wake-up phrase to start voice control.
The voice control screen is shown and your TomTom navigation app says "I'm listening". When
voice control is ready to listen, you see a microphone icon in the bottom left corner.
2. Say "Go to an address" or "Go to a saved location".
Tip: Say "All commands" to see a list of commands you can say. Alternatively, select Help in
the Main menu, then select Voice control and then select Which commands can I say?.
For some commands, your TomTom navigation app repeats what you say and asks for confirma-
tion.
3. If the command is correct, say "Yes."
If the command is incorrect, say "No" and repeat the command after you hear "I'm listening".
4. If the address is in another state, say "Change state" and say the name of the state.
Your device repeats what you say and asks for confirmation.
5. If the state is correct, say "Yes."
If the state is incorrect, say "No" and repeat the name of the state after you hear "I'm listening".
6. Say the address or location without the state name.
You can also say the name of a place or a city centre. Your TomTom navigation app repeats
what you say and asks for confirmation.
Important: Say "number one" or "number two" and not "one " or "two" when selecting an item
from a list such as a house number.
7. If the address or location is correct, say "Yes."
If the address or location is incorrect, say "No" and repeat the address after you hear "I'm
listening".
Tip: If you want to change the house number or street you can say "Change house number" or
"Change street".
Your TomTom navigation app plans a route from your current location to your destination.
Tip: To stop voice control, say "Cancel". To go back one step, say "Back".
Tip: Your TomTom navigation app recognises places and street names when they are spoken in
the local language using local pronunciation. Spoken address entry is not possible for postcodes,
which must be entered using the keyboard.
86
Going to home using voice control
The following example shows how to use voice control to plan a journey to your home location:
1. In map view or guidance view, say the wake-up phrase to start voice control.
The voice control screen is shown and your TomTom navigation app says "I'm listening". When
voice control is ready to listen, you see a microphone icon in the bottom left corner and you
hear a beep.
2. Say the command "Drive home".
Tip: Say "All commands" to see a list of commands you can say. Alternatively, select Help in
the Main menu, then select Voice control and then select Which commands can I say?.
For some commands, your TomTom navigation app repeats what you say and asks for confirma-
tion.
3. If the command is correct, say "Yes."
If the command is incorrect, say "No" and repeat the command after you hear "I'm listening".
Your device plans a route from your current location to your home location.
Tip: To stop voice control, say "Cancel". To go back one step, say "Back".
Going to a POI using voice control
The following example shows how to use voice control to plan a journey to a petrol station:
1. In map view or guidance view, say the wake-up phrase to start voice control.
The voice control screen is shown and your TomTom navigation app says "I'm listening". When
voice control is ready to listen, you see a microphone icon in the bottom left corner and you
hear a beep.
2. Say the command "Drive to a petrol station".
Tip: Say "All commands" to see a list of commands you can say. Alternatively, select Help in
the Main menu, then select Voice control and then select Which commands can I say?.
For some commands, voice control repeats what you say and asks for confirmation.
If a route is planned, a list of petrol stations along your route is shown. If a route isn't planned,
a list of petrol stations near your current location is shown.
3. Say the number of the petrol station you want to use, for example, "number three".
Voice control repeats what you say and asks for confirmation.
4. If the command is correct, say "Yes."
If the command is incorrect, say "No" and repeat the command after you hear "I'm listening".
Your TomTom navigation app plans a route from your current location to the petrol station.
Tip: To stop voice control, say "Cancel". To go back one step, say "Back".
Changing a setting using voice control
For example, to change the volume do the following:
1. In the map view, say the wake-up phrase to start voice control.
87
The voice control screen is shown and your TomTom navigation app says "I'm listening". When
voice control is ready to listen, you see a microphone icon in the bottom left corner and you
hear a beep.
2. Say the command "Volume 50%".
Tip: Say "All commands" to see a list of commands you can say. Alternatively, select Help in
the Main menu, then select Voice control and then select Which commands can I say?.
For some commands, your TomTom navigation app repeats what you say and asks for confirma-
tion.
3. If the command is correct, say "Yes."
If the command is incorrect, say "No" and repeat the command after you hear "I'm listening".
The volume on your TomTom navigation app changes to 50%.
Tip: To stop voice control, say "Cancel". To go back one step, say "Back".
88
Speed Cameras
About speed cameras
The Speed Cameras service warns you about the following camera locations:
Fixed speed camera locations.
Mobile speed camera locations.
Mobile speed camera hotspots.
Average speed camera locations.
Speed enforcement zones.
Red light camera locations.
Traffic restriction cameras.
The Speed Cameras service also warns you about the following safety hazards:
Accident blackspot locations.
Traffic jams.
The TomTom BRIDGE Hub uses either a permanent connection or a smartphone connection to
connect to TomTom services.
Important: If you are outside of the area covered by your mobile data plan, you may be liable for
extra roaming charges while using TomTom Services.
Note: TomTom services are not available in all countries or regions, and not all services are
available in all countries or regions. For more information on available services in each region, go
to tomtom.com/services.
Speed camera warnings
Warnings are given as you approach a speed camera. You are warned in several ways:
A symbol is shown in the route bar and on your route on the map.
Your distance to the speed camera is shown in the route bar.
The speed limit at the camera location is shown in the route bar.
You hear a warning sound as you get near the camera.
While you are approaching a camera or driving in an average speed check area, your speed is
monitored. If you drive more than 5 km/h or 3 mph over the speed limit the route bar turns red.
If you drive less than 5 km/h or 3 mph over the speed limit the route bar turns orange.
Tip: In the map view or guidance view, you can select a speed camera symbol in the route bar to
see the type of camera, the maximum speed and also the length of an average speed check area.
In the map view, you can also select a speed camera that is shown on your route.
Symbol shown on
map
Symbol shown in
route bar
Description
Fixed speed camera - this type of camera
checks the speed of passing vehicles and is fixed
in one place.
Mobile speed camera - this type of camera
checks the speed of passing vehicles and can be
moved to different locations.
89
Symbol shown on
map
Symbol shown in
route bar
Description
Mobile speed camera hotspots - this type of
warning shows places where mobile cameras are
often used.
Average speed cameras - these types of
cameras measure your average speed between
two points. You are warned at the start and end
of the average speed check area.
While you are driving in an average speed check
area, your average speed is shown, instead of
your current speed. The distance to the end of
the area is shown in the route bar.
Speed enforcement zones - these zones can
contain multiple speed cameras.
You are warned at the start and end of a speed
enforcement zone. While you are driving in a
speed enforcement zone, your current speed is
shown, and a visual warning is shown in the
route bar.
Red light camera - this type of camera checks
for vehicles breaking traffic rules at traffic
lights. There are two types of traffic light
camera - those which check if you drive through
a red light and those which check for driving
through a red light together with speeding.
Traffic restriction - this type of warning warns
you about restricted roads.
Accident blackspot - this type of warning is
given for a place where road traffic accidents
have historically been concentrated.
You are warned at the start and end of the
accident blackspot. While you are driving in an
accident blackspot, your current speed is shown
and a visual warning is shown in the route bar.
Changing the way you are warned
To change the way you are warned about speed cameras, select Sounds & Warnings in the Settings
menu.
You can then set how you want to be warned for the different types of cameras and safety hazards.
You can choose to be warned, warned only if you are speeding, or never warned.
To switch off all warnings, switch off Speed cameras & hazards.
90
Reporting a new speed camera
If you pass a new speed camera that you were not warned about, you can report it instantly.
Note: To report a speed camera, your device must have a mobile data connection.
You can report a speed camera in the following ways:
Note: Not all features are available on all apps.
Using the speed panel to report a speed camera
1. Select the speed camera symbol on the speed panel in the guidance view.
You see a message thanking you for reporting the camera.
Tip: If you make a mistake when reporting a camera, select Cancel in the message.
The speed camera is saved on your device automatically and also sent to other users.
Using the quick menu to report a speed camera
1. Select the current location symbol or the speed panel in the guidance view.
2. Select Report Speed Camera from the pop-up menu.
You see a message thanking you for reporting the camera.
Tip: If you make a mistake when reporting a camera, select Cancel in the message.
The speed camera is saved on your device automatically and also sent to other users.
Using the Main Menu to report a speed camera
1. Select the Main Menu button to open the Main Menu.
2. Select Report Speed Camera.
You see a message thanking you for reporting the camera.
Tip: If you make a mistake when reporting a camera, select Cancel in the message.
The speed camera is saved on your device automatically and also sent to other users.
Confirm or remove a mobile speed camera
You can confirm the presence of a mobile speed camera or remove a mobile speed camera if it is no
longer present.
Just after you pass a mobile speed camera, in the route bar you are asked if the camera was still
there.
Select Yes if the mobile speed camera is still there.
Select No if the mobile speed camera has been removed.
91
Your selection is sent to TomTom. We collect reports from many users to determine if the camera
warning should be kept or removed.
Updating locations for cameras and hazards
The locations of speed cameras can change frequently. New cameras can also appear without
warning and the locations for other hazards, such as accident blackspots, may also change.
When connected to TomTom services, all camera updates for fixed and mobile camera locations are
received in real time. You do not need to do anything to receive updates – they are sent to your
navigation app automatically.
92
My Places
About My Places
My Places provides an easy way to select a location without the need to search for the location each
time. You can use My Places to create a collection of useful or favourite addresses.
Tip: The terms "favourite" and "place" mean the same thing - favourites are places that you go to
often.
The following items are always in My Places:
Home - Your home location can be your home address or somewhere you often visit. This
feature provides an easy way to navigate there.
Work - Your work location can be your workplace address or somewhere you visit often. This
feature provides an easy way to navigate there.
Recent destinations - Select this button to select your destination from a list of locations you
have recently used as destinations. These also include your stops.
Marked locations - You can mark a location and temporarily add it to My Places.
You can add a location to My Places directly in My Places, by selecting a location from the map, by
searching for a location or by marking a location.
You can upload community POI lists using TomTom MyDrive and choose to show the POI locations on
the map.
Your home location, work location, marked locations and the locations that you have added appear
in a list in My Places and are shown with a marker on the map.
Setting your home or work location
You can set your home or work locations in the following ways:
Setting your home or work location using My Places
1. In the Main Menu, select My Places.
2. Select Add Home or Add Work.
Tip: To set your home location, you can also select Add Home from the main menu.
3. To select a location for home or work, do one of the following:
Zoom in on the map at the location you want to select. Press and hold to select the loca-
tion, then select Set.
Select the Search button and search for a location. Select a location to set as home or work,
then select Set.
93
Setting your home or work location using the map
1. In the Map View, move the map and zoom in until you can see your home or work location.
2. Press and hold to select the location.
A pop-up menu shows the nearest address.
1. Open the pop-up menu and select Add to My Places.
2. In the name bar, enter the name "Home" or "Work".
Note: "Home" must have a capital letter H and "Work" must have a capital letter W.
3. Save the location.
Your home or work location is shown on the map.
Changing your home location
You can change your home location in the following ways.
Changing your home location using My Places
1. In the Main Menu, select My Places.
2. Select Home.
Your home location is shown on the map, with a pop-up menu.
3. Select Edit Location.
4. To select a new home location, do one of the following:
Zoom in on the map at the location you want to select. Press and hold to select the loca-
tion, then select the home location symbol.
Select the Search button and search for a location. Select a location to set as home. Select
Set home location.
Changing your home location using the map
1. In the Map View, move the map and zoom in until you can see your new home location.
2. Select the location by pressing and holding the screen for about one second.
A pop-up menu shows the nearest address.
1. Open the pop-up menu and select Add to My Places.
2. In the name bar, enter the name "Home".
Note: "Home" must have a capital letter H.
3. Select Add.
Your home location is changed to the new location.
94
Adding a location from My Places
1. In the Main Menu, select My Places.
2. Select Add a new place.
3. To select a location, do one of the following:
Zoom in on the map at the location you want to select. Press and hold to select the loca-
tion, then select the add location symbol.
Search for a location. Select Show on Map, then select the add location symbol.
The name of the location appears in the edit screen.
4. Edit the name of the location so you can easily recognise it.
5. Select Done to save your location in the My Places list.
Add a location to My Places from the map
1. Move the map and zoom in until you can see the destination that you want to navigate to.
2. Press and hold to select the location.
3. Select the pop-up menu button.
4. Select Add to My Places.
The name of the location is shown in the edit screen.
5. Edit the name of the location so you can easily recognise it.
6. Select Done to save your location in the My Places list.
The location you added is shown with a marker on the map.
Adding a location to My Places using search
1. Search for a location.
2. Select the location then select Show on map.
3. When the map view shows the location, select the pop-up menu button.
4. Select Add to My Places.
95
The name of the location appears in the edit screen.
5. Edit the name of the location so you can easily recognise it.
6. Select Done to save your location in the My Places list.
Adding a location to My Places by marking
To mark a location and temporarily add it to My Places, do the following:
1. Make sure that your current location is the location you want to mark.
2. Select the current location symbol or the speed panel in the guidance view to open the quick
menu.
3. Select Mark Location.
4. Once marked, the location is saved in My Places in the Marked Locations list.
If you want to permanently save a marked location, add it My Places by doing the following:
1. In the Main Menu, select My Places.
2. Select Marked Locations and choose your location from the list.
The marked location is shown on the map.
3. Select Add to My Places from the pop-up menu.
The name of the location appears in the edit screen.
4. Edit the name of the location so you can easily recognise it.
5. Select Add.
Deleting a recent destination from My Places
1. In the Main Menu, select My Places.
2. Select Recent Destinations.
3. Select Edit List.
4. Select the destinations you want to delete.
5. Select Delete.
Deleting a location from My Places
1. In the Main Menu, select My Places.
2. Select Edit List.
3. Select the locations you want to delete.
4. Select Delete.
Importing a POI list
You can find collections of POIs on the Internet and upload these POI collections to My Places by
transferring the files to your device. A POI collection might contain, for example, campsites or
restaurants for the area you are travelling in, and provides an easy way to select a location without
the need to search for the location each time.
Your TomTom BRIDGE Hub uses .OV2 files for POI collections.
To import an .OV2 file to your TomTom BRIDGE Hub, do the following steps:
1. Connect the TomTom BRIDGE Hub to your computer using the USB cable supplied with your
device, then switch your device on.
Note: Use ONLY the USB cable supplied with your device. Other USB cables may not work.
Note: You cannot use the mount to connect your device to your computer.
Note: You should plug the USB cable directly into a USB port on your computer and not into a
USB hub or USB port on a keyboard or monitor.
96
2. On your computer, open a file manager program.
Your device appears in your computer's files system as TomTom Bridge.
3. Open your device's Internal Storage folder, then open the Locations folder.
4. Copy the .OV2 files from your computer to the Locations folder.
The .OV2 file is imported and you see the message New place list added.
Tip: If your .OV2 file also has an associated icon file, you can also copy that file to the Loca-
tions folder. The icon file is used for the POI location pins on the map.
5. Select My Places in the Main Menu.
Your new POI list is shown in the Places list.
6. Select your new POI list.
Your new POI list opens showing all the POIs in the list. Select the map view to see the POIs on
the map.
97
Settings
Appearance
Select Settings in the Main Menu, then select Appearance.
On this screen, you can change these settings:
Display
Select Display to change the appearance of the display.
Route bar
Select Route bar to change the information you see in the route bar.
Guidance view
Select Guidance view to change the information you see in the guidance view.
Automatic zoom
Select Automatic Zoom to change how you view a junction as you drive.
Show POI lists on map
Select Show POI lists on map to choose which POI lists you want to show on the map.
Note: Show POI lists on map is not available on all TomTom navigation devices or apps.
Automatic map view switching
By default, automatic changing of views is on. This means, for example, that your TomTom
navigation app shows the map view when an alternative route is being suggested, along with
several other sets of circumstances. Also, for example, that your TomTom navigation app shows
the guidance view when you start driving and you start to accelerate. Select this setting if you
want to turn off automatic changing between guidance view and map view.
Motorway exit previews
Select Motorway exit previews to change how you view motorway exits or junctions on your
route.
Display
Select Settings in the Main Menu, then select Appearance.
Select Theme colour to change the accent colour used in the menus, buttons and icons on your
TomTom navigation app.
Select Switch to night colours when dark to automatically switch to night colours when it gets
dark.
98
Route Bar
Select Settings in the Main Menu, then select Appearance.
Select Arrival information to change the arrival information you see in the route bar.
Select Route information to change the route information you see on the route bar.
Show current time
Select this setting to show the current time in the guidance view. When switched on, the current
time is shown at the bottom of the route bar.
Show wide route bar if possible
The wide route bar is not shown by default. You can select this setting to switch on the wide route
bar in the guidance view.
Note: The wide route bar can only be shown if the screen is wide enough.
When the wide route bar is shown, you see more information about your route. For example, you
see time and distance to traffic queues and more.
Arrival information
Select Arrival information to change the following settings:
Show remaining distance
Select this setting to show the remaining distance left to travel in the arrival information panel
during navigation.
Show remaining time
Select this setting to show the remaining time left to travel in the arrival information panel
during navigation.
Switch between distance and time automatically
Select this setting to control the automatic switching between remaining distance and remain-
ing time in the arrival information panel.
Show arrival information for
99
Use this setting to control whether you want to see information about the destination or the
next stop in the arrival information panel.
Tip: To find out where the different panels are in the guidance view or map view, see What's on
the screen.
Route Information
You can choose to see any of the following in the route bar:
Parking
Select this setting to see car parks and parking.
Petrol stations
Select this setting to see petrol stations on your route.
Stops
Select this setting to see stops on your route.
Rest areas
Select this setting to see rest areas on your route.
Toll zones
Select this setting to see toll zones on your route.
Ferries and car shuttle trains
Select this setting to see ferries and car shuttle trains on your route.
Guidance view
Select Settings in the Main Menu, then select Appearance.
Show current street name
This setting displays name of the street you are driving along.
Guidance view style
Select this setting to choose from 3D or 2D versions of the guidance view. Both the 2D and 3D
guidance views move in your direction of travel.
Automatic Zoom
Select Settings in the Main Menu, then select Appearance.
Select Automatic zoom to change settings for the automatic zoom in Guidance view when you
approach a turn or a junction. Zooming in can make the turn or junction easier to drive.
Zoom in to next turn
All the turns and junctions on your route are shown zoomed in to the maximum level.
Based on road type
The turns and junctions on your route are shown zoomed in to the standard level for the type of
road you are on.
None
None of the turns and junctions on your route are shown zoomed in.
100
Voices
Select Settings in the Main Menu, then select Voices.
Choosing a voice
Select Choose a voice to change the voice that gives spoken directions and other route instructions.
A wide range of voices are available. There are computer voices which can read street names and
other information directly from the map and there are recorded voices which have been recorded
by actors.
Note: Computer voices are not available in all languages.
If you need a computer voice and your language is unavailable, then you are asked to choose from
a list of installed computer voices available for the country you are in.
Instruction settings
Read aloud arrival time
Use this setting to control whether your arrival time is read aloud.
Read aloud early instructions
For example, if you switch on this setting, you could hear early instructions such as "'After 2 km
take the exit right" or "Ahead, turn left".
Note: When a recorded voice is chosen, you see only this setting because recorded voices
cannot read out road numbers, road signs, etc.
Read aloud road numbers
Use this setting to control whether road numbers are read aloud as part of navigation instruc-
tions. For example, when road numbers are read aloud, you hear "Turn left onto A100".
Read aloud road sign information
Use this setting to control whether road sign information is read aloud as part of navigation
instructions. For example, "Turn left onto A302 Bridge Street towards Islington."
Read aloud street names
Use this setting to control whether street names are read aloud as part of navigation instruc-
tions. For example, when street names are read aloud, you hear "Turn left Graham Road to-
wards Hackney."
Read aloud foreign street names
Use this setting to control whether foreign street names are read aloud as part of navigation
instructions, such as "Turn right onto Champs Élysées". For example, an English computer voice
can read and pronounce French street names but pronunciation may not be completely accu-
rate.
Voice Control
Note: Voice control is only available when your TomTom BRIDGE Hub is in the dock, the dock has
power, and the microphone is connected.
101
Select Settings in the Main Menu, then select Voice Control.
Start voice control when I say "Hello TomTom"
Select this setting to start voice control when you say the wake-up phrase.
Change the wake-up phrase
Use this setting to make your own wake-up phrase.
Use voice to accept an alternative route
Use this setting to control the ability to accept an alternative route by using your voice. When
an alternative route can save you time, the number of minutes is also spoken and not just
shown on the screen.
Maps
Select Settings in the Main Menu, then select Maps.
Changing the map
Select a map that you want to use.
Route Planning
Select Settings in the Main Menu, then select Route Planning.
When a faster route is available
If a faster route found while you are driving, TomTom Traffic can replan your journey to use the
faster route. Select from the following options:
Always take the fastest route
Ask me so I can choose
Don't ask me
Always plan this type of route
The types of route you can choose from are as follows:
Fastest route - the route which takes the least time.
Shortest route - the shortest distance between the locations you set. This may not be the
quickest route, especially if the shortest route is through a town or city.
Most eco-friendly route - the most fuel-efficient route for your journey.
Avoid motorways - this type of route avoids all motorways.
Walking route - a route designed for making the journey on foot.
Bicycle route - a route designed for making the journey on a bicycle.
102
Avoid on every route
You can choose to avoid ferries and car shuttle trains, toll roads, carpool lanes, and unpaved roads.
Set how your TomTom navigation app should manage each of these road features when the device
calculates a route.
Carpool lanes are sometimes known as High Occupancy Vehicle Lanes (HOV) and are not present in
every country. To travel on these lanes, you may need to have more than one person in the car, for
example, or the car may need to use environmentally-friendly fuel.
Sounds and Warnings
Select Settings in the Main Menu, then select Sounds & Warnings.
On this screen, you can change sound and warning settings.
Warning type
Warning type
You can choose how you want to be warned about hazards on your route:
Read aloud warnings
Hear spoken warnings and warnings sounds.
Warning sounds
Hear only warning sounds.
Visual only
No warning sounds are given.
Speed camera warnings
Select Settings in the Main Menu, then select Sounds & Warnings.
Switch on Speed camera warnings to see and hear speed camera warnings as you drive.
Cameras
Note: This feature is not available when you are in France.
Select Settings in the Main Menu, then select Sounds & Warnings.
Select Cameras to set how you want to be warned for the different types of cameras. You can set
whether you want to be warned, never warned or warned only if you are speeding.
103
Tip: When Speed camera warnings in Settings > Sounds & Warnings switched off then this option
is not visible.
Hazards
Note: This feature is only available when you are in France.
In Safety warnings, you can set how you want to be warned for the different types of danger zones
and safety hazards. You can choose to be warned, warned only if you are speeding, or never
warned.
Tip: When Danger zones & hazards is switched off then this option is not visible.
Accident blackspots
This type of warning is given for a place where road traffic accidents have historically been
concentrated.
Danger zones
This type of warning is only given in France where you are only warned about danger zones.
Risk zones
This type of warning is only given in France where you are only warned about danger zones.
Additional settings
Traffic jam ahead
Traffic jam warnings in the route bar are part of TomTom Traffic. You can choose never to be
warned or to always be warned when approaching a jam too quickly.
When speeding
This warning is given as soon as you exceed the speed limit by more than 5 km/h or 3 mph.
When you are speeding, the speed panel also turns red in the guidance view.
Screen touch sounds
Switch on Screen touch sounds to hear a click when you select an item or touch a button. The
click sound means that your selection or touch has been understood.
Read aloud traffic warnings
Switch on Read aloud traffic warnings to hear spoken warnings about TomTom Traffic events
on your route.
Read aloud traffic warnings
Select Settings in the Main Menu, then select Sounds & Warnings.
Switch on Read aloud traffic warnings to hear spoken warnings about traffic on your route.
Units
Select Settings in the Main Menu, then select Units.
On this screen, you can change the following settings:
104
Distance
Select this setting to choose the units used on your device for features such as route planning. If
you want the units to be set to those used in your current location, select Automatic.
Language
The language used on the TomTom BRIDGE Hub is also used on the apps installed on the device. For
example, the language used for buttons and menus in the navigation app is the same as the
language you selected in your device settings.
You can change the device language in Language & input in the TomTom BRIDGE Hub Settings app.
If you change the device language, the voice used for spoken directions and other route instructions
in the navigation app might not be compatible with the new device language. Go to Voices in the
Settings menu and download a compatible voice.
Important: Some voices are large files that can take a long time to download. To prevent high data
charges we advise you to download a voice using a Wi-Fi connection.
105
Getting Help
Help
Select Help from the Main Menu or the Settings menu.
On this screen, you can see the following information:
About
This is an information screen rather than a setting and shows you information about your
TomTom BRIDGE Hub.
106
External Camera App
107
Using the External Camera app
This section explains how to use the External Camera app.
Important: For other settings and operation instructions for the TomTom BRIDGE Hub, and for
instructions about other apps installed on the TomTom BRIDGE Hub, please refer to the applicable
User Documentation.
The app shows you the live image from the external camera installed on your vehicle.
Note: A rear-view camera usually switches on when you select reverse gear. Other external
cameras are switched on by a switch on the vehicle dashboard. The app will not work unless it
receives a signal from the camera.
Select the External camera button to start the app. The image from the camera appears
automatically.
On some devices the camera image is shown in a widget on the home screen. Select the widget to
show the camera image full-screen.
108
Camera settings
Select the settings button in the Rear view camera screen.
Note: The TomTom BRIDGE Hub might be secured to prevent you making changes.
On this screen, you can change these settings:
Image position
Fit
This setting zooms out so either the image height or width fills the screen size, whichever is
larger. You will see the complete image, but the image might have a border on two sides.
Fill
This setting zooms in on the image so it fills the whole screen. A part of the image might be
missing from the screen.
Stretch
This setting fits both the height and width to the screen. The image might appear distorted.
Aspect ratio
The aspect ratio is the ratio of the screen width to the screen height. If your camera automatically
sets the aspect ratio, select Auto. If your camera does not set the aspect ratio, select the setting
that gives the best screen image size.
Full screen
Select this setting to show the image on the full screen. The system bar automatically hides after a
few seconds. Touch the screen to show the system bar again.
Mirror image
Some cameras can automatically mirror the image to make it usable as a rear-view image. If your
camera does not mirror the image, select this setting to mirror the screen image.
Guide lines
Select Guide lines to show guide lines on the camera screen.
Using the vehicle width guide lines
About the vehicle width guide lines
The guide lines help you see if your vehicle will fit in a parking space or other width-restricted area.
Once you have set-up the guide lines using a space that you know your vehicle will fit in, you can
use the guide lines to check the size of other spaces.
Setting up the vehicle width guide lines
1. Open the camera app.
2. Position your vehicle in front of a space that you know your vehicle will fit in to. Make sure that
your vehicle is in line with the centre of the space.
3. Switch on Guide lines in the camera settings.
109
The guide lines are shown on the screen.
4. Touch and hold the guide lines until you see the hand symbol.
5. Drag each corner of the guide line frame to fit the space. Drag the hand symbol to move the
whole guide line frame.
6. When the guide line frame fits the space, touch the screen outside of the frame to save the
setting.
Tip: You can hide the guide lines by switching off Guide lines in the camera settings.
Using the vehicle width guide lines
1. Open the camera app.
2. Switch on Guide lines in the camera settings.
3. Position your vehicle in front of a parking space. Use the guide lines to see if your vehicle can
fit in the parking space. If the guide lines fit inside the parking lines then your vehicle will
probably fit in the parking space.
110
Important: While reversing, also be aware of other obstructions, for example adjacent vehi-
cles or overhead obstacles.
111
TomTom Music App
112
Using the TomTom Music app
This section explains how to use the TomTom Music app.
Important: For other settings and operation instructions for the TomTom BRIDGE Hub, and for
instructions about other apps installed on the TomTom BRIDGE Hub, please refer to the applicable
User Documentation.
Use the Music app to select and play music stored in the device's internal memory, or on the
memory card that you have inserted in the TomTom BRIDGE Hub.
Depending on the TomTom BRIDGE Hub configuration, the music app can be started from one of the
following places on your TomTom navigation app:
The Music app widget on the home screen.
The Music button in the apps screen.
The app automatically finds your music on the device and on the memory card. The tracks are
played in a random order. You can select a music track using the next and previous buttons. Select
the play button to play the track.
The album image is shown if it is available.
The music tracks continue to play even when you are using other apps. Adjust the music volume
using the volume control in the system bar.
113
Addendum and Copyright
114
Addendum
Important Safety Notices and Warnings
Global Positioning System (GPS) and Global Navigation Satellite System (GLONASS)
The Global Positioning System (GPS) and Global Navigation Satellite System (GLONASS) systems are
satellite-based systems that provide location and timing information around the globe. GPS is
operated and controlled by the Government of the United States of America, which is solely
responsible for its availability and accuracy. GLONASS is operated and controlled by the Government
of Russia, which is solely responsible for its availability and accuracy. Changes in GPS or GLONASS
availability and accuracy, or in environmental conditions, may impact the operation of this device.
TomTom disclaims any liability for the availability and accuracy of GPS or GLONASS.
Safety messages
Important! Read before use!
Death or serious injury could result from failure or partial failure to follow these warnings and
instructions. Failure to properly set up, use, and care for this device can increase the risk of serious
injury or death, or damage to the device.
Use with care warning
It is your responsibility to use best judgment, due care and attention when using this device. Don't
allow interaction with this device to distract you while driving. Minimise the time spent looking at
the device screen while driving. You are responsible for observing laws that limit or prohibit the use
of mobile phones or other electronic devices, for example, the requirement to use hands-free
options for making calls when driving. Always obey applicable laws and road signs, especially
those relating to your vehicle’s dimensions, weight and payload type. TomTom does not
guarantee the error-free operation of this device nor the accuracy of route suggestions provided and
shall not be liable for any penalties arising from your failure to comply with applicable laws and
regulations.
Notice for oversized/commercial vehicles
Devices without a truck map installed will not provide appropriate routes for oversized/commercial
vehicles. If your vehicle is subject to weight, dimension, speed, route, or other restrictions on a
public road then you must only use a device that has a truck map installed. Your vehicle specifica-
tions must be entered accurately on the device. Use this device as a navigation aid only. Do not
follow navigation instructions which may put you or other road users in danger. TomTom accepts no
liability for damages resulting from your failure to observe this notice.
Proper mounting
Do not mount the device in a way that may obstruct your view of the road or your ability to control
the vehicle. Do not place the device in an area that may obstruct the deployment of an airbag or of
any other safety feature of your vehicle. Always ensure that the device is securely in-
stalled/mounted before use. This helps prevent it from becoming loose and/or falling off.
Pacemakers
Pacemaker manufacturers recommend that a minimum of 15cm / 6 inches be maintained between a
handheld wireless device and a pacemaker to avoid potential interference with the pacemaker.
These recommendations are consistent with independent research and recommendations by
Wireless Technology Research.
Guidelines for people with pacemakers:
115
You should ALWAYS keep the device more than 15cm / 6 inches from your pacemaker.
You should not carry the device in a breast pocket.
Other medical devices
Please consult your physician or the manufacturer of the medical device, to determine if the
operation of your wireless product may interfere with the medical device.
ISO7637
ISO7637 pulse 1 represents the negative voltage transient produced during switching of a higher
current inductive load that shares the same circuit with TomTom Bridge Hub. Pulse 2b simulates
transients from D.C. motors acting as generators after the ignition is switched off. In practice, such
pulses very seldom occur. The TomTom Bridge Hub will reboot due to the pulse and return to
normal operation afterwards.
Device care
It is important to take care of your device:
The TomTom BRIDGE Hub device must be used within the recommended operating temper-
ature ranges only.
The device housing must not be compromised or damaged, please use the recommended
mounting interfaces as stated in the instruction manual.
Wipe or dry the device using a soft cloth. Do not use any liquid cleaners.
The device is resistant to dust and dripping water (IP52) if stored, used and mounted
correctly.
Do not immerse in water or use the device outdoors.
Failure to follow these instructions may impact the device performance and useful lifetime.
Special Note Regarding Driving in California, Minnesota and Other States
California Vehicle Code Section 26708 which applies to those driving within the State of California
restricts the mounting of a navigation device on the windshield to a seven-inch square in the lower
corner of the windshield farthest removed from the driver or in a five-inch square in the lower
corner of the windshield nearest to the driver and outside of an airbag deployment zone, if the
system is used only for door-to-door navigation while the motor vehicle is being operated. Drivers in
California should not mount the device on their side or rear windows.
Minnesota State Legislature Statutes Section 169.71, subdivision 1, section 2 restricts any person
driving within the State of Minnesota from driving with a device suspended between the driver and
the windshield.
Many other states have enacted laws which restrict the placement of any object or material on the
windshield, side or rear window that obstructs a driver's clear view of the road. It is incumbent upon
the driver to be aware of all applicable laws and to place the device in such a manner that will not
interfere with his/her driving.
TomTom Inc. bears no responsibility for and hereby disclaims all liability for any fines, penalties or
damage incurred by a driver for violations of the law. While driving in any state with windshield
mounting restrictions, TomTom recommends using the supplied Adhesive Mounting Disk or
purchasing an alternative mounting system (e.g. dashboard or air vents). See tomtom.com for more
information about these mounting options.
Rating: DC12V, 2.0A
How TomTom uses your information
Information regarding the use of personal information can be found at:
tomtom.com/privacy.
116
Environmental information
Your device
Do not disassemble, crush, bend, deform, puncture, or shred your device. Do not use it in a humid,
wet and/or corrosive environment. Do not put, store or leave the device in a high temperature
location, in direct sunlight, in or near a heat source, in a microwave oven or in a pressurised
container, and do not expose it to temperatures over 60°C (140°F) or below -20°C (-4°F).
Avoid dropping the device. If the device is dropped and you suspect damage, please contact
customer support. Use the device only with the chargers, mounts or USB cables provided. For
TomTom approved replacements, go to tomtom.com.
Operating temperature
This device will remain fully operational within the temperature range -4°F / -20°C to 140°F /
60°C. Prolonged exposure to higher or lower temperatures can cause damage to your device and is
therefore advised against.
Long period storage: -4°F / -20°C to 95°F / 35°C.
Important: Before you switch on the device, let the device acclimatise to the standard operation
temperature range for at least 1 hour. Do not use the device outside of this temperature range.
WEEE – e-waste disposal
In the EU/EEA, this product is marked with the wheelie bin symbol on its body and/or packaging as
required by Directive 2012/19/EU (WEEE). This product shall not be treated as household waste or
be disposed of as unsorted municipal waste. You can dispose of this product by returning it to the
point of sale or bringing it to your local municipal collection point for recycling.
Outside of the EU/EEA, the wheelie bin symbol may not have the same meaning. More information
about national recycling options can be requested from a responsible local authority. It is the
responsibility of the end user to comply with local law when disposing of this product.
FCC information for the user
THE DEVICE COMPLIES WITH PART 15 OF THE FCC RULES
Federal Communications Commission (FCC) Statement
This equipment radiates radio frequency energy and if not used properly - that is, in strict
accordance with the instructions in this manual - may cause interference to radio communications
and television reception.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
117
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Important
This equipment was tested for FCC compliance under conditions that included the use of shielded
cables and connectors between it and the peripherals. It is important that you use shielded cable
and connectors to reduce the possibility of causing radio and television interference. Shielded
cables, suitable for the product range, can be obtained from an authorized dealer. If the user
modifies the equipment or its peripherals in any way, and these modifications are not approved by
TomTom, the FCC may withdraw the user’s right to operate the equipment. For customers in the
USA, the following booklet prepared by the Federal Communications Commission may be of help:
"How to Identify and Resolve Radio-TV Interference Problems". This booklet is available from the US
Government Printing Office, Washington, DC 20402. Stock No 004-000-00345-4.
FCC ID: S4L4FIC00, S4L4FIC1
IC: 5767A-4FIC00, 5767A-4FIC1
FCC RF Radiation Exposure Statement
The transmitters within this device must not be co-located or operating in conjunction with any
other antenna or transmitter.
ISED RF Exposure Guidance Statement (in French):
Afin de se conformer aux exigences d'exposition RF FCC / ISED, cet appareil doit être installé pour
fournir au moins 20 cm de séparation du corps humain en tout temps.
FCC Country Code Selection
The Country Code Selection feature is disabled for products marketed in the US or Canada. Per FCC
regulations, all Wi-Fi products marketed in US must be fixed to US operation channels only.
Location of FCC ID and IC ID information on your device
The FCC ID and IC ID can be found on the bottom of your device.
Responsible party in North America
TomTom, Inc., 2400 District Avenue, Burlington, MA 01803, Tel: 866 486-6866 option 1
(1-866-4-TomTom)
118
Emissions information for Canada
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions:
This device may not cause interference.
This device must accept any interference, including interference that may cause undesired
operation of the device.
Operation is subject to the condition that this device does not cause harmful interference.
This Class B digital apparatus complies with Canadian ICES-003. CAN ICES-3(B)/NMB-3(B)
The Country Code Selection feature is disabled for products marketed in the US or Canada.
Equipment is certified to the requirements of RSS-247 for 2.4-GHz and 5.0-GHz.
Wi-Fi 5GHz band caution in Canada:
The device for operation in the band 5150-5350 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems;
IMPORTANT NOTE
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncon-
trolled environment.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environ-
ment. End users must follow the specific operating instructions for satisfying RF exposure
compliance. To maintain with IC RF exposure compliance requirements please follow operation
instruction as documented in this manual.
ISED RSS-Gen Notice (in French):
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Exposure limits
This device complies with FCC and IC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the radio frequency exposure limits,
human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. For
the external antenna (LTE-main) the gain should be limited to a maximum of 2.1dBi (FCC ID:
S4L4FIC1 & IC: 5767A-4FIC1 only).
Certification information for the user
To see the product certification information for your device, do the following:
4. Select Settings in the Main Menu.
5. Select About your TomTom device.
6. Select Certificates.
119
Terms and Conditions: Limited Warranty and EULA
Our terms and conditions, including our limited warranty and end user license terms apply to this
product; visit tomtom.com/legal.
Accessories supplied with this device
Mount
Power cable
2 adhesive strips
Installation guide
This document
Great care was taken in preparing this document. Constant product development may mean that
some information is not entirely up to date. The information is subject to change without notice.
TomTom shall not be liable for technical or editorial errors or omissions contained herein, nor for
incidental or consequential damages resulting from the performance or use of this document. This
document may not be copied without the prior written consent from TomTom N.V.
Model numbers
TomTom BRIDGE Hub: 4FIC00, 4FIC0, 4FIC1
120
Copyright notices
© 1992 - 2017 TomTom. All rights reserved. TomTom and the "two hands" logo are registered
trademarks of TomTom N.V. or one of its subsidiaries.
The software included in this product contains copyrighted software that is licensed under the GPL.
A copy of that licence can be viewed in the Licence section. You can obtain the complete
corresponding source code from us for a period of three years after our last shipment of this
product. For more information, visit tomtom.com/gpl or contact your local TomTom customer
support team at tomtom.com/support. Upon request, we will send you a CD with the corresponding
source code.
SoundClearTM software
All models support the following types of memory card:
SD Logo is a trademark of SD-3C, LLC.
Android
Android is a trademark of Google Inc.
Bluetooth®
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by TomTom is under license. Other trademarks and trade names are those of
their respective owners.
Wi-Fi®
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
