Contents

User manual

2
TomTom car kit
TomT
om
car kitWhat’s in the box?
•TomTom car kit
•Car charger
Adhesive disk
User guide
Getting started
Your TomTom car kit for iPhone is designed to provide you with the best
possible navigation experience.
A built-in GPS receiver enhances your iPhone's GPS signal, ensuring the
most reliable navigation, wherever you are.
Using the car kit, you get loud and clear voice instructions, can make hands-
free calls, as well as charge your iPhone while you drive. The car kit is a safe
and secure dock with the award-winning fold-and-go EasyPort® mount.
Nevis-US-UG.book Page 2 Thursday, August 13, 2009 5:51 PM
3
TomTom car kit EN
Positioning the TomTom car kit
Consider carefully where to attach the car kit in your car. The car kit should
not block or interfere in any way with the following:
Your view of the road
Any of the controls in your car
Any of your mirrors
•The airbag
You should be able to reach your iPhone easily when it is in the dock without
leaning or stretching. The diagrams show where you can safely attach the
dock.
You can attach the dock to the windshield, side window or use an Adhesive
Disk to attach the dock to your dashboard.
Nevis-US-UG.book Page 3 Thursday, August 13, 2009 5:51 PM
4
TomTom car kit
Installing the car kit in your car
Make sure that both the suction cup on the car kit and your window are clean
and dry.
1. Connect the USB car charger to the USB port on the right side of the
TomTom car kit.
2. Firmly press the suction cup against the windshield in your car with the
ball joint facing upwards. Twist the plastic grip near the base of the mount
in a clockwise direction into the lock position.
Nevis-US-UG.book Page 4 Thursday, August 13, 2009 5:51 PM
5
TomTom car kit EN
3. Insert the car charger in your cigarette lighter adapter.
Note: The car charger needs to be plugged into your cigarette lighter at all
times.
The TomTom car kit is now installed.
To mount the TomTom car kit in a different location, you can use the
included adhesive disk to attach the car kit to your dashboard.
Before you use an adhesive disk, make sure your dashboard is clean and dry.
Then remove and discard the plastic film from the adhesive layer and place
the disk on your dashboard.
Do not affix the dashboard mounting disk in an area where safety can be
comprised, such as above an airbag or where it may obstruct your view of
the road.
Follow the steps above to mount the car kit on the adhesive disk.
Nevis-US-UG.book Page 5 Thursday, August 13, 2009 5:51 PM
6
TomTom car kit
Placing your iPhone in the TomTom car kit

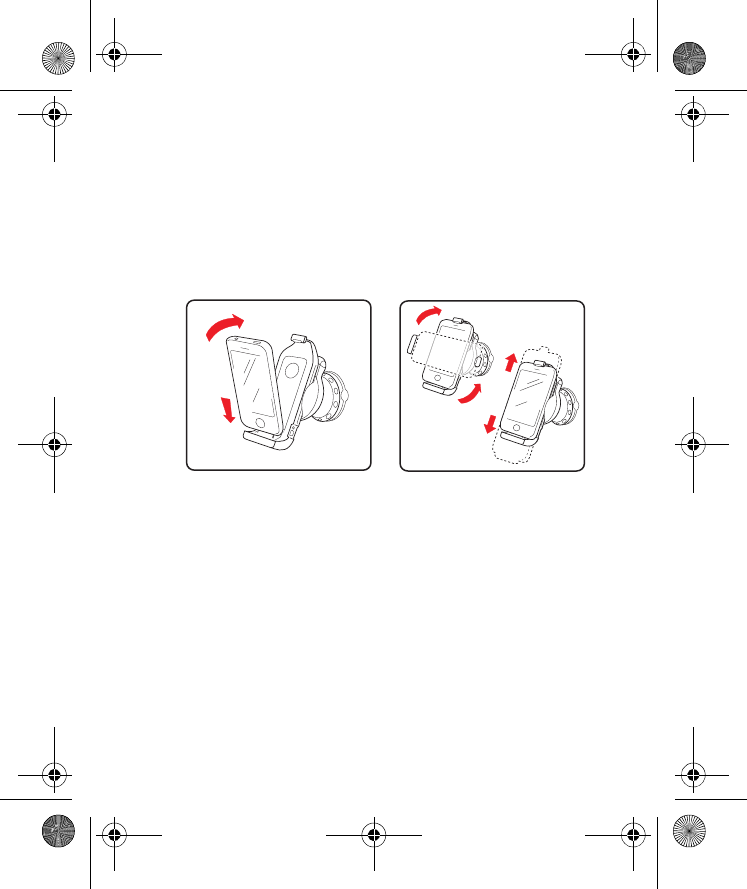

Carefully place your iPhone into the car kit, as shown in the diagram. Start by
placing the bottom of the iPhone on the connector; then push the top of the
iPhone securely into place.
You can rotate the holder and adjust the height of the holder to find the best
position and orientation for your iPhone.
To remove your iPhone from the car kit, first release the top of your iPhone
by placing your thumb against the top of the car kit while gently pushing the
back of your iPhone with your fingers.
Lift and remove the iPhone from the car kit.
Note: TomTom has designed the TomTom car kit for iPhone specifically for
iPhone use and has taken every precaution to make sure you have the best
possible user experience. TomTom does not accept any responsibility for any
damage to devices used with this accessory. To review our warranty go to
www.tomtom.com/legal.
Nevis-US-UG.book Page 6 Thursday, August 13, 2009 5:51 PM
7
TomTom car kit EN
Bluetooth connection
To use your TomTom car kit with your iPhone, you need to establish a Blue-
tooth connection in the following way.
1. Tap Settings on the main screen of your iPhone.
2. Tap General, then tap Bluetooth.
3. Switch on Bluetooth.
Your iPhone searches for Bluetooth devices.
TomTom car kit appears in the list of devices.
4. Tap TomTom car kit.
5. Enter the password, which is 5555.
6. Tap Done.
Your iPhone is now connected to your TomTom car kit.
Nevis-US-UG.book Page 7 Thursday, August 13, 2009 5:51 PM
8
TomTom car kit
Bluetooth reset and volume control
The TomTom car kit can pair with up to 8 different iPhones. To remove all
paired devices, or if the car kit does not connect properly to your iPhone,
press and hold the volume button for 8 seconds. You should now establish
the Bluetooth connection between your iPhone and the car kit again.
To adjust the volume, move the volume control up or down.
Nevis-US-UG.book Page 8 Thursday, August 13, 2009 5:51 PM
9
TomTom car kit EN
Connecting to your car stereo

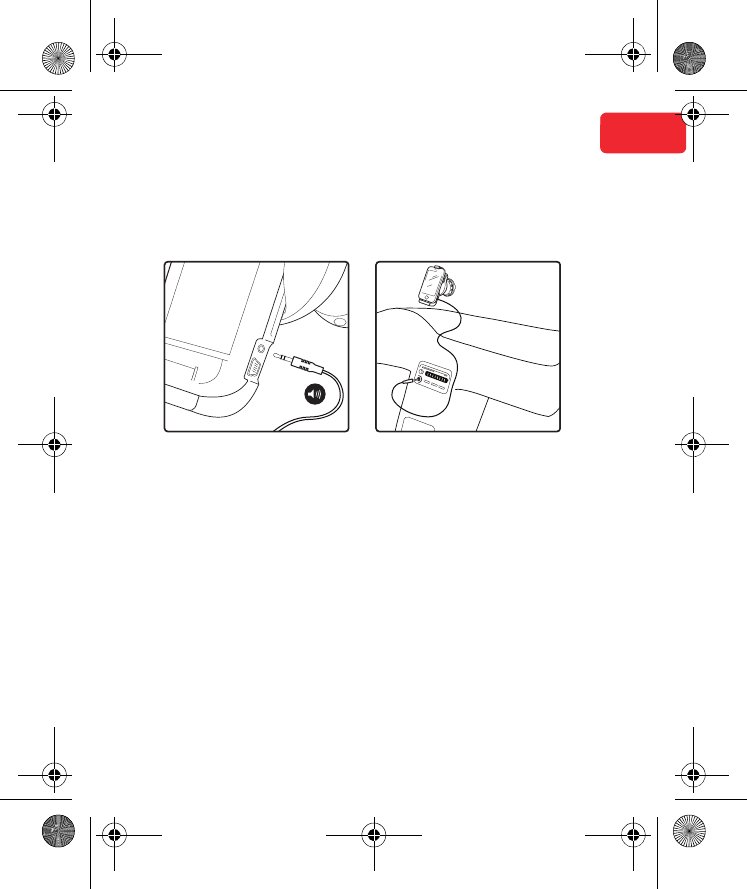

To play music on your iPhone through your car stereo, connect the TomTom
car kit to the car stereo using a 3.5mm mini stereo audio cable (not supplied).
Note: Hands-free calls are not played over the car stereo.
Nevis-US-UG.book Page 9 Thursday, August 13, 2009 5:51 PM
10
Addendum
Addendum
Important Safety Notices and Warnings
Global Positioning System
The Global Positioning System (GPS) is a
satellite-based system that provides location
and timing information around the globe. GPS
is operated and controlled under the sole
responsibility of the Government of the United
States of America, which is responsible for its
availability and accuracy. Any changes in GPS
availability and accuracy, or in environmental
conditions, may impact the operation of your
TomTom device. TomTom does not accept any
liability for the availability and accuracy of GPS.
Use with Care
Use of a TomTom device for navigation still
means that you need to drive with due care and
attention.
Aircraft and Hospitals
Use of devices with an antenna is prohibited on
most aircraft, in many hospitals and in many
other locations. A TomTom device must not be
used in these environments.
SPECIAL NOTE REGARDING DRIVING IN CAL-
IFORNIA AND MINNESOTA
California Vehicle Code Section 26708 (a) (1)
provides that “No persons shall drive any motor
vehicle with an object or material placed,
displayed, installed, affixed or applied upon the
windshield or side or rear windows.” Drivers in
California should not use a suction mount on
their windshield, side or rear windows.
Note: this section of the California Vehicle Code
applies to anyone driving in California, not just
California residents.
Minnesota State Legislature Statutes Section
169.71, subdivision 1, section 2 provides that
“A person shall not drive or operate with any
objects suspended between the driver and the
windshield other than sun visors and rearview
mirrors and electronic toll collection devices.”
Note: this Minnesota Stature applies to anyone
driving in Minnesota, not just Minnesota
residents.
TomTom Inc. bears no responsibility for any
fines, penalties or damage that may be incurred
by disregarding this notice. While driving in
any state with windshield mounting
restrictions, TomTom recommends the use of
the supplied Adhesive Mounting Disk or its
Alternative Mounting Kit, which includes
multiple options for mounting TomTom
devices on the dashboard and using the air
vents. See www.tomtom.com for more
information about this mounting option.
R&TTE directive
TomTom hereby declares that this personal
navigation device is in compliance with the
essential requirements and other relevant
provisions of the EU Directive 1999/5/EC. The
declaration of conformity can be found here:
www.tomtom.com/legal.
TomTom car kit
Note: TomTom has designed the TomTom Car
kit for iPhone specifically for iPhone use and
has taken every precaution to make sure you
have the best possible user experience.
TomTom does not accept any responsibility for
any damage to devices used with this
accessory. Please review our exact warranty at:
www.tomtom.com/legal.
WEEE directive
This symbol on the product
or its packaging indicates
that this product shall not be
treated as household waste.
In line with EU Directive
2002/96/EC for waste
electrical and electronic
equipment (WEEE), this
electrical product must not
be disposed of as unsorted
municipal waste. Please
dispose of this product by returning it to the
point of sale or to your local municipal
collection point for recycling.
CE Marking
This equipment complies
with the requirements for CE
marking when used in a
residential, commercial,
vehicular or light industrial
environment.
Nevis-US-UG.book Page 10 Thursday, August 13, 2009 5:51 PM
11
Addendum
FCC Information for the User
This product contains a
transmitter which must not be
co-located or simultaneously
operated in conjunction with
any other transmitter.
Radio and Television Interference
This equipment radiates radio frequency
energy and if not used properly - that is, in strict
accordance with the instructions in this manual
- may cause interference to radio
communications and television reception.
This device has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation distance between
the equipment and the receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult an experienced radio/TV
technician for help.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user‘s authority to
operate the equipment.
Important
This equipment was tested for FCC compliance
under conditions that included the use of
shielded cables and connectors between it and
the peripherals. It is important that you use
shielded cables and connectors to reduce the
possibility of causing radio and television
interference. Shielded cables suitable for the
product range can be obtained from an
authorised dealer. If the user modifies the
equipment or its peripherals in any way, and
these modifications are not approved by
TomTom, the FCC may withdraw the user’s
right to operate the equipment. For customers
in the USA, the following booklet prepared by
the Federal Communications Commission may
be of help: “How to Identify and Resolve Radio-
TV Interference Problems”. This booklet is
available from the US Government Printing
Office, Washington, DC 20402. Stock No 004-
000-00345-4.
FCC Declaration of Conformity
Tested to comply with FCC Standards for
Home or Office Use
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
Responsible party in North America
TomTom, Inc., 150 Baker Avenue Extension,
Concord, MA 01742
Tel: 866 486-6866 option 1 (1-866-4-TomTom)
Emissions information for Canada
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
This Category II radiocommunication device
complies with Industry Canada Standard RSS-
310.
Ce dispositif de radiocommunication de
catégorie II respecte la norme CNR-310
d’Industrie Canada.
IMPORTANT NOTE:
Nevis-US-UG.book Page 11 Thursday, August 13, 2009 5:51 PM
12
Addendum
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102
radiation exposure limits set forth for an
uncontrolled environment.
This device and its antenna(s) must not be co-
located or operating in conjunction with any
other antenna or transmitter.
The County Code Selection feature is disabled
for products marketed in the US/Canada.
C-tick
N14644
Z1230
This product displays the C-tick
to show it complies with
relevant Australian and New
Zealand regulations.
Responsible party in Australia
TomTom Australia, Building 1, Suite 3, Level 3 ,
3 Richardson Place, North Ryde NSW 2113,
Australia
Tel: +612 8875 1700
Warning for Australia
The user needs to switch off the device when
exposed to areas with potentially explosive
atmospheres such as petrol stations, chemical
storage depots and blasting operations.
This Document
Great care was taken in preparing this manual.
Constant product development may mean that
some information is not entirely up-to-date. The
information in this document is subject to
change without notice.
TomTom shall not be liable for technical or
editorial errors or omissions contained herein;
nor for incidental or consequential damages
resulting from the performance or use of this
material. This document contains information
protected by copyright. No part of this
document may be photocopied or reproduced
in any form without prior written consent from
TomTom International B.V.
Nevis-US-UG.book Page 12 Thursday, August 13, 2009 5:51 PM
13
Copyright notices EN
Copyright notices
© 2009 TomTom N.V., The Netherlands.
TomTom®, and the "two hands" logo, among
others, are Trademarks owned by TomTom
N.V. or one of its subsidiaries. Please see
www.tomtom.com/legal for warranties and
end user licence agreements applying to this
product.
Compatible with all iPhone models
“Works with iPhone” means that an electronic
accessory has been designed to connect
specifically to iPhone and has been certified by
the developer to meet Apple performance
standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPhone is a trademark of Apple Inc.
Nevis-US-UG.book Page 13 Thursday, August 13, 2009 5:51 PM
Untitled7.fm Page 1 Thursday, August 13, 2009 5:52 PM
Untitled7.fm Page 1 Thursday, August 13, 2009 5:52 PM

Navigation menu
