dum Important Safety Notices and Warnings

Global Positioning System

The Global Positioning System (GPS) is a satellite-based

system that provides location and timing information around the

globe. GPS is operated and controlled under the sole

responsibility of the Government of the United States of America

which is responsible for its availability and accuracy. Any

changes in GPS availability and accuracy, or in environmental

conditions, may impact the operation of your TomTom GO.

TomTom International B.V. and TomTom, Inc. cannot accept

any liability for the availability and accuracy of GPS.

Use with Care

Use of TomTom GO for navigation still means that you need to

drive with due care and attention.

Aircraft and Hospitals

Use of devices with an antenna is prohibited on most aircraft, in

many hospitals and in many other locations. TomTom GO must

not be used in these environments.

Battery

This product uses a Lithium-Ion battery. Do not use it in a humid,

wet and/or corrosive environment. Do not put, store or leave your

product in or near a heat source, in a high temperature location,

in strong direct sunlight, in a microwave oven or in a pressurized

container, and do not expose it to temperatures over 60 C

(140 F). Failure to follow these guidelines may cause the

Lithium-Ion battery to leak acid, become hot, explode or ignite

and cause injury and/or damage. Do not pierce, open or

disassemble the battery. If the battery leaks and you come into

contact with the leaked fluids, rinse thoroughly with water and

seek medical attention immediately. For safety reasons, and to

prolong the lifetime of the battery, charging will not occur at low

(below 0 C/32 F) or high (over 45 C/113 F) temperatures.

Temperatures: Standard operation: -10 C (14 F) to +55 C

(131 F); short period storage: -20 C (-4 F) to + 60 C (140 F); long

period storage: -20 C (-4 F) to +25 C (77 F).

To recycle your TomTom GO unit please see your local

approved TomTom service center.

SPECIAL NOTE REGARDING DRIVING IN CALIFORNIA

California Vehicle Code Section 26708 (a) (1) provides that "No

persons shall drive any motor vehicle with an object or material

placed, displayed, installed, affixed, or applied upon the

windshield or side or rear windows." Drivers in California should

not use a suction mount on their windshield, side or rear

windows. TomTom Inc. bears no responsibility for any fines,

penalties or damage that may be incurred by disregarding this

notice. While driving in California, TomTom recommends the use

of its Alternative Mounting Kit, which includes options for

mounting TomTom devices on the dashboard and using the air

vents. See www.tomtom.com for more information about this

mounting option.

Note: this section of the California Vehicle Code applies to

anyone driving in California, not just California residents.

FCC Information for the User

The device used for this transmitter must not be co-located

simultaneously operating in conjunction with any other

transmitter.

Exposure to Radio Frequency Radiation

To comply with RF exposure requirements please maintain a

separation distance of at least 20 cm / 7 inches from any part of

the product.

Radio and Television Interference

This equipment radiates radio frequency energy and if not used

properly - that is, in strict accordance with the instructions in this

THE LITHIUM-ION BATTERY CONTAINED

IN THE PRODUCT MUST BE RECYCLED

OR DISPOSED OF PROPERLY. USE

TOMTOM GO ONLY WITH THE

SUPPLIED DC POWER LEAD (CAR

CHARGER) AND AC ADAPTER (HOME

CHARGER) FOR BATTERY CHARGING.

addendum.fm Page 76 Tuesday, February 7, 2006 7:51 PM

Addendum

manual - may cause interference to radio communications and

television reception.

It has been tested and found to comply with the limits for a Class

B digital device pursuant to part 15 of the FCC Rules. These are

designed to provide reasonable protection against harmful

interference in a residential installation. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation distance between the equipment

and the receiver.

• If you are using the equipment with a mains adapter, plug it

into an outlet which is on a different circuit from that to which

the receiver is connected.

• Consult an experienced radio/TV technician for help.

Important

This equipment was tested for FCC compliance under conditions

that included the use of shielded cables and connectors between

it and the peripherals. It is important that you use shielded cable

and connectors to reduce the possibility of causing radio and

television interference. Shielded cables, suitable for the product

range, can be obtained from an authorised dealer. If the user

modifies the equipment or its peripherals in any way, and these

modifications are not approved by TomTom, the FCC may

withdraw the user’s right to operate the equipment. For

customers in the USA, the following booklet prepared by the

Federal Communications Commission may be of help: “How to

Identify and Resolve Radio-TV Interference Problems”. This

booklet is available from the US Government Printing Office,

Washington, DC 20402. Stock No 004-000-00345-4.

FCC Declaration of Conformity

Tested to Comply with FCC Standards for Home or Office

Use

TomTom GO has been tested to – and complies with – part 15

of the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired operation.

Responsible party in North America

TomTom, Inc., 150 Baker Avenue, Concord, MA 01742

Tel: 866 48-6866 option 1 (1-866-4-TOMTOM)

Emissions information for Canada

This Class B digital apparatus complies with Canadian ICES-

003. Cet appareil numérique de la classe B est conforme à la

norme NMB-003 du Canada.

Ctick

N14644

This product displays the Ctick to show it complies

with all relevant Australian and New Zealand

regulations.

This Document

Great care was taken in preparing this manual. Constant product

development may mean that some information is not entirely up-

to-date. The information in this document is subject to change

without notice.

TomTom International B.V. shall not be liable for technical or

editorial errors or omissions contained herein; nor for incidental

or consequential damages resulting from the performance or use

of this material. This document contains information protected by

reproduced in any form without prior written consent from

TomTom International B.V.

Part numbers

TomTom GO 910: 4V00.710

TomTom GO 710/510: 4V00.510

addendum.fm Page 77 Tuesday, February 7, 2006 7:51 PM

What’s in the box

What’s

in the

box aYour TomTom GO

ARelease button

BMicrophone

CCharging light

DOn/off button

ELight sensor

FReset button

GSpeaker

HMemory card slot*

bWindshield dock

AAudio out connector

BExternal microphone

connector

CExternal antenna

connector

DPower connector

ETomTom connector

QSG_EN.book Page 4 Tuesday, February 7, 2006 7:27 PM

What’s in the box

cHome Dock

AHome charger connector

BUSB connector

dRemote control+

AVolume up/down

BOK button

CArrow buttons

DLeft and right buttons

EKeyboard button

eCar charger fCarry case

gHome charger hDocumentation pack

iProduct code card jAudio cable+

kExternal microphone lMemory card (SD card)*

* TomTom GO 510/710 only + TomTom GO 910 only

QSG_EN.book Page 5 Tuesday, February 7, 2006 7:27 PM

Before You Start...

Before

You

Start... Everyone Loves TomTom GO

So never leave your GO in your car when

you’re not using it - it’s an easy target for

thieves.

Always take your GO, the windshield mount,

and the car charger with you; don’t leave any

TomTom products visible to others.

Always store your GO in the carry case to

protect the screen.

Back Up Your TomTom GO

It’s always a good idea to make a backup of the

contents of your TomTom GO. You can make

a backup using TomTom HOME.

For more information about TomTom HOME,

see Using TomTom HOME on page 24.

Take Care of Your TomTom GO

It is important to take care of your GO and to

clean it correctly.

• Use a soft cloth to wipe the screen of your

GO; do not use any liquid cleaners.

• If your GO gets wet, dry it with a soft cloth.

• Do not open the casing of your GO under

any circumstances. Doing so may be

dangerous and will invalidate your

warranty.

• Do not use the memory card (SD card) with

any device other than a TomTom device.

Other devices may damage the memory

card.

• Do not expose your GO to high or low

temperatures, which can cause permanent

damage. For example, don’t leave it in the

car on hot summer days or during cold

winter nights.

QSG_EN.book Page 6 Tuesday, February 7, 2006 7:27 PM

Getting started

Getting

started Switching On

Follow the instructions on the Installation

Poster to dock your TomTom GO in your car.

The first time you switch on your

TomTom GO, it may take up to 20 seconds to

start. To switch off your TomTom GO, press

and hold the On/Off button for 2 seconds.

Setting Up

You have to answer a few questions to set up

your TomTom GO. Answer the questions by

tapping the screen. You will use the

touchscreen for everything you do with your

GO.

Once you have answered the questions, your

GO will display the Driving View. The Driving

View is shown in black and white until your GO

locates your current position.

Locating Your Current Position

Your TomTom GO must be outdoors to locate

your current position. The first time you start

your GO, it can take up to 5 minutes to find

your current position. If it takes longer than 5

minutes, make sure that you are in an open

place without tall buildings or trees around

you.

In the future, your position will be found much

more quickly, normally within a few seconds.

Once your GO has located your current

position, the Driving View is shown in full color

and shows your position on the map.

Finding Your Position Faster

To find your position faster, use the home

dock in combination with TomTom HOME on

your computer. When connected to the

Internet, TomTom HOME automatically

downloads information which helps your GO

locate your position faster.

For more information about GPS, see How

Does Navigation Work? on page 26.

Note: Your TomTom GO does not transmit your

position. You can, however, send your position to

TomTom Buddies. For more information, visit

www.tomtom.com/plus

Note: Some vehicles have a heat reflective shield

embedded in the windshield that may prevent

TomTom GO from locating your current position.

If this is a problem in your vehicle, use the

TomTom External Antenna Kit (available as an

accessory).

QSG_EN.book Page 7 Tuesday, February 7, 2006 7:27 PM

Making Your First Trip

Making

Your

First

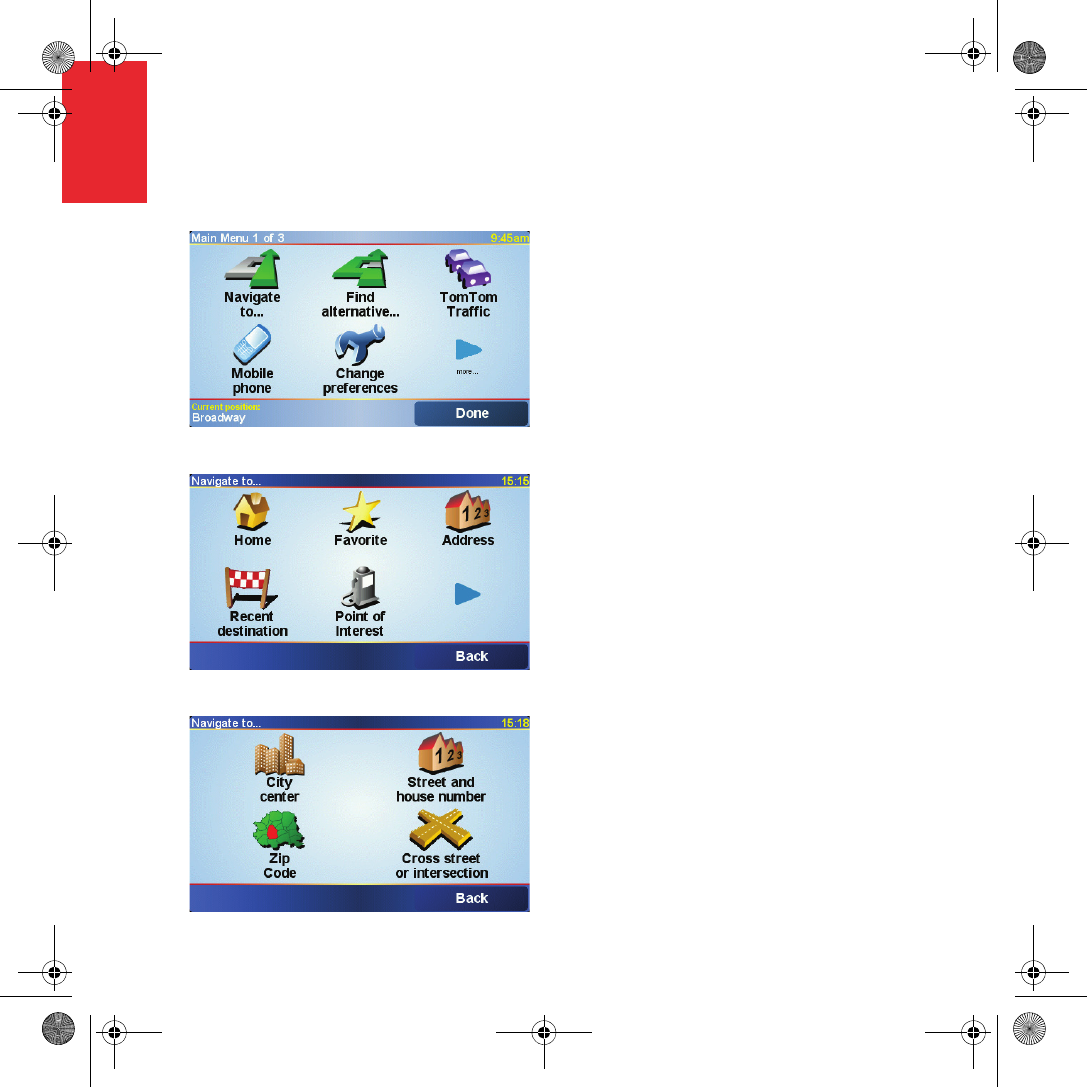

Trip Planning a route with your TomTom GO is

very simple. To plan your first route, follow the

steps below.

1. Tap the screen to bring up the main menu.

2. Tap Navigate to...

3. Tap Address.

When you enter an address, you can

choose from four options:

•City center - tap this button to set your

destination as the center of a city or

town.

•Street and house number - tap this

button to set an exact address as your

destination.

•Zip code - tap this button to enter a zip

code as your destination (UK and the

Netherlands only).

•Crossing or intersection - tap this

button to set your destination as the

point where two streets meet.

For your first trip, we will enter an exact

address.

4. Tap Street and house number.

QSG_EN.book Page 8 Tuesday, February 7, 2006 7:27 PM

Making Your First Trip

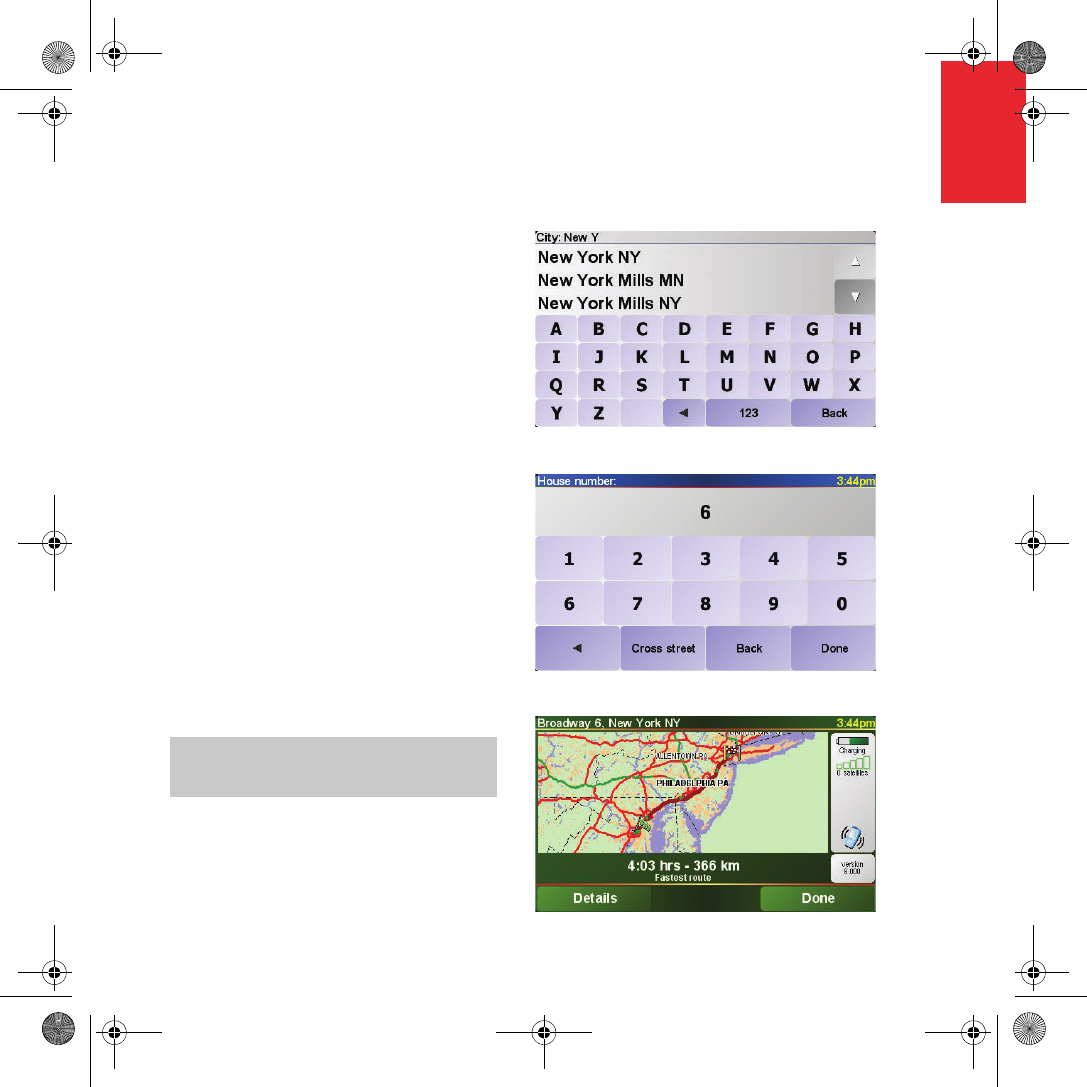

5. Start by typing the name of the town where

you want to go.

As you type, the names of the towns that

match what you have typed are shown.

When your destination is shown in the list,

tap the name of the town to set the

destination.

6. Start to type the name of the street.

As with the name of the town, the names of

the streets that match what you have typed

are shown.

7. Now enter the house number of your

destination and then tap Done.

The route is then calculated by your

TomTom GO.

8. When the route has been calculated, tap

Done.

Your TomTom GO will immediately start

guiding you to your destination with spoken

instructions and visual instructions on the

screen.

Note: Before you can plan a route in this way,

your TomTom GO must first locate your current

position.

QSG_EN.book Page 9 Tuesday, February 7, 2006 7:27 PM

Driving View

Driving

View AButtons to zoom in and zoom out on your

position.

BYour current position.

CThe name of the next major road, if

applicable.

DThe next instruction.

This area shows you what to do and when

you will have to do it.

Tap this area to repeat the last spoken

instruction and to change the volume.

EThe name of the next street to turn onto.

FInformation about your trip.

Normally this area shows the remaining

travel time, remaining distance, and arrival

time. To set which information is displayed,

tap Status bar preferences in the

Preferences menu.

GIndicator of the strength of the GPS signal.

For more information about GPS, see How

Does Navigation Work? on page 26.

QSG_EN.book Page 10 Tuesday, February 7, 2006 7:27 PM

Menus

Main Menu

Tap the screen at any time your TomTom GO

displays the Driving View to open the Main

Menu.

•Navigate to...

Tap this button to start planning a route.

•Find alternative...

Tap this button if you want to avoid part of

your route, travel via a specific location or

calculate an alternative route.

•TomTom Traffic

Tap this button to enable or disable traffic

information. For more information, see

TomTom Traffic on page 22.

•Mobile phone

This button opens the mobile phone menu.

You can, for example, make calls, and write

or read messages. For more information,

see Hands-Free Calling on page 16.

•Change preferences

This button opens the Preferences menu.

You can change many things about the

way your TomTom GO looks and operates.

For more information, see Changing What

You See on page 13.

Hidden buttons and features

When you first start using your

TomTom GO, not all of the buttons will be

displayed in the menu.

Many buttons and some more advanced

features are hidden because you will not

need these features very often.

To show all buttons and features, tap

Show ALL menu options in the

Preferences menu.

To hide these buttons again, tap Show

fewer menu options in the Preferences

menu.

QSG_EN.book Page 11 Tuesday, February 7, 2006 7:27 PM

Using your TomTom GO

Using

your

TomTo

mGO Using the Map

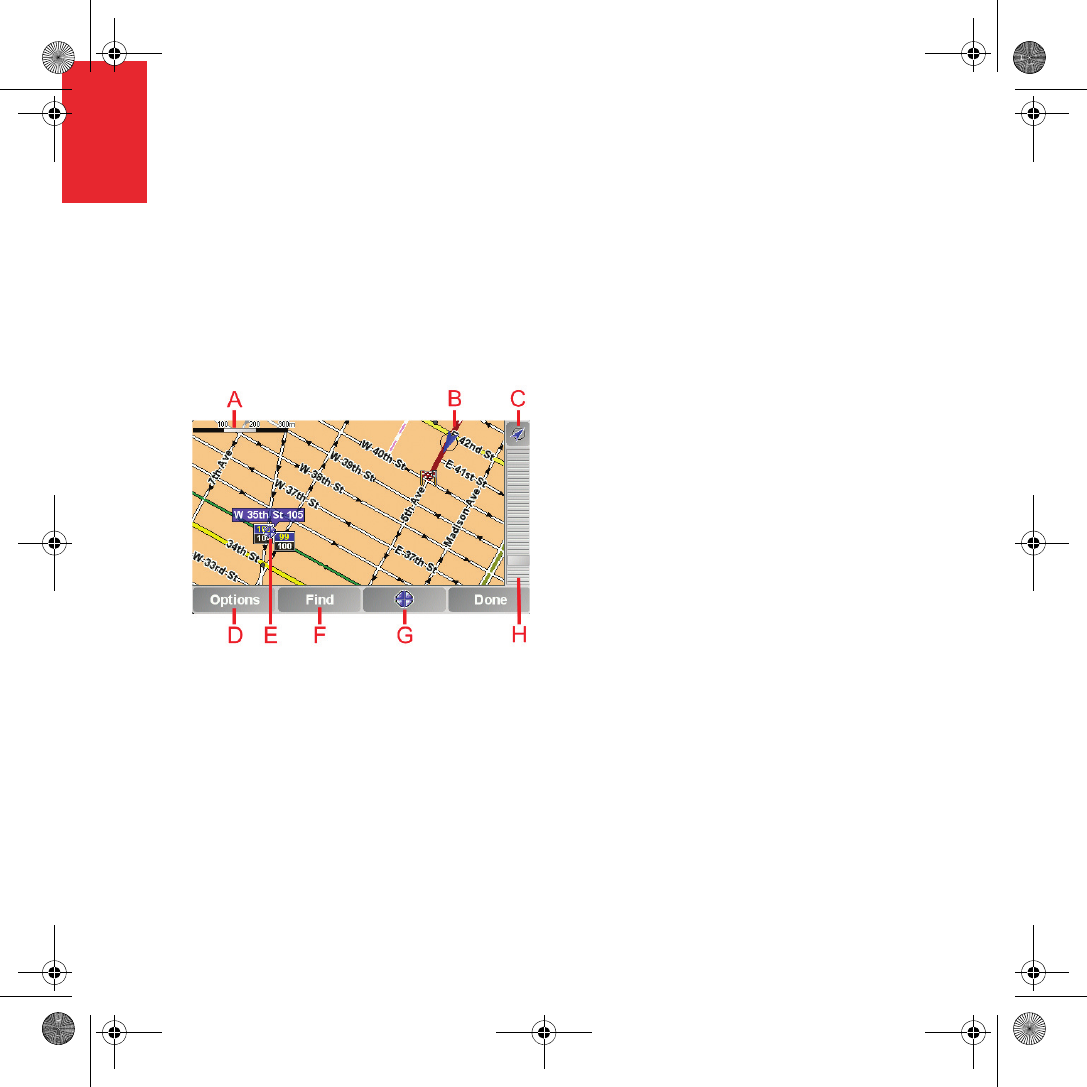

Every time you use your TomTom GO to plan

a route, you are using the map. However, you

can use the map in many other ways.

To open the map, tap Browse map in the Main

Menu.

Place your finger on the screen and drag it

across the screen to move the map.

AThe scale bar

BYour current position

CGPS button.

Tap this button to center the map on your

current position.

DThe Options button

Use the Options button to set what is

shown on the map.

EThe cursor

FThe Find button

Tap this button to find specific addresses

and Points of Interest on the map.

GThe Cursor button

Tap this button to navigate to the cursor

position, make a Favorite of the cursor

position, or find a Point of Interest near the

cursor position.

HThe zoom bar.

Change the scale of the map by moving the

zoom bar up or down.

QSG_EN.book Page 12 Tuesday, February 7, 2006 7:27 PM

Using your TomTom GO

Changing What You See

In the Main Menu tapChange preferences.

You can change many things about the way

the screen looks, for example:

Tap the arrow to open the next page of

buttons.

Choosing a Voice

Your TomTom GO has two different kinds of

voices:

• Computer voices

This type of voice is generated by your

TomTom GO. It gives you spoken

instructions while you are driving and can

TomTom GO910 TomTom GO - GPS Navigator with Bluetooth User Manual toc US

TomTom International BV TomTom GO - GPS Navigator with Bluetooth toc US

Contents

Manual 1

Navigation menu

Namespaces

Views

Navigation
