User Manual

DRAF

What’s in the box

What’s

in the

box

* Not included in all products

aYour TomTom ONE

ATouchscreen

BCharging LED

COn/off button

DSpeaker

EExternal antenna connector

FMemory card slot

GUSB connector

bWindscreen Holder cMemory card (SD card)*

dUSB Car Charger eUSB cable

fProduct code card gDocumentation packLimerick

Limerick_qsg_EN.book Page 4 Tuesday, December 12, 2006 2:40 PM

DRAF

Getting started

Getting

started

Switching on

Follow the instructions on the Installation

Poster to mount your TomTom ONE in your

car.

The first time you switch on your

TomTom ONE, it may take up to 20 seconds to

start. To switch off your TomTom ONE, press

and hold the On/Off button for 2 seconds.

Setting up

You have to answer a few questions to set up

your TomTom ONE. Answer the questions by

tapping the screen. You will use the

touchscreen for everything you do with your

ONE.

Locating your current position

Your TomTom ONE must be outdoors to

locate your current position. The first time you

start your ONE, it can take up to 5 minutes to

find your current position. If it takes longer

than 5 minutes, make sure that you are in an

open place without tall buildings or trees

around you.

Once your ONE has located your current

position, the Driving View is shown in full

colour and shows your position on the map.

Important

• Everyone loves TomTom ONE, so never

leave your ONE in your car when you’re

not using it - it’s an easy target for

thieves.

• Make sure your windscreen is clean and

dry before trying to attach the holder.

• Place the windscreen holder so it does

not block your view of the road.

• Make a backup of your TomTom ONE.

You can make a backup using TomTom

HOME. For more information, see

TomTom HOME on page 8.

• To make driving even safer with your

TomTom ONE, use the Safety

preferences in the Preferences menu.

Note: Your TomTom ONE does not transmit your

position. You can however send your position to

TomTom Buddies. For more information, visit

www.tomtom.com/plus

Note: Some vehicles have a heat reflective shield

embedded in the windscreen, which may prevent

TomTom ONE from locating your current

position. If this is a problem in your vehicle, use

the TomTom External Antenna Kit (available as an

accessory).Limerick

Limerick_qsg_EN.book Page 5 Tuesday, December 12, 2006 2:40 PM

DRAF

Making your first journey

Making

your

first

journey Planning a route with your TomTom ONE is

very simple. To plan your first route, follow the

steps below.

1. Tap the screen to bring up the main menu.

2. Tap Navigate to...

3. Tap Address.

When you enter an address, you can

choose from four options:

•City centre - tap this button to set your

destination as the centre of a city or

town.

•Street and house number - tap this

button to set an exact address as your

destination.

•Postcode - tap this button to enter a

postcode as your destination (fully

supported only in UK and the

Netherlands).

•Crossing or intersection - tap this

button to set your destination as the

point where two streets meet.

For your first journey, we will enter an exact

address.

4. Tap Street and house number.

Limerick_qsg_EN.book Page 6 Tuesday, December 12, 2006 2:40 PM

DRAF

Making your first journey

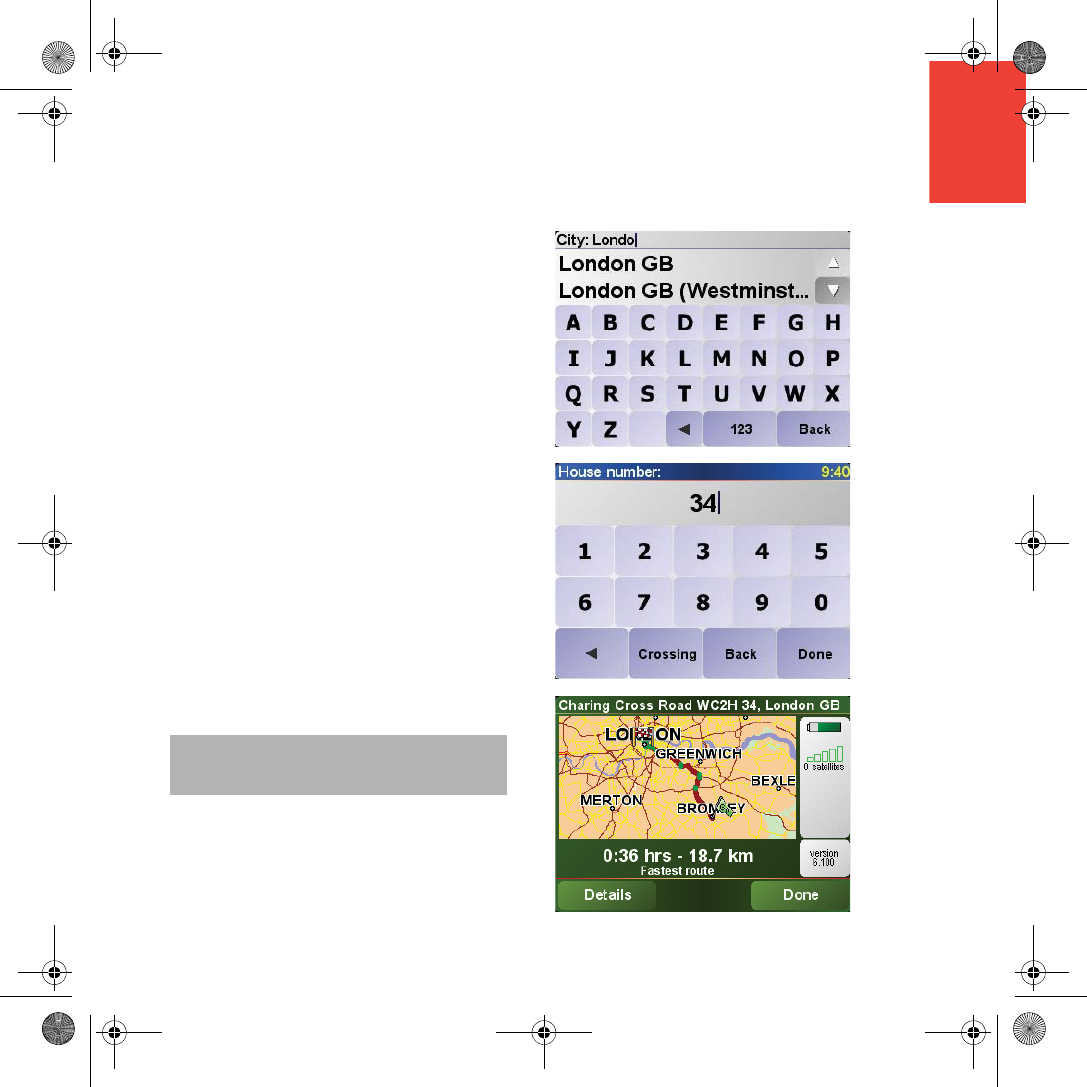

5. Start to type the name of the town where

you want to go.

As you type, the names of the towns that

match what you have typed are shown.

6. Start to type the name of the street.

As with the name of the town, the names of

the streets that match what you have typed

are shown.

7. Now enter the house number of your

destination and then tap Done.

8. Your ONE asks you whether you need to

arrive at a particular time.

Tap YES to enter an arrival time. Your ONE

shows you whether you will arrive on time.

9. When the route has been calculated, tap

Done.

Your TomTom ONE will immediately start

guiding you to your destination with spoken

instructions and visual instructions on the

screen.

Note: Before you can plan a route in this way,

your TomTom ONE must first locate your current

position.

Limerick_qsg_EN.book Page 7 Tuesday, December 12, 2006 2:40 PM

DRAF

Using your TomTom ONE

Us-

ing

your

Tom

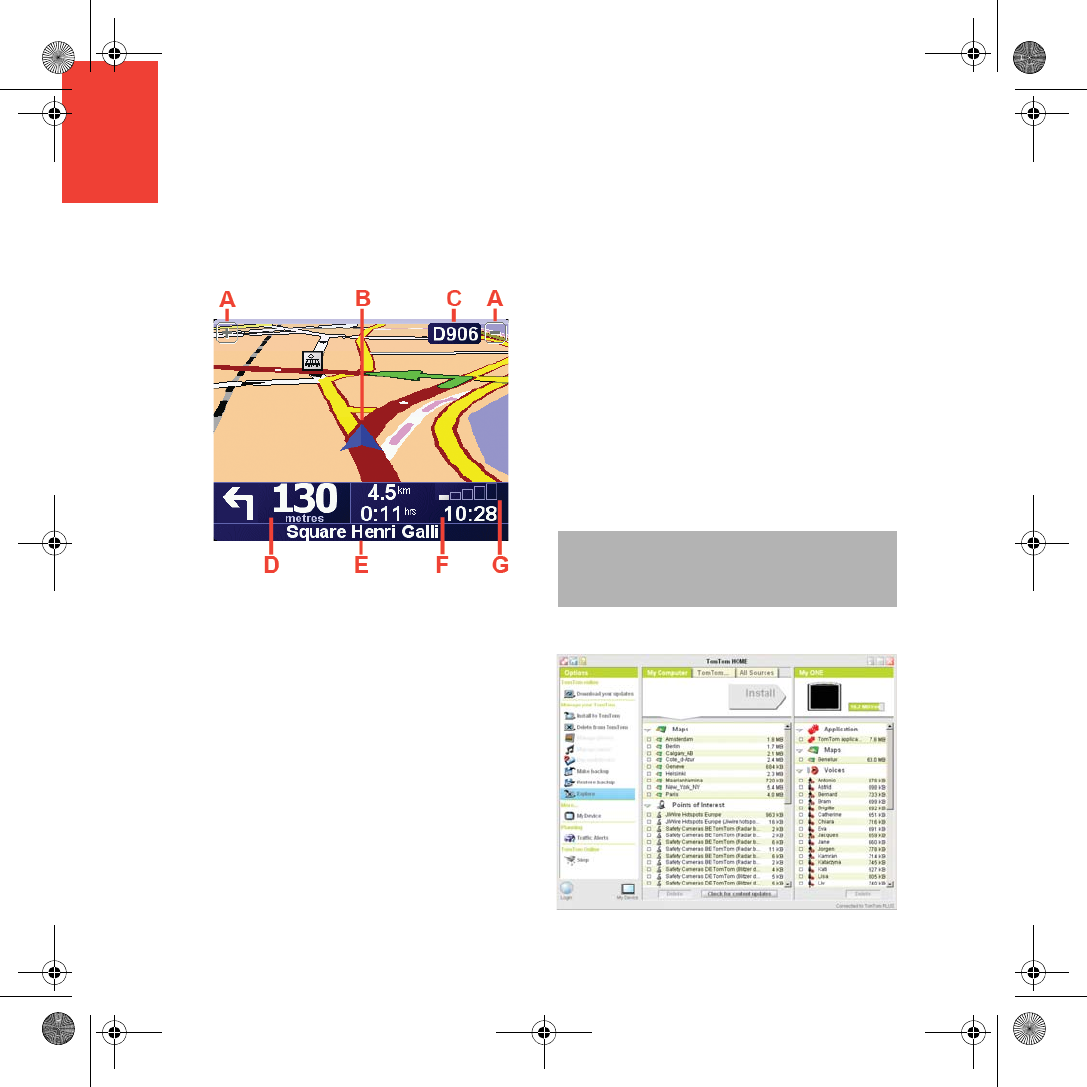

Driving View

AButtons to zoom in and zoom out on your

position.

BYour current position.

CThe name of the next major road or road

sign information, if applicable.

DThe next instruction.

Tap this area to repeat the last spoken

instruction and to change the volume.

EThe name of the next street to turn onto.

FInformation about your journey.

GIndicator of the strength of the GPS signal.

TomTom HOME

Using TomTom HOME, you can, for example,

do the following:

• Make and restore backups of your

TomTom ONE.

• Manage the maps, voices, POIs and other

extras on your ONE.

• Buy TomTom PLUS services and manage

your subscriptions.

To install TomTom HOME, put the CD which

came with your ONE into your computer.

Connect your TomTom ONE to your computer

using the USB cable. Switch on your ONE and

TomTom HOME starts automatically.

Note: The battery in your ONE will charge when

connected to your computer, but it will charge

slowly (4 hours). You should also switch your ONE

off to charge it using the computer.Limerick

Limerick_qsg_EN.book Page 8 Tuesday, December 12, 2006 2:40 PM

DRAF

TomTom Traffic

TomTo

Traffic You can get traffic information in two ways:

• From TomTom Traffic

• From the Traffic Message Channel (TMC)

TomTom Traffic

TomTom Traffic is a TomTom PLUS service.

To use TomTom Traffic you must have a

mobile phone with Bluetooth and a wireless

data connection, for example, GPRS.

TomTom Traffic takes the most up-to-date

information from the best local sources. Use

the free trial to try TomTom Traffic. For more

information, see the TomTom PLUS leaflet.

Setting up TomTom Traffic

To receive TomTom Traffic, first establish a

connection between your mobile phone and

your TomTom GO. See Connecting to your

phone on page 18. Then do the following:

1. Tap TomTom Traffic in the Main Menu.

2. Tap Enable Traffic.

Note: TomTom Traffic is not available in all

countries. Visit www.tomtom.com/plus to check

availability in your country.

The Traffic Message Channel (TMC)

The TMC is not a TomTom service, but is

offered free-of-charge in many countries. TMC

transmits traffic information as a radio signal.

To use TMC you need to buy the TomTom

RDS-TMC Traffic Receiver.

Setting up TMC

To start using TMC, connect the TMC antenna

to the windscreen mount. Plug the TMC

antenna into the TomTom connector.

Note: TomTom is not responsible for the

availability or quality of traffic information

provided by TMC. TMC is not available in all

countries or regions.

Limerick_QSG_EN.book Page 22 Tuesday, April 11, 2006 10:31 AM

DRAF

TomTom limited warranty

Tom-

Tom

limited

warran-

WARRANTOR

Non-U.S. and non-Canadian purchases: If you have made your purchase

outside the United States and Canada, this Limited Warranty is granted by

and this Limitation of Liability is stipulated for the benefit of TomTom

International B.V., Rembrandtplein 35, 1017 CT Amsterdam (The

Netherlands).

WHAT THIS WARRANTY COVERS

1) TomTom International B.V. (“TomTom”) warrants to you that the Hardware

will be free from defects in workmanship and materials under normal use

(“Defects”) for a period of two (2) years from the date that the Hardware was

first purchased by you (“Warranty Period”). During the Warranty Period the

Hardware will be repaired or replaced at TomTom’s choice (“Limited

Warranty”) without charge to you for either parts or labour. This Limited

Warranty covers the replacement of the Hardware only. If the Hardware is

repaired after the Warranty Period has expired, the Warranty Period for the

repair will expire six (6) months after the date of repair.

WHAT THIS WARRANTY DOES NOT COVER

2) The Limited Warranty does not apply to normal wear and tear, does not

apply when the Hardware is opened or repaired by someone not authorized

by TomTom and does not cover repair or replacement of any Hardware or part

thereof damaged by: misuse, moisture, liquids, proximity or exposure to heat

and accident, abuse, non-compliance with the instructions supplied with the

Hardware, neglect or misapplication. The Limited Warranty does not cover

physical damage to the surface of the Hardware. This Limited Warranty does

not cover any software that may accompany or be installed on the Hardware.

HOW TO MAKE A WARRANTY CLAIM

3) In order to make a claim of a Defect, you must contact TomTom by email

during the Warranty Period via www.tomtom.com to explain the Defect and to

obtain an RMA number (Return Materials Authorization) if necessary. You

must return the Hardware during the Warranty Period, along with an

explanation of the Defect, to the address provided to you by TomTom. If a

defect arises and a valid claim under this Limited Warranty is received by

TomTom after the first one hundred and eighty (180) days of the Warranty

Period, TomTom is entitled to charge you for any reasonable shipping and

handling costs made in connection with the repair or replacement of the

Hardware. You must comply with any other return procedures stipulated by

TomTom, if any.

YOUR LEGAL RIGHTS

4) Some countries may not allow the exclusion or limitation of damages. If any

part of this Limited Warranty is held to be invalid or unenforceable, the

remainder of the Limited Warranty shall nonetheless remain in full force and

effect.

5) This Limited Warranty is the only express warranty made to you and is

provided in lieu of any other express warranties or similar obligations (if any)

created by any advertising, documentation, packaging, or other

communications.

6) Except for the Limited Warranty and to the maximum extent permitted by

applicable law, TomTom and its suppliers provide the Hardware “AS IS AND

WITH ALL FAULTS”, and hereby disclaim all other warranties and conditions,

whether express, implied or statutory, including, but not limited to, any (if any)

implied warranties, duties or conditions of satisfactory quality, of fitness for a

particular purpose, of reliability or availability, of accuracy or completeness of

responses, of results, of workmanlike effort, of lack of viruses, and of

reasonable care and skill, all with regard to the Hardware, and the provision

of or failure to provide support or other services, information, software, and

related content through the Hardware or otherwise arising out of the use of the

Hardware. Also, there is no warranty or condition of quiet enjoyment, quiet

possession, or non-infringement with regard to the Hardware. This exclusion

does not apply to (i) any implied condition as to title and (ii) any implied

warranty as to conformity with description.

7) This Limited Warranty does not affect any legal rights under applicable

national legislation governing the sale of consumer goods.

8) This Limited Warranty cannot be transferred to any other person.

LIMITATION OF LIABILITY

9) Neither TomTom nor its suppliers shall be liable to you or to any third party

for any damages either direct, indirect, incidental, consequential or otherwise

(including in each case, but not limited to, damages for the inability to use the

equipment or access data, loss of data, loss of business, loss of profits,

business interruption or the like) arising out of the use of or inability to use the

Hardware even if TomTom has been advised of the possibility of such

damages.

10) Notwithstanding any damages that you might incur for any reason

whatsoever (including, without limitation, all damages referenced herein and

all direct or general damages in contract or anything else), the entire liability

of TomTom and any of its suppliers shall be limited to the amount actually paid

by you for the Hardware.

11) TomTom shall not be liable for (i) any fraud on the part of its employees

and/or agents; or (ii) any fraudulent misrepresentation on the part of its

employees and/or agents.

12) Notwithstanding the above, neither party’s liability for death or personal

injury resulting from its own negligence shall be limited.Limerick

Limerick_qsg_EN.book Page 9 Tuesday, December 12, 2006 2:40 PM

DRAF

Addendum

Add

end

um Important Safety Notices and Warnings

Global Positioning System

The Global Positioning System (GPS) is a satellite-based

system that provides location and timing information around the

globe. GPS is operated and controlled under the sole

responsibility of the Government of the United States of America

which is responsible for its availability and accuracy. Any

changes in GPS availability and accuracy, or in environmental

conditions, may impact the operation of your TomTom ONE.

TomTom International B.V. and TomTom, Inc. cannot accept

any liability for the availability and accuracy of GPS.

Use with Care

Use of TomTom ONE for navigation still means that you need to

drive with due care and attention.

Aircraft and Hospitals

Use of devices with an antenna is prohibited on most aircraft, in

many hospitals and in many other locations. TomTom ONE must

not be used in these environments.

Battery

This product uses a Lithium-Ion battery. Do not use it in a humid,

wet and/or corrosive environment. Do not put, store or leave your

product in or near a heat source, in a high temperature location,

in strong direct sunlight, in a microwave oven or in a pressurized

container, and do not expose it to temperatures over 60 C

(140 F). Failure to follow these guidelines may cause the

Lithium-Ion battery to leak acid, become hot, explode or ignite

and cause injury and/or damage. Do not pierce, open or

disassemble the battery. If the battery leaks and you come into

contact with the leaked fluids, rinse thoroughly with water and

seek medical attention immediately. For safety reasons, and to

prolong the lifetime of the battery, charging will not occur at low

(below 0 C/32 F) or high (over 45 C/113 F) temperatures.

Temperatures: Standard operation: -10 C (14 F) to +55 C

(131 F); short period storage: -20 C (-4 F) to + 60 C (140 F); long

period storage: -20 C (-4 F) to +25 C (77 F).

To recycle your TomTom ONE unit please see your local

approved TomTom service center.

SPECIAL NOTE REGARDING DRIVING IN CALIFORNIA

California Vehicle Code Section 26708 (a) (1) provides that "No

persons shall drive any motor vehicle with an object or material

placed, displayed, installed, affixed, or applied upon the

windshield or side or rear windows." Drivers in California should

not use a suction mount on their windshield, side or rear

windows. TomTom Inc. bears no responsibility for any fines,

penalties or damage that may be incurred by disregarding this

notice. While driving in California, TomTom recommends the use

of its Alternative Mounting Kit, which includes options for

mounting TomTom devices on the dashboard and using the air

vents. See www.tomtom.com for more information about this

mounting option.

Note: this section of the California Vehicle Code applies to

anyone driving in California, not just California residents.

FCC Information for the User

The device used for this transmitter must not be co-located

simultaneously operating in conjunction with any other

transmitter.

Exposure to Radio Frequency Radiation

To comply with RF exposure requirements please maintain a

separation distance of at least 20 cm / 7 inches from any part of

the product.

Radio and Television Interference

This equipment radiates radio frequency energy and if not used

properly - that is, in strict accordance with the instructions in this

THE LITHIUM-ION BATTERY CONTAINED

IN THE PRODUCT MUST BE RECYCLED

OR DISPOSED OF PROPERLY. USE

TOMTOM ONE ONLY WITH THE

SUPPLIED DC POWER LEAD (CAR

CHARGER) AND AC ADAPTER (HOME

CHARGER) FOR BATTERY CHARGING.

addendum.fm Page 22 Tuesday, December 12, 2006 5:49 PM

DRAF

Addendum

manual - may cause interference to radio communications and

television reception.

It has been tested and found to comply with the limits for a Class

B digital device pursuant to part 15 of the FCC Rules. These are

designed to provide reasonable protection against harmful

interference in a residential installation. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation distance between the equipment

and the receiver.

•I

you are using the equipment with a mains adapter, plug i

into an outlet which is on a di

erent circuit

rom that to which

the receiver is connected.

• Consult an experienced radio/TV technician for help.

Important

This equipment was tested

or F

compliance under conditions

t in

uded

use

ded

cab

t an

e per

era

mportant t

at you use s

and connectors to reduce the possibilit

causin

radio and

television interference. Shielded cables, suitable for the product

range, can be obtained from an authorised dealer. If the user

modifies the equipment or its peripherals in any way, and these

modifications are not approved by TomTom, the FCC may

withdraw the user’s right to operate the equipment. For

customers in the USA, the following booklet prepared by the

Federal Communications Commission may be of help: “How to

Identify and Resolve Radio-TV Interference Problems”. This

booklet is available from the US Government Printing Office,

Washington, DC 20402. Stock No 004-000-00345-4.

FCC Declaration of Conformity

Tested to Comply with FCC Standards for Home or Office

Use

TomTom GO has been tested to – and complies with – part 15

of the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired operation.

Responsible party in North America

TomTom, Inc., 150 Baker Avenue, Concord, MA 01742

Tel: 866 48-6866 option 1 (1-866-4-TOMTOM)

Emissions information for Canada

This Class B digital apparatus complies with Canadian ICES-

003. Cet appareil numérique de la classe B est conforme à la

norme NMB-003 du Canada.

tic

N1464

This product displays th

with all relevant Aus

ons

Thi

ocumen

Great care was taken in preparing this manual. Constant product

development may mean that some information is not entirely up-

to-date. The information in this document is subject to change

without notice.

TomTom International B.V. shall not be liable for technical or

editorial errors or omissions contained herein; nor for incidental

or consequential damages resulting from the performance or use

of this material. This document contains information protected by

reproduced in any form without prior written consent from

TomTom International B.V.

Part numbers

TomTom ONE: 4N00.004.2, 4N00.005, 4N00.006, 4N00.012

addendum.fm Page 23 Tuesday, December 12, 2006 5:49 PM

DRAF

Copyri

ght

Netherlands.

TomTom and the TomTom logo are registered

trademarks of TomTom International B.V., The

Netherlands. All other trademarks are the property

of their respective owners.

Our end user license agreement and a limited

warranty apply to this product; they are included in

this package. You can also review both at

www.tomtom.com/legal

Data Source

het kadaster en de openbare registers, Apeldoorn

2007.

Administration /

This product includes mapping data licensed from

Ordnance Survey with the permission of the

rights reserved. Licence number 100026920.

Data Source

und Vermessungswesen; France, source:

Géoroute® IGN France & BD Carto® IGN France;

Germany, Die Grundlagendaten wurden mit

Genehmigung der zuständigen Behörden

entnommen; Great Britain, based upon Crown

stata prodotta usando quale riferimento anche

cartografia numerica ed al tratto prodotta e fornita

Norwegian Mapping Authority; Portugal, source:

IgeoE - Portugal; Spain, nformación geográfica

propiedad del CNIG; Sweden, based upon

Switzerland, Topografische Grundlage:

Reserved.

TomTom ONEXL GPS Tracking System User Manual TomTom ONE XL user s manual

TomTom International BV GPS Tracking System TomTom ONE XL user s manual

User Manual

Navigation menu

Namespaces

Views

Navigation
