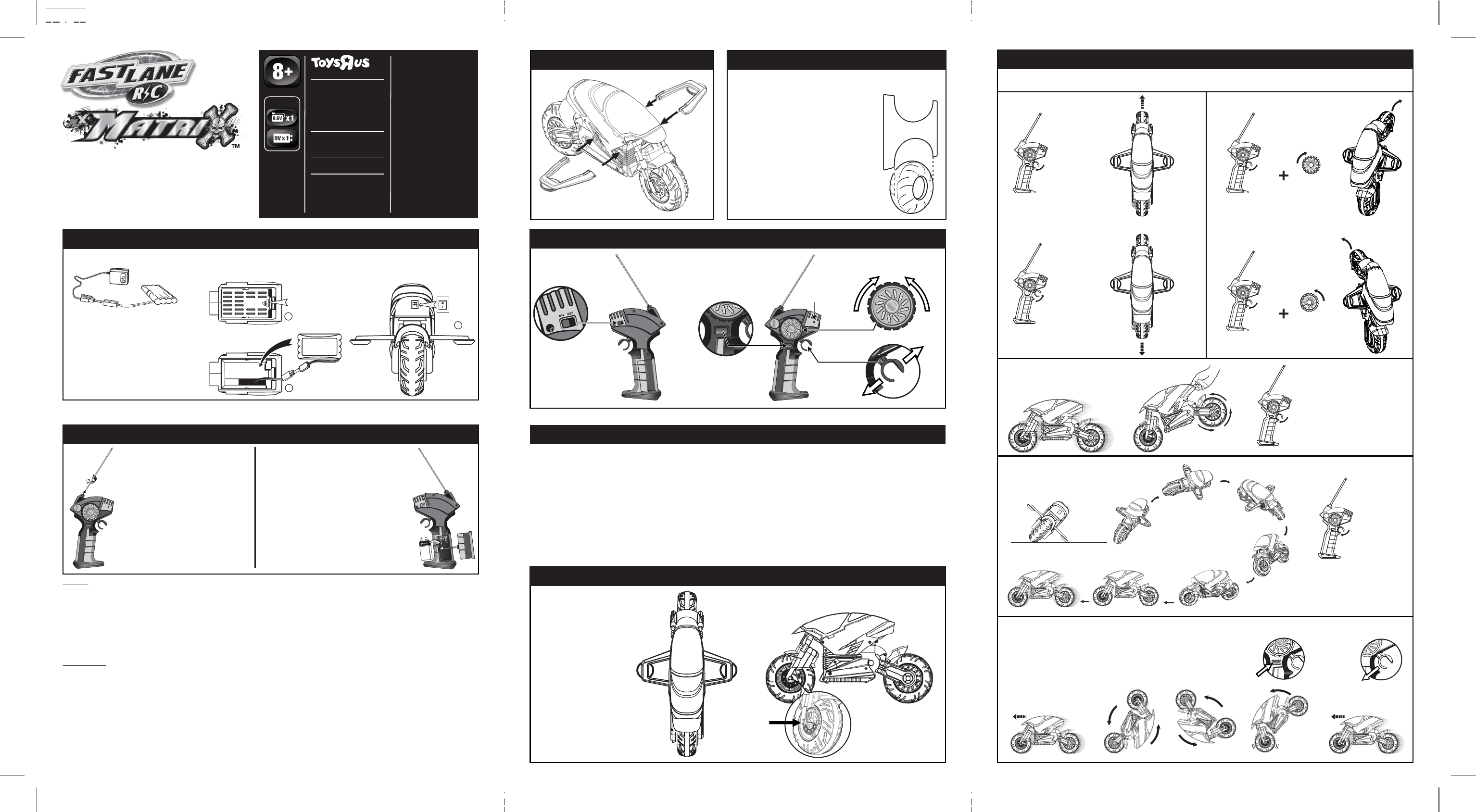

Users Manual
1
2
099-52613
To operate your motorcycle, you will need a 9.6 Volt Rechargeable NiMH Battery Pack (included). Follow manufacturer’s charging instructions on the rechargeable
battery pack. PLEASE NOTE: The battery pack will become hot during use, so care should be taken whenever you handle it.
BATTERY REQUIREMENTS / INSTALLATION FOR MOTORCYCLE
BATTERY REQUIREMENTS/INSTALLATION FOR TRANSMITTER
WARNING: Charger that is supplied with the toy should be regularly examined for potential hazards, such as damage to the plug, enclosure, or other parts. In the
event of such damage, the charger or toy must not be used until that damage has been properly repaired. DO NOT use any other charger other than one supplied.
SAFETY PRECAUTIONS (Keep manual for future reference)
This motorcycle is not recommended for children under the age of 8 years. Please read
all of the instructions before operating this motorcycle. Always follow general safety
rules while operating motorcycle: avoid hitting pets, furniture or people. Do not pick up
motorcycle while it is in motion, keep hands, hair and clothing away from this
motorcycle when the power switch is turned to the “ON” position. Remove battery pack
when motorcycle is stored. Avoid tire contact on painted or varnished surfaces.
The JLX MATRAIX is built with an automatic shut-off function if the vehicle reaches
excessive temperature during operation. If the vehicle stops after prolonged period of
operation, turn off vehicle and controller, remove battery from vehicle and cease
operation for ten (10) minutes. Reinsert battery and resume play.
®
INPUT : 100-240VAC 50/60HZ 0.15A
OUTPUT: 11.4VDC 220mA
CONFORMS TO THE SAFETY REQUIREMENTS
OF ASTM F963.
Part of the “R”US Family of Brands.
FAST LANE is a mark of Geoffrey, LLC,
a subsidiary of Toys“R”Us, Inc.
© 2011 Geoffrey, LLC
Made in China
Distributed in the United States by
Toys“R”Us, Inc., Wayne, NJ 07470
www.toysrus.com
CAUTION- ELECTRIC TOY:
Not recommended for children
under 8 years of age. As with all
electric products, precautions
should be observed during handling
and use to prevent electric shock.
CAUTION-
SUPERVISION REQUIRED
ELECTRIC TOY-
UNPLUG WHEN NOT
IN USE.
INCLUDED
INCLUIDA
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are only to be charged under adult supervision.
• Rechargeable batteries are to be removed from the toy before being
charged.
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity(+ and -).
• Do not mix alkaline, standard (carbon-zinc), or rechargeable
(nickel-cadmium) batteries.
• Exhausted batteries are to be removed from the toy;
• The supply terminals are not to be short-circuited;
• Only use the batteries recommended by the manufacturer or
batteries of an equivalent type.
• Please remove from the toy if it is not to be used over a longer
period;
• Protect the environment: Bring used batteries to a special collecting
point! Thank you!
1. Remove battery cover as shown and install a new 9 Volt
battery. Replace cover. Move power button ON and the red
LED light will come on. This will show you that the battery is
good and the transmitter is ready for operation PLEASE
NOTE: Vehicle power switch must be in the ON position to
receive commands from the transmitter.
2. Insert antenna into hole in the transmitter and screw it in
clockwise.
3. Please change the battery to fresh one when LED is dim.
1. On the motorcycle bottom, push the
battery cover to rear direction and take
out the battery cover.
2. Insert 9.6 Volt battery pack and restore
the battery cover to closed position.
3. Turn power switch to the “I” ON
position.
Insert the battery pack to the charger, connect the adapter
and charge battery for a minimum of four (4) hours.
Fully charge battery pack following
manufacturer’s instructions.
To operate your transmitter you will need a
9 Volt battery (included).
FCC NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
U.S. FCC Warning:
Changes or modifications to this unit not expressly approved by the party respon-sible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
“Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.”
Carrier frequency and field strength
Frequency Channel: 27.145 MHz
27.145 MHz Field Strength: 68.7 dBµv/m @ 3m.
OFF
ON
3
Customer Infomation:
Color and contents may very from item
shown. Where applicable, remove all
package before giving this item to your child.
TRANSMITTER CONTROLS
PROPER OPERATION AND STORAGE OF YOUR MOTORCYCLE
STABILIZERS ASSEMBLE TIRE INFLATION INSTRUCTIONS
1. Locate and remove the inflation needle that is attached to the
cardboard insert inside the package.
2. Attach the inflation needle to a hand sports ball pump.
DO NOT USE PUMPS WITH COMPRESSED AIR!
3. Make sure inflation needle is clean. Moisten it and slowly
insert it straight into the tire’s inflation hole.
4. Continually check the tire size by placing the tire inside the
template. DO NOT OVERINFLATE. Once tire is the proper size
(fits perfectly in template) you are ready to run your vehicle.
Keep tire pattern for future use. PLEASE NOTE: Tires may be
inflated on or off the vehicle. To remove tire from vehicle.
simply remove screw from center of wheel. Rotate tires to
prevent uneven wear.
5. This is NOT a toy. This is a tool and should not be used by a
child without parent supervision.
6. Front tire can only pumped to the given level (150mm) and
rear tire can only pumped to the given level (156mm) and as
shown by pattern/calipre. Over inflating may cause damage
to the tires, which will not be cover by the guarantee.
FORWARD
REVERSE
LEFT TURNRIGHT TURN
POWER LED
FLIP UP
POWER
SWITCH
1. Best operation of vehicle is on a textured paved surface.
2. Always operate your vehicle within a range of 50 feet from you.
3. Always operate your vehicle on dry surfaces away from cars and other full-size vehicles.
4. Always store your vehicle in a cool, dry place and off of painted or varnished surfaces.
5. Avoid operating around CB radios, high voltage electrical wires and large steel-reinforced concrete buildings.
6. Avoid running your vehicle and another vehicle on the same frequency.
7. DO NOT use in salt water.
8. Transmitter is not waterproof. Do not immerse in water.
9. When the motorcycle not being play after 10 mins, both the Tx and the Rx will goto sleep mode. To wake the Tx/Rx again, it
just need to turn the power off and then turn it on again.
10. When the Tx switch is keep pressing for more than 45 sec, then the control signal will be cut off to protect the motorcycle
engine over heat.
JLX MATRIX MOTORCYCLE ACTION FEATURES
• GYROSCOPE MOTER
FOR SUPERB STABILITY
• ULTRAFAST SPEED!
• SUPER-GRIP TIRE
TREAD FOR BETTER
OFF-ROAD TRACTION
• SUPERBOUNCE
INFLATABLE TIRES
• BIG AIR!
FLIPS TUMBLES AND
BOUNCES
• FRONT BREAK SYSTEM
• FULL- THROTTLE,
MAXIMUM-SPEED OPERATION
• UP TO 50-FEET EFFECTIVE RANGE
IMPORTANT: TIRES MAY DEFLATE DURING
SHIPPING OR STORAGE
FRONT BREAK
SYSTEM
• Included 2 set of L and R stabilizer
Cut line
Folder line
099-52613
size: 20.25”(L) X 10.66”(W)
Material: 100gsm + woodfree paper
Date: Mar/22/2011 Front P.2 P.3
FLIP UP MODE
PRESS FOR
FLIP UP
PULL
FORWARD
PULL FORWARD PULL
FORWARD
PULL
FORWARD
PULL FORWARD
1. Keep the rear wheel up and
pull trigger on controller to
start gyro motor.
2. Once gyro is in motion,
place rear wheel on ground
to start play.
1. Start with motorcycle leaning
on stabilizer arm.
2. Pull trigger on controller and
motorcycle will start in motion
and stand up when gyro
reaches adequate speed.
PULL
FORWARD
REVERSE
BEGINNER MODE
FORWARD
STAND UP MODE
TRICKS AND STUNTS (for outdoors only)
RIGHT TURN
LEFT TURN
BACKWARD
TURN RIGHT
TURN LEFT
1. Start with motorcycle leaning on stabilizer arm.
2. Pull trigger on controller. Motorcycle will start in motion and
stand up when gyro reaches adequate speed
3. Once motorcycle is in upright position and you have maintained
balance, press flip button on controller while holding the
controller trigger in maximum power position. This will cause
motorcycle to flip and maintain forward motion.
Here are a few of the exciting tricks and stunts you can do. The following tricks and stunts take practice and skill. Attempt
simple skill level tricks before going on to more advanced tricks. Remember you will need to practice to achieve these stunts.
