Tonika Electronics Technology 265B-B021008 Bluetooth Clock Radio User Manual

Tonika Electronics Technology (Shenzhen) Co., Ltd. Bluetooth Clock Radio

User Manual

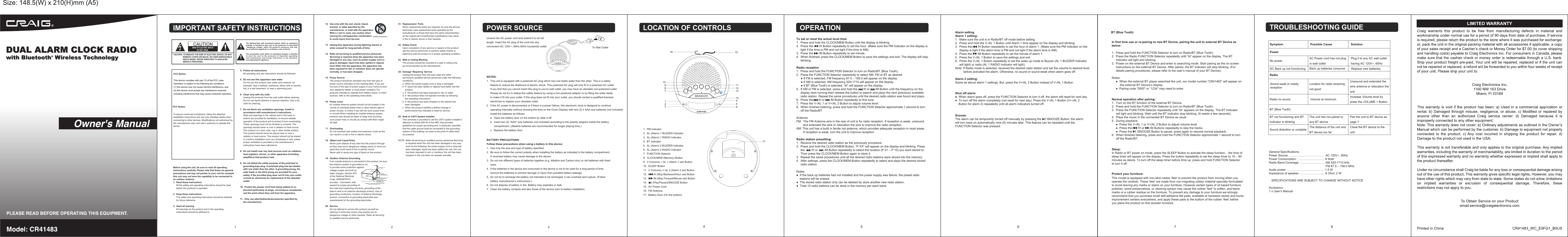

Snooze:The alarm can be temporarily turned off manually by pressing the /SNOOZE Button; the alarm will turn back on automatically nine (9) minutes later. This feature can be repeated until the FUNCTION Selector was pressed.1. PM Indicator2. AL (Alarm) 1 BUZZER Indicator 3. AL (Alarm) 1 RADIO Indicator4. BT Indicator5. AL (Alarm) 2 BUZZER Indicator 6. AL (Alarm) 2 RADIO Indicator7. FUNCTION Selector8. CLOCK/MEM (Memory) Button9. V (Volume) -/ AL 1 (Alarm 1 set) Button10. SLEEP Button11. V (Volume) +/ AL 2 (Alarm 2 set) Button12. /H (Skip Backward/Hour set) Button13. /M (Skip Forward/Minute set) Button14. (Play/Pause)/SNOOZE Button15. AC Power Cord16. FM Antenna17. Battery Door (On the bottom) Alarm settingAlarm 1 setting:1. Make sure the unit is in Radio/BT off mode before setting.2. Press and hold the V-/AL 1 Button until Alarm 1 time appear on the display and blinking.3. Press the /H Button repeatedly to set the hour of alarm 1. (Make sure the PM Indicator on the display is light if the alarm time is PM and not light if the alarm time is AM).4. Press the /M Button repeatedly to set the minute of alarm 1.5. Press the V-/AL 1 Button to save the settings and exit. 6. Press the V-/AL 1 Button repeatedly to set the wake up mode to Buzzer (AL 1 BUZZER Indicator will light) or radio (AL 1 RADIO Indicator will light).Note: If Radio mode is selected, received the desired radio station and set the volume to desired level before activated the alarm. Otherwise, no sound or sound weak when alarm goes off. Alarm 2 setting:Same as above alarm 1 settings. But, press the V+/AL 2 Button instead of V-/AL 1 Button. Shut off alarm:● When alarm goes off, press the FUNCTION Selector to turn it off, the alarm will reset for next day.● To turn off the alarm completely (not reset for next day). Press the V-/AL 1 Button (V+-/AL 2 Button for alarm 2) repeatedly until all alarm indicators turned off. In first time use or re-pairing to new BT Device, pairing the unit to external BT Device as below:1. Press and hold the FUNCTION Selector to turn on Radio/BT (Blue Tooth). 2. Press the Radio FUNCTION Selector repeatedly until “bt” appear on the display. The BT Indicator will light and blinking.3. Power on the external BT Device and enter to searching mode. Start pairing as the on screen instructions on the external BT Device. After paired, the BT Indicator will stop blinking. (For details pairing procedures, please refer to the user’s manual of your BT Device). Notes: ● When the external BT player searched the unit, our model number “CR41483” will appear on the external BT Device’s display. ● Pairing code “0000” or “1234” may need to enter. Normal operation after pairing: 1. Turn on the BT function of the external BT Device. 2. Press and hold the FUNCTION Selector to turn on Radio/BT (Blue Tooth). 3. Press the FUNCTION Selector repeatedly until “bt” appears on the display. The BT Indicator will light and blinking. Wait until the BT Indicator stop blinking. (It needs a few seconds). 4. Plays the music in the connected BT Device as usual.5. During playback: ● Press the V-/AL 1 or V+/AL 2 Button to adjust volume level. ● Press the /H or /M Buttons repeatedly to skip the tracks. ● Press the /SNOOZE Button to pause, press again to resume normal playback.6. When finished listening, press and hold the FUNCTION Selector approximate 1 second to turn off the Radio/BT.Sleep: In Radio or BT power on mode, press the SLEEP Button to activate the sleep function, the time of sleep timer will appear on the display. Press the button repeatedly to set the sleep timer to 10 – 90 minutes as desire. To turn off the sleep timer before time up, press and hold FUNCTION Selector to turn it off.This model is equipped with non-skid rubber ‘feet’ to prevent the product from moving when you operate the controls. These ‘feet’ are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber ‘feet’ to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber ‘feet’ before you place the product on fine wooden furniture.To set or reset the actual local time:1. Press and hold the CLOCK/MEM Button until the display is blinking.2. Press the /H Button repeatedly to set the hour. (Make sure the PM Indicator on the display is light if the time is PM and not light if the time is AM).3. Press the /M Button repeatedly to set minute. 4. When finished, press the CLOCK/MEM Button to save the settings and exit. The display will stop blinking.Radio reception1. Press and hold the FUNCTION Selector to turn on Radio/BT (Blue Tooth). 2. Press the FUNCTION Selector repeatedly to select AM; FM or BT as desired.　　　● If FM is selected, FM frequency 87.5 – 108.0 will appear on the display.　　　● If AM is selected, AM frequency 520-1710 will appear on the display.　　　● If BT (Blue Tooth) is selected, “bt” will appear on the display.5. If AM or FM is selected, press and hold the /H or /M Button until the frequency on the display start running then release the button to search and plays the next (previous) available radio station. Repeat the same procedures until the desired radio station was found and plays.6. Press the /H or /M Button repeatedly to fine tune.7. Press the V-/AL 1 or V+/AL 2 Button to adjust volume level.8. When finished listening, press and hold the FUNCTION Selector approximate 1 second to turn off the Radio/BT.Antenna:FM: The FM Antenna wire in the rear of unit is for radio reception. If reception is weak, unwound and extended the wire or relocation the wire to improve the radio reception.AM: This unit has a build in ferrite rod antenna, which provides adequate reception in most areas. If reception is weak, turn the unit to improve reception.Radio station presetting:1. Receive the desired radio station as the previously procedure. 2. Press and hold the CLOCK/MEM Button, "P XX" will appear on the display and blinking. Press the /H or /M Button repeatedly to select the location (P 01 – P 10) you want stored to. Then press the CLOCK/MEM Button again to store it.3. Repeat the same procedures until all the desired radio stations were stored into the memory.4. After settings, press the CLOCK/MEM Button repeatedly to select and plays the desired stored radio station.Notes:● If the back up batteries had not installed and the power supply was failure, the preset radio stations will be erased. ● The stored radio station only can be deleted by store another new radio station.● Total 10 radio stations can be store in the memory per each band.12 To Wall Outlet45 6 7 8POWER SOURCE10911151213414561632871FCC Notice:.FCC Notice:To assure continued compliance, follow the attached installation instructions and use only shielded cables when connecting to other devices. Modifications not authorized by the manufacturer may void user’s authority to operate this device.4. Follow all instructions All operating and use instructions should be followed.5. Do not use this apparatus near water Do not use this product near water and moisture, for example: near a bathtub, washbowl, kithen sink or laundry tub; in a wet basement; or near a swimming pool.6. Clean only with dry cloth Unplug this products from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.7. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. Slots and openings in the cabinet and in the back or bottom are provided for bentilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never or over a radiator or heat source. This product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-tupe plug. A polarized plug has two blades with one wider than the other. A grounding prong, the wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the prower cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use attachedments/accessories specified by the manufacturer.Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit for example this unit may not have the capability to be connected to an outdoor antenna.1. Read these instructions All the safety and operating instructions should be read before the products is operated.2. Keep these instructions The safely and operating instructions should be retained for future reference.3. Heed all warning All warnings on the product and in the operating instructions should be adhered to.12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped.15. Power Source The product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home,consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.16. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.17. Overloading Do not overload wall outlets and extension cords as this can result in a risk or fire or electric shock.18. Object and Liquid Entry Never push objects of any kind into the product through as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.19. Outdoor Antenna Grounding If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electrical Code, ANSI/NFPA70, provides , information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge product, size of grounding conductors, location of antenna discharge product, connection to grounding electrodes and requirements for the grounding electrodes.20. Service Do not attempt to service this product yourself as opening ot removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.21. Replacement Parts When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the orginal part.Unauthorized substitutions may result in fire or electric shock or ther hazards.22. Safety Check Upon completion of any service or repairs to this product ask the service technician to perform safety checks to determine that the product is in proper operating condition.23. Wall or Ceiling Monting The product should be mounted to a wall or ceiling only as recommended by the manufacturer.24. Damage Requiring Service Unplug the product from the wall outlet and refrer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled or objects have fallen into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. e. If the product has been dropped or the cabinet has been damaged. f. When the product exhibits a distinct change in performance-this indicates a need for service.25. Note to CATV System Installer This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.OPENCLOCK/MEMV-/AL1SLEEPV+/AL2/H/MPMBUZZER BUZZERBTAL1RADIO RADIOFUNCTIONAL217Unwind the AC power cord and extend it to its full length. Insert the AC plug of the cord into any convenient AC 120V~; 60Hz 60Hz household outlet. NOTES: 1. This unit is equipped with a polarized AC plug which has one blade wider than the other. This is a safety feature to reduce the likelihood of electric shock. This polarized AC plug will only fit in a polarized AC outlet. If you find that you cannot insert this plug to you’re wall outlet, you may have an obsolete non-polarized outlet. Please do not try to defeat this safety feature by using a non-polarized adaptor or by filling the wider blade to make it fit into your outlet. If this plug does not fit into your outlet, you should contact a qualified licensed electrician to replace your obsolete outlet.2. If the AC power is disconnected or if there is a power failure, this electronic clock is designed to continue operating internally (without showing the time on the Clock Display) with two (2) x AAA size batteries (not included). Install the batteries as follows: a. Open the battery door on the bottom by slide it off. b. Insert two (2) “AAA” size batteries (not included) according to the polarity diagram inside the battery compartment. (Alkaline batteries are recommended for longer playing time.) c. Replace the battery door.BATTERY PRECAUTIONS:Follow these precautions when using a battery in this device:1. Use only the size and type of battery specified.2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment. A reversed battery may cause damage to the device.3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.4. If the batteries in the device are consumed or the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer’s instructions.)6. Do not dispose of battery in fire. Battery may explodes or leak.7. Clean the battery contacts and also those of the device prior to battery installation.LOCATION OF CONTROLS OPERATION TROUBLESHOOTING GUIDECLOCK/MEMV-/AL1SLEEPV+/AL2/H/MPMBUZZER BUZZERBTAL1RADIO RADIOFUNCTIONAL2 Symptom Possible Cause Solution Power NopowerAC Power cord has not plugin wall outlet Plug it to any AC walloutlet having AC 120V~, 60Hz DC Back up not functioning RadioLocation for radio receivingnot goodUnwound and extended thewire antenna or relocation theunit Radio no sound Volume at minimum Increase Volumelevel bypress the VOLUME + Button BT(Blue Tooth) BTnotfunctioning and BT Indicator is blinkingThe unit has not paired toany BT devicePair the unit to BT device aspage 7 Sound distortion or unstableThe distance of the unit andBT device too farClose the BT device to theunitGeneral Specifications:Power Source: …………………………….. AC 120V~, 60HzPower Consumption: ……………………… 8 Watt Radio Band Coverage: …………………… AM 520-1710 kHz FM 87.5 – 108.0 MHz Audio power: …………………………..….. 1.5 WImpedance of speaker: ………………….... 8 Ohm; 2 W SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICEAccessory:1 x User’s ManualReplace new batteriesBack up batteries consumeNOTE: Refer all servicing to qualified service personnel Servicing is required when the unit has been damaged in any way such as the following: the power-supply cord or plug has been damaged, liquid has been spilled into unit, the unit has been exposed to rain or moisture, the unit has been dropped or the unit does not operate normally. BT (Blue Tooth)Sound weak or noisily receptionProtect your furniture:This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
