Top Victory Electronics CM793V 17" COLOR MONITER User Manual 3472306
Top Victory Electronics (Taiwan) Co Ltd 17" COLOR MONITER 3472306
MANUAL
Before operating the monitor please read this manual thoroughly. This manual should be
retained for future reference.
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modification to this equipment. It is the responsibilities of the user to
correct such interference.
Warning:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture.
Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer
servicing to qualified personnel only.
Contents
Packing list ----------------------------------------------------
-- 2
Precautions ----------------------------------------------------
-- 3
Installation Instructions -------------------------------------
- 4
Swivel Base -------------------------------------------------
--- 4
Power cord -------------------------------------------------
-- 4
Video cable -------------------------------------------------
-- 5
Operating Instructions ---------------------------------------
6
General Instructions --------------------------------------
- 6
Front panel control ----------------------------------------
- 7
How to adjust a setting -----------------------------------
- 7
Adjusting the picture --------------------------------------
- 8-9
Features -------------------------------------------------------
--- 9
Green monitor ---------------------------------------------
-- 9-10
Plug and play -----------------------------------------------
- 10
Technical Support (FAQ) -----------------------------------
- 11
Appendix A – Specifications --------------------------------
- 12-13
Appendix B – Factory Preset Timing Table --------------
13
PACKING LIST
The product package should include the following items:
1. Monitor
2. Owner's Manual
3. Power Cord
4. Swivel Base
PRECAUTIONS
l Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry
tub, swimming pool or in a wet basement.
l Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can
injure a person and cause serious damage to the appliance. Use only a cart or stand
recommended by the manufacturer or sold with the monitor. If you mount the monitor
on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit
instructions.
l Slots and openings in the back and bottom of the cabinet are provided for ventilation.
To ensure reliable operation of the monitor and to protect it from overheating, be sure
these openings are not blocked or covered. Do not place the monitor on a bed, sofa,
rug, or similar surface. Do not place the monitor near or over a radiator or heat
register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is
provided.
l The monitor should be operated only from the type of power source indicated on the
label. If you are not sure of the type of power supplied to your home, consult your
dealer or local power company.
l The monitor is equipped with a three-pronged grounded plug, a plug with a third
(grounding) pin. This plug will fit only into a grounded power outlet as a safety feature.
If your outlet does not accommodate the three-wire plug, have an electrician install
the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the
safety purpose of the grounded plug.
l Unplug the unit during a lightning storm or when it will not be used for long periods of
time. This will protect the monitor from damage due to power surges.
l Do not overload power strips and extension cords. Overloading can result in fire or
electric shock.
l Never push any object into the slot on the monitor cabinet. It could short circuit parts
causing a fire or electric shock. Never spill liquids on the monitor.
l Do not attempt to service the monitor yourself; opening or removing covers can
expose you to dangerous voltages and other hazards. Please refer all servicing to
qualified service personnel.
l To ensure satisfactory operation, use the monitor only with UL listed computers
which have appropriate configured receptacles marked between 100 - 240V AC, Min.
2.5A.
l The wall socket shall be installed near the equipment and shall be easily accessible.
l Attention: Disconnect the power cord to stop the power supply to the monitor.
INSTALLATION INSTRUCTIONS
Swivel Base
To attach the swivel base to the monitor, do the following:
• Carefully turn the monitor on its side or upside down. ( see Figure 1 )
• Locate the cavities at the bottom front of the monitor.
• Insert the pegs on the swivel base into these cavities. Push the swivel base forward
until the swivel base locks in place.
• To remove the swivel base, hold the bottom of the swivel base, then push it out.
Install Remove

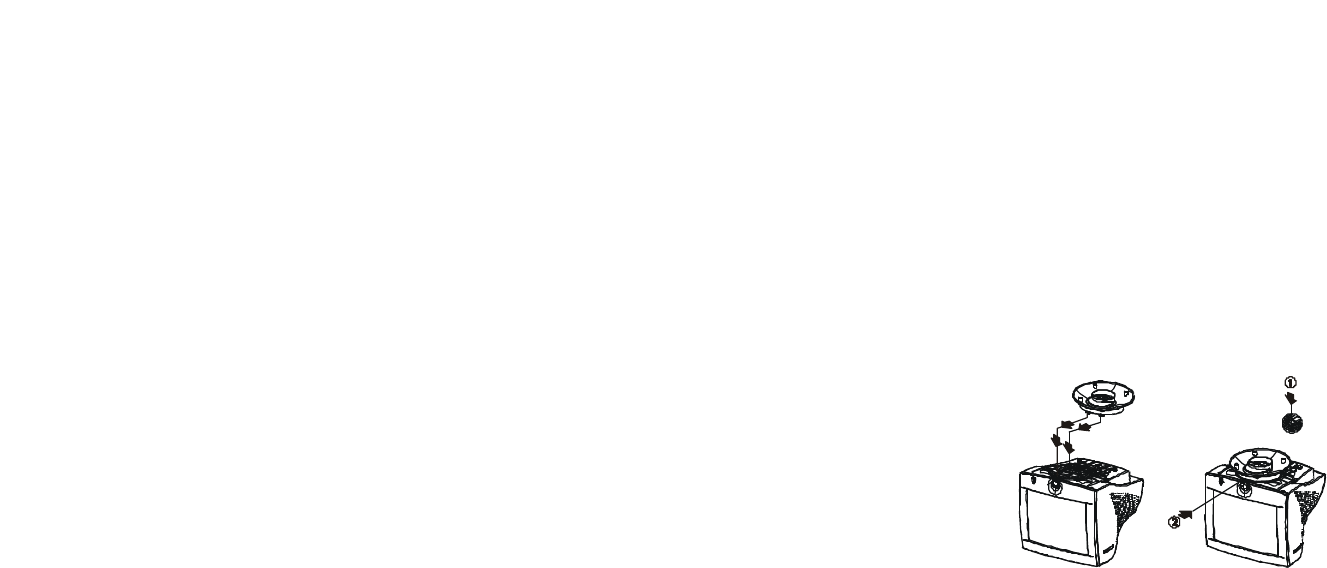

Figure 1 Installing and Removing the Swivel Base
Power Cord
Power Source:
1. Make sure the power cord is the correct type that required in your area.
2. This monitor has a universal power supply that allows operation in either 100/120V
AC or 220/240V AC voltage area. ( No user adjustment is required. )
3. Connect the power cord into your monitor’s power input socket, and then plug the
other end into a 3-pin AC power outlet. The power cord may be connected to either a
wall power outlet or the power outlet socket on your PC, depending on the type of
power cord supplied with your monitor.
Video cable
Connecting the Video Cable: the monitor comes with a built-in video cable. Plug the
signal cable′s 15-pin connector into the computer's video port and tighten the two screws
on the cable connector.(see figure 2)
Caution:Don’t bend the signal cable, otherwise it will break the inner wire.
Connecting the Power Cord: Plug the power cord into the monitor's AC power jack.
Then plug the power cord into a grounded AC outlet, UL-approved power strip, or the
power output socket on your PC.
Caution: If the AC outlet is not grounded (only two holes), install the proper grounding
adapter (not supplied).

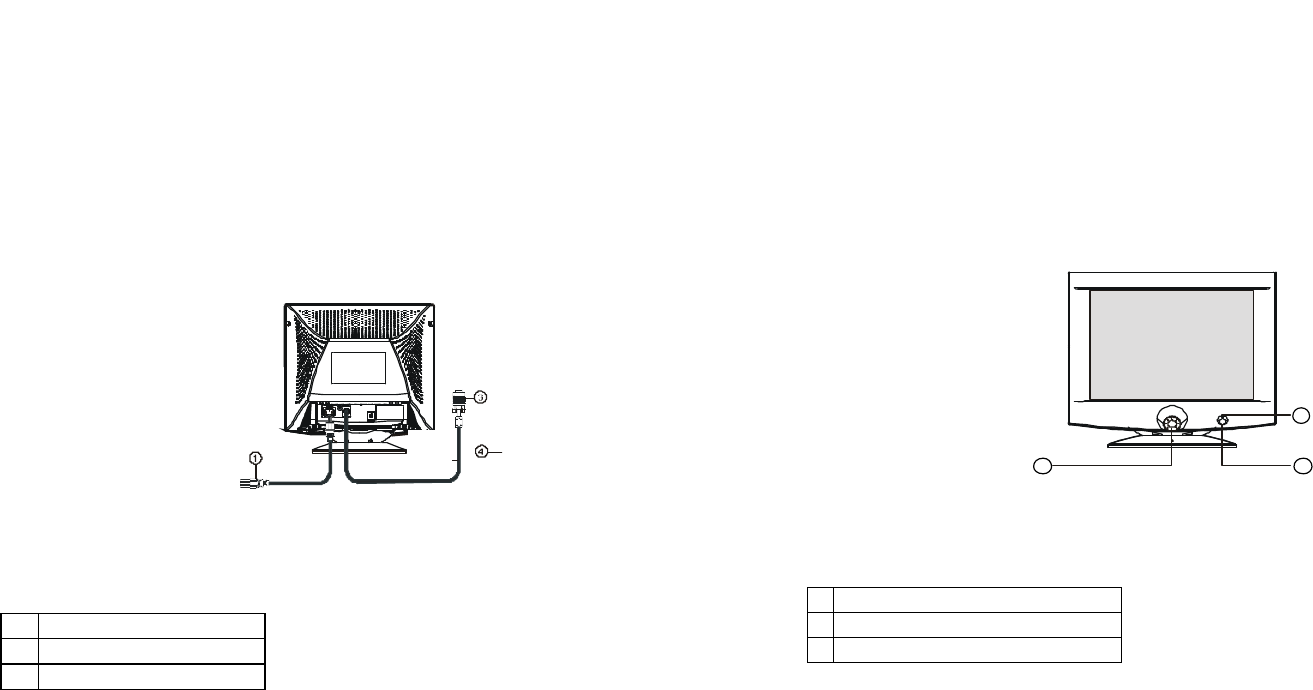

Figure 2 Connecting Cables
1. Power Cord
2. Signal Cable
3. VGA Card Adapter
OPERATING INSTRUCTIONS
General Instructions
The other control knobs are located at the base of the monitor (See Figure 3). By
changing these settings, the picture can be adjusted to your personal preferences.
• Connect the video cable from the monitor to the video card.
• Connect the power cord and the power indicator will light up.
• To turn the monitor on, press the standby power switch to ON position. The power
indicator will light up.
• Your monitor features a unique quick switch system which provides a picture within
seconds after the monitor is switched on.
1
2
3
Figure 3 External Control Knob
EXTERNAL CONTROLS
1.
Shuttle Knob
2.
Power Indicator
3.
Standby Power ON/OFF Switch
Notes
1. Do not install the monitor in a location near heat sources such as radiators or air
ducts , or in a place subject to direct sunlight , or excessive dust or mechanical
vibration or shock.
2. Save the original shipping carton and packing materials, as they will come in handy if
you ever have to ship your monitor.
3. For maximum protection, repackage your monitor as it was originally packed at the
factory.
4. To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn
stains may be removed with a cloth lightly dampened with a mild detergent solution.
Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these
will damage the cabinet. As a safety precaution, always cut off the monitor before
cleaning it.
Front Panel Control
• Standby power key :
When pressed, the monitor enters the off mode, and the LED turns orange. Press again
and hold to restore normal status.
• Shuttle Knob :
The Shuttle Knob is used to control the monitor functions. Rotate to switch functions
or adjust settings. Press to select or execute a function .
• Power Indicator :
Green — Power On mode.
Orange — Stand-by mode, Suspend mode, or Off mode.
How to adjust a setting

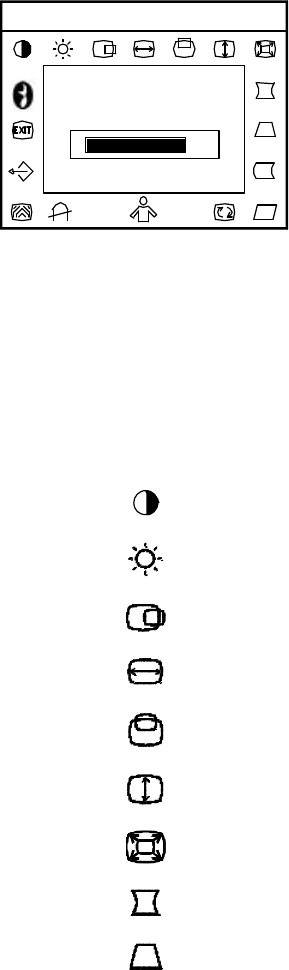

1. Press the Shuttle Knob to make the OSD window appear. See Figure 4.
2. Rotate the Shuttle Knob to select the desired function. See Figure 4.
3. Press the Shuttle Knob again to select the function that you want to adjust.
4. Rotate the Shuttle Knob to change the settings of the current function.
5. When the OSD window is active, it shows the input signal timing. The "H" stands for
the horizontal frequency and "V" for the vertical frequency.
6. To exit and save, select the exit function, or leave the monitor alone for 10 seconds. If
you want to adjust any other function, repeat steps 2-4.
70
V: 85Hz
9300 6500
H: 68.8KHz
Contrast
Figure 4 The OSD Message
Adjusting the picture

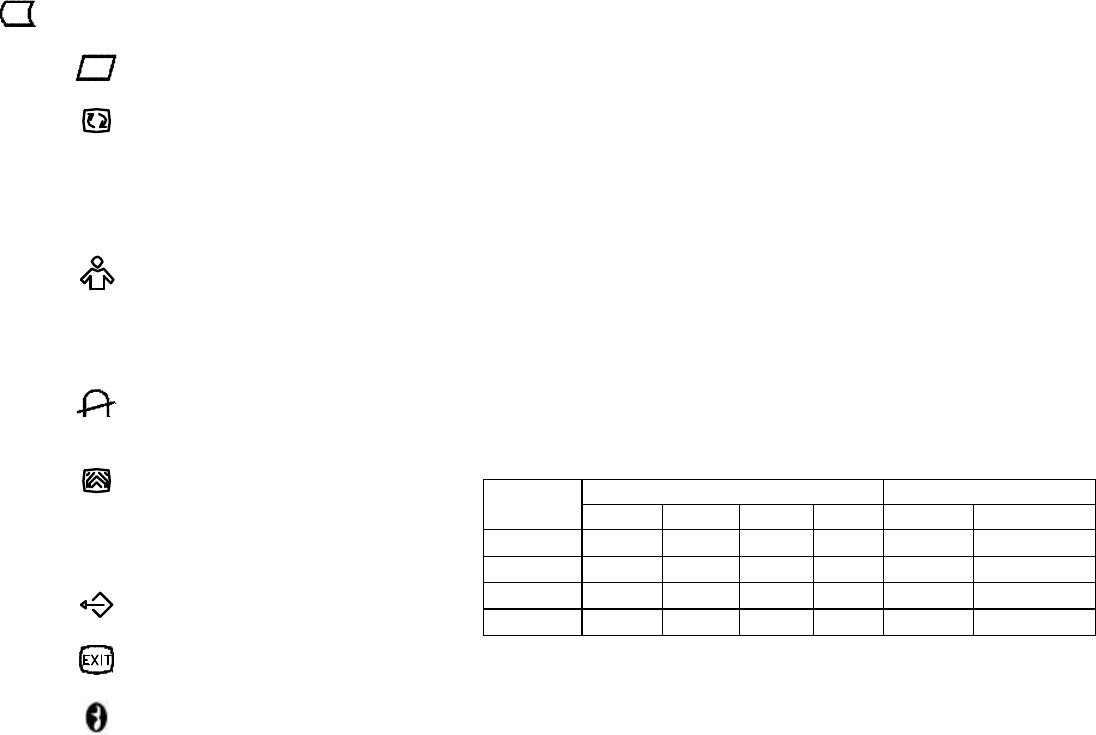

7. The description for functional control icons
7.1 CONTRAST
:
Adjust the picture contrast.
7.2 BRIGHTNESS
:
Adjust the picture brightness.
7.3 H-CENTER
:
Adjust the horizontal position of the picture.
7.4 H-SIZE
:
Adjust the picture’s horizontal size.
7.5 V-CENTER
:
Adjust the vertical position of the picture.
7.6 V-SIZE
:
Adjust the picture’s vertical size.
7.7 ZOOM
:
Adjust the picture’s horizontal and vertical size simultaneously.
7.8 PINCUSHION
:
Adjust the pincushion and barrel .
7.9 TRAPEZOID
:
Adjust the picture’s trapezoid distortion.
7.10 PIN-BALANCE
:
Adjust to compensate the pincushion unbalance.
7.11 PARALLELOGRAM
:
Adjust the picture to be a rectangle.
7.12 ROTATION
:
Adjust the picture tilt to horizontal position.
7.13 6500°K/9300°K ( COLOR TEMPERATURE ) :
The color temperature for 6500°K is x=0.313, y=0.329 and 9300°K is x=0.283,
y=0.297. It presents two different color sets on the screen. You can select 9300°
K or 6500°K by pressing the Shuttle Knob.
7.14 USER COLOR ( Red / Blue )
:
If the 9300°K normal white or 6500°K warmer white do not satisfy your desire,
properly adjust R . B GAIN controls to obtain your optimum whiteness level.
7.15 DEGAUSS
:
If color impurity occurs when moving or swiveling the monitor, press the Shuttle
Knob and degauss to fix the picture condition.
7.16 MOIRE REDUCE
:
Moire is the result of interference between the phosphor layout and the video
signal. In some cases, you may find the moire very noticeable. Press the Shuttle
Knob to enter in the moire reduce setting. Please adjust the level to the optimum
condition. Note: Too high of a setting will cause the picture to shake.
7.17 RECALL
:
Press RECALL to restore the monitor to factory settings.
7.18 EXIT
:
Close OSD window.
7.19 SELECT LANGUAGE
:
Select the language as you like.
FEATURES
Green monitor
• The monitor has a power saving function that conforms to the VESA DPMS standard.
This feature will only work if your PC is a green PC. This feature is similar to a screen
saver, except that your monitor will turn itself off instead of activating the screen
saver.
To activate this feature in Windows® 98:
In Windows® 98, this feature can be activated and customized under the screen saver
setting of the display properties.
1. Right click on the desktop and choose Properties.
2. Click on the tab that says Screen Saver. If your system supports Green PC, there will
be a section entitled “Energy Saving Features of Monitor.” If there isn’t a section like
that, then your PC does not support Green Monitor. The monitor will behave just like
a normal monitor, so you will have to turn it off manually to save energy.
3. In the “Energy Saving Features of Monitor” sections are two boxes, Standby and Shut
off. To activate either one, click the box next to each one.
4. You can specify the amount of inactive time before your monitor enters standby
mode or shuts off.
• The power-saving mode can be indicated by the light-emitting diode (LED) on the
front panel:
Signal Power
Mode Cable
H-Sync
V-Sync
Video
Indicator
Consumption
On* Attached
Yes Yes Active
Green ≤ 120 W
Stand-by
Attached
No Yes Blank
Orange
≤ 15 W
Suspend
Attached
Yes No Blank
Orange
≤ 15 W
Off Attached
No No Blank
Orange
≤ 5 W
THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO
VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE
PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.
This monitor meets the Power Management standards as set by the Video Electronics
Standards Association (VESA) and/or the United States Environmental Protection Agency
(EPA) and The Swedish Confederation Employees ( NUTEK ). This feature is designed to
conserve electrical energy by reducing power consumption when there is no video input
signal present. When there is no video input signal this monitor, following a time-out
period, will automatically switch to an OFF mode. This reduces the monitor's internal
power supply consumption. After the video input signal is restored, full power is restored
and the display is automatically redrawn. The appearance is similar to a "Screen Saver"
feature except the display is completely off. The display is restored by pressing a key on
the keyboard, or clicking the mouse.
Plug and play
Plug & Play DDC1/2B Feature
This monitor is equipped with VESA DDC1/2B capabilities according to the VESA DDC
STANDARD. It allows the monitor to inform the host system of its identity and,
depending on the level of DDC used, communicate additional information about its
display capabilities. The communication channel is defined in two levels, DDC1 and
DDC2B.
The DDC1 is a unidirectional data channel from the display to the host that continuously
transmits EDID information. The DDC2B is a bidirectional data channel based on the I²C
protocol. The host can request EDID information over the DDC2B channel.
Video Cable Pin Assignments:
1. Red 5. Ground 9. NC 13. H-sync
2. Green 6. R-Ground 10. Ground 14. V- sync / * VCLK
3. Blue 7. G-Ground
11. Monitor Ground
15. DDC-Serial Clock
4. Ground 8. B-Ground 12. DDC-Serial Data
* FOR DDC
TECHNICAL SUPPORT (FAQ)
Problem & Question Possible Solution
Power LED is not on *Power Cord should be connected
No Plug & Play
*Check if the PC system is Plug & Play
compatible
*Check if the Video Card is Plug & Play
compatible
*Check if the D-15 plug pin of Video
Cable is bent
*Make sure the Monitor Drivers are
installed
No picture *Computer Power Switch should be in
the ON position
*Computer Video Card should be snugly
seated in its slot
*The Signal Cable should be completely
connected to the computer
*Check the color of the Power LED
indicator. If it is orange, then the
monitor and the PC system are in
power-saving mode. You need press
your keyboard or move the mouse to
reactivate the system.
Picture is fuzzy *Adjust the Contrast and Brightness
Controls.
Picture bounces or a wave pattern
is present in the picture * Move electrical devices that may cause
electrical interference.
Monitor is stuck in “Power
Saving Mode” *Make sure monitor’s video cable is
properly connected to the computer.
*Inspect monitor’s video cable and make
sure none of the pins are bent.
*Make sure computer is operational by
hitting the CAPS LOCK key on the
keyboard while observing the CAPS
LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS
LOCK key.
Missing one of the primary
colors (RED, GREEN, or BLUE)
*Inspect the monitor’s video cable and
make sure that none of the pins are
bent.
APPENDIX A - SPECIFICATIONS
CRT 43.2cm(17"), 90º deflection, 29mm neck,
0.25mm dot pitch non-glare screen.
Viewable Image Size 40.6cm (16.0"), diagonal
Display Color Unlimited colors
Input Signal Analog input All timing that meets scanning
frequencies
• Video • Analog R, G, B 0.7Vpp positive/75 ohm
• Sync. • Horizontal sync. : Positive/Negative
• Vertical sync. : Positive/Negative
Synchronization
• Horizontal 30kHz to 70kHz automatically
• Vertical 50Hz to 160Hz automatically
Max. Resolution 1280 × 1024
Video Dot Rate 110MHz
Factory Preset
Timings : 6
User mode Timings : 20
Misconvergence
• Center 0.3mm Max.
• Corner 0.4mm Max.
Power Source Switching mode power supply
AC 100-240V, 50Hz/60Hz full range
Operating 0°C to 40°C ambient
Humidity 10% to 85% relative, non-condensing
Weight 17.0kg (Net)
Dimensions
• (Monitor&Base) 410(W) × 402(H) × 420(D)mm
Signal Cable 15 pin mini D-Sub
External Controls:
Switch • Shuttle Knob
• Standby Power Switch
Functions ( OSD ) • Contrast
• Brightness
• H-Center
• H-Size
• V-Center
• V-Size
• Zoom
• Pincushion
• Trapezoid
• Pin-Balance
• Parallelogram
• Rotation
• 6500°K
• User color
• 9300°K
• Degauss
• Moire Reduce
• Recall
• Exit
• Select language
Plug & Play DDC1/2B
Power management EPA , VESA DPMS
Power consumption 120 Watts Max.
Preset display area 300mm × 230 mm
Regulations UL, CSA, TÜV/GS, FCC, FDA, MPR II
APPENDIX B – FACTORY PRESET TIMING TABLE
STANDARD
RESOLUTION
HORIZONTAL
FREQUENCY VERTICAL
FREQUENCY
IBM 720 x 400 31.5kHz 70Hz
VGA 640 x 480 31.5kHz 60Hz
VESA/85 640 x 480 43.3kHz 85Hz
VESA/85 800 x 600 53.7kHz 85Hz
VESA/85 1024 x 768 68.7kHz 85Hz
VESA/60 1280 x 1024 64.0kHz 60Hz
