users manual
Your Work Never Looked Better
Plug & Play Drivers for the AOC Spectrum Series Monitors are available
at : www.epius.com
9Slr/9Glr/9Klr
USER MANUAL
TABLE OF CONTENTS
FOR YOUR SAFETY -------------------------------------------------- 1
SAFETY PRECAUTIONS -------------------------------------- 2
BEFORE YOU OPERATE THE MONITOR ---------------------- 3
FEATURES -------------------------------------------------------- 3
PACKING LIST --------------------------------------------------- 3
INSTALLATION INSTRUCTIONS --------------------------- 3
CONTROLS AND CONNECTORS -------------------------- 4
OPERATING INSTRUCTIONS ------------------------------------- 5
GENERAL INSTRUCTIONS ---------------------------------- 5
HOW TO ADJUST A SETTING ------------------------------ 7
ADJUSTING THE PICTURE ---------------------------------- 7
POWER MANAGEMENT FEATURE ----------------------- 9
PLUG AND PLAY ------------------------------------------------10
TECHNICAL SUPPORT(FAQ) -------------------------------------12
APPENDIX ---------------------------------------------------------------13

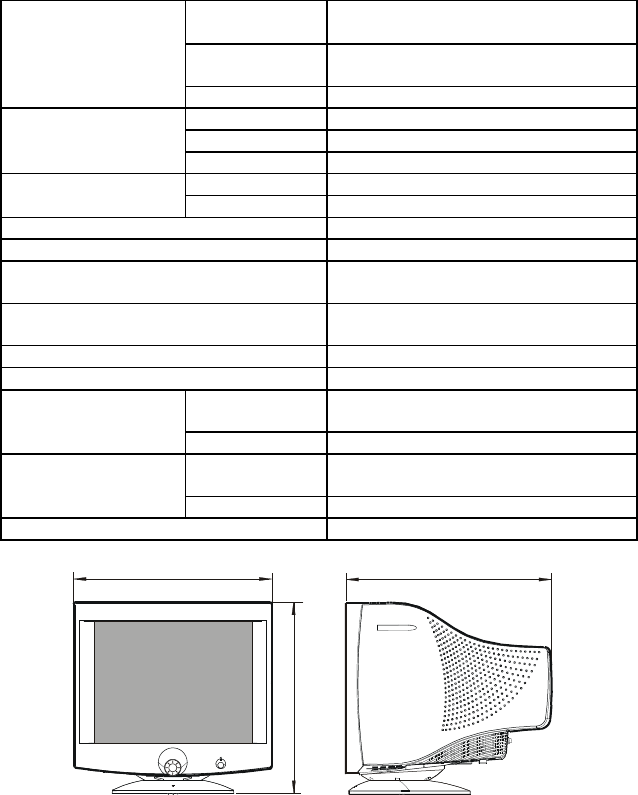

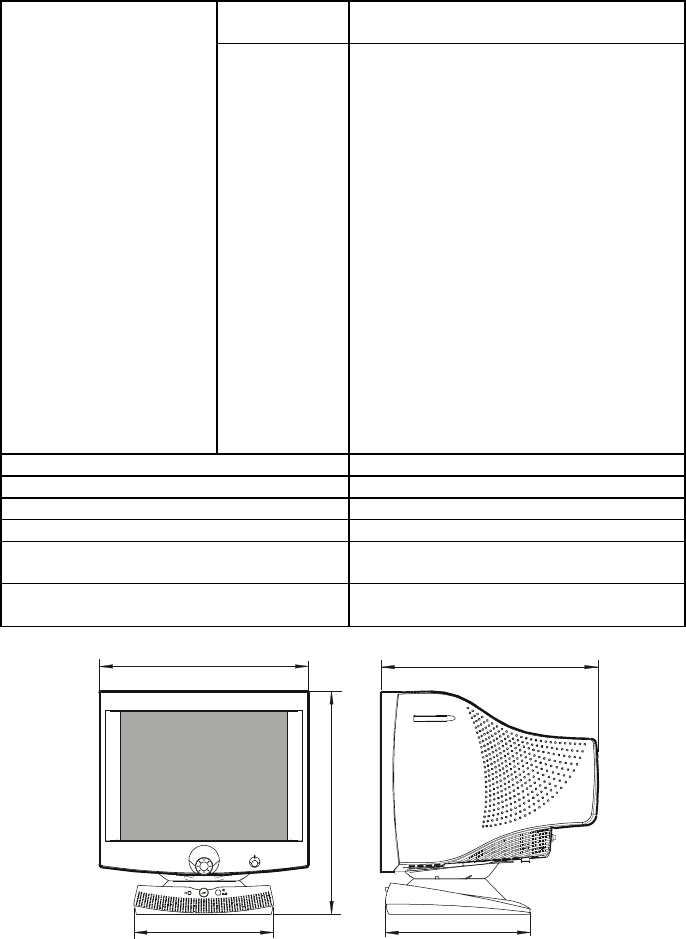

SPECIFICATIONS -------------------------------------------13-14
FACTORY PRESET TIMING TABLE -----------------------15

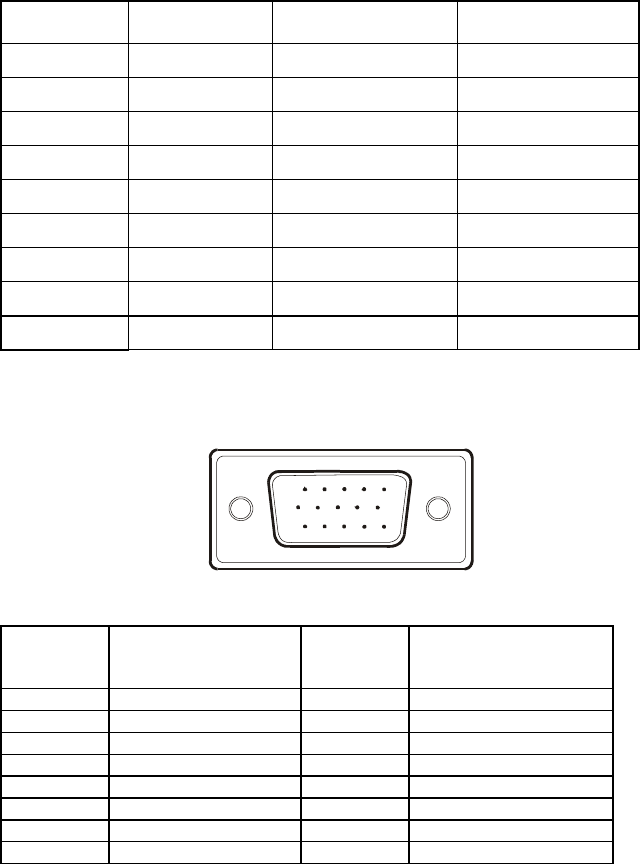

CONNECTOR PIN ASSIGNMENT --------------------------15
Thank you very much for choosing the AOC Color Monitor.
We recommend that you take a few minutes to read carefully through this
brief but comprehensive manual before installing and switching on the
monitor. Please keep this manual in a safe place for you future reference.
1
Before operating the monitor please read this manual thoroughly. This
manual should be retained for future reference.
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
NOTICE
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables and AC power cord, if any, must be used in
order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modification to this equipment. It is the
responsibilities of the user to correct such interference.
As an
E
NERGY
S
TAR
Partner Envision Peripherals, Inc. has determined
that this product meets the
E
NERGY
S
TAR
guidelines for energy efficiency.
WARNING :
To prevent fire or shock hazard, do not expose the monitor to rain or moisture.
Dangerously high voltages are present inside the monitor. Do not open the
cabinet. Refer servicing to qualified personnel only.
2
PRECAUTIONS
zDo not use the monitor near water, e.g. near a bathtub, washbowl, kitchen
sink, laundry tub, swimming pool or in a wet basement.
zDo not place the monitor on an unstable cart, stand, or table. If the
monitor falls, it can injure a person and cause serious damage to the
appliance. Use only a cart or stand recommended by the manufacturer or
sold with the monitor. If you mount the monitor on a wall or shelf, use a
mounting kit approved by the manufacturer and follow the kit instructions.
zSlots and openings in the back and bottom of the cabinet are provided for
ventilation. To ensure reliable operation of the monitor and to protect it
from overheating, be sure these openings are not blocked or covered. Do
not place the monitor on a bed, sofa, rug, or similar surface. Do not place
the monitor near or over a radiator or heat register. Do not place the
monitor in a bookcase or cabinet unless proper ventilation is provided.
zThe monitor should be operated only from the type of power source
indicated on the label. If you are not sure of the type of power supplied to
your home, consult your dealer or local power company.
zThe monitor is equipped with a three-pronged grounded plug, a plug with
a third (grounding) pin. This plug will fit only into a grounded power outlet
as a safety feature. If your outlet does not accommodate the three-wire
plug, have an electrician install the correct outlet, or use an adapter to
ground the appliance safely. Do not defeat the safety purpose of the
grounded plug.
zUnplug the unit during a lightning storm or when it will not be used for long
periods of time. This will protect the monitor from damage due to power
surges.
zDo not overload power strips and extension cords. Overloading can result
in fire or electric shock.
zNever push any object into the slot on the monitor cabinet. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the
monitor.
zDo not attempt to service the monitor yourself; opening or removing
covers can expose you to dangerous voltages and other hazards. Please
refer all servicing to qualified service personnel.
zTo ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked
between 100 - 240V AC, Min. 2.5A.
zAttention: Disconnect the power cord to stop the power supply to the
monitor.
zThe wall socket shall be installed near the equipment and shall be easily
accessible.
3
BEFORE YOU OPERATE THE MONITOR
FEATURES
•
48.3cm(19”) Pure Flat Color Monitor
•
Crisp, Clear Display for Windows
•
Supports Resolutions up to 1600 x 1200
•
Power Management
•
Ergonomic Design (TCO’99 Approved)
•
Space Saving, Compact Case Design
CHECKING THE CONTENTS OF THE MONITOR PACKAGE
The product package should include the following items:
1. Monitor
2. Owner's Manual
3. Power Cord
4. Swivel Base

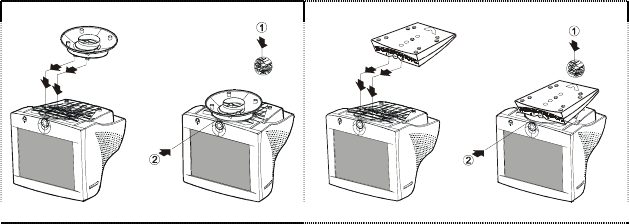

INSTALLATION INSTRUCTIONS
SWIVEL BASE
To attach the swivel base to the monitor, do the following:
•
Carefully turn the monitor on its side or upside down. ( see figure 1 )
•
Locate the cavities at the bottom front of the monitor.
•
Insert the pegs on the swivel base into these cavities. Push the swivel
base forward until the swivel base locks in place.
•
To remove the swivel base, hold the bottom of the swivel base, then push
it out.
Install Remove Install Remove
9Slr 9SlrA
Figure 1 Installing and Removing the Swivel Base
4
POWER CORD
Power Source:
1. Make sure the power cord is the correct type that required in your area.
2. This monitor has a universal power supply that allows operation in either
100/120V AC or 220/240V AC voltage area ( No user adjustment is
required. )
3. Connect the power cord into your monitor’s power input socket, and then
plug the other end into a 3-pin AC power outlet. The power cord may be
connected to either a wall power outlet or the power outlet socket on your
PC, depending on the type of power cord supplied with your monitor.
CONTROLS AND CONNECTORS
VIDEO CABLE
Connecting the Video Cable: the monitor comes with a built-in video cable.
Plug the signal cable′s 15-pin connector into the computer's video port and
tighten the two screws on the cable connector. (see figure 2)
Caution: Don’t bend the signal cable, otherwise it will break the inner wire.
Connecting the Power Cord: Plug the power cord into the monitor's AC
power socket. Then plug the power cord into a grounded AC outlet or UL-
approved power strip or the power output socket on your PC.
Caution: If the AC outlet is not grounded, install the proper grounding
adapter (not supplied).
Connecting the Audio Cable ( 9SlrA only ): Plug audio cable between the
computer multi-media (or sound) card's audio output and
monitor's audio
input.
Connecting the DC Power Cable ( 9SlrA only ): Plug DC power cable
between monitor to swivel base for audio power.
1
3
4
5
2
9Slr 9SlrA

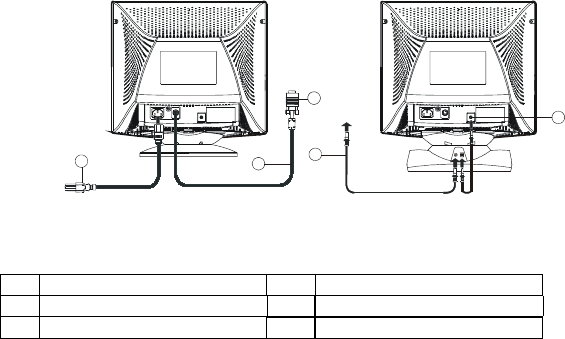

Figure 2 Connecting Cables
1. Power Cord 4. PC Audio Output
2. Signal Cable 5. DC Output
3. VGA Card Adapter
5
OPERATING INSTRUCTIONS
GENERAL INSTRUCTIONS
The other control knobs are located at the base of the monitor (See Figure 3).
By changing these settings, the picture can be adjusted to your personal
preferences.
•
Connect the video cable from the monitor to the video card.
Connect the power cord and the power indicator will light up.
•
Your monitor features a unique quick switch system which provides a
picture within seconds after the monitor is switched on.
1
1
2
2
3
3
4
5
6
7
9Slr 9SlrA

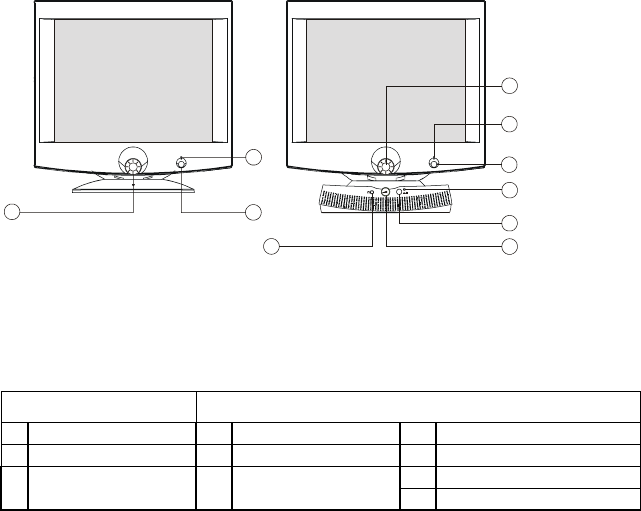

Figure 3 External Control Knob
EXTERNAL CONTROLS
9Slr 9SlrA
1. Shuttle Knob 1. Shuttle Knob 4.
A
udio Power Indicator
2. Power Indicator 2. Power Indicator 5. Audio Power ON/OFF
3. Standby Power 3. Standby Power 6.
V
olume
ON/OFF Switch ON/OFF Switch 7. Earphone Jack
6
FRONT PANEL CONTROL
•Shuttle Knob :
The Shuttle Knob is used to control the monitor functions. Rotate to
switch functions or adjust settings. Press to select or execute a function .
•Power Indicator :
Green — Power On mode.
Orange — Stand-by mode, Suspend mode, or Off mode.
SWIVEL BASE CONTROL ( 9SlrA ONLY ) :
•Audio Power
ON or OFF Audio Power
•Power Indicator
Green — Audio Power ON.
•
••
•Volume
Adjustable Audio volume.
NOTES
•
Do not install the monitor in a location near heat sources such as
radiators or air ducts , or in a place subject to direct sunlight , or excessive
dust or mechanical vibration or shock.
•
Save the original shipping carton and packing materials, as they will come
in handy if you ever have to ship your monitor.
•
For maximum protection, repackage your monitor as it was originally
packed at the factory.
•
To keep the monitor looking new, periodically clean it with a soft cloth.
Stubborn stains may be removed with a cloth lightly dampened with a mild
detergent solution. Never use strong solvents such as thinner, benzene,
or abrasive cleaners, since these will damage the cabinet. As a safety
precaution, always unplug the monitor before cleaning it.
7
HOW TO ADJUST A SETTING

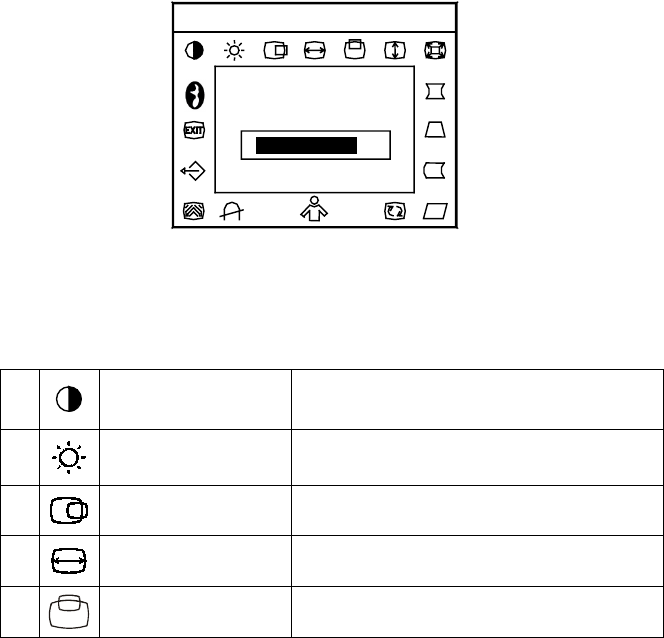

1. Press the Shuttle Knob or OSD Key to make the OSD window appear.
See figure 4.

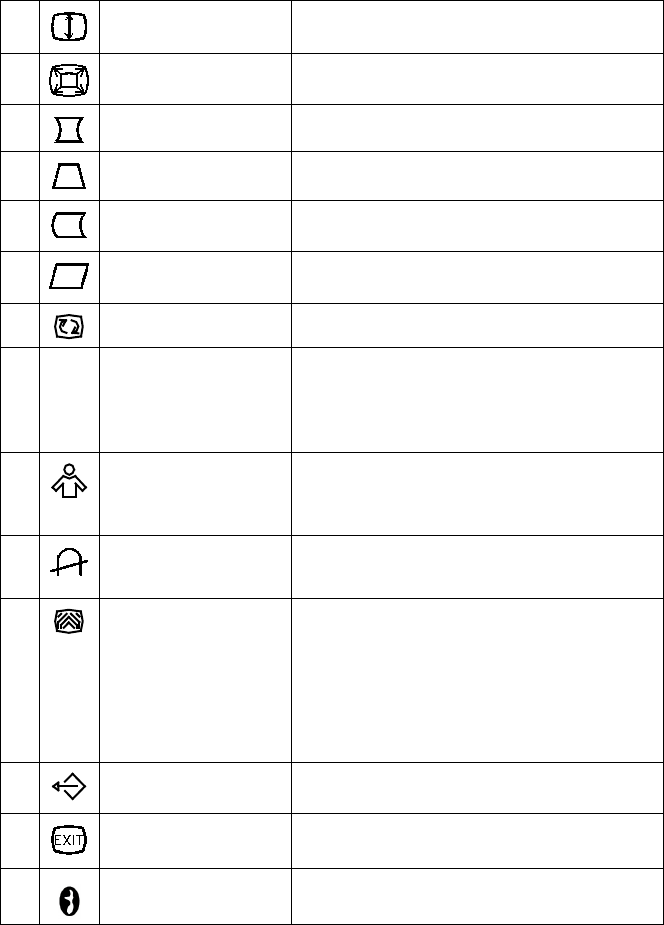

2. Rotate the Shuttle Knob to select the desired function. See figure 4.
3. Press the Shuttle Knob again to select the function that you want to adjust.
4. Rotate the Shuttle Knob to change the settings of the current function.
5. When the OSD window is active, it shows the input signal timing. The
"H" stands for the horizontal frequency and "V" for the vertical frequency.
6. To exit and save, either press the OSD Key, select the exit function, or
leave the monitor alone for 10 seconds. If you want to adjust any other
function, repeat steps 2-4.
70
V: 85Hz
9300 6500
H: 68.8KHz
Contrast
Figure 4 The OSD Message
ADJUSTING THE PICTURE
The description for function control LEDS
1. CONTRAST Adjust the picture contrast.
2. BRIGHTNESS Adjust the picture brightness.
3. H- CENTER Adjust the horizontal position of the picture.
4. H- SIZE Adjust the picture’s horizontal size.
5. V- CENTER Adjust the vertical position of the picture.
8
6. V- SIZE Adjust the picture’s vertical size.
7. ZOOM Adjust the picture’s horizontal and vertical
size simultaneously.
8. PINCUSHION Adjust the pincushion and barrel
9. TRAPEZOID Adjust the picture’s trapezoid distortion.
10. PIN-BALANCE Adjust to compensate the pincushion
unbalance.
11. PARALLELOGRAM Adjust the picture to be a rectangle.
12. ROTATION Adjust the picture tilt to horizontal position.
13. 6500°K/9300°K
( COLOR
TEMPERATURE )
The color temperature for 6500°K is x=0.313,
y=0.329 and 9300°K is x=0.283, y=0.297. It
presents two different color sets on the
screen. You can select 9300°K or 6500°K by
pressing the Shuttle Knob.
14. USER COLOR
( Red / Blue )
If the 9300°K normal white or 6500°K warmer
white do not satisfy your desire, properly
adjust R . B GAIN controls to obtain your
optimum whiteness level.
15. DEGAUSS If color impurity occurs when moving or
swiveling the monitor, press the Shuttle Knob
and degauss to fix the picture condition.
16. MOIRE REDUCE Moire is the result of interference between
the phosphor layout and the video signal. In
some cases, you may find the moire very
noticeable. Press the Shuttle Knob to enter in
the moire reduce setting. Please adjust the
level to the optimum condition. Note: Too
high of a setting will cause the picture to
shake.
17. RECALL Press RECALL to restore the monitor to
factory settings.
18. EXIT Close OSD window.
19. SELECT LANGUAGE Select the language as you like.
9
POWER MANAGEMENT FEATURE
The power management feature of this product complies with every power
saving requirements of
E
NERGY
S
TAR
and VESA DPMS when activated, it
automatically reduces unnecessary power consumption of the monitor when
your computer is not in use.
To use the feature, the monitor needs to be connected to a VESA DPMS
computer. There are three power management modes available, these are
described below. The required settings, including the timer setting, should be
made by the computer.
•
••
•Stand-by Mode
When the H-sync signal from the computer is off, the monitor enters into
Stand-by Mode which reduces the power consumption to less than 15W.
The screen becomes dark, and the power indicator turns to orange. From
Stand-by Mode, the screen reappears instantaneously when the keyboard
or the mouse is touched again.
•
••
•Suspend Mode
When the V-sync signal from the computer is off, the monitor enters into
Suspend Mode which reduces the power consumption to less than 15W.
The screen becomes dark, and the power indicator turns to orange. From
Suspend Mode, the screen reappears instantaneously when the keyboard
or the mouse is touched again.
•
••
•Active-off Mode
When both the H and V sync signals from the computer are off, the
monitor enters into Active-off Mode which reduces the power consumption
to less than 5W. The screen becomes dark, and the power indicator turns
to orange. From Active-off Mode, the screen reappears instantaneously
when the keyboard or the mouse is touched again.
•
The power-saving mode can be indicated by the light-emitting diode (LED)
on the front panel:
Signal Power
Mode Cable H-Sync V-Sync Video Indicator Consumption
On* Attached Yes Yes Active Green ≤ 130 W
Stand-by Attached No Yes Blank Orange ≤ 15 W
Suspend Attached Yes No Blank Orange ≤ 15 W
Off Attached No No Blank Orange ≤ 5 W
10
FEATURES
Green monitor
•
The monitor has a power saving function that conforms to the VESA
DPMS standard. This feature will only work if your PC is a green PC. This
feature is similar to a screen saver, except that your monitor will turn it off
instead of activating the screen saver.
To activate this feature in Windows
®
98 :
In Windows
®
98, this feature can be activated and customized under the
screen saver setting of the display properties.
1. Right click on the desktop and choose Properties.
2. Click on the tab that says Screen Saver. If your system supports Green
PC, there will be a section entitled “Energy Saving Features of Monitor.”
If there isn’t a section like that, then your PC does not support Green
Monitor. The monitor will behave just like a normal monitor, so you will
have to turn it off manually to save energy.
3. In the “Energy Saving Features of Monitor” sections are two boxes,
Standby and Shut off. To activate either one, click the box next to each
one.
4. You can specify the amount of inactive time before your monitor enters
standby mode or shuts off.
PLUG AND PLAY
Plug & Play DDC1/2B Feature
This monitor is equipped with VESA DDC1/2B capabilities according to the
VESA DDC STANDARD. It allows the monitor to inform the host system of its
identity and, depending on the level of DDC used, communicate additional
information about its display capabilities. The communication channel is
defined in two levels, DDC1 and DDC2B.
The DDC1 is a unidirectional data channel from the display to the host that
continuously transmits EDID information. The DDC2B is a bidirectional data
channel based on the I²C protocol. The host can request EDID information
over the DDC2B channel.
B/I Mode
In no signal from PC input condition, the AC power source of monitor from off
to on, monitor OSD message will show “no signal input or cable disconnect”.
Around 3s later, the monitor will come into B/I mode, a change color Pattern
appears. If the signal from PC inputs, the monitor will auto into normal
working status.
The B/I mode is set up to give a test signal to the monitor for pre-testing. It is
a normal phenomenon.
11
THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS
NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE
PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.
This monitor meets the Power Management standards as set by the Video
Electronics Standards Association (VESA) and/or the United States
Environmental Protection Agency (EPA) and The Swedish Confederation
Employees ( NUTEK ). This feature is designed to conserve electrical energy
by reducing power consumption when there is no video input signal present.
When there is no video input signal this monitor, following a time-out period,
will automatically switch to an OFF mode. This reduces the monitor's internal
power supply consumption. After the video input signal is restored, full power
is restored and the display is automatically redrawn. The appearance is
similar to a "Screen Saver" feature except the display is completely off. The
display is restored by pressing a key on the keyboard, or clicking the mouse.
USING THE RIGHT POWER CORD :
The accessory power cord for the Northern American region is the wallet plug
with NEMA 5-15 style and is UL listed and CSA labeled. The voltage rating for
the power cord shall be 125 volts AC.
Supplied with units intended for connection to power outlet of personal
computer: Please use a cord set consisting of a minimum No. 18 AWG, type
SJT or SVT three conductors flexible cord. One end terminates with a
grounding type attachment plug, rated 10A, 250V, CEE-22 male configuration.
The other end terminates with a molded-on type connector body, rated 10A,
250V, having standard CEE-22
female configuration.
12
TECHNICAL SUPPORT (FAQ)
Problem & Question Possible Solution
Power LED is not on *Power Cord should be connected
No Plug & Play *Check if the PC system is Plug & Play
compatible
*Check if the Video Card is Plug & Play
compatible
*Check if the D-15 plug pin of Video Cable
is bent
*Make sure the AOC Monitor Drivers are
installed
(AOC Monitor Drivers are available at:
www.epius.com)
No picture *Computer Power Switch should be in the
ON position
*Computer Video Card should be snugly
seated in its slot
*The Signal Cable should be completely
connected to the computer
*Check the color of the Power LED
indicator. If it is orange, then the monitor
and the PC system are in power-saving
mode. You need press your keyboard or
move the mouse to reactivate the
system.
Picture is fuzzy *Adjust the Contrast and Brightness
Controls.
Picture bounces or a wave
pattern is present in the picture
*Move electrical devices that may cause
electrical interference.
Monitor is stuck in “Power
Saving Mode”
*Make sure monitor’s video cable is
properly connected to the computer.
*Inspect monitor’s video cable and make
sure none of the pins are bent.
*Make sure computer is operational by
hitting the CAPS LOCK key on the
keyboard while observing the CAPS
LOCK LED. The LED should either turn
ON or OFF after hitting the CAPS LOCK
key.
Missing one of the primary
colors (RED, GREEN, or
BLUE)
*Inspect the monitor’s video cable and
make sure that none of the pins are
bent.
North America technical
support telephone number: 1-800-343-5777
13
APPENDIX
SPECIFICATIONS
CRT Size 48.3cm(19"), 29mm neck,
CRT Viewable Image
Size
45.7cm (18.0"), diagonal
Type 0.25 mm dot pitch.
Video 0.7Vpp, R,G,B Analog
Input Separate Sync. TTL Level
H./V.- Sync. Positive / Negative
Scanning H-Frequency 30kHz - 110kHz
Frequency V-Frequency 50Hz-160Hz
Max. Resolution 1600 x 1200
Video Dot Rate 230MHz
Factory Preset mode : 9
User Programmable mode : 20
Power Source Universal AC 100 - 240V,
50Hz / 60Hz
Operating 0ºC to 40ºC ambient
Humidity 10% to 85%relative, non-condensing
Dimensions
9Slr: Monitor & Base 446(W) × 436(H) × 455(D)mm
9SlrA: Monitor & Base 446(W) × 485(H) × 455(D)mm
Weight
9Slr: Unit (net) 20kg ( Net )
9SlrA: Unit (net) 21kg ( Net )
Signal Cable: Attached Mini D-sub 15 Male
446
436
455
(In mm)
9Slr
14
Switch
•
Shuttle Knob
•
Volume(9SlrA)
External Controls: Functions
•
Contrast
•
Brightness
•
H-Center
•
H-Size
•
V-Center
•
V-Size
•
ZOOM
•
Pincushion
•
Trapezoid
•
Pin-Balance
•
Parallelogram
•
Rotation
•
6500°K
•
User Color
•
9300°K
•
Degauss
•
Moire Reduce
•
Recall
•
Exit
•
Language
Plug & Play DDC1/2B
Power Management EPA, VESA DPMS
Power Consumption ( Maximum ) 130 Watts
Pre-set Display Area 346mm x 260mm
Audio Output
(for 9SlrA only)
Rated Power 1W rms
(Per channel)
Regulatory Compliance UL, CSA, FDA, FCC, TÜV/GS, CE,
TCO’99
446
(In mm)
485
307 305
455
9SlrA
15
FACTORY PRESET TIMING TABLE
STANDARD RESOLUTION HORIZONTAL
FREQUENCY
VERTICAL
FREQUENCY
VGA 720 × 400 31.5kHz 70Hz
VGA 640 × 480 31.5kHz 60Hz
VESA/85 640 × 480 43.3kHz 85Hz
VESA/85 800 × 600 53.7kHz 85Hz
VESA/85 1024 × 768 68.7kHz 85Hz
VESA/85 1280× 960 85.9kHz 85Hz
VESA/85 1280× 1024 91.1kHz 85Hz
VESA/75 1600× 1200 93.8kHz 75Hz
VESA/85 1600× 1200 106.25kHz 85Hz
CONNECTOR PIN ASSIGNMENT
15
610
11 15
15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. Red 9. NC
2. Green 10. Ground
3. Blue 11. Ground
4. Ground 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R-Ground 14. V-Sync / *V-Clk
7. G-Ground 15. DDC-Serial Clock
8. B-Ground * For DDC
