Top Victory Electronics LM1780 17" LCD MONITER User Manual english 17eagle
Top Victory Electronics (Taiwan) Co Ltd 17" LCD MONITER english 17eagle
MANUAL
LXB-L17C
USER MANUAL
TABLE OF CONTENTS
FOR YOUR SAFETY -------------------------------------------------- 1
SAFETY PRECAUTIONS -------------------------------------- 2
SPECIAL NOTES ON LCD MONITORS ------------------- 3
BEFORE YOU OPERATE THE MONITOR --------------------- 3
FEATURES -------------------------------------------------------- 3
PACKING LIST --------------------------------------------------- 3
CONTROLS AND CONNECTORS ----------------------- 4-5
ADJUSTING THE VIEWING ANGLE -------------------- 5-6
OPERATING INSTRUCTIONS ------------------------------------- 7
GENERAL INSTRUCTIONS ---------------------------------- 8
HOW TO ADJUST A SETTING ------------------------------ 9
ADJUSTING THE PICTURE ------------------------------ 9-10
PLUG AND PLAY ----------------------------------------------- 11
TECHNICAL SUPPORT(FAQ) ------------------------------- 12-13
ERROR MESSAGE & POSSIBLE SOLUTION ------- 14
APPENDIX -------------------------------------------------------------- 15

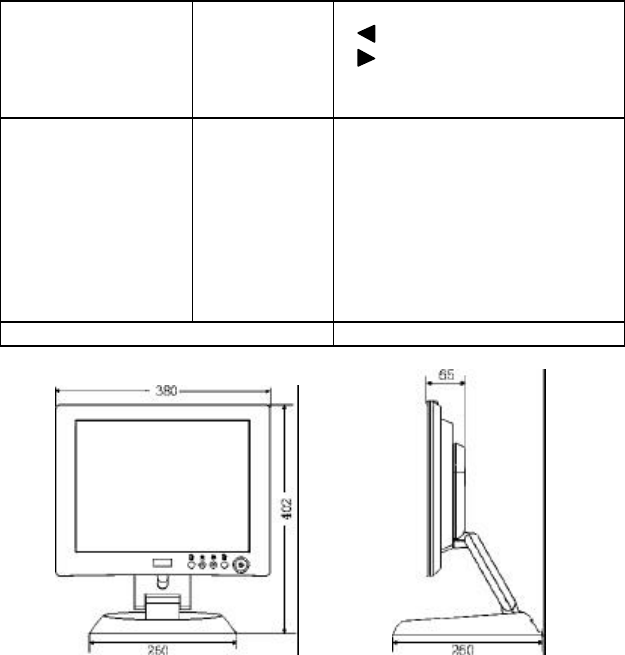

SPECIFICATIONS ----------------------------------------- 15-16

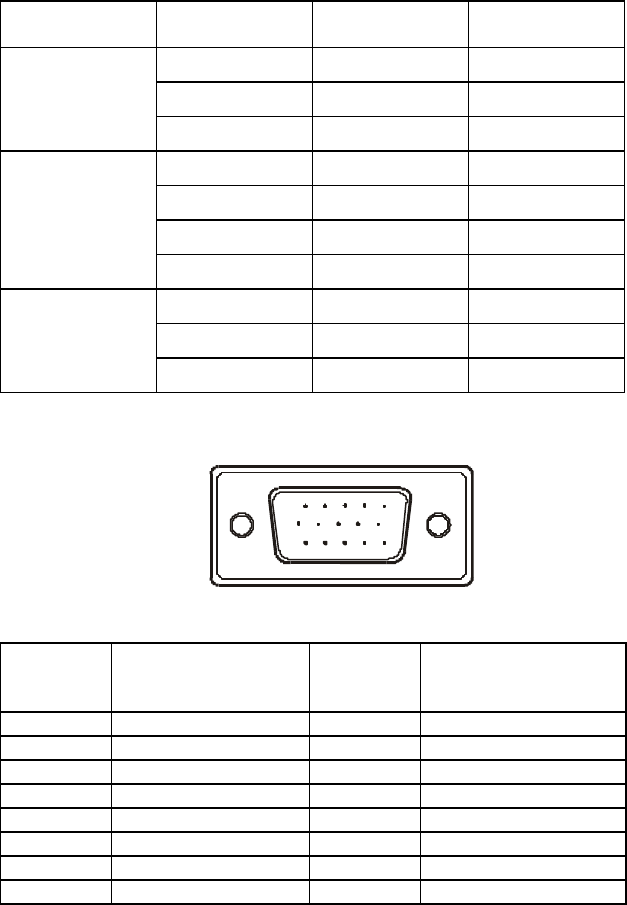

FACTORY PRESET TIMING TABLE ---------------------- 17
CONNECTOR PIN ASSIGNMENT ------------------------- 17
English
Deutsch
Françai
Español
Italian
TCO’95
1
Before operating the monitor please read this manual thoroughly. This
manual should be retained for future reference.
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables and AC power cord, if any, must be used in
order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modification to this equipment. It is the
responsibilities of the user to correct such interference.
As an ENERGY STAR Partner our company has determined that this
product meets the ENERGY STAR guidelines for energy efficiency.
WARNING:
To prevent fire or shock hazard, do not expose the monitor to rain or
moisture. Dangerously high voltages are present inside the monitor. Do not
open the cabinet. Refer servicing to qualified personnel only.
2
l Do not use the monitor near water, e.g. near a bathtub, washbowl,
kitchen sink, laundry tub, swimming pool or in a wet basement.
l Do not place the monitor on an unstable cart, stand, or table. If the
monitor falls, it can injure a person and cause serious damage to the
appliance. Use only a cart or stand recommended by the manufacturer
or sold with the monitor. If you mount the monitor on a wall or shelf, use
a mounting kit approved by the manufacturer and follow the kit
instructions.
l Slots and openings in the back and bottom of the cabinet are provided
for ventilation. To ensure reliable operation of the monitor and to protect it
from overheating, be sure these openings are not blocked or covered.
Do not place the monitor on a bed, sofa, rug, or similar surface. Do not
place the monitor near or over a radiator or heat register. Do not place
the monitor in a bookcase or cabinet unless proper ventilation is
provided.
l The monitor should be operated only from the type of power source
indicated on the label. If you are not sure of the type of power supplied to
your home, consult your dealer or local power company.
l The monitor is equipped with a three-pronged grounded plug, a plug
with a third (grounding) pin. This plug will fit only into a grounded power
outlet as a safety feature. If your outlet does not accommodate the three-
wire plug, have an electrician install the correct outlet, or use an adapter
to ground the appliance safely. Do not defeat the safety purpose of the
grounded plug.
l Unplug the unit during a lightning storm or when it will not be used for
long periods of time. This will protect the monitor from damage due to
power surges.
l Do not overload power strips and extension cords. Overloading can
result in fire or electric shock.
l Never push any object into the slot on the monitor cabinet. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the
monitor.
l Do not attempt to service the monitor yourself; opening or removing
covers can expose you to dangerous voltages and other hazards. Please
refer all servicing to qualified service personnel.
PRECAUTIONS
3
l To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked
between 100 - 240V AC, Min. 3.5A.
l The wall socket shall be installed near the equipment and shall be
easily accessible.
4
The following symptoms are normal with LCD monitor and do not indicate a
problem.
NOTES
• Due to the nature of the fluorescent light, the screen may flicker during
initial use. Turn off the Power Switch and then turn it on again to make
sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include
blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the
time.
• Due to the nature of the LCD screen, an afterimage of the previous
screen may remain after switching the image, when the same image is
displayed for hours. In this case, the screen is recovered slowly by
changing the image or turning off the Power Switch for hours.
• When the screen becomes black or flashing, or cannot illuminate any
more, contact your dealer or service center to replace parts. Don’t repair
the screen by yourself!
BEFORE YOU OPERATE THE MONITOR
• 43cm(17”) TFT Color LCD Monitor
• Crisp, Clear Display for Windows
• Recommended Resolutions: 1280 X1024 @75Hz
• EPA ENERGY STAR
®
• Ergonomic Design (TCO’9 5 Approved)
• Space Saving, Compact Case Design
The product package should include the following items:
1. LCD Monitor
2. Owner's Manual
3. Signal Cable
4. Power Cord
5. Warranty Booklet
FEATURES
CHECKING THE CONTENTS OF PACKAGE
SPECIAL NOTES ON LCD MONITORS
5
POWER
CORD
NOTES
Power Source:
1. Make sure the power cord is the correct type required in your area.
2. This LCD monitor has an External universal power supply that allows
operation in either 100/120V AC or 220/240V AC voltage area (No user
adjustment is required.)
3. Connect the power cord into your LCD monitor’s power input socket, and
then plug the other end into a 3-pin AC power outlet. The power cord may
be connected to either a wall power outlet or the power outlet socket on
your PC, depending on the type of power cord supplied with your LCD
monitor.
A certified power supply cord has to be used with this equipment. The
relevant national installation and/or equipment regulations shall be
considered. A certified power supply cord not lighter than ordinary polyvinyl
chloride flexible cord according to IEC 60227 (designation H05VV-F 3G
0.75mm2 or H05VVH2-F2 3G 0.75mm2) shall be used. Alternatively a flexible
cord of synthetic rubber according to IEC 60245 (designation H05RR-F 3G
0.75mm2) may be used.
Connecting the signal cable:Connect the signal cable’s 15 pin plug to
monitor’s signal input port, locked it with screws. Then plug the other end to
display card output port,locked it with screws.
Connecting the Power Cord: Plug the power cord into the LCD
monitor's AC power socket. Then plug the power cord into a grounded
AC outlet or UL-approved power strip or the power output socket on your PC.
CONTROLS AND CONNECTORS
6

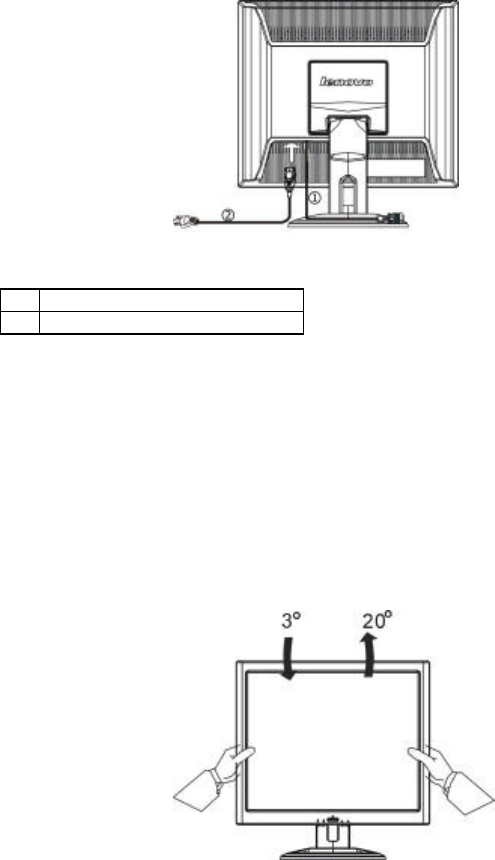

Figure 1 Connecting Cables
1.
Signal Cable
2.
AC Power Cord
INSTALLATION INSTRUCTIONS
• For optimal viewing it is recommended to look at the full face of the
monitor, then adjust the monitor’s angle to your own preference.
• Hold the stand so you do not topple the monitor when you change the
monitor’s angle.
• You are able to adjust the monitor’s angle from -3° to 20°.

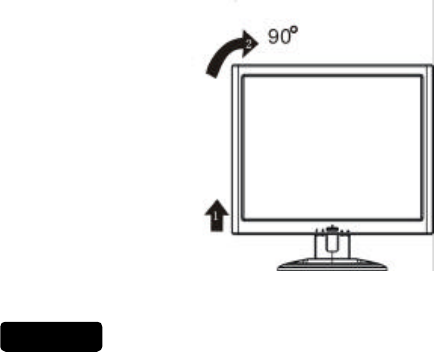

• You can conveniently adjust the height of your monitor by slightly lifting
the display. In addition, you can also turn the display by 90° into the
vertical position. To do this you must slightly lift the display and turn it
clockwise.(See Figure 3)
Figure 2
ADJUSTING THE VIEWING ANGLE
7
Figure 3
NOTES
• Do not touch the LCD screen when you change the angle. It may cause
damage or break the LCD screen.
• Careful attention is required not to catch your fingers or hands when you
change the angle.
OPERATING INSTRUCTIONS
Press the power button to turn the monitor on or off. The other control knobs
are located at front panel of the monitor (See Figure 4). By changing these
settings, the picture can be adjusted to your personal preferences.
• Connect the video cable from the monitor to the video card.
• Press the power button to turn on the monitor position. The power
indicator will light up.
GENERAL INSTRUCTIONS
8

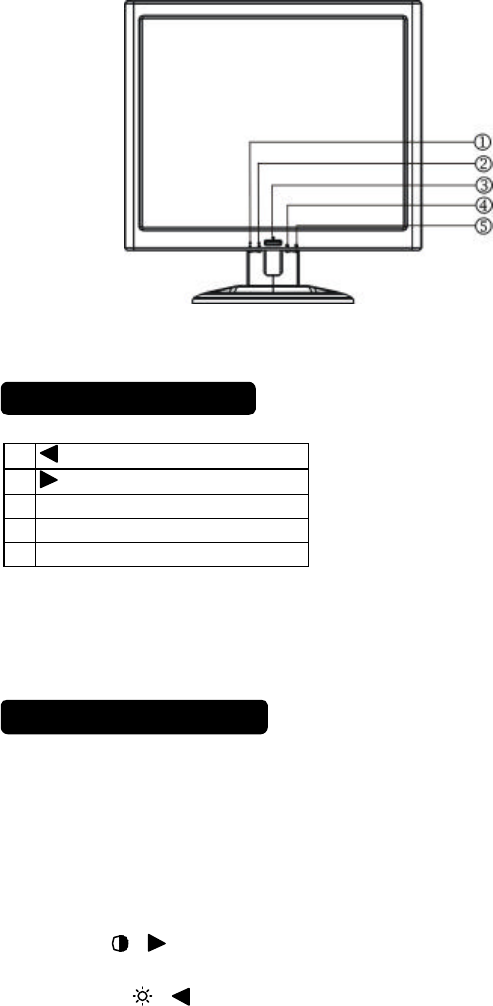

Figure 4 External Control Knob
EXTERNAL CONTROLS
1.
/ Brightness
2.
/ Contrast
3.
Power Key /Power Indicator
4.
Auto Config / Exit
5.
MENU/Enter
FRONT PANEL CONTROL
• Power /Power indicator:
Press this button to switch ON/OFF of monitor’s power. And display the
monitor’s state.
Green — Power on mode.
Organge — Power off mode.
• MENU/ENTER:
Activate OSD menu or function adjusts confirmation.
• Contrast / :
Adjust contrast or function adjustment.
• Brightness / :
9
Adjust brightness or function adjustment.
• Auto Config Key / EXIT:
1. When OSD menu is in active status, this knob will act as EXIT-KEY
(EXIT OSD menu)
2. When OSD menu is in off status, press this knob over 1 seconds to be
in Auto Adjustment function.
The Auto Adjustment function is used to set the HPos, VPos, Clock
and Focus automatically.
NOTES
• Do not install the monitor in a location near heat sources such as
radiators or air ducts, or in a place subject to direct sunlight, or excessive
dust or mechanical vibration or shock.
• Save the original shipping carton and packing materials, as they will
come in handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it was originally
packed at the factory.
• To maintain the cleanness of your LCD display, wipe it periodically with
clean and soft cloth. The screen may be damaged by any liquid splash.
• To keep the monitor looking new, periodically clean it with a soft cloth.
Stubborn stains may be removed with a cloth lightly dampened with a
mild detergent solution. Never use strong solvents such as thinner,
benzene, or abrasive cleaners, since these will damage the cabinet. As
a safety precaution, always unplug the monitor before cleaning it.
The monitor controls are accessed by pressing button MENU to enable OSD
(On-Screen-Display). The main menu will be displayed as follows (see
figure 5 ). If OSD window is in Chinese when power on (see figure 6), press
the Contrast/UP Key or Brightness/Down Key to choose the next window.
Choose the English, then press MENU Key for confirming. OSD window will
display in English.
1. Press the MENU-Key to show the OSD window. See figure 6.
2. Press or to select the adjusted item, then press the MENU-key.
3. Press or to change the settings of selected item. Press MENU-key
when desired setting is done.
4. If you want to adjust any other items, repeat steps 2-4.
HOW TO ADJUST A SETTING
10
5. To exit and save the setting, press or to the exit item and press
MENU-key, or leave the monitor alone for 10 seconds.
6. When the OSD window is active, it shows the input signal timing. The
"H" Stands for the horizontal frequency and "V" stands for the vertical
frequency.
7. Press and during the power switch on.The OSD menu will be
displayed rotated by 90°, and reapeat this action, the display will come
back the factory mode.
亮度和?比度
位置?整
? ? ? ?
?言? ?
OSD
?示? ?
色? ? 整
OSD
位置
退出菜?
恢复出厂模式
Figure 5 English OSD Message Figure 6 Chinese OSD Message
The description for function control LEDS
1. BRIGHTNESS & CONTRAST
1.1 BRIGHTNESS
Adjust the picture brightness.
1.2 CONTRAST
Adjust the picture contrast.
2. ADJUST POSITION
2.1 HORIZONTAL POSITION
Adjust the horizontal position of the picture.
2.2 VERTICAL POSITION
Adjust the vertical position of the picture.
3. VIDEO NOISE
3.1 FOCUS
Adjust the picture Focus.
3.2 CLOCK
Adjust the picture Clock.
ADJUSTING THE PICTURE
11
4. LANGUAGE
Muti-Language selecion.
5. OSD TIMER
Choose OSD window display time.
6. COLOR TEMPERATURE
6.1 7800K/6500K ( COLOR TEMPERATURE)
The color temperature for 7800K is x=0.296, y=0.311
and 6500K is x=0.313, y=0.329
. It presents two
different color sets on the screen. You can select
7800K or 6500K by pressing MENU Key.
6.2 USER MODE ( Red / Green/ Blue )
If the 7800K normal white or 6500K warmer white do
not satisfy your desire, properly adjust R .G.
B GAIN
controls to obtain your optimum whiteness level.
7. OSD POSITION
7.1 HORIZINTAL OSD
Adjust the horizontal position of the OSD menu.
7.2 VERTICAL OSD
Adjust the vertical position of the OSD menu.
8. EXIT OSD
Close OSD window.
9. RESET
Press RESET to restor the monitor to factory settings.
Plug & Play DDC1/2B Feature
This monitor is equipped with VESA DDC1/2B capabilities according to the
VESA DDC STANDARD. It allows the monitor to inform the host system of its
identity and, depending on the level of DDC used, communicate additional
information about its display capabilities. The communication channel is
defined in two levels, DDC1 and DDC2B.
PLUG AND PLAY
12
The DDC1 is a unidirectional data channel from the display to the host that
continuously transmits EDID information. The DDC2B is a bidirectional data
channel based on the I²C protocol. The host can request EDID information
over the DDC2B channel.
THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO
VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE
PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.
This monitor meets the Green monitor standards as set by the Video
Electronics Standards Association (VESA) and/or the United States
Environmental Protection Agency (EPA) and The Swedish Confederation
Employees (NUTEK). This feature is designed to conserve electrical energy
by reducing power consumption when there is no video-input signal present.
When there is no video input signal this monitor, following a time-out period,
will automatically switch to an OFF mode. This reduces the monitor's
internal power supply consumption. After the video input signal is restored,
full power is restored and the display is automatically redrawn. The
appearance is similar to a "Screen Saver" feature except the display is
completely off. The display is restored by pressing a key on the keyboard, or
clicking the mouse.
13
TECHNICAL SUPPORT (FAQ)
Problem & Question Possible Solution
Power LED is not on *Check if the Power Switch is in the ON
position
*Power Cord should be connected
No Plug & Play *Check if the PC system is Plug & Play
compatible
*Check if the Video Card is Plug & Play
compatible
*Check if the D-15 plug pin of Video
Cable is bent
*Make sure the Monitor Drivers are
installed
Picture is fuzzy *Adjust the Contrast and Brightness
Controls.
Picture bounces or a wave
pattern is present in the picture
*Move electrical devices that may cause
electrical interference.
The power LED is ON (orange)
but there’s no video or no
picture.
*Computer Power Switch should be in
the ON position.
*Computer Video Card should be
snugly seated in its slot
*Make sure monitor’s video cable is
properly connected to the computer.
*Inspect monitor’s video cable and
make sure none of the pins are bent.
*Make sure computer is operational by
hitting the CAPS LOCK key on the
keyboard while observing the CAPS
LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS
LOCK key.
Missing one of the primary
colors (RED, GREEN, or
BLUE)
*Inspect the monitor’s video cable and
make sure that none of the pins are
bent.
14
Screen image is not centered or
sized properly.
*Adjust pixel frequency (CLOCK) and
FOCUS or press hot-key (AUTO)
Picture has color defects
(white does not look white)
*Adjust RGB color or select color
temperature
Poor brightness or contrast *When the brightness of the screen
lowers after being used for a certain
period and the function of the display
is affected, send it to our authorized
service center for repair.
Horizontal or vertical disturbancies
on the screen
*Use win 95/98/2000/ME/XP shut-
down mode Adjust CLOCK and
FOCUS or perform hot- key (AUTO-
key).
CLOCK (pixel frequency) controls the number of pixels scanned by one
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the picture has not correct width.
FOCUS adjust the phase of the pixel clock signal. With a wrong phase
adjustment the picture has horizontal disturbances in light picture.
For FOCUS and CLOCK adjustment use “dot-pattern” or win
95/98/2000/ME/XP shut-down mode pattern.
NOTES
It is not recommended to rotate the monitor when executing the following
operations.
• Display of vedio documents.
• Execute real-time 3D procedures.
• Execute full-screen game operation.
15
CABLE NOT CONNECTED :
1. Check that the signal-cable is properly connected , If the connector is
loose, tighten the connector’s screws.
2. Check the signal-cable’s connection pins for damage.
INPUT NOT SUPPORT :
Your computer has been set to unsuitable display mode ,Set the computer
to display mode given in the following table.
UNSUPPORTED MODE TRY DIFFERENT VIDEO CARD SETTING:
Your computer resolution is out of VESA-SPEC
ERROR MESSAGE & POSSIBLE SOLUTION
16
APPENDIX
SPECIFICATIONS
Driving system TFT Color LCD
Size 43 cm(17.0")
Pixel pitch 0.264mm( H ) x 0.264mm( V )
Viewable angle
140° (H) 120° (V)
LCD Panel
Response time
20 ms
Video R,G,B Analog Interface
Separate Sync.
H/V TTL
H-Frequency 30kHz – 80kHz
Input
V-Frequency 50-75Hz
Display Colors 16.7 million Colors
Dot Clock 135MHz
Max. Resolution 1280 x 1024
Plug & Play VESA DDC1/2BTM
ON Mode ≤45 Watts EPA ENERGY STAR
®
OFF Mode ≤3 Watts
Input Connector D-Sub 15pin
Input Video Signal Analog:0.7Vp-p(standard),
75 OHM, Positive
Maximum Screen Size Horizontal :359mm
Vertical : 297mm
Power Source 90---264VAC/47— 63HZ
Environmental
Considerations
Operating Temp: 0°C to 50°C
Storage Temp.: -20°C to 65°C
Operating Humidity :
10% to 80%
Weight (N. W.) 6.5kg
17
Switch • Auto Adjust Key/EXIT
• / Brightness
• / Contrast
• Power Key
• MENU/ENTER
External Controls: Functions • BRIGHTNESS & CONTRAST
• ADJUST POSITION
• VIDEO NOISE
• LANGUAGE
• OSD TIMER
• COLOR TEMPERATURE
• OSD POSITION
• EXIT OSD
• RESET
Regulatory Compliance UL, FCC, TCO’9 5
18
STANDARD RESOLUTION HORIZONTAL
FREQUENCY
VERTICAL
FREQUENCY
640 × 480 31.469kHz 59.94Hz
640 × 480 37.861kHz 72.809Hz
VGA
640 × 480 37.50kHz 75Hz
800 × 600 35.156kHz 56.25Hz
800 × 600 37.879kHz 60Hz
800 × 600 48.077kHz 72.188Hz
SVGA
800 × 600 46.875kHz 75Hz
1024 × 768 48.363kHz 60Hz
1024 × 768 56.476kHz 70.069Hz
XGA
1024 × 768 60.023kHz 75.029Hz
1 5
610
11 15
15 - Pin Color Display Signal Cable
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1. Red 9. NC
2. Green 10. Logic Ground
3. Blue 11. Ground
4. Ground 12. DDC-Serial Data
5. Ground 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
FACTORY PRESET TIMING TABLE
CONNECTOR PIN ASSIGNMENT
