USER’S MANUAL
LT2020
Thank you very much for choosing the Norcent LCD TV.
We recommend that you take a few minutes to read carefully through this
manual before installing and switching on the TV. Please keep this manual
in a safe place for your future reference.
![](/img.php?id=420048&img=bg2.png)
1
TABLE OF CONTENTS
INSTALLATION ----------------------------------------------------------------------- 2
For Your Safety ----------------------------------------------------------------- 2
IMPORTANT SAFETY INSTRUCTUONS ------------------------------------- 3
PREPARATION ---------------------------------------------------------------------- 5
OPERATING INSTRUCTIONS -------------------------------------------------- 7
Use of the remote control --------------------------------------------------- 7
To use the menus ------------------------------------------------------------- 8
Main menu ---------------------------------------------------------------------- 8
CONNECT PERIPHERAL EQUIPMENT -------------------------------------- 15
Front Panel Control Knobs -------------------------------------------------- 15
Preparation --------------------------------------------------------------------- 15
Video recorder ----------------------------------------------------------------- 16
Camera, camcorder, Video Game set ----------------------------------- 17
DVD player ---------------------------------------------------------------------- 17
Digital Set TOP box ----------------------------------------------------------- 18
Headphone --------------------------------------------------------------------- 19
Tips ------------------------------------------------------------------------------- 19
Regulatory Notices ----------------------------------------------------------- 20
PRODUCT SPECIFICATION ---------------------------------------------------- 21
BEFORE CALLING SERVICE --------------------------------------------------- 23
Glossary ------------------------------------------------------------------------- 24
English
![](/img.php?id=420048&img=bg3.png)
2
FOR YOUR SAFETY
Before operating the TV please read this manual thoroughly. This manual
should be retained for future reference.
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
NOTICE
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables and AC power cord, if any, must be used in
order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modification to this equipment. It is the
responsibilities of the user to correct such interference.
As an ENERGY STAR Partner Envision Peripherals, Inc. has determined
that this product meets the ENERGY STAR guidelines for energy efficiency.
WARNING:
3
To prevent fire or shock hazard, do not expose the TV to rain or moisture.
Dangerously high voltages are present inside the TV. Do not open the
cabinet. Refer servicing to qualified personnel only.
![](/img.php?id=420048&img=bg5.png)
4
Read before operating equipment
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with
the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and third grounding prong. The wide
blade or third prong is provided for your safety. When the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
13. The TV should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supplied to your
home, consult your dealer or local power company.
14. Unplug this apparatus during lightning storms or when unused for long
periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
16. This product may contain lead or mercury. Disposal of these materials
may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the
Electronic Industries Alliance: www.eiae.org
17. Damage Requiring Service – The appliance should be serviced by
qualified service personnel when:
IMPORTANT SAFETY INSTRUCTUONS
![](/img.php?id=420048&img=bg6.png)
5
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
18. Tilt/Stability – All televisions must comply with recommended
international global safety standards for tilt and stability properties of its
cabinets design.
Ÿ Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet, which could ultimately
overturn the product.
Ÿ Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could
unsuspectingly fall from the top of the set and cause product
damage and/or personal injury.
19. Wall or Ceiling Mounting – The appliance should be mounted to a wall
or ceiling only as recommended by the manufacturer.
20. Power Lines – An outdoor antenna should be located away from power
lines.
21. Outdoor Antenna Grounding – If an outside antenna is connected to the
receiver, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges.
Section 810 of the National Electric Cord, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the mats and
supporting structure grounding of the lead-in wire to an antenna-
discharge unit, size of grounding connectors, location of antenna-
discharge unit, connection to grounding electrodes and requirements for
the grounding electrode. See Figure below.
22. Objects and Liquid Entry – Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through openings.
6

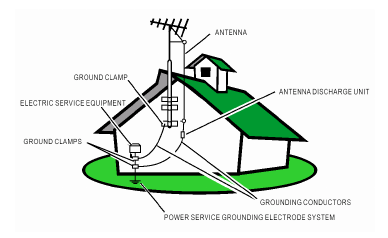

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL
CODE
Note to the CATV system installer: This reminder is provided to call the CATV
system installer’s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.
![](/img.php?id=420048&img=bg8.png)
7
Please, make sure to connect the power plug to the wall outlet socket after
connecting the TV to the adapter!

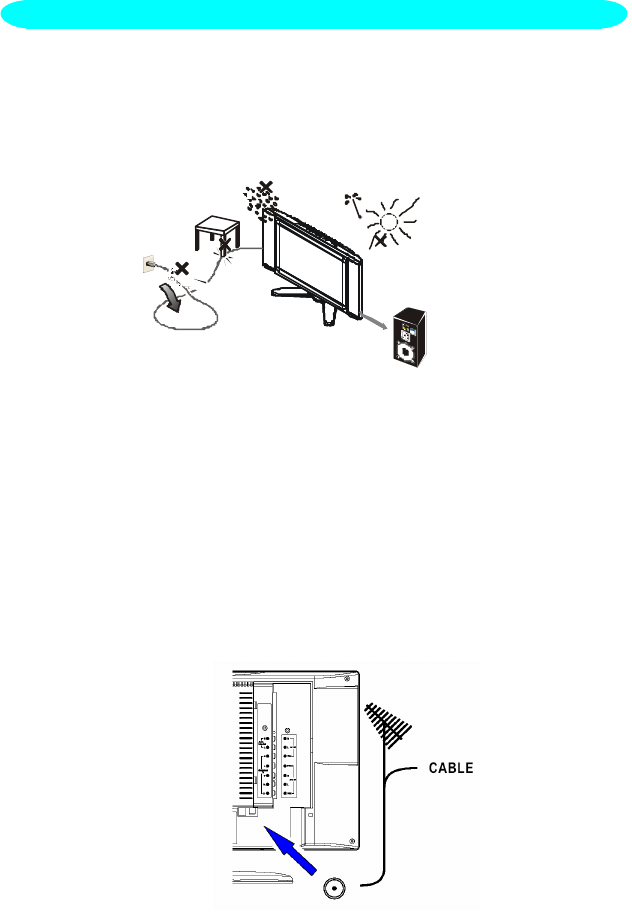

1. Place the TV on a solid surface.
Ensure that the TV is placed in a position to allow free flow of air. Do not
cover the ventilation openings on the back cover.
To prevent any unsafe situations, no naked flame sources, such as
lighted candles, should be placed on or in the vicinity.
Avoid heat, direct sunlight and exposure to rain or water. The equipment
shall not be exposed to dripping or splashing.
2. Insert the aerial plug firmly into the aerial socket ANT IN ╦ 75Ω at the
back of the TV.
PREPARATION
![](/img.php?id=420048&img=bg9.png)
8
3. Remote control:

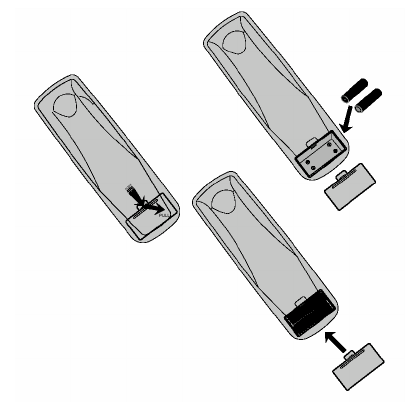

Remove the cover of the battery compartment. Insert the 2 batteries
supplied (Type AAA 1.5V).
4. Power:
Insert the power cord in the wall socket having an AC power supply.
5. Turn the TV on:
Press the power button at the topside of the TV to turn it on.
If the TV is in power off, the indicator in front of the TV illuminates abmer.
![](/img.php?id=420048&img=bga.png)
9
With this key you can set
a
time period after which the
TV should switch itself to
standby. Press the key
repeatedly to select the
number of minutes. The
minutes.
The timer begins to count
down from the number of
minutes selected after the
has disappeared.
SWAP
Not Supported. (for the
model with this function
only)

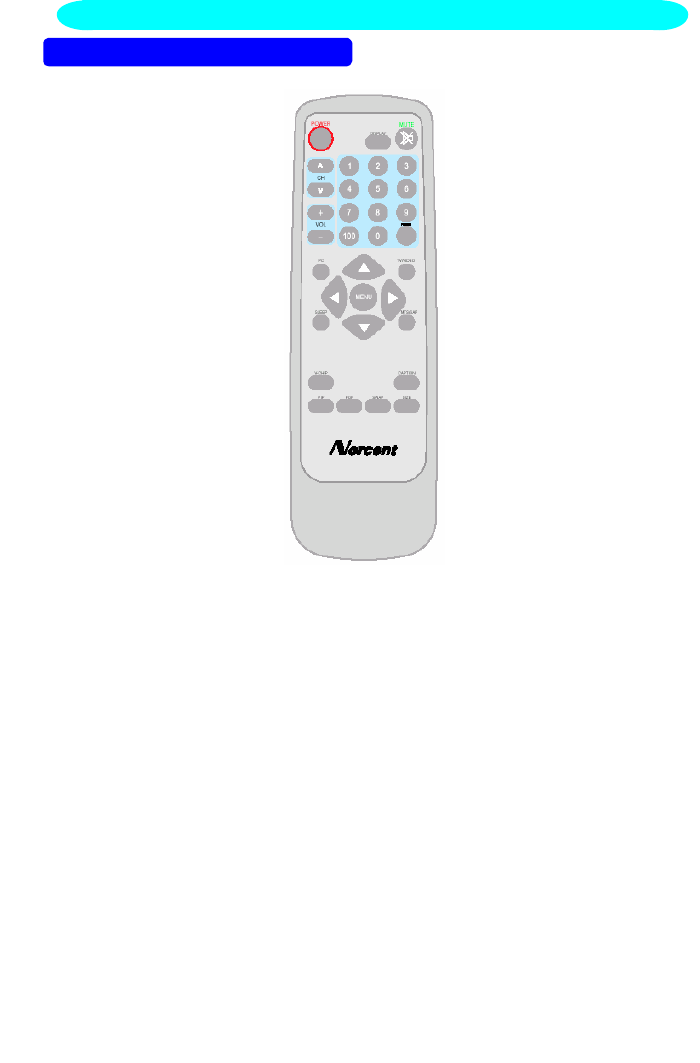

USE OF THE REMOTE CONTROL
OPERATING INSTRUCTIONS
MENU
Press repeatedly to
display OSD menu.
CAPTION
Press this button to turn
Closed Caption on.
Be sure you have
selected Caption On in
the Setup menu.
POWER:
Press to turn on/off the
TV. The TV is never
completely powered off
unless it is physically
unplugged.
0~9/100 Digit buttons
To select a TV channel.
TV/VIDEO
Select your input source:
press repeatedly to select
TV, AV1, AV2, S-VIDEO or
COMPONENT mode,
according to where you
connected your external
source.
Ÿ AV1/AV2 for a VCR
connected to the AV
connectors of the TV.
Ÿ S-VIDEO for a S-Video
VCR connected to the S-
VIDEO connector of the
TV.
Ÿ COMPONENT for a
DVD/DTV Set Top Box or
another component video
device connected to Y,
Pb, Pr
and to the
AV
MTS /SAP
press this key to activate
Multichannel Television
Sound, Ster
eo
or Mono
VOL
Press + or – to adjust the
volume.
MUTE
Temporarily interrupt the
sound or restore it.
CH
Press ▲ or▼ to brows
through the TV channels
which are not erased. To
view a blocked channel, use
the digit buttons to access
the channel and enter your
access code.
PRE-CH
To display the previously
selected TV channel.
PIP
Press this button to
display PC input and
other input on the screen
at same time.
V-CHIP
Press this button to setup
parental control.
POP
Not Supported. (for the
model with this function
only)
PC
select your input source
to PC
SIZE
Not Supported. (for the
model with this function
only)
DISPLAY
Press this button to
Display Channel number
on the right-top corner.
![](/img.php?id=420048&img=bgb.png)
10
TO USE THE MENUS
1. Press the MENU button to display each menu
2. Use the cursor up/down to select a menu item.
3. Use the cursor left/right to enter a submenu or enable/disable the
function.
4. Press the MENU button to exit the menu.

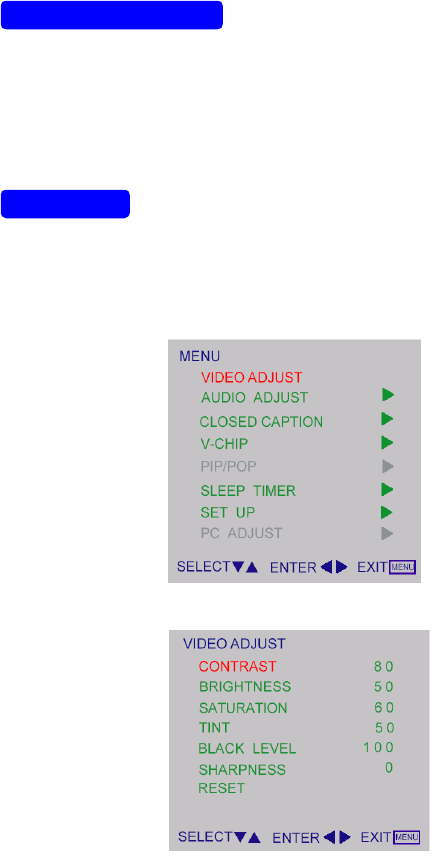

MAIN MENU
Press the MENU button into the main OSD (On Screen Display). Adjust item
include VIDEO ADJUST, AUDIO ADJUST, CLOSED CAPTION ,V CHIP,
, SLEEP TIMER , SET UP and PC ADJUST.
Video Adjust
1. Contrast, Brightness and Saturation are adjusted from 0 to 100.
2. Tint is adjusted from 0 to 100.
3. Black Level is adjusted from 0 to 100.
11
4. Sharpness is adjusted from 0 to 10.
You can adjust picture contrast, brightness, color, tint and sharpness to
the levels you prefer.
5. Reset is set up to default value.
![](/img.php?id=420048&img=bgd.png)
12

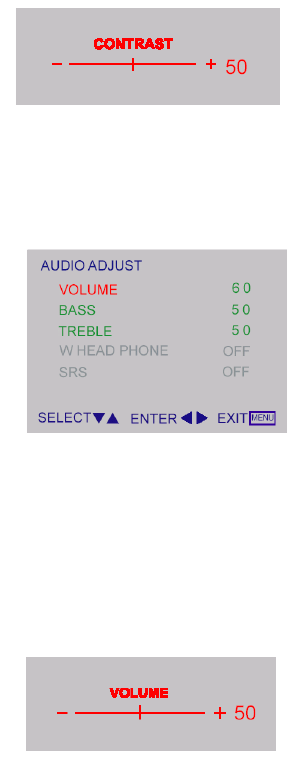

When adjust any item sub-OSD will show up like this.
Audio Adjust
1. Volume is adjusted from 0 to 100.
2. Bass and Treble are adjusted from 0 to 100.
3. W-Head Phone (optional) is the function for wireless headphone enable
or disable.
You can adjust audio Volume, Balance, Bass and Treble to the levels you
prefer.
When adjust any item sub-OSD will show up like this.
![](/img.php?id=420048&img=bge.png)
13
CLOSED CAPTION
It’s allows you to read the dialog of television programs on the TV screen.
Designed to help the hearing impaired, this feature uses on screen “ text
boxes” to show dialogue and conversations while the TV program is in
progress. Captions will appear on the screen only during captioned
broadcasts.
Remark: the captions do not always use correct spelling and grammar.
Not all TV programs and product commercials are made for broadcast with
Closed Caption information included. Refer to your area’s TV program
listings for the TV channels and times of closed Caption shows. The
captioned programs are usually noted in the TV listings with service
Marks such as “CC”.
Ÿ Caption Mode:
Dialogue (and descriptions) for the action on the captioned TV program
shows on screen. Usually CH1 is the most used channel. CH2 may be
used for alternate languages if they are being transmitted.
Ÿ Text Mode:
Often used for channel guide, schedules, bulletin board information for
Closed Caption programs, news, weather information or stock marker
reports.
Not all Closed Caption modes are necessarily being use by a TV
channel during the transmission of a Closed Caption program.
![](/img.php?id=420048&img=bgf.png)
14
V-CHIP SETUP
Select V-Chip on OSD then enter 4 digits of pin number.
l Initial pin number is “0000”.
l If you enter an incorrect pin number “Incorrect” message will be
displayed.
It is the parental control function (V-chip). It is used to block program viewing
based on the ratings by the broadcaster. The default setting is to allow all
programs to be viewed. Viewing can be blocked by the type of program and
by the categories chosen be blocked. It is also possible to block all program
viewing for a time period.
A. There are two item could be defined. One is TV Guidelines another
one is Movie Guidelines.
B. Setting up TV Guidelines
l Use Up/Down arrow buttons to move around the matrix and
press Right arrow button to change the value form “U” to “B”
or ”B” to ”U”
l U: Unblock
B: Block
15
![](/img.php?id=420048&img=bg11.png)
16

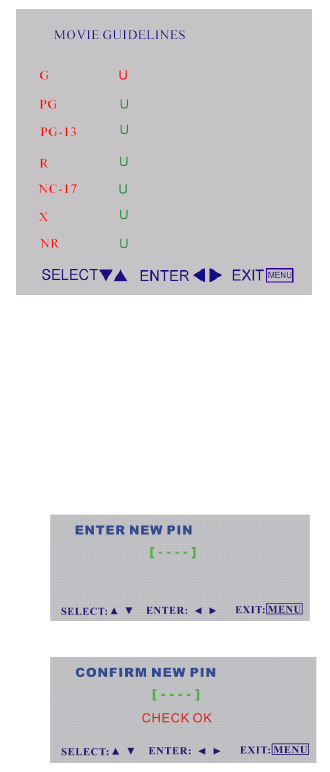

C. Setting up Movie Guidelines
l Use Up/Down arrow buttons to move around the matrix and
press Right arrow button to change the value from “U” to ‘B” or
“B” to “U”
D. CHANGE PIN Personal Identification Number is for change
password to control the V-chip setup; it’s included three step.
ENTER PIN to enable this function, then ENTER NEW PIN to
change a new one. After that COMFIRM NEW PIN.
![](/img.php?id=420048&img=bg12.png)
17
Sleep Timer
It is for set a time period after which the TV should switch itself to standby.
The counter runs from 0 > 30 > 60 > 90 > 120 minutes.
The timer begins to count down from the number of minutes selected after
the display has disappeared.
Note: To view the remaining time, press the SLEEP button once. To cancel
the sleep time, repeatedly press the SLEEP button until… appears. If you turn
the TV off after setting the sleep time, the setting will be erased. Set it again.
Set up
1. Blue screen for when no video input screen will be blue or blank. If it’s ON,
the screen will be in blue. If it’s OFF, the screen will be blank. Pre-set is
ON.
2. Language for different language OSD MENU includes English / French /
Spanish. Pre-set is English.
3. AIR/CATV for different TV input solution, RF and cable.
4. CH Search is for auto memorizes all receiving channels of air TV or CATV
programs.
5. CH ADD/DEL is for add “>” or delete “<“ the current channel for memorizes.
6. RESETis set up to default value.
![](/img.php?id=420048&img=bg13.png)
18

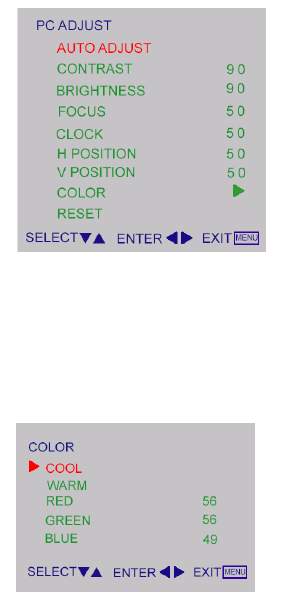

PC Adjust
1. Auto Adjust is the function auto-sizing for VGA input.
2. Contrast, Brightness, Focus, Clock, H-Position, V-Position and Color
Temp are the functions for PC adjustment.
Color Temp for you can adjust the color temperature you prefer.
![](/img.php?id=420048&img=bg14.png)
19

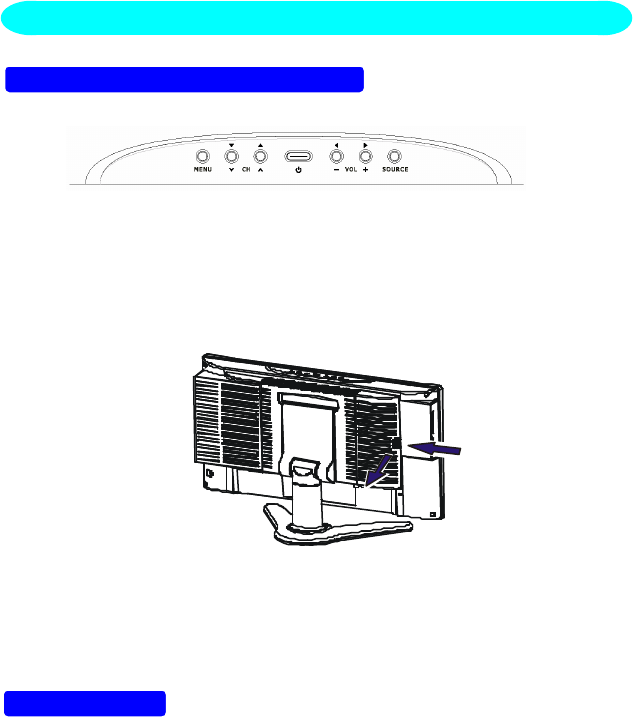

FRONT PANEL CONTROL KNOBS
Power Key: Press to turn on or off the TV.
MENU Key: Press to show the OSD menu and exit OSD menu at the TV.
Down / Up Key: Press to perform select function and channel.
- / + Key: Press to confirm your function selection and adjustment.
Source Key: Press to select your input source.
There is a wide range of video and audio equipment that can be connected to
your TV. The following connection diagrams show you how to connect them.
PREPARATION
Remove the back plate at the back of the TV as shown on the illustration
opposite.
Lay the LCD TV with the screen down on a table, as it will be easier to
connect your peripheral equipment. Please take your precautions not to
damage the screen.
CONNECT PERIPHERAL EQUIPMENT
![](/img.php?id=420048&img=bg15.png)
20

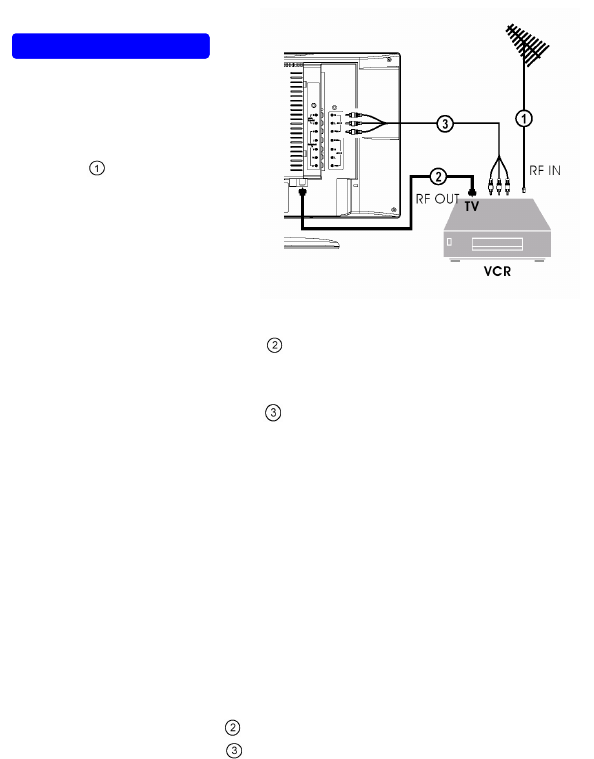

VIDEO RECORDER
How to connect
2. Connect another RF cable from the output RF of your VCR to the
Antenna input of your TV. Better quality when playing from your VCR can
be obtained if you also connect the Video, Audio LEFT AND right (only for
stereo equipment) cables to the VIDEO, AUDIO L and R inputs AV.
If you are using only mono equipment, connect only the VIDEO and the AUDIO
L (Mono) ports.
If your VCR has an S-VHS video jack:
For improved picture quality, connect a S-Video cable with the S-VIDEO input
on the TV instead of connecting the VCR to the VIDEO port of AV2.
S-Video does not provide audio, audio cables must still be connected to
provide sound. (S-Video and AV2 has the same audio input port)
Watching VCR
1. If you use connection , select the TV channel 3 or 4.
2. If you use connection , select VIDEO or S-VIDEO, (see P6 TV/ VIDEO)
3. Insert videotape in the VCR and press the PLAY button.
1. Connect the antenna
cable to the RF IN
port of your VCR.
![](/img.php?id=420048&img=bg16.png)
21
1. Connect the three
separate component
video cables to the
DVD player’s.
Y, Pb and Pr ports
and to the Y, Pb and
Pr
ports on the TV.

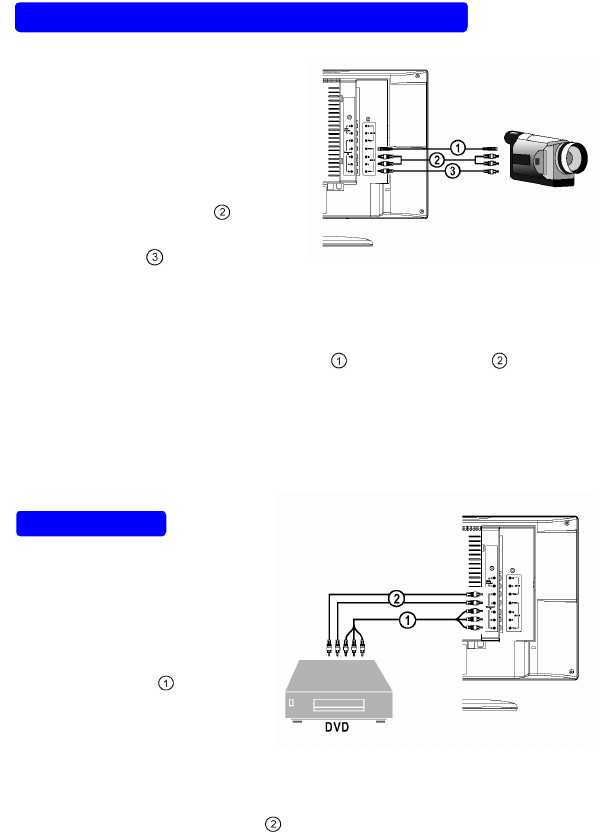

CAMERA, CAMCORDER, VIDEO GAME SET, …
How to connect
2. S-Video Connection
S-VHS quality with an S-VHS camcorder is obtained by connecting the S-
VHS cable with the S-VIDEO input and AUDIO input .
How to use
1. Select VIDEO or S-VIDEO input source (see P6 TV/ VIDEO)
2. Turn on the external AV equipment.
DVD PLAYER
How to connect
2. Connect the audio cables to the DVD player’s AUDIO L and R ports
and to the L and R AUDIO AV ports on the TV.
How to use
1. Select COMPONENT, (see P6 TV/ VIDEO)
2. Turn on the DVD set.
1. Composite Video:
Connect your camera,
camcorder, videogame
set,… to Audio port
(Audio L for mono) and
Video port .
22
![](/img.php?id=420048&img=bg18.png)
23

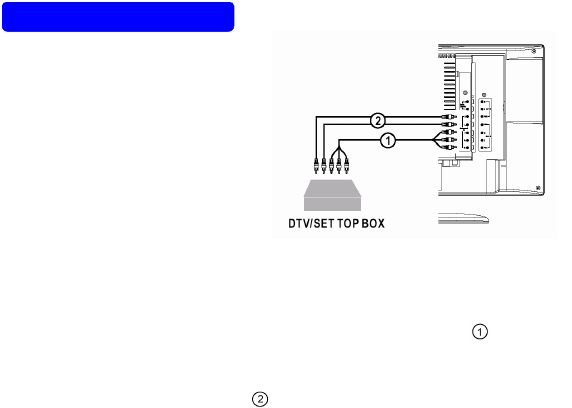

DIGITAL SET TOP BOX
How to connect component video:
1. Connect the three separate component video cables to the DTV set
top box Y, Pb and Pr ports and to the Y, Pb and Pr ports on the TV.
2. Connect the audio cables to the DTV player’s AUDIO L and R ports and
to the L and R AUDIO AV ports on the TV.
How to use
1. Select COMPONENT, (see P6 TV/ VIDEO)
2. Turn on the DTV set Top box set.
Warning: In case you notice scrolling images, wrong colors or no color,
no picture or even combinations of these, on your screen, check if the
connections are done in the right way. Check if the cable colors match
with the Input connector colors.
Connect DTV set top box
RF output to TV Antenna
input (TV channel set to
CH3 or CH4). If your DTV
set top box has
component (Y, Pb, Pr)
video ports, use them for
better picture.
![](/img.php?id=420048&img=bg19.png)
24
HEADPHONE
1. The earphone jack is located at the rear corner of the TV.
2. The MUTE key on the remote control works on both internal speaker
and the earphone.
3. Use volume key to adjust the volume.
Note: When a TV channel or external AV source is blocked because of a
rating set via the Parental control menu, also the headphone is muted.
TIPS
Care of the screen
Do not rub or strike the screen with anything hard as this may scratch, mar, or
damage the screen permanently.
Unplug the screen before cleaning the screen. Dust the TV by wiping the
screen and the cabinet with a soft, clean cloth. If the screen requires
additional cleaning, use a clean, damp cloth. Do not use liquid cleaners or
aerosol cleaners.
Mobile telephone warning
To avoid disturbances in picture and sound, malfunctioning of your TV or
even damage to the TV, keep away your mobile telephone from the TV.
End of life directives
We are paying a lot of attention to produce environmentally friendly in green
focal areas. Your new receiver contains materials which can be recycled and
reused.
25
At the end of its life specialized companies can dismantle the discarded
receiver to concentrate the reusable materials and to minimize the amount of
materials to be disposed of.
Please ensure you dispose of your old receiver according to local regulations.
26
Regulatory Notices – Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
˙Reorient or relocate the receiving antenna.
˙Increase the separation between the equipment and the TV.
˙Connect the equipment into wall power outlet on a circuit different from that
to which the receiver is connected.
˙Consult the dealer or an experienced radio or television technician for help.
Modifications –
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by AOC consumer
Electronics may void the user’s authority to operate the equipment.
Cables –
Connections to this device must be made with shielded cables with metallic
RF/EMI connector hoods to maintain compliance with FCC Rules and
Regulations.
Canadian notice –
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Avis Canadian –
Cat apparel numerous de la classed B respected toutes les exigencies du re
glement sur le materiel brouilleur du Canada.
![](/img.php?id=420048&img=bg1c.png)
27
Feature 20" screen
SVGA ( 800 x 600 ) Resolution
High Brightness ( 500 cd/m2 )
High Contrast Ration ( 500:1 )
Wide Viewing Angle ( 160° H / 120° V )
Built-in 181 channel Tuner with MTS, SAP, Closed Caption
& V-chip
PC Input
Items Specification
Screen Size 20” TFT-LCD Panel
Aspect Ratio 4:3
Resolution 800 x 600 (SVGA)
Display Area (opening) H
x V 408mm x 306mm
Pixel Pitch 0.51mm x 0.51mm
Display colors 16.7 million
Contrast Ratio 500:1
Brightness 500cd / m²
Viewing Angle 160°(Horizontal)/120°(Vertica
l)
Response Time 16ms
Lamp Type/Life 60000 hr
LCD Panel
Color Temperature Cool / Warm
TV Tuning System NTSC 181 Channel with
Electronic PLL Tuner
Sound System MTS / SAP
Closed Caption, V-chip Yes
TV Function
Color Systems NTSC
AV1 RCA x 1 Audio L/R x 1
RCA x 1
AV2 S-Video x 1
Audio L/R x 1
(Share)
Video Inputs
Component YPbPr x 1 Audio L/R x 1
PRODUCT SPECIFICATION
![](/img.php?id=420048&img=bg1d.png)
28
Signal Input Analog: D-Sub 15 pin
(detachable cable)
PnP compatibility DDC / 2B
Input frequency Analog: FH: 31.5KHz to 49KHz
FV: 56Hz to 75Hz
Recommended Analog: 800 x 600 (60Hz)
PC Input
Input Audio Headphone Mini-jack for stereo
(3.5ø)
Speaker (built-in): Two 5 watt
speakers
Headphone Mini-jack for stereo
(3.5ø)
Audio Output Audio Output: L / R
Line Output (RCA L/R)
OSD language English / French / Spain
Table Stand Included
Wall Mount VESA 100 x 100 mm
Power Supply AC100V~120V, 60Hz
Power Power Consumption <70W
Operating Temp. + 0°C ~ + 40°C
Storage Temp. - 25°C ~ + 60°C Environment
Operating Humidty. 10 % ~ 85 %
Panel Tilt Forwards/Backwards/
Rotation -5° / +20° / ±30°
Dimension W x H x D (with stand)
696 x 448 x 250.4 (mm)
Weight (net) Kg (w/o Accessories)
9 Kg
Accessories Remote Controller, Batteries (x2), AC Power Cord, D-
sub Signal Cable, Audio line,User’s Manual
![](/img.php?id=420048&img=bg1e.png)
29
Please make these simple checks before calling service. These tips may
save you time and money since charges for receiver installation and
adjustments of customer controls are not covered under your warranty.
Symptoms Items to Check and Actions to follow
?Ghost? or double image *This may be caused by obstruction to
the antenna due to high rise buildings or
hills. Using a highly directional antenna
may inprove the picture.
No power *Check that the TV’s AC power cord is
plugged into the mains socket.
*Unplug the TV, wait for 60 seconds. Then
re-insert plug into the mains socket and
turn on the TV again.
No picture *Check antenna connections at the rear of
the TV to see if it is properly connected to
the TV.
*possible broadcast station trouble. Try
another channel.
*Adjust the contrast and brightness settings.
*Check the Closed Captions control. Some
TEXT modes could block the screen,
Good picture but no sound
*Increase the VOLUME.
*Check that the TV is not muted; press the
button on the remote control.
Good sound but poor color
*Adjust the contrast, color and brightness
settings.
Poor picture *Sometimes, poor picture quality occurs
when having activated an A-VHS camera or
camcorder connected and having
connected another peripheral at the same
time. In this case switch off one of the other
peripherals
Snowy picture and noise *Check the antenna connection
Horizontal dotted line *This may be caused by electrical
interference (e.g. hairdryer, nearby neon
lights, etc.)
*Turn off the equipment.
Television not responding
to remote control
*Check whether the batteries are working.
Replace if necessary
BEFORE CALLING SERVICE
![](/img.php?id=420048&img=bg1f.png)
30
*Clean the remote control sensor lens on
the TV.
*You can still use the buttons at the front of
your TV.
*Select the TV mode to be sure your remote
control is in the TV mode.
GLOSSARY
Audio / Video Inputs
Located on the rear and the front of the receiver these connectors (RCA
phono type plug) are used for the input of audio and video signals. Designed
for use with VCRs (or other accessories) in order to receive higher picture
resolution and offer sound connection options.
Menu
An on-screen listing of feature controls shown on the TV screen that are
made available for user adjustments.
MPAA
Motion Picture Association of America
Multichannel Television sound (MTS)
The broadcast standard that allows for stereo sound to be transmitted with
the TV picture.
Programming
The procedure of adding or deleting channel numbers into the TV’s memory.
In this way the TV remembers only the locally available or desired channel
numbers and skips over any unwanted channel numbers.
RF
Radio Frequency or modulated signal design used as the carrier for
television broadcasts.
Second Audio Program (SAP)
Another or additional audio channel provided for in the Multichannel
Television Sound (MTS) broadcast standard. A monaural soundtrack
included within the recorded or video signal (usually containing a second
language translation for the displayed program).
31
Sleep Timer
Function with which you can set a time period after which the TV should turn
itself off.
S-Video Input
Allows direct connection of high-resolution video sources, such as a Super
VHS videocassette recorder, Laser Disc player, etc. Provides improved
picture resolution, sharpness, and clarity.
![](/img.php?id=420048&img=bg21.png)
32
P/N : 41L2001-815-1A
Norcent Technology Inc.,
550 Cliffside Drive,
San Dimas, CA91773
www.norcent.net
info@norcent.net
support@norcent.net
Customer support 909-305-2121
