User Manual

MX34 Series
LCD Monitor
User Guide
ii
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Table of contents
Notices ......................................................................................................... iii
Safety information ...................................................................................... iv
Care & Cleaning .......................................................................................... vi
1.1 Welcome! ...................................................................................... 1-1
1.2 Package contents ......................................................................... 1-1
1.3 Assembling the IO Guide ............................................................ 1-2
1.4 Connect cables ............................................................................. 1-3
1.4.1 Rear of the LCD monitor ................................................. 1-3
1.5 Monitor introduction .................................................................... 1-4
1.5.1 Using the Controls button .............................................. 1-4
2.1 Wireless Charging ........................................................................ 2-1

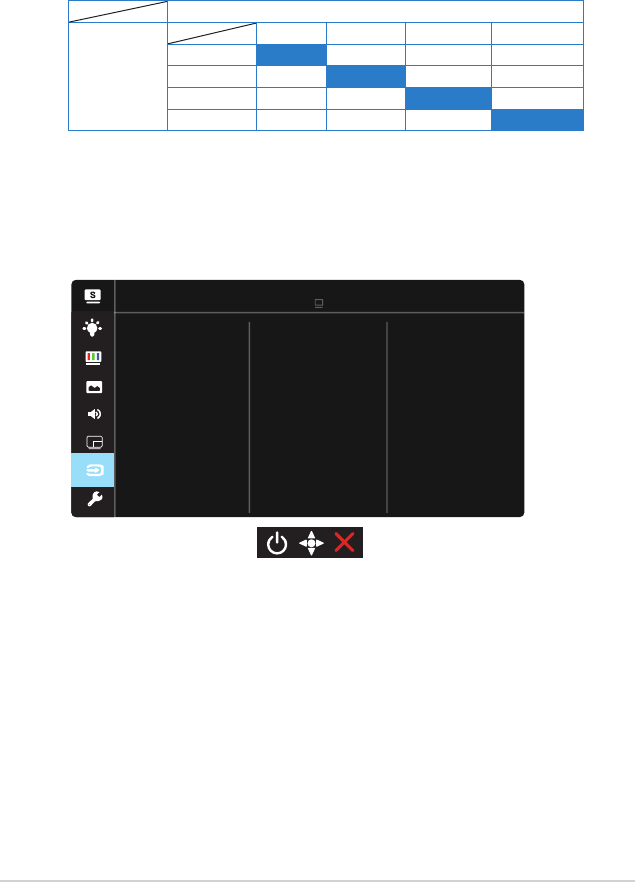

3.1 OSD (On-Screen Display) menu ................................................. 3-1
3.1.1 Howtorecongure .......................................................... 3-1
3.1.2 OSD Function Introduction .............................................. 3-2
3.2 Specications ............................................................................. 3-10
3.3 Troubleshooting (FAQ) .............................................................. 3-11
3.4 Supported Timing List ............................................................... 3-12
iii
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
As an Energy Star® Partner, our company has determined
that this product meets the Energy Star® guidelines for energy
efciency.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
iv
Safety information
• Before setting up the monitor, carefully read all the documentation that
came with the package.
• To prevent fire or shock hazard, never expose the monitor to rain or
moisture.
• Never try to open the monitor cabinet. The dangerous high voltages
inside the monitor may result in serious physical injury.
• If the power supply is broken, do not try to fix it by yourself. Contact a
qualified service technician or your retailer.
• Before using the product, make sure all cables are correctly connected
and the power cables are not damaged. If you detect any damage,
contact your dealer immediately.
• Slots and openings on the back or top of the cabinet are provided for
ventilation. Do not block these slots. Never place this product near or
over a radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source
indicated on the label. If you are not sure of the type of power supply to
your home, consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power
standard.
• Do not overload power strips and extension cords. Overloading can
result in fire or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the
monitor in any area where it may become wet. Place the monitor on a
stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a
long period of time. This will protect the monitor from damage due to
power surges.
• Never push objects or spill liquid of any kind into the slots on the
monitor cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked
between 100 ~ 240V AC.
• The socket-outlet shall be installed near the equipment and shall be
easily accessible
• If you encounter technical problems with the monitor, contact a
qualified service technician or your retailer.
• Provide an earthing connection before the mains plug is connected to
the mains. And, when disconnecting the earthing connection, be sure
to disconnect after pulling out the mains plug from the mains.
v
WARNING
Usageofotherthanspeciedhead-orearphonescanresultinhearing
loss due to excessive sound pressures.
vi
Care & Cleaning
• Before you lift or reposition your monitor, it is better to disconnect the
cables and power cord. Follow the correct lifting techniques when
positioning the monitor. When lifting or carrying the monitor, grasp the
edges of the monitor. Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the
monitor surface with a lint-free, non-abrasive cloth. Stubborn stains
may be removed with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner
intended for use with the LCD. Never spray cleaner directly on the
screen, as it may drip inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
• The screen may flicker during the initial use due to the nature of the
fluorescent light. Turn off the Power Switch and turn it on again to
make sure that the flicker disappears.
• You may find slightly uneven brightness on the screen depending on
the desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the
previous screen may remain after switching the image. The screen will
recover slowly or you can turn off the Power Switch for hours.
• When the screen becomes black or flashes, or cannot work anymore,
contact your dealer or service center to fix it. Do not repair the screen
by yourself!
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a
task.
NOTE: Tips and additional information to aid in completing a task.
vii
Wheretondmoreinformation
Refer to the following sources for additional information and for product
and software updates.
1. ASUS websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
2. Optional documentation
Your product package may include optional documentation that may
have been added by your dealer. These documents are not part of
the standard package.
1-1
ASUS LCD Monitor MX34 Series
1.1 Welcome!
Thank you for purchasing the ASUS® LCD monitor!
The latest widescreen LCD monitor from ASUS provides a crisper,
broader, and brighter display, plus a host of features that enhance your
viewing experience.
With these features, you can enjoy the convenience and delightful visual
experience that the monitor brings you!
1.2 Package contents
Check your package for the following items:
LCD Monitor
Quick Start Guide
Warranty Card
1x Power Cord
1x Audio Cable
1x DisplayPort Cable (option)
1x HDMI Cable (option)
• If any of the above items is damaged or missing, contact your retailer
immediately.
1-2 Chapter 1: Product Introduction

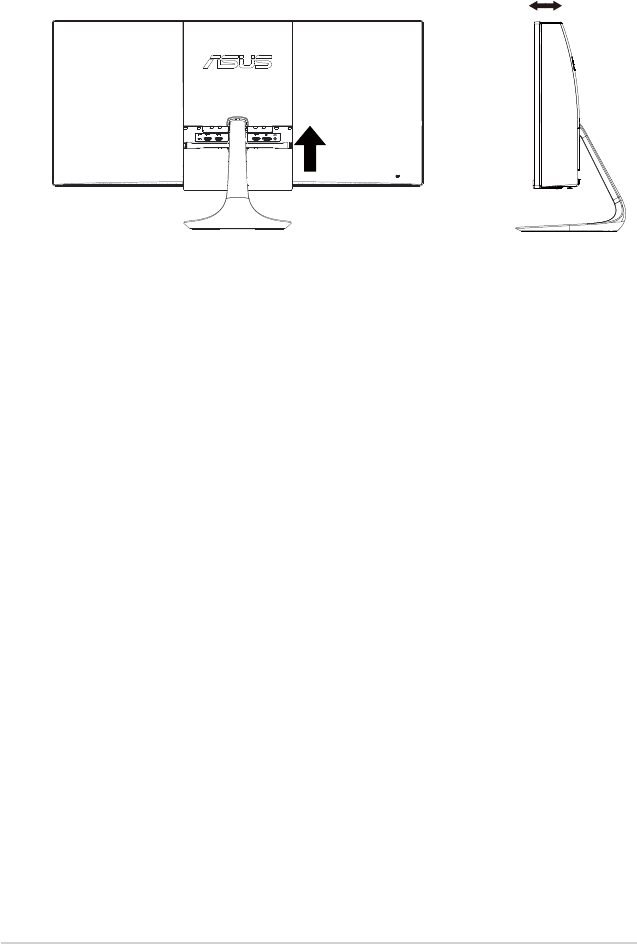

1.3 Assembling the IO Guide
To assemble the io guide:
-5°~15°
1-3
ASUS LCD Monitor MX34 Series
1.4 Connect cables

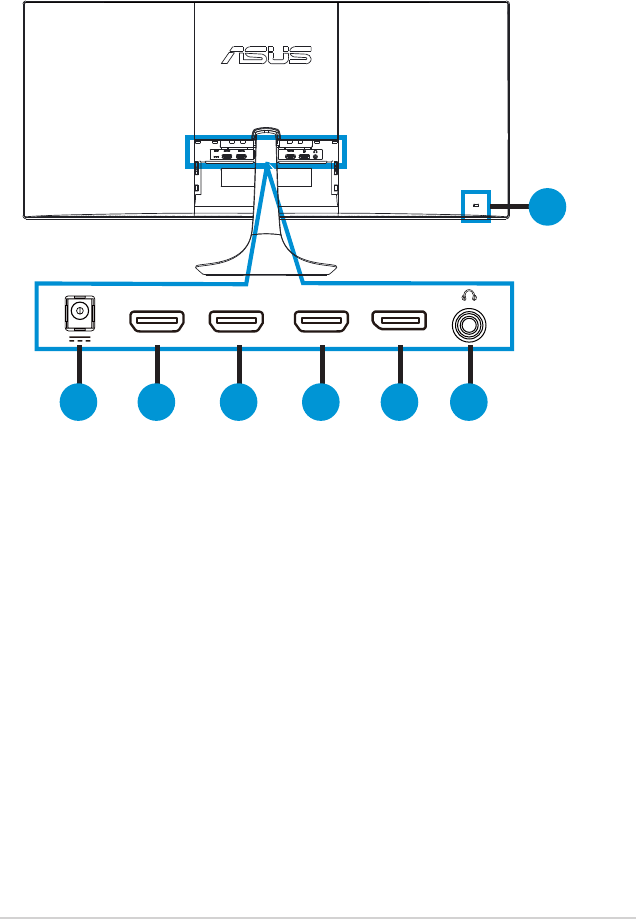

1.4.1 Rear of the LCD monitor
1
7
2 3 4 5 6
HDMI-1 HDMI-2 HDMI-3 DP
1. DC-IN Port
2. HDMI-1 Port
3. HDMI-2 Port
4. HDMI-3 Port
5. DisplayPort
6. Earphone - out Port
7. Kensington Lock
1-4 Chapter 1: Product Introduction

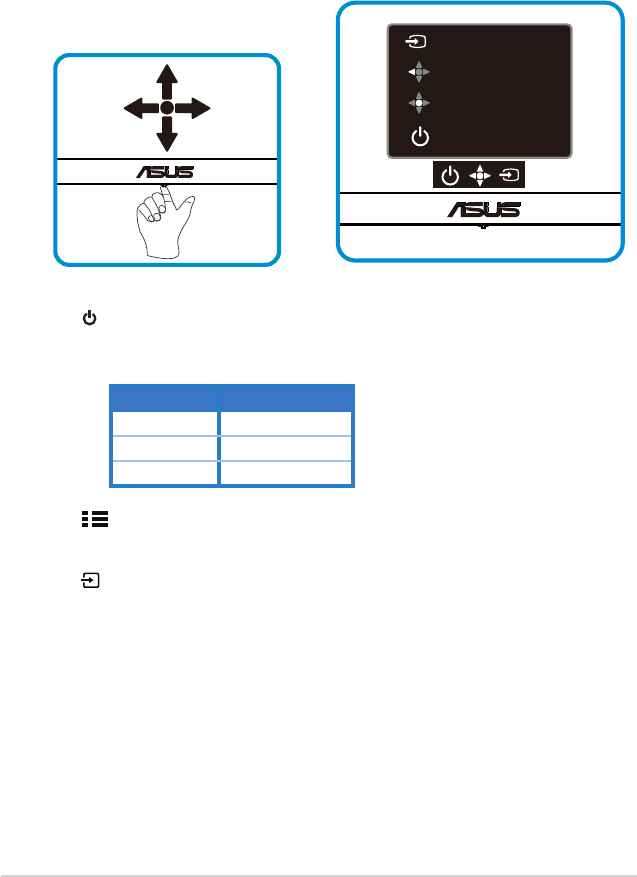

1.5 Monitor introduction
1.5.1 Using the Controls button
Use the control button on the back of the monitor to adjust the image
settings.
Input Select
Close
Menu
Power
1. Power Button/Power Indicator:
Press this button to turn the monitor on/off.
The color definition of the power indicator is as the below table.
Status Description
White ON
Amber Standby mode
OFF OFF
2. MENU Button:
Press this button to enter the OSD menu.
3. Input Select Button:
Use this hotkey to switch from VGA, DVI, HDMI / MHL(only for
PB278QR) or DisplayPort input signal.
2-1
ASUS LCD Monitor MX34 Series

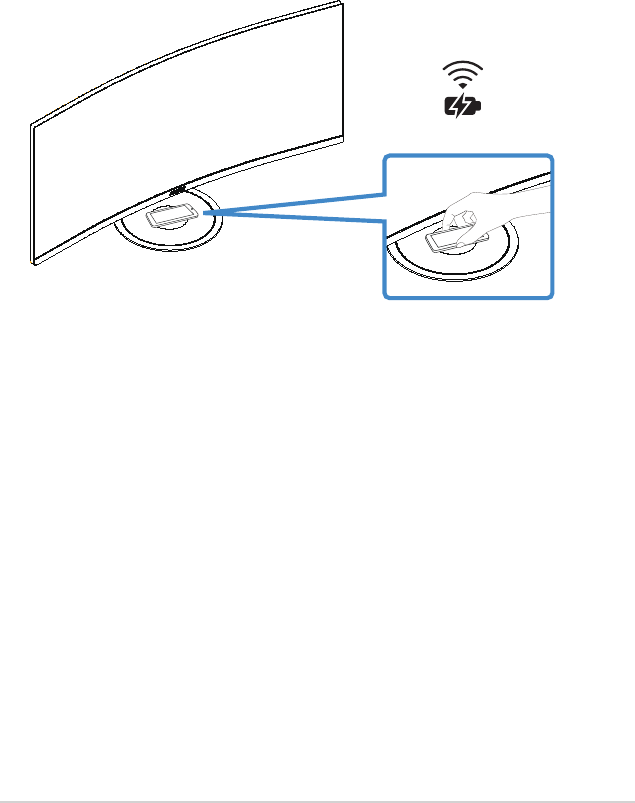

2.1 Wireless Charging
Connect the adapter to the monitor,the check the effective wireless
charging range indicated on the stand. next place your mobile device
in the centre of the range.
Make sure that the device supports wireless charging
.After placing the
mobile device in the correct position,make sure that the device starts
charging(5W).
The charging progress is indicated by the LED at the bottom of the
stand,in addition to charging icon notifications on the device.
3-1
ASUS LCD Monitor MX34 Series

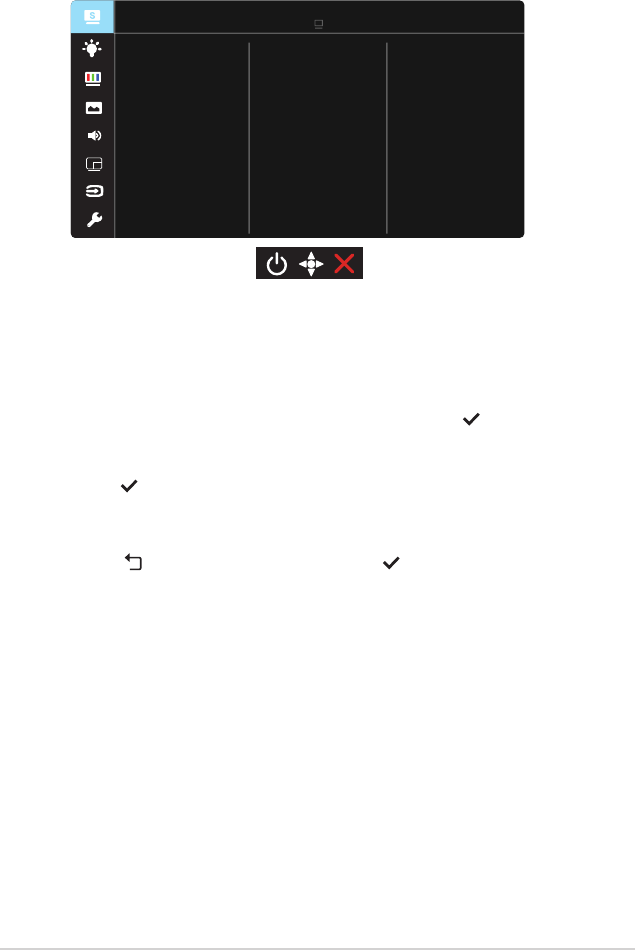

3.1 OSD (On-Screen Display) menu
3.1.1 Howtorecongure
Reading Mode
Darkroom Mode
Splendid
Standard Mode
Theater Mode
Game Mode
Scenery Mode
sRGB Mode
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
Night View Mode
1. Press the MENU button to activate the OSD menu.
2. Press the and buttons to toggle between options in the
Menu. As you move from one icon to another, the option name is
highlighted.
3. To select the highlighted item on the menu press the button.
4. Press the and buttons to select the desired parameter.
5. Press the button to enter the slide bar and then use the or
buttons, according to the indicators on the menu, to make your
changes.
6. Select the to return to previous menu or to accept and return to
previous menu.
3-2 Chapter 3: General Instruction
3.1.2 OSD Function Introduction
1. Splendid
This function contains eight sub-functions that you can select for
your preference. Each mode has the Reset selection, allowing you to
maintain your setting or return to the preset mode.
Reading Mode
Darkroom Mode
Splendid
Standard Mode
Theater Mode
Game Mode
Scenery Mode
sRGB Mode
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
Night View Mode
• Standard Mode: This is the best choice for document editing with
SPLENDID™ Video Intelligence Technology.
• sRGB Mode: This is the best choice for viewing photos and graphics
from PCs.
• Scenery Mode: This is the best choice for scenery photo displaying with
SPLENDID™ Video Intelligence Technology.
• Theater Mode: This is the best choice for movie watching with
SPLENDID™ Video Intelligence Technology.
• Game Mode: This is the best choice for game playing with SPLENDID™
Video Intelligence Technology.
• Night View Mode: This is the best choice for playing dark-scene game
or watching dark-scene movie with SPLENDID™ Video Intelligence
Technology.
• Reading Mode : This is the best choice for book reading.
• Darkroom Mode: This is the best choice for a weak ambient light
environmen.
• In the Standard Mode, the Saturation, SkinTone, Sharpness, and ASCR
functions are not user-configurable.
• In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness,
Contrast and ASCR functions are not user-configurable.
• In the Reading Mode, the Saturation, SkinTone, Sharpness, ASCR, contrast,
and Color Temp functions are not user-configurable.
3-3
ASUS LCD Monitor MX34 Series

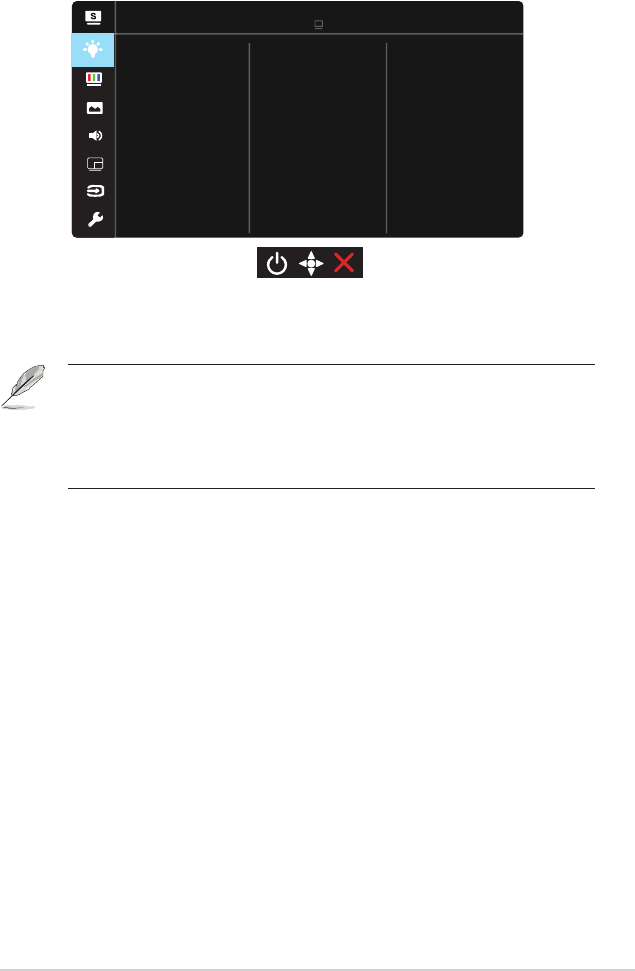

2. Blue Light Filter
Adjust the energy level of blue light emitted from LED backlight.
Blue Light Filter
Level 0
Level 3
Level 4
Level 2
Level 1
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
• Level 0: No change.
• Level 1~4: The higher the level,the more blue light will be reduced.
• When Blue Light Filter is activated,the default settings of Standard Mode will
be automatically imported.
• Between Level 1 to Level 3, the Brightness function is user-configurable.
• Level 4 is optimized setting. It is compliance with TUV Low Blue Light
Certification. The Brightness function is not user-configurable.
3-4 Chapter 3: General Instruction
3. Color
Select the image color you like from this function.
Color
Brightness
Color Temp.
Skin Tone
Contrast
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
• Brightness: The adjusting range is from 0 to 100.
• Contrast: The adjusting range is from 0 to 100.
• Saturation: The adjusting range is from 0 to 100.
• Color Temp.: Contains three preset color modes (Cool, Normal, Warm)
and User Mode.
• Skin Tone: Contains three color modes including Reddish, Natural, and
Yellowish.
• In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-
configurable; the adjusting range is from 0 ~ 100.
3-5
ASUS LCD Monitor MX34 Series

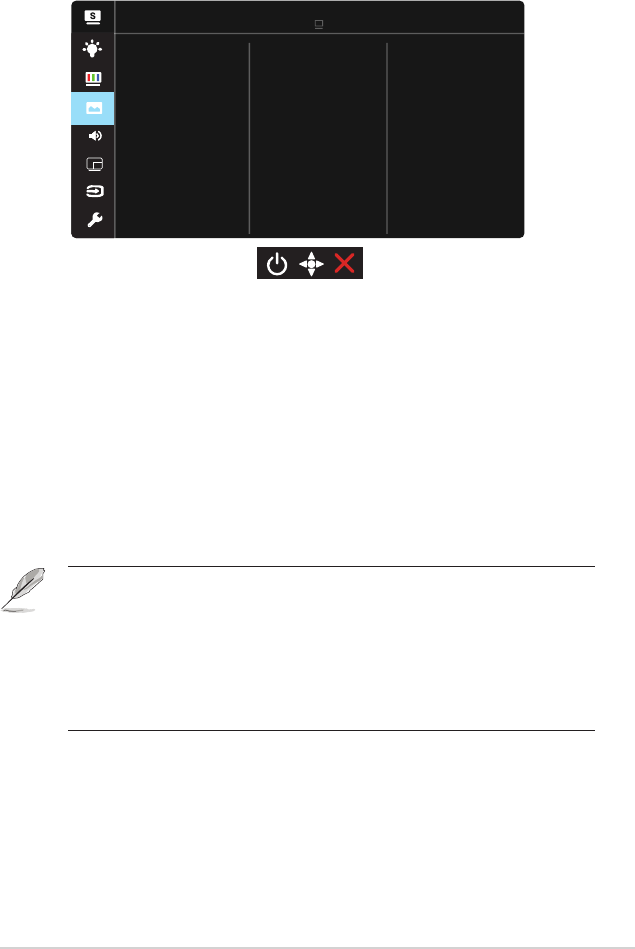

4. Image
You can adjust the image Sharpness, Trace Free, Aspect Control,
VividPixel,
ASCR from this main function.
Sharpness
VividPixel
ASCR
Aspect Control
Trace Free
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
• Sharpness: Adjusts the picture sharpness. The adjusting range is from
0 to 100.
• Trace Free: Speeds up the response time by Over Drive technology. The
adjusting range is from lower 0 to faster 100.
• Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”, “1:1”,
Overscan”.
• VividPixel: ASUS Exclusive Technology that brings lifelike visuals for
crystal-clear and detail-oriented enjoyment. The adjusting range is from
0 to 100.
• ASCR: Select ON or OFF to enable or disable dynamic contrast ratio
function.
• 4:3 is only available when input source is in 4:3 formatOverScan is only
available for the HDMI input source
• Phase adjusts the phase of the pixel clock signal. With a wrong phase
adjustment, the screen shows horizontal disturbances.
• Clock (pixel frequency) controls the number of pixels scanned by one
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the image is not proportional.
3-6 Chapter 3: General Instruction
5. Sound
Adjust the sound settings to your preference.
Sound
Volume
AudioWizard
Mute
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
• Volume: Adjusts the output volume level.
• Mute: Mute the output volume.
• AudioWizard:
6. PIP/PBP Setting
The PIP/PBP Setting allows you to open up another sub-window
connected from another video source besides the main-window from
your original video source.
PIP/PBP Setting
PIP/PBP Mode
Size
Position
Aspect Control
Swap
PIP/PBP Source
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
By activating this function, this monitor displays two pictures from two
different video sources.
• PIP/PBP Mode: Selects PIP or PBP function, or turn it off.
• PIP/PBP Source: Selects the video input source among,“HDMI-1”,
“HDMI-2”, “HDMI-3” or “DisplayPort”.
3-7
ASUS LCD Monitor MX34 Series
• Size: Adjust the PIP size to “Small”, “Middle”, or “Large”.
• Position: Adjusts the position of PIP sub-window to “Right-Top”, “Left-
Top”, “Right-Bottom” or “Left-Bottom”.
• Aspect Control: Adjusts the PIP aspect ratio and automatically adjust
the PIP window size.
• Swap: Swaps the sources of the main- and sub-windows.
Main-window
Sub-window
HDMI-1 HDMI-2 HDMI-3 DisplayPort
HDMI-1 Yes Yes Yes
HDMI-2 Yes Yes Yes
HDMI-3 Yes Yes Yes
DisplayPort Yes Yes Yes
7. Input Select
Select the input source from HDMI-1(V2.0), HDMI-2(V2.0), HDMI-
3(V2.0) or DisplayPort input signal.
Input Select
HDMI-1(V 2.0)
HDMI-3(V 2.0)
DisplayPort
HDMI-2(V 2.0)
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
3-8 Chapter 3: General Instruction

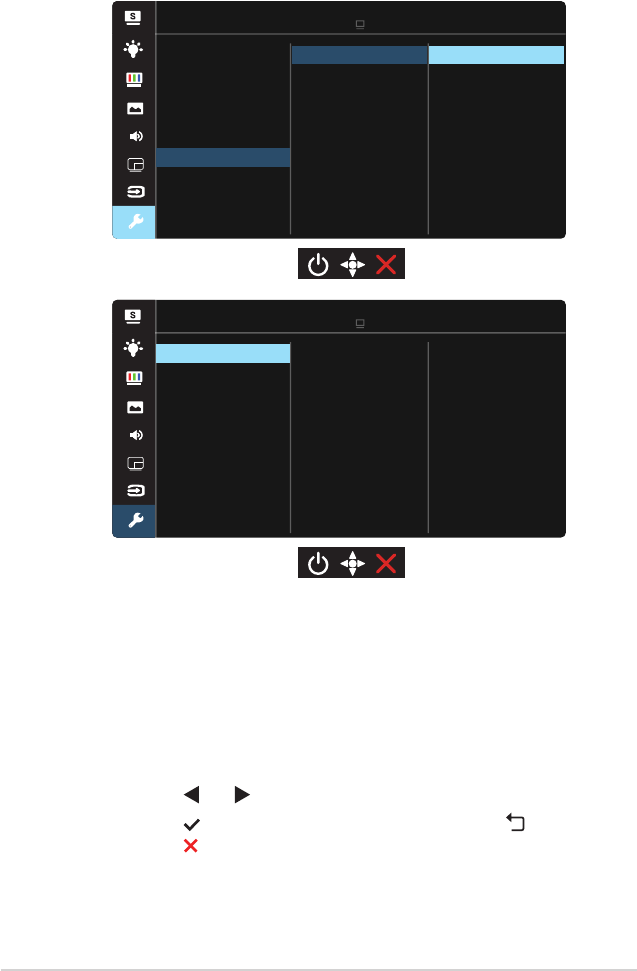

8. System Setup
Adjuststhesystemconguration.
Shortcut
More
System Setup
Splendid Demo Mode
DisplayPort Stream
ECO Mode
QuickFit
GamePlus
Charging Mode
Charging Indicator
On During Standby
Off During Standby
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
Wireless Charging
Power Key Lock
All Reset
System Setup
Back
Key Lock
Information
Language
OSD Setup
Standard Mode HDMI-1 1080p 60Hz
ASUS MX34
Power Indicator
• Splendid Demo Mode: Activate the demo mode for the Splendid
function.
• GamePlus: The GamePlus Function provides a toolkit and creates a
better gaming environment for users when playing different types of
games. Particularly, Aimpoint function is specially designed for new
gamers or beginners interested in First Person Shooter (FPS) games.
To active GamePlus:
• Select ON to enter the GamePlus main menu.
• Press and to select between Aimpoint and Timer function.
• Press to confirm the function you choose. Press to go back.
Press to go off, and exit.
3-9
ASUS LCD Monitor MX34 Series
GamePlus main menu GamePlus-Aimpoint
Aimpoint Timer
GamePlus
(Practice Mode)
GamePlus main-Timer GamePlus main-Timer-Position
Position
• QuickFit:
• DisplayPort Stream: Compatibility with graphic card. Select DP 1.1 or
DP 1.2 by graphic card DP version.
• ECO Mode: Activate the ecology mode for power saving.
• Wireless Charging:
• Shortcut:
Selecting this option allows you to set two shortcut keys.
• More: Return the next page of System Setting.
• Back: Return the previous page of System Setting.
• OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of
the OSD screen.
• Language: Select OSD language. The selections are: English, French,
German, Spanish, Italian, Dutch, Russian, Traditional Chinese,
Simplified Chinese, Japanese, Persian, Thai, Indonesian, Poland,
Turkey, Portugal, Czech, Croatia, Hungary, Romania, and Korean.
• Key Lock: Disable all key functions. Pressing the second button on the
right for more than five seconds to disable key lock function.
• Information: Displays the monitor information.
• Power Indicator: Turn the power LED indicator on/off.
• Power Key Lock: To disable / enable power key
• All Reset: Selects “Yes” to revert all settings to the factory default mode.
3-10 Chapter 3: General Instruction
3.2 Specications
Model MX34VQ
Panel Size 34.0”W (68.6 cm)
Max. Resolution 1920x1080 (VGA); 2560 x 1440 (DVI, HDMI, DP)
Brightness (Typ.) 300cd/m
2
Intrinsic Contrast Ratio (Typ.) 1000:1
Viewing Angle (CR=10) 178°(V) /178°(H)
Display Colors 16.7 M(True 8bit)
Response Time 5ms (Gray to Gray)
Satellite Speaker 3W x 2 stereo
Earphone Output
Yes
Sound from HDMI Yes
HDMI input Yes
DisplayPort input Yes
Power ON Consumption < 60W*
Note *Based on Energy Star 6.0 standard
Chassis Colors Black
Power saving mode < 0.5W
Power off mode < 0.5W
Tilt -5° ~ +20°
Swivel(angle) +60°~-60°
Pivot(angle/direction) 90°(clockwise)
Height Adjustment (mm) Yes(0~120mm)
VESA Wall Mounting Yes (100mm x 100mm)
Phys. Dimension (WxHxD) 643 x 552.3 x 218 mm
Box Dimension (WxHxD) 755 x 224 x 470 mm
Net Weight (Esti.) 7.8 kg
Gross Weight (Esti.) 11 kg
Voltage Rating AC 100~240V(Built-in)
3-11
ASUS LCD Monitor MX34 Series
3.3 Troubleshooting (FAQ)
Problem Possible Solution
Power LED is not ON • Press the button to check if the monitor is in the
ON mode.
• Check if the power cord is properly connected to
the monitor and the power outlet.
• Check Power Indicator function in main menu OSD.
Select “ON” to turn on power LED.
The power LED lights amber and
there is no screen image
• Check if the monitor and the computer are in the
ON mode.
• Make sure the signal cable is properly connected
the monitor and the computer.
• Inspect the signal cable and make sure none of the
pins are bent.
• Connect the computer with another available
monitor to check if the computer is properly
working.
Screen image is too light or dark • Adjust the Contrast and Brightness settings via
OSD.
Screen image bounces or a wave
pattern is present in the image
• Make sure the signal cable is properly connected to
the monitor and the computer.
• Move electrical devices that may cause electrical
interference.
Screen image has color defects
(white does not look white)
• Inspect the signal cable and make sure that none of
the pins are bent.
• Perform Reset via OSD.
• Adjust the R/G/B color settings or select the Color
Temperature via OSD.
No sound or sound is low • Make sure the audio cable is properly connected to
the monitor.
• Adjust the volume settings of both your monitor and
computer.
• Make sure the computer sound card driver is
properly installed and activated.
• Make sure the audio source is correct on the OSD.
3-12 Chapter 3: General Instruction
3.4 Supported Timing List
PC Supported Primary Timing
Resolution Refresh Rate Horizontal Frequency
640x480 60Hz 31.469kHz
640x480 72Hz 37.861kHz
640x480 75Hz 37.5kHz
800x600 56Hz 35.156kHz
800x600 60Hz 37.879kHz
800x600 72Hz 48.077kHz
800x600 75Hz 46.875kHz
1024x768 60Hz 48.363kHz
1024x768 70Hz 56.476kHz
1024x768 75Hz 60.023kHz
1152x864 75Hz 67.5kHz
1280x960 60Hz 60kHz
1280x1024 60Hz 63.981kHz
1280x1024 75Hz 79.976kHz
1440x900 60Hz 55.935kHz
1440x900 75Hz 70.635kHz
1680x1050 60Hz 65.29kHz
1920x1080 60Hz 67.5kHz
IBM Modes, Factory Preset Timing(D-SUB, DVI-D, HDMI inputs)
Resolution Refresh Rate Horizontal Frequency
640x350 70Hz 31.469kHz
720x400 70Hz 31.469kHz
MAC Modes, Factory Preset Timing(D-SUB, DVI-D, HDMI inputs)
Resolution Refresh Rate Horizontal Frequency
640x480 67Hz 35kHz
832x624 75Hz 49.725kHz
3-13
ASUS LCD Monitor MX34 Series
VESA Modes, User Available Timing
Resolution Refresh Rate Horizontal Frequency
848x480 60Hz 31.02
1280x720(RB) 60Hz 44.444kHz
1280x720 60Hz 44.772kHz
1280x720 75Hz 56.456kHz
1280x768(RB) 60Hz 47.396kHz
1280x800(RB) 60Hz 49.306kHz
1280x800 60Hz 49.702kHz
1280x800 75Hz 62.795kHz
1366x768 60Hz 47.712kHz
1440x900(RB) 60Hz 55.469kHz
1440x900 75Hz 70.635kHz
1680x1050(RB) 60Hz 64.674kHz
1920x1080 60Hz 66.587kHz
WQHD Mode (DVI (dual link), HDMI and DP only)
2560x1440 60Hz 88.787kHz
* While the PB278Q supports up to 2560 x 1440 WQHD resolutions including DVI-dual link,
HDMI and DisplayPort, some graphics cards only support up to 1920 x 1200 resolution content
transmission via HDMI. Please check with your local distributor or retailer on the hardware
limitations of your laptop or desktop.
SD/HD Timings (HDMI input only)
HDMI 1.3,CEA-861B Formats, SD/HD Supported Primary Timings of (HDMI input only)
Resolution Refresh Rate Horizontal Frequency
640x480P 59.94 / 60Hz 31.469 / 31.5kHz
720x480P 59.94 / 60Hz 31.469 / 31.5kHz
720x576P 50Hz 31.25kHz
1280x720P 50Hz 37.5kHz
1280x720P 59.94 / 60Hz 44.955 /45kHz
1920x1080i 50Hz 28.125kHz
1920x1080i 59.94 / 60Hz 33.716 / 33.75kHz
HDMI 1.3,CEA-861B Formats, SD/HD Supported Optional Timings of (HDMI input only)
Resolution Refresh Rate Horizontal Frequency
1440x480P 59.94 / 60Hz 31.469 / 31.5kHz
1440x576P 50Hz 31.25kHz
1920x1080P 50Hz 56.25kHz
1920x1080P 59.94 / 60Hz 67.433 / 67.5kHz
* The modes not listed in the above tables may not be supported. For optimal resolution, we
recommend that you choose a mode listed in the above tables.
Europe EU Declaration of Conformity
This device complies with the essential requirements of the Radio Equipment Directive
(2014/53/EU). The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the Radio Equipment
Directive (2014/53/EU):
低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機非經許可,公司商號或使
用者均不得擅自變更頻率加大功率或變更原設計之特性及功能
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通經發
現有干擾現象時應立即停並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射
性電機設備之干擾
Federal Communication
Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Industry Canada statement:
This device complies with RSS-216 of the Industry Canada Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-216 d'Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Korea:
해당 무선설비는 운용 전파혼신 가능성이 있음
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 없음
Wireless Charger Warning
The product comply with the FCC/ISED RF Exposure for Low Power Consumer Wireless
Power Transfer. RF exposure limit set forth for an uncontrolled environment and are safe for
intended operation as described in this manual. The further RF exposure that compliance
was demonstrated at 10cm and greater separation from the user body or set the device to
lower output power if such function is available.

Navigation menu
