Top Victory Electronics WSDB673GN Wi-Fi Module User Manual
Top Victory Electronics (Taiwan) Co Ltd Wi-Fi Module Users Manual
Users Manual
Proprietary & Confidential Information
Doc. NO:
WSDB-673GN
Hardware & Software Setup Guide
Rev. 0.1
![](/img.php?id=2001845&img=bg2.png)
Proprietary & Confidential Information
Doc. NO:
1
1. WLAN Function Quick Start Guide
Physical hardware configuration likes as figure1. Please follow the following procedure step by
step to get starting WLAN function.
Software setup:
Follow driver installation procedure steps to install the GB9662 driver on your PC (OS: XP).
1-1.Copy
WDSB-673GN\WSDB-673GN_Driver_V1.2_10122012\Nvram\GB9662_NVRAM_V1.1_09132
012.TXT to C:\Windows\system32\Drivers
1-2. Copy
WDSB-673GN\WSDB-673GN_Driver_V1.2_10122012\5_90_153_49_43362_mfg_A2(Driver)\A
pps\ wl.exe to C:\Windows\system32\

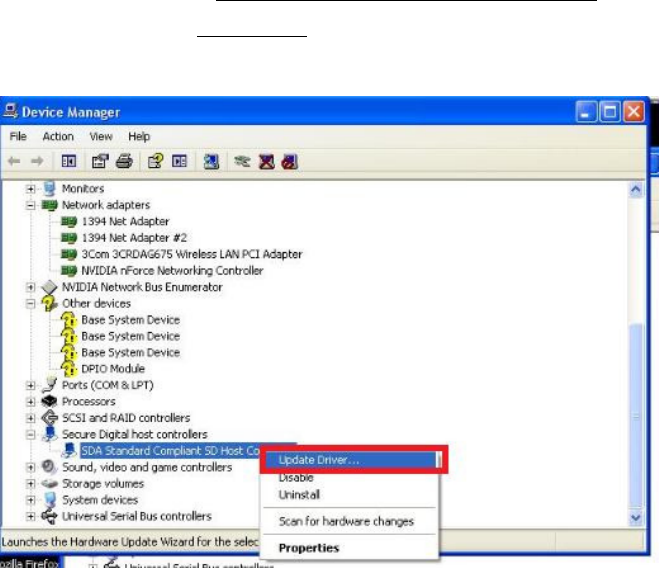

1-3.In Device Manager, choose SDA Standard Compliant SD Host Controller and click right button of
mouse and then choose Update driver
SDIO Board
Test Board
Socket
![](/img.php?id=2001845&img=bg3.png)
Proprietary & Confidential Information
Doc. NO:
2

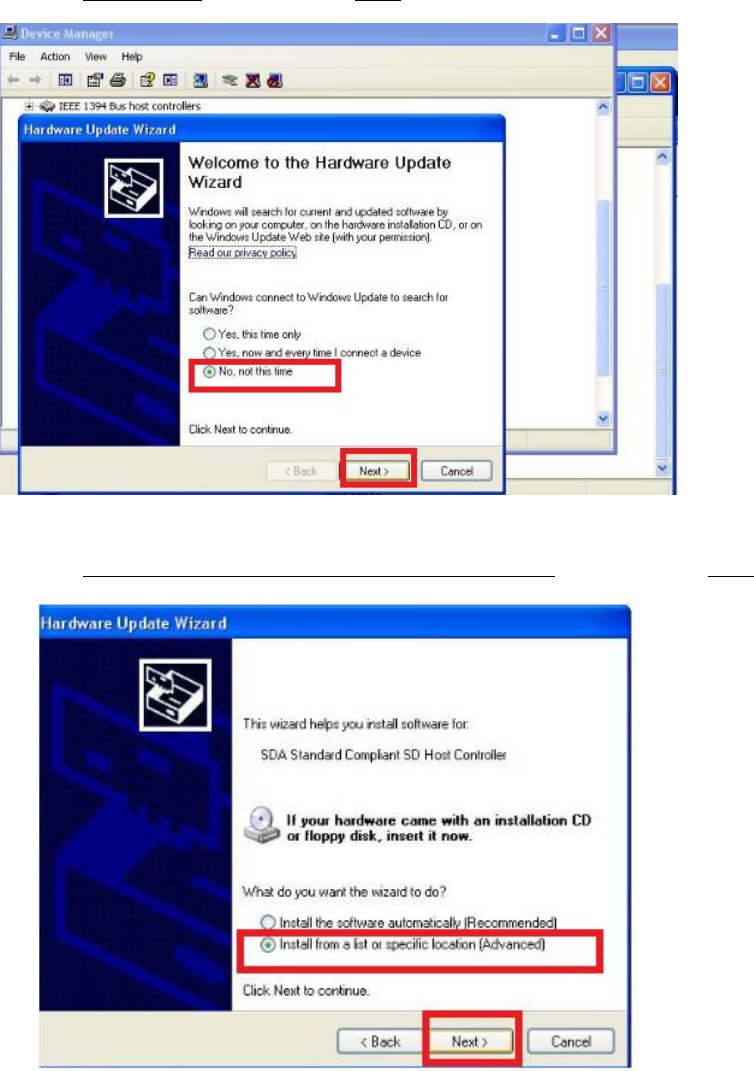

1-4.Choose No, not now, and then click Next.
1-5.Choose install from a list or specific location (Advanced), and then click Next.
![](/img.php?id=2001845&img=bg4.png)
Proprietary & Confidential Information
Doc. NO:
3

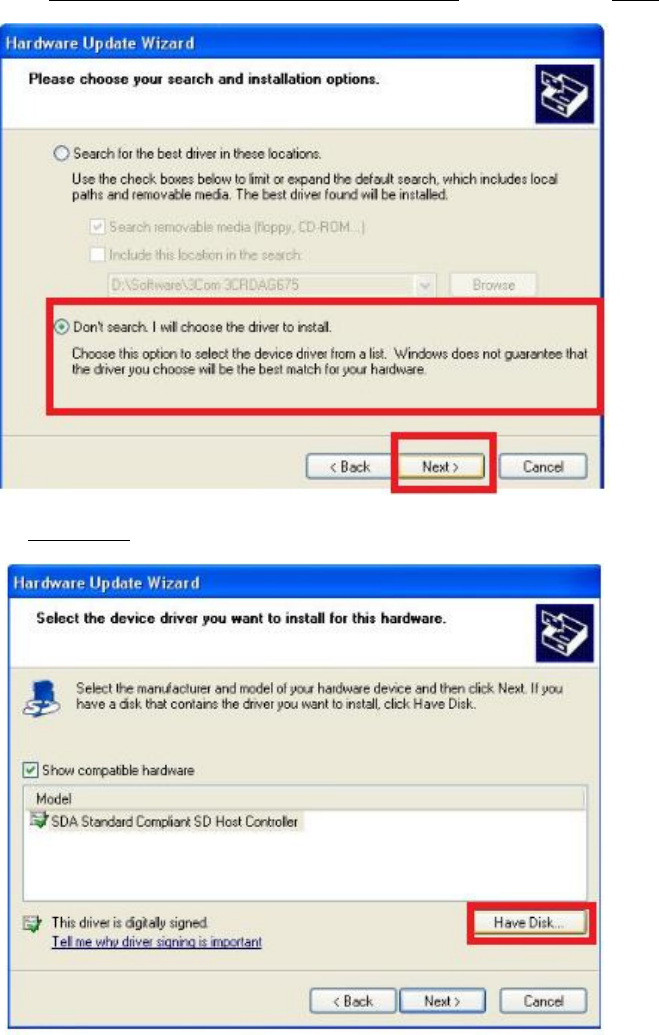

1-6.Choose Don’t search, I will choose driver to install, and then click Next .
1-7.Click Have Disk .
![](/img.php?id=2001845&img=bg5.png)
Proprietary & Confidential Information
Doc. NO:
4

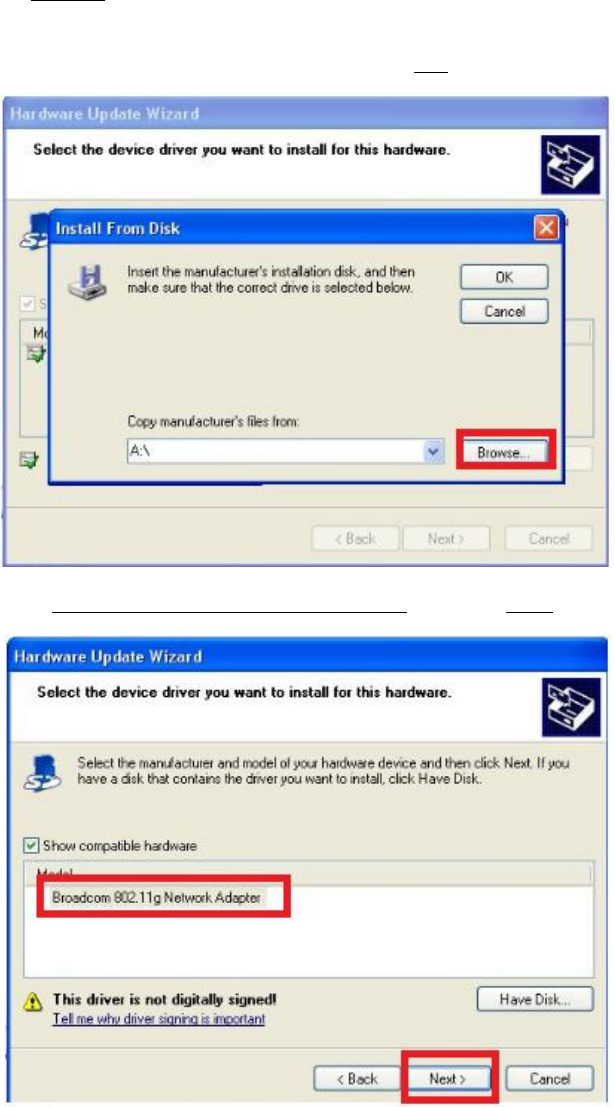

1-8.Click Browse to choose correct directory of Driver
WDSB-673GN\WSDB-673GN_Driver_V1.2_10122012\5_90_153_49_43362_m
fg_A2(Driver) \bcmsddhd.inf and then click OK to next step.
1-9.Choose Broadcom 802.11g Network Adapter and click Next to install driver.
![](/img.php?id=2001845&img=bg6.png)
Proprietary & Confidential Information
Doc. NO:
5

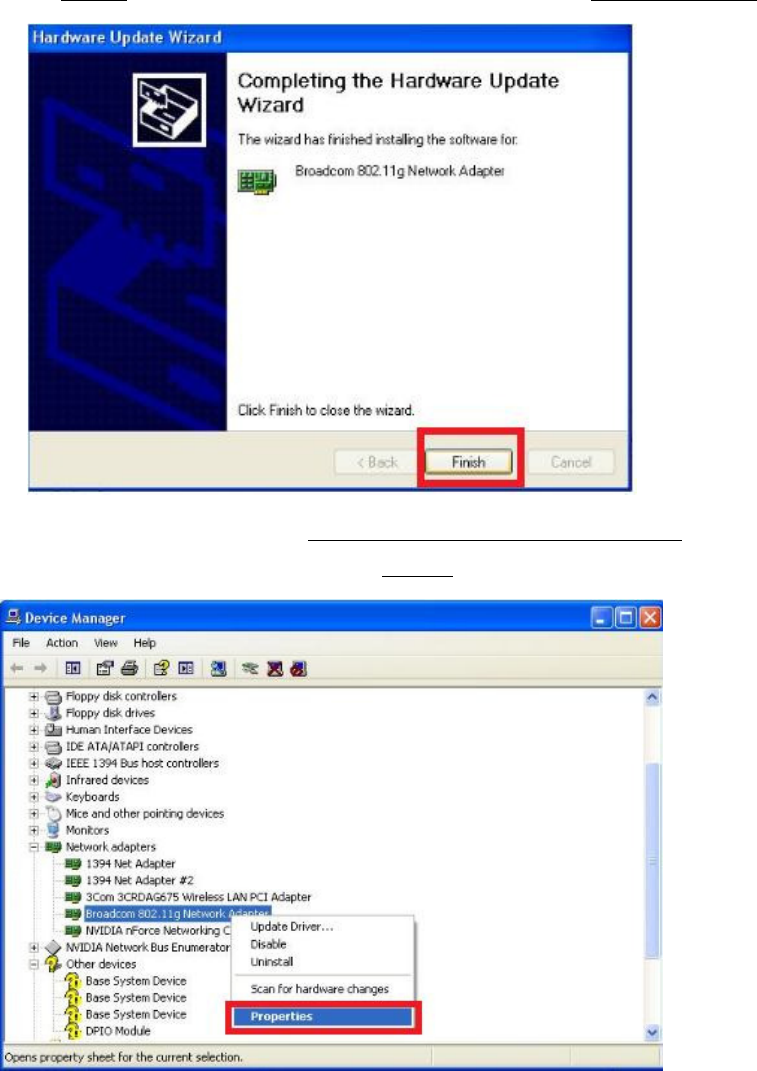

1-10.Click Finish and you can check the device is working fine in Device Manager.
1-11.In Device Manager, Choose Broadcom 802.11g Network Adapter and click
right button of mouse and then choose content.
![](/img.php?id=2001845&img=bg7.png)
Proprietary & Confidential Information
Doc. NO:
6

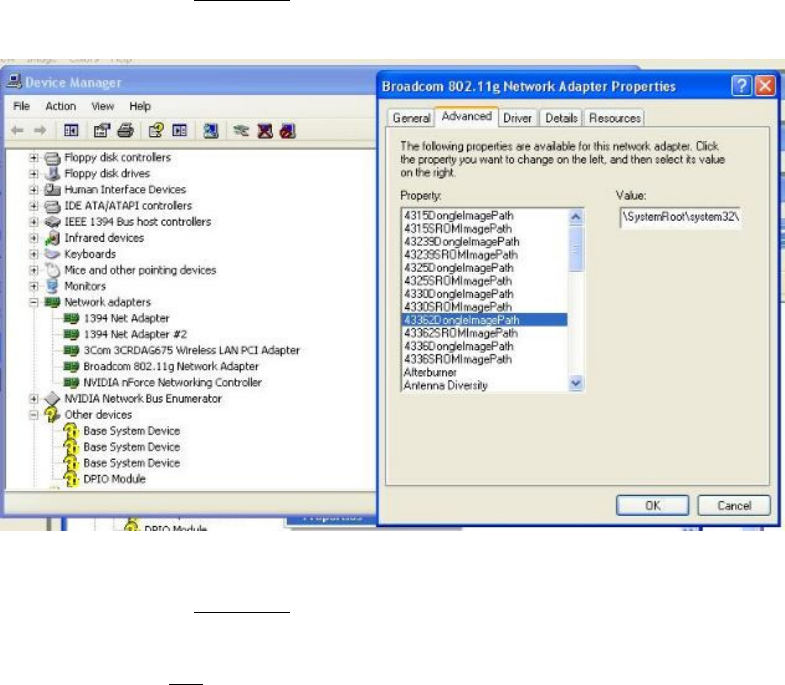

1-12.In the tab of Advanced, choose
1-13.In the tab of Advanced, choose 43362ROMImagePatch item and replace with
\SystemRoot\system32\drivers\ GB9662_NVRAM_V1.1_09132012.TXT and
then click OK button.
Proprietary & Confidential Information
Doc. NO:
7
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device is intended only for OEM integrators under the following
![](/img.php?id=2001845&img=bg9.png)
Proprietary & Confidential Information
Doc. NO:
8
conditions:
1) The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1
to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not
supply any tool or info to the end-user regarding to Regulatory Domain
change.
As long as 3 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for
any additional compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another transmitter),
then the FCC authorization is no longer considered valid and the FCC ID can not
be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may
be installed such that 20 cm may be maintained between the antenna and users.
The final end product must be labeled in a visible area with the following: “Contains
FCC ID: ARS-WSDB673GN”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as
show in this manual.
Proprietary & Confidential Information
Doc. NO:
9
Industry Canada statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This device is intended only for OEM integrators under the following conditions: (For module
device use)
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: (Pour
utilisation de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée
entre l'antenne et les utilisateurs, et
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
![](/img.php?id=2001845&img=bgb.png)
Proprietary & Confidential Information
Doc. NO:
10
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur
l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours
responsable des essais sur son produit final pour toutes exigences de conformité
supplémentaires requis pour ce module installé.
This radio transmitter (IC : 9190A-WSDB673GN) has been approved by Industry
Canada to operate with the antenna types listed below with the maximum permissible
gain and required antenna impedance for each antenna type indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Le présent émetteur radio (IC : 9190A-WSDB673GN) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un
gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types
d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Brand / Model Type Connector Peak gain ( dBi )
MSA-3410-25GC4-A5-B330MM
PIFA
Antenna
IPEX
Compatible
1.52
Proprietary & Confidential Information
Doc. NO:
11
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the Canada authorization is
no longer considered valid and the IC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre
émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut
pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera
chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation
distincte au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: “Contains IC:
9190A-WSDB673GN”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où
l'antenne peut être installée de telle sorte qu'une distance de 20cm peut être maintenue
entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un endroit visible
avec l'inscription suivante: "Contient des IC: 9190A-WSDB673GN".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur
Proprietary & Confidential Information
Doc. NO:
12
final quant à la façon d'installer ou de supprimer ce module RF dans le manuel de
l'utilisateur du produit final qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires
requises et avertissements comme indiqué dans ce manuel.
NCC 警語:
第十二條→經型式認證合格之低功率射頻電機,非經許可,公司,商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性及功能。
第十四條→低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,
並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療
用電波輻射性電機設備之干擾。
