TopSeed Technology TSBD-401 Remote Pointer User Manual Revised Users Manual

TopSeed Technology Corp. Remote Pointer Revised Users Manual

Revised Users Manual

TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type
PAGE: 3/15
DATE: 2002/7/25

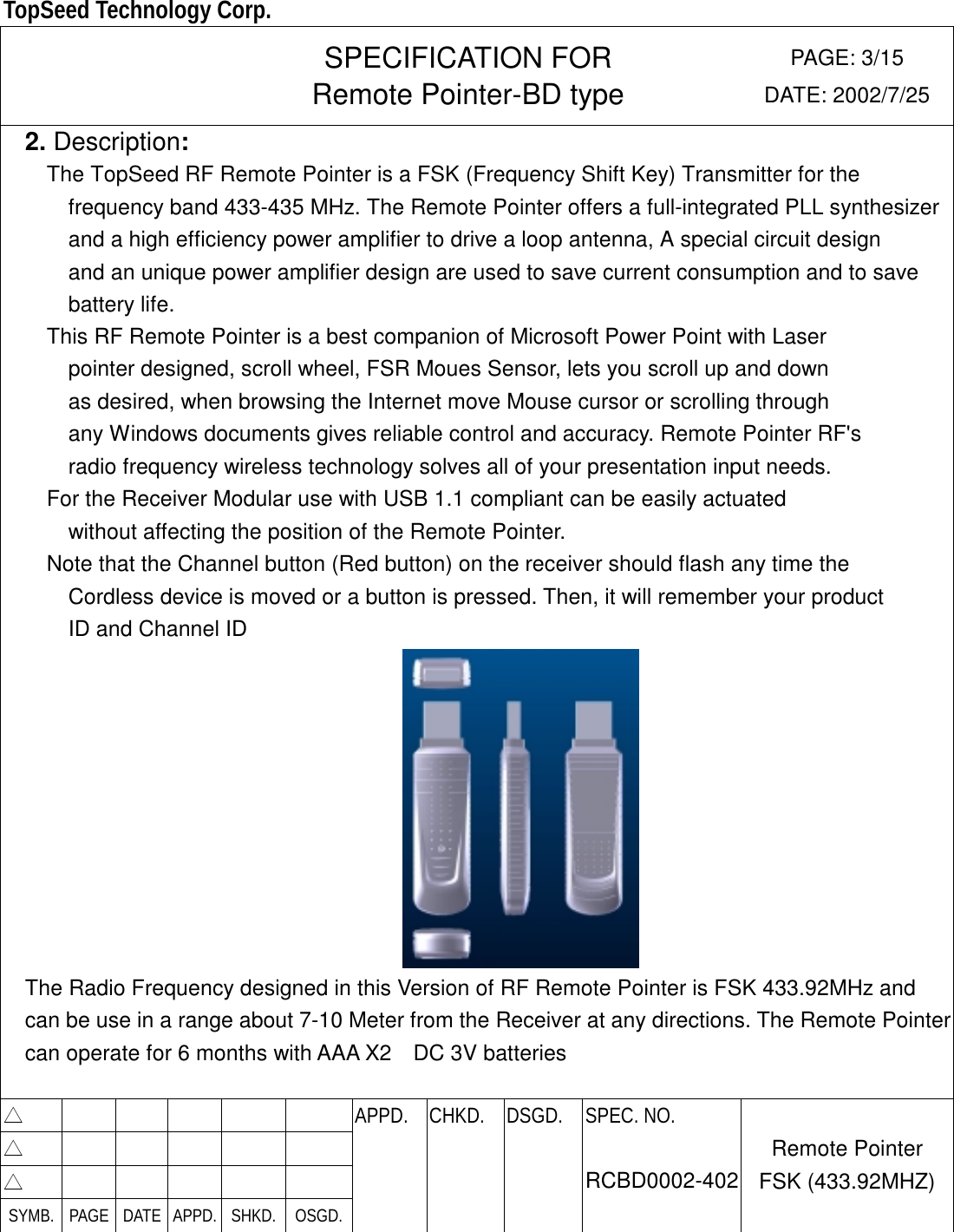

2. Description:
The TopSeed RF Remote Pointer is a FSK (Frequency Shift Key) Transmitter for the
frequency band 433-435 MHz. The Remote Pointer offers a full-integrated PLL synthesizer
and a high efficiency power amplifier to drive a loop antenna, A special circuit design
and an unique power amplifier design are used to save current consumption and to save
battery life.
This RF Remote Pointer is a best companion of Microsoft Power Point with Laser
pointer designed, scroll wheel, FSR Moues Sensor, lets you scroll up and down
as desired, when browsing the Internet move Mouse cursor or scrolling through
any Windows documents gives reliable control and accuracy. Remote Pointer RF's
radio frequency wireless technology solves all of your presentation input needs.
For the Receiver Modular use with USB 1.1 compliant can be easily actuated
without affecting the position of the Remote Pointer.
Note that the Channel button (Red button) on the receiver should flash any time the
Cordless device is moved or a button is pressed. Then, it will remember your product
ID and Channel ID
The Radio Frequency designed in this Version of RF Remote Pointer is FSK 433.92MHz and
can be use in a range about 7-10 Meter from the Receiver at any directions. The Remote Pointer
can operate for 6 months with AAA X2 DC 3V batteries
△ APPD. CHKD. DSGD.
△
△
SYMB. PAGE DATE APPD. SHKD. OSGD.
SPEC. NO.
RCBD0002-402
Remote Pointer
FSK (433.92MHZ)

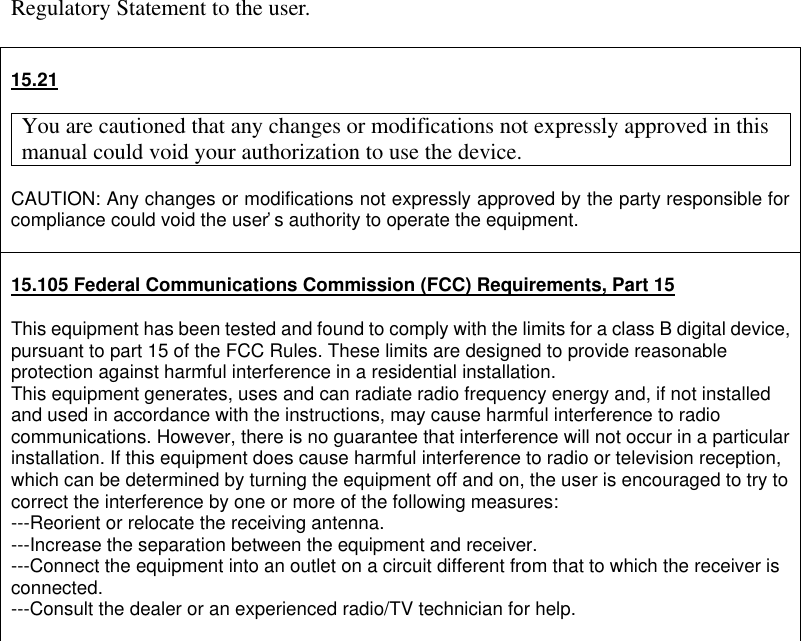

Regulatory Statement to the user.
15.21
You are cautioned that any changes or modifications not expressly approved in this
manual could void your authorization to use the device.
CAUTION: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
15.105 Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
---Consult the dealer or an experienced radio/TV technician for help.
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type
PAGE: 4/15
DATE: 2002/7/25

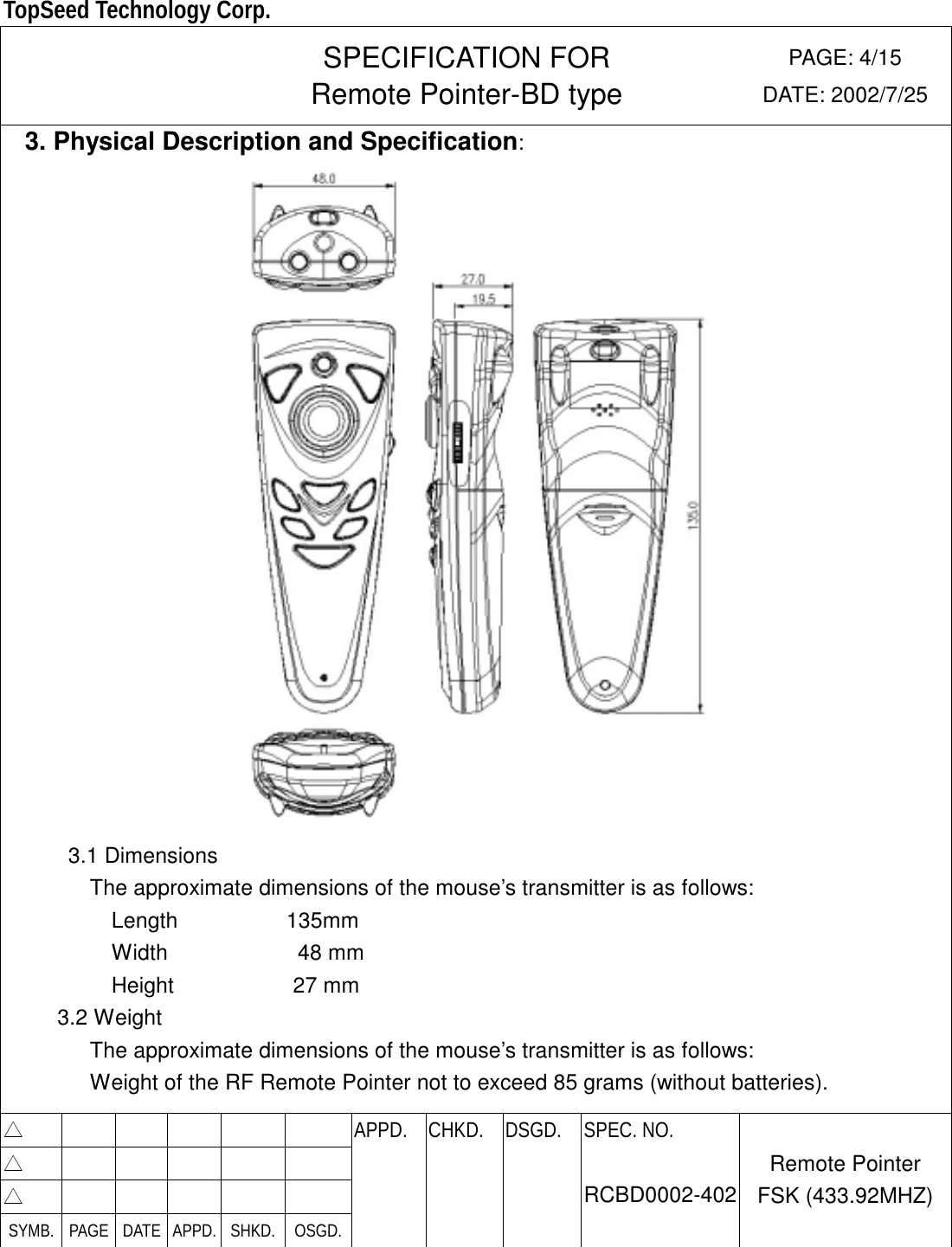

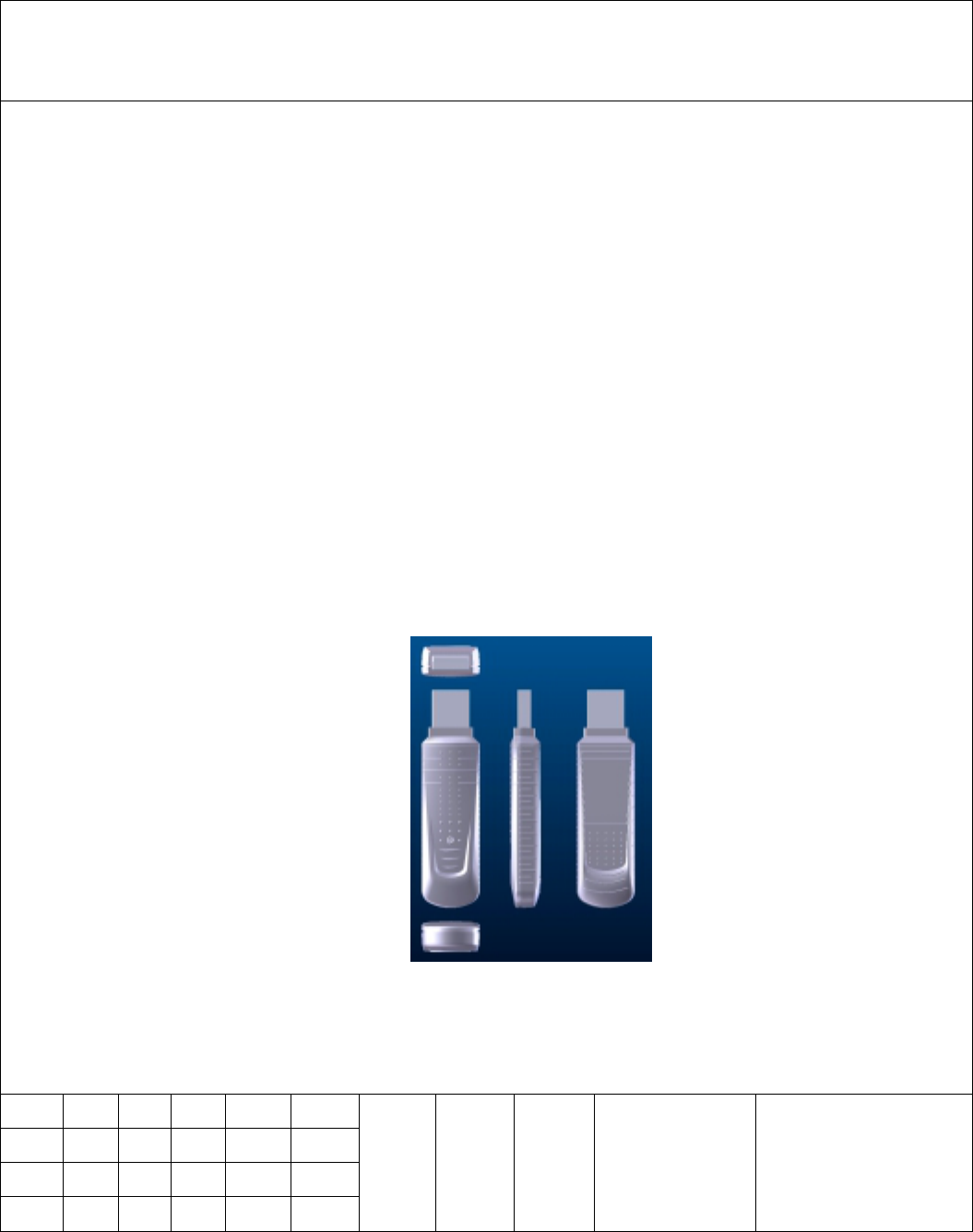

3. Physical Description and Specification:

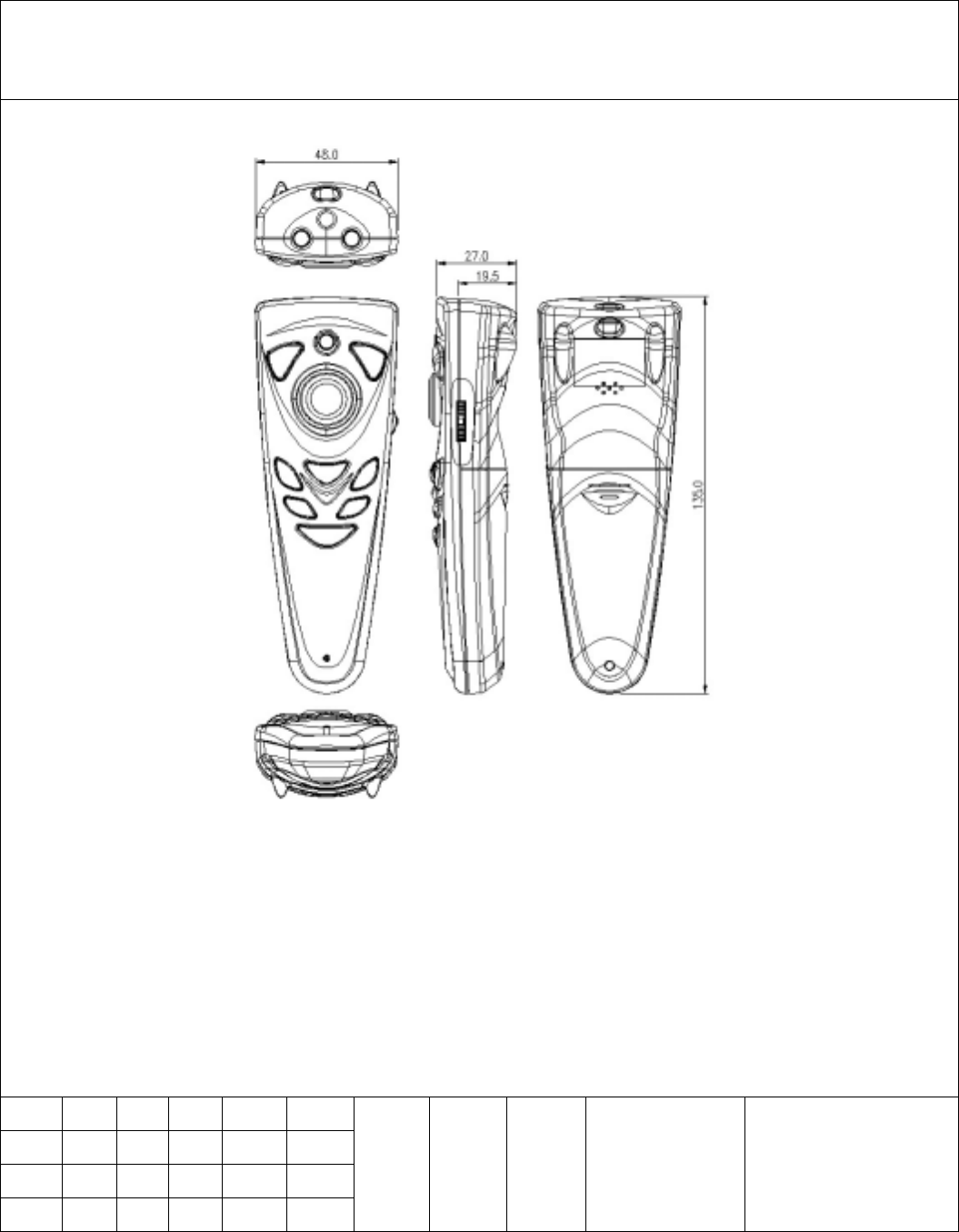

3.1 Dimensions
The approximate dimensions of the mouse’s transmitter is as follows:
Length 135mm
Width 48 mm
Height 27 mm
3.2 Weight
The approximate dimensions of the mouse’s transmitter is as follows:
Weight of the RF Remote Pointer not to exceed 85 grams (without batteries).
△ APPD. CHKD. DSGD.
△
△
SYMB. PAGE DATE APPD. SHKD. OSGD.
SPEC. NO.
RCBD0002-402
Remote Pointer
FSK (433.92MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 5/15
DATE: 2002/7/25

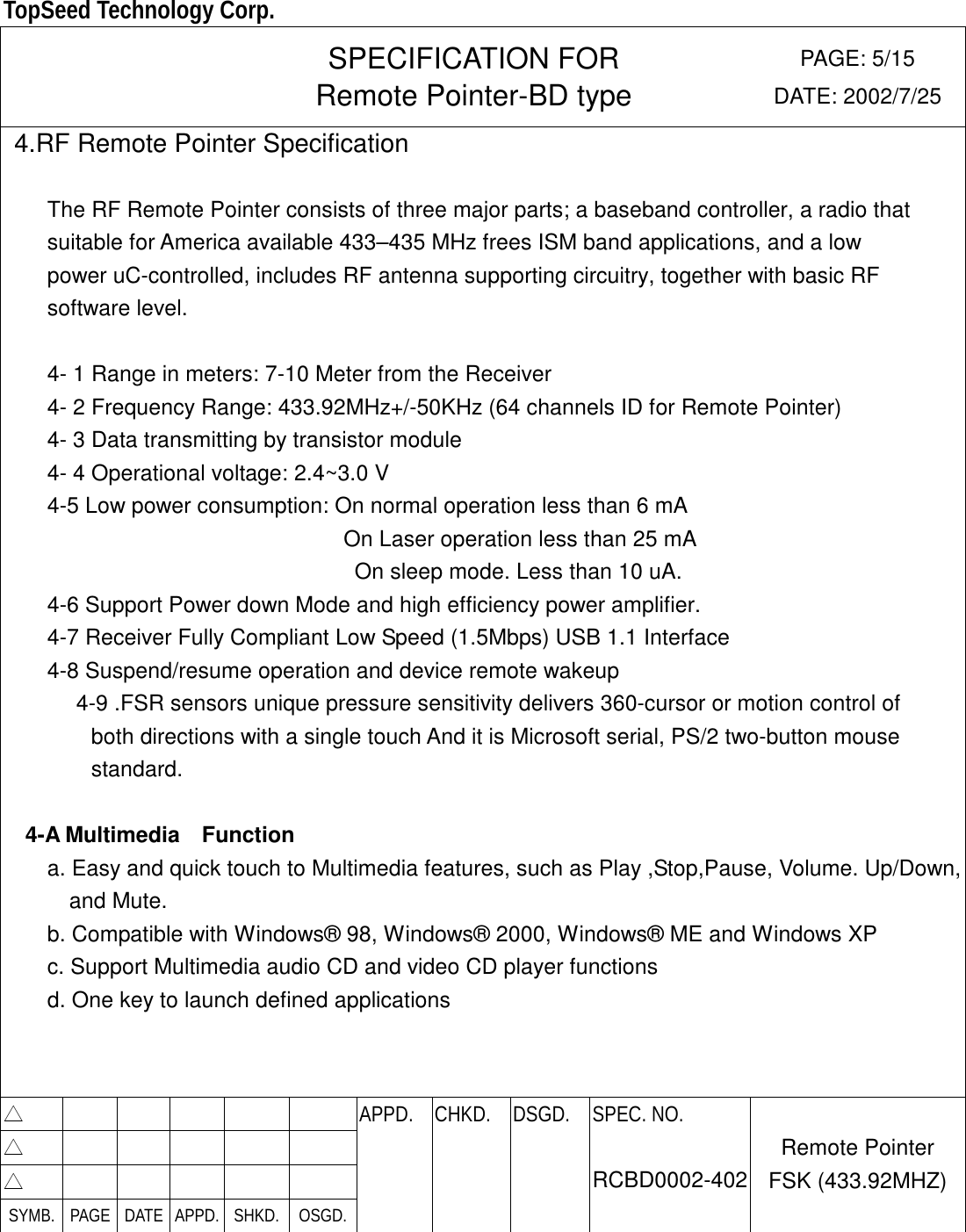

4.RF Remote Pointer Specification
The RF Remote Pointer consists of three major parts; a baseband controller, a radio that
suitable for America available 433–435 MHz frees ISM band applications, and a low
power uC-controlled, includes RF antenna supporting circuitry, together with basic RF
software level.
4- 1 Range in meters: 7-10 Meter from the Receiver
4- 2 Frequency Range: 433.92MHz+/-50KHz (64 channels ID for Remote Pointer)
4- 3 Data transmitting by transistor module
4- 4 Operational voltage: 2.4~3.0 V
4-5 Low power consumption: On normal operation less than 6 mA
On Laser operation less than 25 mA
On sleep mode. Less than 10 uA.
4-6 Support Power down Mode and high efficiency power amplifier.
4-7 Receiver Fully Compliant Low Speed (1.5Mbps) USB 1.1 Interface
4-8 Suspend/resume operation and device remote wakeup
4-9 .FSR sensors unique pressure sensitivity delivers 360-cursor or motion control of
both directions with a single touch And it is Microsoft serial, PS/2 two-button mouse
standard.
4-A Multimedia Function
a. Easy and quick touch to Multimedia features, such as Play ,Stop,Pause, Volume. Up/Down,
and Mute.
b. Compatible with Windows® 98, Windows® 2000, Windows® ME and Windows XP
c. Support Multimedia audio CD and video CD player functions
d. One key to launch defined applications
△ APPD. CHKD. DSGD.
△
△
SYMB. PAGE DATE APPD. SHKD. OSGD.
SPEC. NO.
RCBD0002-402
Remote Pointer
FSK (433.92MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 6/15
DATE: 2002/7/25
4.RF Remote Pointer Specification
4-10 Key Definition
1) In Mode-1, M-Key have special function.
M-Key+ Laser Key (Laser Pointer Enable/Disable Button)
M-Key and Laser Key are pushed simultaneously more than 2 seconds (Red LED
flashed), the laser pointer is enable/disable to use.
2) Change ID : Open the battery cover and push the ID button (Green LED flashed), the ID is
changed.
Notice:
For safety consideration, in the laser pointer is enable to use situation, the M-key
red LED flashed 1 time per 2 seconds. Besides, after you stop using laser pointer
about 30 minutes, the laser pointer function will be disable.
Mode-1 Mode-2 (Multimedia)
1 Left Mouse Key
2 Laser Key
3 Right Mouse Key
4 FSR Mouse
5 Mode key 1 Mode key 2
6 F5 Stop
7 ESC Play/Pause
8 A Previous track
9 B Next track
10 C Media player on
11
12
13
Up: Line Up
Push: Drag
Down: Line Down
Up: Volume Up
Push: Mute
Down: Volume Down
△ APPD. CHKD. DSGD.
△
△
SYMB. PAGE DATE APPD. SHKD. OSGD.
SPEC. NO.
RCBD0002-402 Remote Pointer
FSK (433.92MHZ)
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BD type PAGE: 8/15
DATE: 2002/7/25
4.RF Remote Pointer Specification
4-12
Frequency Range 433.92 MHz
Modulation FSK
Channel No. 1
Channel I.D 6 bits → 64
Operation Voltage 3V
Battery AAA x 2 DC 3V batteries.
Batter Life 6 months
TX Power < 0dBm (1mW)
Transmission rate 6K bps
TX FM frequency deviation +/- 60 KHz
Frequency tolerance +/- 20ppm
Button 7
FSR Mouse Microsoft serial, PS/2
two-button mouse standard.
Transmission Distance 7-10 Meter
△ APPD. CHKD. DSGD.
△
△
SYMB. PAGE DATE APPD. SHKD. OSGD.
SPEC. NO.
RCBD0002-402
Remote Pointer
FSK (433.92MHZ)
TopSeed Technology Corp.
