TopSeed Technology TSBG-901 RF Optical Mouse User Manual MSBG0002 902 910801
TopSeed Technology Corp. RF Optical Mouse MSBG0002 902 910801
Manual
![](/img.php?id=264844&img=bg1.png)
TopSeed Technology Corp.
9F-3, No. 16, Jain Ba Rd., Chung Ho City,
Taipei Hsien, Taiwan 235, R.O.C.
TEL: +886-2-8226-3811
FAX: +886-2-8226-3822
No:
APPROVAL
SHEET
Date:
2002/08/01
.……………………………………………
Customer:
Customer Part No:
Parts Name: RF Optical Mouse
Part No.: MSBG0002-902
Spec. No.: TSBG-901
Note:
Signature For Return
APP’D CHK’D
DSG’D
![](/img.php?id=264844&img=bg2.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 2/15
DATE: 2002/08/01
TABLE OF CONTENTS
0.Table of date revision
1.FCC GUIDELINES
2.Description
3.Physical Description and Specification
3-1 Dimensions
3-2 Weight
4.RF Mouse Specification
4-1 Main Feature
4-2 System Requement
4-3 RF Optical Mouse Characteristics
4-4 RF Characteristics
5.Electronical Block Diagram
5-1 FSK (912MHZ) Transmitter
5-2 FSK (912MHZ) Receiver
Table of date-revision
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bg3.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 3/15
DATE: 2002/08/01
TABLE OF CONTENTS
6.Electrical Characteristics
6-1 GENERAL SPECIFICATION
6-2 Operational Range
6-3 Electrostatic Discharge (ESD) Sensitivity
6-4 AC/DC Characteristics
7. Mechanical Spec.
8. Endurance Test
8-1 Tracking life Test
8-2 Left and right button life test
8-3 High Temperature Test
8-4 Wheel scroll button life test
8-5 Drop test
8-6 ESD test
8-7 Drop Test
8-8 Scrolling life Test
9. Environmental Tests
9-1 Heat load test
9-2 Humidity load test
9-3 Cold test
9-4 Vibration test
9-5 HEAT CYCLE TEST
10. Assembly & Packing Drawing
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bg4.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 4/15
DATE: 2002/08/01
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bg5.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 5/15
DATE: 2002/08/01
2. Description:
The RF Optical Mouse is a FSK (Frequency Shift Key) Transmitter for the
frequency band 902-928 MHz. The RF Optical Mouse offers a full-integrated PLL
synthesizer and a high efficiency power amplifier to drive a loop antenna;
A special circuit
design and an unique power amplifier design are used to save current consumption and
to save battery live.
This RF Optical Mouse is a three button designed with 3D scrolling design, scroll
wheel, lets you scroll up and down as desired, when browsing the Internet or scrolling
through any Windows documents With 800 dots-per-inch (DPI) gives reliable control
and accuracy.
For the Receiver Modular use with USB 1.1 compliant
can be easily actuated
without affecting the position of the mouse.
The Radio Frequency designed in this Version of RF Mouse is FSK 912MHz and
can be use in a range to 5-7 Meter from the Receiver at any directions. The Mouse can
operate for 2 months with two AAA Alkaline batteries.
Note that the Channel button (Red button) on the receiver should flash any time the
Cordless device is moved or a button is pressed. Then, it will remember your product ID
and Channel ID
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bg6.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 6/15
DATE:2002/08/01
3. Physical Description and Specification:
3.1 Dimensions
The approximate dimensions of the mouse’s transmitter is as follows:
Length 104.5 mm
Width 55 mm
Height 37.5 mm
3.2 Weight
The approximate dimensions of the mouse’s transmitter is as follows:
Weight of the RF Mouse not to exceed 65 grams (without batteries).
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902 RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bg7.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 7/15
DATE:2002/08/01
4.RF Optical Mouse Specification
4-1 Main Feature
The RF Optical Mouse consists of three major parts; a baseband controller-
The New HP
ADNS-2030 Chipoffers extra high 800 Dpi resolution, a radio that suitable for America
available 902–928 MHz frees ISM band applications, and a low power uC-controlled,
includes RF antenna supporting circuitry, together with basic RF software level.
4- 1 Range in meters: 5-7 Meter from the Receiver
4- 2 Frequency Range: 912MHz+/-50KHz (64 channels ID for Mouse)
4- 3 Data transmitting by transistor module
4- 4 Operational voltage: 3.0 V
4-5 Low power consumption: on normal operation 25 mA and 150 uA on sleep mode.
4-6 Mouse resolution: 800 DPI
4-7 Support Power down Mode and high efficiency power amplifier.
4-8 Receiver Fully Compliant Low Speed (1.5Mbps) USB 1.1 Interface
4-9 Suspend/resume operation and device remote wakeup
4-2 System Requement
Windows-based PC
To use RF Optical Mouse with the scroll wheel and all customizable buttons, you need:
4-2-1 One of the following: Microsoft Windows 98, Windows Me, Windows 2000, or
Windows XP Home Edition or Professional operating systems
4-2-2 An available Universal Serial Bus (USB) port on your PC
Macintosh-based PC
To use RF Optical Mouse with the scroll wheel and all customizable buttons, you need:
4-2-3 Mac OS 8.6 , 9.x or 10.1.2-10.1.3
4-2-4 An available Universal Serial Bus (USB) port
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902 RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bg8.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 8/15
DATE:2002/08/01
4.RF Optical Mouse Specification
4-3 RF Optical Mouse Characteristics
Wireless Freedom
Free yourself from desktop clutter and extra cables. The 64 Channel ID common radio
frequency reduces interference and allows you to place the receiver out of sight.
USB Connector
Plugs into the rectangular Universal Serial Bus (USB) port on either a Windows-
or
Macintosh-based computer
PC- or Macintosh-Compatible
The rectangular Universal Serial Bus (USB) plug connects to a Windows or
Macintosh-based computer (Supported on Mac OS 8.6 or 9.X)
Power Saving Features
Power saving technology conserves battery life. when you remove your hand
, it will enter
save mode and puts the mouse into "sleep" mode.
And Simply awaken with a move of the
mouse .
Ergonomic Design
Ergonomic Designed , provides support in a natural,comfortable position .
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902 RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bg9.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 9/15
DATE: 2002/08/01
4.RF Optical Mouse Specification
4-4 RF Characteristics
Frequency Range 912 MHz
Modulation FSK
Channel No. 1
Channel I.D 6 bits → 64
Operation Voltage 3V
Battery AAA*2 Alkaline
batteries.
Batter Life 2 months
TX Power < 0dBm (1mW)
Transmission rate 6K bps
TX FM frequency deviation
60-120 KHz
Frequency tolerance +/- 20ppm
Hardware Resolution 800dpi
Button 3
Transmission Distance 5-7 Meter
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bga.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 10/15
DATE: 2002/08/01

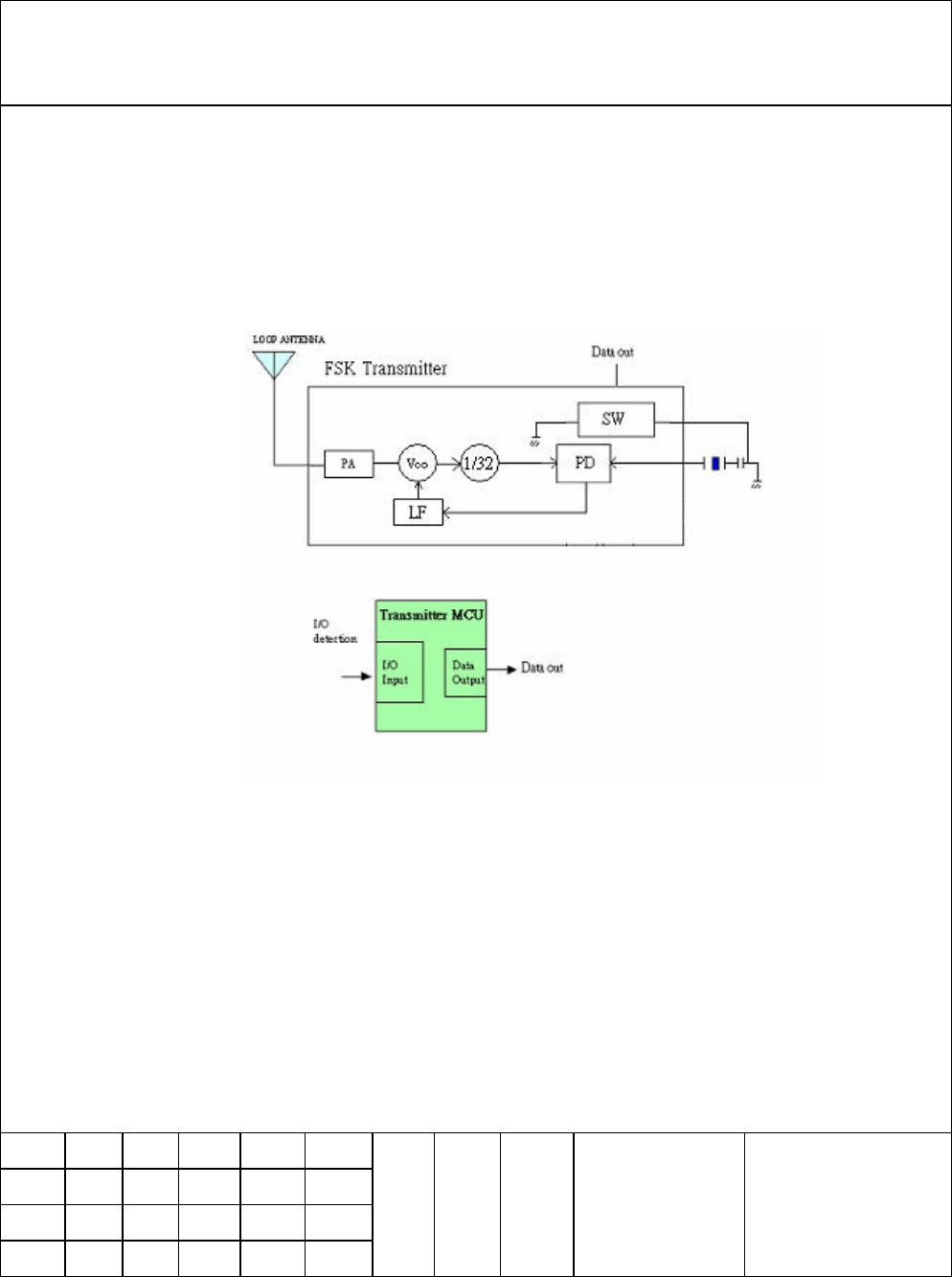

5. Electrical Block Diagram
5-1 FSK (912MHZ) Transmitter
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bgb.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 11/15
DATE: 2002/08/01

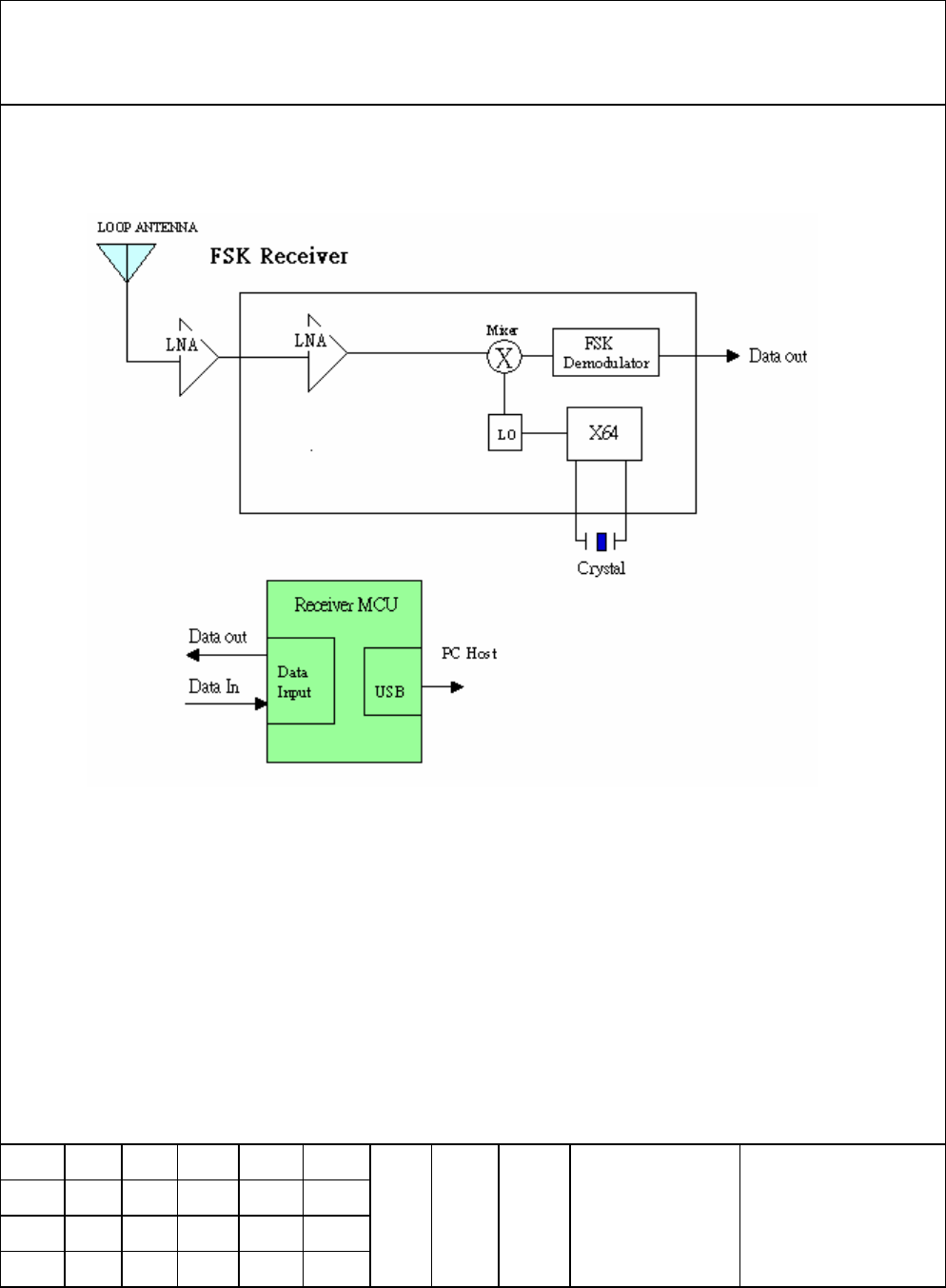

5-2 FSK (912MHZ) Receiver
USB 1.1 compliant The module is a USB high-speed class device
(12 Mbps) and has the full functionality of a USB slave
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bgc.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 12/15
DATE: 2002/08/01
6. Electrical Characteristics:
6.1 GENERAL SPECIFICATION
6.1.1 Operation temperature range : -10 ~ + 55 ℃
6.1.2 Storage temperature range : - 25 ~ + 65 ℃
6.1.3 Relative humidity range : 10 %~ 95 % RH
6.2 Operational Range
Parameter Min Max Unit
Supply Voltage 3.0 3.6 V
Frequency (US) 912MHz+/-50KHz MHZ
Ambient temperature -10 60 ℃
6.3 Electrostatic Discharge (ESD) Sensitivity
Direct discharge:
Test Voltage: Not less than 8 KV for Air discharge
Not less than 4 KV for Contact discharge
Indirect discharge:
Test Voltage: Not less than 4 KV for HCP
Not less than 4 KV for VCP
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bgd.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 13/15
DATE: 2002/08/01
6.4 AC/DC Characteristics
Supply Voltage: VS= 3.0 V
Parameter Min Typ Max Unit
Sleep mode 140 180 uA
Stand by mode 1.6 2 mA
Current
Consumption
Transmit Mode 25 35 mA
Data rate 6K bps
Sensitivity -102 dbm
Transmitter settling time 2.2 ms
Power amplifier output -4 0 2 dbm
Output power (Transmit mode) 1 mW
7.Mechanical Specification
ITEM SPECIFICATION
7.1 Mouse Operating force Max. 150gf in any direction.
7.2 Button operating force (1) Left and right button Max. 150gf
(2) Scroll button Max. 300gf
7.3 Button stroke 0.1 ~ 2.5mm
7.4 Operation speed Max. 200 mm/sec
7.5 Scrolling operation force
Max. 50gf in tangent direction.
△ APPD.
CHKD.
DSGD.
△
△
SYMB. PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bge.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 14/15
DATE: 2002/08/01
8.Endurance
ITEM
SPECIFICATION
8.1
Left and right
button life test
(1) Switching frequency 1~2cycles/sec
(2) Switch Actuation force: 50-100 gram force
(3) Minimum Actuation per Switch 500,000 actuation
8.2
Wheel scroll
button life test
(1) Switching frequency 1~2cycles/sec
(2) Switch Actuation force: 50-100 gram force
(3) Minimum Actuation per Switch 500,000 actuation s
8.3
Drop test
(1)Height 700±20mm
(2) Test surface concrete
(3) Direction free
(4) Test times 3 times
8.3
ESD test
(1) Air Discharge: over 8KV
(2) Contact Discharge: over 4KV
8.4
Scrolling life
Test
(1) Load 50gf tangent load
(2)Speed 200±20mm/sec
(3) Travel 10Km
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
![](/img.php?id=264844&img=bgf.png)
TopSeed Technology Corp.
SPECIFICATION FOR
RF Optical Mouse
PAGE: 15/15
DATE: 2002/08/01

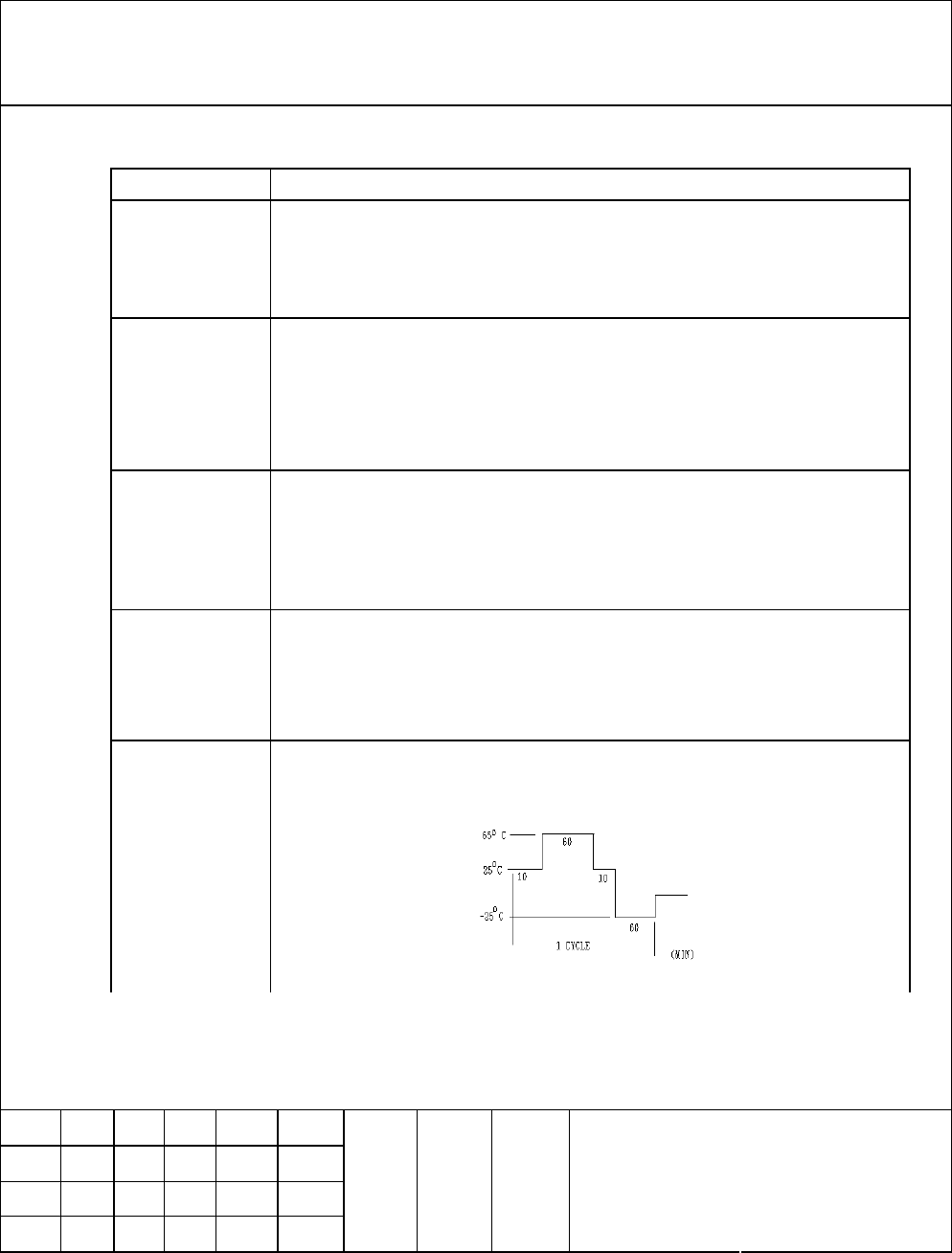

9. Environmental Tests
NOTE: When using RF products, keep away from hi-frog electric products.
△ APPD.
CHKD.
DSGD.
△
△
SYMB.
PAGE
DATE
APPD.
SHKD.
OSGD.
SPEC. NO.
MSBG0002-902
RF Optical Mouse
FSK (912MHZ)
ITEM SPECIFICATION
9.1
Heat load test
Measure initial value at standard testing conditions.
Leave samples in 60±2。C for 96±5 hours, and in
standard
testing conditions for 2 hours, then take measurements
within 1 hour.
9.2
Humidity load
test
Leave samples in 40±5。C for 24±2 hours, and in standard
testing conditions for 2 hours, then take measurements.
Leave samples in 40±5。C, 90~95%RH, for 96±
5 hours, and
in standard testing conditions for 2 hours, then
take
measurements within 1 hour.
9.3
Cold test
Measure initial value at standard testing conditions.
Leave samples in -15±2。C for 96±
5 hours, and in Standard
testing conditions for 2 hours, then take Measurements within
1 hour.
9.4
Vibration test
Vibration test fixture is used to vibrate the tuner with a total
amplitude 1mm and frequency ranging from 10 to 55Hz, once
per minute onsecutively, for
40 minutes in each of three directions. X. Y and Z
9.5
HEAT CYCLE
TEST
Measure initial value at standard testing conditions.
1. Conditions
2.Test
cycle:
10 cycles
