TopSeed Technology TSBQ-403 REMOTE POINTER User Manual MANUAL
TopSeed Technology Corp. REMOTE POINTER MANUAL
MANUAL
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BQ type(433.92MHz)
PAGE : 1
DATE: 2002/01/22
FCC GUIDELINES
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
△ APPD. CHKD. DSGD.
△
△
SYMB. PAGE DATE APPD. SHKD. OSGD.
SPEC. NO.
RCBQ0004-402D
Remote Pointer
FSK (433.92MHz)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Note: This manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BQ type(433.92MHz)
PAGE: 2
DATE: 2003/8/1
△ APPD. CHKD. DSGD.
△
△
SYMB. PAGE DATE APPD. SHKD. OSGD.
SPEC. NO.
RCBQ0004-402D
Remote Pointer
FSK (433.92MHz)
4.RF Remote Pointer Specification
4-10 Key Definition
TopSeed Technology Corp.
SPECIFICATION FOR
Remote Pointer-BQ type(433.92MHz)
PAGE: 3
DATE: 2003/8/1
4-10 Key Definition
Note:
M+1 (Laser On/Off) push together and more than 3 secs.(Red LEDwill be flash)
M+3 (Change ID) push together and more than 3-5 secs.(Green LED will be flash)
M+4 M+4(Alt+Tab) push together
M +5 Power On/Off push together and more than 3 secs.(Green LED will be flash)
Mode Change (M KEY )
MODE 1 : Standard Mode
MODE 2 : Multimedia Mode
MODE 3 : DVR function
Mode 1Mode 2 (Push M key >1 sec;Green LED on)
Mode 1 Mode 3 ( Push M key > 3 sec ; Red LED on)
On Mode 2 or Mode 3 , puch M key will return to Mode 1

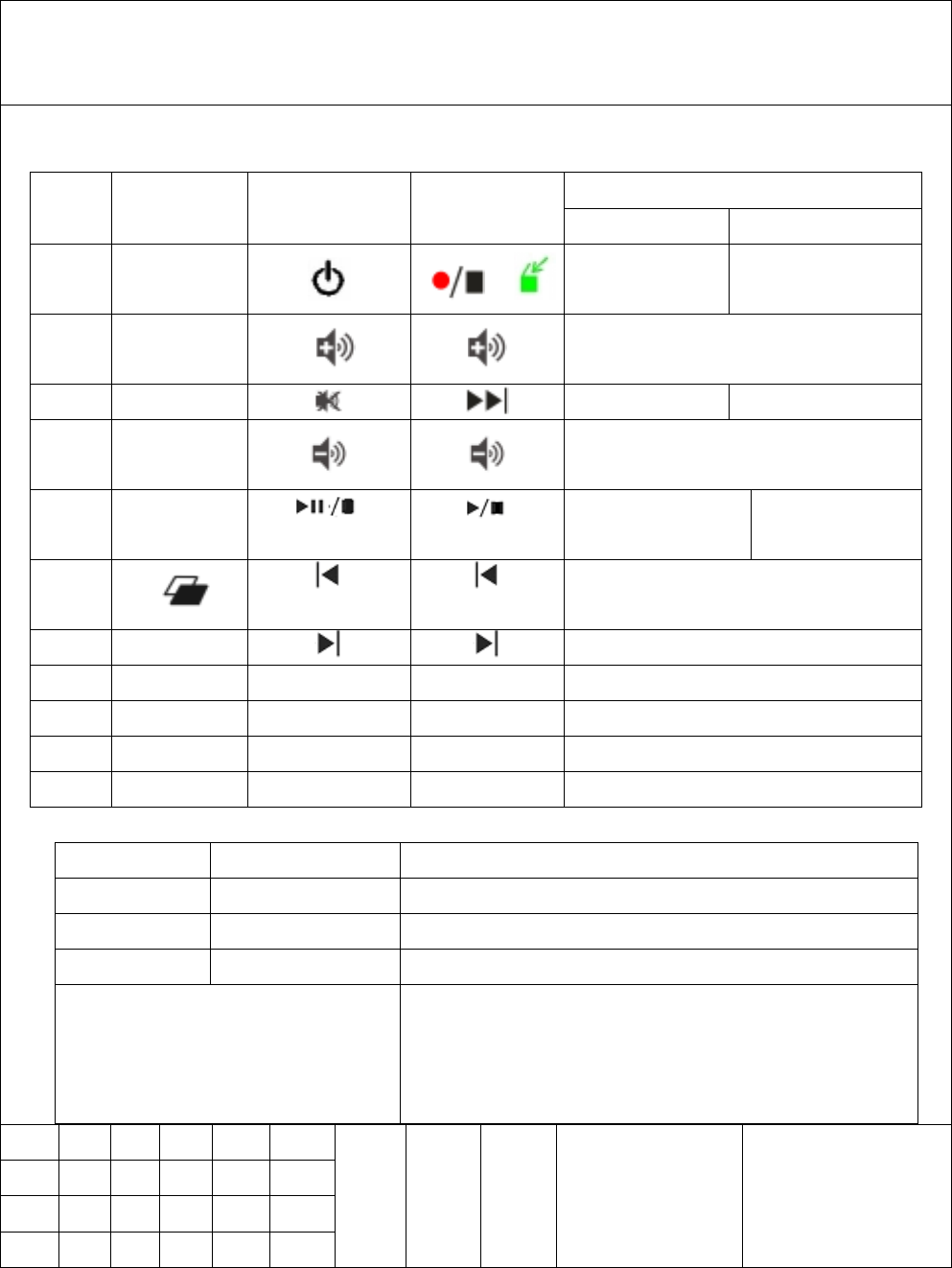

Key Function
Sign Mode1 Mode2
(multimedia)
Mode3
(DVR) (Multimedia) (DVR)
1 Laser on/off
;
Power for
Media player
(REC/Stop)/Erase
( > 5 Sec)
2 Line Up
Volume up
3 Drag Mute Last track
4 Line Down
Volume down
5 F5 (Play/Pause)/stop
( > 3 sec)
Play/stop
6
B Previous track
7 ESC Next track
F Mouse X-Y Mouse X-Y Mouse X-Y Mouse Curse control
A LM LM LM Mouse Left key
B RM RM RM Mouse Right key
△ APPD. CHKD. DSGD.
△
△
SYMB. PAGE DATE APPD. SHKD. OSGD.
SPEC. NO.
RCBQ0004-402D
Remote Pointer
FSK (433.92MHz)
