TopSeed Technology TSCM-2401 2.4GHz RF MOUSE User Manual TSCM 2401 UserMan
TopSeed Technology Corp. 2.4GHz RF MOUSE TSCM 2401 UserMan
USERS MANUAL
TopSeed Technology Corp.
9F-3, No. 16, Jain Ba Rd., Chung Ho City,
Taipei Hsien, Taiwan 235, R.O.C.
TEL: +886-2-8226-3811
FAX: +886-2-8226-3822
Users Manual
Parts Name: RF Mouse -CM type
Part No.: MSCM0001-2401
Model No.: TSCM-2401
Note: FCCID:PTITSCM-2401
TopSeed Technology Corp.
MANUAL for
RF Mouse-CM Type (2.4GHz)
PAGE: 1/3
DATE: 2004/05/02
1. FCC GUIDELINES
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
CAUTION:
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
TopSeed Technology Corp.
MANUAL for
RF Mouse-CM Type (2.4GHz)
PAGE: 2/3
DATE: 2004/05/02
2. Description:
The RF Mouse is a GFSK (Gaussian Frequency Shift Key) Transmitter for
the frequency band 2.4 TO 2.483 GHz ISM band. The RF Mouse offers a
low power consumption, multi-channel, and data rates up to 1M
Kbps ,full-integrated Frequency synthesiser and a high efficiency power
amplifier to drive a loop antenna, A special circuit design and an unique
power amplifier design are used to save current consumption and to save
battery life.
This RF Optical Mouse is a three button designed with 3D scrolling design,
scroll wheel, lets you scroll up and down as desired, when browsing the
Internet or scrolling through any Windows documents With 800
dots-per-inch (DPI) gives reliable control and accuracy.
For the RF Receiver use usb compliant can be easily actuated
without affecting the position of the mouse.
The Radio Frequency designed in this Version of RF Optical Mouse is
GFSK 2.4 TO 2.483 GHz and can be use in a range to 10 Meter from the
Receiver at any directions. The RF Mouse can operate for 3 months with
AA X 2 DC 3V batteries
TopSeed Technology Corp.
MANUAL for
RF Mouse-CM Type (2.4GHz)
PAGE: 3/3
DATE: 2004/05/02

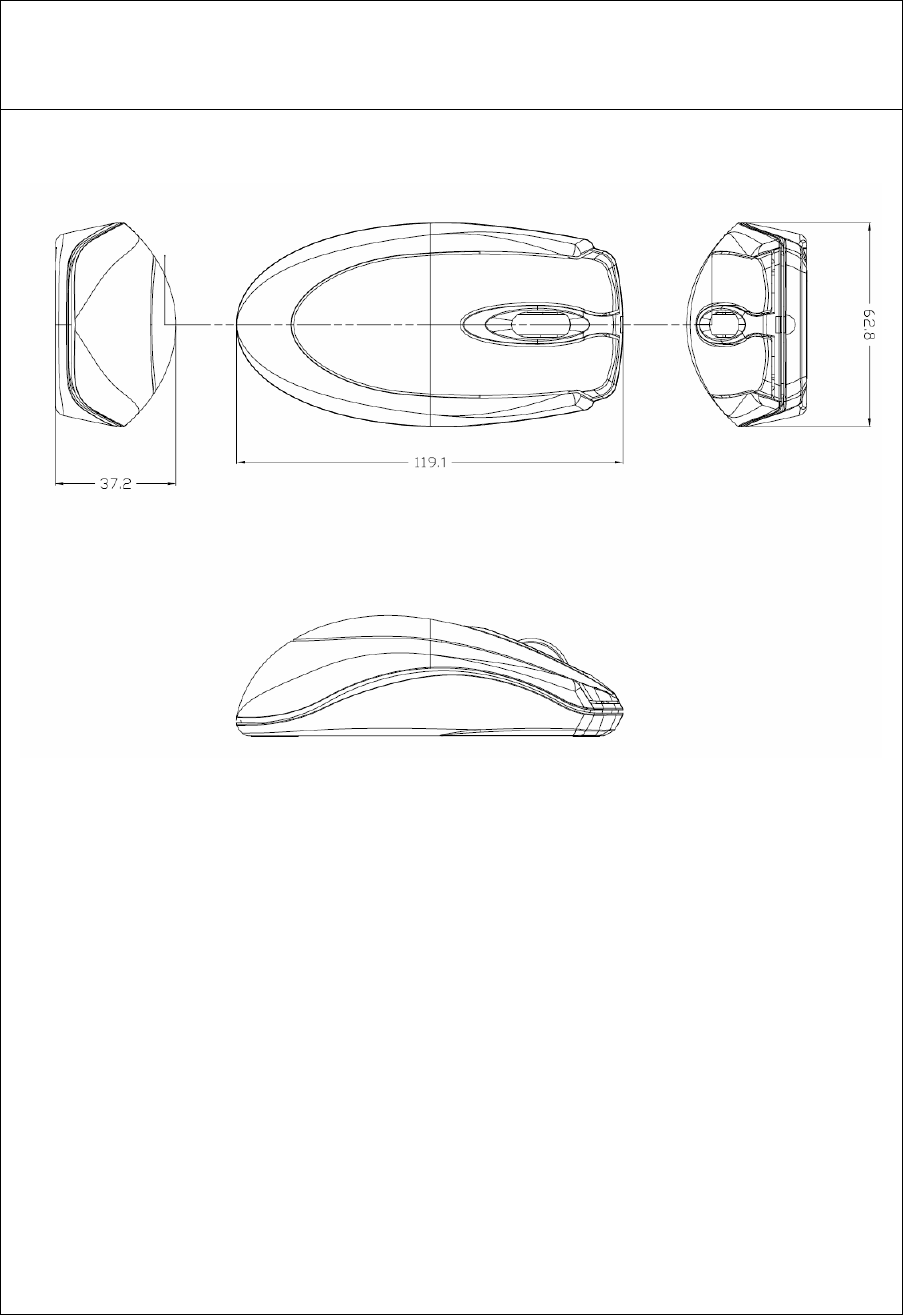

3. Physical Description and Specification:
3.1 Dimensions
The approximate dimensions of the RF Mouse is as follows:
Length 119.1 mm
Width 37.2 mm
Height 62.8 mm
3.2 Weight
Weight of the RF Mouse not to exceed 200 grams (without batteries).
