TopSeed Technology TSCW-2402 2.4GHz WIRELESS KEYBOARD User Manual TGM 6000R UserMan

TopSeed Technology Corp. 2.4GHz WIRELESS KEYBOARD TGM 6000R UserMan

USERS MANUAL

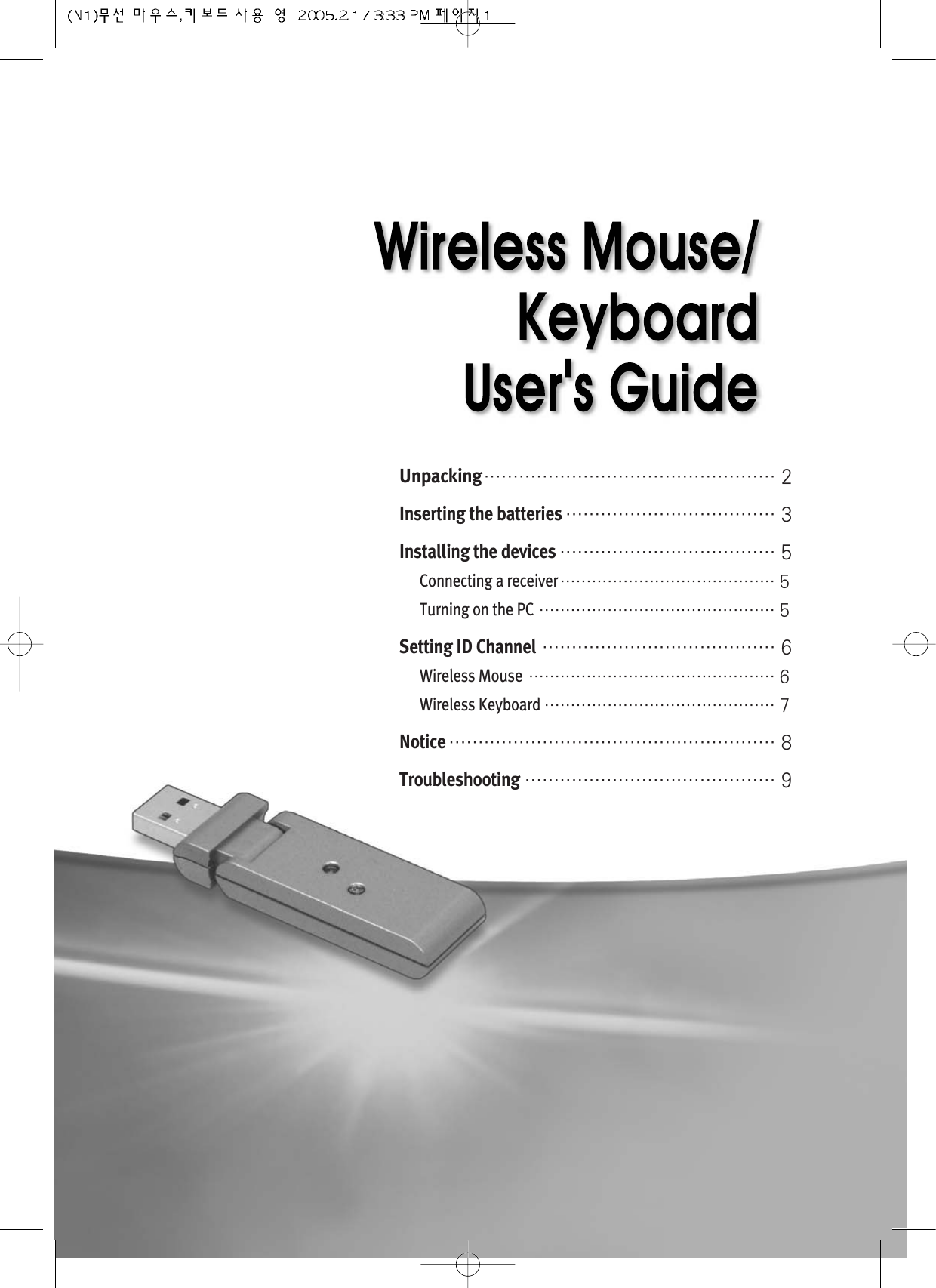

Unpacking Inserting the batteries Installing the devices Connecting a receiver Turning on the PC  Setting ID Channel  Wireless Mouse  Wireless Keyboard  Notice Troubleshooting  

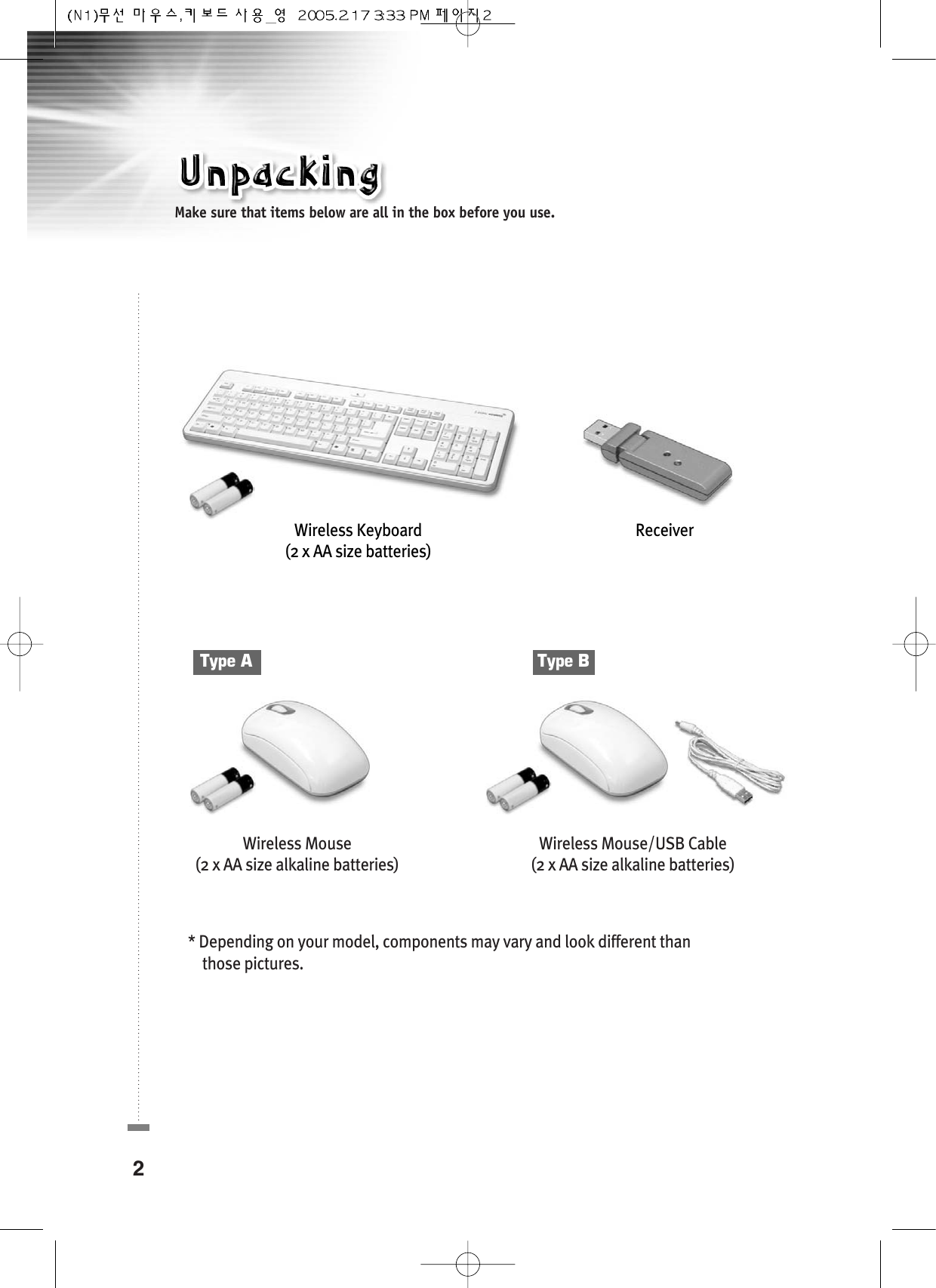

Make sure that items below are all in the box before you use.Wireless Mouse (2 x AA size alkaline batteries)Wireless Mouse/USB Cable(2 x AA size alkaline batteries)* Depending on your model, components may vary and look different thanthose pictures.2Type A Type BWireless Keyboard(2 x AA size batteries)Receiver

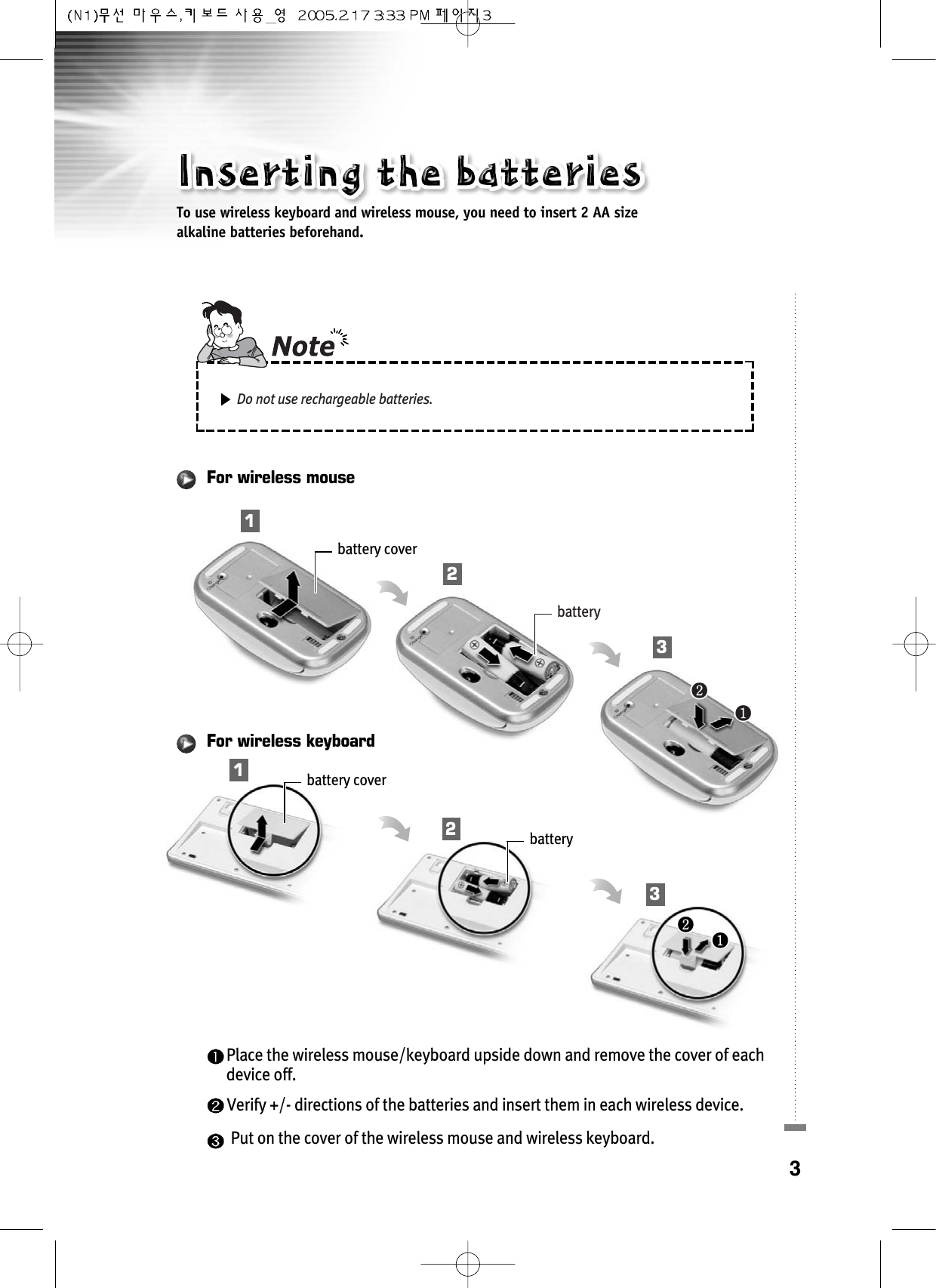

3Place the wireless mouse/keyboard upside down and remove the cover of each device off. Verify +/- directions of the batteries and insert them in each wireless device.Put on the cover of the wireless mouse and wireless keyboard.battery cover󰣢󰣣batteryFor wireless mousebattery cover󰣢󰣣batteryFor wireless keyboardTo use wireless keyboard and wireless mouse, you need to insert 2 AA size alkaline batteries beforehand.123123Do not use rechargeable batteries.

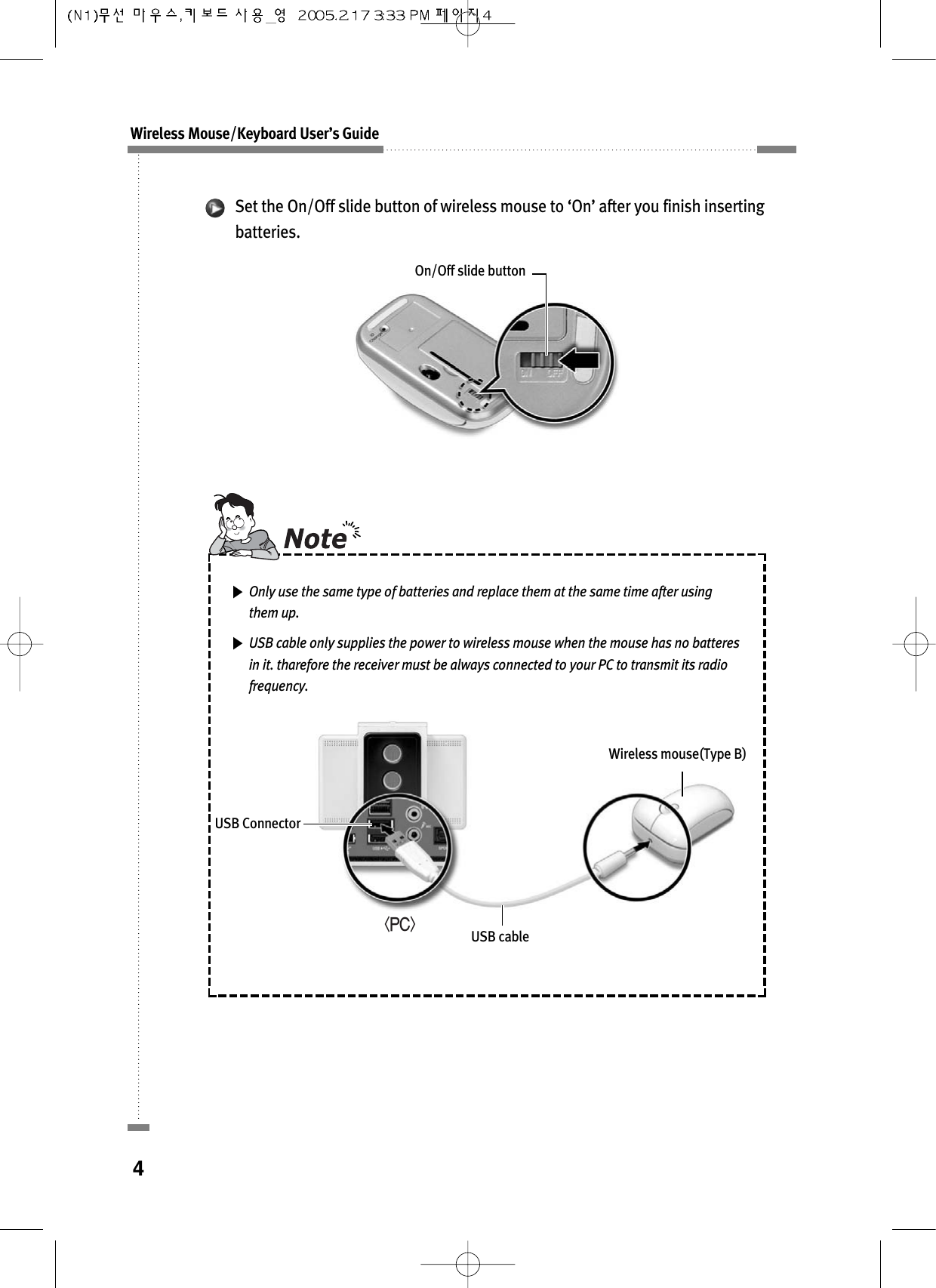

Only use the same type of batteries and replace them at the same time after usingthem up.USB cable only supplies the power to wireless mouse when the mouse has no batteresin it. tharefore the receiver must be always connected to your PC to transmit its radiofrequency.On/Off slide buttonWireless Mouse/Keyboard User’s Guide4USB ConnectorUSB cableWireless mouse(Type B)Set the On/Off slide button of wireless mouse to ‘On’ after you finish insertingbatteries.

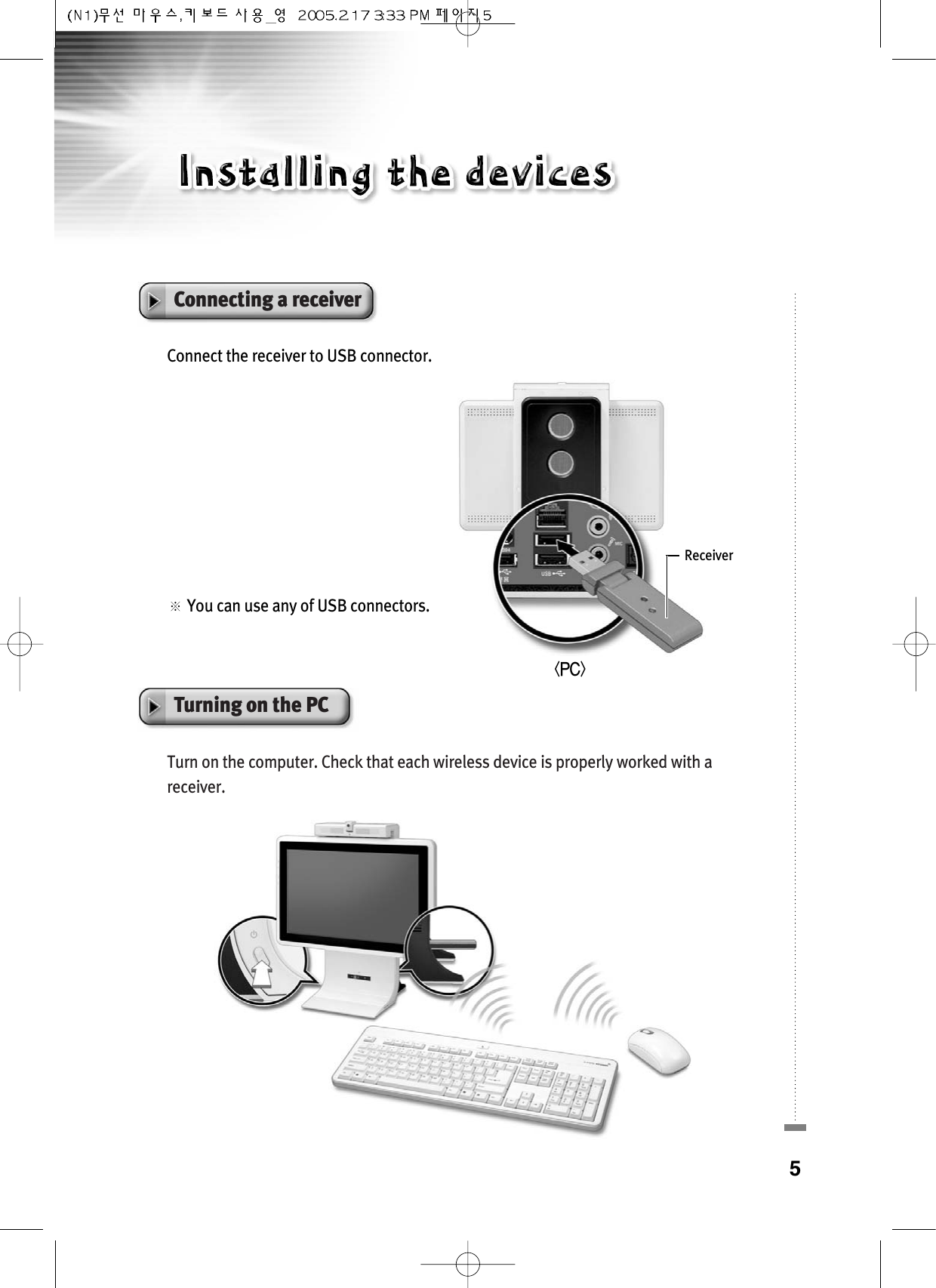

Receiver5Connect the receiver to USB connector.You can use any of USB connectors.Connecting a receiverTurn on the computer. Check that each wireless device is properly worked with areceiver.Turning on the PC

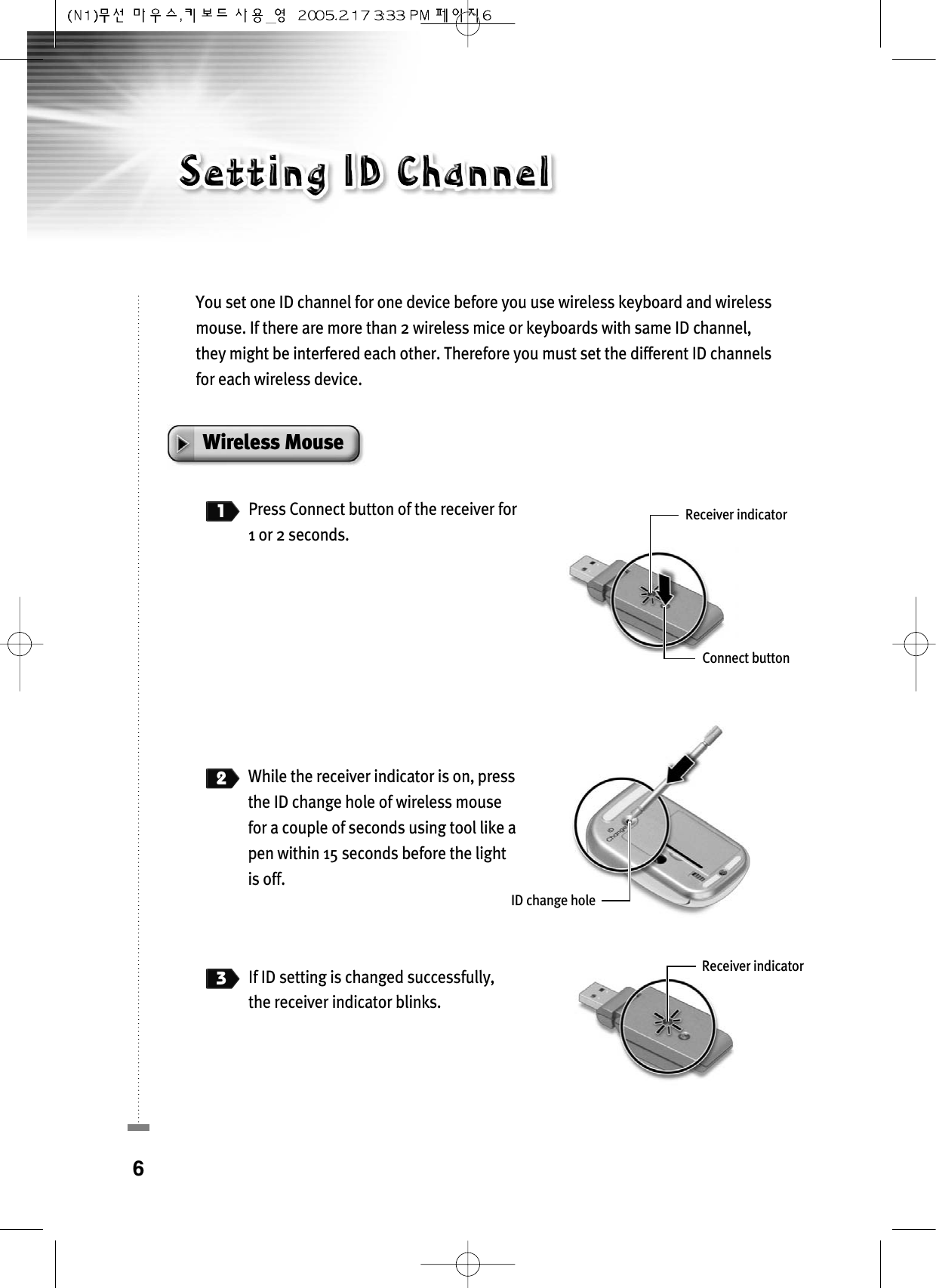

You set one ID channel for one device before you use wireless keyboard and wirelessmouse. If there are more than 2 wireless mice or keyboards with same ID channel,they might be interfered each other. Therefore you must set the different ID channelsfor each wireless device.Wireless Mouse1Press Connect button of the receiver for1 or 2 seconds.2While the receiver indicator is on, pressthe ID change hole of wireless mousefor a couple of seconds using tool like apen within 15 seconds before the lightis off.3If ID setting is changed successfully, the receiver indicator blinks.6Receiver indicatorID change holeReceiver indicatorConnect button

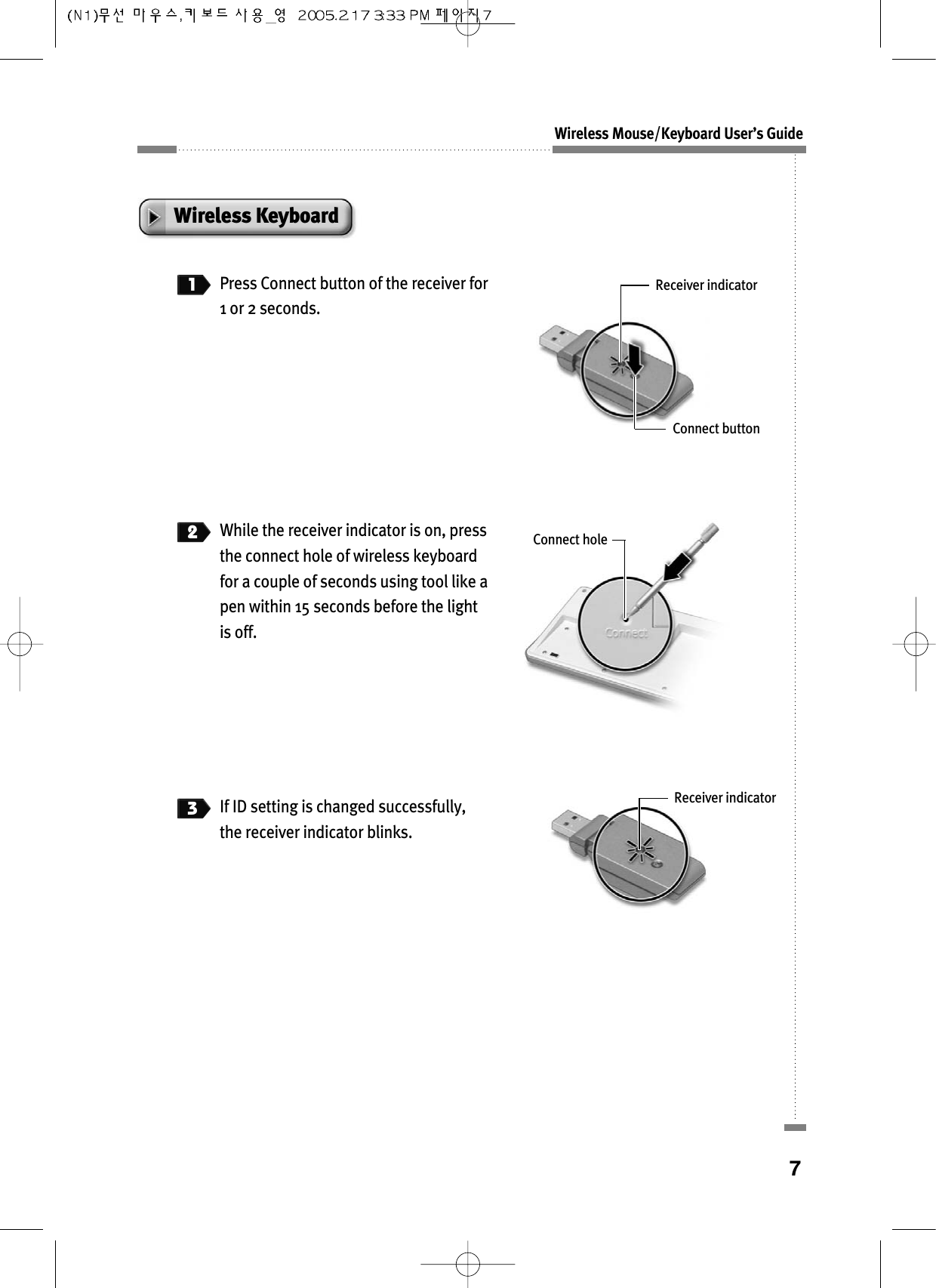

Wireless Keyboard1Press Connect button of the receiver for1 or 2 seconds.2While the receiver indicator is on, pressthe connect hole of wireless keyboardfor a couple of seconds using tool like apen within 15 seconds before the lightis off.3If ID setting is changed successfully,the receiver indicator blinks.Receiver indicatorReceiver indicatorConnect buttonConnect holeWireless Mouse/Keyboard User’s Guide7

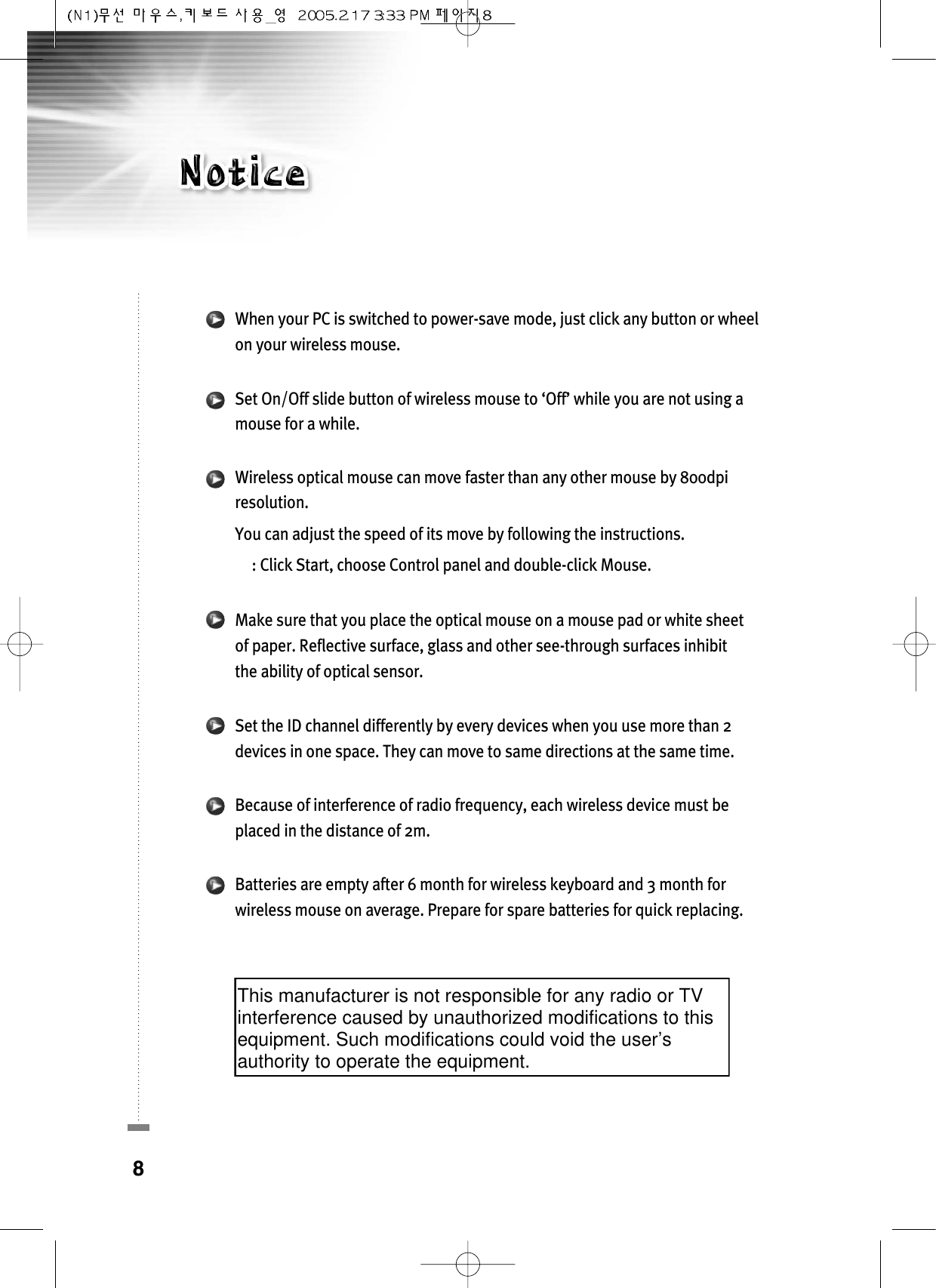

8When your PC is switched to power-save mode, just click any button or wheelon your wireless mouse.Set On/Off slide button of wireless mouse to ‘Off’ while you are not using amouse for a while.Wireless optical mouse can move faster than any other mouse by 800dpiresolution.You can adjust the speed of its move by following the instructions.: Click Start, choose Control panel and double-click Mouse.Make sure that you place the optical mouse on a mouse pad or white sheetof paper. Reflective surface, glass and other see-through surfaces inhibitthe ability of optical sensor.Set the ID channel differently by every devices when you use more than 2devices in one space. They can move to same directions at the same time.Because of interference of radio frequency, each wireless device must beplaced in the distance of 2m.Batteries are empty after 6 month for wireless keyboard and 3 month forwireless mouse on average. Prepare for spare batteries for quick replacing.This manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
9The receiver is not properly connected to USB port on your computer.Plug the receiver to another USB port and restart your computer.Wireless Keyboard and mouse do not respond to move.Place the mouse on a mousepad or white sheet of paper.Mouse cursor moves too slow or functions badly.Wireless keyboard and mouse batteries are low or empty.Replace the two AA alkaline batteries in the wireless keyboard and mouse.Wireless keyboard and mouse do not work properly.
