Bluetooth PCMCIA
VISA Presenter
Manual
Bluetooth PCMCIA VISA Presenter
Brand: Topseed
Model: TSDL-BT04
2/ 7
＊ Warning Statement……........ 3 , 4
＊ Before you start…………...... 5 , 6
＊ Key Definition…...……..…... 7
＊ Certification………………… 7
Bluetooth PCMCIA VISA Presenter
Brand: Topseed
Model: TSDL-BT04
3/ 7
Warning Statement
FCC Guidelines
15.105 Federal Communications commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
---Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
15.21
CAUTION: any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired o
p
eration.
Caution Statement of the FCC Radio Frequency Exposure
This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found
compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and
15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation output
power of this Wireless LAN device is far below the FCC radio frequency exposure limits.
Nevertheless, this device shall be used in such a manner that the potential for human contact
during normal operation—as a mobile or portable device but use in a body-worn way is strictly
prohibit. When using this device, a certain separation distance between antenna and nearby
persons has to be kept to ensure RF exposure compliance.
Bluetooth PCMCIA VISA Presenter
Brand: Topseed
Model: TSDL-BT04
4/ 7
Declaration of Conformity for R&TTE directive 1999/5/EC
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been
conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 440-2 has been conducted. These are considered
relevant and sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this device is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are considered
relevant and sufficient.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Bluetooth PCMCIA VISA Presenter
Brand: Topseed
Model: TSDL-BT04
5/ 7
＊ Before you start
Step 1
Please make sure the Bluetooth device was set up in you computer.
(As logo showed. )
Step 2
Switch the power on at left side of
the presenter.
Step 3
Please press and hold both of ” ”
and ” ” buttons more than 5 seconds,
it will into the pairing mode, and the red
LED will blink.
Step 4
Click bluetooth logo at your computer
to set up the connection between the
presenter and your bluetooth device.
-> Click next step as the screen showed.
Bluetooth PCMCIA VISA Presenter
Brand: Topseed
Model: TSDL-BT04
6/ 7

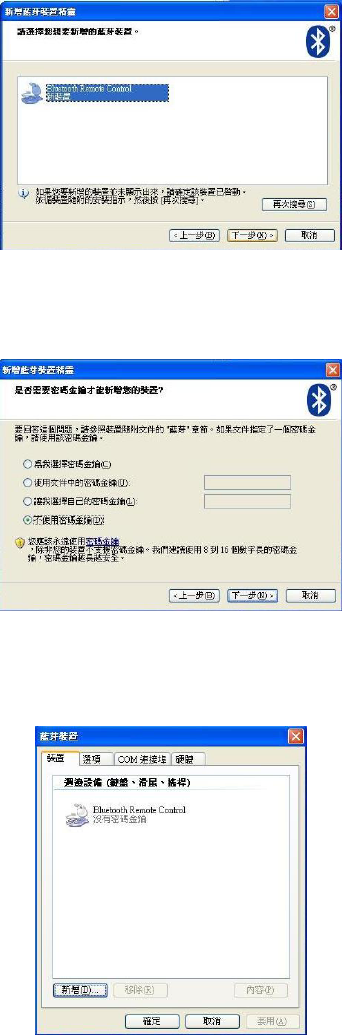

Step 5
Then the presenter is recognizing by your
computer.
( Device name : Bluetooth Remote Control )
-> Click next step
Step 6
Password Setting:
Please click the “Don’t use password” as the
screen showed.
Step 7
The set up is completed.
Bluetooth PCMCIA VISA Presenter
Brand: Topseed
Model: TSDL-BT04
7/ 7
＊ Key Definition
Symbol Function Key definition
Laser on/off
Push laser button to illuminate laser beam, release to
turn off (or goes off automatically in 50 seconds if you
don't release
Slide Forward Perform the next animation or advance to the next slide
Slide Back Perform the previous animation or return to the previous
Enter/Exit
Slideshow
F5 : Enter slideshow (put the function button once )
ESC: Push function button and hold for 3 seconds when
in slideshow.
Black Screen
Push and hold function button for 3 seconds when in
slideshow (do it again to go back to original slide) or
push page up to go directly to next slide)
Warning:
1. Remote Power On/Off: Slide SW for Remote Power On/Off.
2. Low battery detecting, the red LED will flashed per 4 seconds.
3. Please note it is danger to let the laser be into the eye directly, please avoid that.
4. This is not toy, please don’t let child get it.
＊ Certification:
1) FCC:
2) CE:
3) DGT:
4) BSMI:
5) BQB : BQ 10017920
Bluetooth PCMCIA VISA Presenter
Brand: Topseed
Model: TSDL-BT04
FCC ID: PTITSDL-BT04
!
