TopSeed Technology TSEI-2404 2.4G REMOTE POINTER User Manual TSEI 2404 UserMan
TopSeed Technology Corp. 2.4G REMOTE POINTER TSEI 2404 UserMan
USERS MANUAL
TSEI-2404
1 / 5
Physical Description and Specification:
This RF Remote designs for Microsoft’s Media Center Operation System
exclusive hot keys etc. friendly operation without Driver limitation. For the RF
Receiver Dangle use with USB 1.1 compliant can be easily actuated It can be use in a
range about 10 Meter from the Receiver and Battery life can operate for 6 months
with AAA X 2 DC 3V batteries.
Dimensions:
The approximate dimensions of the Remote pointer is as follows:
L X W X H 215mm X 47.5 mm X 31.5 mm
Weight:
Weight of the IR Remote not to exceed 150 grams (without batteries).
TSEI-2404
2 / 5

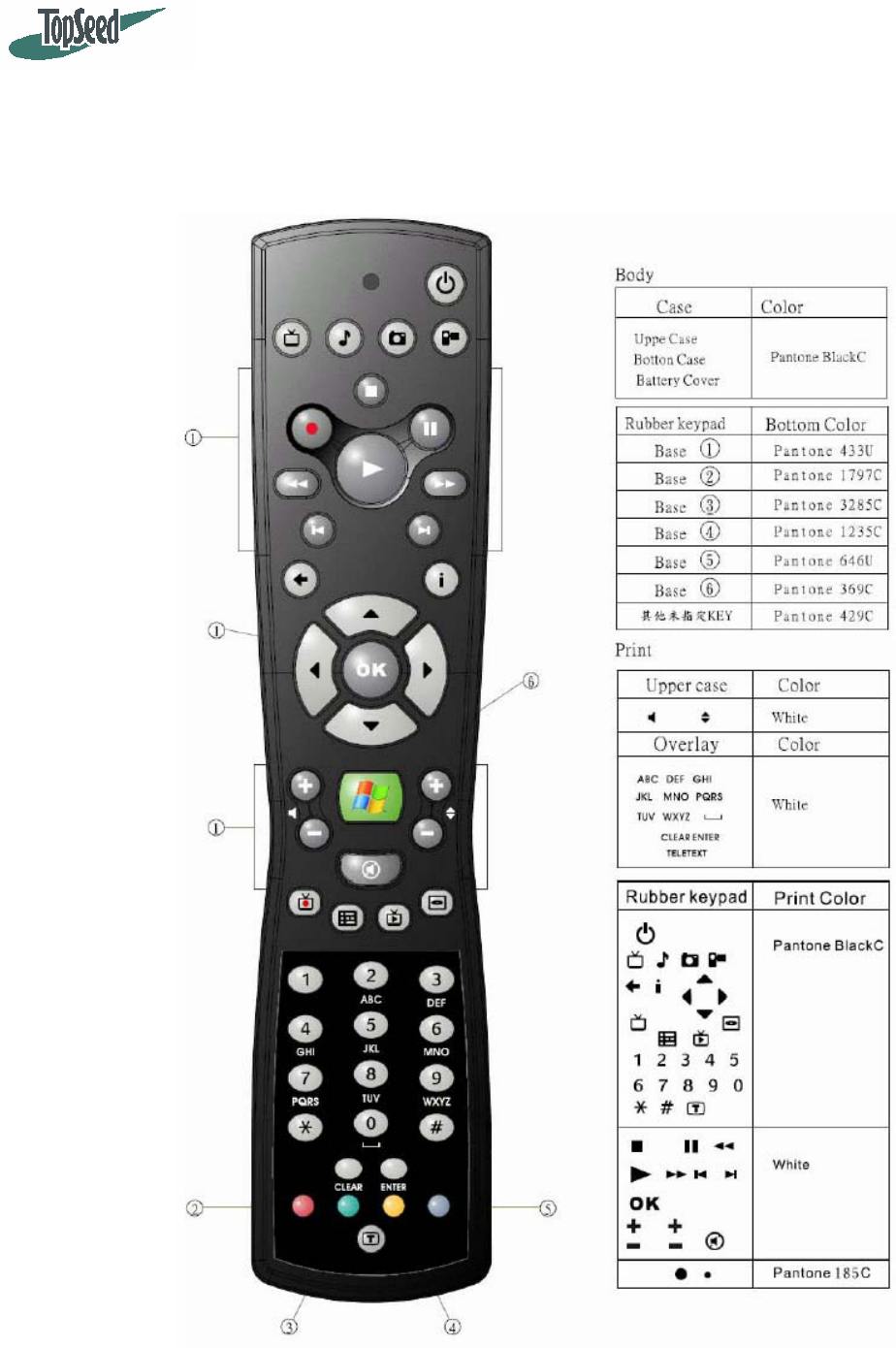

Key Definition:
TSEI-2404
3 / 5

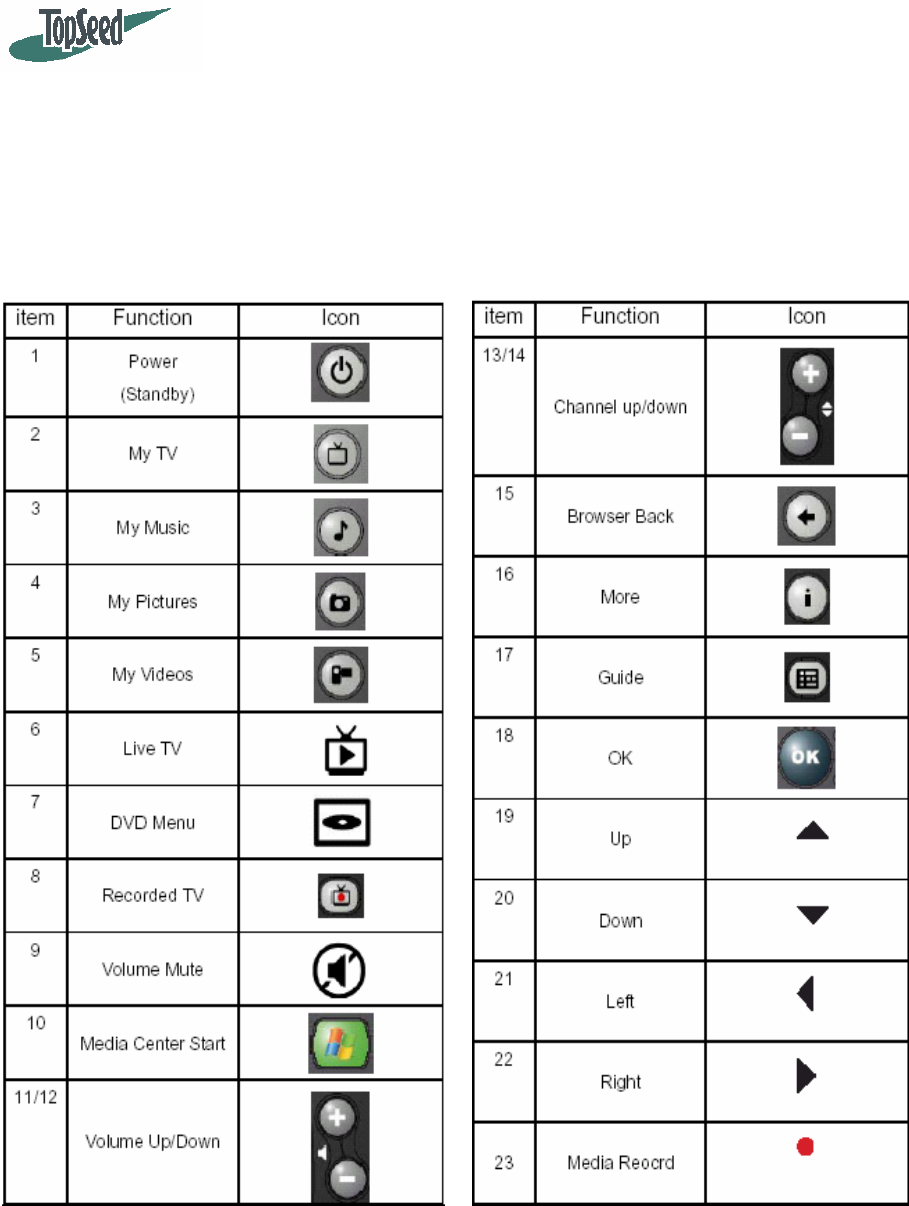

IR Remote Button layout-Key Definition:
TSEI-2404
4 / 5

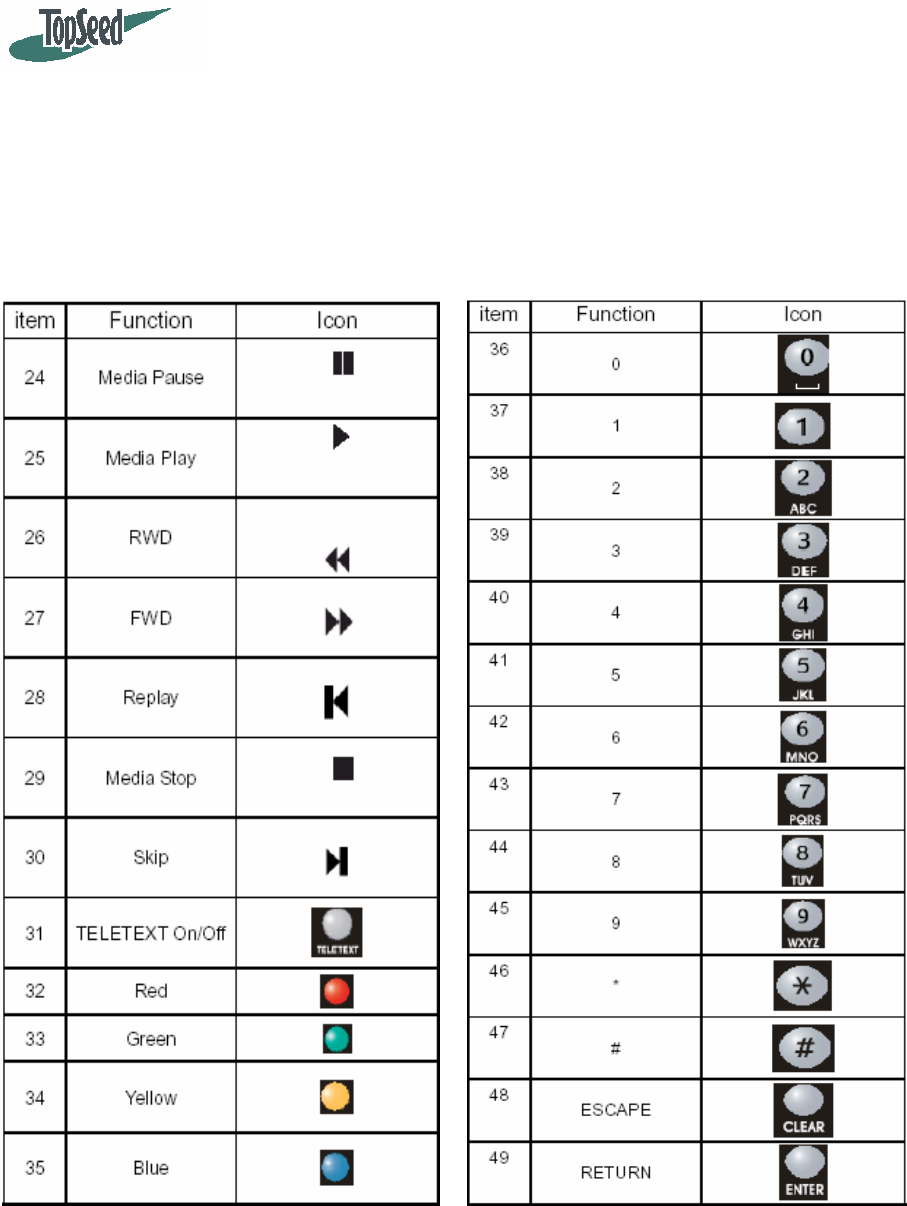

IR Remote Button layout-Key Definition:
TSEI-2404
5 / 5
Appendix: Warning Statement
FCC Guidelines
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
Declaration of Conformity for R&TTE directive 1999/5/EC
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are considered
relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been
conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 440-2 has been conducted. These are considered
relevant and sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this device is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
