TopSeed Technology TSEJ-401 REMOTE POINTER User Manual TSEF 401 UserMan
TopSeed Technology Corp. REMOTE POINTER TSEF 401 UserMan
USERS MANUAL
TSEJ-401
1 / 3
Physical Description and Specification:
This Remote Pointer is a best companion of Microsoft Power Point designed,
lets you Slide Forward, Slide Back , Blank functions , F5 and Esc as desired, when
browsing the Internet or scrolling through any Windows documents gives reliable
control and accuracy. Flex Pointer RF's radio frequency wireless technology solves
all of your presentation input needs.
For the RF Receiver use with USB 1.1 compliant can be easily actuated without
affecting the position of the Flex Pointer.
The Radio Frequency designed in this Version of Remote Pointer is FSK
433.92MHz and can be use in a range of up to 10 Meter from the Receiver at any
directions. The Flex Pointer can operate for 6 months with CR2032 DC 3V
Lithium battery.
The approximate dimensions of the Remote Pointer is as follows:
Length X Width X Height => 85mm X 53.2mm X 13.6 mm
Weight of the Remote Pointer not to exceed 40 grams (with battery)
TSEJ-401
2 / 3

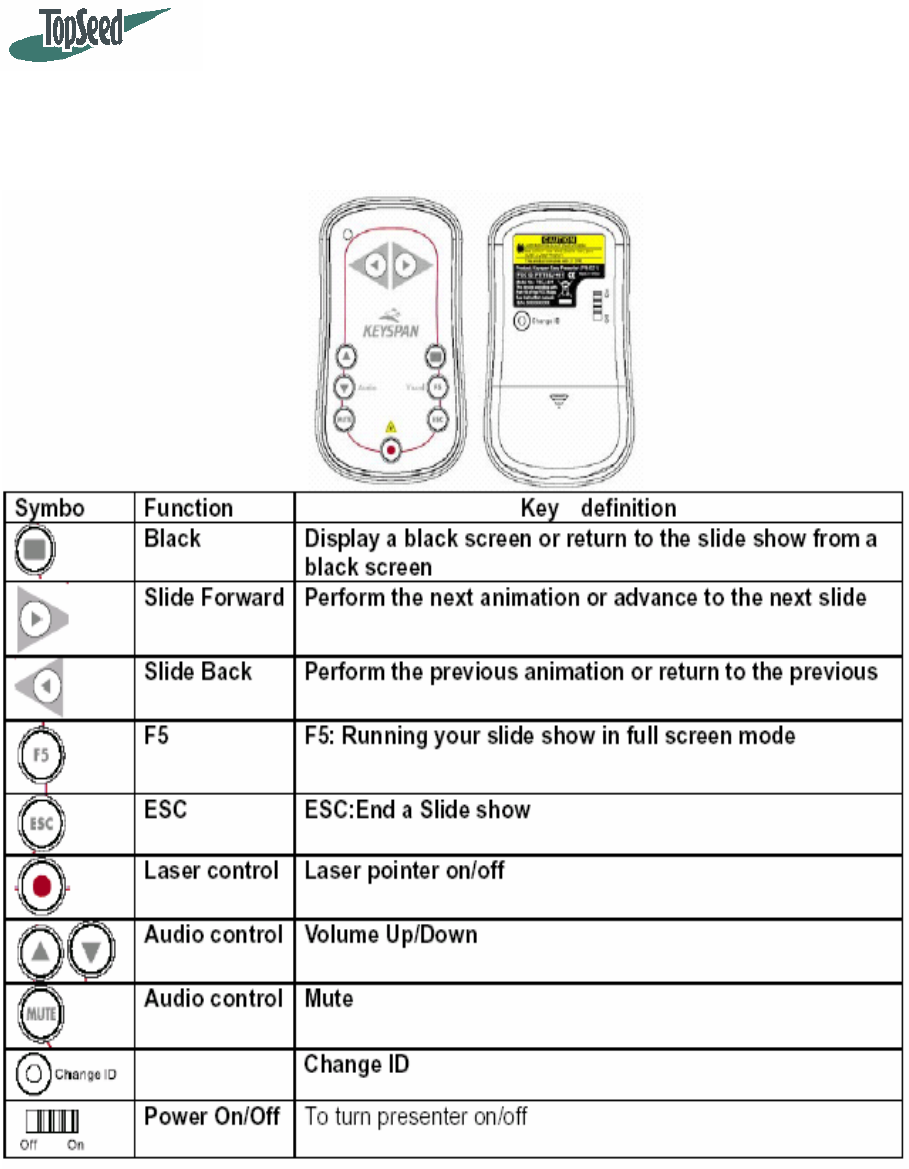

Key Definition:
TSEJ-401
3 / 3
Appendix: Warning Statement
FCC Guidelines
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Declaration of Conformity for R&TTE directive 1999/5/EC
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are considered
relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been
conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 220-3 has been conducted. These are
considered relevant and sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this device is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
