TopSeed Technology TSFC-2401 2.4G RF REMOTE POINTER User Manual TSFC 2401
TopSeed Technology Corp. 2.4G RF REMOTE POINTER TSFC 2401
USERS MANUAL
1 / 3
TSFC-2401
User’s Manual
Physical Description and Specification:
The RF Remote Pointer is a GFSK (Gaussian Frequency Shift Key) Transmitter for
the frequency band 2.4 TO 2.483 GHz ISM band. The Remote Pointer offers a low
power consumption, multi-channel, and data rates up to 250Kbps ,full-integrated
Frequency synthesiser and a high efficiency power amplifier to drive a loop antenna, A
special circuit design and an unique power amplifier design are used to save current
consumption and to save battery life.
This RF Remote Pointer is a best companion of Projector with Laser pointer
designed, gives reliable control and accuracy. Remote Pointer RF's radio frequency
wireless technology solves all of your presentation input needs.
The Radio Frequency designed in this Version of RF Remote Pointer is GFSK
2.4GHz to 2.483GHz and can be use in a range over 20 Meter from the Receiver at any
directions(Free Space). The Remote Pointer can operate for 6 months AAA x 2 Alkaline
3V batteries
Dimensions:
The approximate dimensions of the remote’s transmitter is as follows:
L X W X H 95mm X 40mm X 16.5mm
Weight:
Weight of the RF Flex Pointer not to exceed 60 grams (with batteries).
2 / 3
TSFC-2401

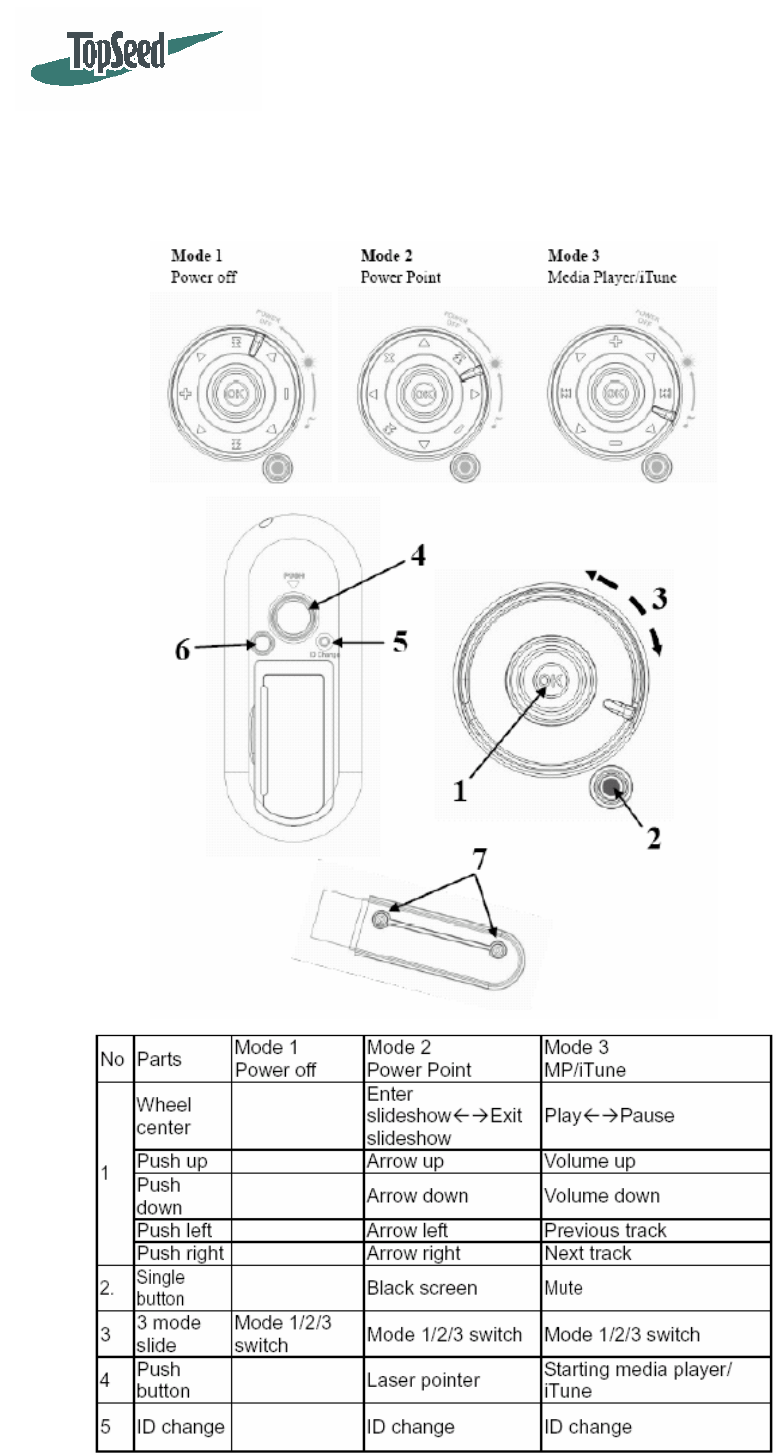

Functions introduction:
3 / 3
TSFC-2401
Appendix: Warning Statement
FCC Guidelines
Declaration of Conformity for R&TTE directive 1999/5/EC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been
conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 440-2 has been conducted. These are considered
relevant and sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this device is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are considered
relevant and sufficient.
