TopSeed Technology TSGP-2404 2.4GHz RF VISTA REMOTE CONTROL User Manual RCGP0012AG 2404 20061220
TopSeed Technology Corp. 2.4GHz RF VISTA REMOTE CONTROL RCGP0012AG 2404 20061220
USERS MANUAL
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 1 / 10
Product Specification
Vista Remote control & Receiver – 2.4 GHz
Product Name: RF Vista Remote
Product No.: RCGP0012AG-2404
Model No.: TSGP-2404, TSBX-2404
Reversion: Ver.01
Date: 12/20/2006
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 2 / 10
Revision History:
Revision Release Date Remarks Edited by Approved by
Ver 01 12/20/2006 Launch Eddie Amen
Approved by
Topseed: Eddie Feng Topseed: Amen Chi
Date: 2006/12/20 Date: 2006/12/20
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 3 / 10

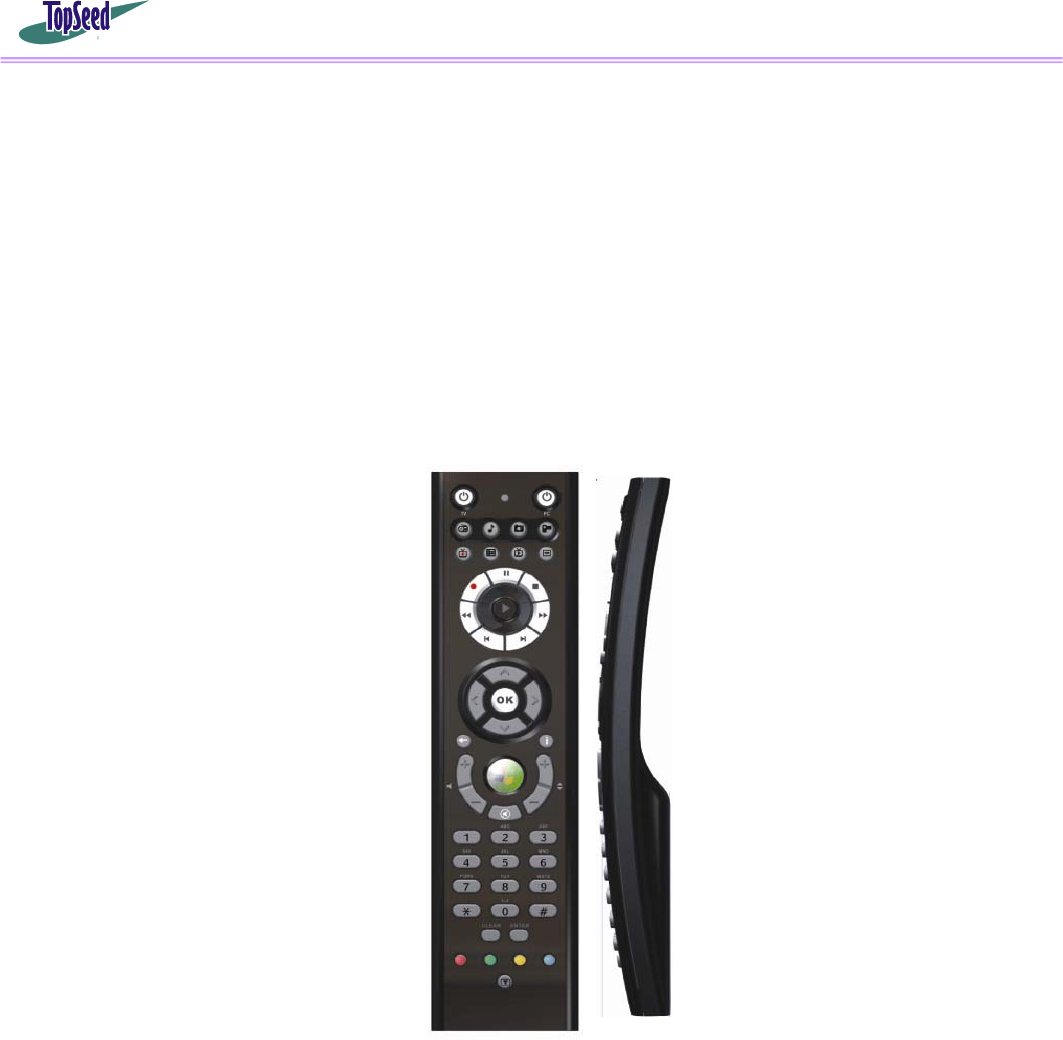

1. About RF VISTA Remote
1.1. Preliminary Product Specification:
1.2.1. Scope:
This Spec. provides an overview of the required Vista remote control and receiver
functionality for Windows® Media Center in the Windows Vista™ Home Premium
and Windows Vista Ultimate operating systems. The “Vista” product includes
- an RF Remote Control ( 2.4 GHz)
- an USB Receive dangle
- a manual and 2 AAA battery.
1.2.2. General:
1.2.2.1. Batteries: 2 AAA batteries are designed to be used in RF VISTA remote to
support at least 6 months normal usage.
1.2.2.2. Restricted Substances and Environmental Requirements : all the materials
and manufacturing process used to produce RF VISTA remote must
comply to RoHS requirements
1.2.2.3. RoHS ( we can put some RoHS requirements here and state that all the
materials used in the product specification complies to RoHS
requirements )
1.2.3. Ergonomics Requirements:
This product was designed to be ergonomics for all users.
1.2.3.1. The ergonomic remote design is to fit into users’ palms to reduce the
discomfort caused by long time usage.
1.2.3.2. The symmetrical design is to be fit for both left-handed and right-handed
users to reduce the discomfort or strain caused to users.
1.2.3.3. Every key designed on the remote is to be designed easy to reach for
users for easy usability and reduce strain.
1.2.4. Product Functional Requirements:
1.2.4.1. Operation System: Vista needs to be functional when working under
Windows® Media Center in the Windows Vista™ Home Premium and
Windows Vista Ultimate operating systems.
1.2.4.2. Interface: Receiver needs to be working under USB 1.1 and 2.0 Interface.
1.2.4.3. PC Host Hardware Compatibility: Vista need to be compatible with the PC
host which runs Windows® Media Center in the Windows Vista™ Home
Premium and Windows Vista Ultimate operating systems.
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 4 / 10
1.2.4.4. Range Requirements: the transmission of the remote control shall be at
least 10 meters with optical filter in place.
1.2.4.5. RF Protocol: Using Topseed Standard RF protocol with HID Driver.
1.2.4.6. Teletext: Teletext buttons are required in locales that support Teletext
functionality. These buttons are used for Integrated Services Digital
Broadcasting (ISDB) data functions in addition to Teletext. Teletext buttons
appear below the numeric keypad on the remote control.
1.2.4.7. Frequency Range : 2.4 to 2.483 GHz (16 multi channels and 65535 ID
channels for Remote Pointer)
1.2.4.8. Battery Life : 2 AAA batteries to provide at least 6 months normal usage
1.2.5. Detailed Product Specification – RF Remote Control
1.2.5.1. 2.4GHz RF VISTA Remote Control
Item Standard Specification Option
Frequency Range 2.4GHz-2.483 GHz
Modulation GFSK ---
Channel Spacing 1 MHz ---
Channel No. 16 ---
Channel I.D 65535
TX Power 1 mW
Transmission rate 1M bps
TX frequency deviation +/- 156 KHz
Frequency tolerance +/- 20ppm
Distance of Transmission 10 m min.
RF
Characteristics
(TX)
Antenna type PCB Track
Input power AAA*2 DC 3V batteries. ---
working mode 7mA Power
Consumption saving mode 200uA
Battery AAA*2 DC 3V batteries Power
Batter Life 6 months
Supply Voltage DC 2.2V ~ 3.4V --- Electrical
Performance Button 50 ---
Dimension 205 x 48 x 24 mm ---
Key Operating Force 105 ± 40 gf
Operating Stroke 0.9 ± 0.1 mm ---
Mechanical
Performance
Keytop Material Silicon Rubber ---
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 5 / 10

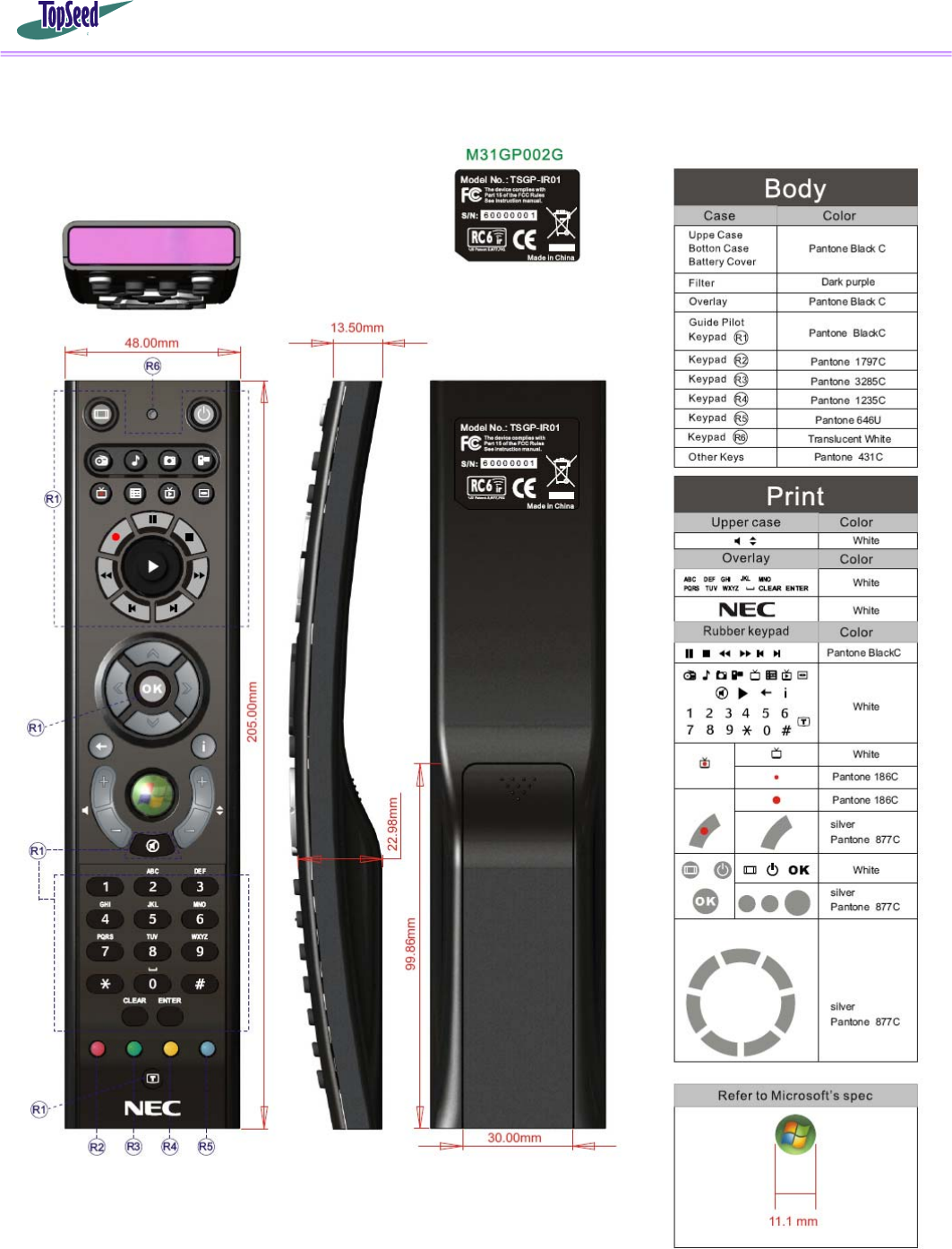

Physical Description and Specification – Text type -Teletext
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 6 / 10

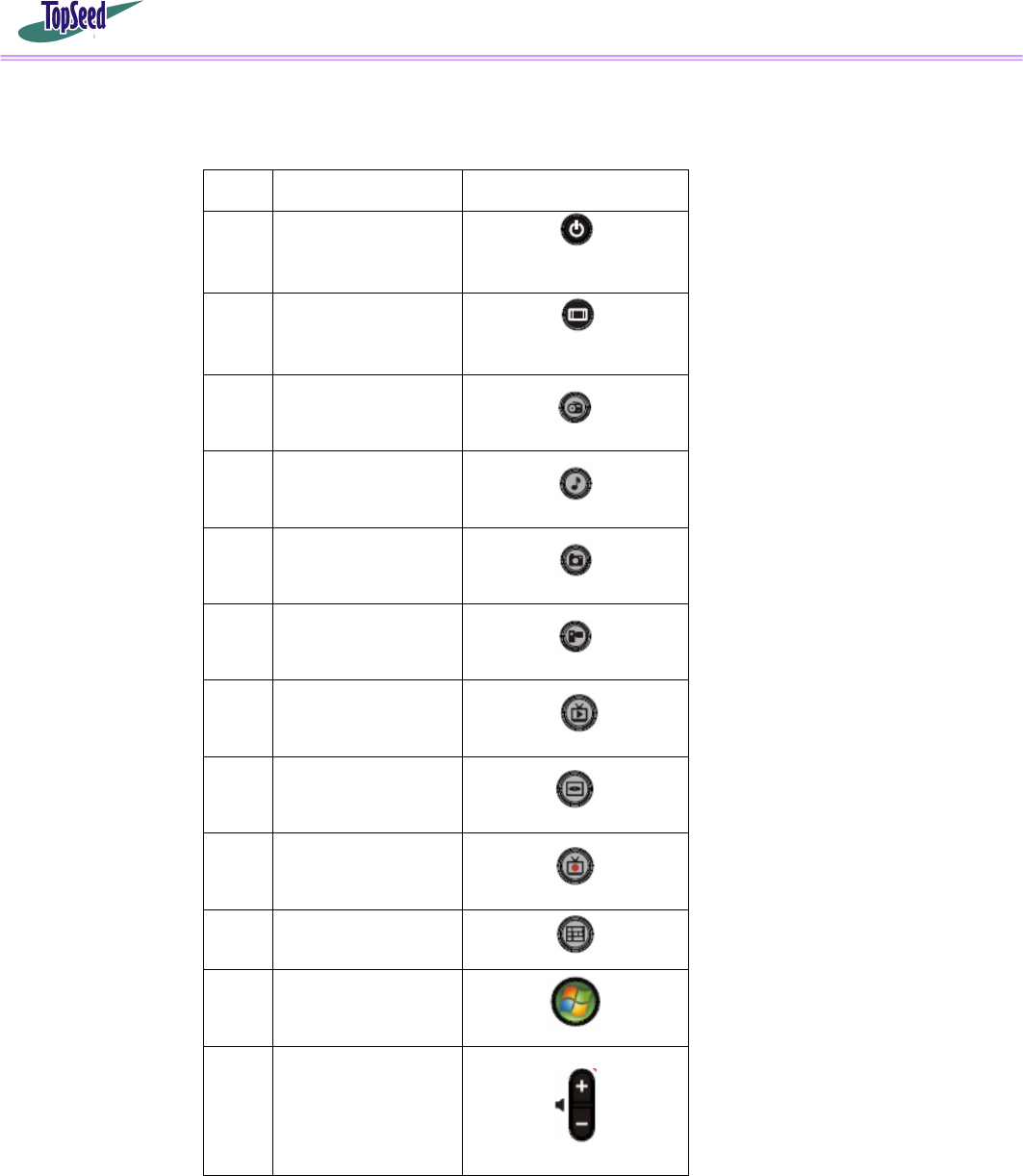

1.2.5.3. Remote Control Buttons
item Function Icon
1 Power
(Standby)
2
Zoom
3 My Radio
4 My Music
5 My Pictures
6 My Videos
7 Live TV
8 DVD Menu
9 Recorded TV
10 Guide
11 Media Center Start
12/13
Volume Up/Down
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 7 / 10

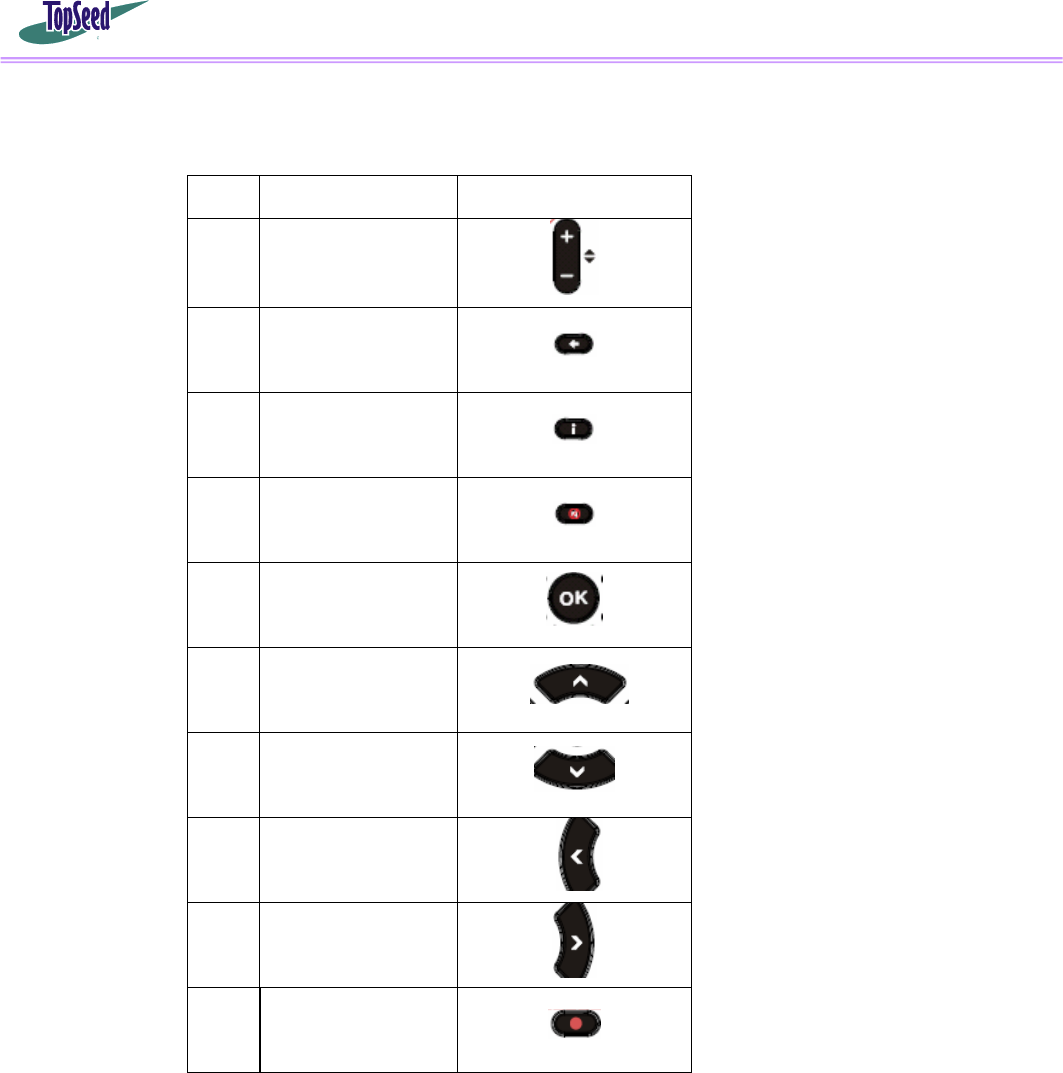

1.2.5.2. Remote Control Buttons (cont.)
item Function Icon
14/15
Channel up/down
16
Browser Back
17
More
18
Volume Mute
19
OK
20
Up
21
Down
22
Left
23 Right
24 Media Reocrd
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 8 / 10

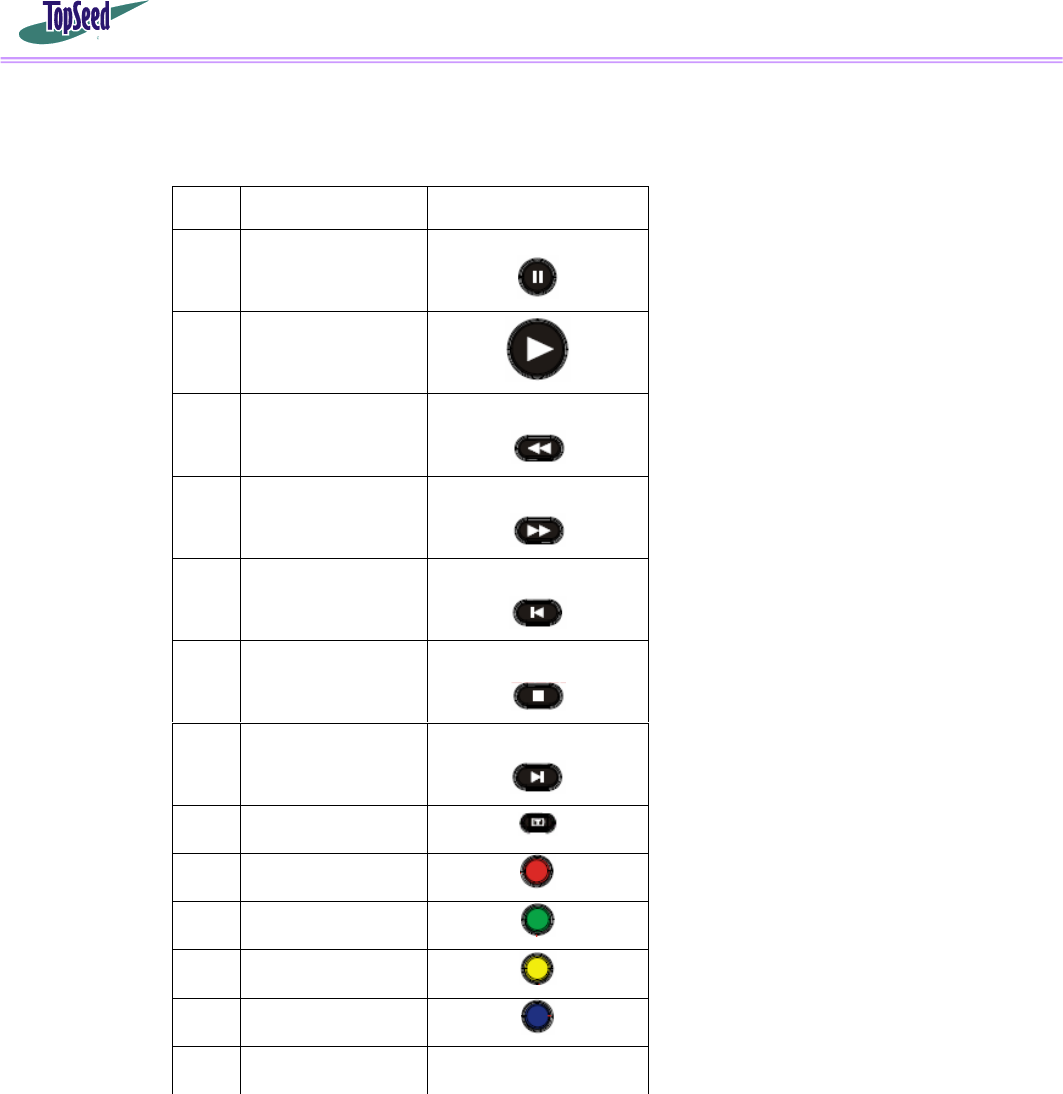

1.2.5.3. Remote Control Buttons (cont.)
item Function Icon
25 Media Pause
26 Media Play
27 RWD
28 FWD
29 Replay
30 Media Stop
31 Skip
32 TELETEXT On/Off
33 Red
34 Green
35 Yellow
36 Blue
REV.: 01
Topseed Technology Corp. Co., Ltd. Date: 10/08/2006
Topseed - RF Vista Remote (2.4GHz) 9 / 10

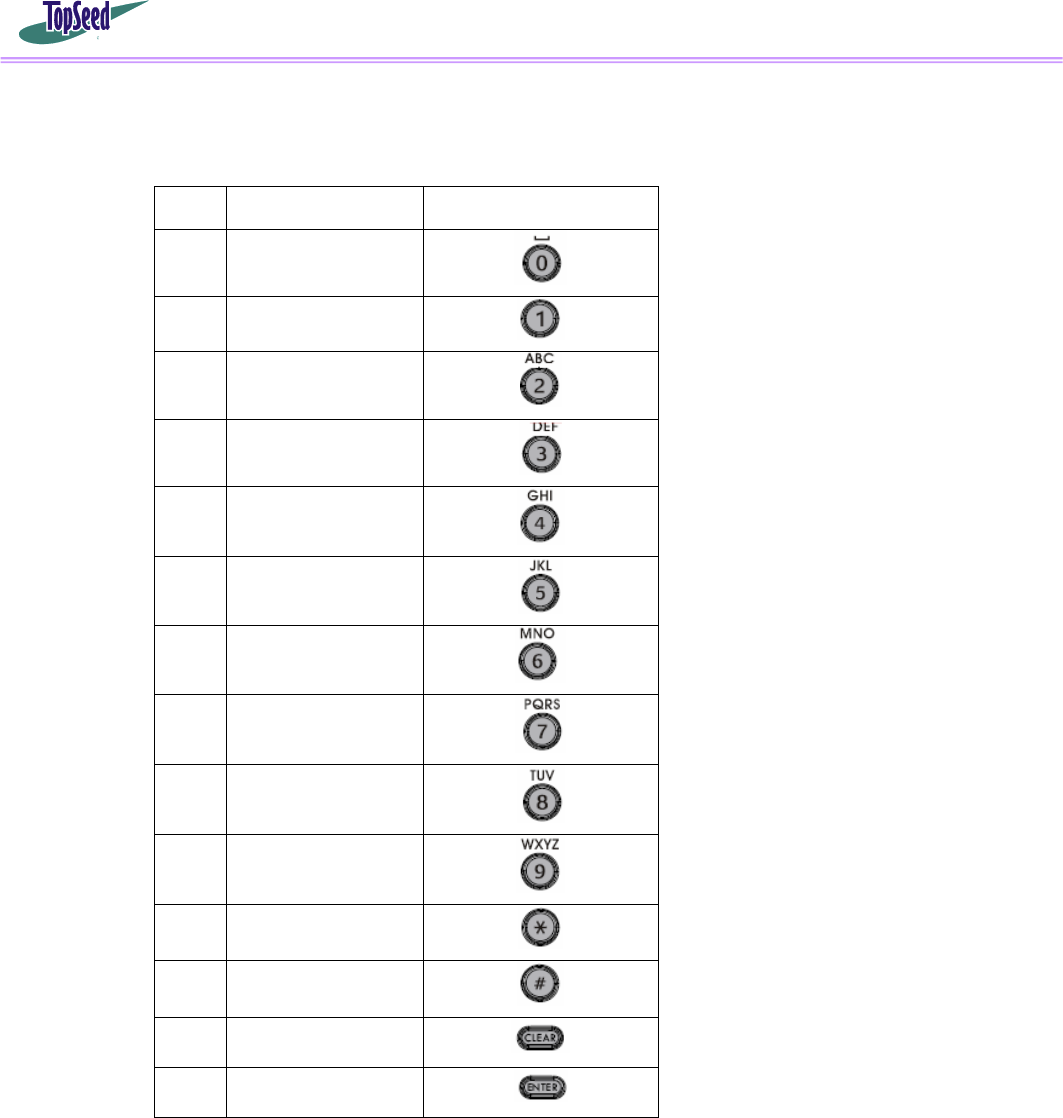

1.2.5.3 Remote Control Buttons (cont.)
item Function Icon
37 0
38 1
39 2
40 3
41 4
42 5
43 6
44 7
45 8
46 9
47 *
48 #
49 ESCAPE
50 RETURN
Appendix: Warning Statement
FCC Guidelines
Declaration of Conformity for R&TTE directive 1999/5/EC
Topseed - RF Vista Remote (2.4GHz) 10 / 10
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been conducted. These are
considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 440
-
2 has been conducted. These are considered relevant and sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are considered relevant and sufficient.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更
原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無
干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
