TopSeed Technology TSHD-2401 2.4 GHz VISTA MCE REMOTE User Manual TSHD 2401
TopSeed Technology Corp. 2.4 GHz VISTA MCE REMOTE TSHD 2401
USERS MANUAL
1
/
7
TSHD-2401
Description:
This RF Remote designs for Microsoft’s Media Center Operation System exclusive
hot keys etc. friendly operation without Driver limitation.
For the RF Receiver Dangle use with USB 1.1 compliant can be easily actuated It
can be use in a range about 10 Meter from the Receiver and Battery life can operate for 6
months with CR2032 DC 3V batteries.
For the Receiver Modular use with USB 1.1 compliant can be easily actuated Then,
it will remember your Frequency ID (16 Frequencys) and Channel ID (65535 Channels)
1 Dimensions
The approximate dimensions of the Remote’s transmitter is as follows:
L X W X H 215mm X 47.5 mm X 31.5 mm
2 Weight
Weight of the IR Remote not to exceed 60 grams (without batteries).
2
/
7
TSHD-2401

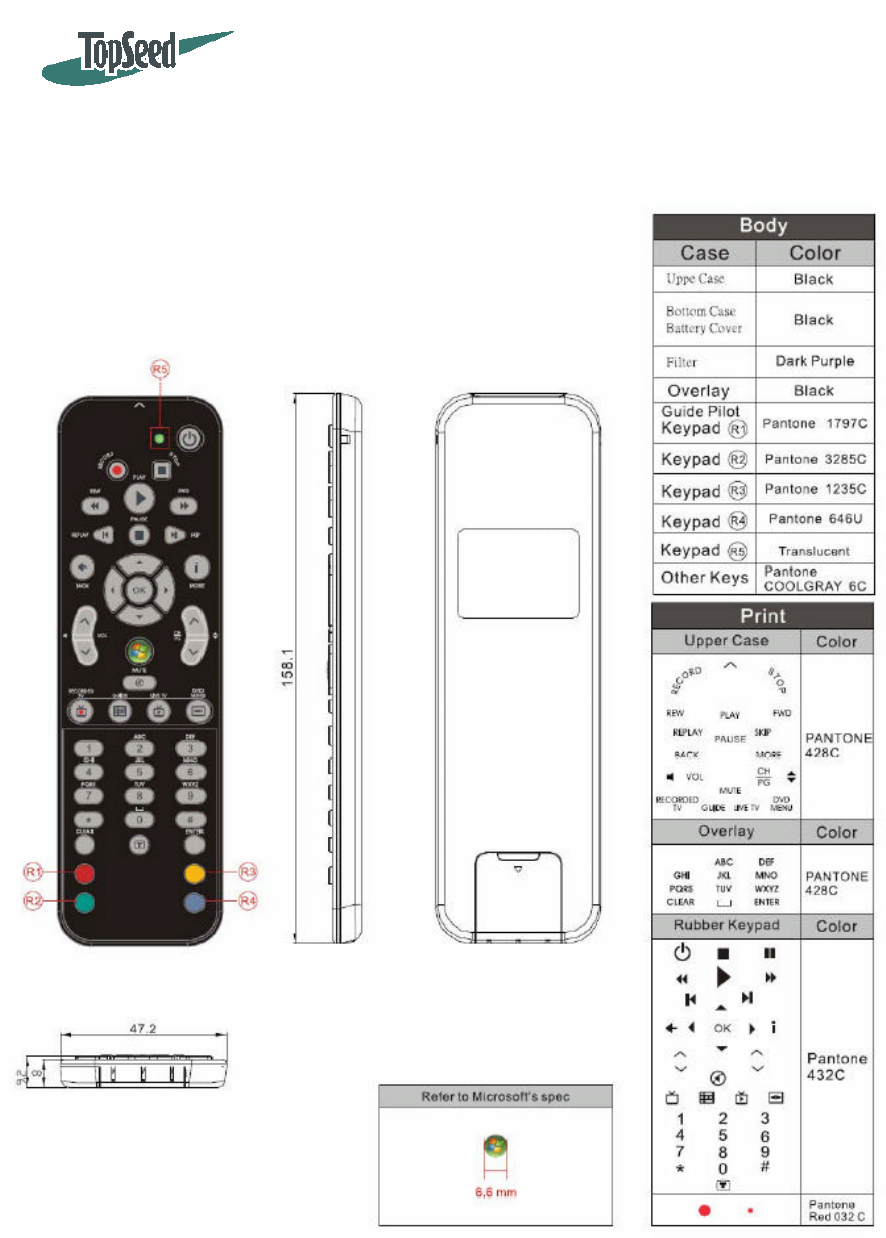

Physical Description and Specification:
3
/
7
TSHD-2401

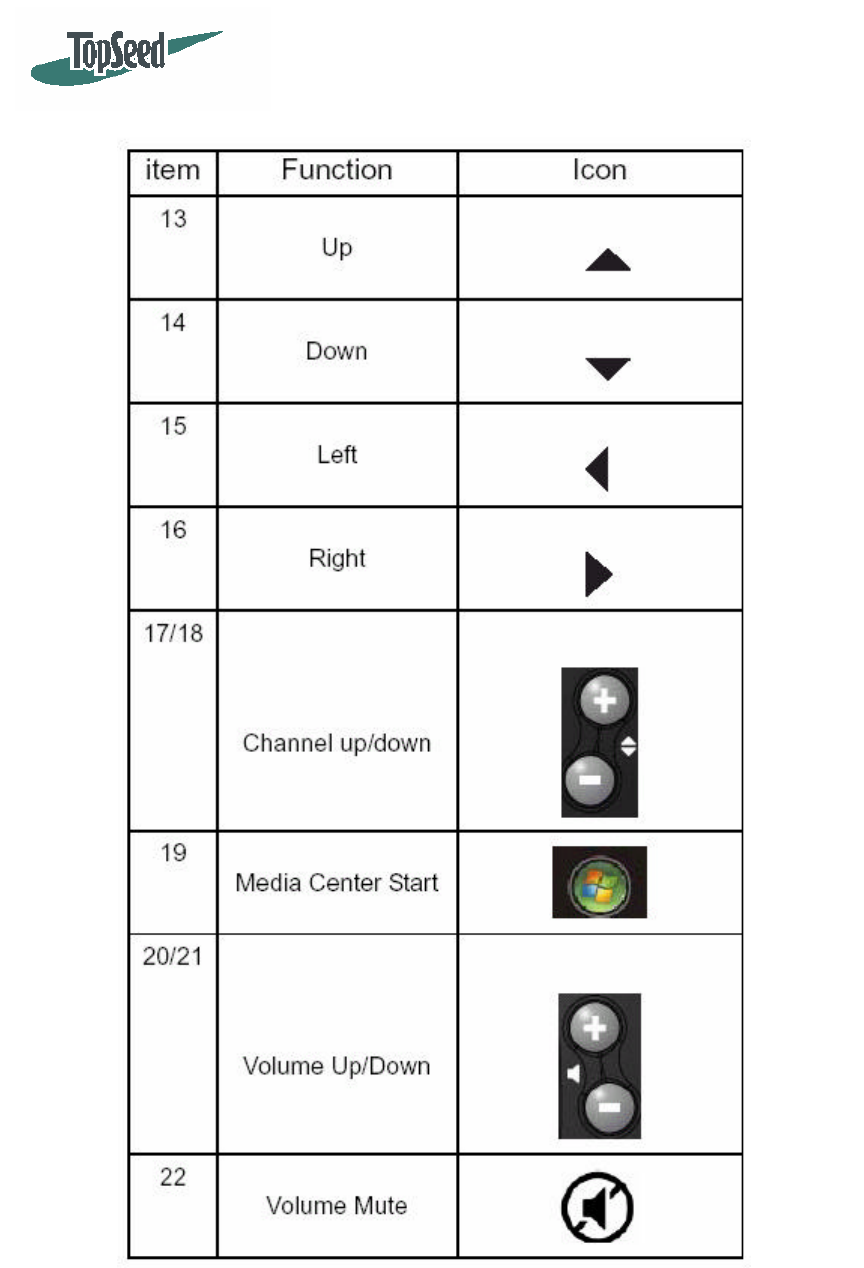

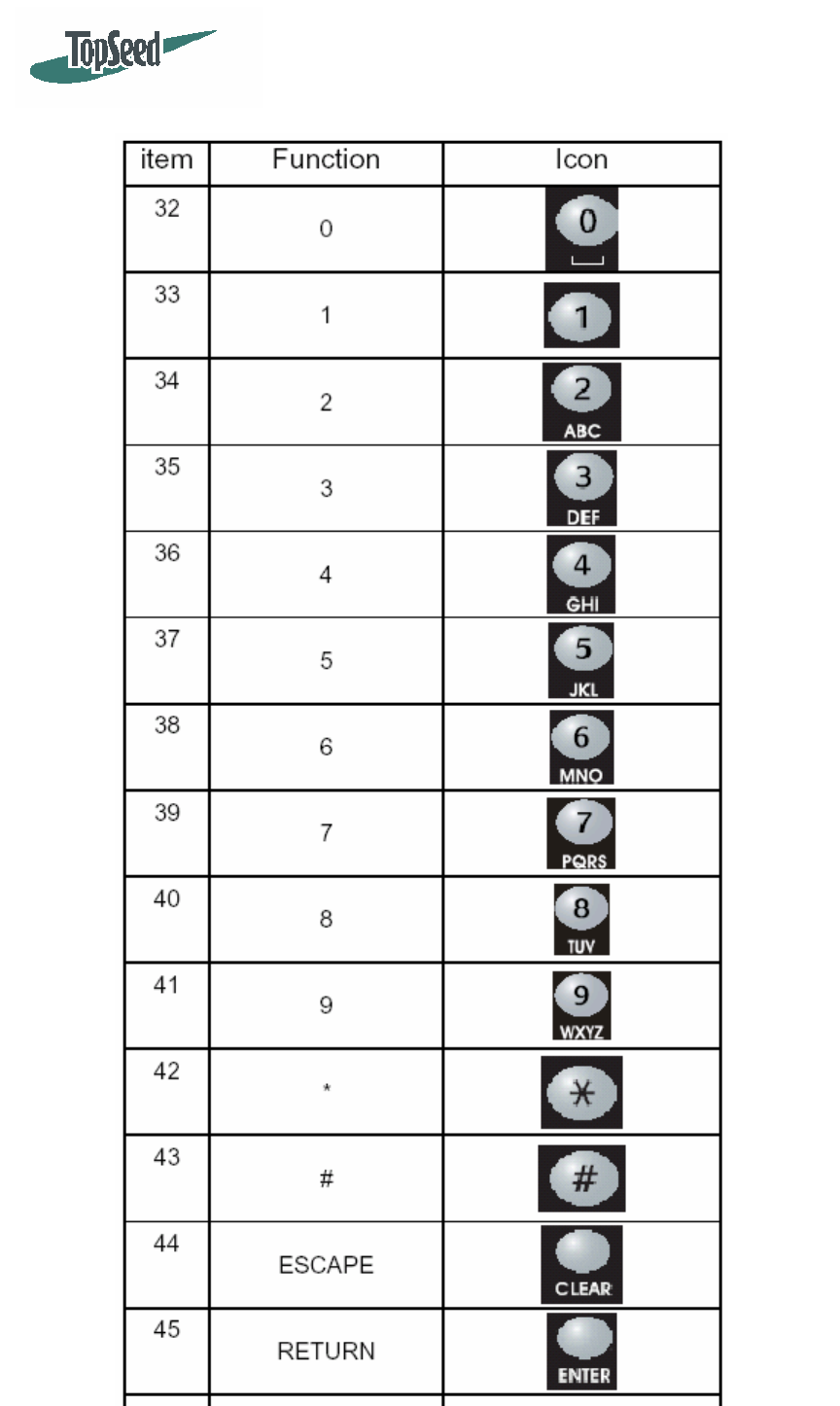

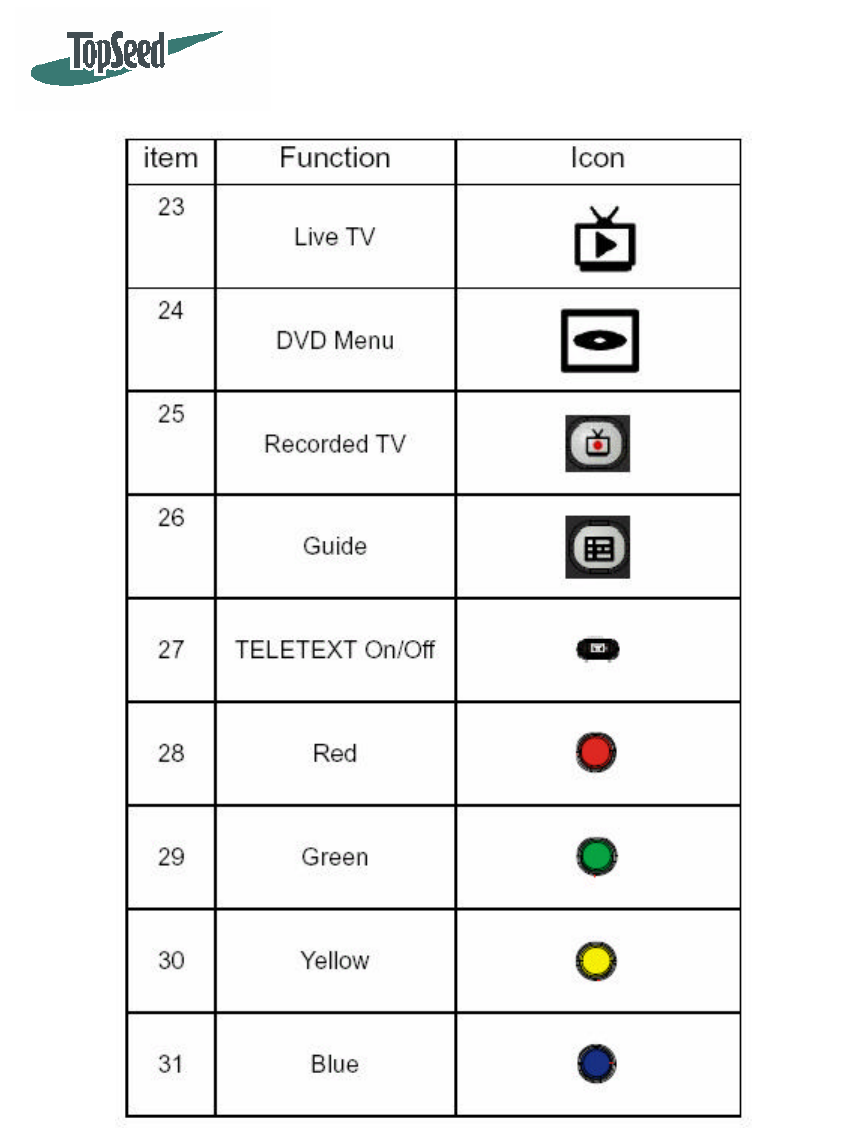

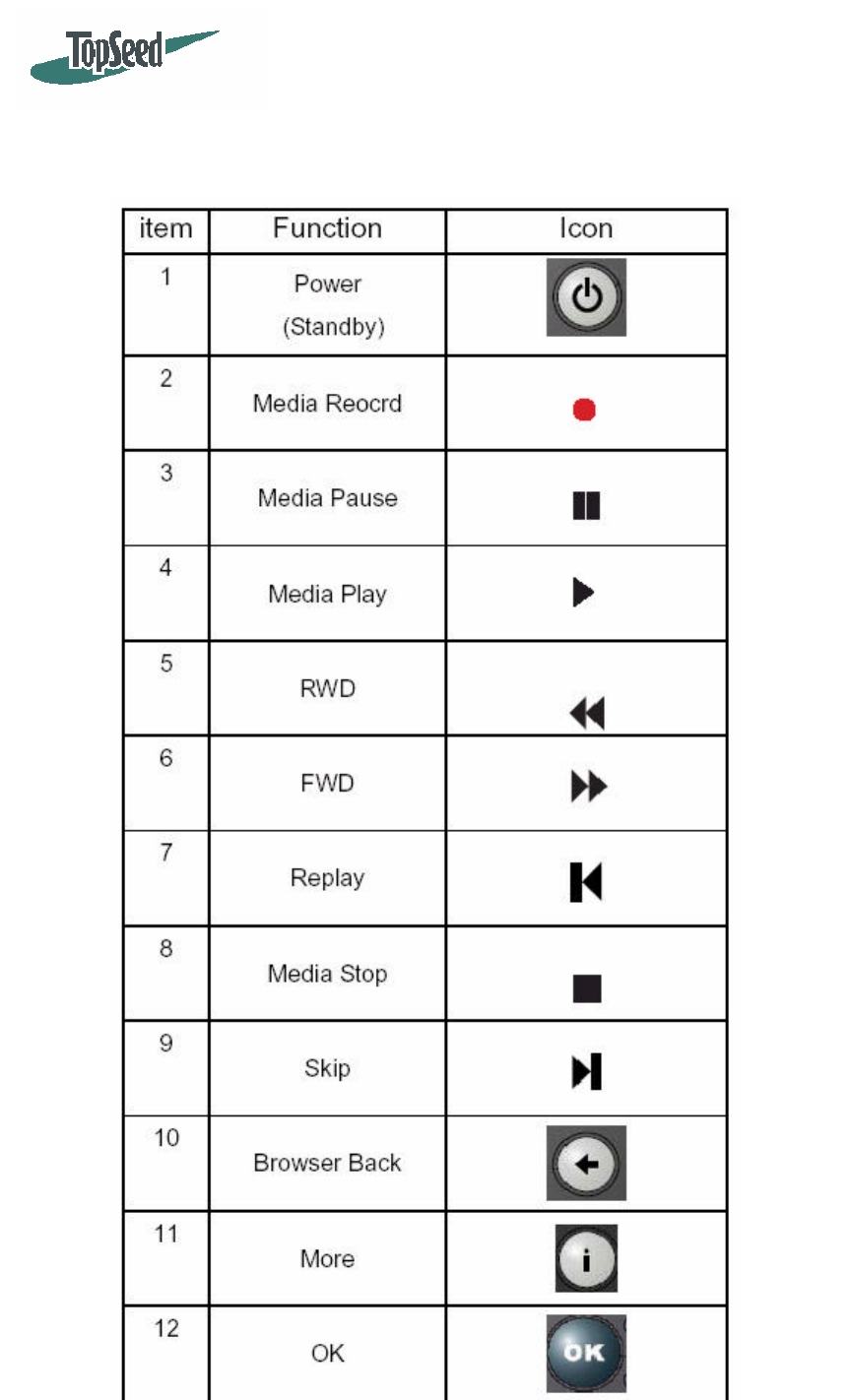

Remote Button layout-Key Definition:
4
/
7
TSHD-2401
5
/
7
TSHD-2401
6
/
7
TSHD-2401
7
/
7
TSHD-2401
Appendix: Warning Statement
FCC Guidelines
Declaration of Conformity for R&TTE directive 1999/5/EC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been
conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 440-2 has been conducted. These are considered
relevant and sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this device is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are considered
relevant and sufficient.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
