TopSeed Technology TSIJ-2401 RF REMOTE CONTROL User Manual TSIJ 2401
TopSeed Technology Corp. RF REMOTE CONTROL TSIJ 2401
Users Manual
1
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control
User Manual
RF Remote Control
Product Name: RF Remote Control
Product No.: RCIJ0002AG-2401
Model No.: TSIJ-2401
Version: Ver. 1.0
Date: 2008/07/05
2
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control
Description:
1. Preliminary Product Specification:
1.1 Scope:
This Spec. provies an overview of the required RF remote control and receiver functionality for
Customer systems. The product includes:
- an RF Remote Control (2.4GHz)
- an USB Receiver dangle
- 2 AA batteries.
1.2 General:
1.2.1 Batteries: 2 AA batteries are designed to be used in RF remote to support at least 3
months normal usage.
1.2.2 Restricted Substances and Environmental Requirements: all the materials and
manufacturing process used to produce RF remote must comply to RoHS requirements.
1.2.3 RoHS (we can put some RoHS requirements here and state that all the materials used in
the product specification complies to RoHS requirements).
1.3 Ergonomics Requirements:
This product was designed to be ergonomics for all users.
1.3.1 The ergonomic remote design is to fit into users’ palms to reduce the discomfort caused
by long time usage.
1.3.2 The symmetrical design is to be fit for both left-handed and right-handed users to reduce
the discomfort or strain caused to users.
1.3.3 Every key designed on the remote is to be designed easy to reach for users for easy
usability and reduce strain.
1.4 Product Functional Requirements:
1.4.1 Operation System: needs to be functional when working under Customer systems.
1.4.2 Interface: Receiver needs to be working under USB 1.1 and 2.0 Interface.
1.4.3 Range Requirements: the transmission of the remote control shall be at least 30-50 meters
with optical filter in place.
1.4.4 RF Protocol: Using Topseed Standard RF protocol with HID Driver.
1.4.5 Frequency Range: 2.4 to 2.483 GHz (16 multi channels and 65535 ID channels for RF
Remote Control)
1.4.6 Battery Life: 2 AA batteries to provide at least 3 months normal usage.
1.4.7 Weight: 125.8g
1.4.8 Operation Temperature: 50℃
3
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control

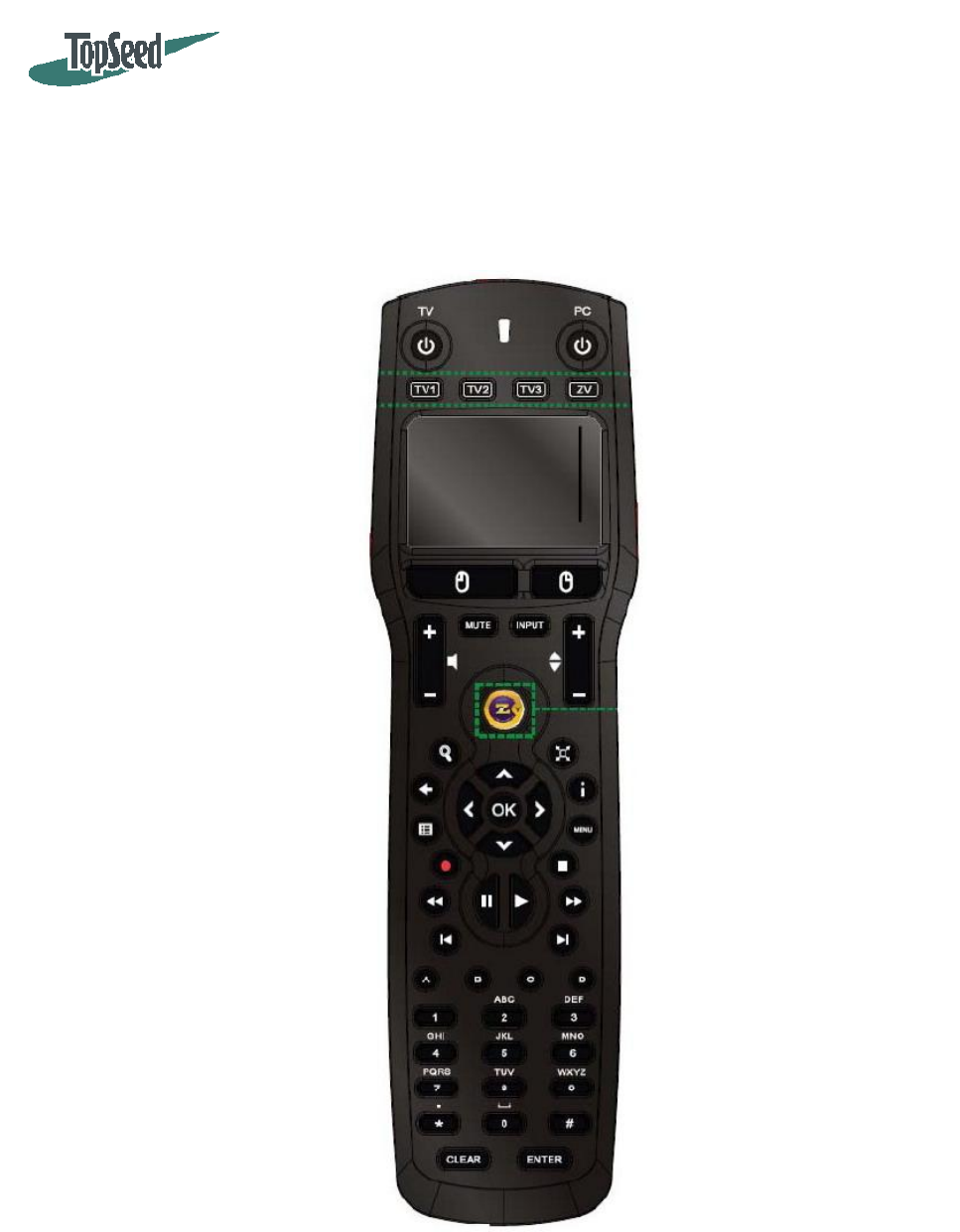

1.5 Detailed Product Specification – RF Remote Control

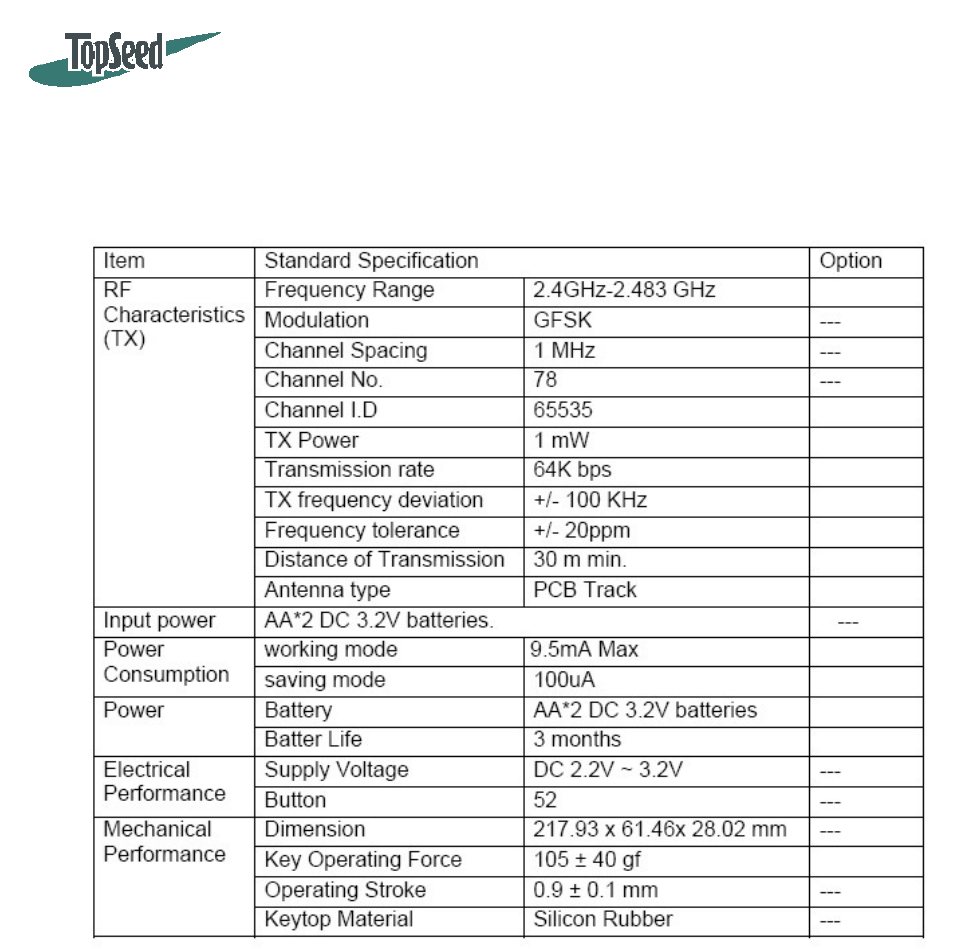

1.5.1 RF Remote Control
4
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control
1.5.2

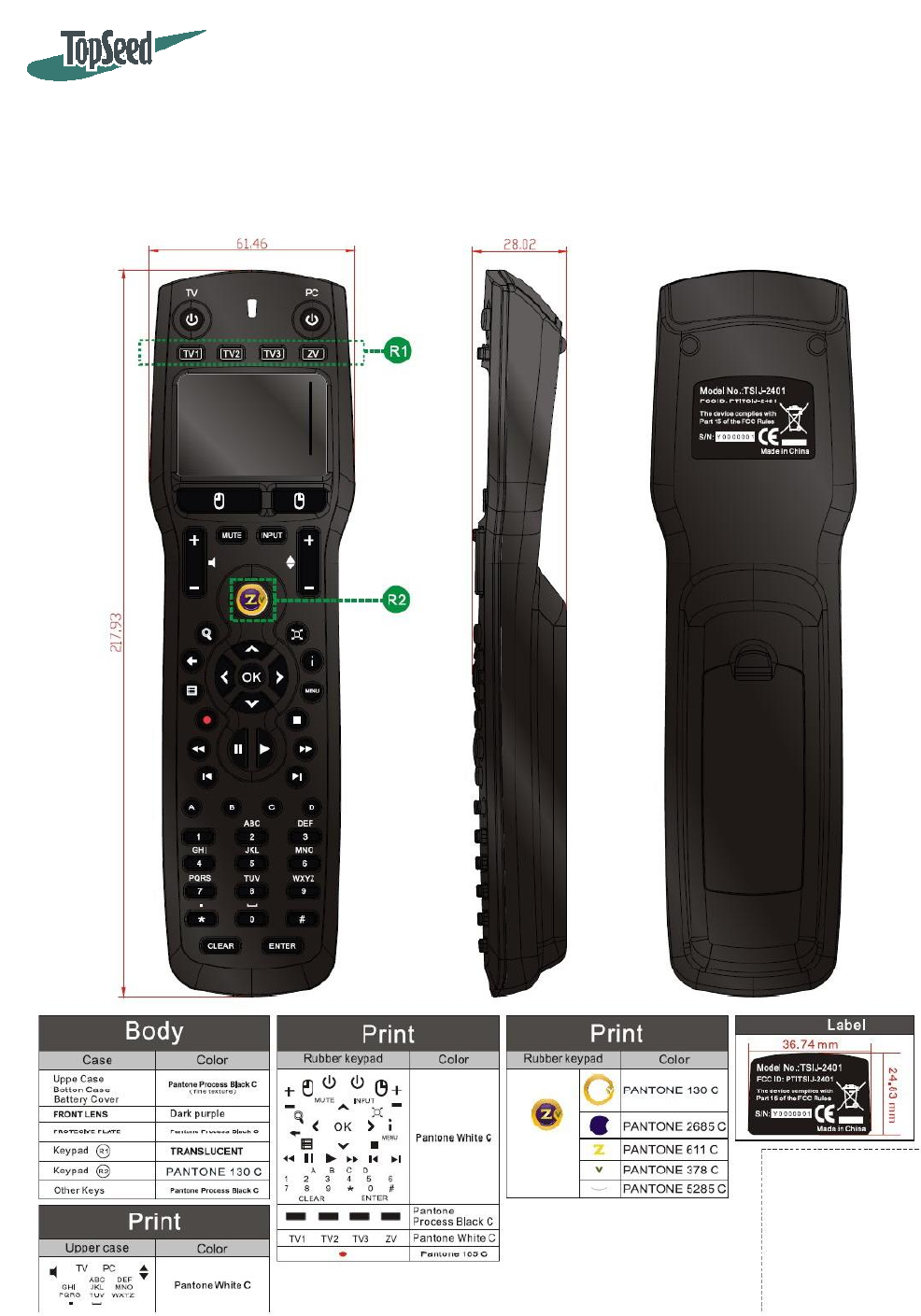

Physical Description and Specification – 2D Drawing
5
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control

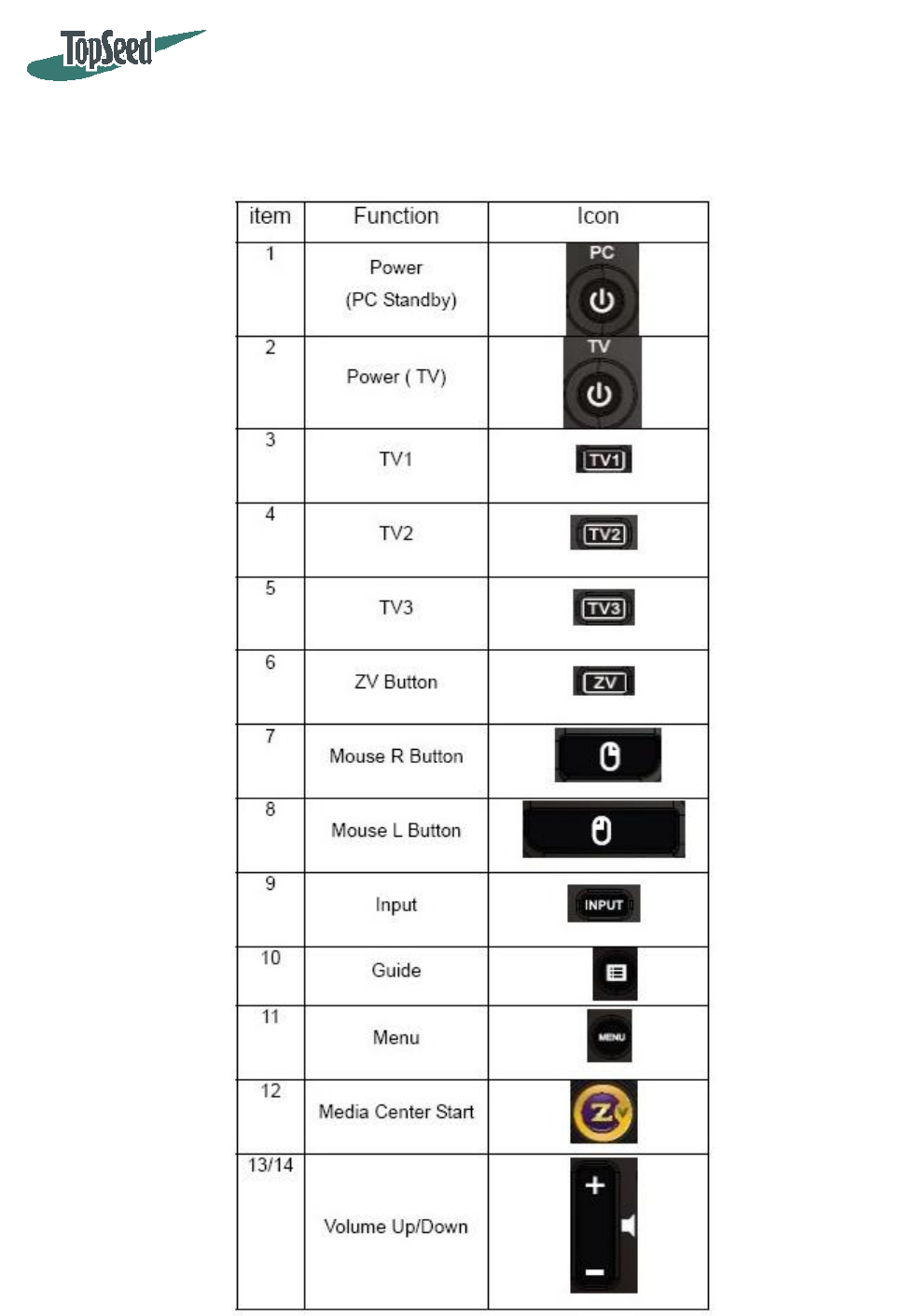

1.5.3 Remote Control Buttons
6
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control

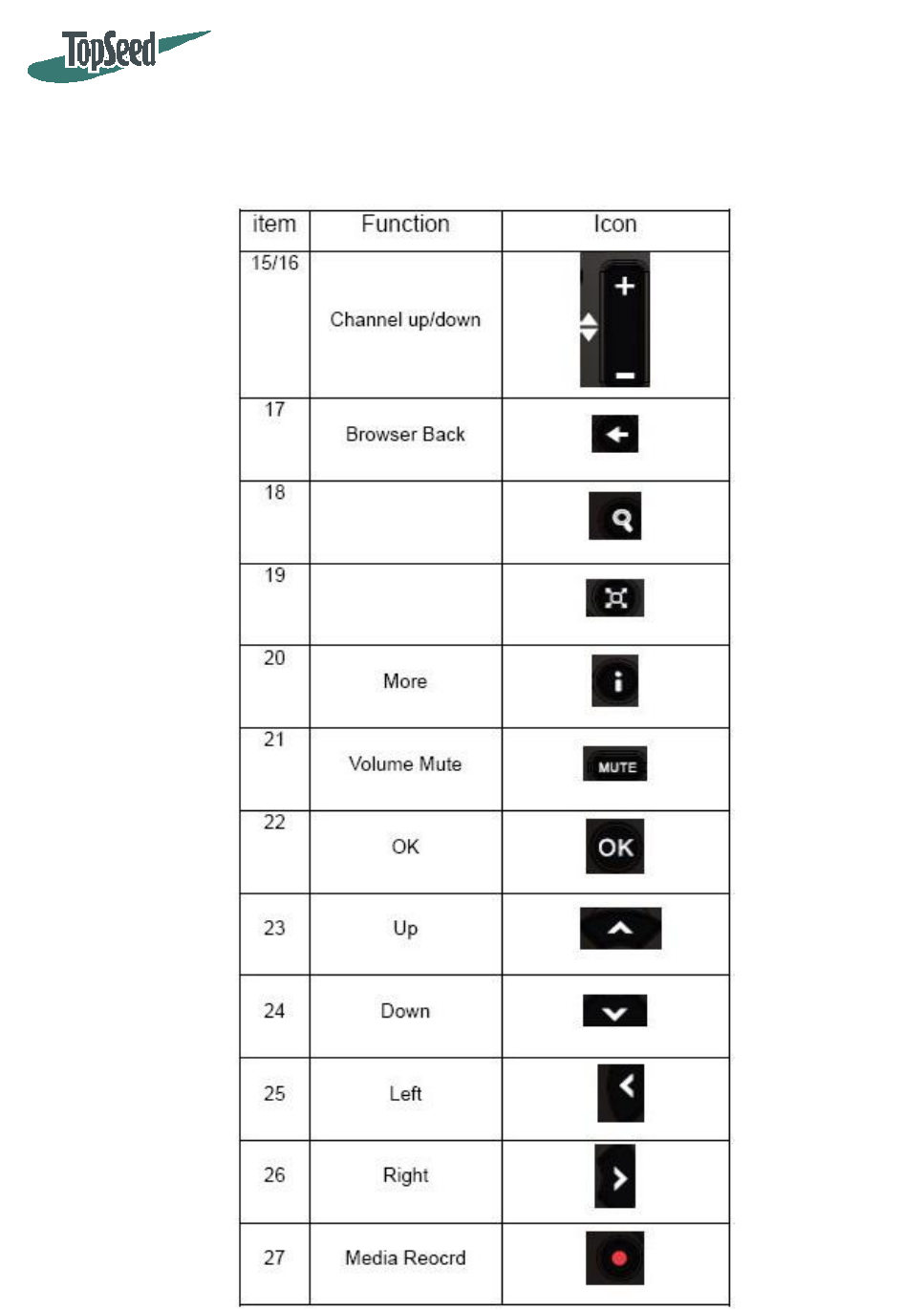

1.5.3 Remote Control Buttons (cont.)
7
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control

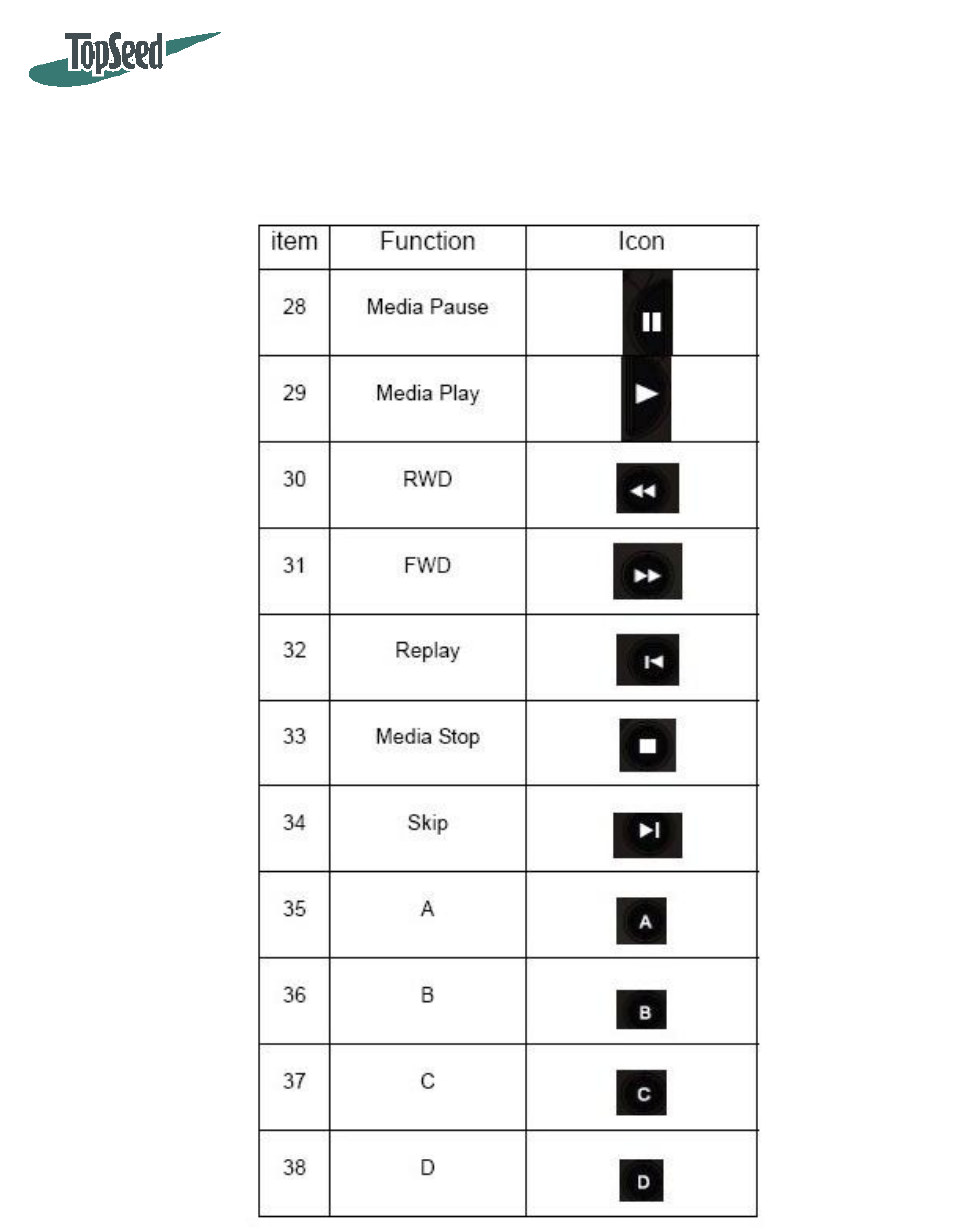

1.5.3 Remote Control Buttons (cont.)
8
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control

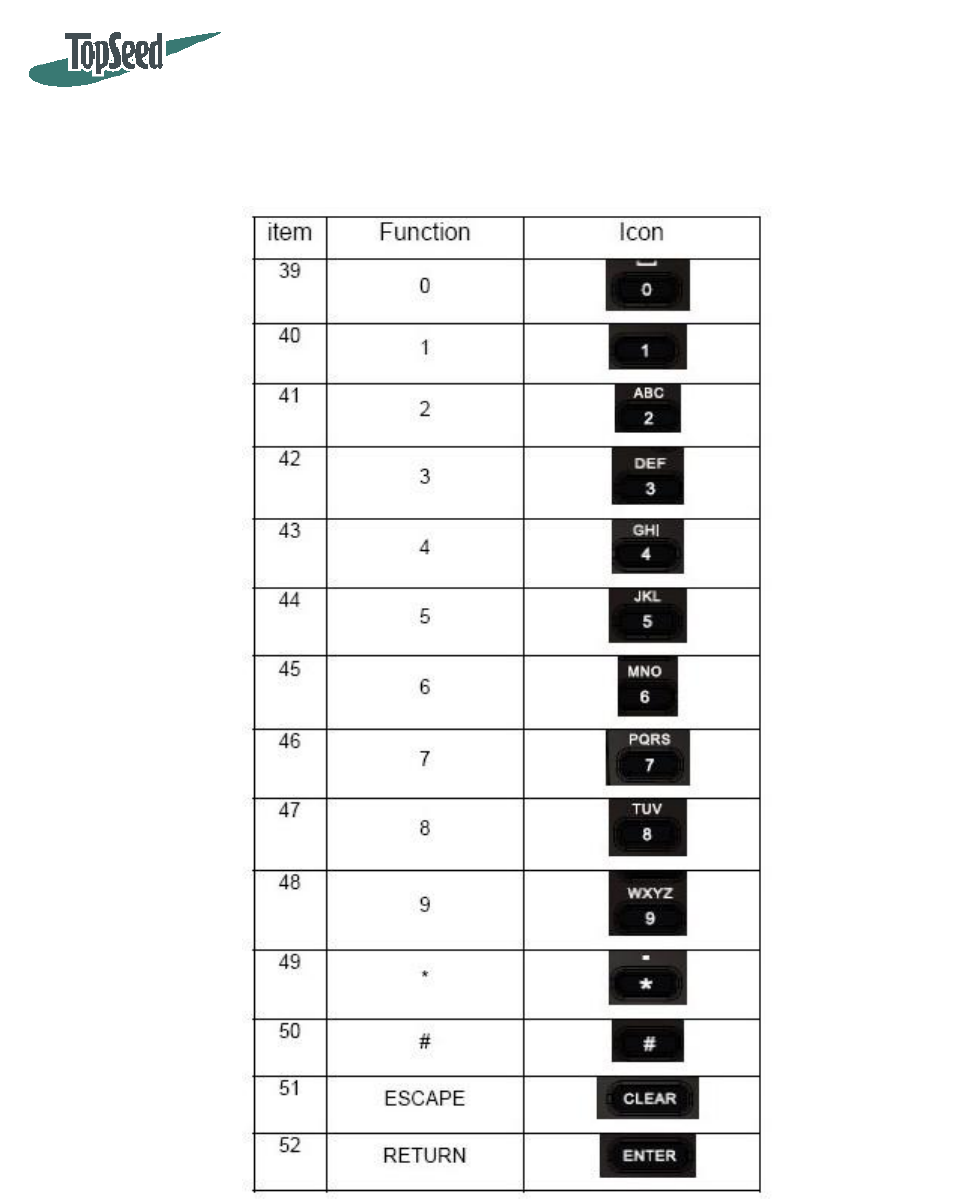

1.5.3 Remote Control Buttons (cont.)
9
/
9
TSIJ-2401
Topseed
–
RF
Remote
Control
Appendix: Warning Statement
FCC Guidelines
Declaration of Conformity for R&TTE directive 1999/5/EC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been conducted. These
are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 440-2 has been conducted. These are considered relevant and
sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are considered relevant and
sufficient.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率
或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改
善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
