TopSeed Technology TSIM-2401 2.4GHz WIRELESS PRESENTATION CONTROLLER User Manual TSIM 2401
TopSeed Technology Corp. 2.4GHz WIRELESS PRESENTATION CONTROLLER TSIM 2401
Users Manual
![](/img.php?id=1060538&img=bg1.png)
1
/
3
TSIM-2401
Description:
This RF Remote Pointer is a GFSK (Gaussian Frequency Shift Key) Transmitter for
the frequency band 2.4 to 2.483 GHz ISM band. The Remote Pointer offers a low power
consumption, multi-channel, and data rates up to 250Kbps, full-integrated Frequency
synthesizer and a high efficiency power amplifier to drive a loop antenna, A special
circuit design and an unique power amplifier design are used to save current
consumption and to save battery life.
This RF Remote Pointer is a best companion of Projector with Laser pointer
designed, gives reliable control and accuracy. Remote Pointer RF’s radio frequency
wireless technology solves all of your presentation input needs.
For the Receiver Modular use with USB 1.1 compliant can be easily actuated. Then,
it will remember your Frequency ID (16 Frequencies) and Channel ID (65535 channels).
The Radio Frequency designed in this Version of RF Remote Pointer is GFSK
2.4GHz to 2.483GHz and can be use in a range over 20 Meter from the Receiver at any
directions (Free Space). The Remote Pointer can operate for 6 months AAA x 2 Alkaline
3V batteries.
![](/img.php?id=1060538&img=bg2.png)
2
/
3
TSIM-2401

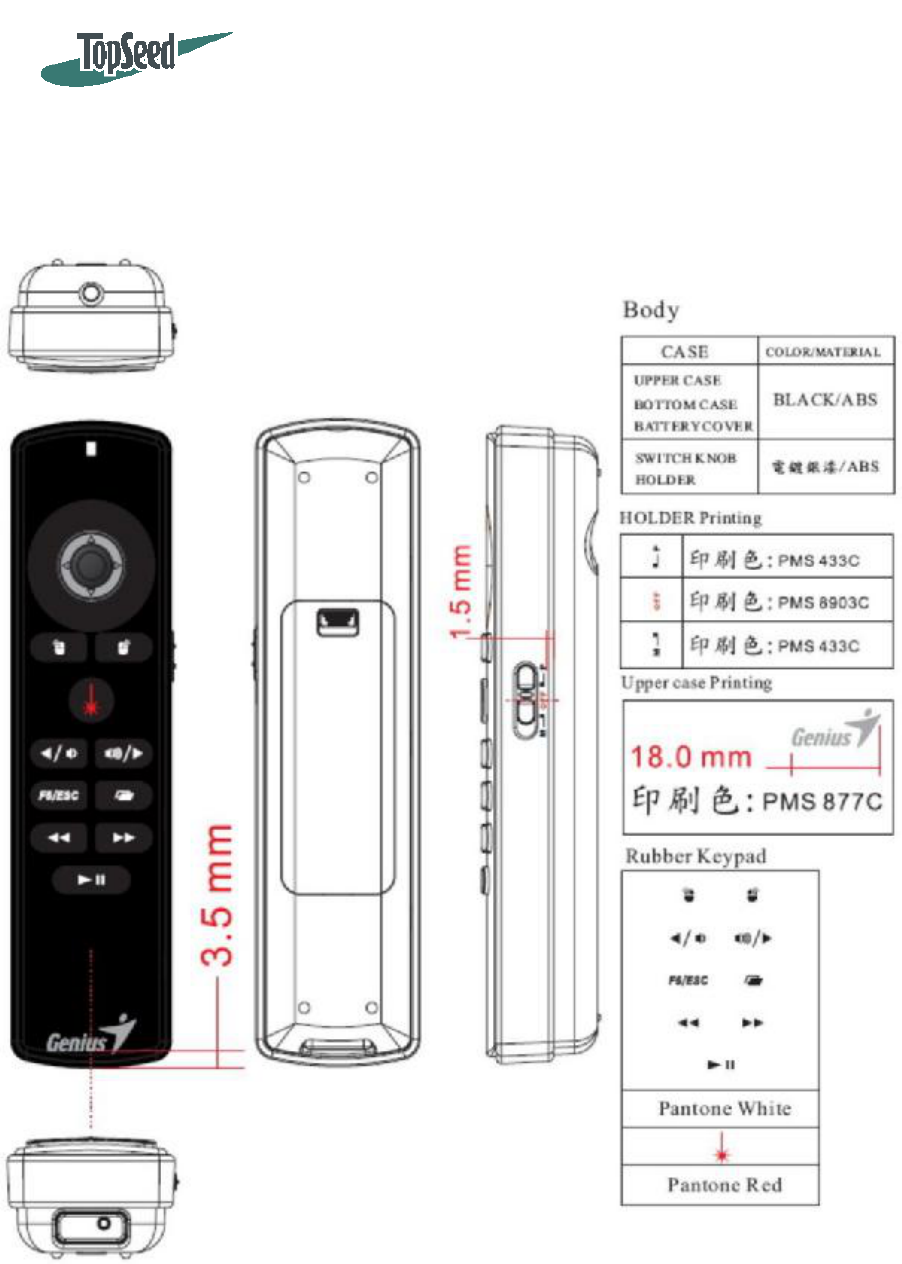

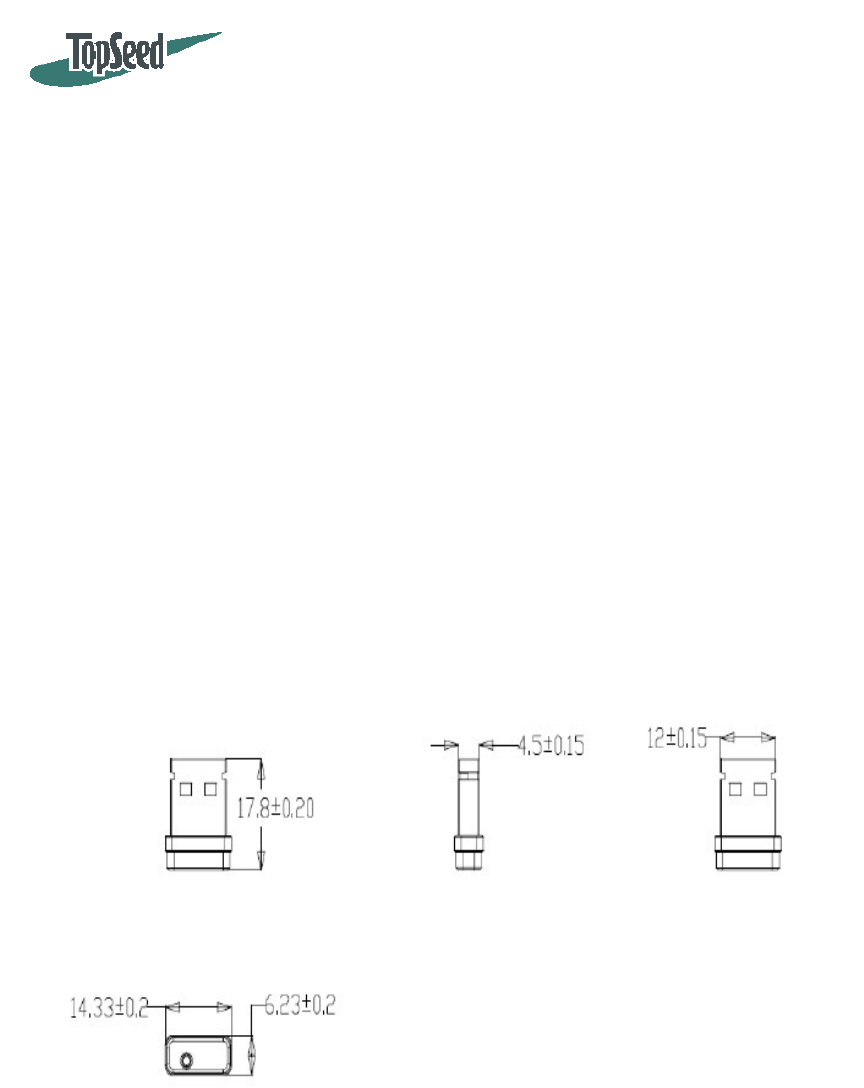

Physical Description and Specification:
![](/img.php?id=1060538&img=bg3.png)
3
/
3
TSIM-2401
Appendix: Warning Statement
FCC Guidelines
Declaration of Conformity for R&TTE directive 1999/5/EC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Protection requirements for electromagnetic compatibility – Article 3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-3 has been
conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 440-2 has been conducted. These are considered
relevant and sufficient.
Hereby, [Dong Guan Jess-Link Electronics Co., Ltd.], declares that this device is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Essential requirements – Article 3
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950-1 has been conducted. These are considered
relevant and sufficient.
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立
即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
