TopSeed Technology TSIX-2404 Remote Pointer / Presenter IV Air User Manual A26381 K440 Z200 1 7619
TopSeed Technology Corp. Remote Pointer / Presenter IV Air A26381 K440 Z200 1 7619
User Manual
Presenter IV Air
Operating Manual Peripherals
Are there ...
... any technical problems or questions relating to the product?
Please contact:
● our Service Desk
● your Sales Partner
● your Sales Outlet
The latest information on our products, as well as tips, updates etc., can be found on the internet at
http://ts.fujitsu.com
Service Desk on the Internet: http://ts.fujitsu.com/support/servicedesk.html
Copyright
© Fujitsu Technology Solutions 2009
2009/09
Published by
Fujitsu Technology Solutions GmbH
Mies-van-der-Rohe-Straße 8
80807 München, Germany
Contact
http://ts.fujitsu.com/support
All rights reserved, including intellectual property rights. Technical data subject to modi cations and delivery subject to availability. Any
liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of
the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner. For further
information see http://ts.fujitsu.com/terms_of_use.html
Order-No. Fujitsu Technology Solutions: A26381-K440-Z200-1-7619, Edition 1
Presenter IV Air
Operating Manual
Fujitsu Presenter
Setting up the device
Troubleshooting and tips
Technical Data
September 2009 edition
Windows 7, Windows Vista and Windows XP are trademarks of Microsoft Corporation.
All other product and service marks referred to in this publication are trademarks of the
respective owners, whose legal protection is hereby recognised.
Copyright © Fujitsu Technology Solutions GmbH 2009
All rights, including translation or reproduction (printing, copying or similar) of this manual in
part or in whole, are reserved.
Noncompliance is subject to compensation for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved.
Delivery is subject to availability of the product. Subject to technical modifications.
Contents
Fujitsu Presenter... ............................................................................................................................. 1
Delivery package.......................................................................................................................... 2
Notational conventions ......................................................................................................................... 3
CE marking................................................................................................................................... 3
Disposal of waste electrical and electronic equipment................................................................. 3
Transportation .............................................................................................................................. 3
Safety notes.................................................................................................................................. 4
FCC Compliance Statement................................................................................................................. 5
Setting up the device.......................................................................................................................... 6
Installing Batteries ........................................................................................................................ 6
Synchronizing the Mini-receiver with the computer...................................................................... 6
Fujitsu Presenter basic operation................................................................................................. 7
Presenter Mode .................................................................................................................................... 8
Game Mode.......................................................................................................................................... 9
User information about Fujitsu Presenter ........................................................................................... 10
Troubleshooting and tips................................................................................................................. 11
Fujitsu Presenter cannot be used. Why? ................................................................................... 11
Fujitsu receiver LED is not on .................................................................................................... 11
Technical data................................................................................................................................... 12
Terms of responsibility........................................................................................................................ 13
Fujitsu Technology Solutions
Contents
Fujitsu Technology Solutions
Fujitsu Presenter...
Fujitsu Presenter...
Congratulations on your purchase of the Fujitsu Presenter for amazing user experience of presenter,
wireless game controller and air mouse functions. Before use, please review the user manual
carefully and follow the instructions. In addition, keep this manual in a safe location for future
reference.

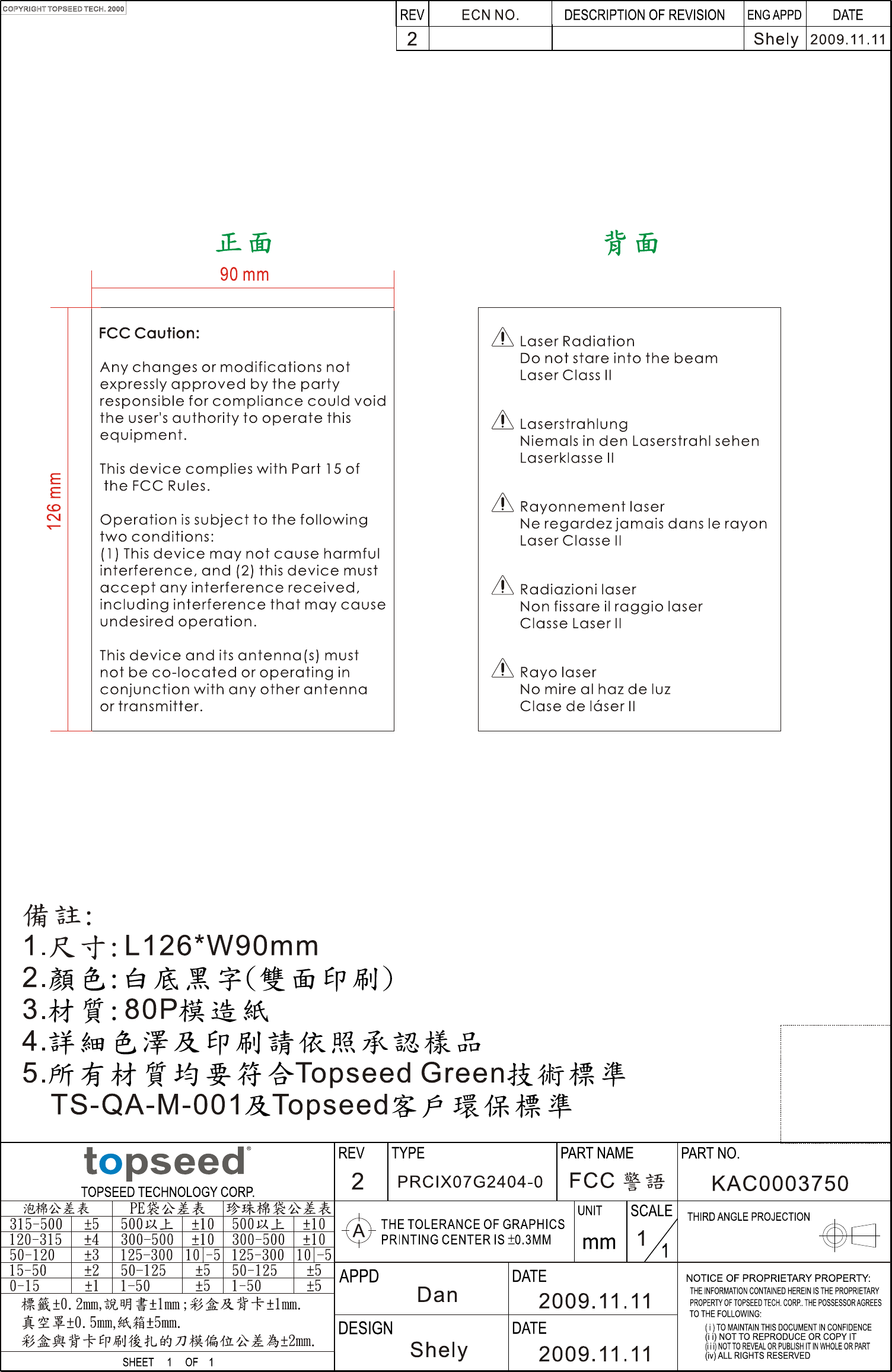

LASER RADIATION
DO NOT STARE INTO BEAM
MAX OUTPUT
F
1mW
WAVE LENGTH
F
650
±
20nm
CLASS 2 LASER PRODUCT
This product is complied
with 21 CFRpart 1040. 10
Made in Ch ina
Mode l:T SIX- 2401
This d evice c omplie s with
Part 1 5 of FCC Ru les
See in struct ion
manu al.
S/ N:
YYXX XX XX
FCC ID :PTITS IX-2 401

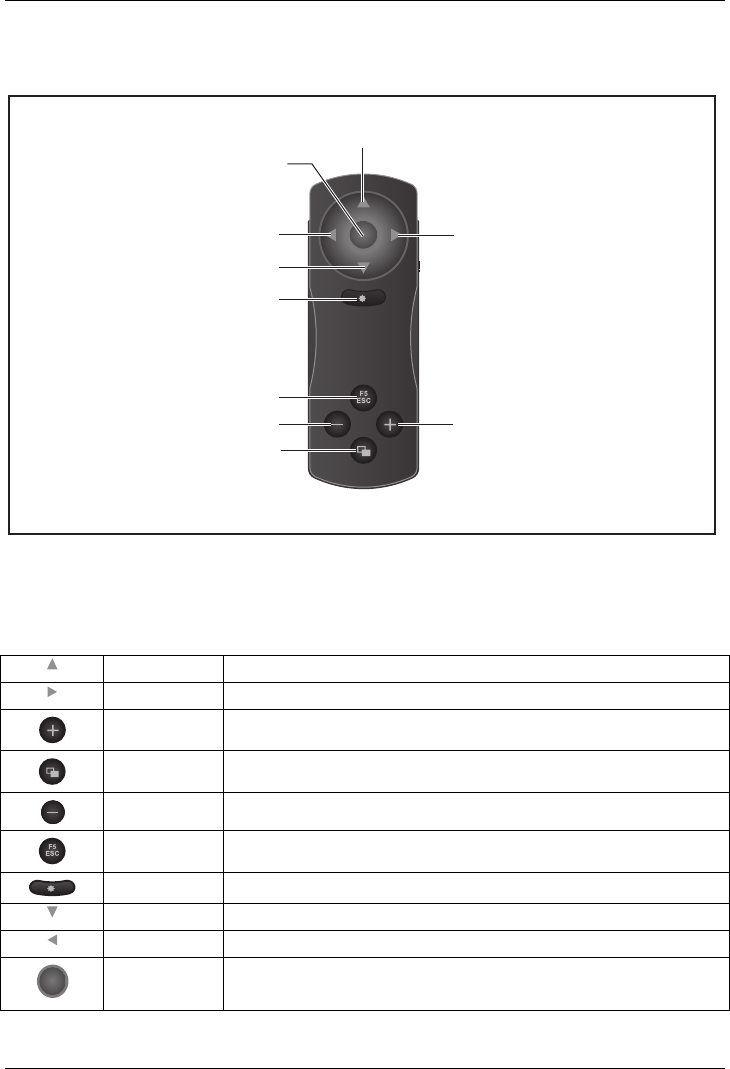

1
2
11
12
13
14
3
4
5
6
7
8
9
10
1 = Page up
2 = Mouse right key
3 = Volume up
4 = Blank page
5 = Volume down
6 = F5/ESC
7 = Laser
8 = Page down
9 = Mouse left key
10 = Mouse On/Off
11 = Presenter Mode
12 = Game Mode
13 = Power Off
14 = Connect Button
Fujitsu Technology Solutions 1
Fujitsu Presenter...
Mini Receiver
Shows the status of the Fujitsu Presenter. LED is lit when the presenter is on.
1
2
1 = Connect Button
2 = LED
Delivery package
Make sure the following components are in the package or otherwise contact your dealer for
assistance.
● Fujitsu Presenter
● Mini-receiver
● Two AAA Alkaline Batteries
● Quick Start Guide and Helpdesk Flyer
● CD
2 Fujitsu Technology Solutions
Fujitsu Presenter...
Notational conventions
The following conventions apply in this manual:
!
indicates information that refers to risks of injury.
i
indicates information that must be complied with to ensure the correct use of
the system.
► indicates procedures that must be carried out.
This font indicates programme names, commands or menu options.
"Quotation marks" are used for names of chapters, data carriers or terms that require
emphasis.
CE marking
At the time of delivery, the device complies with the following
EU directives: Directive 2004/108/EC of the European Parliament regarding the
approximation of the laws of the Member States relating to electromagnetic compatibility
and Directive 2006/95/EC of the European Parliament regarding the approximation of the
laws of the Member States relating to electrical equipment designed for use within certain
voltage limits.
Disposal of waste electrical and electronic equipment
This device must not be disposed of with household waste. The device is subject to
Directive 2002/96/EC of the European Parliament and the Council dated January 27,
2003 regarding waste electrical and electronic equipment. This directive contains
provisions which apply throughout the EU regarding the return and recycling of waste
equipment. To return your used device, please use the return and collection systems
available to you. You will find further information on this at http://ts.fujitsu.com/recycling.
Transportation
Transport the device only in its original packaging or other suitable packaging to protect it
from knocks and jolts.
The device should only be unpacked at the location where it is to be used.
!
Fujitsu Technology Solutions 3
Fujitsu Presenter...
Safety notes
Batteries
● If any battery leakage occurs, thoroughly wash the affected surfaces with a large
amount of water and immediately obtain medical treatment.
● Do not dispose of batteries in a fire.
● Do not use deformed or non-assigned batteries.
● Do not use metal to short the positive (+) and negative (-) ends.
● Do not put the batteries in backwards. Make sure that the positive (+) and negative
(-) ends are in their correct positions.
!
i
● Do not mix used and new batteries, and do not mix different brands of batteries.
● Do not recharge alkaline or non-rechargeable batteries.
● Do not leave batteries in the device for long periods of non-use.
● Do not use damaged, deformed or leaking batteries.
● If battery leakage occurs in the device, stop usage immediately and send it to the
Fujitsu maintenance center for inspection.
● The device uses AAA batteries or AAA rechargeable nickel metal hydride (NiMH)
batteries. If you use rechargeable NiMH batteries, be sure to follow the
manufacturer’s guidelines for safe and proper usage.
● Do not use batteries in locations where the temperature rapidly changes.
● When disposing of the batteries, follow the regulations of your local government.
Laser Pointer
Misuse the Laser Pointer with procedures other than those specified herein may result in hazardous
radiation exposure.
● Do not stare into beam.
● Do not shine a laser pointer at anyone.
● Do not allow children to use a laser pointer without supervised.
● Do not point a laser pointer at a mirror-like surface.
i
4 Fujitsu Technology Solutions
Fujitsu Presenter...
FCC Compliance Statement
The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a "Class B" digital device,
pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-
Causing Equipment Regulations. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in strict accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between equipment and the receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or television interference caused by unauthorized
modifications of this equipment or the substitution or attachment of connecting cables and equipment
other than those specified by the manufacturer. The correction of interference caused by such
unauthorized modification, substitution or attachment will be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC rules.
Contact persons
Applicant for this device: Fujitsu Technology Solutions GmbH
Bürgermeister-Ulrich-Str. 100
86199 Augsburg
Germany
Alexander Peschka
Responsible Party (US): Fujitsu America, Inc.
1250 E. Arques Avenue
Sunnyvale, CA 94085
U.S.A.
Bernd Henning
Phone No.: (408) 329-6737
Fax No.: (408) 746-8299
Fujitsu Technology Solutions 5
Setting up the device
Setting up the device
Installing Batteries
The device uses two AAA batteries. Fujitsu recommends high quality alkaline batteries for best
performance and longevity of battery life. If you use rechargeable nickel metal hydride (NiMH)
batteries, be sure to follow the manufacturer’s guidelines for safety and proper usage.
► Remove the battery cover and put in two AAA alkaline batteries. Be sure to insert the negative
(-) end first when inserting new batteries, and remove the plus (+) end first when replacing the
batteries.
► Replace the battery cover, ensure that it slides closed with a “click”.
Synchronizing the Mini-receiver with the computer
i
► The pairing between the Fujitsu Presenter and mini-receiver is completed by factory.
In the event that the Presenter does not sync with the receiver, refer to the following
instructions:
► Make sure the computer power is on.

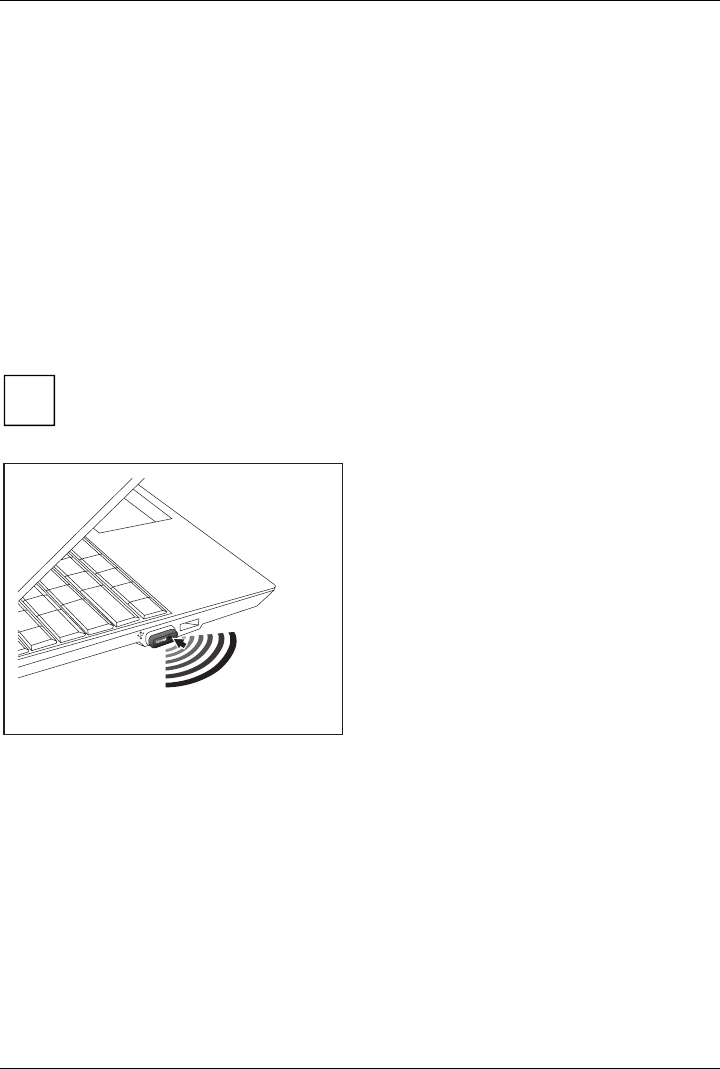

► Insert the mini-receiver in a USB port and
press the Connect button once.
At this time, the receiver LED will flash slowly.
► Make sure the Fujitsu Presenter is in either
Game mode or Presenter mode.
► Press the Connect button on the presenter
once.
The blue LED on the receiver will then flash
quickly and the synchronizing is completed now.
After a successful connection, the receiver LED
will stay on all the time.
If you do not have a successful connection,
repeat above steps.
6 Fujitsu Technology Solutions
Setting up the device
Fujitsu Presenter basic operation
There are two modes of this product:
● Presenter mode (Presenter and Air Mouse functions are available)
● Game mode (Standard Microsoft wireless game controller function is available)
1
2
3
1 = Presenter Mode
2 = Game Mode
3 = Power Off

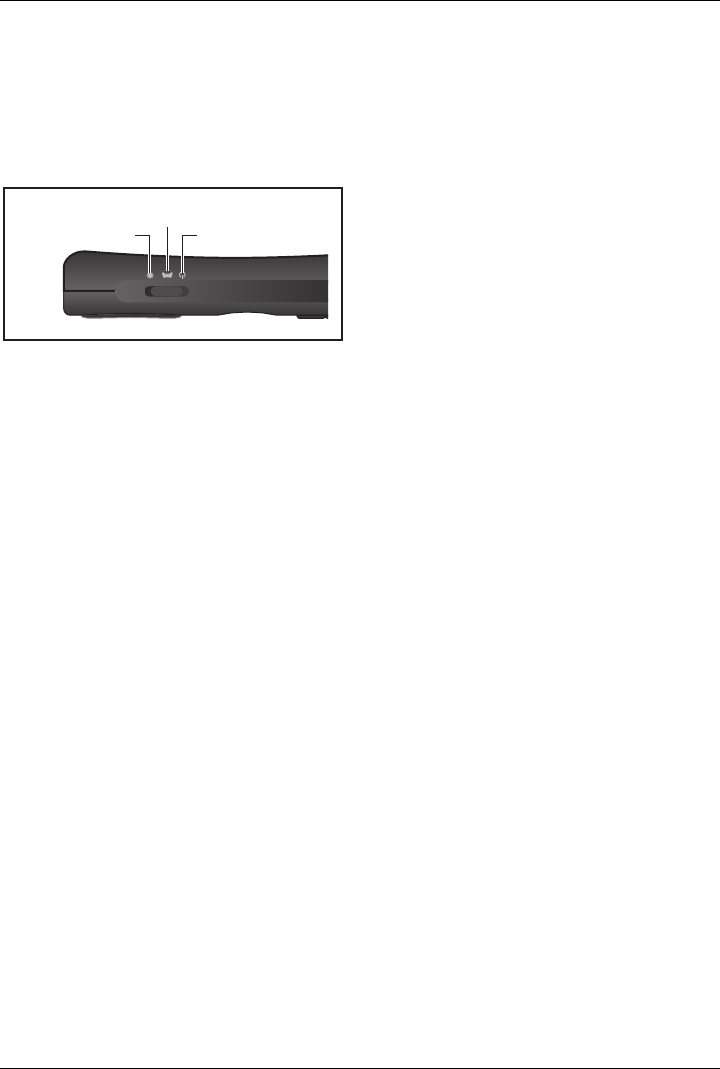

Mode Switch
► Use the switch to change modes you want or turn off the presenter.
Presenter mode
► Change the switch to Presenter mode on the Fujitsu Presenter.
Fujitsu Technology Solutions 7
Setting up the device

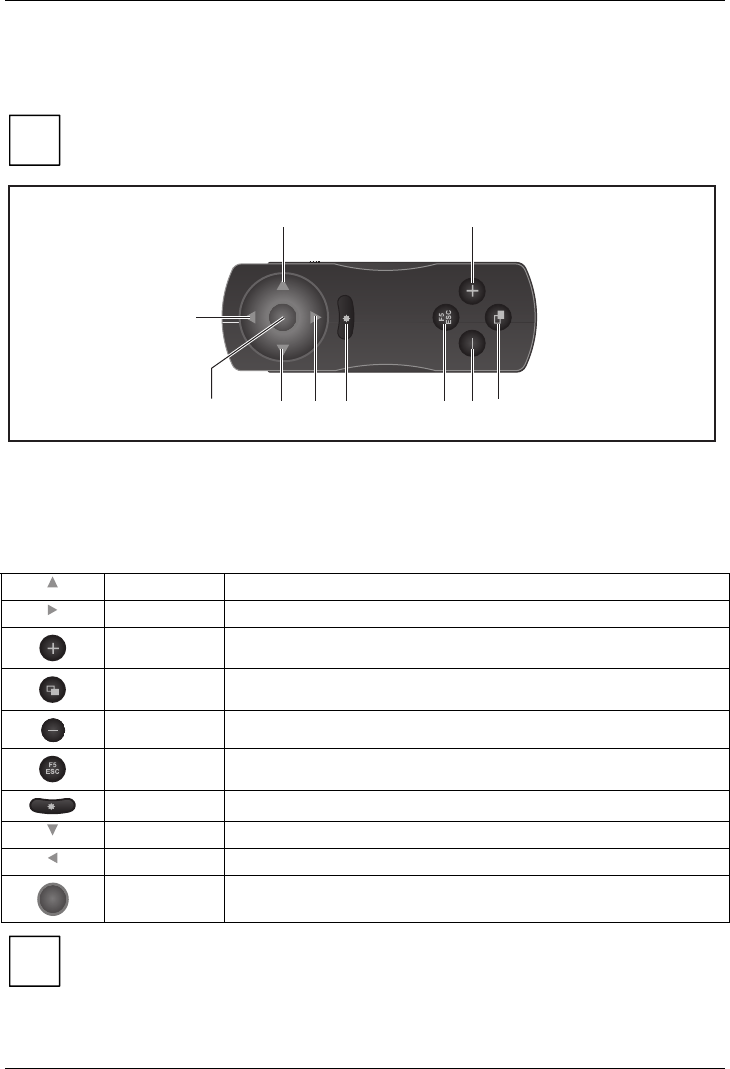

Presenter Mode
1
2
3
4
5
6
7
8
9
10
1 = Page up
2 = Mouse right key
3 = Volume up
4 = Blank Page
5 = Volume down
6 = F5/ESC
7 = Laser
8 = Page down
9 = Mouse left key
10 = Mouse On/Off
UP Power point page up
RIGHT Mouse right key
Volume up Power point volume up
Blank page Power point blank page
Volume down Power point volume down
F5/ESC Power point F5 and ESC
Laser Laser on / off button
DOWN Power point page down
LEFT Mouse left key
Mouse Double click for turn on the cursor automatically.
Press and hold for semi-automatically
8 Fujitsu Technology Solutions
Setting up the device
Game Mode
► Change the switch to Game mode on the Fujitsu Presenter.
The Fujitsu Presenter will only work on the PC in games that support “Microsoft Standard
Game Controller” while switch to Game mode.
i
1
23
4
5
6
7
8
9
10
1 = Up
2 = Left
3 = Button 4
4 = Button 5
5 = Button 6
6 = Button 3
7 = Button 2
8 = Right
9 = Down
10 = Button 1
UP Microsoft standard game controller button up
RIGHT Microsoft standard game controller button right
Button 4 Microsoft standard game controller button 4
Button 5 Microsoft standard game controller button 5
Button 5 Microsoft standard game controller button 6
Button 3 Microsoft standard game controller button 2
Button 2 Microsoft standard game controller button 2
DOWN Microsoft standard game controller button down
LEFT Microsoft standard game controller button left
Button 1 Microsoft standard game controller button 1
i
Make sure your software supports Microsoft Standard Game Controller.
The function of the game pad buttons may vary in different games. Read the manual of
your games carefully to set the best game settings before proceeding to game settings.
Fujitsu Technology Solutions 9
Setting up the device
User information about Fujitsu Presenter
► Facing the computer screen, the distance between the receiver and the tip of the Fujitsu
Presenter should be maintained at 1~5 meters.
► Make sure there are no people or objects at arms length between the Fujitsu Presenter and the
receiver.
► If there is any equipment that may interfere with the radio frequency in the surrounding area of
the Fujitsu Presenter and the receiver, keep a distance from that area or stop using the other
devices.
The Fujitsu Presenter must be synchronized with the mini receiver for usage. A successful
synchronization will keep the receiver LED on at all times.
If the first connection fails, refer to section “Synchronizing the Mini-receiver with the
computer” and follow the steps again.
i
10 Fujitsu Technology Solutions
Troubleshooting and tips
Troubleshooting and tips
If any of the following situations occur while using the Fujitsu Presenter, refer to the following Q&A
list for help:
Fujitsu Presenter cannot be used. Why?
Cause Troubleshooting
Is the Fujitsu Presenter power on? ► Make sure the Fujitsu Presenter power is on. If so, make
sure the batteries are correctly positioned in the Fujitsu
Presenter.
Is the Fujitsu Presenter in standby
mode?
► If the Fujitsu Presenter has not been used for 60 seconds,
it will enter standby mode. Press any button of the Fujitsu
Presenter to re-activate it.
Is the receiver plugged in? ► Make sure the receiver is plugged-in correctly and the LED
is always on.
Is there any interference with the
position of the receiver?
► Remove any obstacles in front of the receiver and make
sure you can clearly see the front of the receiver.
Is the distance between the
Fujitsu Presenter and the receiver
too close or too far?
► Keep a distance between the Fujitsu Presenter and the
receiver of 1~5 meters.
Fujitsu receiver LED is not on
Cause Troubleshooting
Is the power on? ► Make sure the computer power is on and the Fujitsu
Presenter is not in the Power Off mode.
Is the distance too far? ► If the Fujitsu Presenter is too far away, the receiver cannot
detect it. Maintain a distance between the Fujitsu
Presenter and the receiver of 1~5 meters.
Has the synchronization of the
Fujitsu Presenter failed?
► Refer to section “Synchronizing the Fujitsu receiver with
the computer” for synchronization information.
If any of the above solutions do not correct your problem or you have a question, visit our
website, “http://support.ts.fujitsu.com”, for supplemental and/or updated information about
our product.
i
Fujitsu Technology Solutions 11
Technical data
Technical data
General
Interface Compatible with USB 1.1 and 2.0
Frequency Band 2,402~2,480 GHz
Data rate (maximum) 2 Mbps
Laser class Class 2 laser, red
Power supply 2 x AAA alkaline batteries
Battery life 95 Hr (under 2200 mA/h battery for max. continuous operating
mode)
Operating range 10 m (depending on radio interference in the vicinity)
Dimensions and weight
Dimension (L x W x H) 108.5 x 38 x 22.5 mm
Weight Approx. 70 g (including 2 alkaline batteries)
Current consumption
Presenter mode
● Active mode: approx. 6.4 mA
● Sleep mode: approx. 1 uA
● Laser pointer active: approx. 23 mA
Game mode
● Active mode: approx. 6.4 mA
● Sleep mode: approx. 1 uA
Receiver
● Active mode: 25 mA
● USB suspend: 1 mA
12 Fujitsu Technology Solutions
Technical data
Terms of responsibility
In addition to the relevant laws and regulations, the following situations are not included in the
warranty scope or liability of the company:
● Product damage that has resulted from inappropriate product usage.
● Product damage that has resulted from product repair without written authorization of the
company.
● User-inflicted product damage.
● Product damage that has resulted from using the product in an abnormal environment.
● Product damage caused by natural disasters.
● Products without Fujitsu-issued serial numbers.
● Damage caused by using software or an object not provided by the company.
● Samples, testers, non-mass production products and software.
● Products under an expired warranty.
The liabilities of the company only include direct and actual damage. It does not include indirect,
incidental or special damage (such as expected profit loss and moral damage compensation) and
punitive damages. In addition to other regulations, the liabilities of the company to users will require
the company, at most, to replace the Fujitsu Presenter with the latest model.
Fujitsu Technology Solutions 13
