TopSeed Technology TSKM-2401 USB RECEIVER User Manual KI manual V1 00
TopSeed Technology Corp. USB RECEIVER KI manual V1 00
Users Manual
Wireless touch keyboard
User Manual
V1.0
User Manual
1
Welcome
USING THE GYRO PRESENTER
There are two modes of this product.
Mouse mode: You can use mouse function and multi-touch function.
Keyboard mode: Keyboard function is available.

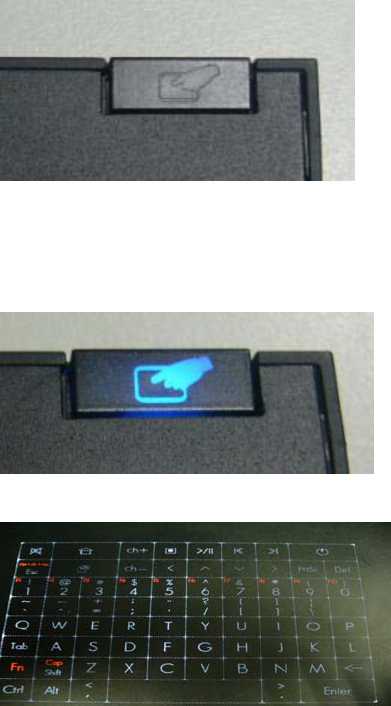

Power / Mode Button
Use the button to change modes and turn on/off device.
1. Press this button to turn on device.
2. Press and hold this button for 3 seconds long to turn off device.
3. After turn on the device, press this button to change mode.
4. If the LED of this button is on, it means device is in mouse mode.
5. If the keyboard backlit is on, it means device is in keyboard mode.
2

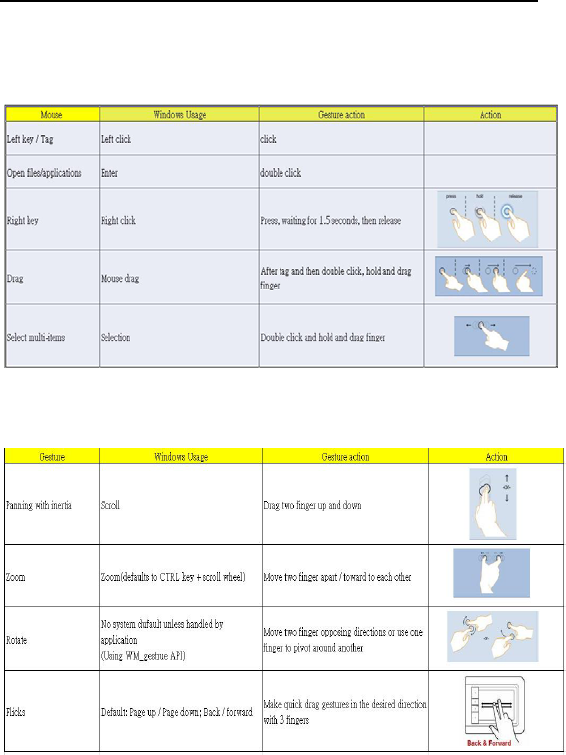

Mouse mode
Mouse and multi-touch functions are available in this modes.
Please refer to the tables below.
3

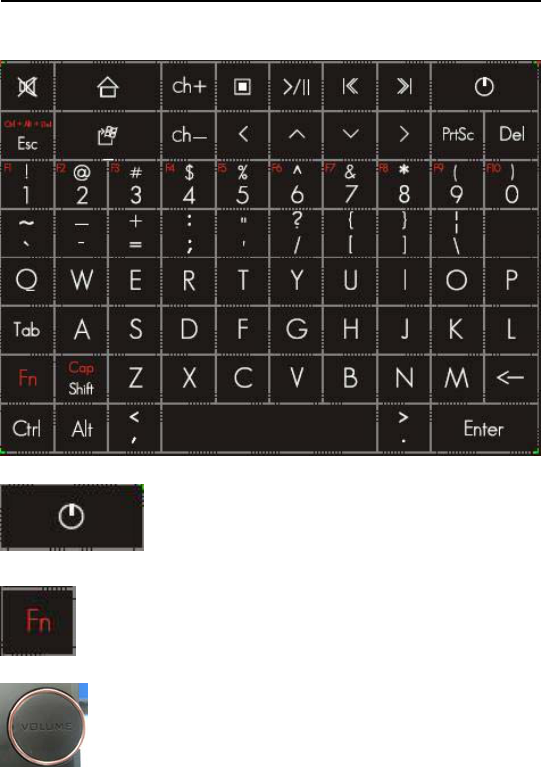

Keyboard mode
Keyboard layout:
This key is hibernating key. Please press and hold for
1.5 second long to hibernate your PC.
Red keys are function keys. Please press and hold this button
and then press the other function keys you want.
Please use this volume wheel to adjust the appropriate
volume you want.
4

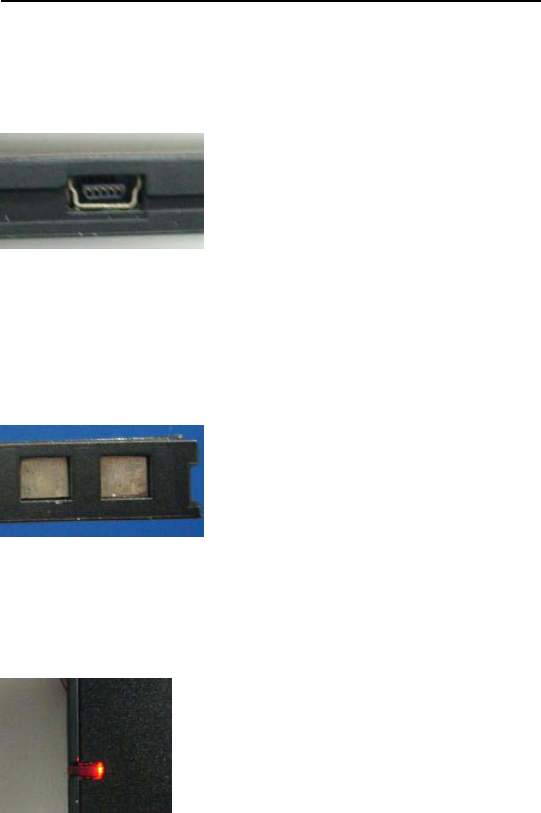

Recharging
1. Mini USB cable recharging
Mini USB cable recharging is available.
2. System recharging
Insert this device into the slot of your REVO PC to recharge device
and these 2 metal plates will contact the recharging probes of REVO
PC.
3. Recharging status indicator
When you recharge device, the indicator will be on like the image
below.
Full battery Red LED turns off
Low battery Red LED blinks per 3sec
Empty battery the device power off
5
Pairing
Please pair the presenter and receiver before the first usage.

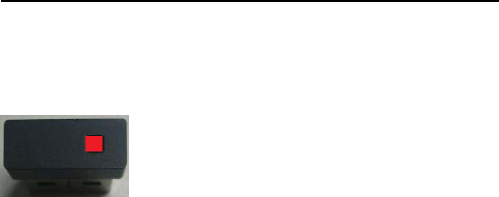

1. Press the connect button on the receiver first and the red LED
will flash slowly.
2. After step 1., press and hold the power switch for 5
seconds.
3. The blue LED of power switch will flash quickly, after
success pairing.
6
※ Warning:
15.21
CAUTION: any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
the equipment.
15.105Federal Communications commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
y Consult the dealer or an experienced radio/TV technician for help.
To protect against risk of fire, bodily injury, electric shock or damage to the
equipment:
y Do not immerse any part of this product in water or other liquid.
y Do not spray liquid on this product or allow excess liquid to drip inside.
y Do not use this product if it has sustained damage, such as a
damaged cord or plug.
y Disconnect this product or remove its batteries before cleaning.
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
includin
g
interference that ma
y
cause undesired o
p
eration
