Chapter 1
Introduction
The RE-S1 is a 1W radio extension system using 915+ spread
spectrum technology. The RE-S1 can be used to enhance the
following survey-related systems:
• As a stand-alone repeater to increase the range between a Base
and Rover in spread spectrum systems, such as with the GR-3 or
HiPer Lite+ GPS systems.
• As a transmit/receive external 915+ radio for any Base system,
such as with the GB or Legacy series GPS receiver.
Obstructions—such as buildings, terrain, trees, etc—greatly affect the
usability and range of a spread spectrum system. The RE-S1 provides
radio repeater capabilites and increase the operational range and
effectivity of the system in unfavorable environments.

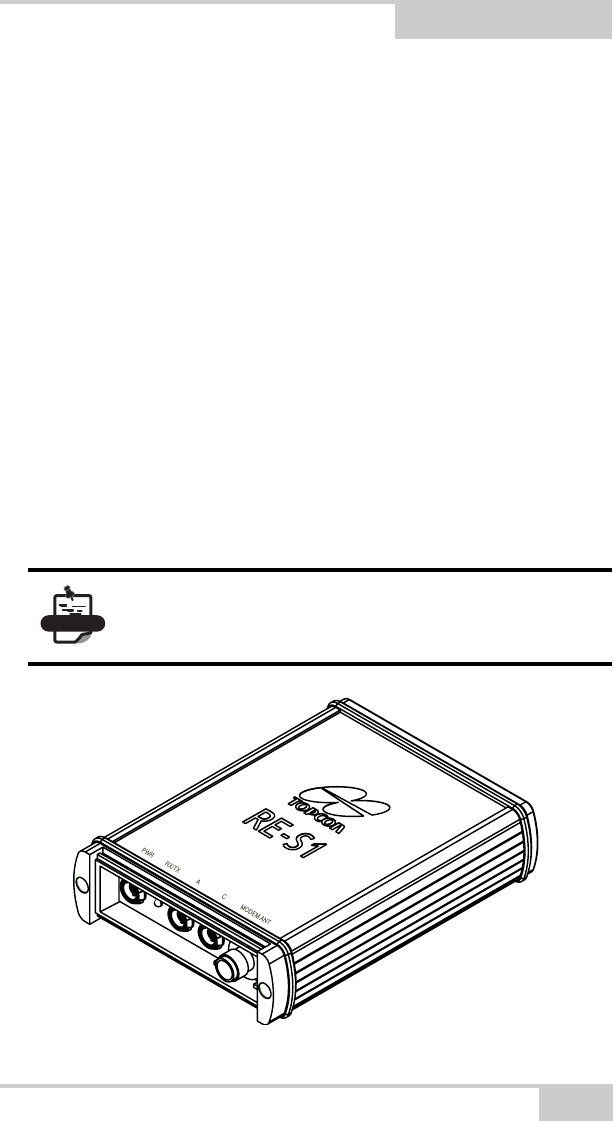

Figure 1-1. RE-S1
NOTE
The RE-S1 simply extends the operational range of
a spread spectrum system. It does not increase
range beyond the system’s OAF limitations.
Introduction
RE-S1 Operator’s Manual
2
Getting Acquainted
The RE-S1 is a transmit/receive/repeat 915+ spread spectrum radio
modem. The RE-S1 is compatible with existing Topcon spread
spectrum radio systems (some older HiPer models may need a radio
modem upgrade), as well as Topcon base stations. Simple features
allow the RE-S1 to be easily adaptable to any situation, and make it
easy to use.
RX/TX LED
The RX/TX LED provides the following indications for the modem:
• Green flashes – modem is in receive mode and is searching for
radio link.
• Green solid – radio link established.
• Green solid with Red flash – modem is receiving.
• Red solid – modem is in transmit mode.
• Red flashes – improper configuration.
Figure 1-2. RE-S1 Receive/Transmit LED
LED notes: The RX/TX LED will be solid green with a red flash
when the Base receiver is within radio range of the repeater system.
The red flash indicates the following:
• A data packet has been received from the Base.
• A data packet has been transmitted from the repeater system.
If the RX/TX LED flashes green for an extended period of time,
check the following:
• The repeater’s distance from the Base.
RX/TX LED
Getting Acquainted
P/N 7010-0780 3
• The channel of the RE-S1, Base, and Rover.
• The protocol of the RE-S1, Base, and Rover (FH915 Plus).
Data and Power Ports
The RE-S1 has the following ports:
• Power – used to connect the repeater an an external power source.
• Serial Ports A and C – used for communication between the
repeater and an external device (computer or controller).

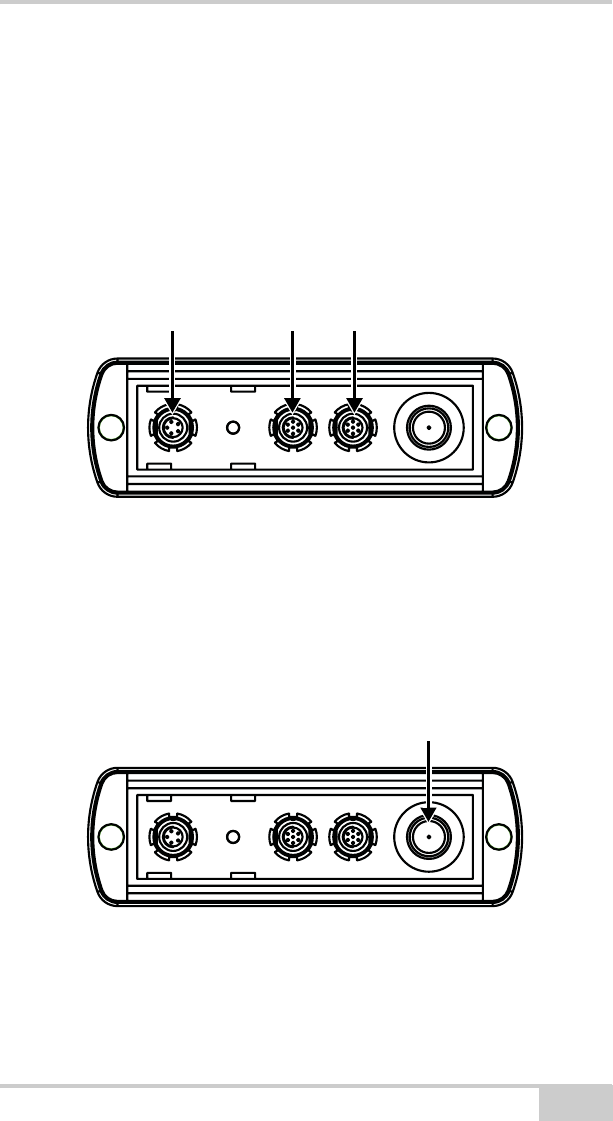

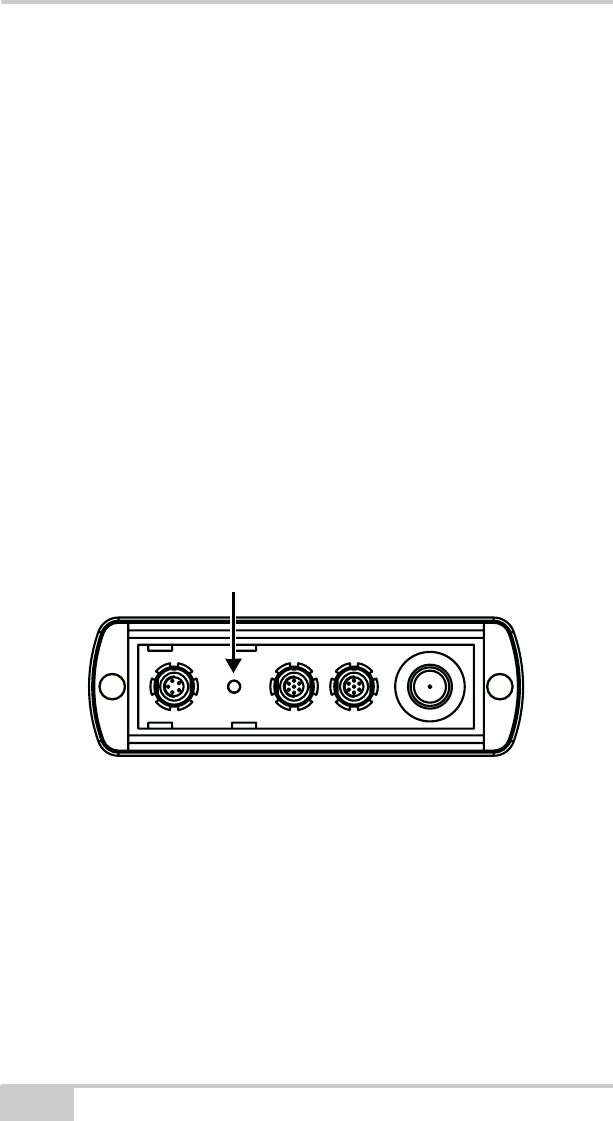

Figure 1-3. RE-S1 Ports
Radio Modem Antenna Port and
Antenna
A spread spectrum reverse TNC radio antenna is required to receive/
transmit a radio signal. The antenna connectes to the antenna port on
the end of the RE-S1.
Figure 1-4. RE-S1 Radio Antenna Port
Power Port Port A PortC
Radio Modem Antenna Port
Introduction
RE-S1 Operator’s Manual
4
The spread spectrum modem antenna is a reverse polarity TNC RF
connection (p/n 30-030012-01).
Figure 1-5. Modem Antenna
Standard Kit Cables and Power
Supply
The standard RE-S1 package includes communication and power
cables for configuring the repeater and providing a power source to
the repeater. Table 1-1 lists the cables included in the package.

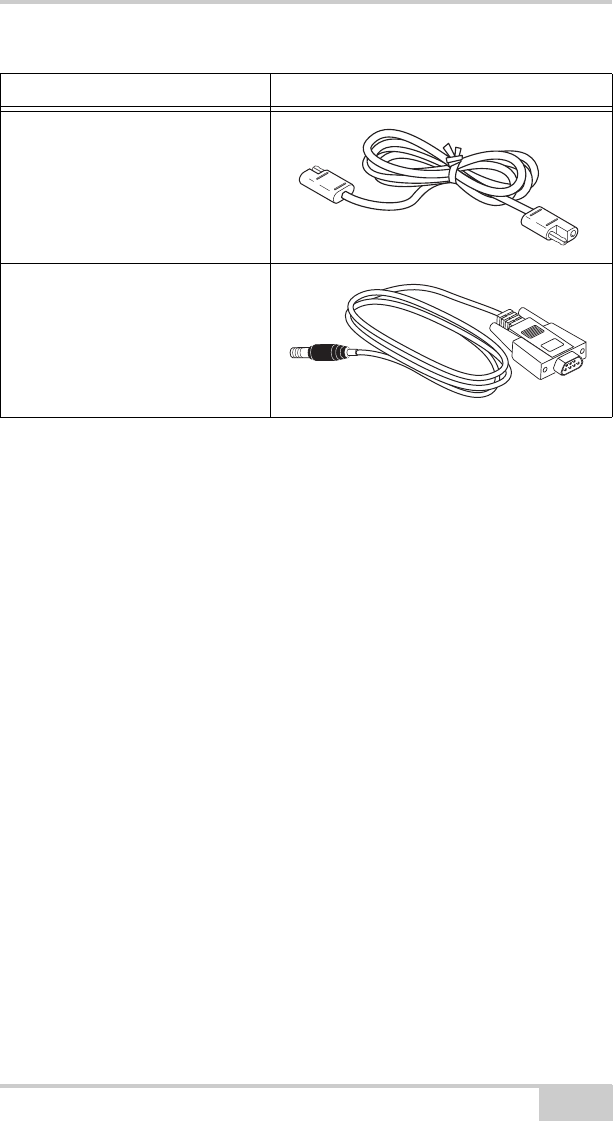

Table 1-1. RE-S1 Standard Package Cables
Cable Description Cable Illustration
Power/charging cable
Connects the repeater and the
power supply unit via SAE
connectors for battery charging.
Body of connector is red.
p/n 14-008016-03
Alligator clips-to-SAE cable
Connects the repeater to a mobile
external power source.
p/n 14-008025-01
SS Antenna
Getting Acquainted
P/N 7010-0780 5
SAE-to-SAE extension cable
Connects the SAE ends of two
cables together. For example from
the aligator clips to the charging
cable.
p/n 14-008022-01
Serial cable
Connects the repeater to an external
device (controller or computer) for
modifying the configuration. Body
of connector is black.
p/n 14-008005-03
Table 1-1. RE-S1 Standard Package Cables (Continued)
Cable Description Cable Illustration
Introduction
RE-S1 Operator’s Manual
Notes:
6
P/N 7010-0780
Chapter 2
7
Configuration and
Usage
Once the RE-S1 is configured, it simply needs to be connected to a
power source to begin operating.
Installing Modem-TPS
Modem-TPS is a configuration program for the radio modem board
inside the receiver. Modem-TPS is available from the TPS website or
on the GPS+ CD.
Computer requirements for Modem-TPS are: Windows® 98 or newer
and an RS-232C port. Use Modem-TPS version 2.0 or newer to
correctly configure the RE-S1.

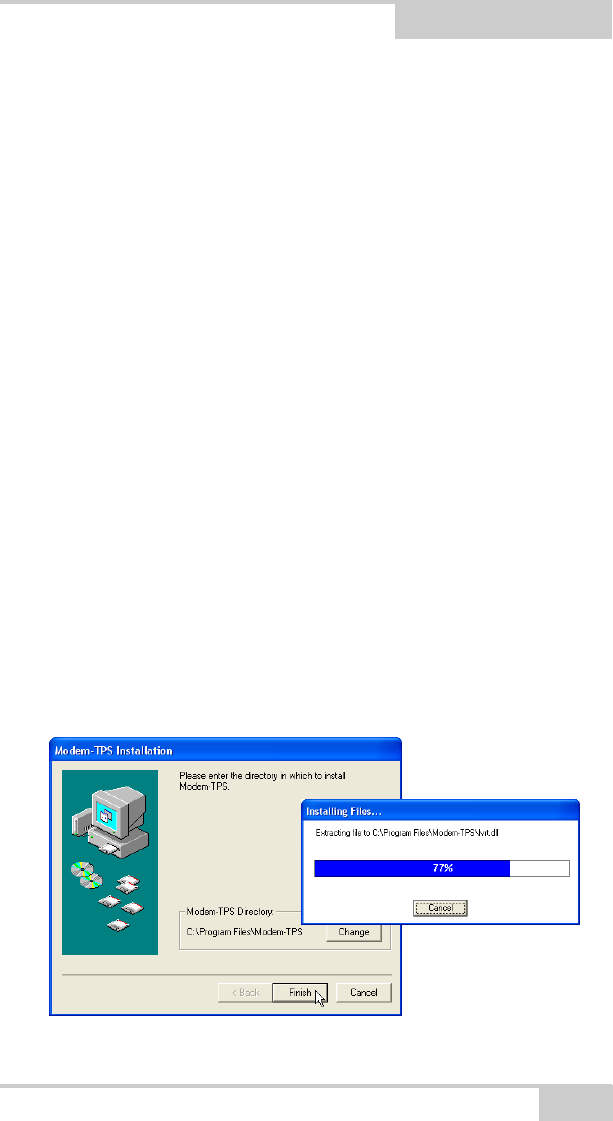

1. Navigate to the location of the Modem-TPS program and double-
click the Setup.exe icon.
2. Keep the default installation location or select a new location.
Click Finish (Figure 2-1).
Figure 2-1. Select Modem-TPS Installation Location and Install
Configuration and Usage
RE-S1 Operator’s Manual
8

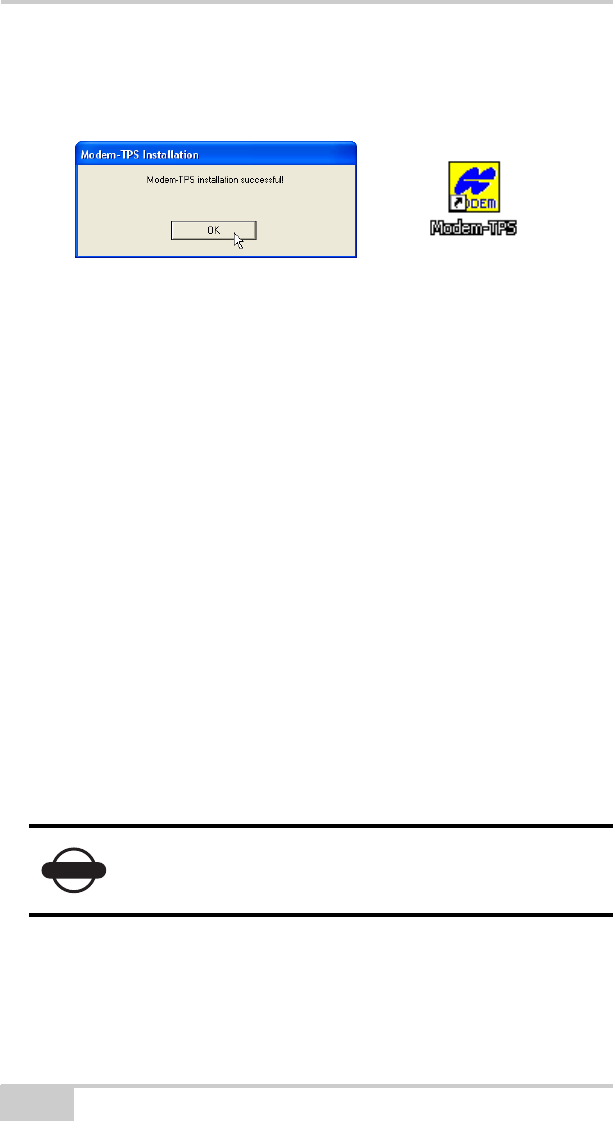

3. Click OK to complete the installation (Figure 2-2).
4. If desired, create a shortcut on the computer’s desktop for quick
access to Modem-TPS (Figure 2-2).
Figure 2-2. Installation Complete and Shortcut
To uninstall Modem-TPS, use the Start menu on your computer:
Click StartProgramsModem-TPSUninstall Modem-
TPS, and click Yes at the prompt. Then click OK when the
uninstall completes.
Configuring the RE-S1 as a
Repeater
After being configured as a repeater, the RE-S1 will pick up any radio
signal on the same channel and forward it to another radio modem.
All modems connected to the repeater must use the same protocol and
channel.
1. Connect the power cable to the RE-S1 and to a power source.
2. Using the RS-232 serial cable, connect port A of the RE-S1 to a
computer.
3. Open Modem-TPS and click Connect.
4. Select the protocol: FH915 Plus.
5. Select your location: United States or Australia.
6. Select the operation mode: Repeater.
7. Select the output power: 1W or 250mW.
NOTICE The Base, Rover, and Repeater must use the same
protocol.
Configuring the RE-S1 as a Repeater
P/N 7010-0780 9
8. Select the channel: 1–5.
9. Click Apply.

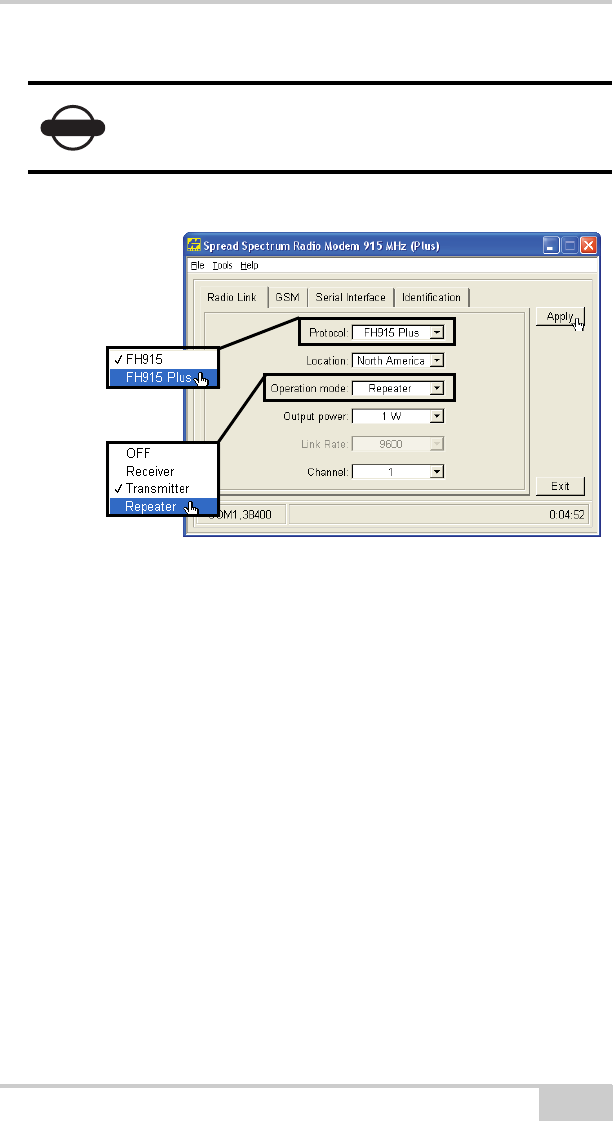

Figure 2-3. Configure the RE-S1 using Modem-TPS
NOTICE The Base, Rover, and Repeater must use the same
channel.
Configuration and Usage
RE-S1 Operator’s Manual
Notes:
10
P/N 7010-0780
Appendix A
11
Regulatory Information
and Warnings
The following sections provide information on this product’s
compliance with government regulations for use, and some guidelines
on the safe use of the product.
FCC Compliance
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in residential installations. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television
equipment reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
Regulatory Information and Warnings
RE-S1 Operator’s Manual
12
• Plug the equipment into an outlet on a circuit different from that
to which the receiver is powered.
• Consult the dealer or an experienced radio/television technician
for additional suggestions.
Canadian Emissions Labeling
Requirements
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Réglement sur le matériel brouilleur du Canada.
Community of Europe
Compliance
The product described in this manual is in compliance with the
R&TTE and EMC directives from the European Community.
WEEE Directive
Following information is for EU-member states only:
The use of the symbol indicates that this product may not be treated
as household waste. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed
CAUTION
Any changes or modifications to the equipment not
expressly approved by the party responsible for
compliance could void your authority to operate
such equipment.
Safety and Usage Warnings
P/N 7010-0780 13
information about the take-back and recycling of this product, please
contact your supplier where you purchased the product or consult.
Safety and Usage Warnings
NOTICE
To comply with RF exposure requirements,
maintain at least 20cm between the user and the
radio modem.
CAUTION
If this product has been dropped, altered,
transported or shipped without proper packaging, or
otherwise treated without care, erroneous
measurements may occur.
The owner should periodically test this product to
ensure it provides accurate measurements.
Inform TPS immediately if this product does not
function properly.
CAUTION
Only allow authorized TPS warranty service centers
to service or repair this product.
Regulatory Information and Warnings
RE-S1 Operator’s Manual
Notes:
14
Notes:
Topcon Positioning Systems, Inc.
7400 National Drive, Livermore, CA 94551
800∙443∙4567 www.topcon.com
ISO 9001:2000
FM 68448
RE-S1 Operator’s Manual
P/N: 7010-0780 Rev A 09/06 30
©2006 Topcon Corporation All rights reserved. No unauthorized duplication.
RE-S1_Cover.indd 2 8/31/2006 3:17:44 PM
