RH-1 USERS MANUAL
Please read these Terms and Conditions carefully.
This product is designed to be used by a professional. The user should have a good knowledge of
the safe of the product and implement the types of safety procedures recommended by the local
government protection agency for both private use and commercial job sites.
Any changes or modifications to the equipment not expressly approved by the party
responsible for compliance could void your authority to operate such equipment.
Turn off the power supply near a highly accurate electronic equipment.
RH-1
・Outline of product
RH-1 is GPS receiver in GRS-1 to measure the GPS data in real time.
RH-1 supplies the electric power to GRS-1 by two battery and outside AC power, and
enables the operation of GRS-1 of long time.
・Physical
Dimensions : 8.50” x 5.83” x 6.71” ( 216 x 148 x 170.5 mm ) no Antenna
:15.47” x 5.83” x 6.71” ( 393 x 148 x 170.5 mm ) with Antenna
Weight :1.4Kg
Input / output :Bluetooth,Serial, Power, Antenna,Communication pins(for GRS-1)
Battery Type :Li-ion battery, Rechargeable / Replaceable
Input voltage :12 to 20V
Operating temperature :-20 C° to +50 C°
Strage temperatuere :-30 C° to +60 C°
Waterproof :IPX4
・Use
1. GRS-1 is installed in the holder.
2. Pushing the switch long , that RH-1 LEDs is lit.
3. Pushing the switch short , that RH-1 LED4 is matched to the machine used.
4. The power of GRS-1 is turned on.
The user doesn't operate GPS from RH-1,because The user does all the operations
concerning GPS from GRS-1.
The electric power is supplied to GRS-1 without operating it under such a condition.
![](/img.php?id=1018191&img=bg2.png)
(2/4)
・LED
LED 1: Battery 1 (Red and Green)
Green: Using / Battery Full
Red Blink: Using / Battery Empty
LED 2: Battery 2 (Red and Green)
Green: Using / Battery Full
Red Blink: Using / Battery Empty
LED 3: Radio Modem Status (Green and Orange), Same as GR-3 Radio status LED.
Non: Turn Off
Red: Data Transmitting
Green: Data Receiving
LED 4: Serial port Connection mode and Radio power(Red, Green and Orange)
Green: Radio board is connected to Bluetooth
External port is connected to GRS-1
Red: Radio board is connected to GRS-1
Orange: Radio board is connected to External connector
Non: Radio board is OFF
Connected between GRS-1 and External connector
・Radio
Each model built-in the following radio.
The specification is same as GR-3’s radio portion.
UHF 410-470MHz
SA915
Satel
UHF for Japan
・RH-1 standard package includes
・Radio Holder unit
・Two Li-ion Battely
・Radio antenna
・Power adptor AD-11 (AC-DC Adptor)
・AC Cable ( for AD-11)
・Serial Cable ( DB9 )
・Manual CD

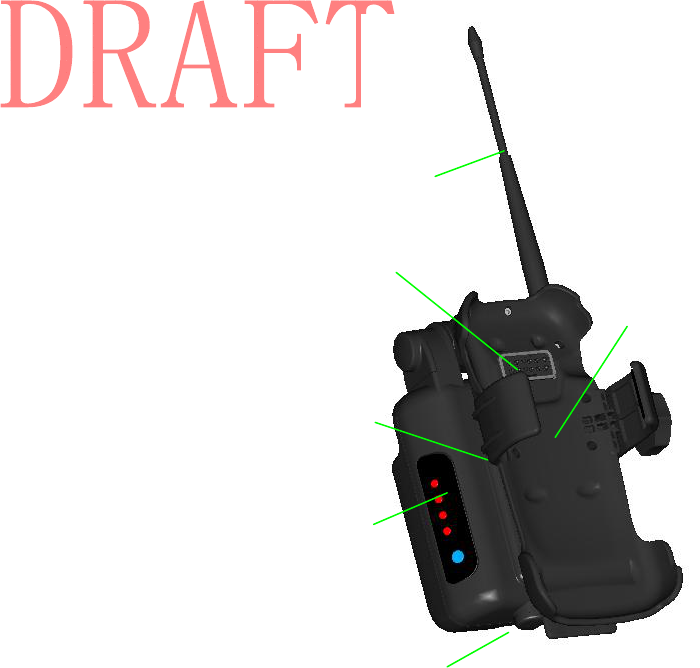

Bluetooth
Antenna
Contact pins
(for GRS-1)
External port &
Power port
Modem
Switch Panel
![](/img.php?id=1018191&img=bg3.png)
(3/4)
FCC Regulatory Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Caution:
Any changes or modifications not expressly approved by the party responsible for product
compliance could void the user's authority to operate the equipment.
Caution Exposure to radio frequency radiation
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20
cm must be maintained between the antenna of this device and all persons. This device must not
be co-located or operating in conjunction with any other antenna or transmitter.
![](/img.php?id=1018191&img=bg4.png)
(4/4)
Industry Canada
Canada Regulatory Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du Canada.
For Customers in Canada
This device complies with RSS 210 of Industry Canada (IC).
Operation is subject to the following two conditions:
・this device may not cause interference, and
・this device must accept any interference, including interference that may cause undesired
operation of this device.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes:
・il ne doit pas produire de brouillage et
・I'utilisateur du dispositif doit étre prêt a accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
Exposure to radio frequency radiation
The installer of this radio equipment must ensure that the antenna is located or pointed such
that it does not emit RF field in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada’s website at www.hc-sc.gc.ca/rpb.
