INSTRUCTION MANUAL
LASER SENSOR
LS-B110/LS-B110W
Thank you for purchasing the TOPCON LS-B110/LS-B110W.
For the best performance of the instruments, please read these instructions
carefully and keep them in a convenient location for future reference.
GENERAL HANDLING PRECAUTIONS
Before starting work or operation, be sure to check that the system is
functioning properly. Remove the batteries from the instrument when
you will not be using it for long period. When washing the instrument,
avoid spraying it with a high pressure stream of water from a water
hose. The inside of the instrument will be damaged by the water. This
instrument is designed based on the International Standard IPX 6, but it
is not protected from a high pressure water stream or submergence.
Affection of the radio waves
When using the instrument in the following place, the strong radio wave
may cause faulty operation.
• Near the instrument occurring strong radio waves. (e.g. Transceiver)
• Near the radio wave towers such as television or radio.
DISPLAY FOR SAFE USE
In order to encourage the safe use of products and prevent any danger to
the operator and others or damage to properties, important warnings are
put on the products and inserted in the instruction manuals.
We suggest that everyone understand the meaning of the following displays
and icons before reading the “Safety Cautions” and text.
• Injury refers to hurt, burn, electric shock, etc.
• Physical damage refers to extensive damage to buildings or equipment and furni-
ture.
HANDLING PRECAUTIONS
Guarding the instrument against shock
When transporting the instrument, provide some protection to minimize risk
of shock. Heavy shock may affect beam accuracy.
SAFETY CAUTIONS
Standard Set Composition
1 LS-B110/LS-B110W Instrument .............................. 1pc.
2 C-size dry cells........................................................ 4pcs.
3 Carrying case .......................................................... 1pc.
4 Instruction manual................................................... 1pc.
Nomenclature and Functions
Operation
1Position a rotating laser and turn on the laser.
2Raise or lower the machine blade or arm to position the cutting
edge or bucket at the desired grade elevation.
3Mount the LS-B110/LS-B110W onto the mast near the path of the
laser beam and turn on the LS-B110/LS-B110W.
4Keep the machine blade or arm motionless and raise or lower the
LS-B110/LS-B110W and adjust until ON-GRADE position are flash-
ing. This is the ON GRADE position.
5Securely clamp the LS-B110/LS-B110W in place. The reference
position has been set.
6While operating, use the LED display to continually check grade,
moving the blade or cutting / filling according to the direction of the
LS-B110/LS-B110W display.
Display Meaning
WARNING Ignoring or disregard of this display may lead to death or serious
injury.
CAUTION Ignoring or disregard of this display may lead to personal injury
or physical damage to the instrument.
WARNING
• There is a risk of fire, electric shock or physical harm if you attempt to disas-
semble or repair the instrument yourself.
This is only to be carried out by TOPCON or an authorized dealer, only!
• Risk of fire or electric shock.
Do not use damaged power cable, plug and socket.
• Risk of fire or electric shock.
Do not use a wet battery.
• May ignite explosively.
Never use an instrument near flammable gas, liquid matter, and do not use in a coal
mine.
• Battery can cause explosion or injury.
Do not dispose in fire or heat.
• The short circuit of a battery can cause a fire.
Do not short circuit battery when storing it.
• Battery can cause explosion or injury.
Remove battery when using the connector for external communication.
CAUTION
Do not allow skin or clothing to come into contact with acid from the batteries, if this
does occur then wash off with copious amounts of water and seek medical advice.
EXCEPTIONS FROM RESPONSIBILITY
1) The user of this product is expected to follow all operating instructions and make periodic checks
of the product’s performance.
2) The manufacturer, or its representatives, assumes no responsibility for results of a faulty or
intentional usage or misuse including any direct, indirect, consequential damage, and loss of
profits.
3) The manufacturer, or its representatives, assumes no responsibility for consequential damage,
and loss of profits by any disaster, (an earthquake, storms, floods etc.).
A fire, accident, or an act of a third party and/or a usage any other usual conditions.
4) The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of
profits due to a change of data, loss of data, an interruption of business etc., caused by using the
product or an unusable product.
5) The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of
profits caused by usage except for explained in the user manual.
6) The manufacturer, or its representatives, assumes no responsibility for damage caused by
wrong movement, or action due to connecting with other products.
Shape: Cylindrical
Dimension: 45 to 51mm in diameter
Please refer to the instruction manual for the machine or
contact the machine manufacturer for instructions on install-
ing the mast onto the machine (by welding, etc.).
45 to 51mm

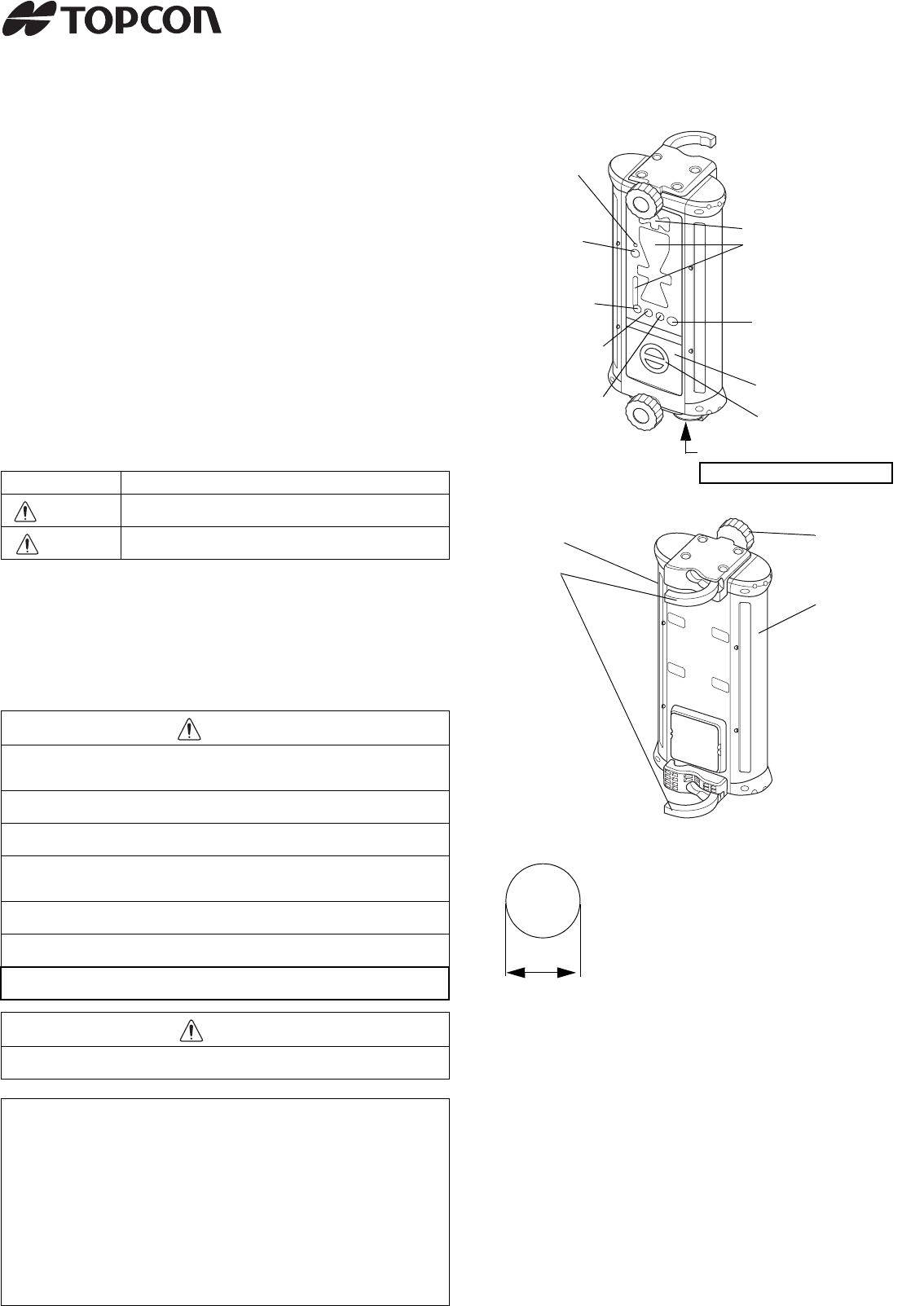

Tilt indicator
Indicator
Battery cover
Battery cover knob
Power switch
Power ON: Short push
Power OFF: Long push
Detective precision
(Mode) switch
Clamp knob
Detector
Detector
Clamp
Connector for external communication
Please refer to the back of the
instruction manual for the
indicator display patterns.
Remove battery when connecting.
Pipes that can be installed onto the LS-B110/LS-B110W are as described
below.
Wireless communi-
cation switch
(For the LS-B110W
only)
Wireless communi-
cation LED
(For the LS-B110W
only)
Zero-set switch
Tilt switch
Indicator
Rotating laser battery warning display
A flash shows that the rotating laser power is low.
(This function is not usable to the rotating laser which does
not have the function to output alarm signal.)
Goes out:
Battery is sufficient. (When Mode 1 is selected, the lamp will
light up.)
Flashes slowly:
The power is low, but sensor is still usable.
Flashes quickly:
Dead battery. Replace the dry battery with new one.
Mode1
Mode2
Mode3
Mode4
Precision mode
LS-B110/LS-B110W Battery remaining display
Battery remaining display LED
Rotating laser battery
remaining warning LED
It is possible to change the detective precision of the
instrument.
Please select Mode 1 to 4 according to the objective of the
operation.
Pressing the detective precision (Mode) switch will change
the mode and the corresponding LED lamp will light up.
(During battery remaining display shown below, the lamp
will flash.)
Battery remaining for the LS-B110/LS-B110W will be displayed
at 3 levels.
Indicator (LED) Detective precision
Mode1: ±3mm (0.009ft)
Mode2: ±6mm (0.019ft)
Mode3: ±15mm (0.049ft)
Mode4: ±30mm (0.098ft)
±15mm/±0.05ft
(30mm/0.1ft width)
±30mm/±0.1ft
(60mm/0.2ft width)
When the laser
beam is off to the top
or to the bottom
Flashes slowly
Flashes quickly
±50mm/±0.16ft
(100mm/0.33ft width)
±70mm/±0.23ft
(140mm/0.46ft width)
±125mm/±0.41ft
(250mm/0.82ft width)
Flashes quickly
Flashes slowly
Flashes more slowly

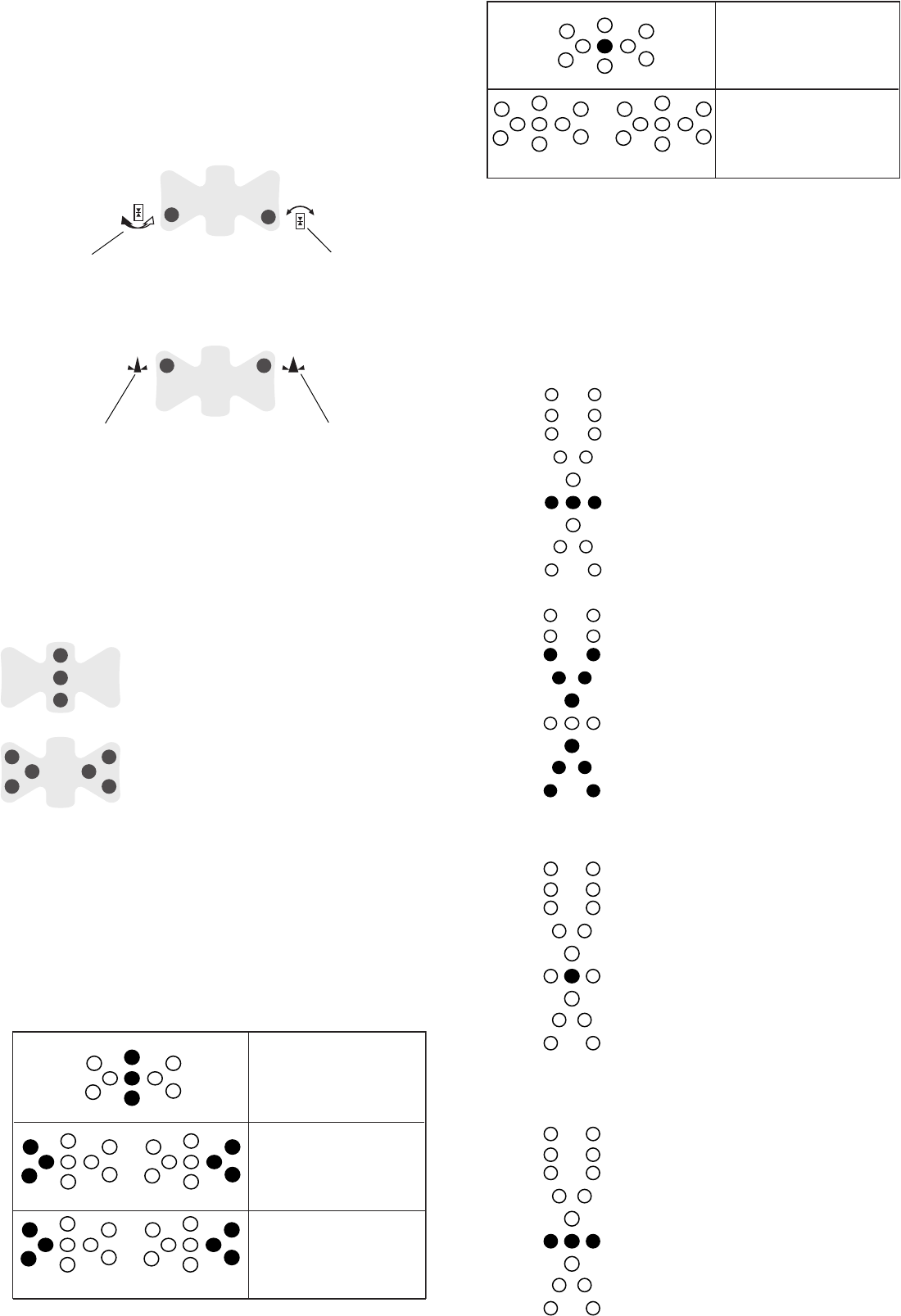

Laser beam positions and display patterns
Height alert warning of rotating laser
A flash signifies that the height alert function of rotating
laser is operating.
(This function is not usable to the rotating laser which does
not have the height alert and the function to output alarm
signal.)
Flashes
Power-save function
Flashes
The instrument turns the power-save mode after detecting
no laser beam for more than approx. five minutes.
During the power-save mode, LED (1 yellow, 1 red) will
flash.
(The mode is canceled automatically when the instrument
detects a laser beam again. The mode can also be can-
celed by pressing the power switch again.)
Auto-cut off function
The power will be turned off automatically after detecting no laser beam for
more than approx. 60 minutes.
(To turn on the laser sensor, press the power switch again.)
* When turning the power on by pressing the power switch for more than
5 seconds, the power-save and the auto-cut off functions may be inval-
idated.
Connector for external communication
The LS-B110/LS-B110W can be used as the laser detecting sensor for any TOP-
CON machine control system by connecting the communication cable to the con-
nector for external communication. (Please contact your sales agent for details.)
Connecting the connector cable PC-18 (sold separately) to the connector for
external communication will enable the use of the LS-B110/LS-B110W from an
external power supply. When the instrument is operated with the external power
supply, the power-save and the auto-cut off functions will be invalidated. The LS-
B110/LS-B110W will turn on when connection is made to external power supply.
The power switch of the instrument will not function when an external power sup-
ply is used. Wireless communication will not function when using external com-
munication or an external power supply.
Tilt detection function
Switching the tilt direction
The tilt direction can be changed.
1Long-push the detective precision switch and the tilt switch at the
same time. The tilt direction mode setting changes in the following
order: "Back and Forth," "OFF" and "Right and Left." At this time, the
LED at the side of the mark indicating the tilt direction will flash. The
LED will not flash when the tilt detection function is switched OFF.
Switching the tilt precision
1Short-push the tilt switch. The tilt precision will change. At this time,
the LED at the side of the mark indicating the tilt precision will light up.
Zero position setting for the tilt sensor
Before using the tilt detection function, set the zero position of the tilt sensor
according to the directions below. The tilt direction must be set before set-
ting the zero position.
1Raise or lower the machine blade or arm where the LS-B110/LS-
B110W is installed to position the cutting edge or bucket at the
desired slope.
2Long-push the tilt switch. The tilt angle for the LS-B110/LS-B110W
will set to 0º.
To set the vertical zero position of tilt sensor to perpendicular.
1 Vertically position the machine blade or arm where the LS-B110/
LS-B110 is installed.
2 Rotate the LS-B110/LS-B110W on the pole each by 90º, and
confirm that the green LED in the tilt indicator is flashing in all
directions.
3 Set the zero position.
Tilt angles and display patterns
Tilt directions : Right and Left
Tilt directions : Back and Forth
Changing the ON-GRADE position function
The ON-GRADE position can be changed to the position where laser beam
is detected. Using this function when installing the LS-B110/LS-B110W on
the pole of the machine allows easy setting of the height at which the ON-
GRADE will be displayed on the LS-B110/LS-B110W. The range in which
the ON-GRADE position can be changed is ±75mm (total of 150mm) from
the center of the detective range.
1Long-push the zero-set switch while detecting the laser beam.
The LED display while changing the ON-GRADE position
The LED display indicating beam position and the LED (1 green) in the cen-
ter will flash.
Canceling the ON-GRADE position change
1Long-push the zero-set switch when not detecting the laser beam.
The ON-GRADE position will be reset.
Tilt direction mark : Right and LeftTilt direction mark : Back and Forth
Tilt precision mark : High precision Tilt precision mark : Normal precision
The LED lights up as shown in the figure for three sec-
onds when the zero position is set.
The LED flashes as shown in the figure for three sec-
onds when you have failed to set the zero position.
High precision : ±1°
Normal precision : ±2.5°
Flashes quickly
±5°
More than ±5°
Flashes slowly
Lights off
High precision : ±1°
Normal precision : ±2.5°
High precision : More than ±1°
Normal precision : More than ±2.5°
Tilt indication will be displayed during laser detection and for 20
seconds after switch operation.
When changing the ON-GRADE position, the LED
lights up for three seconds, as shown in the figure. The
position where the laser beam is being detected will be
the ON-GRADE position.
The LED lights up as shown in the figure for three sec-
onds when you have failed to change the ON-GRADE
position. Be careful not to change the position at which
the laser beam is detected and try setting once again.
When the ON-GRADE position change is cancelled,
the LED (3 green) will flash for three seconds.
How to set up the wireless communication default setting (Only
LS-B110W)
Place the LS-B110W and RD-100W in close position, so that they will not be
affected by other wireless communications.
1 Turn on the power for both the LS-B110W and RD-100W.
2 Long-push the wireless communication switch for the LS-B110W
and RD-100W. While setting up, the wireless communication
LED (yellow light) will turn on.
3 When the instrument is ready to be used, the communication will
begin.
How to use wireless communication (Only LS-B110W)
When power for both the LS-B110W and RD-100W are turned ON, commu-
nication will automatically begin.
During communication, the wireless communication LED will flash quickly.
During communication preparation, the wireless communication LED will
flash slowly.
Lighting/Flashing pattern of wireless communication LED
Lights While setting up the default
Flashes quickly While LS-B110W is
communicating
Flashes slowly Communication is in preparation
This instrument is able to perform wireless communication with the
RD-100W, sold separately.
See the RD-100W instruction manual for details on the RD-100W.
• If the communication fails, the wireless communication LED
will flash slowly. Eliminate any influence from other wireless
instrument and redo the communication default setting.
• While setting up the default, only the default OFF (short-push
of the wireless communication switch) is operable.
• When the detective precision, tilt direction, tilt precision or
ON-GRADE position settings are changed, the setting for the
RD-100W will also change in conjunction with the LS-B110W.
• If you wish to change the RD-100W to communicate, redo the
communication default setting.
Specifications
Detective range : 250mm (6.8inches)
Detective angle : 360°
Detective precision : Mode1: ±3mm (0.009ft)
: Mode2: ±6mm (0.019ft)
: Mode3: ±15mm (0.049ft)
: Mode4: ±30mm (0.098ft)
Detectable laser wave
length : 633 to 785nm
Laser detecting range
(diameter)
: 800m (2625ft)
(Using the RL-100 1S/2S)
Wireless communication
range
: 20m
(May vary depending on obstacles between
the two instruments as well as other conditions)
Internal battery :
:
C-size dry cells 4pcs.
Battery pack BT-68Q (sold separately)
External power supply : DC 10V to 30V
Continuous operating
time*
(+20°C/+68°F)
:
:
(Using alkaline manganese dry cells)
LS-B110 :Approximately 80 hours
LS-B110W :Approximately 40 hours
(Using Battery pack BT-68Q)
LS-B110 :Approximately 40 hours
LS-B110W :Approximately 18 hours
Operating temperature : -20°C to +50°C (-4°F to +122°F)
Water proof : IP66 (Based on the standard IEC60529)
Dimensions (W/D/H) : 158x166x357 (mm) (6.2"x6.5"x14.0")
(With Mechanical Clamp)
Weight (Without cells) : 2.0kg (4.4lbs)
* When the LS-B110W is performing wireless communication.
Detective angle, Detective precision and Laser detecting range may vary
depending on rotating laser being used or atmospheric conditions.
Battery using time will vary depending on environmental conditions and
operations done with LS-B110/LS-B110W.
75-1 Hasunuma-cho, Itabashi-ku, Tokyo 174-8580, Japan
www.topcon.co.jp
7400 National Drive, Livermore, CA 94551, U.S.A.
Phone: 925-245-8300 Fax: 925-245-8599 www.Topconpositioning.com
3380 Industrial Blvd, Suite 105, West Sacramento, CA 95691, U.S.A.
Phone: 916-374-8575 Fax: 916-374-8329
Essebaan 11, 2908 LJ Capelle a/d IJssel, The Netherlands.
Phone: 010-458-5077 Fax: 010-284-4941 www.topconeurope.com
Giesserallee 31, 47877 Willich, GERMANY
Phone: 02154-885-100 Fax: 02154-885-111 info@topcon.de
www.topcon.de
89, Rue de Paris, 92585 Clichy, Cedex, France.
Phone: 33-1-41069490 Fax: 33-1-47390251 topcon@topcon.fr
Phone: 031-7109200 Fax: 031-7109249
Topcon House Kennet Side, Bone Lane, Newbury, Berkshire RG14 5PX U.K.
Phone: 44-1635-551120 Fax: 44-1635-551170
survey.sales@topcon.co.uk laser.sales@topcon.co.uk
Blk 192 Pandan Loop, #07-01 Pantech Industrial Complex, Singapore 128381
Phone: 65-6778-3456 Fax: 65-6773-6550 www.topcon.com.sg
77/162 Sinn Sathorn Tower, 37th Fl.,
Krungdhonburi Rd., Klongtonsai, Klongsarn, Bangkok 10600 Thailand.
Phone: 66-2-4401152~7 Fax: 66-2-4401158
No.D1, (Ground, Lower Ground & 1st Floor), Jalan Excella 2, Off Jalan Ampang
Putra, Taman Ampang Hilir, 55100 Kuala Lumpur, Malaysia
Phone: 60-3-42709866 Fax: 60-3-42709766
2F Yooseoung Bldg., 1595-3, Seocho-Dong, Seocho-gu, Seoul, 137-876, Korea.
Phone: 82-2-2055-0321 Fax: 82-2-2055-0319 www.topcon.co.kr
Block No.9, Kangding Street
Beijing Economic-Technological Development Area, Beijing, 100176, China
Phone: 86-10-6780-2799 Fax: 86-10-6780-2790
P. O Box293705, Office C-25(row C-2), Dubai Airport Free Zone, Dubai, UAE
Phone: 971-4-2995900 Fax: 971-4-2995901 marketing@Topcon.ae
Unit 69 Western Parkway Business Center
Phone: 01460-0021 Fax: 01460-0129
Lower Ballymount Road, Dublin 12, Lreland
6F
31267 90041
FCC WARNING
Changes or modifications not expressly approved by the manufac-
turer for compliance could void the user’s authority to operate the
equipment.
In order to comply with FCC radio-frequency radiation exposure
guidelines for an uncontrolled exposure, this device and its
antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set
forth for uncontrolled equipment and meets the FCC radio fre-
quency (RF) Exposure Guidelines in Supplement C to OET65 and
RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that it is deemed to
comply without testing of specific absorption ratio (SAR).
This device complies with Part 15 of FCC Rules and RSS-Gen of
IC Rules. Operation is subject to the following two conditions : (1)
this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of this device.
Declaration of Conformity
R&TTE Directive 1995/5/EC
WE: TOPCON CORPORATION
75-1 Hasunuma-cho Itabashi-ku Tokyo Japan
declare on our own responsibility, that the product;
Kind of Product: Laser Sensor
Type designation: LS-B110W
is in compliance with the following norm(s) or documents;
Radio :EN 300 328
EMC :EN 301 489-1/17
safety :EN 60950
