User s Manual081119 1 revised
RS1NJT499 USER’S MANUAL
Over View
This device is a 802.11g/b WirelessLAN Module, which operates in 2.4GHz
ISM band . The system is compliant with IEEE Wireless LAN standards 802.11b/g
It uses OFDM technique that the maximum data rate could up to 54Mbps.
If the signal to noise ratio is too poor which could not support 54Mbps, the 11Mbps data rate with
DSSS technique will be applied.
Physical Specifications
Table A-1 Physical Specification
Dimensions W:45.4 D:20.8 H:7.0mm
Weight 15g
Input / output USB/Power/antenna
Input voltage 3.3V±5% /460mA (typ)
Operating temperature 0-+40℃
Strage temperatuere -10-70℃
Wireless specifications
Table A-2 Wireless Specifications
Standard IEEE802.11/b/g
Frequency modulation technique T DSSS,OFDM
Data speed T 1,2,5.5,11,6,9,12,18,24,36,48,54Mbps
Frequency Range 2412-2462MHz
Channel 1-11
Output power 30mW
The channel AREA is controlled with software.
We are preparing software which controls within the range of 1-11 channels. This
software driver software which operates by Window CE5.0.
The released device will only be capable of use on channels 1-11.( excludes for Japan.)
Installation Guide

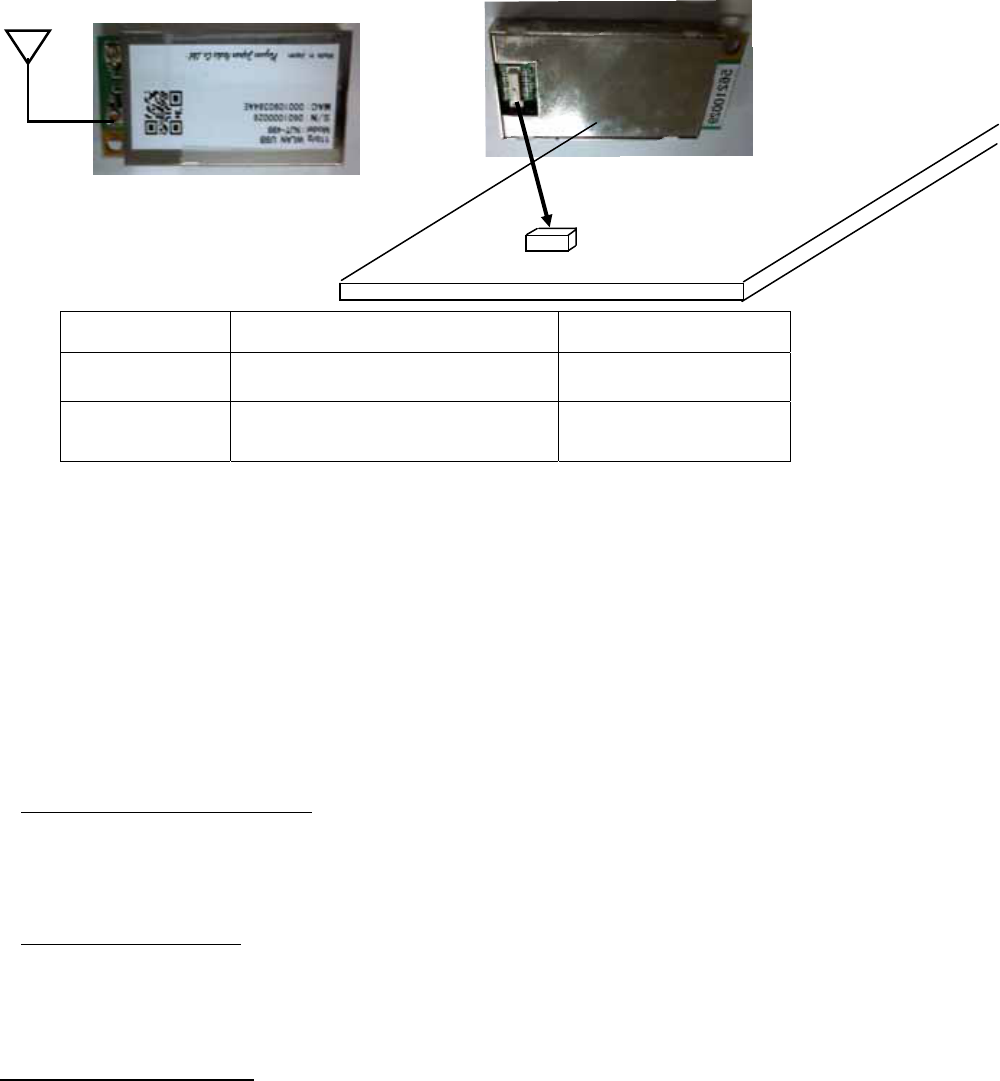

1. Module connected to USB Port on the mother Board in your Equipment. (see below)
NAME SPEC MODEL
I/F Connecter USB Port AXK6F20545YJ
RF Connector
Antenna coaxial connector
U.FL-R-SMT
*We are preparing driver software which operates by Windows CE5.0.
Confirm the homepage of Microsoft to the method of installing the driver software.
You must make sure that 20cm minimum separation is maintained between users and the antenna.
Warning
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Regulatory Information
Compliance statement to FCC/IC
This module complies with part 15 of the FCC rules and IC RSS-210.
Operation is subject to the following conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
RF exposure compliance
1) To comply with FCC/IC RF exposure compliance requirements, a separation distance of at
least 20 cm must be maintained between the antenna of this device and all persons.
2) This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Requirements to end product
This module must be integrated only by OEM integrators under the following conditions.
Mother Board
USB Port
Bottom View
Top View
Connect to USB Port
Antenna
(1) OEM integrator has to be aware not provide information to the users regarding how to install or
remove this module in the users manual of the end product which integrate this module.
Installation by end users is strictly prohibited.
(2) Antenna
OEM integrator shall use this module without any modifications including antenna.
If module integrator uses a unique antenna, the FCC certification is required for the end
product.
OEM integrator must make sure that 20cm minimum separation is maintained between users
and the antenna.
(3) Co-location.
This module must not be co-located or operated in conjunction with any other antenna or
transmitter. The module integrator shall obtain FCC approval for the end product, if the module
is used for co-location operation.
(4) Markings
To satisfy FCC/IC exterior labeling requirements, the following text must be placed on the
exterior of the end product.
Contains Module FCC ID: H5P-RS1NJT499, IC: 6050A-RS1NJT499
Any similar wording that expresses the same meaning may be used.
(5) Caution to user for modification
The following caution is expressed on the user’s instruction manual.
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the device.
(6) Compliance statement to FCC
The following statement is expressed on the user’s instruction manual.
For Class A device;
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.
For Class B device;
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
(7) Compliance statement to IC
The following statement is expressed on the user’s instruction manual.
Operation is subject to the following conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
