Topeak CS01 Speed & Cadence Sensor User Manual M TPB CS01 GB 11 12 v2

Topeak, Inc. Speed & Cadence Sensor M TPB CS01 GB 11 12 v2

Manual

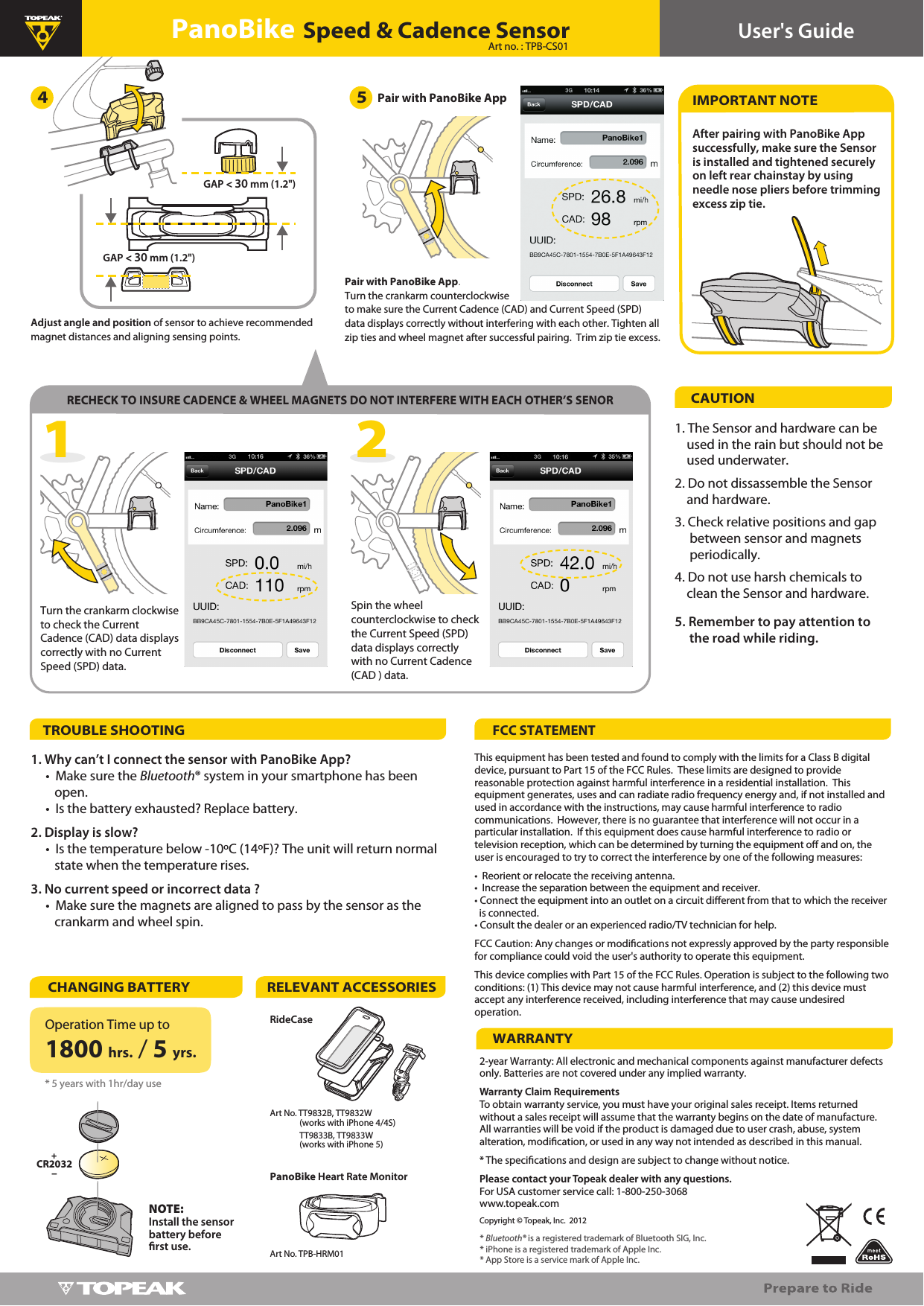

Tighten the Wheel Magnet onto spoke and align with sensing point on sensor.3Unscrew the wheel magnet to install on spoke.Pre-t Sensor and Rubber Bracket on left rear chainstay (non-drive side) and trim excess rubber from bracket. Insure the Topeak logo is facing up. Install zip ties loosely to allow sensor placement. 2Top ViewGBTech: Bluetooth® Smart super low energy technologyBattery Lifetime (approx): 1800 hours (5 years with 1hr/day use)Battery: CR2032 x 1 pc (included)Transmisson Range: <10 meter (33 ft)Waterproof: IPX 7Weight: 21g / 0.74 ozOperating temperature: -10º C ~ 50º C (14º F~122º F)SPECIFICATIONCadence Sensor Sensing PointSpeed Sensor Sensing PointCadence MagnetHolder6mm 8mmZip TieRubber BracketCadence Magnet Set (A)for pedal axle hexagon socket Wheel Magnet SetRubber Bracket SetCadence Magnet Set (B)for crankarmCadence MagnetZip TieCadence MagnetStickerSync to PanoBike App and other Apps with Bluetooth® Smart (BLE 4.0) connection program.INSTALLATIONTIPS : Proper distance between Sensor and Magnet : < 30mmInstall Cadence Magnet on left crankarm near pedal as shown. Do not tighten zip ties completely to allow magnet placement.Cadence Magnet Set (B) CadenceMagnetCadenceMagnetCadence SensorSensing Point Cadence SensorSensing Point Top ViewTop View1For Round SpokesFor Bladed SpokesUser's GuidePanoBike Speed & Cadence SensorIMPORTANT NOTEAlign Cadence Magnet with Cadence Sensor Sensing Point as shown to insure magnet does not interfere with Speed Sensor.IMPORTANT NOTEAlign Wheel Magnet with Speed Sensor Sensing Point as shown to insure magnet does not interfere with Cadence Sensor.IMPORTANT NOTEAlign Cadence Magnet with Cadence Sensor Sensing Point as shown to insure magnet does not interfere with Speed Sensor.Speed SensorSensing Point Preset suitable 6 mm or 8mm Cadence Magnet Set. Cadence Magnet Set (A)(6 mm or 8 mm)6 mm 8 mmArt no. : TPB-CS01
GAP < 30 mm (1.2") GAP < 30 mm (1.2")Pair with PanoBike App2-year Warranty: All electronic and mechanical components against manufacturer defects only. Batteries are not covered under any implied warranty.Warranty Claim RequirementsTo obtain warranty service, you must have your original sales receipt. Items returned without a sales receipt will assume that the warranty begins on the date of manufacture. All warranties will be void if the product is damaged due to user crash, abuse, system alteration, modication, or used in any way not intended as described in this manual.* The specications and design are subject to change without notice.Please contact your Topeak dealer with any questions.For USA customer service call: 1-800-250-3068 www.topeak.comCopyright © Topeak, Inc. 2012WARRANTYCAUTION1. The Sensor and hardware can be used in the rain but should not be used underwater.2. Do not dissassemble the Sensor and hardware. 3. Check relative positions and gap between sensor and magnets periodically.4. Do not use harsh chemicals to clean the Sensor and hardware. 5. Remember to pay attention to the road while riding.TROUBLE SHOOTING1. Why can’t I connect the sensor with PanoBike App? • Make sure the Bluetooth® system in your smartphone has been open. • Is the battery exhausted? Replace battery. 2. Display is slow? • Is the temperature below -10ºC (14ºF)? The unit will return normal state when the temperature rises.3. No current speed or incorrect data ? • Make sure the magnets are aligned to pass by the sensor as the crankarm and wheel spin.RECHECK TO INSURE CADENCE & WHEEL MAGNETS DO NOT INTERFERE WITH EACH OTHER’S SENOR4 5Adjust angle and position of sensor to achieve recommended magnet distances and aligning sensing points. * Bluetooth® is a registered trademark of Bluetooth SIG, Inc.* iPhone is a registered trademark of Apple Inc.* App Store is a service mark of Apple Inc.User's GuidePanoBike Speed & Cadence Sensor1Turn the crankarm clockwise to check the Current Cadence (CAD) data displays correctly with no Current Speed (SPD) data. Pair with PanoBike App. Turn the crankarm counterclockwiseto make sure the Current Cadence (CAD) and Current Speed (SPD) data displays correctly without interfering with each other. Tighten all zip ties and wheel magnet after successful pairing. Trim zip tie excess.CHANGING BATTERYNOTE:Install the sensor battery before rst use.+-CR2032Operation Time up to 1800 hrs. / 5 yrs.* 5 years with 1hr/day useRELEVANT ACCESSORIESPanoBike Heart Rate MonitorArt No. TPB-HRM01RideCaseArt No. TT9832B, TT9832W (works with iPhone 4/4S) TT9833B, TT9833W (works with iPhone 5)2Spin the wheel counterclockwise to check the Current Speed (SPD) data displays correctly with no Current Cadence (CAD ) data.IMPORTANT NOTEAfter pairing with PanoBike App successfully, make sure the Sensor is installed and tightened securely on left rear chainstay by using needle nose pliers before trimming excess zip tie. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.FCC STATEMENTArt no. : TPB-CS01
