Topeak HRM01 Heart Rate Monitor User Manual M TPB HRM01 GB 10 12 v2

Topeak, Inc. Heart Rate Monitor M TPB HRM01 GB 10 12 v2

Manual

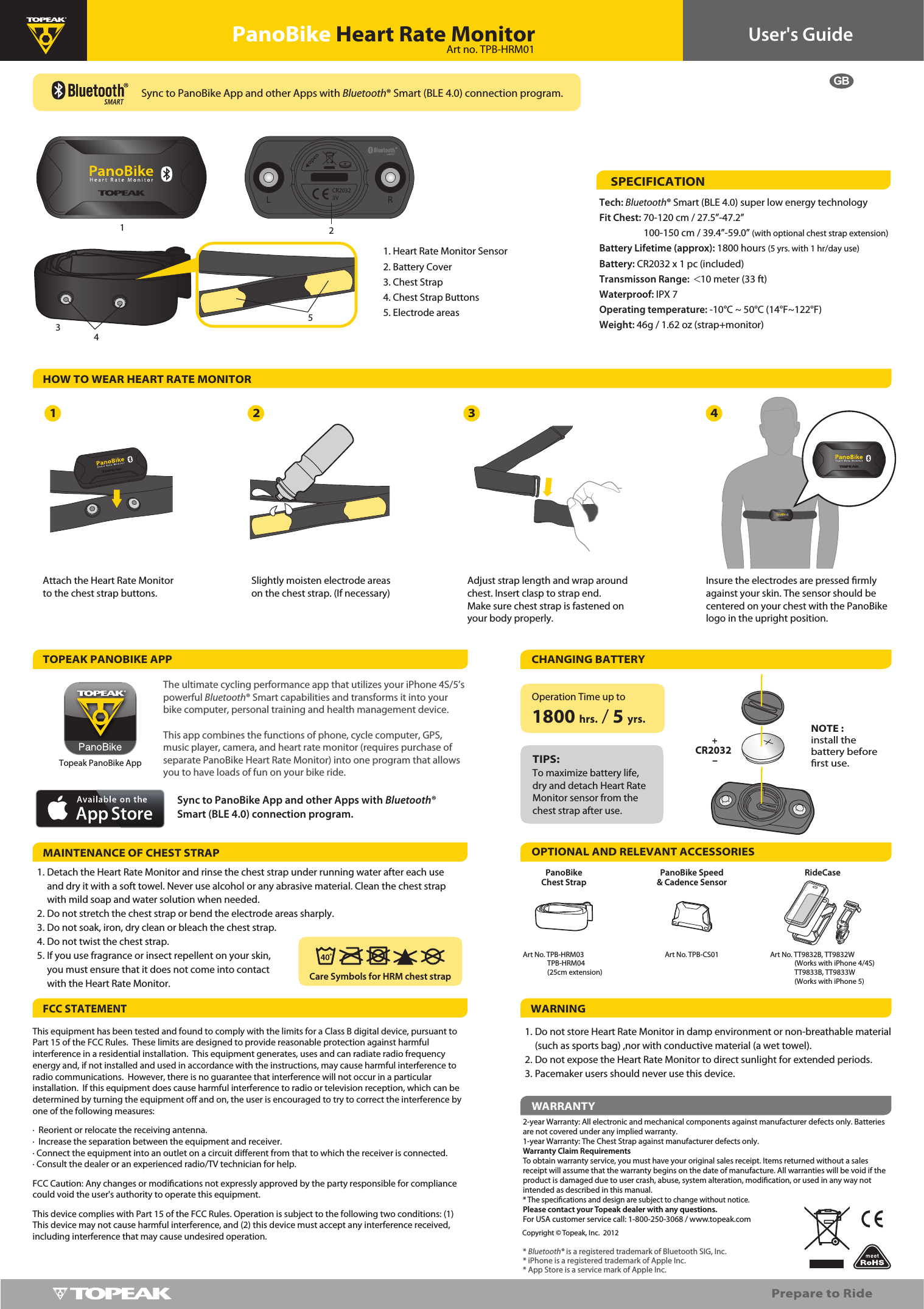

34GBUser's GuidePanoBike Heart Rate MonitorHOW TO WEAR HEART RATE MONITORTOPEAK PANOBIKE APPTech: Bluetooth® Smart (BLE 4.0) super low energy technologyFit Chest: 70-120 cm / 27.5”-47.2” 100-150 cm / 39.4”-59.0” (with optional chest strap extension)Battery Lifetime (approx): 1800 hours (5 yrs. with 1 hr/day use)Battery: CR2032 x 1 pc (included)Transmisson Range: <10 meter (33 ft)Waterproof: IPX 7Operating temperature: -10°C ~ 50°C (14°F~122°F)Weight: 46g / 1.62 oz (strap+monitor)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.SPECIFICATION122-year Warranty: All electronic and mechanical components against manufacturer defects only. Batteries are not covered under any implied warranty.1-year Warranty: The Chest Strap against manufacturer defects only.Warranty Claim RequirementsTo obtain warranty service, you must have your original sales receipt. Items returned without a sales receipt will assume that the warranty begins on the date of manufacture. All warranties will be void if the product is damaged due to user crash, abuse, system alteration, modication, or used in any way not intended as described in this manual. * The specications and design are subject to change without notice.Please contact your Topeak dealer with any questions.For USA customer service call: 1-800-250-3068 / www.topeak.comCopyright © Topeak, Inc. 2012WARRANTYOPTIONAL AND RELEVANT ACCESSORIESPanoBike Speed & Cadence SensorPanoBike Chest Strap1.2.3.4.5.1. Heart Rate Monitor Sensor2. Battery Cover3. Chest Strap4. Chest Strap Buttons5. Electrode areasCHANGING BATTERYTo maximize battery life, dry and detach Heart Rate Monitor sensor from the chest strap after use.TIPS:NOTE :install the battery before rst use.Art No. TPB-HRM03 TPB-HRM04 (25cm extension)Art No. TPB-CS01* Bluetooth® is a registered trademark of Bluetooth SIG, Inc. * iPhone is a registered trademark of Apple Inc.* App Store is a service mark of Apple Inc.Insure the electrodes are pressed rmly against your skin. The sensor should be centered on your chest with the PanoBike logo in the upright position.1 4+-CR2032Operation Time up to 1800 hrs. / 5 yrs.3Adjust strap length and wrap around chest. Insert clasp to strap end. Make sure chest strap is fastened on your body properly.Sync to PanoBike App and other Apps with Bluetooth® Smart (BLE 4.0) connection program.Art no. TPB-HRM01The ultimate cycling performance app that utilizes your iPhone 4S/5’s powerful Bluetooth® Smart capabilities and transforms it into your bike computer, personal training and health management device. This app combines the functions of phone, cycle computer, GPS, music player, camera, and heart rate monitor (requires purchase of separate PanoBike Heart Rate Monitor) into one program that allows you to have loads of fun on your bike ride.Sync to PanoBike App and other Apps with Bluetooth® Smart (BLE 4.0) connection program.Detach the Heart Rate Monitor and rinse the chest strap under running water after each use and dry it with a soft towel. Never use alcohol or any abrasive material. Clean the chest strap with mild soap and water solution when needed. Do not stretch the chest strap or bend the electrode areas sharply.Do not soak, iron, dry clean or bleach the chest strap.Do not twist the chest strap.If you use fragrance or insect repellent on your skin, you must ensure that it does not come into contact with the Heart Rate Monitor.MAINTENANCE OF CHEST STRAPFCC STATEMENTCare Symbols for HRM chest strap5RideCaseArt No. TT9832B, TT9832W (Works with iPhone 4/4S) TT9833B, TT9833W (Works with iPhone 5)Attach the Heart Rate Monitor to the chest strap buttons.2Slightly moisten electrode areas on the chest strap. (If necessary)Topeak PanoBike AppWARNING1.2.3.Do not store Heart Rate Monitor in damp environment or non-breathable material (such as sports bag) ,nor with conductive material (a wet towel).Do not expose the Heart Rate Monitor to direct sunlight for extended periods.Pacemaker users should never use this device.
